Rate-Determining Steps of Oxygen Surface Exchange Kinetics on Sr₂Fe_1.5Mo_0.5O_6−δ

Abstract

The oxygen surface kinetics of Sr₂Fe_1.5Mo_0.5O_6−δ was determined using the ¹⁶O₂/¹⁸O₂ isotope exchange method with gas phase analysis at 600–800 °C. The heterogeneous exchange rates (r_H) and the oxygen diffusion coefficients (D) were calculated by processing the concentration dependences of the ¹⁸O fraction using Ezin’s model. The rates of oxygen dissociative adsorption (r_a) and incorporation (r_i) were calculated based on a model using the three exchange type rates. It has been established that the rates r_a and r_i were comparable in this temperature range. Assumptions were made about the effect of the chemical composition of the surface on the rate of oxygen adsorption. It was found that the oxygen exchange coefficient (k) of Sr₂Fe_1.5Mo_0.5O_6−δ is comparable to that of La_0.6Sr_0.4MnO_3±δ oxide. High values of the oxygen diffusion coefficient were found for Sr₂Fe_1.5Mo_0.5O_6−δ. The values were comparable to those of the double cobaltite praseodymium-barium and exceed by more than an order those of lanthanum-strontium manganite.

1. Introduction

One of the promising areas of development and creation of electrochemical devices is the search for materials with satisfactory physicochemical and electrochemical characteristics. This includes the search for electrode materials for Solid-oxide fuel cells (SOFC). Oxide materials with the like-perovskite structure have been recommended as cathode materials [1,2,3,4,5]. Recently, Sr₂Fe_1.5Mo_0.5O_6−δ (SFM) oxide has been suggested as a promising material for electrochemical devices with symmetrical (i.e., with identical) electrodes [6,7] due to the high stability and electrical conductivity of SFM under oxidizing and reducing conditions [8,9,10,11,12,13,14,15,16,17,18,19]. The rates of hydrogen oxidation and oxygen reduction reactions are also quite high for these electrodes. The polarization resistance can be significantly reduced, by an order of magnitude, by doping crystal lattice, impregnating electrodes, or modifying the microstructure of electrodes [17,18,19,20,21,22,23,24,25,26].

A feature of the SFM electrode is a lower electrochemical activity under oxidizing conditions, when compared to a reducing one. Such behavior of the SFM-based electrodes was shown in [14,27]. This is due to the different modes of the electrode reaction and the rate-determining stages in the oxidizing and reducing atmospheres, demonstrated by analyzing the Distribution of relaxation times (DRT) functions of the SFM electrodes [27]. It should be noted that the kinetics of oxygen reduction on the SFM electrode is not well understood. For example, W. Sun et al. [28] demonstrated that the limiting stage of the electrode reaction was the ionization of adsorbed oxygen. B. He and Y. Wang [17,29] suggested that oxygen ion transfer processes, in particular surface exchange and oxygen diffusion, were limited to the kinetics of oxygen reduction. In our work [24], we concluded that the low electrochemical activity of SFM in air was associated with a low rate of oxygen exchange on the surface, based on a comparison of the DRT function of the SFM electrode in the air atmosphere before and after the introduction of praseodymium oxide into the SFM electrode.

In the present work, the isotope exchange method with gas phase analysis was used to study the oxygen exchange kinetics of SFM with the gas phase. The advantage of this method is the direct determination of the oxygen exchange and oxygen diffusion coefficients. Several works are known in which the chemical exchange coefficients in various atmospheres were shown [29,30,31]. However, the rate-determining stages of the oxygen heterogeneous exchange have not been determined. The aim of this research was the detailed study of the oxygen exchange kinetics of SFM with gas phase by the isotopic exchange technique with gas phase analysis, to determine the nature of the rate-determining steps of oxygen heteroexchange.

2. Materials and Methods

The SFM powder was obtained by solid state synthesis by mixing Sr(NO₃)₂, Fe₂O₃, and MoO₃ (the concentration of the main component was not less than 99.5%). The synthesis was carried out in two stages at temperatures of 750 °C for 2 h and 1100 °C for 10 h in air. The X-ray powder diffraction (XRD) pattern of SFM powder was shown in our previous paper [32]. X-ray powder diffraction (XRD) and structural analysis were carried out by using the D/MAX-2200 RIGAKU conventional diffractometer in CuKα-radiation (λ(Kα1) = 1.54 Å) at room temperature in ambient air. The diffraction pattern was collected in the 2θ range of 10°–70° with steps of 0.02°. The program Fullprof was used for the Rietveld refinement of the crystal structure of the compound. According to the XRD powder analysis pattern, the SFM oxide does not have any impurities. All the diffraction peaks of the SFM could be indexed as a cubic perovskite unit cell (space group Pm3m, a = 3.9227(6) Å [33]), which is in agreement with the literature [34]. Dry SFM powder (without a binder) was pressed into tablets and sintered at 1250 °C for 10 h in ambient air. After sintering, the tablets were mechanically thinned to 1 mm and polished on both sides using two types of diamond paste (ASM 7/5 NVM, grit size 5–7 μm, and ASM 1/0 NOM, grit size 1 μm). After that, the samples were cleaned in an ultrasonic bath in three stages, sequentially: in distilled water, isopropyl alcohol, and acetone for 20 min each.

The cross-section of the sample was made for taking micrographs. For this, a dense sample was placed in an epoxy resin under vacuum, kept until it hardened, and polished using a Struers Labopol device. The SEM images and the map of element distribution were obtained using an electron microscope MIRA 3LMU with the X-ray energy-dispersive microanalysis system.

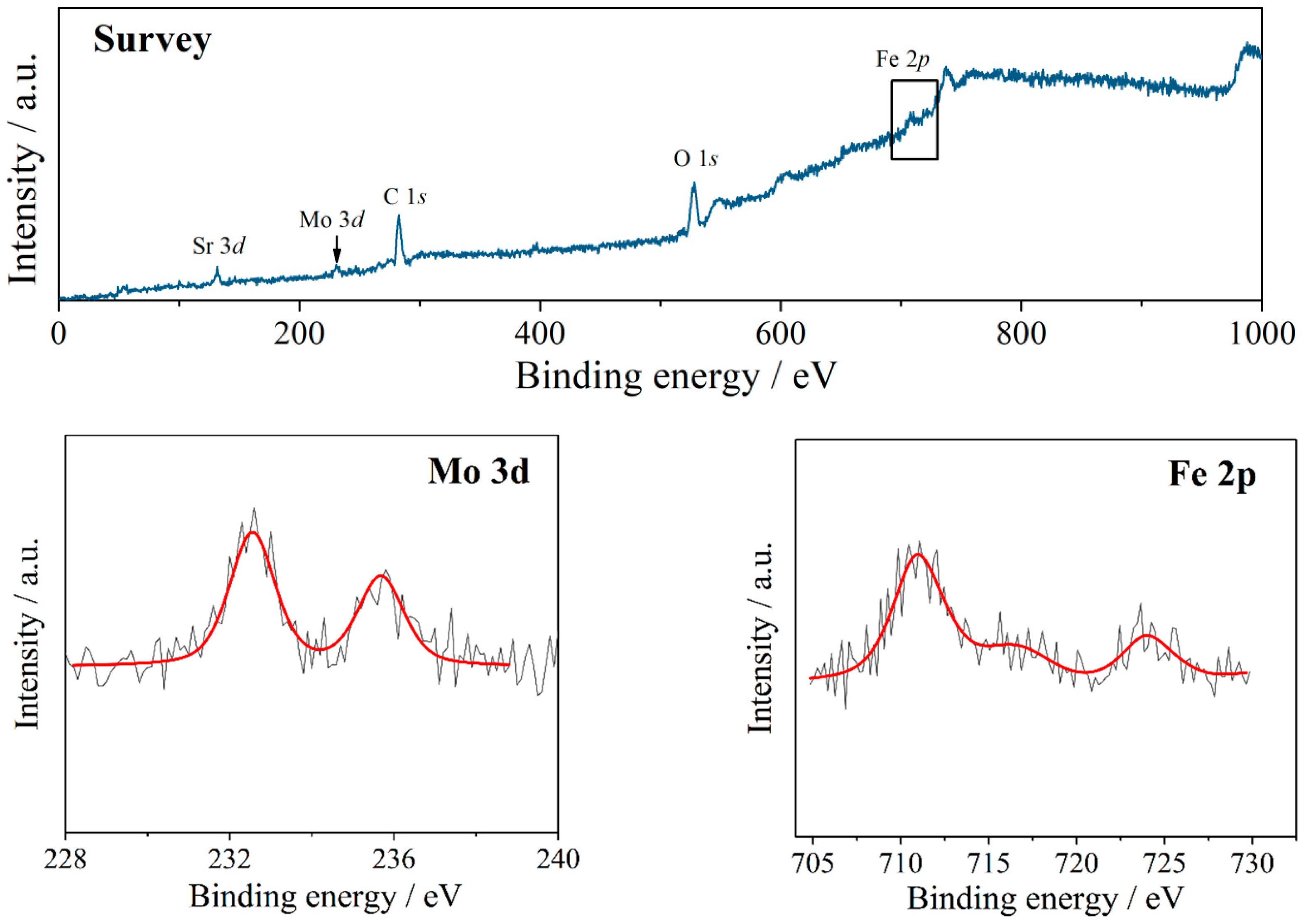

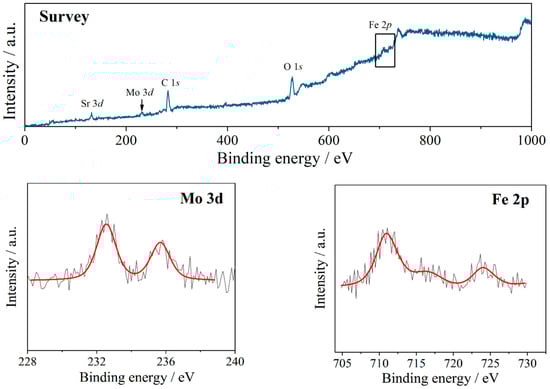

X-ray photoelectron spectra were obtained by the spectrometric complex Multiprob. The radiation of an X-ray source of MgK_α with an energy of 1253.6 eV was used.

The kinetics of oxygen isotope exchange between gas-phase oxygen and SFM oxide was studied in the temperature range 600–800 °C at an oxygen pressure Po₂ = 10⁻² atm. Enriched ¹⁸O oxygen was used as a label, the proportion of which in the mixture was 83.6%. A detailed description of the experimental procedure, the assessment of the accuracy of the determination of the heterogeneous exchange rate (r_H, atom cm⁻² s⁻¹) and the oxygen diffusion coefficient (D, cm² s⁻¹), and the calculation of the dissociative adsorption rate (r_a, atom cm⁻² s⁻¹) and the oxygen incorporation rate (r_i, atom cm⁻² s⁻¹) are described in [35,36,37]. During the experiment, periodical changes in the ion current corresponding to the masses 32, 34, and 36 (¹⁶O₂, ¹⁶O¹⁸O, ¹⁸O₂) were recorded using a quadrupole mass spectrometer Agilent 5973N.

3. Results and Discussion

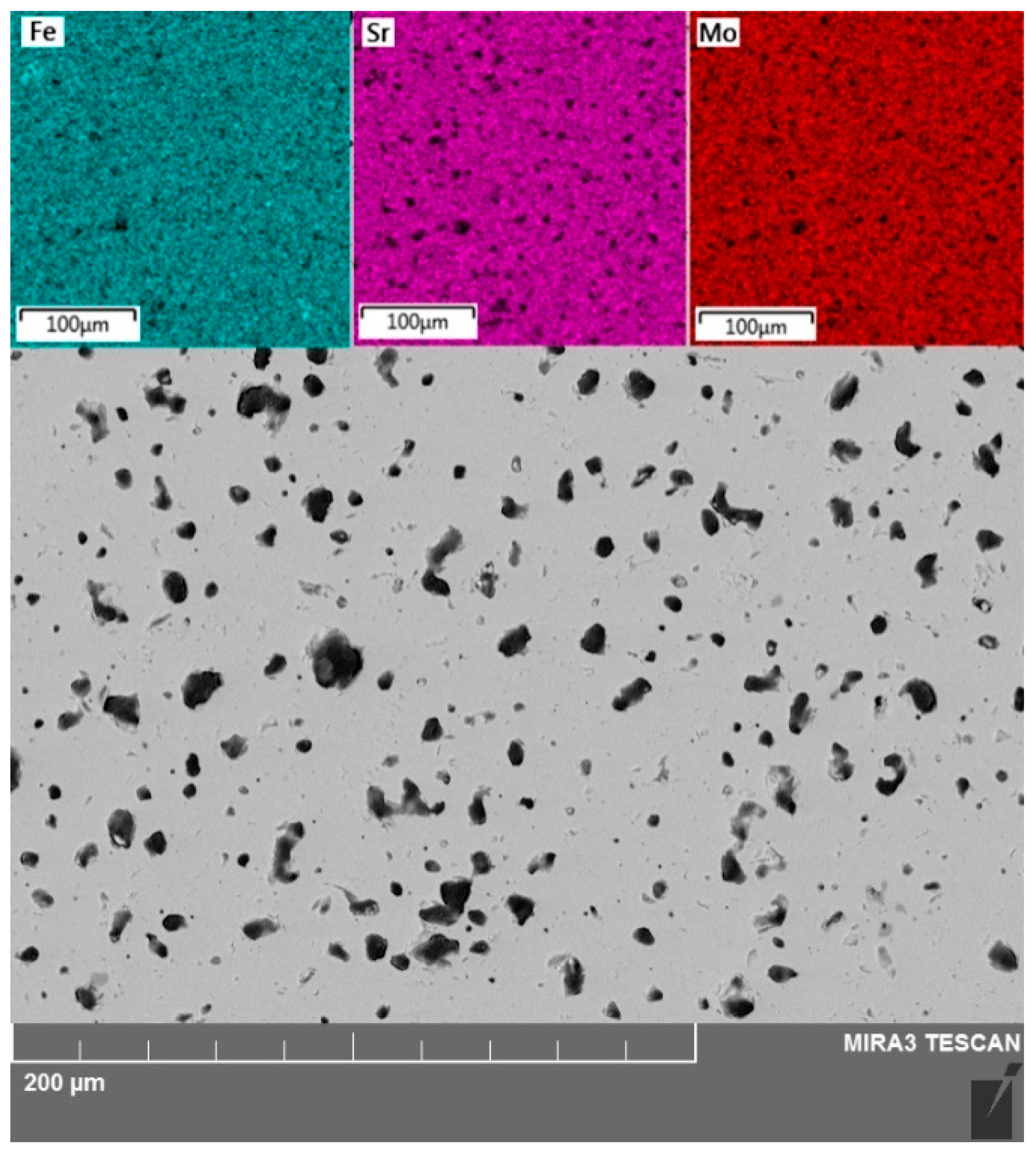

The SEM image processing analysis by the ImageJ program indicated that the porosity of SFM was about 8%. An increase in the sintering time did not lead to a significant change in the porosity. An increase in the sintering temperature by 50 °C led to the melting of the material. The energy dispersive X-ray analysis revealed a homogeneous distribution of Fe, Sr, and Mo cations on the surface layer of SFM (Figure 1).

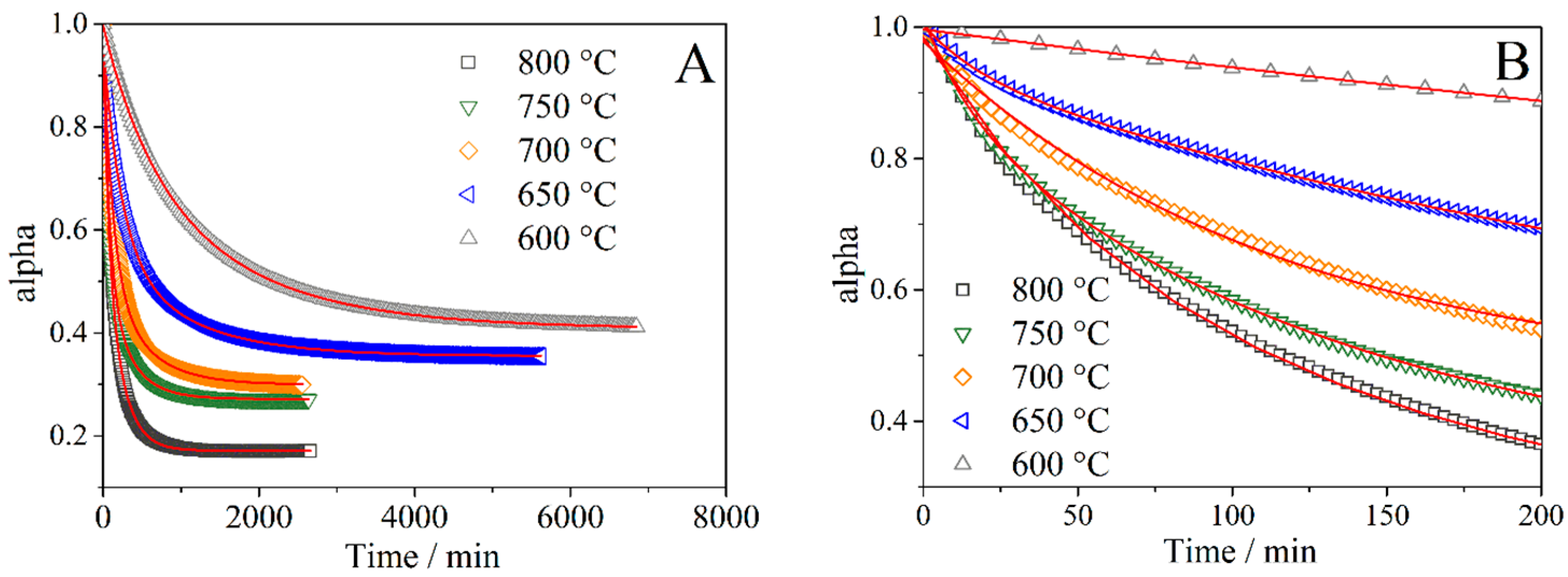

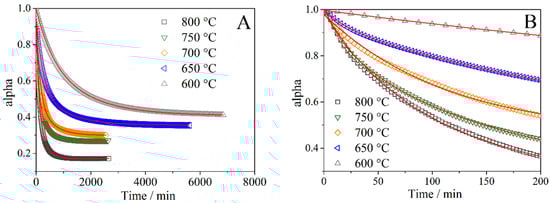

The typical dependences of the fraction of isotope ¹⁸O in the gas phase under experimental conditions are shown on Figure 2. The dependence type has an exponential form, i.e., kinetics was complicated by oxygen diffusion. Two kinetic equations related to ¹⁸O in the gas phase (α, alpha) and the deviation of the ¹⁸O₂ concentration from the equilibrium ($\dot{Z}$) were used to describe the kinetics of isotopic exchange:

$$\{\begin{array}{l}\dot{\alpha }=r_H({\alpha }_S-\alpha )\\ \dot{Z}=C_{36}-C_{36}^{\infty }\end{array}$$

(1)

where $\dot{\alpha }$—change in the concentration of ¹⁸O in the gas phase; α_s—the fraction of the oxygen isotope on the surface. These equations and the following are written as dimensionless quantities to simplify perception.

The experimental data are described using the model obtained by A. Ezin et al. [38], based on the decision of K. Klier et al. [39]. The model is the result of solving a system of two equations with boundary and initial conditions:

$$\{\begin{array}{l}\frac{N}{S}\dot{\alpha }=r_H({\alpha }_S-\alpha )\\ \frac{N}{S}\dot{y}=-ry+2r_2{({\alpha }_S-\alpha )}^2\\ \dot{\alpha }=D{\nabla }^2\alpha \\ r=r_0+r_1+r_2\end{array}$$

(2)

where S is the surface area of the sample; N is the amount of oxygen in the gas phase; α is the ¹⁸O fraction; y is the value equal to the difference between the concentration of ¹⁸O¹⁶O molecules at time t from the equilibrium value; r is the sum of the rates of the three types of exchange. The first type of exchange r₀ occurs without the participation of oxygen oxide; one and two oxygen atoms from the oxide surface participate in the exchange of the second r₁ and third r₂ types, respectively.

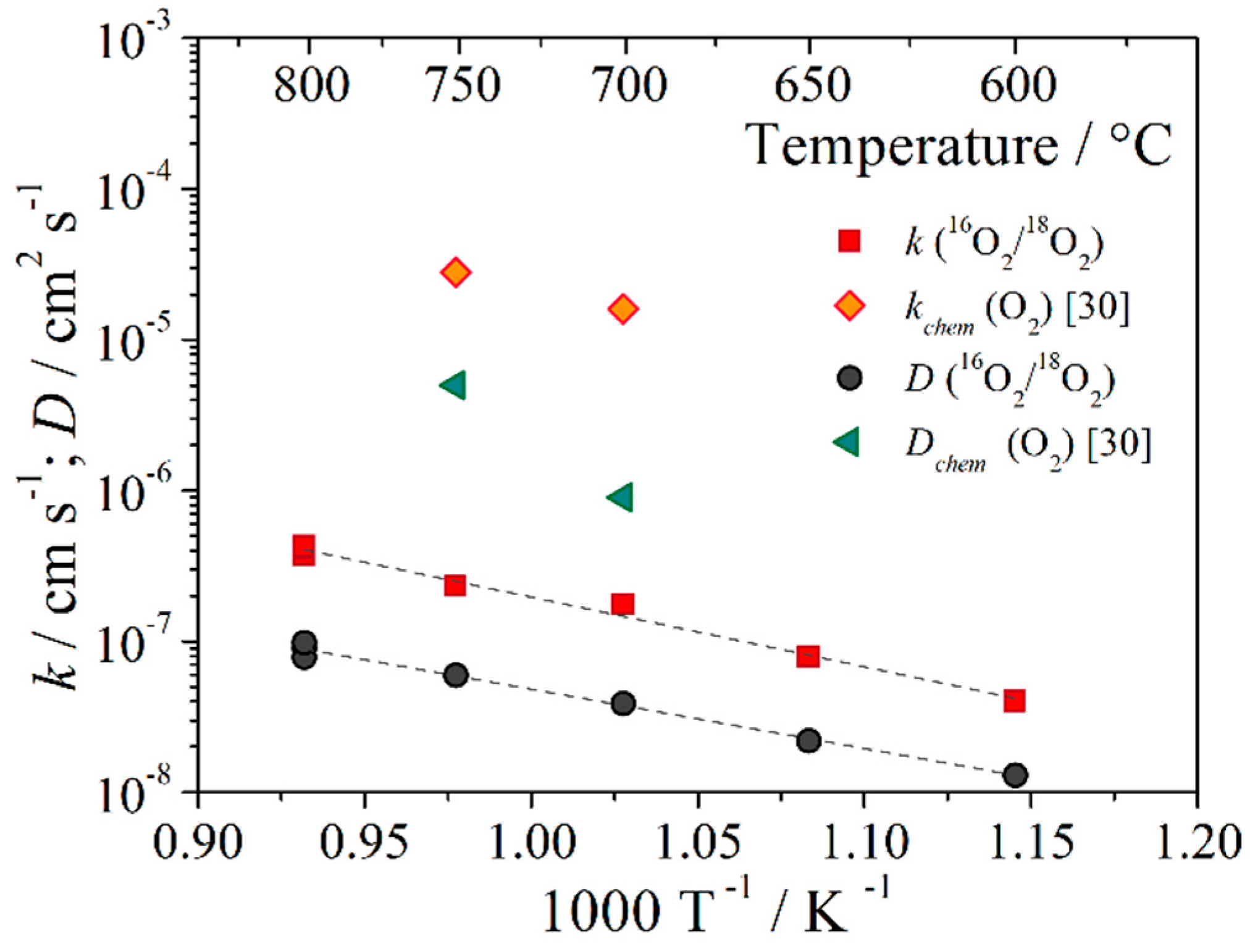

Figure 3 shows the temperature dependence of the oxygen exchange and diffusion coefficients for SFM oxide at an oxygen pressure of Po₂ = 10⁻² atm. The results are given in comparison with the data from [30] for SFM.

The ratio for recalculation was used to compare the values of the oxygen heterogeneous rate (r_H) with the published data of the oxygen surface exchange coefficient (k):

$$k=r_H\frac{M_r}{(6-\delta )N_A\rho }$$

(3)

where r_H is the oxygen heterogeneous rate (atom cm⁻² s⁻¹); k is the oxygen surface exchange coefficient (cm s⁻¹); M_r is the molecular mass; N_A is the Avogadro constant; and $\rho$ is the crystallographic density.

An earlier work led by H.J.M. Bouwmeester studies the surface oxygen exchange coefficients of Sr₂Fe_1.5Mo_0.5O_6−δ oxide in atmospheres CO + CO₂ and H₂ + H₂O, obtained by the method of relaxation of electrical conductivity [29,31]. It can be noted that in the reducing atmosphere (Po₂ change from 0.1 to 1 atm.) the chemical oxygen exchange coefficient was an order of magnitude higher than the values in the oxidizing atmosphere (Po₂ change from 2.6 × 10⁻²³ to 9.4 × 10⁻²⁴ atm.) at 750 °C: 2.3 × 10⁻⁶ and 3.7 × 10⁻⁷ m s⁻¹, respectively [31]. We also obtained a tendency to increase the coefficient of oxygen exchange from temperature by the method of oxygen isotope exchange; the activation energy was 0.91 ± 0.03 eV (Figure 3). The oxygen heterogeneous coefficient (r_H) was recalculated into the oxygen exchange coefficient according to Equation (3); a value equal to 3.7 × 10⁻⁹ m s⁻¹ at 750 °C was obtained, which is two orders of magnitude lower than the chemical coefficient. There were also differences in the values of the oxygen diffusion coefficient and the chemical diffusion coefficient. It is likely that charge transfer, oxygen vacancies, and exchangeable oxygen can significantly affect the differences in values. In confirmation, SFM compounds have a mixed ionic and electronic conductivity. However, the electronic conductivity is much higher than the ionic one [28]. The activation energy of the oxygen diffusion coefficient was 0.78 ± 0.03 eV in the temperature range 600–800 °C. This value is comparable to the activation energy of oxygen flows through Sr₂Fe_1.5Mo_0.5O_6−δ, equal to E_a = 0.798 eV [17]. This indirectly suggests that the obtained value of D corresponds only to the ionic diffusion coefficient.

The values of the individual stages of oxygen adsorption (r_a, atom cm⁻² s⁻¹) and incorporation (r_i, atom cm⁻² s⁻¹) were calculated to determine the rate-determining process of the interaction of oxygen in the gas phase and the oxide oxygen by the model based on the use of the values of three types of exchange: r₀, r₁, and r₂ [37], where O_a corresponds to the adsorption site and O_s is the incorporated oxygen:

$$\mathrm{O}{}^{18}\mathrm{O}+{}^{16}\mathrm{O}_a\stackrel{r_a}{=}\mathrm{O}{}^{16}\mathrm{O}+{}^{18}\mathrm{O}_a$$

(4)

$${}^{18}\mathrm{O}_a+{}^{16}\mathrm{O}_s\stackrel{r_i}{=}{}^{16}O_a+{}^{18}\mathrm{O}_s$$

(5)

$$r_0=r_a{\left(1-\frac{r_i}{r_a+r_i}\right)}^2$$

(6)

$$r_1=2\frac{r_a{r}_i}{r_a+r_i}\left(1-\frac{r_i}{r_a+r_i}\right)$$

(7)

$$r_2=r_a{\left(\frac{r_i}{r_a+r_i}\right)}^2$$

(8)

$$r=r_a=r_0+r_1+r_2$$

(9)

$$r_i=\frac{r_a{r}_H}{r_a-r_H}.$$

(10)

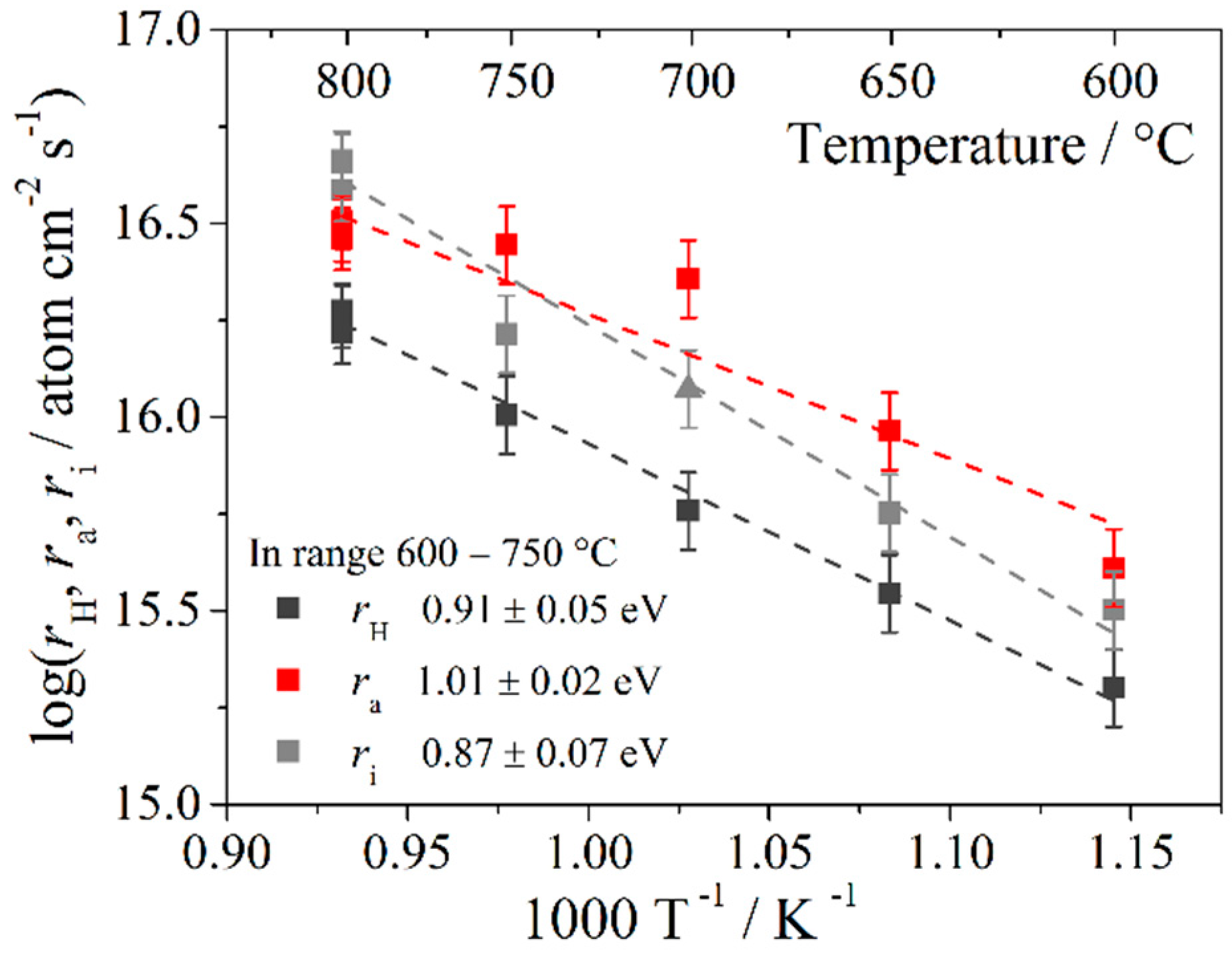

Figure 4 shows the temperature dependences of the rates of oxygen heterogeneous exchange, adsorption, and incorporation at an oxygen pressure Po₂ = 10⁻² atm. The oxygen incorporation and adsorption rates were comparable in the 600–800 °C temperature range. The activation energy of oxygen incorporation (0.87 ± 0.07 eV) was close to the activation energy of oxygen diffusion (0.78 ± 0.03 eV); we can conclude that the stage of oxygen incorporation step for Sr₂Fe_1.5Mo_0.5O_6−δ was limited by oxygen diffusion from the bulk to the surface. In this case, it is not clear why the incorporation rate was comparable to the adsorption rate, since the diffusion coefficient was quite high. The oxygen adsorption rate can be significantly affected by the state of the sample surface. Therefore, studies have been conducted on the elemental composition of surfaces by the XPS method (Figure 5). The presence of all elements on the surface was determined from the results for a dense sample after isotopic measurements; their ratio was defined as A₂B₂O_6−δ—13.5:14.1:72.4 mol%, which is close to the formula unit. However, for iron and molybdenum the ratio was not retained and was equal to 8.2:5.9 mol%. All values are indicated as a percentage of the stoichiometric total number of elements. It can be assumed that surface degradation occurred due to the displacement of heavier ions from the volume to its surface. To understand the processes of oxygen exchange on the surface, we considered the bond strength of Fe–O and Mo–O. According to Shannon [40], the effective ionic radii for ^VIMo⁺⁶ is 0.59 Å and for ^VIFe⁺³ 0.65 Å. From this, it follows that the Mo–O bond is shorter than the Fe–O bond; therefore, the binding energy for Mo–O is higher, which indicates a stronger bond. These results show a good agreement with the crystallographic structure obtained by the structural refinement results for Sr₂Fe_1.5Mo_0.5O_6−δ from powder neutron diffraction. In particular, the Fe–O and Mo–O distances were close to the average values (rFeO = 1.945(6) Å, rMoO = 1.928(9) Å) reported in [41], confirming that the Mo–O distance is slightly shorter (~0.02 Å) than the Fe–O one. Thus, it turns out that the Mo–O bond is more difficult to break, which is directly related to oxygen adsorption on the surface. Thus, an increase in the concentration of molybdenum on the surface apparently leads to a decrease in the rate of oxygen adsorption.

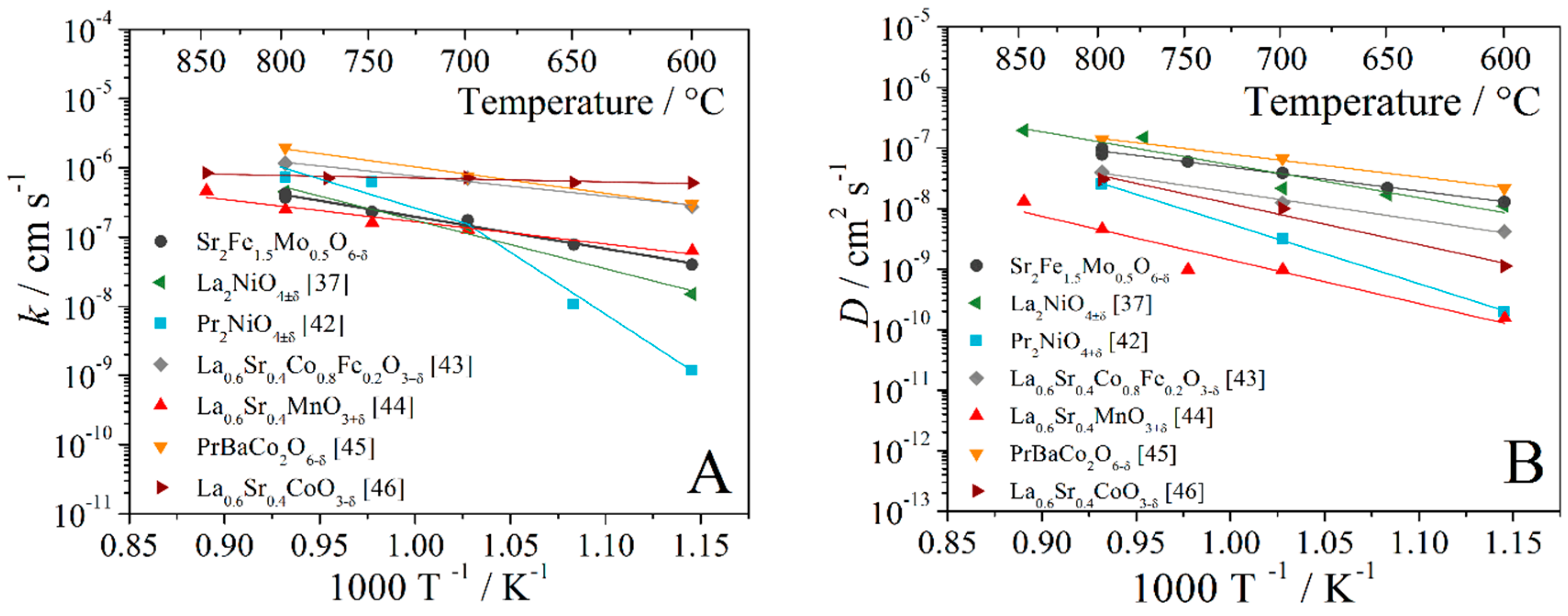

The temperature dependences of the oxygen surface exchange and diffusion coefficients for different oxides are shown in Figure 6. In these graphs, the oxide materials with perovskite and Ruddlesden–Popper structures were selected as analogues for SFM that could be used as cathode materials in electrochemical devices. The values of the oxygen surface exchange coefficients of strontium ferrite-molybdate were commensurate with La_0.6Sr_0.4MnO_3+δ oxide. High values of the oxygen diffusion coefficients for Sr₂Fe_1.5Mo_0.5O_6−δ oxide were obtained; these values were comparable to the values for praseodymium-barium double cobaltite and exceeded the lanthanum-strontium manganite by more than an order of magnitude.

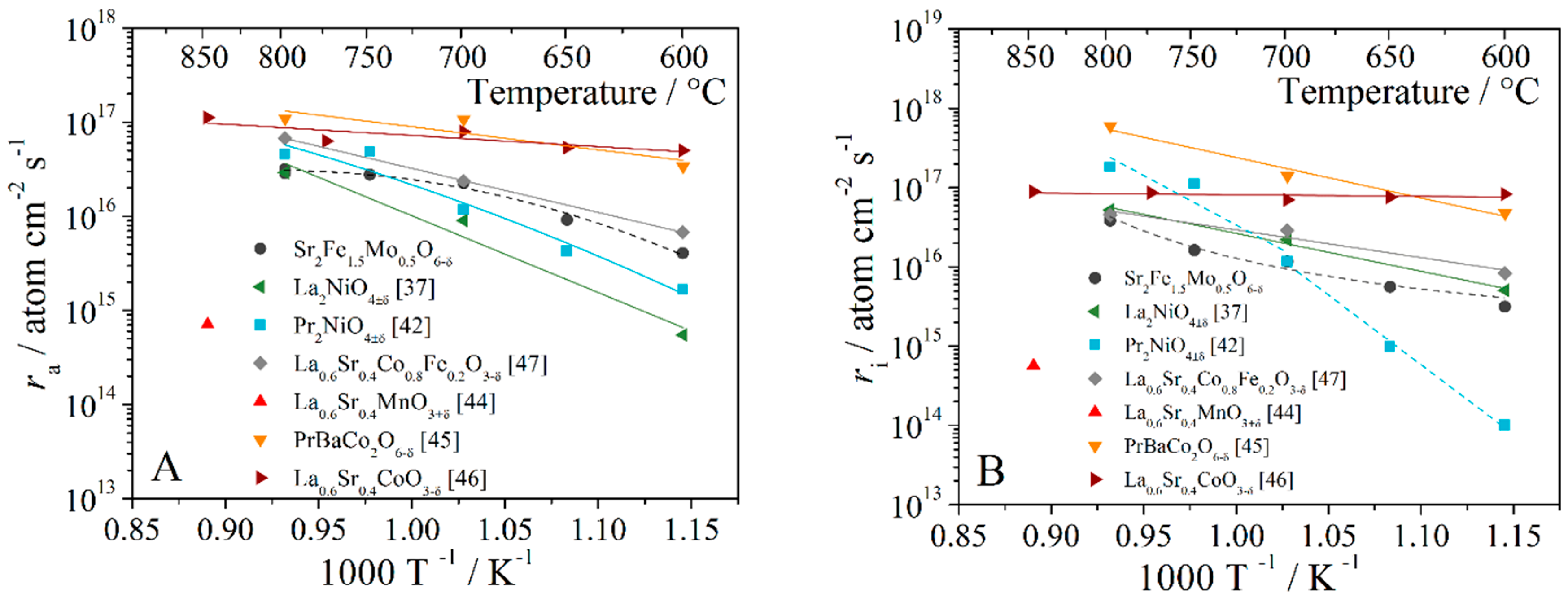

The dependences of the dissociative adsorption and oxygen incorporation rates of some oxides are shown in Figure 7. The values are quite low compared to the rates of identical materials, but overall they are at a good level. The rates of strontium ferrite-molybdate are similar in magnitude to those of cobaltite-ferrite, which is two orders of magnitude higher than the values for lanthanum-strontium manganite.

The results of this work fully confirmed our hypothesis about the slow oxygen heterogeneous exchange by Sr₂Fe_1.5Mo_0.5O_6−δ with the gas phase, which we suggested in [19,22], based on the analysis of the impedance spectra of the Sr₂Fe_1.5Mo_0.5O_6−δ electrode in an oxidizing atmosphere. Although Sr₂Fe_1.5Mo_0.5O_6−δ oxygen electrodes have high oxygen conductivity and oxygen diffusion coefficients, the rate of electrode reaction to the Sr₂Fe_1.5Mo_0.5O_6−δ electrode will be limited by the oxygen incorporation rate. To reduce the contribution of this process to the polarization resistance of the oxygen electrode, it is necessary to impregnate the Sr₂Fe_1.5Mo_0.5O_6−δ electrode with active oxides, for example, praseodymium oxide [19], or add mixed conductors to SFM, for example, based on cerium oxide [9,20], or increase the concentration of electronic charge carriers in Sr₂Fe_1.5Mo_0.5O_6−δ, for example, doping with heterovalent cations.

4. Conclusions

The heterogeneous exchange rate, the oxygen diffusion coefficient, and the rates of oxygen dissociative adsorption and incorporation for Sr₂Fe_1.5Mo_0.5O_6−δ were determined at the temperature range 600–800 °C and the oxygen pressure 10⁻² atm. It was shown that the oxygen exchange coefficient is 4 × 10⁻⁸–4 × 10⁻⁷ cm s⁻¹ at the temperature range 600–800 °C and is comparable in value to the exchange rate of lanthanum-strontium manganite. The oxygen diffusion coefficient has high values equivalent to those of praseodymium-barium double cobaltite. The results fully confirmed our assumption expressed in earlier works on the slow oxygen heterogeneous exchange rate of Sr₂Fe_1.5Mo_0.5O_6−δ with a gas phase. Surface modification probably made a significant contribution to the oxygen adsorption rate. It was shown that in the temperature range 600–800 °C it is not possible to distinguish the rate-determining stage. We can conclude that this composition is promising as a basis for cathode materials of SOFC, due to its good performance in the reaction of oxygen exchange and stability in the oxidizing atmospheres.
