# A Simplified Model of Coaxial, Multilayer High-Temperature Superconducting Power Cables with Cu Formers for Transient Studies

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

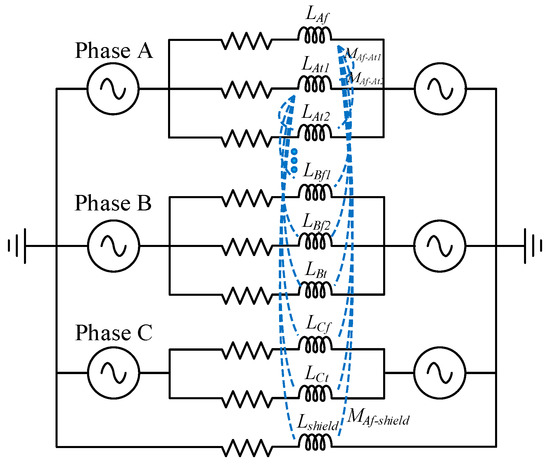

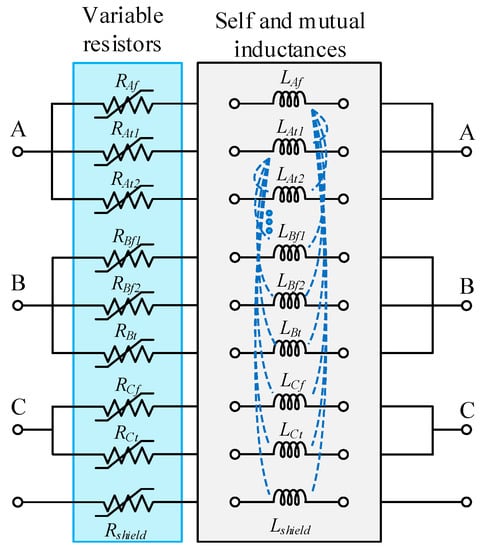

## 2. Cable Modeling in PSCAD/EMTDC

_{HTS}) and the Cu-former (R

_{Cu}) layer were equal to the resistance in the normal state. Otherwise, the resistance of the HTS layer was set to the maximal value that was obtained from experimental measurements, while the resistance of the Cu-former layer was calculated by the subprocess in Figure 4b. The process in Figure 4 was executed in every time-step. The rapid rise in the former current caused a change in energy dissipation ($\Delta {J}_{i}$), resulting in an increased temperature ($\Delta T$). The resistively of the former (${\rho}_{Cu,i}$) was changed according to the increase of the temperature, which led to an increase in former resistance (${r}_{AC,i}$).

_{i}is the temperature of layer i in Kelvin; ${A}_{FE,i}$ is the former effective area; l is the cable length in meters; and ${\rho}_{Cu,i}$ is in Ωm.

^{3}; ${\mu}_{Cu}$ is the atomic mass of copper; volumetric heat capacity is in J/(Km

^{3}); and the coefficients ${a}_{n}$ are given by Table 1.

## 3. Simulation Results

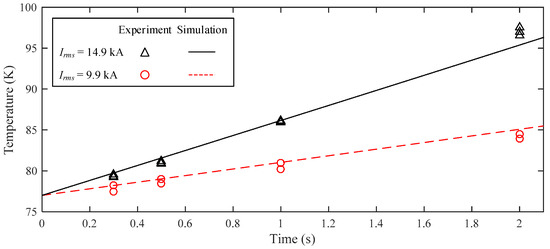

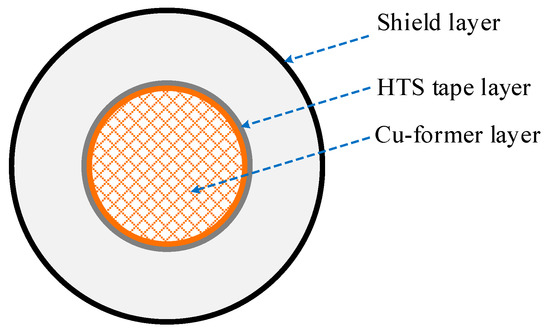

#### 3.1. Validation of the High-Temperature Superconducting (HTS) Cable Model

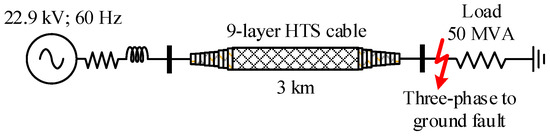

#### 3.2. Performance of the Coaxial Multilayer HTS Cable Model

_{1}was highest. The resistance and temperature rise of the former in phase A were the smallest because the cross-section of former phase A was relatively large compared to other former layers. The resistances of formers in phase B and C were similar because they had similar geometries. However, the fault current in phase C was much larger than phase B, which resulted in a higher temperature of former phase C compared to former phase B.

## 4. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Kottonau, D.; de Sousa, W.T.B.; Bock, J.; Noe, M. Design comparisons of concentric three-phase HTS cables. IEEE Trans. Appl. Supercond.
**2019**, 29, 1. [Google Scholar] [CrossRef] - Gholizad, B.; Ross, R.; Koopmans, G.; Mousavi Gargari, S.; Smit, J.J.; Ghaffarian Niasar, M.; Meijer, C.; Bucurenciu, A.M. Reliability considerations of electrical insulation systems in superconducting cables. Proc. IEEE Int. Conf. Prop. Appl. Dielectr. Mater.
**2018**, 2018, 194–197. [Google Scholar] - McGuckin, P.; Burt, G. Overview and assessment of superconducting technologies for power grid applications. In Proceedings of the 53rd International Universities Power Engineering Conference UPEC, Glasgow, UK, 4–7 September 2018. [Google Scholar]
- Lee, S.J.; Park, M.; Yu, I.K.; Won, Y.; Kwak, Y.; Lee, C. Recent status and progress on HTS cables for AC and DC power transmission in Korea. IEEE Trans. Appl. Supercond.
**2018**, 28, 1–5. [Google Scholar] [CrossRef] - Youroukos, E. Economic Feasibility Study of ULMCS. Bachelor’s Thesis, National Technology University of Athens, Athens, Greece, 2007. [Google Scholar]
- Lee, C.; Kim, D.; Kim, S.; Won, D.Y.; Yang, H.S. Thermo-hydraulic analysis on long three-phase coaxial HTS power cable of several kilometers. IEEE Trans. Appl. Supercond.
**2019**, 8223, 1. [Google Scholar] [CrossRef] - Samoilenkov, S.V.; Ivanov, S.S.; Lipa, D.; Balashov, N.N.; Altov, V.A.; Zheltov, V.V.; Sytnikov, V.E.; Degtyarenko, P.N.; Kopylov, S.I. Design versions of HTS three-phase cables with the minimized value of AC losses. J. Phys. Conf. Ser.
**2018**, 969, 012049. [Google Scholar] - Yagi, M.; Fukushima, H.; Serizawa, M.; Mimura, T.; Nakano, T.; Mukoyama, S.; Takagi, T. Protection against ground faults for a 275-kV HTS cable: An experiment. IEEE Trans. Appl. Supercond.
**2018**, 28, 1–4. [Google Scholar] - Bykovsky, N.; Uglietti, D.; Wesche, R.; Bruzzone, P. Damage investigations in the HTS cable prototype after the cycling test in EDIPO. IEEE Trans. Appl. Supercond.
**2018**, 28. [Google Scholar] [CrossRef] - Fu, Y.; Tsukamoto, O.; Furuse, M. Copper stabilization of YBCO coated conductor for quench protection. IEEE Trans. Appl. Supercond.
**2003**, 13, 1780–1783. [Google Scholar] [CrossRef] - Ishiyama, A.; Wang, X.; Ueda, H.; Yagi, M.; Mukoyama, S.; Kashima, N.; Nagaya, S.; Shiohara, Y. Over-current characteristics of superconducting model cable using YBCO coated conductors. Phys. C Supercond. Appl.
**2008**, 468, 2041–2045. [Google Scholar] [CrossRef] - Yagi, M.; Mukoyama, S.; Hirano, H.; Amemiya, N.; Ishiyama, A.; Nagaya, S.; Kashima, N.; Shiohara, Y. Recent development of an HTS power cable using YBCO tapes. Phys. C Supercond. Appl.
**2007**, 463–465, 1154–1158. [Google Scholar] [CrossRef] - Kim, S.H.; Seong, K.C.; Lee, C.Y.; Cho, J.W.; Jang, H.M.; Sim, K.D.; Kim, H.J.; Kim, J.H.; Bae, J.H. Design of HTS transmission cable with Cu stabilizer. IEEE Trans. Appl. Supercond.
**2006**, 16, 1622–1625. [Google Scholar] - Grilli, F. Numerical modeling of HTS applications. IEEE Trans. Appl. Supercond.
**2016**, 26, 1–8. [Google Scholar] [CrossRef] - Doukas, D.I.; Chrysochos, A.I.; Papadopoulos, T.A.; Labridis, D.P.; Harnefors, L.; Velotto, G. Coupled electro-thermal transient analysis of superconducting DC transmission systems using FDTD and VEM modeling. IEEE Trans. Appl. Supercond.
**2017**, 27, 1–8. [Google Scholar] [CrossRef] - Fukui, S.; Ogawa, J.; Suzuki, N.; Oka, T.; Sato, T.; Tsukamoto, O.; Takao, T. Numerical analysis of AC loss characteristics of multi-layer HTS cable assembled by coated conductors. IEEE Trans. Appl. Supercond.
**2009**, 19, 1714–1717. [Google Scholar] [CrossRef] - Fetisov, S.S.; Zubko, V.V.; Zanegin, S.Y.; Nosov, A.A.; Vysotsky, V.S. Numerical simulation and cold test of a compact 2G HTS power cable. IEEE Trans. Appl. Supercond.
**2018**, 28. [Google Scholar] [CrossRef] - Zhou, Z.; Zhu, J.; Li, H.; Qiu, M.; Li, Z.; Ding, K.; Wang, Y. Magnetic-thermal coupling analysis of the cold dielectric high temperature superconducting cable. IEEE Trans. Appl. Supercond.
**2013**, 23, 3–6. [Google Scholar] - Conductor, Y.C.; Breschi, M.; Casali, M.; Cavallucci, L.; Marzi, G.D.; Tomassetti, G. Electrothermal analysis of a twisted stacked. IEEE Trans. Appl. Supercond.
**2015**, 25, 2–6. [Google Scholar] - Su, R.; Shi, J.; Yan, S.; Li, P.; Wang, W.; Hu, Z.; Zhang, B.; Tang, Y.; Ren, L. Numerical model of HTS cable and its electric-thermal properties. IEEE Trans. Appl. Supercond.
**2019**, 29. [Google Scholar] [CrossRef] - Yagi, M.; Masuda, T.; Hayakawa, N.; Hasegawa, T.; Mukoyama, S.; Maruyama, O.; Ohkuma, T.; Ashibe, Y.; Amemiya, N.; Ishiyama, A.; et al. Development of 66 kV and 275 kV Class REBCO HTS power cables. IEEE Trans. Appl. Supercond.
**2012**, 23, 5401405. [Google Scholar] - Lee, S.R.; Lee, J.J.; Yoon, J.; Kang, Y.W.; Hur, J. Impact of 154-kV HTS cable to protection systems of the power grid in South Korea. IEEE Trans. Appl. Supercond.
**2016**, 26, 4–7. [Google Scholar] [CrossRef] - Lee, S.; Yoon, J.; Lee, B.; Yang, B. Modeling of a 22.9 kV 50 MVA superconducting power cable based on PSCAD/EMTDC for application to the Icheon substation in Korea. Phys. C Supercond. Appl.
**2011**, 471, 1283–1289. [Google Scholar] [CrossRef] - Bang, J.H.; Je, H.H.; Kim, J.H.; Sim, K.D.; Cho, J.; Yoon, J.Y.; Park, M.; Yu, I.K. Critical current, critical temperature and magnetic field based EMTDC model component for HTS power cable. IEEE Trans. Appl. Supercond.
**2007**, 17, 1726–1729. [Google Scholar] [CrossRef] - Seokho, K.; A-Rong, K.; Ki-Deok, S.; Young-Jin, W.; Daewon, K.; Jun Kyoung, L.; In-Keun, Y.; Jin Geun, K.; Minwon, P.; Jeonwook, C. Development of a PSCAD/EMTDC model component for AC loss characteristic analysis of HTS power cable. IEEE Trans. Appl. Supercond.
**2010**, 20, 1284–1287. [Google Scholar] - Seockho, K.; A-Rong, K.; Jeonwook, C.; Minwon, P.; Ki-Deok, S.; Jae-Ho, K.; Jeadeuk, L.; Jin Geun, K.; In-Keun, Y.; Jun Kyoung, L. HTS power cable model component development for PSCAD/EMTDC considering conducting and shield layers. IEEE Trans. Appl. Supercond.
**2009**, 19, 1785–1788. [Google Scholar] - Ha, S.K.; Kim, S.K.; Kim, J.G.; Park, M.; Yu, I.K.; Lee, S.; Kim, J.H.; Sim, K. RTDS-based model component development of a tri-axial HTS power cable and transient characteristic analysis. J. Electr. Eng. Technol.
**2015**, 10, 2083–2088. [Google Scholar] [CrossRef] - In-Keun, Y.; Minwon, P.; A-Rong, K.; Kideok, S.; Sung-Kyu, K.; Jin-Geun, K.; Sun-Kyoung, H.; Sangjin, L. Transient characteristic analysis of a tri-axial HTS power cable using PSCAD/EMTDC. IEEE Trans. Appl. Supercond.
**2012**, 23, 5400104. [Google Scholar] - Magalhaes, A.P.C.; De Barros, M.T.C.; Lima, A.C.S. Earth return admittance effect on underground cable system modeling. IEEE Trans. Power Deliv.
**2018**, 33, 662–670. [Google Scholar] [CrossRef] - Wikipedia Contributors Skin Effect. Available online: https://en.wikipedia.org/w/index.php?title=Skin_effect&oldid=865187719 (accessed on 11 February 2019).
- White, G.K.; Collocott, S.J. Heat capacity of reference materials: Cu and W. J. Phys. Chem. Ref. Data
**1984**, 13, 1251–1257. [Google Scholar] [CrossRef] - Sim, K. Study on the Design and Transport Characteristics of 22.9 KV, 50 MVA HTS Power Cable. Doctoral Dissertation, Yonsei University, Seoul, Korea, 2011. [Google Scholar]

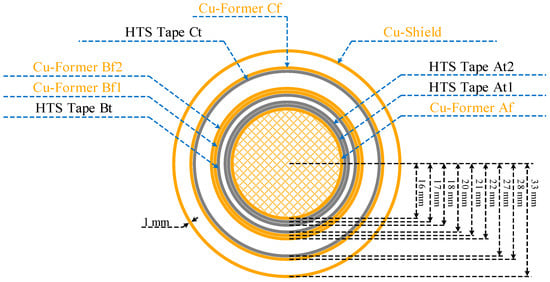

**Figure 1.**Configuration of the coaxial, multilayer high-temperature superconducting (HTS) power cable; phase A consists of two HTS layers and one Cu-former layer; phase B consists of two Cu-former layers and one HTS layer; and phase C consists of one HTS layer and one Cu-former layer. The shield layer is based on copper.

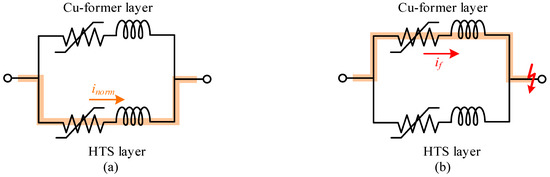

**Figure 2.**Operation characteristics of the HTS cable: (

**a**) current flow into each phase in the normal state; and (

**b**) current flow into each phase in the transient state.

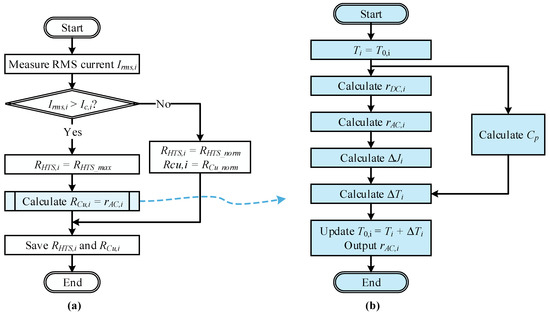

**Figure 4.**Calculation of the resistance and temperature of the Cu-former layer i in each simulation step: (

**a**) calculation process of the proposed model; and (

**b**) subprocess calculates ${R}_{Cu}$.

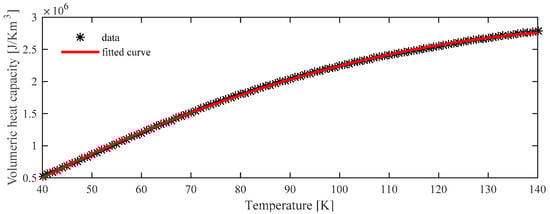

**Figure 5.**Compared results between the uses of the eighth-order interpolating polynomial and quadratic form.

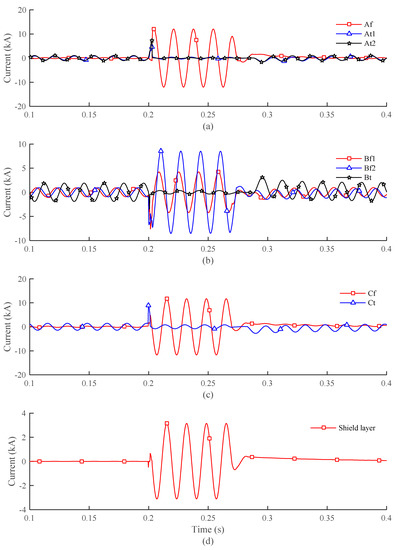

**Figure 10.**Current distribution in each phase of the HTS cable: (

**a**) current in phase A that consists of one former layer (Af) and two HTS tape layers (At

_{1}and At

_{2}); (

**b**) current in phase B that consists of two former layers (Bf

_{1}and Bf

_{2}) and one HTS tape layer (Bt); (

**c**) current in phase C that consists of one former layer (Cf) and one HTS tape layer (Ct); and (

**d**) current in the shield layer.

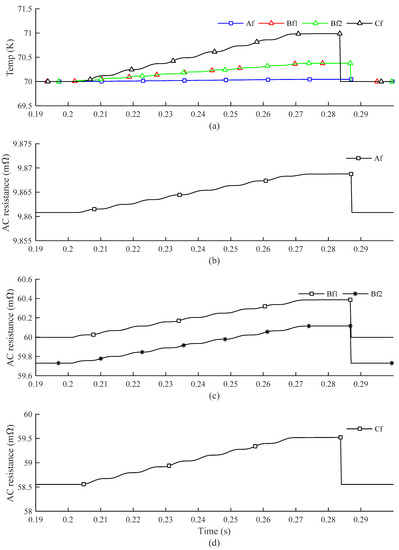

**Figure 11.**The temperature of the Cu-former layers and the equivalent AC resistances of each phase in the HTS cable: (

**a**) temperature of the Cu-former layers; (

**b**) resistance of the former Af; (

**c**) resistances of the former Bf

_{1}and Bf

_{2}; and (

**d**) resistance of the former Cf.

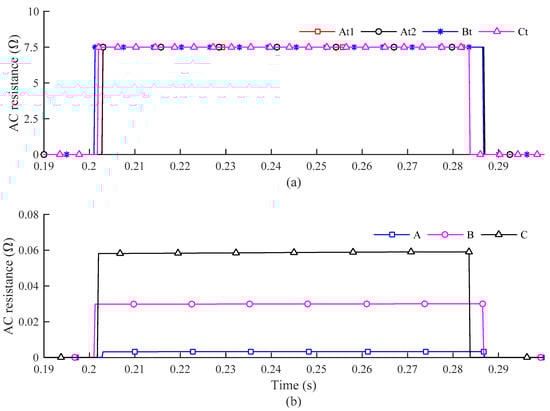

**Figure 12.**AC resistances of the HTS tape layers and the equivalent resistance of each phase: (

**a**) resistance of the HTS tape layers; and (

**b**) equivalent resistance of each phase.

Coefficient | Value | Coefficient | Value |
---|---|---|---|

${a}_{0}$ | 4.89287 | ${a}_{5}$ | −132.5425 |

${a}_{1}$ | −57.51701 | ${a}_{6}$ | 38.17399 |

${a}_{2}$ | 238.2039 | ${a}_{7}$ | −6.07962 |

${a}_{3}$ | −345.4283 | ${a}_{8}$ | 0.4118687 |

${a}_{4}$ | 275.8975 |

Parameter | Symbol | Value |
---|---|---|

Cable length | l | 3 km |

Critical current | I_{c} | 3 kA |

Resistance of HTS layer at normal state | R_{HTS_norm} | 0.00000063 Ω/m |

Resistance of HTS layer at transient state | R_{HTS_max} | 2.5 mΩ/m |

Winding pitches | L_{p} | 280 mm |

Layer thickness | t | 1 mm |

Former effective coefficient | k | 0.76 |

Density of copper | D_{Cu} | 8900 kg/m^{3} |

Relative permeability of copper | µ_{r} | 1 |

Atomic mass of copper | µ_{Cu} | 0.0635 kg/mol |
