Analysis of Sliding-Mode Controlled Impedance Matching Circuits for Inductive Harvesting Devices

1
Department of Informatics and Industrial Engineering, Universitat de Lleida, c/Jaume II, 69.25001 Lleida, Spain
2
Laboratory GAEI, ETSE-Universitat Rovira i Virgili, Av. Països Catalans 26, 43007 Tarragona, Spain
*
Author to whom correspondence should be addressed.
Energies 2019, 12(20), 3858; https://doi.org/10.3390/en12203858
Received: 3 September 2019 / Revised: 2 October 2019 / Accepted: 6 October 2019 / Published: 12 October 2019
(This article belongs to the Special Issue Sliding Mode Control of Power Converters in Renewable Energy Systems)

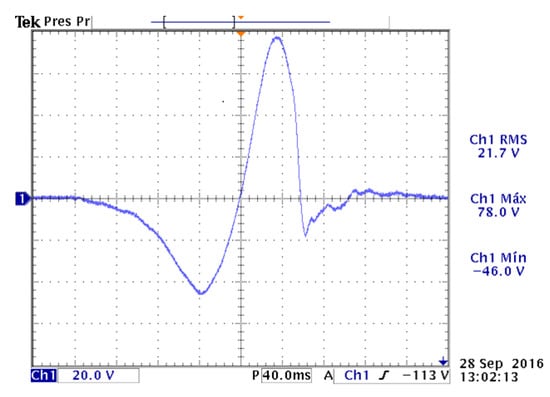

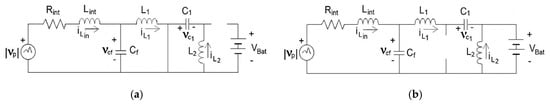

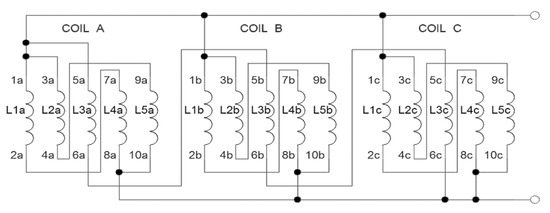

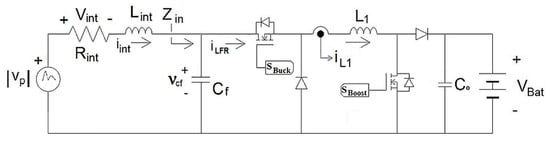

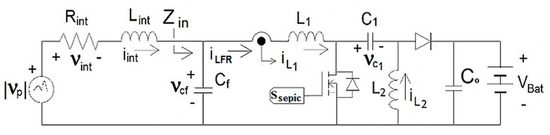

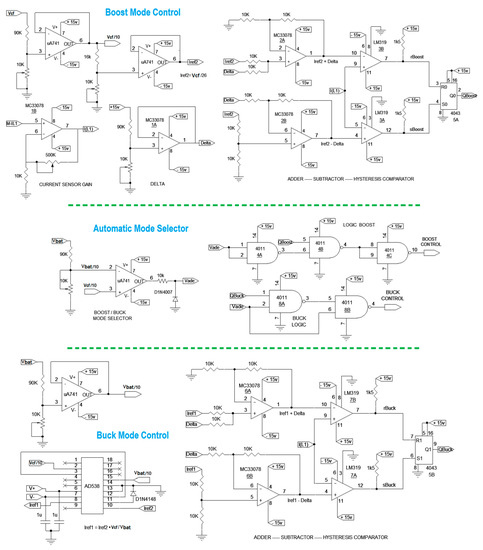

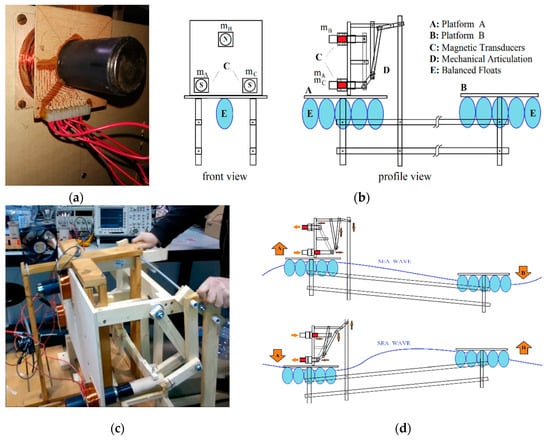

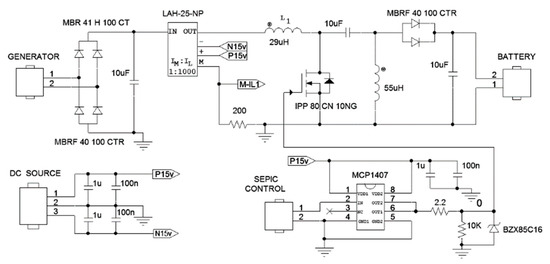

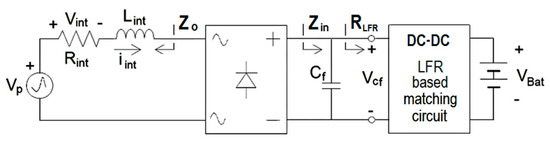

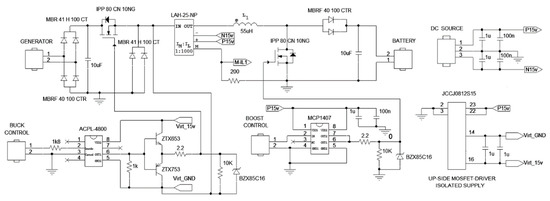

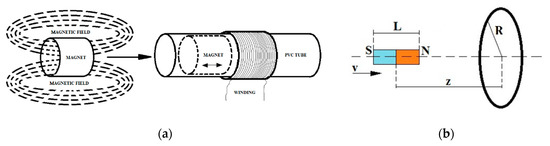

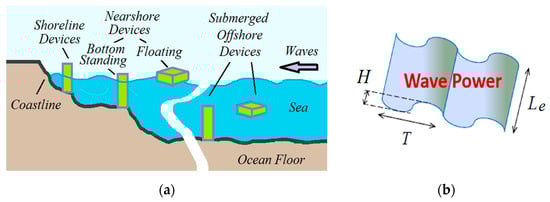

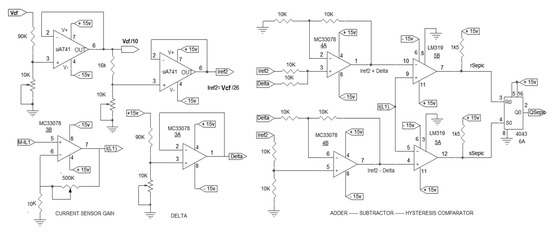

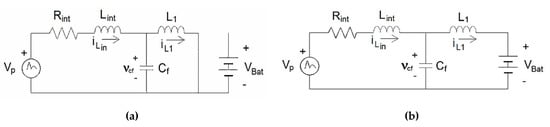

A sea-wave energy harvesting, articulated device is presented in this work. This hand-made, wooden device is made combining the coil windings of an array of three single transducers. Taking advantage of the sea waves sway, a linear oscillating motion is produced in each transducer generating an electric pulse. Magnetic fundamentals are used to deduce the electrical model of a single transducer, a solenoid-magnet device, and after the model of the whole harvesting array. The energy obtained is stored in a battery and is used to supply a stand-alone system pay-load, for instance a telecom relay or weather station. To maximize the harvested energy, an impedance matching circuit between the generator array and the system battery is required. Two dc-to-dc converters, a buck-boost hybrid cell and a Sepic converter are proposed as impedance adaptors. To achieve this purpose, sliding mode control laws are introduced to impose a loss free resistor behavior to the converters. Although some converters operating at discontinuous conduction mode, like the buck-boost converter, can exhibit also this loss free resistor behavior, they usually require a small input voltage variation range. By means of sliding mode control the loss free resistor behavior can be assured for any range of input voltage variation. After the theoretical analysis, several simulation and experimental results to compare both converters performance are given. View Full-Text
Keywords: harvesting; inductive transducer; sliding mode control; loss free resistor; dc-to-dc converter harvesting; inductive transducer; sliding mode control; loss free resistor; dc-to-dc converter
Show Figures

Figure 1

MDPI and ACS Style

Garriga-Castillo, J.A.; Valderrama-Blavi, H.; Barrado-Rodrigo, J.A.; Cid-Pastor, À. Analysis of Sliding-Mode Controlled Impedance Matching Circuits for Inductive Harvesting Devices. Energies 2019, 12, 3858.
