Open AccessArticle
Energies 2019, 12(2), 216; https://doi.org/10.3390/en12020216

Comparison of Dual-Permanent-Magnet-Excited Machines and Surface-Mounted Permanent Magnet Machines in Terms of Force

1
Energy and Power Conversion Engineering, Unversity of Science and Technology, Daejeon 34113, Korea
2
Electric Motor Research Center, Korea Electrotechnology Research Institute, Changwon 51543, Korea
3
School of Electrical and Electronics Engineering, Chung-Ang University, Seoul 17546, Korea
*
Author to whom correspondence should be addressed.
Received: 4 December 2018 / Revised: 26 December 2018 / Accepted: 8 January 2019 / Published: 10 January 2019
(This article belongs to the Special Issue Electrical Machine Design)
  |
PDF [6073 KB, uploaded 16 January 2019]
  |

Abstract

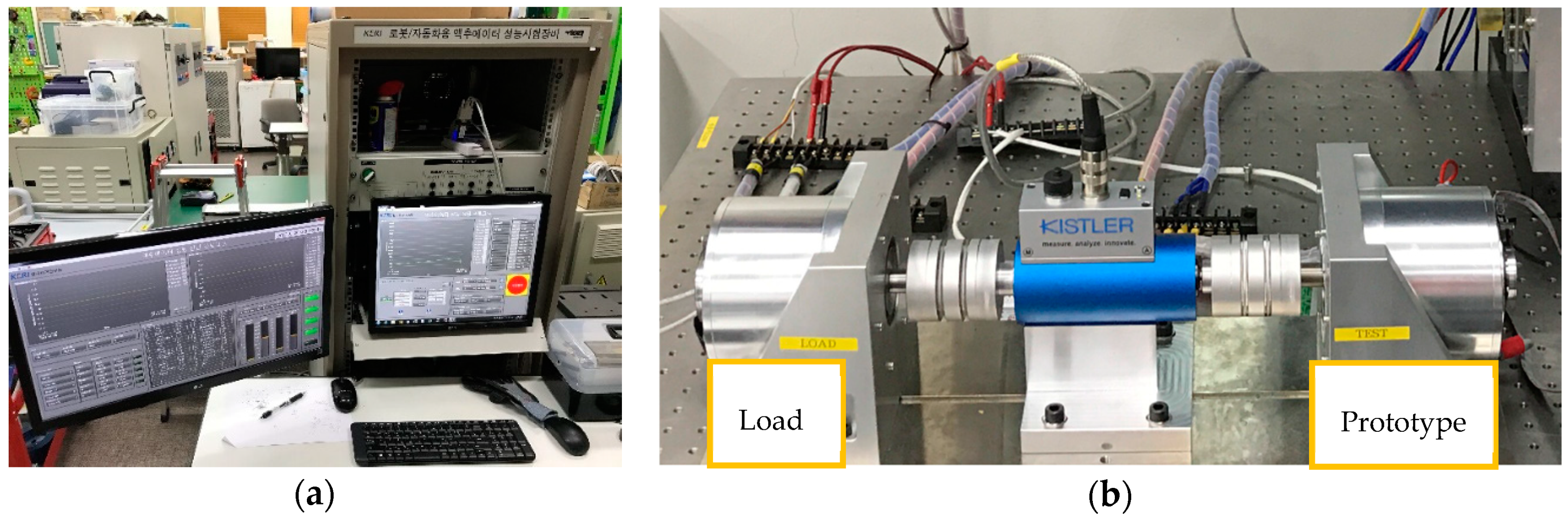

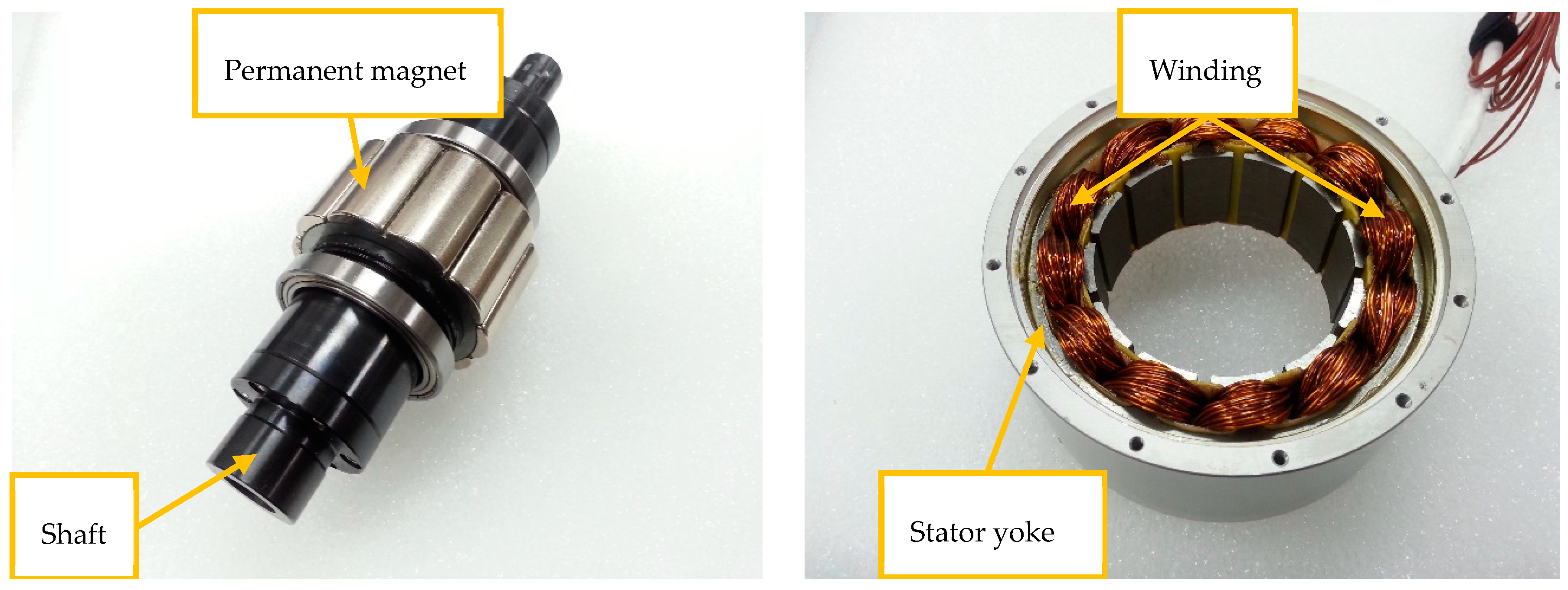

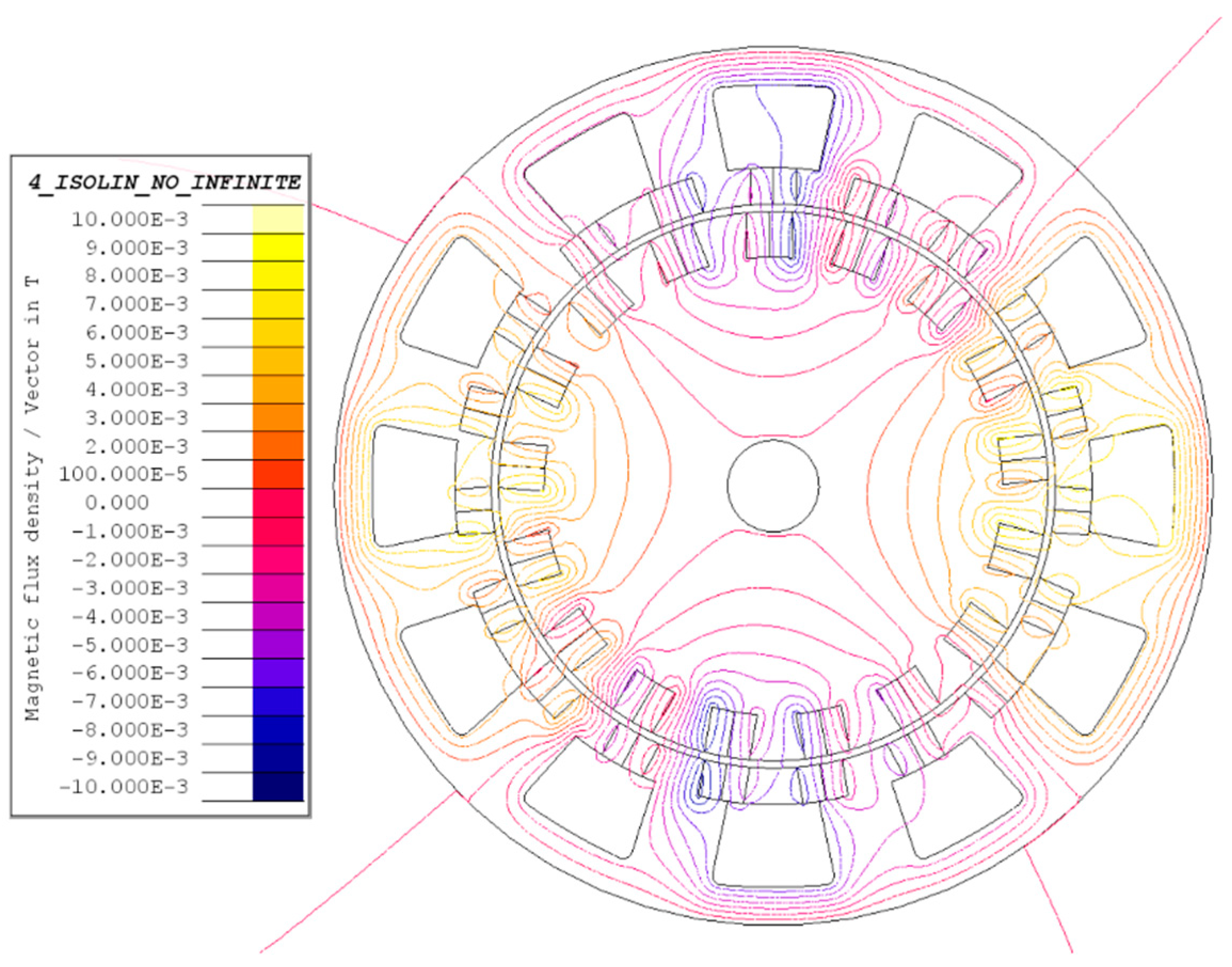

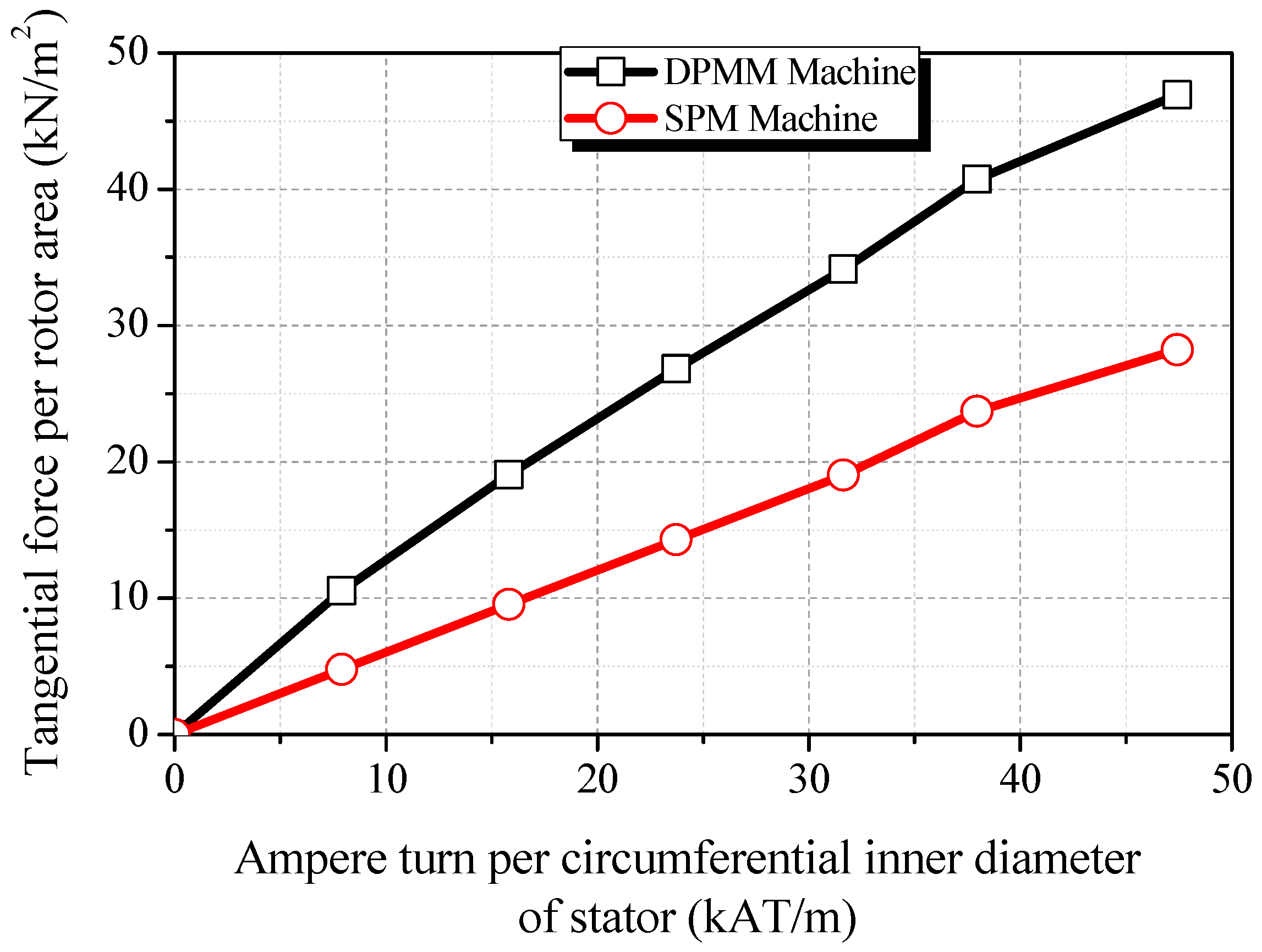

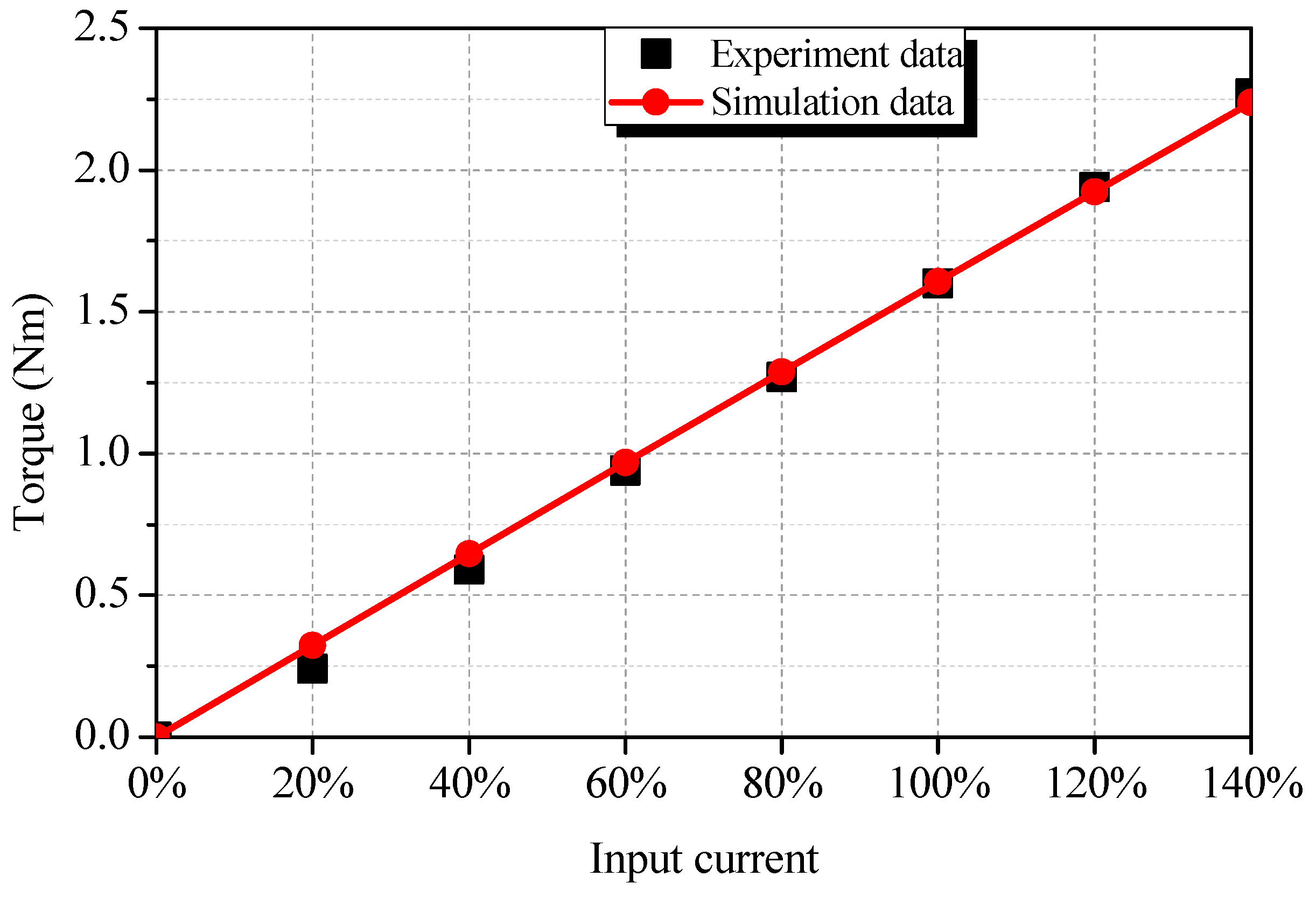

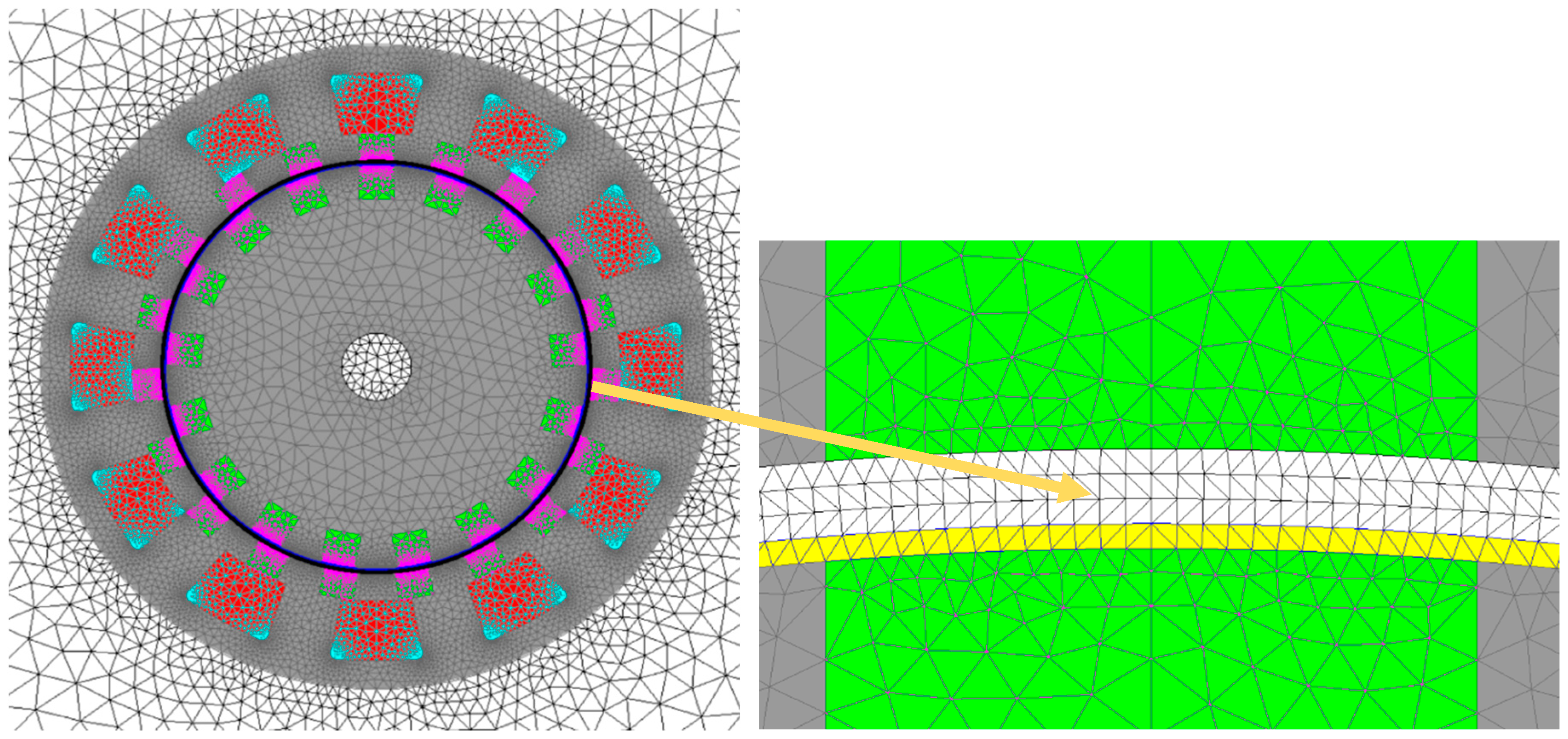

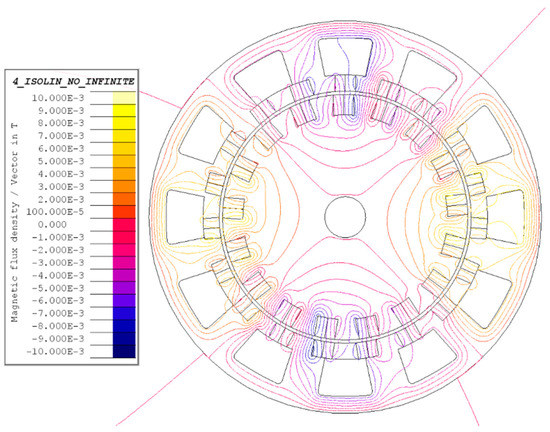

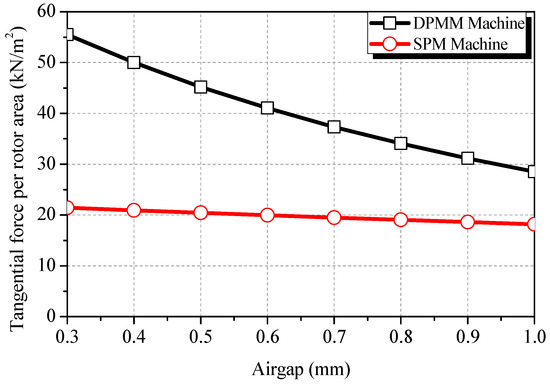

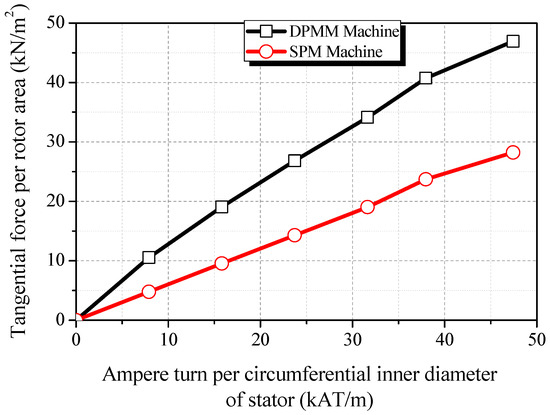

In this paper, finite element analysis demonstrates the difference between dual-permanent-magnet-excited machines (DPMM) and surface-mounted permanent magnet machines (SPM) in terms of tangential force at the same air gap, diameter, stacking length, and input current. Different from most conventional machines, a novel DPMM has two sets of permanent magnets employed on both stator and rotor. To make a fair comparison, the novel DPMM, based on an original design, is specified to have the same dimensions as a conventional SPM. With the aid of 2D finite element analysis, tangential force generated from the novel DPMM is 167.65% higher than the conventional SPM. To verify the validity of the analyses, a prototype was fabricated and tested. Experiments showed that average deviation was only approximately 1.85%. View Full-Text
Keywords: dual-permanent-magnet-excited machine; surface-mounted permanent magnet machine; force density dual-permanent-magnet-excited machine; surface-mounted permanent magnet machine; force density
Figures

Figure 1
