1. Introduction
Nowadays, the rising energy consumption related to the building sector is a source of concern associated with the energy inefficiency and excessive production of greenhouse gases (GHG). Namely, the buildings sector consumes about 40% of annually produced primary energy in the European Union and is responsible for the production of almost 25% of greenhouse gases (GHG) [
1]. Another important issue is linked with the rise of fuel prices and abandonment of conventional energy sources, including the combustion of fossil fuels which are viewed as one of the major sources of excessive emissions [
2]. However, despite several developed mitigation strategies aimed at improvements of the energy performance, the achieved results and observations cannot be considered satisfactory in terms of sustainable development goals.
Presently, the utilization of traditional insulation materials such as polystyrene, mineral wool or polyurethane foam have reached the maximal insulation potential. Thus the thermal stability of buildings can be upgraded only by advanced energy improvement provisions or combination of several strategies [
3]. The recent development of innovative insulation materials such as vacuum insulation panels, gas-filled panels or aerogels represents a very efficient method for the energy performance of building envelopes, however despite the superior thermal resistance of mentioned materials, ambitious GHG mitigation targets require the employment of additional methods [
3,
4,
5]. As one of the most critical parameters can be seen in a low thermal inertia of current insulation materials and consequent limited thermal stability of building envelopes during peak periods [
6]. Moreover, considering the recent knowledge related to the energy efficiency of buildings and oncoming climate change [
7], requirements on interior air quality maintenance are going to be more important in the near future, when the peak temperatures will be probably increased.
Advanced systems of the thermal energy storage have been extensively studied to meet energy efficiency criteria with increased demands on the maintenance of indoor thermal comfort of modern residential and office buildings [
8]. Thermal energy storage systems have been found to be a beneficial step towards balancing the energy availability and energy demand period for heating and cooling [
9]. Specifically, the passive cooling/heating technology based on the utilization of latent heat could substantially contribute to the preservation of ambient thermal comfort and consequently reduce the costs associated with energy consumption. The high potential of PCMs lays especially in the effectivity during daily temperature variations and subsequent mitigation of indoor temperature swings. Considering the application of PCMs in the construction sector, several approaches contemplating PCM incorporation into building elements can be identified.
However, several limitations for passive heating/cooling PCM-based systems have been revealed [
10]. Since the passive systems completely depend on fluctuations of outdoor temperature, identification of ideal PCM having a suitable temperature operating range is required to drop/overcome the solidification/melting point. Otherwise, inappropriately selected PCMs cannot serve as cooling/heating support and the efficiency of the system is limited. This problem can be solved by the utilization of addition HVAC devices, nevertheless, their use lessens the gained benefits. As is evident, a proper understanding and determination of PCMs properties poses an essential knowledge base for thermal energy system application and promotion of their great potential [
11].
The temperature moderation capability of PCMs has attracted the attention of several researchers intending to develop concrete with improved thermal storage properties [
12,
13]. However, according to the restriction related to the negative effect of incorporated PCMs on material properties, a major barrier can be viewed in PCMs compatibility with cementitious materials, which limits broader PCM applications [
14]. A subsequent optimization of the applied dosages of PCMs in order to increase the thermal storage capacity improved the efficiency up to 35%, which resulted in decreased overheating rate as well as in increased economic viability [
15].
Another substantial obstacle for a broader application of thermal energy storage is the negative effect of commercially produced polymer-based PCMs on the functional properties of modified materials. Despite the beneficial effect of PCMs on preservation of ambient climate with reduced energy consumption, the PCMs incorporation into cementitious materials is accompanied by many issues such as abrasion of PCM shells, clumping or segregation of PCM particles, and leakage of PCM media [
12,
16]. Especially, notable leakage together with a poor compatibility with cementitious materials represent major barriers for PCM utilization. Minor improvements in the field of microencapsulated PCM applications were presented by Zhang et al. [
17] and Sari et al. [
18], however attempts aimed at fabrication of form-stable PCMs can be viewed as major breakthrough. The impregnation method based on the absorption of paraffin/salt by a suitable bearer with a highly porous structure has been reported as a promising solution overcoming the problems described above. For example, He et al. [
19] have impregnated perlite with a combination of eutectic PCMs for application in cement mortars. These efforts resulted in the improvement of the thermal storage properties while the mechanical strength of fabricated PCMs was reduced only slightly and could meet the technical requirements for building mortars. It was found that the thermal and mechanical properties of mortars with PCMs are highly dependent on the porosity of the mortars [
20]. In other words, the physical and chemical compatibility between particular materials represents a crucial factor for the effective design of PCM mortars [
21].
Taking into account the abovementioned points, the development and experimental analysis of newly developed form-stable PCM (FSPCM) incorporated into plaster mixture were carried out. In this paper the following aspects were considered: the suitability of the developed FSPCM for incorporation into cement-lime plaster; the influence of the applied FSPCM admixture on the material properties of prepared plasters, and sufficient thermal energy storage capacity. Material functional performance is determined by the mean basic physical, mechanical, thermal, and hygric properties. Particular importance is given to the improvement and long-term stability of the thermal storage properties. The developed plasters can be easily applied as an additional interior layer to improve the thermal performance of light-weighted building envelopes with poor thermal inertia.
2. Materials and Methods
2.1. Studied Materials
The FSPCM was fabricated on the basis of a vacuum saturation principle using highly porous diatomite powder (LB Minerals, Horní Bříza, Czech Republic) together with
n-dodecanol (Sigma-Aldrich, Taufkirchen, Germany) as a PCM medium. According to material characteristics provided by the producer; the phase change temperature is about 22 °C and the latent heat about 170 J/g. Dodecanol was mixed with diatomite particles in the selected ratio (about 0.85/1 according to pozzolanic test results) and placed in a VakuCell vacuum oven (BMT Medical Technology, Brno, Czech Republic. Both materials were subsequently heated, thus melted dodecanol impregnated the porous structure of diatomite particles. The obtained mixture was milled to crush clumped particles and obtain a powdered material. The whole procedure was repeated to ensure the uniform distribution of the dodecanol in the diatomite particles. After three cycles of vacuum saturation, the prepared FSCPM did not exhibit any leakage of liquid dodecanol during heating cycles thanks to the capillary and surface tension forces [
22]. The utilization of diatomite as PCM bearer preserved the pozzolanic properties up to 0.85/1 dodecanol diatomite ratio, based on the results of a Frattini test specified by the European standard ČSN EN 196-5 [
23]. Such results predetermined the suitability for application in cementitious composites. The phase change temperature of the developed FSPCM was 23.15 °C during heating and 21.13 °C during cooling. The phase change enthalpy reached 71.36 J/g during cooling and 73.1 J/g during the heating cycle [
24].
The particle size distribution (PSD) of pure diatomite, reference cement-lime plaster, and the newly developed FSPCM was measured on an Analysette 22 Micro Tec plus device (Fritsch, Northamptonshire, United Kingdom,
Figure 1) working on a laser diffraction principle. The measuring range of the applied apparatus covers particle sizes from 0.08 µm up to 2000 µm. A green laser is used for the small particle range, whereas an infrared laser is utilized for the measurement of larger particles. The repeatability of the device according to ISO 13320 [
25] is at d
50 ≤ 1%.
Designed plasters were prepared with a commercially available dry plaster mixture (Manu 1, Baumit, Dětmarovice Czech Republic) composed of hydrated lime, cement, sand with a maximal grain size about 1 mm and additives. Selected dry plaster mixture was modified by FSPCM admixture using weight dosages of about 8, 16 and 24 wt.%. Due to a different surface area and particle size of FSPCM compared to dry plaster mixture, the water dosages needed to be adjusted to maintain the same workability of prepared mixtures. Here, the workability was verified using the flow table test having the spread diameter was approx. 180 mm in both perpendicular directions. The composition of the studied materials is given in
Table 1.
Cast samples were stored for 28 days in a highly humid environment. After curing, all samples were dried at 60 °C for 48 h until constant mass and subjected to further experimental procedures.
2.2. Determination Methods
The basic physical properties of developed plasters were characterized by bulk density, matrix density, and total open porosity measurements. All these measurements were done on five cubic samples wide sides of about 50 mm. The bulk density was determined based on the gravimetrical principle (using a digital caliper and weights). The matrix density was obtained by a Pycnomatic ATC helium pycnometer (Thermo Fisher Scientific, Waltham, Massachusetts, USA).
Determination of the pozzolanic activity was done by performing a Frattini test, specified by the European standard ČSN EN 196-5 [
23]. The tested specimens were mixed with 100 mL of boiled distilled water. Afterward, samples were placed in a sealed plastic bottle and dried at 40 °C for 8 days and then were filtered with a Buchner funnel. The concentration of OH
− ions was analyzed by titration against HCl with bromophenol blue indicator, and for Ca
2+ concentration by pH adjustment to 12.5 by NaOH, followed by titration with ethylenediaminetetraacetic acid (EDTA) solution using Murexide indicator [
24].

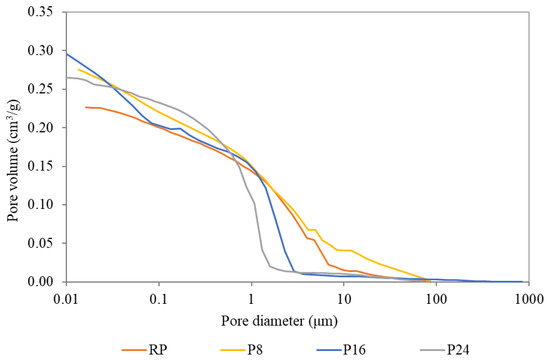

Characterization of the inner structure of designed plasters was done by Mercury Intrusion Porosimetry (MIP) analysis. For this analysis, a combination of Pascal 140 and Pascal 440 porosimeters (Thermo Fisher Scientific, Waltham, Massachusetts, USA) was employed. The contact surface tension of mercury was 480 mN/m with the density of about 13,541 g/cm3. The measurements were carried out at 21 °C.
Mechanical parameters such as the flexural strength and compressive strength were determined in order to access the durability of developed plasters. The measurement of compressive and flexural strengths was done by a VEB WPM Leipzig hydraulic testing device (WPM Leipzig, Leipzig, Germany) with a stiff loading frame with the capacity of 3000 kN on prismatic samples with dimensions of 40 mm × 40 mm × 160 mm.
The water vapor transmission properties of the developed plasters were measured using the cup method. Five samples with a circular cross-section of 110 mm diameter were used. The sample thickness was approx. 30 mm. The measurements were carried under isothermal conditions at a temperature of 21 °C. The sealed cup was placed in a controlled climate chamber of approx. 50% RH and weighed periodically. The steady-state values of mass gain or mass loss were utilized for the determination of the water vapor transfer properties [
26].

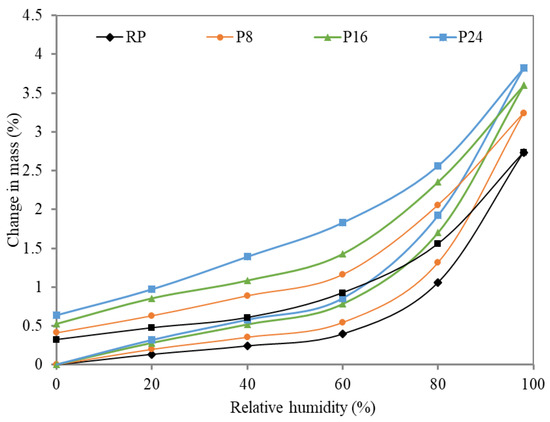

For measurement of sorption and desorption isotherms, a dynamic DVS-Advantage vapor sorption device (Surface Measurement Systems, London, United Kingdom) was used. The measurements were done at 21 °C for relative humidity levels of 20, 40, 60, 80 and 95% RH. First, all tested samples were dried in an oven and put into a desiccator. Afterward, selected sample was placed in the climatic chamber of the DVS-Advantage device equipped by highly precise balances with resolution of 1.0 μg. A principle of the measurement is based on the gravimetric determination of mass gains and losses according to changes in relative humidity levels maintained by the device [
26].
The thermal conductivity and thermal diffusivity were obtained by a hand-held portable instrument (ISOMET 2114, Applied Precision, Bratislava, Slovakia) based on a dynamic measurement principle which allow fast measurement with the accuracy of 5% of reading +0.001 W/(mK). The reproducibility of measurements is 3% when reading in the temperature range from 0 to 40 °C. Five cubic samples of about 70 mm side length were used and the obtained results were averaged.

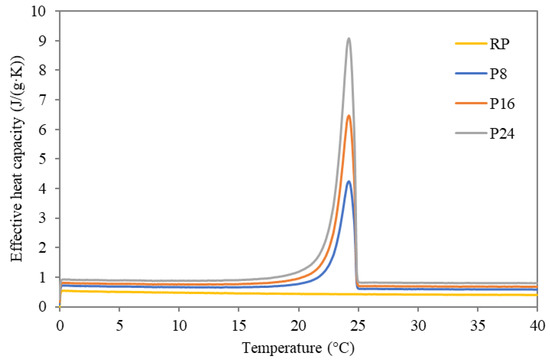

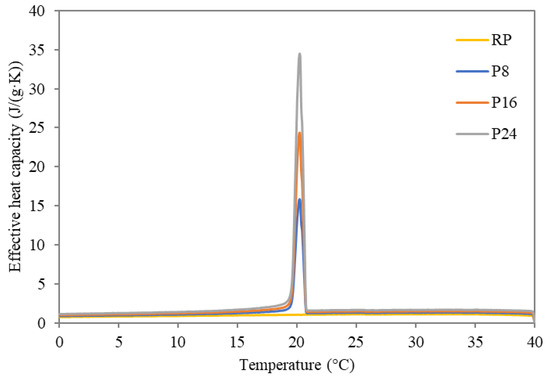

For the measurement of phase change temperatures and enthalpies, differential scanning calorimetry (DSC) analysis was done. For this purpose, a DSC 822e apparatus (Mettler Toledo, Greifensee, Switzerland) equipped with a FT 900 cooling device (Julabo, Seelbach, Germany) was employed. During the measurements, the following temperature regimes were used: 5 min of isothermal regime, cooling at 0.5 °C/min from a temperature of 40 °C to a temperature of 0 °C, 5 min of isothermal regime, heating at 0.5 °C/min from 0 °C to 40 °C, 5 min of isothermal regime. To obtain and present reliable results, DSC measurements were performed multiple-times (5×) and consequently averaged. The long-term stability testing of the studied plasters was conducted by accelerated aging test and passing 100 cycles of the same heating/cooling rate and temperature range as described above.
4. Conclusions
This study focused on the design of new thermal energy storage plasters provided detailed information about the basic physical, thermal, mechanical, and hygric properties of modified plasters enhanced by 8, 16, and 24 wt.% of FSPCM based on diatomite and dodecanol. The obtained results represent important data for the applicability of the studied materials as well as moderation of the indoor climate with respect to the diurnal or seasonal temperature fluctuations or changes. The following points should be highlighted:
A substantial improvement was achieved in the field of preservation of functional parameters, where only slight deterioration was found. Namely, a decrease of about only 13% for the compressive and flexural strengths was observed compared to reference plaster in the case of a 24 wt.% FSPCM admixture. This finding showed that diatomite particles could be utilized as suitable bearer material for PCMs due to their compatibility with cementitious materials. Moreover, the developed FSPCM exhibited improved mechanical performance compared to commercially produced PCMs.
Thermal conductivity of the developed plasters was decreased only slightly, therefore the capability to release and absorb thermal energy was influenced only slightly.
Hygric parameters of the modified plaster were slightly improved thanks to an increase in the total open porosity, thus the material provides a better moisture-moderation capability compared to reference plaster.
The incorporation of FSPCM into the cement-lime plaster did not shift the phase change temperature, which remained stable for all tested mixtures. On the other hand, the phase change enthalpy was proportionally decreased depending on the volume of the applied PCM. The phase change temperatures varied from 21.68 °C during heating to 20.75 °C during cooling for plaster with 24 wt.% of FSPCM, while the phase change enthalpy reached values of about 15.38 J/g during cooling, and 15.20 J/g during heating, respectively. The obtained values remained stable even after 100 heating-cooling cycles, therefore, no leakage was detected.
Considering the results of this study, further experimental tests for verification of the positive effect of the form-stable PCM composite should be performed. Here, semi-scale and full-scale experiments in particular could be helpful in order to prove the assumed energy savings in building maintenance.
