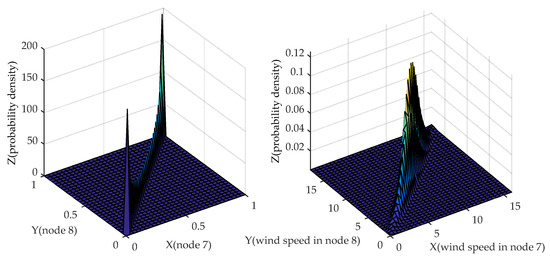

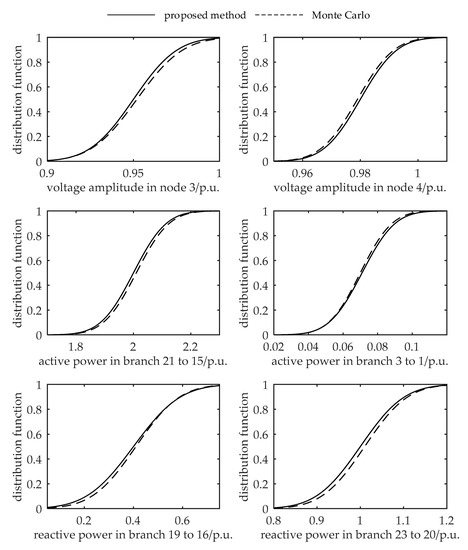

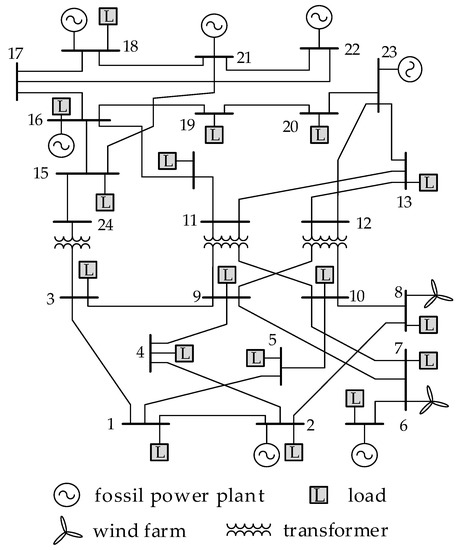

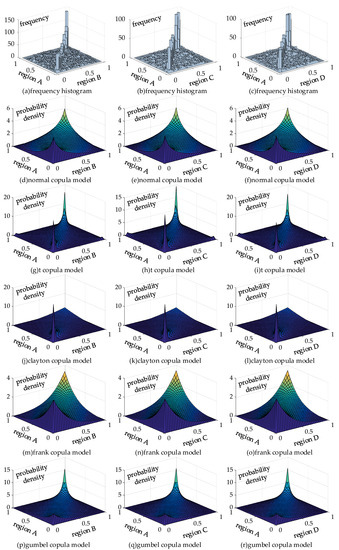

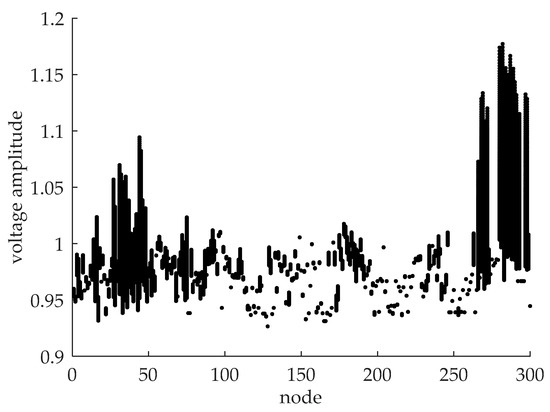

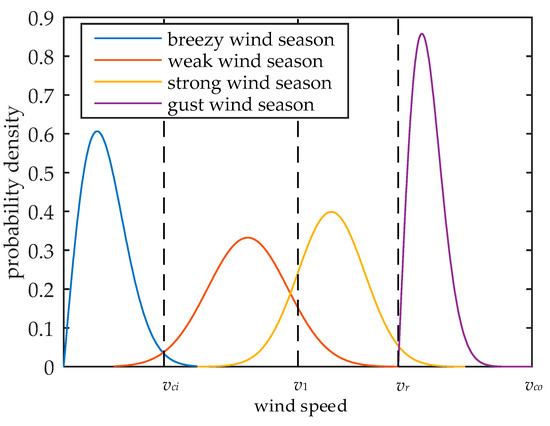

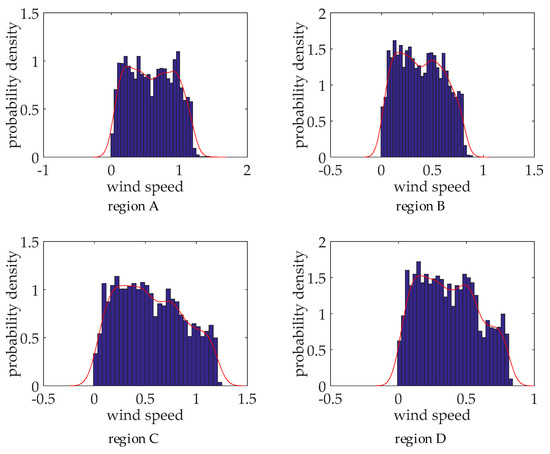

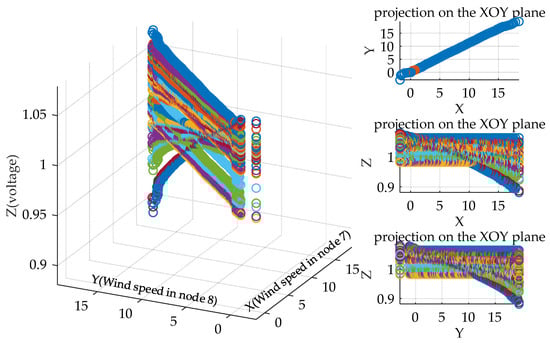

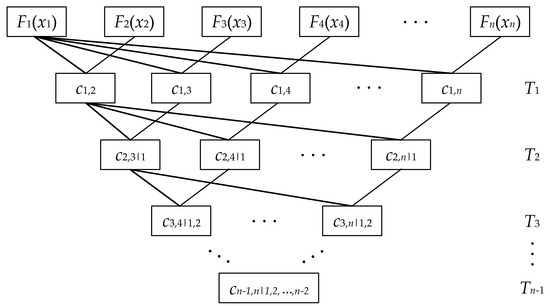

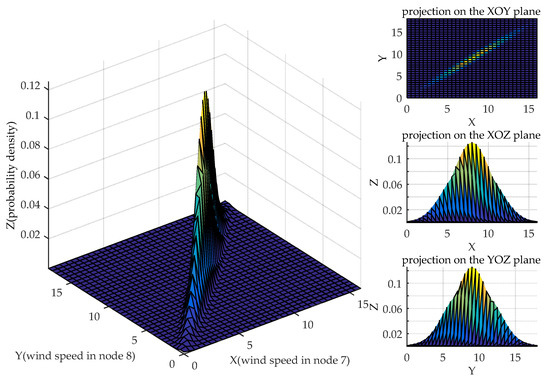

With the increasing rate of wind power installed capacity, voltage state assessment with large-scale wind power integration is of great significance. In this paper, a vine-copula based voltage state assessment method with large-scale wind power integration is proposed. Firstly, the nonparametric kernel density estimation is used to fit the wind speed distribution, and vine-copula is used to construct the wind speed joint distribution model of multiple regions. In order to obtain voltage distribution characteristics, probabilistic load flow based on the semi-invariant method and wind speed independent transformation based on the Rosenblatt transformation are described. On this basis, a voltage state assessment index is established for the more comprehensive evaluation of voltage characteristics, and a voltage state assessment procedure is proposed. Taking actual wind speed as an example, the case study of the IEEE 24-node power system and the east Inner Mongolia power system for voltage state assessment with large-scale wind power integration are studied. The simulation results verify the effectiveness of the proposed voltage state assessment method.
