Design of Multilayer Ring Emitter Based on Metamaterial for Thermophotovoltaic Applications
Abstract
1. Introduction

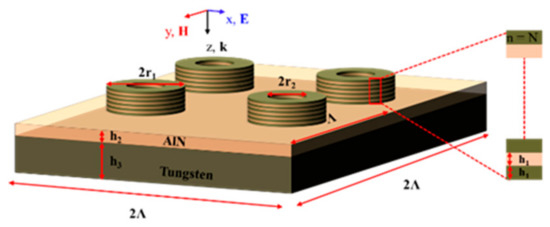

2. Research Methods

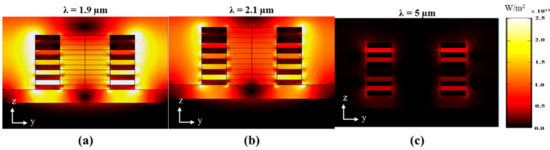

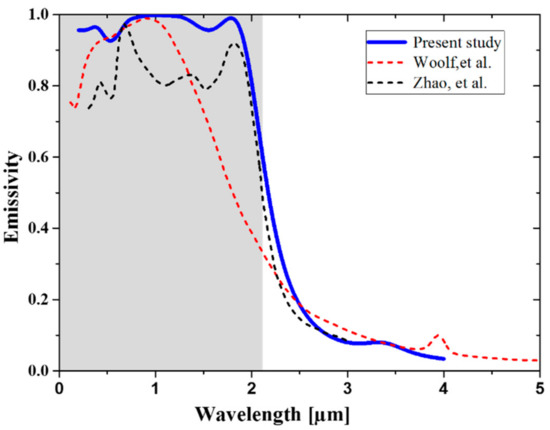

3. Result and Discussion

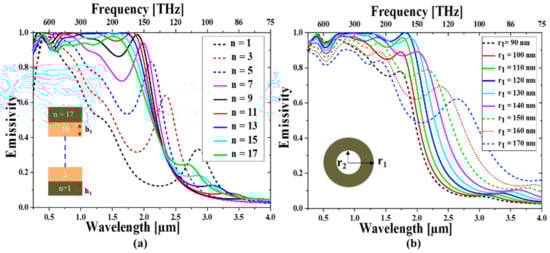

3.1. Effect of Number of Layers (n) and Outer Radius (r1)

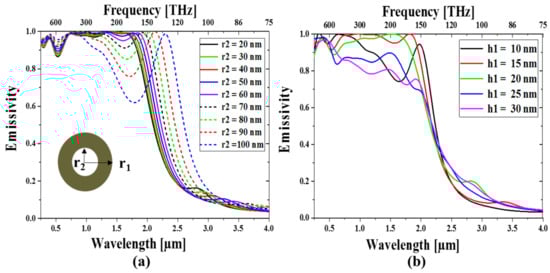

3.2. Effect of Inner Radius (r2) and Thickness of Nano-Ring (h1)

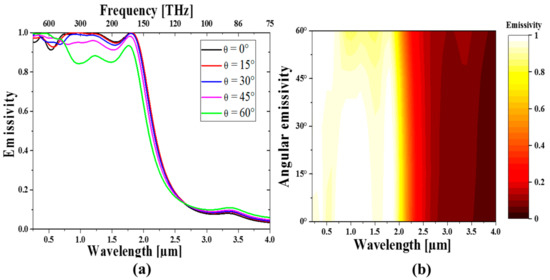

3.3. Angular Emissivity

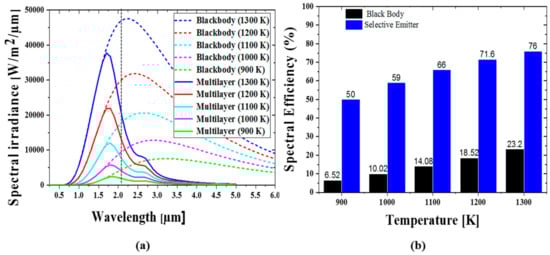

3.4. Performance of TPV
4. Conclusions
Author Contributions
Acknowledgments
Conflicts of Interest
References
