1. Introduction
Quantitative understanding of the flow-induced dynamics on thin, flexible structures is instrumental to many engineering applications and biological systems, among others [
1]. Structure deformation modifies the drag scaling
of rigid bodies to
, where
U is flow velocity and
V is the so-called Vogel exponent. For a range of conditions,
[
2,
3]; however, the drag may exhibit linear relation with
U [
4,
5,
6] for sufficient plate deformation. In addition to stiffness, mass ratio plays a role in the dynamics of flexible structures. Luhar and Nepf [
7] considered the effect of buoyancy on the reconfiguration of flexible plates, and found that the drag was consistent with the theoretical predictions. Specifically, they noted that
when the dominant restoring mechanism is blade buoyancy. Schouveiler and Boudaoud [
8] explored three-dimensional reconfiguration of a circular, plastic plate. Using a simplified momentum conservation model, they investigated the scaling of the drag under large structure deformation and also found a Vogel exponent
. In general, experimental evidence shows significant variation of
to
/5 [
9]. Very recently, Bhati et al. [
1] studied the deformation of a flexible plate under uniform flow at low Reynolds Numbers and found that the total drag decreases with respect to that from rigid structures; however, a drag increase may occur at sufficiently large deformation. Relatively few studies have explored the impact of mean shear on the dynamics of flexible plates and the associated drag. Henriquez and Barrero-Gil [
10] investigated the role of mean shear on plate reconfiguration and Vogel exponent; they found a significant effect of the mean shear on
V and proposed a model to account for such effect. Leclercq and De Langre [
11] proposed a theoretical framework to derive
V on flexible beams under non-uniform incoming flows. Luhar and Nepf [
12] studied the plate deformation under wavy motions and found that the force on the flexible blades exceeded those generated by rigid blades; they argued that this behavior is associated with unsteady vortex shedding.
Of particular relevance in energy is the case of plates under rotation. Deformation of flexible structures under pure rotation may result in significant, non-homogeneous stresses. This problem is common in engineering systems including turbine blades, propellers and mixers [
13], among others [
14,
15,
16]. Characterization of the associated effects on the flow is also of high relevance to quantify phenomena related to transport, mixing and redistribution of forces. Satjaritanun et al. [
16] experimentally and numerically explored mixing using counter-rotating propellers, and found improved efficiency with lower torque requirement. Young [
15] numerically inspected flexible propellers in (sub-)cavitating flows, and showed that changes in the local flow field due to blade deformation alter pressure distribution, cavitation patterns, and propeller efficiency. Using the Euler–Bernoulli formulation, Banerjee and Kennedy [
17] proposed an analytical solution for the case of a uniform bean under rotation. Wang et al. [
14] studied the vortex-induced vibration of a rotating blade, which was modeled as a uniform cantilever beam using Van der Pol oscillator and used bifurcation analysis; they found that the coupled model is able to account for some of the rich dynamic response. Jin et al. [
18] reported that autorotation of two-dimensional flat plates can be triggered with the rotation axis off from the symmetry axis. Following work by Jin et al. [
19] showed that such autorotation is also possible under high incoming turbulence. Rostami and Fernandes [
20] derived an analytical expression for the total moment applied on a rotating body into a flow current. They decomposed the total torque, rotational and mutual effects; the mutual component is refereed to the simultaneous contribution of the current velocity and the plate rotation. Their expression allows inspection of the stability of rotational motions. Ozen and Rockwell [
21] characterized the flow on a low-aspect-ratio, rotating plate and explored the dynamics of the leading-edge vortices, and found that vorticity distribution and circulation of these flow structures are determined as a function of angle of attack and related to the velocity field oriented toward, and extending along, the leeward surface of the plate. Kim and Gharib [
22] investigated the dynamics of plates induced vortices of translating and rotating plates at various Reynolds numbers; they found common and distinctive features of the flow and the direct modulation of vorticity distributions on the changes in lift.
Despite these efforts, the characteristics of the induced flow and reconfiguration of flexible plates under pure rotation is still not well understood. This research tackled these problems for a variety of plate stiffness and rotational speed. For this purpose, particle tracking velocimetry (PTV) and particle image velocimetry (PIV) were used to capture the deformation of the structures and the flow statistics in the vicinity of the structures. The experimental setup is described in
Section 2; the experimental results and discussion are provided in
Section 3; and final remarks are given in
Section 4.
2. Experimental Setup
The experiments were conducted in a 2 m long, rectangular water tank of 0.4 m × 0.4 m cross-section filled with 0.38 m high, quiescent water. Three, two-plate assemblies composed of rectangular structures separated 180
and attached to a vertically-mounted shaft were rotated a various angular velocities
. The plates shared the frontal area of length
L = 80 mm and width
b = 8 mm as well as the density
kg m
. The plates in each assembly had thicknesses of
= 0.25 mm,
= 0.5 mm, and
= 0.75 mm (henceforth thin, medium and thick, respectively), corresponding to Young’s modulus of
E = 2.65 GPa, 2.63 GPa and 2.44 GPa, respectively. Each assembly was placed horizontally at the center of the tank and exposed to five constant rotational speeds of
= 60 rpm, 75 rpm, 90 rpm, 105 rpm, and 120 rpm. A microcontroller was used to precisely set the rotational speed of the motor driving the plate rotations over Reynolds numbers
, where
is the distance of the deformed plate tip to the rotation center and
is the kinematic viscosity of water. The parameter space and setup allowed exploring a wide range of plate reconfiguration and induced flow that may be of use in multiple problems. A NEIKO 20713A Digital Tachometer was used to ensure constant rotation speed within a
accuracy, and the TP3005N TEKPOWER Digital Measuring Instrument was used to obtain the power required. A general schematic of the setup is shown in

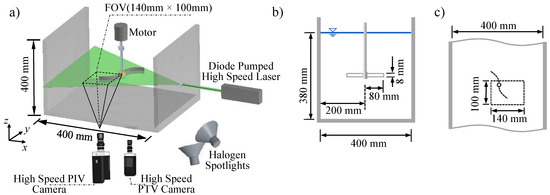

Figure 1.
A particle tracking velocimetry (PTV) system was used to characterize the reconfiguration of the plates along their span. It considered a 4 MP Mikrotron EoSens 4CXP MC4082 high-speed camera with a Nikon AF Micro-Nikkor lens with a focal length of 60 mm and a focal ratio of f/2.8; details of the PTV system can be found in Kim et al. [
23]. Multiple fiducial points every 10 mm were added along one side of the plates to perform the tracking, where illumination was provided with two Stanley Lithium Ion Halogen Spotlights. The motion of the structures was tracked at 300 Hz for periods of 30 s (i.e., 9000 images). At each instant, the shape of the plates was obtained by linking the fiducial points using a high-order, piecewise polynomial interpolation.
Here, a high-speed particle image velocimetry (PIV) system from TSI was used to characterize the flow field within an horizontal plane crossing the center of the two-plate assemblies. A field of view (FOV) of 140 mm × 100 mm was illuminated using a 1 mm thick laser sheet supplied by 50 mJ diode pumped laser from TerraTM. The flow was seeded with 11
m, silver-coated hollow glass spheres with a density of 1.1 g cm
. The induced flow was characterized with a 4 MP (2560 × 1600 pixels), 16-bit, frame straddle, charge-coupled device (CCD) camera. Eighteen hundred image pairs were collected for each of the fifteen cases (five rotation speeds for each of the three plate assemblies) at a frequency of 300 Hz. The image pairs were interrogated with a recursive cross correlation method using the Insight 4G software from TSI. See also Vila et al. [
24] and Vinuesa and Nagib [
25] for complementary discussion. The size of the final interrogation window was 32 × 32 pixels with 50% overlap, resulting in a final vector grid spacing
mm.
3. Results and Discussion
In this section, we describe and characterize the reconfiguration of the plate assemblies for various thicknesses and rotational speeds. Power required in each case as well as the induced flow and turbulence statistics are also included to complement the analysis.
The various combinations of plate stiffness and rotational speeds defined in the previous section led to a variety of reconfigurations; namely, small deformations (

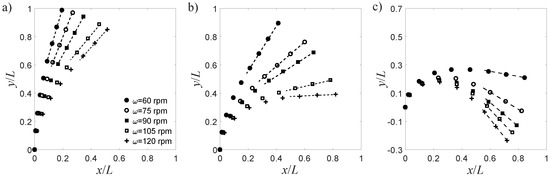

Figure 2a), large deformations (
Figure 2b) and extreme reconfiguration sets with deformations over 90
between the tangents of the plate tips. The dashed lines shown in the various plate reconfigurations indicate the section of the plates that underwent negligible deformation. Those sections were located around the top tip and resulted
of the thick and medium plates, and
of the thin plate, where
s denotes the intrinsic coordinate along the structure. Interestingly,
was primarily dependent on the plate stiffness and weakly on
. Conversely, the location of the maximum deformation,
, where curvature reaches a maximum, followed a trend
, where
is the Cauchy number, and
is the second moment of the area (see
Figure 3). This indicates that
changes slightly at sufficiently large
.
Common and distinctive features of the plate deformations for the various cases are uncovered with the angle
between the tangential of the plate in the vicinity of the tip
and the instantaneous direction of the tip motion
(see

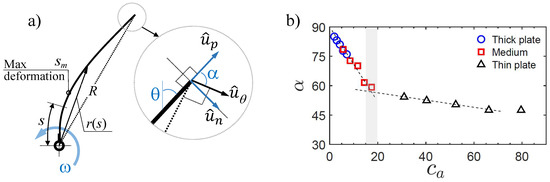

Figure 4a) as a function of
. Note that the instantaneous velocity of the tip is
, where
R is the distance from the tip to the center of rotation. The resultant distribution
for all the cases is illustrated in
Figure 4b. It reveals two distinctive, nearly-linear trends; one of them with a relatively large slope within a comparatively low
, and the other with a mild slope within
. These two tends merge within a relatively narrow matching interval
. Note the limiting case of
as
, which is an expected asymptotic behavior, and
45
for sufficiently large
. Note also that the matching region between the two trends occur when the angle between the two tips (base and top) is in the vicinity of
.
The induced wake exhibited interesting features that provide insight on the reconfiguration of the rotating plates.

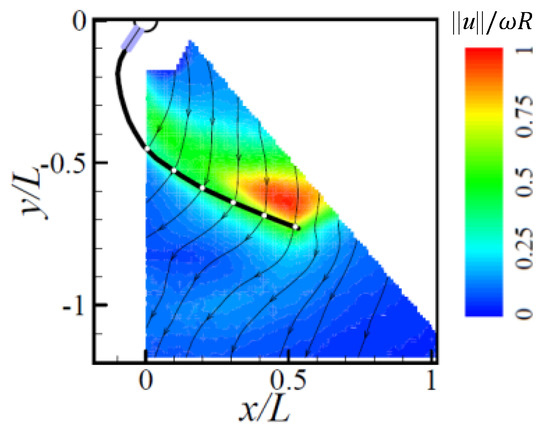

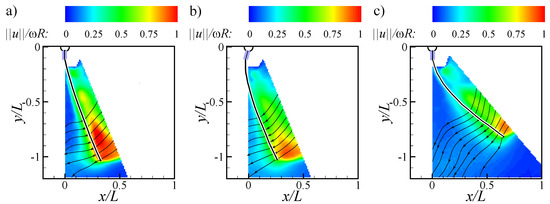

Figure 5 illustrates phase-locked velocity magnitude
in the vicinity of the thick plate along its span for selected
. Note that the velocity distributions near the plates are not proportional to the distance from the axis of rotation. Lateral shedding and some background turbulence from the previous cycle and plate reconfiguration may modulate the flow, where maximum level occurs near the tip; this effect is stressed with increasing
. Note also the induced flow right upstream of the plates, which extended on the order of the plate width; i.e., consistent with flow impinging bluff bodies. In addition,
Figure 5 shows the sharp shear layer at the tip of the thick plate, which lead to flow instability, namely Kelvin–Helmholtz type, and the formation of energetic tip-vortex structures illustrated later. The features of the flow near the plates is, in general, consistent in the other cases; for instance,
Figure 6 shows the case of the medium plate at
rpm. Although minor,
Figure 5 and
Figure 6 reveal a trace of the induced flow from the preceding plate near the upstream tip of the structures. Complementary insight is obtained with the time and spatial average of the velocity magnitude

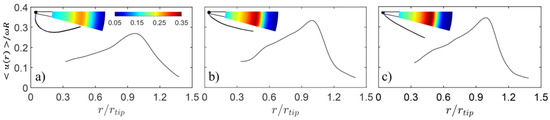

as a function of the distance from the axis of rotation (
r), which is illustrated in
Figure 7 for
rpm. As expected,
increased monotonically with
r and reached the maximum near the tip, i.e.,
; however, there is a distinctive difference with the thin plate. Indeed, the distributions of the medium and thick plates roughly resemble that of a canonic vortex profile; i.e., linear increase of the velocity for
marking a solid-body-rotation-like state, which is followed by a fast decay of the velocity for
, resembling an inviscid-like motion. This feature is not clear with the thin plate; the velocity decay in the external region
was not sharp, possibly due to the induced flow by the large deformation.
Similarly, in-plane turbulence kinetic energy
in the vicinity of the plates showed particular features of the induced flow.

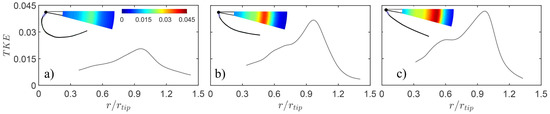

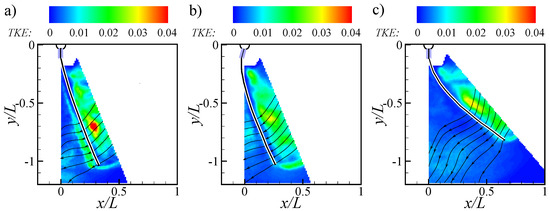

Figure 8 illustrates that along the span of the thick plate for selected
; there,
is promoted by the continuous shear layer across the plates. Interestingly, a local maximum near the plates occurs at
. However, this is not the strongest signature in the spatially averaged field, which is located around the tip.
Figure 8 also reveals a strong shear undergoing instability. The spatially averaged, dominant effect of the tip is revealed in

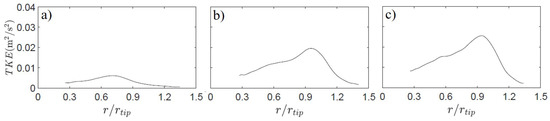

Figure 9 for the three plates at selected
rpm. Maximum level of
are produced at
with levels increasing with the stiffness of the plates for a given
. It also reveals the secondary effect at
.
Complementary inspection of the efficiency of the plate rotation on the flow mixing was performed with measurements of the power required to keep the constant rotation. This was achieved with simultaneous measurement of the voltage and current of the motor. Additional characterization of the case with a a rigid plate sharing the same geometry of all other structures was included as a reference. Interestingly, the plate thickness significantly modulated the power-law relationship between
and

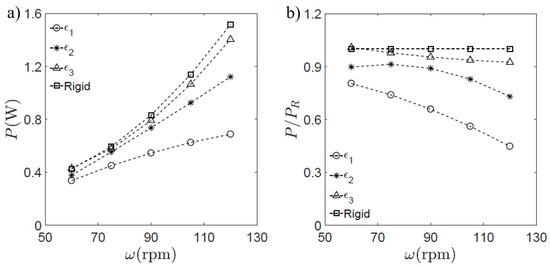

P. The power of the rigid and thicker plates followed a quadratic dependence on
; however, it resulted in nearly-linear and sub-quadratic trends for the thiner and the thinest structures (see
Figure 10). The relative larger reconfiguration of the thinner plates induced lower hydrodynamic load [
7] and, consequently, power. The turbulent mixing associated to the

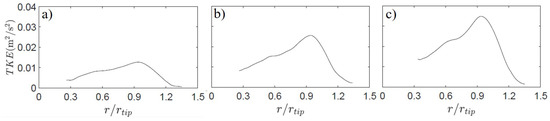

distribution along the radial direction are illustrated in
Figure 11 and
Figure 12. Similar to the trends of power consumption, plates with lower stiffness induced lower bulk fluctuations. A qualitative comparison between these two suggests that the plate with medium thickness provides a better mixing for a given power.

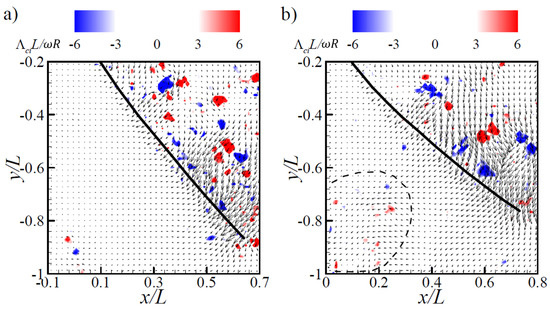

Instantaneous vortical structures shed by the plates are illustrated with the signed swirling strength
in

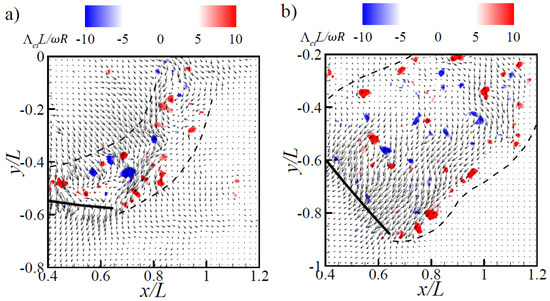

Figure 13 and
Figure 14 for selected cases. This quantity is the magnitude of the imaginary part of the complex eigenvalues of the local velocity gradient tensor [
26], and the swirling orientation is represented with the sign of
[
27], where positive sign represents counter-clockwise rotation. For a given
, relatively larger bending due to lower stiffness resulted in a concentration of coherent motions around the region swept by the near tip. Such distribution of the vortices was promoted by the distinctive induced radial velocity component with larger bending. In contrast, with low bending the coherent motions were distributed along the span of the plate wake. This phenomenon is illustrated in
Figure 13 for the thin and thick plates at
rpm. Note also that the spatially distributed vortices in the stiffer plate impinged the next plate under relatively high
(see
Figure 14).
The estimation of reconfiguration patterns using basic models dealing with parallel incoming flow may be affected by the distinctive dynamics of these flows. However, application of such models may be applicable with a bulk correction. Indeed, let us consider a simple formulation based on the model by Chen [
28]. Here, the local velocity at
s along the plate (see
Figure 4a) is given by:
We consider the normal pressure force produced by
, where the effective velocity
is the component perpendicular to the local surface (
Figure 4):
Here,
is the local pressure force experienced by a differential section
, and
is the drag coefficient. The
along the span of the plate determines the bending moment
M and the deflection angle
as follows:
where
is the moment of inertia. The integral form of
M at
can be expressed as:
which defines the plate deformation. Note that the magnitude and orientation of
are linked with the local bending of the plate; therefore, it has to be solved iteratively. For this purpose, we consider a tolerance error at iteration
k of
.
In general, the model is able to predict the bending of the medium plate for
rpm; however, evident underestimation occurred at relatively high rotating speeds. Flow visualization showed that
may be different from the estimated values. In addition, in this rotating system, the flow fluctuations from previous cycles may enhance wake mixing and change local velocity. To account for such effects and the changes in
with bending, we inspect a potential bulk correction in
such that
. Then, it is possible to compute a
that minimizes the differences between measurements and the basic model. An example of this process is illustrated in

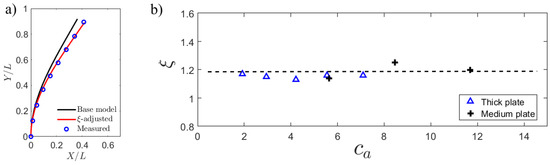

Figure 15a. This factor resulted nearly constant for all cases with low and intermediate bending, i.e., with the angle between the bottom and top tips
.
Figure 15b illustrates
. It is worth pointing out that the model is not expected to work in extreme bending.
