Review

Bibliometric Analysis of the Influencing Factors, Derivation, and Application of Heavy Metal Thresholds in Soil

by
Zhaolin Du
1,
Dasong Lin
1,
Haifeng Li
2,
Yang Li
1,
Hongan Chen
1,
Weiqiang Dou
3,
Li Qin
1,* and
Yi An
1,*
1
Agro-Environmental Protection Institute, Ministry of Agriculture and Rural Affairs, Tianjin 300191, China
2
Beijing Municipal Key Laboratory of Agriculture Environment Monitoring, Beijing 100097, China
3
College of Land Science and Technology, China Agricultural University, Beijing 100193, China
*
Authors to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2022, 19(11), 6561; https://doi.org/10.3390/ijerph19116561
Submission received: 19 April 2022 / Revised: 18 May 2022 / Accepted: 25 May 2022 / Published: 27 May 2022
(This article belongs to the Special Issue Sources, Behavior and Risk of Heavy Metal in the Surface Earth Environment)
Browse Figures
Versions Notes

Abstract

:
The study of threshold levels of heavy metals in soil is essential for the assessment and management of soil environmental quality. This study reviewed the influencing factors, the derivation, and application aspects of heavy metals’ threshold values comprehensively by a combination of bibliometric analysis and scientific knowledge mapping. A total of 1106 related studies were comprehensively extracted from the Web of Science database during the period from 2001 to 2020. The results showed that the publication output has been growing strongly. An analysis on the subject, journal, country, and institution was carried out to demonstrate the development and evolution of this research branch during the two decades. According to high-frequency keywords analysis, external factors (e.g., soil physicochemical properties) and internal factors (e.g., crop genotype) can affect heavy metal threshold values in the soil–crop system. The current methods mainly include the Point model (e.g., evaluation factor method), the Probability model (e.g., species sensitivity distribution method), and the Empirical model (e.g., ecological environment effect method). A threshold study can be applicable to the risk assessment for soil heavy metal contamination in order to determinate the soil pollution degree and its spatial and temporal distribution characteristics. Moreover, challenges and prospects of the study of heavy metal threshold values are proposed, indicating that research should focus on the relationships between human health risks and the established threshold values of heavy metals in the soil, long-term field trials and bioavailability of heavy metals for the derivation of the thresholds, and the establishment of more scientific and rational soil environmental benchmarks.

1. Introduction

Soil contamination has attracted widespread attention globally [1,2,3]. With the continuous advancement of urbanization and industrialization, heavy metals are constantly emitted into the terrestrial environment and accumulate in the soil, posing great threats to the quality of soil, groundwater, and crops [4,5,6]. Once heavy metals ware in the food chain, the health of humans and other organisms could be affected [7,8,9,10]. Owing to the potential toxicity and difficult biodegradation of heavy metals, their content in soil has become of great concern [9,11,12].
Threshold levels of heavy metals in soil re the maximum heavy metal concentrations that the soil can possess without destroying ecosystems [13]. The derivation of heavy metal thresholds in the soil is essential for effectively protecting soil quality, guaranteeing crop yields and quality, and ensuring human health. It also provides a scientific basis and an important foundation for ecological risk assessment and the formulation of soil environmental quality standards. Hence, it plays an indispensable role in soil management. The academic community has conducted much research on heavy metal thresholds in the soil. Some studies focused on various types of heavy metals, including certain common potentially toxic elements (e.g., cadmium (Cd)) and emerging “high-tech” critical elements (e.g., lanthanides) [13]. Some studies focused on the migration and transformation of heavy metals in soil–crop systems rather than on a simple soil system. Previous research mainly focused on protection for a sustainable use of soil [14], and current research has begun to examine the quality and safety of agricultural products as well as human health risks [15,16]. Thus, research on the thresholds of heavy metals has been extensive and diverse. However, most previous research was limited to specific situations for soil risk assessment or to qualitative analyses of small amounts of literature data. A systematic review based on big data analysis to demonstrate the development of heavy metal threshold studies is still lacking.
Bibliometric analysis is a method to summarize historical achievements and development trends comprehensively, systematically, and objectively. It can also explore possible future research directions of the research field with the help of mathematics and statistics, computer analysis and information visualization technology, combined with the analysis of the literature [17,18]. Scientific knowledge mapping, which is a scientific and effective literature research tool for large amounts of literature data to study a certain knowledge domain, is becoming increasingly popular [19]. It can vividly reveal the dynamic development of a certain research field by visualizing its development, research hotspots, and frontier knowledge [20,21].
In this study, a literature review was combined with a bibliometric analysis and scientific knowledge mapping to analyze studies on heavy metal threshold levels in soil published in the last two decades. The influence factors, derivation, and application aspects of the threshold levels were summarized through high-frequency keywords analysis. Moreover, the challenges and promising research frontiers of research on heavy metal thresholds are discussed.

2. Materials and Methods

2.1. Data Collection

Publications were obtained from the online version of the database of Science Citation Index-Expanded (SCI-E) of the Web of Science (WoS) core collection. Records retrieval started with a topic search for “soil,” “heavy metal,” and “threshold” in the publication year range from 2001 to 2020. Some repeated or irrelevant records were removed after analyzing each record. Finally, a total of 1106 records which met the study requirements were obtained.

2.2. Methodology of Bibliometric Analysis

CiteSpace, regarded as a useful, efficient scientific visualization tool, was used to analyze the related literature and construct scientific knowledge maps [22]. It was jointly developed by Dr. Chaomei Chen and the WISE Laboratory of Dalian University of Technology and is provided to researchers free of charge. CiteSpace V Software was used in the study for visualizing and analyzing trends and patterns in the scientific literature. Its primary source of input data was ISI WoS. It could vividly provide key information which included the publication output and journal information, country and institution cooperation, subject and research hotspot evolution through analysis functions of co-citation, collaboration and co-occurrence, respectively.

3. Results

3.1. Publication Output Analysis

As shown in Supplementary material Figure S1, the annual number of studies increased steadily from 13 in 2001 to 140 in 2020, demonstrating an almost nine-fold increase over 20 years. The predominant publication type in this field was Article, accounting for 97.92% of the studies (1083 records) [23], followed by other types such as Review (22 records) and Letter (1 record) [23,24].

3.2. Subject Analysis

Publications in the field of research of heavy metal thresholds in soil were distributed in 55 unique subject categories. The most productive discipline in this field was Environmental Sciences and Ecology, accounting for 67.18% of the studies (743 records), followed by Agriculture, Engineering, Water Resources, Toxicology, Geology, Public and Environmental Occupational Health, Chemistry, Plant Sciences, Science Technology, Other Topics, Geochemistry Geophysics, and Biodiversity Conservation (Table S1).
Figure 1 shows that Environmental Science and Ecology, Environmental Science, Agriculture, Soil Science, Water Resources, Agronomy, Plant Science, Chemistry and other disciplines are basic disciplines in the research on heavy metal thresholds in soil. They have laid a solid theoretical foundation for research and development in this field. Since 2005, several disciplines including Engineering, Environmental Engineering, Geology and Geosciences, gradually became the supporting disciplines of research in this field, indicating that the research was no longer limited to theoretical research but also began to consider practical applications [25]. In 2011, the subject of “Public, Environmental and Occupational Health” appeared, which revealed that many studies began to attach importance to the relationships between the thresholds of heavy metals in soil and human health risks [26]. After 2015, certain disciplines such as “Biodiversity Conservation” and “Green and Sustainable Science and Technology” gradually became important research disciplines in this research field, demonstrating that the derivation of heavy metal thresholds in soil no longer only considered the effects on a single species but had acquired a macro view, considering the effects on whole ecosystems [27].

3.3. Journal, Country, and Institution Analysis

Science of the Total Environment was the journal with the highest number of citations, followed by Environmental Pollution, Chemosphere, and Journal of Hazardous Materials (Figure S2). China, the United States, and Italy were the three most productive countries. Collaborative relationships between countries were highlighted by colored lines, and a close cooperation meant that research on heavy metal thresholds in soil was still one of the most important issues and challenges worldwide (Figure S3) [22]. The Chinese Academy of Sciences, Zhejiang University, and the University of the Chinese Academy of Sciences were the top three institutions in terms of publishing volume, but Ghent University occupied a leading position in terms of the number of citations (Table S3).

3.4. Keyword Analysis

Keyword analysis was carried out in four research periods (2001–2005, 2006–2010, 2011–2015, and 2016–2020) (Figure 2). Top 50 most cited or occurring words from each period were selected as keywords, and pathfinder was used for pruning the networks. Finally, a time zone diagram of high-frequency keywords was generated to illustrate research hotspots quickly and detect the frontier direction of this research field (Figure 3). From 2001 to 2005, research paid more attention to the theoretical study of the sources and toxicity of heavy metal pollution in soil [14]. From 2006 to 2010, it was no longer limited to theoretical research but also began to attach importance to practice and applications [28]. Since 2011, ecological risk assessment became a hot research area, showing that the relationships between thresholds of heavy metals in soil and ecosystem safety started to receive great attention [15,16]. In-depth discussions in the following section were conducted based on the keyword analysis.

4. Discussion

4.1. Factors Influencing Heavy Metal Thresholds

Heavy metal pollution was often closely related to geogenic sources [29], mine waste emissions [30,31], urban and industrial wastewater [32], and agricultural practices which include excessive fertilization [33,34,35,36]. Organic or inorganic colloids played important roles in the migration of heavy metal elements in soil, and environmental physical and chemical parameters were the main influencing factors of heavy metal activation [37,38,39,40]. For example, the lower the pH of the soil, the more available heavy metals were, and the easier it was for heavy metal elements to enter plants through the soil [41,42]. The threshold values of Ni increased with the increase of the background value of Ni and clay content [43]. Different rice genotypes showed significantly different heavy metal accumulation levels in rice grains [44]. To sum up, external factors (such as heavy metal level in the soil, soil pH, redox potential, soil organic matter, and ionic strength) and internal factors (e.g., crop genotype) could affect the absorption of heavy metals in soil by crops.

4.2. Derivation of Heavy Metal Thresholds in Soil

From 2001 to 2005, some studies focused on the toxic effects of heavy metals in soil on different crops to explore models and methods for derivation of the thresholds [45]. For example, some research proposed that the migration of heavy metals from soil to plants was a nonlinear process, and Freundlich-type functions were recommended to define heavy metal thresholds in soil [46]. From 2006 to 2010, bioavailability models calibrated with chronic toxicity data were gradually used to formulate ecological soil standards (predicted-no-effect concentration (PNEC) values) for specific soil types, which provided an important basis for agricultural decision making [47,48]. From 2011 to 2015, research on methods and models for the derivation of threshold values for different regions and crops gradually received increasing attention [49,50]. For example, geochemical background concentration and additional risk level (maximum allowable addition amount) should be considered for the derivation of heavy metal thresholds [51]. From 2016 to 2020, the development of soil–crop transfer prediction models for the derivation of thresholds in contaminated farmland gradually became one of the research hotspots [52,53,54,55]. For example, empirical soil–plant transfer models were combined with the species sensitivity distribution (SSD) method to identify the bioaccumulation of heavy metals in crops and determine the level of heavy metal pollution in soil [56]. Overall, derivation methods of heavy metal thresholds in soil have improved with the development of multiple disciplines. The current methods include the Point model (e.g., evaluation factor method), the Probability model (e.g., SSD method), and the Empirical model (e.g., ecological environment effect method). The advantages and disadvantages of each method are shown in Table 1.

4.3. Application of Heavy Metal Thresholds in Soil

Based on threshold studies, risk assessment can determine a soil pollution degree and spatial and temporal distribution characteristics [64]. It could effectively allow locating areas containing toxic elements through these risk assessment procedures: setting different threshold levels for common heavy metals in soil (taking China as an example, four threshold levels of Cd were established for major edible agricultural products’ safety (e.g., rice) in consideration of soil physical and chemical properties, i.e., 0.3 mg/kg for pH ≤ 5.5, 0.4 mg/kg for 5.5 < pH ≤ 6.5, 0.6 mg/kg for 6.5 < pH ≤ 7.5, and 0.8 mg/kg for pH > 7.5), conducting more targeted investigations on heavy metal pollution characteristics, selecting appropriate methods, and defining a soil pollution classification. Hence, this analysis could play an important role in setting soil environmental benchmarks and guiding follow-up risk control measures. The common soil heavy metal pollution risk assessment methods can be divided into two categories: index and model methods [65,66]. Index methods mainly included the single pollution index method [67], the Nemerow index method [65], the pollution load index method, the environmental risk index method, and the geoaccumulation index method [68]. Model methods mainly include the enrichment factor method and the fuzzy comprehensive evaluation method. Another method is the GIS-based geostatistical legal evaluation method [69]. Index methods are relatively easy to operate, and model methods are applicable to solving complicated problems. Research mainly uses certain indicators such as enrichment factor, geoaccumulation index, Nemerow index, and average enrichment ratio to characterize the pollution degree of an area [53,70]. The content of heavy metals in crops grown on contaminated soil could also be experimentally and quantitatively evaluated with the help of the bioaccumulation factor to identify heavily polluted areas [52,55]. However, these methods could hardly determine quantitative sources of potentially toxic elements in soil management.

4.4. Challenges and Prospects

Frequency bursts can indicate that the scientific community has paid or is paying special attention to the contribution of specific factors, and burst detection can identify burst keywords as indicators of emerging trends [71]. As shown in Figure 4, the discussion of the factors influencing heavy metal thresholds in soil will continue in the future, especially concerning the three aspects of “health risk assessment”, “ecological risk assessment”, and “apportionment and identification of pollution sources” [72]. The topics of “health risk” and “health risk assessment” have emerged as research frontiers, with the strongest strength of frequency bursts corresponding to 10.4624 and 6.8364, respectively, indicating that this research will be of interest to scientists in the future. Performing a comprehensive ecological risk assessment plays a remarkable role in formulating scientific, reasonable heavy metal thresholds in soil, but specific adaptation and accuracy of ecological risk assessment remain a challenge. Methods and tools for identifying and analyzing sources of heavy metal pollution still need further research. The current highly complex and changeable environmental situation and the considerable effects on soil pollution of human activities make heavy metal pollution sources difficult to identify. this may also be one of the reasons why the terms “source apportionment” and “source identification” have become burst keywords.

4.4.1. Relationships between Human Health Risks and Heavy Metal Thresholds in Soil

Heavy metals in soil can enter the food chain after enrichment in crops, which can pose a severe threat to human health. Moreover, human beings accumulate heavy metals also through inhalation of particles in soil and by dermal contact [15]. Under the combined effects of various exposure pathways, the derivation of heavy metal thresholds in soil requires multidisciplinary joint research. Therefore, it is worthy to explore how to establish heavy metal thresholds in soil, ensuring that these contaminants do not cause risks to human health in the future.

4.4.2. Derivation of Heavy Metal Thresholds Based on Long-Term Field Trials

The current studies mostly use short-term pot experiments or field trials to understand quantitative relationships regarding heavy metal concentrations in soil–crop systems. Large spatiotemporal differences in the experimental conditions between pot experiments and field trials often lead to inconsistent experimental results. Consequently, heavy metal thresholds in soil often failed to meet the requirements of soil pollution risk assessment, with relatively poor reliability. Determining quantitative relationships and studying the dynamic changes of heavy metal thresholds in long-term field trials may become future research topics.

4.4.3. Derivation of Heavy Metal Thresholds Based on Their Bioavailability in Soil

At present, methods for determining heavy metal thresholds in farmland soil mainly consider the total amount of heavy metals as evaluation standards. However, the total amount of heavy metals cannot fully represent the actual toxic effects on crops and humans. The pH, organic matter content, and other factors should be considered for the derivation of heavy metal thresholds, and this requires research innovations. Therefore, the construction of new derivation methods for thresholds based on the bioavailable state of heavy metals in the soil may be an important development direction.

4.4.4. Establishment of Soil Environmental Benchmarks

Soil environmental benchmarks based on heavy metal thresholds can scientifically reflect the risk of heavy metal contamination in soil on related receptors. They can guide the formulation of soil environmental quality standards and subsequent pollution risk assessment. However, the current soil environmental benchmarks in many countries are hard to meet; therefore, there is a need to scientifically formulate soil environmental quality standards. For example, heavy metal threshold values based on different pH levels and land-use types were established in the China’s current farmland soil environmental quality standard (GB15618-2018). This standard can be beneficial to determine different farmland soil pollution levels preliminarily. However, this standard did not take into account other factors influencing heavy metal thresholds, such as soil types, soil physical and chemical properties (such as redox potential, soil organic matter, and ionic strength), and crop varieties. As a result, it may cause risk assessment results to deviate from reality, which can lead to “overprotection” or to “inadequate protection” in relation to soil environmental quality safety. Therefore, establishing more scientific and rational soil environmental benchmarks regarding heavy metal thresholds in soil may be important research direction.

5. Conclusions

Based on a big data analysis of 1106 studies, the following results on heavy metal thresholds in soils were obtained: (1) Environmental Sciences and Ecology, Agriculture, and Engineering were the three main disciplines concerned with heavy metal threshold research. (2) Journals, countries and institutions with the highest number of articles published were identified, and the development and evolution of these studies during the two decades were demonstrated. (3) Systematical analysis of external influencing factors (such as heavy metal levels in soil, soil pH, redox potential, soil organic matter, and ionic strength) and internal factors (e.g., crop genotype), of derivation methods (such as point model, probability model, and empirical model), and of application aspects of heavy metal threshold studies from 2001 to 2020 was carried out. (4) Challenges and future prospects of heavy metal threshold studies were proposed, indicating that research should focus on the relationships between human health risks and the established thresholds of heavy metals in soil, the derivation of thresholds based on the bioavailability of heavy metals and long-term field trials, and the establishment of more scientific and rational soil environmental benchmarks.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijerph19116561/s1, Figure S1: Annual number of various types of publications (2001–2020). Note: the bar chart shows the annual number of various types of publications, and the line chart shows cumulative frequency; Figure S2: Most cited journals. Note: each node represents a journal, and a brighter node indicates this journal is highly cited; Figure S3: Development and evolution of the studies in the most productive countries. Note: each node represents a country, and a larger node indicates a higher number of articles published by this country. The pivotal point with high betweenness centrality is highlighted with a purple ring, showing that country has a great influence in the cooperation relationships between countries; Table S1: Twelve most productive disciplines; Table S2: Six most productive journals; Table S3: Fifteen most productive institutions.

Author Contributions

Conceptualization, Z.D.; methodology, Z.D.; formal analysis, Y.A.; investigation, L.Q.; resources, H.L.; data curation, W.D. and D.L.; writing—original draft preparation, Z.D., Y.L. and H.C.; writing—review and editing, Z.D., L.Q., Y.A. and H.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Open Project Foundation in Beijing Research Center for Agricultural Standards and Testing (ZBZX202104) and the National Natural Science Foundation of China (No. 42107081).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Toth, G.; Hermann, T.; Szatmari, G.; Pasztor, L. Maps of heavy metals in the soils of the European Union and proposed priority areas for detailed assessment. Sci. Total Environ. 2016, 565, 1054–1062. [Google Scholar] [CrossRef] [PubMed]
  2. Hu, B.; Shao, S.; Ni, H.; Fu, Z.; Shi, Z. Current status, spatial features, health risks, and potential driving factors of soil heavy metal pollution in China at province level. Environ. Pollut. 2020, 266 Pt 3, 114961. [Google Scholar] [CrossRef] [PubMed]
  3. Zhang, H.; Zhang, F.; Song, J.; Tan, M.L.; Kung, H.T.; Johnson, V.C. Pollutant source, ecological and human health risks assessment of heavy metals in soils from coal mining areas in Xinjiang, China. Environ. Eng. Res. 2021, 202, 111702. [Google Scholar] [CrossRef] [PubMed]
  4. Varol, M.; Gunduz, K.; Sunbul, M.R. Pollution status, potential sources and health risk assessment of arsenic and trace metals in agricultural soils: A case study in Malatya province, Turkey. Environ. Eng. Res. 2021, 202, 111806. [Google Scholar] [CrossRef]
  5. Qu, J.; Wei, S.; Liu, Y.; Zhang, X.; Zhang, Y. Effective lead passivation in soil by bone char/CMC-stabilized FeS composite loading with phosphate-solubilizing bacteria. J. Hazard. Mater. 2021, 423, 127043. [Google Scholar] [CrossRef]
  6. Negahban, S.; Mokarram, M.; Pourghasemi, H.R.; Zhang, H. Ecological risk potential assessment of heavy metal contaminated soils in Ophiolitic formations. Environ. Eng. Res. 2021, 192, 110305. [Google Scholar] [CrossRef]
  7. Huang, J.; Wang, Y.; Xu, L.; Xu, N.; Fan, W. Cumulative risk assessment for an urban agglomeration based on a relative risk model and multi-media fugacity model: A case study in Guangdong province, China. Environ. Impact Assess. Rev. 2021, 91, 106637. [Google Scholar] [CrossRef]
  8. Taati, A.; Salehi, M.H.; Mohammadi, J.; Mohajer, R.; Diez, S. Pollution assessment and spatial distribution of trace elements in soils of Arak industrial area, Iran: Implications for human health. Environ. Eng. Res. 2020, 187, 109577. [Google Scholar] [CrossRef]
  9. Du, Z.L.; Chen, H.A.; Guo, X.Y.; Qin, L.; Lin, D.S.; Huo, L.L.; Yao, Y.P.; Zhang, Z.H. Mechanism and industrial application feasibility analysis on microwave-assisted rapid synthesis of amino-carboxyl functionalized cellulose for enhanced heavy metal removal. Chemosphere 2021, 268, 11. [Google Scholar] [CrossRef]
  10. Aschner, M.; Paoliello, M.M.B.; Tsatsakis, A.; Bowman, A.B.; Dorea, J.G.; Hartung, T.; Domingo, J.L.; Barbosa, F. Social injustice in environmental health: A call for fortitude. Environ. Eng. Res. 2021, 194, 110675. [Google Scholar] [CrossRef]
  11. Qu, J.; Meng, Q.; Lin, X.; Han, W.; Jiang, Q.; Wang, L.; Hu, Q.; Zhang, L.; Zhang, Y. Microwave-assisted synthesis of beta-cyclodextrin functionalized celluloses for enhanced removal of Pb(II) from water: Adsorptive performance and mechanism exploration. Sci. Total Environ. 2021, 752, 141854. [Google Scholar] [CrossRef] [PubMed]
  12. Qu, J.H.; Liu, Y.; Cheng, L.; Jiang, Z.; Zhang, G.S.; Deng, F.X.; Wang, L.; Han, W.; Zhang, Y. Green synthesis of hydrophilic activated carbon supported sulfide nZVI for enhanced Pb(II) scavenging from water: Characterization, kinetics, isotherms and mechanisms. J. Hazard. Mater. 2021, 403, 11. [Google Scholar] [CrossRef] [PubMed]
  13. Reimann, C.; Fabian, K.; Birke, M.; Filzmoser, P.; Demetriades, A.; Negrel, P.; Oorts, K.; Matschullat, J.; de Caritat, P.; Team, G.P. GEMAS: Establishing geochemical background and threshold for 53 chemical elements in European agricultural soil. Appl. Geochem. 2018, 88, 302–318. [Google Scholar] [CrossRef] [Green Version]
  14. Keller, A.; Schulin, R. Modelling regional-scale mass balances of phosphorus, cadmium and zinc fluxes on arable and dairy farms. Eur. J. Agron 2003, 20, 181–198. [Google Scholar] [CrossRef]
  15. Hu, W.Y.; Huang, B.; Tian, K.; Holm, P.E.; Zhang, Y.X. Heavy metals in intensive greenhouse vegetable production systems along Yellow Sea of China: Levels, transfer and health risk. Chemosphere 2017, 167, 82–90. [Google Scholar] [CrossRef] [PubMed]
  16. Xiao, R.; Guo, D.; Ali, A.; Mi, S.S.; Liu, T.; Ren, C.Y.; Li, R.H.; Zhang, Z.Q. Accumulation, ecological-health risks assessment, and source apportionment of heavy metals in paddy soils: A case study in Hanzhong, Shaanxi, China. Environ. Pollut. 2019, 248, 349–357. [Google Scholar] [CrossRef]
  17. He, K.; Zhang, J.; Zeng, Y. Knowledge domain and emerging trends of agricultural waste management in the field of social science: A scientometric review. Sci. Total Environ. 2019, 670, 236–244. [Google Scholar] [CrossRef]
  18. Bezak, N.; Mikos, M.; Borrelli, P.; Alewell, C.; Alvarez, P.; Anache, J.A.A.; Baartman, J.; Ballabio, C.; Biddoccu, M.; Cerda, A.; et al. Soil erosion modelling: A bibliometric analysis. Environ. Eng. Res. 2021, 197, 111087. [Google Scholar] [CrossRef]
  19. Li, X.; Li, Y.; Li, G. A scientometric review of the research on the impacts of climate change on water quality during 1998–2018. Environ. Sci. Pollut. Res. 2020, 27, 14322–14341. [Google Scholar] [CrossRef]
  20. Li, X.; Nan, R. A bibliometric analysis of eutrophication literatures: An expanding and shifting focus. Environ. Sci. Pollut. Res. 2017, 24, 17103–17115. [Google Scholar] [CrossRef]
  21. Li, C.; Wu, K.; Wu, J. A bibliometric analysis of research on haze during 2000-2016. Environ. Sci. Pollut. Res. 2017, 24, 24733–24742. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Ouyang, W.; Wang, Y.D.; Lin, C.Y.; He, M.C.; Hao, F.H.; Liu, H.B.; Zhu, W.H. Heavy metal loss from agricultural watershed to aquatic system: A scientometrics review. Sci. Total Environ. 2018, 637, 208–220. [Google Scholar] [CrossRef] [PubMed]
  23. Galhardi, J.A.; Mello, J.; Wilkinson, K.J. Bioaccumulation of potentially toxic elements from the soils surrounding a legacy uranium mine in Brazil. Chemosphere 2020, 261, 127679. [Google Scholar] [CrossRef] [PubMed]
  24. Grzebisz, W.; Diatta, J.B.; Ciesla, L. Spatial Distribution of Copper in Arable Soils and in Non-Consumable Crops (Flax, Oil-Seed Rape) Cultivated Near a Copper Smelter. Pol. J. Environ. Stud. 2001, 10, 269–274. [Google Scholar]
  25. Liu, X.; Wu, J.; Xu, J. Characterizing the risk assessment of heavy metals and sampling uncertainty analysis in paddy field by geostatistics and GIS. Environ. Pollut. 2006, 141, 257–264. [Google Scholar] [CrossRef]
  26. Vilavert, L.; Sisteré, C.; Schuhmacher, M.; Nadal, M.; Domingo, J.L. Environmental Concentrations of Metals in the Catalan Stretch of the Ebro River, Spain: Assessment of Temporal Trends. Biol. Trace Elem. Res. 2015, 163, 48–57. [Google Scholar] [CrossRef]
  27. Kumar, V.; Sharma, A.; Pandita, S.; Bhardwaj, R.; Thukral, A.K.; Cerda, A. A review of ecological risk assessment and associated health risks with heavy metals in sediment from India. Int. J. Sediment Res. 2020, 35, 516–526. [Google Scholar] [CrossRef]
  28. Cao, H.C.; Luan, Z.Q.; Wang, J.D.; Zhang, X.L. Potential ecological risk of cadmium, lead and arsenic in agricultural black soil in Jilin Province, China. Stoch. Environ. Res. Risk Assess. 2009, 23, 57–64. [Google Scholar] [CrossRef]
  29. Li, P.Y.; Qian, H.; Howard, K.W.F.; Wu, J.H.; Lyu, X.S. Anthropogenic pollution and variability of manganese in alluvial sediments of the Yellow River, Ningxia, northwest China. Environ. Monit. Assess. 2014, 186, 1385–1398. [Google Scholar] [CrossRef]
  30. Gillet, S.; Ponge, J.F. Humus forms and metal pollution in soil. Eur. J. Soil Sci. 2002, 53, 529–539. [Google Scholar] [CrossRef] [Green Version]
  31. Queiroz, H.M.; Nóbrega, G.; Ferreira, T.O.; Almeida, L.S.; Romero, T.B.; Santaella, S.T.; Bernardino, A.F.; Otero, X.L. The Samarco mine tailing disaster: A possible time-bomb for heavy metals contamination? Sci. Total Environ. 2018, 637–638, 498–506. [Google Scholar] [CrossRef] [PubMed]
  32. Jain, P.; Kim, H.; Townsend, T.G. Heavy metal content in soil reclaimed from a municipal solid waste landfill. Waste Manag. 2005, 25, 25–35. [Google Scholar] [CrossRef] [PubMed]
  33. Bolan, N.S.; Adriano, D.C.; Mahimairaja, S. Distribution and bioavailability of trace elements in livestock and poultry manure by-products. Crit. Rev. Environ. Sci. Technol. 2004, 34, 291–338. [Google Scholar] [CrossRef]
  34. Li, Y.; Gou, X.; Wang, G.; Zhang, Q.; Su, Q.; Xiao, G.J. Heavy metal contamination and source in and agricultural soil in central Gansu Province, China. J. Environ. Sci. 2008, 20, 607–612. [Google Scholar] [CrossRef]
  35. Hani, A.; Pazira, E. Heavy metals assessment and identification of their sources in agricultural soils of Southern Tehran, Iran. Environ. Monit. Assess. 2011, 176, 677–691. [Google Scholar] [CrossRef] [PubMed]
  36. Bigalke, M.; Ulrich, A.; Rehmus, A.; Keller, A. Accumulation of cadmium and uranium in arable soils in Switzerland. Environ. Pollut. 2017, 221, 85–93. [Google Scholar] [CrossRef]
  37. Pedrot, M.; Dia, A.; Davranche, M.; Bouhnik-Le Coz, M.; Henin, O.; Gruau, G. Insights into colloid-mediated trace element release at the soil/water interface. J. Colloid Interface Sci. 2008, 325, 187–197. [Google Scholar] [CrossRef]
  38. Relic, D.; Dordevic, R.; Popovic, R.; Jadranin, R.; Polic, R. Fractionation and potential mobility of trace metals in Danube alluvial aquifer within an industrialized zone. Environ. Monit. Assess. 2010, 171, 229–248. [Google Scholar] [CrossRef]
  39. Ispas, G.; Roba, C.; Blc, R.; Coad, M.; Gligor, D. The quality of water and soil in Hane mining area, Alba Country, Romania. Carpathian J. Earth Environ. Sci. 2018, 13, 505–514. [Google Scholar] [CrossRef]
  40. Rivera-Hernández, J.R.; Green-Ruiz, C. Strong acid mixture and sequential geochemical arsenic extractions in surface sediments from the Santa Maria La Reforma Coastal Lagoon, Mexico: A bioavailability assessment. Arch. Environ. Contam. Toxicol. 2016, 70, 348–360. [Google Scholar] [CrossRef]
  41. Hao, L.; Chen, L.P.; Ai, Y.W.; Xia, Y.; Yu, Y.H.; Zuo, Y.B.; Fu, G.Y. Heavy metal contamination in soil alongside mountain railway in Sichuan, China. Environ. Monit. Assess. 2009, 152, 25–33. [Google Scholar]
  42. Song, W.E.; Chen, S.B.; Liu, J.F.; Chen, L.; Song, N.N.; Ning, L.I.; Liu, B. Variation of Cd concentration in various rice cultivars and derivation of cadmium toxicity thresholds for paddy soil by species-sensitivity distribution. J. Integr. Agric. 2015, 14, 1845–1854. [Google Scholar] [CrossRef]
  43. Oorts, K.; Ghesquiere, U.; Swinnen, K.; Smolders, E. Soil properties affecting the toxicity of CuCl2 and NiCl2 for soil microbial processes in freshly spiked soils. Environ. Toxicol. Chem. 2006, 25, 836–844. [Google Scholar] [CrossRef] [PubMed]
  44. Irem, S.; Islam, E.; Maathuis, F.; Niazi, N.K.; Li, T. Assessment of potential dietary toxicity and arsenic accumulation in two contrasting rice genotypes: Effect of soil amendments. Chemosphere 2019, 225, 104–114. [Google Scholar] [CrossRef]
  45. Paschke, M.W.; Redente, E. Copper toxicity thresholds for important restoration grass species of the western United States. Environ. Toxicol. Chem. 2002, 21, 2692–2697. [Google Scholar] [CrossRef]
  46. Liu, H.Y.; Probst, A.; Liao, B.H. Metal contamination of soils and crops affected by the Chenzhou lead/zinc mine spill (Hunan, China). Sci. Total Environ. 2005, 339, 153–166. [Google Scholar] [CrossRef] [Green Version]
  47. Smolders, E.; Oorts, K.; van Sprang, P.; Schoeters, I.; Janssen, C.R.; McGrath, S.P.; McLaughlin, M.J. Toxicity of trace metals in soil as affected by soil type and aging after contamination: Using calibrated bioavailability models to set ecological soil standards. Environ. Toxicol. Chem. 2009, 28, 1633–1642. [Google Scholar] [CrossRef]
  48. Guala, S.D.; Vega, F.A.; Covelo, E.F. The dynamics of heavy metals in plant-soil interactions. Ecol. Model. 2010, 221, 1148–1152. [Google Scholar] [CrossRef]
  49. Ordóñez, A.; Álvarez, R.; Charlesworth, S.; Miguel, E.D.; Loredo, J. Risk assessment of soils contaminated by mercury mining, Northern Spain. J. Environ. Monit. 2011, 13, 128–136. [Google Scholar] [CrossRef] [Green Version]
  50. Harmanescu, M.; Alda, L.M.; Bordean, D.M.; Gogoasa, I.; Gergen, I. Heavy metals health risk assessment for population via consumption of vegetables grown in old mining area; a case study: Banat County, Romania. Chem. Cent. J. 2011, 5, 64–73. [Google Scholar] [CrossRef] [Green Version]
  51. Dung, T.T.T.; Cappuyns, V.; Swennen, R.; Phung, N.K. From geochemical background determination to pollution assessment of heavy metals in sediments and soils. Rev. Environ. Sci. Biotechnol. 2013, 12, 335–353. [Google Scholar] [CrossRef]
  52. Zhang, S.; Song, J.; Gao, H.; Zhang, Q.; Lv, M.-C.; Wang, S.; Liu, G.; Pan, Y.Y.; Christie, P.; Sun, W. Improving prediction of metal uptake by Chinese cabbage (Brassica pekinensis L.) based on a soil-plant stepwise analysis. Sci. Total Environ. 2016, 569–570, 1595–1605. [Google Scholar] [CrossRef] [PubMed]
  53. Doabi, S.A.; Karami, M.; Afyuni, M.; Yeganeh, M. Pollution and health risk assessment of heavy metals in agricultural soil, atmospheric dust and major food crops in Kermanshah province, Iran. Ecotoxicol. Environ. Saf. 2018, 163, 153–164. [Google Scholar] [CrossRef] [PubMed]
  54. Antoniadis, V.; Golia, E.E.; Liu, Y.T.; Wang, S.L.; Shaheen, S.M.; Rinklebe, J. Soil and maize contamination by trace elements and associated health risk assessment in the industrial area of Volos, Greece. Environ. Int. 2019, 124, 79–88. [Google Scholar] [CrossRef] [PubMed]
  55. Rutigliano, F.A.; Marzaioli, R.; De Crescenzo, S.; Trifuoggi, M. Human health risk from consumption of two common crops grown in polluted soils. Sci. Total Environ. 2019, 691, 195–204. [Google Scholar] [CrossRef]
  56. Li, K.; Cao, C.L.; Ma, Y.B.; Su, D.C.; Li, J.M. Identification of cadmium bioaccumulation in rice (Oryza sativa L.) by the soil-plant transfer model and species sensitivity distribution. Sci. Total Environ. 2019, 692, 1022–1028. [Google Scholar] [CrossRef]
  57. Zabel, T.F.; Cole, S.M. The Derivation of Environmental Quality Standards for the Protection of Aquatic Life in the UK. Water Environ. J. 2010, 13, 436–440. [Google Scholar] [CrossRef]
  58. Wheeler, J.R.; Grist, E.M.; Leung, K.; Morritt, D.; Crane, M. Species sensitivity distributions: Data and model choice. Mar. Pollut. Bull. 2020, 45, 192–202. [Google Scholar] [CrossRef]
  59. Fang, F.S.; Fu, H.W.; Xu, W.; Wu, H.; Xiang, X.L. Soil threshold values of total and available cadmium for vegetable growing based on field data in Guangdong province, South China. J. Sci. Food Agric. 2013, 93, 1967–1973. [Google Scholar]
  60. Shi, Y.; Pan, Y.; Wang, J.; Cai, Y. Perfluorinated Chemicals Related Environmental Problems. Prog. Chem. 2009, 21, 369–376. [Google Scholar]
  61. Ding, C.; Li, X.; Zhang, T.; Ma, Y.; Wang, X. Phytotoxicity and accumulation of chromium in carrot plants and the derivation of soil thresholds for Chinese soils. Ecotoxicol. Environ. Saf. 2014, 108, 179–186. [Google Scholar] [CrossRef]
  62. Ding, C.; Ma, Y.; Li, X.; Zhang, T.; Wang, X. Determination and validation of soil thresholds for cadmium based on food quality standard and health risk assessment. Sci. Total Environ. 2017, 619, 700–706. [Google Scholar] [CrossRef]
  63. Wang, Z.; Meng, B.; Zhang, W.; Bai, J.; Ma, Y.; Liu, M. Multi-target risk assessment of potentially toxic elements in farmland soil based on the environment-ecological-health effect. Int. J. Environ. Res. Public Health 2018, 15, 1101. [Google Scholar] [CrossRef] [Green Version]
  64. Yotova, G.; Padareva, M.; Hristova, M.; Astel, A.; Georgieva, M.; Dinev, N.; Tsakovski, S. Establishment of geochemical background and threshold values for 8 potential toxic elements in the Bulgarian soil quality monitoring network. Sci. Total Environ. 2018, 643, 1297–1303. [Google Scholar] [CrossRef]
  65. Birch, G.F. Determination of sediment metal background concentrations and enrichment in marine environments—A critical review. Sci. Total Environ. 2017, 580, 813–831. [Google Scholar] [CrossRef]
  66. Naz, A.; Khan, S.; Muhammad, S.; Ahmad, R.; Rahman, Z.U. Risk assessment of hazardous elements in wastewater irrigated soil and cultivated vegetables in Pakistan. Arab. J. Geosci. 2020, 13, 1201–1210. [Google Scholar] [CrossRef]
  67. Hu, B.; Zhao, R.; Chen, S.; Yue, Z.; Jin, B.; Li, Y.; Shi, Z. Heavy metal pollution delineation based on uncertainty in a coastal industrial city in the Yangtze River Delta, China. Int. J. Environ. Res. Public Health 2018, 15, 710. [Google Scholar] [CrossRef] [Green Version]
  68. Ibezim-Ezeani, M.; Dibofori-Orji, A.; Udo, K.; Ihunwo, O. Assessment of metal contamination in sediment from Woji Creek, Niger Delta Region of Nigeria. Int. J. Environ. Anal. Chem. 2020, 3, 1–12. [Google Scholar] [CrossRef]
  69. Ztürk, E.; Dengiz, O. Assessment and selection of suitable microbasins for organic agriculture under subhumid ecosystem conditions: A case study from Trabzon Province, Turkey. Arab. J. Geosci. 2020, 13, 1222–1234. [Google Scholar] [CrossRef]
  70. Jia ZM, Li SY, Wang L: Assessment of soil heavy metals for eco-environment and human health in a rapidly urbanization area of the upper Yangtze Basin. Sci. Rep. 2018, 8, 3256–3269. [CrossRef] [Green Version]
  71. Chen, C.M.; Dubin, R.; Kim, M.C. Emerging trends and new developments in regenerative medicine: A scientometric update (2000–2014). Expert Opin. Biol. Ther. 2014, 14, 1295–1317. [Google Scholar] [CrossRef] [Green Version]
  72. Puthusseri, R.M.; Nair, H.P.; Johny, T.K.; Bhat, S.G. Insights into the response of mangrove sediment microbiomes to heavy metal pollution: Ecological risk assessment and metagenomics perspectives. J. Environ. Manag. 2021, 298, 113492. [Google Scholar] [CrossRef]
Ijerph 19 06561 g001 550

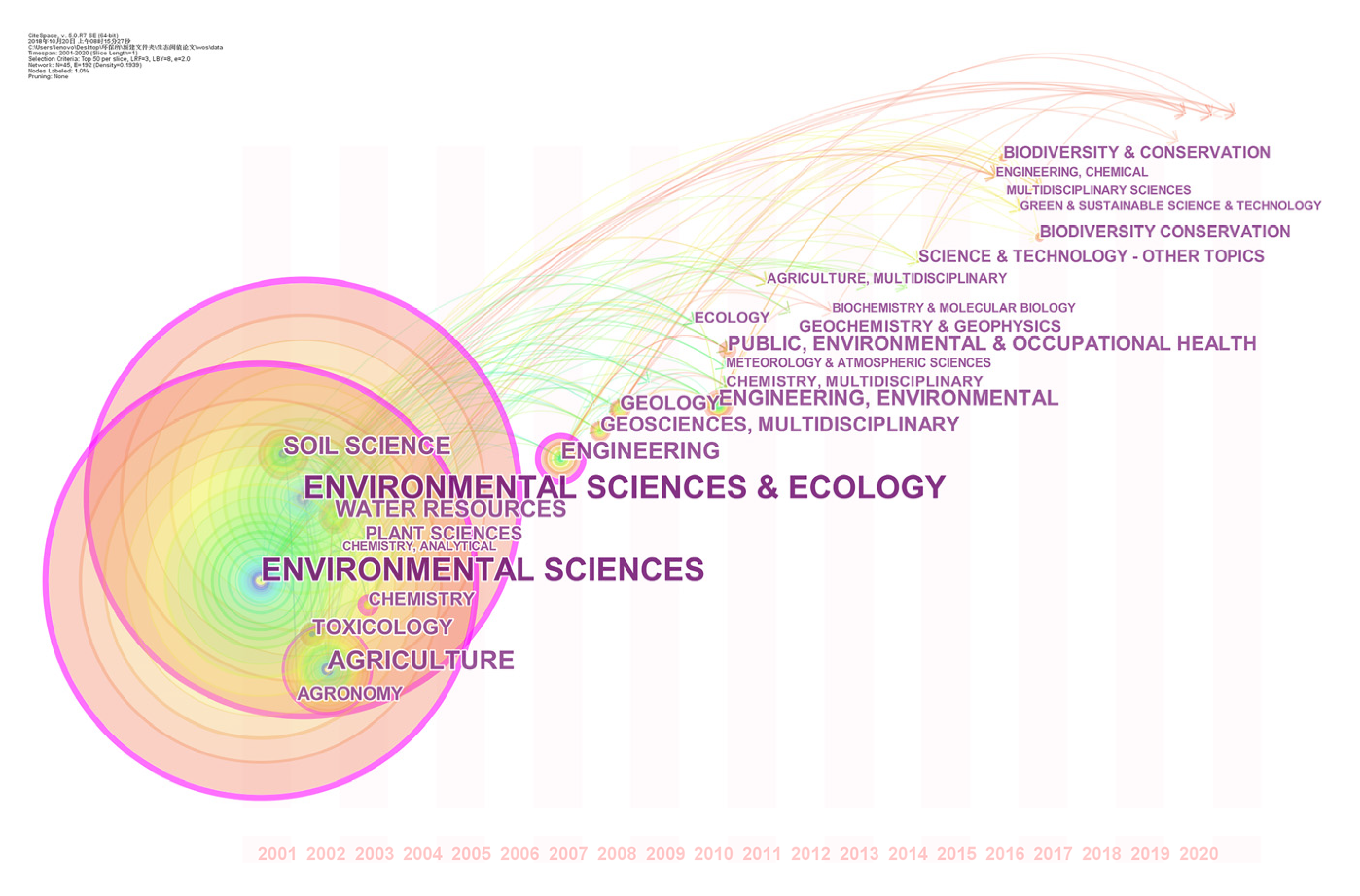

Figure 1. Evolution mapping of disciplines development during 2001–2020. Note: Each node represents a discipline, and the larger the node indicates the higher the number of articles related to this discipline. A pivotal point with high betweenness centrality is highlighted with a purple ring, showing this discipline has a great influence in the cooperation between disciplines.
Figure 1. Evolution mapping of disciplines development during 2001–2020. Note: Each node represents a discipline, and the larger the node indicates the higher the number of articles related to this discipline. A pivotal point with high betweenness centrality is highlighted with a purple ring, showing this discipline has a great influence in the cooperation between disciplines.
Ijerph 19 06561 g001
Ijerph 19 06561 g002 550

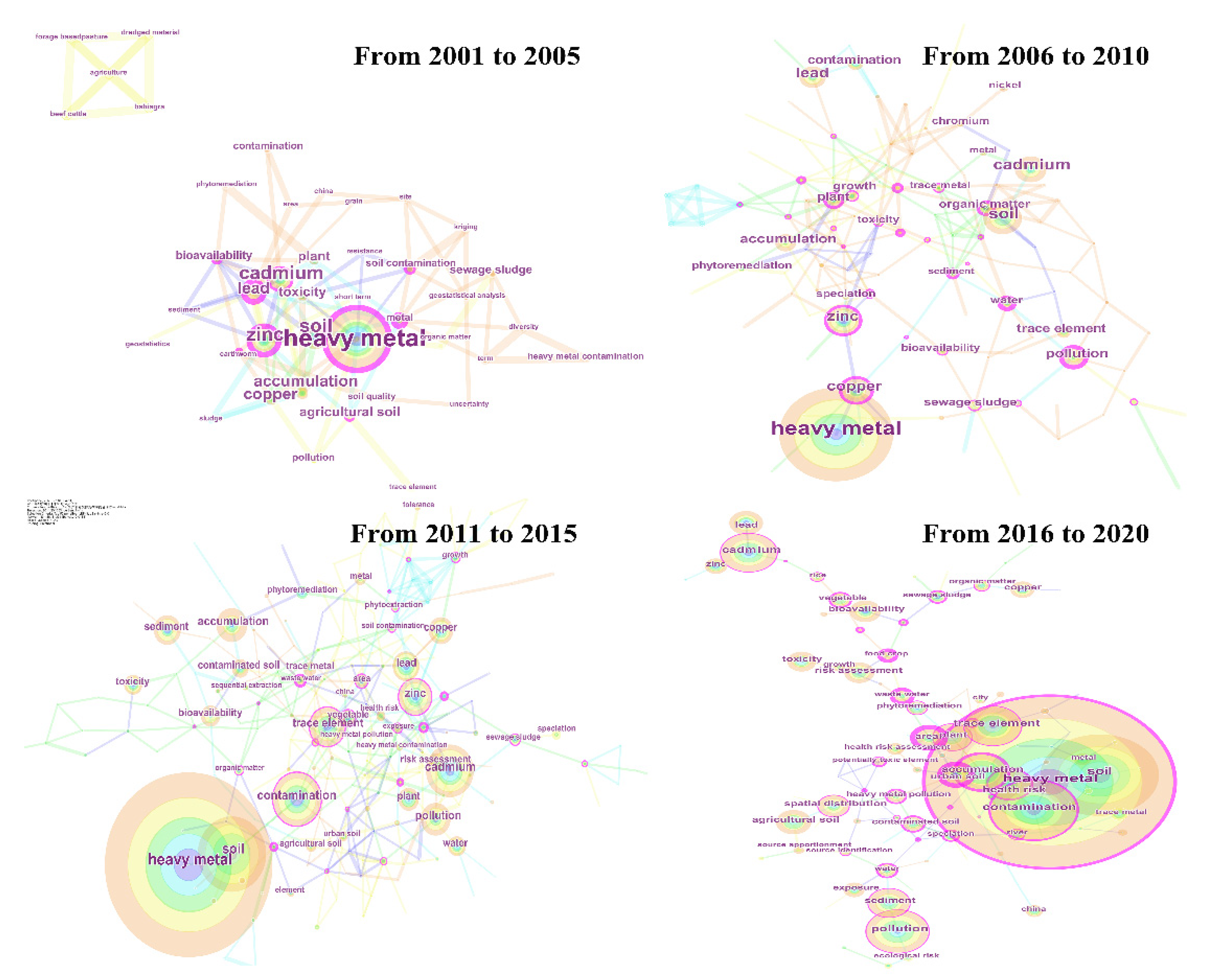

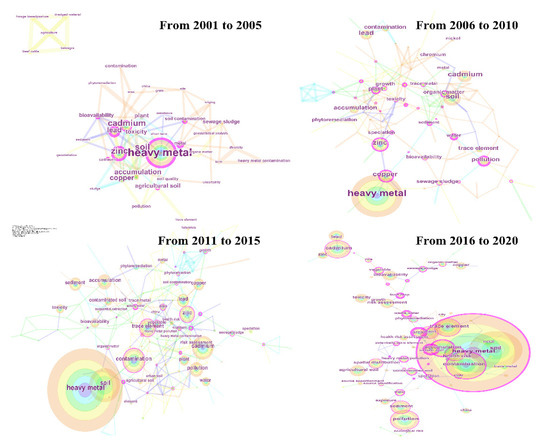

Figure 2. High-frequency keywords from 2001 to 2020. Note: the network is depicted with a series of tree rings in different colors, and every ring represents one keyword. The blue ring indicates the oldest keyword, and the orange ring indicates the newest. The links describe a co-occurrence of these keywords. Furthermore, pivotal points with high betweenness centrality are highlighted with a purple ring.
Figure 2. High-frequency keywords from 2001 to 2020. Note: the network is depicted with a series of tree rings in different colors, and every ring represents one keyword. The blue ring indicates the oldest keyword, and the orange ring indicates the newest. The links describe a co-occurrence of these keywords. Furthermore, pivotal points with high betweenness centrality are highlighted with a purple ring.
Ijerph 19 06561 g002
Ijerph 19 06561 g003 550

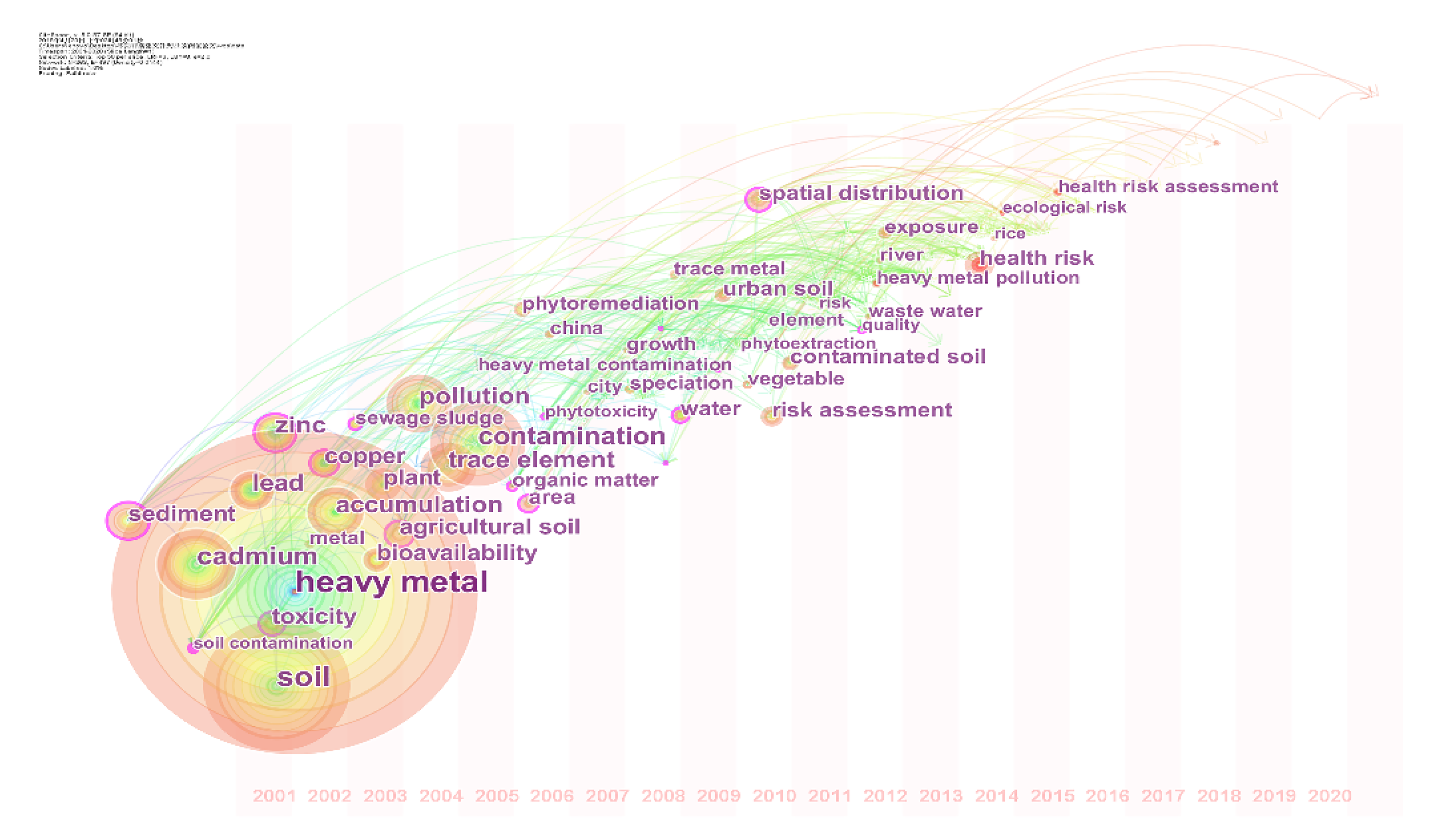

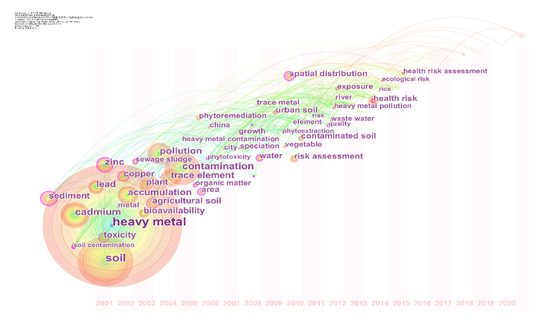

Figure 3. Development and evolution of high-frequency keywords. Note: each node represents a keyword, and the size of the node indicates the number of times this keyword occurred. The colored links describe the co-occurrence of keywords.
Figure 3. Development and evolution of high-frequency keywords. Note: each node represents a keyword, and the size of the node indicates the number of times this keyword occurred. The colored links describe the co-occurrence of keywords.
Ijerph 19 06561 g003
Ijerph 19 06561 g004 550

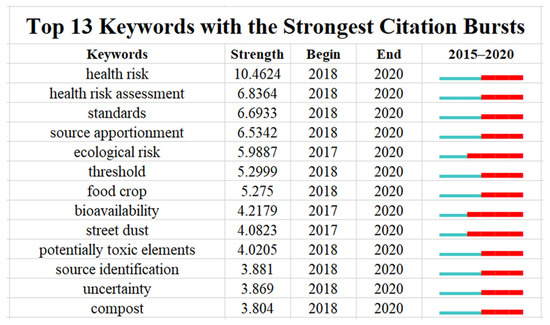

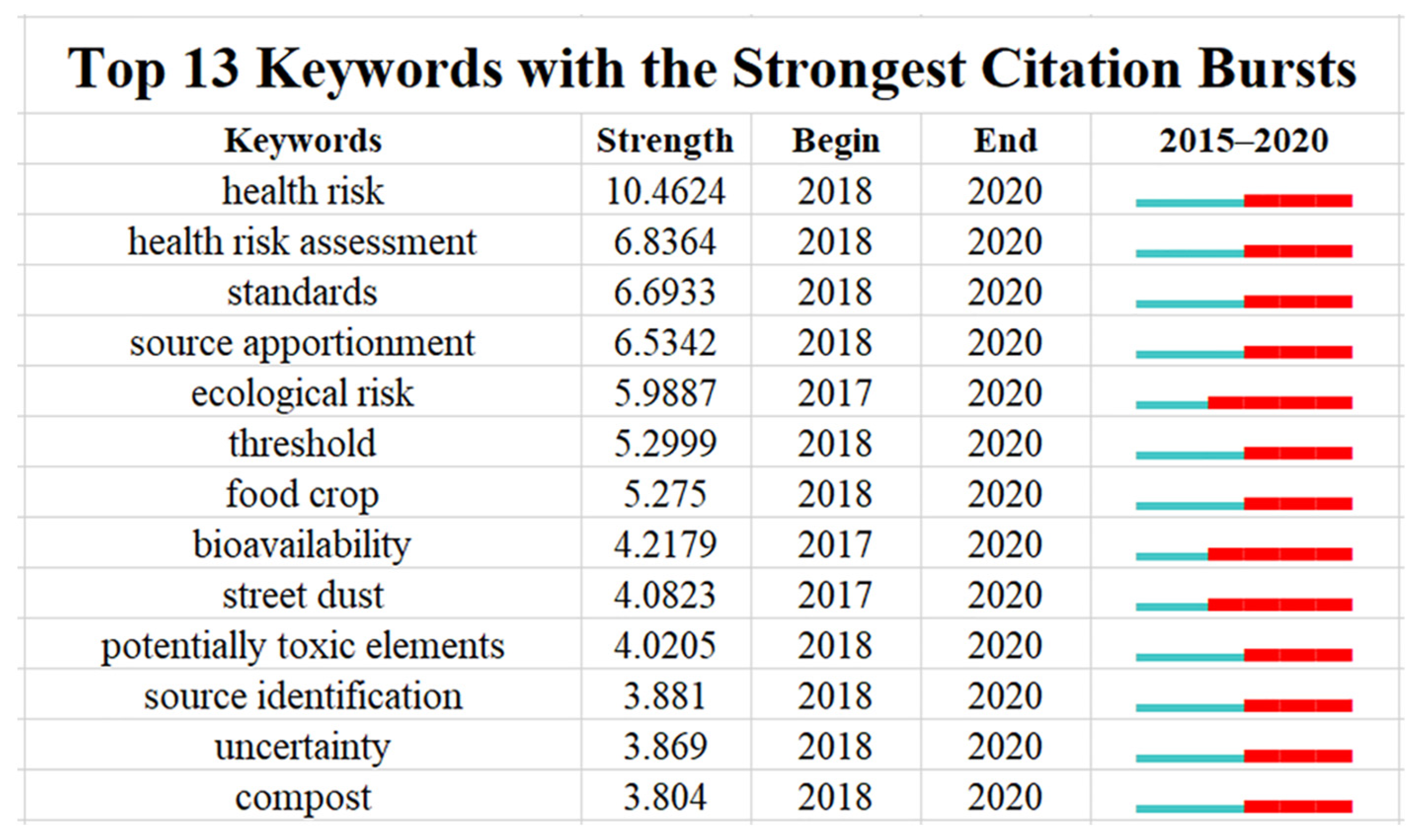

Figure 4. Top 13 keywords with the strongest citation bursts. Note: the duration of the citation burst of a keyword is represented by the red bar.
Figure 4. Top 13 keywords with the strongest citation bursts. Note: the duration of the citation burst of a keyword is represented by the red bar.
Ijerph 19 06561 g004
Table
Table 1. Analysis on the advantages, disadvantages, and uncertainty of the methods for determining the threshold levels of heavy metals in agricultural land.
Table 1. Analysis on the advantages, disadvantages, and uncertainty of the methods for determining the threshold levels of heavy metals in agricultural land.
ModelRepresentative MethodAdvantages and DisadvantagesReferences
Point modelEvaluation
factor method		Advantages: simple and easy to operate, taking account of species sensitivity, independent of any theoretical model; quantitative result description
Disadvantages: selection of evaluation factors depending on experiences and national policies, single type and quantity of sensitive species without representativity		[57,58]
Probability modelSpecies
sensitivity
distribution (SSD)		Advantages: taking account of differences in species sensitivity, soil physical and chemical properties, bioavailability and sources of pollutants, and different pollution risk levels; quantitative result description
Disadvantages: rarely taking account of the interrelationship of food chains between species, unable to provide potential recovery information for the environment		[58,59,60]
Empirical modelEcological environment effect methodAdvantages: taking account of the effects of different soil physical and chemical properties; quantitative result description
Disadvantages: rarely taking account of species sensitivity		[59,61,62,63]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Du, Z.; Lin, D.; Li, H.; Li, Y.; Chen, H.; Dou, W.; Qin, L.; An, Y. Bibliometric Analysis of the Influencing Factors, Derivation, and Application of Heavy Metal Thresholds in Soil. Int. J. Environ. Res. Public Health 2022, 19, 6561. https://doi.org/10.3390/ijerph19116561

AMA Style

Du Z, Lin D, Li H, Li Y, Chen H, Dou W, Qin L, An Y. Bibliometric Analysis of the Influencing Factors, Derivation, and Application of Heavy Metal Thresholds in Soil. International Journal of Environmental Research and Public Health. 2022; 19(11):6561. https://doi.org/10.3390/ijerph19116561

Chicago/Turabian Style

Du, Zhaolin, Dasong Lin, Haifeng Li, Yang Li, Hongan Chen, Weiqiang Dou, Li Qin, and Yi An. 2022. "Bibliometric Analysis of the Influencing Factors, Derivation, and Application of Heavy Metal Thresholds in Soil" International Journal of Environmental Research and Public Health 19, no. 11: 6561. https://doi.org/10.3390/ijerph19116561

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
