Next Article in Journal
The Role of Matrix Metalloproteinases in Periodontal Disease
Next Article in Special Issue
Accuracy of Dynamic Navigation System Workflow for Implant Supported Full Arch Prosthesis: A Case Series
Previous Article in Journal
A System Dynamics and Participatory Action Research Approach to Promote Healthy Living and a Healthy Weight among 10–14-Year-Old Adolescents in Amsterdam: The LIKE Programme
Previous Article in Special Issue
Digital versus Conventional Impression Taking Focusing on Interdental Areas: A Clinical Trial
Open AccessArticle

Integrated 3D Information for Custom-Made Bone Grafts: Focus on Biphasic Calcium Phosphate Bone Substitute Biomaterials

1
Department of Clinical Science, Polytechnic University of Marche, Via Brecce Bianche, 60131 Ancona, Italy
2
Department of Materials, Environmental Sciences and Urban Planning, Polytechnic University of Marche, Via Brecce Bianche, 60131 Ancona, Italy
3
Department of Prevention and Communal Dentistry, Sechenov First Moscow State Medical University, 119991 Moscow, Russia
4
Private Practice, 22015 Gravedona, CO, Italy
*
Author to whom correspondence should be addressed.
These authors equally contributed to the study.
Int. J. Environ. Res. Public Health 2020, 17(14), 4931; https://doi.org/10.3390/ijerph17144931
Received: 3 June 2020 / Revised: 2 July 2020 / Accepted: 5 July 2020 / Published: 8 July 2020
(This article belongs to the Special Issue Digital Dentistry for Oral Health)

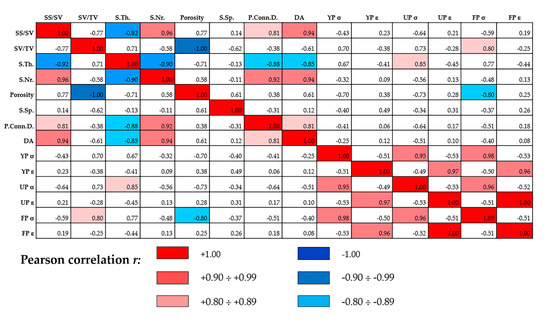

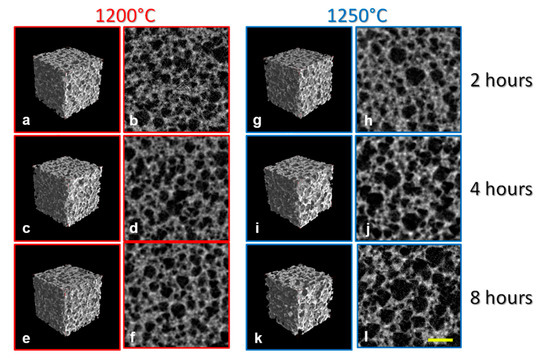

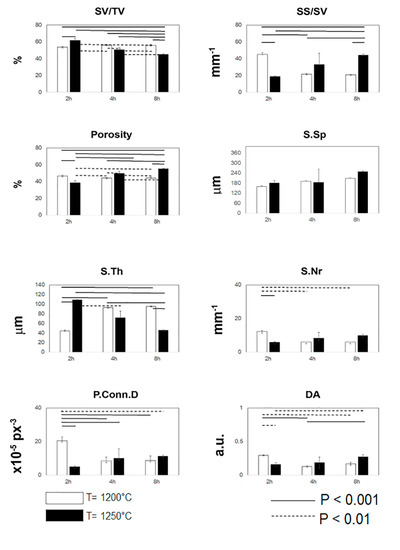

Purpose: Several studies showed that the sintering temperature of 1250 °C could affect the formation of α-Ca3(PO4)2, which is responsible for the reduction of the hardness value of biphasic calcium phosphate biocomposites, but they did not evaluate the inference of the sintering time at peak temperature on transition of β-Ca3(PO4)2 to α-Ca3(PO4)2. This analysis explored, in an innovative way, inferences and correlations between volumetric microstructure, mechanical properties, sintering temperature, and time at peak temperature in order to find the best sintering conditions for biphasic calcium phosphate composites grafted in severe alveolar bone defects. Methods: Sintered biphasic calcium phosphates (30%-hydroxyapatite/70%-tricalcium phosphate) were tested by microCT imaging for the 3D morphometric analysis, by compressive loading to find their mechanical parameters, and by X-ray diffraction to quantify the phases via Rietveld refinement for different sintering temperatures and times at the peak temperature. Data were analysed in terms of statistical inference using Pearson’s correlation coefficients. Results: All the studied scaffolds closely mimicked the alveolar organization of the jawbone, independently on the sintering temperatures and times; however, mechanical testing revealed that the group with peak temperature, which lasted for 2 hours at 1250 °C, showed the highest strength both at the ultimate point and at fracture point. Conclusion: The good mechanical performances of the group with peak temperature, which lasted for 2 hours at 1250 °C, is most likely due to the absence of the α-Ca3(PO4)2 phase, as revealed by X-ray diffraction. However, we detected its presence after sintering at the same peak temperature for longer times, showing the time-dependence, combined with the temperature-dependence, of the β-Ca3(PO4)2 to α-Ca3(PO4)2 transition. View Full-Text
Keywords: bone grafts; biphasic calcium phosphate; 3D information; morphometric analysis; mechanical analysis; X-ray microtomography bone grafts; biphasic calcium phosphate; 3D information; morphometric analysis; mechanical analysis; X-ray microtomography
Show Figures

Figure 1

MDPI and ACS Style

Giuliani, A.; Gatto, M.L.; Gobbi, L.; Mangano, F.G.; Mangano, C. Integrated 3D Information for Custom-Made Bone Grafts: Focus on Biphasic Calcium Phosphate Bone Substitute Biomaterials. Int. J. Environ. Res. Public Health 2020, 17, 4931. https://doi.org/10.3390/ijerph17144931

AMA Style

Giuliani A, Gatto ML, Gobbi L, Mangano FG, Mangano C. Integrated 3D Information for Custom-Made Bone Grafts: Focus on Biphasic Calcium Phosphate Bone Substitute Biomaterials. International Journal of Environmental Research and Public Health. 2020; 17(14):4931. https://doi.org/10.3390/ijerph17144931

Chicago/Turabian Style

Giuliani, Alessandra; Gatto, Maria L.; Gobbi, Luigi; Mangano, Francesco G.; Mangano, Carlo. 2020. "Integrated 3D Information for Custom-Made Bone Grafts: Focus on Biphasic Calcium Phosphate Bone Substitute Biomaterials" Int. J. Environ. Res. Public Health 17, no. 14: 4931. https://doi.org/10.3390/ijerph17144931

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
