The Design of a Computer Vision Sensor Based on a Low-Power Edge Detection Circuit

Lee, Suhyeon; Yun, Yu Chan; Heu, Seung Min; Lee, Kyu Hyun; Lee, Seung Joon; Lee, Kyungmin; Moon, Jiin; Lim, Hyuna; Jang, Taeun; Song, Minkyu; Kim, Soo Youn

doi:10.3390/s25103219

This is an early access version, the complete PDF, HTML, and XML versions will be available soon.

Open AccessCommunication

The Design of a Computer Vision Sensor Based on a Low-Power Edge Detection Circuit

by

Suhyeon Lee

,

Yu Chan Yun

,

Seung Min Heu

,

Kyu Hyun Lee

,

Seung Joon Lee

,

Kyungmin Lee

,

Jiin Moon

,

Hyuna Lim

,

Taeun Jang

,

Minkyu Song

and

Soo Youn Kim

^*

Department of System Semiconductor, Dongguk University, Seoul 04620, Republic of Korea

^*

Author to whom correspondence should be addressed.

Sensors 2025, 25(10), 3219; https://doi.org/10.3390/s25103219

Submission received: 2 April 2025 / Revised: 11 May 2025 / Accepted: 15 May 2025 / Published: 20 May 2025

(This article belongs to the Special Issue Recent Advances in CMOS Image Sensor)

Download Versions Notes

Abstract

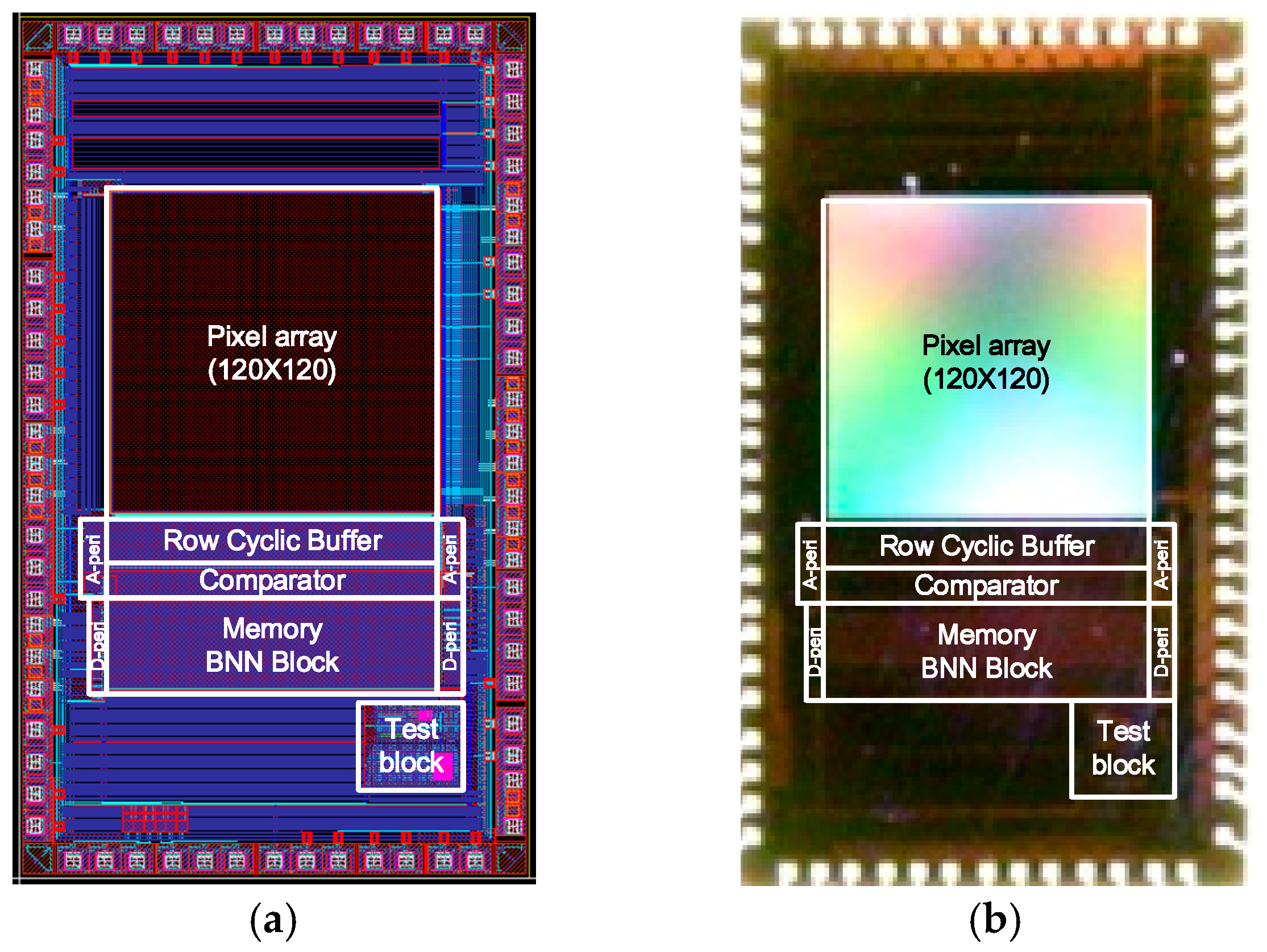

We propose a complementary metal-oxide-semiconductor (CMOS) image sensor (CIS) that performs edge mask computation and detection during the analog-to-digital (A/D) conversion process to output 1-bit edge images. By utilizing the characteristics of the edge that can obtain a 1-bit image, the edge mask and thresholding operations are performed simultaneously during the A/D conversion process, thereby reducing memory capacity along with a high number of frames per second (FPS). Additionally, by implementing a 1-bit analog-to-digital converter (ADC) instead of a high-resolution ADC and counter through the 1-bit edge data obtained from the edge mask operation, both static and dynamic power consumption are reduced. The proposed CIS, fabricated with a one-poly six-metal CIS process with a 4T-active pixel sensor, has a core area of 2.546 mm 1.923 mm in a chip area of 2.558 mm × 4.3 mm. The total power consumption is 1.52 mW at 23 FPS, with power supplies of 2.8V and 1.5V for the analog domain and 1.5V for the digital domain.

Keywords: CMOS image sensor; computer vision; edge detection; low power consumption
