# Adaptive Approach to Time-Frequency Analysis of AE Signals of Rocks

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Adaptive Matching Pursuit

- ${R}_{0}\left(t\right)=x\left(t\right)$, $i=0$.
- Set grid step for each parameter as half of the sampling interval of this parameter $\lambda =\{0.5{\lambda}_{\mathrm{max}},0.5{\lambda}_{\mathsf{\Delta}},0.5{\lambda}_{\mathrm{end}},0.5{\lambda}_{f}\}$.
- In the neighborhood of ${\mathbf{p}}_{j}$, construct a new grid, containing three points for each parameter p: $p-\lambda ,p,p+\lambda $.
- Define atom with the biggest correlation with ${R}_{i}\left(t\right)$ among the atoms corresponding to the grid nodes. ${\mathbf{p}}_{j+1}$ is the atom parameters.
- If $\lambda $ is less than a minimum possible step (corresponds to selected accuracy) then go to step 9.
- If ${\mathbf{p}}_{j+1}={\mathbf{p}}_{j}$ then decrease the step $\lambda =\lambda /2$.
- $j=j+1$, repeat from step 4.
- Estimate the residual signal ${R}_{i+1}\left(t\right)$ using ${g}_{k}(t,{\mathbf{p}}_{j})$.
- If the ratio of the residual signal norm to the initial signal norm becomes less than the prescribed threshold $\epsilon $ ($\parallel {R}_{i}\left(t\right)\parallel /\parallel x\left(t\right)\parallel <\epsilon $) then STOP, otherwise $i=i+1$ and repeat from step 2.

## 3. Description of the Experiment

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Morgunov, V.A.; Lyuboshevskij, M.N.; Fabricius, V.Z.; Fabricius, Z.E. Geoakusticheskij predvestnik Spitakskogo zemletryaseniya. Vulcanol. Seismol.
**1991**, 4, 104–106. (In Russian) [Google Scholar] - Gregori, G.P.; Poscolieri, M.; Paparo, G.; De Simone, S.; Rafanelli, C.; Ventrice, G. “Storms of crustal stress” and AE earthquake precursors. Nat. Hazards Earth Syst. Sci.
**2010**, 10, 319–337. [Google Scholar] [CrossRef] - Toader, E.; Moldovan, I.A.; Mihai, A. Forecast earthquakes using acoustic emission. Proceedings of 19th International Multidisciplinary Scientific GeoConference (SGEM 2019), Albena, Bulgaria, 30 June–6 July 2019. [Google Scholar]
- Kuptsov, A.V. Variations in the geoacoustic emission pattern related to earthquakes on Kamchatka. Izv. Phys. Solid Earth.
**2005**, 41, 825–831. [Google Scholar] - Marapulets, Y.V. High-frequency acoustic emission effect. Bull. Krasec. Phys. Math. Sci.
**2015**, 10, 39–48. [Google Scholar] - Marapulets, Y.V.; Shevtsov, B.M.; Larionov, I.A.; Mishchenko, M.A.; Shcherbina, A.O.; Solodchuk, A.A. Geoacoustic emission response to deformation processes activation during earthquake preparation. Russ. J. Pac. Geol.
**2012**, 6, 457–464. [Google Scholar] [CrossRef] - Marapulets, Y.V.; Tristanov, A.B.; Shevtsov, B.M. Analysis of the Structure of Acoustic Emission Signals of the Audible Range by the Sparse Approximation Method. Acoust. Phys.
**2014**, 60, 427–435. [Google Scholar] [CrossRef] - Shevtsov, B.M.; Marapulets, Y.V.; Shcherbina, A.O. Directionality of surface high-frequency geoacoustic emission during deformational disturbances. Dokl. Earth Sci.
**2010**, 430, 67–70. [Google Scholar] [CrossRef] - Voitenko, E.A.; Morgunov, Y.N. Experimental studies of the propagation of buried pulsed acoustic signals in the ground. Acoust. Phys.
**2011**, 57, 66–67. [Google Scholar] [CrossRef] - Marapulets, Y.V.; Lukovenkova, O.O. Time-frequency analysis of geoacoustic data using adaptive matching pursuit. Acoust. Phys.
**2021**, 67, 312–319. [Google Scholar] [CrossRef] - Elad, M. Sparse and Redundant Representations. From Theory to Applications in Signal and Image Processing; Springer: New York, NY, USA, 2010; 376p. [Google Scholar]
- Yousif, A.S.; Omar, Z.; Sheikh, U.U. An improved approach for medical image fusion using sparse representation and Siamese convolutional neural network. Biomed. Signal Process. Control
**2022**, 72, 103357. [Google Scholar] [CrossRef] - Josso, N.; Zhang, J.; Papandreou-Suppappola, A.; Ioana, C.; Mars, J.; Gervaise, C.; Stephan, Y. On the characterization of time-scale underwater acoustic signals using matching pursuit decomposition. In Proceedings of the OCEANS 2009, Biloxi, MI, USA, 26–29 October 2009. [Google Scholar]
- Zhou, C.; Kong, Y.; Zhang, C.; Sun, L.; Wu, D. A Hybrid Sparse Representation Model for Image Restoration. Sensors
**2022**, 22, 537. [Google Scholar] [CrossRef] [PubMed] - Qayyum, A.; Mazher, M.; Nuhu, A.; Benzinou, A.; Malik, A.S.; Razzak, I. Assessment of physiological states from contactless face video: A sparse representation approach. Computing
**2022**, 1–21. [Google Scholar] [CrossRef] - Al-Hassani, I.; Al-Dakkak, O.; Assami, A. Phonetic Segmentation using a Wavelet-based Speech Cepstral Features and Sparse Representation Classifier. J. Telecommun. Inf. Technol.
**2021**, 4, 12–22. [Google Scholar] [CrossRef] - Mallat, S.G.; Zhang, Z. Matching pursuits with time-frequency dictionaries. IEEE Trans. Signal Process.
**1993**, 41, 3397–3415. [Google Scholar] [CrossRef] [Green Version] - Rabinovich, E.V.; Ganchin, K.S.; Pupyshev, I.M.; Shefel, G.S. The model of the seismic pulse arising at hydraulic fracturing. Math. Struct. Model.
**2014**, 32, 105–111. (In Russian) [Google Scholar] - Tristanov, A.B.; Marapulets, Y.V.; Lukovenkova, O.O.; Kim, A.A. A new approach to study of geoacoustic emission signals. Pattern Recognit. Image Anal.
**2016**, 26, 34–44. [Google Scholar] [CrossRef] - Lukovenkova, O.O.; Marapulets, Y.V.; Tristanov, A.B.; Kim, A.A. Modernization of adaptive matching pursuit method to analyze geophysical signals of pulse nature. In Proceedings of the IX International Conference “Solar-Terrestrial Relations and Physics of Earthquake Precursors”, Paratunka, Russia, 17–21 October 2018; Volume 62, p. 02012. [Google Scholar]
- Shcherbina, A.O.; Lukovenkova, O.O.; Solodchuk, A.A. Adaptive Threshold Scheme for Pulse Detection under Condition of Background Nonstationary Noise. J. Phys. Conf. Ser.
**2021**, 2096, 012019. [Google Scholar] [CrossRef] - Kamchatka Branch of Geophysical Service Russian Academy of Science. Available online: http://sdis.emsd.ru/info/earthquakes/catalogue.php (accessed on 22 November 2022).
- Dobrovolsky, I.P. Matematicheskaja Teorija Podgotovki i Prognoza Tektonicheskogo Zemletrjasenija; Fizmatlit: Moscow, Russia, 2009; 240p. (In Russian) [Google Scholar]
- Gusev, A.A.; Skorkina, A.A.; Pavlov, V.M.; Abubakirov, I.R. Obtaining mass estimates of regional moment magnitudes M
_{W}and establishing their relationship with M_{L}for subduction Kamchatka earthquakes. In Proceedings of the Materials of the XX Regional Scientific Conference dedicated to the Day of Volcanologist, Petropavlovsk-Kamchatsky, Russia, 30–31 March 2017. [Google Scholar] - Larionov, I.A.; Marapulets, Y.V.; Shevtsov, B.M. Features of the Earth surface deformations in the Kamchatka peninsula and their relation to geoacoustic emission. Solid Earth
**2014**, 5, 1293–1300. [Google Scholar] [CrossRef] [Green Version] - Gapeev, M.I.; Marapulets, Y.V. Modeling of relative shear deformation zones before strong earthquakes in Kamchatka from 2018–2021. Vestnik Kraunc. Fiz.-Mat. Nauki
**2021**, 37, 53–66. [Google Scholar] - Bowman, A.W. A comparative study of some kernel-based nonparametric density estimators. J. Stat. Comput. Sim.
**1985**, 21, 313–327. [Google Scholar] [CrossRef] - Heer, J. Fast & Accurate Gaussian Kernel Density Estimation. In Proceedings of the 2021 IEEE Visualization Conference (VIS), New Orleans, LA, USA, 24–29 October 2021. [Google Scholar]

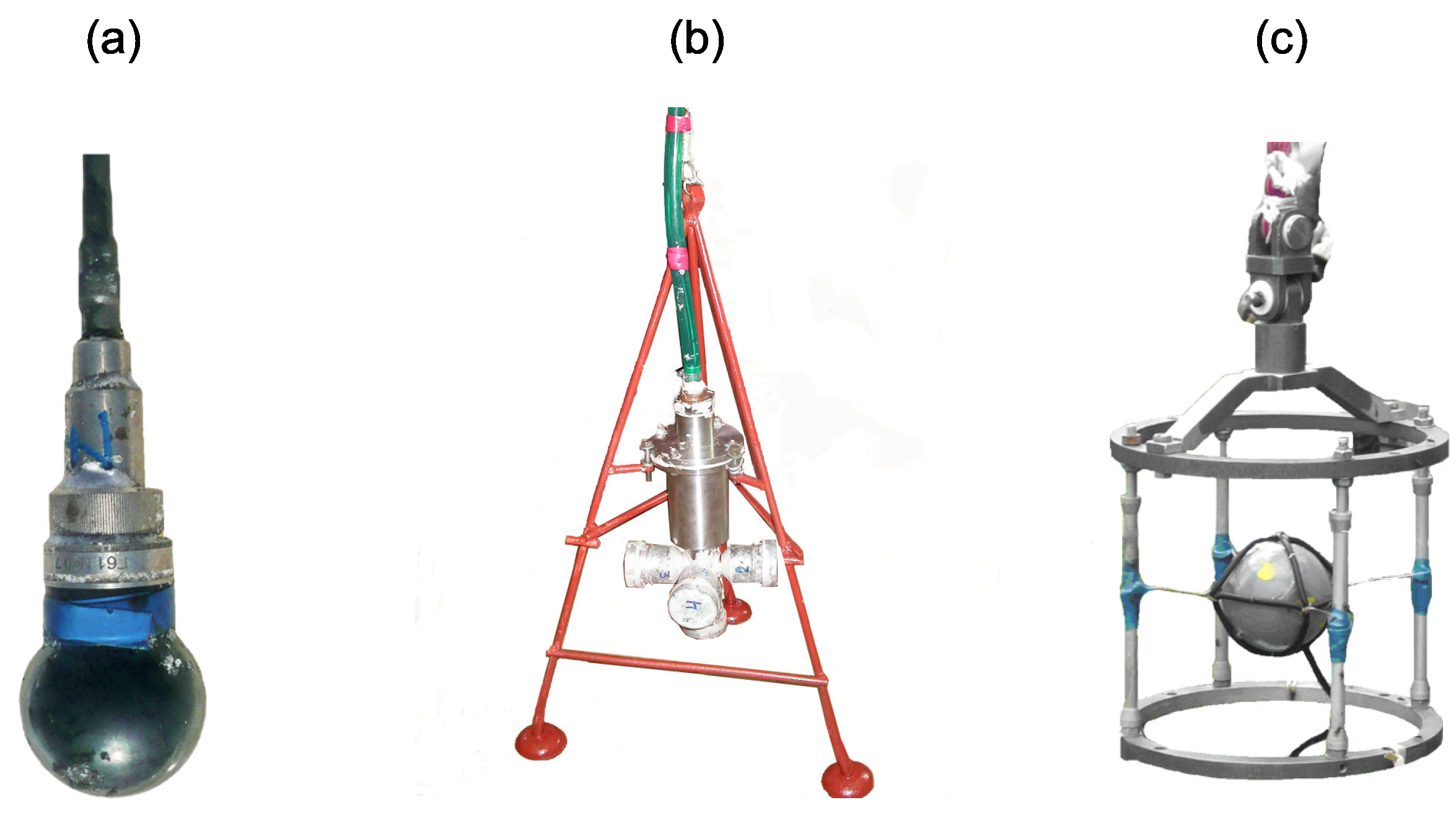

**Figure 1.**AE sensors: (

**a**) hydrophone with integrated amplifier, (

**b**) system of directed hydrophones, (

**c**) combined receiver.

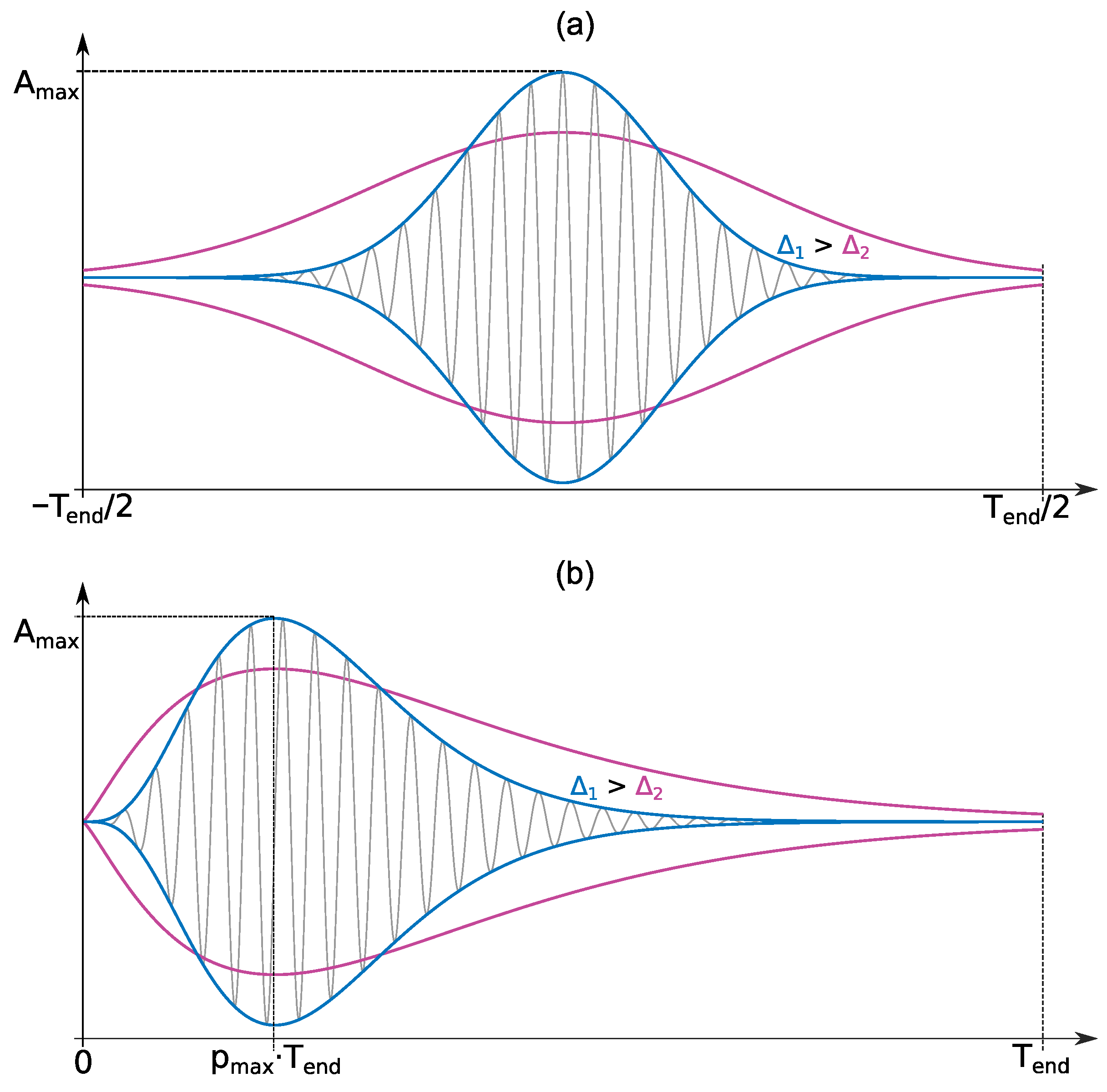

**Figure 2.**Effect of the parameters ${T}_{\mathrm{end}}$, ${p}_{\mathrm{max}}$ and $\mathsf{\Delta}$ on the form of functions: (

**a**) Gaussian function, (

**b**) Berlage function.

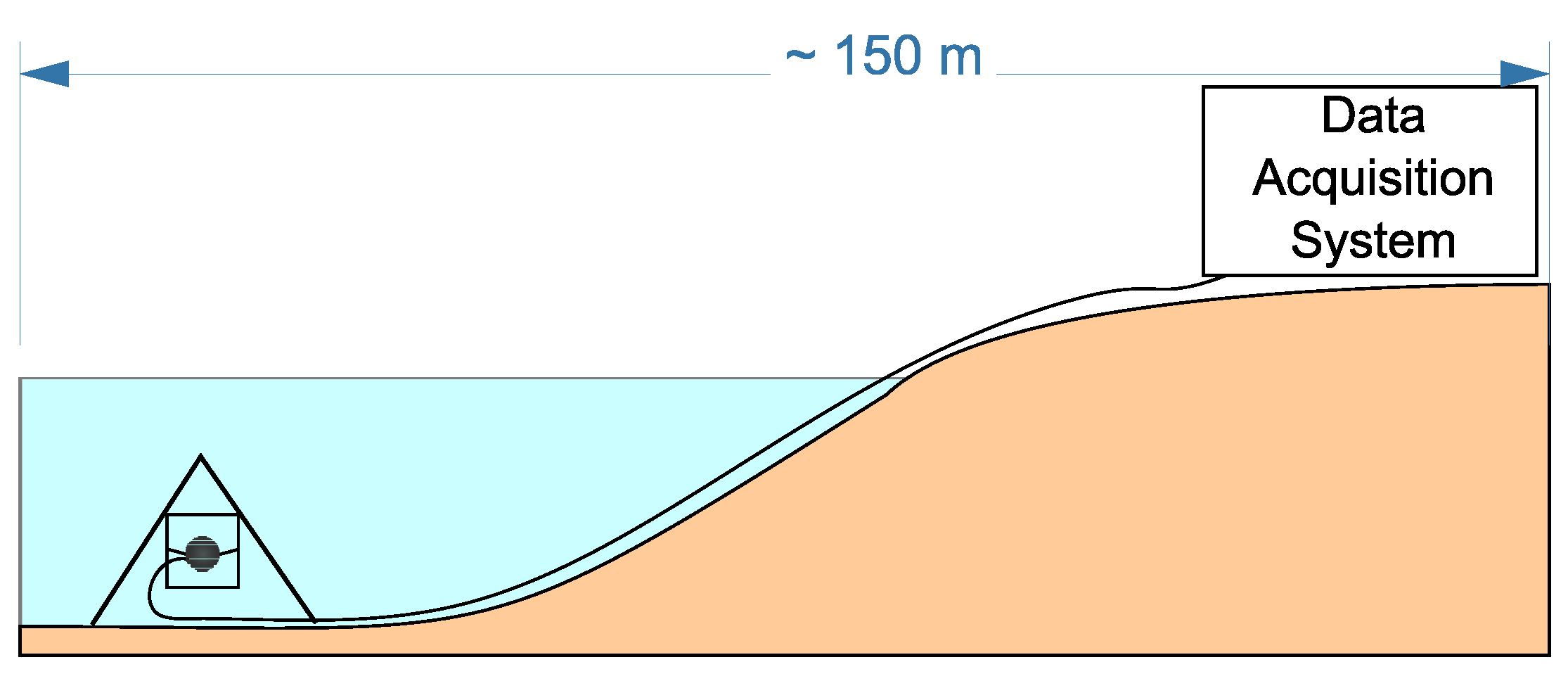

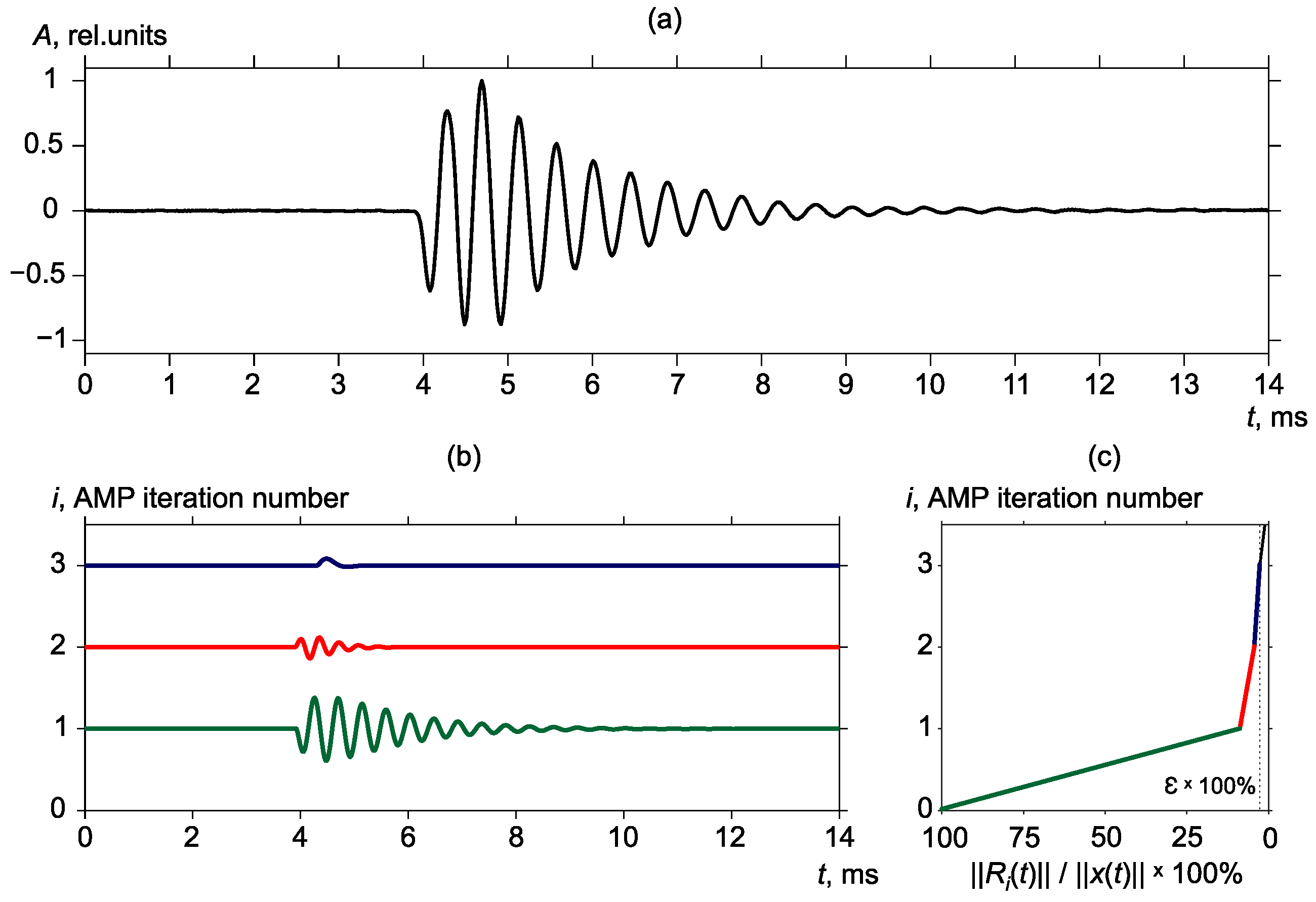

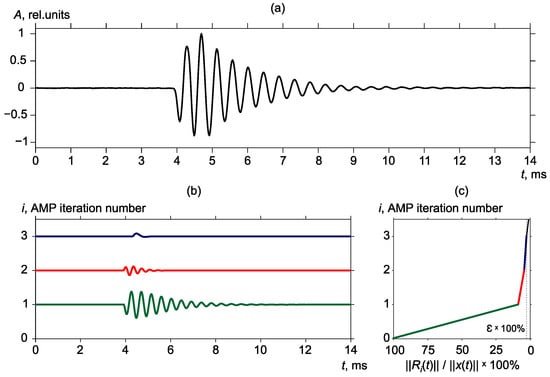

**Figure 4.**Example of geoacoustic pulse decomposition. (

**a**) Geoacoustic pulse, (

**b**) the first three atoms (each atom is marked by a different color) included into pulse decomposition, (

**c**) graph of value $\parallel {R}_{i}\left(t\right)\parallel /\parallel x\left(t\right)\parallel $ fall.

**Figure 5.**Kamchatka peninsula map with locations of epicenters of earthquakes considered in the paper. Blue triangle (▴) indicates Mikizha lake, red circles (•) are earthquake epicenters.

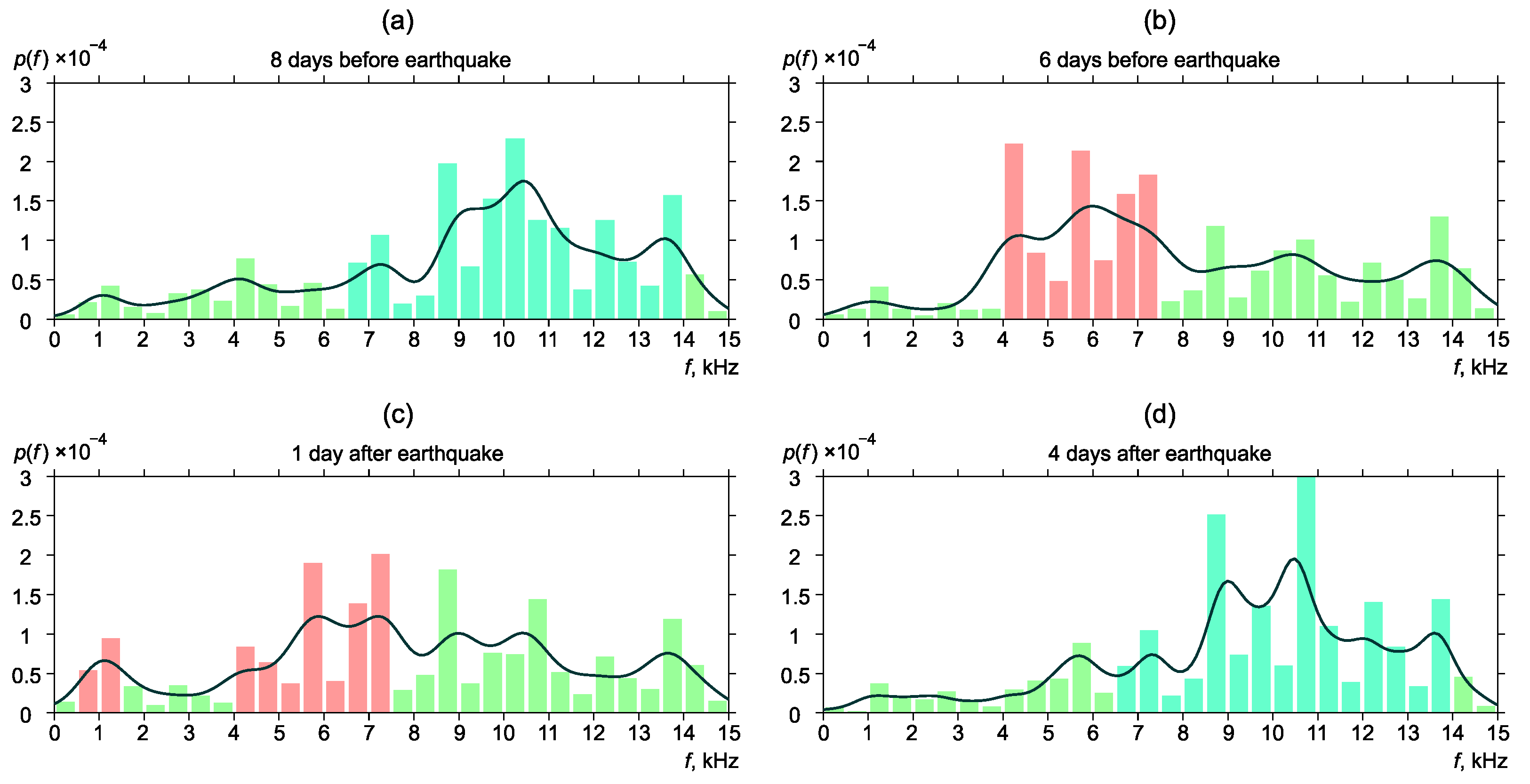

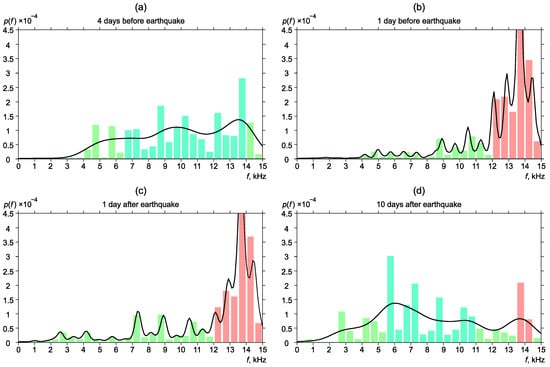

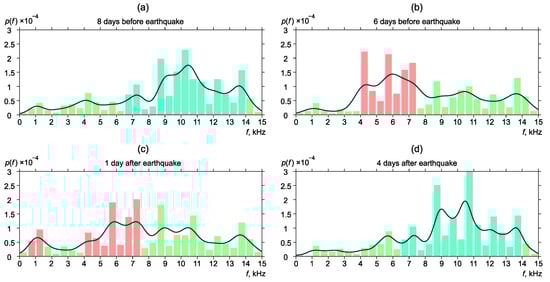

**Figure 6.**Dynamics of the probability density of distribution of the most powerful frequencies of geoacoustic pulses before and after the earthquake No. 1. $p\left(f\right)$ is the frequency density.

**Figure 7.**Dynamics of the probability density of distribution of the most powerful frequencies of geoacoustic pulses before and after the earthquake No. 2.

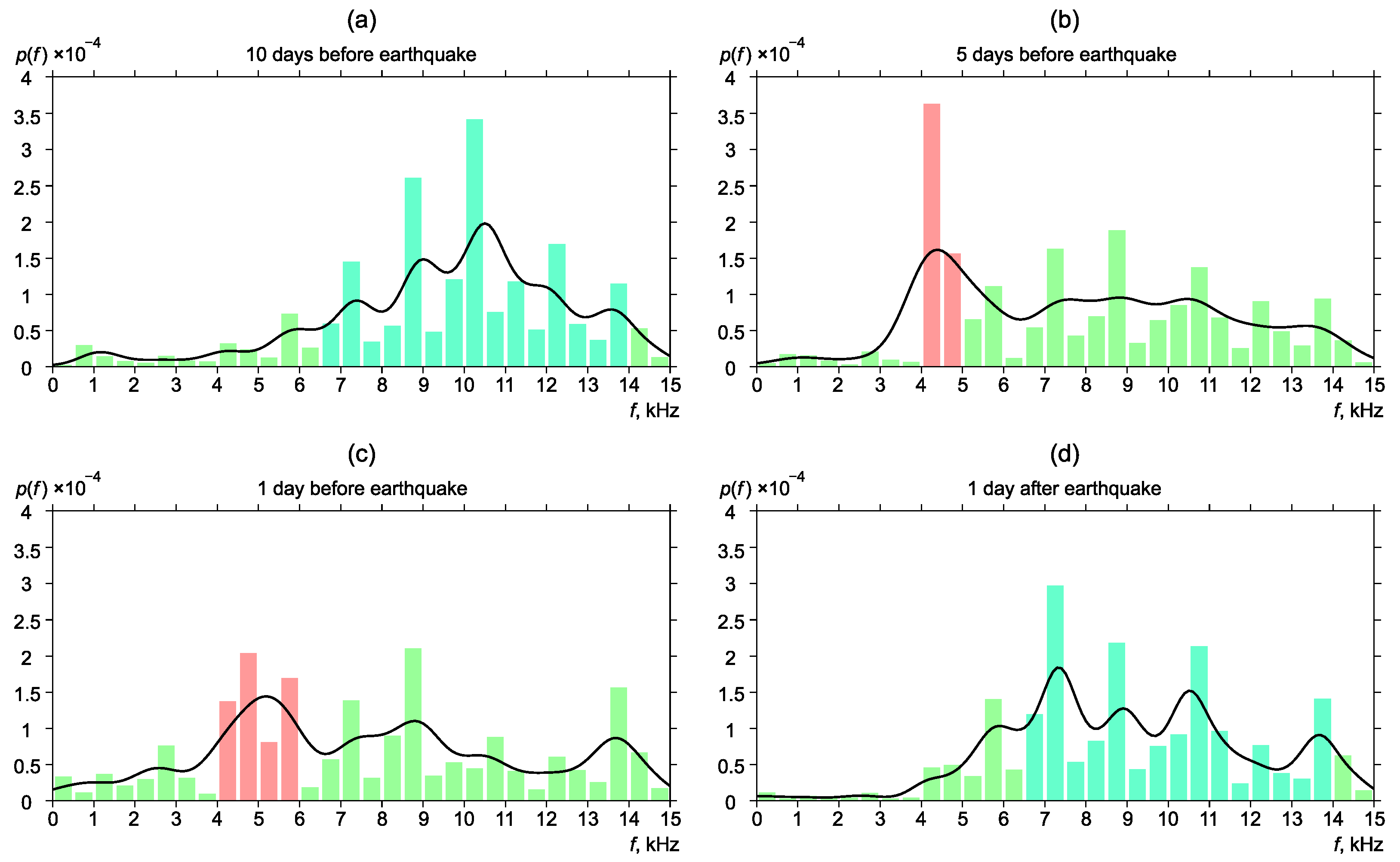

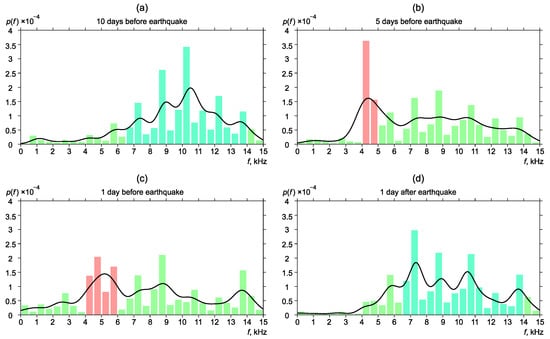

**Figure 8.**Dynamics of the probability density of distribution of the most powerful frequencies of geoacoustic pulses before and after the earthquake No. 3.

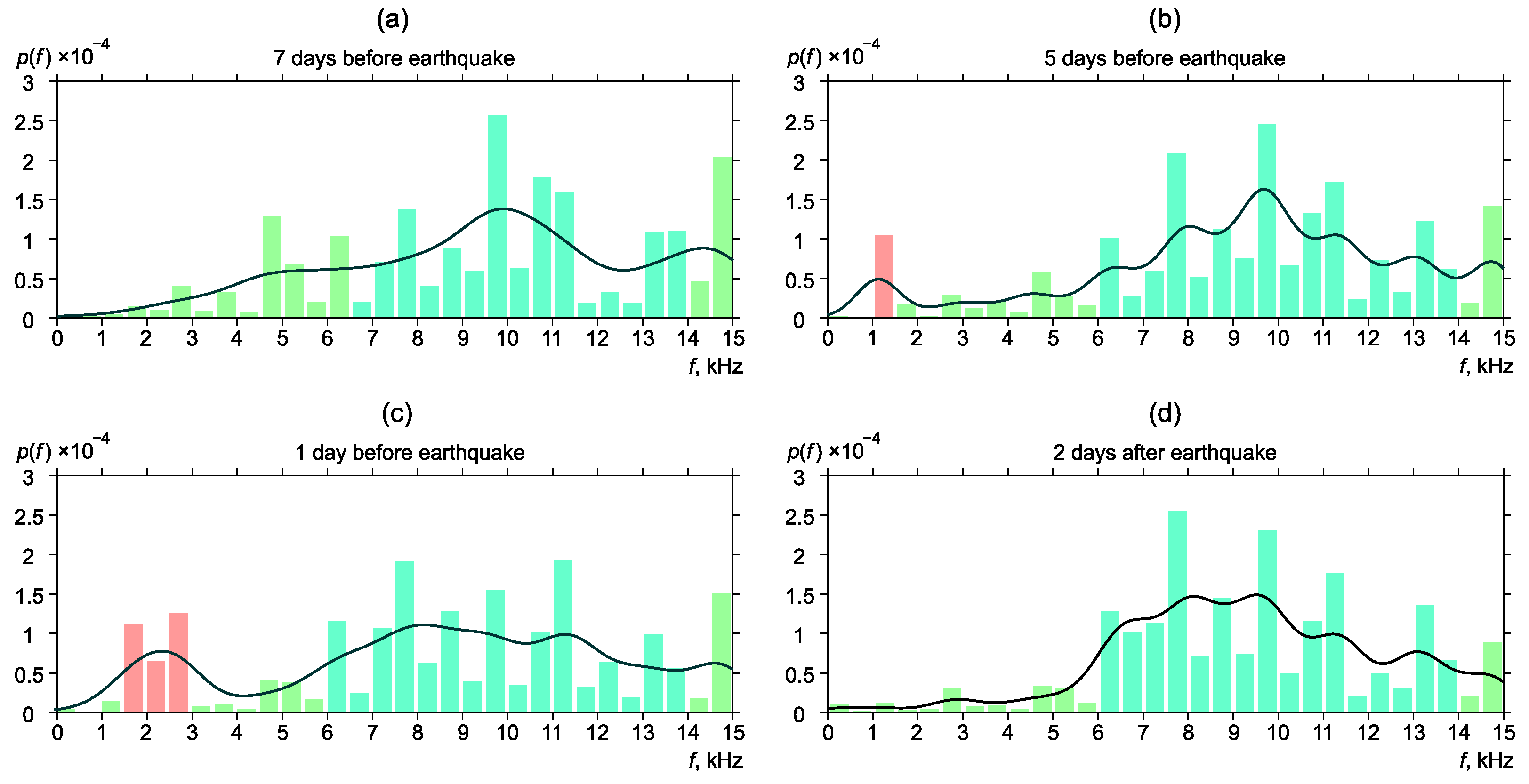

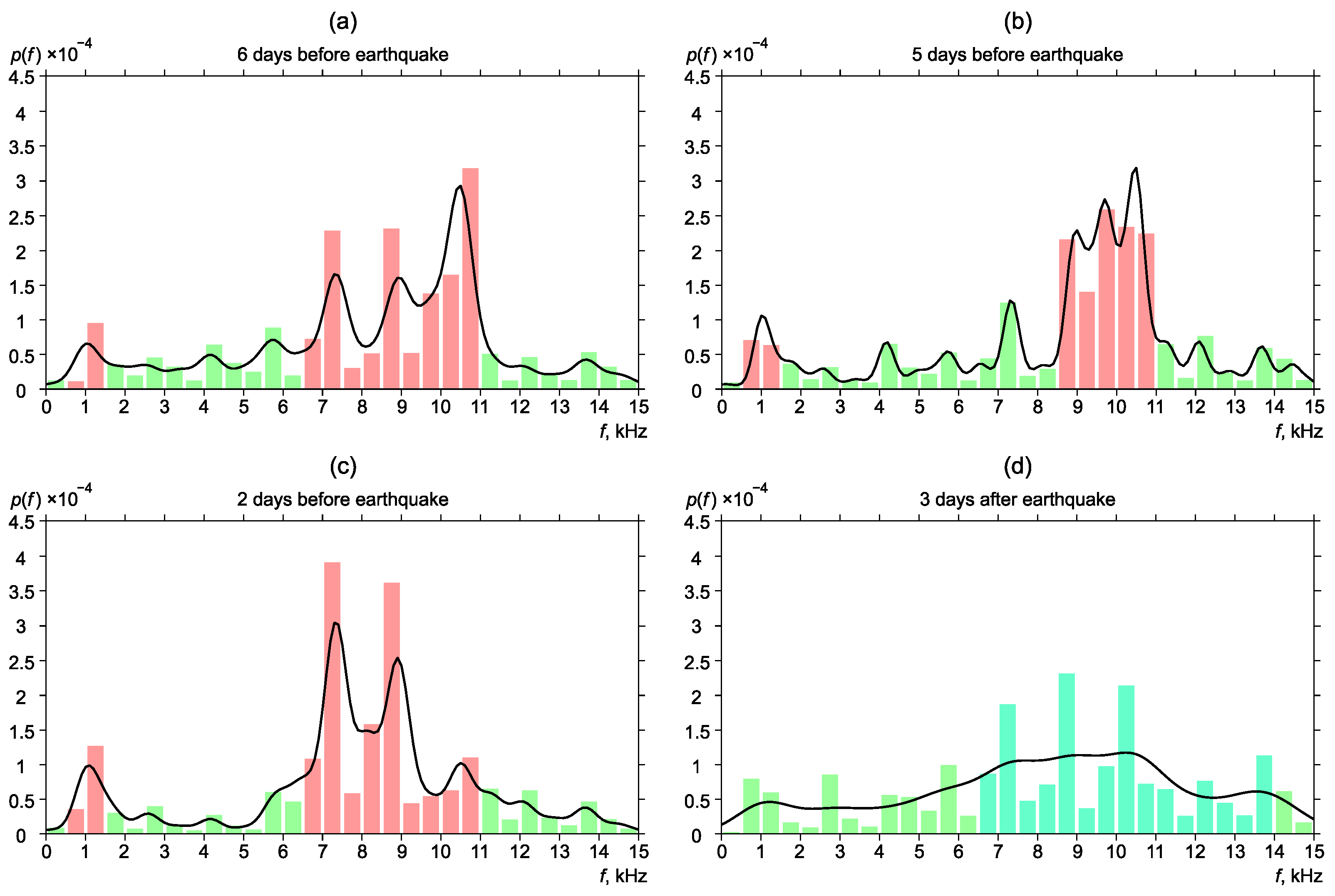

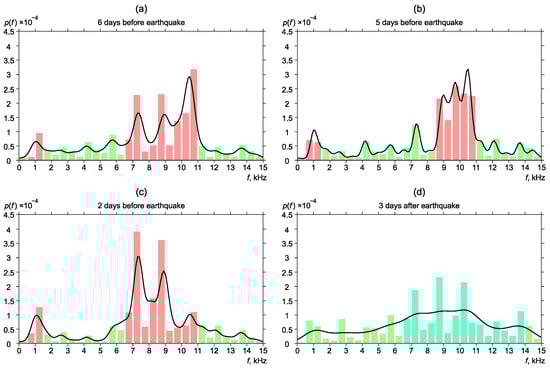

**Figure 9.**Dynamics of the probability density of distribution of the most powerful frequencies of geoacoustic pulses before and after the earthquake No. 4.

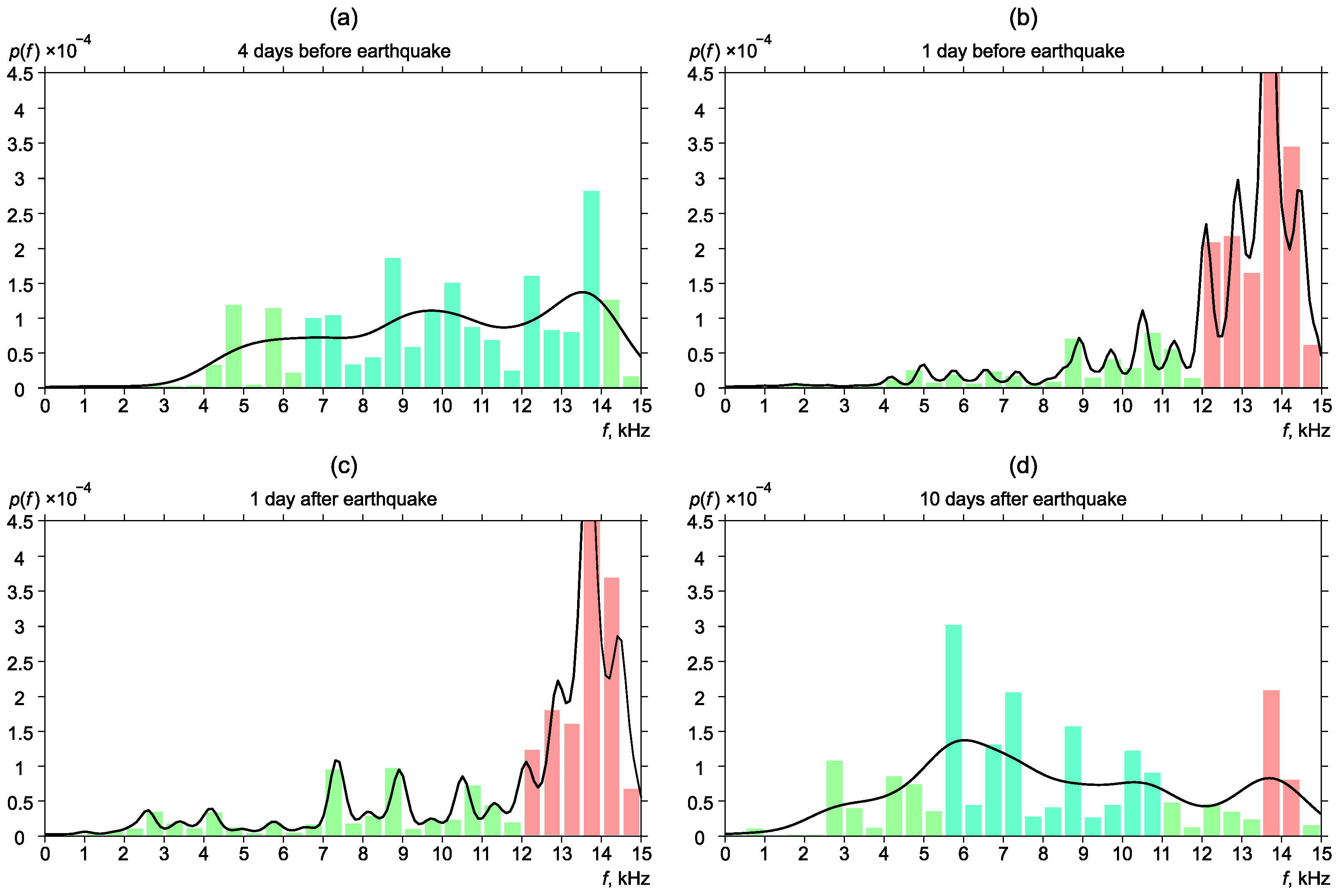

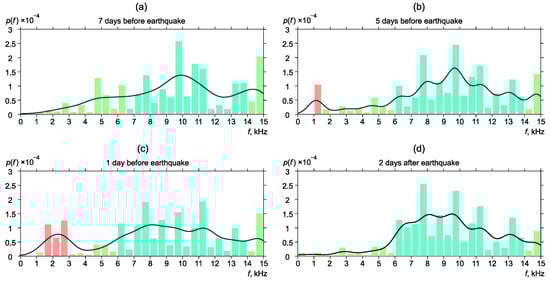

**Figure 10.**Dynamics of the probability density of distribution of the most powerful frequencies of geoacoustic pulses before and after the earthquake No. 5.

No. | Epicenter Coordinates | Date and Time, UT | Local Magnitude ${\mathit{M}}_{\mathit{L}}$ | Depth, km | Epicentral Distance R, km | Earthquake Group |
---|---|---|---|---|---|---|

1 | 52.84${}^{\circ}$ N, 159.62${}^{\circ}$ E | 2012.09.24 14:39:52.9 | 4.8 | 65 | 95 | 1 |

2 | 49.30${}^{\circ}$ N, 155.78${}^{\circ}$ E | 2012.11.01 06:57:19.7 | 5.5 | 76 | 444 | 2 |

3 | 51.53${}^{\circ}$ N, 160.08${}^{\circ}$ E | 2012.10.15 01:18:58.6 | 6.0 | 44 | 205 | 1 |

4 | 52.38${}^{\circ}$ N, 159.22${}^{\circ}$ E | 2015.12.16 08:20:15.5 | 5.0 | 72 | 95 | 1 |

5 | 52.40${}^{\circ}$ N, 159.08${}^{\circ}$ E | 2013.01.19 16:48:09.2 | 4.9 | 56 | 87 | 1 |
