# Pose2Sim: An End-to-End Workflow for 3D Markerless Sports Kinematics—Part 1: Robustness

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

#### 1.1. Overall Context

#### 1.2. 2D Pose Estimation

#### 1.3. 2D Kinematics from 2D Pose Estimation

#### 1.4. 3D Pose Estimation

#### 1.5. 3D Kinematics from 3D Pose Estimation

#### 1.6. Robustness of Deep-Learning Approaches

#### 1.7. Objectives of the Study

## 2. Materials and Methods

#### 2.1. Data Collection

#### 2.1.1. Experimental Setup

#### 2.1.2. Participant and Protocol

- Walking: The subject walked in a straight line back and forth over the 10 m diagonal of the room. His body mesh could be fully reconstructed only in the central 5 m of the acquisition space, i.e., only roughly 2 gait cycles were acquired per walking line. His comfortable stride pace was 100 BPM (Beats per Minute). The stride length was not monitored.
- Running: The subject jogged in a straight line back and forth along the 10m diagonal of the room. His comfortable stride pace was 150 BPM (Beats per Minute). The stride length was not monitored.
- Cycling: The subject cycled on a road bike placed on a home trainer. He himself adjusted the resistance and the height of the saddle prior to the capture. His comfortable cadence was 60 BPM.

#### 2.2. The Reference Condition and the Three Degraded

#### 2.2.1. Reference Condition (Ref)

#### 2.2.2. Poor Image Quality (Im)

#### 2.2.3. Less Cameras (4c)

#### 2.2.4. Calibration Errors (Cal)

^{−3}px.

#### 2.3. OpenPose: 2D Pose Estimation

#### 2.4. Pose2Sim: 3D Pose Estimation Toolbox

#### 2.4.1. Tracking the Person of Interest

#### 2.4.2. Triangulation

**Algorithm**

**1.**

**Q**= (X, Y, Z, 1) be the homogeneous coordinates of a 3D object point,

**q**= (u, v, 1) the homogeneous coordinates of a 2D image point on a given camera,

**P**= (P

_{1}

^{T}, P

_{2}

^{T}, P

_{3}

^{T}, P

_{4}

^{T}) the projection matrix of the same camera, with P

_{1}

^{T}, P

_{2}

^{T}, P

_{3}

^{T}, P

_{4}

^{T}the rows of

**P**, and

**λ**an unknown scale factor. The equation

**λq**=

**P**

**Q**,

**λ**u = P

_{1}

^{T}

**Q**,

**λ**v = P

_{2}

^{T}

**Q**,

**λ**= P

_{3}

^{T}

**Q**,

_{1}

^{T}− u P

_{3}

^{T})

**Q**= 0, (P

_{2}

^{T}− v P

_{3}

^{T})

**Q**= 0.

**Q**= 0.

**Q**. Indeed, A can be expressed as A = USV

^{T}with U, V orthonormal bases, and S the diagonal matrix of the singular values (σ

_{1}, σ

_{2}, σ

_{3}, σ

_{4}) of A.

**Q**can be expressed as

**Q**= V α, with α = (α

_{1}, α

_{2}, α

_{3}, α

_{4}). Now, minimizing (A

**Q**)² also minimizes A

**Q**:

_{min}= σ

_{4}, then A

**Q**= α

_{min}_{4}σ

_{4}. Then,

**Q**= V

_{4}α

_{4}= (X, Y, Z, 1). As a consequence, the coordinates of the triangulated point are

_{14}/V

_{44,}Y = V

_{24}/V

_{44,}Z = V

_{34}/V

_{44}.

**Algorithm**

**2**

**c**that OpenPose gives for each camera. This leads to Equation (9). The rest of the procedure remains unchanged.

#### 2.4.3. Filtering

#### 2.5. OpenSim: Joint Angle Calculations

#### 2.5.1. Gait Events

_{cycle}:

_{cycle}was 1.2 s for walking, 0.8 s for running, and 1.0 s for cycling. The reduced area of acquisition and the limit of 45 s of capture restricted the analysis to 8, 9, and 15 cycles for walking, running, and cycling, respectively.

#### 2.5.2. Model Definition

#### 2.5.3. Model Scaling

_{m}matched the experimental markers q

_{e}. Each body was scaled according to a factor computed as a ratio of the distance between the corresponding q

_{m}and q

_{e}. The markers used for scaling bodies were chosen as follows:

- Arm: pairs (left shoulder, left elbow) and (right shoulder, right elbow);
- Forearm: pairs (left elbow, left wrist) and (right elbow, right wrist);
- Thigh: pairs (left hip, left knee) and (right hip, right knee);
- Shank: pairs (left knee, left ankle) and (right knee, right ankle);
- Foot: pairs (left heel, left big toe) and (right heel, right big toe);
- Pelvis: pair (right hip, left hip);
- Torso: pairs (neck, right hip) and (neck, left hip);
- Head: pairs (head, nose);

#### 2.5.4. Inverse Kinematics

#### 2.6. Statistical Analysis

## 3. Results

#### 3.1. Data Collection and 2D Pose Estimation

#### 3.2. Pose2Sim Tracking, Triangulation, and Filtering

#### 3.3. OpenSim Scaling and Inverse Kinematics

#### 3.4. Relevance, Repeatability and Robustness of Angles Results

## 4. Discussion

#### 4.1. Pose2Sim

#### 4.2. Relevance, Repeatibility, and Robustness

#### 4.3. Limitations and Perspectives

## Supplementary Materials

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Appendix A. Running Task

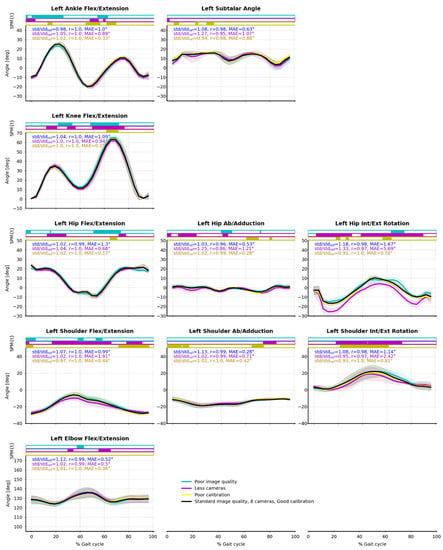

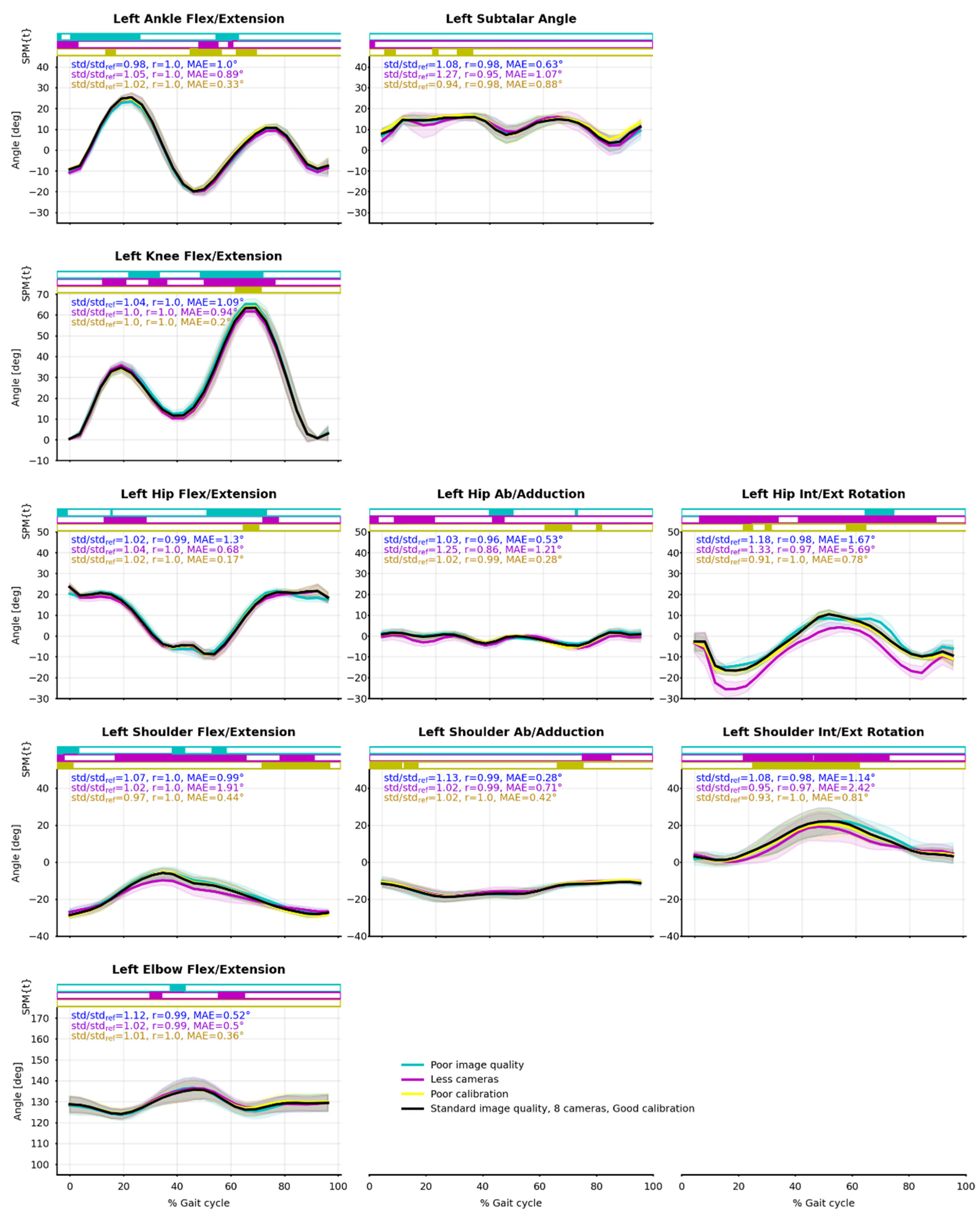

**Figure A1.**Joint angle means (solid line) and standard deviations (shaded area) from the nine captured cycles of running. Reference condition (Ref) is black; degraded image quality (Im) is blue; four cameras instead of eight (4c) is purple; degraded calibration (Cal) is yellow. Pearson’s correlation coefficient (r) and mean absolute error (MAE) between Ref and Im, 4c, Cal were calculated. Paired t-tests along time were computed by SPM-1D and are represented as bar plots above the curves: a color rectangle means that there was a cluster of statistically significant differences (α = 0.05) at that moment.

## Appendix B. Cycling Task

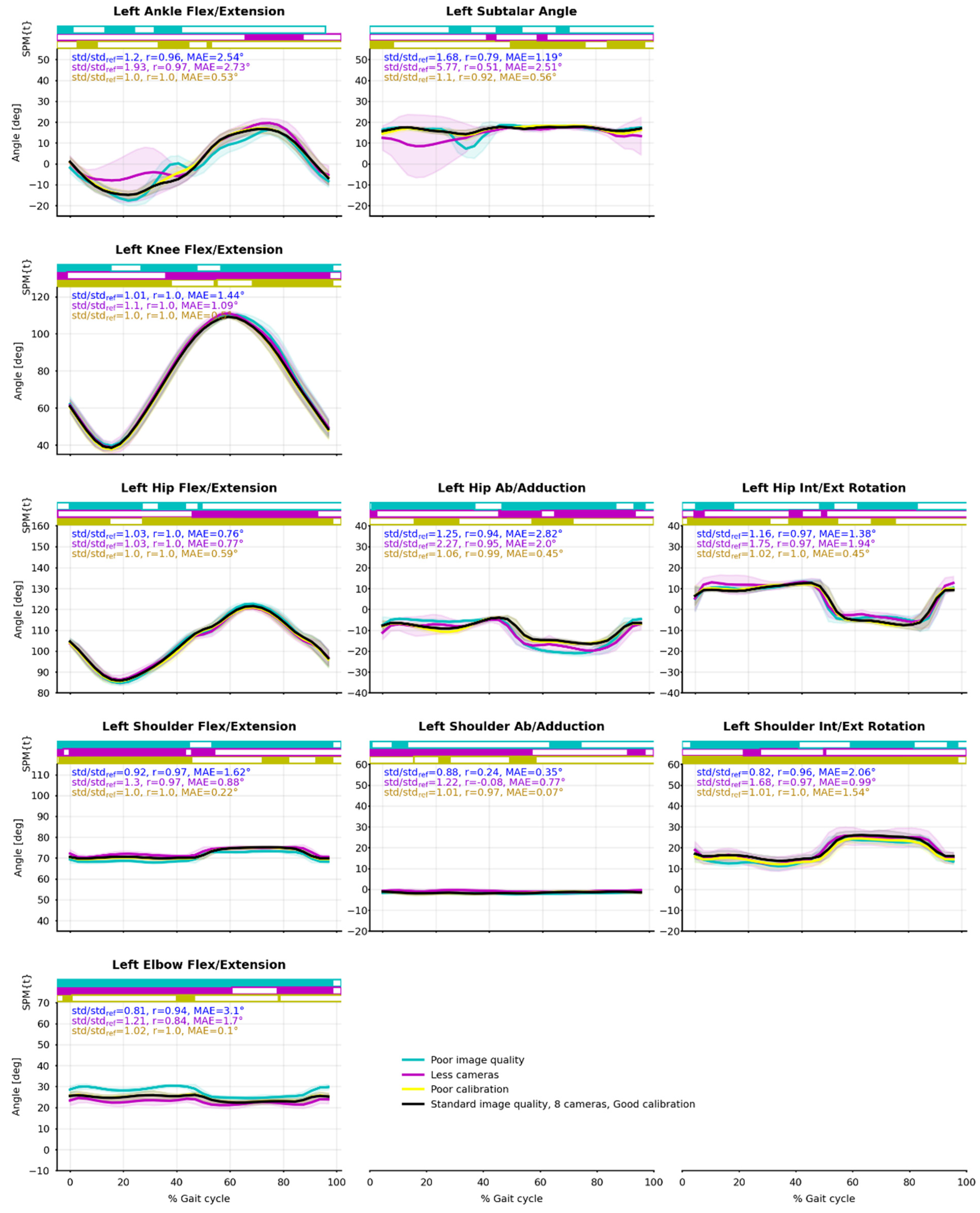

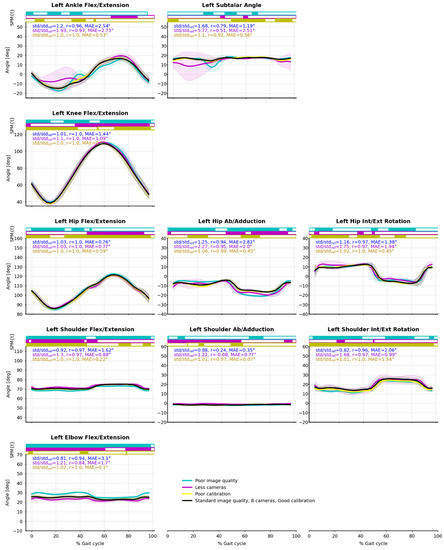

**Figure A2.**Joint angle means (solid line) and standard deviations (shaded area) from the 15 captured cycles of cycling. Reference condition (Ref) is black; degraded image quality (Im) is blue; four cameras instead of eight (4c) is purple; degraded calibration (Cal) is yellow. Pearson’s correlation coefficient (r) and mean absolute error (MAE) between Ref and Im, 4c, Cal were calculated. Paired t-tests along time were computed by SPM-1D and are represented as bar plots above the curves: a color rectangle means that there was a cluster of statistically significant differences (α = 0.05) at that moment.

## References

- Mündermann, L.; Corazza, S.; Andriacchi, T.P. The Evolution of Methods for the Capture of Human Movement Leading to Markerless Motion Capture for Biomechanical Applications. J. NeuroEng. Rehabil.
**2006**, 3, 6. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Topley, M.; Richards, J.G. A Comparison of Currently Available Optoelectronic Motion Capture Systems. J. Biomech.
**2020**, 106, 109820. [Google Scholar] [CrossRef] [PubMed] - Tsushima, H.; Morris, M.E.; McGinley, J. Test-Retest Reliability and Inter-Tester Reliability of Kinematic Data from a Three-Dimensional Gait Analysis System. J. Jpn. Phys. Ther. Assoc.
**2003**, 6, 9–17. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Della Croce, U.; Cappozzo, A.; Kerrigan, D.C. Pelvis and Lower Limb Anatomical Landmark Calibration Precision and Its Propagation to Bone Geometry and Joint Angles. Med. Biol. Eng. Comput.
**1999**, 37, 155–161. [Google Scholar] [CrossRef] [PubMed] - Gorton, G.E.; Hebert, D.A.; Gannotti, M.E. Assessment of the Kinematic Variability among 12 Motion Analysis Laboratories. Gait Posture
**2009**, 29, 398–402. [Google Scholar] [CrossRef] [PubMed] - Benoit, D.L.; Damsgaard, M.; Andersen, M.S. Surface Marker Cluster Translation, Rotation, Scaling and Deformation: Their Contribution to Soft Tissue Artefact and Impact on Knee Joint Kinematics. J. Biomech.
**2015**, 48, 2124–2129. [Google Scholar] [CrossRef] - Cappozzo, A.; Catani, F.; Della Croce, U.; Leardini, A. Position and Orientation in Space of Bones during Movement: Anatomical Frame Definition and Determination. Clin. Biomech.
**1995**, 10, 171–178. [Google Scholar] [CrossRef] - Leboeuf, F.; Reay, J.; Jones, R.; Sangeux, M. The Effect on Conventional Gait Model Kinematics and Kinetics of Hip Joint Centre Equations in Adult Healthy Gait. J. Biomech.
**2019**, 87, 167–171. [Google Scholar] [CrossRef] - Zhang, J.-T.; Novak, A.C.; Brouwer, B.; Li, Q. Concurrent Validation of Xsens MVN Measurement of Lower Limb Joint Angular Kinematics. Physiol. Meas.
**2013**, 34, N63–N69. [Google Scholar] [CrossRef] - Ahmad, N.; Ghazilla, R.A.R.; Khairi, N.M.; Kasi, V. Reviews on Various Inertial Measurement Unit (IMU) Sensor Applications. IJSPS
**2013**, 256–262. [Google Scholar] [CrossRef] [Green Version] - Carraro, M.; Munaro, M.; Burke, J.; Menegatti, E. Real-Time Marker-Less Multi-Person 3D Pose Estimation in RGB-Depth Camera Networks. arXiv
**2017**, arXiv:1710.06235. [Google Scholar] - Choppin, S.; Wheat, J. The Potential of the Microsoft Kinect in Sports Analysis and Biomechanics. Sports Technol.
**2013**, 6, 78–85. [Google Scholar] [CrossRef] - Colombel, J.; Bonnet, V.; Daney, D.; Dumas, R.; Seilles, A.; Charpillet, F. Physically Consistent Whole-Body Kinematics Assessment Based on an RGB-D Sensor. Application to Simple Rehabilitation Exercises. Sensors
**2020**, 20, 2848. [Google Scholar] [CrossRef] [PubMed] - Han, J.; Shao, L.; Xu, D.; Shotton, J. Enhanced Computer Vision With Microsoft Kinect Sensor: A Review. IEEE Trans. Cybern.
**2013**, 43, 1318–1334. [Google Scholar] [CrossRef] [PubMed] - Wang, J.; Tan, S.; Zhen, X.; Xu, S.; Zheng, F.; He, Z.; Shao, L. Deep 3D Human Pose Estimation: A Review. Comput. Vis. Image Underst.
**2021**, 210, 103225. [Google Scholar] [CrossRef] - Baker, R. The History of Gait Analysis before the Advent of Modern Computers. Gait Posture
**2007**, 26, 331–342. [Google Scholar] [CrossRef] [PubMed] - Cronin, N.J. Using Deep Neural Networks for Kinematic Analysis: Challenges and Opportunities. J. Biomech.
**2021**, 123, 110460. [Google Scholar] [CrossRef] - Seethapathi, N.; Wang, S.; Saluja, R.; Blohm, G.; Kording, K.P. Movement Science Needs Different Pose Tracking Algorithms. arXiv
**2019**, arXiv:1907.10226. [Google Scholar] - Cao, Z.; Hidalgo, G.; Simon, T.; Wei, S.-E.; Sheikh, Y. OpenPose: Realtime Multi-Person 2D Pose Estimation Using Part Affinity Fields. arXiv
**2019**, arXiv:1812.08008. [Google Scholar] [CrossRef] [Green Version] - Fang, H.-S.; Xie, S.; Tai, Y.-W.; Lu, C. RMPE: Regional Multi-Person Pose Estimation. In Proceedings of the 2017 IEEE International Conference on Computer Vision (ICCV), Venice, Italy, 22–29 October 2017; pp. 2353–2362. [Google Scholar]
- Joo, H.; Liu, H.; Tan, L.; Gui, L.; Nabbe, B.; Matthews, I.; Kanade, T.; Nobuhara, S.; Sheikh, Y. Panoptic Studio: A Massively Multiview System for Social Motion Capture. In Proceedings of the 2015 IEEE International Conference on Computer Vision (ICCV), Santiago, Chile, 7–13 December 2015; pp. 3334–3342. [Google Scholar]
- Mathis, A.; Mamidanna, P.; Cury, K.M.; Abe, T.; Murthy, V.N.; Mathis, M.W.; Bethge, M. DeepLabCut: Markerless Pose Estimation of User-Defined Body Parts with Deep Learning. Nat. Neurosci.
**2018**, 21, 1281–1289. [Google Scholar] [CrossRef] - Chen, Y.; Tian, Y.; He, M. Monocular Human Pose Estimation: A Survey of Deep Learning-Based Methods. Comput. Vis. Image Underst.
**2020**, 192, 102897. [Google Scholar] [CrossRef] - Kidziński, Ł.; Yang, B.; Hicks, J.L.; Rajagopal, A.; Delp, S.L.; Schwartz, M.H. Deep Neural Networks Enable Quantitative Movement Analysis Using Single-Camera Videos. Nat. Commun.
**2020**, 11, 4054. [Google Scholar] [CrossRef] [PubMed] - Stenum, J.; Rossi, C.; Roemmich, R.T. Two-Dimensional Video-Based Analysis of Human Gait Using Pose Estimation. PLoS Comput. Biol.
**2021**, 17, e1008935. [Google Scholar] [CrossRef] [PubMed] - Liao, R.; Yu, S.; An, W.; Huang, Y. A Model-Based Gait Recognition Method with Body Pose and Human Prior Knowledge. Pattern Recognit.
**2020**, 98, 107069. [Google Scholar] [CrossRef] - Viswakumar, A.; Rajagopalan, V.; Ray, T.; Parimi, C. Human Gait Analysis Using OpenPose. In Proceedings of the 2019 Fifth International Conference on Image Information Processing (ICIIP), Waknaghat, India, 15–17 November 2019; pp. 310–314. [Google Scholar]
- Drazan, J.F.; Phillips, W.T.; Seethapathi, N.; Hullfish, T.J.; Baxter, J.R. Moving Outside the Lab: Markerless Motion Capture Accurately Quantifies Sagittal Plane Kinematics during the Vertical Jump. J. Biomech.
**2021**, 125, 110547. [Google Scholar] [CrossRef] [PubMed] - Cronin, N.J.; Rantalainen, T.; Ahtiainen, J.P.; Hynynen, E.; Waller, B. Markerless 2D Kinematic Analysis of Underwater Running: A Deep Learning Approach. J. Biomech.
**2019**, 87, 75–82. [Google Scholar] [CrossRef] - Serrancolí, G.; Bogatikov, P.; Huix, J.P.; Barberà, A.F.; Egea, A.J.S.; Ribé, J.T.; Kanaan-Izquierdo, S.; Susín, A. Marker-Less Monitoring Protocol to Analyze Biomechanical Joint Metrics During Pedaling. IEEE Access
**2020**, 8, 122782–122790. [Google Scholar] [CrossRef] - Ceseracciu, E.; Sawacha, Z.; Cobelli, C. Comparison of Markerless and Marker-Based Motion Capture Technologies through Simultaneous Data Collection during Gait: Proof of Concept. PLoS ONE
**2014**, 9, e87640. [Google Scholar] [CrossRef] - Fisch, M.; Clark, R. Orientation Keypoints for 6D Human Pose Estimation. arXiv
**2020**, arXiv:2009.04930. [Google Scholar] - Loper, M.; Mahmood, N.; Romero, J.; Pons-Moll, G.; Black, M.J. SMPL: A Skinned Multi-Person Linear Model. ACM Trans. Graph.
**2015**, 34, 1–16. [Google Scholar] [CrossRef] - Mehta, D.; Sotnychenko, O.; Mueller, F.; Xu, W.; Elgharib, M.; Fua, P.; Seidel, H.-P.; Rhodin, H.; Pons-Moll, G.; Theobalt, C. XNect: Real-Time Multi-Person 3D Motion Capture with a Single RGB Camera. ACM Trans. Graph.
**2020**, 39, 82:1–82:17. [Google Scholar] [CrossRef] - Rempe, D.; Guibas, L.J.; Hertzmann, A.; Russell, B.; Villegas, R.; Yang, J. Contact and Human Dynamics from Monocular Video. In Computer Vision—ECCV 2020; Lecture Notes in Computer Science; Springer: Cham, Switzerland, 2020. [Google Scholar]
- Li, Z.; Sedlar, J.; Carpentier, J.; Laptev, I.; Mansard, N.; Sivic, J. Estimating 3D Motion and Forces of Person-Object Interactions From Monocular Video. In Proceedings of the 2019 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), Long Beach, CA, USA, 15–20 June 2019; pp. 8632–8641. [Google Scholar]
- Rempe, D.; Birdal, T.; Hertzmann, A.; Yang, J.; Sridhar, S.; Guibas, L.J. HuMoR: 3D Human Motion Model for Robust Pose Estimation. arXiv
**2021**, arXiv:2105.04668. [Google Scholar] - Delp, S.L.; Anderson, F.C.; Arnold, A.S.; Loan, P.; Habib, A.; John, C.T.; Guendelman, E.; Thelen, D.G. OpenSim: Open-Source Software to Create and Analyze Dynamic Simulations of Movement. IEEE Trans. Biomed. Eng.
**2007**, 54, 1940–1950. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Seth, A.; Hicks, J.L.; Uchida, T.K.; Habib, A.; Dembia, C.L.; Dunne, J.J.; Ong, C.F.; DeMers, M.S.; Rajagopal, A.; Millard, M.; et al. OpenSim: Simulating Musculoskeletal Dynamics and Neuromuscular Control to Study Human and Animal Movement. PLoS Comput. Biol.
**2018**, 14, e1006223. [Google Scholar] [CrossRef] - Haralabidis, N.; Saxby, D.J.; Pizzolato, C.; Needham, L.; Cazzola, D.; Minahan, C. Fusing Accelerometry with Videography to Monitor the Effect of Fatigue on Punching Performance in Elite Boxers. Sensors
**2020**, 20, 5749. [Google Scholar] [CrossRef] [PubMed] - Takahashi, K.; Mikami, D.; Isogawa, M.; Kimata, H. Human Pose as Calibration Pattern: 3D Human Pose Estimation with Multiple Unsynchronized and Uncalibrated Cameras. In Proceedings of the 2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition Workshops (CVPRW), Salt Lake City, UT, USA, 18–22 June 2018; pp. 1856–18567. [Google Scholar]
- Ershadi-Nasab, S.; Kasaei, S.; Sanaei, E. Uncalibrated Multi-View Multiple Humans Association and 3D Pose Estimation by Adversarial Learning. Multimed. Tools Appl.
**2021**, 80, 2461–2488. [Google Scholar] [CrossRef] - Dong, J.; Shuai, Q.; Zhang, Y.; Liu, X.; Zhou, X.; Bao, H. Motion Capture from Internet Videos. In Computer Vision—ECCV 2020; Vedaldi, A., Bischof, H., Brox, T., Frahm, J.-M., Eds.; Lecture Notes in Computer Science; Springer International Publishing: Cham, Switzerland, 2020; Volume 12347, pp. 210–227. ISBN 978-3-030-58535-8. [Google Scholar]
- Hartley, R.I.; Sturm, P. Triangulation. Comput. Vis. Image Underst.
**1997**, 68, 146–157. [Google Scholar] [CrossRef] - Miller, N.R.; Shapiro, R.; McLaughlin, T.M. A Technique for Obtaining Spatial Kinematic Parameters of Segments of Biomechanical Systems from Cinematographic Data. J. Biomech.
**1980**, 13, 535–547. [Google Scholar] [CrossRef] - Labuguen, R.T.; Ingco, W.E.M.; Negrete, S.B.; Kogami, T.; Shibata, T. Performance Evaluation of Markerless 3D Skeleton Pose Estimates with Pop Dance Motion Sequence. In Proceedings of the 2020 Joint 9th International Conference on Informatics, Electronics & Vision (ICIEV) and 2020 4th International Conference on Imaging, Vision & Pattern Recognition (icIVPR), Kitakyushu, Japan, 26–29 August 2020. [Google Scholar]
- Nakano, N.; Sakura, T.; Ueda, K.; Omura, L.; Kimura, A.; Iino, Y.; Fukashiro, S.; Yoshioka, S. Evaluation of 3D Markerless Motion Capture Accuracy Using OpenPose with Multiple Video Cameras. Front. Sports Act. Living
**2019**. [Google Scholar] [CrossRef] - Slembrouck, M.; Luong, H.; Gerlo, J.; Schütte, K.; Van Cauwelaert, D.; De Clercq, D.; Vanwanseele, B.; Veelaert, P.; Philips, W. Multiview 3D Markerless Human Pose Estimation from OpenPose Skeletons. In Advanced Concepts for Intelligent Vision Systems; Blanc-Talon, J., Delmas, P., Philips, W., Popescu, D., Scheunders, P., Eds.; Lecture Notes in Computer Science; Springer International Publishing: Cham, Switzerland, 2020; Volume 12002, pp. 166–178. ISBN 978-3-030-40604-2. [Google Scholar]
- Bridgeman, L.; Volino, M.; Guillemaut, J.-Y.; Hilton, A. Multi-Person 3D Pose Estimation and Tracking in Sports. In Proceedings of the 2019 IEEE/CVF Conference on Computer Vision and Pattern Recognition Workshops (CVPRW), Long Beach, CA, USA, 16–17 June 2019; pp. 2487–2496. [Google Scholar]
- Chu, H.; Lee, J.-H.; Lee, Y.-C.; Hsu, C.-H.; Li, J.-D.; Chen, C.-S. Part-Aware Measurement for Robust Multi-View Multi-Human 3D Pose Estimation and Tracking. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, Nashville, TN, USA, 19–25 June 2021. [Google Scholar]
- Dong, J.; Jiang, W.; Huang, Q.; Bao, H.; Zhou, X. Fast and Robust Multi-Person 3D Pose Estimation From Multiple Views. In Proceedings of the 2019 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), Long Beach, CA, USA, 15–20 June 2019; pp. 7784–7793. [Google Scholar]
- He, Y.; Yan, R.; Fragkiadaki, K.; Yu, S.-I. Epipolar Transformers. In Proceedings of the 2020 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), Seattle, WA, USA, 14–19 June 2020; pp. 7776–7785. [Google Scholar]
- Iskakov, K.; Burkov, E.; Lempitsky, V.; Malkov, Y. Learnable Triangulation of Human Pose. In Proceedings of the 2019 IEEE/CVF International Conference on Computer Vision (ICCV), Seoul, Korea, 27 October–2 November 2019; pp. 7717–7726. [Google Scholar]
- Zago, M.; Luzzago, M.; Marangoni, T.; De Cecco, M.; Tarabini, M.; Galli, M. 3D Tracking of Human Motion Using Visual Skeletonization and Stereoscopic Vision. Front. Bioeng. Biotechnol.
**2020**, 8. [Google Scholar] [CrossRef] - D’Antonio, E.; Taborri, J.; Mileti, I.; Rossi, S.; Patane, F. Validation of a 3D Markerless System for Gait Analysis Based on OpenPose and Two RGB Webcams. IEEE Sens. J.
**2021**, 21, 17064–17075. [Google Scholar] [CrossRef] - Kanko, R.M.; Laende, E.; Selbie, W.S.; Deluzio, K.J. Inter-Session Repeatability of Markerless Motion Capture Gait Kinematics. J. Biomech.
**2021**, 121, 110422. [Google Scholar] [CrossRef] [PubMed] - Kanko, R.M.; Laende, E.K.; Davis, E.M.; Scott Selbie, W.; Deluzio, K.J. Concurrent Assessment of Gait Kinematics Using Marker-Based and Markerless Motion Capture. J. Biomech.
**2021**, 127, 110665. [Google Scholar] [CrossRef] - Karashchuk, P.; Rupp, K.L.; Dickinson, E.S.; Sanders, E.; Azim, E.; Brunton, B.W.; Tuthill, J.C. Anipose: A Toolkit for Robust Markerless 3D Pose Estimation. bioRxiv
**2020**. [Google Scholar] [CrossRef] - Desmarais, Y.; Mottet, D.; Slangen, P.; Montesinos, P. A Review of 3D Human Pose Estimation Algorithms for Markerless Motion Capture. arXiv
**2020**, arXiv:2010.06449. [Google Scholar] - Moeslund, T.B.; Granum, E. Review—A Survey of Computer Vision-Based Human Motion Capture. Comput. Vis. Image Underst.
**2001**, 81, 231–268. [Google Scholar] [CrossRef] - Wang, J.; Jin, S.; Liu, W.; Liu, W.; Qian, C.; Luo, P. When Human Pose Estimation Meets Robustness: Adversarial Algorithms and Benchmarks. arXiv
**2021**, arXiv:2105.06152. [Google Scholar] - Bala, P.C.; Eisenreich, B.R.; Yoo, S.B.M.; Hayden, B.Y.; Park, H.S.; Zimmermann, J. Automated Markerless Pose Estimation in Freely Moving Macaques with OpenMonkeyStudio. Nat. Commun.
**2020**, 11, 4560. [Google Scholar] [CrossRef] - Sun, W.; Cooperstock, J.R. Requirements for Camera Calibration: Must Accuracy Come with a High Price? In Proceedings of the 2005 Seventh IEEE Workshops on Applications of Computer Vision (WACV/MOTION’05, Breckenridge, CO, USA, 5–7 January 2005; Volume 1, pp. 356–361. [Google Scholar]
- QTM User Manual. Available online: https://usermanual.wiki/buckets/85617/1437169750/QTM-user-manual.pdf (accessed on 21 September 2021).
- Dawson-Howe, K.M.; Vernon, D. Simple Pinhole Camera Calibration. Int. J. Imaging Syst. Technol.
**1994**, 5, 1–6. [Google Scholar] [CrossRef] - Laurentini, A. The Visual Hull Concept for Silhouette-Based Image Understanding. IEEE Trans. Pattern Anal. Mach. Intell.
**1994**, 16, 150–162. [Google Scholar] [CrossRef] - OpenPose Experimental Models. Available online: https://github.com/CMU-Perceptual-Computing-Lab/openpose_train (accessed on 21 July 2021).
- Zeni, J.A.; Richards, J.G.; Higginson, J.S. Two Simple Methods for Determining Gait Events during Treadmill and Overground Walking Using Kinematic Data. Gait Posture
**2008**, 27, 710–714. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Rajagopal, A.; Dembia, C.L.; DeMers, M.S.; Delp, D.D.; Hicks, J.L.; Delp, S.L. Full-Body Musculoskeletal Model for Muscle-Driven Simulation of Human Gait. IEEE Trans. Biomed. Eng.
**2016**, 63, 2068–2079. [Google Scholar] [CrossRef] [PubMed] - Fukuchi, C.A.; Fukuchi, R.K.; Duarte, M. A Public Dataset of Overground and Treadmill Walking Kinematics and Kinetics in Healthy Individuals. PeerJ
**2018**, 6, e4640. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Trinler, U.; Schwameder, H.; Baker, R.; Alexander, N. Muscle Force Estimation in Clinical Gait Analysis Using AnyBody and OpenSim. J. Biomech.
**2019**, 86, 55–63. [Google Scholar] [CrossRef] [PubMed] - Kang, H.G.; Dingwell, J.B. Separating the Effects of Age and Walking Speed on Gait Variability. Gait Posture
**2008**, 27, 572–577. [Google Scholar] [CrossRef] - Warmenhoven, J.; Harrison, A.; Robinson, M.A.; Vanrenterghem, J.; Bargary, N.; Smith, R.; Cobley, S.; Draper, C.; Donnelly, C.; Pataky, T. A Force Profile Analysis Comparison between Functional Data Analysis, Statistical Parametric Mapping and Statistical Non-Parametric Mapping in on-Water Single Sculling. J. Sci. Med. Sport
**2018**, 21, 1100–1105. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Chai, T.; Draxler, R.R. Root Mean Square Error (RMSE) or Mean Absolute Error (MAE)?—Arguments against Avoiding RMSE in the Literature. Geosci. Model Dev.
**2014**, 7, 1247–1250. [Google Scholar] [CrossRef] [Green Version] - Zhang, Z. A Flexible New Technique for Camera Calibration. IEEE Trans. Pattern Anal. Mach. Intell.
**2000**, 22, 1330–1334. [Google Scholar] [CrossRef] [Green Version] - Beaucage-Gauvreau, E.; Robertson, W.S.P.; Brandon, S.C.E.; Fraser, R.; Freeman, B.J.C.; Graham, R.B.; Thewlis, D.; Jones, C.F. Validation of an OpenSim Full-Body Model with Detailed Lumbar Spine for Estimating Lower Lumbar Spine Loads during Symmetric and Asymmetric Lifting Tasks. Comput. Methods Biomech. Biomed. Eng.
**2019**, 22, 451–464. [Google Scholar] [CrossRef] - Varol, G.; Romero, J.; Martin, X.; Mahmood, N.; Black, M.J.; Laptev, I.; Schmid, C. Learning from Synthetic Humans. In Proceedings of the 2017 IEEE Conference on Computer Vision and Pattern Recognition (CVPR), Honolulu, HI, USA, 21–26 July 2017; pp. 4627–4635. [Google Scholar]
- Bruno, A.G.; Bouxsein, M.L.; Anderson, D.E. Development and Validation of a Musculoskeletal Model of the Fully Articulated Thoracolumbar Spine and Rib Cage. J. Biomech. Eng.
**2015**, 137, 081003. [Google Scholar] [CrossRef]

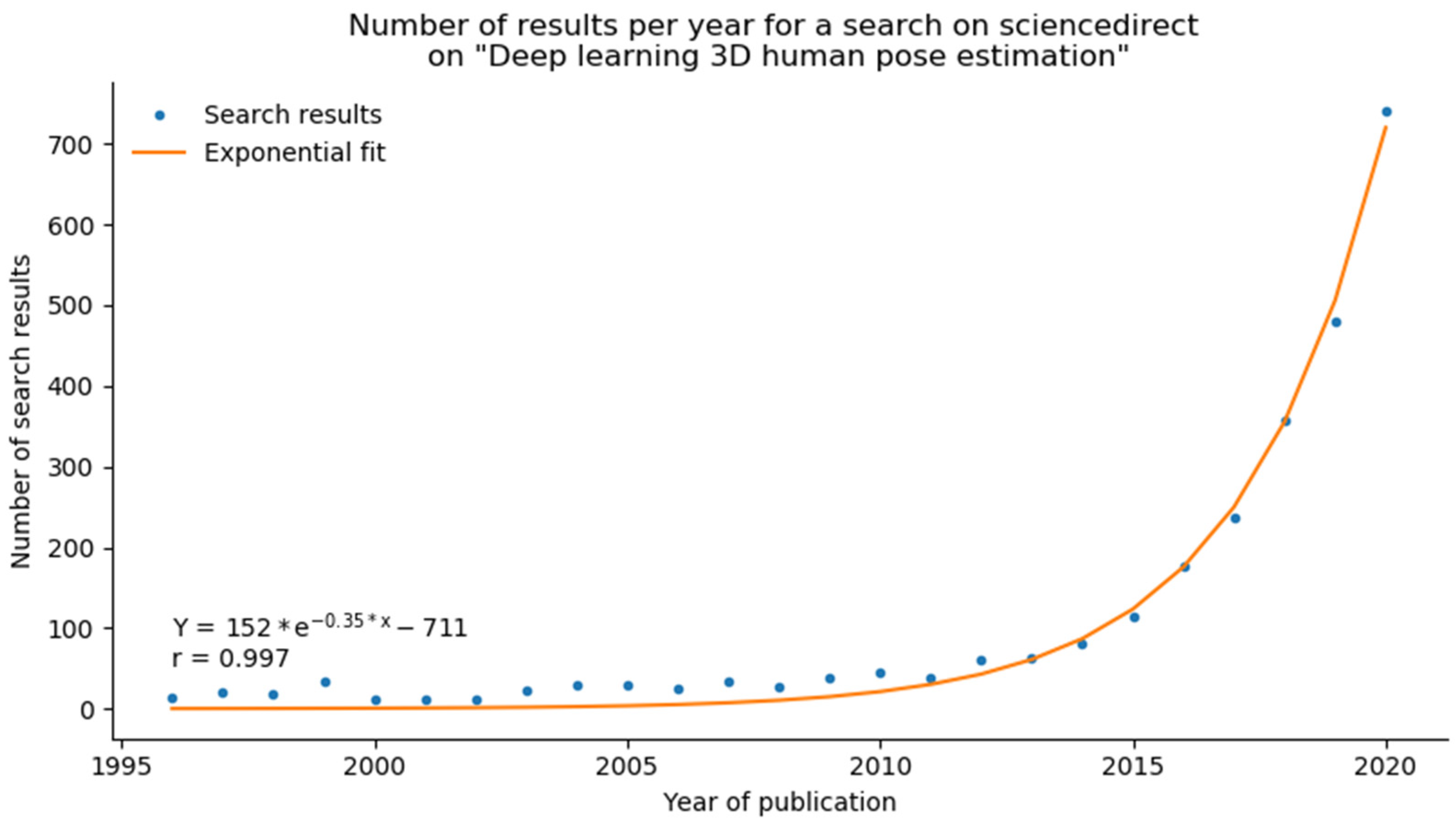

**Figure 1.**The search for “deep learning 3D human pose estimation” (dots) fits an exponential curve line. The search produced less than 100 results until 2015. Over the course of 5 years, the number has reached almost 750.

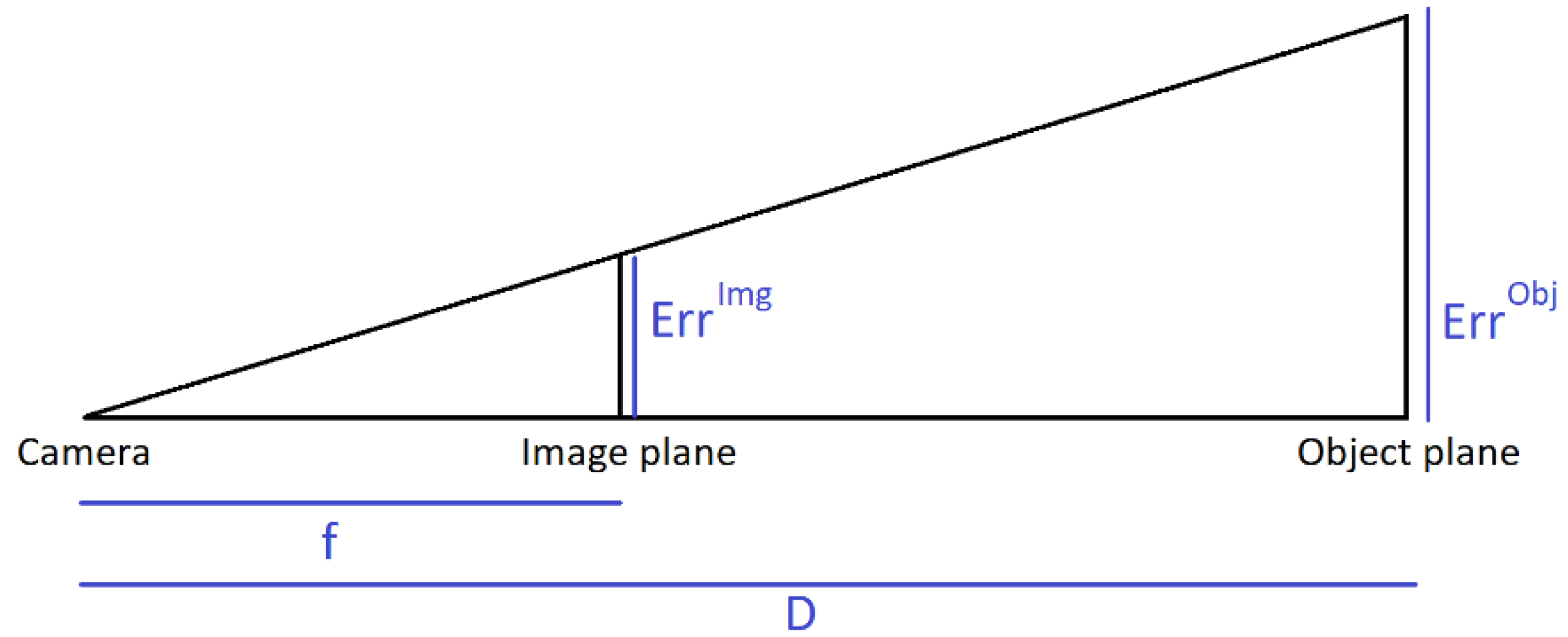

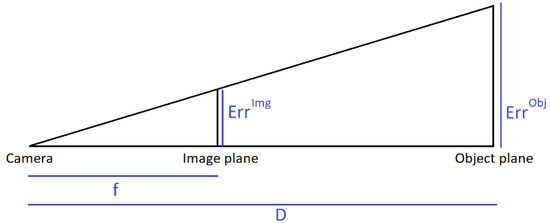

**Figure 2.**The pinhole camera model, permitting a correspondence between image coordinates and object coordinates. F—focal distance; D—object to camera distance; Err

^{Img}—error on image plane; Err

^{Obj}—error on object plane. F and Err

^{Img}are usually expressed in pixels, while D and Err

^{Obj}are expressed in meters.

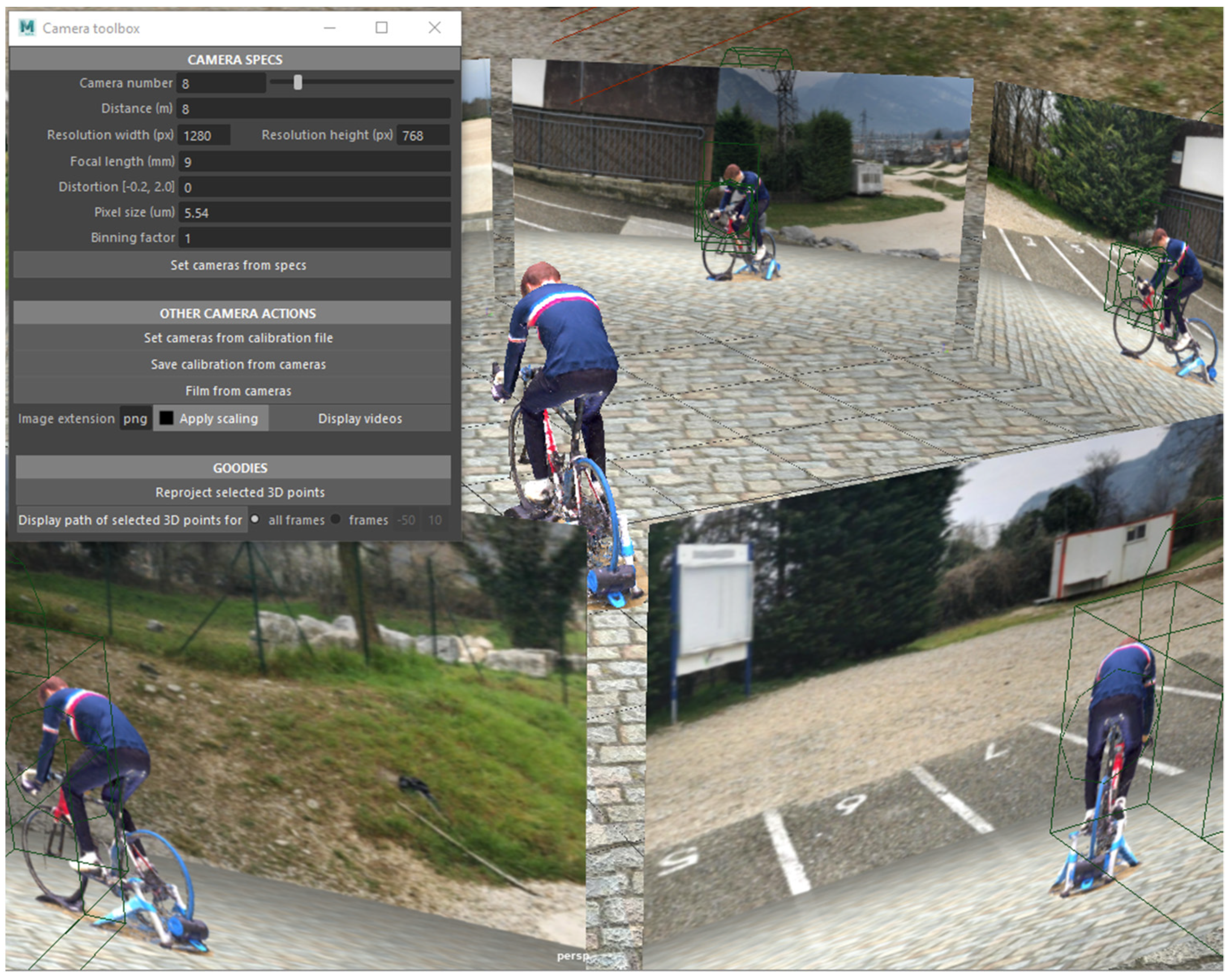

**Figure 3.**The camera toolbox developed for Autodesk Maya, which lets one set up virtual cameras, save their parameters in a calibration file, and film realistic looking synthetic videos. Here, we set up 8 video cameras, regularly distributed 8 m away from the subject.

**Figure 4.**To smooth out sharp edges due to compositing, we applied a 3 × 3 pixel Gaussian blur to the videos filmed from our virtual scene.

**Figure 5.**The image under poor image quality (Im) conditions. A Gaussian blur (11 × 11 px) was applied, and a 0.5 gamma compression made the image darker.

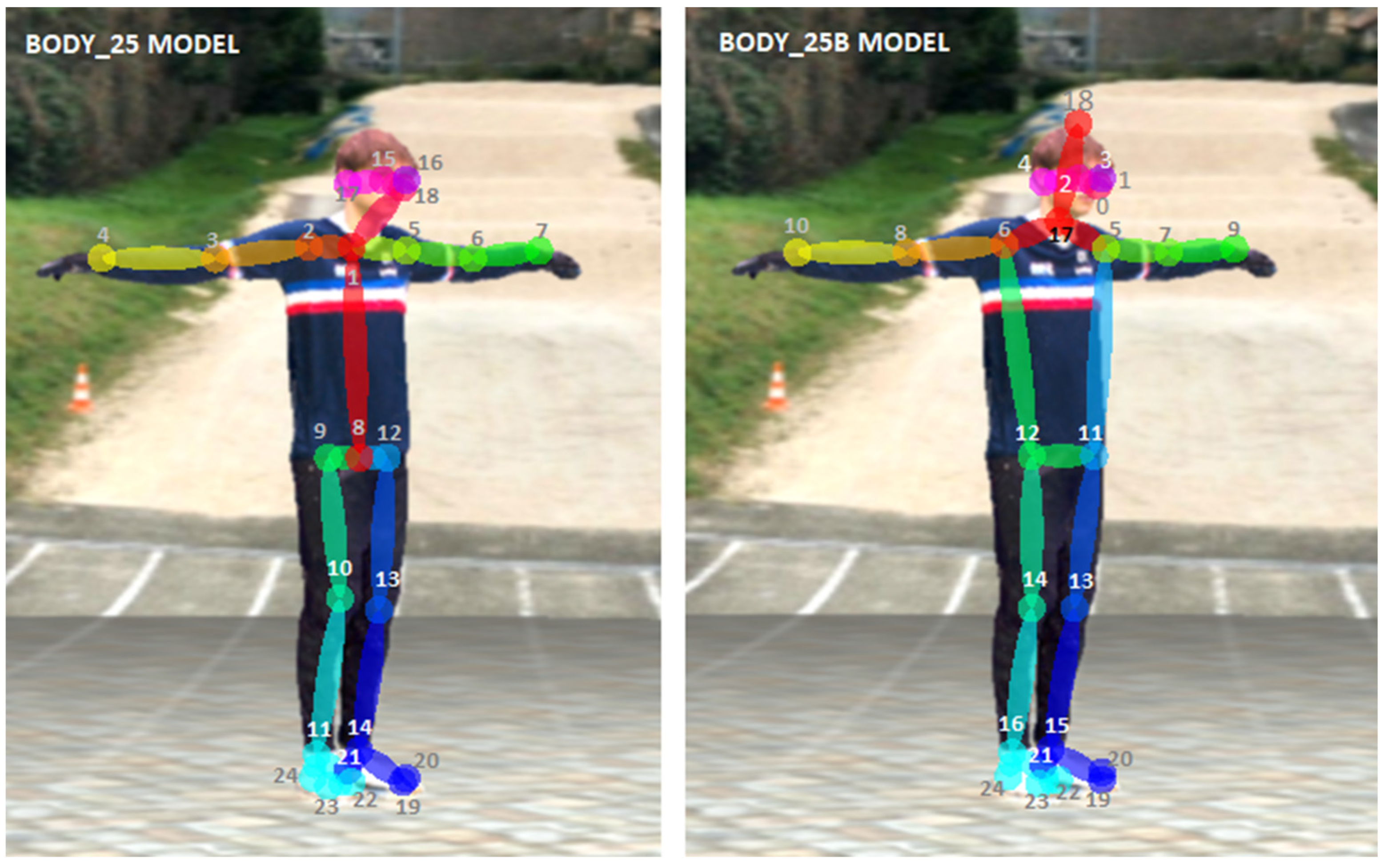

**Figure 6.**The experimental body_25b OpenPose model is more accurate than the default body_25 one. As an example, the left knee is slightly misplaced on the default model. The keypoint definition differs between both models.

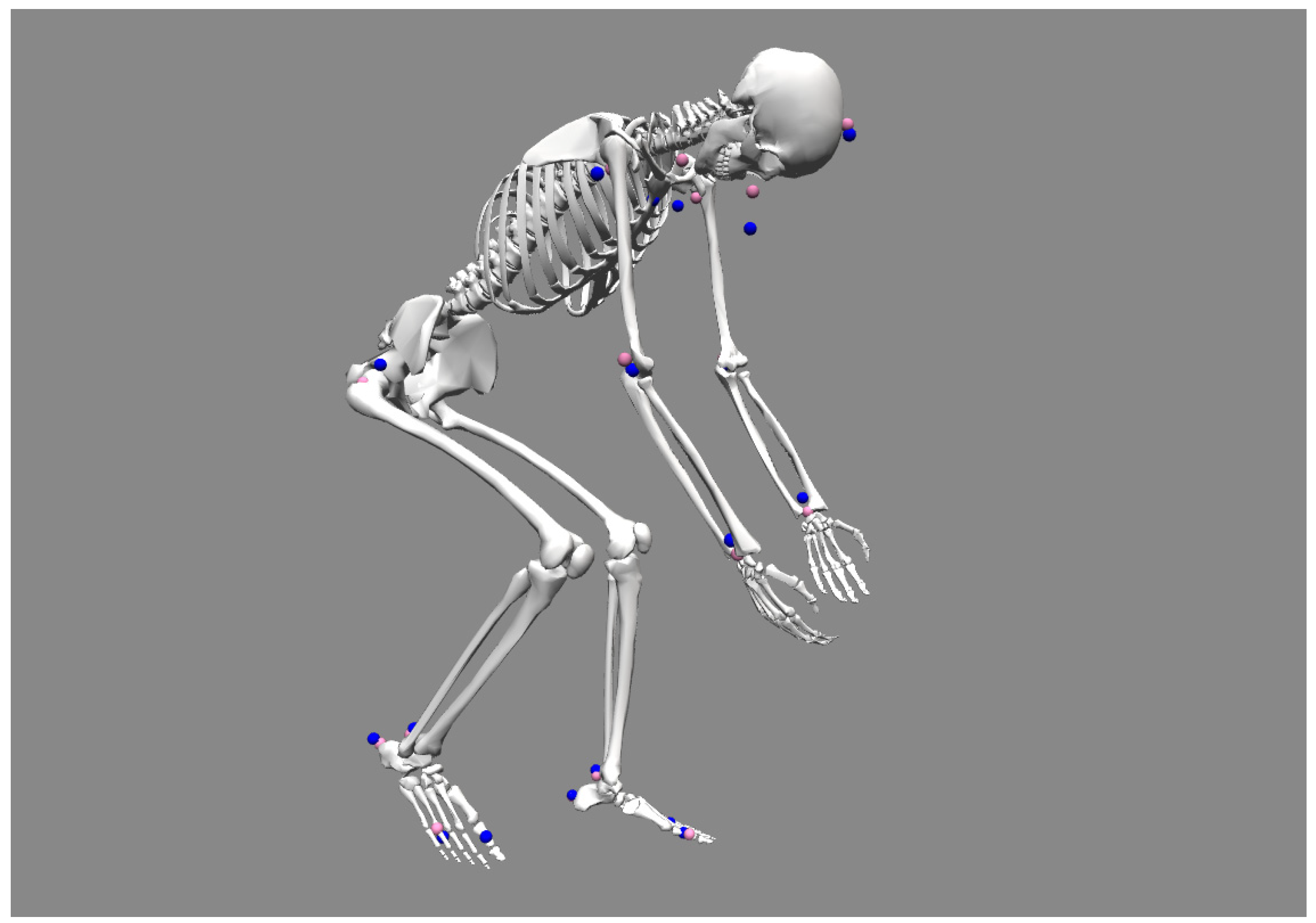

**Figure 7.**OpenSim inverse kinematics on cycling (C). Model markers are pink; experimental markers are blue.

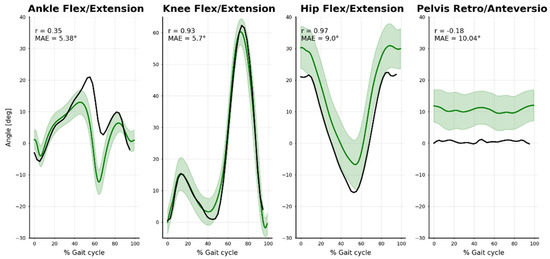

**Figure 8.**Comparison between our markerless results (black line: mean stride-to-stride results for our subject) and the normative marker-based database (green line and area: mean and standard deviation across 14 young, healthy, male subjects). Mean absolute error (MAE) and Pearson correlation coefficient (r) are represented.

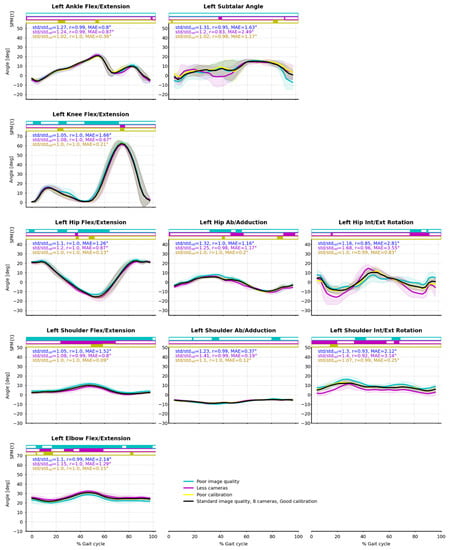

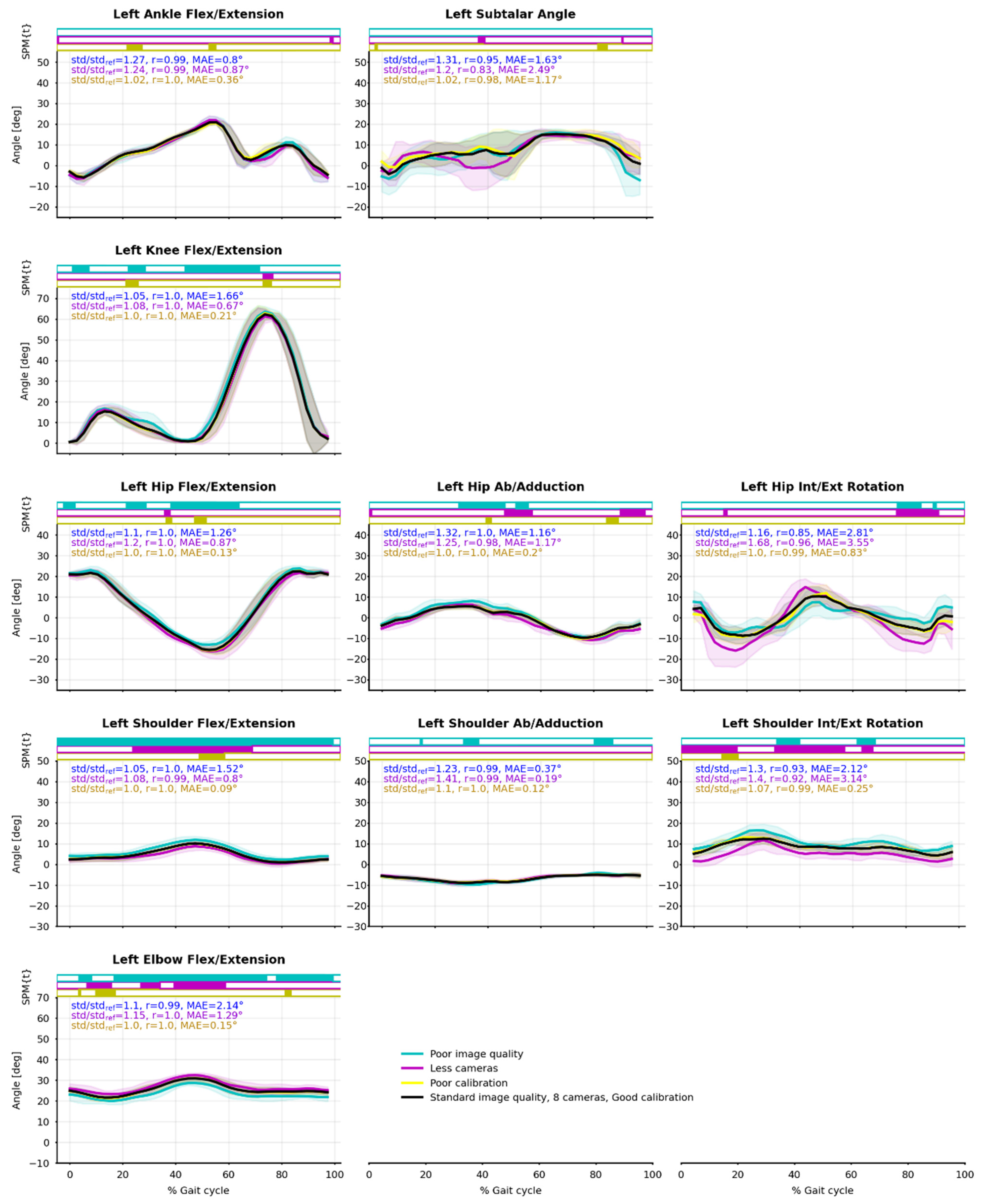

**Figure 9.**Joint angle means (solid line) and standard deviations (shaded area) from the eight captured cycles of walking. Reference condition (Ref) is black; degraded image quality (Im) is blue; four cameras instead of eight (4c) is purple; degraded calibration (Cal) is yellow. Pearson’s correlation coefficient (r) and mean absolute error (MAE) between Ref and Im, 4c, Cal are reported. Paired t-tests along time were computed by SPM-1D and are represented as bar plots above the curves: a color rectangle means that there was a cluster of statistically significant differences (α = 0.05) at that moment. Running and cycling figures can be found in the Supplementary Material.

**Table 1.**Descriptive statistics on the triangulation step performed by Pose2Sim from OpenPose body_25b model. Mean absolute reprojection error and mean number of excluded cameras were calculated over time. Mean (mean), standard deviation (std), and maximum (max) in each of these variables are displayed. Walking, running, and cycling tasks were investigated in each four conditions: reference (Ref), poor image quality (Im), four cameras instead of eight (4c), and calibration errors (Cal).

Tasks | Conditions | Mean Number of Excluded Cameras | Mean Absolute Reprojection Error | ||||
---|---|---|---|---|---|---|---|

Mean | std | Max | Mean | std | Max | ||

Walking | Ref | 0.47 | 0.57 | 2.0 (Nose) | 3.3 px (1.6 cm) | 1.1 px (0.54 cm) | 5.3 px (2.6 cm, LHip) |

Im | 0.91 | 0.80 | 2.4 (LWrist) | 3.7 px (1.8 cm) | 1.0 px (0.52 cm) | 5.2 px (2.6 cm, LSmallToe) | |

4c | 0.27 | 0.34 | 1.0 (Nose) | 2.9 px (1.4 cm) | 0.93 px (0.47 cm) | 4.5 px (2.2 cm, LSmallToe) | |

Cal | 0.47 | 0.57 | 2.0 (Nose) | 5.1 px (2.5 cm) | 0.91 px (0.45 cm) | 6.9 px (3.4 cm, LHip) | |

Running | Ref | 0.48 | 0.64 | 2.2 (LWrist) | 3.5 px (1.7 cm) | 1.2 px (0.57 cm) | 5.6 px (2.8 cm, LWrist) |

Im | 0.94 | 1.2 | 4.5 (LWrist) | 4.0 px (2.0 cm) | 1.4 px (0.69 cm) | 7.2 px (3.6 cm, RWrist) | |

4c | 0.22 | 0.31 | 1.0 (LWrist) | 3.3 px (1.6 cm) | 0.97 px (0.48 cm) | 4.7 px (2.3 cm, LWrist) | |

Cal | 0.47 | 0.65 | 2.2 (LWrist) | 5.4 px (2.7 cm) | 1.0 px (0.52 cm) | 7.2 px (3.6 cm, LWrist) | |

Cycling | Ref | 1.62 | 1.4 | 4.2 (RBigToe) | 6.1 px (3.0 cm) | 1.2 px (0.58 cm) | 8.5 px (4.2 cm, Head) |

Im | 2.41 | 1.9 | 5.7 (RBigToe) | 6.3 px (3.1 cm) | 1.3 px (0.60 cm) | 8.5 px (4.2 cm, Head) | |

4c | 0.76 | 0.67 | 2.1 (RBigToe) | 5.3 px (2.6 cm) | 1.6 px (0.82 cm) | 8.4 px (4.2 cm, LElbow) | |

Cal | 1.68 | 1.4 | 4.24 (RBigToe) | 6.9 px (3.4 cm) | 1.0 px (0.51 cm) | 8.9 px (4.4 cm, Head) |

**Table 2.**Descriptive statistics on the inverse kinematics step performed by OpenSim with a full body model adapted from Rajagopal’s [69]. Root mean square (RMS) errors between experimental and model markers were calculated over all markers. Mean, standard deviation (std), and maximum (max) are displayed. Dead center refers to the phase where the crank is near the vertical position.

Tasks | Conditions | RMS Marker Error | ||
---|---|---|---|---|

Mean | std | Max | ||

Walking | Ref | 2.8 cm | 0.13 cm | 3.2 cm (Mid stance) |

Im | 2.8 cm | 0.11 cm | 3.1 cm (Mid stance) | |

4c | 2.8 cm | 0.12 cm | 3.2 cm (Mid stance) | |

Cal | 2.9 cm | 0.13 cm | 3.2 cm (Mid stance) | |

Running | Ref | 2.2 cm | 0.22 cm | 2.6 cm (Mid stance) |

Im | 2.4 cm | 0.21 cm | 2.8 cm (Mid stance) | |

4c | 2.5 cm | 0.30 cm | 2.4 cm (Mid stance) | |

Cal | 2.2 cm | 0.21 cm | 2.6 cm (Mid stance) | |

Cycling | Ref | 3.4 cm | 0.11 cm | 3.6 cm (Dead center) |

Im | 3.8 cm | 0.18 cm | 4.2 cm (Dead center) | |

4c | 3.9 cm | 0.60 cm | 5.9 cm (Dead center) | |

Cal | 3.4 cm | 0.11 cm | 3.6 cm (Dead center) |

**Table 3.**Summary of angles statistics, averaged for all joints. Each condition is represented: reference condition (Ref), degraded image quality (Im), four cameras instead of eight (4c), degraded calibration (Cal). Comparisons between each Im, 4c, Cal conditions, and Ref are accounted for with standard deviation (std), the standard deviation ratio (std/std

_{ref}), the Pearson’s correlation coefficient (r), and the mean absolute error (MAE).

Task | Conditions | std (°) | std/std_{ref} | r | MAE (°) |
---|---|---|---|---|---|

Walking | Ref | 2.56 | - | - | - |

Im | 3.03 | 1.19 | 0.97 | 1.55 | |

4c | 3.24 | 1.27 | 0.97 | 1.50 | |

Cal | 2.60 | 1.02 | 1.00 | 0.35 | |

Running | Ref | 2.59 | - | - | - |

Im | 2.76 | 1.07 | 0.99 | 0.92 | |

4c | 2.79 | 1.10 | 0.97 | 1.60 | |

Cal | 2.54 | 0.98 | 1.00 | 0.47 | |

Cycling | Ref | 1.78 | - | - | - |

Im | 1.89 | 1.08 | 0.88 | 1.72 | |

4c | 3.04 | 1.93 | 0.81 | 1.54 | |

Cal | 1.80 | 1.02 | 0.99 | 0.50 | |

Cycling (lower-body only) | Ref | 2.09 | - | - | - |

Im | 2.41 | 1.22 | 0.94 | 1.69 | |

4c | 3.82 | 2.31 | 0.90 | 1.84 | |

Cal | 2.13 | 1.03 | 0.99 | 0.51 |

**Table 4.**Stride-to-stride standard deviations of lower-body angles, with a comparison between the markerless approach of the current study and a marker-based one (averaged over 18 young subjects) [72]. * Ankle subtalar angle is assimilated to an abduction/adduction angle.

Joint | Method | Flexion/Extension | Abduction/Adduction * | Internal/External Rotation |
---|---|---|---|---|

Ankle | Kang et al. [72] | 2 | 2.5 | - |

Ours | 2.07 | 4.84 | - | |

Knee | Kang et al. [72] | 0.7 | - | - |

Ours | 4.85 | - | - | |

Hip | Kang et al. [72] | 1.2 | 1.8 | 1.1 |

Ours | 2.61 | 1.5 | 3.72 |

**Table 5.**Summary of angles statistics in the three rotation planes, averaged over all joints (n = 5, 3, 2 for Flexion/Extension, Abduction/Adduction, and Internal/External Rotation, respectively.). All conditions are represented: degraded image quality (Im), four cameras instead of eight (4c), and degraded calibration (Cal). These conditions were compared to the reference one (Ref) by calculating the ratio of standard deviation (std/std

_{ref}), the Pearson’s correlation coefficient (r), and the mean absolute error (MAE). * Ankle subtalar angle is assimilated to an abduction/adduction angle.

Flexion/Extension | Abduction/Adduction * | Internal/External Rotation | ||||||||
---|---|---|---|---|---|---|---|---|---|---|

std/std_{ref} | r | MAE (°) | std/std_{ref} | r | MAE (°) | std/std_{ref} | r | MAE (°) | ||

Walking | Im | 1.11 | 1.00 | 1.48 | 1.28 | 0.98 | 1.05 | 1.23 | 0.89 | 2.47 |

4c | 1.15 | 1.00 | 0.90 | 1.29 | 0.93 | 1.28 | 1.54 | 0.94 | 3.35 | |

Cal | 1.01 | 1.00 | 0.19 | 1.04 | 0.99 | 0.50 | 1.04 | 0.99 | 0.54 | |

Running | Im | 1.03 | 1.00 | 0.98 | 1.08 | 0.98 | 0.48 | 1.13 | 0.98 | 1.41 |

4c | 1.03 | 1.00 | 0.98 | 1.18 | 0.93 | 1.00 | 1.14 | 0.97 | 4.06 | |

Cal | 1.00 | 1.00 | 0.30 | 0.99 | 0.99 | 0.53 | 0.92 | 1.00 | 0.80 | |

Cycling | Im | 0.99 | 0.97 | 1.89 | 1.27 | 0.66 | 1.45 | 0.99 | 0.97 | 1.71 |

4c | 1.31 | 0.96 | 1.43 | 3.10 | 0.46 | 1.76 | 1.71 | 0.97 | 1.47 | |

Cal | 1.00 | 1.00 | 0.39 | 1.06 | 0.96 | 0.36 | 1.02 | 1.00 | 1.00 |
