# Generative Adversarial Network-Based Scheme for Diagnosing Faults in Cyber-Physical Power Systems

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Literature Review

## 3. Knockoff Generation

**Definition**

**1.**

**Definition**

**2.**

**Theorem**

**1.**

## 4. Simulation Results

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Hassani, H.; Razavi-Far, R.; Saif, M. Fault location in smart grids through multicriteria analysis of group decision support systems. IEEE Trans. Ind. Inform.
**2020**, 16, 7318–7327. [Google Scholar] [CrossRef] - Wang, Q.; Yu, Y.; Ahmed, H.O.A.; Darwish, M.; Nandi, A.K. Fault Detection and Classification in MMC-HVDC Systems Using Learning Methods. Sensors
**2020**, 20, 4438. [Google Scholar] [CrossRef] [PubMed] - Hassani, H.; Razavi-Far, R.; Saif, M.; Capolino, G.A. Regression Models With Graph-Regularization Learning Algorithms for Accurate Fault Location in Smart Grids. IEEE Syst. J.
**2021**, 15, 2012–2023. [Google Scholar] [CrossRef] - Razavi-Far, R.; Palade, V.; Zio, E. Optimal detection of new classes of faults by an invasive weed optimization method. In Proceedings of the 2014 International Joint Conference on Neural Networks (IJCNN), Beijing, China, 6–11 July 2014; pp. 91–98. [Google Scholar]
- Kari, T.; Gao, W.; Zhao, D.; Abiderexiti, K.; Mo, W.; Wang, Y.; Luan, L. Hybrid feature selection approach for power transformer fault diagnosis based on support vector machine and genetic algorithm. IET Gener. Transm. Distrib.
**2018**, 12, 5672–5680. [Google Scholar] [CrossRef] - Hassani, H.; Hallaji, E.; Razavi-Far, R.; Saif, M. Unsupervised concrete feature selection based on mutual information for diagnosing faults and cyber-attacks in power systems. Eng. Appl. Artif. Intell.
**2021**, 100, 104150. [Google Scholar] [CrossRef] - Cui, Q.; El-Arroudi, K.; Weng, Y. A feature selection method for high impedance fault detection. IEEE Trans. Power Deliv.
**2019**, 34, 1203–1215. [Google Scholar] [CrossRef] [Green Version] - Gangavarapu, T.; Patil, N. A novel filter–wrapper hybrid greedy ensemble approach optimized using the genetic algorithm to reduce the dimensionality of high-dimensional biomedical datasets. Appl. Soft Comput.
**2019**, 81, 105538. [Google Scholar] [CrossRef] - Cekik, R.; Uysal, A.K. A novel filter feature selection method using rough set for short text data. Expert Syst. Appl.
**2020**, 160, 113691. [Google Scholar] [CrossRef] - Nouri-Moghaddam, B.; Ghazanfari, M.; Fathian, M. A novel multi-objective forest optimization algorithm for wrapper feature selection. Expert Syst. Appl.
**2021**, 175, 114737. [Google Scholar] [CrossRef] - Fu, Y.; Liu, X.; Sarkar, S.; Wu, T. Gaussian mixture model with feature selection: An embedded approach. Comput. Ind. Eng.
**2021**, 152, 107000. [Google Scholar] [CrossRef] - Liu, H.; Zhou, J.; Xu, Y.; Zheng, Y.; Peng, X.; Jiang, W. Unsupervised fault diagnosis of rolling bearings using a deep neural network based on generative adversarial networks. Neurocomputing
**2018**, 315, 412–424. [Google Scholar] [CrossRef] - Farajzadeh-Zanjani, M.; Hallaji, E.; Razavi-Far, R.; Saif, M. Generative adversarial dimensionality reduction for diagnosing faults and attacks in cyber-physical systems. Neurocomputing
**2021**, 440, 101–110. [Google Scholar] [CrossRef] - Shao, S.; Wang, P.; Yan, R. Generative adversarial networks for data augmentation in machine fault diagnosis. Comput. Ind.
**2019**, 106, 85–93. [Google Scholar] [CrossRef] - Zhang, W.; Li, X.; Jia, X.D.; Ma, H.; Luo, Z.; Li, X. Machinery fault diagnosis with imbalanced data using deep generative adversarial networks. Measurement
**2020**, 152, 107377. [Google Scholar] [CrossRef] - Glowacz, A. Ventilation diagnosis of angle grinder using thermal imaging. Sensors
**2021**, 21, 2853. [Google Scholar] [CrossRef] [PubMed] - Zhang, W.; Chen, D.; Kong, Y. Self-Supervised Joint Learning Fault Diagnosis Method Based on Three-Channel Vibration Images. Sensors
**2021**, 21, 4774. [Google Scholar] [CrossRef] - Farajzadeh-Zanjani, M.; Hallaji, E.; Razavi-Far, R.; Saif, M.; Parvania, M. Adversarial Semi-Supervised Learning for Diagnosing Faults and Attacks in Power Grids. IEEE Trans. Smart Grid
**2021**, 12, 3468–3478. [Google Scholar] [CrossRef] - Barber, R.F.; Candès, E.J. Controlling the false discovery rate via knockoffs. Ann. Stat.
**2015**, 43, 2055–2085. [Google Scholar] [CrossRef] [Green Version] - Jordon, J.; Yoon, J.; van der Schaar, M. KnockoffGAN: Generating knockoffs for feature selection using generative adversarial networks. In Proceedings of the International Conference on Learning Representations, New Orleans, LA, USA, 6–9 May 2018. [Google Scholar]
- Razavi-Far, R.; Davilu, H.; Palade, V.; Lucas, C. Model-based fault detection and isolation of a steam generator using neuro-fuzzy networks. Neurocomputing
**2009**, 72, 2939–2951. [Google Scholar] [CrossRef] - Roffo, G.; Melzi, S.; Cristani, M. Infinite feature selection. In Proceedings of the IEEE International Conference on Computer Vision, Santiago, Chile, 7–15 December 2015; pp. 4202–4210. [Google Scholar]
- Zaffalon, M.; Hutter, M. Robust feature selection using distributions of mutual information. In Proceedings of the 18th International Conference on Uncertainty in Artificial Intelligence (UAI-2002), Edmonton, AB, Canada, 1–4 August 2002; pp. 577–584. [Google Scholar]
- Li, X.; Xie, S.; Zeng, D.; Wang, Y. Efficient l
_{0}-norm feature selection based on augmented and penalized minimization. Stat. Med.**2018**, 37, 473–486. [Google Scholar] [CrossRef] - Kira, K.; Rendell, L.A. The Feature Selection Problem: Traditional Methods and a New Algorithm. In Proceedings of the AAAI-92, San Jose, CA, USA, 12–16 July 1992; Volume 2, pp. 129–134. [Google Scholar]
- Gui, J.; Sun, Z.; Wen, Y.; Tao, D.; Ye, J. A review on generative adversarial networks: Algorithms, theory, and applications. arXiv
**2020**, arXiv:2001.06937. [Google Scholar] - Rezende, D.J.; Mohamed, S.; Wierstra, D. Stochastic backpropagation and approximate inference in deep generative models. In Proceedings of the International Conference on Machine Learning; JMLR, Beijing, China, 21–26 June 2014; pp. 1278–1286. [Google Scholar]
- Hinton, G.E.; Osindero, S.; Teh, Y.W. A fast learning algorithm for deep belief nets. Neural Comput.
**2006**, 18, 1527–1554. [Google Scholar] [CrossRef] [PubMed] - Bengio, Y.; Yao, L.; Alain, G.; Vincent, P. Generalized denoising auto-encoders as generative models. arXiv
**2013**, arXiv:1305.6663. [Google Scholar] - Chen, X.; Duan, Y.; Houthooft, R.; Schulman, J.; Sutskever, I.; Abbeel, P. Infogan: Interpretable representation learning by information maximizing generative adversarial nets. In Proceedings of the 30th International Conference on Neural Information Processing Systems, Barcelona, Spain, 5 December 2016; pp. 2180–2188. [Google Scholar]
- Kurutach, T.; Tamar, A.; Yang, G.; Russell, S.; Abbeel, P. Learning plannable representations with causal infogan. arXiv
**2018**, arXiv:1807.09341. [Google Scholar] - Spurr, A.; Aksan, E.; Hilliges, O. Guiding infogan with semi-supervision. In Joint European Conference on Machine Learning and Knowledge Discovery in Databases; Springer: Skopje, Macedonia, 2017; pp. 119–134. [Google Scholar]
- Mirza, M.; Osindero, S. Conditional generative adversarial nets. arXiv
**2014**, arXiv:1411.1784. [Google Scholar] - Odena, A.; Olah, C.; Shlens, J. Conditional image synthesis with auxiliary classifier gans. In Proceedings of the International Conference on Machine Learning; JMLR, Sydney, Australia, 6–11 August 2017; pp. 2642–2651. [Google Scholar]
- Nguyen, A.; Clune, J.; Bengio, Y.; Dosovitskiy, A.; Yosinski, J. Plug & play generative networks: Conditional iterative generation of images in latent space. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Honolulu, HI, USA, 21–26 July 2017; pp. 4467–4477. [Google Scholar]
- Zhu, J.Y.; Park, T.; Isola, P.; Efros, A.A. Unpaired image-to-image translation using cycle-consistent adversarial networks. In Proceedings of the IEEE International Conference on Computer Vision, Venice, Italy, 22–29 October 2017; pp. 2223–2232. [Google Scholar]
- Yi, Z.; Zhang, H.; Tan, P.; Gong, M. Dualgan: Unsupervised dual learning for image-to-image translation. In Proceedings of the IEEE International Conference on Computer Vision, Venice, Italy, 22–29 October 2017; pp. 2849–2857. [Google Scholar]
- Arjovsky, M.; Chintala, S.; Bottou, L. Wasserstein generative adversarial networks. In Proceedings of the International Conference on Machine Learning; JMLR, Sydney, Australia, 6–11 August 2017; pp. 214–223. [Google Scholar]
- Wu, J.; Huang, Z.; Thoma, J.; Acharya, D.; Van Gool, L. Wasserstein divergence for gans. In Proceedings of the European Conference on Computer Vision (ECCV), Munich, Germany, 8–14 September 2018; pp. 653–668. [Google Scholar]
- Qi, G.J. Loss-sensitive generative adversarial networks on lipschitz densities. Int. J. Comput. Vis.
**2020**, 128, 1118–1140. [Google Scholar] [CrossRef] [Green Version] - Wiatrak, M.; Albrecht, S.V.; Nystrom, A. Stabilizing generative adversarial networks: A survey. arXiv
**2019**, arXiv:1910.00927. [Google Scholar] - Denton, E.; Chintala, S.; Szlam, A.; Fergus, R. Deep generative image models using a laplacian pyramid of adversarial networks. arXiv
**2015**, arXiv:1506.05751. [Google Scholar] - Shaham, T.R.; Dekel, T.; Michaeli, T. Singan: Learning a generative model from a single natural image. In Proceedings of the IEEE/CVF International Conference on Computer Vision, Seoul, Korea, 27 October–3 November 2019; pp. 4570–4580. [Google Scholar]
- Shocher, A.; Bagon, S.; Isola, P.; Irani, M. Ingan: Capturing and retargeting the “dna” of a natural image. In Proceedings of the IEEE/CVF International Conference on Computer Vision, Seoul, Korea, 27 October–3 November 2019; pp. 4492–4501. [Google Scholar]
- Radford, A.; Metz, L.; Chintala, S. Unsupervised representation learning with deep convolutional generative adversarial networks. arXiv
**2015**, arXiv:1511.06434. [Google Scholar] - Karras, T.; Aila, T.; Laine, S.; Lehtinen, J. Progressive growing of gans for improved quality, stability, and variation. arXiv
**2017**, arXiv:1710.10196. [Google Scholar] - Zhang, H.; Goodfellow, I.; Metaxas, D.; Odena, A. Self-attention generative adversarial networks. In Proceedings of the International Conference on Machine Learning; JMLR, Long Beach, CA, USA, 9–15 June 2019; pp. 7354–7363. [Google Scholar]
- Brock, A.; Donahue, J.; Simonyan, K. Large scale GAN training for high fidelity natural image synthesis. arXiv
**2018**, arXiv:1809.11096. [Google Scholar] - Karras, T.; Laine, S.; Aila, T. A style-based generator architecture for generative adversarial networks. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, Long Beach, CA, USA, 15–20 June 2019; pp. 4401–4410. [Google Scholar]
- Makhzani, A.; Shlens, J.; Jaitly, N.; Goodfellow, I.; Frey, B. Adversarial autoencoders. arXiv
**2015**, arXiv:1511.05644. [Google Scholar] - Donahue, J.; Krähenbühl, P.; Darrell, T. Adversarial feature learning. arXiv
**2016**, arXiv:1605.09782. [Google Scholar] - Ulyanov, D.; Vedaldi, A.; Lempitsky, V. It takes (only) two: Adversarial generator-encoder networks. In Proceedings of the Thirty-Second AAAI Conference on Artificial Intelligence, New Orleans, LA, USA, 2–7 February 2018. [Google Scholar]
- Hoang, Q.; Nguyen, T.D.; Le, T.; Phung, D. Multi-generator generative adversarial nets. arXiv
**2017**, arXiv:1708.02556. [Google Scholar] - Liu, M.Y.; Tuzel, O. Coupled generative adversarial networks. Adv. Neural Inf. Process. Syst.
**2016**, 29, 469–477. [Google Scholar] - Candès, E.J.; Fan, Y.; Janson, L.; Lv, J. Panning for Gold: Model-Free Knockoffs for High-Dimensional Controlled Variable Selection; Department of Statistics, Stanford University: Stanford, CA, USA, 2016. [Google Scholar]
- Belghazi, M.I.; Baratin, A.; Rajeshwar, S.; Ozair, S.; Bengio, Y.; Courville, A.; Hjelm, D. Mutual information neural estimation. In Proceedings of the International Conference on Machine Learning; JMLR, Stockholm, Sweden, 10–15 July 2018; pp. 531–540. [Google Scholar]

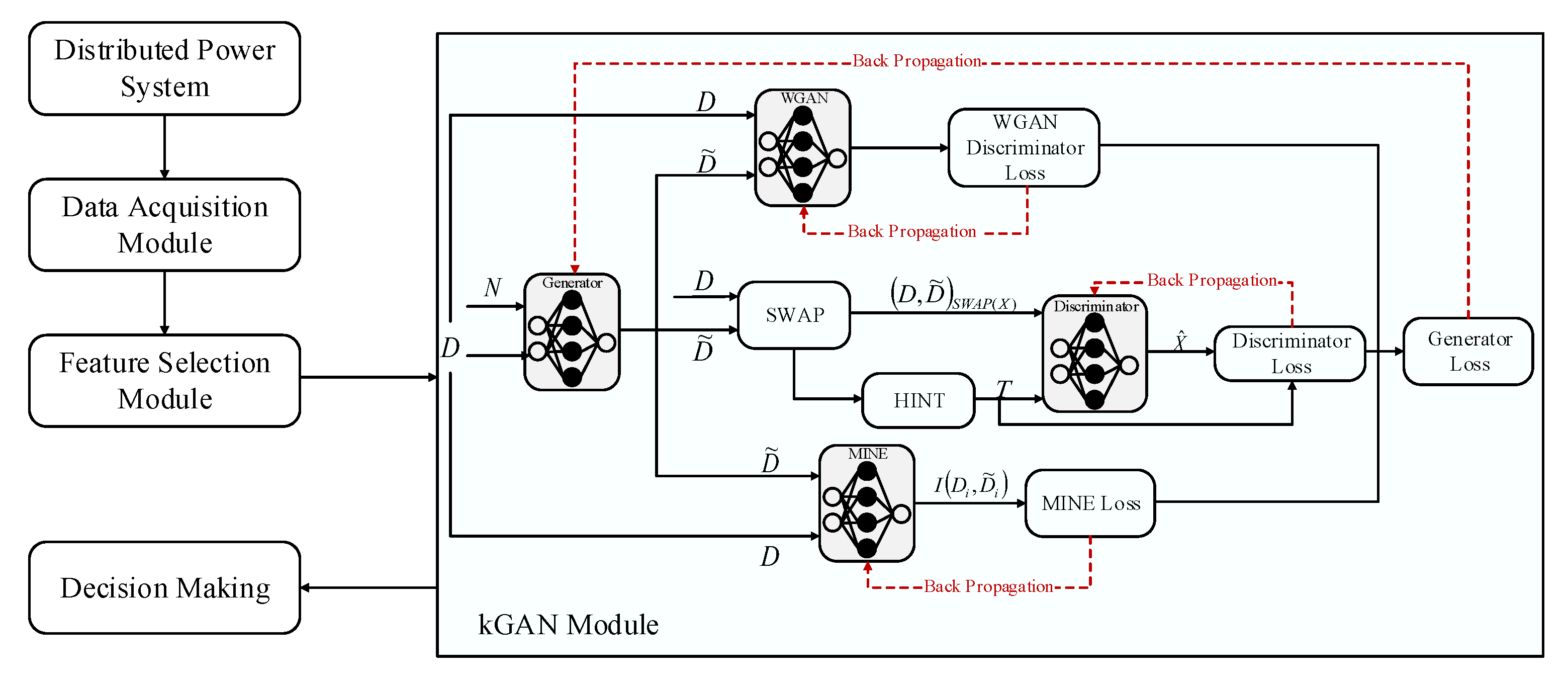

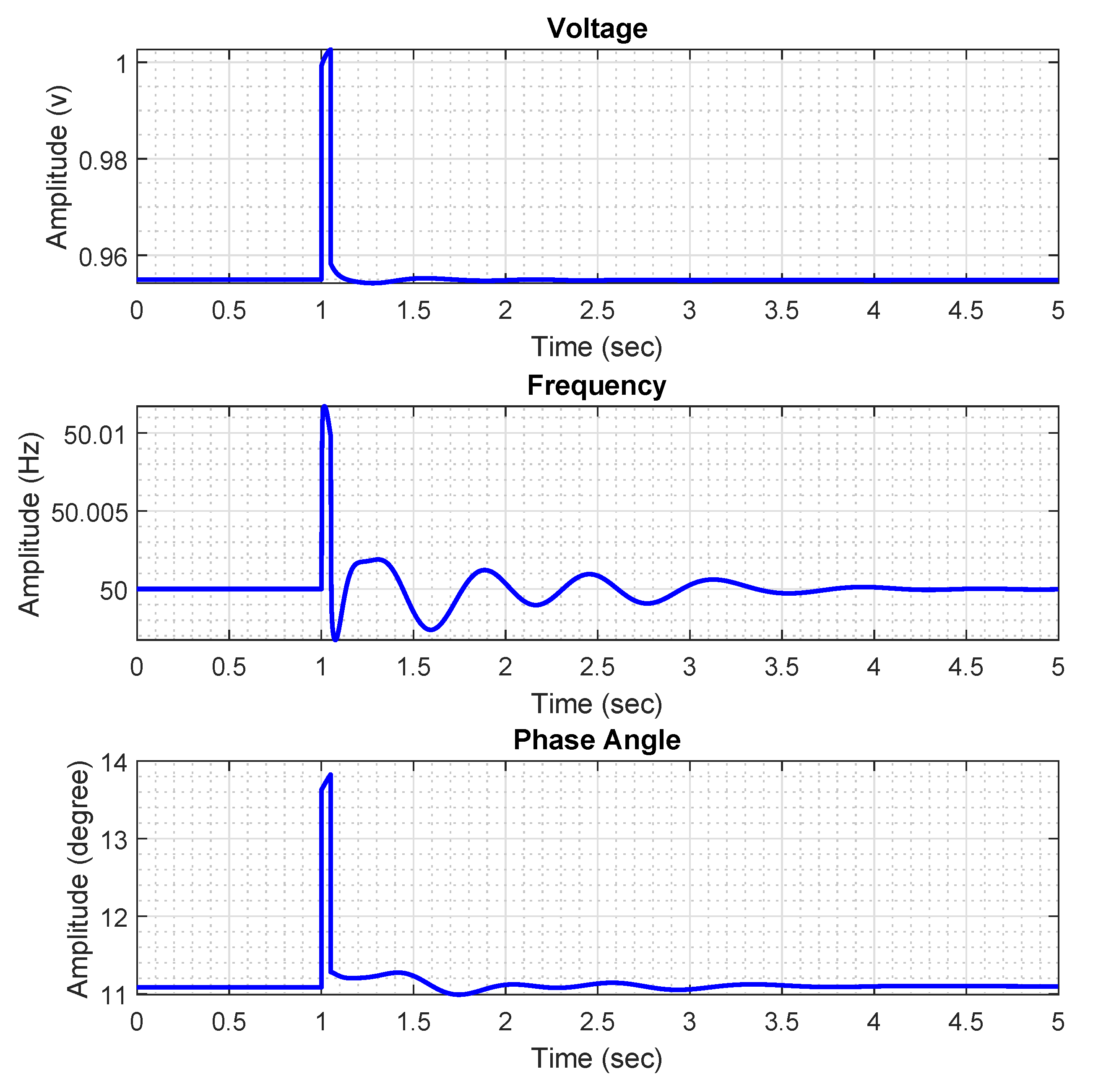

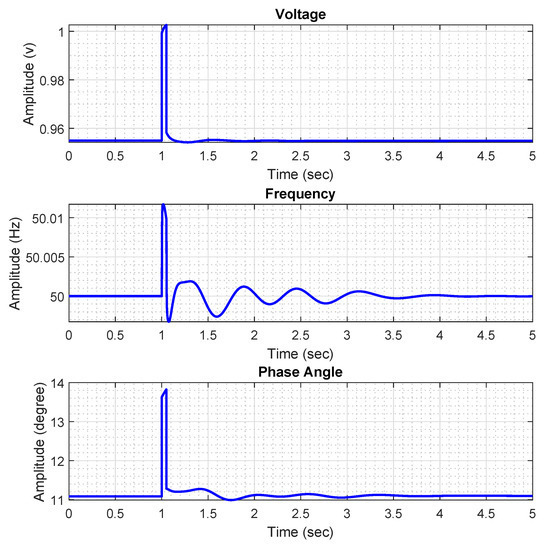

**Figure 2.**The collected voltage, frequency, and phase angle measurements following an LL fault on bus #1 at $t=1$ second of the simulation.

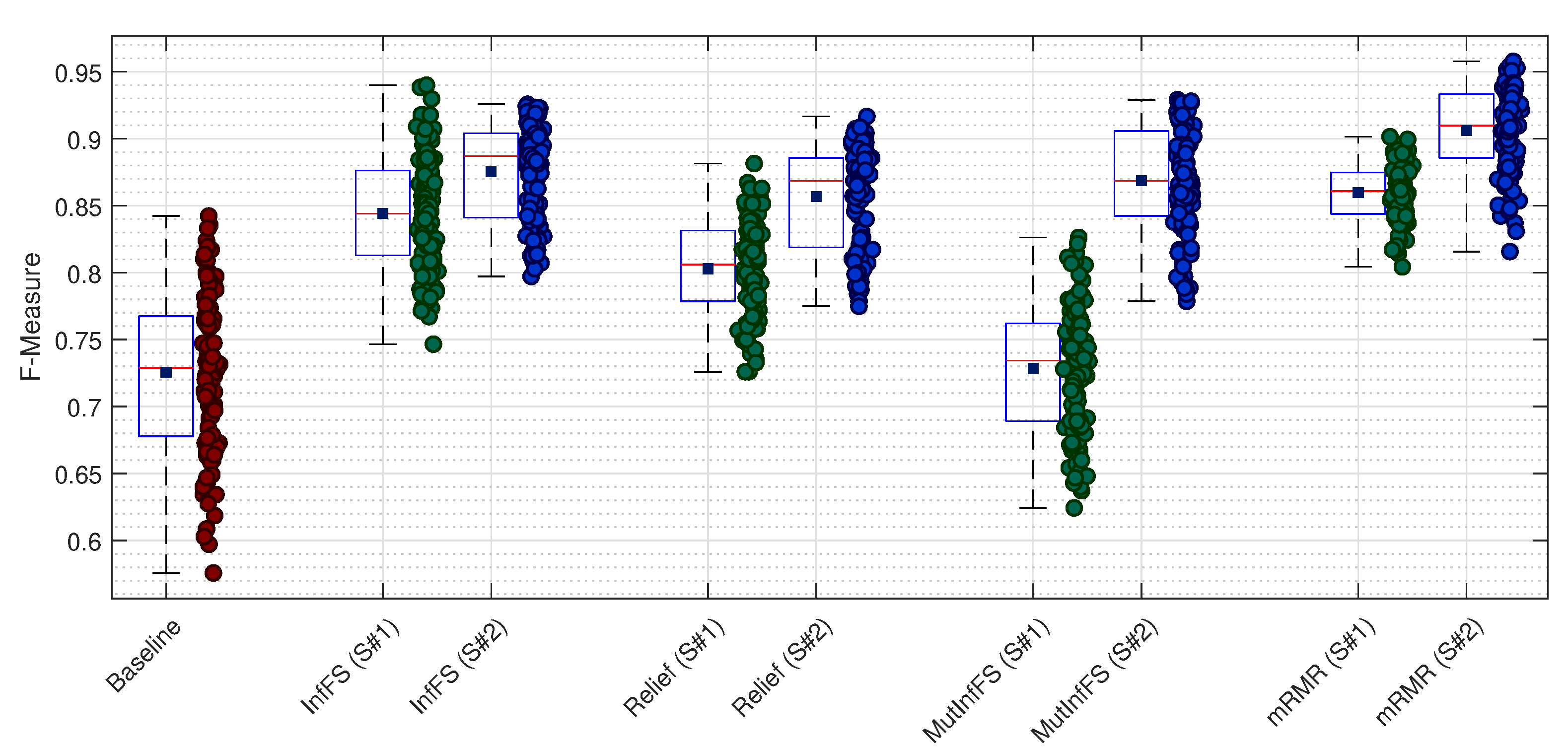

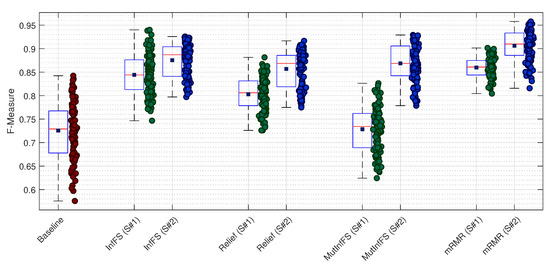

**Figure 3.**The attained F-Measure values for the kNN classification model w.r.t. each feature selection technique.

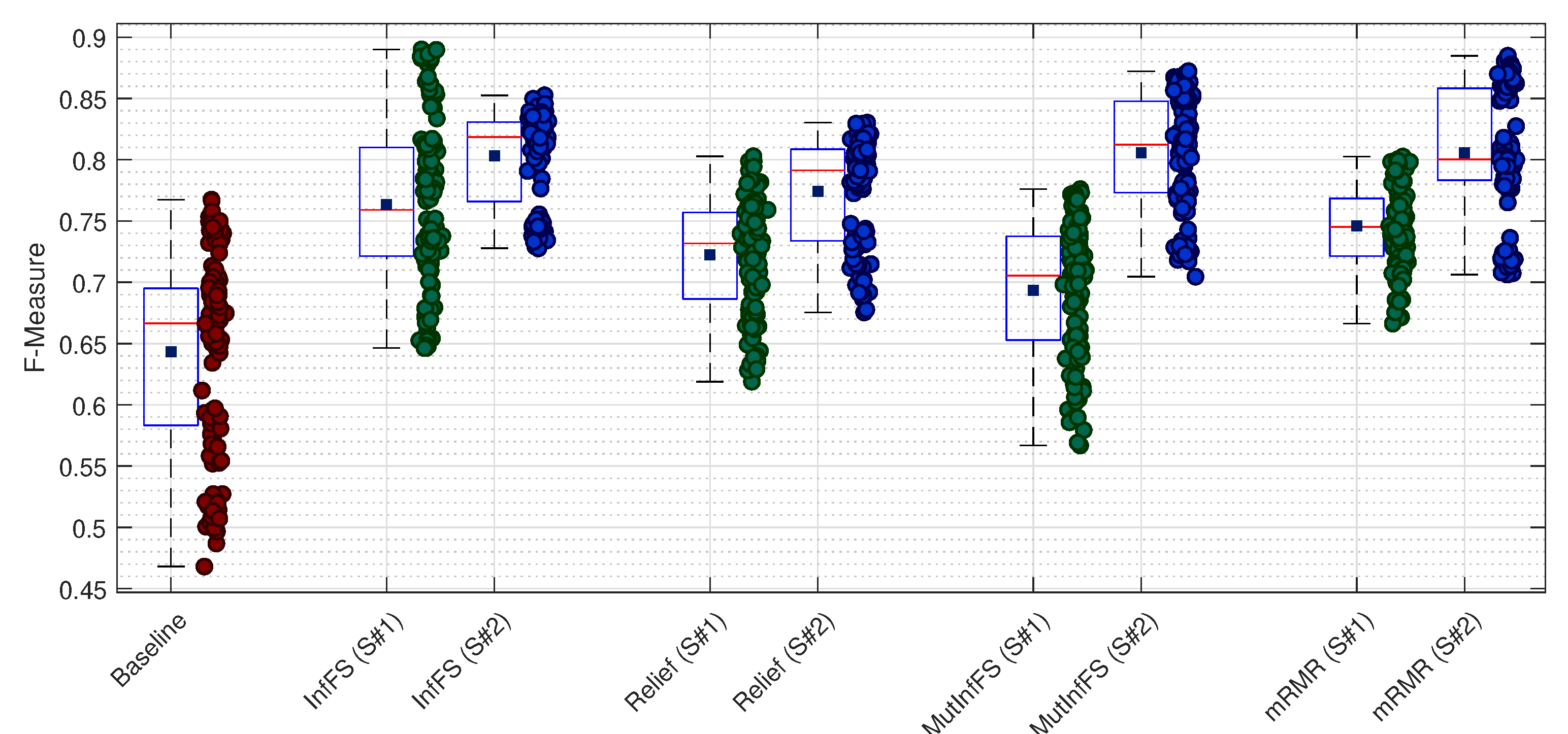

**Figure 4.**The attained F-measure values by means of the SVM classification model w.r.t. each dataset.

**Table 1.**The attained F-Measure (FM) values by means of the kNN classification model w.r.t. each dataset.

Dataset | Baseline | InfFS | Relief | MutInfFS | mRMR | ||||
---|---|---|---|---|---|---|---|---|---|

S#1 | S#2 | S#1 | S#2 | S#1 | S#2 | S#1 | S#2 | ||

${\mathcal{A}}_{1}$ | 0.7379 | 0.8527 | 0.8312 | 0.7718 | 0.7963 | 0.7479 | 0.8560 | 0.7758 | 0.8647 |

${\mathcal{A}}_{2}$ | 0.6809 | 0.7847 | 0.8209 | 0.7386 | 0.7858 | 0.7111 | 0.8478 | 0.7468 | 0.8563 |

${\mathcal{A}}_{3}$ | 0.6519 | 0.7149 | 0.7966 | 0.7169 | 0.6973 | 0.6962 | 0.7968 | 0.7279 | 0.7818 |

${\mathcal{A}}_{4}$ | 0.7522 | 0.8828 | 0.8408 | 0.7928 | 0.8052 | 0.7695 | 0.8632 | 0.7956 | 0.8733 |

${\mathcal{A}}_{5}$ | 0.7006 | 0.8020 | 0.8305 | 0.7587 | 0.7887 | 0.7329 | 0.8511 | 0.7599 | 0.8639 |

${\mathcal{A}}_{6}$ | 0.6620 | 0.7418 | 0.7415 | 0.7388 | 0.7019 | 0.7113 | 0.7757 | 0.7432 | 0.7885 |

${\mathcal{A}}_{7}$ | 0.6691 | 0.7754 | 0.8244 | 0.7217 | 0.8149 | 0.6571 | 0.8155 | 0.7658 | 0.8046 |

${\mathcal{A}}_{8}$ | 0.5668 | 0.7274 | 0.8183 | 0.6705 | 0.8070 | 0.5905 | 0.8051 | 0.7157 | 0.7957 |

${\mathcal{A}}_{9}$ | 0.4973 | 0.6535 | 0.7406 | 0.6371 | 0.7331 | 0.6180 | 0.7236 | 0.6828 | 0.7141 |

${\mathcal{A}}_{10}$ | 0.6884 | 0.8125 | 0.8298 | 0.7544 | 0.8194 | 0.7515 | 0.8211 | 0.7910 | 0.8077 |

${\mathcal{A}}_{11}$ | 0.5925 | 0.7317 | 0.8181 | 0.6981 | 0.8106 | 0.6880 | 0.8084 | 0.7391 | 0.7956 |

${\mathcal{A}}_{12}$ | 0.5187 | 0.6799 | 0.7438 | 0.6691 | 0.7343 | 0.6485 | 0.7287 | 0.7090 | 0.7217 |

Avg. | 0.6432 | 0.7633 | 0.8030 | 0.7224 | 0.7743 | 0.6935 | 0.8055 | 0.7460 | 0.8057 |

**Table 2.**The attained F-Measure (FM) values by means of the SVM classification model w.r.t. each dataset.

Dataset | Baseline | InfFS | Relief | MutInfFS | mRMR | ||||
---|---|---|---|---|---|---|---|---|---|

S#1 | S#2 | S#1 | S#2 | S#1 | S#2 | S#1 | S#2 | ||

${\mathcal{A}}_{1}$ | 0.7970 | 0.9143 | 0.9156 | 0.8258 | 0.8936 | 0.7776 | 0.9159 | 0.8696 | 0.9413 |

${\mathcal{A}}_{2}$ | 0.7407 | 0.8898 | 0.9060 | 0.8157 | 0.8877 | 0.7520 | 0.9061 | 0.8600 | 0.9344 |

${\mathcal{A}}_{3}$ | 0.6799 | 0.8768 | 0.8414 | 0.7998 | 0.8084 | 0.7351 | 0.8480 | 0.8516 | 0.8840 |

${\mathcal{A}}_{4}$ | 0.8265 | 0.8780 | 0.9091 | 0.8571 | 0.8973 | 0.8007 | 0.9195 | 0.8864 | 0.9407 |

${\mathcal{A}}_{5}$ | 0.7749 | 0.8527 | 0.9003 | 0.8330 | 0.8901 | 0.7671 | 0.9090 | 0.8701 | 0.9361 |

${\mathcal{A}}_{6}$ | 0.7211 | 0.8481 | 0.8418 | 0.8254 | 0.8219 | 0.7560 | 0.8456 | 0.8611 | 0.8867 |

${\mathcal{A}}_{7}$ | 0.7341 | 0.8259 | 0.8886 | 0.7893 | 0.8694 | 0.7159 | 0.8697 | 0.8546 | 0.9156 |

${\mathcal{A}}_{8}$ | 0.6706 | 0.7977 | 0.8839 | 0.7611 | 0.8640 | 0.6746 | 0.8867 | 0.8377 | 0.9050 |

${\mathcal{A}}_{9}$ | 0.6187 | 0.7856 | 0.8170 | 0.7518 | 0.8000 | 0.6549 | 0.8019 | 0.8259 | 0.8513 |

${\mathcal{A}}_{10}$ | 0.7697 | 0.8373 | 0.8934 | 0.8147 | 0.8766 | 0.7353 | 0.8742 | 0.8823 | 0.9157 |

${\mathcal{A}}_{11}$ | 0.7143 | 0.8206 | 0.8865 | 0.7839 | 0.8668 | 0.6954 | 0.8656 | 0.8595 | 0.9085 |

${\mathcal{A}}_{12}$ | 0.6611 | 0.8030 | 0.8221 | 0.7767 | 0.8054 | 0.6762 | 0.8000 | 0.8568 | 0.8543 |

Avg. | 0.7257 | 0.8441 | 0.8755 | 0.8029 | 0.8569 | 0.7284 | 0.8685 | 0.8656 | 0.9061 |
