# PVDF Based Pressure Sensor for the Characterisation of the Mechanical Loading during High Explosive Hydro Forming of Metal Plates

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

^{®}—(Numerics Gmbh) based on computational fluid dynamic (CFD) and—RADIOSSv2017

^{®}—(ALTAIR Hyperworks) that uses a finite element method in an explicit scheme. The third objective is to give analytical interpretations, based on the shock polar technique, of experimental observations carried out on large and thick metal plate. For confidential reasons, the explosive charge and pool details are not evoked. Thus, all time, pressure, and distance results implying the explosive are dimensionless.

## 2. Materials and Methods

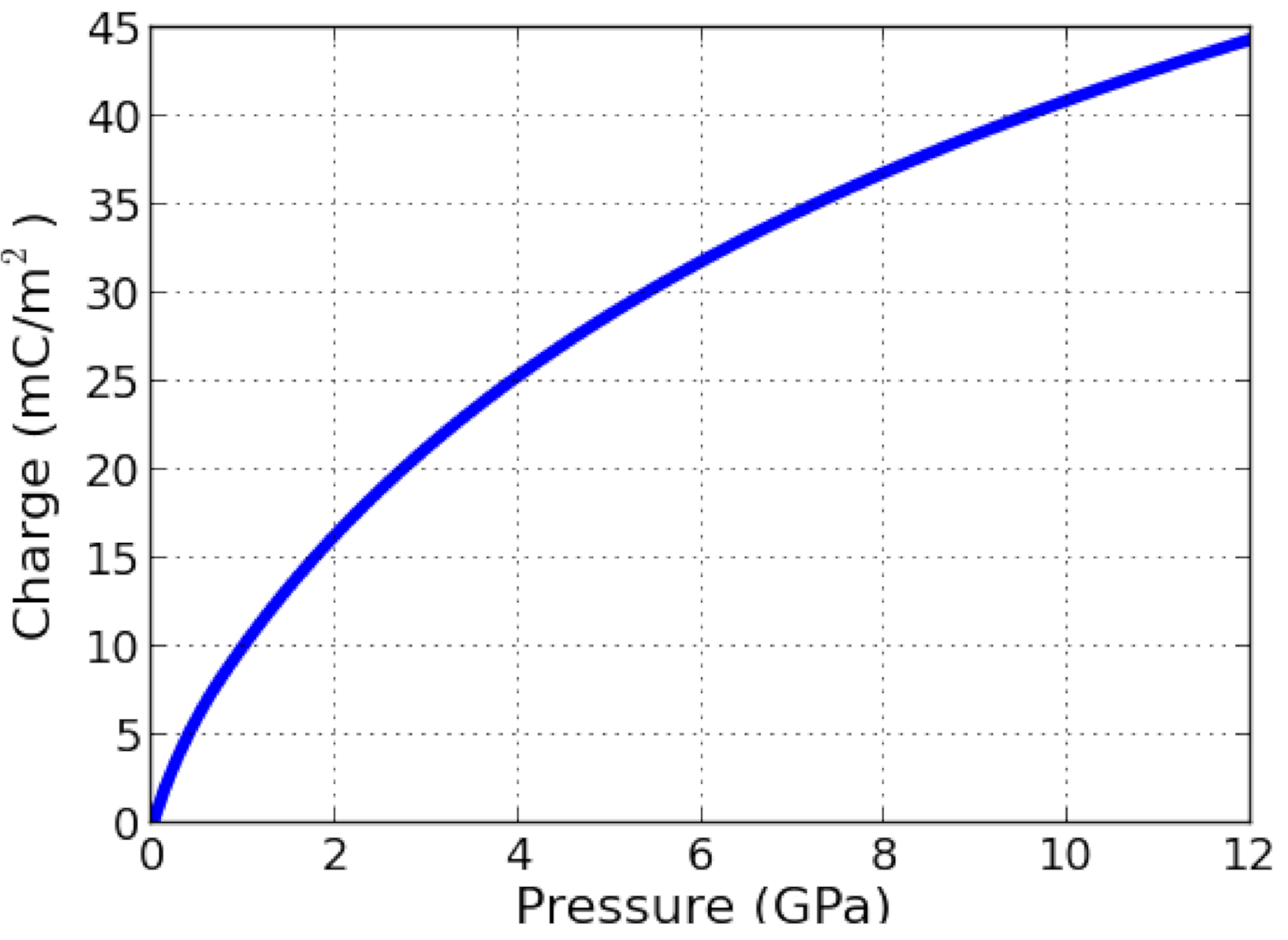

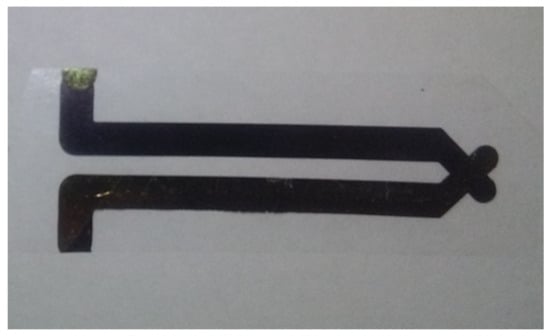

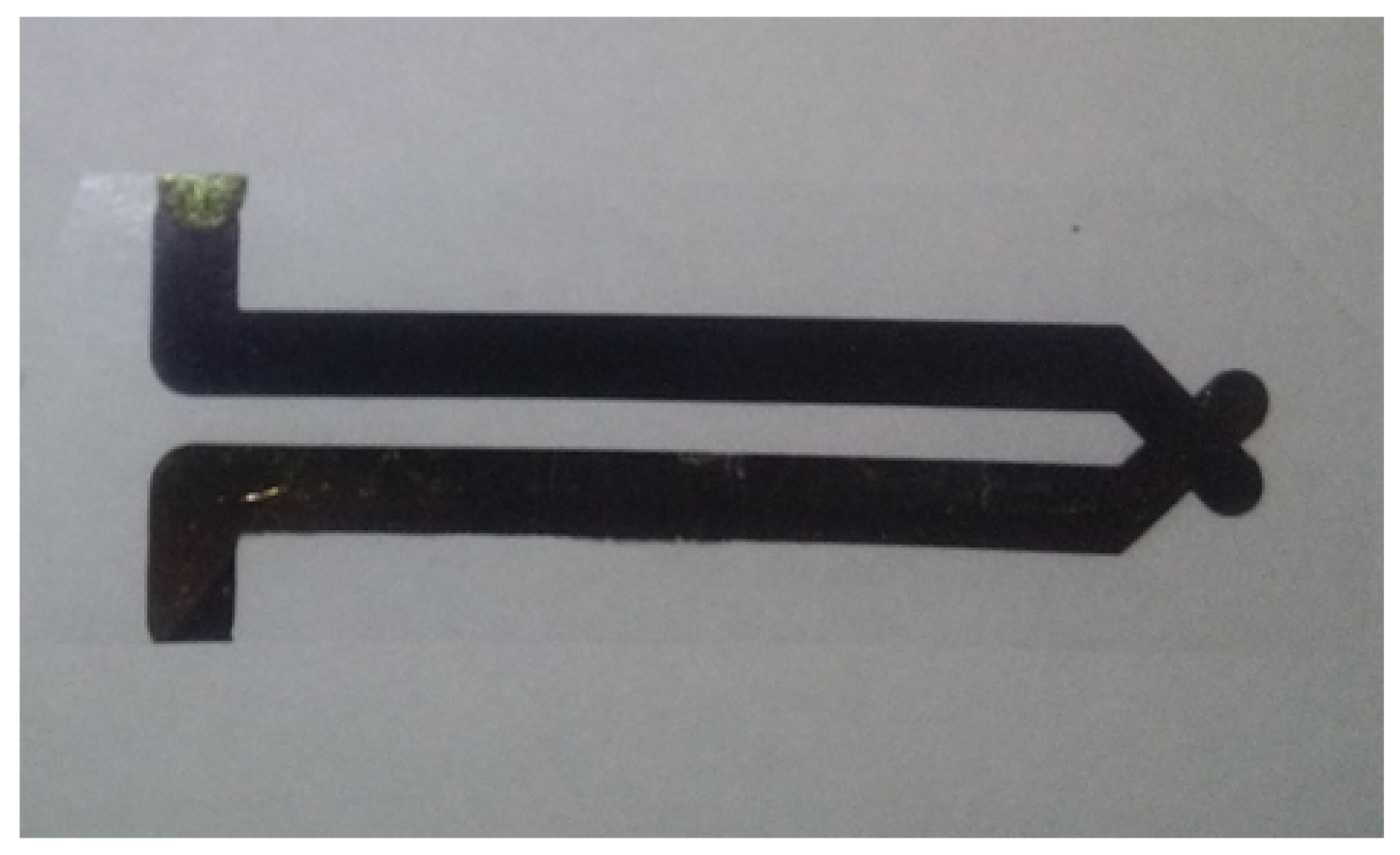

#### 2.1. PVDF Sensor Description and Implementation

- R#1 M$\Omega $
- C # 1500 pF
- $R\ast C$ # 1.5 ms

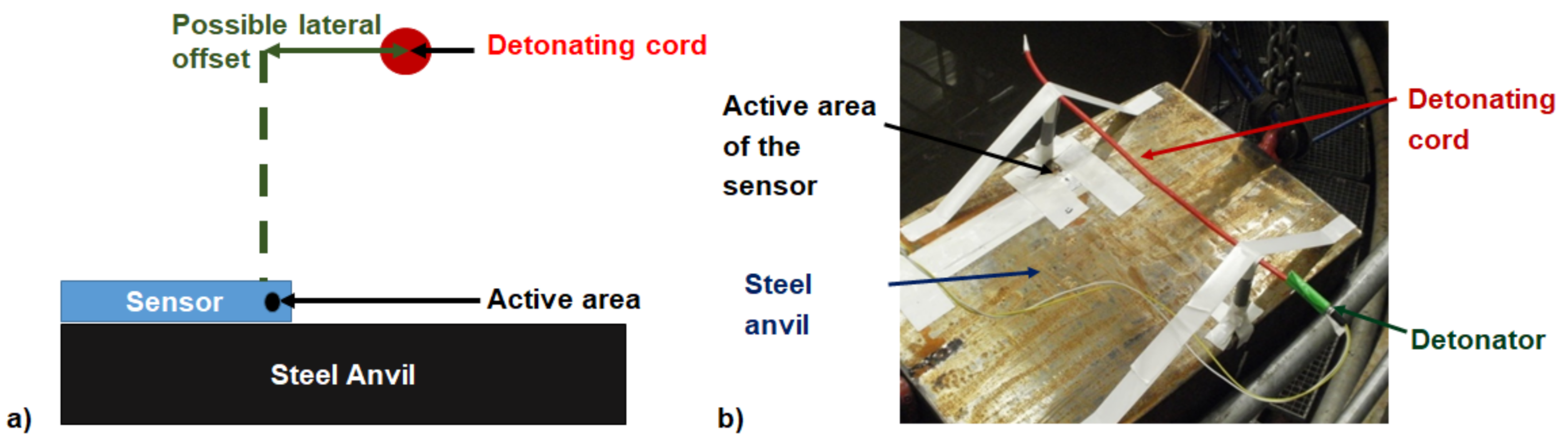

#### 2.2. HEHF Experiments

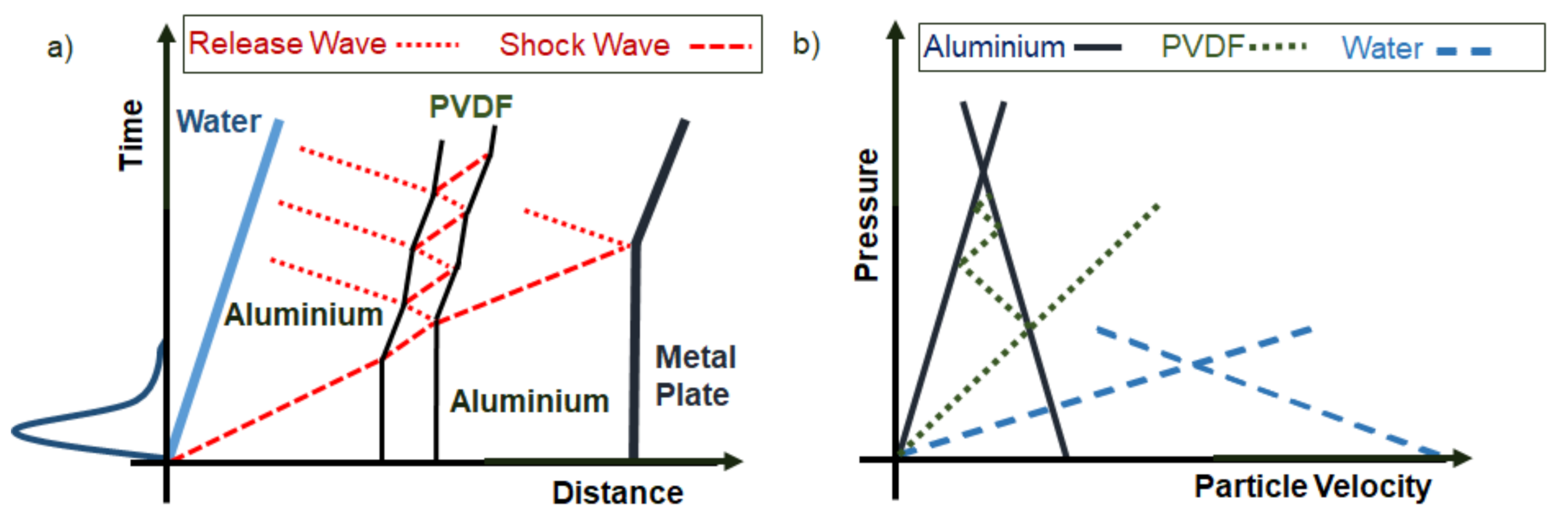

#### 2.3. Analytical Method

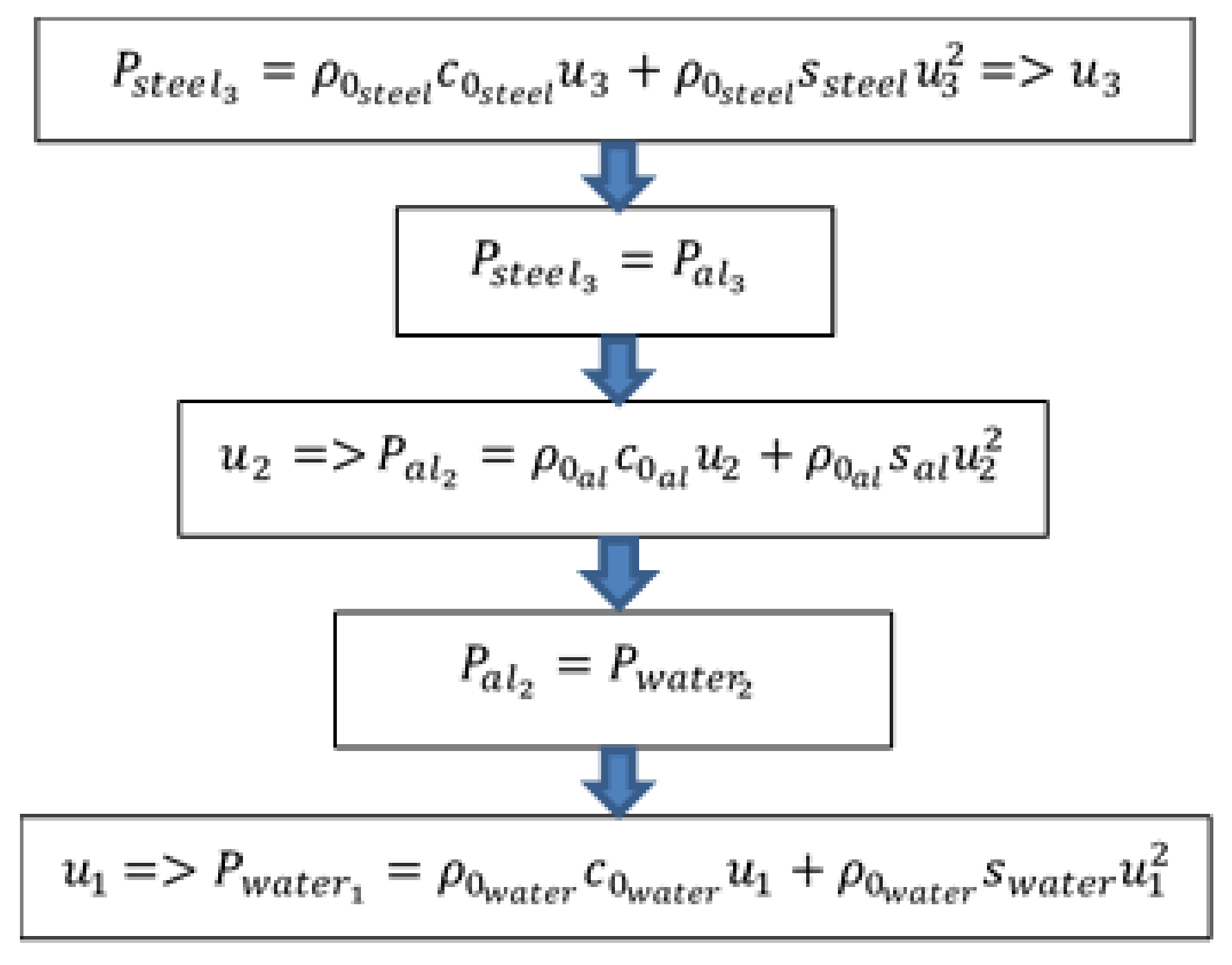

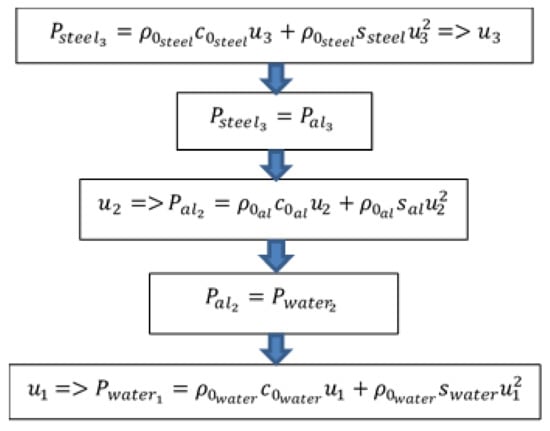

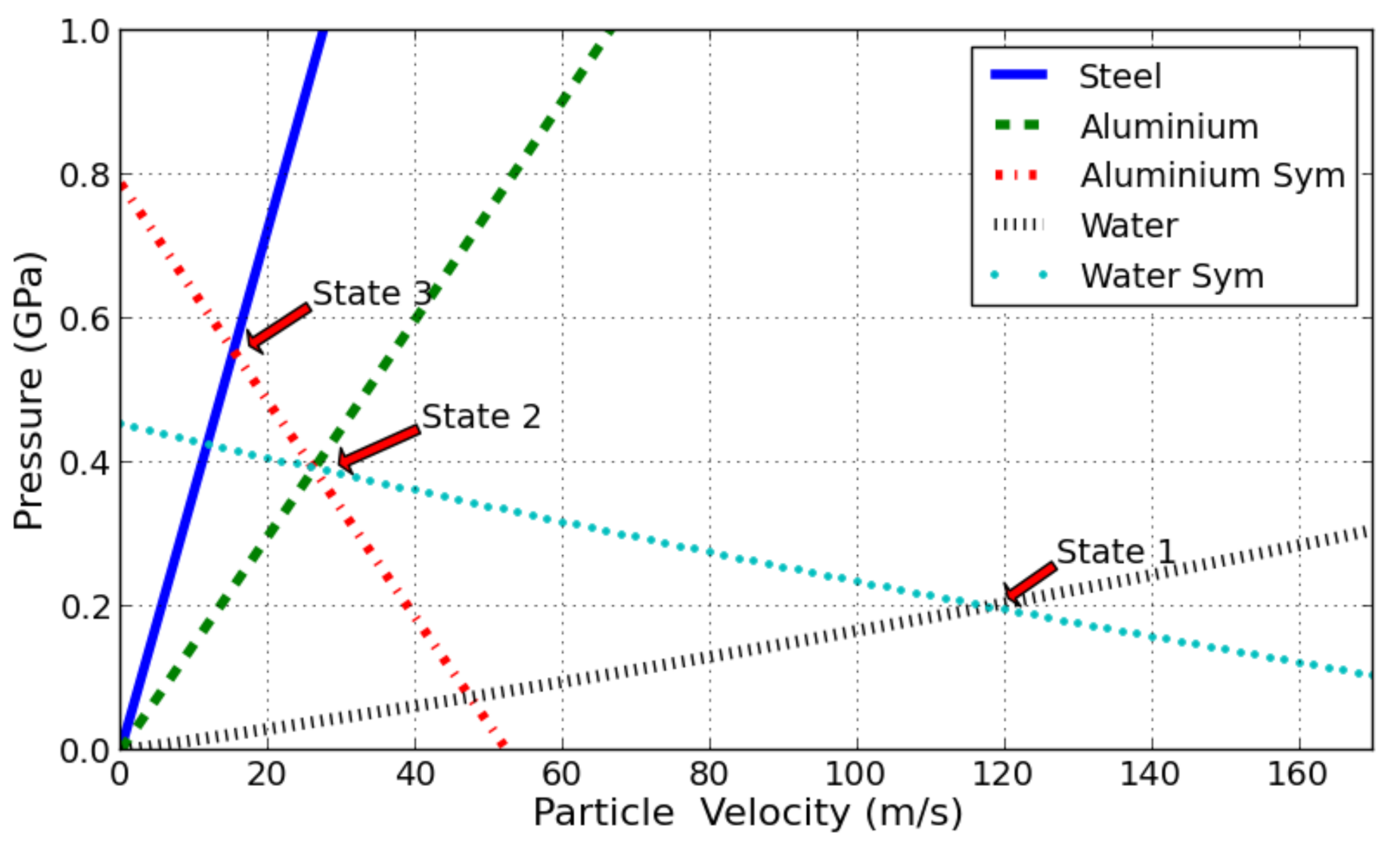

^{®}numerical file was coded; it calculates the value of the incident pressure knowing the value of the measured pressure peak. Indeed, state 3 results from the interaction of a shock coming from aluminium shield and transmitted into steel. According to the planar shock interaction, pressure induced by the shock will be equal in steel and aluminium.

## 3. Results

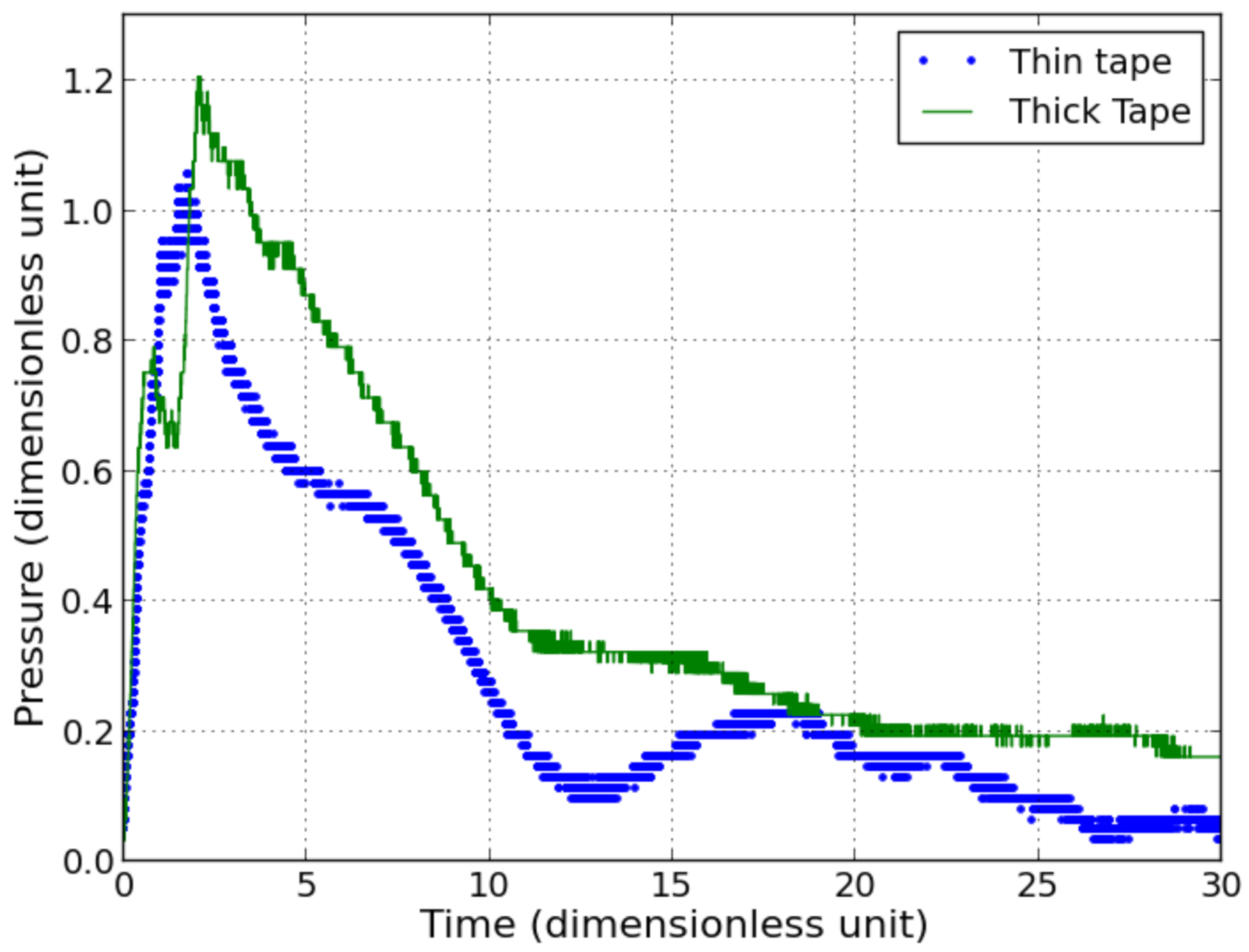

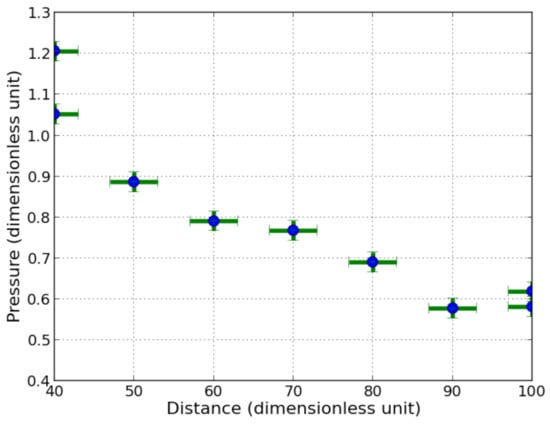

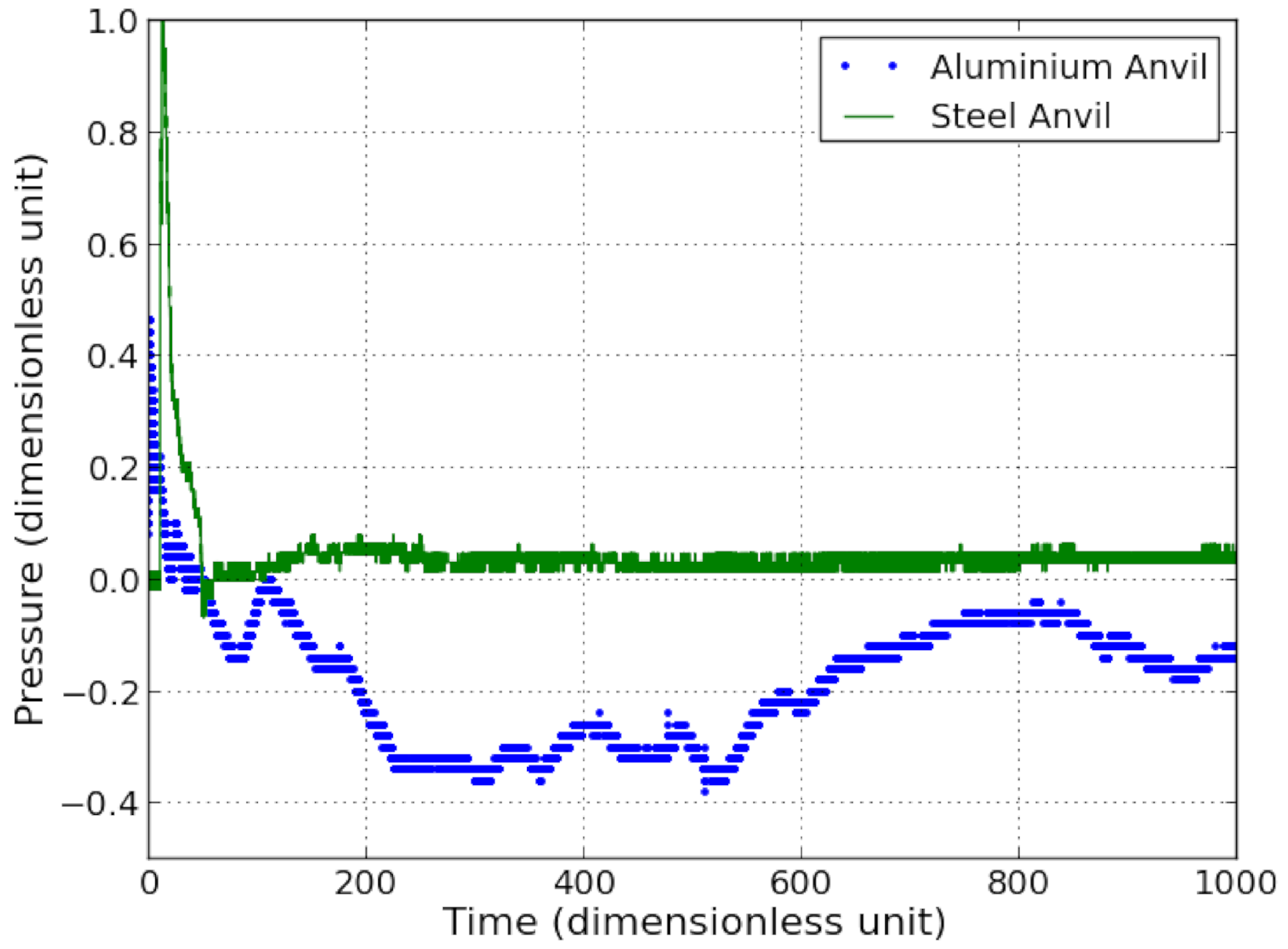

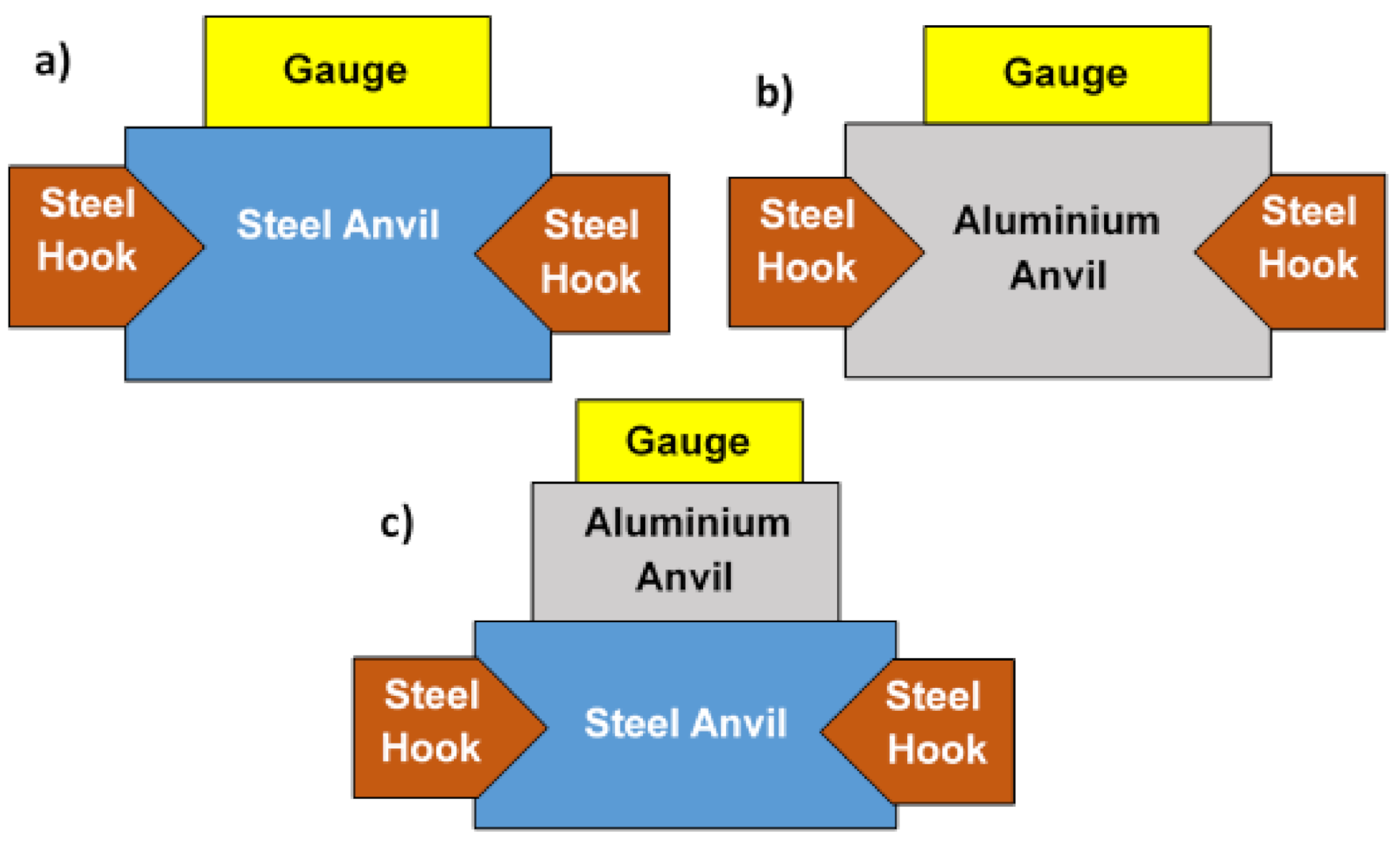

#### 3.1. Explosive Charge Directly above the Sensor

#### 3.2. Angle of Incidence Effects

## 4. Discussion

^{®}and RADIOSS

^{®}. Shock physics explicit Eulerian/Lagrangian dynamics (SPEED

^{®}) is developed by Numerics Gmbh, and has capability to perform 2D and 3D multi-material Eulerian simulations, 2D Lagrangian models and 3D ideal gas calculations. It is based on an explicit solver for non-linear problems and is proficient for shocks and explosion analysis. In addition, an adaptive mesh, and mesh activation method are implemented and are revealed to be very efficient for saving computational time. RADIOSS

^{®}is an ALTAIR

^{®}code based on a finite element method using an explicit solver, mainly for crashes and multi-physics analysis. It has multiple possibilities such as Eulerian, Lagrangian, Arbitrary Langrangian Eulerian (ALE), Coupled Eulerian-Lagrangian (CEL) and Smooth Particles Hydrodynamics (SPH) simulations in 2D and 3D.

^{®}shock EoS based on Mie-Grüneisen and shock EoS. SPEED

^{®}Johnson-Cook constitutive law (a combination of shock EoS and visco-elasto-plastic and fracture Johnson-Cook models) is used for aluminium (AA2024-T351) and steel (Steel 1006) [24,25]. The material parameters for shock EoS are mentioned in Table 1—for aluminium, steel and water—and in Table 4 for PVDF. The explosive is modelled using the Jones-Wilkins-Lee (JWL) equation of state [26]. The JWL equation of state corresponds to the equation of state of detonation products. It is an usual formulation for dealing with detonation by numerical modelling, implemented in numerous software, under this formula:

^{®}, the EoS is defined by a linear relation used to calculate the Hugoniot pressure with the shock Equation (3), as explained in SPEED

^{®}reference guide:

^{®}, the hydrodynamic pressure P of an element can be calculated using a polynomial expression as explained in its reference guide:

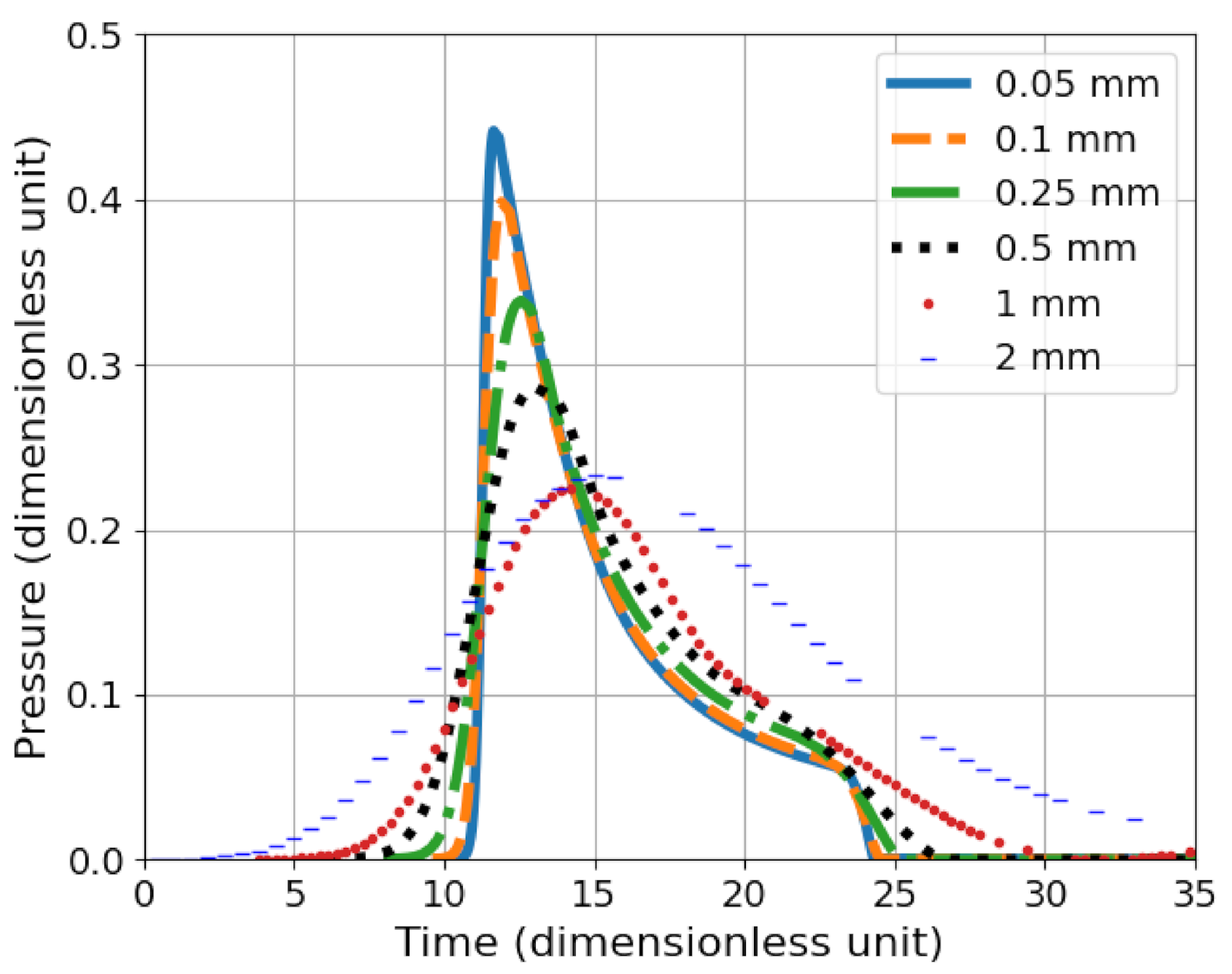

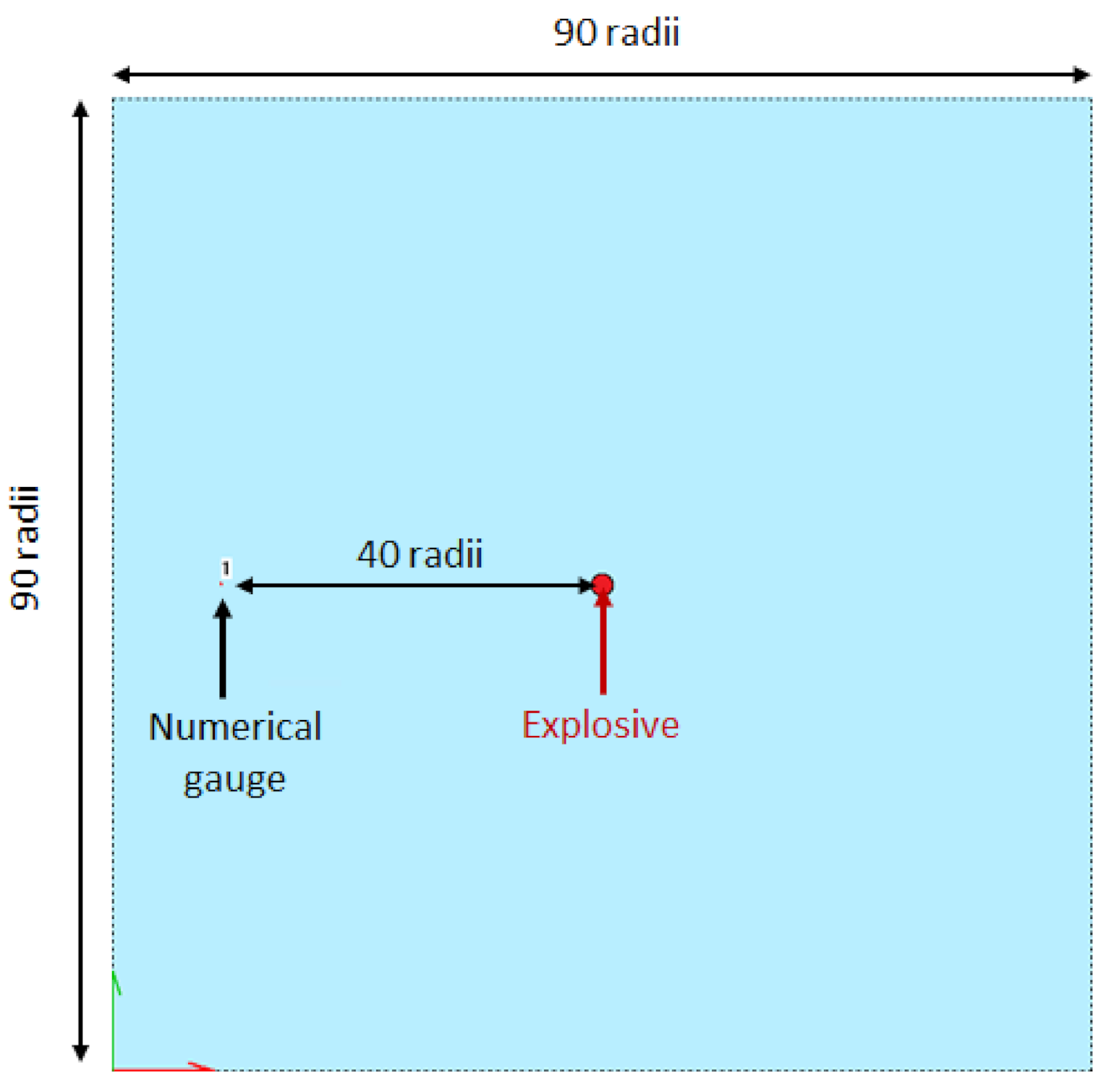

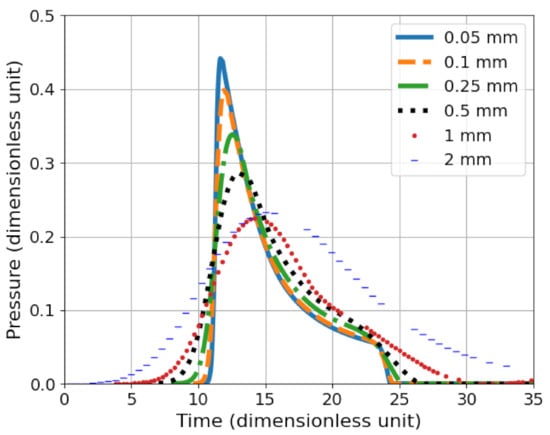

^{®}software. An explosive cord is placed in the centre of a 90 charge radii square computational domain of water and a numerical gauge is put at 40 charge radii from the centre of the explosive (Figure 12). All mesh elements are squares. The mesh sensitivity of the model is studied and the element size was fixed to 2 mm for the coarser model, to 0.05 mm for the finest one. The pressure history during wave propagation from the detonating cord is monitored (Figure 13) by implementing numerical sensors placed in the mesh.

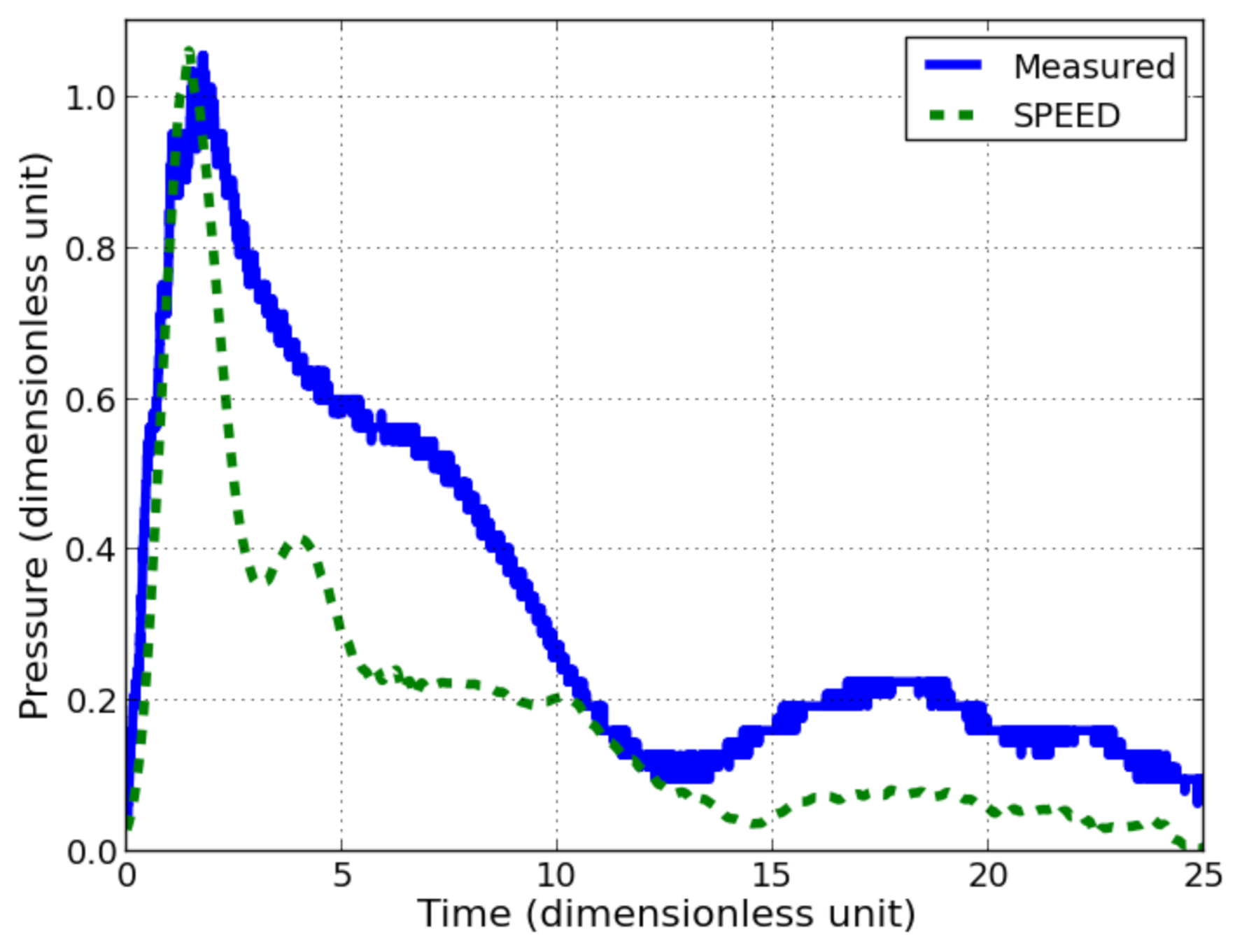

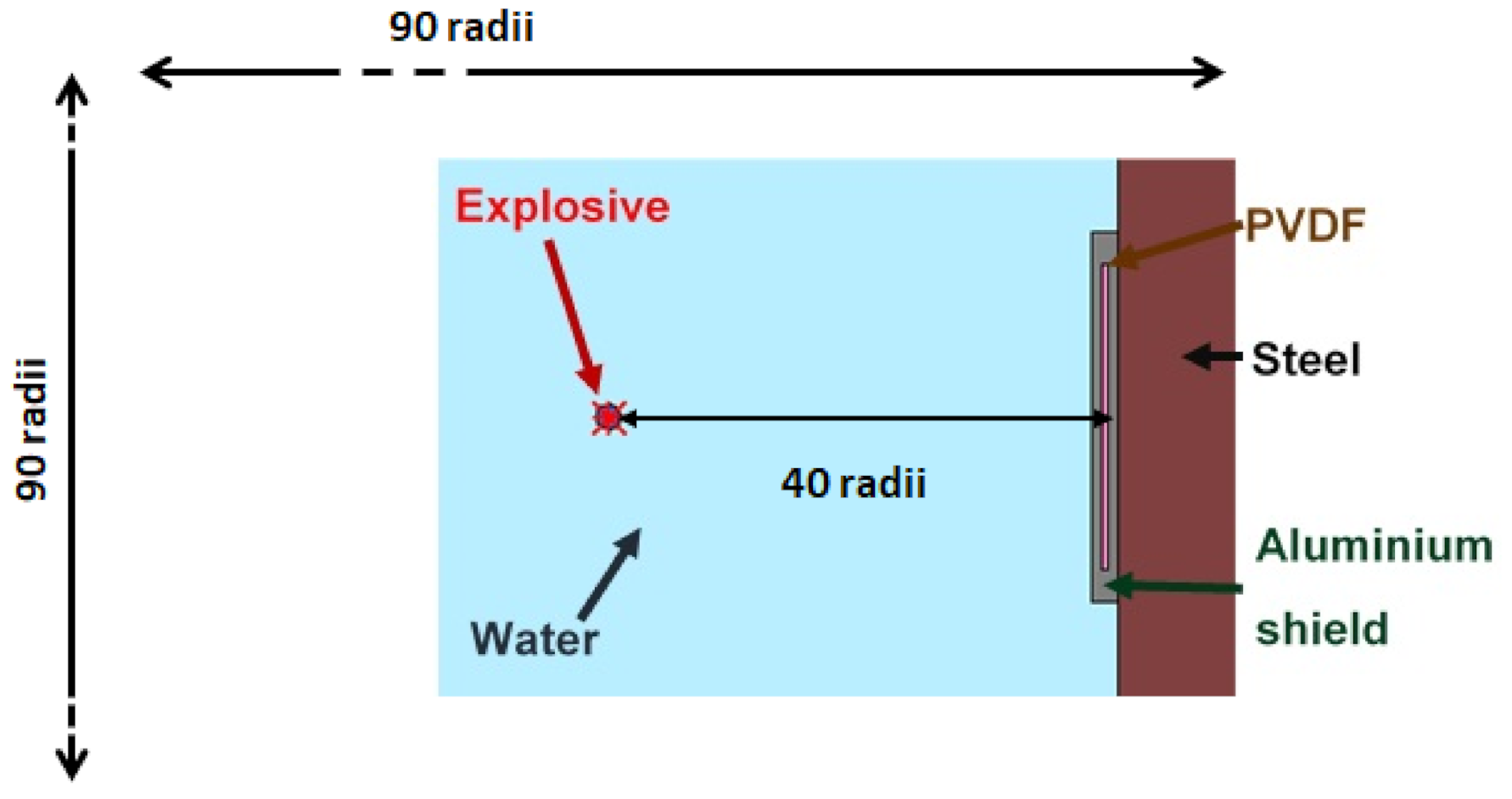

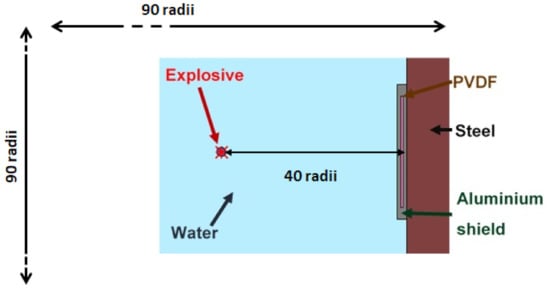

^{®}software, with quad elements of size of 100 μm.

^{®}and RADIOSS

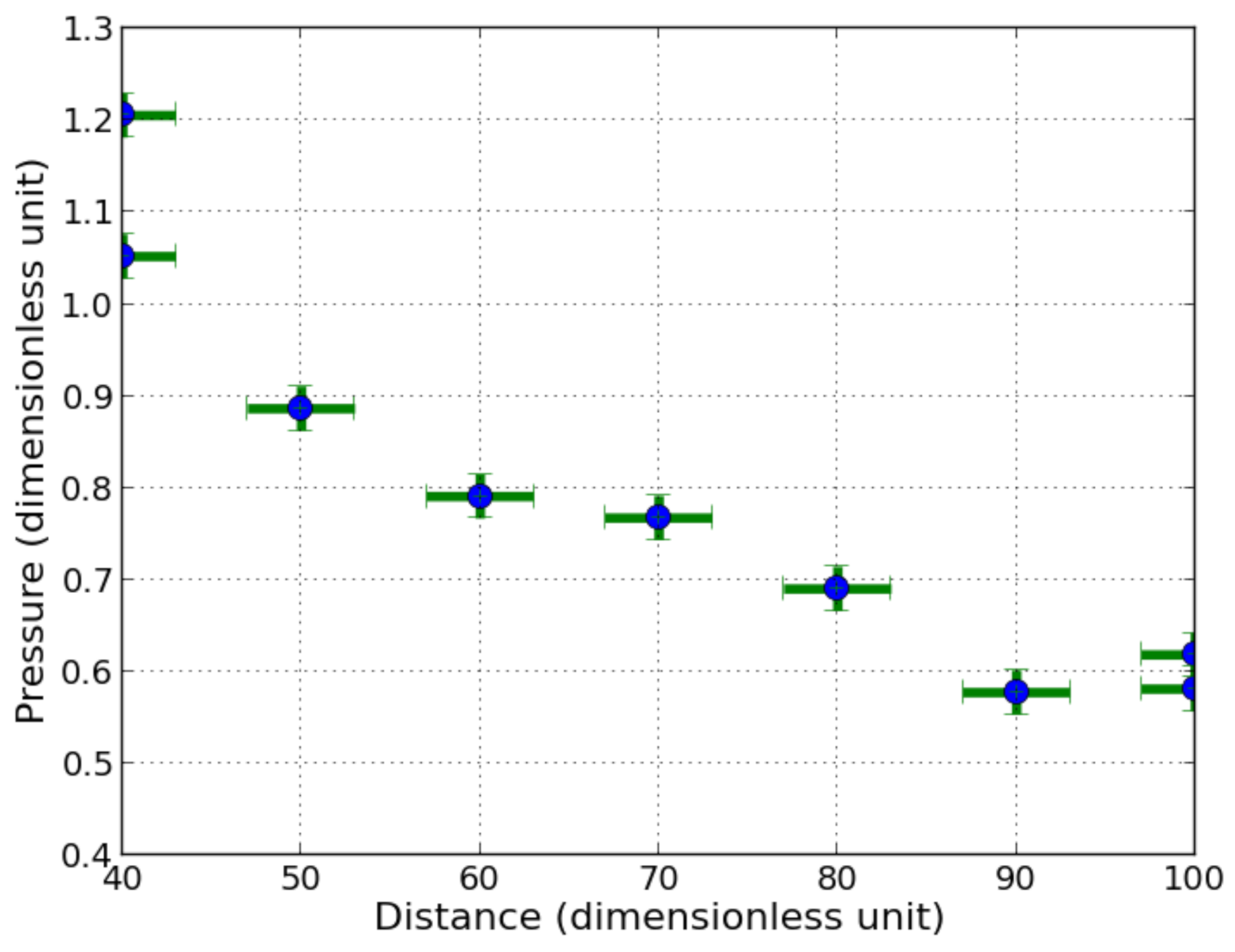

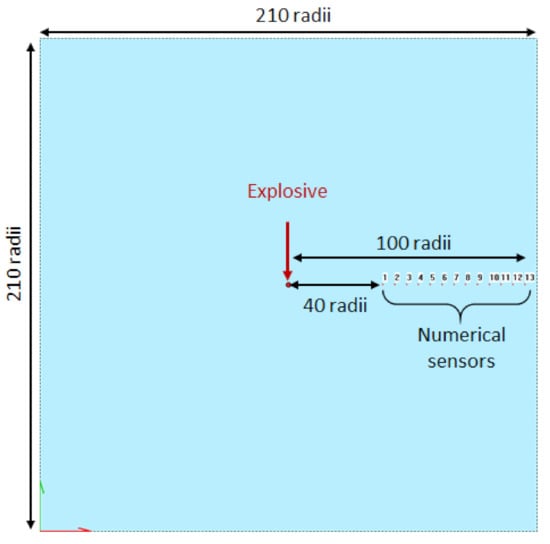

^{®}: an explosive is set into a 210 charge radii square domain of water with numerical gauges spaced every 5 charge radii (cf. Figure 16). The goal is to compute the peak of overpressure and to compare it with measurements with the analytical method presented in Section 2.3 to get the incident pressure in a range of 40 to 100 charge radii (cf. Figure 5 and Figure 17).

^{®}and SPEED

^{®}with the measurement is calculated at each distance with respect to measurement values in Table 5. The relative difference is mainly under 10% up to 90 radii except for one shot at 40 radii. The computed pressure tends to be higher than the measured pressure under 60 radii and under the measured pressure from 70 radii away from the explosive. However, this statement has to be taken carefully since not many shots were performed.

^{®}and in SPEED

^{®}models. The smaller element size obtained with SPEED

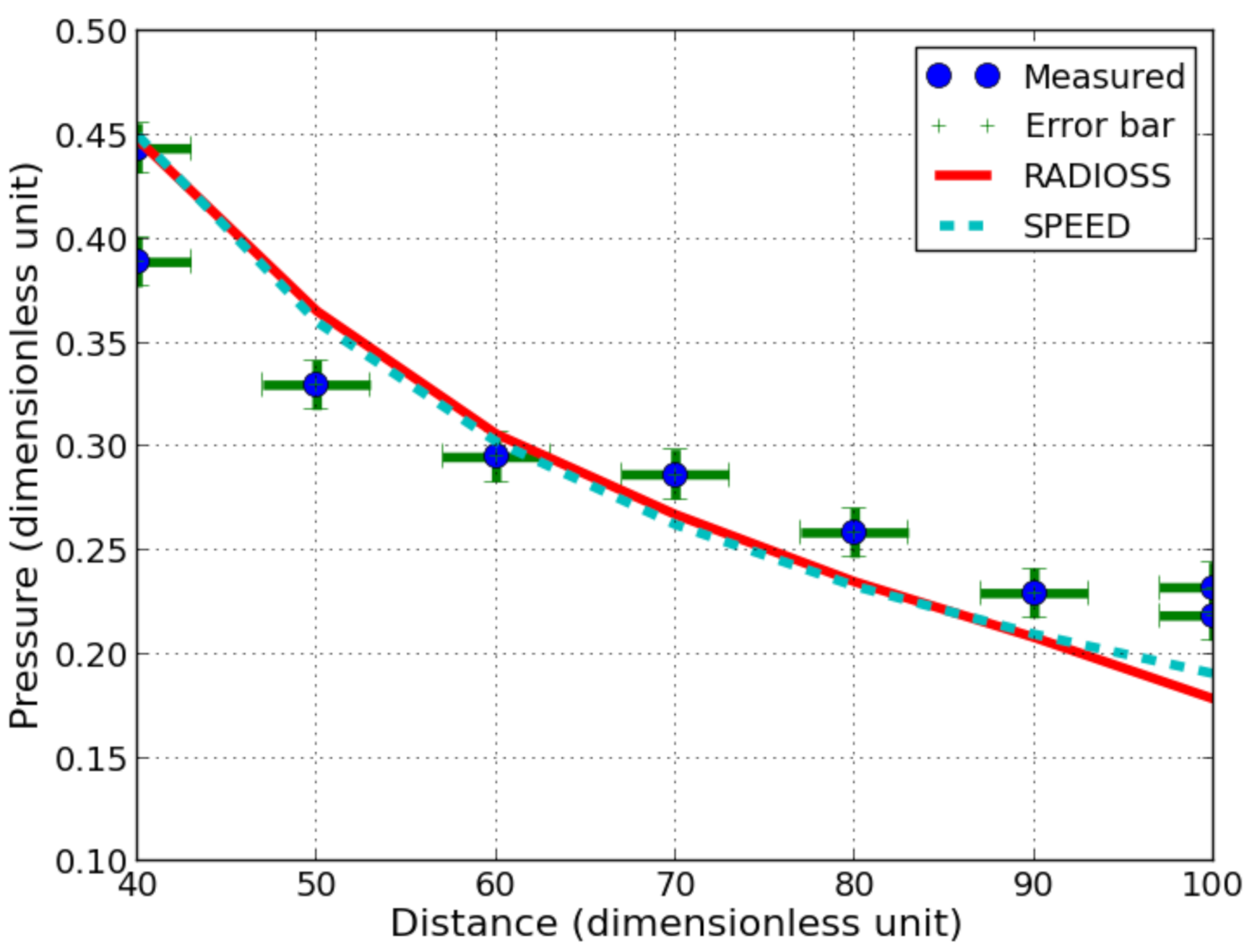

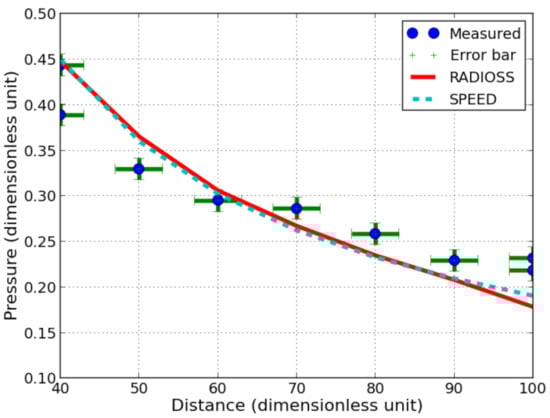

^{®}could be achieved by using the mesh activation feature, saving a lot of CPU time. Both software give similar trends, and are close to the estimated incident pressure from experimental data, except for the longest distances (Figure 17). An explanation could be that the pressure of elements cannot reach ${P}_{CJ}$ (Chapman-Jouguet pressure) in the explosive during the detonation stage and could imply not only a reduction in pressure at the source but also a dissipation of energy due to the phenomena of numerical dissipation (Figure 13) for the longest distances. The method for estimating the incident pressure could also contribute to discrepancies since it is based on the 1D approximation.

## 5. Conclusions

- -
- The measurement method and signal interpretation is described by a physical and analytical description. It pointed out the relevance of the measured peaks of over-pressure. The pressure amplitudes given by the sensor are close to the ones deduced by the analytical approach and computed with numerical modelling. The analysis presented allowed calculating loading pressure exerted on the metal plate. Considerations on incident and reflected shocks were efficient to take into account the multi-layer PVDF gauge and its intrusiveness.
- -
- Measurements of the peaks of over-pressure versus distance correlate with two different numerical models performed with two different commercial codes based on different numerical methods.
- -

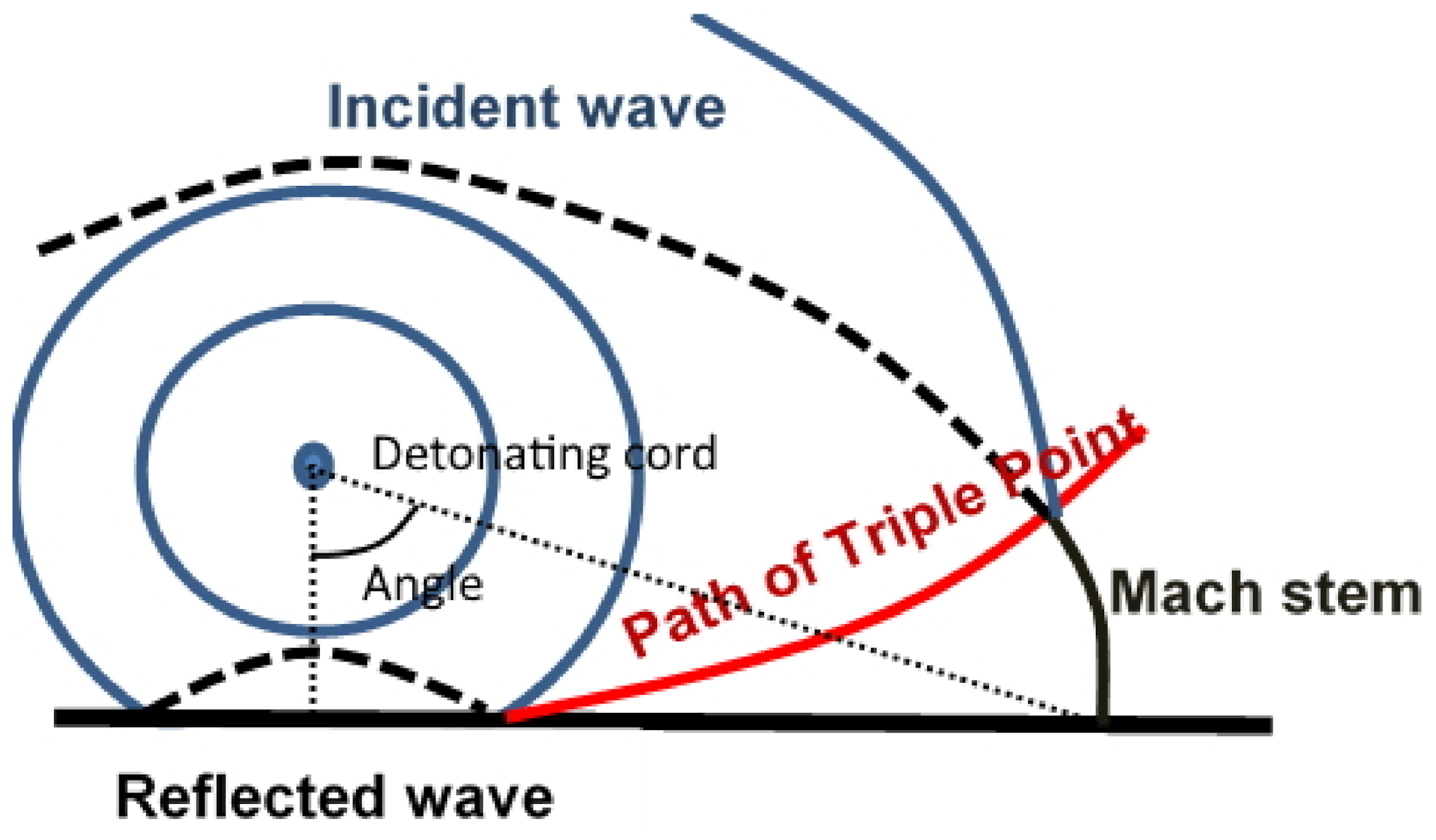

- The formation of a Mach stem at about between 30${}^{\circ}$ and 45${}^{\circ}$ propagating on the metal anvil has been evidenced in underwater environment and results in an additional mechanical loading on the fluid/metal plate interaction that has to be considered in the HEHF process.
- -
- Its implementation does not disturb the forming process of large and thick metal plates and allows an in-situ dynamic pressure monitoring during the HEHF process.
- -
- In the case of rigid plates, the sensor can be reusable several times, for about 30 shots before it broke.

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement
