An Acridine-Based Fluorescent Sensor for Monitoring ClO− in Water Samples and Zebrafish

by
Su Chan Lee
1,
Soyoung Park
1,
Haeri So
1,
Gyudong Lee
2,
Ki-Tae Kim
2,* and
Cheal Kim
1,*
1
Department of Fine Chemistry, Seoul National University of Science and Technology, Seoul 136-741, Korea
2
Department of Environmental Engineering, Seoul National University of Science and Technology, Seoul 136-741, Korea
*
Authors to whom correspondence should be addressed.
Sensors 2020, 20(17), 4764; https://doi.org/10.3390/s20174764
Submission received: 30 July 2020 / Revised: 19 August 2020 / Accepted: 20 August 2020 / Published: 23 August 2020
(This article belongs to the Section Chemical Sensors)
Browse Figures
Versions Notes

Abstract

:
A novel acridine-based fluorescent chemosensor, BK ((E)-2-((acridine-9-ylimino)methyl)-N-benzhydrylhydrazine-1-carbothioamide), for monitoring ClO− was prepared. The sensor BK was synthesized by introducing a new synthetic route of making aldehyde group using formic hydrazide. Probe BK displayed notable fluorescence quenching in the presence of ClO− and showed a great selectivity over other guest analytes. The detection limit was calculated to be 7.65 μM. Additionally, BK was satisfactorily applied for sensing ClO− in water samples and zebrafish.

Graphical Abstract

1. Introduction

Interest in quantification of reactive oxygen species (ROS) has grown owing to the indispensable role played by ROS in pathological and physiological processes [1,2,3,4,5]. For instance, recent research revealed that cancer cells steadily produce high concentrations of intracellular ROS, owing to carcinogenic deformation [6,7,8]. Hypochlorite (ClO−) is one of the ROS, which was produced from the oxidation reaction of Cl− and H2O2 catalyzed by the heme protein myeloperoxidase [9,10,11]. Hypochlorite is well known as a bactericidal agent because of the capability to kill the deleterious bacteria and pathogens [12,13,14,15]. However, the abnormal levels of ClO− in life systems are related to various diseases like cystic fibrosis, neuron degeneration, kidney disease, arthritis, atherosclerosis, and cancer [16,17,18,19,20]. Hence, there is urgent need to develop effective and dependable sensors for detecting ClO− to understand the role of hypochlorite in organisms.
Until now, various analytical methods for the sensing of ClO− have been established, such as electrochemistry, colorimetry assays, spectrophotometry and fluorescent chemosensors [21,22,23,24]. Among the methods for detecting ClO−, fluorescence imaging techniques have various virtues like specificity, superior sensitivity, manageability and fast response times [25,26,27,28]. Hitherto, several probes having fluorophores have been developed for sensing ClO− like 1,8-diaminonaphthalene, phenanthrene, BODIPY, anthracene, rhodamine, 1,8-naphthalimide, coumarin and fluorescein [29,30,31,32,33,34,35,36]. However, some of them have disadvantages like complicated synthetic routes, poor water solubility and being unsuitable for biological application. Thus, there is still a need to further exploit new fluorescent chemosensors for sensing ClO− in vitro as well as in biological systems [37,38,39].
Acridine and its derivatives have been interesting subjects to researchers for a long time because of their ability to bind DNA and act as a good fluorophore [40,41,42,43,44]. In addition, benzhydryl isothiocyanate is water-soluble and used for a linker [45]. Therefore, we linked acridine moiety with benzhydryl isothiocyanate to develop a sensor having the unique photophysical, water-soluble and biocompatible properties for the detection of ClO−.
Herein, we represent a novel acridine-based fluorescent probe, BK, for detecting ClO−. The reaction of BK with ClO− showed a fluorescent quenching in aqueous media. The sensing ability of the probe was investigated by fluorescent and UV-visible titrations. The sensing mechanism of BK towards ClO− was also demonstrated via ESI-mass spectrometry and theoretical calculations. In addition, the BK probe was satisfactorily examined to monitor ClO− in environmental water samples and zebrafish.

2. Experiments

2.1. Materials and Equipment

All reagents and solvents were purchased from Sigma-Aldrich. 13C NMR (100 MHz) and 1H NMR (400 MHz) data were provided on a Varian spectrometer. UV-vis and fluorescence measurements were performed on Perkin Elmer UV/Vis and fluorescence spectrometers. ESI-mass data were obtained by a single-quadrupole liquid chromatography detector (ACQUITY QDa).

2.2. Synthesis of KT (N-benzhydryl-2-formylhydrazine-1-carbothioamide)

An amount of 2 mmol of formic hydrazide and 2 mmol of benzhydryl isothiocyanate were dissolved in 5 mL of EtOH. The mixture was stirred until a white-colored powder was gained. The resultant powder was filtered and washed with ether. 1H NMR (deuterated DMSO, 400 MHz) δ (ppm): 11.4 (s, 2H), 10.7 (m, 2H), 8.35 (m, 4H), 8.25 (t, 2H), 8.15 (s, 2H), 8.05 (d, 2H), 7.95 (t,1H).

2.3. Synthesis of Sensor BK ((E)-N’’-(acridine-9-yl)-N’-((benzhydrylamino)(oxo-l4-sulfanylidene)methyl)formimidohydrazide)

An amount of 1 mmol of KT and 1 mmol of 9-aminoacridine (ACR) were dissolved in 5 mL ethanol. After the solution was stirred at 23 °C overnight, the yellowish powder was filtered and washed with methanol and ether. 1H NMR in DMSO-d6, δ: 8.51 (s, 1H), 8.43 (s, 1H), 8.39 (s, 1H), 7.8 (d, 2H, J = 8.8 Hz), 7.65 (t, 2H), 7.5 (m, 10H), 7.3 (m, 5H), 7.2 (s, 1H). 13C NMR: δ = 142.90, 140.87, 138.05, 132.82, 128.90, 128.26, 128.21, 128.02, 127.73, 124.05, 123.51, 122.71, 112.19, 61.93, 61.05 ppm. ESI-Mass: m/z calcd for [C28H23N5S – H+ + 2 Na+ + 2 Cl−]−: 576.08 found, 575.92.

2.4. General Procedure for the Spectroscopic Studies

Probe BK stock solution (1 mM) was prepared in DMF. ClO− stock solution was prepared by diluting NaClO (500 μmol, 12%, dissolved in H2O) in distilled water to make 100 mM. All anion and ROS stock solutions (1.0 × 10−1 M) were prepared in bis-tris buffer. The fluorescence and UV-vis data were measured in near 100% aqueous solution (bis-tris, 1 × 10−2 M, pH 7.0).

2.5. Calculation of Quantum Yield

Quantum yield (Φ) was calculated by using quinine as a standard fluorophore (ΦF: 0.54 in 0.1 M H2SO4). Equation for quantum yield is:
ΦF(X) = ΦF(S) (AS FX /AX FS) (nX / nS)2
(ΦF(X): fluorescent quantum yield, x: unknown, s: standard, A: absorbance, n: refractive index of the solvent and F: the area of fluorescence emission curve).

2.6. Imaging Experiments in Zebrafish

Zebrafish embryos were cultured under the former conditions [46]. The 6-day-old embryos were incubated in E2 media replenished with 2 × 10−5 M of BK for 15 min and rinsed with E2 media to get rid of the remnant BK. One was a control group and the other group further treated with 50 μM of ClO− for 15 min was prepared and washed with E2 media. Zebrafish were anesthetized by adding ethyl-3-aminobenzoate. The image of zebrafish was achieved by a fluorescence microscope.

2.7. Cytotoxicity in Zebrafish

Zebrafish larvae at 6-day old were exposed to 0 and 20 μM of BK and 20 μM of 9-aminoacridine in E2 media at 0.05% of DMSO for 20 min. Later they were diverted into 10 μg/mL of AO reagent (Sigma-Aldrich, St. Louis, MO, USA) in E2 media for 60 min. After the larvae were washed with E2 three times, the prepared larvae were mounted and photographed under a Leica fluorescence microscope (MZ10F, Singapore). Apoptosis was identified as an obvious bright spot.

2.8. Theoretical Calculations

DFT/TDDFT calculations on the basis of the hybrid exchange-correlation functional B3LYP were accomplished with the Gaussian 09 W program [47,48]. The 6-31G basis set was applied for all elements (C, S, N, O and H) [49,50]. Frequency calculations of BK and ACR (9-aminoacridine) were achieved to prove that the optimized forms displayed local minima, and imaginary frequencies were not observed at all. Cossi and Barone’s CPCM was employed to consider solvent effect of water [51,52]. To study the electronic properties of singlet excited states, TD-DFT was conducted for the ground state forms of BK and ACR. The twenty singlet-singlet excitations were quantitatively analyzed. GaussSum 2.2 was used to analyze the contributions of MOs [53].

3. Results and Discussion

The synthetic route for chemosensor BK is outlined in Scheme 1 and it was successfully characterized by 1H and 13C NMR and ESI-MS. Sensing behavior of BK toward ClO− was investigated by using several analytical tools like UV-visible and fluorescent spectroscopy, 1H NMR titration, and calculations.

3.1. Spectroscopic Investigations of BK to ClO−

Selectivity was one of the essential indicators for measuring capacity of fluorescent probe. Reactivity of BK to diverse analytes (N3−, Cl−, H2O2, CN−, S2−, I−, tBuOOH, SCN−, OAc−, Br−, AcOOH, H2PO4−, BzO−, F−, NO2− and ClO−) in bis-tris buffer (1 × 10−2 M, pH 7.0, Figure 1) was tested to evaluate the selectivity for ClO−. With excitation at 350 nm, free sensor BK displayed a markedly strong fluorescence emission at 455 nm (Φ = 0.6659). Upon addition of each analyte into BK solution, only ClO− induced the prominent fluorescent decrease (Φ = 0.0047) whereas other analytes did not show any noticeable changes. Therefore, the sensor BK could serve as a preeminent fluorescent sensor for ClO−.
To examine the response of BK to ClO−, the spectral titrations were carried out (Figure 2). On the addition of different ClO− amounts to BK, the fluorescence emission of 455 nm constantly decreased and was saturated at 220 equiv. The measured limit of detection (CDL = 3σ/k) for ClO- was 7.65 μM (Figure S1 in the Supplementary Materials). The UV-visible titration displayed that the absorbance of 280 nm constantly increased and the bands at 260 nm and 400 nm reduced with an obvious isosbestic point at 370 nm (Figure 3).
To elucidate the detecting mechanism of ClO−, we conducted the ESI-mass experiment (Figure S2). The peak of 322.08 (m/z) was indicative of [ACRO + Cl− + MeCN + 2H2O]− [calcd, 322.10], indicating the cleavage reaction product of BK by ClO−. 1H NMR titration was carried out to observe the formation of ACR (Figure 4). With gradual addition of ClO− to BK, the imine proton H5 disappeared, and the amine proton HA of ACR and the aldehyde proton HB of KT appeared.
On the other hand, as 9-aminoacridine was highly fluorescent in nature, we examined the interaction of 9-aminoacridine with ClO−. As shown in Figure S3, ClO− quenched the fluorescence of 9-aminoacridine, most likely due to an oxidation reaction. These observations led us to propose that the probe BK was cleaved by ClO− via the cleavage process of the C=N bond to produce 9-aminoacridine. Then, the fluorescent 9-aminoacridine was subsequently quenched by ClO− (Scheme 2).
To further comprehend the cleavage sensing mechanism of BK by ClO−, computational calculations were achieved. Energy-optimized forms of BK and ACR were analyzed with DFT/B3LYP/6-31G (d,p) basis sets (Figure 5). Using the optimized forms of BK and ACR, TD-DFT calculations were performed for analyzing transition energies and molecular orbitals (Figures S4–S6). The MOs of BK at the first lowest excited state were identified as the HOMO → LUMO transitions (391.73 nm, Figure S5), which turned out to be π → π* transitions. For ACR, the MOs at the first lowest excited state were identified as the HOMO → LUMO (391.84 nm, Figure S6), which turned out to be π → π* transitions. In addition, the decreased oscillator strength of ACR was corresponded with the decreased UV-vis absorbance. These outcomes drove us to elucidate that fluorescent sensor BK was quenched due to the cleavage of the C=N bond.
Another vital indicator in the sensing process is the ability of the fluorescent probe not to be disturbed by the competitive analytes. When BK was exposed with both ClO− and diverse analytes (N3−, Cl−, H2O2, tBuOOH, OAc−, Br−, AcOOH, H2PO4−, BzO−, F− and NO2−), the guest analytes did not hinder the sensing of ClO− (Figure 6). Only, the presence of tBuOOH and OAc− showed slight interference in determining ClO−. CN−, S2−, I− and SCN− were excluded from the competition because they reacted directly with ClO−.
The pH was a vital condition related with physiological processes and even cellular behaviors. Thus, we checked the effect of pH on sensing property of BK for ClO− at pH ranging from six to nine (Figure 7). BK displayed significant fluorescence intensity at the pH range of six to nine. The intensity of BK treated with ClO− was completely quenched at pH six to nine. These observations indicated that BK could be applicable as a probe for detecting ClO− at pH six to nine.
To explore practical utility of BK, the application of BK in real samples was accomplished in both tap and drinking water samples. The reliable R.S.D. values and recoveries demonstrated that sensor BK had a valuable potential for being used as a dependable tool to monitor ClO− in real water samples (Table 1).

3.2. In Vivo Imaging in Zebrafish

To test whether the probe BK is applicable under biological conditions, zebrafish were incubated with BK (20 μM) and sequentially treated with two different concentrations of ClO− (0 and 50 μM) for imaging (Figure 8). Zebrafish incubated with BK exhibited a green fluorescence image, but the green fluorescence was eliminated in the presence of ClO−. Meanwhile, the cytotoxicity test of BK was examined by AO staining (Figure S7). The AO stained results showed that no apoptosis was observed in control and the presence of BK and 9-aminoacridine. Zebrafish experiments proved that BK was organism-permeable and can monitor ClO− in living organisms. Importantly, BK is the first fluorescent turn-off sensor capable of sensing ClO− in zebrafish (Table S1) [1,38,54,55,56,57,58,59].

4. Conclusions

We have synthesized an acridine-based chemosensor for monitoring ClO− in a near-perfect aqueous media. Probe BK selectively detected ClO− over other relevant species including ROS, and its intense blue fluorescence was notably quenched with the addition of ClO−. The detection limit of BK for ClO− was analyzed to be 7.65 μM. BK was employed for quantitative measurement of ClO− in real water samples and zebrafish. Significantly, BK is the first fluorescent turn-off sensor capable of sensing ClO− in zebrafish to date. The promising outcomes indicate that BK can serve as a potential chemosensor for monitoring ClO- in chemical, environmental and biological systems. We believe that these results will be merited for further development of ClO− sensors.

Supplementary Materials

The following are available online at https://www.mdpi.com/1424-8220/20/17/4764/s1, Table S1: Examples of fluorescent chemosensors for detecting ClO− in zebrafish, Figure S1: Determination of the detection limit for ClO− by BK (10 μM) based on the fluorescence emission at 455 nm; Figure S2: Negative-ion electrospray ionization mass spectrum of BK (10 μM) upon addition of NaClO (200 equiv); Figure S3: Molecular orbital diagrams and excitation energies of (a) BK and (b) ACR; Figure S4: (a) The theoretical excitation energies and the experimental UV-vis spectrum of BK. (b) The major electronic transition energies and molecular orbital contributions for BK (H = HOMO and L = LUMO); Figure S5: (a) The theoretical excitation energies and the experimental UV-vis spectrum of ACR. (b) The major electronic transition energies and molecular orbital contributions for ACR (H = HOMO and L = LUMO); Figure S6. (a) The theoretical excitation energies and the experimental UV-vis spectrum of ACR. (b) The major electronic transition energies and molecular orbital contributions for ACR (H = HOMO and L = LUMO); Figure S7. AO-stained zebrafish exposed to (a) 0 μM and (b) 20 μM of BK and (c) 20 μM of 9-aminoacridine.

Author Contributions

S.C.L. and C.K. provided the initial idea for this work; S.C.L., S.P. and H.S. contributed to the collection and analysis of field test data; K.-T.K. and G.L. contributed to the analyses of results; S.C.L. and C.K. wrote the paper. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

KEITI (Korea Environment Industry and Technology Institute) (2016001970001) are kindly acknowledged.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. He, X.; Xu, C.; Xiong, W.; Qian, Y.; Fan, J.; Ding, F.; Deng, H.; Chen, H.; Shen, J. The ICT-based fluorescence and colorimetric dual sensing of endogenous hypochlorite in living cells, bacteria, and zebrafish. Analyst 2020, 145, 29–33. [Google Scholar] [CrossRef]
  2. Kang, J.; Huo, F.; Zhang, Y.; Chao, J.; Strongin, R.M.; Yin, C. Detecting intracellular ClO− with ratiometric fluorescent signal and its application in vivo. Sens. Actuators B Chem. 2018, 273, 1532–1538. [Google Scholar] [CrossRef]
  3. Huo, B.; Du, M.; Shen, A.; Li, M.; Lai, Y.; Bai, X.; Gong, A.; Fang, L.; Yang, Y. A “light-up” fluorescent probe based on TEMPO-oxidation for the detection of ClO− and application in real samples. Sens. Actuators B Chem. 2019, 284, 23–29. [Google Scholar] [CrossRef]
  4. Kettle, A.J.; Albrett, A.M.; Chapman, A.L.; Dickerhof, N.; Forbes, L.V.; Khalilova, I.; Turner, R. Measuring chlorine bleach in biology and medicine. Biochim. Biophys. Acta Gen. Subj. 2014, 1840, 781–793. [Google Scholar] [CrossRef]
  5. Zhang, Y.R.; Liu, Y.; Feng, X.; Zhao, B.X. Recent progress in the development of fluorescent probes for the detection of hypochlorous acid. Sens. Actuators B Chem. 2017, 240, 18–36. [Google Scholar] [CrossRef]
  6. Reja, S.I.; Bhalla, V.; Sharma, A.; Kaur, G.; Kumar, M. A highly selective fluorescent probe for hypochlorite and its endogenous imaging in living cells. Chem. Commun. 2014, 50, 11911–11914. [Google Scholar] [CrossRef] [PubMed]
  7. Wang, L.; Hu, Y.; Qu, Y.; Xu, J.; Cao, J. Aggregated-induced emission phenothiazine probe for selective ratiometric response of hypochlorite over other reactive oxygen species. Dye. Pigment. 2016, 128, 54–59. [Google Scholar] [CrossRef]
  8. Shim, M.S.; Xia, Y. A reactive oxygen species (ROS)-responsive polymer for safe, efficient, and targeted gene delivery in cancer cells. Angew. Chem. Int. Ed. 2013, 52, 6926–6929. [Google Scholar] [CrossRef]
  9. Yang, Y.; Yin, C.; Huo, F.; Chao, J.; Zhang, Y.; Jin, S. Simple 1,8-diaminonaphthalene-based fluorescence chemosensor for hypochlorites and its practical application. Sens. Actuators B Chem. 2014, 199, 226–231. [Google Scholar] [CrossRef]
  10. Huang, Y.; Zhang, Y.; Huo, F.; Chao, J.; Yin, C. A near-infrared ratiometric fluorescent probe with large stokes based on isophorone for rapid detection of ClO− and its bioimaging in cell and mice. Sens. Actuators B Chem. 2019, 287, 453–458. [Google Scholar] [CrossRef]
  11. Jiang, Y.; Wu, S.; Jin, C.; Wang, B.; Shen, J. Novel diaminomaleonitrile-based fluorescent probe for ratiometric detection and bioimaging of hypochlorite. Sens. Actuators B Chem. 2018, 265, 365–370. [Google Scholar] [CrossRef]
  12. Huo, F.J.; Zhang, J.J.; Yang, Y.T.; Chao, J.B.; Yin, C.X.; Zhang, Y.B.; Chen, T.G. A fluorescein-based highly specific colorimetric and fluorescent probe for hypochlorites in aqueous solution and its application in tap water. Sens. Actuators B Chem. 2012, 166, 44–49. [Google Scholar] [CrossRef]
  13. Lv, J.; Chen, Y.; Wang, F.; Wei, T.; Zhang, Z.; Qiang, J.; Chen, X. A mitochondria-targeted fluorescent probe based on fluorescein derivative for detection of hypochlorite in living cells. Dye. Pigment. 2018, 148, 353–358. [Google Scholar] [CrossRef]
  14. Du, J.; Hu, M.; Fan, J.; Peng, X. Fluorescent chemodosimeters using “mild” chemical events for the detection of small anions and cations in biological and environmental media. Chem. Soc. Rev. 2012, 41, 4511–4535. [Google Scholar] [CrossRef] [PubMed]
  15. Lee, S.C.; Kim, C. Naphthol-naphthalimide based ‘turn-on’ fluorescent sensor for ClO− in aqueous media and test kit. Inorg. Chem. Commun. 2019, 108, 107545. [Google Scholar] [CrossRef]
  16. Sam, C.H.; Lu, H.K. The role of hypochlorous acid as one of the reactive oxygen species in periodontal disease. J. Dent. Sci. 2009, 4, 45–54. [Google Scholar] [CrossRef] [Green Version]
  17. Steinbeck, M.J.; Nesti, L.J.; Sharkey, P.F.; Parvizi, J. Myeloperoxidase and chlorinated peptides in osteoarthritis: Potential biomarkers of the disease. J. Orthop. Res. 2007, 25, 1128–1135. [Google Scholar] [CrossRef] [Green Version]
  18. Pattison, D.I.; Davies, M.J. Evidence for rapid inter- and intramolecular chlorine transfer reactions of histamine and carnosine chloramines: Implications for the prevention of hypochlorous-acid-mediated damage. Biochemistry 2006, 45, 8152–8162. [Google Scholar] [CrossRef]
  19. Tian, F.; Jia, Y.; Zhang, Y.; Song, W.; Zhao, G.; Qu, Z.; Li, C.; Chen, Y.; Li, P. A HClO-specific near-infrared fluorescent probe for determination of Myeloperoxidase activity and imaging mitochondrial HClO in living cells. Biosens. Bioelectron. 2016, 86, 68–74. [Google Scholar] [CrossRef]
  20. Song, X.; Dong, B.; Kong, X.; Wang, C.; Zhang, N.; Lin, W. Construction of a ratiometric fluorescent probe with an extremely large emission shift for imaging hypochlorite in living cells. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2018, 188, 394–399. [Google Scholar] [CrossRef]
  21. Jin, L.; Xu, M.; Jiang, H.; Wang, W.; Wang, Q. A simple fluorescein derived colorimetric and fluorescent “off-on” sensor for the detection of hypochlorite. Anal. Methods 2018, 10, 4562–4569. [Google Scholar] [CrossRef]
  22. Zhang, P.; Wang, H.; Hong, Y.; Yu, M.; Zeng, R.; Long, Y.; Chen, J. Selective visualization of endogenous hypochlorous acid in zebrafish during lipopolysaccharide-induced acute liver injury using a polymer micelles-based ratiometric fluorescent probe. Biosens. Bioelectron. 2018, 99, 318–324. [Google Scholar] [CrossRef] [PubMed]
  23. Adegoke, O.; Forbes, P.B.C. Challenges and advances in quantum dot fluorescent probes to detect reactive oxygen and nitrogen species: A review. Anal. Chim. Acta 2015, 862, 1–13. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Jiao, X.; Liu, C.; Wang, Q.; Huang, K.; He, S.; Zhao, L.; Zeng, X. Fluorescence probe for hypochlorous acid in water and its applications for highly lysosome-targetable live cell imaging. Anal. Chim. Acta 2017, 969, 49–56. [Google Scholar] [CrossRef] [PubMed]
  25. Goswami, S.; Paul, S.; Manna, A. Carbazole based hemicyanine dye for both “naked eye” and ‘NIR’ fluorescence detection of CN− in aqueous solution: From molecules to low cost devices (TLC plate sticks). Dalton Trans. 2013, 42, 10682–10686. [Google Scholar] [CrossRef]
  26. Goswami, S.; Manna, A.; Paul, S.; Quah, C.K.; Fun, H.K. Rapid and ratiometric detection of hypochlorite with real application in tap water: Molecules to low cost devices (TLC sticks). Chem. Commun. 2013, 49, 11656–11658. [Google Scholar] [CrossRef]
  27. Kim, H.N.; Lee, M.H.; Kim, H.J.; Kim, J.S.; Yoon, J. A new trend in rhodamine-based chemosensors: Application of spirolactam ring-opening to sensing ions. Chem. Soc. Rev. 2008, 37, 1465–1472. [Google Scholar] [CrossRef]
  28. Chen, X.; Baek, K.H.; Kim, Y.; Kim, S.J.; Shin, I.; Yoon, J. A selenolactone-based fluorescent chemodosimeter to monitor mecury/methylmercury species in vitro and in vivo. Tetrahedron 2010, 66, 4016–4021. [Google Scholar] [CrossRef]
  29. Wang, X.; Song, F.; Peng, X. A versatile fluorescent probe for imaging viscosity and hypochlorite in living cells. Dye. Pigment. 2016, 125, 89–94. [Google Scholar] [CrossRef]
  30. Lou, X.; Zhang, Y.; Li, Q.; Qin, J.; Li, Z. A highly specific rhodamine-based colorimetric probe for hypochlorites: A new sensing strategy and real application in tap water. Chem. Commun. 2011, 47, 3189–3191. [Google Scholar] [CrossRef]
  31. Long, L.; Zhang, D.; Li, X.; Zhang, J.; Zhang, C.; Zhou, L. A fluorescence ratiometric sensor for hypochlorite based on a novel dual-fluorophore response approach. Anal. Chim. Acta 2013, 775, 100–105. [Google Scholar] [CrossRef] [PubMed]
  32. Maity, D.; Karthigeyan, D.; Kundu, T.K.; Govindaraju, T. FRET-based rational strategy for ratiometric detection of Cu2+ and live cell imaging. Sens. Actuators B Chem. 2013, 176, 831–837. [Google Scholar] [CrossRef]
  33. Hwang, S.M.; Chae, J.B.; Kim, C. A Phenanthroimidazole-based Fluorescent Turn-Off Chemosensor for the Selective Detection of Cu2+ in Aqueous Media. Bull. Korean Chem. Soc. 2018, 39, 925–930. [Google Scholar] [CrossRef]
  34. Koide, Y.; Urano, Y.; Hanaoka, K.; Terai, T.; Nagano, T. Development of an Si-rhodamine-based far-red to near-infrared fluorescence probe selective for hypochlorous acid and its applications for biological imaging. J. Am. Chem. Soc. 2011, 133, 5680–5682. [Google Scholar] [CrossRef]
  35. Shiraishi, Y.; Yamada, C.; Hirai, T. A coumarin-dihydroperimidine dye as a fluorescent chemosensor for hypochlorite in 99% water. RSC Adv. 2019, 9, 28636–28641. [Google Scholar] [CrossRef] [Green Version]
  36. Grabchev, I.; Petkov, C.; Bojinov, V. 1,8-Naphthalimides as blue emitting fluorophores for polymer materials. Macromol. Mater. Eng. 2002, 287, 904–908. [Google Scholar] [CrossRef]
  37. Liu, Y.; Zhao, C.; Zhao, X.; Liu, H.; Wang, Y.; Du, Y.; Wei, D. A selective N,N-dithenoyl-rhodamine based fluorescent probe for Fe3+ detection in aqueous and living cells. J. Environ. Sci. 2020, 90, 180–188. [Google Scholar] [CrossRef]
  38. He, X.; Chen, H.; Xu, C.; Fan, J.; Xu, W.; Li, Y.; Deng, H.; Shen, J. Ratiometric and colorimetric fluorescent probe for hypochlorite monitor and application for bioimaging in living cells, bacteria and zebrafish. J. Hazard. Mater. 2020, 388, 122029. [Google Scholar] [CrossRef]
  39. Wang, Y.; He, J.; Zheng, M.; Qin, M.; Wei, W. Dual-emission of Eu based metal-organic frameworks hybrids with carbon dots for ratiometric fluorescent detection of Cr (VI). Talanta 2019, 191, 519–525. [Google Scholar] [CrossRef]
  40. Wang, C.; Fu, J.; Yao, K.; Xue, K.; Xu, K.; Pang, X. Acridine-based fluorescence chemosensors for selective sensing of Fe3+ and Ni2+ ions. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2018, 199, 403–411. [Google Scholar] [CrossRef]
  41. Nunes, M.C.; dos Santos Carlos, F.; Fuganti, O.; Galindo, D.D.M.; De Boni, L.; Abate, G.; Nunes, F.S. Turn-on fluorescence study of a highly selective acridine-based chemosensor for Zn2+ in aqueous solutions. Inorg. Chim. Acta 2020, 499, 119191. [Google Scholar] [CrossRef]
  42. Wang, C.; Wang, P.; Liu, X.; Fu, J.; Xue, K.; Xu, K. Novel enantioselective fluorescent sensors for tartrate anion based on acridinezswsxa. Luminescence 2017, 32, 1313–1318. [Google Scholar] [CrossRef] [PubMed]
  43. Janovec, L.; Kožurková, M.; Sabolová, D.; Ungvarský, J.; Paulíková, H.; Plšíková, J.; Vantová, Z.; Imrich, J. Cytotoxic 3,6-bis((imidazolidinone)imino)acridines: Synthesis, DNA binding and molecular modeling. Bioorganic Med. Chem. 2011, 19, 1790–1801. [Google Scholar] [CrossRef] [PubMed]
  44. Dai, Y.; Xu, K.; Li, Q.; Wang, C.; Liu, X.; Wang, P. Acridine-based complex as amino acid anion fluorescent sensor in aqueous solution. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2016, 157, 1–5. [Google Scholar] [CrossRef]
  45. Kim, A.; Kim, C. A hydrazono-quinoline-based chemosensor sensing In3+ and Zn2+ via fluorescence turn-on and ClO− via color change in aqueous solution. New J. Chem. 2019, 43, 7320–7328. [Google Scholar] [CrossRef]
  46. Jung, J.M.; Lee, S.Y.; Nam, E.; Lim, M.H.; Kim, C. A highly selective turn-on chemosensor for Zn2+ in aqueous media and living cells. Sens. Actuators B Chem. 2017, 244, 1045–1053. [Google Scholar] [CrossRef]
  47. Becke, A.D. Density-functional thermochemistry. III. The role of exact exchange. J. Chem. Phys. 1993, 98, 5648–5652. [Google Scholar] [CrossRef] [Green Version]
  48. Lee, C.; Yang, W.; Parr, R.G. Development of the Colle-Salvetti correlation-energy formula into a functional of the electron density. Phys. Rev. B 1988, 37, 785. [Google Scholar] [CrossRef] [Green Version]
  49. Hariharan, P.C.; Pople, J.A. The influence of polarization functions on molecular orbital hydrogenation energies. Chim. Acta 1973, 28, 213–222. [Google Scholar] [CrossRef]
  50. Gordon, M.S.; Binkley, J.S.; Pople, J.A.; Pietro, W.J.; Hehre, W.J. Self-Consistent Molecular-Orbital Methods. 22. Small Split-Valence Basis Sets for Second-Row Elements. J. Am. Chem. Soc. 1982, 104, 2797–2803. [Google Scholar] [CrossRef]
  51. Barone, V.; Cossi, M. Quantum calculation of molecular energies and energy gradients in solution by a conductor solvent model. J. Phys. Chem. A 1998, 102, 1995–2001. [Google Scholar] [CrossRef]
  52. Cossi, M.; Barone, V. Time-dependent density functional theory for molecules in liquid solutions. J. Chem. Phys. 2001, 115, 4708. [Google Scholar] [CrossRef]
  53. O’boyle, N.M.; Tenderholt, A.L.; Langner, K.M. Cclib: A library for package-independent computational chemistry algorithms. J. Comput. Chem. 2008, 29, 839–845. [Google Scholar] [CrossRef] [PubMed]
  54. Chen, H.; Sun, T.; Qiao, X.G.; Tang, Q.O.; Zhao, S.C.; Zhou, Z. Red-emitting fluorescent probe for detecting hypochlorite acid in vitro and in vivo. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2018, 204, 196–202. [Google Scholar] [CrossRef] [PubMed]
  55. Lan, J.; Guo, J.; Jiang, X.; Chen, Y.; Hu, Z.; Que, Y.; Li, H.; Gu, J.; Ho, R.J.Y.; Zeng, R.; et al. A new dicyanoisophorone-based ratiometric and colorimetric near-infrared fluorescent probe for specifically detecting hypochlorite and its bioimaging on a model of acute inflammation. Anal. Chim. Acta 2020, 1094, 70–79. [Google Scholar] [CrossRef] [PubMed]
  56. Duan, C.; Won, M.; Verwilst, P.; Xu, J.; Kim, H.S.; Zeng, L.; Kim, J.S. In vivo imaging of endogenously produced HClO in zebrafish and mice using a bright, photostable ratiometric fluorescent probe. Anal. Chem. 2019, 91, 4172–4178. [Google Scholar] [CrossRef]
  57. Wang, N.; Xu, W.; Song, D.; Ma, P. A fluorescein-carbazole-based fluorescent probe for imaging of endogenous hypochlorite in living cells and zebrafish. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2020, 227, 117692. [Google Scholar] [CrossRef]
  58. So, H.; Cho, H.; Lee, H.; Tran, M.C.; Kim, K.T.; Kim, C. Detection of zinc (II) and hypochlorite by a thiourea-based chemosensor via two emission channels and its application in vivo. Microchem. J. 2020, 155, 104788. [Google Scholar] [CrossRef]
  59. Liu, C.; Li, Z.; Yu, C.; Chen, Y.; Liu, D.; Zhuang, Z.; Jia, P.; Zhu, H.; Zhang, X.; Yu, Y.; et al. Development of a Concise Rhodamine-Formylhydrazine Type Fluorescent Probe for Highly Specific and Ultrasensitive Tracing of Basal HOCl in Live Cells and Zebrafish. ACS Sens. 2019, 4, 2156–2163. [Google Scholar] [CrossRef]
Sensors 20 04764 sch001 550

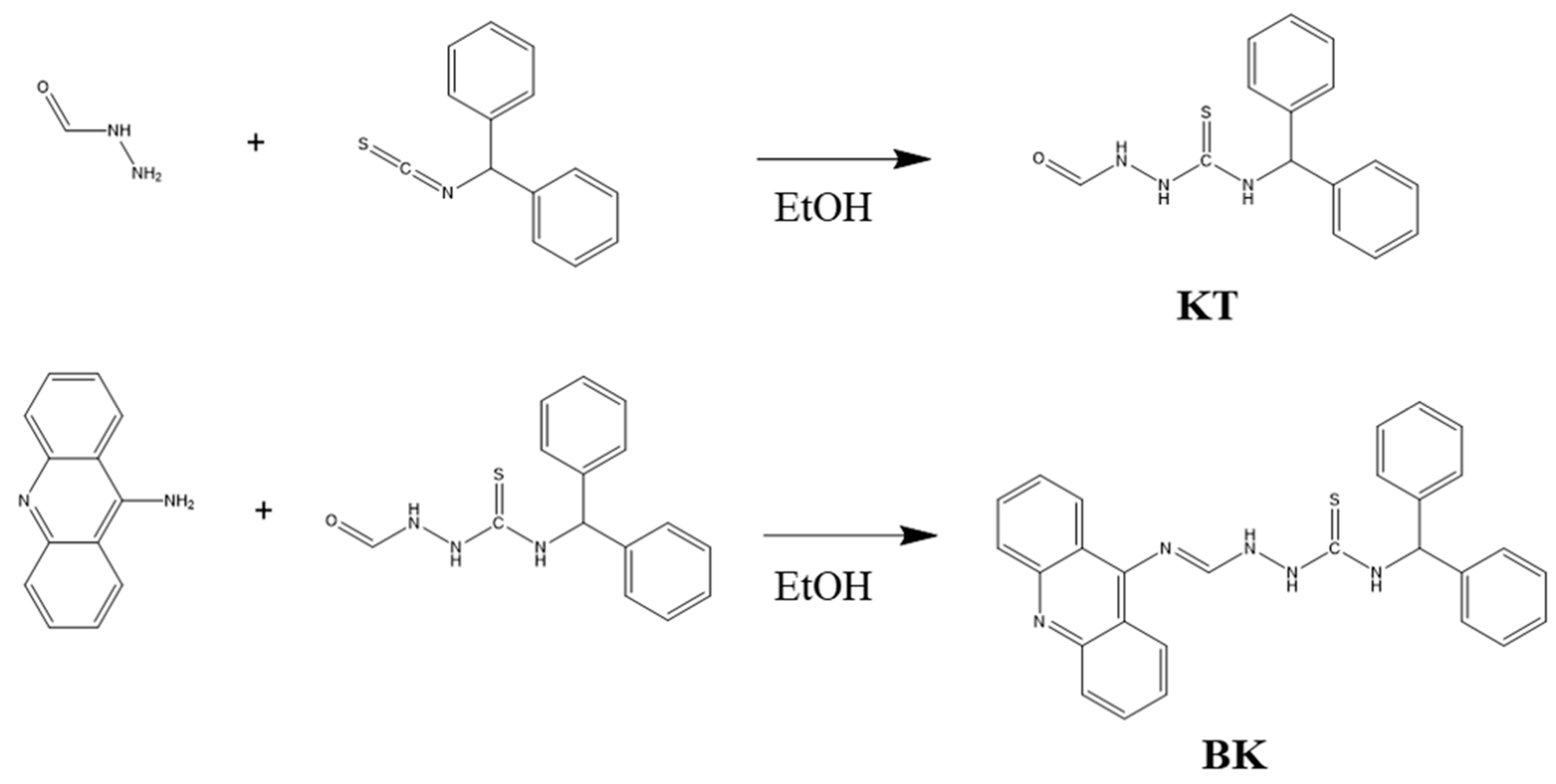

Scheme 1. Synthesis of BK ((E)-2-((acridine-9-ylimino)methyl)-N-benzhydrylhydrazine-1-carbothioamide).
Scheme 1. Synthesis of BK ((E)-2-((acridine-9-ylimino)methyl)-N-benzhydrylhydrazine-1-carbothioamide).
Sensors 20 04764 sch001
Sensors 20 04764 g001 550

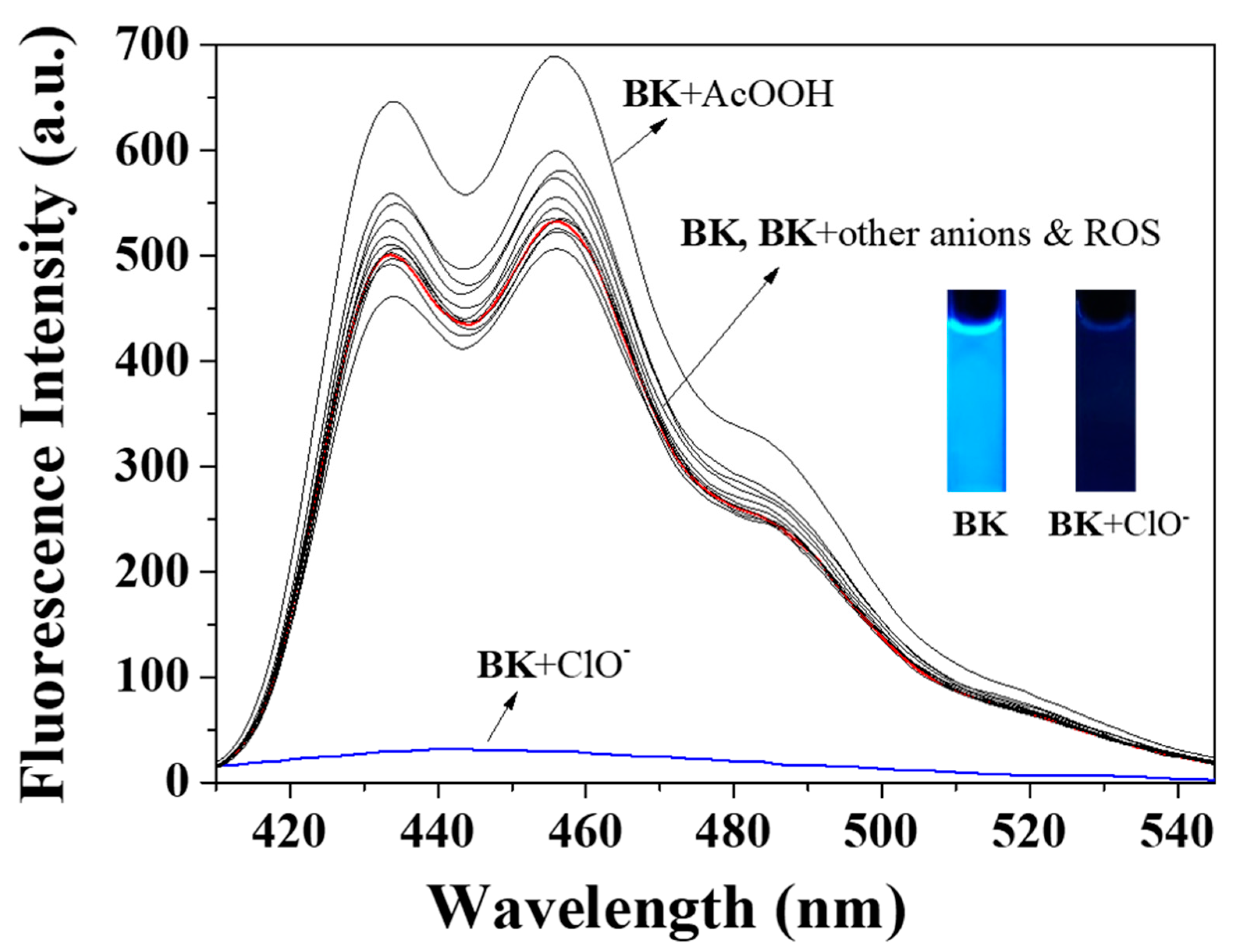

Figure 1. Fluorescence spectra of BK (1 × 10−5 M) with varied analytes (220 equiv). ROS: Reactive oxygen species.
Figure 1. Fluorescence spectra of BK (1 × 10−5 M) with varied analytes (220 equiv). ROS: Reactive oxygen species.
Sensors 20 04764 g001
Sensors 20 04764 g002 550

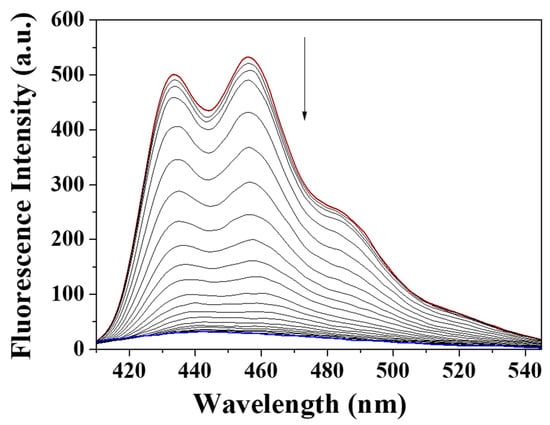

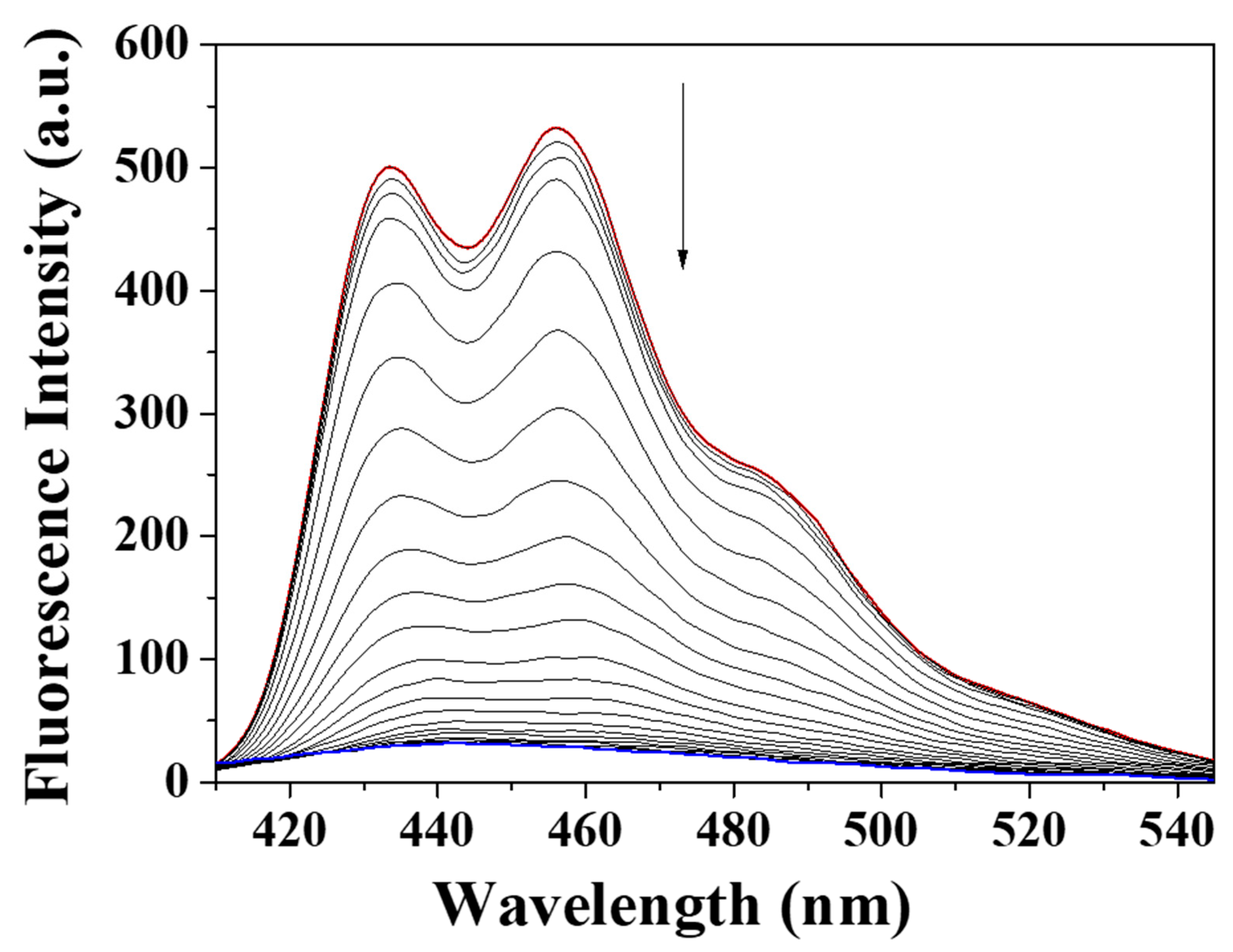

Figure 2. Fluorescent changes of BK (1 × 10−5 M) with different concentrations of ClO−.
Figure 2. Fluorescent changes of BK (1 × 10−5 M) with different concentrations of ClO−.
Sensors 20 04764 g002
Sensors 20 04764 g003 550

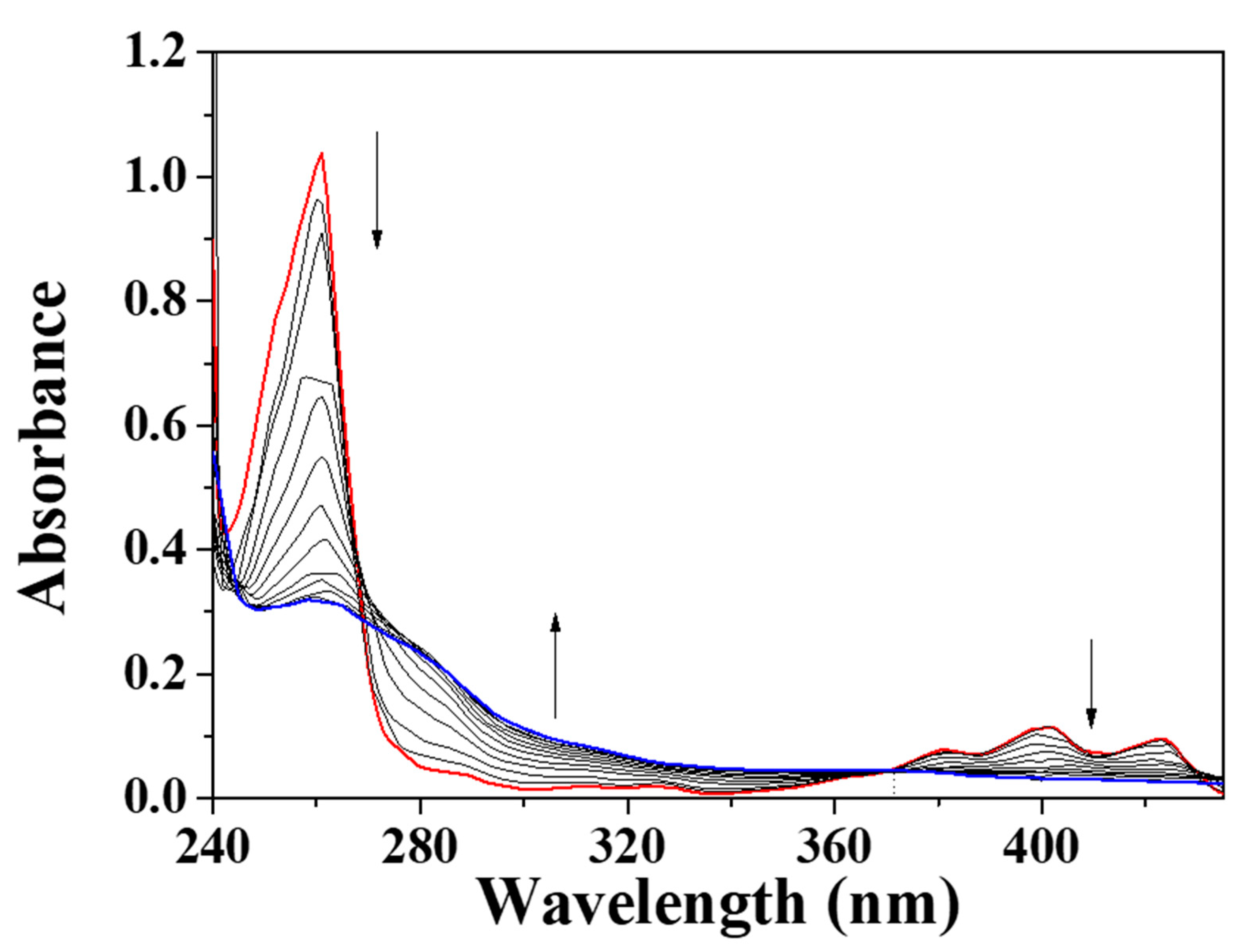

Figure 3. UV-vis variations of probe BK (1 × 10−5 M) with different concentrations of ClO−.
Figure 3. UV-vis variations of probe BK (1 × 10−5 M) with different concentrations of ClO−.
Sensors 20 04764 g003
Sensors 20 04764 g004 550

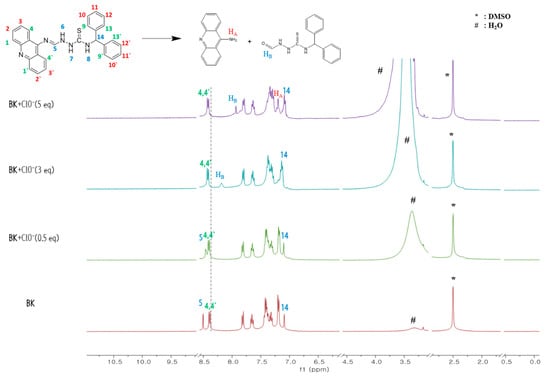

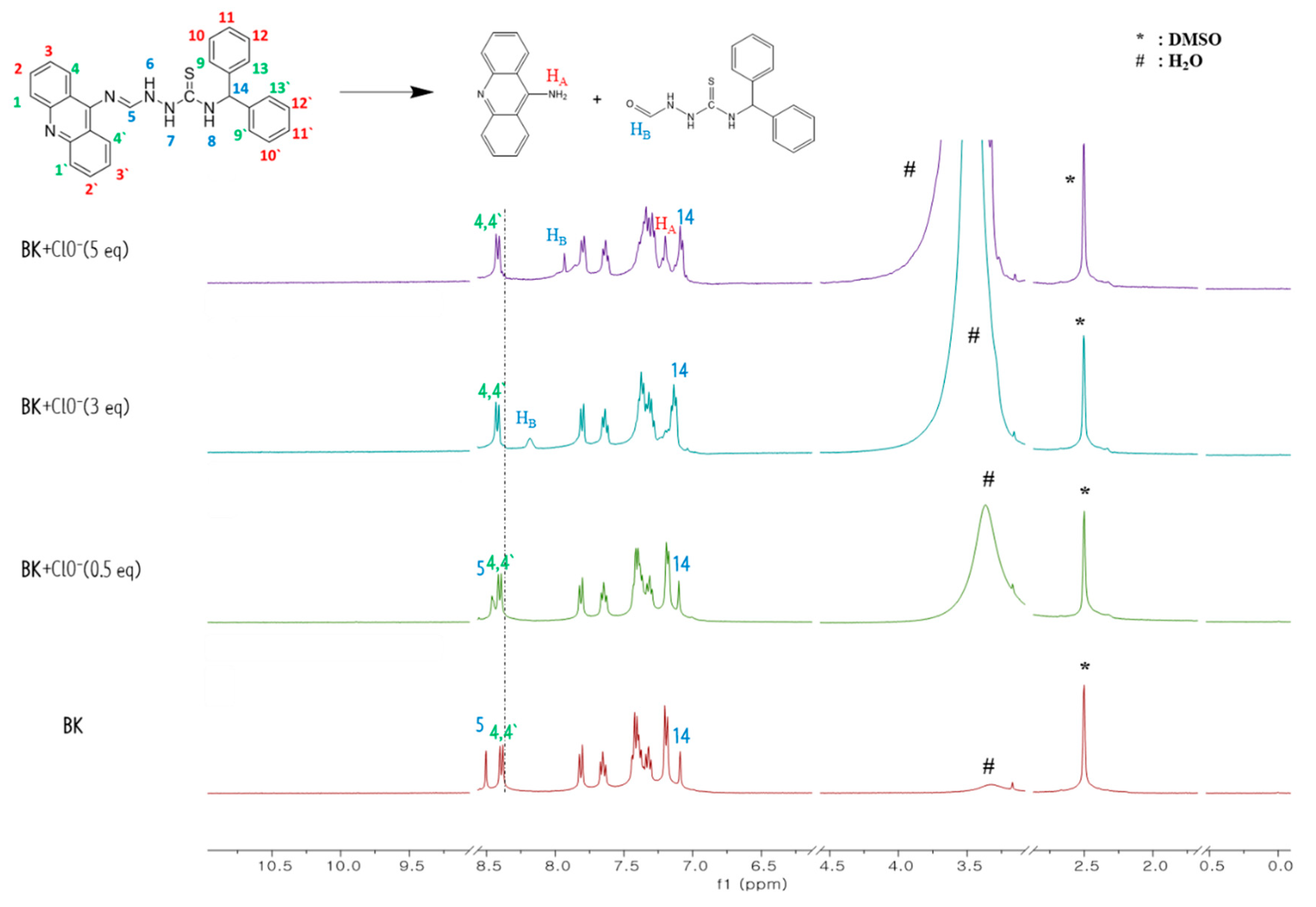

Figure 4. 1H NMR titration of BK with ClO−.
Figure 4. 1H NMR titration of BK with ClO−.
Sensors 20 04764 g004
Sensors 20 04764 sch002 550

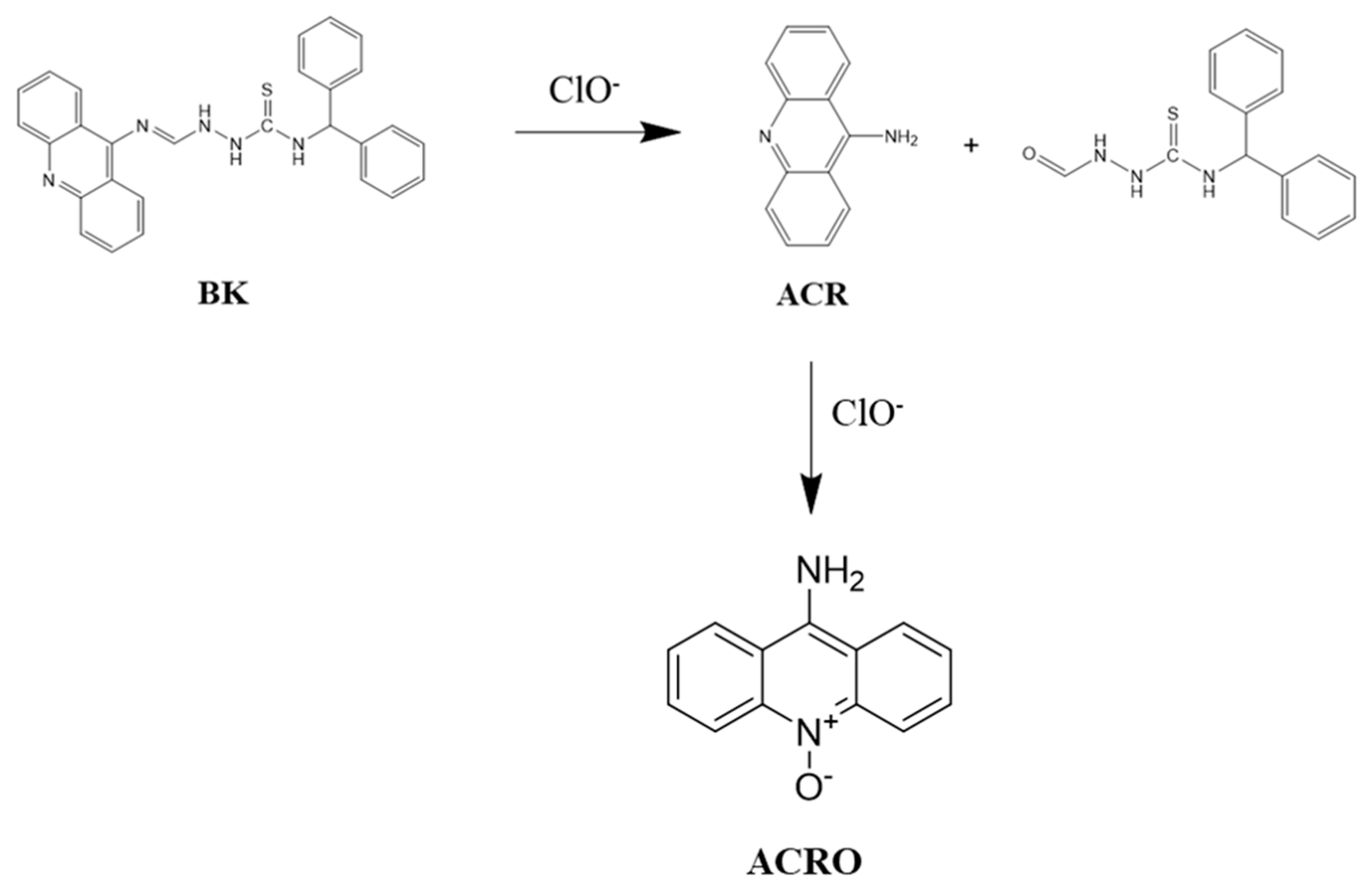

Scheme 2. Cleavage sensing mechanism of BK by ClO−.
Scheme 2. Cleavage sensing mechanism of BK by ClO−.
Sensors 20 04764 sch002
Sensors 20 04764 g005 550

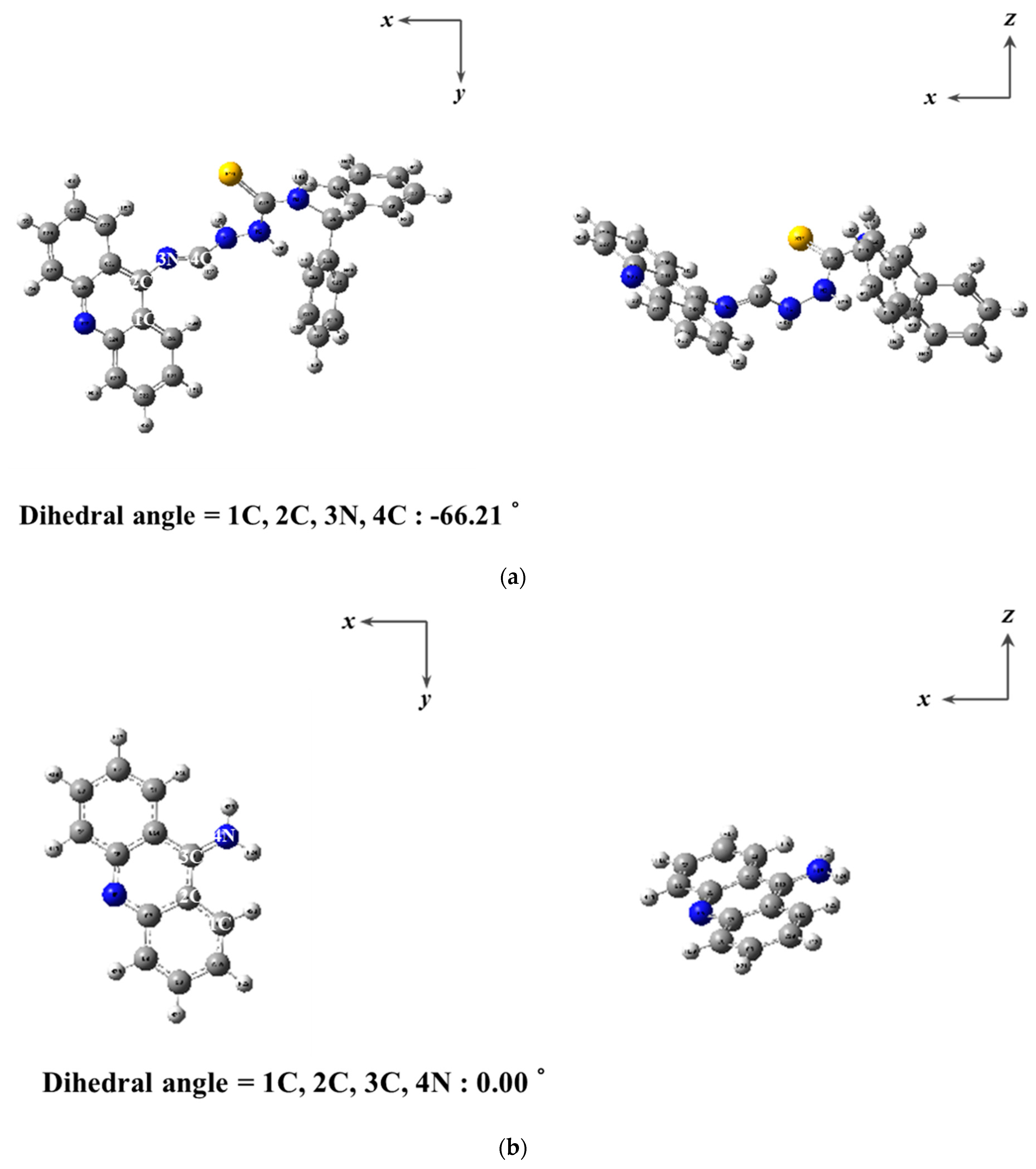

Figure 5. Energy-minimized forms of (a) BK and (b) 9-aminoacridine (ACR).
Figure 5. Energy-minimized forms of (a) BK and (b) 9-aminoacridine (ACR).
Sensors 20 04764 g005
Sensors 20 04764 g006 550

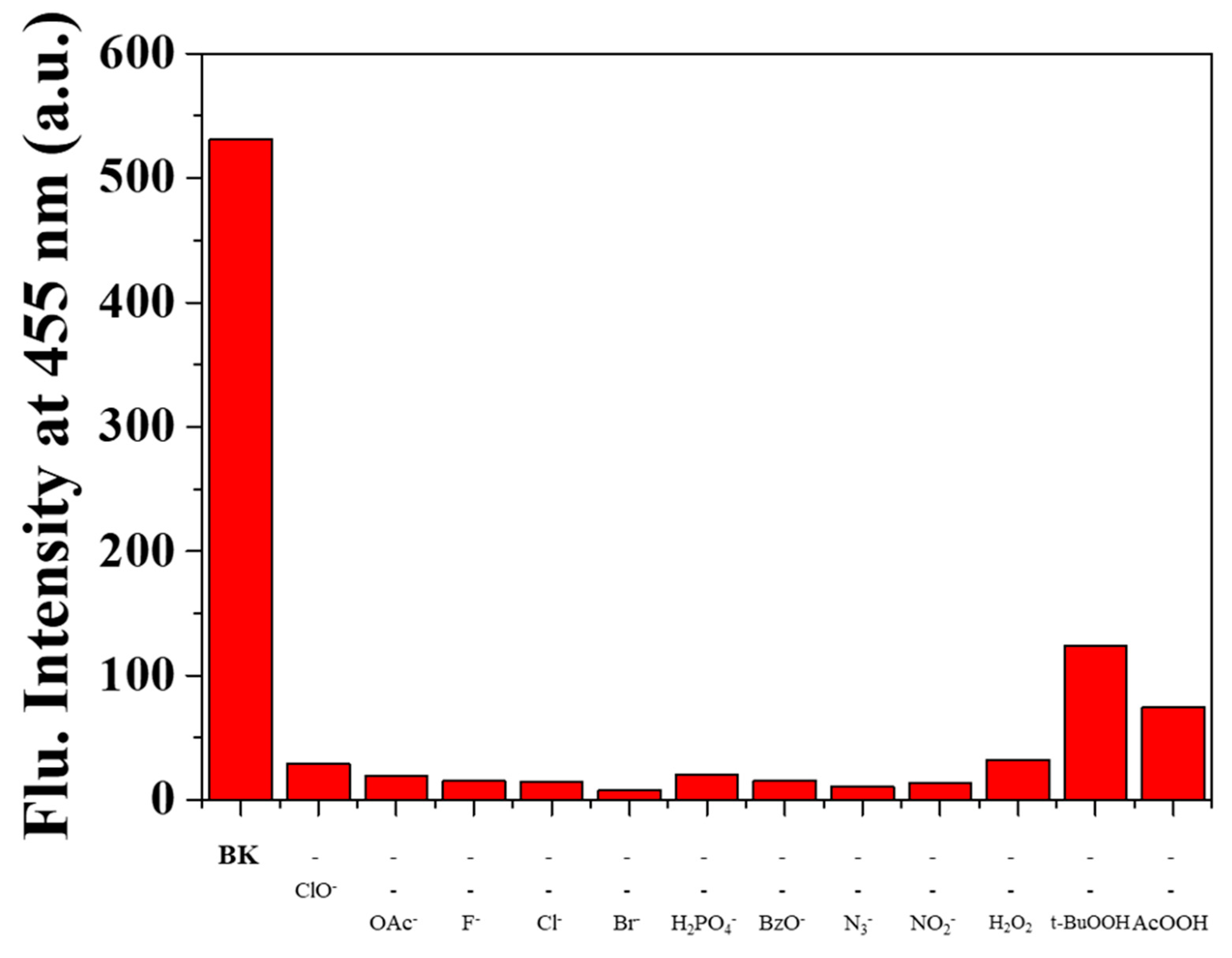

Figure 6. Competitive selectivity of BK (1 × 10−5 M) to ClO− (220 equiv) with other analytes (220 equiv).
Figure 6. Competitive selectivity of BK (1 × 10−5 M) to ClO− (220 equiv) with other analytes (220 equiv).
Sensors 20 04764 g006
Sensors 20 04764 g007 550

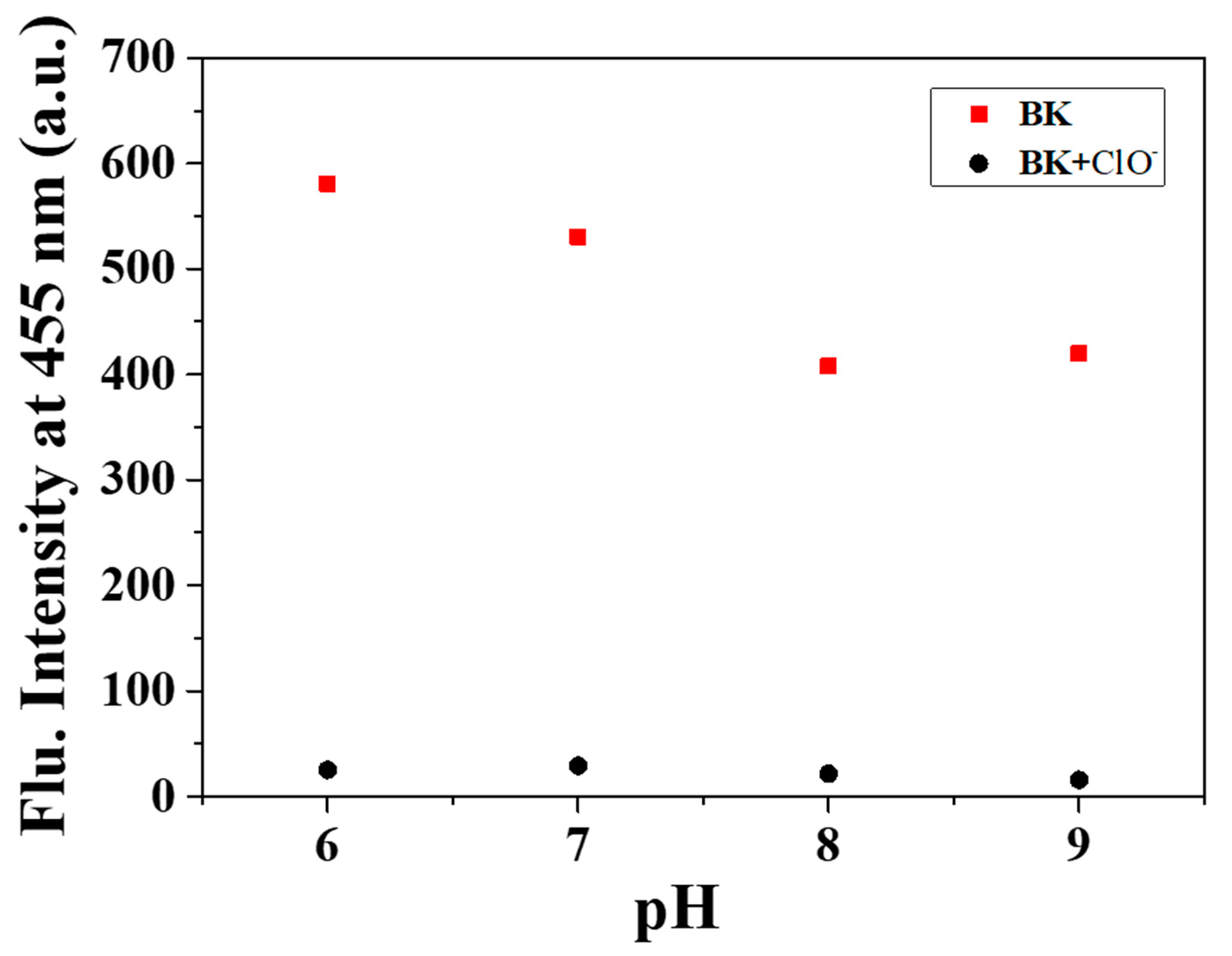

Figure 7. Fluorescence intensity (at 455 nm) of BK with ClO− at pH values from six to nine.
Figure 7. Fluorescence intensity (at 455 nm) of BK with ClO− at pH values from six to nine.
Sensors 20 04764 g007
Sensors 20 04764 g008 550
Figure 8. Fluorescence images of zebrafish treated with BK followed by addition of ClO− (λex = 502 nm and λem = 526 nm). (a1–a3): BK only; (b1–b3): BK with 5 × 10−5 M ClO−. [BK] = 2 × 10−5 M. Scale bar: 0.89 mm.
Figure 8. Fluorescence images of zebrafish treated with BK followed by addition of ClO− (λex = 502 nm and λem = 526 nm). (a1–a3): BK only; (b1–b3): BK with 5 × 10−5 M ClO−. [BK] = 2 × 10−5 M. Scale bar: 0.89 mm.
Sensors 20 04764 g008
Table
Table 1. Determination of ClO−.a.
Table 1. Determination of ClO−.a.
Sample.ClO− Added (µM)ClO− Found (µM)Recovery
(%)		R.S.D. (n = 3)
(%)
Drinking water0.000.00
60.00 b62.88104.800.32
Tap water0.000.00
60.00 b62.16103.600.41
a Conditions: [BK] = 10 µM in bis-tris buffer. b 60.00 µM of ClO− was artificially added.
