Development and Characterization of a Compact Device for Measuring the Braking Torque of a Vehicle

1
Department of Mechanical Engineering, Universidad Carlos III de Madrid, Avda. de la Universidad 30, 28911 Leganés, Spain
2
Institute for Automotive Vehicle Safety (ISVA), Universidad Carlos III de Madrid, Avda. de la Universidad 30, 28911 Leganés, Spain
*
Author to whom correspondence should be addressed.
Sensors 2020, 20(15), 4278; https://doi.org/10.3390/s20154278
Received: 1 July 2020 / Revised: 28 July 2020 / Accepted: 29 July 2020 / Published: 31 July 2020
(This article belongs to the Special Issue Sensors in Experimental Mechanics)

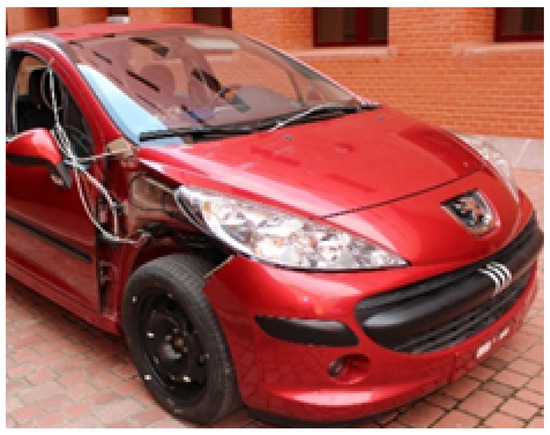

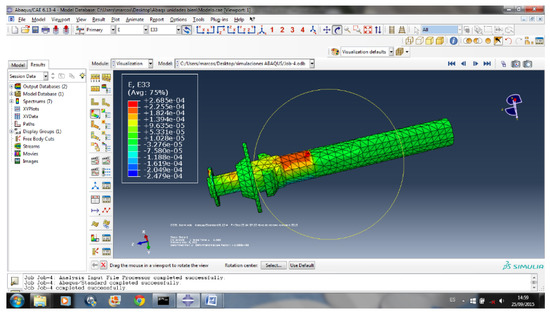

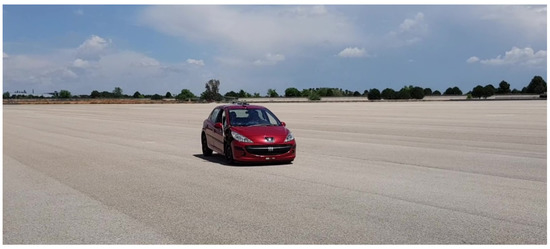

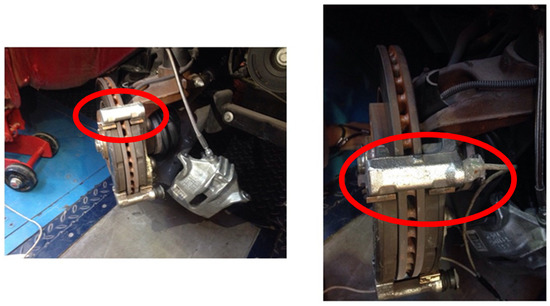

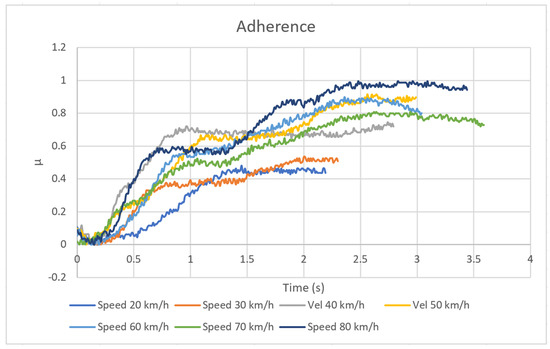

In this article, a new force transducer is designed, developed and built for the measurement of braking forces in the wheel rim of a motor vehicle. The parameters of the transducer design are justified using numerical simulation. In order to install it in the vehicle in a simple and interference-free way, the metal base of the caliper rod is used. It is manufactured and installed in a vehicle in order to obtain the signals of the wheel braking torque, in real time, and at different speeds of circulation, carrying out several tests on the track. Subsequently, data are obtained from calculations of the disc brake system itself. The latter provides instantaneous adherence values between the brake pad and the disc. View Full-Text
Keywords: braking torque; strain gauge; disc brake; roller brake tester; adherence braking torque; strain gauge; disc brake; roller brake tester; adherence
