Open AccessArticle
Sensors 2002, 2(3), 79-90;

Mass Transfer in Amperometric Biosensors Based on Nanocomposite Thin Films of Redox Polymers and Oxidoreductases

Department of Chemical Engineering, The Pennsylvania State University, 104 Fenske Laboratory, University Park, PA 16802-4400, USA
Texas A&M University, Department of Chemical Engineering, College Station, TX 77843-3122, USA
Author to whom correspondence should be addressed.
Received: 13 February 2002 / Accepted: 28 February 2002 / Published: 12 March 2002
(This article belongs to the Special Issue Nano-Porous Sensor Material)
PDF [201 KB, uploaded 20 June 2014]

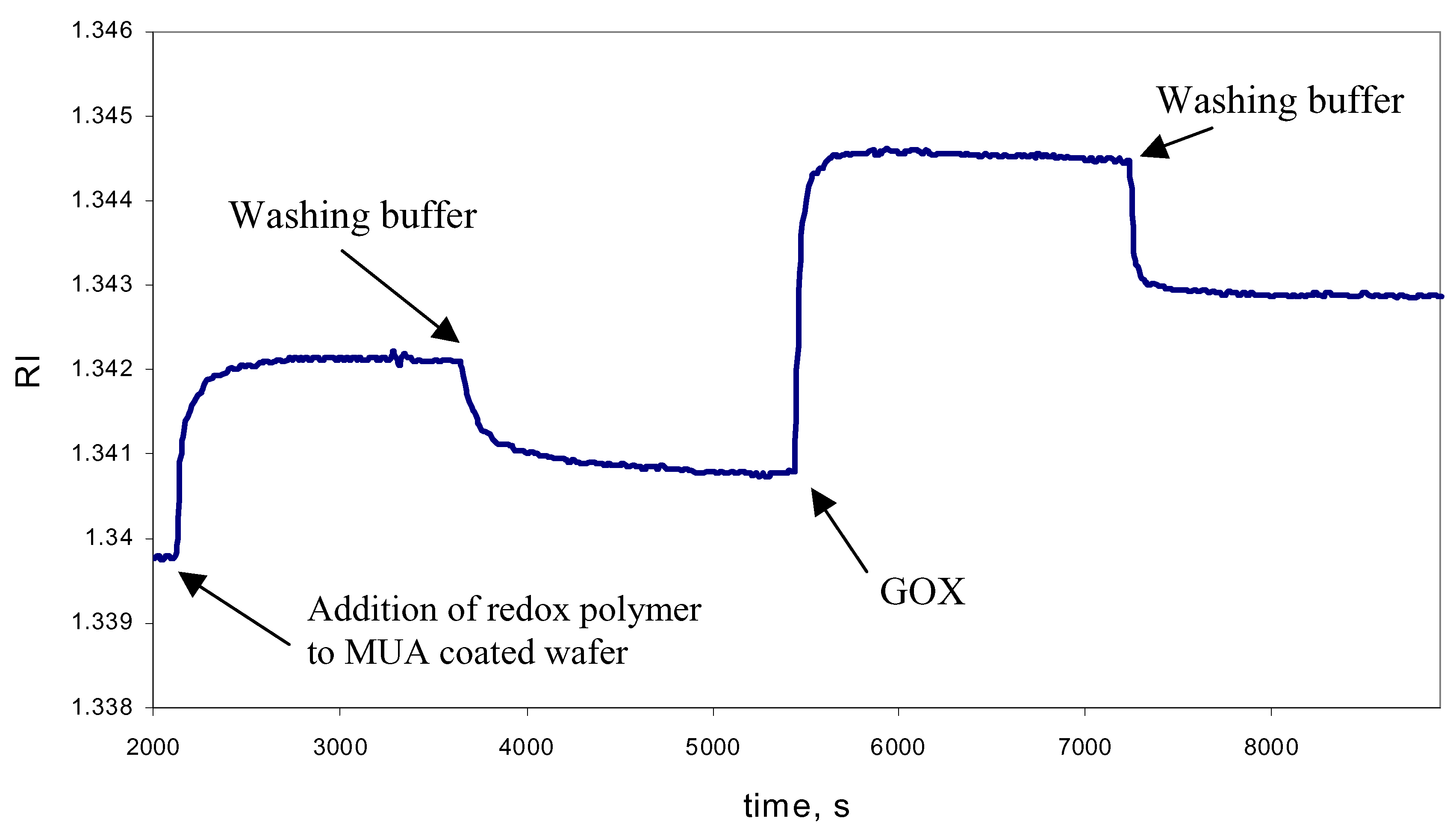

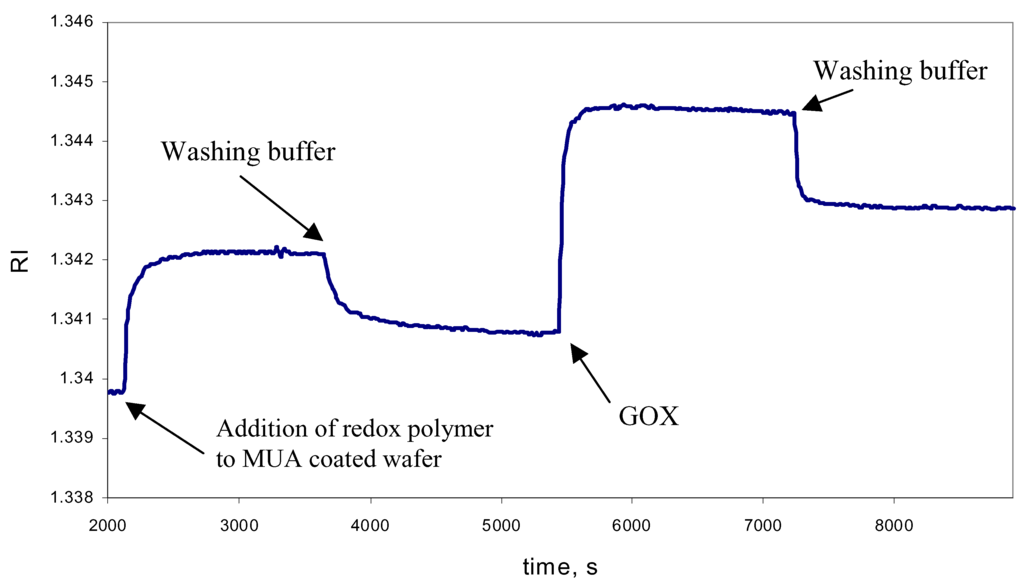

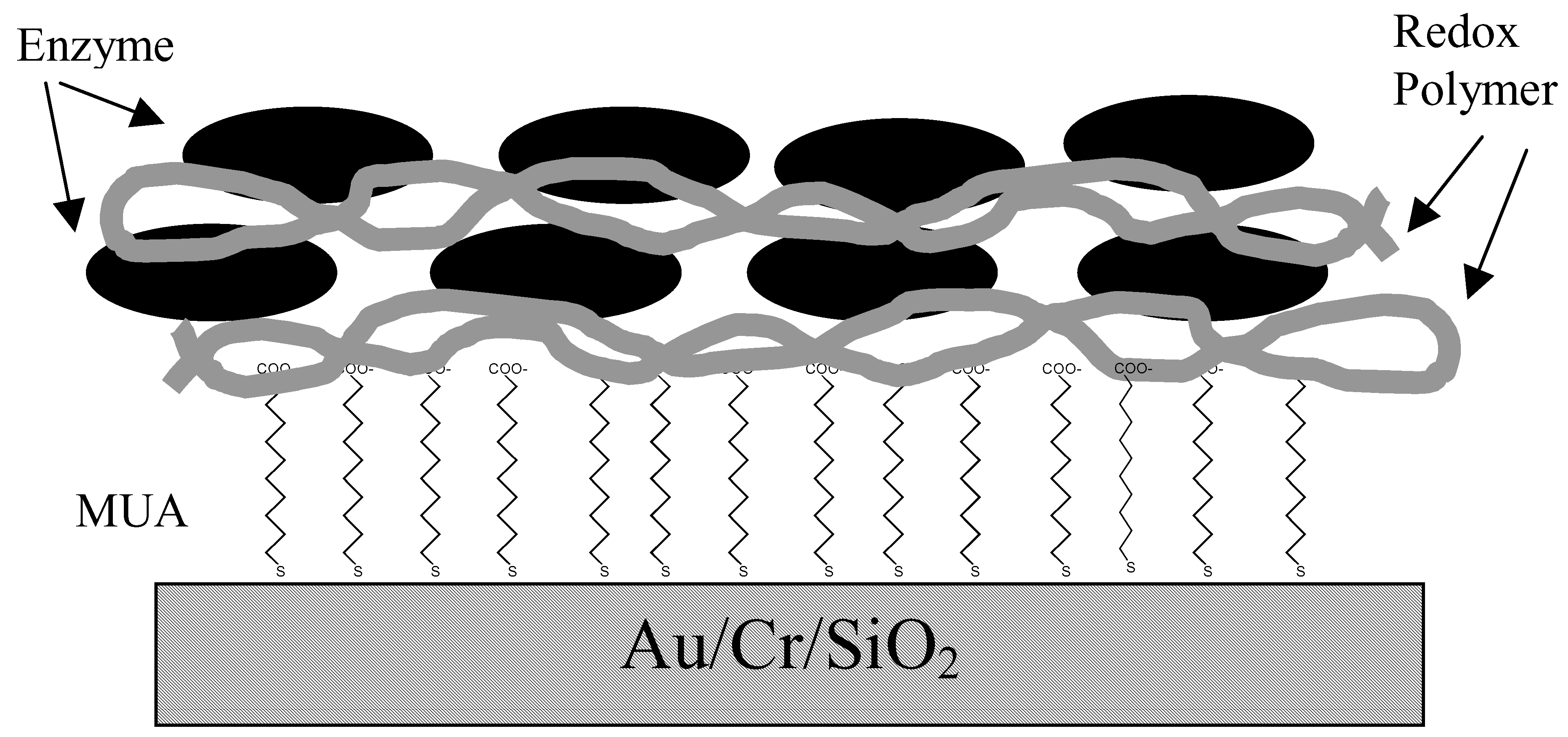

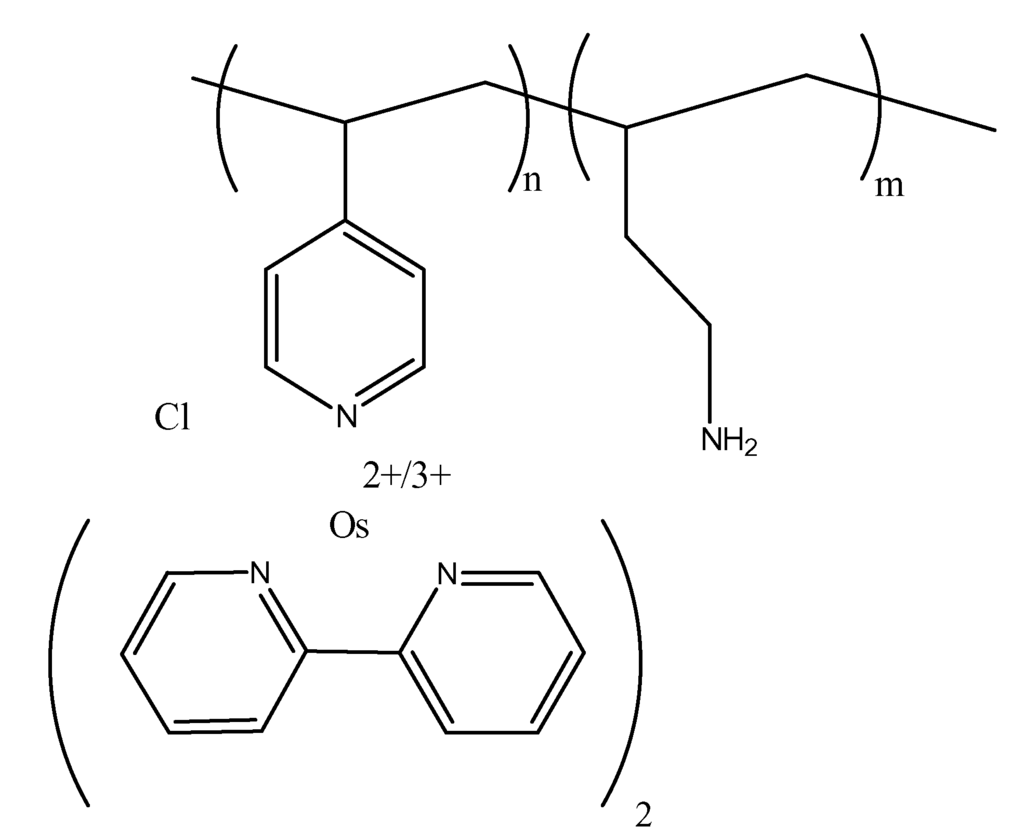

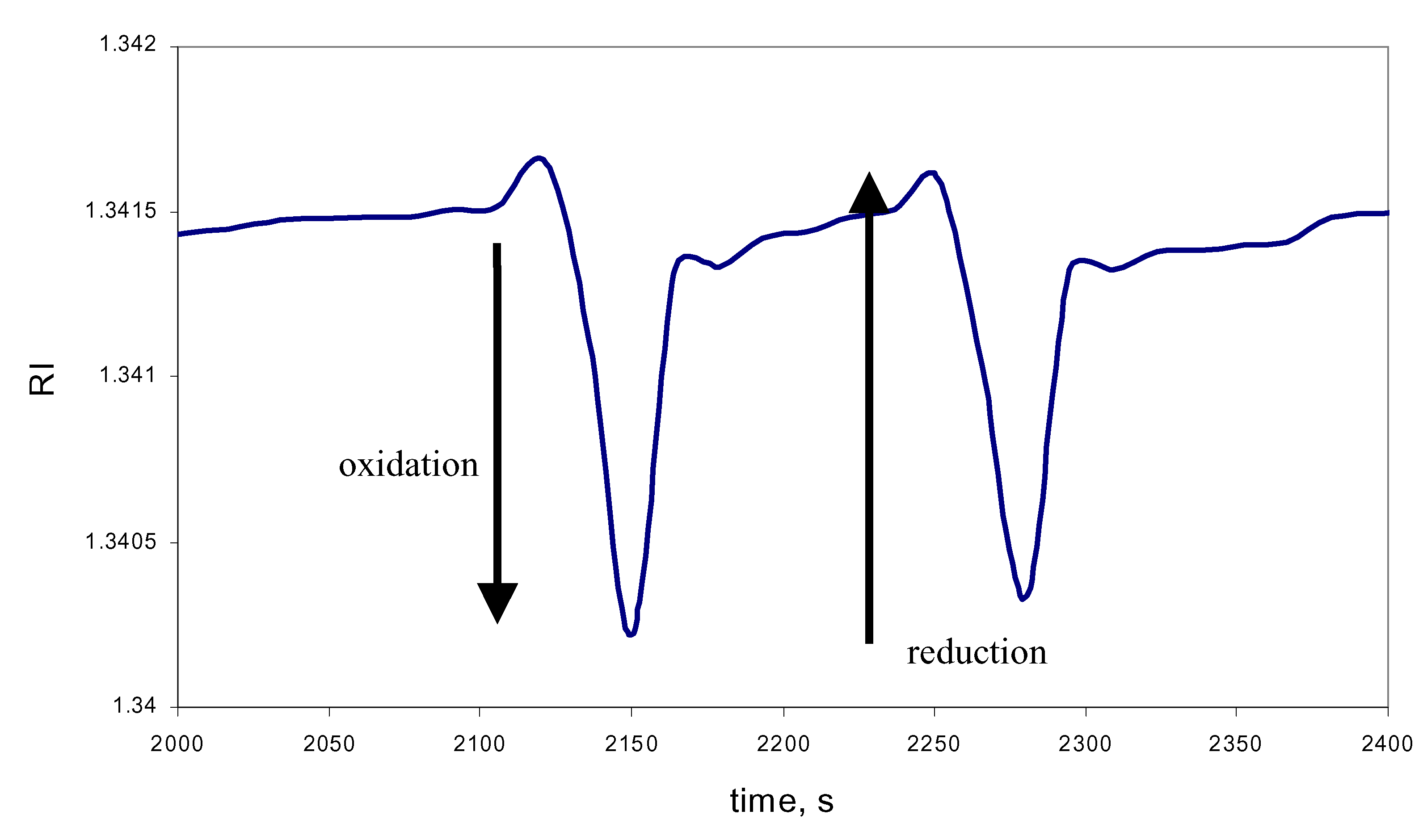

Mass transfer in nanocomposite hydrogel thin films consisting of alternating layers of an organometallic redox polymer (RP) and oxidoreductase enzymes was investigated. Multilayer nanostructures were fabricated on gold surfaces by the deposition of an anionic self-assembled monolayer of 11-mercaptoundecanoic acid, followed by the electrostatic binding of a cationic redox polymer, poly[vinylpyridine Os(bis-bipyridine)2Clco-allylamine], and an anionic oxidoreductase. Surface plasmon resonance spectroscopy, Fourier transform infrared external reflection spectroscopy (FTIR-ERS), ellipsometry and electrochemistry were employed to characterize the assembly of these nanocomposite films. Simultaneous SPR/electrochemistry enabled real time observation of the assembly of sensing components, changes in film structure with electrode potential, and the immediate, in situ electrochemical verification of substrate-dependent current upon the addition of enzyme to the multilayer structure. SPR and FTIR-ERS studies also showed no desorption of polymer or enzyme from the nanocomposite structure when stored in aqueous environment occurred over the period of three weeks, suggesting that decreasing in substrate sensitivity were due to loss of enzymatic activity rather than loss of film compounds from the nanostructure. View Full-Text
Keywords: Biosensor; Redox; Nanocomposite; Hydrogel; Enzyme Biosensor; Redox; Nanocomposite; Hydrogel; Enzyme

Figure 1

This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).

Share & Cite This Article

MDPI and ACS Style

Pishko, M.V.; Revzin, A.; Simonian, A.L. Mass Transfer in Amperometric Biosensors Based on Nanocomposite Thin Films of Redox Polymers and Oxidoreductases. Sensors 2002, 2, 79-90.
