Graphene-Based Ammonia Sensors Functionalised with Sub-Monolayer V2O5: A Comparative Study of Chemical Vapour Deposited and Epitaxial Graphene

1
Institute of Physics, University of Tartu, W. Ostwald Street 1, EE50411 Tartu, Estonia
2
Department of Physics, Chemistry and Biology, Linköping University, 58183 Linköping, Sweden
*
Author to whom correspondence should be addressed.
This paper is an extended version of the conference paper: Kodu, M.; Berholts, A.; Kahro, T.; Eriksson, J.; Yakimova, R.; Avarmaa, T.; Renge, I.; Alles, H.; Jaaniso, R. Highly Sensitive NH3 Sensors Using CVD and Epitaxial Graphene Functionalised with Vanadium (V) Oxide: A Comparative Study. In Proceedings of the EUROSENSORS 2018, Graz, Austria, 9–12 September 2018.
Sensors 2019, 19(4), 951; https://doi.org/10.3390/s19040951
Received: 8 January 2019 / Revised: 15 February 2019 / Accepted: 19 February 2019 / Published: 23 February 2019
(This article belongs to the Special Issue Eurosensors 2018 Selected Papers)
  |
PDF [2837 KB, uploaded 23 February 2019]
  |

Abstract

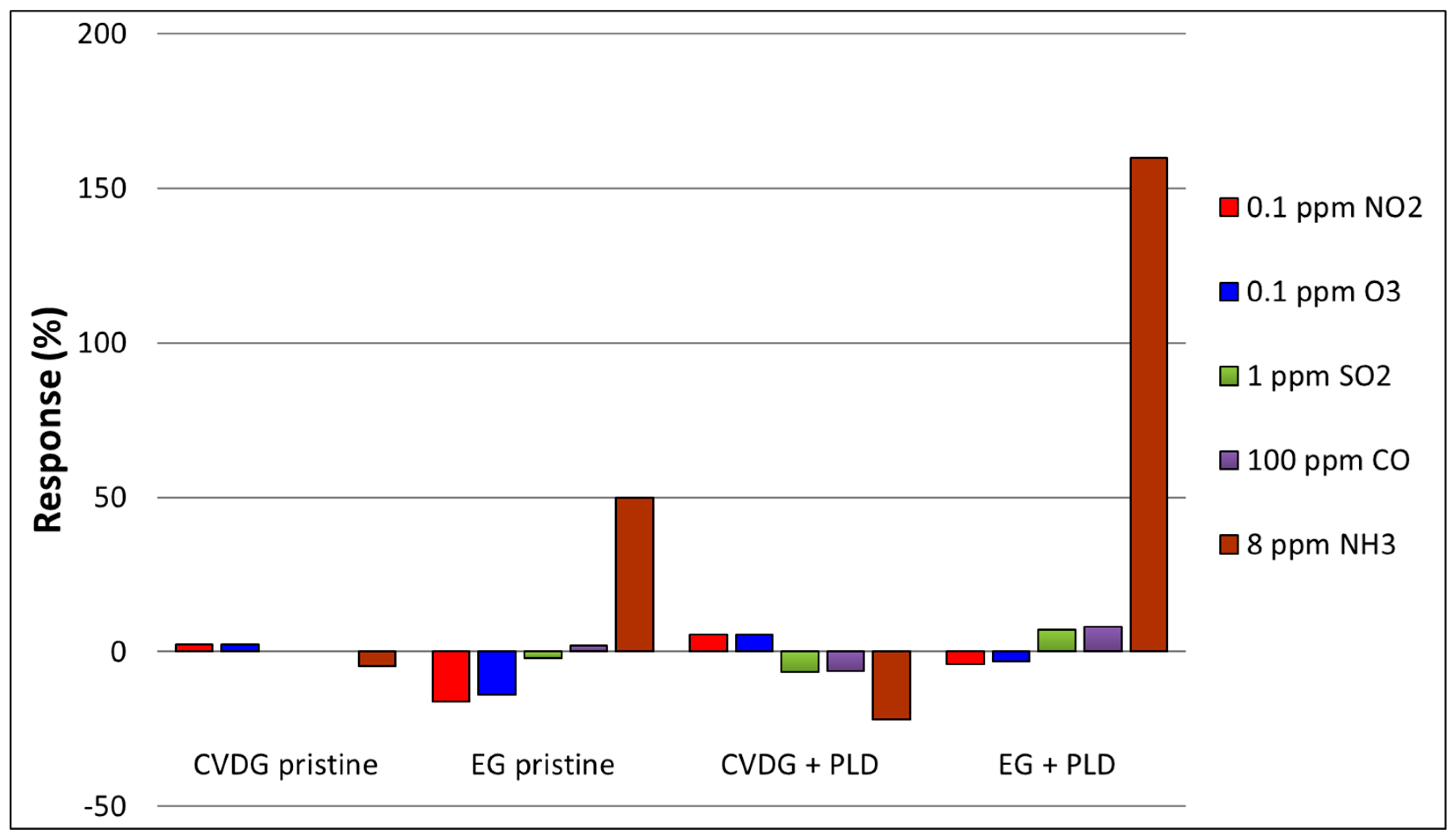

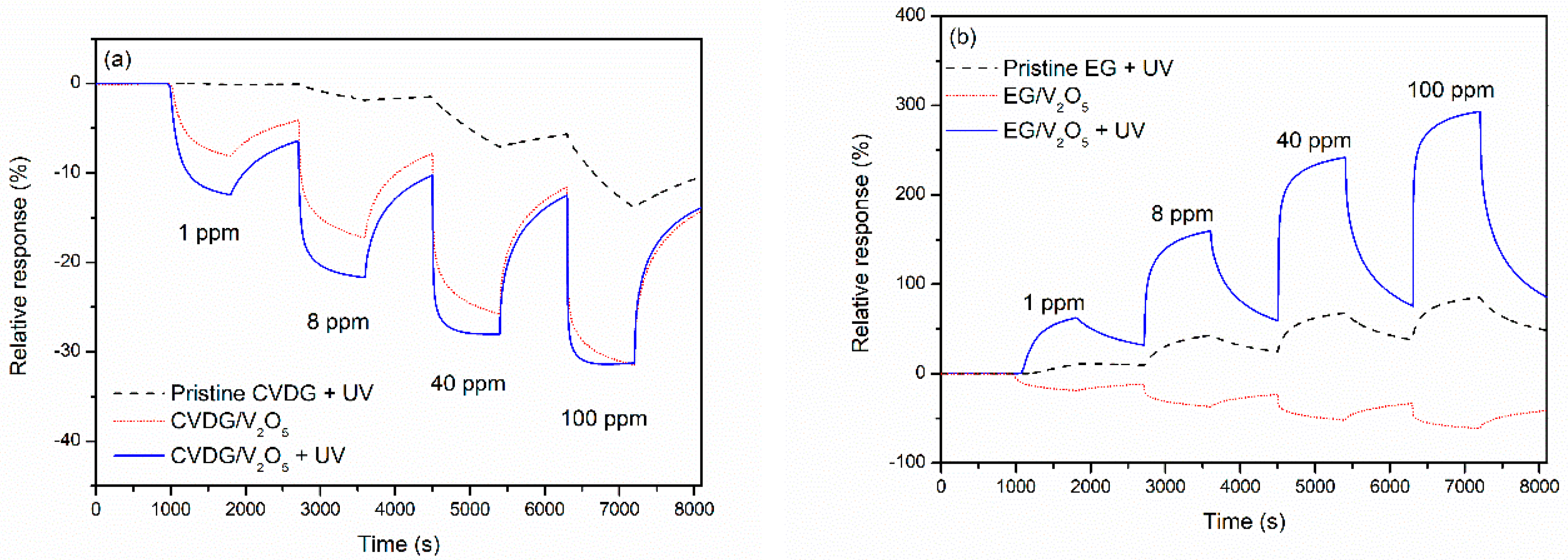

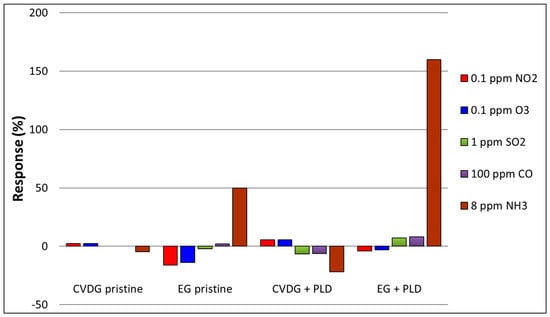

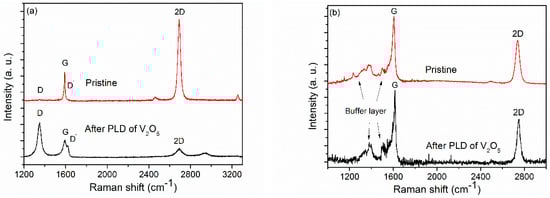

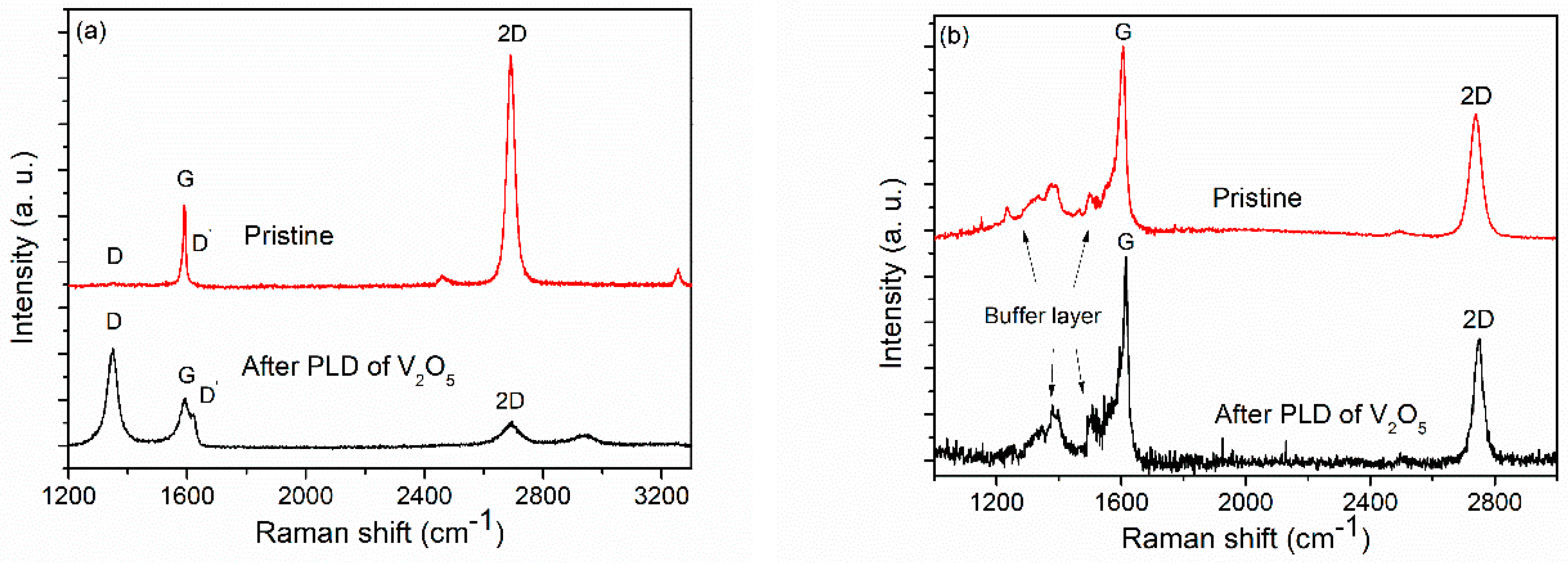

Graphene in its pristine form has demonstrated a gas detection ability in an inert carrier gas. For practical use in ambient atmosphere, its sensor properties should be enhanced with functionalisation by defects and dopants, or by decoration with nanophases of metals or/and metal oxides. Excellent sensor behaviour was found for two types of single layer graphenes: grown by chemical vapour deposition (CVD) and transferred onto oxidized silicon (Si/SiO2/CVDG), and the epitaxial graphene grown on SiC (SiC/EG). Both graphene samples were functionalised using a pulsed laser deposited (PLD) thin V2O5 layer of average thickness ≈ 0.6 nm. According to the Raman spectra, the SiC/EG has a remarkable resistance against structural damage under the laser deposition conditions. By contrast, the PLD process readily induces defects in CVD graphene. Both sensors showed remarkable and selective sensing of NH3 gas in terms of response amplitude and speed, as well as recovery rate. SiC/EG showed a response that was an order of magnitude larger as compared to similarly functionalised CVDG sensor (295% vs. 31% for 100 ppm NH3). The adsorption site properties are assigned to deposited V2O5 nanophase, being similar for both sensors, rather than (defect) graphene itself. The substantially larger response of SiC/EG sensor is probably the result of the smaller initial free charge carrier doping in EG. View Full-Text
Keywords: ammonia; CVD graphene; epitaxial graphene on SiC; gas sensor; pulsed laser deposition; selectivity; single layer graphene; UV light activation; vanadium (V) oxide ammonia; CVD graphene; epitaxial graphene on SiC; gas sensor; pulsed laser deposition; selectivity; single layer graphene; UV light activation; vanadium (V) oxide
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
