Sensors 2019, 19(3), 730; https://doi.org/10.3390/s19030730

Design of a 1-bit MEMS Gyroscope using the Model Predictive Control Approach

1
Intelligent Space Systems Laboratory, School of Aerospace, Mechanical and Mechatronic Engineering, University of Sydney, Sydney, NSW 2006, Australia
2
Centre for Quantum Technologies, National University of Singapore, Singapore 117543, Singapore
3
School of Engineering, Sun Yat-sen University, Guangzhou 510275, China
*
Author to whom correspondence should be addressed.
Received: 11 December 2018 / Revised: 24 January 2019 / Accepted: 3 February 2019 / Published: 11 February 2019
(This article belongs to the Special Issue MEMS Technology Based Sensors for Human Centered Applications)
Full-Text   |   PDF [4069 KB, uploaded 13 February 2019]   |

Abstract

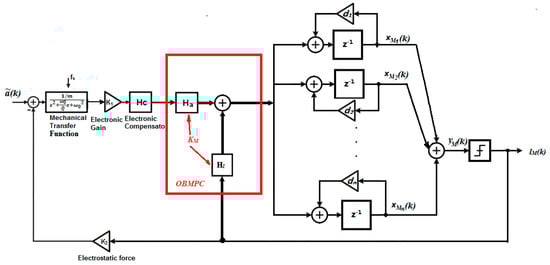

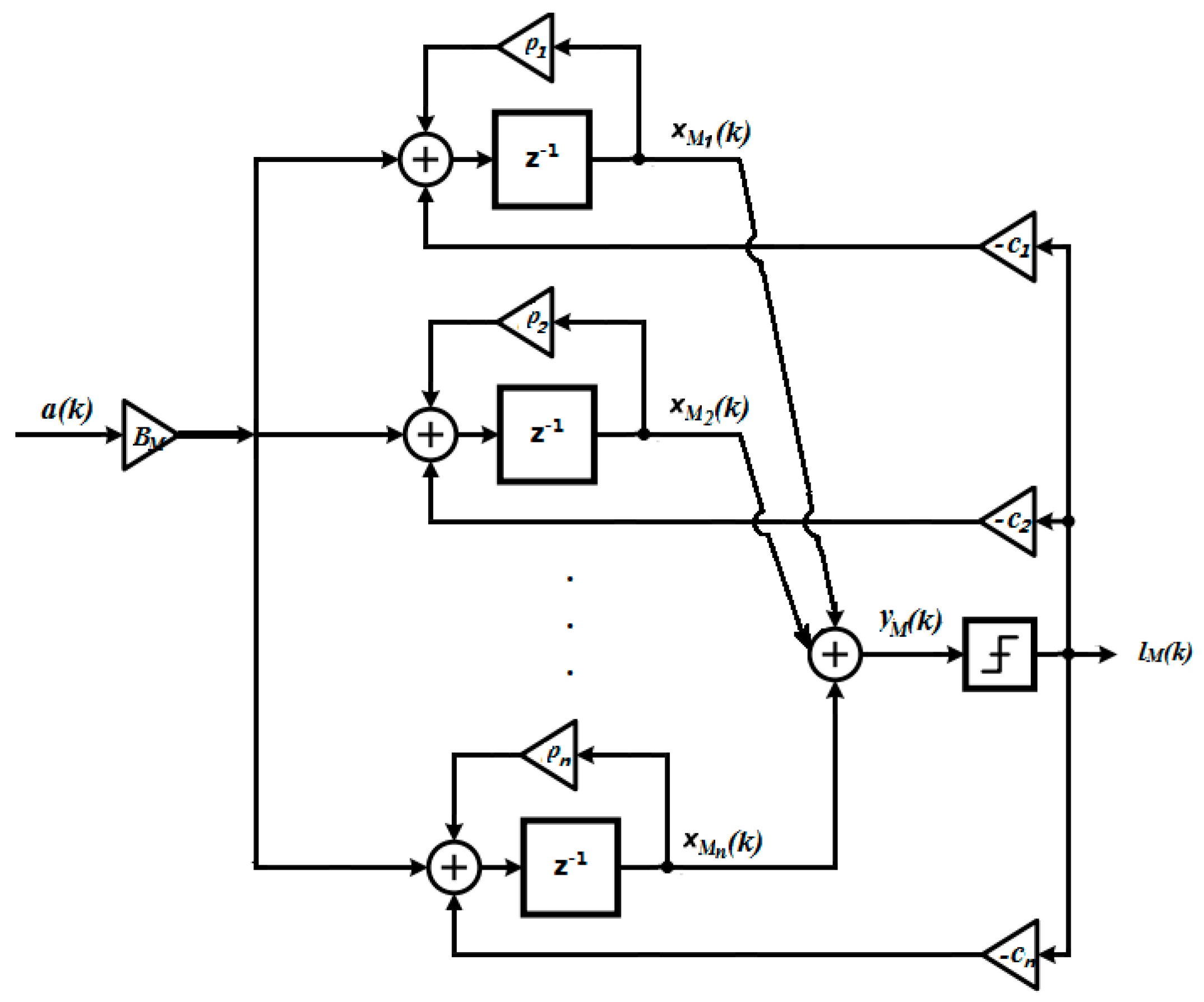

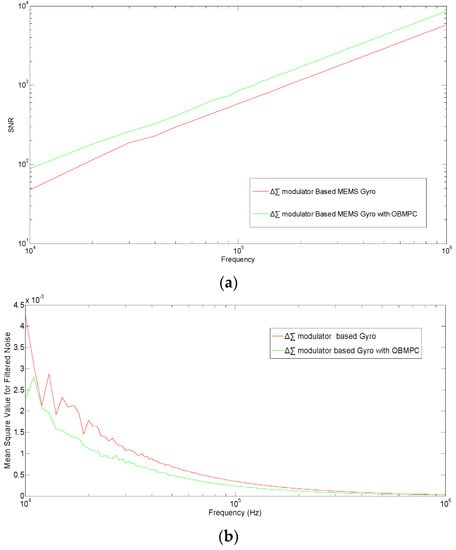

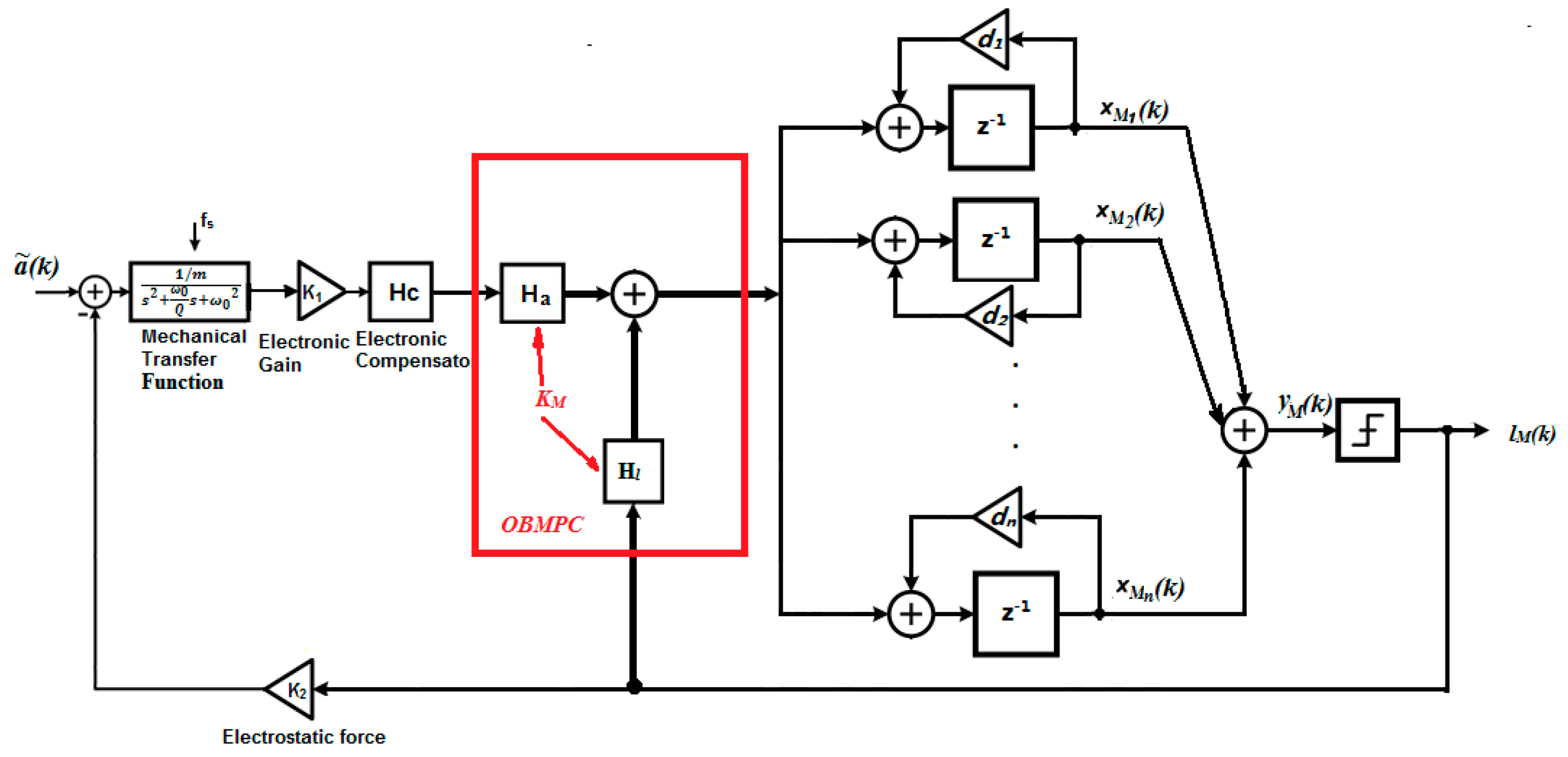

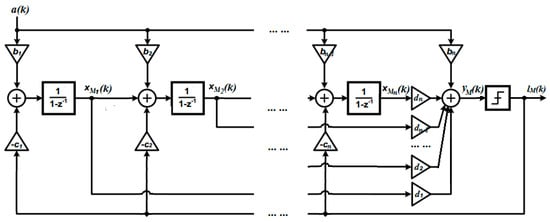

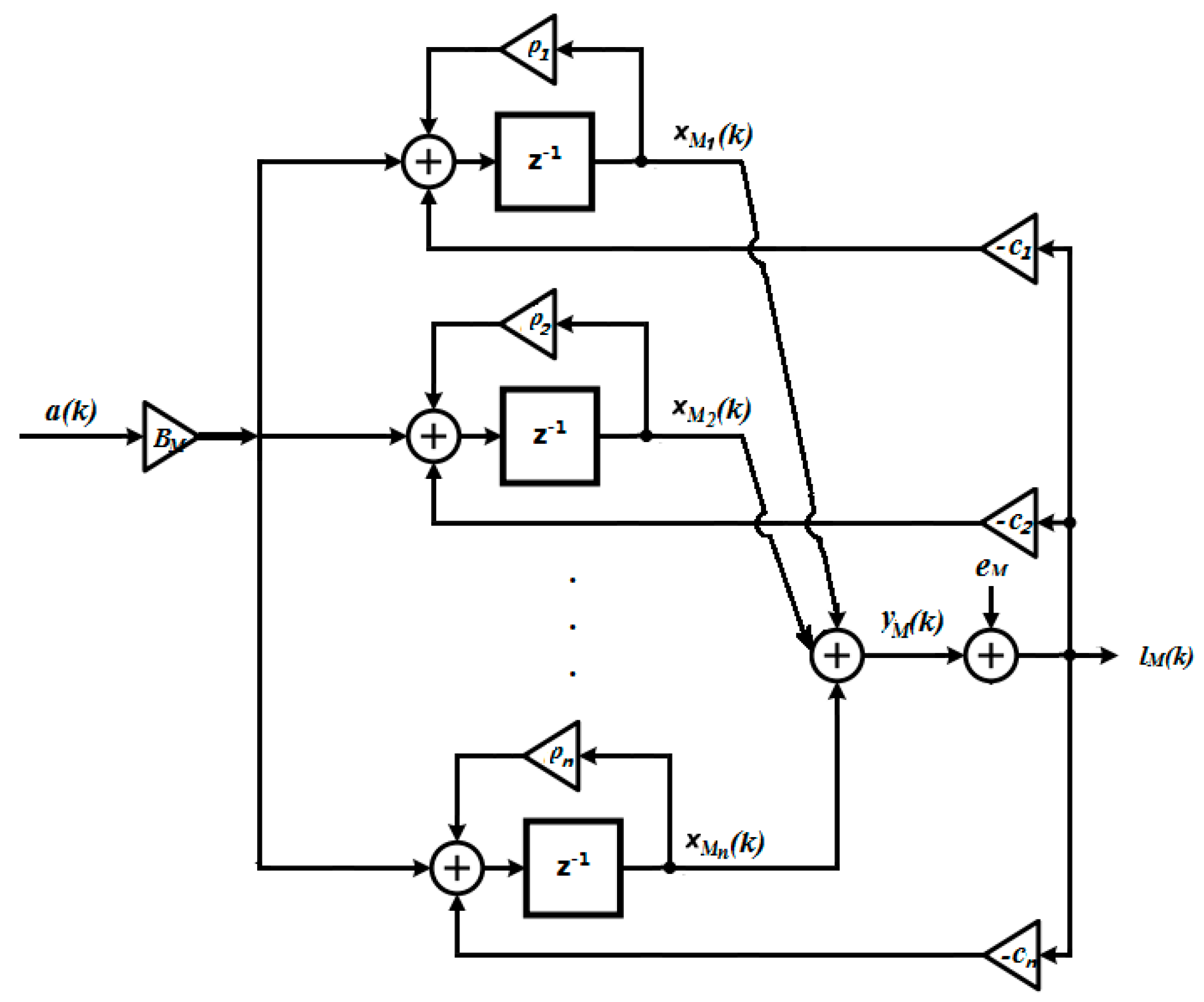

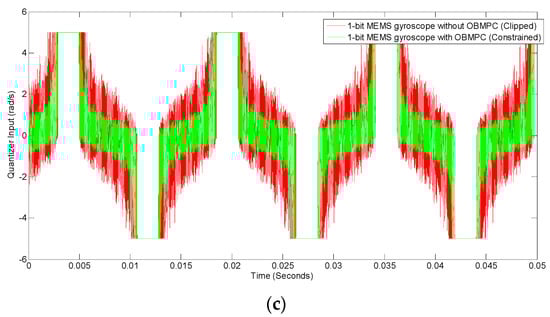

In this paper, a bi-level Delta-Sigma modulator-based MEMS gyroscope design is presented based on a Model Predictive Control (MPC) approach. The MPC is popular because of its capability of handling hard constraints. In this work, we propose to combine the 1-bit nature of the bi-level Delta-Sigma modulator output with the MPC to develop a 1-bit processing-based MPC (OBMPC). This paper will focus on the affine relationship between the 1-bit feedback and the in-loop MPC controller, as this can potentially remove the multipliers from the controller. In doing so, the computational requirement of the MPC control is significantly alleviated, which makes the 1-bit MEMS Gyroscope feasible for implementation. In addition, a stable constrained MPC is designed, so that the input will not overload the quantizer while maintaining a higher Signal-to-Noise Ratio (SNR). View Full-Text
Keywords: MEMS gyroscope; digital control; model predictive control; sigma delta modulation MEMS gyroscope; digital control; model predictive control; sigma delta modulation
Figures

Figure 1
