Interferometric DEM-Assisted High Precision Imaging Method for ArcSAR

1
School of Information Science and Technology, North China University of Technology (NCUT), Beijing 100144, China
2
Institute of Electronics, Chinese Academy of Science (IECAS), Beijing 100190, China
*
Author to whom correspondence should be addressed.
Sensors 2019, 19(13), 2921; https://doi.org/10.3390/s19132921
Received: 4 June 2019 / Revised: 26 June 2019 / Accepted: 28 June 2019 / Published: 1 July 2019
(This article belongs to the Special Issue Synthetic Aperture Radar (SAR) Techniques and Applications)
  |
PDF [7652 KB, uploaded 1 July 2019]
  |

Abstract

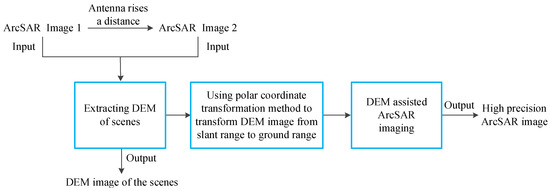

Ground-based arc-scanning synthetic aperture radar (ArcSAR) is the novel ground-based synthetic aperture radar (GBSAR). It scans 360-degree surrounding scenes by the antenna attached to rotating boom. Therefore, compared with linear scanning GBSAR, ArcSAR has larger field of view. Although the feasibility of ArcSAR has been verified in recent years, its imaging algorithm still presents difficulties. The imaging accuracy of ArcSAR is affected by terrain fluctuation. For rotating scanning ArcSAR, even if targets in scenes have the same range and Doppler with antenna, if the heights of targets are different, their range migration will be different. Traditional ArcSAR imaging algorithms achieve imaging on reference plane. The height difference between reference plane and target in scenes will cause the decrease of imaging quality or even image defocusing because the range migration cannot be compensated correctly. For obtaining high-precision ArcSAR image, we propose interferometric DEM (digital elevation model)-assisted high precision imaging method for ArcSAR. The interferometric ArcSAR is utilized to acquire DEM. With the assist of DEM, target in scenes can be imaged on its actual height. In this paper, we analyze the error caused by ArcSAR imaging on reference plane. The method of extracting DEM on ground range for assisted ArcSAR imaging is also given. Besides, DEM accuracy and deformation monitoring accuracy of proposed method are analyzed. The effectiveness of the proposed method was verified by experiments. View Full-Text
Keywords: synthetic aperture radar (SAR); ground-based synthetic aperture radar (GBSAR); arc-scanning synthetic aperture radar (ArcSAR); interferometric ArcSAR; DEM assisted SAR imaging synthetic aperture radar (SAR); ground-based synthetic aperture radar (GBSAR); arc-scanning synthetic aperture radar (ArcSAR); interferometric ArcSAR; DEM assisted SAR imaging
Figures

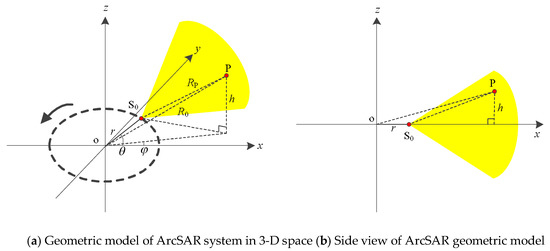

Figure 1
