Open AccessArticle
Sensors 2018, 18(5), 1313;

Design and Performance of a 1 ms High-Speed Vision Chip with 3D-Stacked 140 GOPS Column-Parallel PEs

Sony Semiconductor Solutions, Japan, 4-14-1 Asahi-cho, Atsugi-shi, Kanagawa 243-0014, Japan
Sony LSI Design, Japan, 4-16-1 Okada, Atsugi-shi, Kanagawa 243-0021, Japan
Graduate School of Information Science and Technology, The University of Tokyo, 7 Chome-3-1 Hongo, Bunkyō, Tokyo 113-8654, Japan
Author to whom correspondence should be addressed.
Received: 19 December 2017 / Revised: 15 March 2018 / Accepted: 9 April 2018 / Published: 24 April 2018
(This article belongs to the Special Issue Special Issue on the 2017 International Image Sensor Workshop (IISW))
Full-Text   |   PDF [4763 KB, uploaded 3 May 2018]   |

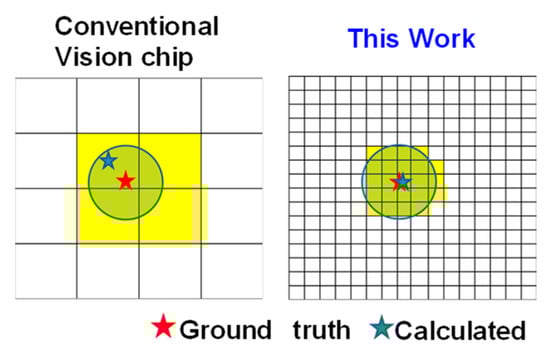

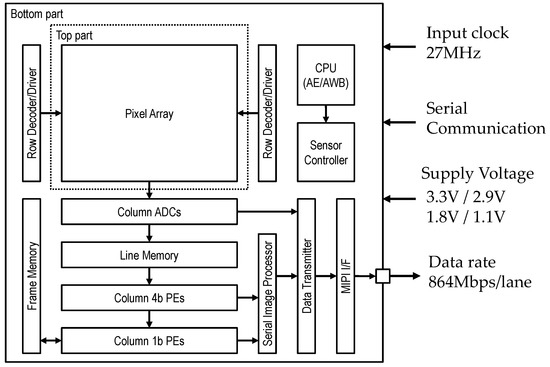

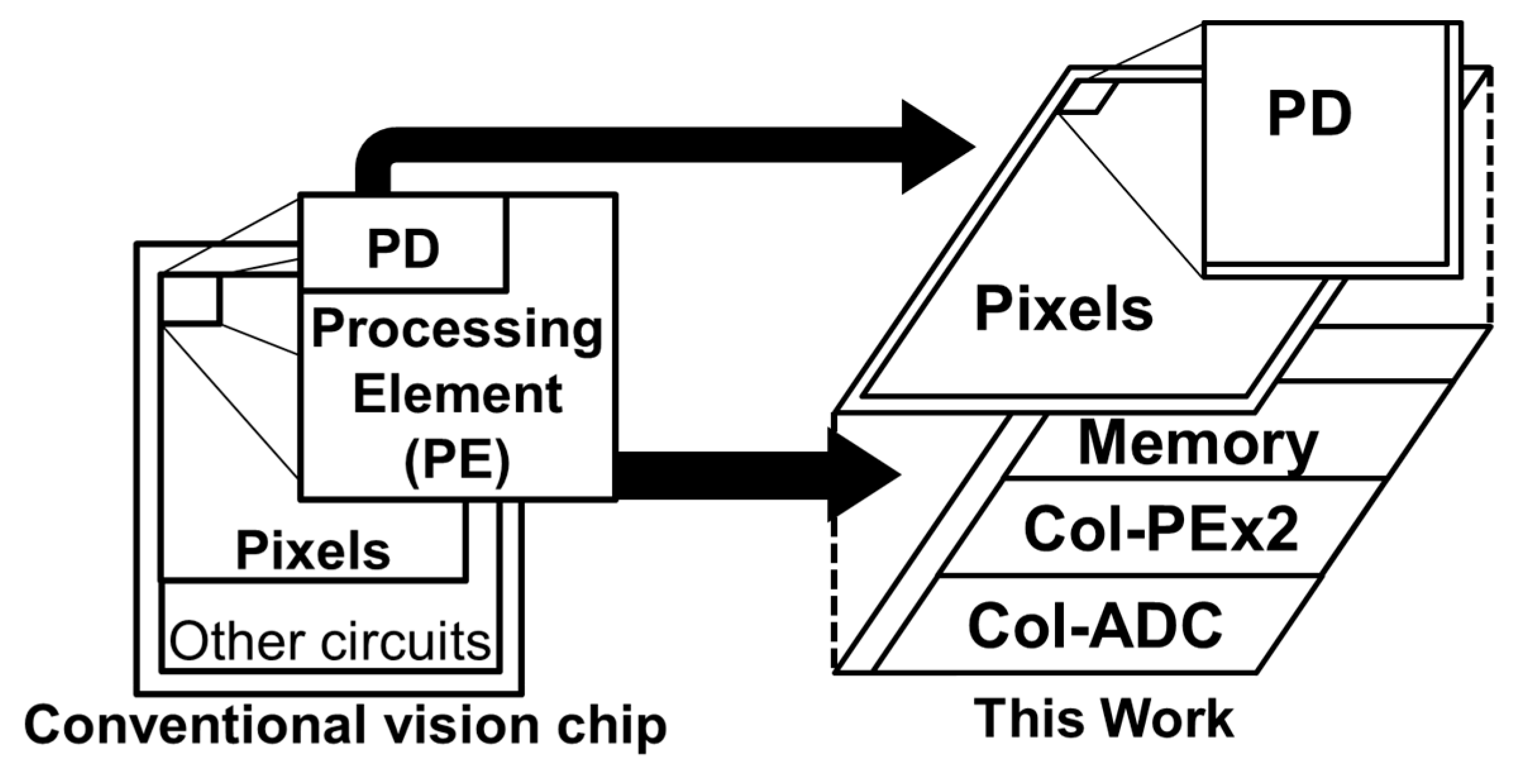

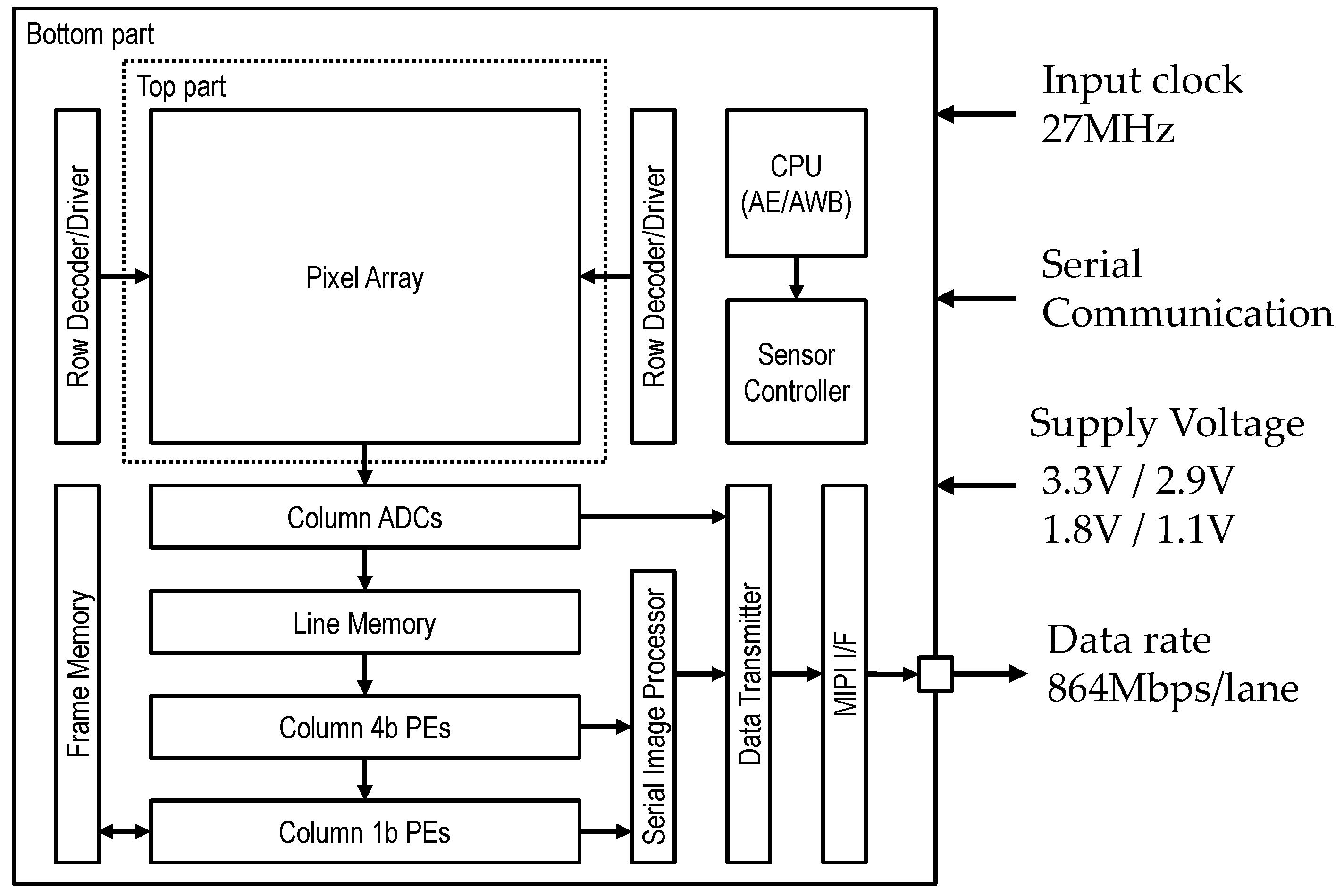

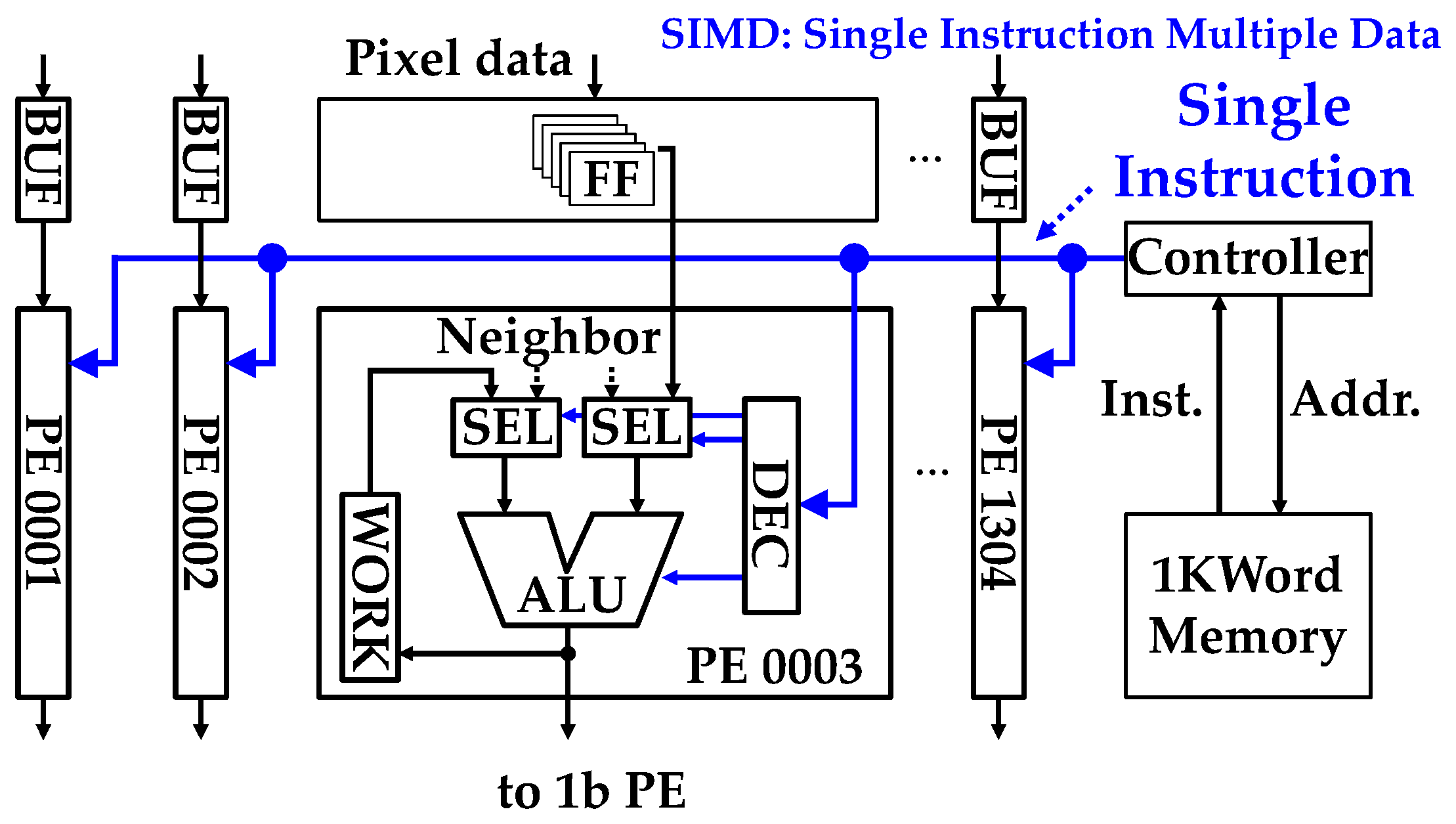

We have developed a high-speed vision chip using 3D stacking technology to address the increasing demand for high-speed vision chips in diverse applications. The chip comprises a 1/3.2-inch, 1.27 Mpixel, 500 fps (0.31 Mpixel, 1000 fps, 2 × 2 binning) vision chip with 3D-stacked column-parallel Analog-to-Digital Converters (ADCs) and 140 Giga Operation per Second (GOPS) programmable Single Instruction Multiple Data (SIMD) column-parallel PEs for new sensing applications. The 3D-stacked structure and column parallel processing architecture achieve high sensitivity, high resolution, and high-accuracy object positioning. View Full-Text
Keywords: vision chip; high-speed image sensor; detection; tracking vision chip; high-speed image sensor; detection; tracking

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Nose, A.; Yamazaki, T.; Katayama, H.; Uehara, S.; Kobayashi, M.; Shida, S.; Odahara, M.; Takamiya, K.; Matsumoto, S.; Miyashita, L.; Watanabe, Y.; Izawa, T.; Muramatsu, Y.; Nitta, Y.; Ishikawa, M. Design and Performance of a 1 ms High-Speed Vision Chip with 3D-Stacked 140 GOPS Column-Parallel PEs . Sensors 2018, 18, 1313.
