Sensors 2018, 18(1), 137; https://doi.org/10.3390/s18010137

Fast Alignment of SINS for Marching Vehicles Based on Multi-Vectors of Velocity Aided by GPS and Odometer

School of Instrumentation Science and Opto-electronics Engineering, Beihang University, Beijing 100191, China
*
Author to whom correspondence should be addressed.
Received: 8 November 2017 / Revised: 26 December 2017 / Accepted: 2 January 2018 / Published: 5 January 2018
(This article belongs to the Section Physical Sensors)
Full-Text   |   PDF [2594 KB, uploaded 8 January 2018]   |

Abstract

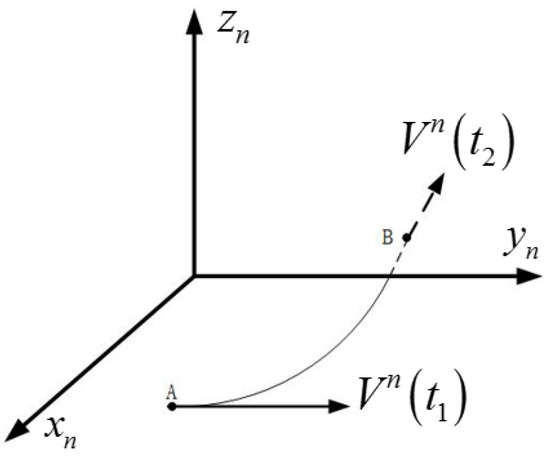

In the strap-down inertial navigation system (SINS), the initial attitude matrix is acquired through alignment. Though there were multiple valid methods, alignment time and accuracy are still core issues, especially regarding the condition of the motion carrier. Inspired by the idea of constructing nonlinear vectors by velocity in a different coordinate frame, this paper proposes an innovative alignment method for a vehicle-mounted SINS in motion. In this method, the core issue of acquiring the attitude matrix is to calculate the matrix between the inertial frame and the initial body frame, which can be constructed through the nonlinear velocity vectors’ information from the GPS and the odometer at different moments, which denominate the multi-vector attitude determination. The possibility of collinearity can easily be avoided by a turning movement. The characteristic of propagation of error is analyzed in detail, based on which an improved method is put forward to depress the effect of random noise. Compared with the existing alignment methods, this method does not use the measurement information of accelerometers. In order to demonstrate its performance, the method is compared with the two-position alignment method and the traditional two-stage alignment method. Simulation and vehicle-based experiment results show that the proposed alignment method can establish an attitude reference in 100 s with an azimuth error of less than 0.06°, and that the accuracy does not have a strong correlation with the accelerometer. View Full-Text
Keywords: vehicle-mounted SINS; fast alignment for marching base; multi-vector attitude determination; error propagation characteristic; GPS and Odometer vehicle-mounted SINS; fast alignment for marching base; multi-vector attitude determination; error propagation characteristic; GPS and Odometer
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Zhang, C.; Ran, L.; Song, L. Fast Alignment of SINS for Marching Vehicles Based on Multi-Vectors of Velocity Aided by GPS and Odometer. Sensors 2018, 18, 137.
