# Orthogonal Chirp-Based Ultrasonic Positioning

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Ultrasonic Positioning

#### 2.1. Lateration

#### 2.2. Cross-Correlation

## 3. Description of Problem

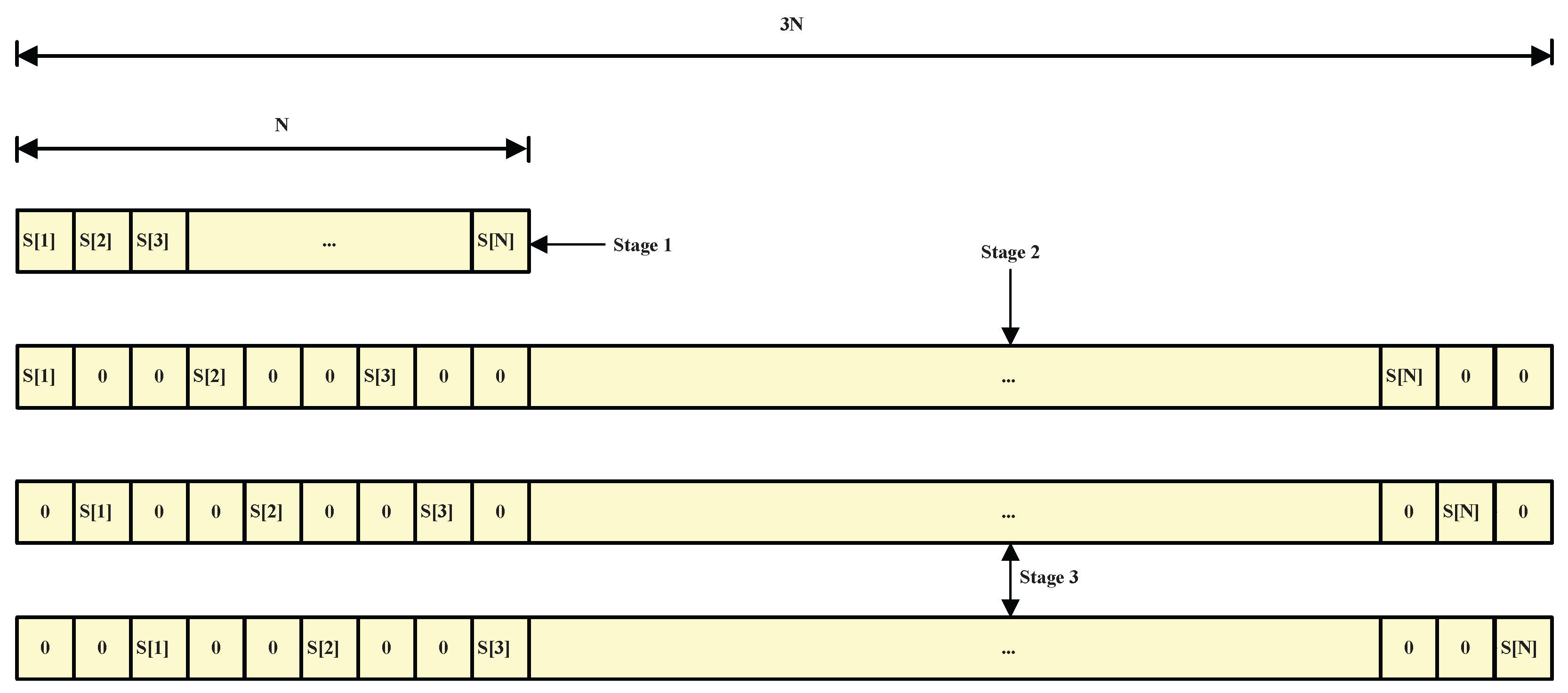

## 4. Orthogonal Chirp Waveforms for Multiple Access Ultrasonic Positioning

## 5. Performance Evaluation of Orthogonal Chirp Waveforms

## 6. Simulation Results

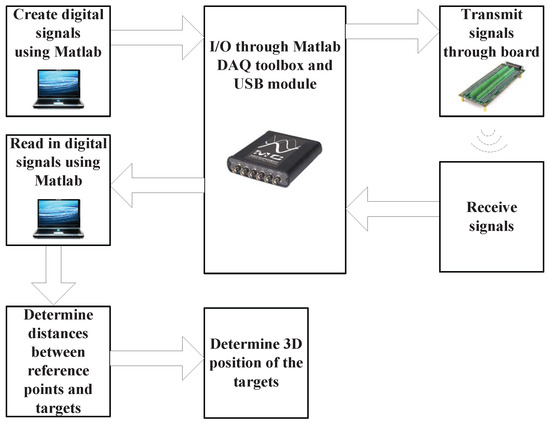

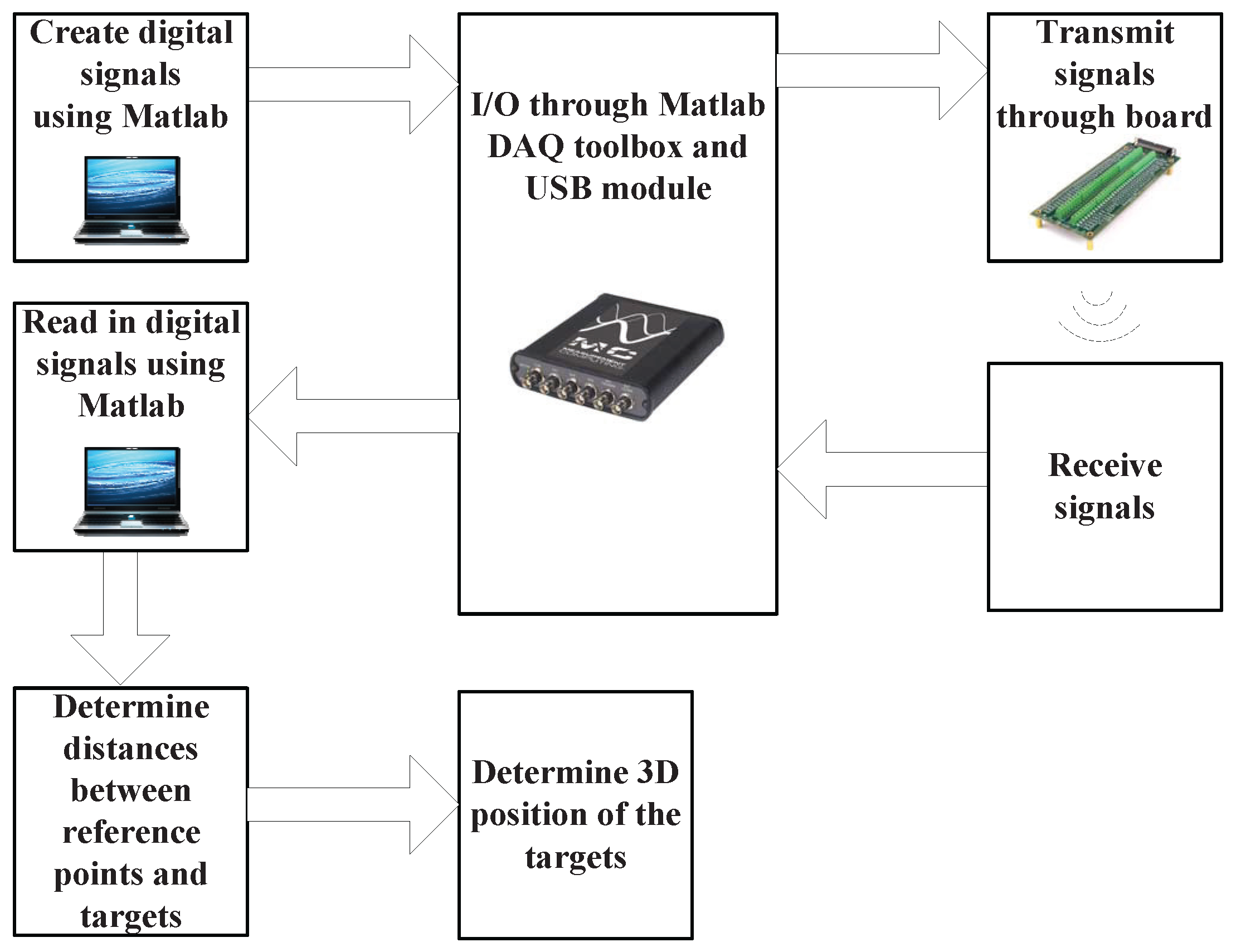

## 7. Experimental Procedure

## 8. Results and Discussions

## 9. Conclusions and Future Work

## Author Contributions

## Conflicts of Interest

## Abbreviations

3D | three-dimensional |

CDMA | code division multiple access |

DSSS | direct sequence spread spectrum |

FDM | frequency-division multiplixing |

FHSS | frequency hopped spread spectrum |

FM | frequency-modulated |

MAI | multiple-access interference |

OFDM | orthogonal frequency-division multiplixing |

RMSE | root-mean-square-error |

SNR | signal-to-noise ratio |

TDM | time-division multiplixing |

TOF | time-of-flight |

UPS | ultrasonic positioning system |

US | ultrasonic |

## References

- Priyantha, N.B.; Chakraborty, A.; Balakrishnan, H. The Cricket Location-Support System. In Proceedings of the 6th Annual International Conference on Mobile computing and Networking, Boston, MA, USA, 6–11 August 2000; pp. 32–43. [Google Scholar]
- Saad, M.M.; Bleakley, C.J.; Ballal, T.; Dobson, S. High-accuracy reference-free ultrasonic location estimation. IEEE Trans. Inst. Meas.
**2012**, 61, 1561–1570. [Google Scholar] [CrossRef] - Alloulah, M.; Hazas, M. An Efficient CDMA Core for Indoor Acoustic Position Sensing. In Proceedings of the International Conference on Indoor Positioning and Indoor Navigation, Zürich, Switzerland, 15–17 September 2010; pp. 15–17. [Google Scholar]
- Hazas, M.; Hopper, A. Broadband ultrasonic location systems for improved indoor positioning. IEEE Trans. Mob. Comp.
**2006**, 5, 536–547. [Google Scholar] [CrossRef] - De Angelis, A.; Moschitta, A.; Carbone, P.; Calderini, M.; Neri, S.; Borgna, R.; Peppucci, M. Design and characterization of a portable ultrasonic indoor 3-D positioning system. IEEE Trans. Inst. Meas.
**2015**, 64, 2616–2625. [Google Scholar] [CrossRef] - Segers, L.; Bavegem, D.V.; Winne, S.D.; Braeken, A.; Touhafi, A.; Steenhaut, K. Broadband. An ultrasonic multiple-access ranging core based on frequency shift keying towards indoor localization. Sensors
**2015**, 15, 18641–18665. [Google Scholar] [CrossRef] [PubMed] - Segers, L.; Tiete, J.; Braeken, A.; Touhafi, A. Ultrasonic multiple-access ranging system using spread spectrum and MEMS technology for indoor localization. Sensors
**2015**, 15, 3172–3187. [Google Scholar] [CrossRef] [PubMed] - Kim, S.; Kim, B. Accurate hybrid global selflocalization algorithm for indoor mobile robots with two-dimensional isotropic ultrasonic receivers. IEEE Trans. Instrum. Meas.
**2011**, 60, 3391–3404. [Google Scholar] [CrossRef] - Yayan, U.; Yucel, H.; Yazici, A. A low cost ultrasonic based positioning system for the indoor navigation of mobile robots. J. Intell. Robot. Syst.
**2015**, 78, 541–552. [Google Scholar] [CrossRef] - Ogris, G.; Stiefmeier, T.; Junker, H.; Lukowicz, P.; Troster, G. Using Ultrasonic Hand Tracking to Augment Motion Analysis Based Recognition of Manipulative Gestures. In Proceedings of the 9th IEEE International Symposium on Wearable Computers, Osaka, Japan, 18–21 October 2005; pp. 152–159. [Google Scholar]
- Jackson, J.C.; Summan, R.; Dobie, G.I.; Whiteley, S.M.; Pierce, S.G.; Hayward, G. Time-of-flight measurement techniques for airborne ultrasonic ranging. IEEE Trans. Ultrason. Ferroelectr. Freq. Control
**2013**, 60, 343–355. [Google Scholar] [CrossRef] [PubMed] - Queiros, R.; Alegria, F.C.; Girao, P.S.; Serra, A.C. Cross–Correlation and Sine-Fitting Techniques for High–Resolution Ultrasonic Ranging. IEEE Trans. Instrum. Meas.
**2010**, 59, 3227–3236. [Google Scholar] [CrossRef] - Lazik, P.; Rowe, A. Indoor Pseudo-Ranging of Mobile Devices Using Ultrasonic Chirps. In Proceedings of the 10th ACM Conference on Embedded Network Sensor Systems, Toronto, ON, Canada, 6–9 November 2012; pp. 99–112. [Google Scholar]
- Shen, H.; Machineni, S.; Gupta, C.; Papandreou-Suppappola, A. Time-varying multichirp rate modulation for multiple access systems. IEEE Sig. Proc. Lett.
**2004**, 11, 497–500. [Google Scholar] [CrossRef] - Misra, P.; Kottege, N.; Kusy, B.; Ostry, D.; Jha, S. Acoustical ranging techniques in embedded wireless sensor networked devices. ACM Trans. Sens. Netw.
**2011**, 10, 15. [Google Scholar] [CrossRef] - Ward, A.; Jones, A.; Hopper, A. A new location technique for the active office. IEEE Pers. Commun.
**1997**, 4, 42–47. [Google Scholar] [CrossRef] - Khyam, M.O.; Alam, M.J.; Lambert, A.J.; Garratt, M.A.; Pickering, M.R. High-Precision OFDM-Based Multiple Ultrasonic Transducer Positioning Using a Robust Optimization Approach. IEEE Sens. J.
**2016**, 16, 5325–5336. [Google Scholar] [CrossRef] - Seco, F.; Prieto, J.C.; Ruiz, A.R.J.; Guevara, J. Compensation of multiple access interference effects in CDMA-based acoustic positioning systems. IEEE Trans. Instrum. Meas.
**2014**, 64, 2368–2378. [Google Scholar] [CrossRef] - Kim, J. H.; Younis, M.; Moreira, A.; Wiesbeck, W. Spaceborne MIMO synthetic aperture radar for multimodal operation. IEEE Trans. Geosci. Remote Sens.
**2015**, 53, 2453–2466. [Google Scholar] [CrossRef] - Saad, M.M.; Bleakley, C.J.; Dobson, S. Robust high-accuracy ultrasonic range measurement system. IEEE Trans. Instrum. Meas.
**2011**, 60, 3334–3341. [Google Scholar] [CrossRef] - Lee, H.; Kim, T.H.; Choi, J.W.; Choi, S. Chirp Signal-Based Aerial Acoustic Communication for Smart Devices. In Proceedings of the IEEE Conference on Computer Communications, Hong Kong, China, 26 April–1 May 2015; pp. 2407–2415. [Google Scholar]
- USB-1604HS-2AO DAQ User’s Guide. Available online: http://www.mccdaq.com/PDFs/Manuals/USB-1604HS-2AO.pdf (accessed on 25 April 2017).

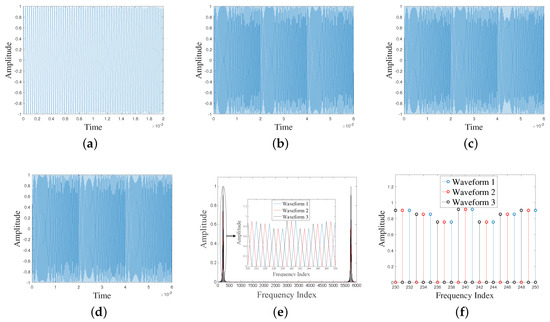

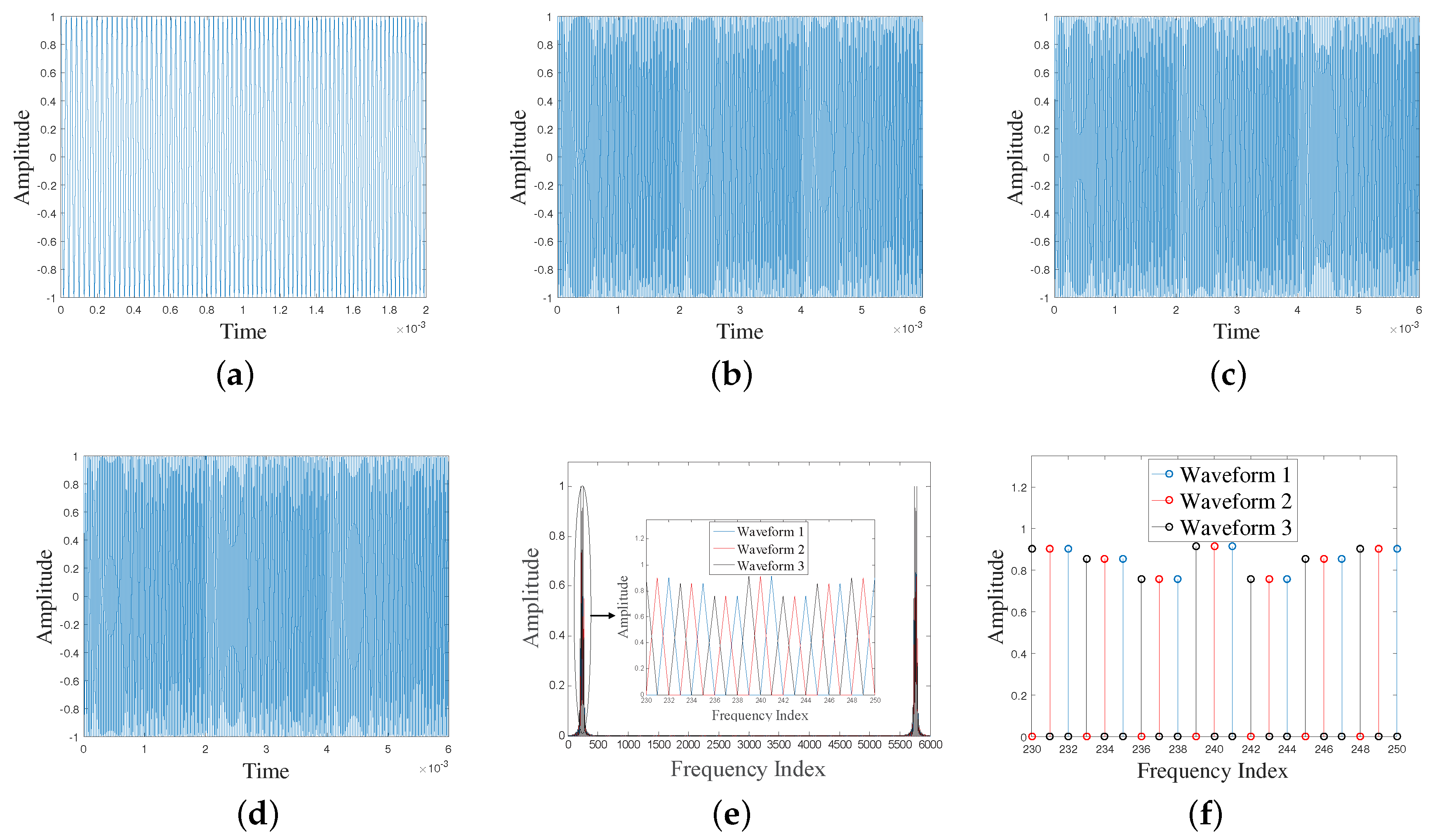

**Figure 2.**(

**a**) 35–45 kHz/2 ms chirp in time domain with sampling frequency 1 MHz; (

**b**–

**d**) three orthogonal chirp waveforms respectively, generated from (

**a**); (

**e**) corresponding frequency spectra of the three orthogonal chirp waveforms shown in (

**b**–

**d**); and (

**f**) stem graph of the zoom plot of (

**e**).

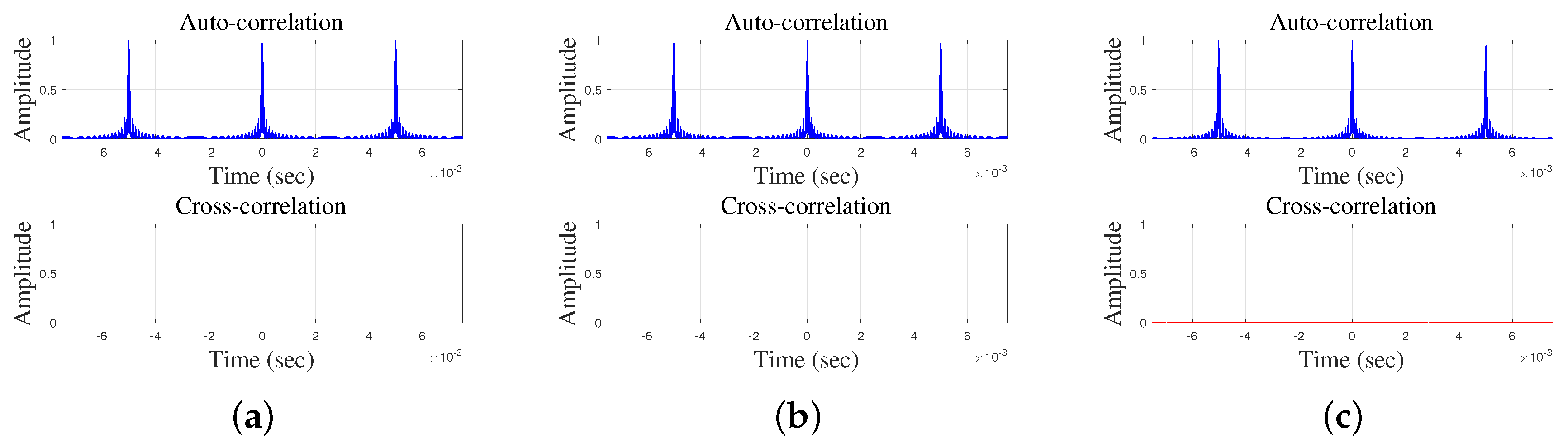

**Figure 3.**Comparisons of auto-correlations and cross-correlations of three waveforms for the proposed method: (

**a**) waveforms 1 and 2; (

**b**) waveforms 1 and 3; and (

**c**) Waveforms 2 and 3.

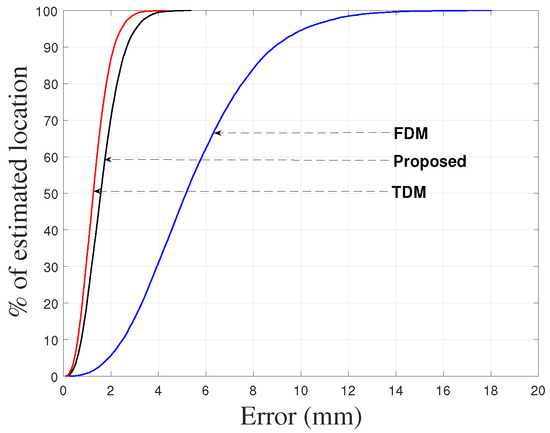

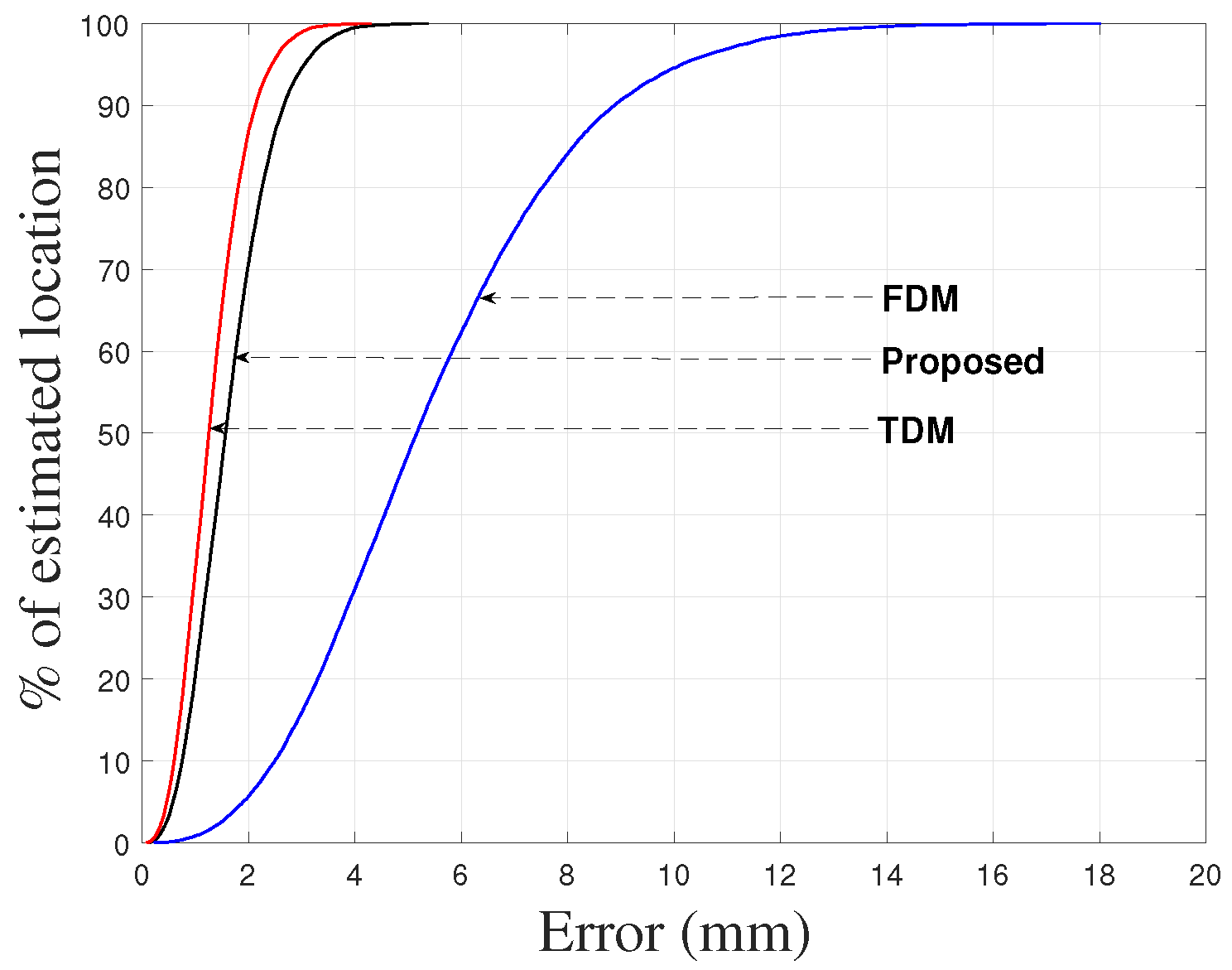

**Figure 4.**Cumulative absolute location errors (from simulations) of target (receiver) obtained for the proposed, TDM and FDM techniques.

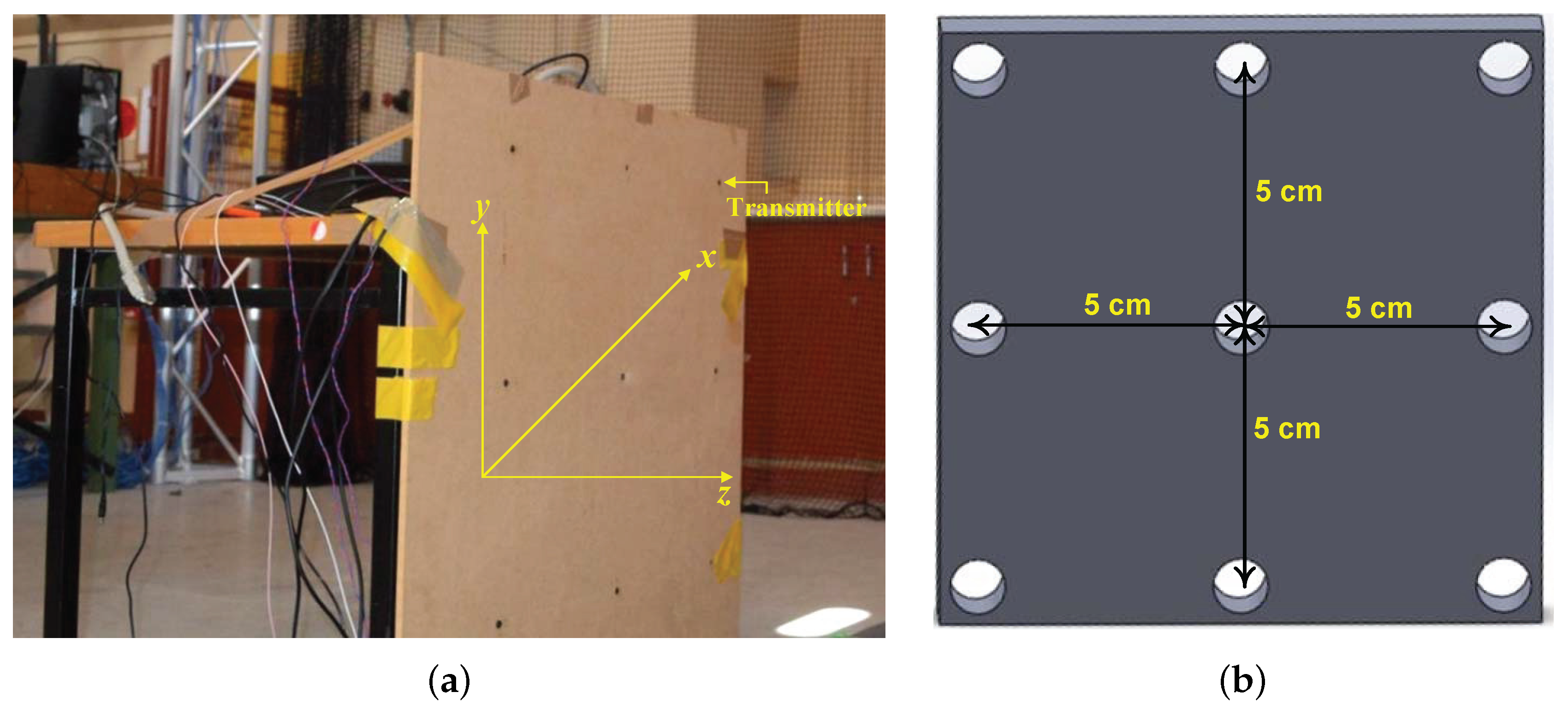

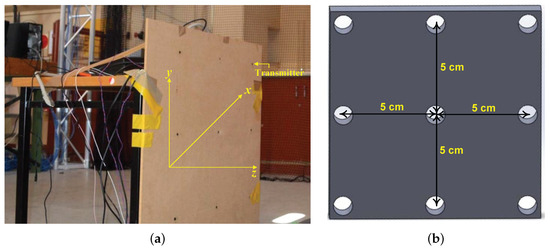

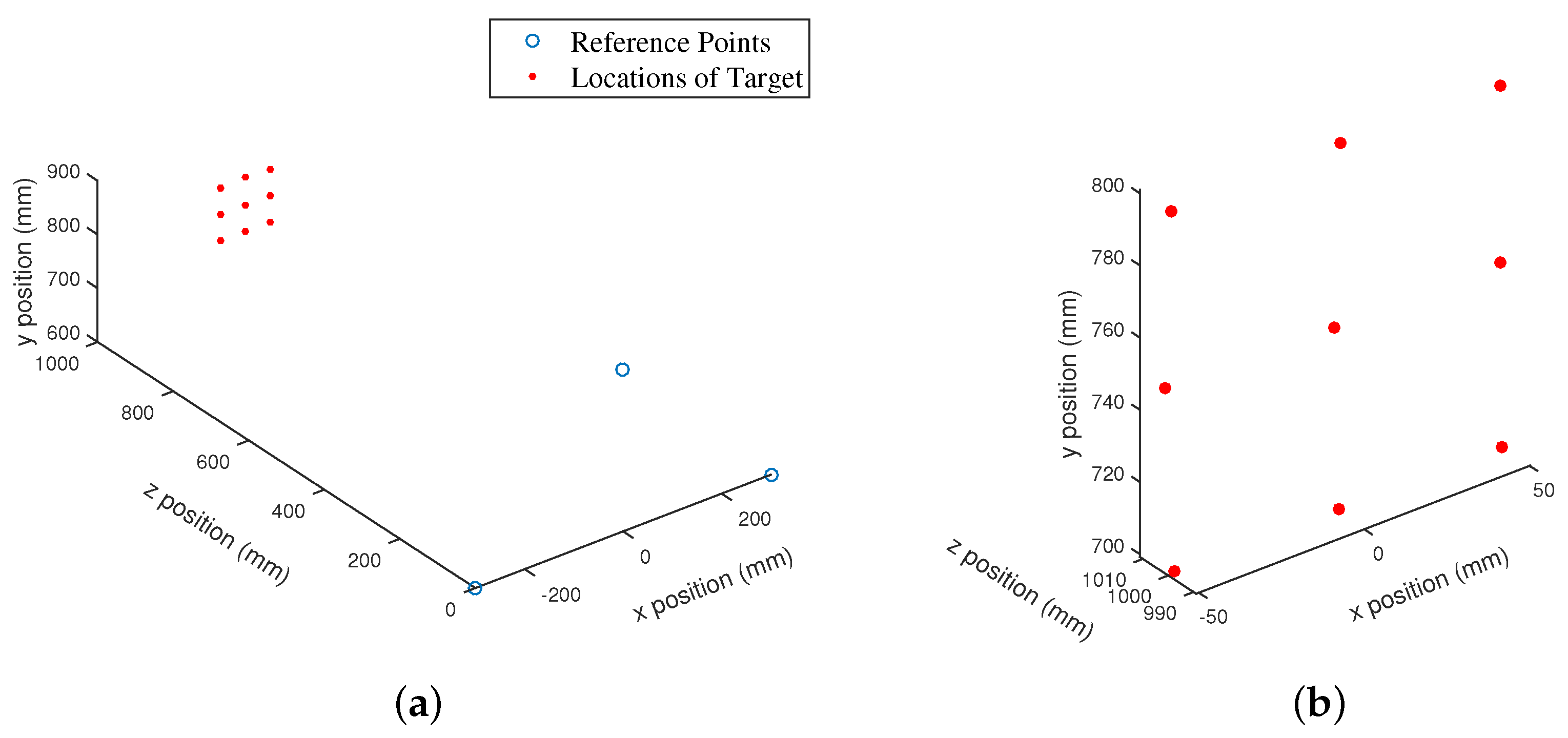

**Figure 7.**(

**a**) A test case from the experimental results that represents the positioning of transmitters and receivers; and (

**b**) zoomed version of the position of the receivers.

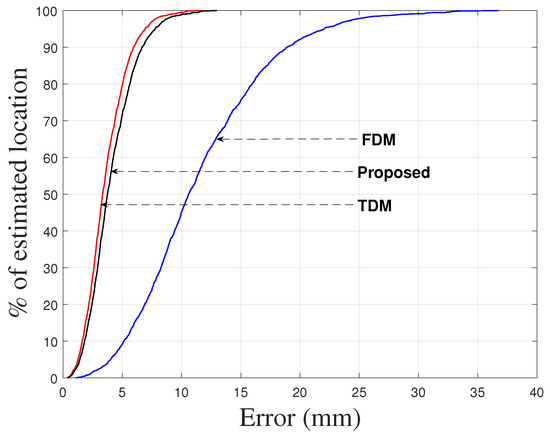

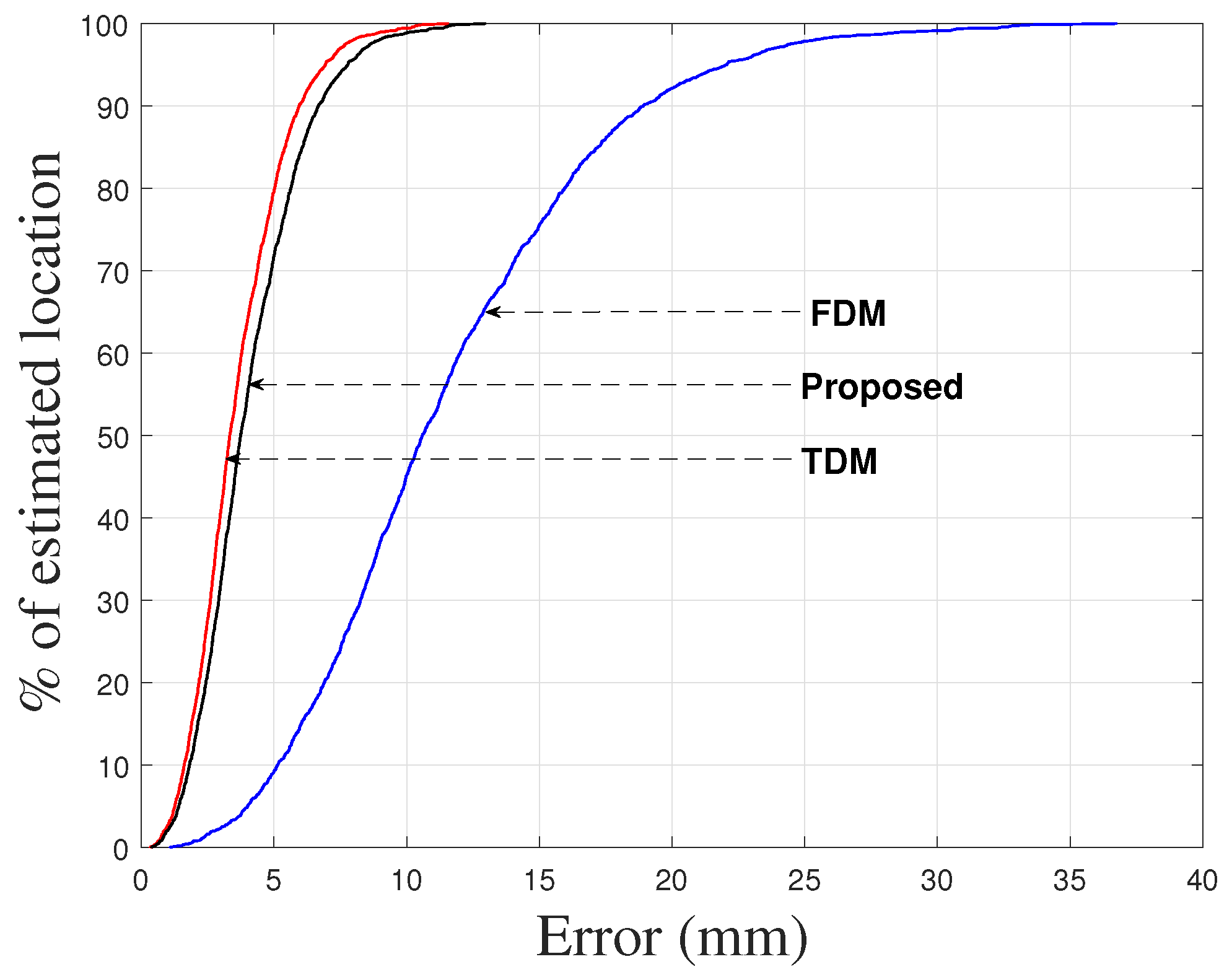

**Figure 8.**Cumulative absolute location errors (from experiments) of receiver obtained for the proposed, TDM and FDM techniques.

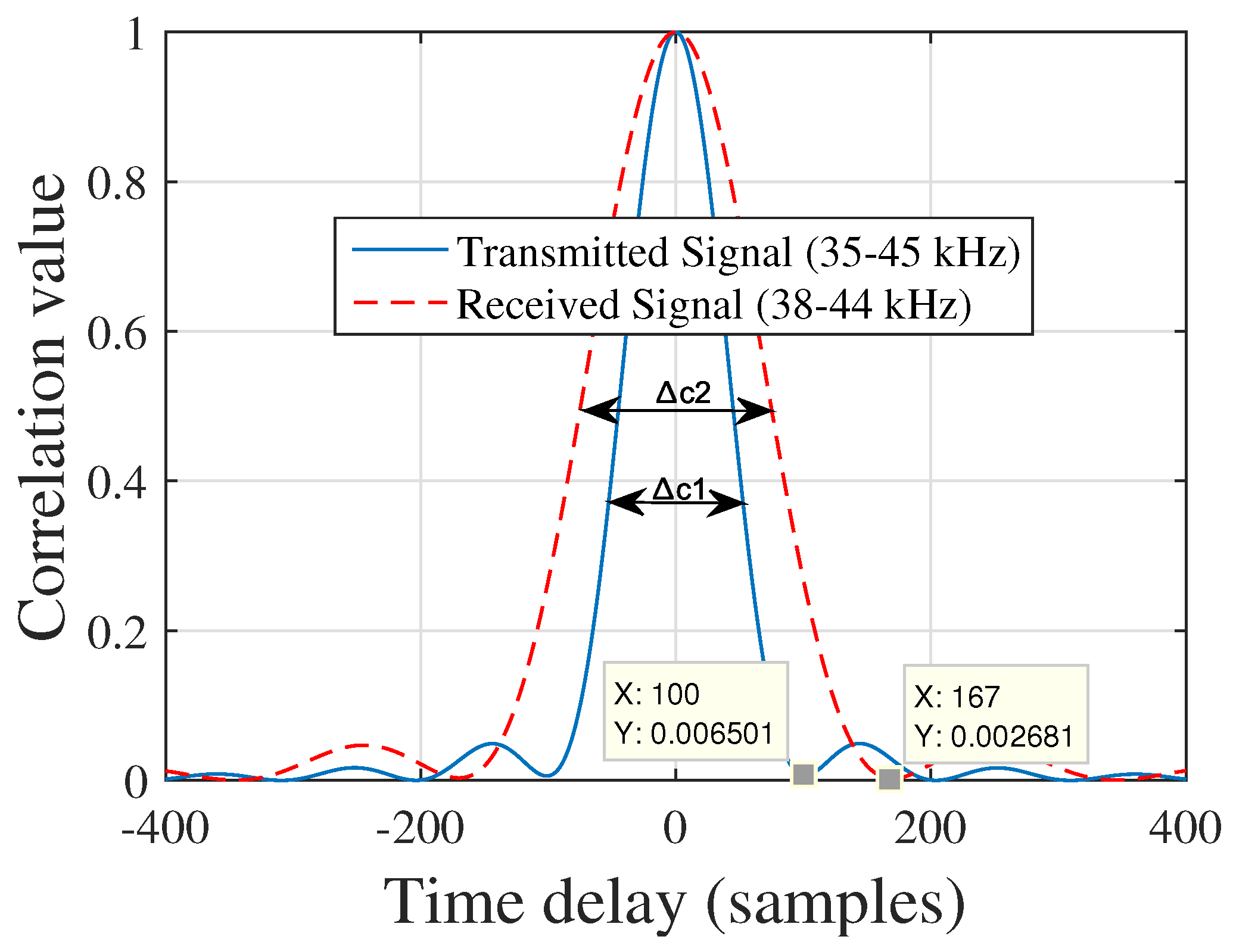

**Figure 9.**Auto-correlation width of the transmitted and received signal where the correlation width ($\mathsf{\Delta}c1$) 100 and ($\mathsf{\Delta}c2$) 167 refers 10 kHz and 6 kHz respectively according to the formula $\mathsf{\Delta}c\simeq \pm \frac{1}{{T}_{s}B}$ [15].

**Table 1.**Coordinates of the 3D rectangular room, and ideal positions of the reference points and target transducer ($\mathrm{cm}$).

x | y | z | |
---|---|---|---|

Room (top left corner) | −300 | 300 | 0 |

Room (bottom right corner) | 300 | 0 | 0 |

Reference Point 1 | −60 | 60 | 0 |

Reference Point 2 | 60 | 60 | 0 |

Reference Point 3 | 0 | 120 | 0 |

Target | −5 | 95 | 100 |

**Table 2.**Absolute location errors (from simulations and experiments) of receiver obtained for the proposed, TDM and FDM techniques in terms of 90% Error and RMSE ($\mathrm{mm}$).

Technique | Proposed | TDM | FDM |
---|---|---|---|

RMSE & 90% Error (from simulations) | 1.82 & 2.67 | 1.45 & 2.13 | 6.04 & 8.87 |

RMSE & 90% Error (from experiments) | 4.54 & 6.68 | 4.05 & 5.95 | 12.86 & 18.92 |
