Real-time Imaging Orientation Determination System to Verify Imaging Polarization Navigation Algorithm
Abstract
:1. Introduction
2. Fundamentals of Instrument Description
2.1. Principle of the System

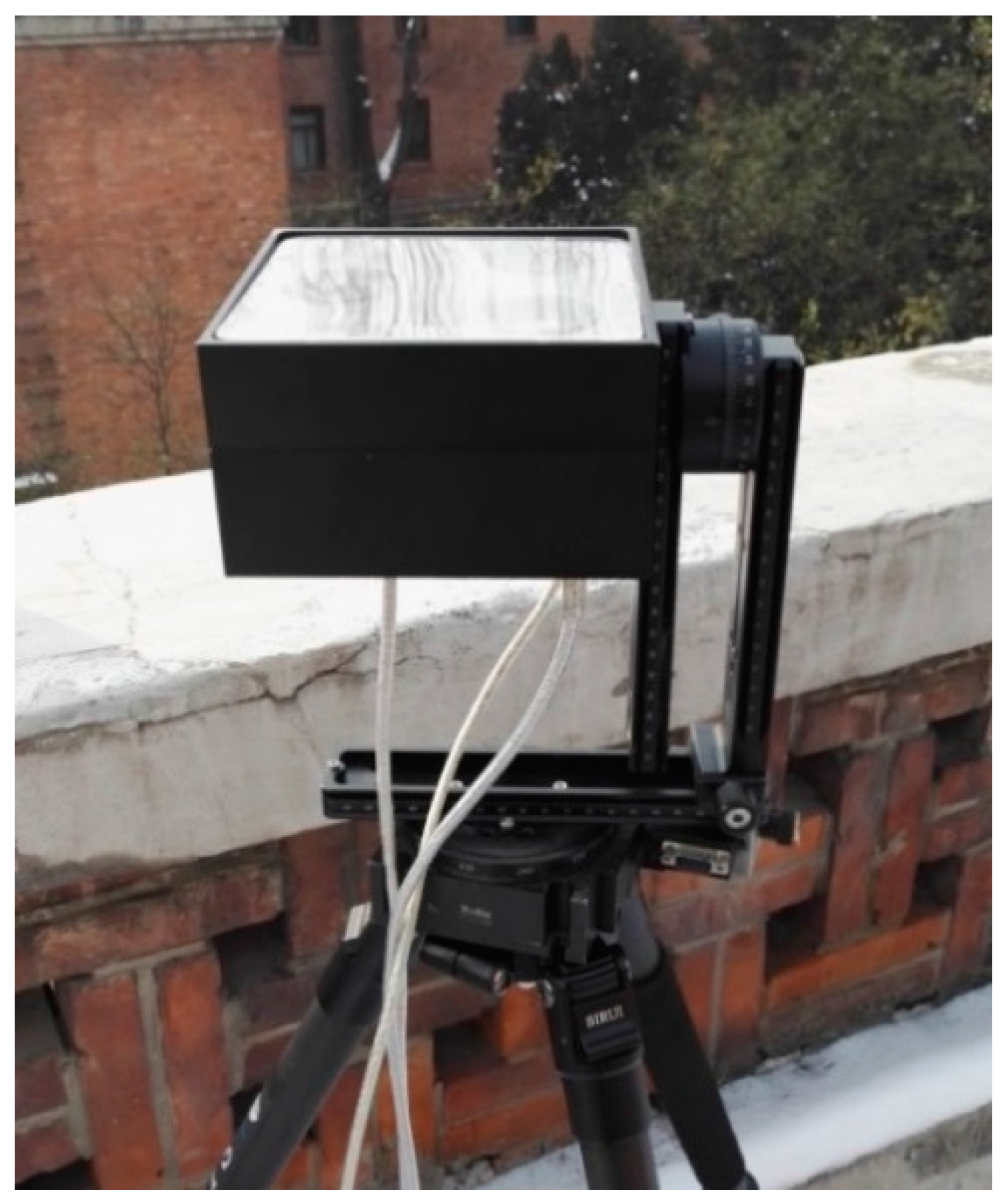

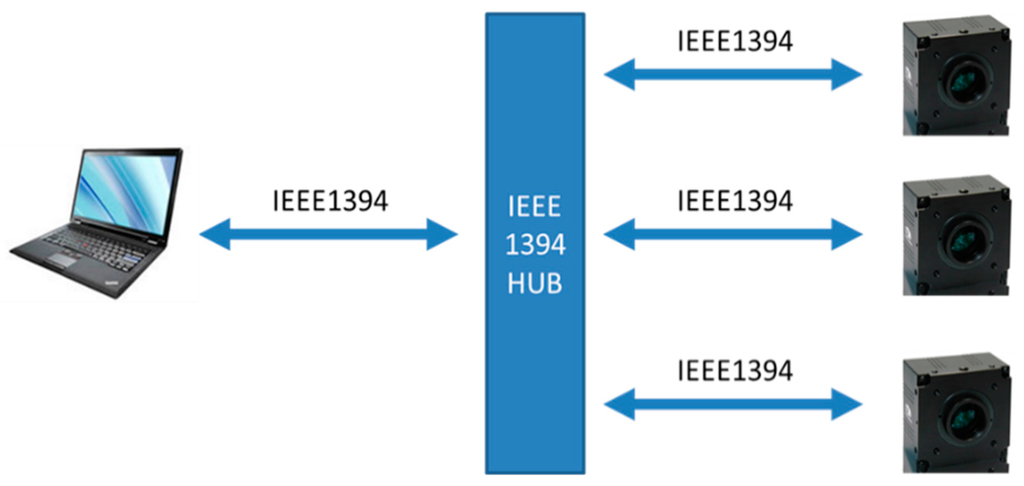

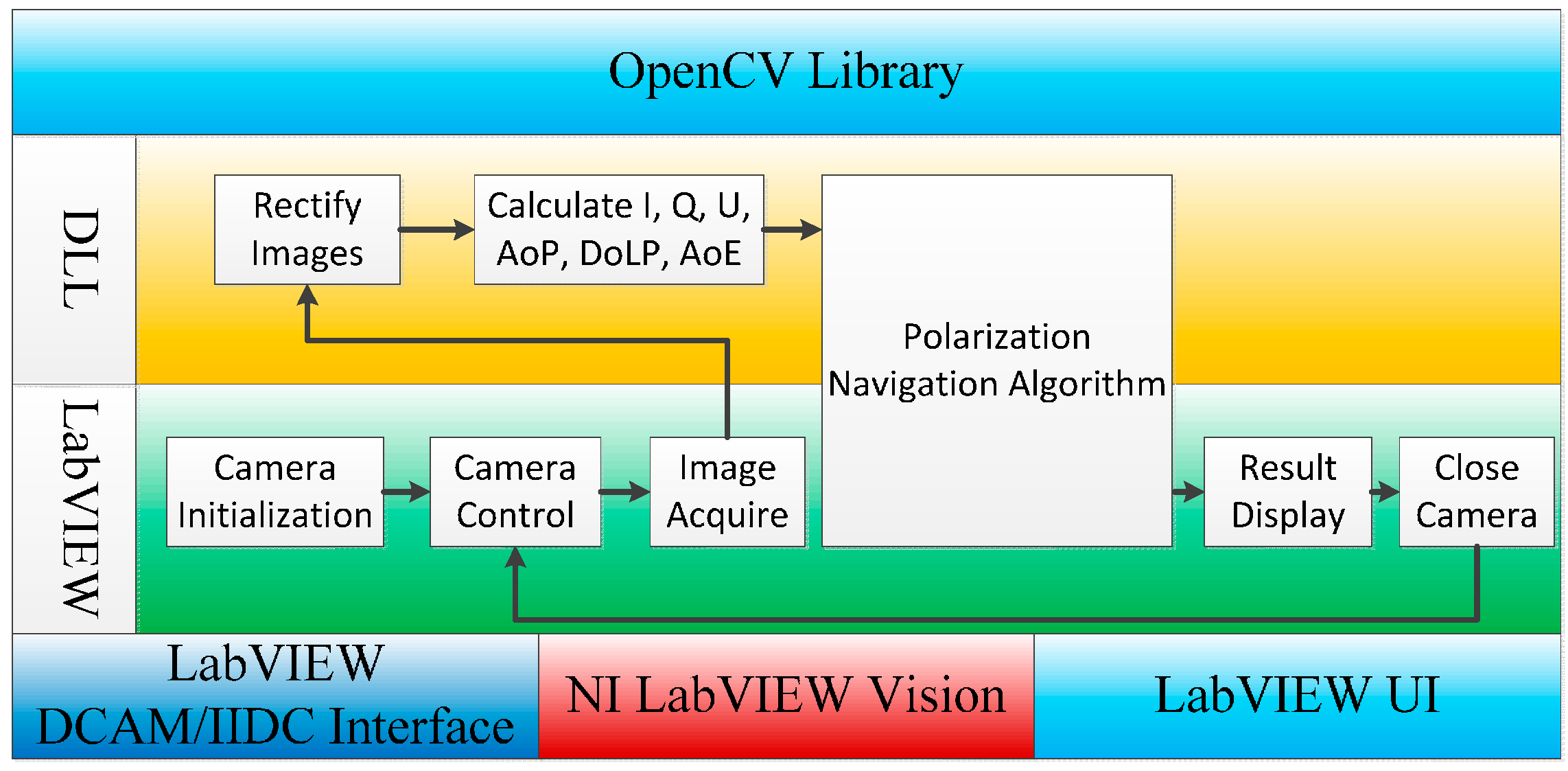

2.2. Structure of the System
3. Calibration

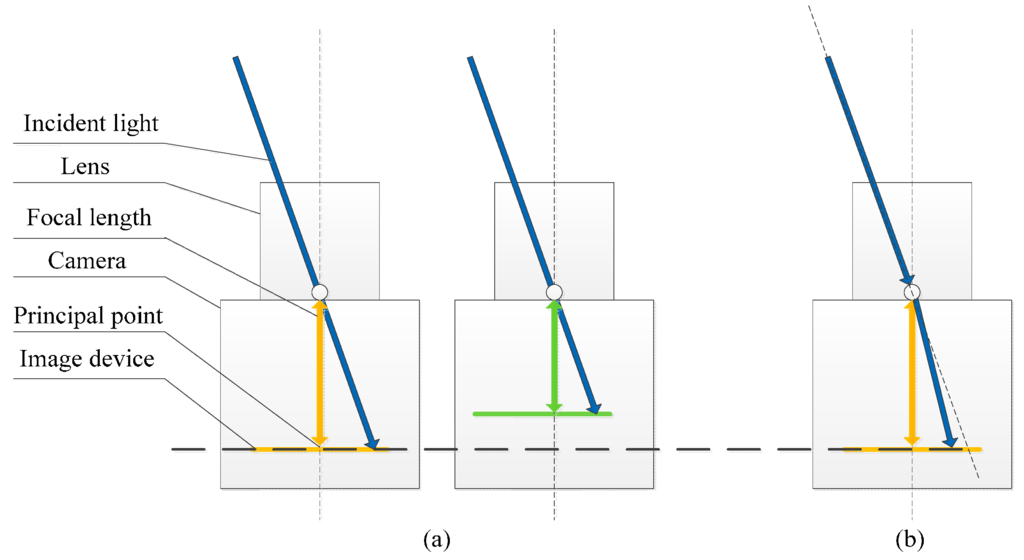

3.1. Calibration of Camera Parameters

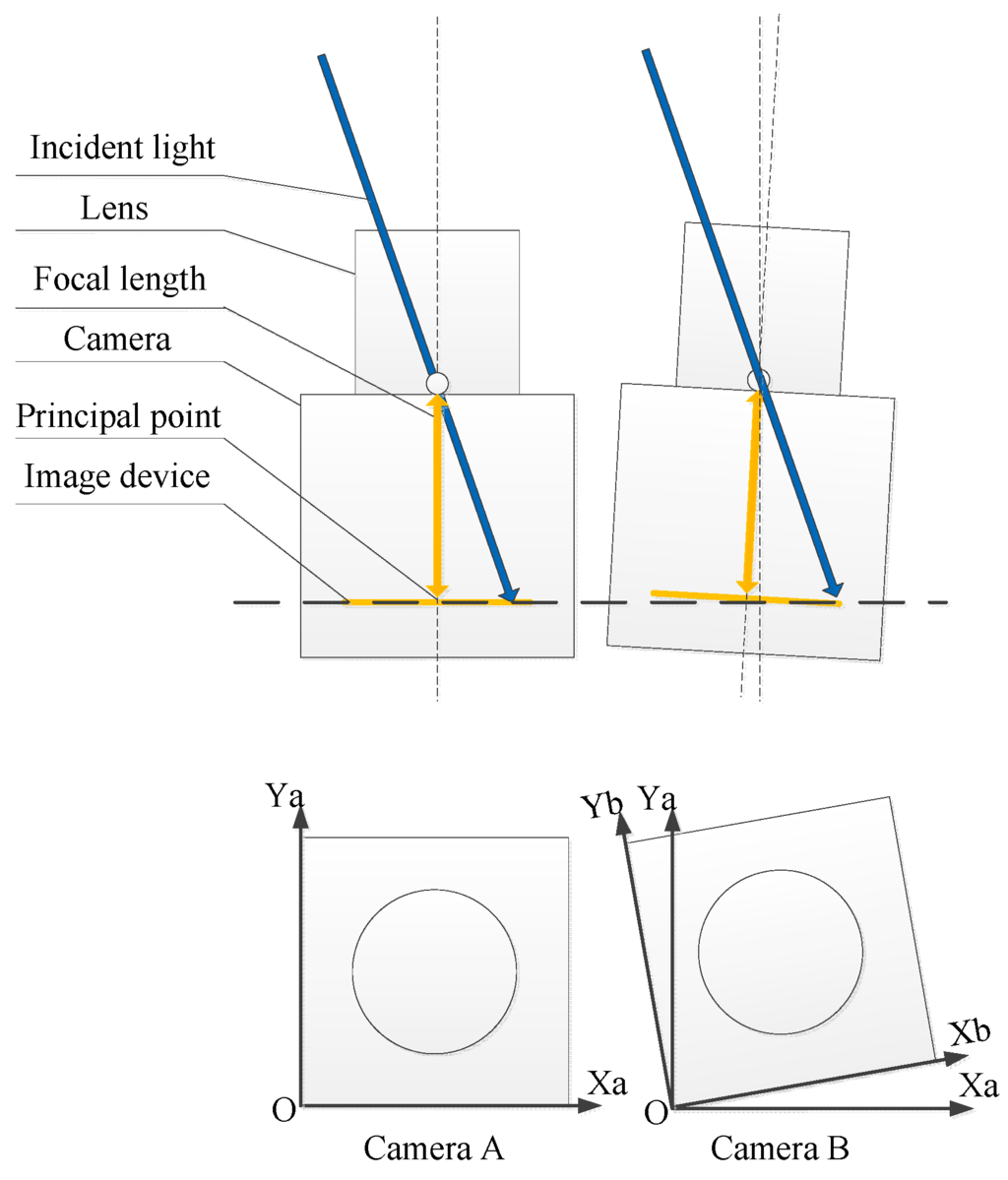

3.2. Calibration of Inconsistency of Cameras

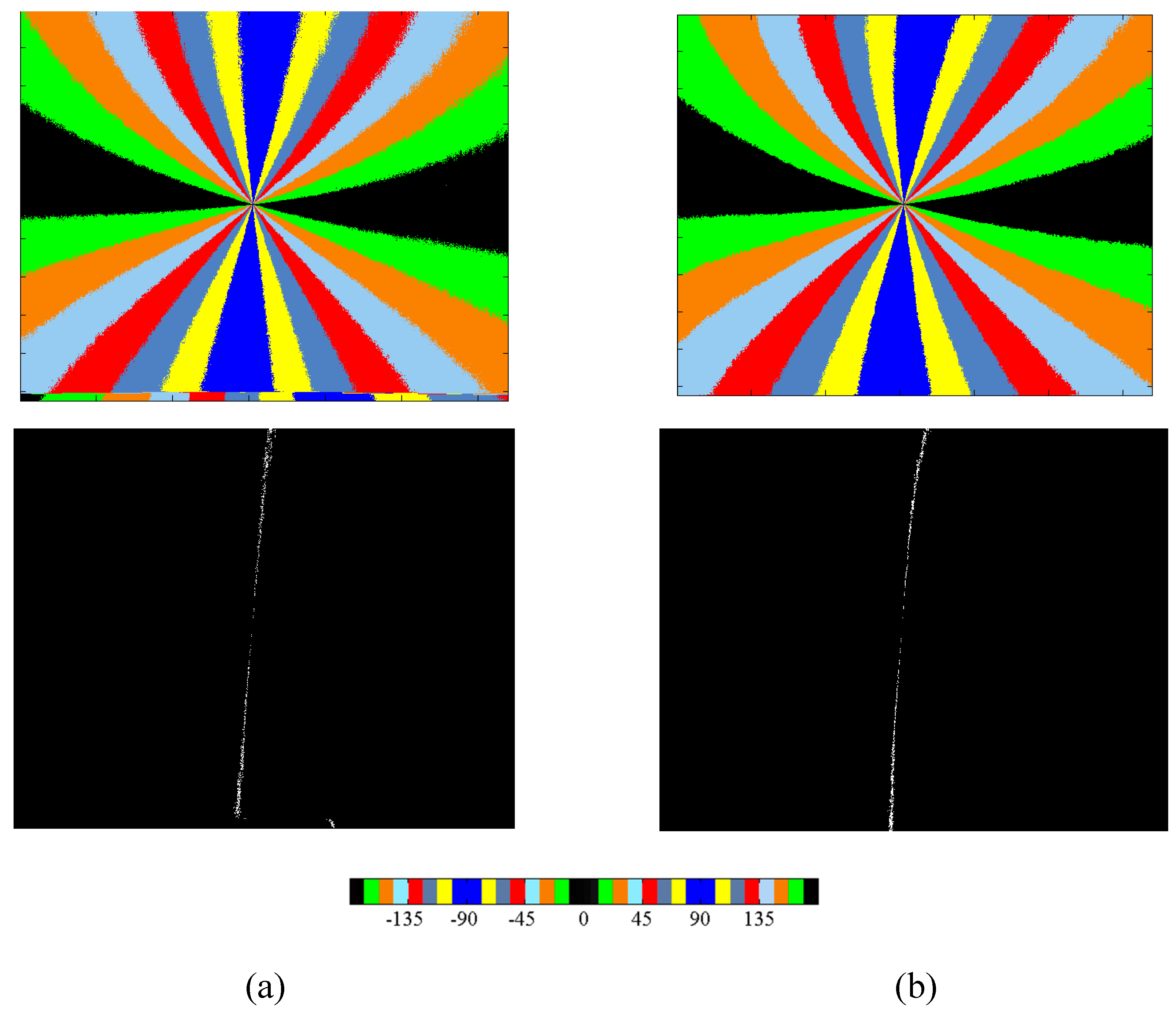

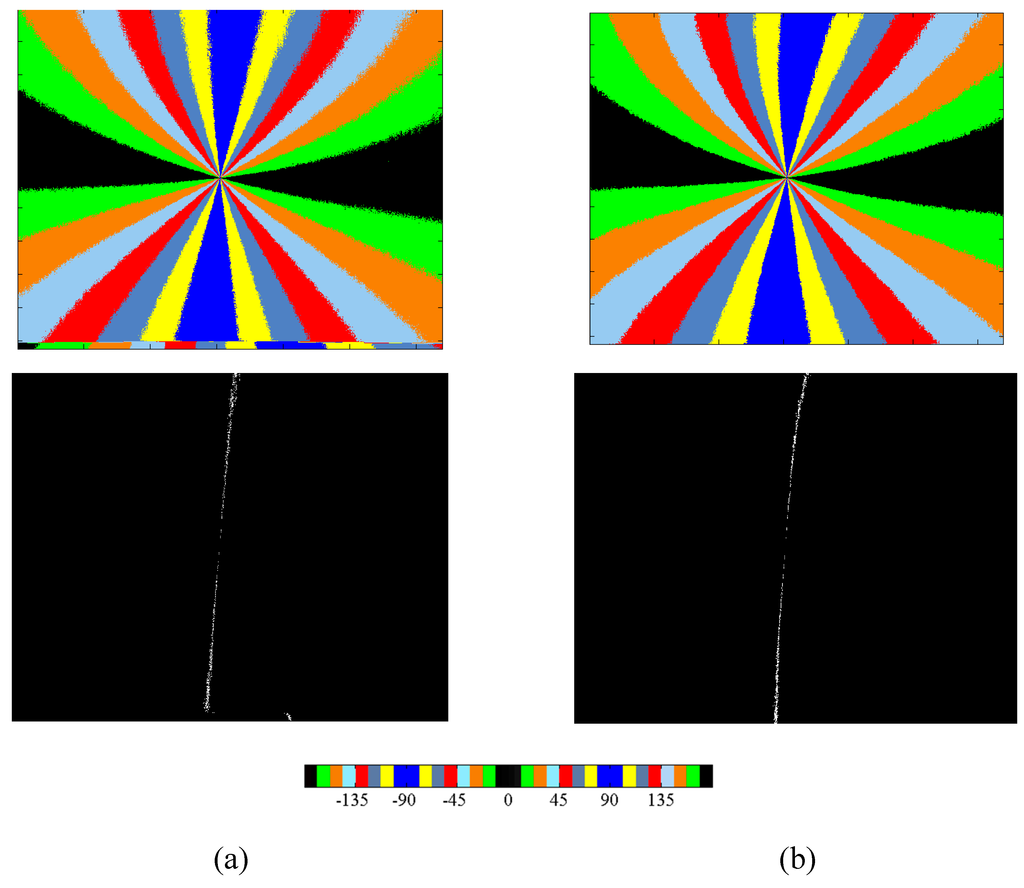

3.3. Correction

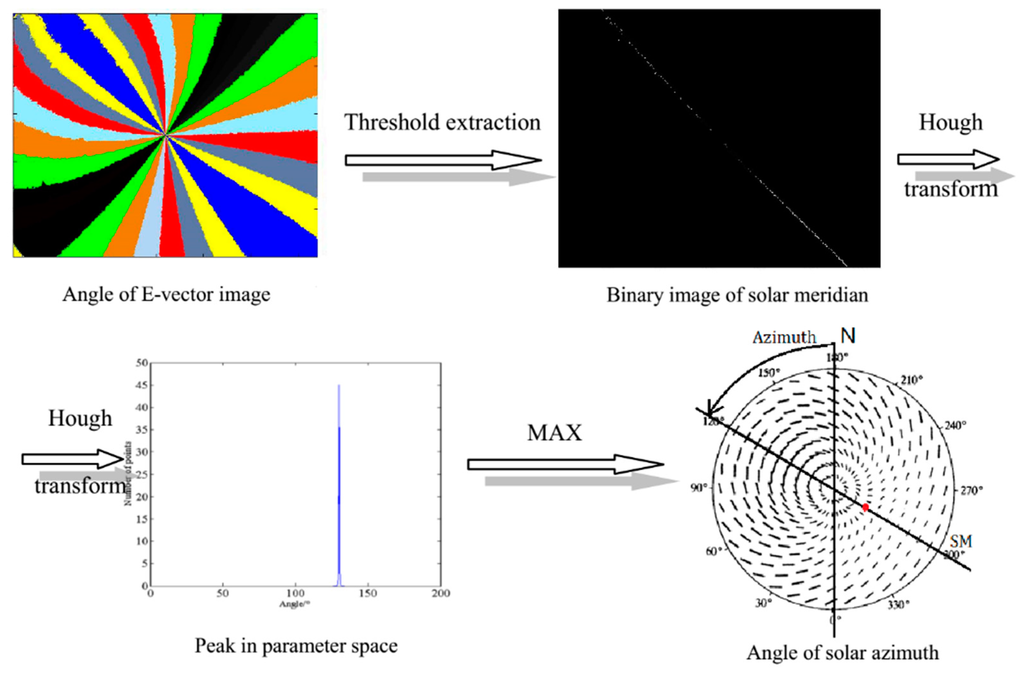

4. Polarization Navigation Algorithm
5. Experimental Results
5.1. Calibration Results
Camera A | Camera B | Camera C | |
---|---|---|---|
Intrinsic parameters | |||
Principal point | (616.68, 510.45) | (651.25, 560.96) | (643.76, 525.58) |
Focal length | (1622.43, 1621.89) | (1619.19, 1619.91) | (1616.81, 1616.49) |
Distortion coefficient | [−0.104 0.125] | [−0.091 0.059] | [−0.092 0.032] |
Extrinsic parameters | |||
[0 0 0] | [−0.014 0.013 −0.002] | [−0.014 0.0150.002] |

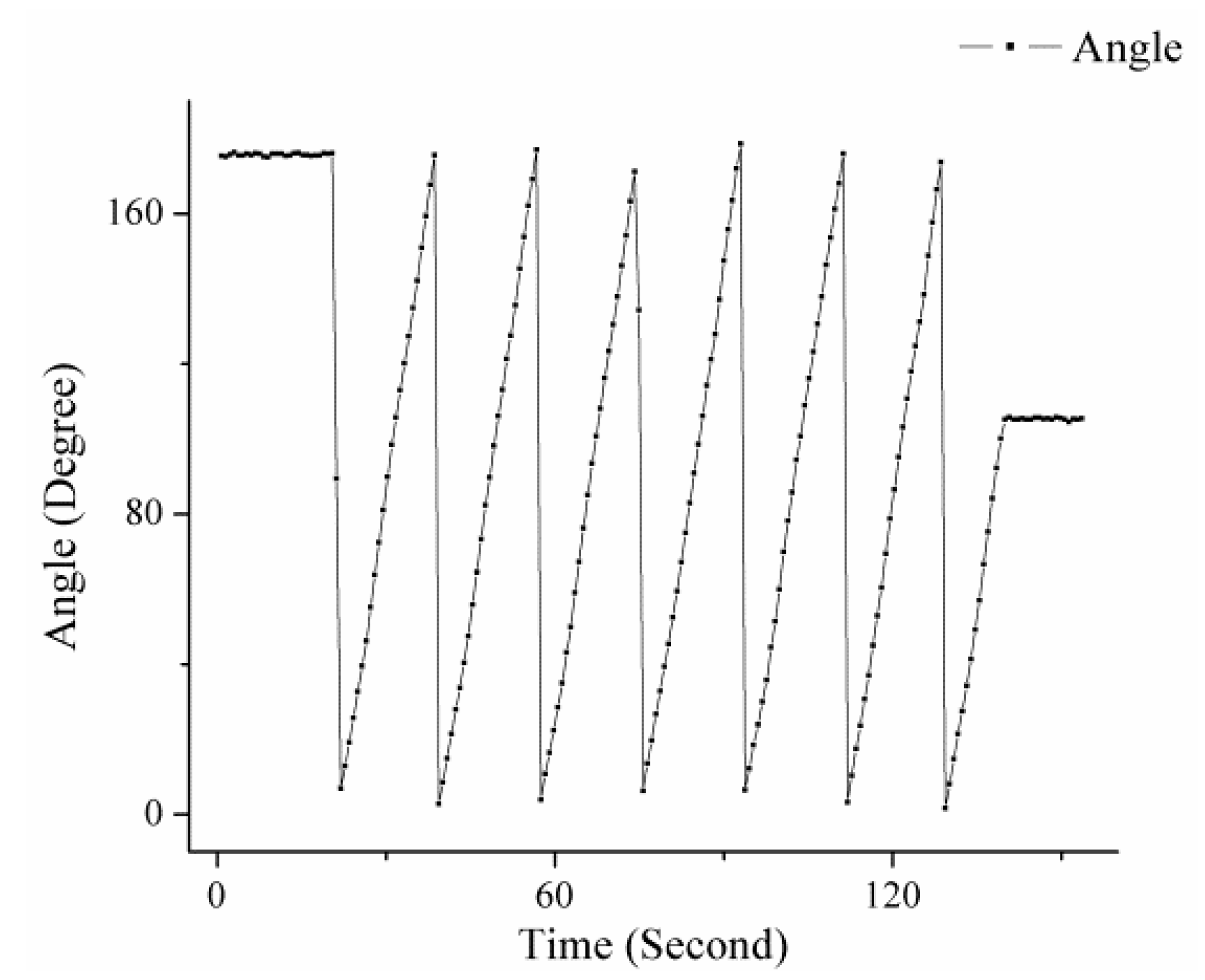

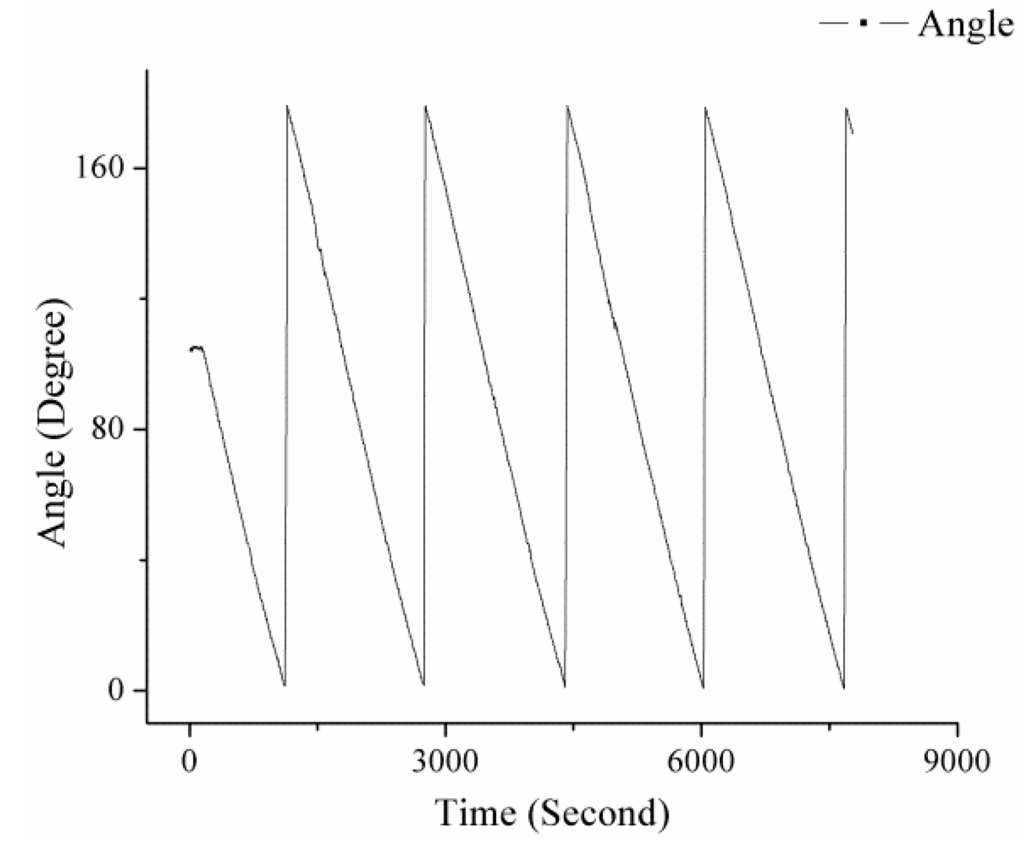

5.2. Orientation Experiment
Group | 1 | 2 | 3 | 4 | 5 | 6 |
---|---|---|---|---|---|---|
Index | Data | |||||
1 | 10.480 | 25.150 | 39.738 | 53.545 | 68.600 | 84.390 |
2 | 10.520 | 25.325 | 39.394 | 53.535 | 68.707 | 84.198 |
3 | 10.413 | 25.350 | 39.621 | 53.442 | 68.779 | 84.080 |
4 | 10.692 | 25.325 | 39.629 | 53.532 | 68.750 | 83.950 |
5 | 10.660 | 25.467 | 39.358 | 53.250 | 68.850 | 83.839 |
6 | 10.717 | 25.375 | 39.439 | 53.324 | 69.040 | 84.105 |
7 | 10.600 | 24.950 | 39.369 | 53.448 | 68.792 | 83.867 |
8 | 10.600 | 25.517 | 39.621 | 53.313 | 68.667 | 84.242 |
9 | 10.717 | 25.167 | 39.425 | 53.455 | 68.808 | 84.023 |
10 | 10.530 | 25.183 | 39.550 | 53.332 | 68.575 | 84.077 |
11 | 10.660 | 25.400 | 39.421 | 53.362 | 67.653 | 84.050 |
12 | 10.575 | 25.183 | 39.330 | 53.593 | 68.418 | 84.183 |
13 | 10.640 | 25.325 | 38.983 | 53.513 | 68.428 | 84.196 |
14 | 10.520 | 25.350 | 39.075 | 53.543 | 68.535 | 84.215 |
Statistics | ||||||
Mean | 10.595 | 25.291 | 39.425 | 53.442 | 68.614 | 84.101 |
Σ | 0.089 | 0.143 | 0.201 | 0.104 | 0.313 | 0.146 |
6. Conclusions and Outlooks
Group | 7 | 8 | 9 | 10 | 11 | 12 |
---|---|---|---|---|---|---|
Index | Data | |||||
1 | 99.691 | 115.710 | 129.540 | 141.860 | 156.760 | 171.980 |
2 | 99.733 | 115.680 | 129.710 | 141.810 | 156.640 | 172.070 |
3 | 99.743 | 115.520 | 129.770 | 141.970 | 156.710 | 171.850 |
4 | 99.811 | 115.670 | 129.630 | 141.790 | 156.820 | 171.840 |
5 | 99.871 | 115.560 | 129.590 | 141.690 | 156.780 | 171.920 |
6 | 99.647 | 115.640 | 129.530 | 141.780 | 156.760 | 171.880 |
7 | 99.797 | 115.790 | 129.660 | 141.830 | 156.600 | 172.040 |
8 | 99.629 | 115.810 | 129.560 | 141.820 | 156.810 | 172.060 |
9 | 99.546 | 115.990 | 129.540 | 141.850 | 156.530 | 172.020 |
10 | 99.664 | 115.630 | 129.800 | 141.790 | 156.580 | 171.920 |
11 | 99.648 | 115.750 | 129.490 | 141.730 | 156.440 | 171.910 |
12 | 99.763 | 115.760 | 129.800 | 141.900 | 156.660 | 171.960 |
13 | 99.586 | 115.680 | 129.650 | 141.850 | 156.720 | 171.750 |
14 | 99.708 | 115.780 | 129.990 | 141.870 | 156.640 | 171.820 |
Statistics | ||||||
Mean | 99.703 | 115.712 | 129.661 | 141.824 | 156.675 | 171.930 |
Σ | 0.087 | 0.112 | 0.134 | 0.067 | 0.107 | 0.093 |
