Open AccessArticle
Sensors 2015, 15(5), 10166-10179;

Infrared Thermal Imaging System on a Mobile Phone

Department of Biomedical Engineering, School of Medicine, Tsinghua University, Beijing 100084, China
Department of Automation, Tsinghua University, Beijing 100084, China
Author to whom correspondence should be addressed.
Academic Editor: Ki H. Chon
Received: 3 March 2015 / Revised: 23 April 2015 / Accepted: 24 April 2015 / Published: 30 April 2015
(This article belongs to the Special Issue Smartphone-Based Sensors for Non-Invasive Physiological Monitoring)
Full-Text   |   PDF [2155 KB, uploaded 30 April 2015]   |

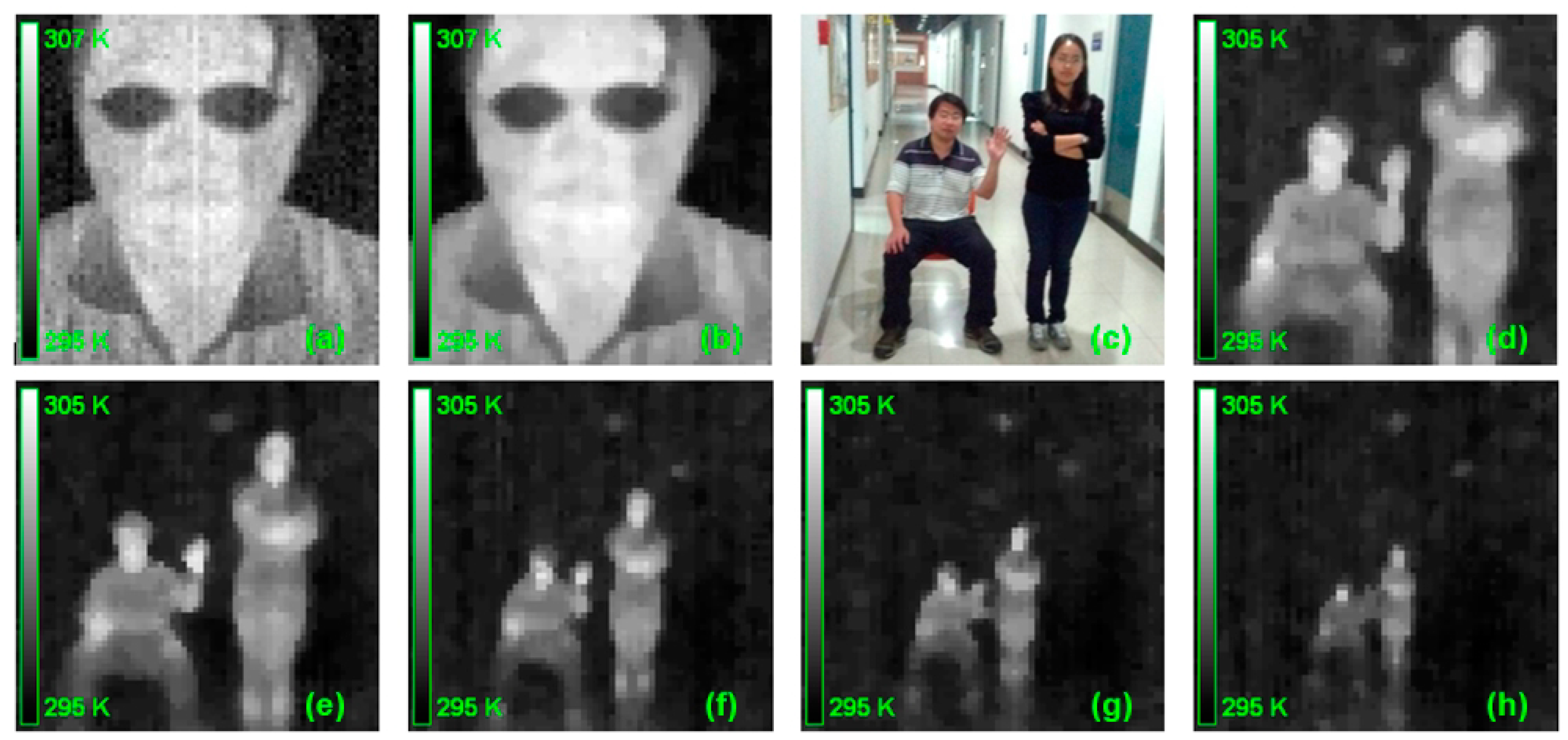

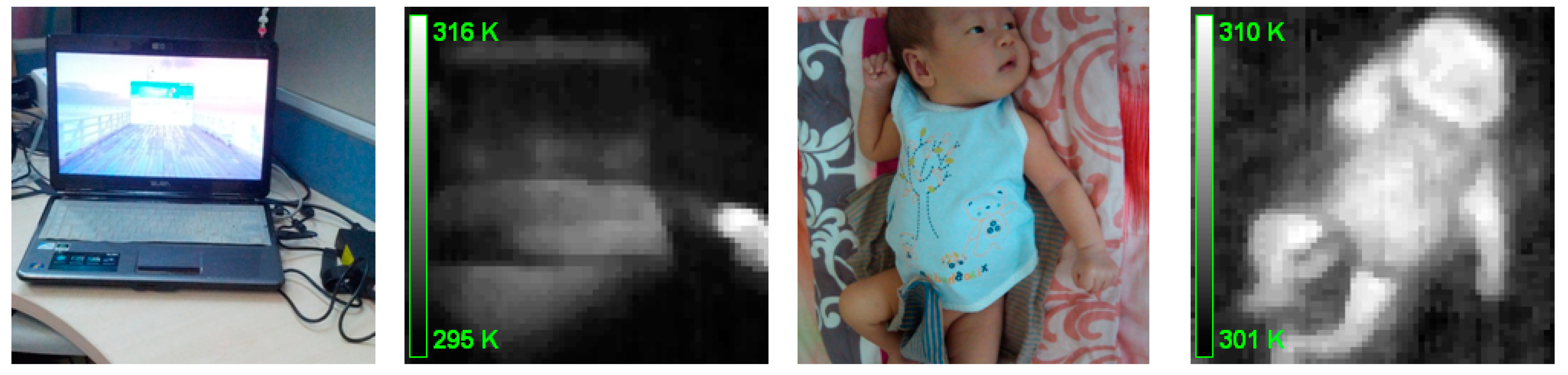

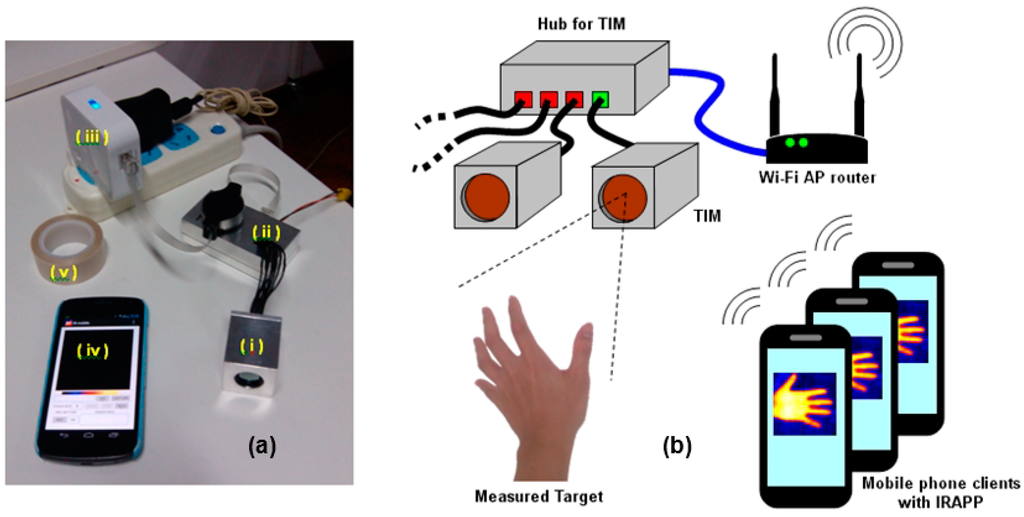

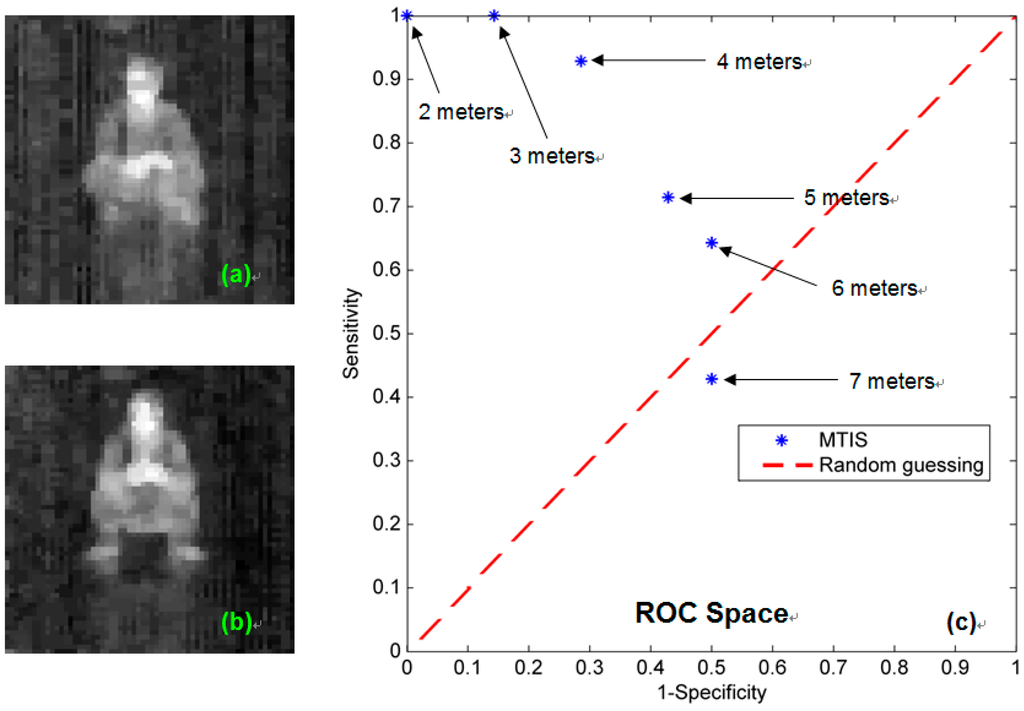

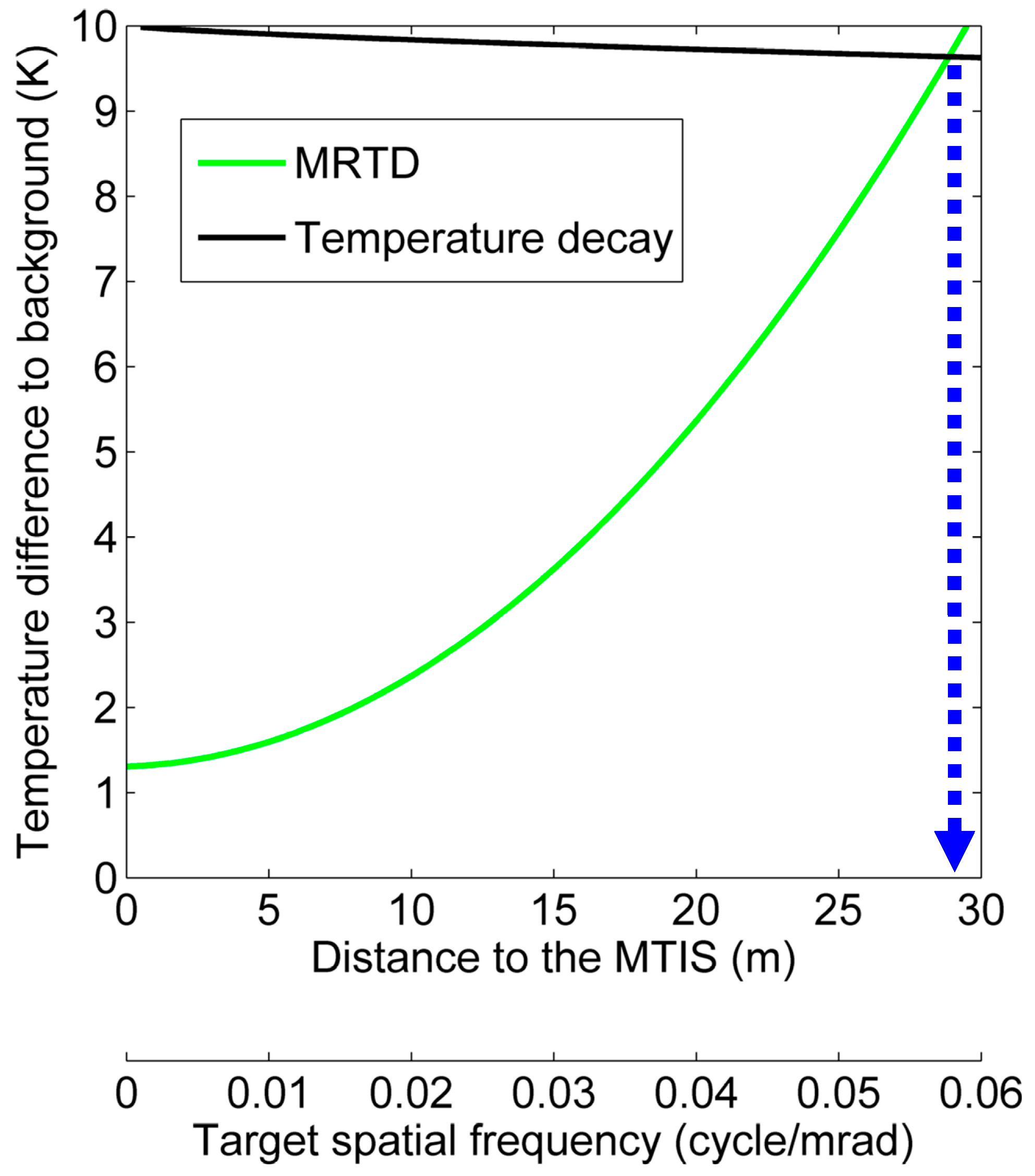

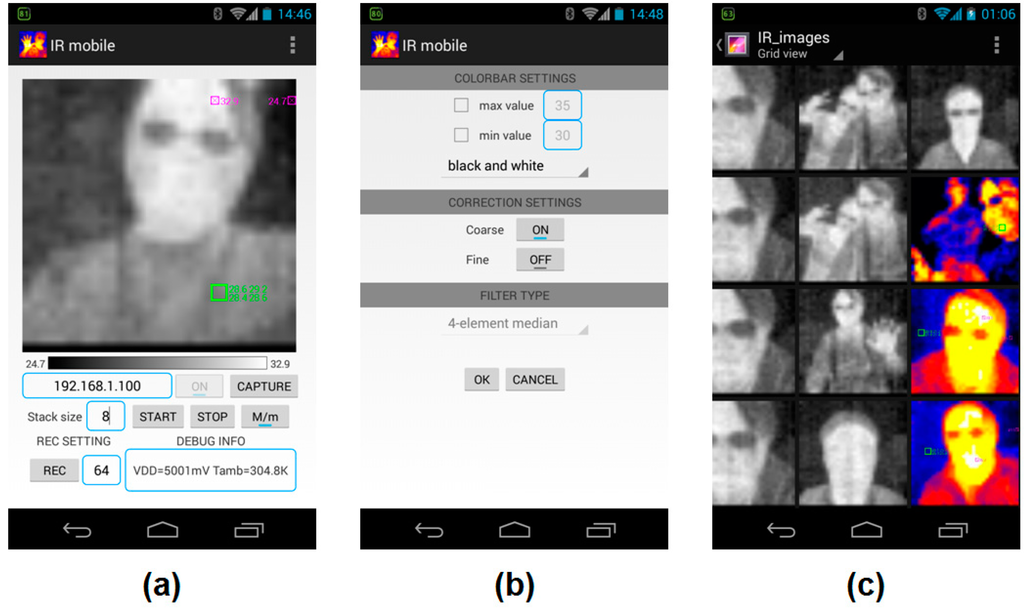

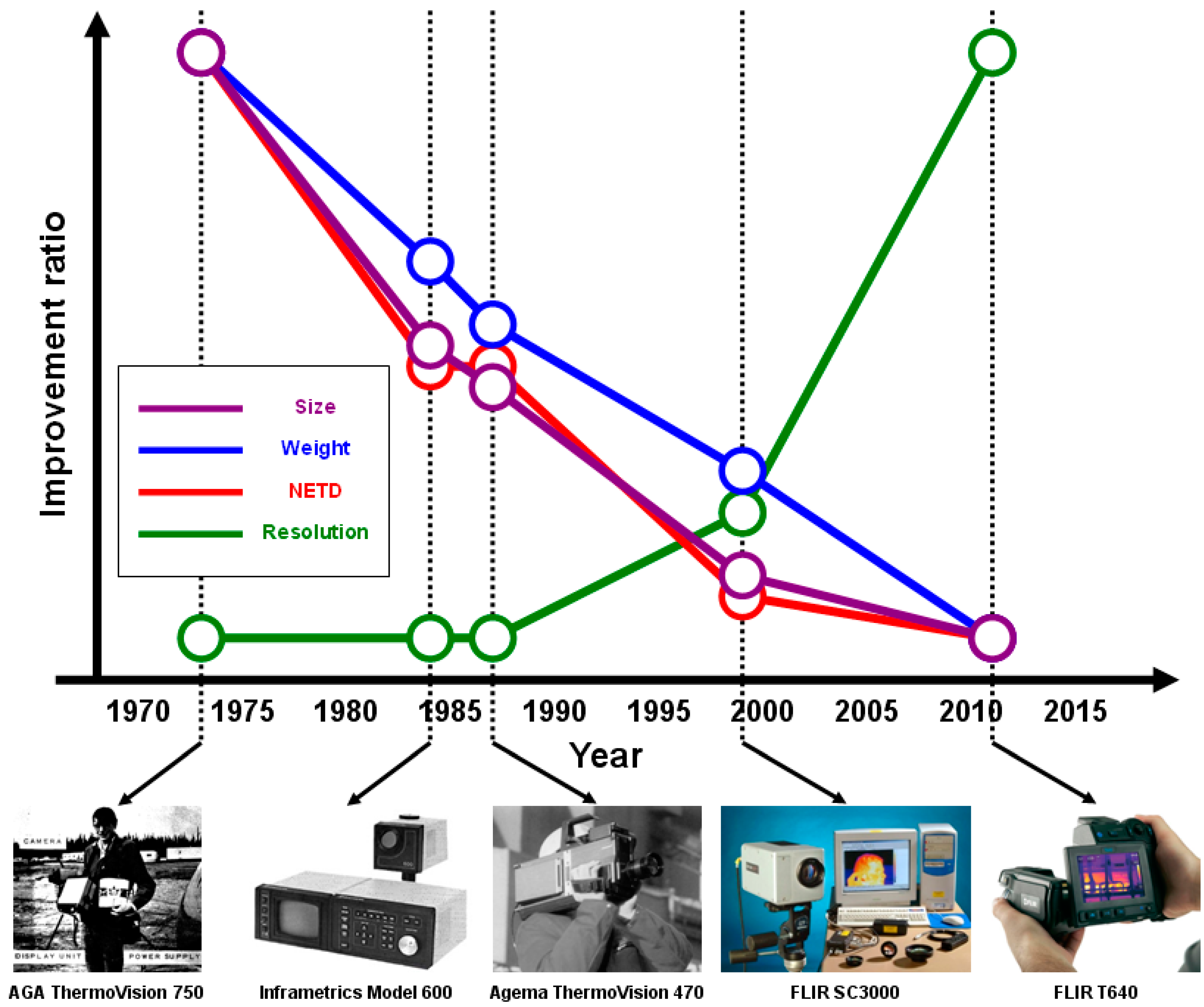

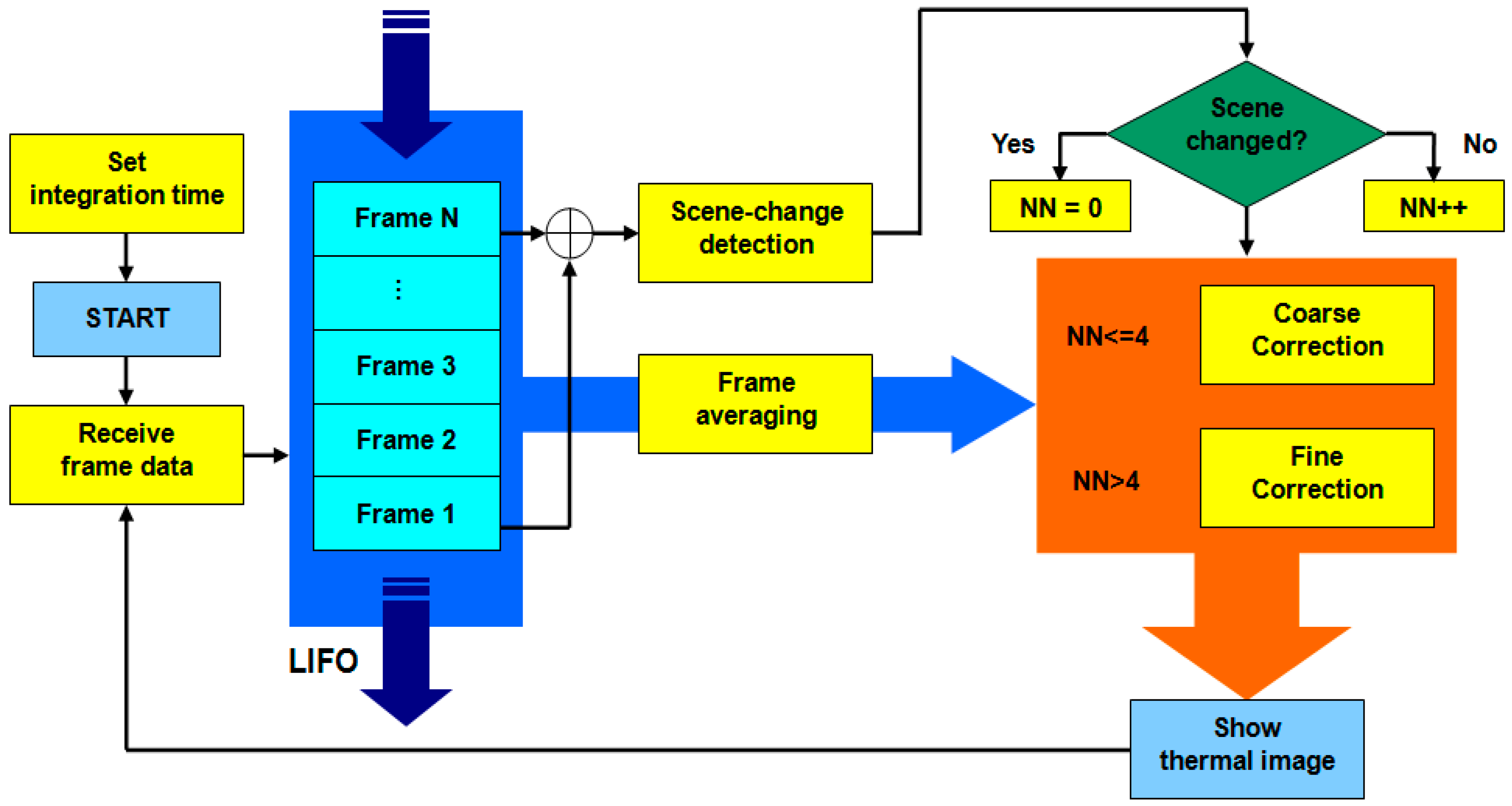

A novel concept towards pervasively available low-cost infrared thermal imaging system lunched on a mobile phone (MTIS) was proposed and demonstrated in this article. Through digestion on the evolutional development of milestone technologies in the area, it can be found that the portable and low-cost design would become the main stream of thermal imager for civilian purposes. As a representative trial towards this important goal, a MTIS consisting of a thermal infrared module (TIM) and mobile phone with embedded exclusive software (IRAPP) was presented. The basic strategy for the TIM construction is illustrated, including sensor adoption and optical specification. The user-oriented software was developed in the Android environment by considering its popularity and expandability. Computational algorithms with non-uniformity correction and scene-change detection are established to optimize the imaging quality and efficiency of TIM. The performance experiments and analysis indicated that the currently available detective distance for the MTIS is about 29 m. Furthermore, some family-targeted utilization enabled by MTIS was also outlined, such as sudden infant death syndrome (SIDS) prevention, etc. This work suggests a ubiquitous way of significantly extending thermal infrared image into rather wide areas especially health care in the coming time. View Full-Text
Keywords: infrared thermal imaging system; mobile phone; non-uniformity corrections; sudden infant death syndrome; pervasive technology; wireless monitoring infrared thermal imaging system; mobile phone; non-uniformity corrections; sudden infant death syndrome; pervasive technology; wireless monitoring

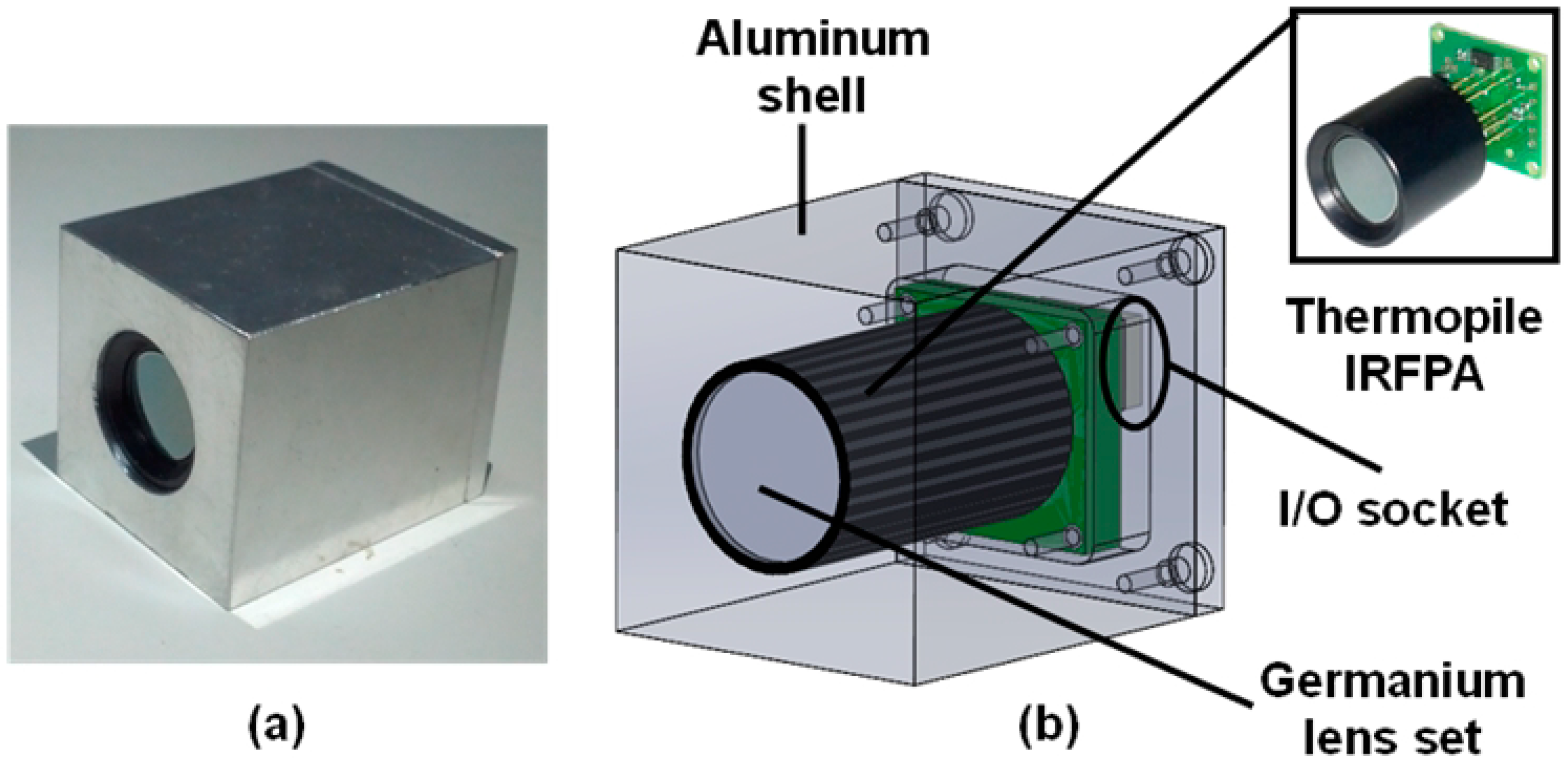

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Lee, F.-F.; Chen, F.; Liu, J. Infrared Thermal Imaging System on a Mobile Phone. Sensors 2015, 15, 10166-10179.
