Sensors 2013, 13(12), 16894-16914;

A New Blondin System for Surveying and Photogrammetry

Escuela Técnica Superior de Ingeniería, University of Seville, Camino de los Descubrimientos s/n, Seville E-41092, Spain
Sacyr S.A.U., Av. Luis Montoto 107, Seville E-41007, Spain
Author to whom correspondence should be addressed.
Received: 16 October 2013 / Revised: 18 November 2013 / Accepted: 3 December 2013 / Published: 6 December 2013
(This article belongs to the Special Issue State-of-the-Art Sensors Technology in Spain 2013)
Full-Text   |   PDF [2047 KB, uploaded 21 June 2014]   |

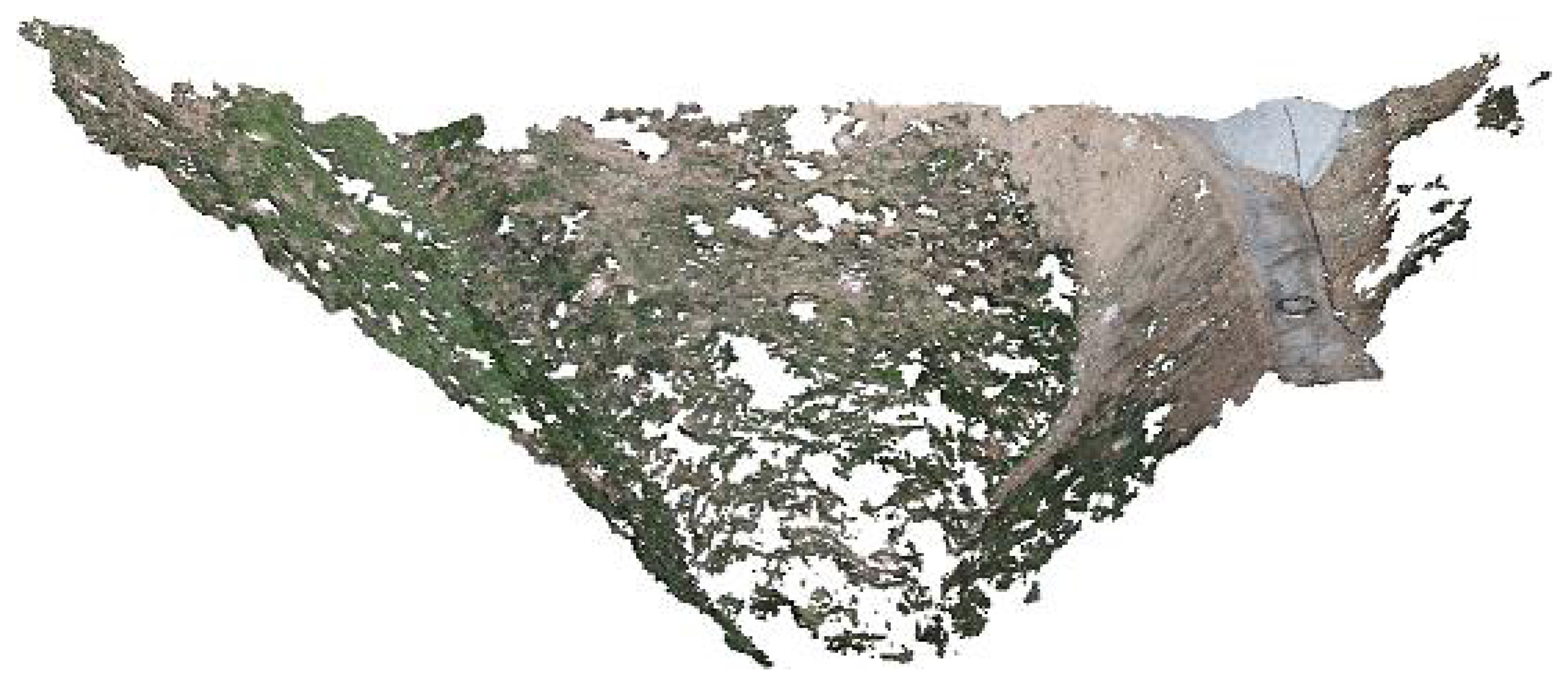

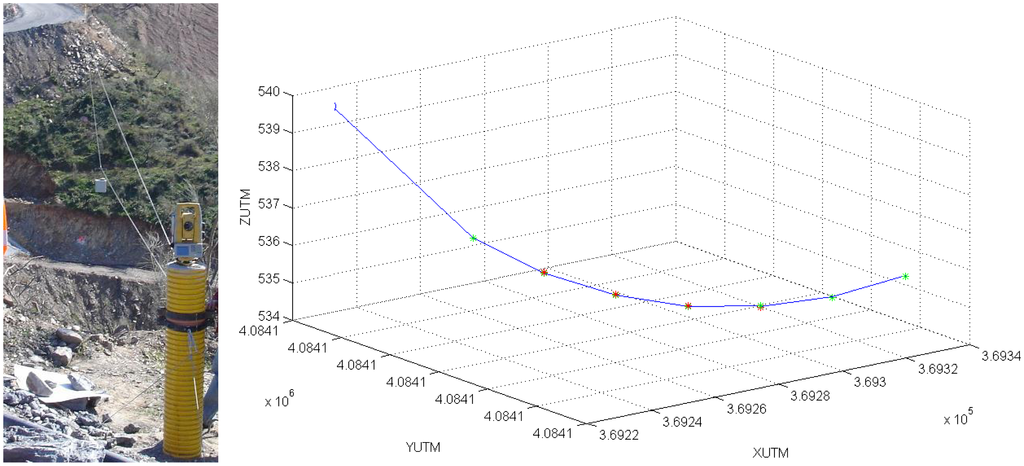

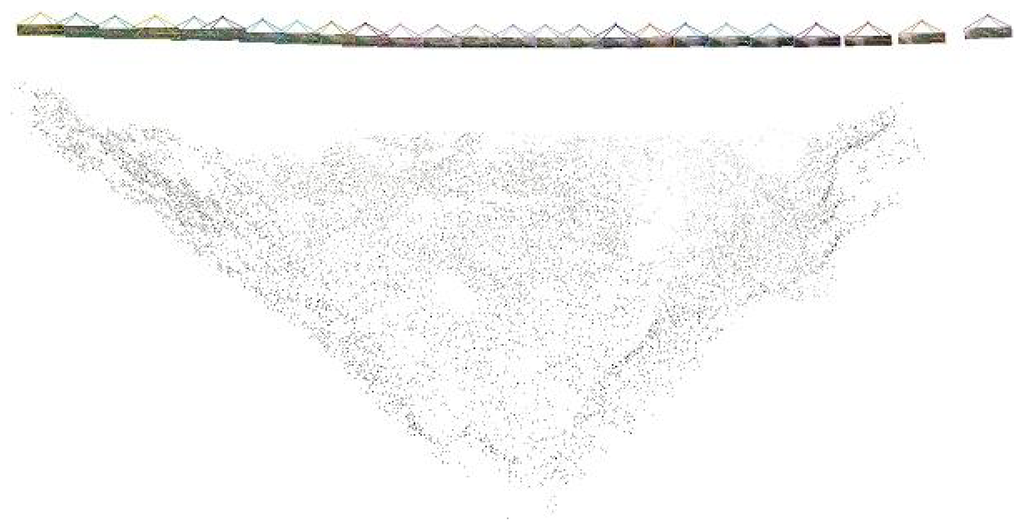

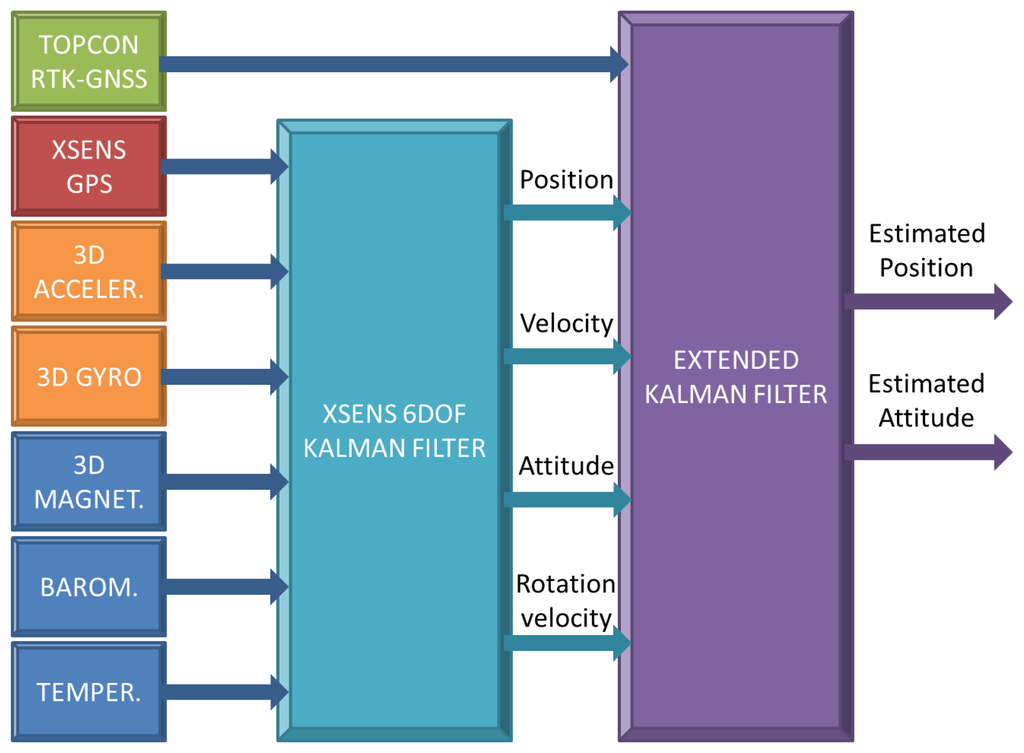

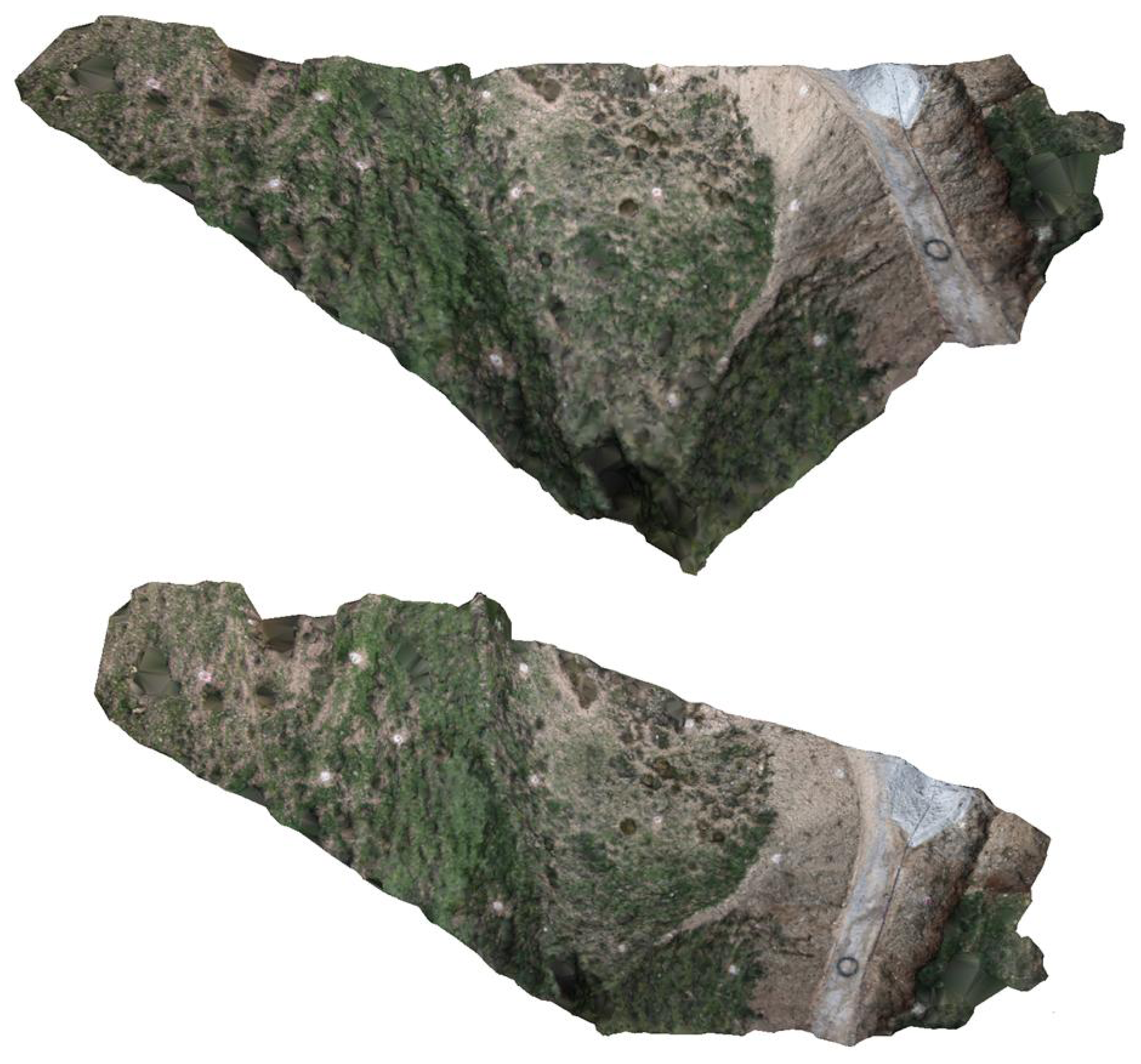

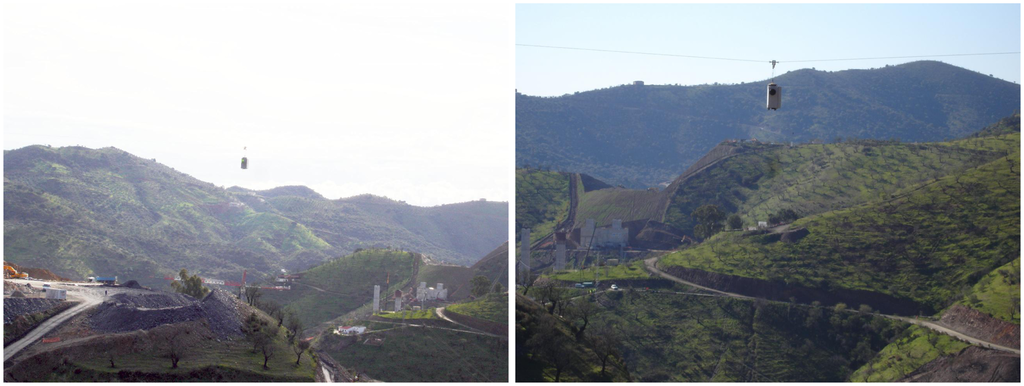

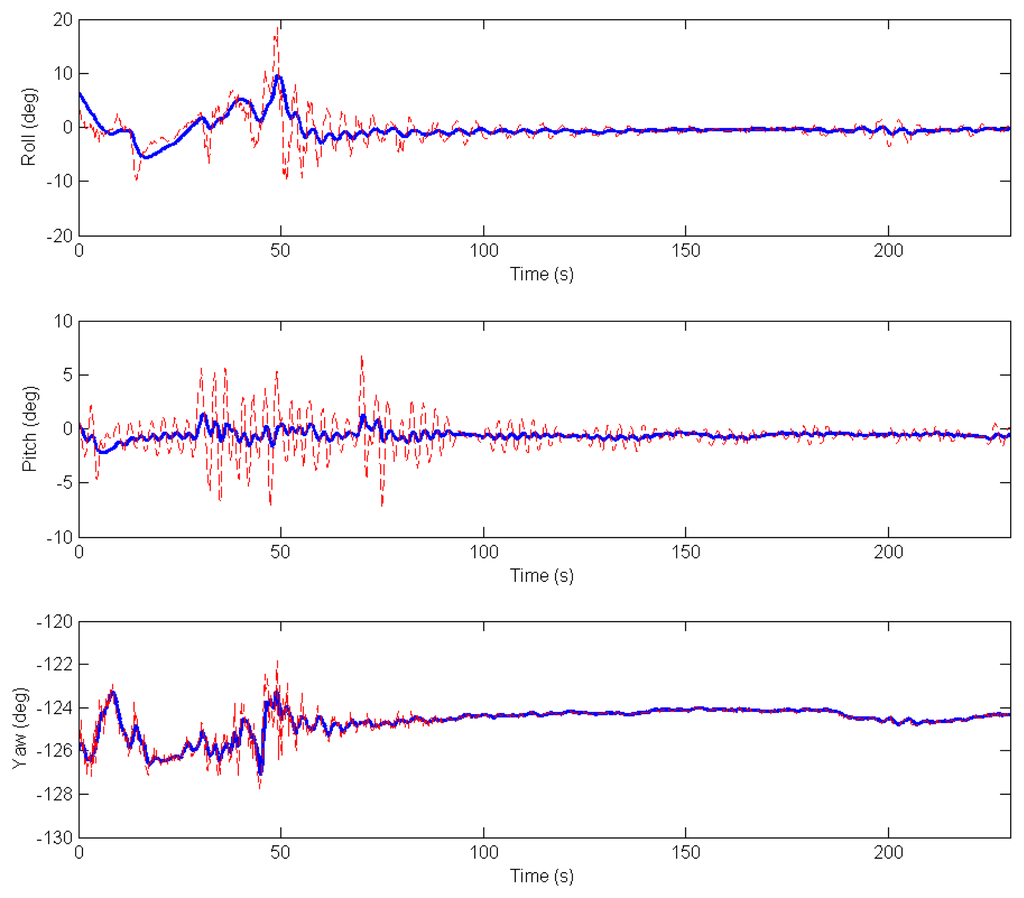

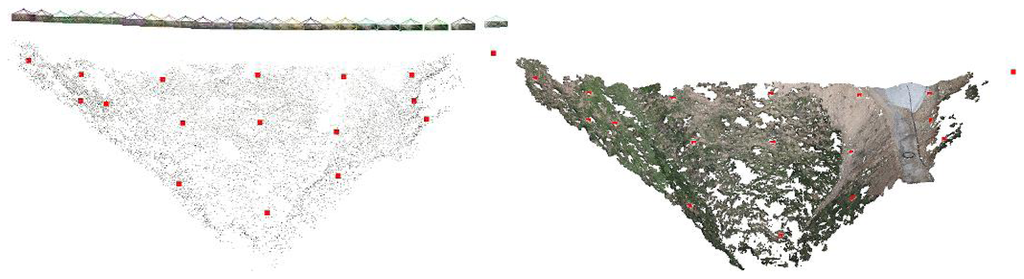

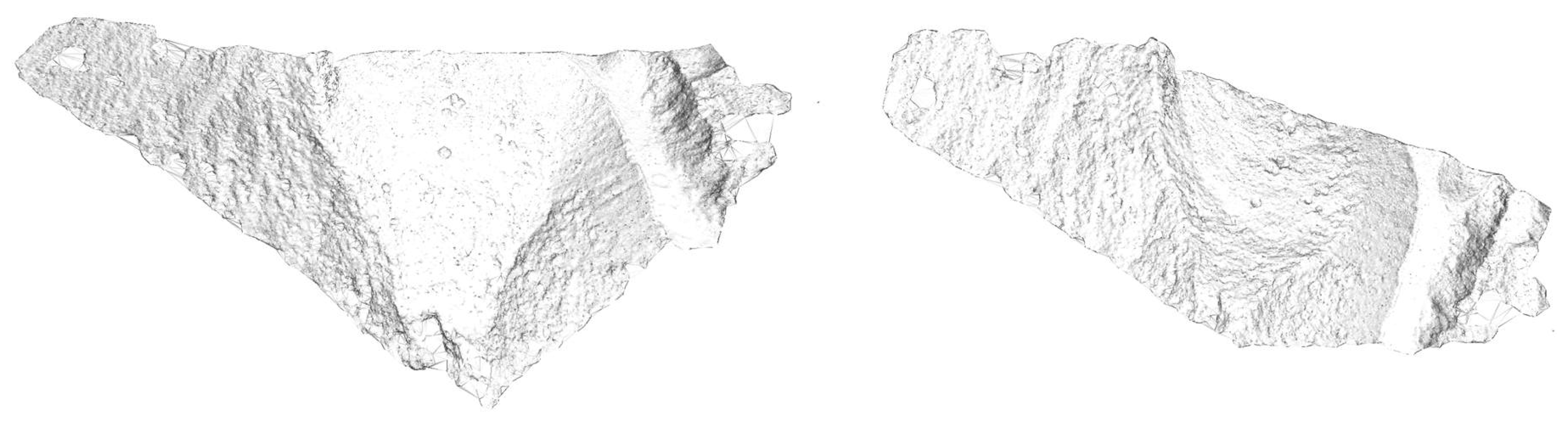

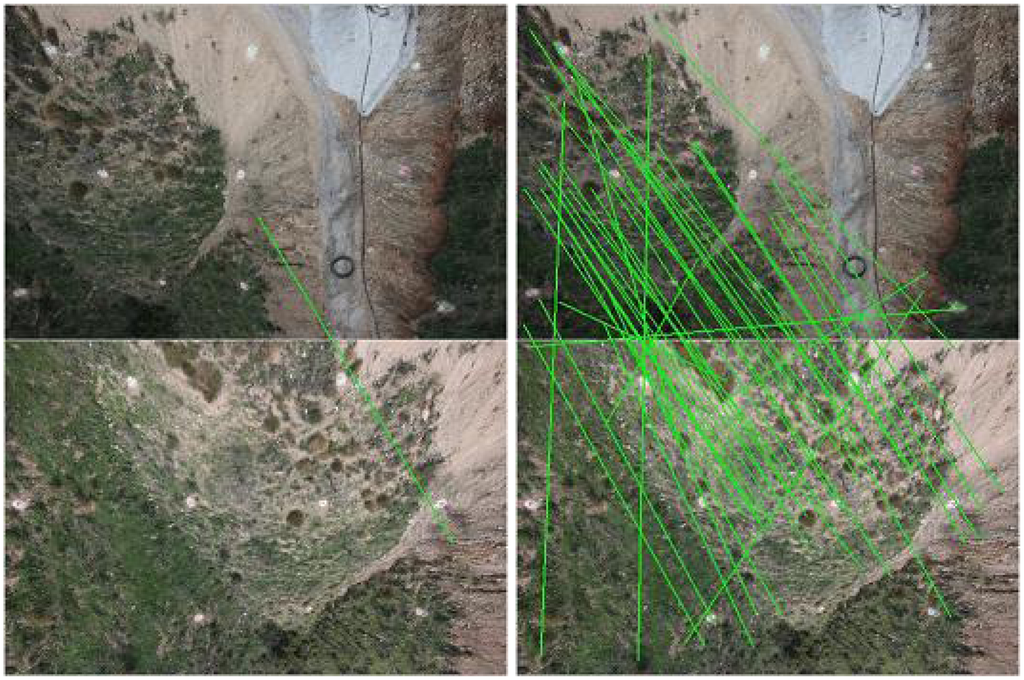

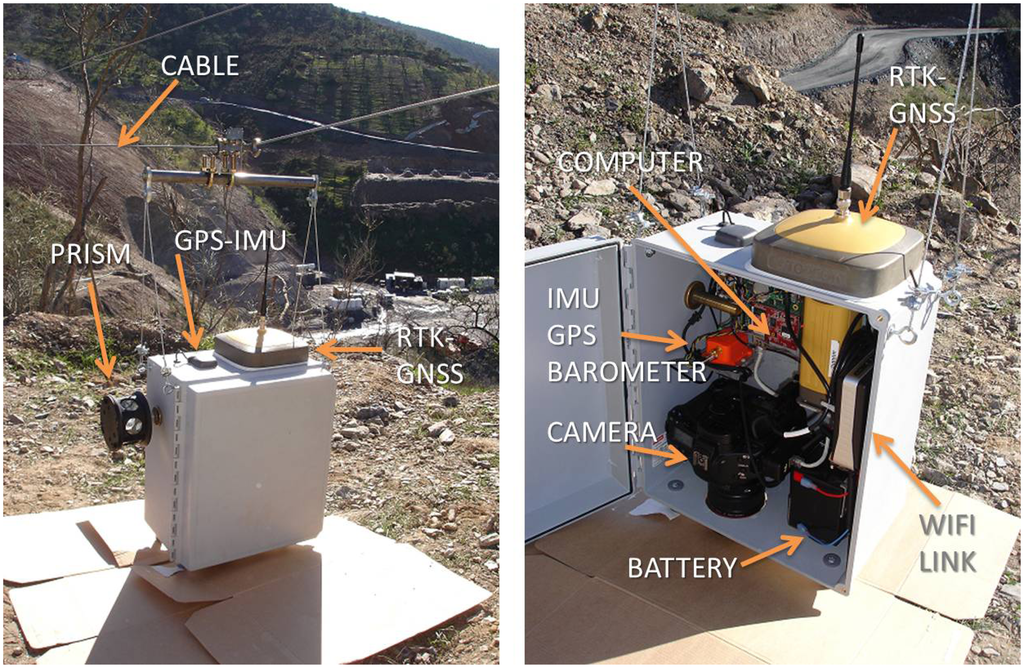

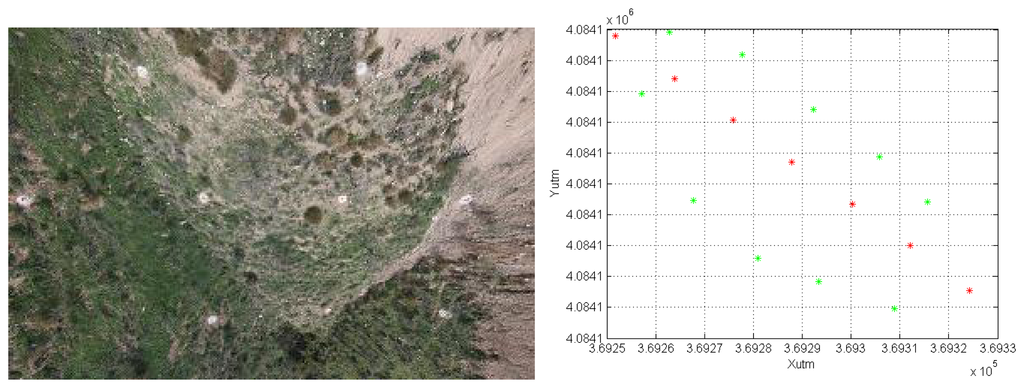

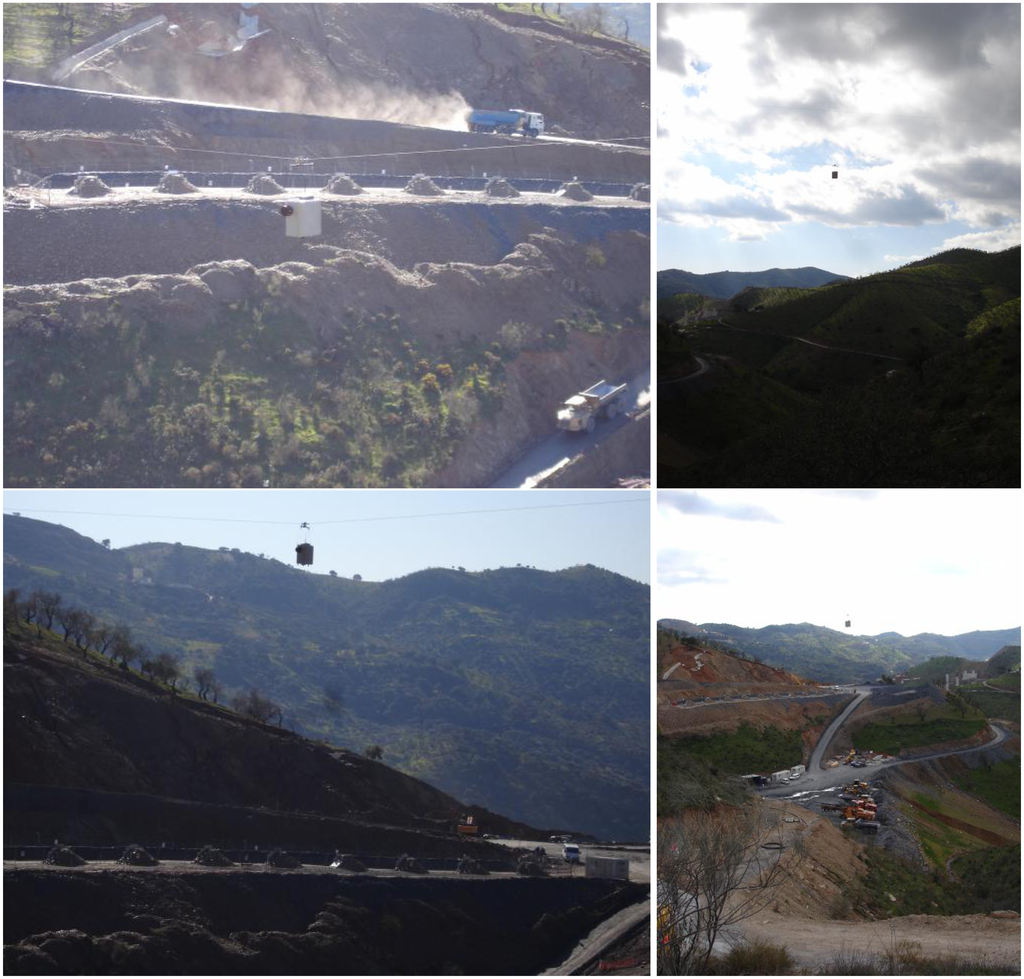

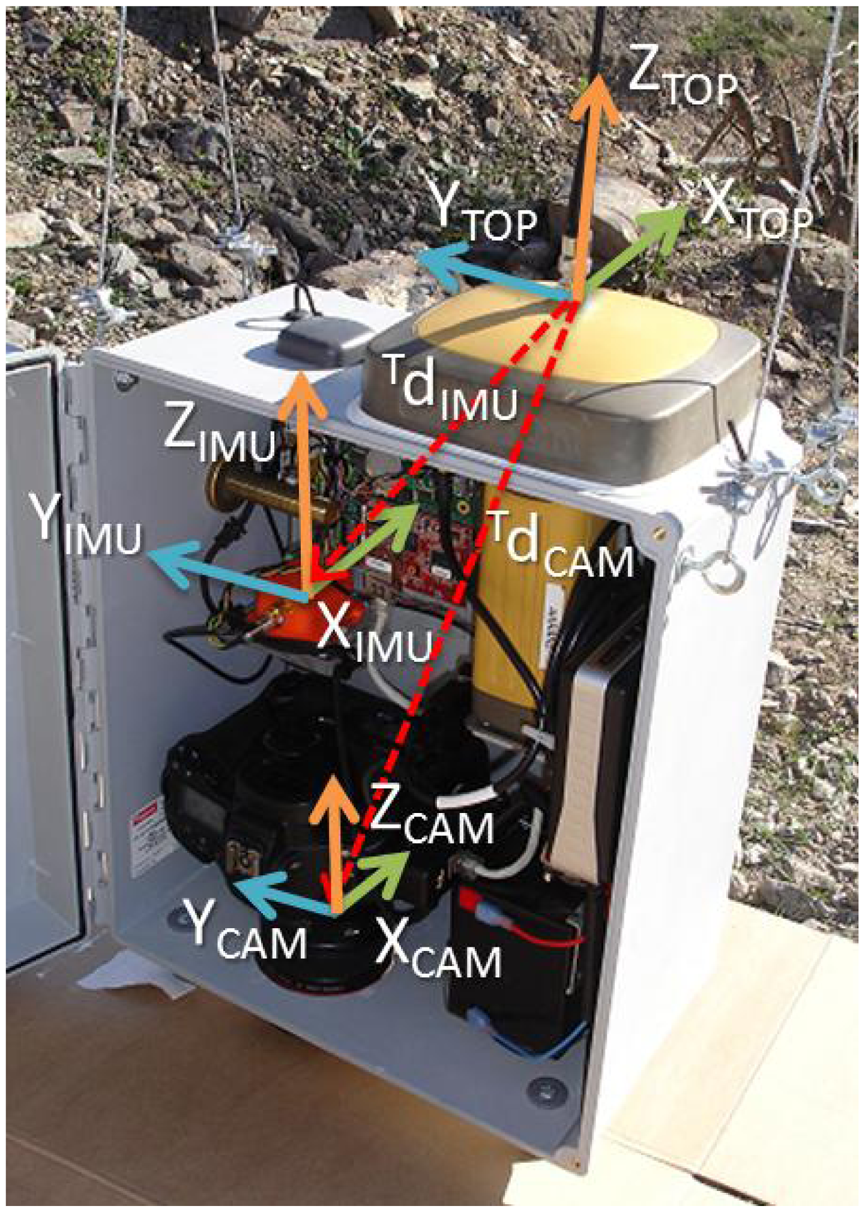

The main objective of the system presented in this paper is to provide surveyors and engineers with a new photogrammetry device that can be easily integrated with surveying total stations and a global navigation satellite system (GNSS) infrastructure at a construction site, taking advantage of their accuracy and overcoming limitations of aerial vehicles with respect to weight, autonomy and skilled operator requirements in aerial photogrammetry. The system moves between two mounting points, in a blondin ropeway configuration, at the construction site, taking pictures and recording the data of the position and the orientation along the cable path. A cascaded extended Kalman filter is used to integrate measurements from the on-board inertial measurement unit (IMU), a GPS and a GNSS. Experimental results taken in a construction site show the system performance, including the validation of the position estimation, with a robotic surveying total station, or the creation of a digital surface model (DSM), using the emergent structure from motion (SfM) techniques and open software. The georeferencing of the DSM is performed based on estimated camera position or using ground control points (GCPs). View Full-Text
Keywords: sensors integration; surveying; construction site; cascaded extended Kalman filter (EKF); structure from motion (SfM); dense point cloud; digital surface model (DSM) sensors integration; surveying; construction site; cascaded extended Kalman filter (EKF); structure from motion (SfM); dense point cloud; digital surface model (DSM)
