New Trends in Biosensors for Organophosphorus Pesticides

IFoS-UMR CNRS 5621 Ecole Centrale de Lyon, BP 163 69131 ECULLY Cedex, France
Sensors2001, 1(2), 60-74;https://doi.org/10.3390/s10100060
Version Notes
Order Reprints

Abstract

Biosensors are sensitive and can be used as disposable sensors for environmental control. These biosensors are based either on inhibition of acyl cholinesterases acetylcholinesterase or butyrylcholinesterase) by organophosphorus compounds or on inhibition of enzymes phosphatases (acid or alkaline) or on direct detection of organophosphorus compounds by organophosphorus hydrolase. The state-of-the-art of the three types of biosensors will be presented in this paper and a particular development will be done on our work on ENFET (Enzymatic Field Effect Transistor) biosensors.

Introduction

Organophophorus compounds are, among the known substances, the most toxic. They are used as pesticides, insecticides and chemical war agents. The high toxicity of organophosphorus neurotoxics and their large use in modern agriculture practices, has increased public concerns. They have incited the development of technologies to treat effluents generated at both the producer and consumer levels. Moreover, the recently ratified Chemical Weapons Treaty requires the participating nations to destroy all of their chemical weapons arsenal, including the organophosphorus-based nerve gases, within ten years. The use of any technology for detoxification of organophosphorus compounds, performed in laboratories, will need the development of analytical tools of high performance in order to control the concentration of neurotoxics.
The techniques of gas chromatography, liquid chromatography and thin film chromatography coupled with different detectors and the different types of spectroscopy are the most commonly used methods. However, these techniques are time consuming, expensive and demand a qualified and experienced staff and cannot be used for continuous monitoring. Biological techniques such as immunoassays and inhibition of cholinesterase activity by colorimetric techniques are also used for the determination of organophosphorus compounds. Immunoassays require long analysis time (one to two hours) and fastidious sample handlings (numerous washing steps), a considerable quantity of plastic well kits which are enough expensive and these techniques are not suitable for continuous monitoring.
Biosensors are sensitive and can be used as disposable sensors for environmental control. These biosensors are based either on inhibition of acyl cholinesterases acetylcholinesterase or butyrylcholinesterase) by organophosphorus compounds or on inhibition of enzymes phosphatases (acid or alkaline) or on direct detection of organophosphorus compounds by organophosphorus hydrolase. The state-of-the-art of the three types of biosensors will be presented in this paper and a particular development will be done on our work on ENFET (Enzymatic Field Effect Transistor) biosensors.

Biosensors based on the inhibition of acylcholinesterases

1. Principle

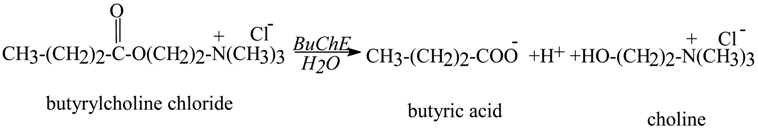

The enzyme, acetylcholinesterase or butyrylcholinesterase, is fixed on the surface of the transducer through different procedures (co-reticulation, entrapment, Langmuir-Blodgett films). The products of the following enzymatic reaction (1) are detected by the transducer:
Sensors 01 00060 i001
With an amperometric transducer, the substrate used is butyrylthiocholine, the current generated by oxidation of thiocholine is measured. If a bienzymatic system is used (acetylcholine esterase + choline oxidase), the hydrogen peroxide generated by the oxidation reaction of choline is detected with an amperometric transducer.
With potentiometric transducers (Ion Selective Electrode -ISE, Ion Sensitive Field Effect Transistor-ISFET), the variation of the local pH value is detected as well as with optical transducers.
A conductimetric detection is also possible.

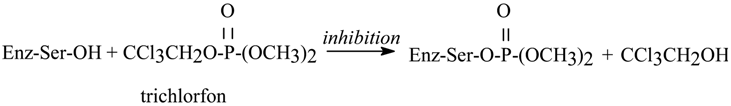

The organophosphorus compounds partly inhibit the biological activity of acylcholinesterase through phosphorylation of the serin group, according to the reaction (2) (exemple of the organophosphorus compound trichlorfon):
Sensors 01 00060 i002

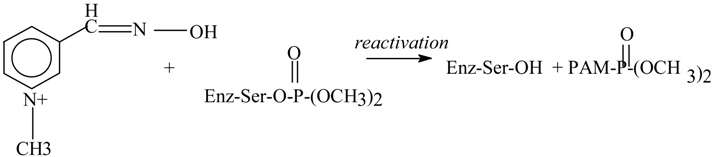

The reactivation of the acylcholinesterase can be performed through a treatment with pyridine-2-aldoxime (PAM-2), according to the reaction (3):
Sensors 01 00060 i003
It is necessary to incubate the biosensor in medium containing the inhibitor in order to obtain a high sensitivity of detection and to treat the biosensor in a PAM-2 solution to obtain the reactivation of the enzyme. Inhibition of acylcholinesterase enzyme is obtained with organophosphorus pesticides but also with pesticides of carbamate types, thus this biosensor will not be specific. Numerous recent research works concerns this type of biosensor. They are based on different types of transducers and different procedures for immobilization of the enzyme.

2. Compared features of the different transducing systems

Amperometric transducers

They are based on amperometric detection of thiocholine or of hydrogen peroxide formed by oxidation of choline (with a second enzyme, choline oxidase) [,,,,,,,,,,,,].
A recent review paper was presented by Everett et al [].

Potentiometric transducers

The transducer measures the pH variation due to the acid formed during the hydrolysis reaction. The sensors are either ion selective electrodes (ISE) [,,,,,] or transistor based sensors, pH-ISFET [,,,,,]. A particular potentiometric transduction is LAPS (Light Adressable Potentiometric Sensor), it is presented in paper from Rogers et al. []. This technique is based on modulation of the silicon space charge through pH variation inducing a variation of the insulator surface charge, as for pH-ISFET.
A comparison of features of amperometric and potentiometric sensors for insecticides detection is presented by Marty et al. [], as shown in Table 1.
Table
Table 1. Detection limits for insecticides (carbamates and organophosphorus compounds) obtained with potentiometric and amperometric transducers.
Table 1. Detection limits for insecticides (carbamates and organophosphorus compounds) obtained with potentiometric and amperometric transducers.
InsecticidesPotentiometric (pH effect)Amperometricn (thiocholine oxidation)
Aldicarb1140 ppb1.9 ppb
Carbaryl1000 ppb19 ppb
Carbofuran6 ppb0.02 ppb
Dichlorvos300 ppb22 ppb
In general, amperometric detection gives lower detection limits than that of potentiometric detection. Concerning potentiometric detection, paper from Campanella et al. [], presents compared features of enzymatic pH-ISEs and pH-ISFETs for detection of simili paraoxon. These features are presented in Table 2 (a), Table 2 (b) and Table 2 (c).
Table
Table 2 (a). Analytical features obtained for paraoxon with an enzymatic pH-ISE. (concentration of butyrylcholine: 6.2x10-4M)
Table 2 (a). Analytical features obtained for paraoxon with an enzymatic pH-ISE. (concentration of butyrylcholine: 6.2x10-4M)
Response time30 min
Time of analysis60 min
Lifetime2 days
Linear regressiony = 1.295x + 2.777 (x=μg/l)
Correlation coefficient0.9876
Linear range2.5 - 40μg/l
Detection limit1.0μg/l (ppb)
Accuracy<7.1%
Table
Table 2 (b). Analytical features obtained for paraoxon with an enzymatic pH-ISFET. (concentration of butyrylcholine: 2.5x10-4M)
Table 2 (b). Analytical features obtained for paraoxon with an enzymatic pH-ISFET. (concentration of butyrylcholine: 2.5x10-4M)
Response time<10 min
Time of analysis<12 min
Lifetime4 days
Linear regressiony = 5.011x – 2.875 (x=μg/l)
Correlation coefficient0.9959
Linear range3.3 - 12μg/l
Detection limit3.3μg/l (ppb)
Accuracy<8.1%
Table
Table 2 (c). Analytical features obtained for paraoxon with an enzymatic pH-ISFET. (concentration of butyrylcholine: 5.6x10-4M)
Table 2 (c). Analytical features obtained for paraoxon with an enzymatic pH-ISFET. (concentration of butyrylcholine: 5.6x10-4M)
Response time<5 min
Time of analysis<7 min
Lifetime4 days
Linear regressiony = 1.023x – 3.684 (x=μg/l)
Correlation coefficient0.9927
Linear range16.6 - 82μg/l
Detection limit10μg/l (ppb)
Accuracy<13.2%
Conclusions of authors are that, taking into account response time and lifetime, ISFET is the most promising transducer.

Effect of the immobilisation technique on operational features of ENFETs

BSA enzymatic membrane: a mixture of 5mg BSA, 5mg BuChE, 10μl of glycerol in 90μl of phosphate buffer (1mM, pH 8.0) was prepared. Then glycerol was used as a plasticiser to avoid the formation of cracks in the enzymatic membrane during storage and also to result in a better homogeneity of the membrane and better adhesion to the surface of the transducer. 0.5μl of this mixture was deposited on the sensitive area of a FET. Then the sensor chips were placed in a saturated glutaraldehyde vapor for 30 min.
Enzymatic membrane prepared with PVA/SbQ (polyvinyl alcohol functionalized with methyl pyridinium methyl sulfate (cf. Fig.1)): a mixture of 45 mg PVA/SbQ, 5 mg BuChE in 50mg phosphate buffer (1mM, pH 8.0) was prepared. 0.5 μl of this mixture was deposited on the sensitive area of a FET. Then, the sensor chips were exposed under UV light for 25min.
Sensors 01 00060 g001 1024

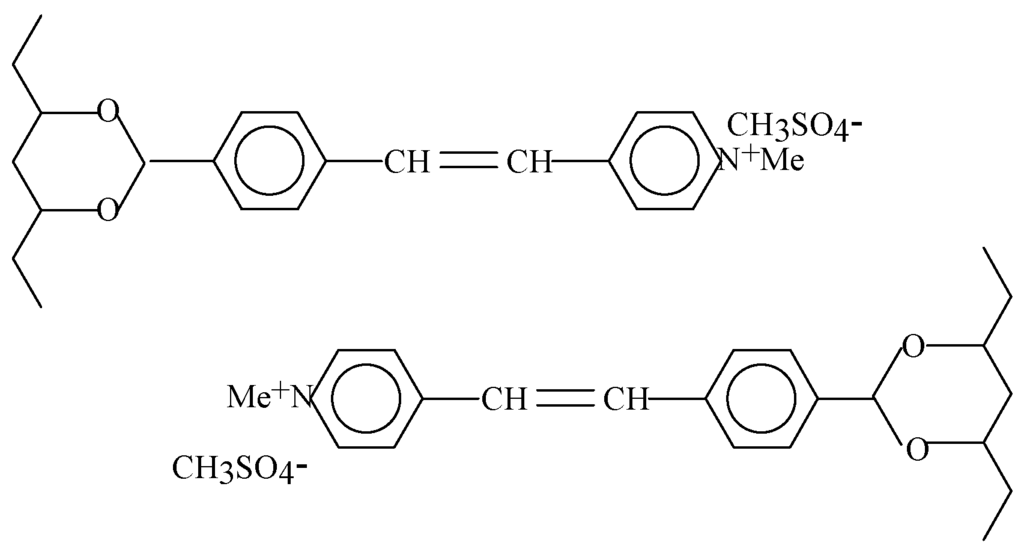

Figure 1. PVA-SbQ photocrosslinkable polymer.
Figure 2 shows that the degree of enzyme inhibition for BSA membrane depends on the trichlorfon concentration and incubation time (only results obtained with BSA membrane are presented because those obtained with PVA membrane are quite similar). Figures 3 shows a range of detected concentration comprises between 10-3M (0.26 g.l-1) and 10-6M (0.26 mg.l-1) which corresponds to the values found in the literature [, ]. To our knowledge, no exposure limits have been established for trichlorfon in water.
Sensors 01 00060 g002 1024

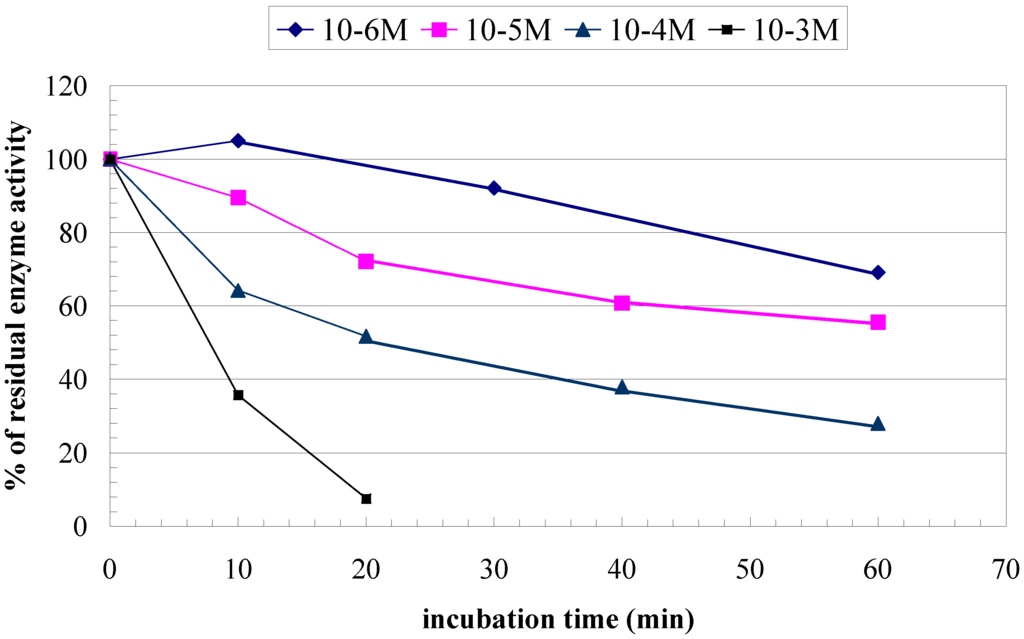

Figure 2. Inhibition effect on the BuChE-BSA FET sensor by trichlorfon. Percent of residual enzyme activity as a function of incubation time.
Sensors 01 00060 g003 1024

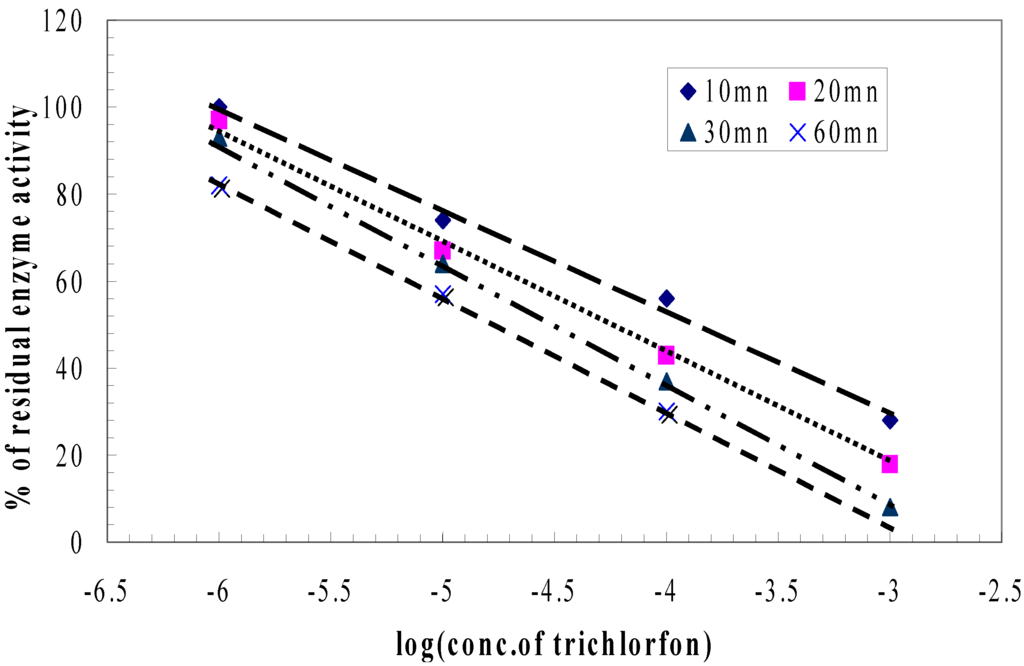

Figure 3. Inhibition effect on the BuChE-BSA FET sensor by trichlorfon. Percent of residual enzyme activity as fuction of trichlorfon concentration.
As one can see from Fig. 4, the sensor response was almost reversible for a 10 minutes incubation if the concentration of the pesticide is close to 10-5 M, whereas for higher concentration (10-3 M) only a partial recovery of the sensor occurs.
Sensors 01 00060 g004 1024

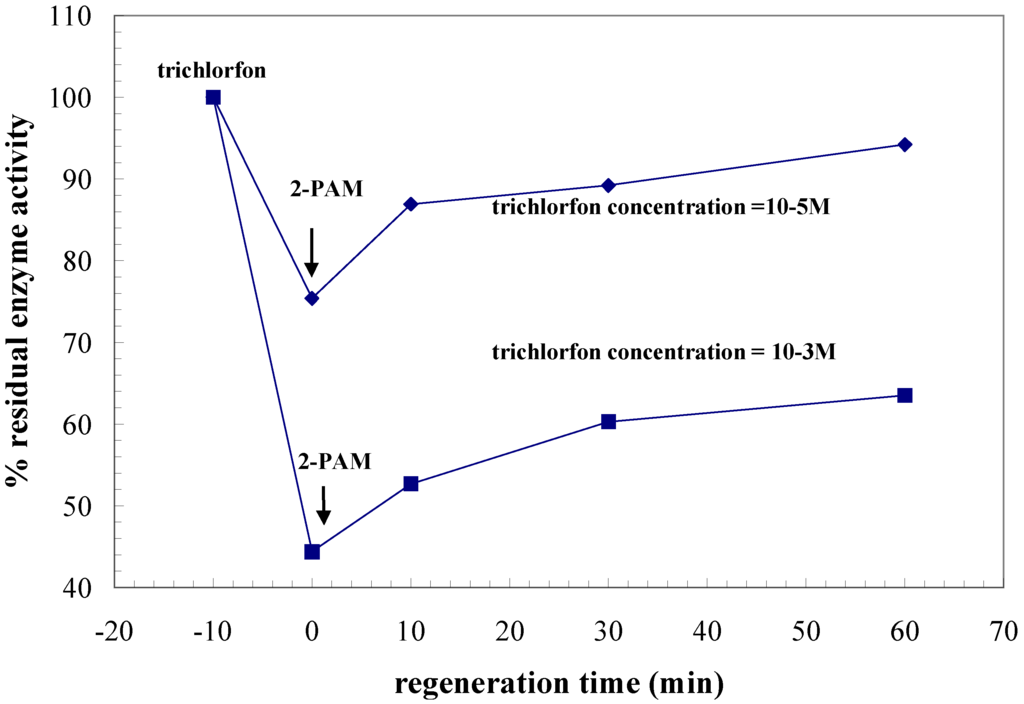

Figure 4. Recovery of the BSA-BuChE biosensor response after incubation by 0.1M of PAM-2b in a phosphate buffer after incubation for 10min at different concentration of trichlorfon.
Table
Table 3. Compared analytical features of BSA and PVA/SbQ ENFETs.
Table 3. Compared analytical features of BSA and PVA/SbQ ENFETs.
MembraneBSAPVA/SbQ
Linear dynamic range
Stationary mode calibration		0 – 10 mM
0 – 1 mM		0 – 10 mM
0 – 1 mM
Dynamic range
Kinetic mode calibration		0.2 - 1 mM0.2 - 5.8 mM
Apparent Km
(Michaelis-Menten constant)		2 mM3.8 mM
Life-time (dry storage)35 days> 9 months
Life-time (storage in buffer)< 62 days~4 months
Trichlorfon detection
Dynamic range		10-3M - 10-6M
(0.26g.l-1 - 0.26mg.l-1)		10-3M - 10-6M
(0.26g.l-1 - 0.26mg.l-1)
Trichlorfon detection
Regeneration		PAM-2
Inc. 10-5M, 10 min
Reg. 0.1M, 60 min		PAM-2
Inc. 10-5M, 10 min
Reg. 0.1M, 60 min
Immobilisation of the LB films containing enzyme onto ISFET to obtain enzymatic sensor: 22 μl stearylamine in chloroform of 1g.l-1 concentration was spread on an enzyme solution (4.0 mg.l-1) subphase (22°C, pH=5.5). When the adsorption of enzyme molecules towards the air/water interface reached an adsorption-desorption equilibrium state, it took about 3 hours to obtain a surface pressure of 26 mN/m []. The stearylamine (ODA) monolayer containing enzyme was compressed with double movable barriers at 10 cm2/min until a certain surface pressure (40mN/m, for example). Under this fixed dipping surface pressure, the compressed enzyme containing films were transferred onto the hydrophobized ISFET surface as Y-type LB multilayers (30 layers in this work) by the vertical lifting method . The dipping arm rate was fixed at 4 mm/min.
After each upstroke, the substrate was maintained in air for 5 min to dry the films. The transfer ratio (TR) expressed as the ratio of the area of film transferred to the monolayer-coated area on the substrate was used as a parameter to characterize LB deposition.
Finally, BuChE/ODA FET sensors were placed in a saturated glutaraldehyde vapor for 30 minutes, and stocked in dry at 4°C.
Sensors 01 00060 g005 1024

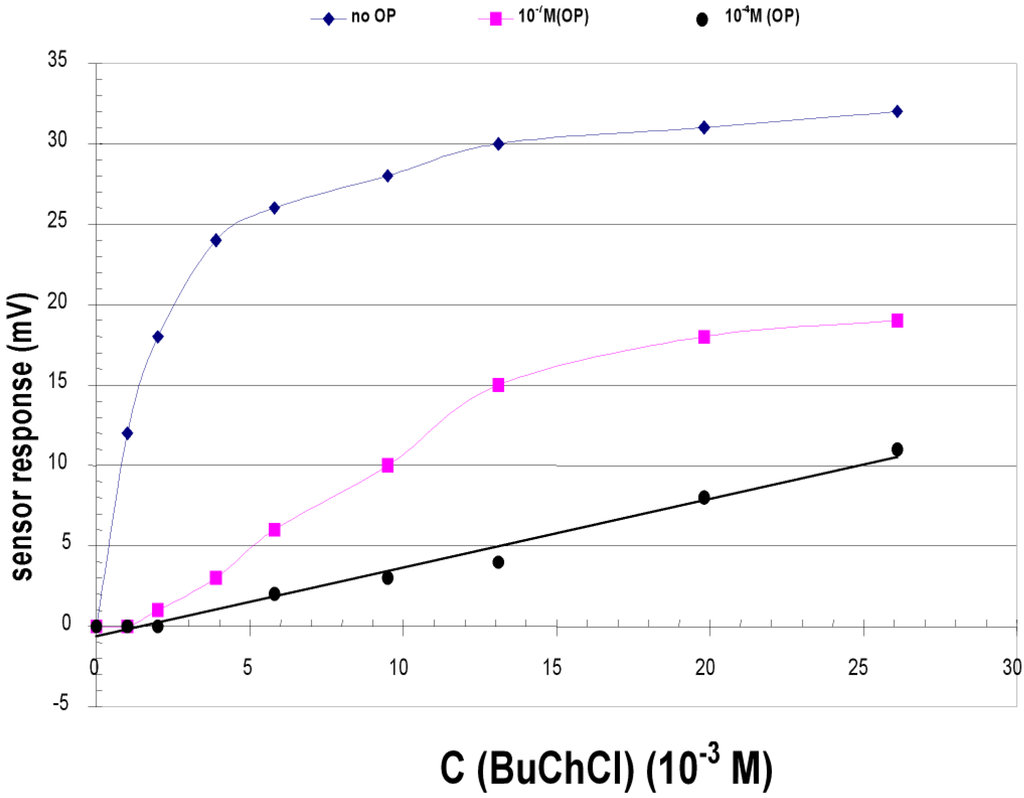

Figure 5. Inhibition effect on the response of the ENFET with a mixed BuChE/ODA LB film by trichlorfon.
Figure 5 shows that after an incubation of 30 min in 10-7M (26 ppb) trichlorfon solution, BuChE-FET lost about 44% of response (at 20mM BuChCl solution). A same measurement was done after the BuChE-FET was incubated in a 10-4M trichlorfon solution for 30min, the result shows that enzyme lost most of its activity and the response in this case came from the "blank "signal output of the ISFET in individual mode.

Conductimetric transduction

This work was done by our laboratory [, ]; the second paper compares conductimetric transducers with ISFETs and show that their characteristics are comparable.

Optical fibre transduction

Local pH variation is followed by using a pH dye [,,,,,].

3. Conclusion

Biosensors based on inhibition of acylcholinesterases are sensitive and very suitable for use as disposable sensors. Inhibition of enzyme is made directly in effluent itself (water, mud) and detection is performed in a buffer solution where activity of enzyme is optimum.
New ways of detection of organophosphorus compounds appeared recently: reversible inhibition of acid and alkaline phosphatases by organophosphorus compounds and carbamates, which avoid reactivation treatment selective detection of organophosphorus compounds by organophosphorus hydrolase.

Biosensors based on inhibition of phosphatases

Inhibition of acidic phosphatase (AP) is used in bienzymatic sensor presented in paper from Mazzei et al. []. This biosensor is sensitive to glucose-6-phosphate (G6P), it is based on both following enzymatic reactions (4) and (5):
Sensors 01 00060 i004
Sensors 01 00060 i005
Both enzymes AP and GOD (Glucose Oxidase) are coupled on an electrode for amperometric detection of hydrogen peroxide. Detection limit of paraoxon is 5 ppb, detection limits of carbamate are higher. One sensor used for 4 or 6 determination per day keeps 80% of its initial activity after two weeks.
Paper from Danzer et al. [], uses acid and alkaline phosphatase and also acetylcholinesterase immobilised on potentiometric pH sensors in order to realise a sensor network allowing , when using statistical data processing, to evaluate toxicity of solutions containing mixture of pesticides and heavy metal ions.

Biosensors based on organophosphorus hydrolase

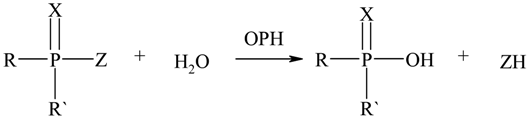

Organophosphorus hydrolase is an enzyme which catalyses hydrolysis of organophosphate esters, of pesticides such as parathion, coumaphos, acephate and chemical war agents such as soman, sarin and tabun. Catalytic hydrolysis of each molecule leads to the production of two protons according to the following reaction (6):
Sensors 01 00060 i006
where X is an oxygen or a sulphur atom, R is an alkoxy group (methoxy to butoxy), R' is an alkoxy or a phenyl group and Z is a phenoxy group, a thiol specie, a cyanide or a fluoride group.
Principle of detection is based on monitoring of products of hydrolysis of organophosphorus compounds, catalysed by organophosphorus hydrolase. It offers advantages of measurements simpler, more direct and faster of neurotoxics of the single family of organophosphorus, when compared to method of inhibition of acylcholinesterases which detect all the neurotoxics.
This enzyme is immobilised on transducers either by cryoimmobilisation of Escherichia coli cells entrapped in poly(vinyl)alcohol gels [] or by co-reticulation of isolated enzyme with bovine serum albumin [,,,]. The different transducers used are:
–
potentiometric pH sensors, detection limits being around 1μM (0.3ppm) for paraoxon
–
microelectrodes (detection of p-nitrophenol), detection limit being around 10-7M (27ppb)
–
transducers based on optical fibres including pH sensitive dye, detection limit being around 1μM (0.3ppm) [].
This approach presents a lot of advantages concerning selectivity of detection and response time. Nevertheless, detection is done directly in the real sample which could no be convenient for enzymatic reaction and detection limit is much higher than that of inhibition methods.

Multisensor system based on enzyme inhibition analysis for determination of different toxic substances

This multisensor system is constituted of three ENFETs with three different enzymes (urease, BuChE and AcCHE) differently inhibited by different types of toxics (organophosphorus pesticides, carbamates and heavy metal ions). The multisensor is first calibrated in an equimolar mixture of substrates of the different enzymes, then inhibited and then again calibrated in the mixture of substrates []. The data on the enzyme inhibition by definite toxins and their mixtures are presented in Table 4.
Table
Table 4. Level of inhibition of enzymes by different toxic substances (%).
Table 4. Level of inhibition of enzymes by different toxic substances (%).
UreaseBuChEAcChE
10 μM trichlorfon0505
50 μM trichlorfon07025
1 mM trichlorfon010085
100 μM carbofuran010050
10 μM Ag+0325
50 μM Ag+10770
10 μM Hg2+15310
50 μM Hg2+40770
Mixture No 12010030
Mixture No 39510090
Mixture No 4100100100
Mixture No 23010035
Annotation: containing of toxins in mixtures:
Mixture No 1 - 10 μM Ag+ + 10 μM Hg2 + 10 μM trichlorfon + 10 μM carbofuran
Mixture No 3 - 50 μM Ag+ + 20 μM Hg2 + 50 μM trichlorfon + 20 μM carbofuran
Mixture No 4 - 50 μM Ag+ + 50 μM Hg2 + 50 μM trichlorfon + 50 μM carbofuran
Mixture No 2 - unknown sample
For semi-quantitative determination of mixed toxic components in a sample, the multivariate correspondence analysis [, ] is used to extract the important characteristics of these data. The important feature of this method is the simultaneous representation of objects (concentrations of different toxics presented in rows in Table 4) and variables (nature of enzyme presented in columns in Table 4). Correspondence analysis defines the axis, which provides the best fit to both the row points and the column points. A second axis is determined, which best fits the data subject to being orthogonal to the first. Best fit is in the least square sense, relative to the χ-squared distance. This can be viewed as a weighted Euclidean distance between profiles. Multivariate correspondence analysis is well tailored for inhibition data processing because they are coded data, between 0 and 100. Principal component analysis which is a correlation analysis would be less adapted to this type of coded data. The free statistical software R from cran.r-project (equivalent to S-Plus) was used. Two factors were extracted and represented along orthogonal axis in Figure 6 and data from Table 4 were represented in the plane defined by these two axes. As can be seen from this figure, the composition of the unknown sample is close to that of the mixture 1.
It proves that despite a rather small amount of experimental points for each toxic substance and their mixtures, the method described allows to perform half-quantitative analysis of the sample composition quite reliably. More accurate and reliable results could be obtained using a more different sensors (enzymes) and more experimental data for each of them.
The advantages of such a system is the simplicity of the procedures for inhibition measurement and data processing and its applicability for monitoring toxicity of natural waters.
Sensors 01 00060 g006 1024

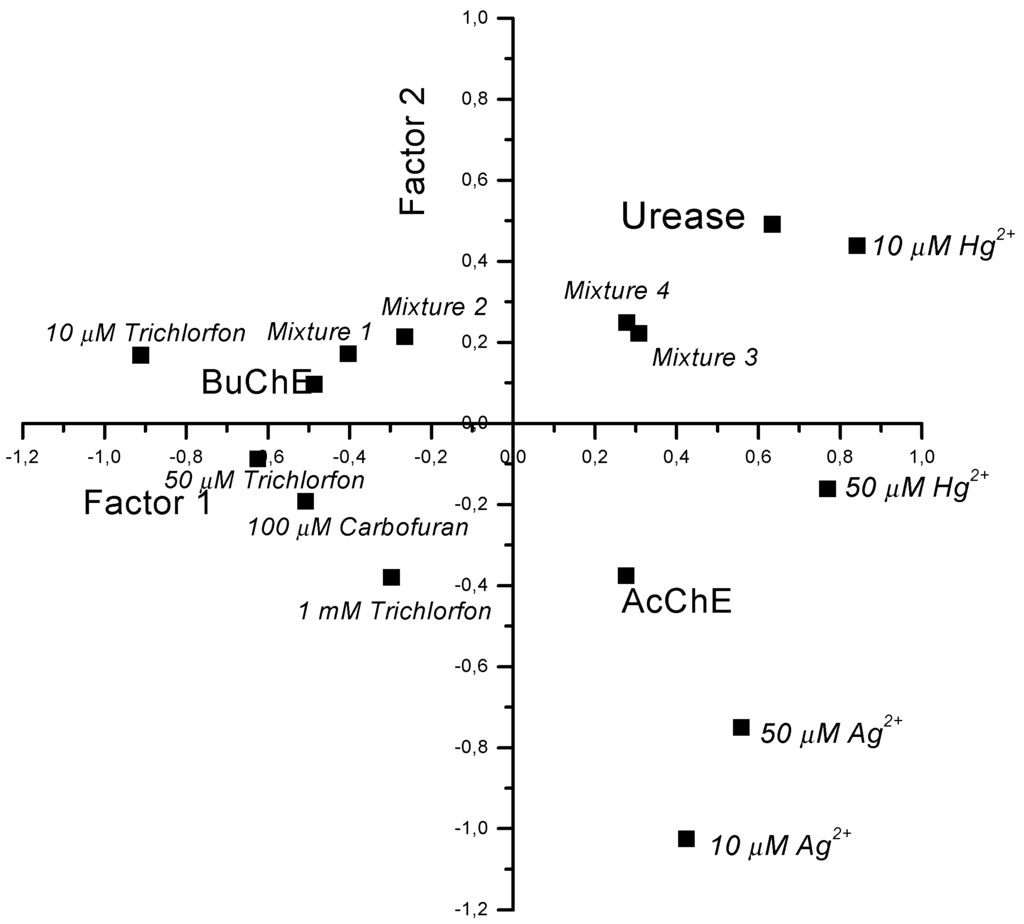

Figure 6. Representation of data from Table 4 by using multivariate correspondence analysis.

Conclusion

Biosensors based on inhibition of acylcholinesterases are very sensitive and very suitable for use as disposable sensors. Inhibition of enzyme is made directly in effluent itself (water, mud) and detection is performed in a buffer solution where activity of enzyme is optimum. Their limitation is the necessity to reactivate enzyme by a PAM-2 treatment.
New ways of detection of organophosphorus compounds appeared recently:
–
reversible inhibition of acid and alkaline phosphatases by organophosphorus compounds and carbamates, which avoid reactivation treatment
–
selective detection of organophosphorus compounds by organophosphorus hydrolase. This approach presents a lot of advantages concerning selectivity of detection and response time. Nevertheless, detection is done directly in the real sample which could not be convenient for enzymatic reaction and detection limit is much higher than that of inhibition methods.
An example is given of a multisensor system constituted of three ENFETs with three different enzymes (urease, BuChE and AcCHE) differently inhibited by different types of toxics (organophosphorus pesticides, carbamates and heavy metal ions). Experimental data are treated by multivariate correspondence analysis. The advantages of such a system is the simplicity of the procedures for inhibition measurement and data processing and its applicability for monitoring toxicity of natural waters.

References

  1. Budnikov, G. K.; Evtyugin, G. A.; Rizaeva, E. P.; Ivanov, A. N.; Latypova, V. Z. Comparative assessment of electrochemical biosensors for determining inhibitors - Environmental pollutants. J. Anal. Chem. 1999, 54(9), 864–871. [Google Scholar]
  2. Evtugyn, G. A.; Ivanov, A. N.; Gogol, E. V.; Marty, J. L.; Budnikov, H. C. Amperometric flow-through biosensor for the determination of cholinesterase inhibitors. Anal. Chim. Acta 1999, 385, 13–21. [Google Scholar] [CrossRef]
  3. Hart, A. L.; Collier, W. A.; Janssen, D. The response of screen-printed enzyme electrodes containing cholinesterases to organo-phosphates in solution and from commercial formulations. Biosens. Bioelec. 1997, 12(7), 645–654. [Google Scholar] [CrossRef]
  4. La Rosa, C.; Pariente, F.; Hernandez, L.; Lorenzo, E. Determination of organophosphorus and carbamic pesticides with an acetylcholinesterase amperometric biosensor using 4-aminophenyl acetate as substrate. Anal. Chim. Acta 1994, 295, 273–282. [Google Scholar] [CrossRef]
  5. Martorell, D.; Cespedes, F.; Alegret, S.; Martinez-Faregas, E. Amperometric determination of pesticides using biosensor based on polishable graphite-epoxy biocomposite. Anal. Chim. Acta 1994, 290, 343–348. [Google Scholar] [CrossRef]
  6. Martorell, D.; Cespedes, F.; Martinez-Faregas, E.; Alegret, S. Determination of organophosphorus and carbamate pesticides using a biosensor based on polishable, 7,7,8,8-tetracyanoquinodimethane-modified, graphite-epoxy biocomposite. Anal. Chim. Acta 1997, 337, 305–313. [Google Scholar] [CrossRef]
  7. Marty, J.-L.; Sode, K.; Karube, I. Biosensor for detection of organophosphate and carbamate insecticides. Electroanalysis 1992, 4, 249–252. [Google Scholar] [CrossRef]
  8. Mionetto, N.; Marty, J.-L.; Karube, I. Acetylcholinesterase in organic solvents for the detection of pesticides : biosensor application. Biosens. Bioelectron. 1994, 9, 463–470. [Google Scholar] [CrossRef]
  9. Palchetti, I.; Cagnini, A.; Del Carlo, M.; Coppi, C.; Mascini, M.; Turner, A. P. F. Determination of acetylcholinesterase pesticides in real samples using disposable biosensor. Anal. Chim. Acta 1997, 337, 315–321. [Google Scholar] [CrossRef]
  10. Palleschi, G.; Bernabei, M.; Cremisini, C.; Mascini, M. Determination of organophosphorus insecticides with a choline electrochemical biosensor. Sens. Actuators 1992, B7, 513–517. [Google Scholar] [CrossRef]
  11. Skadal, P. Determination of organophosphate and carbamate pesticides using cobalt phtalocyanine-modified carbon paste electrode and cholinesterase enzyme membrane. Anal. Chim. Acta 1991, 252, 11–15. [Google Scholar] [CrossRef]
  12. Skladal, P.; Mascini, M. Sensitive detection of pesticides using amperometric sensors based on cobalt phtalocyanine-modified composite electrodes. Biosens. Bioelectron. 1992, 7, 335–343. [Google Scholar] [CrossRef]
  13. Trojanowicz, M.; Hitchman, M. L. Determination of pesticides using electrochemical biosensors. Trends Anal. Chem. 1996, 15, 38–45. [Google Scholar] [CrossRef]
  14. Everett, W. R.; Rechnitz, G. A. Enzyme-based electrochemical biosensors for determination of organbophosphorous and carbamate pesticides. Anal. Letters 1999, 32(1), 1–10. [Google Scholar] [CrossRef]
  15. Chuna Bastos, V. L. F.; Chuna Bastos, J.; Lima, J. S.; Castro Faria, M. V. Brain aceylcholinesterase as an in vitro detector of organophosphorus and carbamate insecticides in water. Water Res. 1991, 25, 835–840. [Google Scholar] [CrossRef]
  16. Danzer, T.; Schwedt, G. Chemometric methods for the development of a biosensor system and the evaluation of inhibition studies with solutions and mixtures of pesticides and heavy metals. Part I. Development of an enzyme electrodes system for pesticides and heavy metal screening using selected chemometric methods. Anal. Chim. Acta 1996, 318, 275–286. [Google Scholar]
  17. Kumaran, S.; Morita, M. Application of a cholinesterase biosensor to screen for organophosphorus pestcides extracted from soil. Talanta 1995, 42, 649–655. [Google Scholar] [CrossRef]
  18. Kumaran, S.; Tran-Minh, C. Determination of organophosphorus and carbamate insecticides by flow injection analysis. Anal. Biochem. 1992, 200, 187–194. [Google Scholar] [CrossRef]
  19. Tran-Minh, C.; Pandey, P. C.; Kumaran, S. Studies of acetylcholine sensor and its analytical application based on the inhibition of cholinesterase, Biosens. Bioelectron. 1990, 5, 461–471. [Google Scholar] [CrossRef]
  20. Dumschat, C.; Müller Stein, K.; Schwedt, G. Pesticide-sensitive ISFET based on enzyme inhibition, Anal. Chim. Acta 1991, 252, 7–9. [Google Scholar] [CrossRef]
  21. Campanella, L.; Colapicchioni, C.; Favero, G.; Sammartino, M. P.; Tomasetti, M. Organophosphorus pesticides (Paraoxon) analysis using solid state sensors, Sens. Actua. 1996, B33, 25–33. [Google Scholar] [CrossRef]
  22. Jaffrezic-Renault, N.; Martelet, C.; Cléchet, P.; Nyamsi Hedji, A. M.; Shul'ga, A.; Dzyadevich, S.; Netchiporouk, L. I.; Soldatkin, A. P. Comparison of two transduction modes for design of microbiosensors applicable to detection of pestides. Sensors and Materials 1996, 8(3), 161–167. [Google Scholar]
  23. Nyamsi Hendji, A. M.; Jaffrezic-Renault, N.; Martelet, C.; Cléchet, P.; Shul'ga, A. A.; Netchiporouk, L. I.; Soldatkin, A. P.; Wlodarski, W. B. Sensitive detection of pesticides using a differential ISFET-based system with immobilized cholinesterases, Anal. Chim. Acta 1993, 281, 3–11. [Google Scholar] [CrossRef]
  24. Wan, K.; Chovelon, J. M.; Jaffrezic-Renault, N.; Soldatkin, A. P. Sensitive detection of pesticide using ENFET with enzymes immobilized by cross-linking and entrapment methode. Sens. Actuat. 1999, B 58, 399–408. [Google Scholar] [CrossRef]
  25. Wan, K.; Chovelon, J. M.; Jaffrezic-Renault, N. Enzyme-octadecylamine Langmuir-Blodgett membranes for ENFET biosensors. Talanta 2000, 52, 663–670. [Google Scholar] [CrossRef]
  26. Rogers, K. R.; Foley, M.; Alter, S.; Koga, P.; Eldefrawi, M. E. Light adressable potentiometric biosensor for the detection of anticholinesterases. Anal. Lett. 1991, 24, 191–196. [Google Scholar] [CrossRef]
  27. Marty, J. L.; Garcia, D.; Rouillon, R. Biosensor: potential in pesticide detection. Trends in Anal. Chem. 1995, 14(7), 329–333. [Google Scholar]
  28. Chovelon, J. M.; Wan, K.; Jaffrezic-Renault, N. Influence of the surface pressure on the organization of mixed Langmuir-Blodgett films of octadecylamine and butyrylcholinesterase. 1 - Film preparation at the air-water interface. Langmuir 2000, 16(15), 6223–6227. [Google Scholar] [CrossRef]
  29. Dzyadevich, S. V.; Shul'ga, A. P.; Soldatkin, A. P.; Nyamsi Hendji, A. M.; Jaffrezic-Renault, N.; Martelet, C. Conductometric biosensors based on cholinesterases for sensitive detection of pesticides. Electroanalysis 1994, 6, 752–758. [Google Scholar] [CrossRef]
  30. Andres, R. T.; Narayanaswamy, R. Fiber-optic pesticide biosensor based on covalently immobilized acetylcholinesterase and thymol blue. Talanta 1997, 44, 1335–1352. [Google Scholar] [CrossRef]
  31. Garcia De Maria, C.; Munoz, T. M.; Townhend, A. Reactivation of an immobilized enzyme reactor for the determination of acetylcholinesterase inhibitors. Flow injection determination of paraoxon. Anal. Chim. Acta 1994, 295, 287–296. [Google Scholar] [CrossRef]
  32. Hobel, W.; Polster, J. Fiber optic biosensor for pesticides based on acetylcholine esterase. Fresenius J. Anal. Chem. 1992, 343, 101–102. [Google Scholar] [CrossRef]
  33. Moris, P.; Alexandre, I.; Roger, M.; Remacle, J. Chemiluminescence assay of organophosphorus and carbamate pesticides. Anal. Chim. Acta 1995, 302, 53–59. [Google Scholar] [CrossRef]
  34. Rogers, K. R.; Cao, C. J.; Valdes, J. J.; Eldefrawi, A. T.; Eldefrawi, M. E. Acetylcholinesterase fiber-optic biosensor for detection of anticholinesterases. Fund. Appl. Toxicol. 1991, 16, 810–820. [Google Scholar] [CrossRef]
  35. Trettnak, W.; Reininger, F.; Zinterl, E.; Wolfeis, O. S. Fiber-optic remote detection of pesticides and related inhibitors of the enzyme acetylcholinesterase. Sens. Actuat. 1993, B 11, 87–93. [Google Scholar] [CrossRef]
  36. Mazzei, F.; Botrè, F.; Botrè, C. Acid phosphatase/glucose oxidase-based biosensors for the determination of pesticides. Anal. Chim. Acta 1996, 336, 67–75. [Google Scholar] [CrossRef]
  37. Rainina, E. I.; Efremenco, E. N.; Varfolomeyev, S. D.; Simonian, A. L.; Wild, J. R. The development of a new biosensor based on recombinant E. coli for the direct detection of organophosphorus neurotoxins. Biosens. Bioelec. 1996, 11(10), 991–1000. [Google Scholar] [CrossRef]
  38. Mulchandani, A.; Mulchandani, P.; Chen, W. Enzyme biosensor for determination of organophosphorates. Field Anal. Chem. Technol. 1998, 2(6), 363–369. [Google Scholar] [CrossRef]
  39. Mulchandani, P.; Mulchandani, A.; Kaneva, I.; Chen, W. Biosensor for direct determination of organophosphate nerve agents. 1. Potentiometric enzyme electrode. Biosens. Bioelec. 1999, 14, 77–85. [Google Scholar] [CrossRef]
  40. Mulchandani, A.; Mulchandani, P.; Chen, W.; Wang, J.; Chen, L. Amperometric thick-film strip electrodes for monitoring organophosphate nerve agents based on immobilized organophosphorus hydrolase. Anal. Chem. 1999, 71, 2246–2249. [Google Scholar] [CrossRef] [PubMed]
  41. Russell, R. J.; Pishko, M. V.; Simonian, A. L.; Wild, J. R. Poly(ethylene glycol) hydrogel-encapsulated fluorophore-enzyme conjugates for direct detection of organophosphorus neurotoxins. Anal. Chem. 1999, 71, 4909–4912. [Google Scholar] [CrossRef] [PubMed]
  42. Arkhypova, V. N.; Dzyadevych, S. V.; Soldatkin, A. P.; El'skaya, A. V.; Jaffrezic-Renault, N.; Jaffrezic, H.; Martelet, C. Multibiosensor based on enzyme inhibition analysis for determination of different toxic substances. Talanta. (in press). [CrossRef]
  43. Benzecri, J. P. Correspondence analysis Handbook; Marcel Dekker: Basel, 1992. [Google Scholar]
  44. Greenacre, M. J. Theory and applications of Correspondence Analysis. Academic Press: New York, 1984. [Google Scholar]
  • Sample Availability: Not available.

Article Metrics

Citations

Article Access Statistics

Journal Statistics
Multiple requests from the same IP address are counted as one view.
Download PDF
Assembly method fabricating linkers for covalently bonding DNA on glass surface
Previous
Electrochemical Metal Ion Sensors. Exploiting Amino Acids and Peptides as Recognition Elements
Next
