Synthesis of a Stable Long-Wavelength Fluorescent BODIPY FL-NAADP Conjugate

Abstract

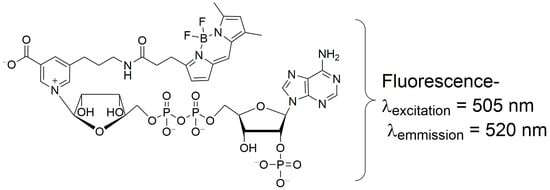

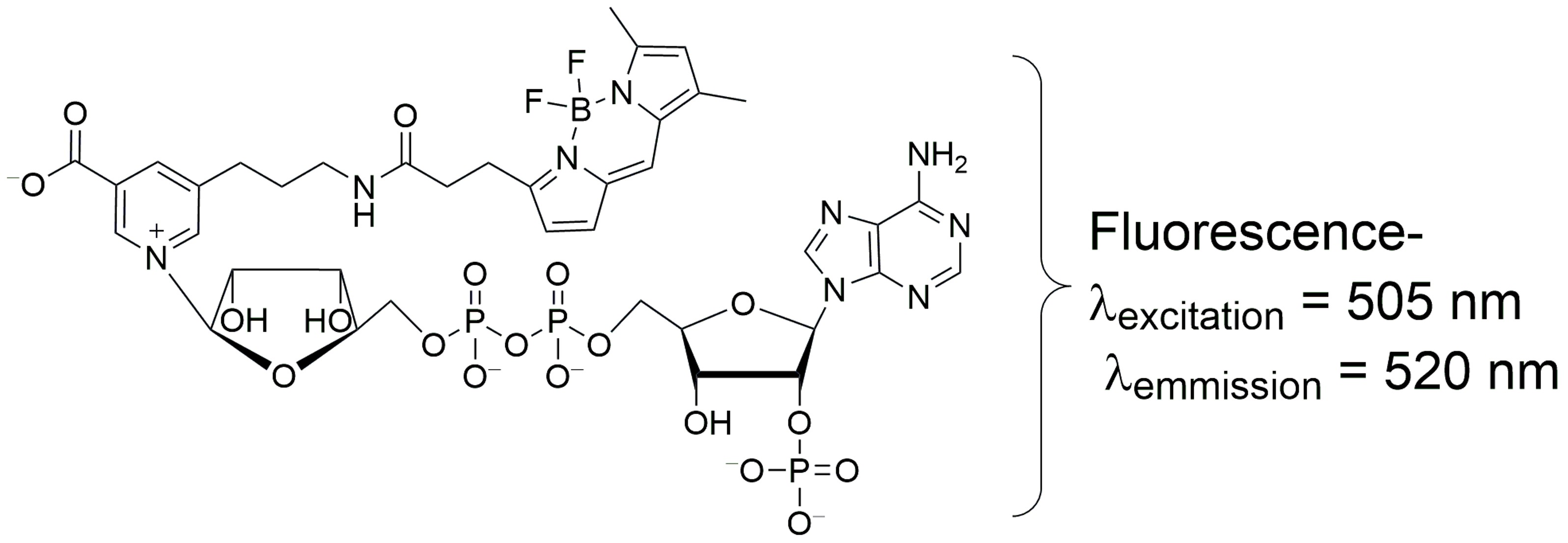

Nicotinic acid adenine dinucleotide phosphate (NAADP) is a second messenger that stimulates intracellular Ca²⁺ release in both mammalian cells and echinoderm egg homogenates. A NAADP linked covalently to a stable long-wavelength fluorescent dye would be a useful probe with which to characterize NAADP–receptor interactions in solution and potentially to determine intracellular-binding localization. We report the synthesis of a BODIPY-NAADP covalent conjugate made through linking the carboxyl group of BODIPY FL to the primary amino group of 5-(3-aminopropyl)-NAADP through amide bond formation. The starting pyridine dinucleotide analog, 5-(3-aminopropyl)-NAADP was available through enzyme-catalyzed base exchange between NADP and a substituted nicotinic acid analog. The resulting 5-BODIPY-NAADP conjugate was purified to homogeneity using ion-exchange chromatography, was produced in milligram quantities, and its spectroscopic properties were characterized.

1. Introduction

Nicotinic acid adenine dinucleotide phosphate (NAADP, Figure 1) is a Ca²⁺-mobilizing intracellular second messenger active in echinoderms, plants, and human tissues [1]. In cultured human cells, NAADP releases Ca²⁺ from endosomal- and lysosomal-localized calcium stores through the activation of two-pore channels (TPCs) [2]. NAADP TPC activation is mediated through the intermediacy of two different 23–24 kDa NAADP-binding proteins, JPT2 [3,4] and LSM12 [5], which specifically bind the dinucleotide at micromolar concentrations and activate TPCs through protein–protein interaction. NAADP-mediated Ca²⁺ release has been shown to be of importance both in viral infections and cancer [6].

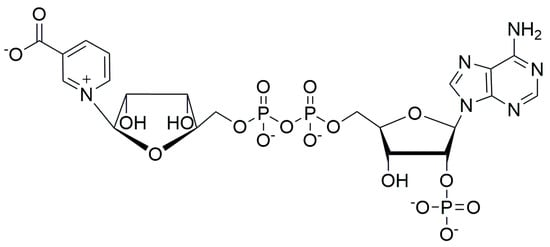

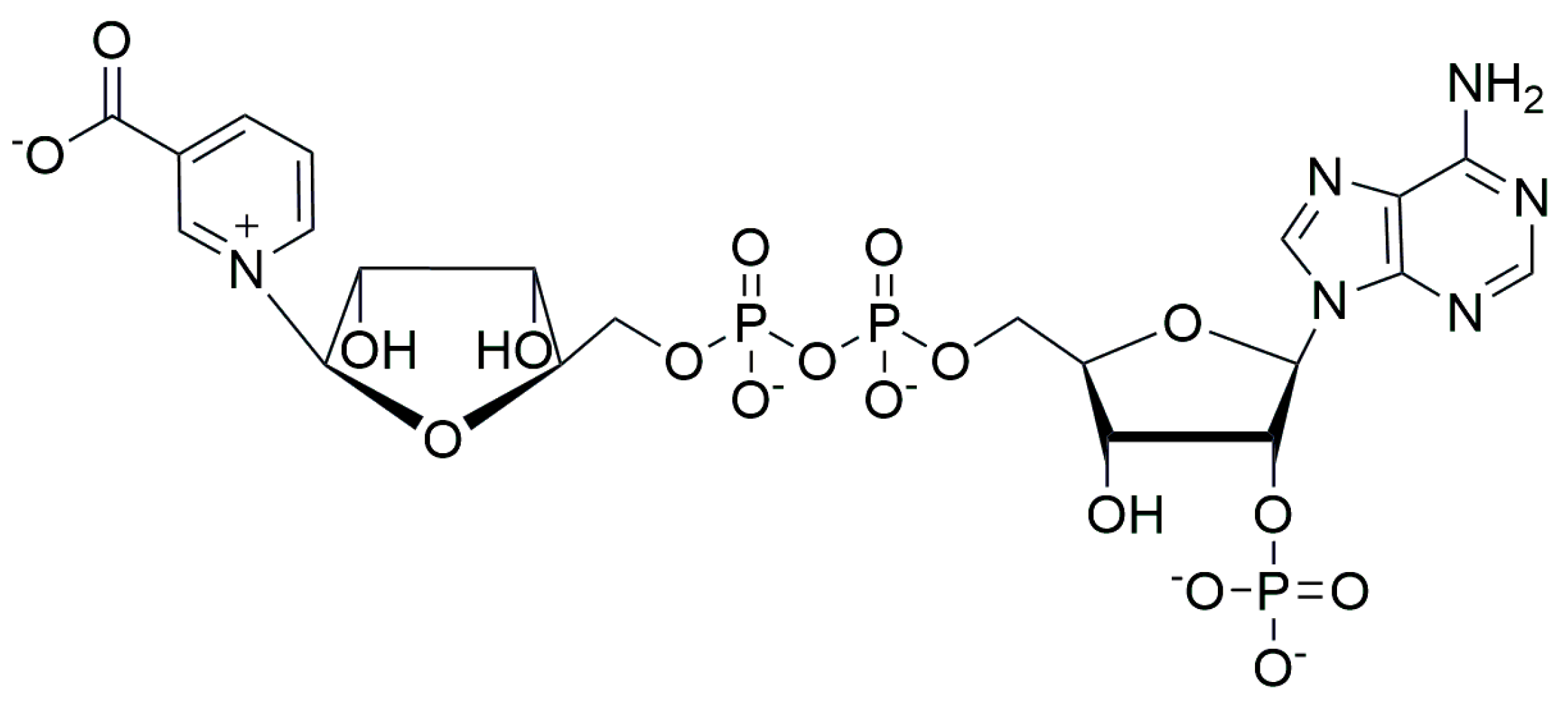

Figure 1. The structure of NAADP.

NAADP itself [7], and a variety of substituted NAADP analogs, have been prepared using enzyme-catalyzed pyridine base-exchange reactions and tested for the ability to induce Ca²⁺ release in sea urchin egg homogenates and in cultured human cells [8,9,10]. Chemoenzymataic synthesis has resulted in the production of important NAADP derivatives including membrane-permeant analogs [11,12] and light-activatable caged derivatives [13,14]. However, except for the short-wavelength etheno-NAADP analogs [15], fluorescent NAADP conjugates have not been developed. Long-wavelength fluorescent NAADP analogs would constitute a class of biological probes that would be useful tools to advance studies of NAADP-mediated signaling. Fluorescent NAADP conjugates would permit the development of competition ligand-binding assays using fluorescence or fluorescence depolarization, could identify intracellular locations of NAADP binding, and facilitate biophysical studies of NAADP-binding protein interactions.

In this report, we describe linking the amino group of 5-(3-aminopropyl)-NAADP (1) to the N-hydroxysuccinimide ester of BODIPY FL (2), resulting in the formation of an amide bond and synthesis of BODIPY FL-NAADP (3) (Figure 2). BODIPY FL offers a well characterized fluorophore with high quantum yield, excitation > 500 nm, emission at ~520 nm, and high photochemical stability [16]. BODIPY conjugates of bio-active molecules including alkaloids [17,18] and terpenes [19] have recently been reported as biochemical probes.

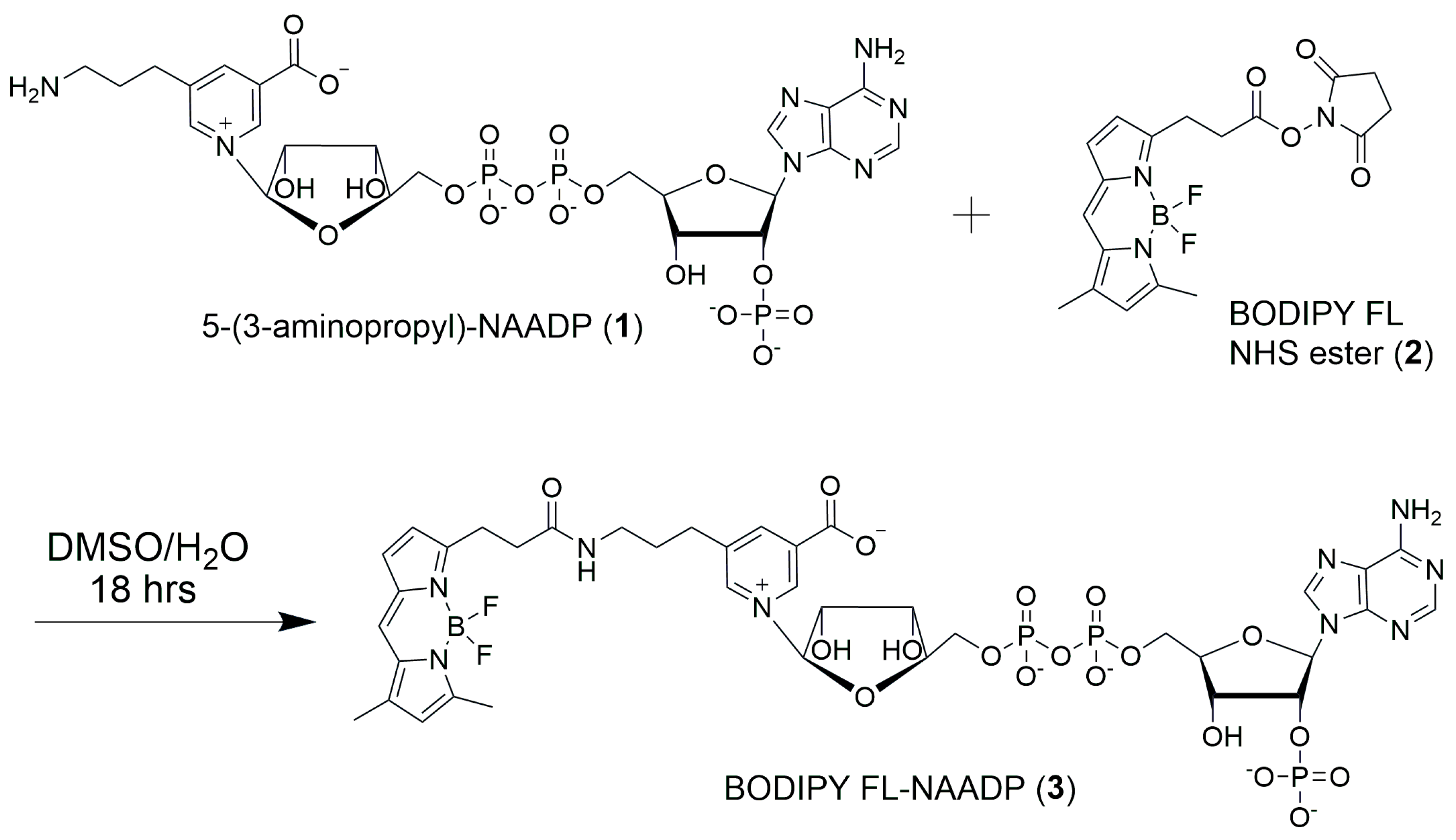

Figure 2. Synthesis of BODIPY FL-NAADP (3) from 5-(3-aminopropyl)-NAADP (1) and BODIPY FL N-hydroxysuccinimide ester (2).

2. Results and Discussion

2.1. Synthesis of 3

The starting materials for this synthesis were 5-(3-aminopropyl)-NAADP (1) and BODIPY FL N-hydroxysuccinimide ester (2) (Figure 2). Dinucleotide 1 was previously synthesized and characterized as the product from the enzyme-catalyzed pyridine base-exchange reaction between NADP and 5-(3-aminopropyl)-nicotinic acid [10]. Compound 2 was available commercially or could be produced in high yield in a single step from BODIPY FL and N-hydroxysuccinimide (NHS).

Active ester 2 was directly coupled with dinucleotide 1 by forming an amide linkage. To obtain the best result, a highly concentrated solution of 1 and 2 must be produced. One equivalent of compound 1 was reacted with six equivalents of compound 2 in a 2:1 DMSO/water solution for 18 h at ambient temperature.

The product 3 was purified by anion-exchange chromatography using a stationary phase of DEAE-cellulose and a mobile phase consisting of a linear gradient formed between water and 0.4 M ammonium bicarbonate [10]. The eluted fractions which contained 3 were identified by their UV absorption, combined, and lyophilized to yield NAADP-BODIPY dye conjugate 3 as its ammonium salt.

2.2. Spectroscopic Properties of 3

NAADP-BODIPY dye conjugate 3 was characterized using ¹H- and ¹³C-NMR spectra, its UV/visible spectrum, and mass spectrometry.

The ¹H-NMR spectrum of 3 exhibits five low-field singlets from the aromatic purine and nicotinamide rings (δ 8–9 ppm), signals from the aromatic hydrogens of the BODIPY moiety (δ 6–7 ppm), a distinctive set of doublets from the anomeric carbons of the ribose rings (δ 6.06 and 6.02 ppm), and two high-field methyl signals from the BODIPY methyl groups (δ 2.39 and 2.07). The ribosyl protons and the four linking methylene groups form a complex set of overlapping high-field signals between 1.5 and 4.5 ppm (Figure S1).

The UV/visible spectrum combines the chromophores of the two component parts (Figure 3) with maxima at 261 nm and 506 nm. Fluorescence excitation spectrum recorded in PBS at pH 7.4 shows a peak absorption at 505 nm and a peak emission at 520 nm.

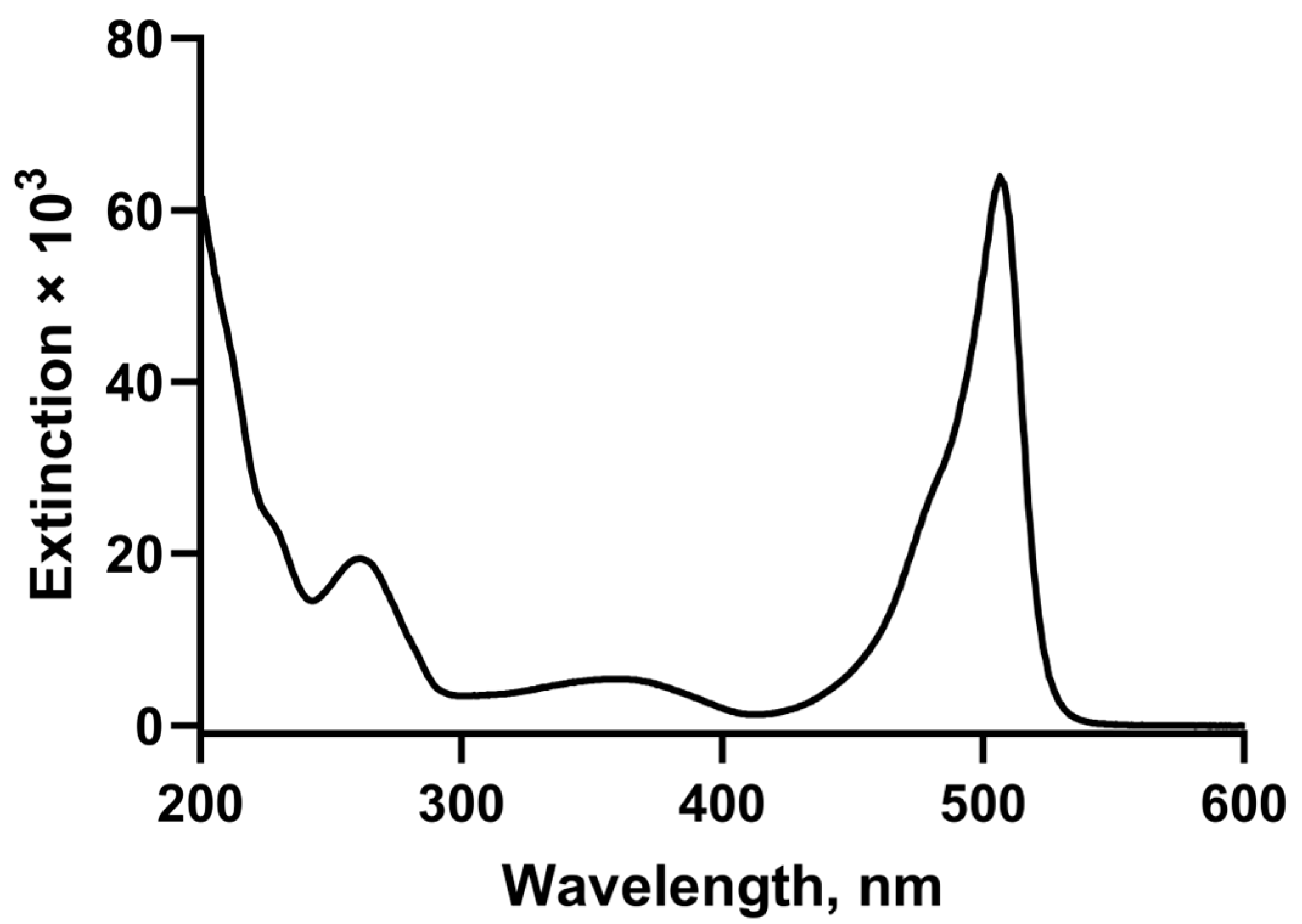

Figure 3. Electronic absorption spectrum of BODIPY FL-NAADP (3).

3. Materials and Methods

3.1. General Procedures

Reagents and anhydrous solvents were purchased from Millipore Sigma (Burlington, MA, USA) or Thermo Scientific Chemicals (Thermo Fisher Scientific Inc., Waltham, MA, USA) and were used without purification unless stated otherwise. ACS Reagent-grade solvents were purchased from Thermo Fisher Scientific (Waltham, MA, USA). All reactions were conducted in washed and oven-dried glassware (120 °C).

The proton (¹H) NMR and the carbon (¹³C) NMR spectra were recorded at 14.0954 Tesla (¹H Larmor frequency of 600 MHz and ¹³C Larmor Frequency of 150.903 MHz), using the Bruker Avance NMR with Cryoprobe (Bruker Corp., Billerica, MA, USA) or Varian Inova 600 MHz spectrometers (Palo Alto, CA, USA). Chemical shifts are reported in parts per million (ppm, δ) and referenced to the residual proton signal of the deuterated solvent (¹H, at δ 4.70, D₂O), or an internal standard of tetramethylsilane (TMS) when CDCl₃ was used.

3.2. Preparative Anion-Exchange HPLC

Anion-exchange chromatography was performed using a Bio-Rad BioLogic Duo Flow™ chromatography system equipped with a 260 nm UV detector. The stationary phase was AG MP-1 (200–400 mesh) anion-exchange resin trifluoroacetate form (Bio-Rad Laboratories, Hercules, CA, USA) packed into heavy walled glass columns (1 × 17 cm). The mobile phase was a linear gradient formed by mixing deionized water (solvent A) and 150 mM aqueous TFA (solvent B) [20]. A 5 mL injection loop was fitted to the HPLC system, and the flow rate was 6 mL/min throughout the purification. The chromatography was developed as follows: (1) 6 mL solvent A was applied through the injection loop; (2) 25 mL solvent A was applied through the column; (3) a linear gradient of TFA was formed over a total volume of 185–400 mL; (4) 40 mL solvent B was applied to clean the column; and (5) 40 mL solvent A was applied to re-equilibrate the column.

3.3. MALDI Analysis

Super DHB (sDHB), 9:1 2,5-dihydroxybenzoic acid:2-hydroxy-5-methoxybenzoic acid, was purchased from Millipore Sigma (Burlington, MA, USA). A peptide Calibration Standard II and an MTP 384 Ground Steel TF target plate were purchased from Bruker (Billerica, MA, USA).

A matrix solution of sDHB was prepared (20 mg/mL) in 33% acetonitrile–water with 0.1% TFA (TA 33). The peptide calibration standard was prepared as directed by the supplier. Equal volumes of matrix and analyte solution (in TA 33) were premixed and 0.5 μL of the resulting solution was spotted onto the target plate. The prepared calibration solution was spotted on an adjacent spot of the target plate. MALDI spectra were collected in positive ion detection mode on a Bruker UltraFlextrem MALDI-TOF/TOF (Billerica, MA, USA). Instrument calibration with the peptide II standard provided a less than 5 ppm error.

3.4. Determination of UV/Visible Extinction Coefficients

Exact concentrations of dinucleotide 3 were determined by measurement of the quantity of organic phosphate according to the method of B. Ames, 1966 [21].

3.5. Analytical HPLC Ion-Exchange Chromatography

The analytical HPLC procedure described by Alexson et al., 1981 [20], was modified to accommodate the more hydrophobic BODIPY-containing dinucleotides. The stationary phase consisted of AG MP-1 (200–400 mesh) anion-exchange resin trifluoroacetate form (Bio-Rad Laboratories, Hercules, CA, USA) packed into heavy walled glass columns (6.6 mm × 10.5 cm). The mobile phase consisted of a linear gradient formed between 5% ethanol in water (A) and 0.15 M TFA with 20% ethanol in water (B). A flow rate of 1.5 mL/min was used and the effluent was monitored by measuring the UV absorption at 260 nm.

3.6. 5-(3-Aminopropyl)-NAADP (1)

5-(4-Aminopropyl)-nicotinic acid (CAS Registry # 1515508-35-6) (35 mg, 0.194 mmol) was dissolved in water (6 mL) and stirred for 30 min at 37 °C. After this time, the pH was adjusted to 7.5 with 1 M NaOH and stirred for 30 min. The pH was measured again and readjusted to pH = 7.5 with 1 M NaOH. This procedure was repeated until the pH was stabilized. After the pH had stabilized, NADP (15 mg, 0.018 mmol) was added and stirred for 5 min at 37 °C. Next, recombinant E98G Aplysia californica ADP-ribosyl cyclase [22,23] (180 µL, 36 ng) was added as the catalyst for the pyridine base-exchange reaction, and the reaction was stirred at 37 °C for 6 h. At the end of 6 h, analysis by HPLC confirmed that the starting material (NADP) had been consumed. The sample was then injected onto the HPLC column, and the product was purified by anion-exchange chromatography in water/TFA gradients according to the HPLC method described in Section 3.2. The fractions showing UV absorption at 260 nm were combined and lyophilized. After the HPLC column, the combined product was extracted with 1:4 tri-n-octylamine/CHCl₃ with a 1:4 ratio of organic to aqueous phase. The phases were separated by centrifugation (using a clinical centrifuge with 50 mL Pyrex tubes), and the chloroform-rich organic phase was removed. The aqueous phase was frozen and lyophilized to give the product, a white amorphous solid, as a tri-n-octylamine salt. The spectroscopic properties of this material agreed with that which had been published previously [10], and it was used in the next step as the tri-n-octylammonium salt without further purification. Yields for this reaction were typically 30–60%.

3.7. BODIPY FL-NAADP (3)

One equivalent of compound 1 (4.12 mg, 0.00514 mmol) and 6 equivalents of compound 2 (12 mg, 0.03 mmol) were dissolved in a solution of 0.5 mL DMSO and 0.25 mL H₂O in a 1.5 mL Eppendorf tube, and the mixture was stirred at ambient temperature. After 18 h, the reaction mixture was diluted with 1 mL of water, and then loaded onto a column of DEAE-cellulose (10 × 100 mm) (Whatman DE-53 cellulose #4058200). The separation was developed by applying a linear gradient formed between 500 mL of water and 500 mL of 400 mM NH₄HCO₃ and 10 mL fractions were collected. The effluent fractions were monitored for UV/visible absorption, and those showing UV absorption at both 260 nm and 506 nm were combined and lyophilized to give the red amorphous solid product as its ammonium salt. Based on the extinction coefficient of BODIPY FL at 506 nm, we isolated 2.2 mg (40% yield) of the product.

UV/visible electronic absorption spectrum (H₂O) exhibited peaks at λ_max 506 nm (ε₅₀₆, 63,800 L mol⁻¹ cm⁻¹) and λ_max 261 nm (ε₂₆₁, 19,400 L mol⁻¹ cm⁻¹) A₅₀₆/A₂₆₁ = 3.29; fluorescence excitation spectrum (recorded in PBS at pH 7.4) maxima at 506 nm; fluorescence emission peak at 520 nm;

¹H-NMR (600 MHz, D₂O) (Figure S1) δ 8.97 (s, 1H), 8.85 (s, 1H), 8.53 (s, 1H), 8.30 (s, 1H), 7.99 (s, 1H), 6.92 (s, 1H, -H BODIPY), 6.88 (d, 1H, J = 3.96, -H BODIPY), 6.38 (d, 1H, J = 4.02, -H BODIPY), 6.10 (s, 1H, -H BODIPY), 6.06 (d, 1H, J = 5.34, -H anomeric), 6.02 (d, 1H, J = 5.58, -H anomeric), 4.92 (m, 1H), 4.56–4.17 (m, 9H), 3.27–3.10 (m, 4H), 2.69 (m, 2H), 2.52 (t, 2H, J = 8.22, -CH₂), 2.39 (s, 3H, -CH₃), 2.07 (s, 3H, -CH₃), 1.77 (m, 2H); Proton-decoupled ¹³C-NMR (D₂O, 600 MHz) (Figure S2), δ 176.6, 175.0, 161.2, 155.8, 153.6, 150.1, 148.4, 146.3, 145.5, 143.9, 140.2, 139.5, 139.4, 136.4, 134.6, 132.6, 128.8, 123.8, 120.9, 118.2, 116.8, 99.7, 86.7, 86.2, 83.4, 77.4, 76.9, 70.4, 69.8, 65.3, 65.0, 38.4, 34.5, 28.9, 27.9, 24.5, 14.1, 10.4.

Positive mode MALDI mass spectra (Figure S3; Table S1): Calcd. m/z for C₃₈H₄₈BF₂N₉O₁₉P₃, [M]⁺ 1076.2335; measured m/z was 1076.2350 (1.39 ppm error).

Subsequent to our original purification, we found that preparative chromatography using DEAE-Sephacel worked as well as the Whatman DE-53 cellulose. An example of the DEAE-Sephacel chromatography is presented in the Supplementary Materials as Figure S4 (page 10). The purity of the product was determined to be >92% using analytical HPLC anion-exchange chromatography. The chromatographic profile is available as Figure S5 (page 11) in the Supplementary Materials.
