Abstract
A new Schiff base, 4-{[(4-methylphenyl)imino]methyl}-3-hydroxyphenyl 4-(hexadecanoyloxy)benzoate was synthesized and its IR, 1H NMR, 13C NMR and MS spectroscopic data are presented.
N-Benzylideneaniline Schiff bases have received a considerable amount of attention from many researchers owing to their importance in exhibiting thermochromism and photochromism [1]. A lot of efforts have been made in order to generate their derivatives by introducing different substituents into the existing skeleton of the molecule The presence of alkyl chain at the para position of N-benzylideneanilines has also been identified as one of the important requirements which favours the existence of liquid crystal phases [2,3,4]. Different alkyl chain length and terminal substituent can significantly influence the anisotropic properties of liquid crystals [2]. Thus, we report here another new derivative containing an hexadecanoyloxy chain, 4-{[(4-methylphenyl)imino]methyl}-3-hydroxyphenyl 4-(hexadecanoyloxy)benzoate.

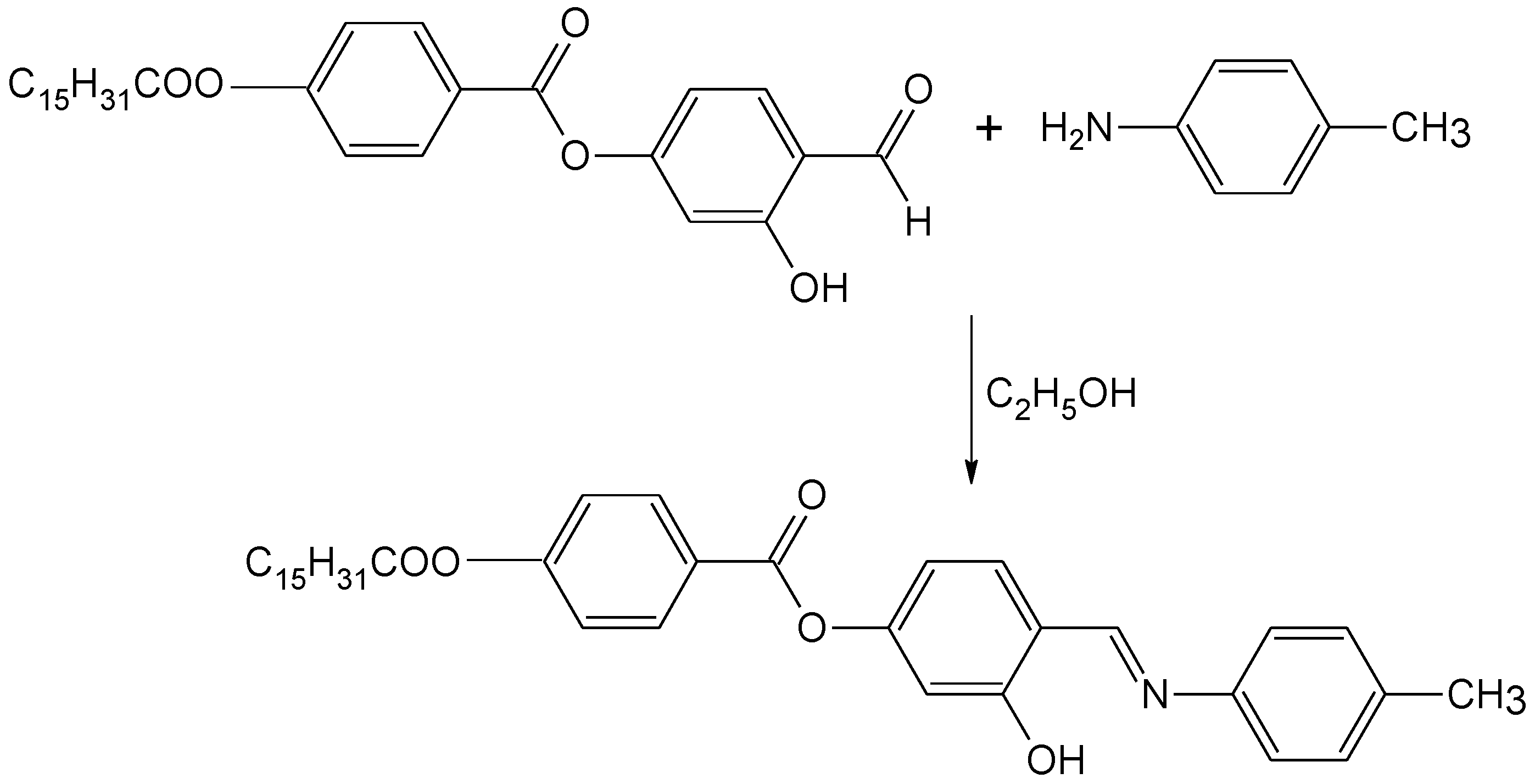

Scheme 1.
Synthesis of4-{[(4-methylphenyl)imino]methyl}-3-hydroxyphenyl 4-(hexadecanoyloxy)benzoate.
Experimental
4-(4-n-Hexadecanoyloxybenzoyloxy)-2-hydroxybenzaldehye was prepared according to the method described in our previous work [5]. In a round-bottom flask, a mixture of the aldehyde (2.48 g, 5.0 mmol), 4-methylaniline (0.54 g, 5.0 mmol) and absolute ethanol (40 mL) was refluxed with stirring for 3 h. The reaction mixture was filtered and the solvent was removed from the filtrate by evaporation. Recrystallization from absolute ethanol gave the title compound as a yellow solid (2.20 g, 75%).
Melting point: 204–206 °C.
MS (EI): m/z (rel. int. %) = 586 (1) (M+).
IR (KBr): νmax/ cm−1 2952, 2916, 2848 (C-H aliphatic), 1752 (C=O of C15H31COO- fragment), 1743 (C=O of benzoate), 1624 (C=N), 1605 (C=C aromatic), 1284 (C-O).
1H NMR (400 MHz, CDCl3): δ/ppm 0.88 (t, 3H, J = 6.4 Hz, CH3-), 1.24–1.47 (m, 24H, CH3-(CH2)12-), 1.77 (quint, 2H, J = 7.3 Hz, -CH2-CH2COO-), 2.38 (s, 1H, Ar-CH3), 2.60 (t, 2H, J = 7.5 Hz, -CH2-COO-), 6.81 (dd, 1H, J = 2.2, 8.4 Hz, Ar-H), 6.89 (d, 1H, J = 2.1 Hz, Ar-H), 7.21–7.26 (m, 6H, Ar-H), 7.42 (d, 1H, J = 8.5 Hz, Ar-H), 8.23 (d, 2H, J = 8.8 Hz, Ar-H), 8.63 (s, 1H, CH=N), 13.77 (s, 1H, OH).
13C NMR (100 MHz, CDCl3): δ/ppm 172.06 (C=O of C15H31COO-), 164.26 (C=O of benzoate), 161.17 (C=N), 163.03, 155.52, 154.77, 145.95, 137.45, 133.44, 132.26, 130.45, 127.07, 122.33, 121.40, 117.81, 113.22 and 110.94 for aromatic carbons, 34.83 (-CH2COO-), 25.25 (-CH2CH2COO-), 21.47 (Ar-CH3), 32.34, 30.11, 30.09, 30.06, 30.01, 29.86, 29.77, 29.66, 29.50, 23.11 (CH3(CH2)12), 14.53 (CH3(CH2)12).
Elemental analysis: Calculated for C37H47NO5, C 75.86%, H, 8.09%, N, 2.39%; Found: C, 75.88%, H, 8.08%, N, 2.45%.
Supplementary materials
Supplementary File 1Supplementary File 2Supplementary File 3Acknowledgements
The authors would like to thank Universiti Tunku Abdul Rahman (UTAR) and Ministry of Higher Education Malaysia (MOHE) for the financial supports and research facilities.
References
- Hadjoudis, E.; Vittorakis, M.; Moustakali-Mavridis, I. Photochromism and thermochromism of schiff bases in the solid state and in rigid glasses. Tetrahedron 1987, 43, 1345–1360. [Google Scholar] [CrossRef]
- Yeap, G.Y.; Ha, S.T.; Lim, P.L.; Boey, P.L.; Ito, M.M.; Sanehisa, S.; Youhei, Y. Synthesis, physical and mesomorphic properties of Schiff’s base esters containing ortho-, meta- and para-substituents in benzylidene-4’-alkanoyloxyanilines. Liq. Cryst. 2006, 33, 205–211. [Google Scholar] [CrossRef]
- Ha, S.T.; Ong, L.K.; Wong, J.P.W.; Yeap, G.Y.; Lin, H.C.; Ong, S.T.; Koh, T.M. Mesogenic Schiff’s base ether with dimethylamino end group. Phase Transitions 2009, 82, 387–397. [Google Scholar] [CrossRef]
- Ha, S.T.; Ong, L.K.; Ong, S.T.; Yeap, G.Y.; Wong, J.P.W.; Koh, T.M.; Lin, H.C. Synthesis and mesomorphic properties of new Schiff base esters with different alkyl chains. Chin. Chem. Lett. 2009, 20, 767–770. [Google Scholar] [CrossRef]
- Yeap, G.Y.; Ha, S.T.; Boey, P.L.; Mahmood, W.A.K.; Ito, M.M.; Youhei, Y. Synthesis and characterization of some new mesogenic Schiff base esters N-[4-(4-n-hexadecanoyloxybenzoyloxy)benzylidene]-4-substituted anilines. Mol. Cryst. Liq. Cryst. 2006, 452, 73–90. [Google Scholar] [CrossRef]
