1,3-Bis(pyren-1-yl)imidazolium chloride (IPyr·HCl)

Peter Schroll; Burkhard König

doi:10.3390/M729

and

Institute of Organic Chemistry, University of Regensburg, Universitätsstraße 31, 93040 Regensburg, Germany

^*

Author to whom correspondence should be addressed.

Molbank2011, 2011(2), M729;https://doi.org/10.3390/M729

Version Notes

Order Reprints

Abstract

A novel UV-A-light absorbing N-heterocyclic carbene precursor imidazolium salt 2 was synthesized by reaction of 1,4-bis(pyren-1-yl)-1,4-diazadiene 1 with paraformaldehyde in the presence of chlorotrimethylsilane. The title compound was characterized by ¹H‑NMR, ¹³C‑NMR, 2D‑NMR, mass spectrometry, IR and UV/VIS spectroscopy.

Keywords:

N-heterocyclic carbene; catalysis; light absorption; photochemistry

1. Introduction

N-Heterocyclic carbenes (NHCs) have attracted great interest since the isolation of the first stable free NHC [1] and the discovery of the catalytic activity of their metal complexes [2]. Since they act as excellent two electron σ-donor ligands in metal-based catalytic reactions [3], many applications in C‑H‑activation processes for bond-formation reactions have been found. Amongst others, the 2^nd generation Grubbs catalyst has become illustrious in metathesis reactions [4]. Moreover, nucleophilic carbenes are used as organocatalysts to accomplish Umpolung reactions, for example [5]. A widespread synthetic route to N‑heterocyclic carbenes is the formation of the five-membered heterocycle by condensation of glyoxal with an amine followed by ring-closure with paraformaldehyde in the presence of chlorotrimethylsilane [6] or HCl [7]. The free carbene is generated from the imidazolium salt precursor by deprotonation [1].

2. Results and Discussion

We herein report a new imidazolium salt precursor 1,3-bis(pyren-1-yl)imidazolium chloride (IPyr·HCl) 2 for N-heterocyclic carbenes containing a pyrene chromophore bound to the nitrogen atoms of the imidazolium heterocycle. Carbene ligands absorbing light might be useful tools for photochemistry as it is already shown for UV-A-absorbing phosphine ligands, which have been proved to accelerate Suzuki- and Stille-coupling reactions upon irradiation of their palladium complexes [8]. The conjugated π-system of the reported ligand might allow the use of light as energy source for catalytic reactions. Therefore, the following precursor might serve as a model system for the investigation of light-absorbing carbene ligands for future application in photocatalysis. As far as the synthetic route is concerned, the reactant 1,4-bis(pyren-1-yl)-1,4-diazadiene 1 was obtained as a red solid from the condensation of 1-aminopyrene (2.0 eq.) and glyoxal (1.0 eq.) in isopropanol with catalytic amount of acetic acid at ambient temperature. The imidazolium salt was synthesized as shown in scheme 1.

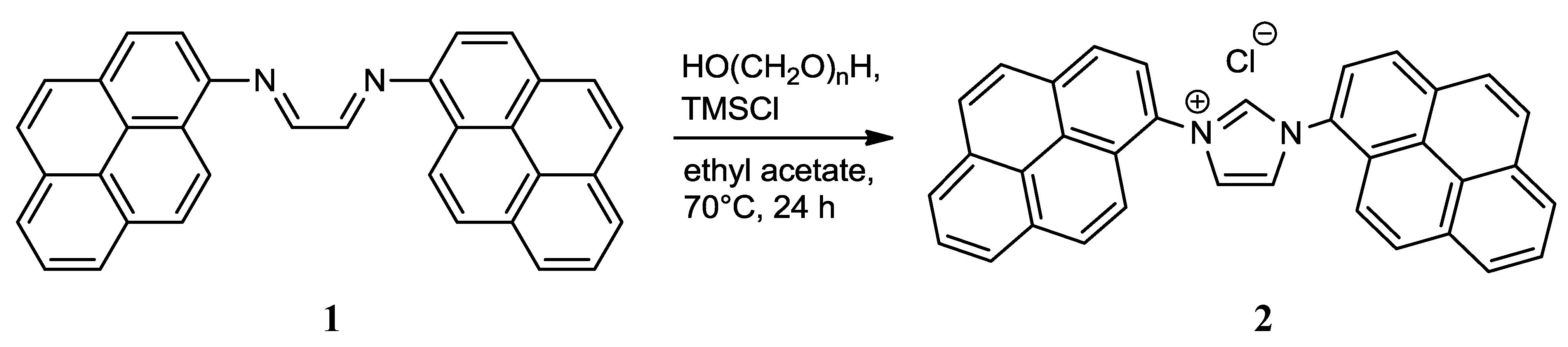

Scheme 1. Synthesis of the title compound 1,3-bis(pyren-1-yl)imidazolium chloride (IPyr·HCl) 2.

3. Experimental

1,4-bis(pyren-1-yl)-1,4-diazadiene 1 (0.23 g, 0.5 mmol) in dry ethyl acetate (90 mL) was warmed to 70 °C in a pre-dried Schlenk flask. Paraformaldehyde (15 mg, 0.5 mmol) was added followed by dropwise addition of chlorotrimethylsilane (63 µL, 0.5 mmol) in ethyl acetate (1.3 mL). The mixture was stirred for another 24 h at 70 °C. After cooling the reaction mixture to ambient temperature, the solid was filtered off and purified by flash column chromatography using dichloromethane / methanol (6:1) as the eluent. Final purification was achieved by preparative high pressure liquid chromatography (HPLC) to give 2 as a white solid in 42% yield.

1,4-bis(pyren-1-yl)-1,4-diazadiene 1:

IR:

\tilde{ν}

[cm^–1] = 3034 (w); 2360 (w); 1598 (m); 1511 (m); 1275 (m); 830 (s).

¹H-NMR (300 MHz, CDCl₃): δ [ppm] = 7.80–8.10 (m, 18H, H_aryl), 8.96 (s, 2H).

Anal. calcd. for C₃₄H₂₀N₂: C, 89.45; H, 4.42; N, 6.14. Found: C, 88.89; H, 5.15; N, 5.96.

MS (EI): m/z (%) = 456.2 (100) [M⁺].

UV/VIS (CH₂Cl₂): λ_max [nm] (lg ε) = 267 (4.517); 344 (4.284); 449 (4.142).

1,3-bis(pyren-1-yl)imidazolium chloride (IPyr·HCl) 2:

IR:

\tilde{ν}

[cm^–1] = 2992 (w); 2365 (m); 1275 (m); 750 (s).

¹H-NMR (600 MHz, DMSO-d₆): δ [ppm] = 8.26 (t, J = 7.6 Hz, 2H), 8.34 (d, J = 9.2 Hz, 2H), 8.41 (d, J = 8.9 Hz, 2H), 8.45 (d, J = 8.9 Hz, 2H), 8.53 (m, 6H), 8.64 (s, 4H), 8.78 (d, J = 1.3 Hz, 2H, H_imidazole), 10.50 (t, J = 1.3 Hz, 1H, H_imidazole).

¹³C-NMR (150 MHz, DMSO-d₆): δ [ppm] = 120.8 (+), 123.2 (q), 124.1 (q), 125.0 (+), 125.2 (q), 125.8 (+), 125.9 (q), 126.7 (+), 127.0 (+), 127.1 (+), 127.5 (+), 128.1 (q), 129.5 (+), 130.2 (+), 130.3 (+), 130.7 (q), 132.5 (q), 139.9 (+).

HRMS calcd. for C₃₅H₂₁N₂⁺ [M⁺]: 469.1699. Found: 469.1703.

UV/VIS (DMSO): λ_max [nm] (lg ε) = 279 (4.794); 332 (4.570); 348 (4.722).

Supplementary materials

Supplementary File 1Supplementary File 2Supplementary File 3Supplementary File 4

Acknowledgements

The authors thank the Graduate Research Training Group 1626 – Chemical Photocatalysis of the Deutsche Forschungsgemeinschaft for financial support.

References

Arduengo, A.J.; Harlow, R.L.; Kline, M. A Stable Crystalline Carbene. J. Am. Chem. Soc. 1991, 113, 361–363. [Google Scholar] [CrossRef]
Herrmann, W.A.; Elison, M.; Fischer, J.; Köcher, C.; Artus, G.R.J. Metal complexes of N‑heterocyclic carbenes - a new structural principle for catalysts in homogeneous catalysis. Angew. Chem. Int. Ed. 1995, 34, 2371–2374. [Google Scholar] [CrossRef]
Bantreil, X.; Broggi, J.; Nolan, S.P. N-Heterocyclic carbene containing complexes in catalysis. Annu. Rep. Prog. Chem. Sect. B 2009, 105, 232–263. [Google Scholar] [CrossRef]
Scholl, M.; Ding, S.; Lee, C.W.; Grubbs, R.H. Synthesis and Activity of a New Generation of Ruthenium–Based Olefin Metathesis Catalysts Coordinated with 1,3–Dimesityl–4,5–dihydroimidazol–2–ylidene Ligands. Org. Lett. 1999, 1, 953–956. [Google Scholar] [PubMed]
Enders, D.; Niemeier, O.; Henseler, A. Organocatalysis by N–Heterocyclic Carbenes. Chem. Rev. 2007, 107, 5606–5655. [Google Scholar] [CrossRef] [PubMed]
Hintermann, L. Expedient syntheses of the N–heterocyclic carbene precursor imidazolium salts IPr·HCl, IMes·HCl and IXy·HCl. Beilstein J. Org. Chem. 2007, 3, 22. [Google Scholar] [CrossRef] [PubMed]
Arduengo, A.J., III. Preparation of 1,3-disubstituted imidazolium salts. U.S. Patent 5,077,414, 31 December 1991. [Google Scholar]
Imperato, G.; König, B. Acceleration of Suzuki–Miyaura– and Stille–type Coupling Reactions by Irradiation with Near–UV–A–Light. ChemSusChem 2008, 1, 993–996. [Google Scholar] [CrossRef] [PubMed]
