Article

Improving the Laboratory Diagnosis of M-like Variants Related to Alpha1-Antitrypsin Deficiency

by
Valentina Barzon
1,
Stefania Ottaviani
2,*,
Alice Maria Balderacchi
2,
Alessandra Corino
2,
Davide Piloni
2,
Giulia Accordino
2,
Manuela Coretti
2,
Francesca Mariani
2,
Angelo Guido Corsico
1,2 and
Ilaria Ferrarotti
2
1
Centre for Diagnosis of Inherited Alpha-1 Antitrypsin Deficiency, Department of Internal Medicine and Therapeutics, University of Pavia, 27100 Pavia, Italy
2
Centre for Diagnosis of Inherited Alpha-1 Antitrypsin Deficiency, Laboratory of Biochemistry and Genetics, Pulmonology Unit, Fondazione IRCCS Policlinico San Matteo, 27100 Pavia, Italy
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(17), 9859; https://doi.org/10.3390/ijms23179859
Submission received: 15 July 2022 / Revised: 16 August 2022 / Accepted: 20 August 2022 / Published: 30 August 2022

Abstract

:
Alpha1-antitrypsin (AAT) is a serine protease inhibitor that is encoded by the highly polymorphic SERPINA1 gene. Mutations in this gene can lead to AAT deficiency (AATD), which is associated with an increased risk of lung and/or liver disease. On the basis of electrophoretic migration, AAT variants are named with capital letters; M (medium) signifies the normal protein. Among pathological variants, the M-like ones represent a heterogeneous group of rare allelic variants that exhibit the same electrophoretic pattern as the M wild-type protein, which makes them difficult to detect with routine methods. In order to avoid their misdiagnosis, the present study defines and validates effective methods for the detection of two pathogenic M-like variants, Mwurzburg and Mwhitstable. Comparison of protein phenotypes using isoelectric focusing of samples that presented the Mwurzburg variant, as revealed by exons 5 sequencing, identified a particular electrophoretic pattern amenable to the Mwurzburg protein. The specific phenotyping pattern was retrospectively validated, thus enabling the detection of 16 patients with Mwurzburg variant among the subjects already tested but not sequenced according to our diagnostic algorithm. The Mwhitstable allele was detected by intron 4 sequencing of SERPINA1 gene. Mwurzburg and Mwhitstable are often misdiagnosed and the introduction of diagnostic improvements can help the clinical management, especially in patients with established lung disease without any other reported risk factors.

1. Introduction

Alpha1-antitrypsin (AAT) is a serine protease inhibitor mainly produced in the liver and, to a minor extent, by neutrophils, monocytes, and epithelial cells in the lung and gut. The key function of AAT is the regulation of the proteolytic effects of neutrophil elastase (NE) in the lungs [1]. AAT is encoded by the highly polymorphic SERPINA1 gene (or Protease Inhibitor (PI) system) located on the long arm of chromosome 14 (14q32.13). The SERPINA1 gene is organized into four coding and three non-coding exons and spans over 12.2 kb. The encoded protein includes 394 amino acids, with the active site of the enzyme inhibitor at methionine 358. Low AAT serum levels can lead to Alpha1-antitrypsin deficiency (AATD) (OMIM #613490; https://www.ncbi.nlm.nih.gov/omim/; accessed on 3 August 2022), a disorder caused by variations in the SERPINA1 gene, inherited in an autosomal recessive pattern with co-dominant expression of alleles. AATD is related to an increased risk of developing early-onset emphysema and/or chronic liver disease [2].
Over 120 variants of AAT have been described [3]. The wild-type allele is referred to as the M allele; the Z (p.E366K c.1096G>A rs28929474) and S (p.E288V c.863A>T rs17580) alleles are the most frequent variations that lead to AATD, but several other pathogenic variants, usually referred to as “rare”, have been identified [4]. An updated list of allelic variants was recently published [3]. Due to the different molecular mechanisms linked to each variant, wide variations are seen in the incidence and severity of lung and liver disease.
Rare variants are usually thought to have a low prevalence, but many of them are actually rarely investigated and under-diagnosed [5]. One reason could be the difficulty in identifying them using routine analysis. Many rare variants can only be detected by molecular methods, such as PCR sequencing, that are not available in all diagnostic laboratories. To date, there is no universally-established algorithm used by laboratories for the detection of AATD patients. The algorithms applied in different countries depend on diverse criteria based on the availability of diagnostic facilities and expertise, country-specific indications, and the occurrence of variants [6].
The “classic” nomenclature of AAT variants was established based on electrophoretic migration of AAT serum before the encoding SERPINA1 gene was identified [7]. AAT variants were initially named on the basis of their migration velocity in starch-gel electrophoresis as M (medium), S (slow), F (fast), or Z (very slow). Subsequently, the other alleles were designated with a letter A–L or N–Z depending on their proximal or distal location, respectively, to the M protein band. When a new variant is identified, the birthplace of the index case is added to the letter that corresponds to the IEF migration.
M-like variants (Mmalton, Mprocida, Mheerlen) are a heterogeneous group of rare AAT mutations that display the same electrophoretic pattern as the M wild-type protein.
This paper focuses on two M-like variants, namely Mwurzburg [8] and Mwhitstable [9], and the diagnostic procedures aimed at their identification. Both alleles are classified as M-like variants because their isoelectric focusing (IEF) pattern is easily confused with the normal M protein. Previously documented Mwurzburg electrophoretic patterns [10] are not replicable. The Mwurzburg protein (p.P393S c.1177C>T rs61761869; https://www.ncbi.nlm.nih.gov/snp/; accessed on 3 August 2022) is an M-like variant forming ordered polymers that are retained as inclusions within the endoplasmic reticulum (ER) of hepatocytes. The Mwurzburg variant was first identified in a heterozygous individual with serum AAT deficiency but no evidence of lung or liver disease [8]. The Mwhitstable variant consists of a 26-bp deletion with an associated insertion of two deoxyguanosine residues in intron 4. This variant usually arises on the normal M2 allele. The Mwhitstable mutation was first detected in two related Z heterozygous subjects [9].

2. Results

2.1. Mwurzburg

We carried out a retrospective review of our diagnostic phenotyping results from March 2014 to January 2019 in all samples carrying the Mwurzburg allele (76 out of 5916) as revealed by exon 5 sequencing of the SERPINA1 gene, which was performed according to the recently described diagnostic algorithm [6]. Direct comparison identified a particular electrophoretic pattern amenable to the Mwurzburg protein. Interestingly, the specific IEF pattern was detectable in both serum and dried blood spot (DBS) samples. The specific IEF bands amenable to the Mwurzburg protein were clearly visible at the top of the gel, as shown by the arrows in Figure 1.
Conversely, M-like variants such as Mmalton and Mprocida are not associated with a particular IEF pattern, but are very similar to the normal M protein pattern (Figure 1, Lanes 2 and 5).
Subsequently, we selected 18 patients displaying the Mwurzburg, IEF pattern from all samples in our archives that had not been sequenced using the current diagnostic algorithm [6], mainly because AAT concentrations were above the decisional cut-off values. We then checked them for the presence of the Mwurzburg allele by sequencing exon 5 of the SERPINA1 gene (Figure 2).
Sixteen of the eighteen subjects (88.9%) were found to carry the Mwurzburg variant (Table 1).
Interestingly, one subject had already proven to be S heterozygous and thus had a final PI*SMwurzburg genotype. All other subjects had the PI*MMwurzburg genotype.
Seven of the sixteen reported lung disease patients (43.75%) and one subject (6.25%) also had liver disease.

2.2. Mwhitstable

The Mwhitstable allele consists of: (a) g.11640del26bp, insGG in Sanger annotation [9]; (b) c.1066-262_1066-246delAGTGACGATGCTCTTCC rs553862825 and c.1066-271_1066-265delCAGACGT rs535461370 in Next Generation Sequencing (NGS) annotation (BaseSpace Annotation; Engine 3.6.2.0; Variant Caller: GATK 1.6, Illumina, San Diego, CA, USA).
During routine diagnoses [6] of AATD at Centre for Diagnosis of Inherited Alpha-1 Antitrypsin Deficiency in Pavia, Italy (http://www.alfa1antitripsina.it; accessed on 3 August 2022) from January 2015 to December 2019, we identified the Mwhitstable allele by intron 4 sequencing in 36 out of 7885 subjects (0.46%), 30 of whom were PI*MMwhitstable, 5 PI*ZMwhitstable, and 1 PI*SMwhitstable (Table 2).
We retrospectively selected 31 samples analyzed at Centre for Diagnosis of Inherited Alpha-1 Antitrypsin Deficiency in Pavia, Italy, in January 2015, prior the introduction of the intron sequencing into the diagnostic algorithm [6]. The samples had the following features: (a) serum levels equal to or below 120 mg/dL and the absence of pathogenic variants by exon sequencing and the presence of the M2 allele; (b) serum levels higher than 120 mg/dL, C reactive protein (CRP) equal to or higher than 0.8 mg/dL, and the absence of pathogenic variants by sequencing the SERPINA1 gene coding regions and the presence of the M2 allele. The Mwhitstable allele was identified by intron 4 sequencing of the AAT gene (Figure 2).
The retrospective analysis of the 31 samples detected the Mwhitstable variant in 3 subjects (Table 2).
The mean value of AAT serum levels found in patients with the rare Mwhitstable allele was 87.5 mg/dL, which corresponds to an intermediate AAT deficiency. However, two PI*MMwhitstable patients (patients # 2 and #3 in Table 2) displayed lower than expected AAT serum levels and Sanger sequencing did not detect other variants aside from Mwhitstable. Further studies with Next Generation Sequencing are needed for these samples.
Twenty-seven of the thirty-nine subjects carrying the Mwhitstable allele reported lung diseases (69.2%). Of these, nine were non-smokers (33.3%), nine were former smokers (33.3%), and six were current smokers (22.2%); no information about smoking habits was available for three patients.

3. Discussion

Mwurzburg and Mwhitstable are two M-like pathological variants of AAT, which are hard to diagnose using routine laboratory techniques. IEF phenotyping is not usually capable of identifying AAT M-like variants, and the recent rapid diagnostic method A1AT Genotyping Test (Progenika, Biopharma Derio, Biscay, Spain) [13,14] does not include these variants in its panel. Therefore, only sequence analysis enables their diagnosis. The importance of an accurate identification of Mwurzburg and Mwhitstable variants in samples with suspected AATD is evident.
Mwurzburg is an AAT pathogenic variant with a tendency to form polymers. Polymerization is the consequence of a transport block between the ER and Golgi complex and it is usually associated with neonatal hepatitis, cirrhosis, and hepatocellular carcinoma. The intracellular polymerization of the Mwurzburg protein has been demonstrated in cell models [15,16]. The clinical impact of this variant is not yet clear, since clinical case reports of AATD with the Mwurzburg variant are infrequent and controversial [8,17,18]. Nevertheless, in our experience, its presence is rare but not negligible. Accordingly, the allele frequency of Mwurzburg in all subjects analyzed in our lab over the last 16 years (for a total of 10,660 samples) is 0.006 (Figure 3).
This value is non-neglectable if we compare it to the frequencies reported in the global (0.000594) and European (0.000642) populations [19].
As shown in Table 1, all samples that present the Mwurzburg allele after re-analysis had AAT serum levels above 120 mg/dL, which are normally considered non-pathological concentrations [6]. In our experience, the Mwurzburg allele is related to a medium–low AAT concentration, with AAT values lower than the established decisional cut-off (110 mg/dL) [6]. We evaluated a mean AAT of 105.6 mg/dL in the cohort of 94 PI*M/Mwurzburg samples diagnosed at Centre for Diagnosis of Inherited Alpha-1 Antitrypsin Deficiency in Pavia. Moreover, the mean AAT value in 25 PI*Z/Mwurzburg samples diagnosed at our facility was 53.7 mg/dL, which was in the lower limits of the protective threshold. We should also note that AAT values are occasionally raised not only in individuals with active inflammatory/infectious processes, but also in the event of dehydration, during pregnancy, and in women taking contraceptives [20]. Thus, considering the great importance of an accurate AATD diagnosis related to rare SERPINA1 variants, the identification of a specific IEF pattern for the Mwurzburg variant could prevent the misclassification of samples and make it possible to improve early and accurate AATD detection.
Mwhitstable is a poorly-studied and pathogenic intronic variant which is not reported in databases. The only available paper in the literature estimated its frequency at 0.0125 in the United Kingdom [9]. Most diagnostic algorithms for the identification of AATD patients include sequence analysis of coding exons by Sanger or Next Generation Sequencing, thus losing the rare variants located within the introns.
According to our series, the variant was evenly distributed in Italy, with a diagnostic rate of 0.002. Most of the PI*M/Mwhitstable patients that we identified had lung diseases (69.2%) and 82% of subjects reported lung symptoms when questioned on their health status. To underline the role of the Mwhitstable allele in the lack of lung protection from elastase, we noticed that when smoke was not a co-factor, lung symptoms were reported by 9 out of 11 adult subjects. Interestingly, patients with the Mwhitstable variant have lower levels of AAT, similar to the MZ population, and thus require a higher level of attention in the diagnostic process.
From a clinical point of view, several patients in our Mwhitstable cohort were reported to have varying degrees of lung disease, ranging from healthy subjects to those with bronchitis, COPD, or emphysema, regardless of their smoking history in most cases.
The accurate diagnosis of these variants can help the diagnostic process and clinical management, especially in patients with established lung disease without any other reported risk factors. Therefore, it is crucial to refer those patients/samples to expert laboratories, since the IEF or rapid diagnostic tools alone are not usually able to detect those variants. In order to avoid the risk of not identifying patients carrying rare AAT variants, continuous updating of diagnostic algorithms is of chief importance. In this paper, we focused our attention on the identification of two rare M-like AAT variants that are often misdiagnosed. Moreover, for the first time, we have identified the clinical profiles of patients with AATD caused by the Mwhitstable allele in a fairly large cohort.

4. Materials and Methods

4.1. Samples

Samples submitted to the Italian Reference laboratory were tested for AATD, following the recently reported diagnostic algorithm [6]. Blood samples from patients were collected in ethylenediamine tetraacetic acid (EDTA) or by using DBS samples (Schleicher & Schuell Grade 903, Keene, New Hampshire, USA) [21].
Informed consent for genetic testing was obtained from all patients according to the institution’s ethical recommendations.

4.2. Isoelectrophocusing (IEF)

The phenotype of the Mwurzburg variant was obtained by using the semiautomatic Sebia Hydrasys® System and the Hydragel 18 A1AT Isofocusing® kit (Sebia, Diagnostic Department, Evry, France). The procedure consists of sample runs on ready-to-use 0.1% agarose gels that contain ampholytes with a pH gradient ranging from 4.2 to 4.9. After sample migration, the detection of AAT was performed with specific AAT antiserum labelled with peroxidase. The gel was then washed and dried automatically [11,12].
Serum samples and controls were diluted 1:10 in a specific diluent, according to the manufacturer’s instructions. Dried blood spots were cut into 6mm-diameter circles and eluted in 30 µL of water overnight at 4°C. Subsequently, a 1:8 dilution was applied.

4.3. Sequencing

We confirmed the presence of the Mwurzburg allele by sequencing exon 5 of the SERPINA1 gene. We sequenced the intron 4 region to search for the Mwhitstable variant.
Polymerase chain reactions (PCR) were performed with the AccuPrimeTM Taq DNA Polymerase System kit (Invitrogen by Thermo Fisher Scientific, Waltham, Massachusetts, USA) and both reaction conditions were as follows: 100 ng of DNA, 2.5 μL of Buffer II, 0.25 μL of MgCl2, 0.5 μM of each primer, and 0.5 μL of Taq DNA Polymerase. Primers used in the amplification and sequence reactions are listed in Table S1. Amplification and sequence reactions were carried out in an I-cycler Thermal Cycler (Bio-Rad Laboratories, Hercules, California, USA). Then, the reaction products were purified with a commercial kit based on magnetic beads (Ampure XP, Inc., Brea CA, USA). Sequence reactions were performed as indicated by the manufacturer, and sequence products were purified by a commercial kit based on magnetic beads (Agencourt CleanSeq, Inc., Brea, CA, USA).
Sequencing was performed by the CEQ 8800 genetic analysis System (Beckman Coulter, Pasadena, California, USA).
The NCBI Reference Sequence which we refer to is the following: NM_001002235.2.

5. Conclusions

The identification of a specific IEF pattern amenable to the Mwurzburg variant could help detect this pathogenic variant during routine analysis based on phenotyping. Conversely, the sequencing of intron 4 of SERPINA1 gene enables the identification of Mwhitstable allele, whose frequency is not neglectable. Since patients carrying the Mwurzburg or Mwhitstable alleles have a higher risk of developing lung and liver diseases or only lung diseases, respectively, an early and precise detection would improve the clinical management of these patients.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms23179859/s1.

Author Contributions

Conceptualization: V.B.; S.O.; A.G.C.; I.F. Data curation: V.B.; A.M.B.; A.C. Formal Analysis: S.O.; I.F. Investigation: V.B.; A.M.B.; A.C. Methodology: V.B.; S.O.; A.M.B.; A.C. Resources: D.P.; G.A.; M.C.; F.M. Validation: A.M.B.; A.C.; I.F. Visualization: G.A.; M.C.; F.M. Writing—original draft: V.B.; S.O.; I.F. Writing—review & editing: V.B.; S.O.; D.P.; A.G.C.; I.F. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki, and approved by the Institutional Review Board (or Ethics Committee) of IRCCS Policlinico S. Matteo, Pavia (Italy) on 14 January 2019 (No. 0385).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

De-identified data are available upon request by contacting the corresponding author ([email protected]).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Greene, C.M.; Marciniak, S.J.; Teckman, J.; Ferrarotti, I.; Brantly, M.L.; Lomas, D.A.; Stoller, J.K.; McElvaney, N.G. α1-Antitrypsin deficiency. Nat. Rev. Dis. Primers 2016, 2, 16051, Erratum in Nat. Rev. Dis. Primers 2018, 4, 40. [Google Scholar] [CrossRef] [PubMed]
  2. Torres-Durán, M.; Lopez-Campos, J.L.; Barrecheguren, M.; Miravitlles, M.; Martinez-Delgado, B.; Castillo, S.; Escribano, A.; Baloira, A.; Navarro-Garcia, M.M.; Pellicer, D.; et al. Alpha-1 antitrypsin deficiency: Outstanding questions and future directions. Orphanet J. Rare Dis. 2018, 13, 114. [Google Scholar] [CrossRef] [PubMed]
  3. Seixas, S.; Marques, P.I. Known Mutations at the Cause of Alpha-1 Antitrypsin Deficiency an Updated Overview of SERPINA1 Variation Spectrum. Appl. Clin. Genet. 2021, 14, 173–194. [Google Scholar] [CrossRef] [PubMed]
  4. Ferrarotti, I.; Ottaviani, S.; De Silvestri, A.; Corsico, A.G. Update on α1-antitrypsin deficiency. Breathe 2018, 14, e17–e24. [Google Scholar] [CrossRef] [PubMed]
  5. Rodriguez-Frias, F.; Miravitlles, M.; Vidal, R.; Camos, S.; Jardi, R. Rare alpha-1-antitrypsin variants: Are they really so rare? Ther. Adv. Respir. Dis. 2012, 6, 79–85. [Google Scholar] [CrossRef] [PubMed]
  6. Balderacchi, A.M.; Barzon, V.; Ottaviani, S.; Corino, A.; Zorzetto, M.; Wencker, M.; Corsico, A.G.; Ferrarotti, I. Comparison of different algorithms in laboratory diagnosis of alpha1-antitrypsin deficiency. Clin. Chem. Lab. Med. 2021, 59, 1384–1391. [Google Scholar] [CrossRef] [PubMed]
  7. Cox, D.W.; Johnson, A.M.; Fagerhol, M.K. Report of Nomenclature Meeting for alpha 1-antitrypsin, INSERM, Rouen/Bois-Guillaume-1978. Hum. Genet. 1980, 53, 429–433. [Google Scholar] [CrossRef] [PubMed]
  8. Poller, W.; Merklein, F.; Schneider-Rasp, S.; Haack, A.; Fechner, H.; Wang, H.; Anagnostopoulos, I.; Weidinger, S. Molecular characterisation of the defective alpha 1-antitrypsin alleles PI Mwurzburg (Pro369Ser), Mheerlen (Pro369Leu), and Q0lisbon (Thr68Ile). Eur. J. Hum. Genet. 1999, 7, 321–331. [Google Scholar] [CrossRef] [PubMed]
  9. Ambrose, H.J.; Chambers, S.M.; Mieli-Vergani, G.; Ferrie, R.; Newton, C.R.; Robertson, N.H. Molecular characterization of a new alpha-1-antitrypsin M variant allele, Mwhitstable: Implications for DNA-based diagnosis. Diagn. Mol. Pathol. 1999, 8, 205–210. [Google Scholar] [CrossRef]
  10. Seixas, S.; Lopes, A.I.; Rocha, J.; Silva, L.; Salgueiro, C.; Salazar-de-Sousa, J.; Batista, A. Association between the defective Pro369Ser mutation and in vivo intrahepatic 1-antitrypsin accumulation. J. Med. Genet. 2001, 38, 472–474. [Google Scholar] [CrossRef] [Green Version]
  11. Zerimech, F.; Hennache, G.; Bellon, F.; Barouh, G.; Lafitte, J.J.; Porchet, N.; Balduyck, M. Evaluation of a new Sebia isoelectrofocusing kit for alpha 1-antitrypsin phenotyping with the Hydrasys System. Clin. Chem. Lab. Med. 2008, 46, 260–263. [Google Scholar] [CrossRef] [PubMed]
  12. Ottaviani, S.; Barzon, V.; Divizia, L.; Corsico, A.G.; Ferrarotti, I. Alpha-1 antitrypsin phenotype determination using sebia isoelectrofocusing on dried blood spot samples. In Proceedings of the ERS Annual Congress, London, UK, 3–7 September 2016. [Google Scholar]
  13. Ottaviani, S.; Barzon, V.; Buxens, A.; Gorrini, M.; Larruskain, A.; El Hamss, R.; Balderacchi, A.M.; Corsico, A.G.; Ferrarotti, I. Molecular diagnosis of alpha1-antitrypsin deficiency: A new method based on Luminex technology. J. Clin. Lab. Anal. 2020, 34, e23279. [Google Scholar] [CrossRef] [PubMed]
  14. Veith, M.; Klemmer, A.; Anton, I.; El Hamss, R.; Rapun, N.; Janciauskiene, S.; Kotke, V.; Herr, C.; Bals, R.; Vogelmeier, C.F.; et al. Diagnosing Alpha-1-Antitrypsin Deficiency Using A PCR/Luminescence-Based Technology. Int. J. Chronic Obstr. Pulm. Dis. 2019, 14, 2535–2542. [Google Scholar] [CrossRef] [PubMed]
  15. Fra, A.M.; Gooptu, B.; Ferrarotti, I.; Miranda, E.; Scabini, R.; Ronzoni, R.; Benini, F.; Corda, L.; Medicina, D.; Luisetti, M.; et al. Three new alpha1-antitrypsin deficiency variants help to define a C-terminal region regulating conformational change and polymerization. PLoS ONE. 2012, 7, e38405. [Google Scholar] [CrossRef] [PubMed]
  16. Laffranchi, M.; Berardelli, R.; Ronzoni, R.; Lomas, D.A.; Fra, A. Heteropolymerization of α-1-antitrypsin mutants in cell models mimicking heterozygosity. Hum. Mol. Genet. 2018, 27, 1785–1793. [Google Scholar] [CrossRef] [PubMed]
  17. Corda, L.; La Piana, G.E.; Bertella, E.; Moretti, G.; Bianchi, L.; Pinelli, V.; Savoldi, G.; Baiardi, P.; Facchetti, F.; Gatta, N.; et al. Population genetic screening for alpha1-antitrypsin deficiency in a high-prevalence area. Respiration 2011, 82, 418–425. [Google Scholar] [CrossRef] [PubMed]
  18. Denden, S.; Braham, W.; Amri, F.; Lakhdar, R.; Lefranc, G.; Knani, J.; Chibani, J.B.; Khelil, A.H. Biochemical and Molecular Diagnosis of Alpha 1 Antitrypsin Deficiency in A Tunisian Family. Ann. Biol. Clin. 2009, 67, 441–445. [Google Scholar] [CrossRef]
  19. National Center for Biotechnology Information (NCBI). Available online: https://www.ncbi.nlm.nih.gov/snp/rs61761869#frequency_tab (accessed on 3 August 2022).
  20. Ruiz-Duque, B.; Bañuls, L.; Reinoso-Arija, R.; Carrasco-Hernandez, L.; Caballero-Eraso, C.; Dasí, F.; Lopez-Campos, J.L. Methodologies for the Determination of Blood Alpha1 Antitrypsin Levels: A Systematic Review. J. Clin. Med. 2021, 10, 5132. [Google Scholar] [CrossRef] [PubMed]
  21. Gorrini, M.; Ferrarotti, I.; Lupi, A.; Bosoni, T.; Mazzola, P.; Scabini, R.; Campo, I.; Zorzetto, M.; Novazi, F. and Luisetti, M. Validation of a rapid, simple method to measure alpha1-antitrypsin in human dried blood spots. Clin. Chem. 2006, 52, 899–901. [Google Scholar] [CrossRef] [PubMed] [Green Version]

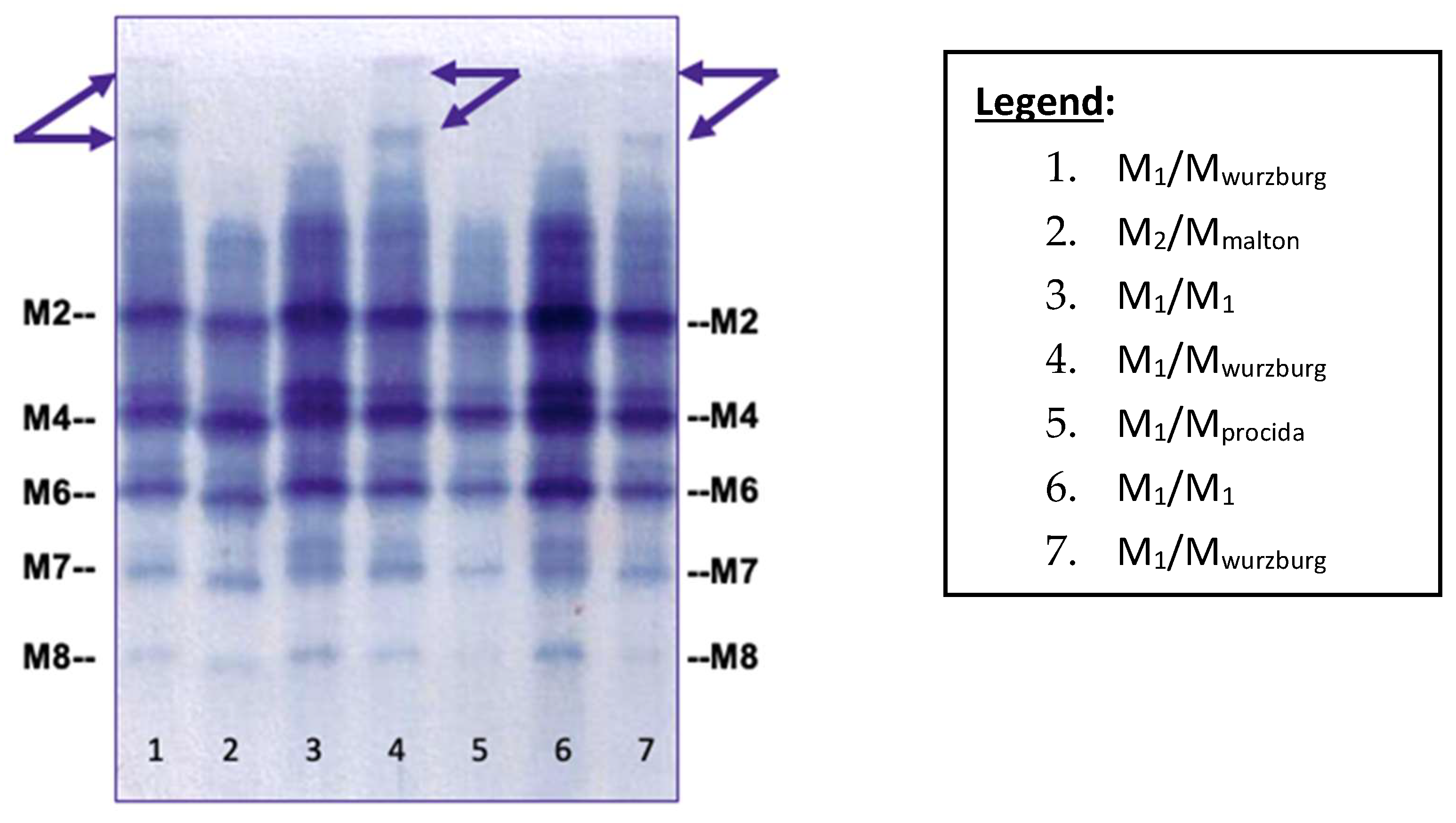

Figure 1. IEF pattern of M-like variants obtained by Sebia Hydrasys® System on DBS samples. M2, M4, M6, M7, and M8 represent the different M isoforms [11,12]. (Arrows show the specific pattern of Mwurzburg).
Figure 1. IEF pattern of M-like variants obtained by Sebia Hydrasys® System on DBS samples. M2, M4, M6, M7, and M8 represent the different M isoforms [11,12]. (Arrows show the specific pattern of Mwurzburg).
Ijms 23 09859 g001

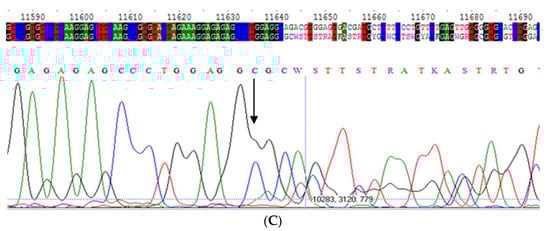

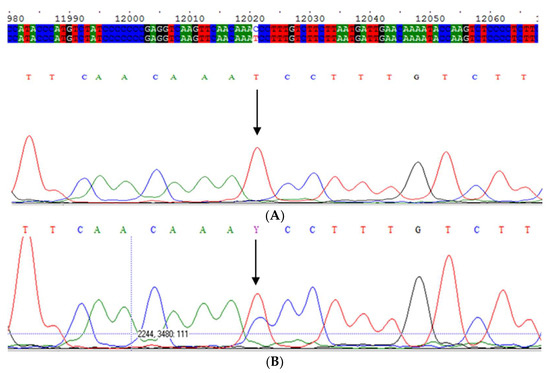

Figure 2. (A) Electropherogram of Mwurzuburg variant in homozygosis; (B) Electropherogram of Mwurzuburg variant in heterozygosis; (C) Electropherogram of Mwhitstable variant in heterozygosis.
Figure 2. (A) Electropherogram of Mwurzuburg variant in homozygosis; (B) Electropherogram of Mwurzuburg variant in heterozygosis; (C) Electropherogram of Mwhitstable variant in heterozygosis.
Ijms 23 09859 g002aIjms 23 09859 g002b

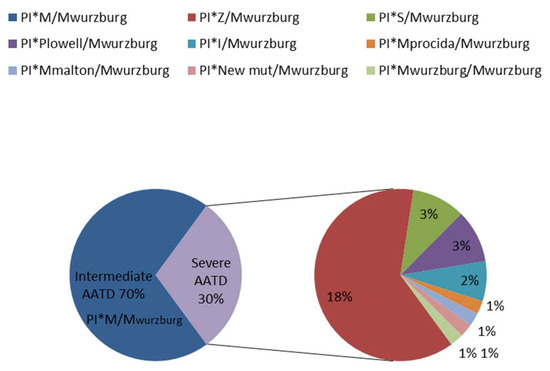

Figure 3. Frequencies of genotypes carrying the Mwurzburg allele analysed in the Centre for Diagnosis of Inherited Alpha-1 Antitrypsin Deficiency in Pavia in the last 16 years.
Figure 3. Frequencies of genotypes carrying the Mwurzburg allele analysed in the Centre for Diagnosis of Inherited Alpha-1 Antitrypsin Deficiency in Pavia in the last 16 years.
Ijms 23 09859 g003
Table 1. Clinical data of selected and re-examined patients with the Mwurzburg IEF pattern.
Table 1. Clinical data of selected and re-examined patients with the Mwurzburg IEF pattern.
SampleGenotypeAAT (mg/dL)CRP (mg/dL)Age at DiagnosisSmoking Habits (Pack/Year)Disease
1SMwurzburg86Not reported63Current (31)Healthy
2MMwurzburg122.50.1167Not reportedEmphysema
3MMwurzburg1230.1167Current (47)Emphysema
4MMwurzburg123.20.3425Not reportedNot reported
5MMwurzburg1240.3264Former (30)Asthma
6MMwurzburg1250.1561Former (16)Bronchiectasis
7MMwurzburg125.20.2827Not reportedNot reported
8MMwurzburg1260.0523Not reportedNot reported
9MMwurzburg1260.1468NeverNot reported
10MMwurzburg131.60.0677Not reportedNot reported
11MMwurzburg146.30.6274Not reportedHealthy
12MMwurzburg177.20.255NeverAsthma, bronchiectasis, dyspnea—hepatitis
13MMwurzburg180.50.1145Not reportedNot reported
14MM1820.2578NeverBronchiectasis
15MM184Not reported48Not reportedHealthy
16MMwurzburg197.40.0555Not reportedEmphysema
17MMwurzburg2063.2778Not reportedNot reported
18MMwurzburg315.10.0964Former (30)Bronchitis
Table 2. Clinical data of patients carrying the Mwhitstable rare allele.
Table 2. Clinical data of patients carrying the Mwhitstable rare allele.
SampleGenotypeAAT (mg/dL)CRP (mg/dL)Age at DiagnosisSmoking Habits (Pack/Year)Disease
1ZMwhitstable480.164NeverNot reported
2M2Mwhitstable55.70.160Not reportedNot reported
3M2Mwhitstable560.170NeverEmphysema
4ZMwhitstable56.20.1158NeverHepatitis
5ZMwhitstable59.90.0325NeverHealthy
6ZMwhitstable60.60.0135NeverAsthma
7ZMwhitstable621.485Former (18)Not reported
8M2Mwhitstable660.155Former (10)Bronchitis,
9M1Mwhitstable66.30.2876Former (6.3)Asthma, bronchitis, bronchiectasis
10M1Mwhitstable68.40.673Former (18)Bronchitis
11M1Mwhitstable70.70.264NeverDyspnea-hepatitis
12M2Mwhitstable72.40.246NeverEmphysema, pneumothorax
13M1Mwhitstable74Not reportedNot reportedNot reportedHealthy
14M1Mwithstable77.10.138Not reportedChronic bronchitis, allergic asthma
15SMwhitstable78015NeverNot reported
16M1Mwhitstable78.30.0655Former (38)Asthma
17M1Mwithstable82.10.0147Not reportedNot reported
18M1Mwhitstable84.50.2353NeverAsthma
19M2Mwhitstable860.110 monthsNeverBronchitis
20M1Mwhitstable87.50.124NeverBronchiectasis
21M3Mwhitstable880.167Current (35)Bronchiectasis, dyspnea, emphysema, bronchitis-hepatitis
22MMwhitstable89.30.461Current (45)Dyspnea
23M3Mwhitstable89.80.1371FormerAsthma
24M1Mwhitstable89.90.00464Current (31)Emphysema-hepatitis
25M1Mwhitstable900.1347NeverAsthma, emphysema
26M1Mwhitstable90.70.166NeverBronchiectasis
27M1Mwhitstable91Not reported62Former (40)Emphysema
28M2Mwhitstable91.70.0154Former (Not reported)Bronchitis
29M1Mwhitstable92.9037Not reportedNot reported
30M1Mwhitstable93.30.173Not reportedEmphysema, pulmonary fibrosis
31M3Mwhitstable93.70.033NeverHealthy
32M2Mwhitstable94.60.1250Current (12)Emphysema
33M2Mwhitstable960.255Current (40)Emphysema
34MMwhitstable99.60.1327Current (7.4)Healthy
35M1Mwithstable103.90.8372Not reportedCOPD, emphysema
36M3Mwhitstable104164Former (Not reported)Emphysema
37M1Mwhitstable111.40.972Former (0.25)Asthma, bronchiectasis, dyspnea
38M2Mwhitstable1250.0556Current (45)Bronchitis, emphysema, dyspnea
39MMwhitstable128.10.1231Current (14)Healthy
