Article

Resolved Hyperfine at L-band for High-Spin CoEDTA, A Model for Co Sites in Proteins

by
William E. Antholine
Department of Biophysics, Medical College of Wisconsin, Milwaukee, WI 53226, USA
Int. J. Mol. Sci. 2019, 20(10), 2385; https://doi.org/10.3390/ijms20102385
Submission received: 16 April 2019 / Revised: 30 April 2019 / Accepted: 10 May 2019 / Published: 14 May 2019

Abstract

:
Low-frequency electron paramagnetic resonance (EPR) spectra were obtained for the Co complex of ethylene diamine tetraacetic acid (CoEDTA). It was found that the cobalt hyperfine at geff-mid is better resolved at a low frequency, L-band (1.37 GHz), and not resolved at X-band (9.631 GHz), which is the conventional frequency used for most spectra for metal complexes. Resolved cobalt hyperfine lines lead to additional EPR parameters like A-mid for cobalt and a more-accurate determination of g-mid. Resolved hyperfine lines in the L-band, but not the S-band, spectra were obtained at a concentration of 1 mM. Knowing these additional EPR parameters provides a means to better determine the electron density in the ground state orbital for each cobalt complex, as well as to determine differences upon a change of ligation. If zinc sites can be replaced by cobalt, the cobalt spectra for these sites will enhance the characterization of the zinc sites.

Graphical Abstract

1. Introduction

Hyperfine lines in electron paramagnetic resonance (EPR) spectra at low frequencies are better resolved because A-strain and g-strain are minimized and the line widths are narrower [1,2,3,4,5]. Copper hyperfine lines at low microwave frequencies, but not usually at X-band (the commercial frequency where most spectra are obtained), are so narrow in the gll region that superhyperfine lines from the nitrogen donor atoms are resolved. The pattern for the nitrogen superhyperfine lines determines the number of nitrogen donor atoms for the cupric complex. For example, the site for Cu-serum albumin and Cu-pMMO has four nitrogen donor atoms, while the cupric binding site for the prion protein, Cu-prion protein, has three nitrogen donor atoms and one oxygen donor atom [5,6,7]. Use of the Froncisz–Hyde loop-gap resonator at low microwave frequencies makes it possible to use EPR tubes at X-band (4 mm outside diameter quartz tubes containing 0.3 mL of sample) at low frequencies instead of tubes containing about 30 mL of sample using a conventional resonator [2,3].
The hyperfine values for g-parallel for cupric complexes are usually between 130 Gauss (G) and 200 G [1]. The hyperfine values for cobalt (Co) complexes range from about 100 G to 10 G. It is shown in this paper that the hyperfine coupling for these Co complexes is large enough, for example 50 G, to be sensitive to strains including the A-strain, g-strain, and D-strain at L-band. The line width for Co hyperfine lines usually is not well enough resolved at S-band, (3.3 GHz) [8]. In this study, hyperfine lines for the Co complex of ethylene diamine tetraacetic acid (CoEDTA) are better resolved at L-band, but not at S-band or X-band. The L-band and S-band spectra for a high-spin Co-doped ceramic where the Co hyperfine is resolved at both frequencies was recently published [9]. Although the L-band spectra for several high-spin Co-sites were obtained previously [10,11,12], interpreting the spectra was difficult. Now, the similarity between some of the L-band spectra and the spectra for the Co-doped ceramic supports the interpretation of the L-band spectra, and the change in spectral shape for other Co-sites shows that the spectra are sensitive to EPR parameters not obtainable for spectra taken at the commercial frequency, X-band. Moreover, the simulation of the L-band spectrum is verified by experimental L-band spectra. EPR parameters from the acquisition of low-frequency L-band spectra will provide data that can be used to interpret the electron spin density in the molecular orbital for which the hyperfine values are assigned. Not only is this detail important for Co complexes, it also is important for zinc sites for which Co can replace zinc [8].

2. Results

2.1. EPR Spectra for CoEDTA at X-band (9.631 GHz) and S-band (3.3 GHz) Where Hyperfine for geff-mid is not Resolved

The EPR spectrum for the Co complex of ethylene diamine tetraacetic acid (CoEDTA) at 8 K is shown in Figure 1. Low-field hyperfine lines with geff = 7.83 and A = 84 G were attributed to the | ± 3/2> state. At g = 2.14, hyperfine lines with A = 54 G were resolved and attributed to the [| ± 1/2> state. The rest of the spectrum for the | ± 1/2> state was not resolved (Figure 1). The eight lines about geff = 7.8 decreased when the temperature decreased from 10 K to 5 K, while the change in the intensity of the lines attributed to geff-max and geff-mid at about g = 4.4 in Figure 1 remained about equal although the line shape changed (not shown). The | ± 1/2> state was the ground state. The shape of the lines for the | ± 1/2> state in Figure 1 indicated that the g-value of 2.14 was geff-min with geff-mid about 4.5.
At S-band (3.3 GHz), seven of the Co hyperfine lines for | ± 3/2> were resolved, but the lines were barely detectable when compared to the intensity of the central line for | ± 1/2> (Figure 2). The width of the line for g-mid suggests that the Co hyperfine was about 50 G and the g-crossover was about four. It would be difficult to assign either hyperfine lines or g-values without the parameters from the X-band spectrum. There was little resolution of the Co hyperfine line for geff-mid; the same was similar for other Co sites [8].

2.2. High-spin CoEDTA, Hyperfine Lines from geff-mid Resolved at L-band (1.37 GHz)

The EPR spectrum for CoEDTA at 18 K at L-band (1.37 GHz) was resolved into multiple lines (Figure 3). The intensity for the eight hyperfine lines centered at geff = 7.83 for | ± 3/2> at L-band (18 K) was not enough to assign EPR parameters. The spectrum was attributed mainly to the | ± 1/2> state. The spacing between the lines and the line widths varied so that all the lines were not attributed to a single hyperfine pattern from a single geff-value. It was difficult to assign which lines were S-shaped and centered about geff-mid, and which lines were hill-shaped and centered about geff-max, partially because there was overlap at the lower microwave frequencies. A second harmonic (second derivative) spectrum was obtained to enhance the resolution of sharp lines over broader lines and to get a better look at the line shape (Figure 4). It also was difficult to assign the lines at geff = 7.83 in the second harmonic spectrum due to overlap and the low intensity of the lines. The low intensity of the lines was consistent with the low intensity lines at S-band. Many of the remaining lines were attributed to Co hyperfine lines with an A-value about 50 G (Figure 4). Much of the line shape for these lines was below the baseline, which indicates that the lines correspond to geff-mid.

2.3. Simulations with EPR Parameters for L-band Spectra

2.3.1. Simulations for L-band Spectra with Parameters Varied to Access the Sensitivity of the Simulations

The positions of these lines varied with a change in input of EPR parameters, such as the geff-value or A-value (Figure 5, Figure 6, Figure 7 and Figure 8, hypothetical EPR parameters), indicating that the EPR parameters were sensitive to simulated L-band spectra.

2.3.2. Simulation of L-band Spectra for CoEDTA

In my opinion, a good procedure to fit the L-band spectrum for CoEDTA would involve using the second harmonic spectrum and limiting variation in the EPR parameters. The line shape in the experimental second harmonic spectrum was consistent with hyperfine lines about geff-mid. The hyperfine value, geff-mid, was taken from four sharp lines in the middle of the spectrum; this hyperfine value was not varied and geff-mid was not varied, as shown in the simulation in Figure 9, bottom simulated spectrum. The values for geff-max were arbitrarily taken as geff-max = 6.2 and A-max = 200 MHz. The lines for geff -max and A-max were broadened out, HStrain = [500, 25, 50]. The center lines fit well as expected, but the intensity of the lines increased when moving from a higher field to a lower field. Next, the line widths were varied using HStrain as follows: start with HStrain = [900, 100, 100] and vary by HStrain = [0, 100, 100] (not shown). Although line widths can be broadened separately using terms involving g, A, or D, all these broadening mechanisms were combined using the HStrain parameter, where modeling of the broadening with HStrain usually is “absolutely sufficient,” as specified in the EasySpin manual [13]. Again, it was noted that the hyperfine lines about geff-max were broadened out, resulting in little information about the parameters geff-max and A-max. Next geff-max: 5.02 ± 2, A-max: 214 ± 200; and HStrain-max: 500 ±300, then HStrain = 200 ± 100 were varied, whereby the fitting routine changed the shape of the lines by moving geff-max to geff-mid: 4.32 and the lines were more S-shaped than cone-shaped (Figure 9, middle simulated spectrum). The parameters are g = [5.0, 4.32, 2.1], A = [244, 300, 162], and HStrain = [133, 140, 200]. A-values of 38 G for A-mid and 41 G for A-max were obtained from the simulation. The HStrain parameter was set to show the contributions of geff-mid and A-mid compared with geff-max and A-max (Figure S1). Then, HStrain was varied to give the final simulation with resolved contributions from A-max and A-mid (Figure 9, top simulated spectrum). Some of the lines had shoulders, which accounted for the superposition of lines and resulted in unequal splittings between the lines. This accounted, in part, for a decrease in the intensity of the low-field lines. All the lines fit well to the experimental spectrum.

3. Discussion

CoEDTA may be a six-coordinate structure, but it could be a seven-coordinate structure, where a solvent molecule including water forms a complex like the complex formed for iron, i.e., FeEDTA-H2O, -carbonate, or −O22− [14]. The mixture of nitrogen and oxygen donor atoms mimics some of the biological sites.
The difference in the spacing between the lines in the EPR spectrum at L-band (Figure 3) can be explained by the rhombic g-values obtained from the L-band simulation; see Table 1. This was consistent with an E/D value of about 0.1, as obtained from the rhombogram [15]. Looking back at the first harmonic spectrum (Figure 3), the low-field lines marked by arrows have contributions from A-max, but it took simulations of the second harmonic to assign these lines.
The value in determining an additional parameter, A-mid, is that A-mid is sensitive to the electron density in the | ± 1/2> orbital for the Co complex. The differences in line shape and EPR parameters for Co-doped Ba(Zn1/3Ta2/3)O3, CoBSA, CoCzcP, and Co(D4)(dca) [9,10,11,12] and CoEDTA suggested that low-frequency spectra were sensitive to differences in the electronic configuration. In summary, the best values appeared to be g = 7.8 and A = 84 G for the | ± 3/2> doublet and A-min = 54 G for | ± 1/2> doublet from the X-band spectrum; and g-max = 5.08, g-mid 4.14, A-max = 41 G; A-mid = 38 G from the simulation of the second harmonic L-band spectrum. Note that the g-values were the effective g-values.
Better resolution can be used to better determine small changes in the EPR parameters, for example, by titrating a single change of ligand or transfer of Co to a new binding site (Figure 5, Figure 6, Figure 7 and Figure 8). Changes were detected in the position of lines in the L-band spectrum (Figure 5, Figure 6, Figure 7 and Figure 8), but simulations of the second harmonic spectrum were necessary to obtain EPR parameters because the lines from A-max and A-mid were superimposed. In this example, we obtained lines from the experimental spectrum, assuming only lines for A-mid overestimated A-mid. The best value for A-mid was the value from the simulation of the second harmonic spectrum. More studies should follow that use a tetrahedral or five-coordinate configuration and low-spin instead of high-spin cobalt complexes.

4. Materials and Methods

4.1. Sample Preparation

CoEDTA (1 mM) samples (pink color) were made in 50 mM phophate (pH 7) and 20% glycerol.

4.2. EPR Spectrometers

Spectra were recently obtained from a low-frequency spectrometer, as described in [9]. In brief, the L-band and S-band bridges and the loop-gap resonators were homebuilt by the Dr. James S. Hyde laboratory at the National Biomedical EPR Center at the Medical College of Wisconsin (Milwaukee, WI, USA) and are located therein. The X-band (9.631 GHz) spectrometer at the National Biomedical EPR Center was a Bruker E500 ELEXSYS DM0101 cavity.
The second harmonic spectra (similar to the second derivative spectra) were obtained using an in-house program, SUMSPC, available at the National Biomedical EPR Center [16].
Simulations were completed using an online version of EasySpin [13]. Some of the simulations come with a warning that there are looping transitions and possible discontinuities at the ends of the spectrum [17,18].

Supplementary Materials

Supplementary Materials can be found at https://www.mdpi.com/1422-0067/20/10/2385/s1.

Author Contributions

W.E.A. made the CoEDTA sample, ran the spectrometers, and wrote the manuscript.

Funding

EPR facilities were supported by NIH NIBIB, grant number P41 EB001980 (National Biomedical EPR Center).

Acknowledgments

Thank you to Brian B. Bennett for helpful discussions. Timothy Thelaner resurrected the low-temperature cryostat for L-band. Theodore Camenisch rebuilt and maintains the L-band spectrometer (see Methods).

Conflicts of Interest

The author declares no conflict of interest.

Abbreviations

CoCobalt
CoEDTACobalt complex of ethylene diamine tetraacetic acid
EPRElectron paramagnetic resonance
GGuass

References

  1. Antholine, W.E.; Bennett, B.; Hanson, G. Copper coordination environments. In Multifrequency Electron Paramagnetic Resonance: Theory and Applications; Misra, S., Ed.; Wiley: Weinheim, Germany, 2011; pp. 647–718. [Google Scholar] [CrossRef]
  2. Froncisz, W.; Hyde, J.S. The loop-gap resonator: A new microwave lumped circuit ESR sample structure. J. Magn. Reson. 1982, 47, 515–521. [Google Scholar] [CrossRef]
  3. Froncisz, W.; Hyde, J.S. Broadening by strains of lines in the g-parallel region of Cu2+ EPR spectra. J. Chem. Phys. 1980, 73, 3123–3131. [Google Scholar] [CrossRef]
  4. Hyde, H.S.; Bennett, B.; Kittell, A.W.; Kowalski, J.M.; Sidabras, J.W. Moving difference (MDIFF) non-adiabatic rapid sweep (NARS) EPR of copper(II). J. Magn. Reson. 2013, 236, 12–25. [Google Scholar] [CrossRef] [PubMed]
  5. Rakhit, G.; Antholine, W.E.; Froncisz, W.; Hyde, J.S.; Pilbrow, J.R.; Sinclair, G.R.; Sarkar, B. Direct evidence of nitrogen coupling in the copper(II) complex of bovine serum albumin by S-band electron spin resonance technique. J. Inorg. Biochem. 1985, 25, 217–224. [Google Scholar] [CrossRef]
  6. Yuan, H.; Collins, M.L.P.; Antholine, W.E. Low-frequency EPR of the copper in particulate methane monooxygenase from Methylmicrobium albus BG8. J. Am. Chem. Soc. 1997, 119, 5073–5074. [Google Scholar] [CrossRef]
  7. Burns, C.S.; Aronoff-Spencer, E.; Dunham, C.M.; Lario, P.; Avdievich, N.I.; Antholine, W.E.; Olmstead, M.M.; Vrielink, A.; Gerfen, G.J.; Peisach, J.; et al. Molecular features of the copper binding sites in the octarepeat domain of the prion protein. Biochemistry 2002, 41, 3991–4001. [Google Scholar] [CrossRef] [PubMed]
  8. Bennett, B. EPR of cobalt-substituted zinc enzymes, in metals in biology: Applications of high-resolution EPR in metalloenzymes. In Biological Magnetic Resonance; Hanson, G., Berliner, L., Eds.; Springer: New York, NY, USA, 2010; Volume 29, pp. 345–370. [Google Scholar] [CrossRef]
  9. Antholine, W.E.; Zhang, S.; Gonzales, J.; Newman, N. Better resolution of high-spin cobalt hyperfine at low frequency: Co-doped Ba(Zn1/3Ta2/3)O3 as a model complex. Int. J. Mol. Sci. 2018, 19, 3532. [Google Scholar] [CrossRef] [PubMed]
  10. Antholine, W.E.; Ross, M.O.; Hoffman, B.M.; Rosenzweig, A.C. Better Resolution at Low Frequency: CoEDTA, a Model for Obtaining Co Hyperfine in High Spin Complexes of Biological Interest Like the Transmembrane Metal Binding Site for CzcP. In Proceedings of the American Chemical Society Meeting, Division of Inorganic Chemistry, Section: Bioinorganic Chemistry: Proteins and Enzymes and Model Systems, New Orleans, LA, USA, 18–22 March 2018. [Google Scholar]
  11. Antholine, W.E.; Mahim, A.; Petering, D.H. Better Resolution of High Spin Co Hyperfine at Low Frequency, L-band: Co-bovine Serum Albumin, A Model for Obtaining Co Hyperfine in High Spin Complexes of Biological Interest. In Proceedings of the 59th Annual Rocky Mountain Conference on Magnetic Resonance, Snowbird, UT, USA, 22–27 July 2018. Abstract Number 203. [Google Scholar]
  12. Hernández-Anzaldo, S.; Moreno, A.K.G.; Reyes-Ortega, Y.; Antholine, W.E. Better Resolution of Hyperfine Lines for High-Spin Cobalt at Low Frequency, L-band: [Co(D4)(dca)]. In Proceedings of the American Chemical Society Meeting, Division of Inorganic Chemistry, Section: Bioinorganic Chemistry, San Diego, CA, USA, 25–29 August 2019. [in submission]. [Google Scholar]
  13. Stoll, S.; Schweiger, A. EasySpin, a comprehensive software package for spectral simulation and analysis in EPR. J. Magn. Reson. 2006, 178, 42. [Google Scholar] [CrossRef] [PubMed]
  14. Bull, C.; McClune, G.J.; Fee, J.A. The mechanism of Fe-EDTA catalyzed superoxide dismutation. J. Am. Chem. Soc. 1983, 105, 5290–5300. [Google Scholar] [CrossRef]
  15. Hagen, W.R. EPR spectroscopy of iron sulfur proteins. Adv. Inorg. Chem. 1982, 38, 165–222. [Google Scholar] [CrossRef]
  16. Hyde, J.S.; Jesmanowicz, A.; Ratke, J.J.; Antholine, W.E. Pseudomodulation: A computer-based strategy for resolution enhancement. J. Magn. Res. 1992, 96, 1–13. [Google Scholar] [CrossRef]
  17. Pilbrow, J.R.; Sinclair, D.R.; Hutton, D.R.; Troup, G.J. Asymmetric lines in field-sweep EPR: Cr3+ looping transitions in ruby. J. Magn. Reson. 1983, 52, 386–399. [Google Scholar] [CrossRef]
  18. Gaffney, B.J.; Silverstone, H.J. Simulation methods for looping transitions. J. Magn. Reson. 1998, 134, 57–66. [Google Scholar] [CrossRef] [PubMed]

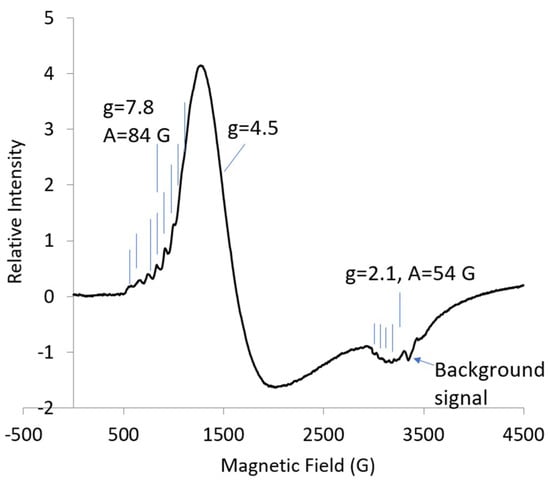

Figure 1. X-band (9.631 GHz) electron paramagnetic resonance (EPR) spectrum for the Co complex of ethylene diamine tetraacetic acid (CoEDTA) (1 mM): temp., 8 K; microwave power, 10 dB; nine scans averaged. Vertical lines indicate the Co hyperfine lines, eight for g = 7.8 and four of eight for g = 2.1, also indicate the g-values.
Figure 1. X-band (9.631 GHz) electron paramagnetic resonance (EPR) spectrum for the Co complex of ethylene diamine tetraacetic acid (CoEDTA) (1 mM): temp., 8 K; microwave power, 10 dB; nine scans averaged. Vertical lines indicate the Co hyperfine lines, eight for g = 7.8 and four of eight for g = 2.1, also indicate the g-values.
Ijms 20 02385 g001
Figure 2. S-band (3.229 GHz) EPR spectrum for CoEDTA: temp., 18 K; microwave power, 16 dB; 9 scans averaged. Vertical lines indicate the Co hyperfine lines, eight (assuming the center is g = 7.6).
Figure 2. S-band (3.229 GHz) EPR spectrum for CoEDTA: temp., 18 K; microwave power, 16 dB; 9 scans averaged. Vertical lines indicate the Co hyperfine lines, eight (assuming the center is g = 7.6).
Ijms 20 02385 g002

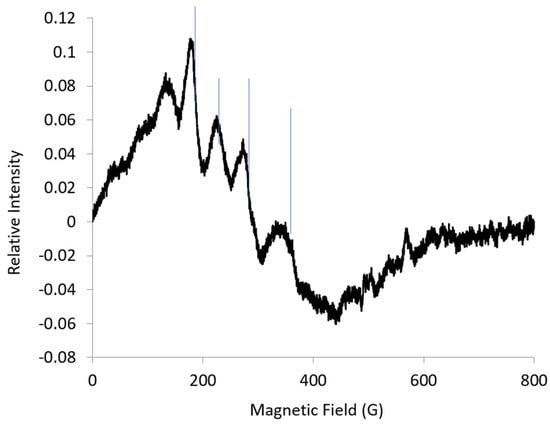

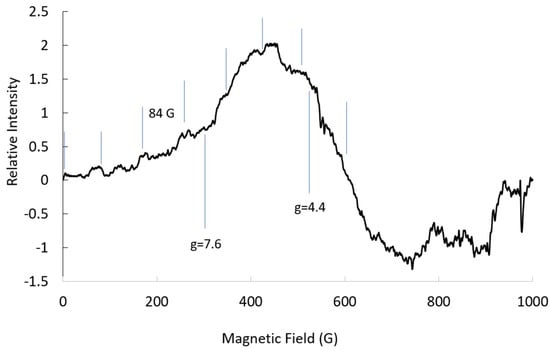

Figure 3. L-band (1.37 GHz) EPR spectrum for CoEDTA (1 mM): temp., 18 K; microwave power, 8 dB; 25 scans averaged. Vertical lines mark four hyperfine lines.
Figure 3. L-band (1.37 GHz) EPR spectrum for CoEDTA (1 mM): temp., 18 K; microwave power, 8 dB; 25 scans averaged. Vertical lines mark four hyperfine lines.
Ijms 20 02385 g003

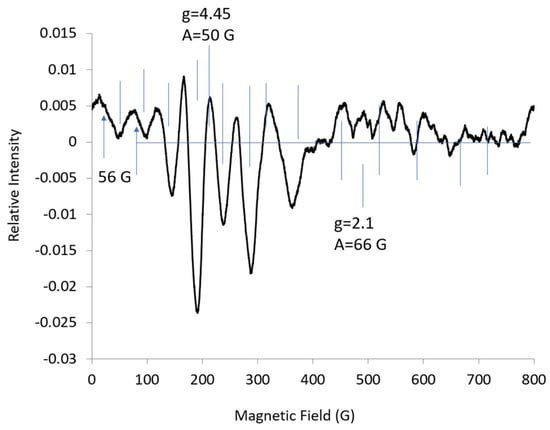

Figure 4. Second harmonic EPR spectrum at L-band (1.37 GHz) for CoEDTA taken from Figure 3, with Bessel function, 4%; temp., 18 K; microwave power, 8 dB; 25 scans averaged. The horizontal line is the baseline. The vertical lines designate geff values and hyperfine lines. The two lines split by 56 G appear to be attributed to A-max.
Figure 4. Second harmonic EPR spectrum at L-band (1.37 GHz) for CoEDTA taken from Figure 3, with Bessel function, 4%; temp., 18 K; microwave power, 8 dB; 25 scans averaged. The horizontal line is the baseline. The vertical lines designate geff values and hyperfine lines. The two lines split by 56 G appear to be attributed to A-max.
Ijms 20 02385 g004

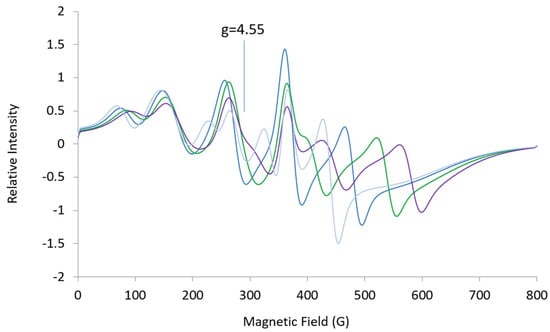

Figure 5. Simulated L-band (1.37 GHz) spectra: A = [369, 508, 100], geff = [4.96, 4.55, 1.94], HStrain = [150, 150, 600] (blue); g-mid = 4.04 (green), 3.75 (purple), 4.96 (light blue). Changes imply that two high-field lines are sensitive to g-mid.
Figure 5. Simulated L-band (1.37 GHz) spectra: A = [369, 508, 100], geff = [4.96, 4.55, 1.94], HStrain = [150, 150, 600] (blue); g-mid = 4.04 (green), 3.75 (purple), 4.96 (light blue). Changes imply that two high-field lines are sensitive to g-mid.
Ijms 20 02385 g005
Figure 6. Simulated L-band (1.37 GHz) spectra: A = [369, 508, 100], geff = [4.96, 4.55, 1.94], HStrain = [150, 150, 600] (blue); g-max = 5.5 (red), 6.5 (green), 7.0 (purple). Changes show lines sensitive to g-max.
Figure 6. Simulated L-band (1.37 GHz) spectra: A = [369, 508, 100], geff = [4.96, 4.55, 1.94], HStrain = [150, 150, 600] (blue); g-max = 5.5 (red), 6.5 (green), 7.0 (purple). Changes show lines sensitive to g-max.
Ijms 20 02385 g006

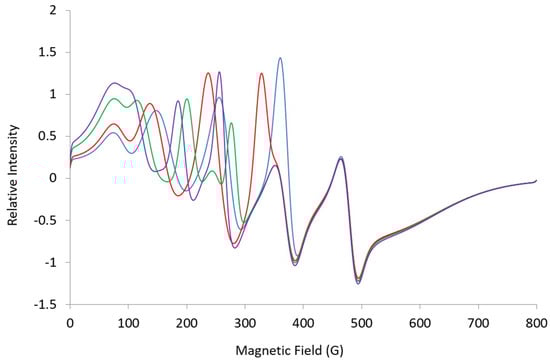

Figure 7. Simulated L-band (1.37 GHz) spectra: A = [369, 508, 100], g = [4.96, 4.55, 1.94], HStrain = [150, 150, 600] (blue); A-mid = 450 MHz (red), 400 MHz (green), 550 MHz (purple), 600 MHz (light blue), 650 MHz (yellow). Changes imply that L-band simulations are sensitive to A-mid.
Figure 7. Simulated L-band (1.37 GHz) spectra: A = [369, 508, 100], g = [4.96, 4.55, 1.94], HStrain = [150, 150, 600] (blue); A-mid = 450 MHz (red), 400 MHz (green), 550 MHz (purple), 600 MHz (light blue), 650 MHz (yellow). Changes imply that L-band simulations are sensitive to A-mid.
Ijms 20 02385 g007

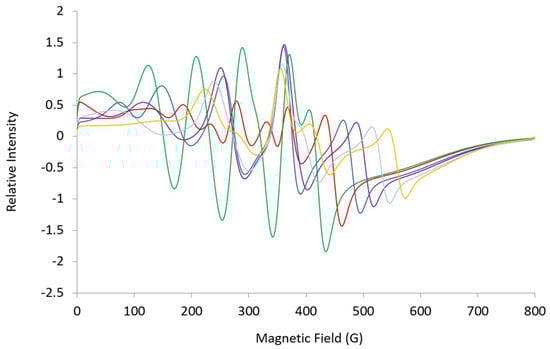

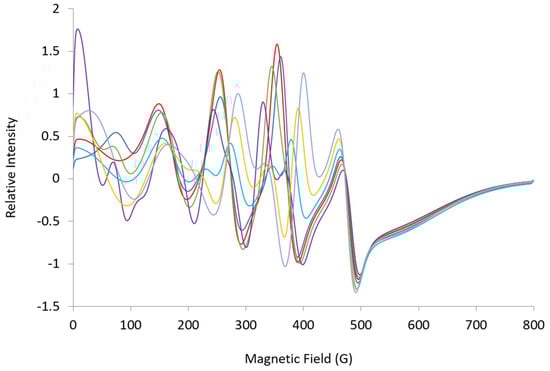

Figure 8. Simulated L-band (1.37 GHz) spectra: A = [369, 508, 100], geff = [4.96, 4.55, 1.94], HStrain = [150, 150, 600] (blue); A-low field = 350 MHz (red), 330 MHz (green), 300 MHz (purple), 400 MHz (light blue), 420 MHz (orange), 440 MHz (light purple). Changes in A-low field affect lines throughout the L-band spectra expected for the high field line.
Figure 8. Simulated L-band (1.37 GHz) spectra: A = [369, 508, 100], geff = [4.96, 4.55, 1.94], HStrain = [150, 150, 600] (blue); A-low field = 350 MHz (red), 330 MHz (green), 300 MHz (purple), 400 MHz (light blue), 420 MHz (orange), 440 MHz (light purple). Changes in A-low field affect lines throughout the L-band spectra expected for the high field line.
Ijms 20 02385 g008

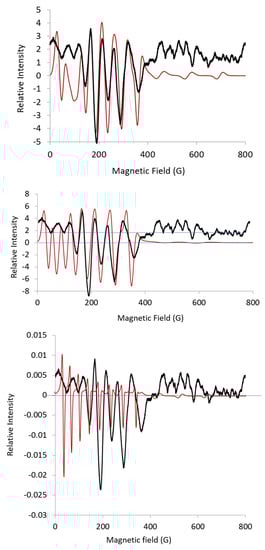

Figure 9. Second harmonic L-band spectrum (black) for CoEDTA as described in Figure 4. Simulation (red) using EPR parameters: g = [6.0, 5.0, 2.1], A = [200, 300, 162], HStrain = [500, 25, 50], bottom spectrum. Simulation (red) using EPR parameters: g = [5.0, 4.32, 2.10]; A = [244, 300, 162]; HStrain = [133, 140, 200]; middle spectrum spectrum; simulation (red) using EPR parameters g = [5.08, 4.14, 2.05]; A = [293, 221, 201]; HStrain = [174, 116, 81]; final simulation obtained running Monte Carlo option from EasySpin over a weekend with Vary.g = [0.2, 0.2, 0.2]; Vary.A = [50, 50, 50]; Vary.HStrain = [50, 50, 50]; center values: g = [5.0, 4.3, 2.0]; A = [300, 244, 162]; HStrain = [178, 123, 50].
Figure 9. Second harmonic L-band spectrum (black) for CoEDTA as described in Figure 4. Simulation (red) using EPR parameters: g = [6.0, 5.0, 2.1], A = [200, 300, 162], HStrain = [500, 25, 50], bottom spectrum. Simulation (red) using EPR parameters: g = [5.0, 4.32, 2.10]; A = [244, 300, 162]; HStrain = [133, 140, 200]; middle spectrum spectrum; simulation (red) using EPR parameters g = [5.08, 4.14, 2.05]; A = [293, 221, 201]; HStrain = [174, 116, 81]; final simulation obtained running Monte Carlo option from EasySpin over a weekend with Vary.g = [0.2, 0.2, 0.2]; Vary.A = [50, 50, 50]; Vary.HStrain = [50, 50, 50]; center values: g = [5.0, 4.3, 2.0]; A = [300, 244, 162]; HStrain = [178, 123, 50].
Ijms 20 02385 g009
Table 1. Electron paramagnetic resonance (EPR) parameters for high-spin the Co complex of ethylene diamine tetraacetic acid (CoEDTA) from X-band and L-band spectraa.
Table 1. Electron paramagnetic resonance (EPR) parameters for high-spin the Co complex of ethylene diamine tetraacetic acid (CoEDTA) from X-band and L-band spectraa.
EPR Parameterg-maxg-midg-maxA-maxA-midA-ming-maxg-midg-maxA-maxA-midA-min
High spin| ± 3/2> | ± 1/2>
CoEDTA
X-band (Exp)7.8------84 G------~5~4.42.1------54 G
L-sim------------------5.084.142.0541 G38 G---
(Second harmonic)
a The g-values are the effective g-values.
