Article

Electrochemical α-C(sp3)–H/N–H Cross-Coupling of Isochromans and Azoles

by
Guoping Li
,
Bing Yan
,
Liangliang Wu
,
Yabo Li
,
Xinqi Hao
,
Ming Gong
* and
Yangjie Wu
College of Chemistry, Henan Key Laboratory of Chemical Biology and Organic Chemistry, Key Laboratory of Applied Chemistry of Henan Universities, Zhengzhou University, Zhengzhou 450052, China
*
Author to whom correspondence should be addressed.
Molecules 2025, 30(1), 4; https://doi.org/10.3390/molecules30010004
Submission received: 17 November 2024 / Revised: 19 December 2024 / Accepted: 23 December 2024 / Published: 24 December 2024
Browse Figures
Versions Notes

Abstract

:
Isochroman and azole moieties are both present in a wide variety of biologically active molecules. Their efficient combination under mild reaction conditions is beneficial for obtaining small-molecule drug candidates. In this paper, we describe electrochemical α-C(sp3)–H/N–H cross-coupling reactions between isochromans and azoles, yielding products in moderate to excellent yields. This protocol does not require any catalysts or exogenous oxidants and can be performed at room temperature under air. Control experiments and cyclic voltammetry showed that the reaction may proceed through both radical coupling and nucleophilic addition processes.

Graphical Abstract

1. Introduction

The cross-dehydrogenative coupling (CDC) reaction has attracted significant interest in recent years due to its ability to directly construct carbon–carbon (C–C)/carbon–heteroatom (C–X) bonds through the in situ activation of C–H/X–H bonds [1,2,3]. The traditional synthetic strategy usually employs stoichiometric amounts of oxidants to clean up surplus electrons from substrates, which unavoidably generate byproducts and limit the applicability of substrates [4,5,6]. With the evolution of more sustainable chemistry, the direct electro-oxidation method is considered an environmentally friendly and powerful synthetic method under exogenous-oxidant-free conditions [7,8,9,10,11]. In recent years, the electrochemically promoted direct dehydrogenative coupling of the C(sp3)–H bond has been applied to construct C–C [12,13,14], C–N [15,16,17,18,19,20,21], C–O [22,23,24], C–S [25,26], C–P [27] and C–X bonds [28,29,30]. To date, the construction of hybrid molecules through the direct coupling of non-functionalized heterocycles using the electrochemical CDC reaction under mild conditions remains a challenging task.
Isochroman and azole moieties are present in a wide variety of biologically active molecules (Scheme 1a) [31,32]. More recently, the construction strategy of molecular hybridization with two or more natural product fragments has been applied to solve the problem of drug resistance [33]. The combination of isochromans and azoles will produce a novel hybrid molecule with potential biological activity. Currently, CDC reactions between isochromans α-C(sp3)–H and azoles N–H have been achieved using transition metal catalysts or/and excess oxidants or photo-oxidants, which results in an increase in chemical waste and economic costs (Scheme 1b) [34,35,36]. Therefore, it is necessary to explore an environmentally friendly and mild method of constructing such hybrid molecules. As a continuation of our efforts to develop sustainable organic synthesis methods in electrochemistry [17,37], herein, we report an electrocatalytic CDC reaction under catalyst- and oxidant-free conditions to synthesize C–N coupling products in a green and efficient manner (Scheme 1c). The possible reaction mechanism was explored experimentally.

2. Results and Discussion

We started our investigation by employing isochroman (1a) and indazole (2a) as template substrates (Table 1). The reaction showed minimal conversion in an undivided RVC/Ni cell at 10 mA without any additives (entry 1). Pleasingly, the introduction of trifluoromethanesulfonic acid (TfOH) significantly enhanced the reaction, yielding the target product 3a with a 39% yield (entry 2). An excess amount of isochroman (1a) improved the yield of product 3a (entry 4). Among the electrolytes tested, n-Bu4NPF6 proved to be the most effective (entries 5–7). The product yield could not be effectively improved using other electrodes or solvents (entries 8–10). Additionally, the yield of compound 3a was also affected by both the current intensity and reaction time (entries 11–14). TfOH could promote electrosynthesis (entry 15). And the reaction afforded the product in 50% yield under an Ar atmosphere (entry 16).
With the optimal conditions in hand, the substrates’ scope was explored (Scheme 2). In order to achieve higher product yields, the reaction conditions were slightly adjusted for several substrates. Indazoles 2 with both electron-donating and weak electron-withdrawing groups were transformed into their corresponding products in good to excellent yields (3a–i, 3k–n and 3r). Due to the strong electron-donating nature of the methoxy group, it might have become more difficult for N–H bond cleavage in compounds 2b, 2f and 2k to generate the active intermediates. This resulted in lower product yields (3b, 3f and 3k). Surprisingly, moderate yields were observed for substrates 2j and 2o, which contain strong electron-withdrawing groups. The product yield was highly susceptible to both steric hindrance (3p) and intramolecular hydrogen bonding (3q) [38]. In addition, other azoles, substituted isochroman (7-bromoisochroman) and cyclic ethers were also suitable for the reaction system (3s–3z). A gram-scale reaction afforded 3a in a 72% yield, demonstrating the potential of this electrochemical method for industrial applications (Scheme 3).
To determine the detailed mechanism of this transformation, several control experiments were carried out (Scheme 4). Initially, an excess of 2,2,6,6-tetramethylpiperidine 1-oxide (TEMPO) or butylated hydroxytoluene (BHT) could not completely inhibit this reaction (exp 1 and 2). Meanwhile, five strong molecular ion peaks were detected by LC-MS: [I + H]+ (exact mass: 274.1); [II + H]+ (exact mass: 290.2); [II + Na]+ (exact mass: 312.2); [III + H]+ (exact mass: 337.2); and [III + Na]+ (exact mass: 359.2). Triethylenediamine (DABCO) and 1,4-benzoquinone (p-BQ) as reactive oxygen species quenchers effectively inhibited the reaction (exp 3–5). The oxidation peaks of isochroman (1a) and indazole (2a) were observed, respectively, at 2.5 V and 2.0 V vs. Ag/AgCl by cyclic voltammetry experiments. It was seen that the oxidation peak currents for isochroman (1a) increased linearly with scan rates (Figure 1b,c). The number of electrons for isochroman (1a) was calculated to be one by Laviron’s method [39] (Figure 1d). These results indicated the following: (1) the reaction might have involved both a radical process and an ionic pathway; (2) the oxidation of 1a was an absorption-controlled process, and the electro-oxidation step of 1a involved a one-electron process; and (3) the singlet oxygen (1O2) and superoxide anion (O2−•) might serve as the active species for this transformation.
Based on the above results and the relevant literature [24], a possible reaction mechanism for this electrocatalytic CDC reaction was proposed (Scheme 5). Initially, the acid and oxygen could be reduced to hydrogen and superoxide anion (O2¯•) on the cathode. Superoxide anion (O2¯•) could facilitate the deprotonation of indazole (2a) to form anion 4. Subsequently, the anion 4 underwent anodic oxidation to form radical 5, which could also be generated from the direct oxidation of 2a. Meanwhile, intermediate 7 was generated by the formation of a hydrogen bond between the O atom of isochroman and the hydrogen atom of TfOH. Intermediate 9 was formed on the anode through the stepwise oxidation of intermediate 7. And 10 could be formed though the ion process between cation 9 and anion 4. Finally, deprotonation generated the cross-coupling product 3a.

3. Materials and Methods

3.1. Materials and Instruments

All reagents were obtained from commercial sources without further purification unless otherwise stated. Solvents were dried and degassed by standard methods before they were used. Analytical thin-layer chromatography (TLC) was performed on Merck silica gel aluminum plates with an F-254 indicator, visualized by irradiation with UV light. Flash chromatography columns were packed with 200–300 mesh silica gel, which was purchased from Qing Dao Hai Yang Chemical Industry. The Digital Single-Channel Adjustable Automatic Electronic Pipette Micropipette dPettee+ was purchased from Dragon Laboratory Instruments Limited (DLAB Scientific Co., Ltd, Beijing, China). 1H NMR and 13C NMR spectra were recorded on a Bruker DPX-400 spectrometer (Brooke Technologies Co., Ltd., Zurich, Switzerland) in CDCl3. All chemical shifts (δ) are reported in ppm and coupling constants (J) in Hz relative to tetramethylsilane as an internal standard (δ = 0 ppm). For the 19F spectra, α-trifluorotoluene served as an external standard (δ = −63.9 ppm). High-resolution mass spectra (HRMS) were obtained on a Waters UPLC G2-XS Qtof spectrometer (Waters World Science & Technology Co., Ltd., Wilmslow, UK) using electrospray ionization (ESI). Low-resolution mass spectrometry (LRMS) was performed using an Agilent 1260–6120 (Agilent Technologies Co., Ltd, California, USA) single quadrupole LC-MS using electrospray ionization (ESI). Cyclic voltammetry (CV) was recorded in MeCN by CHI1040C (Shanghai, China). Electrolysis was conducted using an IKA ElectraSyn 2.0 (Germany) in the constant current mode. The X-ray single-crystal structure was determined by a GeminiE X-ray single-crystal diffractometer (Oxford Diffraction Limited, Oxford, UK).

3.2. Cyclic Voltammetry Experiments

Cyclic voltammetry (CV) was measured in a glass cell with a CHI1040C electrochemical workstation under an Ar atmosphere with a conventional three-electrode system. The working electrode was a steady glassy carbon disk electrode, and the counter electrode was a platinum wire. The reference was an Ag/AgCl electrode submerged in a saturated aqueous KCl solution. A total of 6 mL of CH3CN containing 0.05 M n-Bu4NPF6 was poured into the electrochemical cell in all experiments. The CV of substrates (1a and 2a) was measured at a concentration of 10 mM. The scan rate was 0.1 V/s, ranging from 0 V to 3 V.

3.3. General Procedure for the Electrochemical Synthesis of 1-(Isochroman-1-yl)-1H-Indazole

Compounds 1 and 2, acid, electrolyte and solvent were added to the ElectraSyn reaction vial equipped with an anode and a cathode. The doses of all reagents, additives and solvents are given in the manuscript. The reaction mixture was electrolyzed under the indicated constant current. After the reaction, the electrodes were rinsed with ethyl acetate (15 mL), which was combined with the reaction mixture. The reaction mixture was washed with 20 mL saturated saline water and then extracted with ethyl acetate (3 × 15 mL). The organic layer was dried by Na2SO4 and concentrated under reduced pressure. The residue was purified by silica gel column chromatography (ethyl acetate/petroleum ether = 1:25 to 1:40, v/v) to produce the desired products 3.
1-(isochroman-1-yl)-1H-indazole (3a). Colorless oil (66.2 mg, 88%). 1H NMR (400 MHz, CDCl3): δ 8.04 (s, 1H), 7.73 (d, J = 8.1 Hz, 1H), 7.36–7.24 (m, 3H), 7.23–7.07 (m, 4H), 6.97 (d, J = 7.8 Hz, 1H), 4.20–3.93 (m, 2H), 3.13–2.90 (m, 2H). 13C NMR (100 MHz, CDCl3 & MeOD (v:v = 30:1)): δ 139.9, 134.8, 134.7, 131.7, 128.9, 128.5, 126.9, 126.9, 126.7, 124.9, 121.4, 121.1, 110.4, 83.5, 81.8, 28.0. HRMS (ESI), calcd. for C16H14N2NaO (M + Na)+: 273.0998, found: 273.0992 [36,40].
1-(isochroman-1-yl)-4-methoxy-1H-indazole (3b). Colorless oil (52.9 mg, 63%). 1H NMR (400 MHz, CDCl3): δ 8.11 (s, 1H), 7.35–7.26 (m, 2H), 7.24–7.14 (m, 2H), 7.07 (s, 1H), 6.96 (d, J = 7.7 Hz, 1H), 6.78 (d, J = 8.4, 1H), 6.49 (d, J = 7.7 Hz, 1H), 4.19–3.97 (m, 2H), 3.97 (s, 3H), 3.13–2.91 (m, 2H). 13C NMR (100 MHz, CDCl3): δ 153.8, 141.9, 134.8, 132.5, 132.0, 129.0, 128.5, 128.0, 127.0, 126.6, 116.8, 103.1, 100.3, 83.4, 61.6, 55.4, 28.1. HRMS (ESI), calcd. for C17H16N2NaO2 (M + Na)+: 303.1104, found: 303.1108.
1-(isochroman-1-yl)-4-methyl-1H-indazole (3c). Colorless oil (78.4 mg, 99%). 1H NMR (400 MHz, CDCl3): δ 8.06 (s, 1H), 7.35–7.26 (m, 2H), 7.23–7.14 (m, 2H), 7.10 (s, 1H), 7.02 (d, J = 8.4 Hz, 1H), 6.99–6.91 (m, 2H), 4.22–3.92 (m, 2H), 3.17–2.87 (m, 2H), 2.59 (s, 3H). 13C NMR (100 MHz, CDCl3): δ 140.0, 134.9, 133.5, 132.0, 131.6, 129.0, 128.5, 127.0, 126.8, 126.7, 125.4, 121.3, 107.8, 83.4, 61.6, 28.1, 18.6. HRMS (ESI), calcd. for C17H16N2NaO (M + Na)+: 287.1155, found: 287.1161.
4-fluoro-1-(isochroman-1-yl)-1H-indazole (3d). Colorless oil (79.6 mg, 99%). 1H NMR (400 MHz, CDCl3): δ 8.11 (s, 1H), 7.41–7.14 (m, 4H), 7.10 (s, 1H), 7.01–6.91 (m, 2H), 6.85–6.75 (d, J = 8.4 Hz, 1H), 4.20–3.97 (m, 2H), 3.16–2.90 (m, 2H). 13C NMR (100 MHz, CDCl3): δ 155.9 (d, J = 252.4 Hz), 142.6 (d, J = 8.1 Hz), 134.8, 131.6, 131.0 (d, J = 2.2 Hz), 129.0, 128.7, 127.7 (d, J = 7.3 Hz), 127.0, 126.7, 115.3 (d, J = 22.7 Hz), 106.5 (d, J = 4.4 Hz), 105.7 (d, J = 18.3 Hz), 83.7, 61.7, 28.0. 19F NMR (376 MHz, CDCl3): δ −118.0. HRMS (ESI), calcd. for C16H13FN2NaO (M + Na)+: 291.0904, found: 291.0907.
4-chloro-1-(isochroman-1-yl)-1H-indazole (3e). Colorless oil (84.4 mg, 99%). 1H NMR (400 MHz, CDCl3): δ 8.12 (s, 1H), 7.36–7.25 (m, 2H), 7.23–7.05 (m, 5H), 6.94 (d, J = 7.7 Hz, 1H), 4.17–3.94 (m, 2H), 3.14–2.88 (m, 2H). 13C NMR (100 MHz, CDCl3): δ 141.0, 134.8, 133.2, 131.6, 129.1, 128.7, 127.3, 127.0, 126.8, 126.7, 124.3, 121.0, 109.1, 83.8, 61.7, 28.0. HRMS (ESI), calcd. for C16H13ClN2NaO (M + Na)+: 307.0609, found: 307.0619.
1-(isochroman-1-yl)-5-methoxy-1H-indazole (3f). Colorless oil (63.8 mg, 76%). 1H NMR (400 MHz, CDCl3): δ 7.95 (s, 1H), 7.35–7.26 (m, 2H), 7.21–7.15 (m, 1H), 7.09–6.93 (m, 5H), 4.17–3.95 (m, 2H), 3.83 (s, 3H), 3.13–2.92 (m, 2H). 13C NMR (100 MHz, CDCl3): δ 155.0, 135.8, 134.9, 134.0, 132.0, 129.0, 128.5, 127.0, 126.7, 125.5, 118.7, 111.4, 100.4, 83.7, 61.7, 55.7, 28.1. HRMS (ESI), calcd. for C17H16N2NaO2 (M + Na)+: 303.1104, found: 303.1095.
1-(isochroman-1-yl)-5-methyl-1H-indazole (3g). Colorless oil (78.4 mg, 99%). 1H NMR (400 MHz, CDCl3): δ 7.95 (s, 1H), 7.49 (s, 1H), 7.35–7.26 (m, 2H), 7.21–7.14 (m, 1H), 7.14–7.01 (m, 3H), 6.98 (d, J = 7.7 Hz, 1H), 4.21–3.92 (m, 2H), 3.14–2.91 (m, 2H), 2.43 (s, 3H). 13C NMR (100 MHz, CDCl3): δ 138.7, 134.9, 134.2, 132.0, 130.8, 129.0, 128.7, 128.5, 127.0, 126.7, 125.5, 120.2, 110.0, 83.5, 61.6, 28.1, 21.3. HRMS (ESI), calcd. for C17H16N2NaO (M + Na)+: 287.1155, found: 287.1159.
5-fluoro-1-(isochroman-1-yl)-1H-indazole (3h). Colorless oil (79.6 mg, 99%). 1H NMR (400 MHz, CDCl3): δ 8.00 (s, 1H), 7.39–7.26 (m, 3H), 2.23–7.14 (m, 1H), 7.14–7.01 (m, 3H), 6.96 (d, J = 7.7 Hz, 1H), 4.20–3.91 (m, 2H), 3.15–2.90 (m, 2H). 13C NMR (100 MHz, CDCl3): δ 158.1 (d, J = 239.2 Hz), 136.8, 134.8, 134.3 (d, J = 5.1 Hz), 131.7, 129.1, 128.7, 126.9, 126.7, 125.2 (d, J = 9.5 Hz), 116.2 (d, J = 27.1 Hz), 111.6 (d, J = 9.5 Hz), 105.2 (d, J = 23.5 Hz), 83.9, 61.8, 28.1. 19F NMR (376 MHz, CDCl3): δ -122.4. HRMS (ESI), calcd. for C16H13FN2NaO (M + Na)+: 291.0904, found: 291.0911.
5-bromo-1-(isochroman-1-yl)-1H-indazole (3i). Colorless oil (85.3 mg, 87%). 1H NMR (400 MHz, CDCl3): δ 7.98 (s, 1H), 7.87 (s, 1H), 7.40–7.24 (m, 3H), 7.23–7.14 (m, 1H), 7.11 (s, 1H), 7.03 (d, J = 8.9 Hz, 1H), 6.95 (d, J = 7.7 Hz, 1H), 4.16–3.95 (s, 2H), 3.15–2.88 (m, 2H). 13C NMR (100 MHz, CDCl3): δ 138.6, 134.8, 133.8, 131.5, 129.8, 129.1, 128.7, 126.9, 126.8, 126.6, 123.6, 114.4, 111.9, 83.8, 61.8, 28.0. HRMS (ESI), calcd. for C16H13BrN2NaO (M + Na)+: 351.0103, found: 351.0110.
1-(isochroman-1-yl)-5-nitro-1H-indazole (3j). Colorless oil (50.3 mg, 57%). 1H NMR (400 MHz, CDCl3): δ 8.72 (s, 1H), 8.24 (s, 1H), 8.21–8.14 (m, 1H), 7.42–7.28 (m, 2H), 7.25–7.17 (m, 2H), 7.14 (s, 1H), 6.94 (d, J = 7.8 Hz, 1H), 4.22–3.98 (m, 2H), 3.17–2.94 (m, 2H). 13C NMR (100 MHz, CDCl3): δ 142.8, 141.7, 136.7, 134.8, 131.0, 129.2, 129.0, 126.9, 126.8, 124.3, 121.7, 118.7, 110.9, 84.2, 61.9, 27.9. HRMS (ESI), calcd. for C16H13N3NaO3 (M + Na)+: 318.0849, found: 318.0855 [36].
1-(isochroman-1-yl)-6-methoxy-1H-indazole (3k). Colorless oil (73.4 mg, 87%). 1H NMR (400 MHz, CDCl3): δ 7.93 (s, 1H), 7.57 (d, J = 8.8 Hz, 1H), 7.36–7.27 (m, 2H), 7.20 (m, 1H), 7.05 (s, 1H), 7.01 (d, J = 7.7 Hz, 1H), 6.84–6.78 (m, 1H), 6.53 (s, 1H), 4.19–3.97 (m, 2H), 3.73 (s, 3H), 3.15–2.91 (m, 2H). 13C NMR (100 MHz, CDCl3): δ 159.4, 141.4, 134.9, 134.7, 131.9, 129.0, 128.5, 127.2, 126.7, 121.8, 119.6, 113.3, 91.7, 83.2, 61.4, 55.4, 28.1. HRMS (ESI), calcd. for C17H16N2NaO2 (M + Na)+: 303.1104, found: 303.1113.
1-(isochroman-1-yl)-6-methyl-1H-indazole (3l). Colorless oil (65.9 mg, 83%). 1H NMR (400 MHz, CDCl3): δ 7.96 (s, 1H), 7.60 (d, J = 8.2 Hz, 1H). 7.36–7.26 (m, 2H), 7.22–7.14 (m, 1H), 7.07 (s, 2H), 7.04–6.93 (m, 2H), 4.21–3.93 (m, 2H), 3.19–2.90 (m, 2H), 2.43 (s, 3H). 13C NMR (100 MHz, CDCl3): δ 140.7, 137.0, 134.8, 134.5, 132.1, 129.0, 128.4, 127.0, 126.6, 123.6, 123.2, 120.7, 109.7, 82.9, 61.5, 28.1, 22.1. HRMS (ESI), calcd. for C17H16N2NaO (M + Na)+: 287.1155, found: 287.1157.
6-fluoro-1-(isochroman-1-yl)-1H-indazole (3m). Colorless oil (77.6 mg, 96%). 1H NMR (400 MHz, CDCl3): δ 8.01 (s, 1H), 7.70–7.61 (m, 1H), 7.38–7.27 (m, 2H), 7.23–7.15 (m, 1H), 7.04 (s, 1H), 7.00–6.88 (m, 2H), 6.77 (d, J = 8.4 Hz, 1H), 4.20–3.95 (m, 2H), 3.15–2.91 (m, 2H). 13C NMR (100 MHz, CDCl3): δ 162.1 (d, J = 245.0 Hz), 140.3 (d, J = 12.5 Hz), 134.8, 134.8, 131.5, 129.1, 128.7, 126.9, 126.8, 122.4 (d, J = 11.0 Hz). 121.9, 111.2 (d, J = 25.7 Hz), 96.6 (d, J = 27.1 Hz), 83.9, 61.8, 28.0. 19F NMR (376 MHz, CDCl3): δ -113.6. HRMS (ESI), calcd. for C16H13FN2NaO (M + Na)+: 291.0904, found: 291.0913.
6-chloro-1-(isochroman-1-yl)-1H-indazole (3n). Colorless oil (84.4 mg, 99%). 1H NMR (400 MHz, CDCl3): δ 8.00 (s, 1H), 7.64 (d, J = 8.6 Hz, 1H), 7.40–7.27 (m, 2H), 7.24–7.08 (m, 3H), 7.05 (s, 1H), 6.96 (d, J = 7.7 Hz, 1H), 4.19–3.86 (m, 2H), 3.14–2.90 (m, 2H). 13C NMR (100 MHz, CDCl3): δ 140.4, 134.8, 134.6, 133.1, 131.5, 129.1, 128.7, 126.9, 126.8, 123.6, 122.5, 122.0, 110.3, 83.6, 61.7, 28.0. HRMS (ESI), calcd. for C16H13ClN2NaO (M + Na)+: 307.0609, found: 307.0609.
1-(isochroman-1-yl)-6-nitro-1H-indazole (3o). Colorless oil (47.1 mg, 60%). 1H NMR (400 MHz, CDCl3): δ 8.16 (s, 2H), 8.09–8.00 (m, 1H), 7.90–7.79 (d, J = 8.9 Hz, 1H), 7.42–7.31 (m, 2H), 7.24–7.15 (m, 2H), 6.96 (d, J = 7.8 Hz, 1H), 4.15–3.99 (m, 2H), 3.18–2.96 (m, 2H). 13C NMR (100 MHz, CDCl3): δ 146.7, 138.7, 134.8, 134.6, 130.9, 129.3, 129.1, 128.2, 126.9, 126.8, 121.8, 116.3, 107.3, 84.1, 61.9, 27.9. HRMS (ESI), calcd. for C16H13N3NaO3 (M + Na)+: 318.0849, found: 318.0849.
1-(isochroman-1-yl)-7-methyl-1H-indazole (3p). Colorless oil (56.9 mg, 72%). 1H NMR (400 MHz, CDCl3): δ 7.96 (s, 1H), 7.59 (d, J = 8.0 Hz, 1H), 7.37–7.26 (m, 3H), 7.24–7.17 (m, 2H), 7.15–7.09 (m, 1H), 7.04 (d, J = 7.5 Hz, 1H), 4.17–3.85 (m, 2H), 3.22–3.03 (m, 1H), 2.98–2.73 (m, 4H). 13C NMR (100 MHz, CDCl3): δ 140.0, 134.6, 134.6, 132.7, 129.0, 129.0, 128.2, 127.2, 126.3, 125.5, 121.6, 121.0, 119.0, 82.6, 60.2, 28.1, 19.7. HRMS (ESI), calcd. for C17H16N2NaO (M + Na)+: 287.1155, found: 287.1159.
1-(isochroman-1-yl)-3-methyl-1H-indazole (3r). Colorless oil (78.4 mg, 99%). 1H NMR (400 MHz, CDCl3): δ 7.63 (d, J = 8.0 Hz, 1H), 7.34–7.26 (m, 2H), 7.21–7.13 (m, 2H), 7.13–7.08 (m, 1H), 7.05 (s, 1H), 7.01 (d, J = 7.7 Hz, 1H), 6.82 (d, J = 8.4 Hz, 1H), 4.22–3.98 (m, 2H), 3.08–2.96 (m, 2H), 2.57 (s, 3H). 13C NMR (100 MHz, CDCl3): δ 143.5, 140.8, 135.0, 132.3, 129.0, 128.4, 127.1, 126.8, 126.6, 124.9, 120.5, 120.4, 110.6, 84.2, 62.3, 28.2, 12.1. HRMS (ESI), calcd. for C17H16N2NaO (M + Na)+: 287.1155, found: 287.1158.
1-(isochroman-1-yl)-1H-benzo[d]imidazole (3s). Colorless oil (11.1mg, 15%). 1H NMR (400 MHz, CDCl3): δ 7.84–7.78 (m, 1H), 7.61 (s, 1H), 7.48–7.41 (m, 1H), 7.41–7.35 (m, 1H), 7.34–7.21 (m, 4H), 7.07 (d, J = 7.7 Hz, 1H), 6.91 (s, 1H), 4.07–3.71 (m, 2H), 3.21–2.78 (m, 2H). 13C NMR (100 MHz, CDCl3): δ 144.2, 142.7, 135.0, 133.8, 130.3, 129.3, 129.2, 127.1, 127.0, 123.4, 122.8, 120.4, 111.1, 80.2, 60.1, 27.7. HRMS (ESI), calcd. for C16H14N2NaO (M + Na)+: 273.0998, found: 273.1003 [36].
1-(isochroman-1-yl)-1H-benzo[d][1,2,3]triazole (3t). Colorless oil (33.1 mg, 44%). 1H NMR (400 MHz, CDCl3): δ 8.12–8.00 (m, 1H), 7.42 (s, 1H), 7.40–7.28 (m, 4H), 7.23–7.15 (m, 1H),7.05–6.97 (m, 1H), 6.94 (d, J = 7.8 Hz, 1H), 4.17–4.03 (m, 2H), 3.22–2.95 (m, 2H). 13C NMR (100 MHz, CDCl3 & MeOD (v:v = 30:1)): δ 146.1, 134.7, 132.6, 129.9, 129.1, 129.1, 127.8, 127.0, 126.8, 124.4, 119.7, 110.8, 83.5, 62.1, 27.7. HRMS (ESI), calcd. for C15H13N3NaO (M + Na)+: 274.0951, found: 274.0956 [36].
1-(isochroman-1-yl)-3-phenyl-1H-pyrazole (3u). Colorless oil (34.5 mg, 42%). 1H NMR (400 MHz, CDCl3): δ 7.86 (d, J = 7.1 Hz, 2H), 7.43–7.35 (m, 2H), 7.35–7.28 (m, 2H), 7.28–7.15 (m, 3H), 7.10 (d, J = 7.7 Hz, 1H), 6.85 (s, 1H), 6.55 (s, 1H), 4.09–3.89 (m, 2H), 3.16–2.97 (m, 1H), 2.90–2.76 (m, 1H). 13C NMR (100 MHz, CDCl3): δ 152.5, 135.0, 133.3, 131.2, 130.7, 129.0, 128.8, 128.6, 127.9, 127.5, 126.7, 125.9, 103.2, 85.0, 60.4, 27.9. HRMS (ESI), calcd. for C18H16N2NaO (M + Na)+: 299.1155, found: 299.1159 [36].
1-(isochroman-1-yl)-5-methyl-3-phenyl-1H-pyrazole (3v). Colorless oil (48.3 mg, 58%). 1H NMR (400 MHz, CDCl3): δ 7.75 (d, J = 7.2 Hz, 2H), 7.38–7.31 (m, 2H), 7.29–7.23 (m, 2H), 7.22–7.12 (m, 2H), 6.91 (d, J = 7.7 Hz, 1H), 6.81 (s, 1H), 6.39 (s, 1H), 4.40–4.30 (m, 1H), 4.07–3.98 (m, 1H), 3.12–3.01 (m, 1H), 2.95–2.83 (m, 1H), 2.15 (s, 3H). 13C NMR (100 MHz, CDCl3): δ 150.6, 140.7, 134.6, 133.6, 133.1, 128.7, 128.5, 128.1, 127.6, 126.6, 126.3, 125.7, 104.6, 85.0, 62.9, 28.1, 11.6. HRMS (ESI), calcd. for C19H18N2NaO (M + Na)+: 313.1311, found: 313.1319.
1-(7-bromoisochroman-1-yl)-1H-indazole (3w). Colorless oil (44.5 mg, 45%). 1H NMR (400 MHz, CDCl3): δ 8.05(s, 1H), 7.76 (d, J = 8.1 Hz, 1H), 7.48–7.41 (m, 1H), 7.40–7.30 (m, 2H), 7.24–7.10 (m, 3H), 7.05 (s, 1H), 4.18–4.09 (m, 1H), 4.03–3.94 (m, 1H), 3.07–2.86 (m, 2H). 13C NMR (100 MHz, CDCl3): δ 140.1, 135.0, 134.0, 133.9, 131.7, 130.7, 129.9, 126.9, 125.0, 121.6, 121.3, 120.1, 110.0, 82.2, 61.3, 27.6. HRMS (ESI), calcd. for C16H14BrN2O (M + H)+: 329.0284, found: 329.0285.
1-(tetrahydrofuran-2-yl)-1H-indazole (3x). Colorless oil (34.9 mg, 62%). 1H NMR (400 MHz, CDCl3): δ 8.01 (s, 1H), 7.71 (d, J = 8.0 Hz, 1H), 7.63–7.55 (m, 1H), 7.43–7.30 (m, 1H), 7.21–7.07 (m, 1H), 6.44–6.28 (m, 1H), 4.11–3.89 (m, 2H), 3.00–2.83 (m, 1H), 2.48–2.31 (m, 2H), 2.17–1.98 (m, 1H), 13C NMR (100 MHz, CDCl3): δ 139.9, 133.9, 126.6, 124.7, 121.1, 121.0, 109.7, 86.9, 68.8, 30.3, 25.1. HRMS (ESI), calcd. for C11H12N2NaO (M + Na)+: 211.0842, found: 211.0850 [40].
1-(tetrahydro-2H-pyran-2-yl)-1H-indazole (3y). Colorless oil (31.8 mg, 52%). 1H NMR (400 MHz, CDCl3): δ 8.03 (s, 1H), 7.72 (d, J = 8.2 Hz, 1H), 7.59 (d, J = 8.6 Hz, 1H), 7.43–7.35 (m, 1H), 7.21–7.13 (m, 1H), 5.79–5.66 (m, 1H), 4.12–3.97 (m, 1H), 3.85–3.67 (m, 1H), 2.67–2.50 (m, 1H), 2.23–2.03 (m, 2H), 1.89–1.51 (m, 3H). 13C NMR (100 MHz, CDCl3): δ 139.5, 134.0, 126.6, 124.7, 121.2, 121.1, 110.0, 85.3, 67.6, 29.5, 25.2, 22.7. HRMS (ESI), calcd. for C12H14N2NaO (M + Na)+: 225.0998, found: 225.1005.
1-(1,3-dihydroisobenzofuran-1-yl)-1H-indazole (3z). Colorless oil (29.7 mg, 42%). 1H NMR (400 MHz, CDCl3): δ 8.05 (s, 1H), 7.71 (d, J = 8.1 Hz, 1H), 7.60 (s, 1H), 7.51–7.40 (m, 2H), 7.38–7.31 (m, 1H), 7.29–7.20 (m, 2H), 7.18–7.08 (m, 1H), 6.96–6.86 (m, 1H), 5.43–5.4 (m, 1H), 5.25 (d, J = 12.6 Hz, 1H). 13C NMR (100 MHz, CDCl3): δ 139.9, 139.3, 135.8, 135.0, 129.7, 128.2, 126.7, 125.5, 123.2, 121.4, 121.4, 121.2, 109.8, 92.7, 73.3. HRMS (ESI), calcd. for C15H12N2NaO (M + Na)+: 259.0842, found: 259.0844.

4. Conclusions

In summary, we developed an efficient and simple electro-oxidative method for α-C(sp3)–H/N–H cross-coupling reactions to achieve isochroman–azole hybrid molecules. Under metal- and oxidant-free conditions, various substituted indazoles and isochromans were suitable for this transformation with moderate to good yields at room temperature in air. Based on the results of control experiments and cyclic voltammetry, the reaction might involve both radical coupling and nucleophilic addition processes. This work provides another example of a new strategy for the efficient and mild synthesis of hybrid molecules.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/molecules30010004/s1, Copies of 1H NMR, 13C NMR and 19F NMR spectra of the products are included in the Supporting Information. Figure S1–S4: Cyclic voltammetry of isochroman and indazole. Figures S5–S8: LC-MS spectrum of compounds. Figures S9–S61: 1H and 13C NMR spectra of products. Figures S62–S86: HRMS Spectra for the Products. Scheme S1: Control experiments. Table S1 and Figure S87: Crystal data and structure refinement for 3a.

Author Contributions

G.L. contributed guidance to all experiments. B.Y. performed all experimental studies. L.W. and Y.L. described the Supporting Information. M.G. analyzed the original data and wrote the paper. X.H. and Y.W. provided the experimental platform. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation (NSF) of China (21172200 and 21302172) and Basic Research Training Project of Zhengzhou University (JC2020053021).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in the article and Supplementary Materials.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Girad, S.A.; Knauber, T.; Li, C.-J. The Cross-Dehydrogenative Coupling of Csp3-H Bonds: A Versatile Strategy for C-C Bond Formations. Angew. Chem. Int. Ed. 2014, 53, 74–100. [Google Scholar] [CrossRef]
  2. Tang, S.; Lei, A. Oxidative R1–H/R2–H Cross-Coupling with Hydrogen Evolution. J. Am. Chem. Soc. 2018, 140, 13128–13135. [Google Scholar] [CrossRef] [PubMed]
  3. Huang, C.-Y.; Kang, H.; Li, J.; Li, C.-J. En Route to Intermolecular Cross-Dehydrogenative Coupling Reactions. J. Org. Chem. 2019, 84, 12705–12721. [Google Scholar] [CrossRef] [PubMed]
  4. Li, C.-J. Cross-Dehydrogenative Coupling (CDC): Exploring C−C Bond Formations beyond Functional Group Transformations. Acc. Chem. Res. 2009, 42, 335–344. [Google Scholar] [CrossRef]
  5. Liu, C.; Yuan, J.; Gao, M.; Tang, S.; Li, W.; Shi, R.; Lei, A. Oxidative Coupling between Two Hydrocarbons: An Update of Recent C–H Functionalizations. Chem. Rev. 2015, 115, 12138–12204. [Google Scholar] [CrossRef] [PubMed]
  6. Liu, C.; Liu, D.; Lei, A. Recent Advances of Transition-Metal Catalyzed Radical Oxidative Cross-Couplings. Acc. Chem. Res. 2014, 47, 3459–3470. [Google Scholar] [CrossRef]
  7. Yuan, Y.; Lei, A. Electrochemical Oxidative Cross-Coupling with Hydrogen Evolution Reactions. Acc. Chem. Res. 2019, 52, 3309–3324. [Google Scholar] [CrossRef] [PubMed]
  8. Wang, H.; Gao, X.; Lv, Z.; Abdelilah, T.; Lei, A. Recent Advances in Oxidative R1-H/R2-H Cross-Coupling with Hydrogen Evolution via Photo-/Electrochemistry. Chem. Rev. 2019, 119, 6769–6787. [Google Scholar] [CrossRef]
  9. Jiang, Y.; Xu, K.; Zeng, C. Use of Electrochemistry in the Synthesis of Heterocyclic Structures. Chem. Rev. 2018, 118, 4485–4540. [Google Scholar] [CrossRef]
  10. Röckl, J.L.; Pollok, D.; Franke, R.; Waldvogel, S.R. A Decade of Electrochemical Dehydrogenative C,C-Coupling of Aryls. Acc. Chem. Res. 2020, 53, 45–61. [Google Scholar] [CrossRef]
  11. Zhang, Y.; Cai, Z.; Warratz, S.; Ma, C.; Ackermann, L. Recent advances in electrooxidative radical transformations of alkynes. Sci. China Chem. 2023, 66, 703–724. [Google Scholar] [CrossRef]
  12. Roy, S.; Karmakar, S.; Mondal, I.; Naskar, K.; Deb, I. Electrochemical C(sp3)–C(sp3) cross-dehydrogenative coupling: Enabling access to 9-substituted fluorescent acridanes. Chem. Commun. 2023, 59, 9074–9077. [Google Scholar] [CrossRef]
  13. Kong, Y.; Kim, J.K.; Li, Y.; Zhang, J.; Huang, M.; Wu, Y. An oxidant- and catalyst-free electrooxidative cross-coupling approach to 3-tetrahydroisoquinoline substituted coumarins. Green Chem. 2021, 23, 1274–1279. [Google Scholar] [CrossRef]
  14. Cao, H.; Long, C.-J.; Yang, D.; Guan, Z.; He, Y.-H. Electrochemical Cross-Dehydrogenative Coupling of Isochroman and Unactivated Ketones. J. Org. Chem. 2023, 88, 4145–4154. [Google Scholar] [CrossRef]
  15. Wang, Z.; Liu, Y.; Song, H.; Wang, Q. Phosphorous acid–assisted electrochemical α-tetrahydrofuranylation of sulfonamides and amides. Green Chem. 2023, 25, 1970–1974. [Google Scholar] [CrossRef]
  16. Zhu, Q.-R.; Zhang, P.-Z.; Sun, X.; Gao, H.; Wang, P.-L.; Li, H. Electrochemical N(sp2)–H/C(sp3)–H cross-coupling reaction between sulfoximines and alkylarenes. Green Chem. 2024, 26, 5824–5831. [Google Scholar] [CrossRef]
  17. Kong, Y.; Huang, M.; Li, Y.; Kim, J.K.; Gong, M.; Wu, Y. Convergent Paired Electrolysis for the Synthesis of Pyrazolyl-Substituted Tetrahydroisoquinolines. Adv. Synth. Catal. 2023, 365, 4198–4204. [Google Scholar] [CrossRef]
  18. Fang, S.; Zhong, K.; Zeng, S.; Hu, X.; Sun, P.; Ruan, Z. The electrochemically enabled α-C(sp3)–H azolation of ketones. Chem. Commun. 2023, 59, 11425–11428. [Google Scholar] [CrossRef]
  19. Hou, Z.-W.; Liu, D.-J.; Xiong, P.; Lai, X.-L.; Song, J.; Xu, H.-C. Site-Selective Electrochemical Benzylic C−H Amination. Angew. Chem. Int. Ed. 2021, 60, 2943–2947. [Google Scholar] [CrossRef]
  20. Wang, Z.; Liu, Y.; Song, H.; Wang, Q. Electrochemical direct α-amidation and α-pyrazolation of N-alkoxy- and N-aryloxycarbonyl pyrrolidines. Green Chem. 2024, 26, 7419–7423. [Google Scholar] [CrossRef]
  21. Hou, Z.-W.; Li, L.; Wang, L. Organocatalytic electrochemical amination of benzylic C–H bonds. Org. Chem. Front. 2021, 8, 4700–4705. [Google Scholar] [CrossRef]
  22. Wu, J.; Shi, H.; Liu, J.; Wang, R.; Zhou, J.; Xu, X.-L.; Xu, H.-J. Electrochemical oxidative C(sp3)–H/O–H cross-coupling for the synthesis of α-acyloxyketones. Org. Chem. Front. 2023, 10, 2459–2464. [Google Scholar] [CrossRef]
  23. Wang, H.; He, M.; Li, Y.; Zhang, H.; Yang, D.; Nagasaka, M.; Lv, Z.; Guan, Z.; Cao, Y.; Gong, F.; et al. Electrochemical Oxidation Enables Regioselective and Scalable α-C(sp3)-H Acyloxylation of Sulfides. J. Am. Chem. Soc. 2021, 143, 3628–3637. [Google Scholar] [CrossRef]
  24. Wang, Z.; Niu, K.; Liu, Y.; Song, H.; Wang, Q. Electrochemical α-C(sp3)–H/O–H cross-coupling of isochromans and alcohols assisted by benzoic acid. Chem. Commun. 2022, 58, 10949–10952. [Google Scholar] [CrossRef] [PubMed]
  25. Mei, H.; Pajkert, R.; Wang, L.; Li, Z.; Röschenthaler, G.-V.; Han, J. Chemistry of electrochemical oxidative reactions of sulfinate salts. Green Chem. 2020, 22, 3028–3059. [Google Scholar] [CrossRef]
  26. Martins, D.G.M.; Meirinho, A.G.; Ahmed, D.N.; Braga, D.A.L.; Mendes, D.S.R. Recent Advances in Electrochemical Chalcogen (S/Se)-Functionalization of Organic Molecules. ChemElectroChem 2019, 6, 5928–5940. [Google Scholar] [CrossRef]
  27. Wang, J.-H.; Li, X.-B.; Li, J.; Lei, T.; Wu, H.-L.; Nan, X.-L.; Tung, C.-H.; Wu, L.-Z. Photoelectrochemical cell for P–H/C–H cross-coupling with hydrogen evolution. Chem. Commun. 2019, 55, 10376–10379. [Google Scholar] [CrossRef]
  28. Zhao, J.; Zhang, J.; Fang, P.; Wu, J.; Wang, F.; Liu, Z.-Q. Electrochemical chlorination of least hindered tertiary and benzylic C(sp3)–H bonds. Green Chem. 2024, 26, 507–512. [Google Scholar] [CrossRef]
  29. Fuchigami, T.; Inagi, S. Recent Advances in Electrochemical Systems for Selective Fluorination of Organic Compounds. Acc. Chem. Res. 2020, 53, 322–334. [Google Scholar] [CrossRef]
  30. Liu, Y.; Yi, H.; Lei, A. Oxidation-Induced C-H Functionalization: A Formal Way for C-H Activation. Chin. J. Chem. 2018, 36, 692–697. [Google Scholar] [CrossRef]
  31. Zhao, Z.; Kang, K.; Yue, J.; Ji, X.; Qiao, H.; Fan, P.; Zheng, X. Research progress in biological activities of isochroman derivatives. Eur. J. Med. Chem. 2021, 210, 113073. [Google Scholar] [CrossRef] [PubMed]
  32. Vitaku, E.; Smith, D.T.; Njardarson, J.T. Analysis of the Structural Diversity, Substitution Patterns, and Frequency of Nitrogen Heterocycles among U.S. FDA Approved Pharmaceuticals. J. Med. Chem. 2014, 57, 10257–10274. [Google Scholar] [CrossRef] [PubMed]
  33. Khwaza, V.; Aderibigbe, B.A. Antifungal Activities of Natural Products and Their Hybrid Molecules. Pharmaceutics 2023, 15, 2673. [Google Scholar] [CrossRef]
  34. Deng, Y.; Hu, Z.; Xue, J.; Yin, J.; Zhu, T.; Liu, S. Visible-Light-Promoted α-C(sp3)–H Amination of Ethers with Azoles and Amides. Org. Lett. 2024, 26, 933–938. [Google Scholar] [CrossRef] [PubMed]
  35. Nguyen, K.D.; Doan, S.H.; Ngo, A.N.V.; Nguyen, T.T.; Phan, N.T.S. Direct C–N coupling of azoles with ethers via oxidative C–H activation under metal–organic framework catalysis. J. Ind. Eng. Chem. 2016, 44, 136–145. [Google Scholar] [CrossRef]
  36. Sun, B.; Yan, Z.; Jin, C.; Su, W. (Diacetoxyiodo)benzene-Mediated Transition-Metal-Free Amination of C(sp3)–H Bonds Adjacent to Heteroatoms with Azoles: Synthesis of N-Alkylated Azoles. Synlett 2018, 29, 2432–2436. [Google Scholar]
  37. Gong, M.; Wu, Q.; Kim, J.K.; Huang, M.; Li, Y.; Wu, Y.; Kim, J.S. Electric-field-controlled highly regioselective thiocyanation of N-containing heterocycles. Sci. China Chem. 2024, 67, 1263–1269. [Google Scholar] [CrossRef]
  38. Alkorta, I.; Claramunt, R.M.; Elguero, J.; Gutiérrez-Puebla, E.; Monge, M.Á.; Reviriego, F.; Roussel, C. Study of the Addition Mechanism of 1H-Indazole and Its 4-, 5-, 6-, and 7-Nitro Derivatives to Formaldehyde in Aqueous Hydrochloric Acid Solutions. J. Org. Chem. 2022, 87, 5866–5881. [Google Scholar] [CrossRef]
  39. Laviron, E. Adsorption, autoinhibition and autocatalysis in polarography and in linear potential sweep voltammetry. J. Electroanal. Chem. Interfacial Electrochem. 1974, 52, 355–393. [Google Scholar] [CrossRef]
  40. Wu, J.; Zhou, Y.; Zhou, Y.; Chiang, C.-W.; Lei, A. Electro-Oxidative C(sp3)-H Amination of Azoles via Intermolecular Oxidative C(sp3)-H/N-H Cross-Coupling. ACS Catal. 2017, 7, 8320–8323. [Google Scholar] [CrossRef]
Molecules 30 00004 sch001

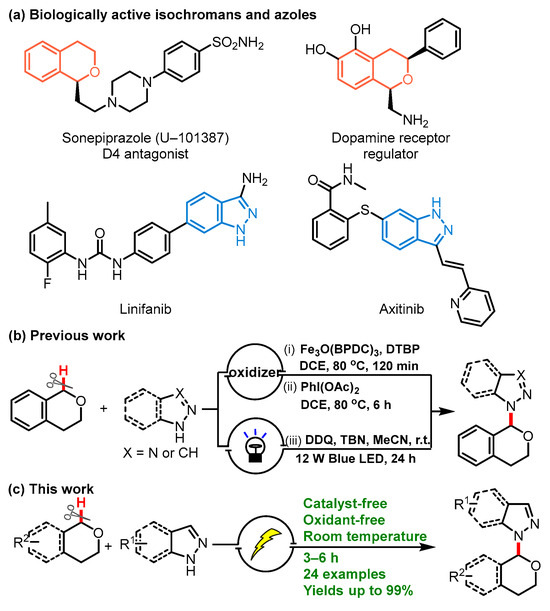

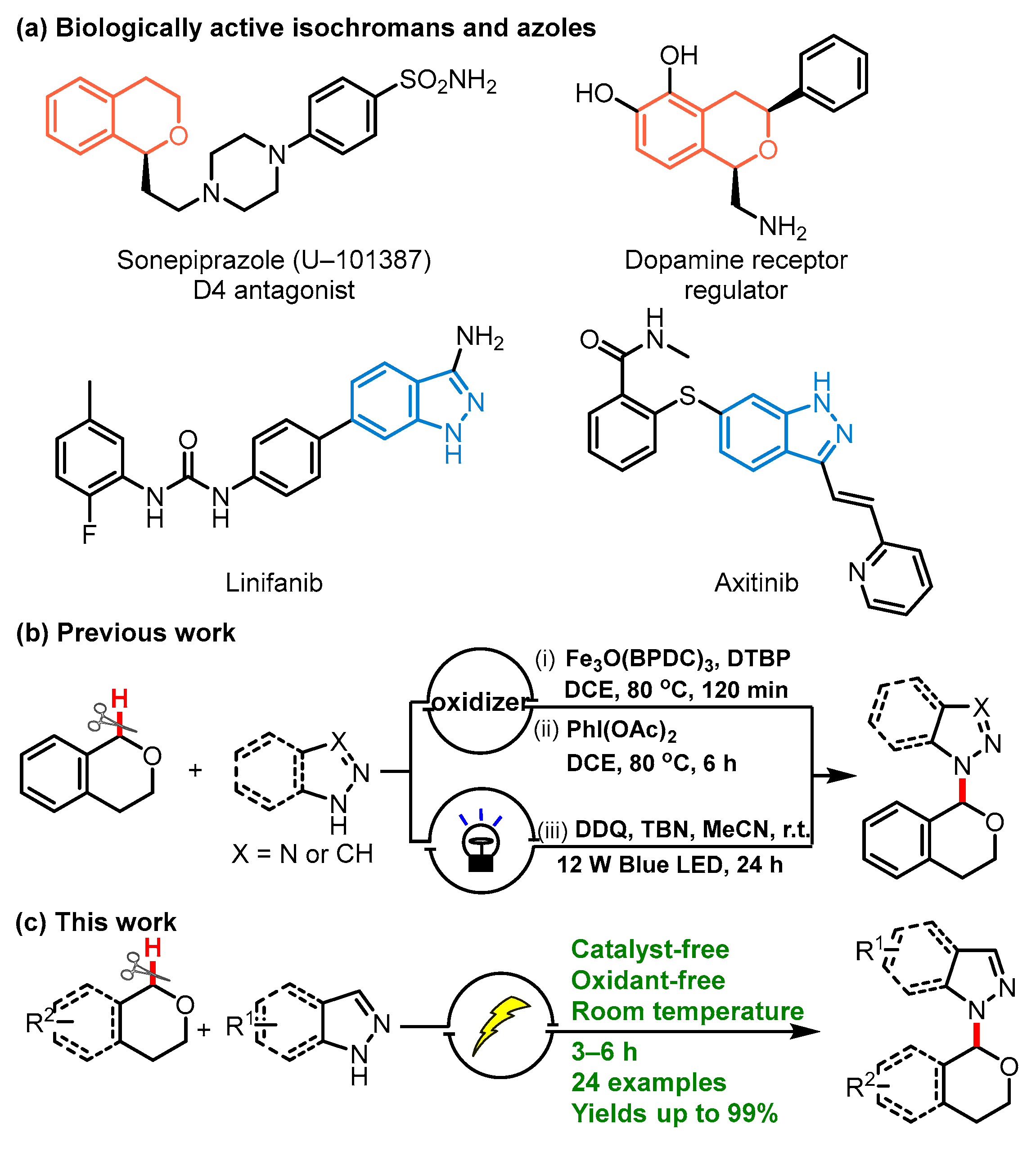

Scheme 1. Cross-dehydrogenative coupling of isochromans and azoles.
Scheme 1. Cross-dehydrogenative coupling of isochromans and azoles.
Molecules 30 00004 sch001
Molecules 30 00004 sch002

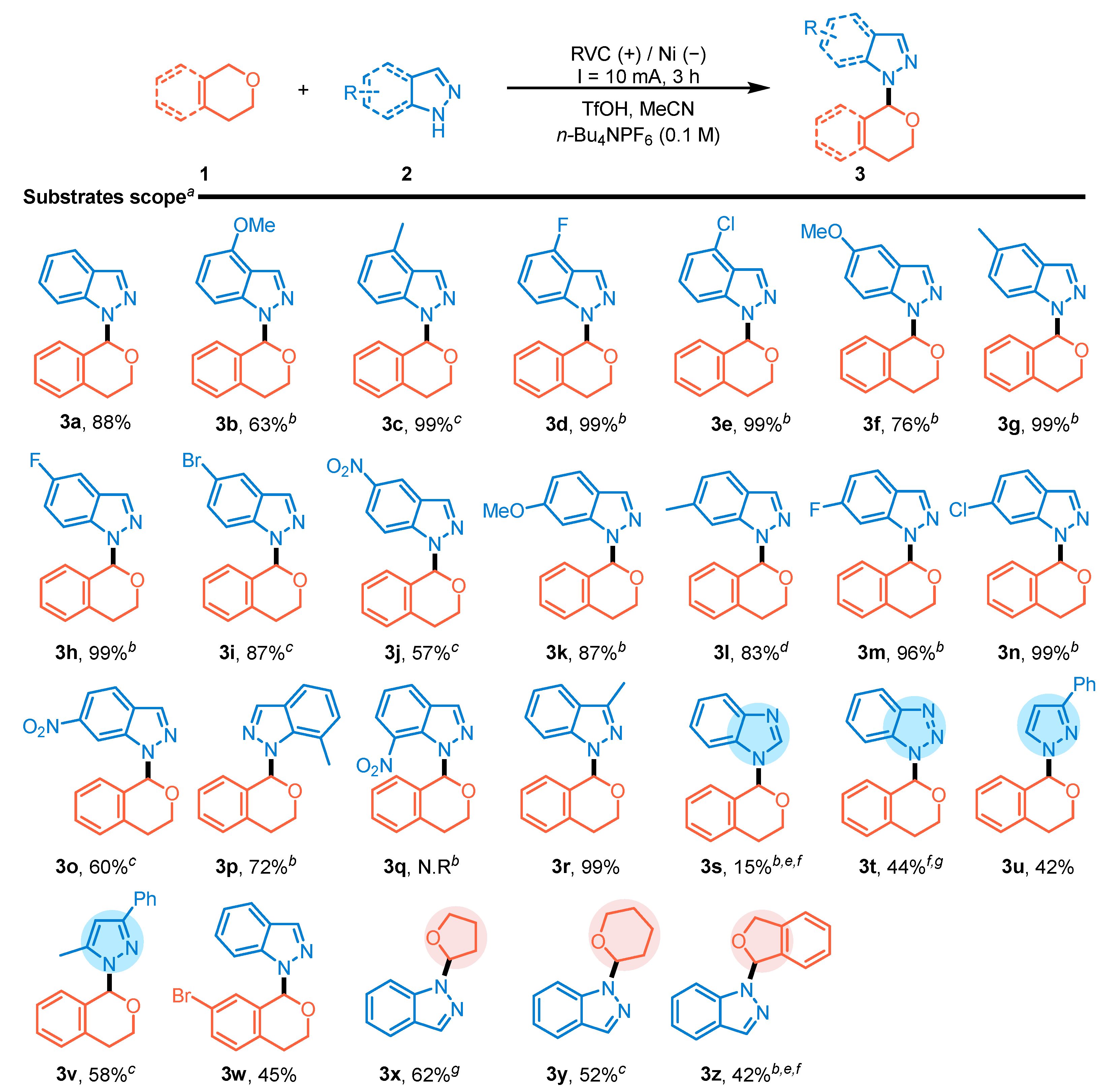

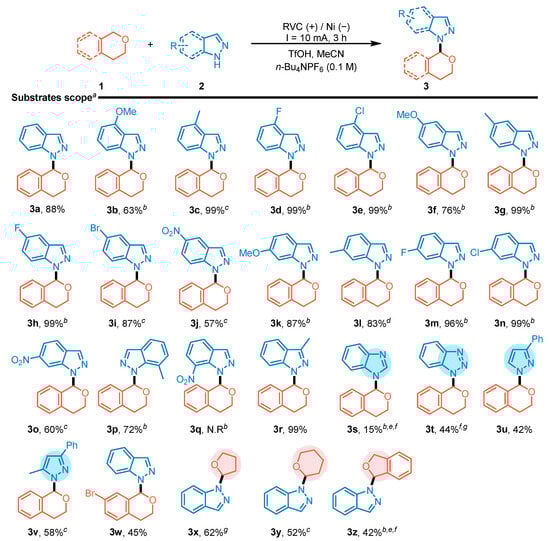

Scheme 2. Substrate scope. a Standard conditions: 1 (1.2 mmol), 2 (0.3 mmol), I = 10 mA, n-Bu4NPF6 (0.1 M), TfOH (0.45 mmol), MeCN (6 mL), at room temperature for 3 h. b 6 h. c 5 h. d 4.5 h. e n-Bu4NBF4 instead of n-Bu4NPF6. f 1 (3.0 mmol). g 4 h.
Scheme 2. Substrate scope. a Standard conditions: 1 (1.2 mmol), 2 (0.3 mmol), I = 10 mA, n-Bu4NPF6 (0.1 M), TfOH (0.45 mmol), MeCN (6 mL), at room temperature for 3 h. b 6 h. c 5 h. d 4.5 h. e n-Bu4NBF4 instead of n-Bu4NPF6. f 1 (3.0 mmol). g 4 h.
Molecules 30 00004 sch002
Molecules 30 00004 sch003

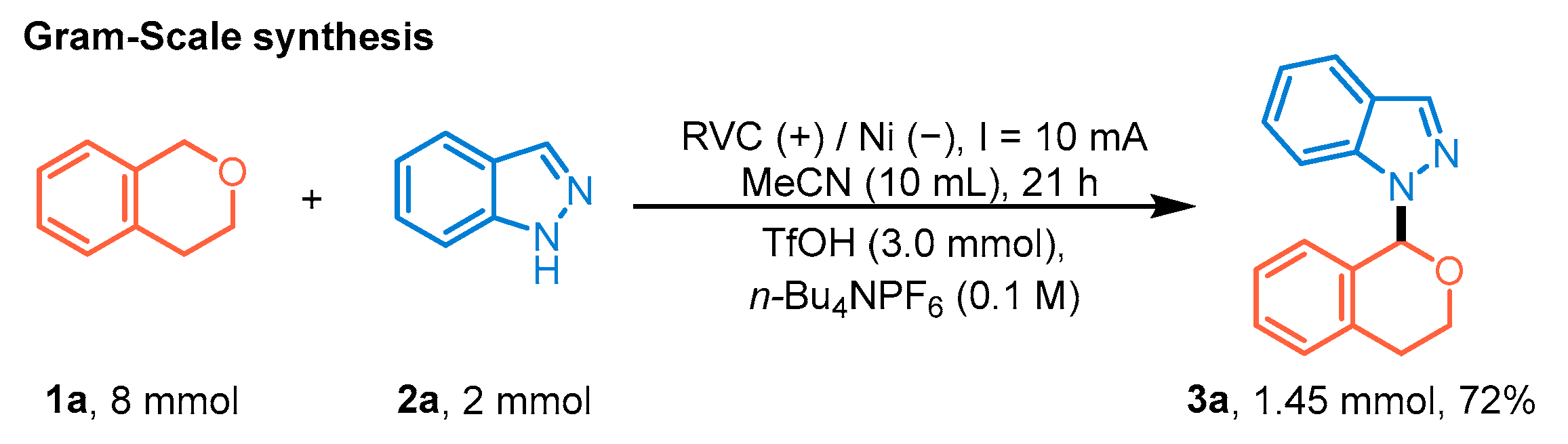

Scheme 3. Gram-scale experiment.
Scheme 3. Gram-scale experiment.
Molecules 30 00004 sch003
Molecules 30 00004 sch004

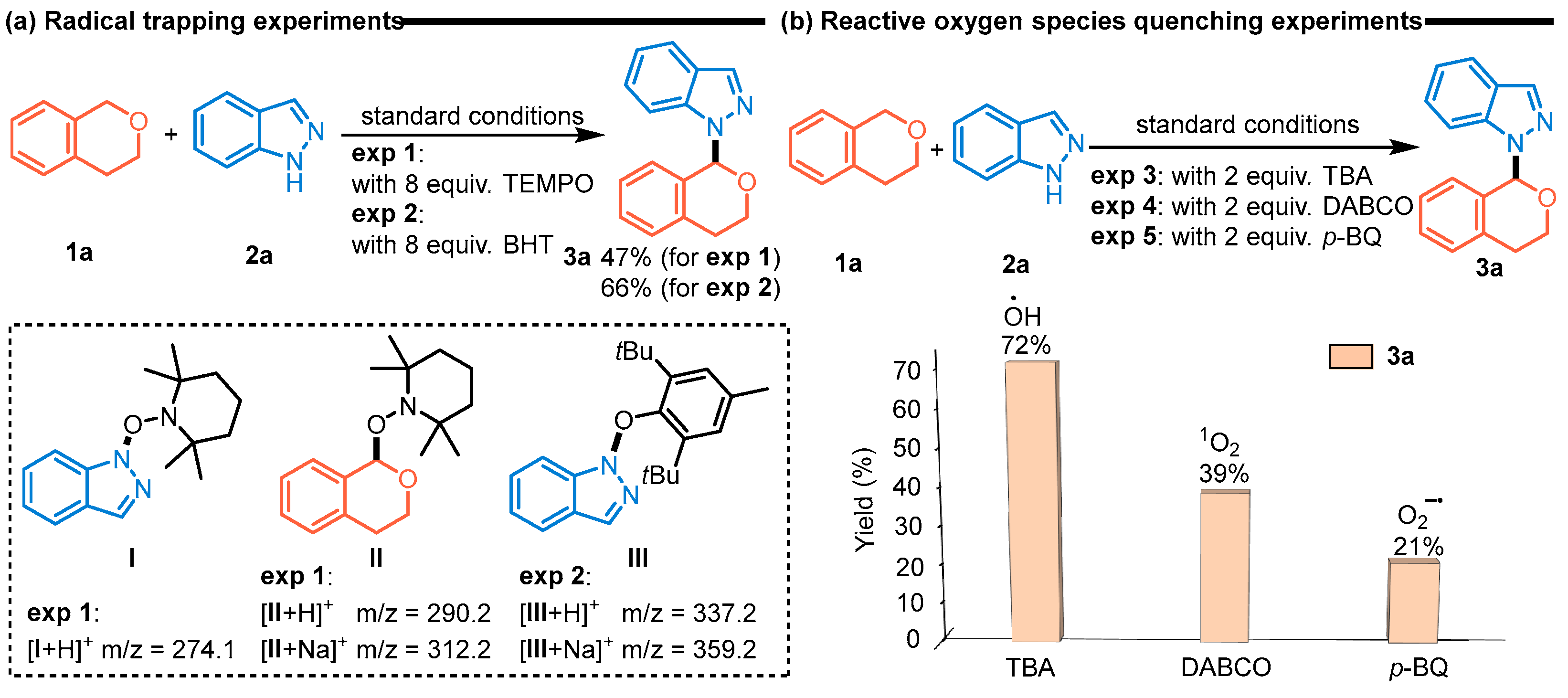

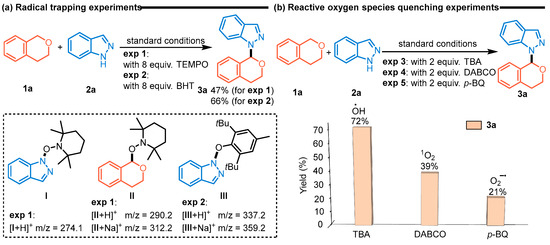

Scheme 4. Control experiments.
Scheme 4. Control experiments.
Molecules 30 00004 sch004
Molecules 30 00004 g001

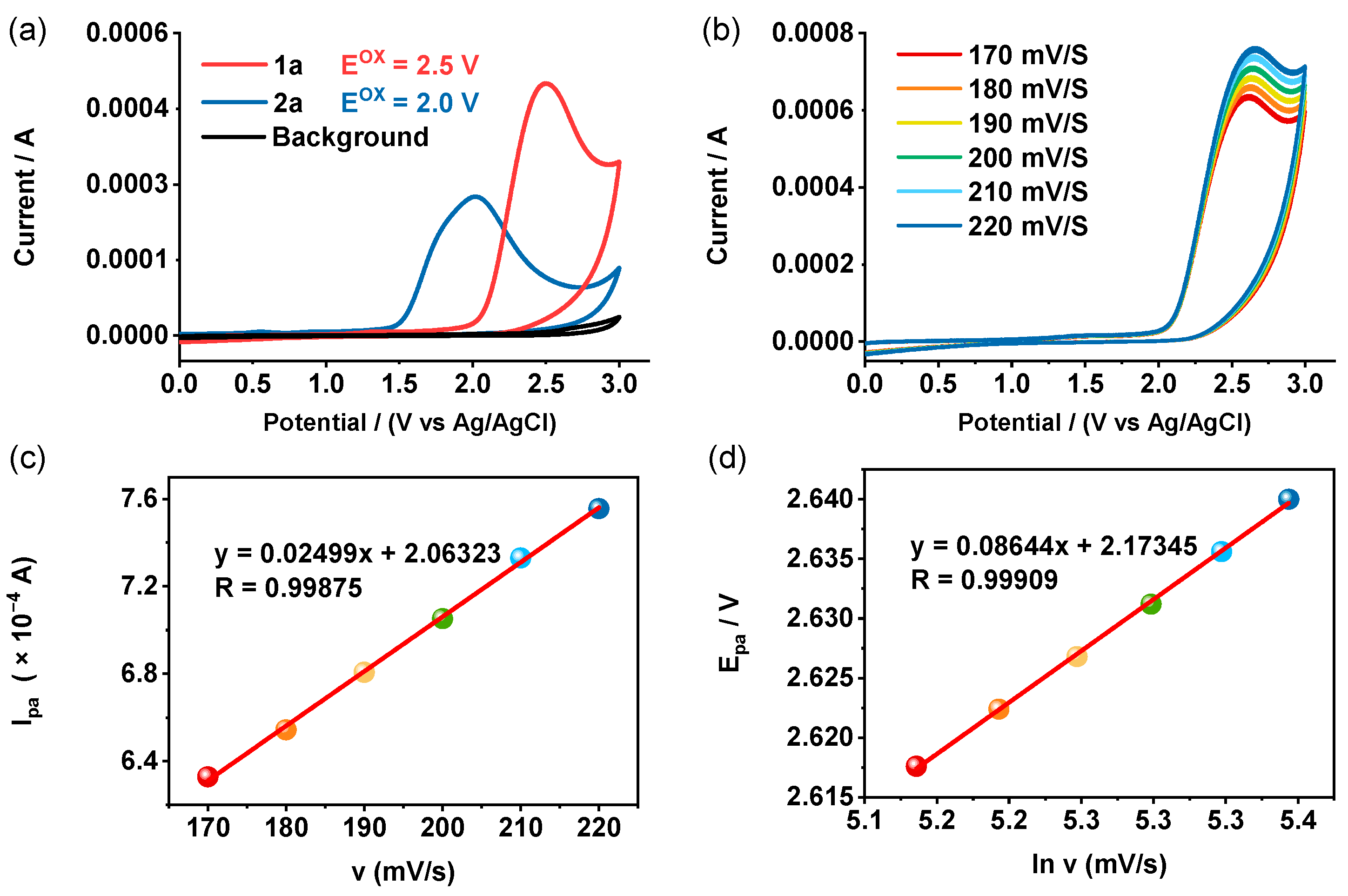

Figure 1. (a) The cyclic voltammetry of isochroman (1a) and indazole (2a) was measured in 0.05 M n-Bu4NPF6/MeCN using a glassy carbon (GC) disk as the working electrode, a Pt wire as the counter electrode and Ag/AgCl as the reference electrode at a 100 mV/s scan rate. (b) Cyclic voltammograms of isochroman (1a) at different scan rates. Curves were recorded at scan rates of 170, 180, 190, 200, 210 and 220 mV/s. (c) The plot of peak current vs. scan rate for isochroman (1a). (d) The relationship between Epa and lnν for isochroman (1a).
Figure 1. (a) The cyclic voltammetry of isochroman (1a) and indazole (2a) was measured in 0.05 M n-Bu4NPF6/MeCN using a glassy carbon (GC) disk as the working electrode, a Pt wire as the counter electrode and Ag/AgCl as the reference electrode at a 100 mV/s scan rate. (b) Cyclic voltammograms of isochroman (1a) at different scan rates. Curves were recorded at scan rates of 170, 180, 190, 200, 210 and 220 mV/s. (c) The plot of peak current vs. scan rate for isochroman (1a). (d) The relationship between Epa and lnν for isochroman (1a).
Molecules 30 00004 g001
Molecules 30 00004 sch005

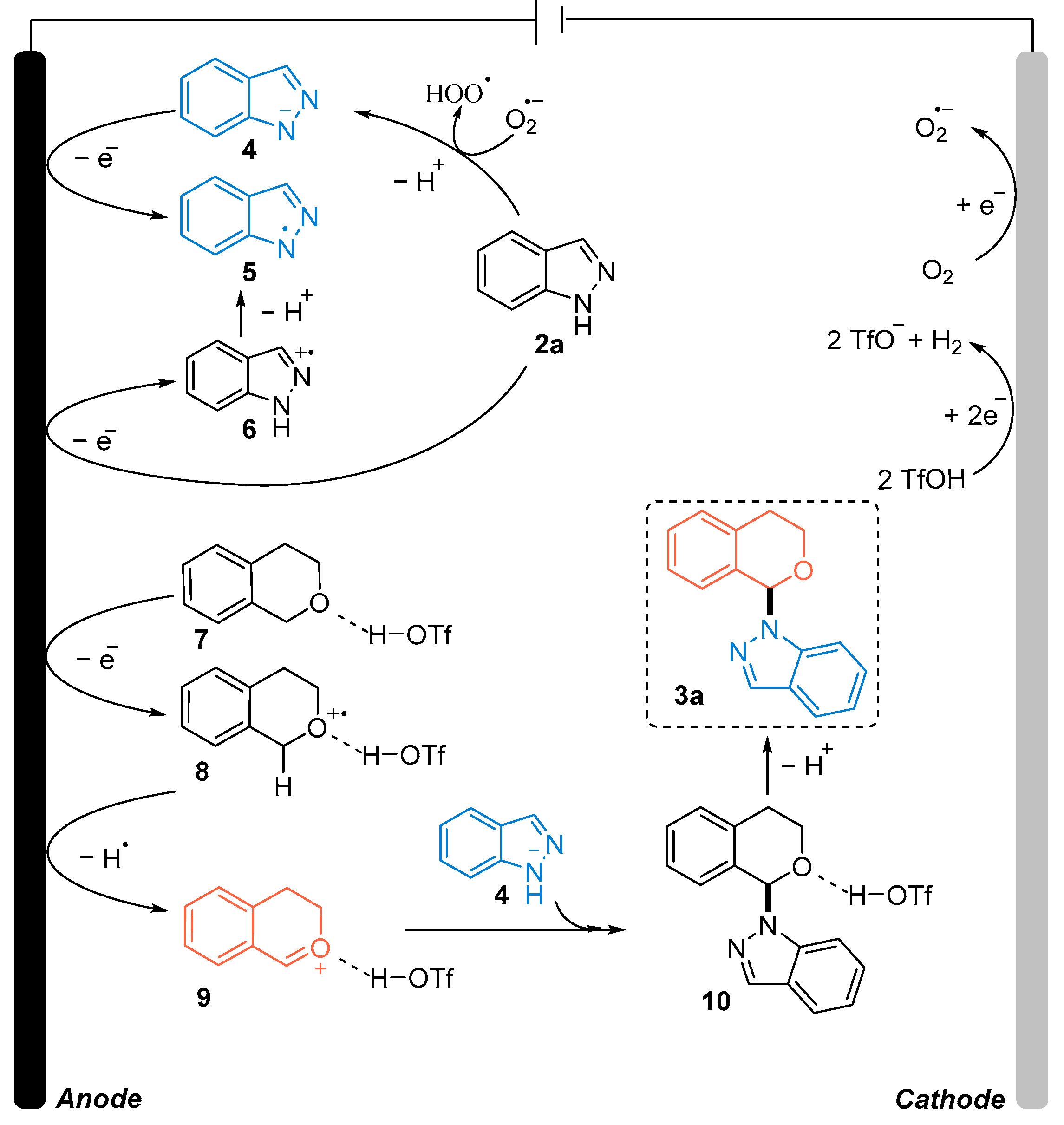

Scheme 5. Plausible mechanism.
Scheme 5. Plausible mechanism.
Molecules 30 00004 sch005

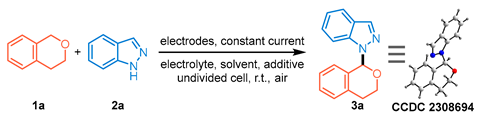

Table 1. Optimization of the reaction conditions a.
Table 1. Optimization of the reaction conditions a.
Molecules 30 00004 i001
EntryAnode/CathodeElectrolyteAdditiveYield (%) b
1RVC/Nin-Bu4NBF4-trace
2RVC/Nin-Bu4NBF4TfOH39
3RVC/Nin-Bu4NBF4AcOH2
4 cRVC/Nin-Bu4NBF4TfOH73
5 cRVC/Nin-Bu4NClO4TfOH54
6 cRVC/Nin-Bu4NPF6TfOH88
7 cRVC/Nin-Bu4NOAcTfOH39
8 cC/Nin-Bu4NPF6TfOH73
9 cRVC/Ptn-Bu4NPF6TfOH71
10 c,dRVC/Nin-Bu4NPF6TfOH50
11 c,e,fRVC/Nin-Bu4NPF6TfOH72
12 c,gRVC/Nin-Bu4NPF6TfOH88
13 c,hRVC/Nin-Bu4NPF6TfOH69
14 c,fRVC/Nin-Bu4NPF6TfOH84
15 cRVC/Nin-Bu4NPF6-70
16 c,iRVC/Nin-Bu4NPF6TfOH50
a Reaction conditions: 1a (0.3 mmol), 2a (0.45 mmol, 1.5 equiv.), I = 10 mA, electrolyte (0.1 M), additive (0.45 mmol), MeCN (6 mL), at room temperature for 3 h. b Isolated yield. c 1a (1.2 mmol), 2a (0.3 mmol). d EtOH was used as solvent. e 7.5 mA. f 5 h. g 12.5 mA. h 2.5 h. i Ar.
