Structure–Activity Relationship Studies on 6-Chloro-1-phenylbenzazepines Leads to the Identification of a New Dopamine D1 Receptor Antagonist

by
Rajan Giri
1,2,
Hari K. Namballa
1,
Vishwashiv Emogaje
1 and
Wayne W. Harding
1,2,3,*
1
Department of Chemistry, Hunter College, City University of New York, 695 Park Avenue, New York, NY 10065, USA
2
Program in Chemistry, CUNY Graduate Center, 365 5th Avenue, New York, NY 10016, USA
3
Program in Biochemistry, CUNY Graduate Center, 365 5th Avenue, New York, NY 10016, USA
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(16), 6010; https://doi.org/10.3390/molecules28166010
Submission received: 19 July 2023 / Revised: 30 July 2023 / Accepted: 31 July 2023 / Published: 11 August 2023
(This article belongs to the Special Issue Design, Synthesis and Biological Activity of Organic Compounds)
Browse Figures
Versions Notes

Abstract

:
The 1-phenylbenzazepine template has yielded a number of D1R-like ligands, which, though useful as pharmacological tools, have significant drawbacks in terms of selectivity versus D5R as well as pharmacokinetic behavior. A number of 1-phenylbenzazepines contain a 6-chloro functional group, but extensive SAR studies around the 6-chloro-1-phenylbenzazepine framework have not been reported in the literature. To further understand the tolerance of the 6-chloro-1-phenylbenzazepine template for various substituent groups towards affinity and selectivity at D1R, we synthesized two series of analogs with structural variations at the C-7, C-8, N-3, C-3′ and C-4′ positions. The series 2 analogs differed from series 1 analogs in possessing a nitrogenated functionality at C-8 and lacked a C-4′ substituent, but were otherwise similar. Analogs were assessed for affinity at D1R, D2R and D5R. For both series, we found that the analogs lacked affinity for D2R and showed modest D1R versus D5R selectivity. For series 1 analogs, an N-3 methyl substituent group was better tolerated than N-H or an N-3 allyl substituent. The C-8 position appears to be tolerant of amino and methanesulfonamide substituents for high D1R affinity, but C-8 amides displayed low to moderate D1R affinities. A C-3′ methyl substituent appeared to be critical for the D1R affinity of some analogs, but the C-4′ substituents tried (hydroxy and methoxy; series 1) did not result in any significant boost in D1R affinity. Compound 15a was the most potent and selective D1R ligand identified from these studies (Ki at D1R = 30 nM; 6-fold selectivity versus D5R). Further functional activity assessments indicate that 15a functions as a D1R antagonist towards cAMP-mediated signaling. The predicted drug-like properties of 15a are encouraging for further pharmacological assessments on the compound.

Graphical Abstract

1. Introduction

The endogenous neurochemical dopamine is involved in various physiological processes in both the central and peripheral nervous systems, including the regulation of movement, emotion, blood pressure and cognition [1,2,3,4,5,6,7,8,9,10]. Its effects are mediated through interaction with five dopaminergic G-protein-coupled receptors [1,11]. These receptors are categorized into two families: the “D1R-like” and “D2R-like” families, based on their structural similarities and associated pharmacological effects. The D1R-like family consists of D1R (dopamine D1 receptor) and D5R (dopamine D5 receptor), while the D2R-like family includes D2R (dopamine D2 receptor), D3R (dopamine D3 receptor) and D4R (dopamine D4 receptor) subtypes [12,13,14,15]. Discovery of selective and potent ligands for the dopamine D1R and D5R subtypes has been particularly challenging due to the high degree of structural homology between these two receptor types.
Disturbances in dopaminergic neurotransmission have significant implications for neurological disorders such as Parkinson’s disease, schizophrenia and psychostimulant disorders. There is a current interest in the deployment of selective D1R full agonists/partial agonists to treat these conditions [16,17,18,19,20,21]. Classical D1R agonists contain a catechol motif that is associated with suboptimal pharmacokinetic properties, including diminished blood-brain barrier penetration and poor oral bioavailability. Only recently have selective non-catechol D1R agonists being discovered which may overcome these issues; the preclinical and clinical evaluation of non-catechol D1R agonists remains an active area of research. Selective D1R antagonists are also of recent interest in the treatment of Tourette’s syndrome and restless leg syndrome.

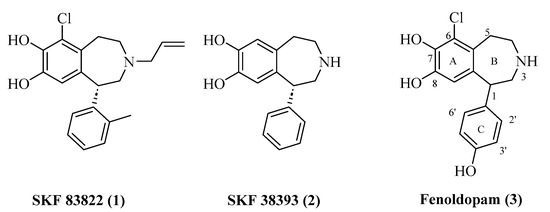

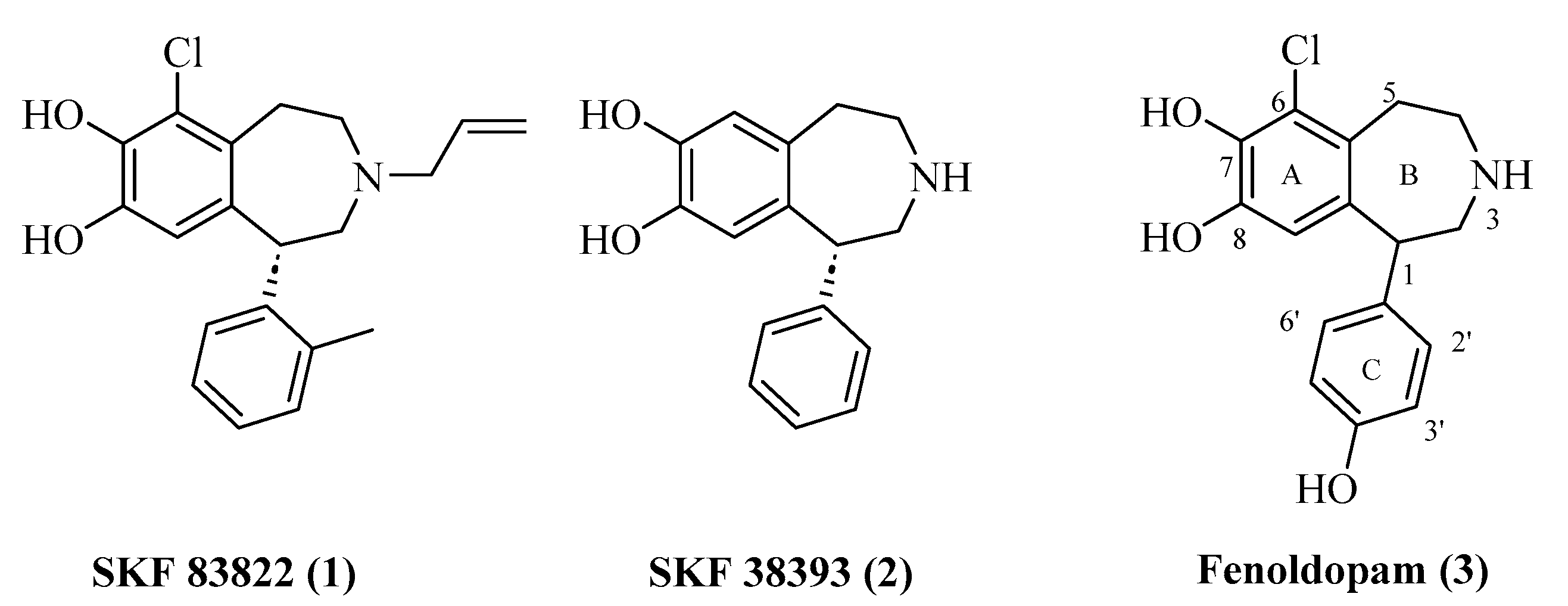

The 1-phenylbenzazepine skeleton is a privileged D1R-like-targeted scaffold and has been extensively studied for the development of D1R-like selective ligands [22,23,24,25,26,27,28,29]. A number of these compounds have been employed as pharmacological tools. For example, SKF 83822 [30] (1) (with a Ki value of 0.2 at D1R and 0.3 nM at D5R) and SKF 38393 [31] (2) (with a Ki value of 1.0 at D1R and 0.5 nM at D5R) are two widely employed 1-phenylbenzazepines used as pharmacological tools to study D1R-like receptors (Figure 1). However, these compounds demonstrate limited selectivity between D1R and D5R, making their use limited for distinguishing the relative roles of D1R and D5R in pharmacological studies. In addition to the noted selectivity issue, D1R full and partial agonists from the 1-phenylbenzazepine class contain a catechol motif that is associated with poor pharmacokinetic properties, precluding their use as clinically useful therapeutics. The only clinically used D1R-like agonist from this class is Fenoldopam (3), [32] which is primarily employed as a peripherally restricted anti-hypertensive drug.

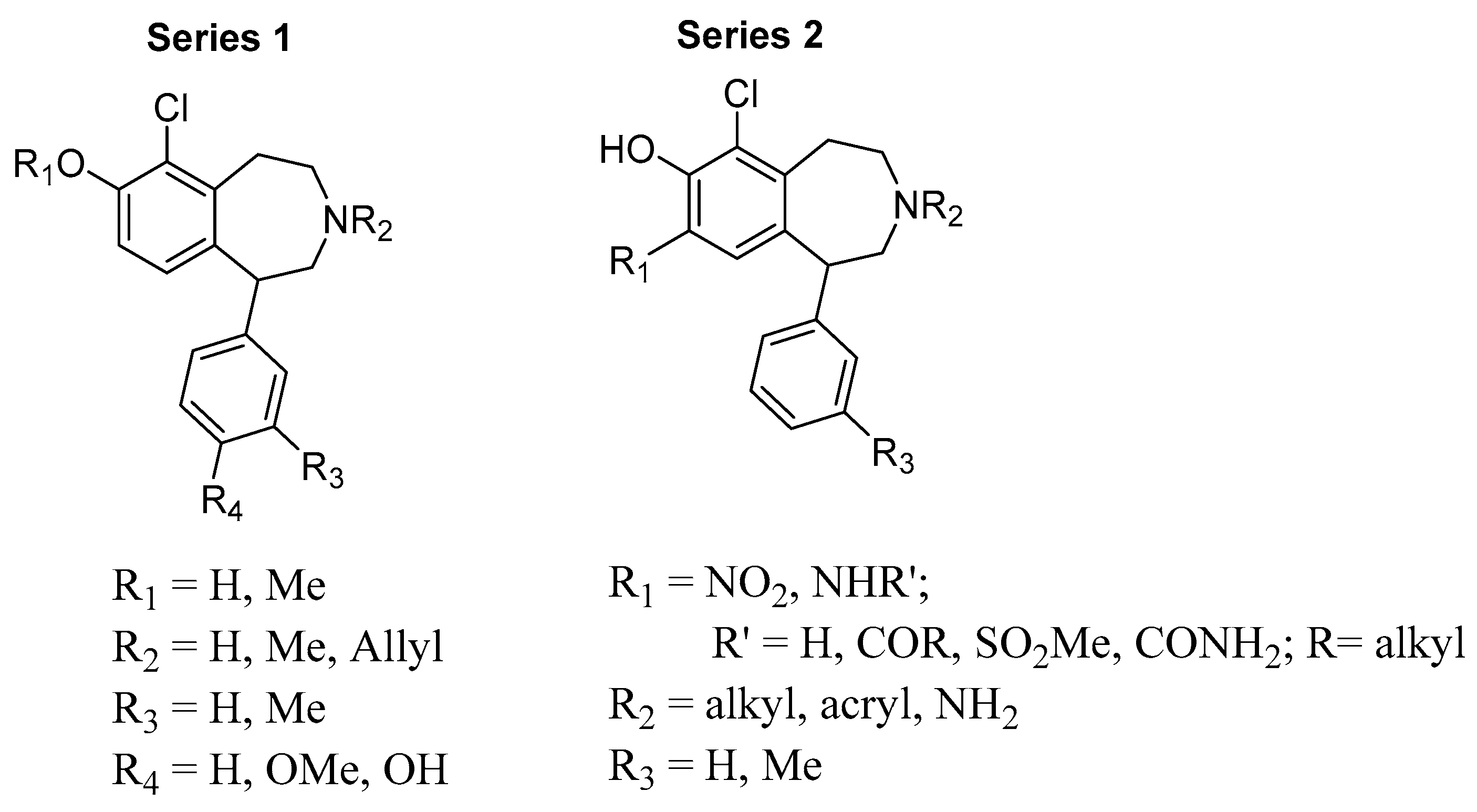

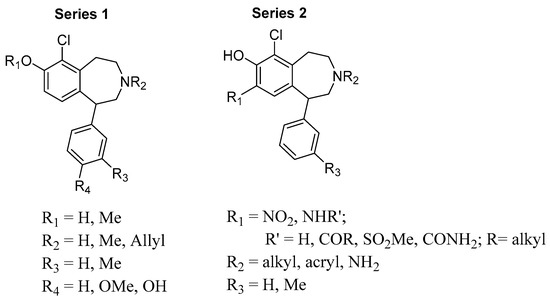

Previous structure–activity relationship (SAR) studies indicate that the presence of a 6-chloro group enhances D1R affinity in the scaffold, and that the 6-position is tolerant of a chloro group for D1R agonist activity. In addition, it has been established that the catechol motif is important for the retention of D1R agonist activity. The presence of a C-3′-methyl group is also known to enhance D1R affinity. The benzazepine nitrogen tolerates methyl as well as allyl substituent groups for high D1R affinity. Despite the existence of a broad body of SAR studies, there are still considerable SAR gaps that need to be addressed in order to more fully exploit the D1R targeting and drug-like capabilities of the 1-phenylbenzazepine template. In this study, we aimed to investigate the extent to which the presence of a 6-chloro group in tandem with other substitutions in the scaffold would impact D1R affinity and selectivity. Two series of 6-chloro-1-phenylbenzazepine analogs were designed (Figure 2). Series 1 analogs contain a 6-chloro-7-hydroxy or 6-chloro-7-methoxy motif and N-methyl, N-allyl or N-H groups in tandem with various substitutions at the C-3′ (-Me or -H) and C-4′ (-H, -OH or -OMe) positions. Series 2 compounds are broadly similar to the series 1 analogs, but are distinguished structurally by possessing a variety of nitrogen-containing substituents at C-8 (e.g., nitro, amino, amide, sulfonamide, etc.). We anticipated that compounds in series 1 would retain high D1R affinity due to the simultaneous presence of structural features associated with strong D1R affinity, e.g., the 6-chloro and 3′-methyl substituents. Similarly, it was our expectation that compounds in series 2 would also display strong D1R affinity due to the presence of similar structural features as in series 1. Furthermore, we envisaged that evaluation of compounds in series 2 that contain H-bond donor motifs at C-8 would allow us to illuminate the potential for such motifs to function as isosteric replacements of the C-8 phenol group found in classical D1R-targeted 1-phenylbenzazepine ligands, such as 1–3. This, we envisaged, may open up avenues for further structural derivations towards selective D1R ligands with enhanced pharmacokinetic properties. The results of our investigation are summarized henceforth.

2. Results and Discussion

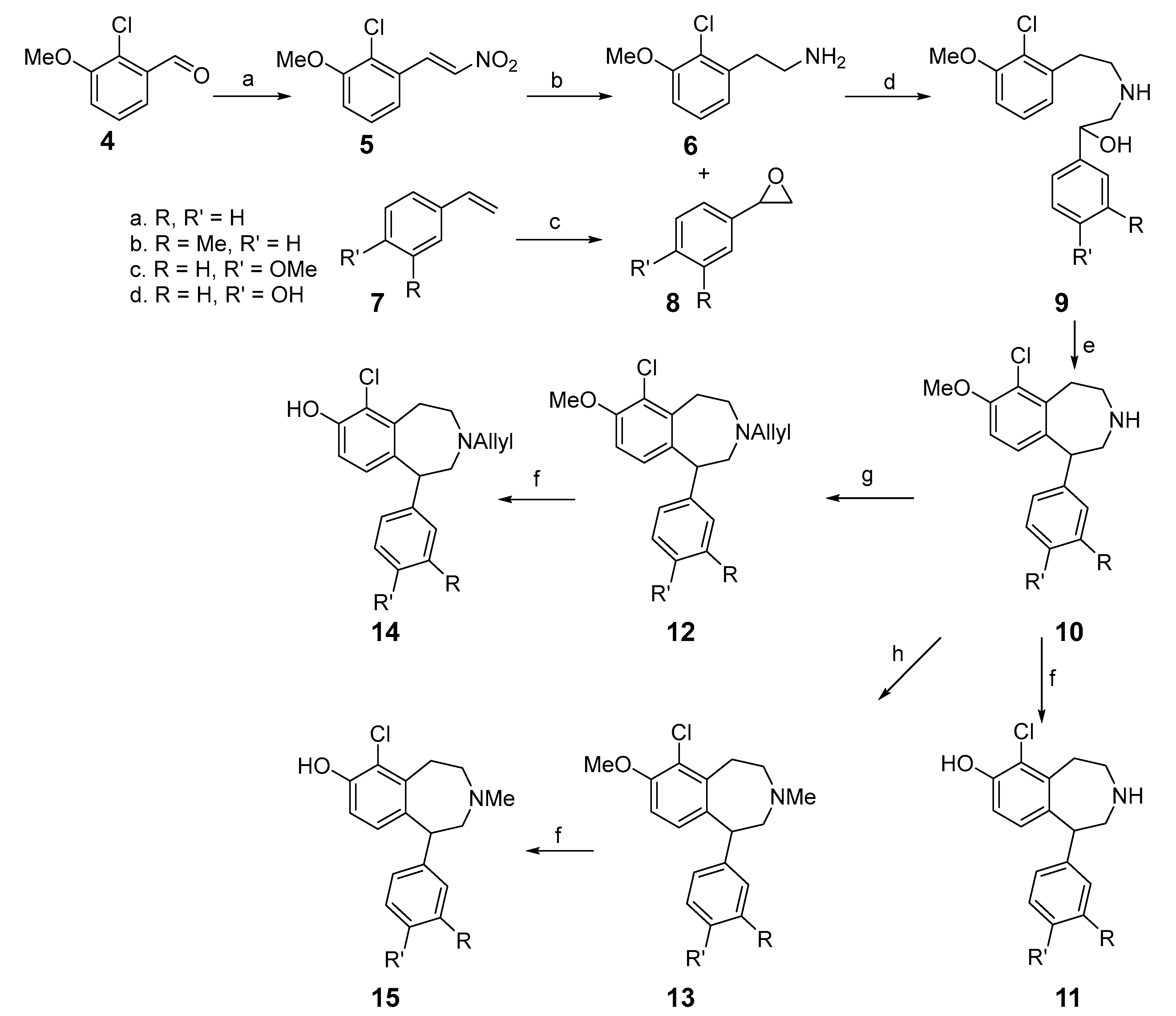

Synthesis of the series 1 analogs is depicted in Scheme 1. The aldehyde 4 was converted to nitrostyrene 5 via Henry reaction using nitromethane and ammonium acetate in acetic acid. Nitrostyrene 5 was then reduced with lithium borohydride to produce phenethylamine 6. Epoxidation of phenylstyrene 7 was achieved with mCPBA, affording epoxide 8a–8d. The amine 6 was then coupled with epoxide 8 to produce aminoalcohols 9a–9d. Thereafter, aminoalcohols 9a–9d were cyclized in the presence of trifluoroacetic acid and concentrated sulfuric acid to deliver benzazepines 10a–10d. O-demethylation of benzazepines 10a–10d with BBr3 produced phenolic benzazepines 11a–11d. The free amino groups of benzazepines 10a–10d were converted into the N-methyl derivatives 13a–13d via reductive amination. The N-allyl analogs 12a–12 were obtained from compound 10a–10d via SN2 displacement with allyl bromide. The respective N-substituted analogs (12 and 13) were then O-demethylated using BBr3 to afford the corresponding phenolic compounds 14a–14d and 15a–15d, respectively.

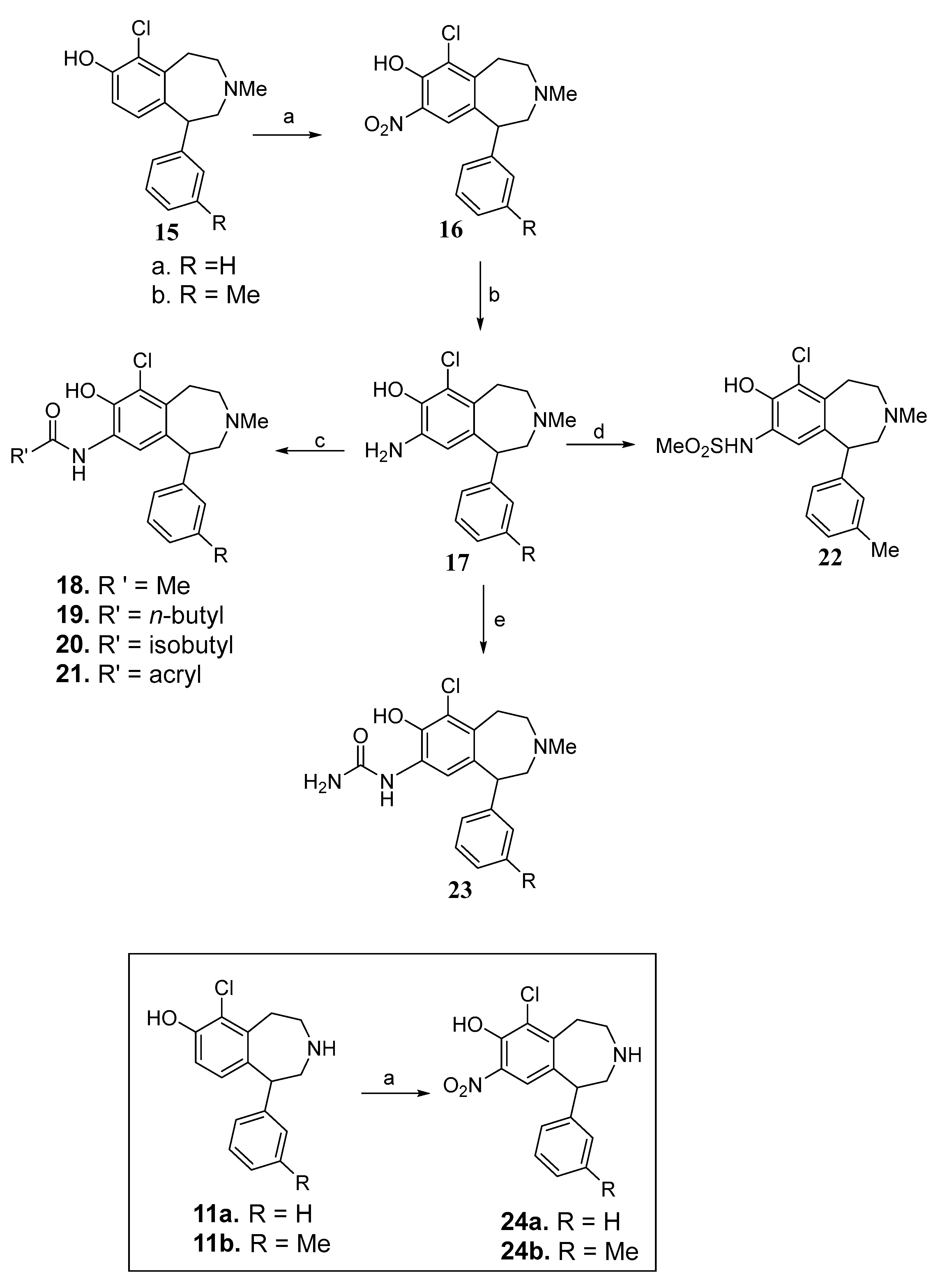

Synthesis of the series 2 analogs is shown in Scheme 2. Phenols 15a–15b were nitrated at the C-8 position to afford nitro compounds 16a–16b. The nitro functionality of compounds 16a–16b was reduced with LiBH4 and TMSCl to afford corresponding o-aminophenols 17a–17b. The aminophenols 17a–17b were then converted to amide derivatives 18–21 by treating with suitable acid anhydrides. The sulfonamide 22 was obtained by reacting aminophenol 17b with methanesulfonic anhydride. Treatment of aminophenols 17a–17b with potassium cyanate delivered the corresponding urea derivatives 23a–23b. The C-8 nitro analogs 24a and 24b were prepared by nitration of the corresponding phenols 11a and 11b, respectively.
The binding affinities of analogs in series 1 (compounds 10–15) and series 2 (compounds 16–24) were assessed at dopamine D1R, D2R and D5R. The binding affinities of the series 1 analogs are recorded in Table 1. All compounds in this series lacked affinity for D2R, in line with our expectations based on previous SAR reports on the scaffold. Most of the compounds also lacked affinity for D1R and D5R. Compounds 14a, 15a, 14b, 15b and 15d were the only compounds that retained D1R affinity. These compounds all contain a C-7 phenolic group; all compounds with a C-7 methoxy functionality lacked D1R affinity. Thus, it appears that the C-7 phenol group is important for retention of D1R affinity in this series. We have observed an H-bond interaction between the C-8 phenol and Asp-198 in other 1-phenylbenzazepines [28]. Others have noted H-bonding interactions between the catechol group of the 1-phenylbenzazepine SKF 81297 and Ser-198 [33]. Similar interactions may ensue with the C-7 phenol of the compounds herein; the fact that compounds with a C-7 methoxy function lack D1R affinity suggests that the C-7 phenol group may be functioning in an H-bond-donor role. Interestingly, although the C-7 phenol is important, it is not sufficient for D1R affinity, since other compounds that possess this functionality such as 11a, 11b, 11d and 14d did not bind to D1R. It appears that substituents on both the benzazepine nitrogen atom as well as the 1-phenyl moiety can also impact affinity. In particular, the data suggests that oxygenated substituents at the C-4′ position in the 1-phenyl moiety tend to diminish D1R affinity. For example, a comparison of D1R affinities of compounds in the 14a/14d pair (Ki = 102 nM and no affinity, respectively) as well as the 15a/15d pair (Ki = 30 and 161 nM, respectively) reinforces this conclusion. The presence of the C-3′methyl group also appears to reduce D1R affinity, as indicated from comparison of 14a/14b and 15a/15b where the C-3′ methylated analogs 14b and 15b showed lower D1R affinities than their analogous demethylated counterparts 14a and 15a, respectively. With regards to the effect of the N-substituent on D1R affinity, it was observed that compounds with an N-methyl substituent showed higher D1R affinity than analogous compounds with an N-allyl moiety and that compounds with an N-H moiety showed lower affinity than compounds with an N-allyl moiety. Thus, the overall trend in increasing D1R affinity is N-H < N-allyl < N-methyl. Evidence for this trend comes from examination of the data for the analogous N-H, N-allyl and N-methyl compounds 11a, 14a and 15a (Ki = no affinity, 102 nM and 30 nM, respectively). A similar trend was also observed for the 11b, 14b and 15b subset (Ki = no affinity, 281 nM and 78 nM, respectively).
Compounds that displayed D1R affinity (14a, 14b, 15a, 15b and 15d) also had affinity for D5R. Furthermore, the compounds were generally moderately selective for D1R over D5R (ranging from roughly 2- to 6-fold). Compound 11a is anomalous in this regard, as it showed moderate D5R affinity (Ki = 470 nM) and no D1R affinity. Similar to what was observed at the D1R, we also noted that the N-substituent affected the D5R affinity according to the trend N-H < N-allyl < N-methyl (e.g., compare 11a, 14a and 15a; Ki = 470 nM, 297 nM and 187 nM, respectively). Other general trends at D1R were also seen at D5R (e.g., preference for C-7 phenol versus C-7 methoxy; C-3′ methyl diminishes D5R affinity).
Affinity data for the series 2 compounds are collated in Table 2. As was seen for the series 1 compounds, the analogs in this series showed no affinity for D2R. Additionally, they generally lacked affinity for D5R, had low to moderate D1R affinity and displayed moderate selectivity for D1R over D5R. Analysis of the data indicates that the presence of a C-8 nitro group significantly reduces D1R affinity as compared to the series 1 group (i.e., compare compounds 15a and 15b from series 1 with the analogous C-8 nitro analogs 16a and 16b from series 2). Replacement of the C-8 nitro group with a C-8 amino functionality restores D1R affinity, as can be seen from comparison of the 16a/17a and 16b/17b pairs; Ki = no affinity/210 nM and 4354nM/72 nM, respectively. This improvement in D1R affinity may be attributable to the H-bond-donor characteristics of the amino functionality and suggests that the C-8 amino group is functioning in a similar role as the C-8 phenol group found in classical 1-phenylbenzazepine ligands such as 1–3. For the amide analogs (18a–21b), the D1R affinities were generally low (ranging from no affinity to 634 nM) and there was no clear SAR trend with regards to size or electronics of the amide unit or the C-3′ substituent. Overall, amide groups at C-8 are tolerated less than a C-8 amino functionality for D1R affinity. However, the methanesulfonamide analog 22 showed significantly higher affinity than the amide analogs and was in a comparable affinity range (Ki = 113 nM) to the C-8 amino analogs. Like the amide analogs, the urea derivatives 23a and 23b had low D1R affinities. For the C-8 nitro analogs that had no alkyl substituent on the benzazepine nitrogen (24a and 24b), it was interesting to observe that the presence of a C-3′ methyl group in 24b versus its absence led to a significant improvement in D1R affinity (Ki = no affinity and 38 nM for 24a and 24b, respectively). Furthermore, comparison of 16b and 24b suggests that the N-methyl substituent group in 16b is not necessary for D1R affinity. This effect of the N-substituent contrasts somewhat with the trend that we observed for the series 1 analogs. If one assumes that the compounds in the 16 and 24 subsets bind to D1R in a similar manner, it may be inferred that the C-3′ methyl group present in 16b and 24b makes a significant contribution to the affinity of the compounds.
The compound with the highest affinity and D1R selectivity from our studies (compound 15a) was further evaluated for D1R functional activity in agonist and antagonist mode with cAMP-based functional assays. Dopamine and SCH 39166 served as the controls for D1R agonistic and antagonistic assays (Table 3). Compound 15a displayed antagonist activity in these assays with an IC50 value of 130.32 nM. No D1R agonistic activity was observed for this compound.

3. Conclusions

In summary, our evaluation focused on investigating the effect of C-7, C-8, N-3, C-3′ and C-4′ substitutions on modified 6-chloro-1-phenylbenzazepines to expand the SAR footprint of 1-phenylbenzazepines as D1R ligands. Our studies reinforce that the catechol motif present in classical 1-phenylbenzazepines D1R ligands is a critical motif for D1R affinity, as modifications to this motif generally reduced D1R affinity via both series 1 and series 2. That being said, the C-8 position appears to be tolerant of amino and methanesulfonamide groups towards D1R affinity, possibly serving in an isosteric H-bond-donor capacity to mimic a C-8 phenol group. Furthermore, the compounds with the highest D1R affinities identified herein either lack a C-8 substituent (compound 15a) or possess a C-8 nitro group (compound 24b), affirming that a catechol motif, while important, is not absolutely required for D1R affinity in the scaffold. Our SAR data further suggests that substituents on the benzazepine nitrogen atom, as well as substituents in the 1-phenyl ring, can contribute significantly to D1R affinity of the 6-chloro-1-phenylbenzazepines. Compounds with D1R affinity displayed modest selectivity versus D5R and were generally devoid of D2R affinity, indicating that a similar selectivity profile may be maintained as compared to the classical, catecholic 1-phenylbenzazepine D1R ligands. Compound 15a was revealed as a new, moderately selective D1R antagonist and has favorable predicted drug-like characteristics based on Lipinski rules (clogP = 4.0; H-bond donors = 1; H-bond acceptors = 2; molecular weight = 287). Further physicochemical and pharmacokinetic evaluations of the compound are merited and will be the subject of future investigations.

4. Materials and Methods

4.1. General Synthetic Experimental Procedures

Unless otherwise stated, chemicals were purchased from Fisher Scientific (Boston, MA, USA) and used without further purification. Reactions were carried out in oven-dried glassware under a nitrogen atmosphere. HRESIMS spectra were obtained using an Agilent 6520 QTOF instrument. 1H NMR and 13C NMR spectra were recorded using Bruker DPX-600 spectrometer (operating at 600 MHz for 1H; 150 MHz, for C), Bruker NEO-500 spectrometer (operating at 500 MHz for 1H; 125 MHz, for 13C) or Bruker DPX-400 spectrometer (operating at 400 MHz for 1H; 100 MHz, for 13C) using CDCl3 as solvent, unless stated otherwise. Tetramethylsilane (δ 0.00 ppm) served as an internal standard in 1H NMR and CDCl3 (δ 77.0 ppm) in 13C NMR as solvent. Chemical shift (δ 0.00 ppm) values are reported in parts per million and coupling constants in Hertz (Hz). Splitting patterns are described as singlet (s), doublet (d), triplet (t) and multiplet (m). Reactions were monitored by TLC with Whatman Flexible TLC silica gel G/UV 254 precoated plates (0.25 mm). TLC plates were visualized by UV (254 nm). Silica gel column chromatography was performed with silica gel 60 (EMD Chemicals, 230–400 mesh, 0.063 mm particle size).

4.2. General Procedure A: Epoxidation of Styrenes

To a stirred solution of desired styrene 7 (1 equiv.) in DCM (125 mL), mCPBA (2 equiv.) was slowly added at 0 °C and the resulting reaction mixture was warmed to room temperature and stirred at the same temperature for 12 h. The progress of the reaction was monitored by TLC. After completion of the reaction, the reaction mixture was quenched with aqueous NaOH (3M, 100 mL) and extracted with DCM (3 × 50 mL). The combined organic layer was washed with brine, dried over anhydrous Na2SO4 and concentrated under reduced pressure to provide the product 8, which was used in the subsequent step without further purification.

4.3. General Procedure B: Coupling of 2-(4-(Benzyloxy)-3-methoxyphenyl)Ethan-1-amine with Epoxides

Bis(trifluoromethane)sulfonimide lithium (1.1 equiv.) was slowly added to a solution of epoxide 8 (1 equiv.) and amine 6 (1.5 equiv.) in anhydrous THF (100 mL) at rt and the resulting reaction mixture was refluxed for 24 h. After completion (the reaction progress was monitored by TLC), THF was evaporated and the reaction mixture was quenched with saturated NaHCO3 (25 mL) and extracted with EtOAc (3 × 30 mL). The combined organic phase was dried with Na2SO4 and concentrated to provide crude amino alcohol 9 as a viscous oil which was used in the next step without further purification.

4.4. General Procedure C: Amino Alcohol Cyclization

To a stirred solution of respective amino alcohols 9 (0.02 mol, 1 equiv.) in TFA (0.4 mol, 20 mL) was 18 M H2SO4 (0.01 mol, 0.5 mL) added at rt, and the resulting reaction mixture was stirred for 5 h at rt. Anhydrous NaOAc (2 equiv.) was added and stirred for an additional 15 min. TFA was evaporated and the reaction mixture was neutralized with 14 M NH4OH to produce a solid residue. The residue was dissolved in EtOAc (25 mL), washed with water and brine, and the organic phase was dried over Na2SO4 and concentrated under reduced pressure to produce a crude residue, which was purified by silica gel column chromatography to produce a pure product of 10.

4.5. General Procedure D: N-Methylation

To a stirred solution of secondary amine 10 (1.4 mmol, 1 equiv.) in acetonitrile (100 mL) was paraformaldehyde (4.2 mmol, 3 equiv.) added and the reaction mixture was stirred at room temperature for 30 min. Sodium triacetoxyborohydride (2.1 mmol, 1.5 equiv.) was added to the reaction mixture and the resulting reaction mixture was stirred for 12 h at the same temperature. After completion of the reaction (monitored by TLC), it was quenched with saturated NaHCO3 (20 mL), washed with water, extracted with EtOAc (2 × 25 mL), dried over anhydrous Na2SO4 and evaporated under reduced pressure to produce a crude compound, which was purified by silica gel flash chromatography to afford pure N-methylated product 13.

4.6. General Procedure E: N-Allylation

To a stirred solution of secondary amine 10 (2.01 mmol, 1 equiv.) in acetonitrile (80 mL), TEA (3.98 mmol, 2 equiv.) was added followed by allyl bromide (2.95 mmol, 1.5 equiv.) at room temperature, and the resulting reaction mixture was stirred at the same temperature for 12 h. After completion of the reaction (monitored by TLC), the reaction mixture was quenched with water, washed with NaHCO3 (25 mL) and extracted with EtOAc (2 × 25 mL). The combined organic layer was dried over anhydrous Na2SO4 and evaporated under vacuum to produce a crude compound, which was purified by silica gel flash chromatography to produce pure N-allylated product 12.

4.7. General Procedure F: O-Demethylation with BBr3

To a stirred solution of compound 10/12/13 (0.29 mmol, 1 equiv.) in DCM (20 mL), BBr3 (1.2 mmol, 4 equiv.) was slowly added at 0 °C and the resulting reaction mixture was warmed to room temperature and stirred at the same temperature for 18 h. After completion (monitored by TLC), ice water was added to the reaction mixture and stirred for 30 min, and the obtained precipitate was filtered to produce pure compounds of 11/14/15.

4.8. General Procedure G: Ortho-Nitration of Phenol

Substituted phenol 15 (1 equiv.) was dissolved in acetic acid (5 mL), and fuming nitric acid (1 equiv.) was slowly added to the solution. The reaction was stirred at rt for 2 h. After completion of the reaction (confirmed by the TLC), acetic acid was evaporated under vacuum to obtain a yellow residue. The crude residue was basified with sat. NaHCO3 and extracted with EtOAc (2 × 25 mL). The combined organic layer was dried over anhydrous Na2SO4 and evaporated under vacuum to produce a crude compound as a yellow solid, which was purified by silica gel flash chromatography to produce a pure compound of 16.

4.9. General Procedure H: Reduction of O-Nitrophenol

Lithium borohydride (4 equiv.) was suspended in anhydrous THF under a nitrogen atmosphere and the suspension was cooled to 0 °C. Trimethyl chlorosilane was added to the mixture and stirred for 15 min. The 2-nitrophenol 16 was added slowly to the reaction mixture in portions and the reaction mixture was refluxed overnight. After completion of the reaction as confirmed by TLC, it was cooled to 0 °C and quenched with methanol. The clear solution obtained was evaporated under vacuum to obtain a viscous residue. The residue was basified with sat. NaHCO3 to obtain a white solid, which was purified using silica gel flash chromatography to produce the pure compound of 17.

4.10. General Procedure I: Amidation of O-Aminophenol

To a stirred solution of o-aminophenol, 17 (1 equiv.) in DCM (20 mL) was added the corresponding anhydrides (1.5 equiv.). The reaction was stirred for 3 h. After completion of the reaction (confirmed by TLC), the mixture was diluted with hexane to obtain a cloudy solid that was filtered to produce an off-white solid. The final product was purified using silica gel flash chromatography to obtain the pure product (18/19/20/21/22) as a white solid.
6-chloro-7-methoxy-1-phenyl-2,3,4,5-tetrahydro-1H-benzo[d]azepine (10a): Synthesized according to general procedure C. White solid. Yield: 46%. mp: 156.4–158.0 °C.
1H NMR (600 MHz, CDCl3) δ 7.38 (t, J = 15 Hz, 2H), 7.32 (d, J = 7.32 Hz, 1H), 7.12 (d, J = 8.50 Hz, 2H) 6.64 (d, J = 8.64 Hz, 1H) 6.44 (d, J = 8.70 Hz, 1H) 4.67 (d, J = 9.66 Hz, 1H) 3.84 (s, 3H), 3.70 (m, 2H), 3.50 (m, 1H), 3.7 (m, 2H), 2.94–2.90 (m, 1 Hz, 1H) ppm. 13C NMR (150 MHz, CDCl3) δ 154.1, 139.8, 137.2, 135.7, 129.2, 128.2, 127.6, 127.2, 122.7, 109.8, 77.2, 76.8, 56.2, 50.6, 45.6, 44.7, 27.4 ppm. HRESIMS calculated for C17H19ClNO [M + H]+ 288.1077, found 288.1076.
6-chloro-7-methoxy-1-(m-tolyl)-2,3,4,5-tetrahydro-1H-benzo[d]azepine (10b): Synthesized according to general procedure C. White solid. Yield: 46%. mp: 180.4–181.8 °C.
1H NMR (400 MHz, CDCl3) δ 7.28 (s, 1H), 7.26 (d, J = 7.6 Hz, 1H), 7.13 (d, J = 7.5 Hz, 1H), 6.94 (s, 1H), 6.91 (d, J = 7.8 Hz, 1H), 6.67 (d, J = 8.7 Hz, 1H), 6.53 (d, J = 8.7 Hz, 1H), 4.61 (d, J = 9.3 Hz, 1H), 3.86 (s, 3H), 3.74 (d, J = 12.9 Hz, 1H), 3.66 (dd, J = 16.1, 7.0 Hz, 1H), 3.51 (dd, J = 13.0, 7.2 Hz, 1H), 3.45–3.36 (m, 2H), 3.00–2.92 (m, 1H), 2.35 (s, 3H) ppm. 13C NMR (100 MHz, CDCl3) δ 154.5, 139.3, 136.3, 134.2, 129.3, 128.6, 128.4, 128.2, 124.7, 120.7, 118.2, 110.3, 56.3, 50.8, 45.9, 45.8, 27.0, 21.4 ppm. HRESIMS calculated for C18H21ClNO [M + H]+ 302.1233, found 302.1300.
6-chloro-7-methoxy-1-(4-methoxyphenyl)-2,3,4,5-tetrahydro-1H-benzo[d]azepine (10c): Synthesized according to general procedure C. Yield: 47%. mp: 151.3–152.7 °C.
1H NMR (400 MHz, DMSO-d6) δ 7.15 (d, J = 8.6 Hz, 2H), 7.00 (d, J = 8.6 Hz, 2H), 6.92 (d, J = 8.7 Hz, 1H), 6.53 (d, J = 8.7 Hz, 1H), 4.61 (t, J = 5.5 Hz, 1H), 3.81 (s, 1H), 3.80 (s, 3H), 3.78 (s, 3H), 3.76 (s, 1H), 3.72 (dd, J = 8.1, 3.7 Hz, 2H), 3.56 (d, J = 5.5 Hz, 1H), 3.01 (t, J = 10.3 Hz, 1H) ppm. 13C NMR (100 MHz, DMSO-d6) δ 158.7, 153.9, 137.6, 136.3, 132.5, 129.7, 128.0, 124.7, 121.5, 118.3, 114.8, 110.8, 56.6, 55.5, 49.6, 44.72, 44.29, 27.2 ppm. HRESIMS calculated for C18H21ClNO2 [M + H]+ 318.1183, found 318.1170.
6-chloro-1-phenyl-2,3,4,5-tetrahydro-1H-benzo[d]azepin-7-ol (11a): Synthesized according to general procedure F. Off-white solid. Yield: 43%. mp: 134.6–135.8 °C.
1H NMR (600 MHz, CD3OD) δ 7.42 (t, J = 15.2 Hz, 2H), 7.34 (t, J = 12.3 Hz, 1H), 7.21 (d, J = 7.4 HZ, 2H) 6.71 (d, J = 8.4 Hz, 1H) 6.54 (d, J = 8.8 Hz, 1H) 4.67 (d, J = 2.1 Hz, 1H) 3.73 (m, 2H), 3.53 (m, 3H), 3.16 (t, J = 10.7, 3H) ppm. 13C NMR (150 MHz, CD3OD) δ 162.7, 162.4, 154.1, 139.0, 137.3, 135.73, 129.2, 128.2, 127.6, 127.2, 122.7, 109.8, 56.2, 50.6, 45.6, 44.7, 27.4 ppm. HRESIMS calculated for C16H17ClNO [M + H]+ 274.0920, found 274.0922.
6-chloro-1-(m-tolyl)-2,3,4,5-tetrahydro-1H-benzo[d]azepin-7-ol (11b): Synthesized according to O-demethylation procedure F. Gray solid. Yield: 31%. mp: 122.3–124.2 °C.
1H NMR (600 MHz, DMSO-d6) δ 7.31 (t, J = 7.6 Hz, 1H), 7.15 (d, J = 7.6 Hz, 1H), 7.05 (s, 1H), 6.99 (d, J = 7.5 Hz, 1H), 6.75 (d, J = 8.5 Hz, 1H), 6.38 (d, J = 8.5 Hz, 1H), 4.61–4.56 (m, 1H), 3.54 (d, J = 4.9 Hz, 2H), 3.47–3.41 (m, 2H), 3.36–3.30 (m, 1H), 2.99 (t, J = 10.7 Hz, 1H), 2.33 (s, 3H) ppm. 13C NMR (150 MHz, DMSO-d6) δ 151.7, 140.2, 137.7, 136.9, 133.8, 128.5, 128.4, 127.4, 127.0, 124.9, 119.9, 113.6, 48.8, 44.8, 43.6, 26.7, 20.8 ppm. HRESIMS calculated for C17H19ClNO [M + H]+ 288.1077, found 288.1100.
6-chloro-1-(4-hydroxyphenyl)-2,3,4,5-tetrahydro-1H-benzo[d]azepin-7-ol (11c): Synthesized according to general procedure F. Gray solid. Yield: 38%. mp: 135.8–136.9 °C.
1H NMR (400 MHz, DMSO-d6) δ 6.96 (d, J = 8.1 Hz, 2H), 6.76 (d, J = 8.0 Hz, 2H), 6.69 (d, J = 8.3 Hz, 2H), 6.43 (d, J = 8.4 Hz, 1H), 5.76 (s, 1H), 4.31 (d, J = 5.0 Hz, 1H), 3.25–3.11 (m, 1H), 3.09–2.90 (m, 2H), 2.88–2.79 (m, 2H), 2.68 (s, 1H) ppm. 13C NMR (100 MHz, CDCl3) δ 155.6, 136.3, 129.7, 129.2, 129.1, 128.9, 126.7, 126.3, 126.2, 116.1, 75.0, 59.0, 56.3, 28.9 ppm.
HRESIMS calculated for C16H17ClNO2 [M + H]+ 290.0870, found 290.0879.
3-allyl-6-chloro-7-methoxy-1-(m-tolyl)-2,3,4,5-tetrahydro-1H-benzo[d]azepine (12b): Synthesized according to general procedure E. Yield: 58%. mp: 172.1–173.8 °C.
1H NMR (400 MHz, CDCl3) δ 7.28 (s, 1H), 7.26 (d, J = 7.5 Hz, 1H), 7.10 (d, J = 7.5 Hz, 1H), 7.00 (s, 1H), 6.64 (d, J = 8.6 Hz, 1H), 6.55 (d, J = 8.6 Hz, 1H), 5.97–5.87 (m, 1H), 5.20 (t, J = 12.3 Hz, 2H), 4.34 (d, J = 8.4 Hz, 1H), 3.87 (s, 3H), 3.51–3.46 (m, 1H), 3.25–3.11 (m, 4H), 3.03 (dd, J = 10.1, 9.7 Hz, 1H), 2.92 (dd, J = 11.8, 9.0 Hz, 1H), 2.47–2.39 (m, 1H), 2.37 (s, 3H) ppm. 13C NMR (100 MHz, CDCl3) δ 153.4, 143.0, 140.1, 138.3, 138.1, 134.9, 129.1, 128.4, 127.2, 126.7, 125.3, 122.1, 118.37, 108.8, 62.4, 60.3, 56.1, 54.0, 49.3, 30.5, 21.5 ppm. HRESIMS calculated for C21H25ClNO [M + H]+ 342.1546, found 342.1600.
3-allyl-6-chloro-7-methoxy-1-(4-methoxyphenyl)-2,3,4,5-tetrahydro-1H-benzo[d]azepine (12c): Synthesized according to general procedure E. Yield: 61%. mp: 155.4–157.1 °C.
1H NMR (400 MHz, CDCl3) δ 7.07 (d, J = 8.7 Hz, 2H), 6.97 (d, J = 8.7 Hz, 2H), 6.70 (d, J = 8.7 Hz, 1H), 6.58 (d, J = 8.2 Hz, 1H), 5.95 (m, 1H), 5.60–5.51 (m, 2H), 4.60 (d, J = 9.6 Hz, 1H), 3.93 (dd, J = 9.9, 3.5 Hz, 1H), 3.87 (s, 3H), 3.86 (s, 3H), 3.85–3.82 (m, 2H), 3.81 (d, J = 3.8 Hz, 1H), 3.72 (d, J = 6.3 Hz, 2H), 3.40 (dd, J = 16.4, 10.7 Hz, 2H) ppm. 13C NMR (125 MHz, Acetone-d6) δ 159.9, 155.2, 137.7, 130.1, 128.9, 126.4, 125.7, 124.8, 122.93, 122.33, 119.7, 115.42, 115.34, 111.2, 61.9, 56.6, 55.6, 54.0, 30.4, 29.3, 27.8 ppm. HRESIMS calculated for C21H25ClNO2 [M + H]+ 358.1496, found 358.1496.
6-chloro-7-methoxy-3-methyl-1-(m-tolyl)-2,3,4,5-tetrahydro-1H-benzo[d]azepine (13b): Synthesized according to general procedure D. Yield: 81%. mp: 174.5–176.1 °C.
1H NMR (500 MHz, Acetone-d6) δ 7.31 (t, J = 7.6 Hz, 2H), 7.18 (d, J = 7.6 Hz, 1H), 7.09 (s, 1H), 7.04 (d, J = 7.7 Hz, 1H), 6.91 (d, J = 8.6 Hz, 1H), 4.77 (d, J = 10.1 Hz, 1H), 3.88 (s, 3H), 3.81–3.72 (m, 2H), 3.70–3.61 (m, 1H), 3.55–3.50 (m, 1H), 3.28–3.22 (m, 1H), 3.09 (s, 3H), 2.33 (s, 3H), 2.31–2.26 (m, 1H) ppm. 13C NMR (125 MHz, Acetone-d6) δ 155.1, 141.3, 139.4, 138.1, 129.8, 128.8, 128.3, 126.2, 122.8, 122.3, 119.7, 111.0, 61.5, 56.6, 55.9, 46.6, 46.3, 28.2, 21.5 ppm. HRESIMS calculated for C19H23ClNO [M + H]+ 316.1390, found 316.1390.
6-chloro-7-methoxy-1-(4-methoxyphenyl)-3-methyl-2,3,4,5-tetrahydro-1H-benzo[d]azepine (13c): Synthesized according to general procedure D. Yield: 82%. mp: 155.4–157.1 °C.
1H NMR (500 MHz, Acetone-d6) δ 7.16 (d, J = 8.6 Hz, 2H), 6.94 (d, J = 8.7 Hz, 2H), 6.84 (d, J = 8.6 Hz, 1H), 6.66 (d, J = 7.7 Hz, 1H), 4.44–4.39 (m, 1H), 3.90–3.87 (m, 1H), 3.85 (s, 3H), 3.81 (s, 3H), 3.76 (d, J = 2.3 Hz, 1H), 3.24 (dd, J = 14.6, 9.5 Hz, 1H), 3.10–3.14 (m, 1H), 3.00–2.89 (m, 1H), 2.64–2.55 (m, 1H), 2.51 (s, 3H). 13C NMR (125 MHz, Acetone-d6) δ 211.8, 206.6, 159.2, 154.6, 130.1, 124.8, 122.5, 119.7, 117.1, 110.1, 62.8, 56.7, 56.4, 55.5, 48.6, 47.4 ppm. HRESIMS calculated for C19H23ClNO2 [M + H]+ 333.1339, found 333.1320.
6-chloro-3-methyl-1-phenyl-2,3,4,5-tetrahydro-1H-benzo[d]azepin-7-ol (15a): Synthesized according to general procedure F. Gray solid. Yield: 28%. mp: 143.5–145.1 °C.
1H NMR (600 MHz, CDCl3) δ 7.34 (t, J = 14.8 Hz, 2H), 7.26 (t, J = 10.4 Hz, 1H), 7.16 (d, J = 7.6 Hz, 2H), 6.69 (d, J = 8.7 Hz, 1H), 6.46 (d, J = 8.2 Hz, 1H), 4.33 (d, J = 8.4 Hz, 1H), 3.34 (m, 2H), 3.18 (m, 2H), 3.10 (m, 2H), 2.80 (s, 3H) ppm. 13C NMR (600 MHz, CDCl3) δ 149.8, 142.9, 138.9, 137.8, 128.6, 128.3, 127.3, 126.5, 120.2, 112.9, 62.6, 55.9, 49.2, 47.4, 30.8 ppm. C17H19ClNO [M + H]+ 288.1077, found 288.1170.
6-chloro-3-methyl-1-(m-tolyl)-2,3,4,5-tetrahydro-1H-benzo[d]azepin-7-ol (15b): Synthesized according to general procedure F. Yield: 51%. mp: 142.6–144.0 °C.
1H NMR (600 MHz, DMSO-d6) δ 10.08 (s, 1H), 7.31 (t, J = 7.6 Hz, 1H), 7.16 (d, J = 7.4 Hz, 1H), 7.05 (s, 1H), 7.00 (d, J = 7.3 Hz, 1H), 6.74 (d, J = 8.3 Hz, 1H), 4.56 (d, J = 6.7 Hz, 1H), 3.59 –3.56 (m, 3H), 3.32 (s, 3H), 2.77 (s, 3H), 2.33 (s, 3H) ppm. 13C NMR (125 MHz, DMSO-d6) δ 151.9, 138.0, 137.1, 128.7, 127.6, 125.3, 124.1, 123.2, 120.7, 119.9, 118.1, 113.8, 59.6, 53.7, 44.5,44.4 27.0, 21.0 ppm. HRESIMS calculated for C18H21ClNO [M + H]+ 302.1233, found 302.1236.
3-allyl-6-chloro-1-(m-tolyl)-2,3,4,5-tetrahydro-1H-benzo[d]azepin-7-ol (14b): Synthesized according to general procedure F. Off-white solid. Yield: 48%. mp: 151.3–152.7 °C.
1H NMR (400 MHz, DMSO-d6) δ 10.45 (s, 1H), 7.35 (t, J = 7.6 Hz, 1H), 7.19 (d, J = 7.6 Hz, 1H), 7.07 (s, 1H), 7.04 (d, J = 7.6 Hz, 1H), 6.73 (d, J = 8.6 Hz, 1H), 6.20 (d, J = 8.6 Hz, 1H), 6.01 (td, J = 17.1, 7.0 Hz, 1H), 5.55 (s, 1H), 5.53–5.48 (m, 1H), 4.72 (d, J = 10.1 Hz, 1H), 3.85–3.76 (m, 3H), 3.67–3.65 (m, 1H), 3.52–3.43 (m, 3H), 3.02–2.94 (m, 1H), 2.34 (s, 3H) ppm. 13C NMR (100 MHz, DMSO-d6) δ 152.4, 141.2, 138.6, 137.1, 134.9, 129.4, 129.3, 128.4, 127.9, 127.7, 126.7, 125.9, 120.4, 114.4, 59.8, 58.1, 51.8, 44.3, 26.7, 21.5 ppm. HRESIMS calculated for C20H23ClNO [M + H]+ 328.1390, found 328.1382.
3-allyl-6-chloro-1-(4-hydroxyphenyl)-2,3,4,5-tetrahydro-1H-benzo[d]azepin-7-ol (14c): Synthesized according to general procedure F. Off-white solid. Yield: 34%. mp: 132.5–134.1 °C.
1H NMR (400 MHz, Acetone-d6) δ 7.10 (d, J = 8.7 Hz, 2H), 6.93 (d, J = 8.7 Hz, 2H), 6.77 (d, J = 8.6 Hz, 1H), 6.36 (d, J = 8.6 Hz, 1H), 5.58–5.55 (m, 2H), 5.25 (d, J = 10.0 Hz, 1H), 4.34–4.29 (m, 1H), 4.11 (dd, J = 15.4, 8.1 Hz, 1H), 3.95–3.70 (m, 4H), 3.57–3.40 (m, 3H), 3.09–3.05 (m, 1H) ppm. 13C NMR (100 MHz, Acetone-d6) δ 160.2, 155.5, 137.9, 130.4, 130.0, 125.8, 125.1, 123.1, 122.5, 120.0, 115.5, 111.5, 62.2, 56.8, 54.2, 46.3, 28.1, 26.7, 21.5 ppm. HRESIMS calculated for C19H21ClNO2 [M + H]+ 330.1183, found 330.1211.
6-chloro-3-methyl-8-nitro-1-phenyl-2,3,4,5-tetrahydro-1H-benzo[d]azepin-7-ol (16a): Synthesized according to general procedure G. Yellow solid. Yield: 80%. mp: 198.7–200.0 °C
1H NMR (600 MHz, Acetone-d6) δ 7.60 (s, 1H), 7.49–7.45 (m, 2H), 7.40 (dd, J = 13.0, 7.2 Hz, 2H), 7.34 (d, J = 8.0 Hz, 1H), 5.20 (d, J = 6.0 Hz, 1H), 4.11–3.95 (m, 2H), 3.88–3.76 (m, 1H), 3.69–3.58 (m, 1H), 3.50–3.36 (m, 2H), 3.14 (s, 3H) ppm. 13C NMR (150 MHz, CDCl3) 140.9, 136.5, 131.9, 128.1, 128.0, 127.6, 126.4, 126.1, 118.9, 113.2, 64.8, 58.6, 42.0, 25.3, 24.7 ppm. HRESIMS calculated for C17H18ClN2O3 [M + H]+ 333.0298, found 333.0220.
6-chloro-3-methyl-8-nitro-1-(m-tolyl)-2,3,4,5-tetrahydro-1H-benzo[d]azepin-7-ol (16b): Synthesized according to general procedure G. Yellow solid. Yield: 78%. mp: 210.4–212.6 °C.
1H NMR (600 MHz, Acetone-d6) δ 7.23 (t, J = 7.6 Hz, 1H), 7.19 (s, 1H), 7.09 (d, J = 7.5 Hz, 1H), 7.04 (s, 1H), 6.99 (d, J = 7.5 Hz, 1H), 4.88 (d, J = 9.4 Hz, 1H), 3.80 (dd, J = 13.7, 9.7 Hz, 2H), 3.71 (d, J = 14.7 Hz, 1H), 3.63–3.57 (m, 2H), 3.15 (s, 1H), 2.93 (s, 3H), 2.22 (s, 3H) ppm. 13C NMR (150 MHz, Acetone-d6) δ 150.0, 146.1, 139.6, 138.9, 132.9, 129.2, 129.1, 128.5, 125.4, 124.0, 122.0, 121.2, 60.3, 53.9, 45.0, 44.8, 28.0, 20.5 ppm. HRESIMS calculated for C18H20ClN2O3 [M + H]+ 347.1084, found 347.1100.
8-amino-6-chloro-3-methyl-1-phenyl-2,3,4,5-tetrahydro-1H-benzo[d]azepin-7-ol (17a): Synthesized according to general procedure H. Off-white solid. Yield: 45%. mp: 137.0–138.9 °C.
1H NMR (600 MHz, CDCl3) δ 7.32 (d, J = 7.8 Hz, 2H), 7.27–7.23 (m, 1H), 7.08 (dd, J = 14.3, 7.6 Hz, 3H), 5.78 (s, 1H), 5.72 (s, 1H), 4.25 (d, J = 10.4 Hz, 1H), 3.53 (dt, J = 14.4, 10.6 Hz, 2H), 3.26 (dd, J = 16.7, 4.7 Hz, 2H), 3.10–3.05 (m, 1H), 2.96 (t, J = 10.9 Hz, 1H), 2.57 (s, 3H) ppm. 13C NMR (150 MHz, CDCl3) δ 141.9, 137.3, 136.3, 132.9, 128.9, 128.6, 127.1, 125.4, 119.9, 114.2, 65.7, 59.6, 43.0, 26.3, 25.6 ppm. HRESIMS calculated for C17H20ClN2O [M + H]+ 303.1186, found 303.1187.
8-amino-6-chloro-3-methyl-1-(m-tolyl)-2,3,4,5-tetrahydro-1H-benzo[d]azepin-7-ol (17b): Synthesized according to general procedure H. Off-white solid. Yield: 54%. mp: 134.8–136.0 °C.
1H NMR (600 MHz, CDCl3) δ 6.97 (dd, J = 14.1, 7.5 Hz, 2H), 6.82 (s, 1H), 6.78 (d, J = 3.1 Hz, 1H), 6.77 (s, 1H), 5.72 (s, 1H), 5.66 (s, 1H), 4.75 (d, J = 9.7 Hz, 1H), 4.12 (d, J = 10.6 Hz, 1H), 3.50–3.39 (m, 2H), 3.20–3.13 (m, 3H), 3.01–2.95 (m, 1H), 2.67 (s, 3H), 2.49 (s, 3H) ppm. 13C NMR (150 MHz, CDCl3) δ 138.6, 137.3, 132.8, 129.6, 129.3, 128.9, 128.7, 128.0, 127.8, 125.6, 119.9, 114.2, 68.0, 61.1, 59.6, 42.9, 25.6, 21.5 ppm. HRESIMS calculated for C18H22ClN2O [M + H]+ 317.1342, found 317.1350.
N-(9-chloro-8-hydroxy-3-methyl-5-phenyl-2,3,4,5-tetrahydro-1H-benzo[d]azepin-7-yl)acetamide (18a): Synthesized according to general procedure I. White solid. Yield: 78%. mp: 154.4–156.2 °C.
1H NMR (600 MHz, Acetone-d6) δ 7.41 (s, 1H), 7.32 (dd, J = 13.6, 7.0 Hz, 2H), 7.28–7.22 (m, 2H), 7.07–7.03 (m, 3H), 4.29 (d, J = 10.5 Hz, 1H), 3.61–59 (m, 1H), 3.51–3.47 (m, 1H), 3.40–3.37 (m, 1H), 3.29–3.26 (m, 2H), 2.99–2.91 (m, 1H), 2.77 (s, 3H), 2.59 (s, 3H) ppm. 13C NMR (150 MHz, CDCl3) δ 170.2, 129.2, 129.1, 128.6, 128.5, 127.6, 127.3, 124.3, 124.2, 123.4, 119.7, 65.7, 59.0, 42.9, 29.7, 26.6, 23.8 ppm. HRESIMS calculated for C19H22ClN2O2 [M + H]+ 345.1292, found 345.1244.
N-(9-chloro-8-hydroxy-3-methyl-5-(m-tolyl)-2,3,4,5-tetrahydro-1H-benzo[d]azepin-7-yl)acetamide (18b): Synthesized according to general procedure I. Off-white solid. Yield: 68%, mp: 151.6–152.8 °C.
1H NMR (400 MHz, CDCl3) δ 7.26–7.19 (m, 1H), 7.17–7.04 (m, 1H), 6.90–6.83 (m, 2H), 6.67 (dd, J = 8.7, 4.0 Hz, 1H), 6.43 (d, J = 8.7 Hz, 1H), 6.32 (d, J = 8.7 Hz, 1H), 5.51 (s, 1H), 4.75 (d, J = 9.6 Hz, 1H), 4.41 (d, J = 10.6 Hz, 1H), 4.07–4.03 (m, 1H), 3.65 (d, J = 10.4 Hz, 1H), 3.60–3.51 (m, 2H), 3.42–3.32 (m, 1H), 3.31–3.14 (m, 2H), 3.05 (s, 3H), 2.88 (s, 3H), 2.29 (d, J = 12.0 Hz, 3H) ppm. 13C NMR (100 MHz, CDCl3) δ 150.3, 141.5, 140.7, 140.9, 138.9, 135.8, 135.2, 129.1, 128.6, 128.3, 125.4, 120.2, 114.0, 64.8, 62.5, 58.5, 55.8, 42.6, 25.4, 21.5 ppm. HRESIMS calculated for C20H24ClN2O2 [M + H]+ 359.1448, found 359.1430.
N-(9-chloro-8-hydroxy-3-methyl-5-phenyl-2,3,4,5-tetrahydro-1H-benzo[d]azepin-7-yl)butyramide (19a): Synthesized according to general procedure I. White solid. Yield: 82%. mp: 148.7–150.1 °C.
1H NMR (500 MHz, Acetone-d6) δ 7.44 (td, J = 7.3, 2.7 Hz, 3H), 7.39–7.36 (m, 1H), 7.30 (dd, J = 7.6, 2.1 Hz, 2H), 7.25 (d, J = 7.3 Hz, 1H), 5.09 (dd, J = 49.6, 9.5 Hz, 1H), 2.88 (s, 3H), 2.71 (d, J = 13.0 Hz, 2H), 2.65 (t, J = 7.3 Hz, 2H), 2.36 (t, J = 6.1 Hz, 1H), 1.75 (dd, J = 14.9, 7.3 Hz, 1H), 1.65 (dd, J = 14.8, 7.5 Hz, 2H), 1.04 (t, J = 9.3 Hz, 2H), 0.91 (t, J = 7.5 Hz, 3H) ppm. 13C NMR (150 MHz, CDCl3) δ 170.6, 143.1, 129.3, 129.2, 129.1, 128.6, 127.5, 127.2, 124.2, 123.6, 119.7, 65.6, 58.8, 38.9, 35.5, 26.1, 19.1, 18.3, 13.8 ppm. HRESIMS calculated for C21H26ClN2O2 [M + H]+ 373.1605, found 373.1649.
N-(9-chloro-8-hydroxy-3-methyl-5-(m-tolyl)-2,3,4,5-tetrahydro-1H-benzo[d]azepin-7-yl)butyramide (19b): Synthesized according to general procedure I. White solid. Yield: 63%. mp: 156.2–157.9 °C.
1H NMR (500 MHz, CDCl3) δ 7.39–7.30 (m, 1H), 7.18 (dd, J = 17.9, 7.7 Hz, 1H), 7.06–6.94 (m, 2H), 5.02 (dd, J = 30.1, 9.4 Hz, 1H), 3.79–3.56 (m, 2H), 3.53–3.46 (m, 1H), 3.42–3.19 (m, 3H), 2.93 (d, J = 5.7 Hz, 1H), 2.87 (d, J = 5.0 Hz, 1H), 2.68 (s, 2H), 2.39 (s, 3H), 1.93–1.78 (m, 3H), 1.09 (t, J = 7.2 Hz, 3H); 1H NMR (125 MHz, CDCl3) δ 170.6, 143.0, 141.1, 139.2, 138.8, 129.8, 129.6, 129.3, 128.9, 128.6, 128.3, 125.4, 119.8, 65.7, 59.1, 42.9, 38.8, 35.7, 26.6, 21.6, 18.4, 13.7 ppm. HRESIMS calculated for C22H28ClN2O2 [M + H]+ 387.1841, found 387.1843.
N-(9-chloro-8-hydroxy-3-methyl-5-phenyl-2,3,4,5-tetrahydro-1H-benzo[d]azepin-7-yl)isobutyramide (20a): Synthesized according to general procedure I. White solid. Yield: 76%. mp: 144.6–145.9 °C.
1H NMR (500 MHz, CDCl3) δ 7.45 (dd, J = 12.1, 5.2 Hz, 2H), 7.37 (dd, J = 13.4, 6.1 Hz, 1H), 7.29 (s, 1H), 7.23–7.18 (m, 2H), 5.10 (d, J = 9.5 Hz, 1H), 3.75 (dd, J = 17.9, 11.1 Hz, 1H), 3.53–3.44 (m, 1H), 3.38 (dd, J = 19.2, 12.4 Hz, 2H), 3.30–3.20 (m, 1H), 2.99–2.93 (m, 1H), 2.88 (s, 1H), 2.68 (s, 3H), 1.40 (d, J = 7.0 Hz, 6H) ppm. 13C NMR (125 MHz, CDCl3) δ 174.0, 141.1, 129.3, 129.2, 128.7, 128.7, 128.5, 127.8, 127.5, 127.3, 65.5, 58.9, 34.4, 31.7, 26.7, 22.8, 19.0 ppm. HRESIMS calculated for C21H26ClN2O2 [M + H]+ 373.1605, found 373.1634.
N-(9-chloro-8-hydroxy-3-methyl-5-phenyl-2,3,4,5-tetrahydro-1H-benzo[d]azepin-7-yl)acrylamide (21a): Synthesized according to general procedure I. Grayish solid. Yield: 81%. mp: 161.4–163.1 °C.
1H NMR (600 MHz, CDCl3) δ 7.31 (d, J = 7.8 Hz, 2H), 7.26 (d, J = 7.3 Hz, 2H), 7.19 (s, 1H), 7.07–7.01 (m, 2H), 6.32 (d, J = 17.6 Hz, 1H), 6.05 (d, J = 9.7 Hz, 1H), 5.78 (d, J = 10.3 Hz, 1H), 5.02–4.85 (m, 1H), 3.65 (t, J = 5.8 Hz, 1H), 3.58 (dd, J = 14.9, 8.1 Hz, 1H), 3.54–3.45 (m, 1H), 3.38 (dd, J = 16.2, 8.3 Hz, 1H), 3.31–3.14 (m, 2H), 2.76 (s, 1H), 2.57 (s, 3H) ppm. 13C NMR (150 MHz, CDCl3) δ 170.3, 143.0, 135.7, 131.4, 129.5, 129.4, 129.1, 128.6, 127.5, 127.2, 125.5, 124.3, 124.1, 67.9, 59.0, 42.9, 34.2, 25.6 ppm. HRESIMS calculated for C20H22ClN2O2 [M + H]+ 357.1292, found 357.1274.
N-(9-chloro-8-hydroxy-3-methyl-5-phenyl-2,3,4,5-tetrahydro-1H-benzo[d]azepin-7-yl)methanesulfonamide (22): Synthesized according to general procedure I. Gray solid. Yield: 40%. mp: 149.6–152.6 °C.
1H NMR (400 MHz, DMSO-d6) δ 7.48 (d, J = 6.9 Hz, 2H), 7.42 (d, J = 6.6 Hz, 1H), 7.27 (d, J = 6.7 Hz, 3H), 6.44 (s, 1H), 4.77 (d, J = 9.6 Hz, 1H), 3.80 (d, J = 11.8 Hz, 2H), 3.68–3.55 (m, 2H), 3.49–3.37 (m, 2H), 3.08 (s, 1H), 2.87 (s, 3H), 2.07 (d, J = 5.4 Hz, 3H). 13C NMR (100 MHz, DMSO-d6) δ 146.0, 140.5, 137.0, 136.2, 129.6, 129.0, 128.0, 122.5, 121.6, 120.0, 59.5, 53.7, 44.7, 44.3, 31.1, 27.2 ppm. HRESIMS calculated for C18H22ClN2O3S [M + H]+ 381.0961, found 381.0961.
1-(9-chloro-8-hydroxy-3-methyl-5-phenyl-2,3,4,5-tetrahydro-1H-benzo[d]azepin-7-yl)urea (23a): Synthesized according to general procedure I. White solid. Yield: 76%. mp: 141.0–142.1 °C.
1H NMR (400 MHz, DMSO-d6) δ 10.95 (s, 1H), 8.39 (s, 1H), 7.44 (d, J = 1.9 Hz, 1H), 7.43 (d, J = 1.9 Hz, 1H), 7.41 (s, 1H), 7.35 (d, J = 1.4 Hz, 1H), 7.33 (s, 1H), 7.22 (d, J = 1.5 Hz, 1H), 7.20–7.19 (m, 1H), 6.25 (s, 1H), 4.85 (d, J = 9.5 Hz, 1H), 3.50–3.40 (m, 1H), 3.39–3.35 (m, 1H), 3.30 (dd, J = 12.8, 2.5 Hz, 1H), 3.22–3.17 (m, 1H), 3.06 (d, J = 12.3 Hz, 1H), 2.79 (s, 1H), 2.58 (s, 3H) ppm. 13C NMR (100 MHz, DMSO-d6) δ 158.4, 143.1, 142.4, 132.8, 129.4, 129.0, 127.9, 127.4, 126.8, 123.0, 118.8, 66.9, 60.0, 44.0, 42.1, 26.3 ppm. HRESIMS calculated for C18H21ClN3O2 [M + H]+ 346.1244, found 346.1241
1-(9-chloro-8-hydroxy-3-methyl-5-(m-tolyl)-2,3,4,5-tetrahydro-1H-benzo[d]azepin-7-yl)urea (23b): Synthesized according to general procedure I. White solid. Yield: 54%. mp: 184.6–186.1 °C.
1H NMR (500 MHz, Acetone-d6) δ 8.21 (s, 2H), 7.37–7.30 (m, 1H), 7.22–7.14 (m, 2H), 7.08 (s, 1H), 7.03 (d, J = 7.5 Hz, 1H), 4.83 (d, J = 11.4 Hz, 1H), 3.65–3.54 (m, 3H), 3.33–3.24 (m, 3H), 2.89 (s, 3H), 2.37 (s, 3H) ppm; 13C NMR (125 MHz, DMSO-d6) δ 157.8, 141.8, 141.5, 137.9, 137.3, 131.7, 128.7, 128.3, 127.8, 127.5, 126.5, 126.3, 122.2, 33.9, 30.9, 28.4, 24.7, 24.1, 21.1 ppm. HRESIMS calculated for C19H23ClN3O2 [M + H]+ 360.2201, found 360.2200.
6-chloro-8-nitro-1-phenyl-2,3,4,5-tetrahydro-1H-benzo[d]azepin-7-ol (24a): Synthesized according to general procedure G. Yellow solid. Yield: 74%. mp: 201.4–202.8 °C.
1H NMR (600 MHz, CDCl3) δ 11.15 (s, 1H), 7.67 (s, 1H), 7.42 (t, J = 7.6 Hz, 1H), 7.39 (s, 1H), 7.19 (d, J = 7.7 Hz, 2H), 7.08 (d, J = 7.5 Hz, 2H), 4.94 (dd, J = 14.3, 8.1 Hz, 1H), 4.86 (dd, J = 14.3, 4.0 Hz, 1H), 4.64–4.58 (m, 1H), 4.48–4.44 (m, 1H), 3.99–3.94 (m, 1H), 3.54 (ddd, J = 15.4, 7.7, 3.3 Hz, 1H), 3.40 (ddd, J = 15.4, 8.8, 3.4 Hz, 1H) ppm. 13C NMR (150 MHz, CDCl3) δ 140.9, 136.3, 135.3, 131.9, 127.9, 127.6, 126.1, 124.4, 118.9, 113.2, 64.8, 58.6, 42.0, 25.3, 24.7 ppm. HRESIMS calculated for C16H16ClN2O3 [M + H]+ 319.0771, found 319.0800.
6-chloro-8-nitro-1-(m-tolyl)-2,3,4,5-tetrahydro-1H-benzo[d]azepin-7-ol (24b): Synthesized according to general procedure G. Yellow solid. Yield: 80%. mp: 188.9–191.2 °C.
1H NMR (600 MHz, Acetone-d6) δ 7.37 (d, J = 7.5 Hz, 1H), 7.31 (dd, J = 15.6, 8.1 Hz, 2H), 7.23 (s, 1H), 7.22 (s, 1H), 4.96 (d, J = 9.8 Hz, 1H), 3.98–3.89 (m, 2H), 3.86–3.76 (m, 2H), 3.73–3.66 (m, 1H), 3.65–3.56 (m, 2H), 3.00 (s, 3H) ppm. 13C NMR (150 MHz, Acetone-d6) δ 150.6, 146.6, 140.1, 139.4, 133.5, 129.7, 129.6, 129.0, 125.9, 124.5, 122.5, 121.7, 60.8, 54.4, 45.3, 28.4, 21.1 ppm. HRESIMS calculated for C17H18ClN2O3 [M + H]+ 333.0298, found 333.0276.

4.11. Biological Experimental Procedures

4.11.1. Dopamine Receptor Binding Assays

D1R, D2R and D5R binding assays were performed by the Psychoactive Drug Screening Program (PDSP). Briefly, compounds were tested initially in primary radioligand binding assays at each receptor. In the primary binding assays, the compounds were tested at a concentration of 10 μM in quadruplicate in 96-well plates. Compounds that displayed a minimum of 50% inhibition in the primary assays were advanced to secondary binding assays to determine Ki values at each receptor. In secondary binding assays, compounds were tested at 11 concentrations (0.1, 0.3, 1, 3, 10, 30, 100, 300 nM, 1, 3, 10 µM) and in triplicate. Both primary and secondary binding assays were carried out in a final assay volume of 125 μL per well in binding buffer (50 mM HEPES, 50 mM NaCl, 5 mM MgCl2, 0.5 mM EDTA, pH 7.4, rt; Standard Wash Buffer: 50 mM Tris HCl, pH 7.4, cold). The radioligand concentration chosen was close to the Kd. Radioligands used for D1R, D2R and D5R were [3H]-SCH23390, [3H]-N-methylspiperone and [3H]-SCH23390, respectively, with Kd values of 0.74, 0.47 and 2.03, respectively. The total binding and nonspecific binding were determined in the absence and presence of the appropriate reference compound. Reference compounds for D1R, D2R and D5R assays were (+)-butaclamol, haloperidol and SKF 83586, respectively.
Complete details of the assays performed may be found online in the PDSP assay protocol book (http://pdsp.med.unc.edu/PDSP%20Protocols%20II%202013-03-28.pdf (accessed on 30 July 2023)).

4.11.2. Dopamine Receptor Functional Assays

The D1R agonist and antagonist function of compound 10a was evaluated in cAMP assays by Eurofins Discover X using their proprietary HitHunter platform. Briefly, cells were seeded in a total volume of 20 μL into white-walled microplates and incubated at 37 °C prior to testing. In the agonist format, cells were first incubated with sample to induce a response. Then, the media was aspirated from the cells and replaced with 15 μL 2:1 HBSS/10 mM Hepes: cAMP XS + Ab reagent. Sample stocks were diluted to generate 4X sample in assay buffer. A 5 μL volume of 4X sample was then added to cells and incubated at 37 °C for 30 min. The final assay concentration used was 1%. In antagonist mode, the cells were pre-incubated with a sample followed by agonist challenge at the EC80 concentration. The media was aspirated from cells and replaced with 10 μL 2:1 HBSS/10 mM Hepes: cAMP XS + Ab reagent. A 5 μL volume of 4X sample was then added to cells and incubated at 37 °C for 30 min. Subsequently, 5 μL of 4X EC80 agonist was added to the cells and incubated at 37 °C for 30 min. For agonist and antagonist assays, signal detection was performed as follows. After appropriate compound incubation, the assay signal was generated via incubation with 20 μL cAMP XS + ED/CL lysis cocktail for 1 h. This was followed by incubation with 20 μL cAMP XS + EA reagent for 3 h at room temperature. The microplates were read following signal generation with a PerkinElmer Envision™ instrument for chemiluminescent signal detection.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28166010/s1.

Author Contributions

R.G., H.K.N. and V.E. contributed to the synthesis, purification and spectroscopic characterization of the compounds. R.G., H.K.N. and W.W.H. drafted the manuscript and prepared the figures, schemes and tables herein. All authors have read and agreed to the published version of the manuscript.

Funding

This publication was made possible by Grant Number 1SC1DA049961 from the National Institutes of Health (NIH). Its contents are solely the responsibility of the authors and do not necessarily represent the official views of the NIH or its divisions.

Data Availability Statement

1H NMR and 13C NMR spectral data for all tested analogs are available in the Supplementary Materials.

Acknowledgments

Ki determinations and receptor binding profiles were generously provided by the National Institute of Mental Health’s Psychoactive Drug Screening Program, Contract # HHSN-271-2008-00025-C (NIMH PDSP). The NIMH PDSP is directed by Bryan L. Roth at the University of North Carolina at Chapel Hill and Project Officer Jamie Driscol at NIMH, Bethesda, MD, USA. For experimental details, please refer to the PDSP website http://pdsp.med.unc.edu/ (accessed on 30 July 2023) and click on “Binding Assay” or “Functional Assay” on the menu bar. Purchase of a NEO-500 NMR spectrometer used to obtain results included in this publication was supported by the National Science Foundation under Award 1828399.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Not applicable.

References

  1. Beaulieu, J.M.; Gainetdinov, R.R. The physiology, signaling, and pharmacology of dopamine receptors. Pharmacol. Rev. 2011, 63, 182–217. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Sakurai, H.; Bies, R.R.; Stroup, S.T.; Keefe, R.S.; Rajji, T.K.; Suzuki, T.; Mamo, D.C.; Pollock, B.G.; Watanabe, K.; Mimura, M.; et al. Dopamine D2 receptor occupancy and cognition in schizophrenia: Analysis of the CATIE data. Schizophr. Bull. 2013, 39, 564–574. [Google Scholar] [CrossRef] [Green Version]
  3. Martel, J.C.; Gatti McArthur, S. Dopamine Receptor Subtypes, Physiology and Pharmacology: New Ligands and Concepts in Schizophrenia. Front. Pharmacol. 2020, 11, 1003. [Google Scholar] [CrossRef]
  4. Bell, C. Endogenous renal dopamine and control of blood pressure. Clin. Exp. Hypertens. A 1987, 9, 955–975. [Google Scholar] [CrossRef] [PubMed]
  5. Caruana, M.P.; Heber, M.; Brigden, G.; Raftery, E.B. Effects of fenoldopam, a specific dopamine receptor agonist, on blood pressure and left ventricular function in systemic hypertension. Br. J. Clin. Pharmacol. 1987, 24, 721–727. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Eilam, D.; Clements, K.V.; Szechtman, H. Differential effects of D1 and D2 dopamine agonists on stereotyped locomotion in rats. Behav. Brain Res. 1991, 45, 117–124. [Google Scholar] [CrossRef]
  7. Ashby, F.G.; Valentin, V.V.; von Meer, S.S. Differential effects of dopamine-directed treatments on cognition. Neuropsychiatr. Dis. Treat. 2015, 11, 1859–1875. [Google Scholar] [CrossRef] [Green Version]
  8. Robbins, T.W. Dopamine and cognition. Curr. Opin. Neurol. 2003, 16 (Suppl. S2), S1–S2. [Google Scholar] [CrossRef]
  9. Nieoullon, A.; Coquerel, A. Dopamine: A key regulator to adapt action, emotion, motivation and cognition. Curr. Opin. Neurol. 2003, 16 (Suppl. S2), S3–S9. [Google Scholar] [CrossRef]
  10. Schwartz, J. The dopaminergic system in the periphery. J. Pharmacol. 1984, 15, 401–414. [Google Scholar]
  11. Rosenbaum, D.M.; Rasmussen, S.G.; Kobilka, B.K. The structure and function of G-protein-coupled receptors. Nature 2009, 459, 356–363. [Google Scholar] [CrossRef] [Green Version]
  12. Xin, J.; Fan, T.; Guo, P.; Wang, J. Identification of functional divergence sites in dopamine receptors of vertebrates. Comput. Biol. Chem. 2019, 83, 107140. [Google Scholar] [CrossRef]
  13. Beaulieu, J.M.; Espinoza, S.; Gainetdinov, R.R. Dopamine receptors—IUPHAR Review 13. Br. J. Pharmacol. 2015, 172, 1–23. [Google Scholar] [CrossRef] [Green Version]
  14. Missale, C.; Nash, S.R.; Robinson, S.W.; Jaber, M.; Caron, M.G. Dopamine receptors: From structure to function. Physiol. Rev. 1998, 78, 189–225. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Vallone, D.; Picetti, R.; Borrelli, E. Structure and function of dopamine receptors. Neurosci. Biobehav. Rev. 2000, 24, 125–132. [Google Scholar] [CrossRef]
  16. Sohur, U.S.; Gray, D.L.; Duvvuri, S.; Zhang, Y.; Thayer, K.; Feng, G. Phase 1 Parkinson’s Disease Studies Show the Dopamine D1/D5 Agonist PF-06649751 is Safe and Well Tolerated. Neurol. Ther. 2018, 7, 307–319. [Google Scholar] [CrossRef] [Green Version]
  17. Szasz, J.A.; Viorelia, C.; Mihaly, I.; Biro, I.; Peter, C.; Orban-Kis, K.; Szatmari, S. Dopamine agonists in Parkinson’s disease therapy—15 years of experience of the Neurological Clinics from Tirgu Mures. A cross-sectional study. Ideggyogy. Szle. 2019, 72, 187–193. [Google Scholar] [CrossRef]
  18. Perez de la Mora, M.; Hernandez-Mondragon, C.; Crespo-Ramirez, M.; Rejon-Orantes, J.; Borroto-Escuela, D.O.; Fuxe, K. Conventional and Novel Pharmacological Approaches to Treat Dopamine-Related Disorders: Focus on Parkinson’s Disease and Schizophrenia. Neuroscience 2020, 439, 301–318. [Google Scholar] [CrossRef] [PubMed]
  19. Karki, A.; Juarez, R.; Namballa, H.K.; Alberts, I.; Harding, W.W. Identification of C10 nitrogen-containing aporphines with dopamine D(1) versus D(5) receptor selectivity. Bioorg. Med. Chem. Lett. 2020, 30, 127053. [Google Scholar] [CrossRef]
  20. Bennett, A.; Barrera, E.; Namballa, H.; Harding, W.; Ranaldi, R. (-)-Stepholidine blocks expression, but not development, of cocaine conditioned place preference in rats. Neurosci. Lett. 2020, 734, 135151. [Google Scholar] [CrossRef]
  21. Namballa, H.K.; Dorogan, M.; Gudipally, A.R.; Okafor, S.; Gadhiya, S.; Harding, W.W. Discovery of Selective Dopamine Receptor Ligands Derived from (−)-Stepholidine via C-3 Alkoxylation and C-3/C-9 Dialkoxylation. J. Med. Chem. 2023, 66, 10060–10079. [Google Scholar] [CrossRef] [PubMed]
  22. Zhang, J.; Xiong, B.; Zhen, X.; Zhang, A. Dopamine D1 receptor ligands: Where are we now and where are we going. Med. Res. Rev. 2009, 29, 272–294. [Google Scholar] [CrossRef] [PubMed]
  23. Wu, W.L.; Burnett, D.A.; Spring, R.; Greenlee, W.J.; Smith, M.; Favreau, L.; Fawzi, A.; Zhang, H.; Lachowicz, J.E. Dopamine D1/D5 receptor antagonists with improved pharmacokinetics: Design, synthesis, and biological evaluation of phenol bioisosteric analogues of benzazepine D1/D5 antagonists. J. Med. Chem. 2005, 48, 680–693. [Google Scholar] [CrossRef] [PubMed]
  24. Breese, G.R.; Criswell, H.E.; McQuade, R.D.; Iorio, L.C.; Mueller, R.A. Pharmacological evaluation of SCH-12679: Evidence for an in vivo antagonism of D1-dopamine receptors. J. Pharmacol. Exp Ther 1990, 252, 558–567. [Google Scholar]
  25. Kaiser, C.; Dandridge, P.A.; Garvey, E.; Hahn, R.A.; Sarau, H.M.; Setler, P.E.; Bass, L.S.; Clardy, J. Absolute stereochemistry and dopaminergic activity of enantiomers of 2,3,4,5-tetrahydro-7,8-dihydroxy-1-phenyl-1H-3-benzazepine. J. Med. Chem. 1982, 25, 697–703. [Google Scholar] [CrossRef] [PubMed]
  26. Andersen, P.H.; Jansen, J.A. Dopamine receptor agonists: Selectivity and dopamine D1 receptor efficacy. Eur. J. Pharmacol. 1990, 188, 335–347. [Google Scholar] [CrossRef]
  27. Giri, R.; Namballa, H.K.; Sarker, A.; Alberts, I.; Harding, W.W. Synthesis and dopamine receptor pharmacological evaluations on ring C ortho halogenated 1-phenylbenzazepines. Bioorg. Med. Chem. Lett. 2020, 30, 127305. [Google Scholar] [CrossRef] [PubMed]
  28. Giri, R.; Namballa, H.K.; Sarker, A.; Alberts, I.; Harding, W.W. Further studies on C2’-substituted 1-phenylbenzazepines as dopamine D1 receptor ligands. Bioorg. Chem. 2022, 127, 105953. [Google Scholar] [CrossRef]
  29. Neumeyer, J.L.; Kula, N.S.; Bergman, J.; Baldessarini, R.J. Receptor affinities of dopamine D1 receptor-selective novel phenylbenzazepines. Eur. J. Pharmacol. 2003, 474, 137–140. [Google Scholar] [CrossRef]
  30. Abraham, A.D.; Neve, K.A.; Lattal, K.M. Activation of D1/5 Dopamine Receptors: A Common Mechanism for Enhancing Extinction of Fear and Reward-Seeking Behaviors. Neuropsychopharmacology 2016, 41, 2072–2081. [Google Scholar] [CrossRef] [Green Version]
  31. Ben-Sreti, M.M.; Gonzalez, J.P.; Sewell, R.D. Differential effects of SKF 38393 and LY 141865 on nociception and morphine analgesia. Life Sci. 1983, 33 (Suppl. S1), 665–668. [Google Scholar] [CrossRef] [PubMed]
  32. Brogden, R.N.; Markham, A. Fenoldopam: A review of its pharmacodynamic and pharmacokinetic properties and intravenous clinical potential in the management of hypertensive urgencies and emergencies. Drugs 1997, 54, 634–650. [Google Scholar] [CrossRef] [PubMed]
  33. Zhuang, Y.; Krumm, B.; Zhang, H.; Zhou, X.E.; Wang, Y.; Huang, X.-P.; Liu, Y.; Jiang, Y.; Zhang, C.; Yi, W.; et al. Mechanism of dopamine binding and allosteric modulation of the human D1 dopamine receptor. Cell Res. 2021, 31, 593–596. [Google Scholar] [CrossRef] [PubMed]
Molecules 28 06010 g001
Figure 1. Structures of typical 1-phenylbenzazepine D1R-like ligands—SKF 83822 (1), SKF 38393 (2) and Fenoldopam (3).
Figure 1. Structures of typical 1-phenylbenzazepine D1R-like ligands—SKF 83822 (1), SKF 38393 (2) and Fenoldopam (3).
Molecules 28 06010 g001
Molecules 28 06010 g002
Figure 2. Analog library for 6-Chloro-1-phenylbenzazepine.
Figure 2. Analog library for 6-Chloro-1-phenylbenzazepine.
Molecules 28 06010 g002
Molecules 28 06010 sch001
Scheme 1. Reagents and conditions: (a) CH3NO2, NH4OAc, AcOH, reflux, 6 h, 92%; (b) 1. LiBH4, TMSCl, anhyd. THF, reflux, 6 h; 2. MeOH, 20% KOH, 45% over 2 steps; (c) 1. mCPBA, DCM, rt, 12 h; 2. NaOH, rt, 88–96%; (d) LiNTf2, THF, reflux, 24 h, 53–78%; (e) TFA, H2SO4 (18M), rt, 5 h, 36–58%; (f) BBr3, DCM, 0 °C, 18 h, 34–58%; (g) allyl bromide, Et3N, DCM, rt, 18 h, 55–63%; (h) HCHO, Na(OAc)3BH, ACN, rt, 18 h, 77–91%.
Scheme 1. Reagents and conditions: (a) CH3NO2, NH4OAc, AcOH, reflux, 6 h, 92%; (b) 1. LiBH4, TMSCl, anhyd. THF, reflux, 6 h; 2. MeOH, 20% KOH, 45% over 2 steps; (c) 1. mCPBA, DCM, rt, 12 h; 2. NaOH, rt, 88–96%; (d) LiNTf2, THF, reflux, 24 h, 53–78%; (e) TFA, H2SO4 (18M), rt, 5 h, 36–58%; (f) BBr3, DCM, 0 °C, 18 h, 34–58%; (g) allyl bromide, Et3N, DCM, rt, 18 h, 55–63%; (h) HCHO, Na(OAc)3BH, ACN, rt, 18 h, 77–91%.
Molecules 28 06010 sch001
Molecules 28 06010 sch002
Scheme 2. Reagents and conditions: (a) conc. HNO3, AcOH, rt, 2 h, 70–86%; (b) 1. LiBH4, TMSCl, anhyd. THF, reflux, 6 h; 2. MeOH, 20% KOH, 45–54% over 2 steps; (c) (R’CO)2O, DCM, rt, 3 h, 76–82%; (d) methanesulfonic anhydride, DCM, rt, 3 h, 40%; (e) KNCO, H2O, rt, 12 h, 76%.
Scheme 2. Reagents and conditions: (a) conc. HNO3, AcOH, rt, 2 h, 70–86%; (b) 1. LiBH4, TMSCl, anhyd. THF, reflux, 6 h; 2. MeOH, 20% KOH, 45–54% over 2 steps; (c) (R’CO)2O, DCM, rt, 3 h, 76–82%; (d) methanesulfonic anhydride, DCM, rt, 3 h, 40%; (e) KNCO, H2O, rt, 12 h, 76%.
Molecules 28 06010 sch002
Table 1. Binding affinities of series 1 analogs at D1R, D2R and D5R.
Table 1. Binding affinities of series 1 analogs at D1R, D2R and D5R.
Molecules 28 06010 i001
Ki (nM) aSelectivity
Cmpd #R1R2R3R4D1R bD2R cD5R dD5/D1
10aMeHHHna enana
11aHHHHnana470
12aMeAllylHHnanana
13aMeMeHHnanana
14aHAllylHH102 ± 5.2na297 ± 19.32.9
15aHMeHH30.1 ± 1.3na187.4 ± 7.36.2
10bMeHMeHnanana
11bHHMeHnanana
12bMeAllylMeHnanana
13bMeMeMeHnanana
14bHAllylMeH281.4 ± 9.4 na740.6 ± 12.52.6
15bHMeMeH77.9 ± 4.1na165.2 ± 4.9 2.1
10cMeHHOMenanana
12cMeAllylHOMenanana
11dHHHOHnanana
14dHAllylHOHnanana
15dHMeHOH160.9 ± 5.5 na412.9 ± 9.8 2.6
(+)-Butaclamol 4.0 ± 0.2
Haloperidol 5.5 ± 0.3
SKF 83566 3.9 ± 0.2
a Experiments carried out in triplicate; b [3H] SCH23390 used as radioligand; c [3H]N-methylspiperone used as radioligand; d [3H]SCH23390 used as radioligand; e na—not active (<50% inhibition in a primary assay when tested at 10 µM).
Table 2. Binding affinities of series 2 analogs at D1R, D2R and D5R.
Table 2. Binding affinities of series 2 analogs at D1R, D2R and D5R.
Molecules 28 06010 i002
Ki (nM) a.Selectivity
Cmpd #R1R2R3D1R bD2R cD5R dD5/D1
16aNO2MeHna enana
16bNO2MeMe4354.1 ± 67.3nana
17aNH2MeH210.4 ± 7.1na269.8 ± 8.41.3
17bNH2MeMe71.9 ± 3.9na146.4 ± 5.82.0
18aNHCOMeMeHnanana
18bNHCOMeMeMe1364.9 ± 14.0nana
19aNHCO(CH2)3MeMeH1970.1 ± 41.4nana
19bNHCO(CH2)3MeMeMe634.4 ± 12.5na2959.3 ± 29.64.7
20aNHCOCH2CH(CH3)2MeH2938.3 ± 36.2nana
20bNHCOCH2CH(CH3)2MeMe4734.8 ± 55.9nana
21aNHCOCH=CH2MeH1497.9 ± 18.9nana
21bNHCOCH=CH2MeMe4979.6 ± 61.3nana
22NHSO2MeMeMe113.7 ± 5.1na165.7 ± 6.81.5
23aNHCONH2MeH1761.9 ± 17.6nana
23bNHCONH2MeMenanana
24aNO2HHnanana
24bNO2HMe38.1 ± 2.0na97.9 ± 3.62.6
(+)-Butaclamol 4.0 ± 0.2
Haloperidol 5.5 ± 0.3
SKF 83566 3.9 ± 0.2
a Experiments carried out in triplicate; b [3H]SCH23390 used as radioligand; c [3H]N-methylspiperone used as radioligand; d [3H]SCH23390 used as radioligand; e na—not active (<50% inhibition in a primary assay when tested at 10 µM).
Table 3. Activity of 15a in D1R cAMP functional assays.
Table 3. Activity of 15a in D1R cAMP functional assays.
CompoundAssay FormatResultRC50 (nM)Max Response
DopamineAgonistEC5012.30103.01
SCH 39166AntagonistIC501.67102.24
15aAgonistEC50>10,00017.22
15aAntagonistIC50130.3266.12
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Giri, R.; Namballa, H.K.; Emogaje, V.; Harding, W.W. Structure–Activity Relationship Studies on 6-Chloro-1-phenylbenzazepines Leads to the Identification of a New Dopamine D1 Receptor Antagonist. Molecules 2023, 28, 6010. https://doi.org/10.3390/molecules28166010

AMA Style

Giri R, Namballa HK, Emogaje V, Harding WW. Structure–Activity Relationship Studies on 6-Chloro-1-phenylbenzazepines Leads to the Identification of a New Dopamine D1 Receptor Antagonist. Molecules. 2023; 28(16):6010. https://doi.org/10.3390/molecules28166010

Chicago/Turabian Style

Giri, Rajan, Hari K. Namballa, Vishwashiv Emogaje, and Wayne W. Harding. 2023. "Structure–Activity Relationship Studies on 6-Chloro-1-phenylbenzazepines Leads to the Identification of a New Dopamine D1 Receptor Antagonist" Molecules 28, no. 16: 6010. https://doi.org/10.3390/molecules28166010

APA Style

Giri, R., Namballa, H. K., Emogaje, V., & Harding, W. W. (2023). Structure–Activity Relationship Studies on 6-Chloro-1-phenylbenzazepines Leads to the Identification of a New Dopamine D1 Receptor Antagonist. Molecules, 28(16), 6010. https://doi.org/10.3390/molecules28166010

Article Metrics

Back to TopTop
