Tröger’s Base-Derived Thermally Activated Delayed Fluorescence Dopant for Efficient Deep-Blue Organic Light-Emitting Diodes

Abstract

The development of efficient deep-blue emitters with thermally activated delayed fluorescence (TADF) properties is a highly significant but challenging task in the field of organic light-emitting diode (OLED) applications. Herein, we report the design and synthesis of two new 4,10-dimethyl-6H,12H-5,11-methanodibenzo[b,f][1,5]diazocine (TB)-derived TADF emitters, TB-BP-DMAC and TB-DMAC, which feature distinct benzophenone (BP)-derived acceptors but share the same dimethylacridin (DMAC) donors. Our comparative study reveals that the amide acceptor in TB-DMAC exhibits a significantly weaker electron-withdrawing ability in comparison to that of the typical benzophenone acceptor employed in TB-BP-DMAC. This disparity not only causes a noticeable blue shift in the emission from green to deep blue but also enhances the emission efficiency and the reverse intersystem crossing (RISC) process. As a result, TB-DMAC emits efficient deep-blue delay fluorescence with a photoluminescence quantum yield (PLQY) of 50.4% and a short lifetime of 2.28 μs in doped film. The doped and non-doped OLEDs based on TB-DMAC display efficient deep-blue electroluminescence with spectral peaks at 449 and 453 nm and maximum external quantum efficiencies (EQEs) of 6.1% and 5.7%, respectively. These findings indicate that substituted amide acceptors are a viable option for the design of high-performance deep-blue TADF materials.

1. Introduction

Over the past few decades, organic light-emitting diodes (OLEDs) have attracted extensive academic and industrial attention in solid-state lighting and flexible ultra-thin displays due to their intrinsic merits of being ultra thin and lightweight as well as having high brightness and flexibility with infinite design possibilities [1,2,3]. Electroluminescence (EL) materials which determine the main device performance, such as emission color, EL efficiency, and operating lifetime, are the core part of OLEDs [4,5,6]. Thermally activated delayed fluorescent (TADF) materials, which can harvest triplet (T₁) and singlet (S₁) excitons for light emission via efficient reverse intersystem crossing (RISC), have emerged as promising fluorescent dyes for the construction of efficient OLEDs [7]. The thermally activatable RISC process requires a small amount of singlet–triplet energy splitting (∆E_ST), which can be achieved in donor–acceptor (D–A) molecules in which the highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO) distributions are well separated [8,9,10,11,12,13].

The development of deep-blue emitters is crucial in realizing full-color OLED displays with a high performance [14,15,16,17,18,19,20,21,22]. When designing deep-blue TADF emitters with D–A features, a weak CT character and a confined conjugation length are necessary to restrict the emission color to the deep-blue region [23]. However, the weakened CT character generally leads to a relatively large ΔE_ST and a small rate constant for reverse intersystem crossing (k_RISC), which would negatively affect device efficiency and stability in OLEDs [24]. Hence, it is challenging, and strict design principles must be followed to balance the trade-offs between ΔE_ST, the RISC rate, the photoluminescence quantum yield (PLQY), and color purity of deep-blue TADF emitters [25,26,27].

Benzophenone-derived units are well known for their ability to undergo efficient intersystem crossing (ISC) due to their strong spin–orbit coupling [28]. This property makes them a highly attractive option as acceptor blocks for constructing TADF emitters. Although many benzophenone-based TADF materials have been reported to emit green to red light, achieving blue TADF materials has been challenging due to their strong electron-withdrawing ability [29,30,31,32,33,34,35,36]. Recently, Tang et al. modified the para-position of the carbonyl group of benzophenone with N to obtain sky blue TADF materials with satisfactory performances [37,38,39]. Duan and Adachi et al. proposed that minimizing the distance between heteroatoms in donors and acceptors can significantly enhance the contribution of heteroatoms to the natural orbitals of singlet and triplet states. This, in turn, can promote the proportion of the n-π* transition and increase the SOC between them, resulting in an improved RISC rate [40].

Tröger’s base (TB) is a C₂-symmetric, unique, V-shaped twisted scaffold [41] that has been utilized to create amorphous host materials with a high thermal stability for OLEDs [42]. In this work, we designed and synthesized two novel 4,10-dimethyl-6H,12H-5,11-methanodibenzo[b,f][1,5]diazocine (TB)-derived TADF molecules with symmetrical D–A features, namely TB-BP-DMAC and TB-DMAC, bearing different benzophenone-derived acceptors and the same dimethylacridin (DMAC) donors. Compared to the typical benzophenone acceptor used in TB-BP-DMAC, the amide acceptor in TB-DMAC has a much weaker electron-withdrawing ability, resulting in a noticeable blue shift in the emission from green (with a spectrum peak at 517 nm for TB-BP-DMAC) to deep blue (with a spectrum peak at 467 nm for TB-DMAC). Additionally, TB-DMAC exhibits a higher photoluminescence quantum yield (PLQY) of 50.4% and a faster RISC rate of 6.13 × 10⁵ s⁻¹ compared to those of TB-BP-DMAC (PLQY = 31.5%, k_RISC = 5.83 × 10⁵ s⁻¹). In a doped OLED employing TB-DMAC as the emitter, the deep-blue emission had a maximum external quantum efficiency (EQE) of 6.1%, which is higher than the 3.9% EQE of the TB-BP-DMAC-based green-emitting device.

2. Results and Discussion

2.1. Synthesis and Characterization

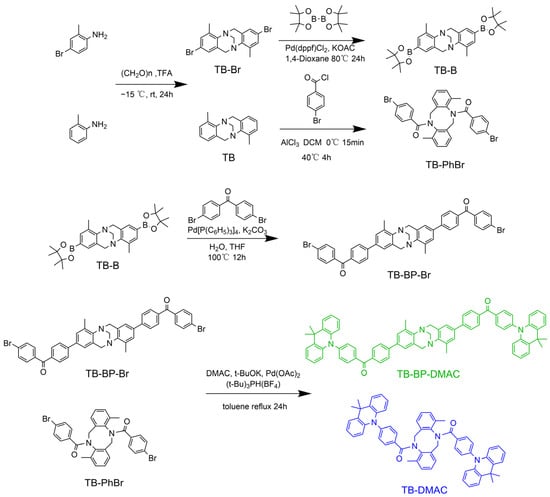

Synthetic routes and detailed synthetic procedures of the target compounds are described in Scheme 1 and the Section 3, respectively. The intermediate TB-BP-Br was synthesized in three steps, including condensation, Miyaura borylation reaction, and Suzuki coupling. Meanwhile, the intermediate TB-PhBr was obtained via two steps, namely condensation and N-acylation. The Pd-catalyzed Buchwald–Hartwig cross-coupling of the compounds TB-PhBr and TB-BP-Br with 9,9-dimethyl-9,10-dihydroacridine (DMAC) resulted in good yields of TB-BP-DMAC and TB-DMAC, respectively. All the newly synthesized materials were purified by column chromatography. These compounds are quite air stable in both the solid state and in solution. The chemical structures of the newly synthesized compounds were characterized using ¹H NMR spectra, as shown in Supporting Information. The target compounds TB-BP-DMAC and TB-DMAC were further purified by vacuum sublimation before characterization and device fabrication were performed. The thermal stability of these compounds was examined by a thermal gravimetric analysis (TGA) under a nitrogen atmosphere. As depicted in Figure S7, both TB-BP-DMAC and TB-DMAC exhibit a high thermal stability, with decomposition temperatures (Td, corresponding to a 5% weight loss) of 270 and 299 °C, respectively. These values are sufficiently high to enable film and device fabrication through high-vacuum thermal deposition.

2.2. Theoretical Investigation

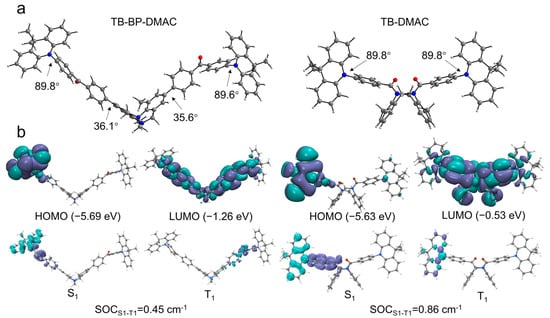

The geometric structures and electronic properties of these molecules have been investigated by DFT and time-dependent DFT (TD-DFT) calculations at the BMK/6-31G** level. The optimized ground-state molecular geometries revealed symmetrical twisted structures and nearly perpendicular donor–acceptor (D–A) conformations of these two molecules, with dihedral angles of 89.6–89.8° between the DMAC units and the bridging phenyl rings, respectively (Figure 1a). Such large D–A torsion angles typically promote effective spatial separation between the frontier molecular orbitals, thereby facilitating a small ΔE_ST, which is crucial for the reverse intersystem crossing (RISC) process. The highest occupied molecular orbitals (HOMOs) of these compounds are primarily confined at electron-donating DMAC moieties, while the LUMOs are mainly distributed over the electron-deficient benzophenone moiety, implying a good separation of HOMO and LUMO distributions (Figure 1b). The TD-DFT calculations revealed that the S₁ states of TB-BP-DMAC and TB-DMAC have predominant CT characteristics, while their T₁ states are both locally excited states (³LE). Compared with that of TB-DMAC, the molecular conjugation length of TB-BP-DMAC is significantly extended by adding a bridging phenyl ring and adjusting the connection position, resulting in a much deeper LUMO level than that of TB-DMAC (−1.26 versus −0.53 eV). Based on the TD-DFT calculations, the SOC constants for S₁ and T₁ states were found to be 0.45 and 0.86 cm⁻¹ for TB-BP-DMAC and TB-DMAC, respectively. These significant SOC interactions may be attributed to the different excitation natures of these lowest excited states, which could play a crucial role in the RISC processes.

2.3. Electrochemical Properties

The electrochemical properties of these compounds were characterized by cyclic voltammetry (CV) (Figure S8). From the onsets of the oxidation curves, the HOMO energy levels of TB-BP-DMAC and TB-DMAC were calculated to be −5.26 and −5.28 eV, respectively. The close HOMO levels of two compounds can be ascribed to the use of identical donors. The LUMO energy levels were then determined to be −2.40 and −2.08 eV based on the HOMO levels and the optical band gaps (2.86 and 3.19 eV, vide infra) which were evaluated from the onsets of the absorption spectra. The LUMO energy level of TB-BP-DMAC was much deeper than that of TB-DMAC due to the significantly extended π-conjugation, which is consistent with the results of the quantum chemical calculations.

2.4. Photophysical Properties

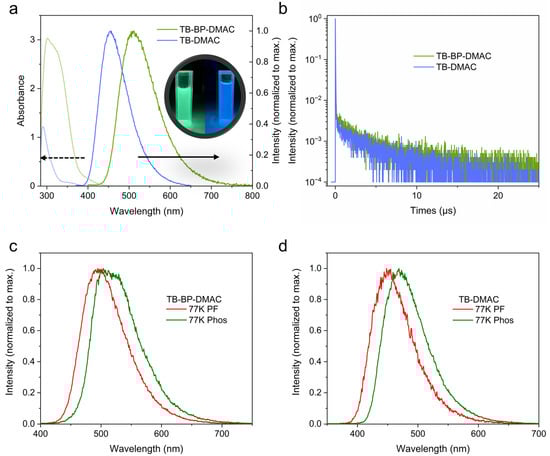

The photophysical properties of these emitters were investigated in toluene (c = 10⁻⁵ M). Figure 2a displays the absorption spectra of TB-BP-DMAC and TB-DMAC in toluene. The intense higher-energy absorption bands observed at wavelengths below 380 nm and 335 nm, respectively, are primarily attributed to the spin-allowed π-π* transitions. Additionally, these molecules exhibit weak and broad absorption bands in a lower-energy region, which can be ascribed to the ICT transitions from the donor to the acceptor units. The absorption edges for these transitions are located at 434 nm for TB-BP-DMAC and 389 nm for TB-DMAC. Considering that they have the same donor units, the significant difference in the absorption edges between these compounds should originate from their obviously different acceptor strengths. TB-BP-DMAC and TB-DMAC exhibit bright green and deep-blue photoluminescence (PL) in toluene with broad and structureless spectra peaking at 511 and 454 nm, and corresponding Commission Internationale de L’Eclairage (CIE) color coordinates of (0.28, 0.50) and (0.16, 0.16), respectively. The broad and structureless PL spectra confirm the ICT characteristics of the emissive states. The significant blue shift observed in the PL spectrum of TB-DMAC, when compared to that of TB-BP-DMAC, is likely attributed to the significantly weaker acceptor strength of the former.

To be consistent with the situation in the optimized OLEDs, the photophysical properties of these two emitters were further investigated in 20 wt%-doped 2,8-bis(diphenylphosphinyl)dibenzo[b,d]furan (PPF) films, in which PPF served as a host. Figure S10 demonstrates that the PL characteristics of these emitters in doped films are similar to those observed in toluene solutions. The steady-state PL spectra show a minor redshift with peak wavelengths at 517 and 467 nm and corresponding CIE color coordinates of (0.30, 0.49) and (0.18, 0.21) for TB-BP-DMAC and TB-DMAC, respectively. To gain a deeper understanding of the emissive states, we investigated the transient photoluminescence (PL) decay behavior of these emitters across various temperatures (Figure S13). Figure 2b illustrates that at room temperature, each emitter exhibits a transient PL curve comprising two distinct components: a prompt component and a delayed component. The prompt (τ_PF) and delayed (τ_DF) component lifetimes were fitted to be 12.1 ns and 2.55 μs for TB-BP-DMAC and 11.6 ns and 2.28 μs for TB-DMAC, respectively (Figures S11 and S12). The proportion of the DF component increases progressively as the temperature is elevated from 77 K to 300 K, indicating the typical TADF properties of both emitters (Figure S13). Therefore, it can be concluded that the delayed components observed in these emitters originate from TADF involving T₁ → S₁ → S₀ transitions. To experimentally determine the S₁ and T₁ energy levels, as well as the energy gap (ΔE_ST) between them, the time-resolved PL spectra of the doped film samples were acquired at 77 K (Figure 2c,d). The S₁ energy, T₁ energy, and ΔE_ST were calculated based on the onset wavelengths of the time-resolved PL spectra, yielding values of 2.81, 2.68, and 0.128 eV for TB-BP-DMAC and 3.12, 2.96, and 0.158 eV for TB-DMAC, respectively. The deep-blue emitter TB-DMAC demonstrates a relatively smaller ΔE_ST compared to the majority of previously reported deep-blue TADF emitters, while the green emitter TB-BP-DMAC exhibits a relatively larger ΔE_ST among green TADF emitters (Table S5). The small ΔE_ST values of these emitters allow an efficient up-conversion of excitons from the T₁ state to the S₁ state through RISC. Apparently, both the S₁ and T₁ states were effectively tuned by the substitution strategy. Directly linking the carbanyl groups with the nitrogen atoms on the Tröger’s base unit resulted in the formation of an amide acceptor, which exhibited a significantly weaker electron-deficient strength than that of the benzophenone acceptor and was found to be responsible for the observed changes in PL behaviors. The photoluminescence quantum yields (Φ_PL) of TB-BP-DMAC and TB-DMAC were measured to be 31.5% and 50.4%, respectively. From Φ_PL and the respective proportions of the prompt and delayed fluorescence components in the transient PL decay curves, the quantum yields of prompt fluorescence (Φ_PF) and delayed fluorescence (Φ_DF) in doped films were calculated to be 21.2% and 10.3% for TB-BP-DMAC and 36.1% and 14.3% for TB-DMAC, respectively (

Table 1. Photophysical data of the investigated compounds in 20 wt%-doped PPF film.

Compound	λPL a [nm]	ΦPL b [%]	ΦPF/ΦDF c [%]	τPF/τDF d [ns/μs]	ES1/ET1/ΔEST e [eV]	${\mathbf{k}}_{\mathbf{r}}^{\mathbf{s}}$$/{\mathbf{k}}_{\mathbf{n}\mathbf{r}}^{\mathbf{s}}$/kISCf [107s−1]	kRISC g [105s−1]	CIE1931 [x,y]
TB-BP-DMAC	517	31.5	21.2/10.3	12.1/2.55	2.81/2.68/0.128	1.75/3.81/2.69	5.83	(0.30, 0.49)
TB-DMAC	467	50.4	36.1/14.3	11.6/2.28	3.12/2.96/0.158	3.11/3.06/2.43	6.13	(0.18, 0.21)

^a the wavelength at photoluminescence maximum; ^b overall PLQY; ^c Φ_PF and Φ_DF are the quantum yields of prompt fluorescence and delayed fluorescence, respectively; ^d τ_PF and τ_DF are the lifetimes of prompt fluorescence and delayed fluorescence, respectively; ^e energy levels of S₁ and T₁ state were estimated from the onsets of time-resolved PL spectra at 77 K (Figure 2c,d); ^f ${\mathrm{k}}_{\mathrm{r}}^{\mathrm{s}}$, ${\mathrm{k}}_{\mathrm{n}\mathrm{r}}^{\mathrm{s}}$, and k_ISC represent the radiative, nonradiative rate constant, and intersystem-crossing (ISC) rate constant of the S₁ states, respectively; ^g k_RISC refers to the rate constants of reverse ISC.

). The rate constants of the key photophysical processes were calculated based on the efficiency and lifetime data by using a reported method (see Supporting Information for details). For TB-BP-DMAC, the rate constants follow the order of the non-radiative rate constant (${\mathrm{k}}_{\mathrm{n}\mathrm{r}}^{\mathrm{s}}$) > intersystem-crossing (ISC) rate constants (k_ISC) > the radiation rate constant (${\mathrm{k}}_{\mathrm{r}}^{\mathrm{s}}$). In contrast, for TB-DMAC, the order is ${\mathrm{k}}_{\mathrm{r}}^{\mathrm{s}}$ > ${\mathrm{k}}_{\mathrm{n}\mathrm{r}}^{\mathrm{s}}$ > k_ISC (Table 1). The RISC rate constants (k_RISC) of TB-BP-DMAC and TB-DMAC were calculated to be 5.83 × 10⁵ and 6.13 × 10⁵ s⁻¹, respectively. These values suggest fast RISC processes in these molecules, which may be attributed to the small ΔE_ST values and the significant SOC interactions between the excited states involved in the RISC processes.

2.5. Electroluminescence Performance

To explore the electroluminescence (EL) properties of these TADF emitters, we fabricated multilayer doped OLEDs with a device configuration of ITO/HATCN (5 nm)/TAPC (30 nm)/TCTA (5 nm)/mCP (5 nm)/PPF: Emitter (30 nm)/PPF (10 nm)/Bphen (30 nm)/Liq (1 nm)/Al (100 nm), in which HATCN, TAPC, TCTA, mCP, PPF, Bphen, and Liq serve as the hole-injection layer, hole-transporting layer, electron-blocking layer, host, hole-blocking layer, electron-transporting layer, and electron-injecting layer, respectively. PPF was selected as a host material due to its high triplet energy (T₁ = 3.1 eV), which is conducive to confine triplet excitons of the investigated emitters (T₁ = 2.68–2.96 eV). The chemical structures of the functional organic materials used in the devices are shown in Figure S15.

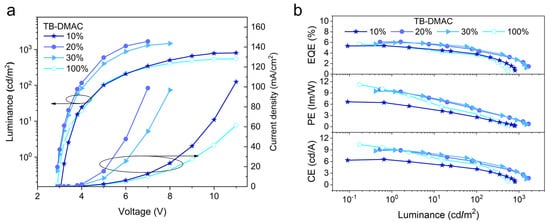

At first, we investigated the dependence of EL performance on the doping concentration for TB-DMAC, using emitter doping concentrations of 10 wt%, 20 wt%, 30 wt%, and 100% (non-doped). The results are summarized in Figure 3 and

Table 2. Summary of device performances.

Device	Doping Concentration	λEL a [nm]	Von b [V]	Lmax c [cd/m2]	EQEmax d [%]	CEmax e [cd/A]	PEmax f [lm/W]	CIE1931 g [x,y]
TB-DMAC	10%	447	3.2	806	5.4	6.6	6.6	(0.17, 0.13)
	20%	449	2.9	1684	6.1	9.1	9.9	(0.17, 0.15)
	30%	452	3.0	1474	6.0	9.0	9.5	(0.17, 0.16)
	100% (non-doped)	453	3.1	552	5.7	10.4	11.2	(0.18, 0.19)
TB-BP-DMAC	20%	508	5.3	3524	3.9	11.0	6.9	(0.28, 0.51)

^a the wavelength at electroluminescence maximum (recorded at 8 V); ^b turn-on voltage at 1 cd/m²; ^c maximum luminance; ^d EQE maximum value; ^e current efficiency maximum value; ^f power efficiency maximum value; ^g Commission Internatinale de L’Eclairage coordinates measured at 8 V.

. A slight spectral redshift in EL was observed as the doping concentration increased, with emission peaks ranging from 447 to 453 nm for TB-DMAC based devices when the doping concentration increased from 10% to 100% (Table 2). The TB-DMAC based device exhibited the highest EQE_max of 6.1% at a doping concentration of 20 wt%. Notably, while the doping concentration continued to increase to 30 wt% and 100% (non-doped), the EQEs did not decrease significantly. The non-doped device still maintained an EQE_max of 5.7%.

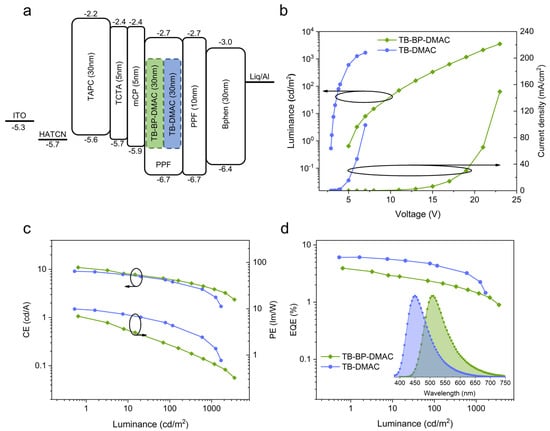

The 20 wt% doped OLEDs employing TB-BP-DMAC as an emitter were also fabricated and characterized for comparison (Figure 4 and Table 2). The 20 wt% doped OLEDs based on TB-BP-DMAC and TB-DAMC turned on at 5.3 and 2.9 V and displayed green and deep-blue emissions with spectral peaks at 508 nm and 449 nm and CIE coordinates of (0.28, 0.51) and (0.17, 0.15), respectively. The TB-DMAC-based device exhibited a higher EQE_max of 6.1%, while the TB-BP-DMAC-based device achieved an EQE_max of only 3.9%, probably due to the lower PLQY.

3. Experimental Section

3.1. General Procedures

All air- and moisture-sensitive reactions were carried out under an argon atmosphere. All reagents and solvents were obtained commercially and used without further purification except as noted. Dry 1,4-dioxane, dry trifluoroacetic acid (TFA), dry tetrahydrofuran (THF), dry toluene, and dry dichloromethane (DCM) were purchased from Adamas Reagent, Ltd. (Shanghai, China). The three intermediates TB-Br, TB-B, and TB were prepared by procedures from the literature [43,44]. ¹H NMR (500 MHz) and ¹³C NMR (126 MHz) spectra were recorded on a Bruker Avance III NMR spectrometer, in deuterated chloroform (CDCl₃).

3.2. Synthesis of Materials

3.2.1. Synthesis of ((4,10-Dimethyl-6H,12H-5,11-methanodibenzo[b,f][1,5]diazocine-2,8-diyl)bis(4,1-phenylene))bis((4-bromophenyl)methanone) (TB-BP-Br)

A mixture of TB-B (2.2 g, 4.5 mmol), bis(4-bromophenyl)methanone (4.59 g, 13.5 mmol), Pd(PPh₃)₄ (0.52 g, 0.45 mmol), THF (112.5 mL), and aqueous K₂CO₃ (1 M, 45 mL) was placed under vacuum and then backfilled with nitrogen three times before being heated in an oil bath at 60 °C for 16 h. After cooling to room temperature, the layers were separated. The aqueous phase was extracted with DCM (3 × 50 mL), the combined organic phases were dried over sodium sulfate and filtered, and then the solvent was removed. The residue was purified by column chromatography over silica using ethyl acetate/petroleum ether as eluent to afford TB-BP-Br as a white solid (1.15 g, yield: 33%). ¹H NMR was as follows: (500 MHz, CDCl₃) δ 7.81 (d, J = 8.3 Hz, 4H), 7.68–7.54 (m, 12H), 7.38 (s, 2H), 7.10 (s, 2H), 4.74 (d, J = 13.8 Hz, 2H), 4.45 (s, 2H), 4.16 (d, J = 16.8 Hz, 2H), and 2.53 (s, 6H).

3.2.2. Synthesis of (4,10-Dimethyldibenzo[b,f][1,5]diazocine-5,11(6H,12H)-diyl)bis((4-bromophenyl)methanone) (TB-PhBr)

Aluminum trichloride (1.60 g, 12 mmol), TB (1.25 g, 5 mmol), and DCM (50 mL) were added to the flask under vacuum and then backfilled with nitrogen three times at 0 °C. After stirring for 15 min, a solution of 4-bromobenzoyl chloride (2.42 g, 11 mmol) was added dropwise under stirring. The reaction was performed for three hours at 40 °C. Dilute hydrochloric acid was slowly added dropwise to the flask to terminate the reaction. The reaction was extracted with dichloromethane (3 × 40 mL). After collecting organic-phase, it was dried with anhydrous Na₂SO₄, the solvent was removed to give the crude product. Using petroleum ether and dichloromethane-mixed solvent as eluent, silica gel column separation and purification were performed, followed by vacuum-drying to obtain a white solid (1.51 g, yield: 50%). ¹H NMR was as follows: (500 MHz, CDCl₃) δ 7.29 (ddd, J = 10.7, 5.3, 2.1 Hz, 7H), 7.26 (d, J = 2.0 Hz, 1H), 6.96–6.90 (m, 4H), 6.83 (dd, J = 6.7, 2.2 Hz, 2H), 5.70 (d, J = 14.9 Hz, 2H), 4.39 (d, J = 15.0 Hz, 2H), and 2.13 (s, 6H).

3.2.3. Synthesis of ((4,10-dimethyl-6H,12H-5,11-methanodibenzo[b,f][1,5]diazocine-2,8-diyl)bis(4,1-phenylene))bis((4-(9,9-dimethylacridin-10(9H)-yl)phenyl)methanone) (TB-BP-DMAC)

A mixture of TB-BP-Br (1.15 g, 1.5 mmol), 9,9-dimethyl-9,10-dihydroacridine (0.94 g, 4.5 mmol), tri-tert-butylphosphine tetrafluoroborate (0.087 g, 0.3 mmol), sodium tert-butoxide (0.43 g, 4.5 mmol), palladium acetate (0.035 g, 0.15 mmol), and dry toluene was placed under vacuum and then backfilled with nitrogen three times before being heated in an oil bath at 110 °C for 18 h. After cooling to room temperature, the solvent was removed by vacuum rotary evaporation. The mixture was extracted with dichloromethane (3 × 40 mL). After collecting organic-phase, it was dried with anhydrous Na₂SO₄, the solvent was removed to give the crude product. Using petroleum ether and dichloromethane-mixed solvent as eluent, silica gel column separation and purification were performed, followed by vacuum drying to obtain a yellow-green solid (1.38 g, yield 90%). ₁H NMR was as follows: (500 MHz, CDCl₃) δ 8.11–8.04 (m, 4H), 7.95 (d, J = 8.4 Hz, 4H), 7.67 (d, J = 8.4 Hz, 4H), 7.54–7.45 (m, 8H), 7.41 (s, 2H), 7.14 (s, 2H), 6.99 (dtd, J = 21.2, 7.3, 1.4 Hz, 8H), 6.34 (dd, J = 8.0, 1.3 Hz, 4H), 4.75 (s, 2H), 4.46 (s, 2H), 4.19 (d, J = 16.6 Hz, 2H), 2.55 (s, 6H), and 1.70 (s, 12H). ¹³C NMR was as follows: (126 MHz, CDCl₃) 195.42, 145.30, 140.49, 137.23, 135.64, 133.75, 132.60, 130.95, 130.74, 130.60, 129.98, 128.30, 126.77, 126.43, 125.37, 123.43, 121.09, 114.33, 55.20, 36.09, 31.13, and 17.45.

3.2.4. Synthesis of (4,10-dimethyldibenzo[b,f][1,5]diazocine-5,11(6H,12H)-diyl)bis((4-(9,9-dimethylacridin-10(9H)-yl)phenyl)methanone) (TB-DMAC)

It was prepared by the same procedure as that of TB-BP-DMAC, except TB-PhBr was used instead of TB-BP-Br. Vacuum drying was performed to obtain a white solid (yield: 85%). ¹H NMR was as follows: (500 MHz, CDCl₃) δ 7.83 (d, J = 7.3 Hz, 2H), 7.47 (d, J = 8.4 Hz, 4H), 7.41 (dd, J = 5.9, 3.3 Hz, 4H), 7.29 (t, J = 7.6 Hz, 2H), 7.11 (t, J = 7.9 Hz, 6H), 6.95–6.82 (m, 8H), 6.01 (dd, J = 6.0, 3.4 Hz, 4H), 5.74 (d, J = 13.3 Hz, 2H), 4.44 (d, J = 13.3 Hz, 2H), 2.16 (s, 6H), and 1.61 (d, J = 9.2 Hz, 12H). ¹³C NMR was as follows: (126 MHz, CDCl₃) 168.84, 144.27, 143.08, 140.40, 135.02, 134.89, 134.80, 131.74, 131.08, 130.74, 130.44, 130.27, 128.37, 126.27, 125.18, 120.85, 113.86, 54.77, 35.97, 30.94, and 18.36.

3.3. Thermogravimetric Analyses

Thermogravimetric analyses were performed on a METTLER TOLEDO system (METTLER-TOLEDO International Inc., Columbus, Switzerland) with a heating rate of 10 °C/min under nitrogen.

3.4. Electrochemical Measurement

Cyclic voltammetry was performed at room temperature in anhydrous and argon-saturated dichloromethane solutions of 0.1 M tetrabutylammonium hexafluorophosphate and 1.0 mM investigated compounds with a CHI840D electrochemical analyzer (CH Instruments, Inc., Austin, TX, USA). Glassy carbon, platinum wire, and Ag/Ag⁺ (0.01 M of AgNO₃ in acetonitrile) were selected as the working electrode, auxiliary electrode, and reference electrode, respectively. The ferrocenium/ferrocene couple was used as an internal standard.

3.5. Photophysical Measurements

UV–Vis absorption spectra were recorded with an Agilent Cary 5000 (Agilent Technologies, Santa Clara, CA, USA) UV–Vis spectrophotometer under ambient conditions. The absolute PLQYs were measured on an Edinburgh F900 spectrophotometer (Edinburgh Instruments Limited, Edinburgh, United Kingdom) equipped with an integrating sphere with the followsing properties: reference sample: BaSO₄; film samples: 20 wt% of TB-BP-DMAC or TB-DMAC doped into PPF host, prepared by vacuum deposition; and excitation wavelength: 300 nm. The excitation spectra and emission spectra were collected in the wavelength ranges of 285–315 nm and 360–750 nm, respectively. Steady-state PL spectra were measured on an Edinburgh FLS980 (Edinburgh Instruments Limited, Edinburgh, UK) using a Xenon lamp as an excitation light source. The transient PL decay curves were measured on the same spectrophotometer (FLS980) in time-correlated single-photon counting (TCSPC) mode with an NT242-1K OPO laser (Ekspla, Vilnius, Lithuania) as an excitation light source. The time-resolved PL spectra were recorded on an Edinburgh LP980 spectrophotometer with an NT242-1K OPO laser excitation source.

3.6. Computational Methodology

All the calculations were carried out using the Gaussian 09 program package. The density functional theory (DFT) calculations at the BMK/6-31G** level were used to optimize the ground state geometries of the investigated compounds. Time-dependent density functional theory (TD-DFT) calculations were performed at the same level using the optimized ground state geometries. The spin–orbit couplings were calculated at B3LYP/6-31G** by ORCA. The electron density diagrams of molecular orbitals were generated using GaussView program. The partition orbital composition was analyzed by using the Multiwfn 2.4 program.

3.7. Device Fabrication and Characterization

Indium tin oxide (ITO) glass substrates were cleaned successively in an ultrasonic bath containing deionized water, acetone, and isopropanol. They were then blown dry with N₂ and treated in UV/ozone ambient conditions for 15 min prior to film deposition. The organic materials were deposited onto the ITO-coated substrates at a rate of 1 Å s⁻¹ under high vacuum (<1 × 10⁻⁴) by thermal evaporation in vacuum chamber. Then Liq and Al were successively deposited at a rate of 0.1 Å s⁻¹ and 5 Å s⁻¹, respectively. The electroluminescence (EL) spectra and Commission Internatinale de L’Eclairage coordinates (CIE) of the OLEDs were recorded by an integrated optoelectronic performance test system with a calibrated spectra radiometer (TOPCON SR-UL1R) (Topcon Corporation, Tokyo, Japan). The current efficiency and power efficiency were measured using Keithley 2400 source meter (Tektronix, Inc., Beaverton, OR, USA).

4. Conclusions

In summary, we have designed and synthesized two TADF emitters with D-A-D molecular configuration, named TB-BP-DMAC and TB-DMAC, by employing Tröger’s-base-fused benzophenone and amide acceptors as the electron acceptors, respectively. Our theoretical and experimental investigations revealed that the amide acceptor in TB-DMAC exhibits a much weaker strength compared to the benzophenone acceptor used in TB-BP-DMAC, which results in a significantly blue-shifted emission from green to deep blue, a higher emission efficiency, and a faster RISC process. TB-BP-DMAC and TB-DMAC exhibit green and deep-blue photoluminescence with PLQYs of 31.5% and 50.4% as well as decay fluorescence lifetimes of 2.55 and 2.28 μs in doped films, respectively. By using TB-DMAC as emitter, the doped and non-doped OLEDs have efficient deep-blue electroluminescence peaks at 449 and 453 nm with maximum EQEs of 6.1% and 5.7%, respectively, which far exceed the device performances of TB-BP-DMAC-based green-emitting devices. This indicates that substituted amide acceptors are a viable option for the design of high-performance deep-blue TADF materials. These results demonstrate the high potential of substituted amide acceptors in the construction of high-performance deep-blue TADF materials.
