Fully Selective Synthesis of Spirocyclic-1,2-oxazine N-Oxides via Non-Catalysed Hetero Diels-Alder Reactions with the Participation of Cyanofunctionalysed Conjugated Nitroalkenes

by
Przemysław Woliński
1,
Agnieszka Kącka-Zych
1,*,
Aneta Wróblewska
2,3,
Ewelina Wielgus
3,
Rafał Dolot
3 and
Radomir Jasiński
1,*
1
Department of Organic Chemistry and Technology, Cracow University of Technology, Warszawska 24, 31-155 Krakow, Poland
2
Department of Organic Chemistry, University of Lodz, Tamka 12, 91-403 Lodz, Poland
3
Centre of Molecular and Macromolecular Studies, Polish Academy of Sciences, Sienkiewicza 112, 90-363 Lodz, Poland
*
Authors to whom correspondence should be addressed.
Molecules 2023, 28(12), 4586; https://doi.org/10.3390/molecules28124586
Submission received: 24 May 2023 / Revised: 2 June 2023 / Accepted: 5 June 2023 / Published: 6 June 2023
(This article belongs to the Special Issue Recent Progress in Heteroorganic Chemistry)

Abstract

:
Hetero Diels-Alder (HDA) reactions with the participation of E-2-aryl-1-cyano-1-nitroethenes and methylenecyclopentane were evaluated on the basis of experimental as well as quantumchemical data. It was found that contrary to most known HDA reactions, title processes are realised under non-catalytic conditions and with full regiocontrol. The DFT study shows, without any doubt, the polar but single-step reaction mechanism. Deeper exploration using Bonding Evolution Theory (BET) techniques gives a clear image of the sequences of electron density reorganisation along the reaction coordinate. The first C4-C5 bond is created in phase VII by merging two monosynaptic basins, while the second O1-C6 bond is created in the last phase by a donation of the nonbonding electron density of O1 to C6. Based on the research, we can conclude that the analysed reaction proceeds according to a two-stage one-step mechanism.

1. Introduction

Six-membered heterocycles are a crucial and interesting class of compounds among the applied branches of organic chemistry, with a meaningful amount of research dedicated to the development of novel molecules [1,2,3]. Numerous organic synthesis protocols have been developed, which found applications in the chemical sciences. Many heterocyclic compounds occur naturally, for example, nucleic acids [4,5] or vitamins [6,7,8,9]. Six-membered heterocycles are valuable molecular systems from a practical point of view. These compounds are mainly used in medicinal chemistry [10,11,12] and agrochemical products [13,14]. Applications are also found in developers [6] as corrosion inhibitors [15,16], and this type of heterocyclic skeleton exists inter’alia within alkaloid pigments such as trichotomine [17].

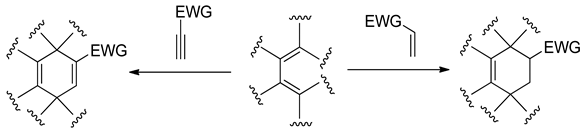

1,2-Oxazine molecular systems are found to be potential precursors for the synthesis of biologically active compounds due to the highly reactive N-O bond [18]. Compounds including this-type heterocyclic skeleton have found application as thermochromic agents [19], anticancer [20], and antibacterials [21]. It is interesting that based on the herbicidal testing, oxazine derivatives possessed excellent herbicidal activity agents at the root of radish, grain sorghum, rape, cucumber and barnyard grass [22]. This class of compounds show high herbicidal activity on a wide variety of grasses and significant safety in cereals, rice, soybeans, and corn in preemergence tests [23]. Generally, the universal strategy for constructing six-membered organic rings is the Diels-Alder (DA) reaction [24]. With the participation of the buta-1,3-diene, cyclopentadiene, cyclohexadiene, and other conjugated dienes, these-type reactions lead very easily to respective analogues of cyclohexene or cyclohexadiene. This is especially easy in the case of the addition of mentioned dienes to electrophilically activated alkenes or alkynes [25]:
Molecules 28 04586 i001

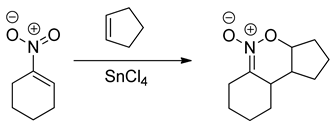

Based on hetero-analogues of conjugated dienes, preparing of six-membered heterocycles is possible via Hetero Diels-Alder (HDA) reaction. One of the most important hetero-analogues of dienes in organic synthesis is nitroethene and its analogues [26]. Many examples of these transformations were described in the second part of the XX century [27,28,29]. It is, however, generally known that for the contrast of the “carbo” DA reactions, HDA processes involving conjugated nitroalkenes as analogues of dienes require the participation of Lewis acid catalysts. For example, the HDA reaction between nitrocyclohexene and cyclopentene requires the presence of tin tetrachloride [30]:
Molecules 28 04586 i002
In the framework of this work, we described a rare case of non-catalysed HDA reaction with the participation of E-2-phenyl-1-cyano-1-nitroethene (1c) and its substituted analogues (1a,b,dg). This group of nitroalkenes was discovered in the first half of the XX century [31], but its physicochemistry has yet to be well known. In particular, some information regarding the participation of E-2-aryl-1-cyano-1-nitroethenes in [3 + 2] cycloaddition processes [32,33], as well as DA reaction with cyclopentadiene [34] are available. In particular, we decided to try the synthesis of new spirocyclic HDA adducts, which were not yet prepared in this way. For this purpose, as a 2π-component, we selected methylenecyclopentane (2). The experimental studies were supplemented with the data obtained from Density Functional Theory (DFT) computational study.

2. Results and Discussion

The cycloaddition reactions between E-2-aryl-1-cyano-1-nitroethenes 1ag and methylenecyclopentane 2 theoretically can be realized according to two independent paths leading to regioisomeric HDA cycloadducts (Scheme 1).
Firstly we decided to shed light on the nature of global and local interactions between cycloaddition components. We analysed the electronic properties of E-2-aryl-1-cyano-1-nitroethenes in the Conceptual Density Functional Theory (CDFT) framework within our previous works [35]. It was found that all of these-type compounds exhibit an electrophilic nature. Subsequently, independently of the nature of the substituent at the 4-position of the phenyl ring, the most electrophilic centre is always located on the β-carbon atom of the nitrovinyl moiety. For the comparison, methylenecyclopentane 2 is characterized by a low value of global electrophilicity (Table 1). On the other hand, high global nucleophilicity is associated with this molecule. Consequently, role 2 in reactions with strong electrophilic nitroalkenes is rather clear. In the Domingo, ref. [36] terminology, considered processes can be treated as polar with reverse electron density flux (REDF). For these-type processes, the reaction regioselectivity can be predicted using local reactivity indices calculated in the framework of CDFT [37]. According to this approach, the reaction course is controlled by stabilized interactions between the most electrophilic centre of the first molecule with the most nucleophilic centre at the second one. In the case of considered reactions, it will be the nucleophilic attack of the C1 atom of methylenecyclopentane (Table 1 and Table 2) to the 2-position of the nitrovinyl moiety of nitroalkenes. These types of interactions favoured the formation of adducts 3.
In our research’s next step, we attempted to verify the CDFT prediction. This study started from the reaction with the participation of parent E-2-phenyl-1-cyano-1-nitroethene 1c. For this purpose, we examined a number of reaction samples using different solvents, reaction times, and reagents ratios. It was found that the reaction proceeded well in a chloroform solution at 60 °C with 10%mol excess of the alkene 2. The reaction progress was monitored using chromatographic (TLC and HPLC) techniques. The cycloaddition was stopped after 24 h. Only one reaction product was detected in the post-reaction mixture. It was isolated via flash chromatography and crystallisation from ethyl acetate/petroleum ether or acetonitrile. In this way, we obtained the chemical individuum with the purity appropriate for identification. In particular, bands characteristic for C=N bonds were detected on the IR spectrum.
Next, we analysed their high-resolution mass spectra obtained by atmospheric pressure chemical ionization technique. The mass spectrum is characterized by protonated molecular ions in positive mode and deprotonated molecular ions in negative mode, appropriately, and a few prominent fragment ions. The elemental composition of the protonated molecular ion with m/z 257.1291 in positive mode and deprotonated molecular ion with m/z 255.1138 in negative mode confirmed the molecular formula C15H16N2O2. The major fragment ions in negative APCI mass spectra (m/z values and molecular formulas) are summarized in Table S1 (Supporting Information). Two of the fragmentation peaks, which correspond to the ions formed by the elimination of C5H8O and C5H7NO2, allowed us to assume that the cycloaddition reaction may lead to regioisomer 3c. On the 1H NMR spectrum, the most important signal is observed at 4.01ppm as a doublet of doublets. This confirms postulated regioisomerism of the adduct obtained.
Finally, the X-ray single crystal diffraction experiment revealed a molecular and crystal structure of 8-cyano-9-phenyl-6-oxa-7-aza-spiro-[4.5]dec-7-ene 7-oxide 3c. The molecular geometry parameters are presented in the Supplementary Material. The compound crystallizes as colourless transparent prisms in a monoclinic P21/c space group. (Figure 1). The supramolecular structure is stabilized by hydrophobic interactions of phenyl and cyclopentane groups, while no hydrogen bonds or π-stacking were observed (Figure 2).
For a full description of the 1c+2 process, we decided additionally for deeper exploration of cycloaddition mechanism using DFT computational data. It should be underlined that the mechanism of the formation of the heterocyclic ring cannot be apriori assumed. Many known DA and HDA reactions are realized via a single-step mechanism [38]. In the last years, however, several examples of the reaction with the participation of zwitterionic [39,40,41] and biradical intermediates were discovered [42]. These cases were recently discussed critically [43,44]. For this purpose, the ωB97X-D/6-311G-(d) level of theory was applied. The similar approach we used previously for the discussion of mechanistic aspects of many bimolecular reactions, such as DA processes [45], [3 + 2] cycloadditions [46], [4 + 3] cycloaddition [47] and many other [35,48].
Analysis of the stationary points in the HDA reaction between E-2-aryl-1-cyano-1-nitroethenes 1ag and methylenecyclopentane 2 demonstrate that these reactions take place through a one-step mechanism. Relative enthalpies, Gibbs free energy and entropies of the stationary points are collected in Table 3. The reaction between 1c and 2 begins with the creation of pre-reaction molecular complexes MC3c and MC4c. This stage is characterized by a reduction of the enthalpy of the reaction of about 6.1 and 7.7 kcal/mol, respectively (Table 3). Further conversion of MCs leads to TSs. This step is related to the growth of the enthalpy for TS3c and TS4c to 8.1 and 22.8 kcal/mol. The IRC analysis connects without any doubts both TSs, with respective MCs and respective products 3c and 4c. We can confirm that, in accordance with the experimental results, only one 3c product was obtained without any trace of 4c regioisomer.
A bonding evolution theory (BET) study along the model reaction path of [4 + 2] cycloaddition of (E)-2-phenyl-1-cyano-1-nitroethene 1c with methylenecyclopentane 2 was performed in order to characterize its mechanism. Detailed BET data of the important points of the reaction is given in Table 4 and Figure 3. The change in electronic structure, specifically the creation or disappearance of a basin compared to the previous point, is the choice’s condition.
The BET study of 621 points along the reaction path revealed thirteen phases by following intrinsic reaction coordinates. The resulting observations can be noted:
(1)
During phases, IV, the topological changes heading to the creation of two pseudoradical centres [49] at C4 and C5 are taking place. At point P1 V(N2) monosynaptic basin representing nonbonding electron density is created, integrating 0.05 e originating from disynaptic basins V(N2,O1) and V(N2,O11). At the next point two disynaptic basins V(C3,C4) and V’(C3,C4) of the double bond merges into one V(C3,C4) basin with a population of 3.51 e. The monosynaptic basin V(N2) disappears at point P3 increasing V(N2,C3) disynaptic basins population to 2.51 e. Phase V starts with two disynaptic basins V(C5,C6) and V’(C5,C6) combining into one V(C5,C6) integrating 3.22 e. These changes contribute 11.2 kcal∙mol−1 of the energetic cost, in contrast, the transition state is only 3.29 kcal∙mol−1 higher.
(2)
Phase VI begins at P5 with the appearance of a pseudoradical center at C4 represented by a monosynaptic basin V(C4) with a population of 0.10 e gathered from the V(C4,C3) disynaptic basin. In the next phase VII, another pseudoradical centre is created at C5–the V(C5,C6) disynaptic basin provides electron density for a new monosynaptic basin V(C5) with initial integration of 0.36 e.
(3)
The new bond C4-C5 is created at point P7, at a C-C distance of 2.000 Å by merging of V(C4) and V(C5) monosynaptic basins which show a population of 0.09 e and 0.39 e respectively at the last point of phase VII. The new disynaptic basin V(C4,C5) integrates 0.52 e, representing 28% of its final electron population. The TS3c is part of Phase VIII, where the first bond is already established.
(4)
At points P8 and P9, a new pseudoradical centre emerges represented by V(C3) and V’(C3) monosynaptic basins with an initial population of 0.52 e and 0.33 e, respectively. Their electron density originating from the V(C4,C3) disynaptic basin of the C4-C3 underpopulated double bond causes its transition into a single bond.
(5)
At point P10 the V(C6) monosynaptic basin appears with a marginal population of 0.01 e. At the start of phase XII, it disappears, and a slight increase in the population of V(O1) and V’(O1) monosynaptic basins takes place.
(6)
At the beginning of the last phase, the second bond is created, at an O-C distance of 1.778 Å, by a donation of the nonbonding electron density of O1 to C6. The V(O1,C6) disynaptic basin integrates 0.81 e representing a strongly underpopulated O1-C6 single bond.
(7)
The formation of the second O1-C6 bond starts while the first C4-C5 single bond is at 97% of its final population. Therefore, the mechanism of the HDA reaction of nitroalkene 1c with alkene 2 proceeds by a two-stage one-step mechanism [50].
(8)
The activation energy associated with this HDA reaction, 7.46 kcal·mol−1, can mainly be related to the depopulation of the C3-C4 and C5-C6 regions, formation of C4 and C5 pseudoradical centres and first C4-C5 single bond.
(9)
The conducted BET analysis allowed for the determination and examination of the molecular mechanism of the HDA reaction of the (E)-2-phenyl-1-cyano-1-nitroethene 1c and methylenecyclopentane 2 (Scheme 2).
In the last part of the research, we examined in our laboratory other similar processes with the participation of a series of E-2-aryl-1-cyano-1-nitroethenes with different-type EDG or EWG substituents in the 4 position of the phenyl ring. The results are collected in Table 5. All considered reactions are realized under similar conditions and with the same regioselectivity.

3. Materials and Methods

3.1. Analytical Techniques

HPLC analyses were done using a Knauer device with a UV VIS detector (LiChrospher 18-RP 10 µm column, eluent: 80% methanol). M.p. values were measured on the Boetius apparatus and were uncorrected. IR spectra were derived from the FTS Nicolet IS 10 spectrophotometer. 1HNMR spectra were recorded on an AV 400 Neo spectrometer or a Bruker Avance III 600 spectrometer and are reported in ppm using deuterated solvent as an internal standard (CDCl3 at 7.26 ppm).

3.2. X-ray Crystal Structure Determination

X-ray quality crystals of the 8-cyano-9-phenyl-6-oxa-7-aza-spiro-[4.5]dec-7-ene 7-oxide 3c. were formed over a period of approximately 2 days by re-crystallization from ethanol. The diffraction intensities from the single crystal with dimensions of 0.7 × 0.6 × 0.4 mm were collected at T = 100.00(10) K with the use of Rigaku XtaLAB Synergy-S diffractometer equipped with a Cu Kα radiation source (λ = 1.54184 Å) and HyPix-6000HE hybrid photon counting detector. The total number of runs and images was based on the strategy calculation from the program CrysAlisPro (Rigaku, v1.171.41.123a, 2022), and the unit cell was refined using CrysAlisPro on 35,589 reflections, 74% of the observed reflections. The maximum resolution that was achieved was Θ = 75.837° (0.795 Å). The molecular model of the structure was obtained by the SHELXT [51] structure solution program using intrinsic phasing with Olex2 [52] as the graphical interface and refined by the least squares using version 2018/3 of SHELXL [53]. All non-hydrogen atoms were refined anisotropically. All of the hydrogen atom positions were calculated geometrically and refined in geometrically idealized positions with isotropic temperature factors 1.2 times the equivalent isotropic temperature factors, Ueq, of their attached atoms. The final structure was validated by CheckCif (http://checkcif.iucr.org, (accessed on 24 April 2023)) and deposited in the Cambridge Crystallographic Data Centre (CCDC) under accession number 2220704.

3.3. Synthesis of Conjugated Nitroalkenes

Nitroalkenes were prepared via condensation of appropriate aldehydes with nitroacetonitrile using known procedures [54,55,56].

3.4. Synthesis of Methylenecyclopentane (2)

2-Cyclopentenylacetonitrile [57]
Cyclopentanone (38.90 g, 0.4624 mol), α-cyanoacetic acid (39.33 g, 0.4624 mol), ammonium acetate (3.55 g, 0.0461 mol), and toluene (50 mL) was heated with magnetic stirring under reflux with a Dean-Stark adapter until no more water was separating (about 4 h). Next, the reaction mixture was cooled to room temperature and washed twice with 25 mL of water, once with 25 mL of a saturated aqueous solution of NaHCO3, and twice with 25 mL of brine. The solvent was removed on a rotary evaporator and the residue was distilled under reduced pressure to give 43.31 g (0.4041 mol) of 2-cyclopentenylacetonitrile with a boiling point of 102 106 °C/70 mmHg which corresponds to a yield of 87.4%.
2-Cyclopentenylacetic acid
2-Cyclopentenylacetonitrile (40.00 g, 0.3733 mol), ethylene glycol (100 mL), and sodium hydroxide (45 g, 1.125 mol) solution in water (100 mL) was heated under reflux for 15 h. After that time the reaction mixture was cooled to room temperature, diluted with water (200 mL) neutralized with con. hydrochloric acid (100 mL), and extracted with five portions of dichloromethane (25 mL). The organic phase was washed twice with water (100 mL), dried with anhydrous MgSO4, and evaporated on a rotary evaporator. Obtained crude 2-cyclopentenylacetic acid (38.72 g, 0.3068 mol, 82.2%) was used for decarboxylation without further purification.
Methylenecyclopentane (2)
2-Cyclopentenylacetic acid (38.72 g, 0.3069 mol) was charged into a 100 mL round bottom flask, connected to a distillation apparatus with a receiver cooled in an isopropanol/liquid nitrogen slush bath (−80 °C) and was slowly heated in an oil bath. When the oil bath reached 145 °C a reaction started. Distillate was collected at a temperature not exceeding 80 °C. When no more liquid was condensing the distillation was stopped and the crude product was washed with Na2CO3 (20 mL of 10% aqueous solution), and dried with anhydrous CaCl2. Fractional distillation gave 14.29 g (0.1740 mol, 56.7%) of methylenecyclopentane with a boiling point of 71–73 °C.

3.5. HDA Reactions between E-2-Aryl-1-cyano-1-nitroethenes and Methylenecyclopentane–General Procedure

A glass ampule was charged with 0.002 mol of nitroalkene 1, 0.0022 mol (0.1809 g) of methylenecyclopentane 2, and chloroform (5 mL). After sealing, the ampule was heated in a water bath at 60 °C for 24 h. Next, the ampule was cooled in an ice bath and opened. The crude reaction mixture was evaporated on a rotary evaporator. The remaining solid was subjected to flash chromatography and crystallization from ethyl acetate/petroleum ether or acetonitrile.

3.6. Quantum Chemical Calculations

DFT calculations were performed using GAUSSIAN 16 package [58]. Frequency analysis was used to characterize all stationary points; substrates and products presented only positive eigenvalues in their Hessian matrices and transition states (TSs) presented only one negative eigenvalue in their Hessian matrices. The solvent effects on the reaction were included by using the IEFPCM algorithm [59]. All calculations were done for molecules at 298.15 K and 1 atm.
The global electron density transfer [60] (GEDT) was calculated using the equation GEDT ( f ) = q f q , where q are the charges, computed by natural population analysis [61,62] (NPA), of all atoms belonging to one of the two frameworks (f) at the TS. The global reactivity indices (electronic potential μ, chemical hardness η, global electrophilicity ω, and global nucleophilicity N) were calculated at B3LYP/6-31G(d) computational level using the equation described in ref. [63].
The Electron Localization Function (ELF) [64] analysis was performed using the TopMod package [65] at the standard cubical grid of step size of 0.1 Bohr. To visualize the molecular geometries and ELF basin attractors GaussView program [66] was used.

4. Conclusions

HDA reactions with the participation of E-2-aryl-1-cyano-1-nitroethenes 1ag and methylenecyclopentane 2 are realised very easily under mild conditions. In contrast to most known nitroalkene HDA processes, the explored reaction does not require the presence of LA-type catalysts. Additionally, in all analysed cases, the full regioselectivity of the reaction was observed. So, the synthetic protocol proposed by us should be considered very attractive for the comparison of a generally known standard. Next, our theoretical investigations show, without any doubts, that the reaction regiocontrol can be easily predicted in the framework of CDFT. Additionally, performed mechanistic considerations confirm that the process of the formation of a new heterocyclic molecular system is realized via polar but one-step mechanism. Detailed BET analysis of the reaction between (E)-2-phenyl-1-cyano-1-nitroethene 1c with methylenecyclopentane 2 indicates that at the beginning of the reaction, two pseudoradical C4 and C5 centres are formed, demanded the formation of the first C4-C5 single bond through a two-centre interaction. Formation of the second O1-C6 bond takes place at the end of the reaction path when the first C4-C5 single bond is almost formed. According to that, the mechanism of HDA reaction follows a two-stage one-step mechanism.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28124586/s1.

Author Contributions

Conceptualization, A.K.-Z. and R.J.; formal analysis, R.J.; investigation, P.W., A.W., E.W., R.D.; writing—original draft preparation, P.W., A.K.-Z., R.D., R.J.; visualization, P.W., R.D.; supervision, A.K.-Z. and R.J. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

Rigaku XtaLAB Synergy-S X-ray diffractometer system used to obtain results included in this publication was supported by the founds from the EU Regional Operational Program of the Lodz Region, RPLD.01.01.00-10-0008/18. We gratefully acknowledge Poland’s high-performance computing infrastructure PLGrid (HPC Centers: ACK Cyfronet AGH) for providing computer facilities and support within computational grant no. PLG/2022/015777.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Not applicable.

References

  1. Horsten, T.; Dehaen, W. 4,5,6,7-Tetrahydroindol-4-Ones as a Valuable Starting Point for the Synthesis of Polyheterocyclic Structures. Molecules 2021, 26, 4596. [Google Scholar] [CrossRef] [PubMed]
  2. Khalid, Z.; Alnuwaiser, M.A.; Ahmad, H.A.; Shafqat, S.S.; Munawar, M.A.; Kamran, K.; Abbas, M.M.; Kalam, M.A.; Ewida, M.A. Experimental and Computational Analysis of Newly Synthesized Benzotriazinone Sulfonamides as Alpha-Glucosidase Inhibitors. Molecules 2022, 27, 6783. [Google Scholar] [CrossRef] [PubMed]
  3. Narváez-Ordoñez, E.G.; Pabón-Carcelén, K.A.; Zurita-Saltos, D.A.; Bonilla-Valladares, P.M.; Yánez-Darquea, T.G.; Ramos-Guerrero, L.A.; Ulic, S.E.; Jios, J.J.; Echeverría, G.A.; Piro, O.E.; et al. Synthesis, Experimental and Theoretical Study of Azidochromones. Molecules 2022, 27, 2636. [Google Scholar] [CrossRef] [PubMed]
  4. Xiong, Y.X.; Huang, Z.S.; Tan, J.H. Targeting G-quadruplex nucleic acids with heterocyclic alkaloids and their derivatives. Eur. J. Med. Chem. 2015, 97, 538–551. [Google Scholar] [CrossRef]
  5. Mirza, A.Z. Advancement in the development of heterocyclic nucleosides for the treatment of cancer-A review. Nucleosides Nucleotides Nucleic Acids 2019, 38, 836–857. [Google Scholar] [CrossRef]
  6. Arora, P.; Arora, V.; Lamba, H.S.; Wadhwa, D. Importance of heterocyclic chemistry: A review. Int. J. Pharm. Sci. Res. 2012, 3, 2947–2954. [Google Scholar]
  7. Palomero, O.E.; Cunningham, A.L.; Davies, B.W.; Jones, R.A. Antibacterial Thiamine inspired silver (I) and gold (I) N-heterocyclic carbene compounds. Inorganica Chim. Acta 2021, 517, 120152. [Google Scholar] [CrossRef]
  8. Shchepin, R.V.; Barskiy, D.A.; Mikhaylov, D.A.; Chekmenev, E.Y. Efficient Synthesis of Nicotinamide-1-15N for Ultrafast NMR Hyperpolarization Using Parahydrogen. Bioconjugate Chem. 2016, 27, 878–882. [Google Scholar] [CrossRef] [Green Version]
  9. Al-Mulla, A. Biological Importance of Heterocyclic Compounds. Der Pharma Chem. 2017, 9, 141–147. [Google Scholar]
  10. Gomtsyan, A. Heterocycles in drugs and drug discovery. Chem. Heterocycl. Compd. 2012, 48, 7–10. [Google Scholar] [CrossRef]
  11. Hossain, M.; Nanda, A.K. A Review on Heterocyclic: Synthesis and Their Application in Medicinal Chemistry of Imidazole Moiety. Sci. J. Chem. 2018, 6, 83–94. [Google Scholar] [CrossRef]
  12. Arshadi, S.; Banaei, A.; Ebrahimiasl, S.; Monfared, A.; Vessally, E. Solvent-free incorporation of CO2 into 2-oxazolidinones: A review. RSC Adv. 2019, 9, 19465–19482. [Google Scholar] [CrossRef] [Green Version]
  13. Boiko, V.N. Aromatic and heterocyclic perfluoroalkyl sulfides. Methods of preparation. Beilstein J. Org. Chem. 2010, 6, 880–921. [Google Scholar] [CrossRef]
  14. Tietze, L.F.; Rackelmann, N. Domino reactions in the synthesis of heterocyclic natural products and analogs. Pure Appl. Chem. 2004, 76, 1967–1983. [Google Scholar] [CrossRef]
  15. Quraishi, M.A.; Chauhan, D.S.; Saji, V.S. Heterocyclic biomolecules as green corrosion inhibitors. J. Mol. Liq. 2021, 341, 117265. [Google Scholar] [CrossRef]
  16. Saranya, J.; Sowmiya, M.; Sounthari, P.; Parameswari, K.; Chitra, S.; Senthilkumar, K. N-heterocycles as corrosion inhibitors for mild steel in acid medium. J. Mol. Liq. 2016, 216, 42–52. [Google Scholar] [CrossRef]
  17. Newsome, A.G.; Murphy, B.T.; van Breemen, R.B. Isolation and Characterization of Natural Blue Pigments from Underexplored Sources. In Book Physical Methods in Food Analysis; Tunick, M.H., Onwulata, C.I., Eds.; American Chemical Society: Washington, DC, USA, 2013; Volume 8, pp. 105–125. [Google Scholar]
  18. Eicher, T.; Hauptmann, S.; Speicher, A. The Chemistry of Heterocycles: Structures, Reactions, Synthesis, and Applications, 3rd ed.; John Wiley & Sons: Hoboken, NJ, USA, 2013. [Google Scholar]
  19. Chen, J.J.; Li, K.T.; Yang, D.Y. Synthesis of Coumarin/Phenanthridine-Fused Heterocycles and Their Photochemical and Thermochromic Properties. Org. Lett. 2011, 7, 1658–1661. [Google Scholar] [CrossRef] [PubMed]
  20. Courtney, S.M.; Whittaker, M.; Mather, O.C.; Yarnold, C.J.; Backer, O.R.; Hesterkamp, T. Compounds Having Hsp90 Inhibitory Activity. British Patent 2449293, 2008. [Google Scholar]
  21. Lubbers, T.; Angehrn, P.; Gmunderb, H.; Herzig, S. Measurement at 100 K is a standard procedure in crystallography to protect crystals from thermal changes when exposed to high-energy X-rays and to minimize the possibility of radiation damage. Bioorg. Med. Chem. Lett. 2007, 17, 4708–4714. [Google Scholar]
  22. Sun, Y.; Huang, W.; Li, Z.; Wang, T.; Luo, J. Design, synthesis, and herbicidal activity of novel 2-(arylamino)-5-methyl-4-methylene-7-(methylthio)-4H-pyrido[4,3-d][1,3]oxazine-8-carbonitrile derivatives. J. Chem. Res. 2019, 43, 119–123. [Google Scholar] [CrossRef]
  23. Piste, P.B. Novel synthesis and antimicrobial activities of thiazino-oxazine derivatives. Int. J. Pharm. Sci. Drug Res. 2018, 10, 206–212. [Google Scholar] [CrossRef]
  24. Nicolaou, K.C.; Snyder, S.A.; Montagnon, T.; Vassilikogiannakis, G. The Diels–Alder Reaction in Total Synthesis. Angew. Chem. Int. Ed. 2002, 41, 1668–1698. [Google Scholar] [CrossRef]
  25. Domingo, L.R.; Ríos-Gutiérrez, M.; Silvi, B.; Pérez, P. The Mysticism of Pericyclic Reactions: A Contemporary Rationalisation of Organic Reactivity Based on Electron Density Analysis. Eur. J. Org. Chem. 2018, 9, 1107–1120. [Google Scholar] [CrossRef]
  26. Heravi, M.; Ahmadi, T.; Ghavidel, M.; Heidari, B.; Hamidi, H. Recent applications of the hetero Diels–Alder reaction in the total synthesis of natural products. RSC Adv. 2015, 5, 101999–102075. [Google Scholar] [CrossRef]
  27. Denmark, S.E.; Cramer, C.J.; Sternberg, J.A. Intermolecular [4 + 2]-Cycloadditions of Nitroalkenes with Cyclic Olefins. Transformations of Cyclic Nitronates. Helv. Chim. Acta 1986, 69, 1971–1989. [Google Scholar] [CrossRef]
  28. Denmark, S.E.; Sternberg, J.A. Intramolecular [4 + 2] cycloadditions of (Z)-.alpha.,.beta.-unsaturated aldehydes with vinyl sulfides and ketene dithioacetals. J. Am. Chem. Soc. 1986, 108, 8277–8279. [Google Scholar] [CrossRef]
  29. Denmark, S.E.; Dappen, M.S.; Cramer, C.J. Intramolecular [4 + 2] cycloadditions of nitroalkenes with olefins. J. Am. Chem. Soc. 1986, 108, 1306–1307. [Google Scholar] [CrossRef]
  30. Hodge, E.B.; Abbott, R. The Reaction between 2-Nitro-1-phenylpropene and Cyclohexanone. J. Org. Chem. 1962, 27, 2254–2255. [Google Scholar] [CrossRef]
  31. Creegan, S.E.; Piercey, D.G. Nitroacetonitrile as a versatile precursor in energetic materials synthesis. RSC Adv. 2020, 10, 39478–39484. [Google Scholar] [CrossRef]
  32. Woliński, P.; Kącka-Zych, A.; Demchuk, O.M.; Łapczuk-Krygier, A.; Mirosław, B.; Jasiński, R. Clean and molecularly programmable protocol for preparation of bis-heterobiarylic systems via a domino pseudocyclic reaction as a valuable alternative for TM-catalyzed cross-couplings. J. Clean. Prod. 2020, 275, 122086. [Google Scholar] [CrossRef]
  33. Żmigrodzka, M.; Dresler, E.; Hordyjewicz-Baran, Z.; Kulesza, R.; Jasiński, R. A unique example of noncatalyzed [3+2] cycloaddition involving (2E)-3-aryl-2-nitroprop-2-enenitriles. Chem. Heterocycl. Comp. 2017, 53, 1161–1162. [Google Scholar] [CrossRef]
  34. Łapczuk-Krygier, A.; Ponikiewski, Ł.; Jasiński, R. The crystal structure of (1RS,4RS,5RS,6SR)-5-cyano-5-nitro-6-phenyl-bicyclo[2.2.1]hept-2-ene. Crystallogr. Rep. 2014, 59, 961–963. [Google Scholar] [CrossRef]
  35. Wolinski, P.; Kacka-Zych, A.; Miroslaw, B.; Wielgus, E.; Jasinski, R. Green, one-pot synthesis of 1,2-oxazine-type herbicides via non-catalyzed Hetero Diels-Alder reactions involving (2E)-3-aryl-2-nitroprop-2-enenitriles. J. Clean. Prod. 2022, 356, 131878. [Google Scholar] [CrossRef]
  36. Domingo, L.R.; Ríos-Gutiérrez, M. A Useful Classification of Organic Reactions Based on the Flux of the Electron Density. SciRad 2023, 2, 1–24. [Google Scholar] [CrossRef]
  37. Geerlings, P.; De Proft, F.; Langenaeker, W. Conceptual Density Functional Theory. Chem. Rev. 2003, 103, 1793–1874. [Google Scholar] [CrossRef]
  38. Domingo, L.R.; Sáeza, J.A. Understanding the mechanism of polar Diels–Alder reactions. Org. Biomol. Chem. 2009, 7, 3576–3583. [Google Scholar] [CrossRef]
  39. Jasiński, R. First example of stepwise, zwitterionic mechanism for bicyclo[2.2.1]hept-5-ene (norbornene) formation process catalyzed by the 1-butyl-3-methylimidazolium cations. Monatsh. Chem.-Chem. Mon. 2016, 147, 1207–1213. [Google Scholar] [CrossRef] [Green Version]
  40. Jasiśnki, R. One-step versus two-step mechanism of Diels-Alder reaction of 1-chloro-1-nitroethene with cyclopentadiene and furan. J. Mol. Graph. Model. 2017, 75, 55–61. [Google Scholar]
  41. Jasiński, R. B-Trifluoromethylated nitroethenes in Diels-Alder reaction with cyclopentadiene: A DFT computational study. J. Fluor. Chem. 2018, 206, 1–7. [Google Scholar] [CrossRef]
  42. Jasiński, R. A reexamination of the molecular mechanism of the Diels–Alder reaction between tetrafluoroethene and cyclopentadiene. React. Kinet. Mech. Catal. 2016, 119, 49–57. [Google Scholar] [CrossRef] [Green Version]
  43. Jasiński, R. On the question of stepwise [4+2] cycloaddition reactions and their stereochemical aspects. Symmetry 2021, 13, 1911. [Google Scholar] [CrossRef]
  44. Siadati, S.A.; Rezazadeh, S. The extraordinary gravity of three atom 4π-components and 1,3-dienes to C20-nXn fullerenes; a new gate to the future of Nano technology. SciRad 2023, 1, 46–68. [Google Scholar] [CrossRef]
  45. Jasiński, R. Stepwise, zwitterionic course of Hetero Diels-Alder reaction between 1,2,4-triazyne molecular systems and 2-cyclopropylidene-1,3-dimetylimidazoline. Chem. Heterocycl. Compd. 2022, 58, 260. [Google Scholar] [CrossRef]
  46. Mondal, A.; Mohammad-Salim, H.A.; Acharjee, N. Unveiling substituent effects in [3+2] cycloaddition reactions of benzonitrile N-oxide and benzylideneanilines from the molecular electron density theory perspective. SciRad 2023, 2, 75–92. [Google Scholar] [CrossRef]
  47. Kącka-Zych, A.; Jasiński, R. Mechanistic aspects of the synthesis of seven-membered internal nitronates via stepwise [4 + 3] cycloaddition involving conjugated nitroalkenes: Molecular Electron Density Theory computational study. J. Comput. Chem. 2022, 43, 1221. [Google Scholar] [CrossRef]
  48. Kącka-Zych, A.; Jasiński, R. Understanding the molecular mechanism of the stereoselective conversion of N-trialkylsilyloxy nitronates into bicyclic isoxazoline derivatives. New J. Chem. 2021, 45, 9491–9500. [Google Scholar] [CrossRef]
  49. Domingo, L.R.; Sáez, J.A. Understanding the Electronic Reorganization along the Nonpolar [3 + 2] Cycloaddition Reactions of Carbonyl Ylides. J. Org. Chem. 2011, 76, 373–379. [Google Scholar] [CrossRef]
  50. Domingo, L.R.; Perez, P.; Saez, J.A. Understanding the regioselectivity in hetero Diels-Alder reactions. An ELF analysis of the reaction between nitrosoethylene and 1-vinylpyrrolidine. Tetrahedron 2013, 69, 107–114. [Google Scholar] [CrossRef]
  51. Sheldrick, G.M. SHELXT-Integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8. [Google Scholar] [CrossRef] [Green Version]
  52. Bourhis, L.J.; Dolomanov, O.V.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. The anatomy of a comprehensive constrained, restrained refinement program for the modern computing enviroment-Olex2 dissected. Acta Crystallogr. 2015, A71, 59–75. [Google Scholar]
  53. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8. [Google Scholar]
  54. Boguszewska-Czubara, A.; Kula, K.; Wnorowski, A.; Biernasiuk, A.; Popiołek, Ł.; Miodowski, D.; Demchuk, O.M.; Jasiński, R. Novel functionalized β-nitrostyrenes: Promising candidates for new antibacterial drugs. Saudi. Pharm. J. 2019, 27, 593–601. [Google Scholar] [CrossRef] [PubMed]
  55. Jasiński, R.; Mirosław, B.; Demchuk, O.M.; Babyuk, D.; Łapczuk-Krygier, A. In the search for experimental and quantumchemical evidence for zwitterionic nature of (2E)-3-[4-(dimethylamino)phenyl]-2-nitroprop-2-enenitrile–An extreme example of donor–π–acceptor push–pull molecule. J. Mol. Struct. 2016, 1108, 689–697. [Google Scholar] [CrossRef]
  56. Boguszewska-Czubara, A.; Łapczuk-Krygier, A.; Rykala, K.; Biernasiuk, A.; Wnorowski, A.; Popiolek, Ł.; Maziarka, A.; Hordyjewska, A.; Jasiński, R. Novel synthesis scheme and in vitro antimicrobial evaluation of a panel of (E)-2-aryl-1-cyano-1-nitroethenes. J. Enzym. Inhib. Med. Chem. 2016, 31, 900–907. [Google Scholar] [CrossRef] [Green Version]
  57. Banwell, M.G.; Vogt, F.; Wu, A.W. Assembly of the 1-Azaspiro[5.5]undecane Framework Associated with Perhydrohistrionicotoxin via Electrocyclic Ring-Opening of a Ring-Fused gem-Dichlorocyclopropane and Trapping of the Resulting π-Allyl Cation by a Tethered, Nitrogen-Centered Nucleophile. Aust. J. Chem. 2006, 59, 415–425. [Google Scholar] [CrossRef]
  58. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 16, Revision C.01; Gaussian, Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  59. Scalmani, G.; Frisch, M.J. Continuous surface charge polarizable continuum models of solvation. I. General formalism. J. Chem. Phys. 2010, 132, 114110. [Google Scholar] [CrossRef]
  60. Domingo, L.R. A new C–C bond formation model based on the quantum chemical topology of electron density. RSC Adv. 2014, 4, 32415–32428. [Google Scholar] [CrossRef] [Green Version]
  61. Reed, A.E.; Weinstock, R.B.; Weinhold, F. Natural population analysis. J. Chem. Phys. 1985, 83, 735–746. [Google Scholar] [CrossRef]
  62. Reed, A.E.; Curtiss, L.A.; Weinhold, F. Intermolecular interactions from a natural bond orbital, donor-acceptor viewpoint. Chem. Rev. 1988, 88, 899–926. [Google Scholar] [CrossRef]
  63. Domingo, L.R.; Ríos-Gutiérrez, M.; Pérez, P. Applications of the Conceptual Density Functional Theory Indices to Organic Chemistry Reactivity. Molecules 2016, 21, 748. [Google Scholar] [CrossRef] [Green Version]
  64. Becke, A.D.; Edgecombe, K.E. A simple measure of electron localization in atomic and molecular systems. J. Chem. Phys. 1990, 92, 5397–5403. [Google Scholar] [CrossRef]
  65. Noury, S.; Krokidis, X.; Fuster, F.; Silvi, B. Computational tools for the electron localization function topological analysis. Comput. Chem. 1999, 23, 597–604. [Google Scholar] [CrossRef]
  66. Dennington, R.; Keith, T.A.; Millam, J.M. GaussView, 6th ed.; Semichem Inc.: Shawnee Mission, KS, USA, 2016. [Google Scholar]

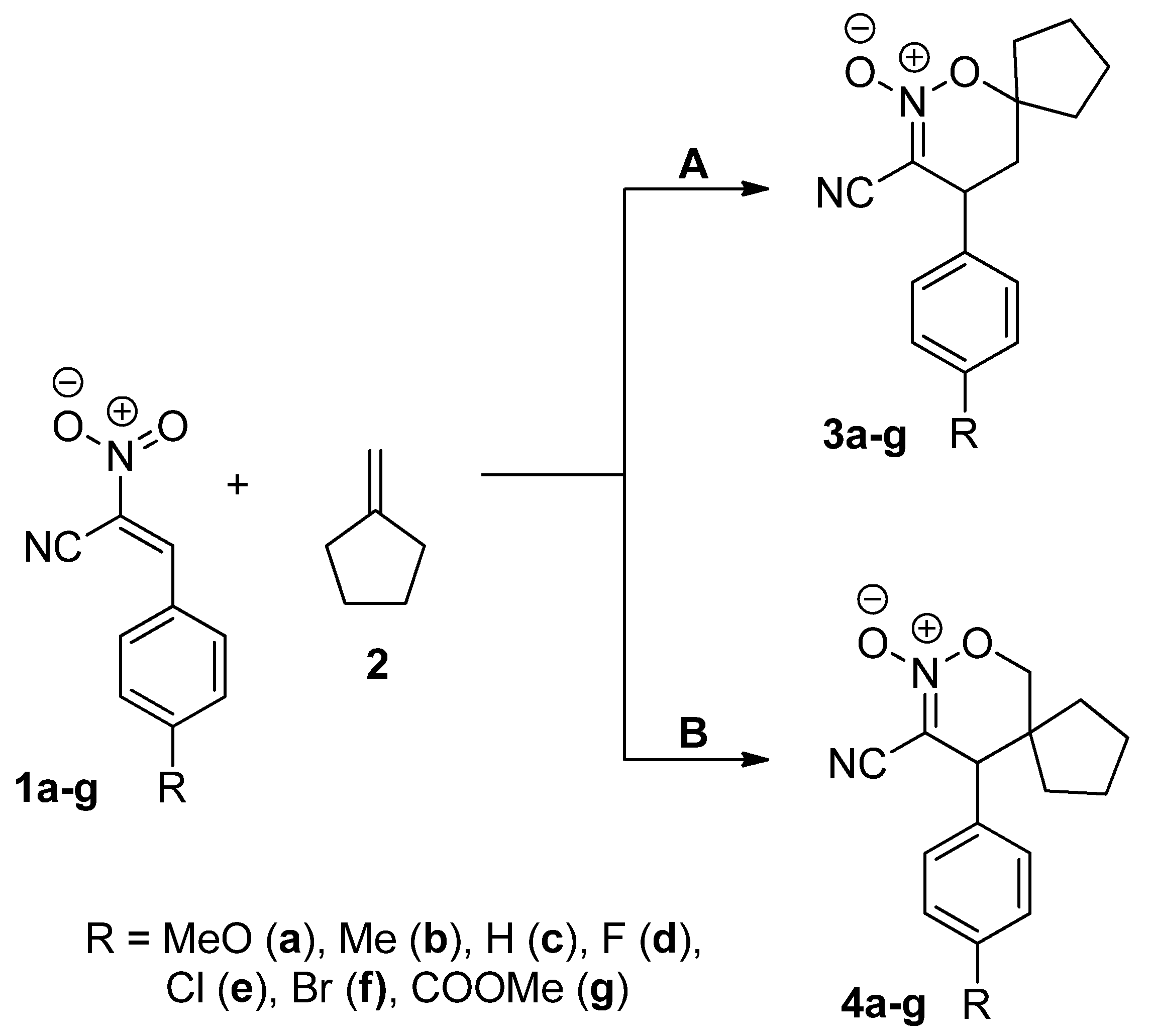

Scheme 1. HDA reaction of the E-2-aryl-1-cyano-1-nitroethenes 1ag and methylenecyclopentane 2.
Scheme 1. HDA reaction of the E-2-aryl-1-cyano-1-nitroethenes 1ag and methylenecyclopentane 2.
Molecules 28 04586 sch001

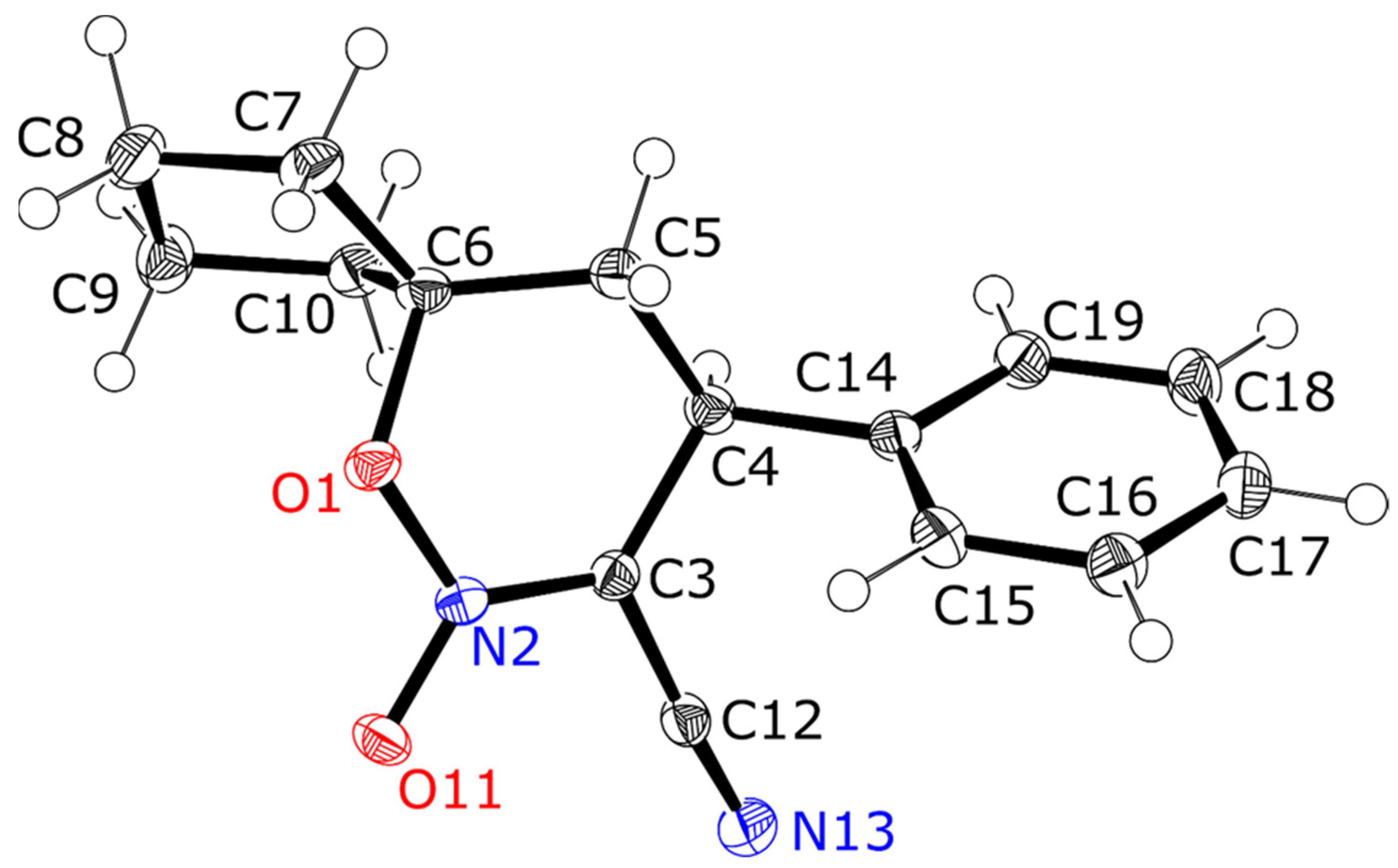

Figure 1. Molecular structure of 8-cyano-9-phenyl-6-oxa-7-aza-spiro-[4.5]dec-7-ene 7-oxide 3c. Ellipsoids are shown at 50% probability.
Figure 1. Molecular structure of 8-cyano-9-phenyl-6-oxa-7-aza-spiro-[4.5]dec-7-ene 7-oxide 3c. Ellipsoids are shown at 50% probability.
Molecules 28 04586 g001

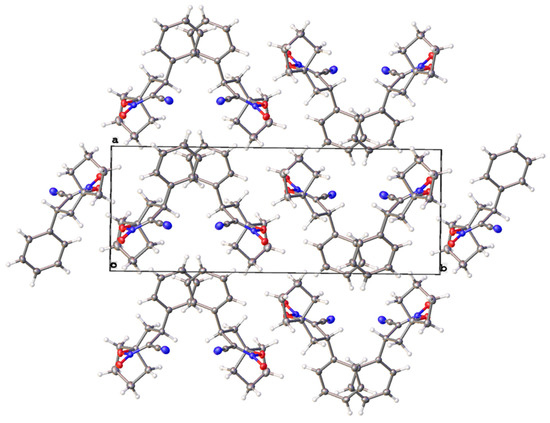

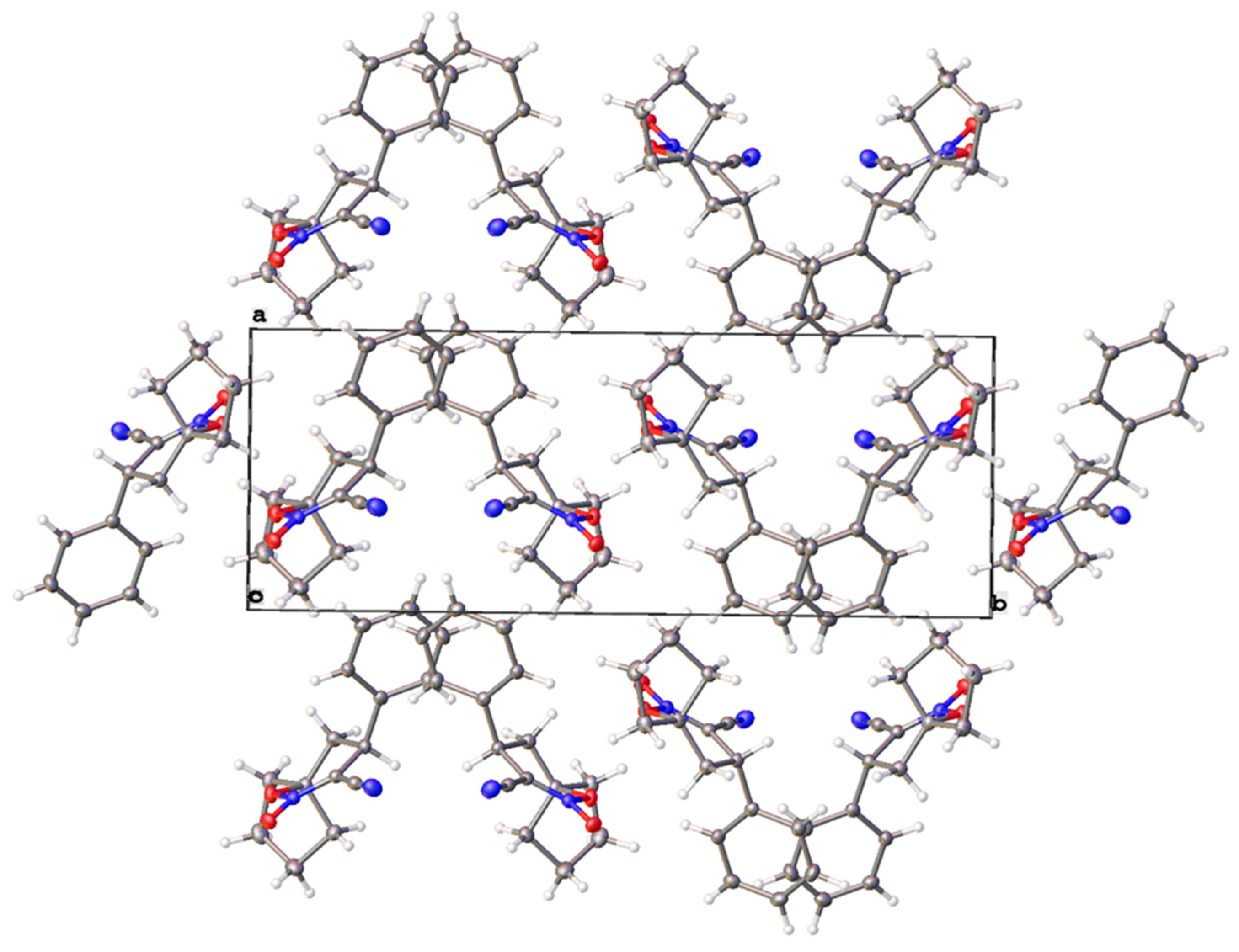

Figure 2. Crystal packing in 8-cyano-9-phenyl-6-oxa-7-aza-spiro-[4.5]dec-7-ene 7-oxide 3c along the c axis.
Figure 2. Crystal packing in 8-cyano-9-phenyl-6-oxa-7-aza-spiro-[4.5]dec-7-ene 7-oxide 3c along the c axis.
Molecules 28 04586 g002

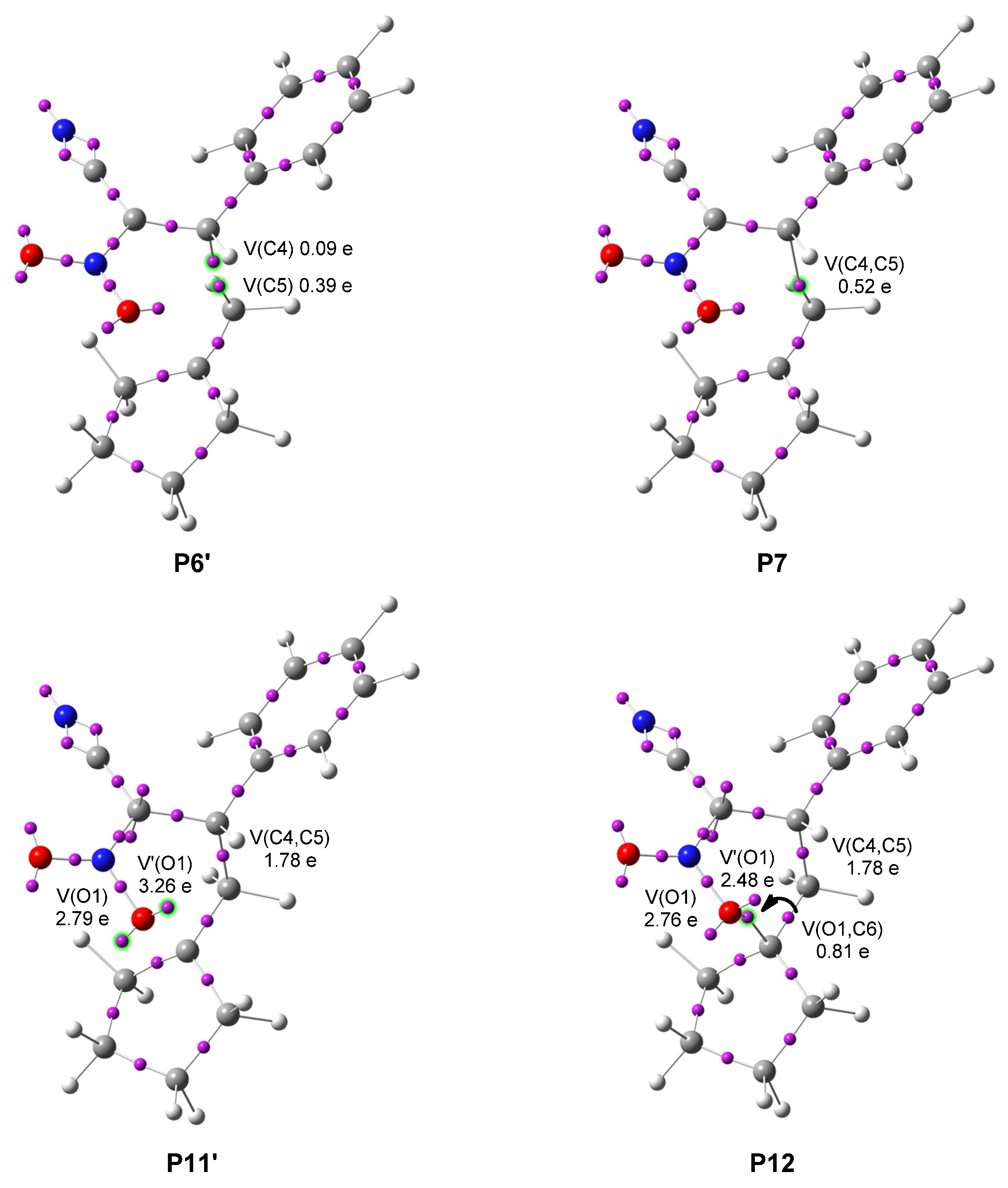

Figure 3. ELF attractor positions of the structures involved in the C-O and C-C bond formation on the reaction path of (E)-2-phenyl-1-cyano-1-nitroethene 1c and alkene 2. The prime symbol marks the last structure of the corresponding BET phase.
Figure 3. ELF attractor positions of the structures involved in the C-O and C-C bond formation on the reaction path of (E)-2-phenyl-1-cyano-1-nitroethene 1c and alkene 2. The prime symbol marks the last structure of the corresponding BET phase.
Molecules 28 04586 g003

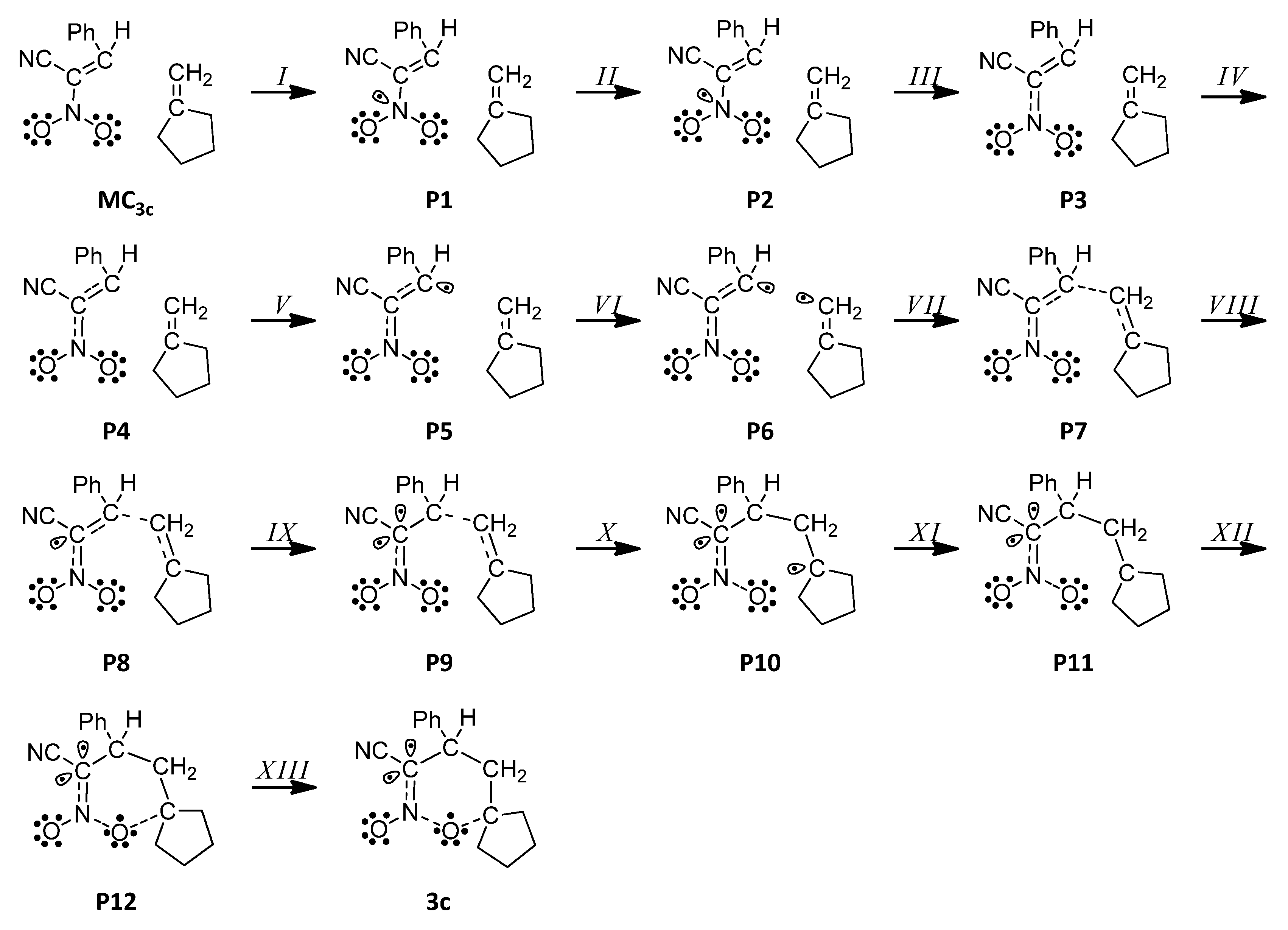

Scheme 2. Simplified representation of the molecular mechanism of the HDA reaction between (E)-2-phenyl-1-cyano-1-nitroethene 1c with methylenecyclopentane 2 by Lewis-like structures arising from the topological analysis of the ELF along the reaction path.
Scheme 2. Simplified representation of the molecular mechanism of the HDA reaction between (E)-2-phenyl-1-cyano-1-nitroethene 1c with methylenecyclopentane 2 by Lewis-like structures arising from the topological analysis of the ELF along the reaction path.
Molecules 28 04586 sch002
Table 1. Global and local electronic properties of methylenecyclopentane 2.
Table 1. Global and local electronic properties of methylenecyclopentane 2.
Global PropertiesLocal Properties
eletronic chemical potential
μ [eV]
chemical hardhess η [eV]electro-
philicity ω [eV]
nucleo-
philicityN [eV]
Molecules 28 04586 i003
P1N1 [eV]P2N2 [eV]
2.876.950.592.770.6361.760.2660.74
Table 2. The global reactivity descriptors of E-2-aryl-1-cyano-1-nitroethenes 1ag are calculated at the B3LYP/6-31G(d) level of theory. The electronic chemical potential μ, chemical hardness η, electrophilicity ω, and nucleophilicity N of studied reagents in eV.
Table 2. The global reactivity descriptors of E-2-aryl-1-cyano-1-nitroethenes 1ag are calculated at the B3LYP/6-31G(d) level of theory. The electronic chemical potential μ, chemical hardness η, electrophilicity ω, and nucleophilicity N of studied reagents in eV.
NitroalkeneEletronic Chemical Potential
[μ eV]
Chemical Hardhess η [eV]Electro-
Philicity [eV]
Nucleo-
Philicityn [eV]
1a−4.823.693.142.45
1b−5.103.943.302.04
1c−5.274.063.421.80
1d−5.283.983.501.84
1e−5.353.893.671.81
1f−5.313.813.701.90
1g−5.493.963.801.64
Table 3. ωB97X-D (PCM)/6-311 G(d) thermodynamic parameters: Gibbs free energy, enthalpies in kcal∙mol-1 and entropies in kcal∙mol−1∙K−1 calculated at 25 °C and 1atm in chloroform. Imaginary frequencies characteristic for transition states in cm−1.
Table 3. ωB97X-D (PCM)/6-311 G(d) thermodynamic parameters: Gibbs free energy, enthalpies in kcal∙mol-1 and entropies in kcal∙mol−1∙K−1 calculated at 25 °C and 1atm in chloroform. Imaginary frequencies characteristic for transition states in cm−1.
StructureΔHΔSΔGImaginary Frequencies
MC3a–6.1–32.63.7-
TS3a10.0–46.623.9−425.7
3a–22.2–50.6–7.1-
MC4a–7.8–37.53.4-
TS4a24.1–53.139.9−586.6
4a–15.8–52.4–0.1-
MC3b–6.1–33.43.8-
TS3b8.3–52.924.1−420.3
3b–23.8–50.5–8.7-
MC4b–7.9–37.33.2-
TS4b23.2–49.938.1−581.7
4b–17.3–51.9–1.8-
MC3c–6.1–34.04.0-
TS3c8.1–46.421.9−421.4
3c–24.7–50.1–9.8-
MC4c–7.7–37.03.3-
TS4c22.8–53.638.7−579.5
4c–18.3–53.5–2.3-
MC3d–6.1–33.83.9-
TS3d8.4–47.322.6−422.5
3d–24.5–50.3–9.5-
MC4d–7.8–36.63.2-
TS4d22.9–52.838.7−580.3
4d–18.0–52.3–2.4-
MC3e–6.1–34.64.2-
TS3e7.9–47.722.1−422.2
3e–25.3–51.0–10.1-
MC4e–7.9–38.63.6-
TS4e22.5–53.238.3−578.9
4e–18.8–53.0–3.0-
MC3f–6.1–36.44.8-
TS3f7.9–49.022.5−421.7
3f–25.3–52.2–9.7-
MC4f–7.9–38.03.5-
TS4f22.4–53.538.3−579.3
4f–18.9–54.0–2.8-
MC3g–6.3–33.73.8-
TS3g7.0–46.220.8−421.5
3g–26.2–50.9–11.0-
MC4g–8.0–37.93.3-
TS4g22.0–52.137.5−578.0
4g–19.7–53.0–3.9-
Table 4. ELF valence basin populations, distances of the rupture and forming bonds and relative electronic energies of the IRC points, MC3c3c, defining the thirteen different phases characterizing the reaction of the E-2-phenyl-1-cyano-1-nitroethene 1c and methylenecyclopentane 2. The stationary points 1c, 2, MC3c, TS3c and 3c are also included. Distances are given in angstroms, Å, electron populations in an average number of electrons, [e], relative energies in kcal·mol−1, GEDT values in an average number of electrons, [e] and IRC values in a.u.
Table 4. ELF valence basin populations, distances of the rupture and forming bonds and relative electronic energies of the IRC points, MC3c3c, defining the thirteen different phases characterizing the reaction of the E-2-phenyl-1-cyano-1-nitroethene 1c and methylenecyclopentane 2. The stationary points 1c, 2, MC3c, TS3c and 3c are also included. Distances are given in angstroms, Å, electron populations in an average number of electrons, [e], relative energies in kcal·mol−1, GEDT values in an average number of electrons, [e] and IRC values in a.u.
Structures21cMC3c P1 P2 P3 P4 P5 P6 P7TS3cP8 P9 P10 P11 P12 3c
Phases I II III IV V VI VII VIII IX X XI XII XIII
d1(C1-C14) 3.131 3.126 2.861 2.405 2.240 2.039 2.019 2.0001.9621.954 1.896 1.563 1.557 1.539 1.543
d2(O9-C15) 3.467 3.454 3.189 2.946 2.896 2.850 2.846 2.8422.8342.831 2.818 2.098 2.022 1.778 1.478
IRC −9.67 −9.25 −5.43 −2.25 −1.38 −0.39 −0.29 −0.190.000.03 0.32 2.31 5.98 7.39
GEDT 0.01 0.01 0.03 0.11 0.20 0.36 0.38 0.400.420.44 0.50 0.61 0.59 0.52
dE kcal −7.03 −6.98 −5.35 0.96 4.17 7.15 7.29 7.387.467.46 7.25 −3.66 −5.61 −13.70 −23.48
V(O1) 2.832.84 2.83 2.84 2.86 2.85 2.87 2.87 2.872.882.88 2.89 2.96 2.88 2.48 2.60
V’(O1) 2.802.82 2.82 2.82 2.83 2.88 2.90 2.91 2.912.912.91 2.93 2.91 3.05 2.76 2.39
V(N2.O1) 1.851.85 1.88 1.88 1.81 1.77 1.71 1.71 1.701.691.69 1.67 1.41 1.39 1.30 1.23
V(N2.O11) 2.192.19 2.10 2.07 2.03 1.94 1.84 1.83 1.831.821.81 1.79 1.67 1.65 1.64 1.65
V(C3.N2) 2.292.31 2.32 2.32 2.51 2.62 2.76 2.77 2.782.802.80 2.84 3.29 3.35 3.50 3.60
V(C4.C3) 1.761.66 1.66 3.51 3.50 3.49 3.42 3.41 3.393.362.83 2.42 2.06 2.05 2.04 2.04
V’(C4.C3) 1.791.86 1.87
V(C5.C6)1.78 1.73 1.73 1.78 1.77 3.28 3.22 2.89 2.852.772.76 2.65 2.17 2.14 2.07 2.01
V’(C5.C6)1.78 1.79 1.79 1.70 1.61
V(O1.C6) 0.81 1.22
V(C4.C5) 0.520.650.67 0.84 1.70 1.72 1.78 1.83
V(N2) 0.05 0.08
V(C3) 0.52 0.56 0.57 0.55 0.49 0.37
V’(C3) 0.33 0.32 0.31 0.26 0.30
V(C4) 0.10 0.09
V(C5) 0.36
V(C6) 0.01
Table 5. Selected conditions for the HDA reaction of the E-2-aryl-1-cyano-1-nitroethenes 1ag and methylenecyclopentane 2.
Table 5. Selected conditions for the HDA reaction of the E-2-aryl-1-cyano-1-nitroethenes 1ag and methylenecyclopentane 2.
Reaction SolventTemperature [°C]Time [h]Yield [%]
1a+2Chloroform602422
1b+2Chloroform602432
1c+2Chloroform024-
1c+2Chloroform2524trace
1c+2Chloroform601240
1c+2Chloroform602458
1c+2Nitromethane602452
1d+2Chloroform602461
1e+2Chloroform602460
1f+2Chloroform602472
1g+2Chloroform602469
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Woliński, P.; Kącka-Zych, A.; Wróblewska, A.; Wielgus, E.; Dolot, R.; Jasiński, R. Fully Selective Synthesis of Spirocyclic-1,2-oxazine N-Oxides via Non-Catalysed Hetero Diels-Alder Reactions with the Participation of Cyanofunctionalysed Conjugated Nitroalkenes. Molecules 2023, 28, 4586. https://doi.org/10.3390/molecules28124586

AMA Style

Woliński P, Kącka-Zych A, Wróblewska A, Wielgus E, Dolot R, Jasiński R. Fully Selective Synthesis of Spirocyclic-1,2-oxazine N-Oxides via Non-Catalysed Hetero Diels-Alder Reactions with the Participation of Cyanofunctionalysed Conjugated Nitroalkenes. Molecules. 2023; 28(12):4586. https://doi.org/10.3390/molecules28124586

Chicago/Turabian Style

Woliński, Przemysław, Agnieszka Kącka-Zych, Aneta Wróblewska, Ewelina Wielgus, Rafał Dolot, and Radomir Jasiński. 2023. "Fully Selective Synthesis of Spirocyclic-1,2-oxazine N-Oxides via Non-Catalysed Hetero Diels-Alder Reactions with the Participation of Cyanofunctionalysed Conjugated Nitroalkenes" Molecules 28, no. 12: 4586. https://doi.org/10.3390/molecules28124586

Article Metrics

Back to TopTop
