Next Article in Journal
Microwave-Assisted Catalytic Method for a Green Synthesis of Amides Directly from Amines and Carboxylic Acids
Next Article in Special Issue
Experimental Investigation of the Fluidization Reduction Characteristics of Iron Particles Coated with Carbon Powder under Pressurized Conditions
Previous Article in Journal
Tri(boryl)alkanes and Tri(boryl)alkenes: The Versatile Reagents
Previous Article in Special Issue
Effect of Initial Conformation on the Starch Biopolymer Film Formation Studied by NMR
Open AccessArticle

The Effect of Silica Fume and Organosilane Addition on the Porosity of Cement Paste

Fachgebiet Technische Physik II/Polymerphysik, Institute of Physics, Technische Universität Ilmenau, 98684 Ilmenau, Germany
Department of Physics and Chemistry, Technical University of Cluj-Napoca, RO-400114 Cluj-Napoca, Romania
Authors to whom correspondence should be addressed.
Academic Editor: David Faux
Molecules 2020, 25(8), 1762;
Received: 19 March 2020 / Revised: 8 April 2020 / Accepted: 10 April 2020 / Published: 11 April 2020
(This article belongs to the Special Issue Fluids in Porous Media)

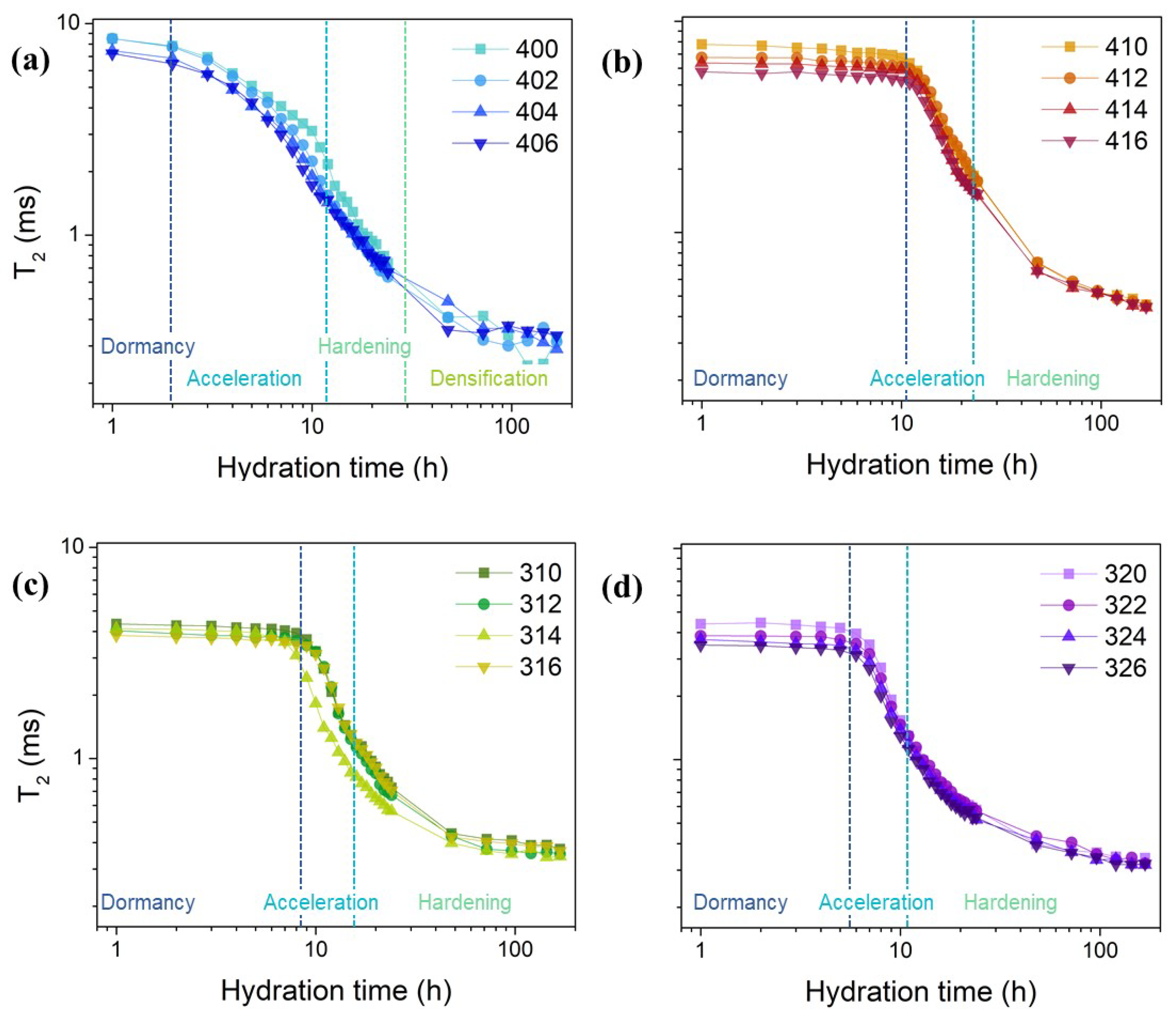

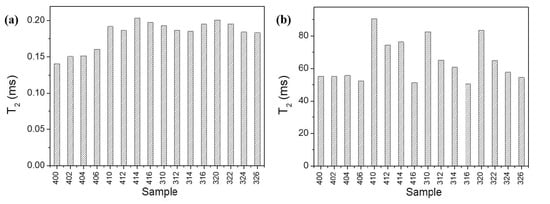

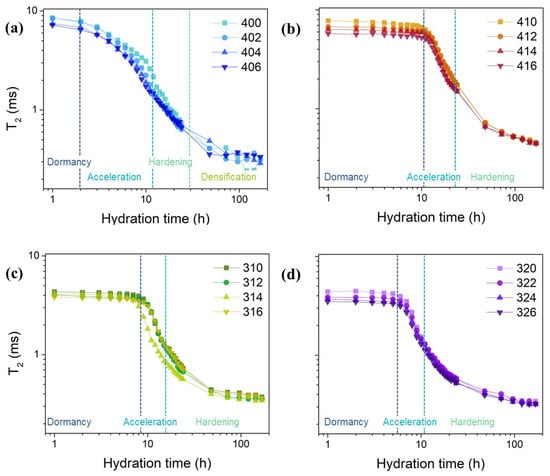

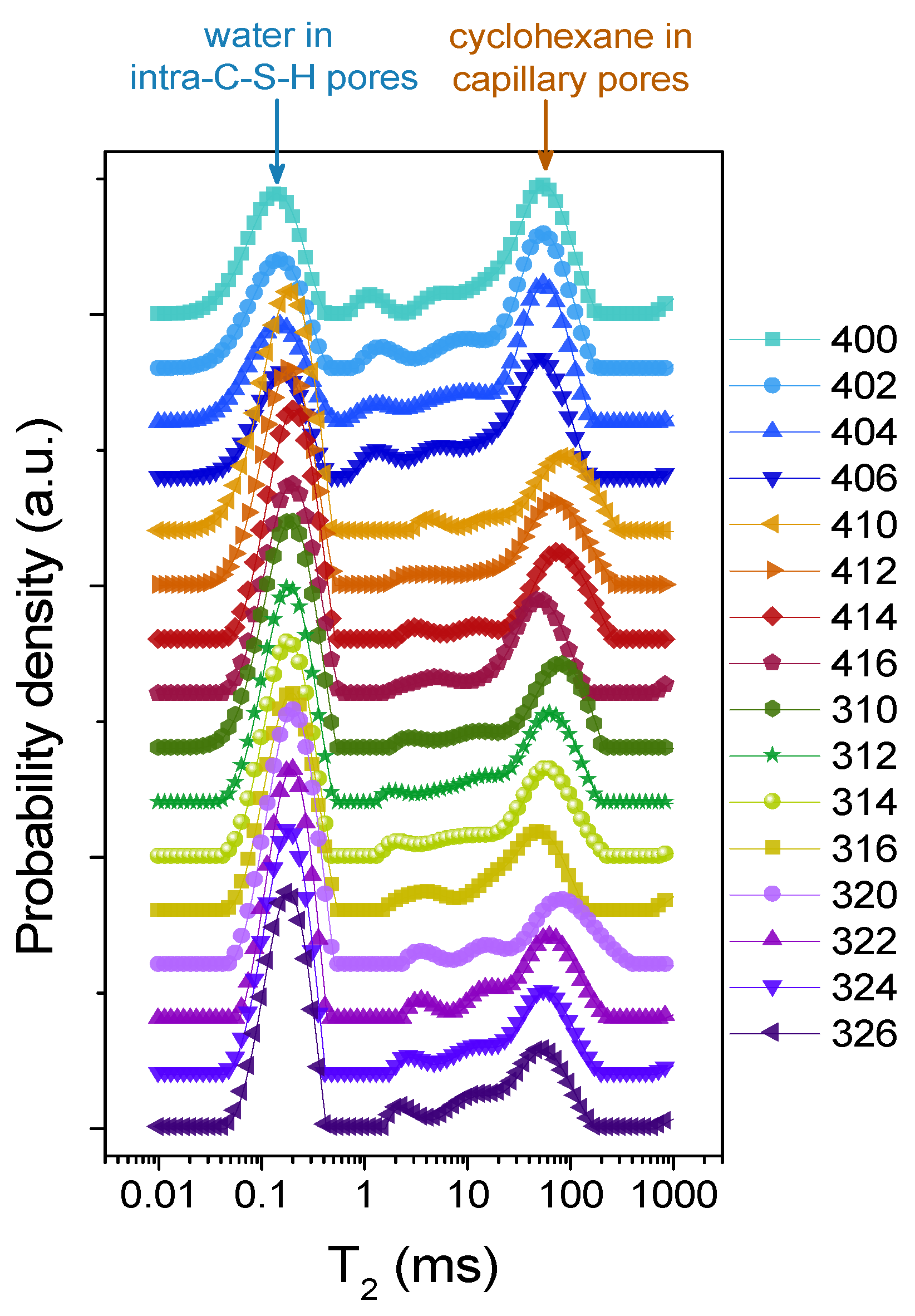

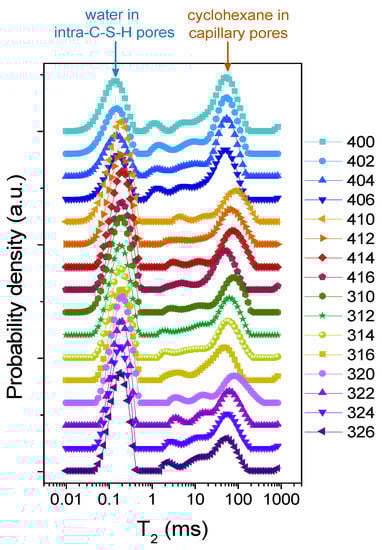

The present work systematically investigates the influence of silica fume and organosilane addition on the hydration dynamics and the capillary pore formation of a cement paste. The cement samples were prepared with two water-to-cement ratios with increasing amounts of silica fume and of (3-Aminopropyl)triethoxysilane (APTES) organosilane. Low-field 1H nuclear magnetic resonance (NMR) relaxation measurements were performed during the hydration of the samples and after hydration, in order to reveal the dynamics of water molecules and the pore distribution. Increasing concentrations of silica fume impact the perceived hydration dynamics through the addition of magnetic impurities to the pore solution. However, there is a systematic change in the capillary pore size distribution with an increase in silica fume concentration. The results also show that the addition of APTES majorly affects the hydration dynamics, by prolonging the dormancy and hardening stages. While it does not influence the pore size distribution of capillary pores, it prevents cyclohexane from saturating the capillary pores. View Full-Text
Keywords: portland cement; silica fume; APTES; organosilane; porosity; 1H NMR portland cement; silica fume; APTES; organosilane; porosity; 1H NMR
Show Figures

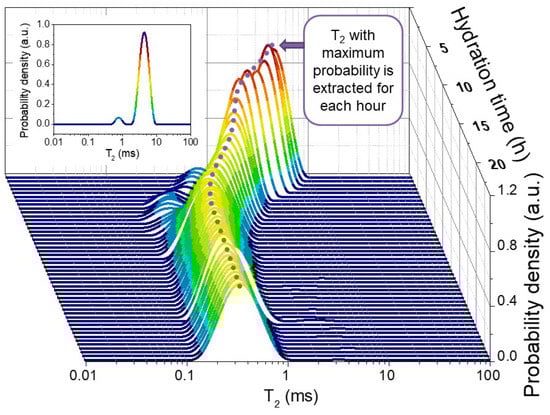

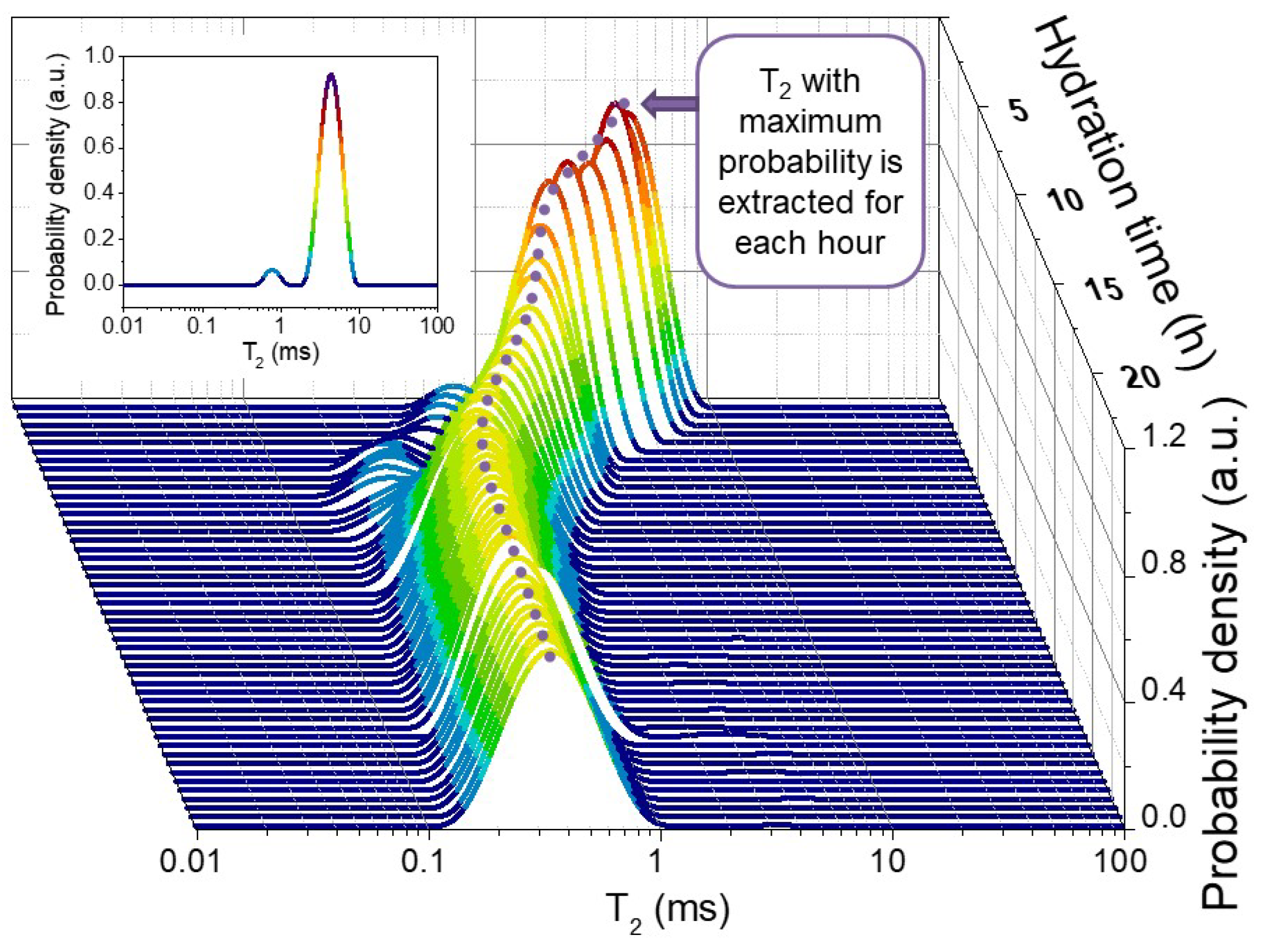

Graphical abstract

MDPI and ACS Style

Crețu, A.; Mattea, C.; Stapf, S.; Ardelean, I. The Effect of Silica Fume and Organosilane Addition on the Porosity of Cement Paste. Molecules 2020, 25, 1762.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

Search more from Scilit
Back to TopTop
