NMR Study of Intercalates and Grafted Organic Derivatives of H2La2Ti3O10

by
Marina G. Shelyapina
1,*,
Oleg I. Silyukov
2,
Irina P. Lushpinskaia
1,3,
Sergey A. Kurnosenko
2,
Anton S. Mazur
3,
Ilya G. Shenderovich
4 and
Irina A. Zvereva
2
1
Department of Nuclear Physics Research Methods, Saint-Petersburg State University, 7/9 Universitetskaya nab., 199034 St. Petersburg, Russia
2
Institute of Chemistry, Saint-Petersburg State University, 7/9 Universitetskaya nab., 199034 St. Petersburg, Russia
3
Magnetic Resonance Research Center, Saint-Petersburg State University, 7/9 Universitetskaya nab., 199034 St. Petersburg, Russia
4
Faculty of Chemistry and Pharmacy, University of Regensburg, Universitätsstr. 31, 93040 Regensburg, Germany
*
Author to whom correspondence should be addressed.
Molecules 2020, 25(22), 5229; https://doi.org/10.3390/molecules25225229
Submission received: 14 October 2020 / Revised: 28 October 2020 / Accepted: 8 November 2020 / Published: 10 November 2020
(This article belongs to the Special Issue Advanced Materials and Processes for Perovskite Solar Cells and Light Emitting Devices)
Browse Figures
Versions Notes

Abstract

:
The protonated perovskite-like titanate H2La2Ti3O10 has been used to produce organic-inorganic hybrids with simple organic molecules: methylamine, methanol, monoethanolamine, and n-butylamine. The optimal pathways for the preparation of such hybrids are summarized. Solid-state NMR, combined with thermal analysis, Raman, and IR spectroscopy, has been applied to determine the bonding type in the obtained organic-inorganic hybrids. It has been found that, in the methanolic hybrid, the organic residues are covalently bound to the inorganic matrix. In contrast, in the methylamine and n-butylamine hybrids, the organic molecules are intercalated into the inorganic matrix in cationic forms. The structure of the monoethanolamine hybrid is composite and includes both the covalently bound and intercalated organic species.

1. Introduction

Organic-inorganic hybrid composites are now widely used in the development of innovative functional materials for photovoltaics, photocatalysis, optoelectronics, and pharmaceutics [1,2]. One of the ways to obtain such hybrid materials is the incorporation of organic molecules into an inorganic matrix; in particular, this approach is often implemented in the case of layered inorganic compounds [3]. Among other inorganic matrices, layered perovskite-like oxides look like one of the most promising, as they themselves exhibit photocatalytic activity [4] that can be enhanced through various modifications [5]. Ion-exchangeable-layered perovskite-like oxides Mm(An−1BnO3n+1) are solid crystalline substances possessing a block-type structure in which perovskite slabs (An−1BnO3n+1) with the thickness of n BO6 octahedra alternate with interlayer spaces containing alkali cations M [6]. Such perovskite-like oxides demonstrate relatively high chemical reactivity in ion exchange [7,8], intercalation [9,10], and exfoliation processes [11,12,13,14]; some of them have practically significant photocatalytic [5,15,16,17,18,19,20,21,22], electrophysical [23,24], and luminescent [25] properties.
A treatment of ion-exchangeable perovskite-like oxides with acids cause a replacement of interlayer alkali cations with protons, giving so-called protonated forms. In this form, these perovskite-like oxides are able to react with some organic compounds, forming inorganic-organic hybrids—substances consisting of chemically bonded inorganic and organic parts, in which the inorganic one serves as a spatial frame [26]. According to the type of bonding between the inorganic and organic parts, there are two ways of hybrid formation: intercalation and grafting [27]. Intercalation is a reversible noncovalent introduction of organic bases (primarily amines) into the interlayer space by the acid-base or ion-exchange mechanism [28]. Covalent inorganic-organic hybrids can be produced by grafting reactions—the condensation of the protonated forms and appropriate organic substances (alcohols [29], alkoxysilanes [30], carbohydrates [31], carboxylic, and organophosphorus acids [32]), which is accompanied by the formation of covalent bonds B–O–C (B = Ti, Nb, Ta, etc.). These hybrids are of high interest for study due to the possibility of combining and fine-tuning useful properties of the inorganic and organic parts in one material [33,34]. The properties of hybrid materials are governed beside others by the type of chemical bonding between the organic and inorganic parts. Intercalated hybrids not only combine the physicochemical properties of both inorganic and organic parts but may exhibit synergetic behaviors afforded by both moieties, making possible the development of novel physicochemical devices [35,36]. Moreover, they can be used as an intermediate step for the synthesis of covalent hydrides [37]. Grafted derivatives have higher thermal and chemical stability, which is required for practical applications in an aggressive environment or further chemical modification [38]. In addition, by their exfoliation, such compounds can be used to obtain perovskite monolayers with a surface modified by organic molecules. The latter moderates both the aggregation stability of these monolayers in various solutions and their physicochemical properties [39,40,41].
Layered perovskite-like titanates H2Ln2Ti3O10 (Ln = La or lanthanide) are the protonated forms of the Ruddlesden-Popper phases A2Ln2Ti3O10 with the thickness of the perovskite layer n = 3. Since TiO6 octahedra in these compounds have unequal B–O distances due to the different local surroundings of oxygen anions, interlayer alkali cations are sufficiently mobile. These titanates demonstrate ionic conductivity [42] and pronounced ion exchange properties [43,44].
Titanates H2La2Ti3O10 are known to be able to form some inorganic-organic derivatives, with n-alkylamines [45,46] and n-alcohols [28] possessing the chain lengths of three carbon atoms and higher. At the same time, there are no detailed data on hybrids with the simplest representatives of amines and alcohols. Besides this, the literature does not cover the issue of obtaining hybrids with amino alcohols—bifunctional organic substances potentially capable of the simultaneous formation of both noncovalent and covalent bonds with perovskite slabs. All types of hybrids may have their own application fields, and it is important to monitor the product yield while developing synthetic methods.
Nuclear magnetic resonance (NMR) is a convenient tool for such monitoring due to its sensitivity to the electron density distribution in the vicinity of the resonating nucleus and, hence, to the type of a chemical bond [47]. Moreover, this technique provides information on the dynamics of intercalated species [10,48,49,50] and is successfully applied to study organic-inorganic-layered materials [10,48,51,52,53].
In this study, we used multinuclear NMR to characterize organic-inorganic hybrids based on the layered perovskite-like titanate H2La2Ti3O10 and lower amines (methylamine), alcohols (methanol), and amino alcohols (monoethanolamine), as well as n-butylamine. The NMR investigations were supported by the structural, elemental, morphological, and thermal analyses of the studied organic-inorganic hybrids.

2. Results and Discussion

The organic-inorganic hybrids were prepared according to the method described in Section 3. Further, in the text, tables, and figures, the studied materials will be denoted as follows: the layered protonated perovskite, H2La2Ti3O10·xH2O-HLT3, the methylamine derivative, H2La2Ti3O10 × MeNH2-HLT3 × MeNH2, the n-butylamine derivative, H2La2Ti3O10 × BuNH2-HLT3 × BuNH2, the methanol derivative, H2La2Ti3O10 × MeOH-HLT3 × MeOH, and the monoethanolamine hybrid, H2La2Ti3O10 × MEA-HLT3 × MEA.

2.1. XRD Analysis

To prove the formation of organic-inorganic hybrids, the materials synthesized were characterized by X-ray-diffraction (XRD) at each synthetic stage. Figure 1 demonstrates the XRD patterns of the initial protonated form and single-phase organic-inorganic compounds obtained under optimized conditions. More information can be found in the Supplementary Materials: Table S1 and Figures S1–S5. In all cases, the reflections observed are amenable to indexing in the tetragonal system. Formation of the hybrids is accompanied by a noticeable increase in the c lattice parameter, which is known to be directly related to their interlayer distance d, whereas the lattice parameter is seen to stay almost unchanged (Table 1). The observed increase in the interlayer distance is generally consistent with the molecule sizes of methylamine (~3 Å), n-butylamine (~6.7 Å), and a methyl group (~2 Å) of methanol (assuming grafting) if we take into account the additional expansion caused by intercalated water molecules and possible bilayer arrangement. At the same time, the interlayer distance of the monoethanolamine hybrid is consistent with the single monoethanolamine molecule size (5.3 Å), similar to what was observed in the case of the HLnTiO4 (Ln = La and Nd) hybrids studied earlier [54].

2.2. Raman and IR Spectroscopy

Raman spectra of the initial protonated form and obtained hybrid compounds are shown in Figure 2. The fact of the formation of the hybrid is confirmed by the appearance of characteristic bands, which are not observed in the spectra of the precursor—stretching of C–H (2800–3000 cm−1) and N–H (3225 cm−1) bonds, as well as latitudinal vibrations of methyl (1480 cm−1), methylene (1460 cm−1), amino (1560–1580 cm−1), and C–O–H (1340 cm−1) fragments. In the low-frequency region (<350 cm−1), which contains complex vibrations of the interlayer components linked to the oxygen of TiO6 octahedra, the main changes are related to the symmetric stretching mode (νs) of the axial Ti–O bonds (810 cm−1 for the protonated form), which splits into two bands (765 and 895 cm−1) during amine intercalation, which points at the existence of two types of octahedra with unequal axial Ti–O distances. Bands of asymmetric stretching mode (νas) of the closest to the interlayer space TiO6 octahedra (500–600 cm−1) and vibrations of the central weakly distorted octahedra (470 and 685 cm−1) do not experience noticeable changes during hybrids formation, indicating the preservation of the perovskite structure [55,56].
For the methanolic hybrid HLT3 × MeOH, the band at 810 cm−1, which is typical of the protonated form, does not exist; instead, a new band at 665 cm−1 appears. This may be related to the formation of covalent Ti–O–C bonds. Additionally, new bands at about 485 cm−1 emerge, and the bands at 560–570 cm−1, which can be referred to as the asymmetric stretching mode of TiO6 octahedra, shift to 540–550 cm−1, suggesting the noticeable influence of the methoxy groups on the perovskite octahedra. Moreover, bands associated with the C–O–H fragment vibrations that present in the spectra of the pure methanol, are not observed. These facts indicate that the interlayer space of the methanolic hybrid does actually contain not the molecular methanol but its methoxy groups covalently bound to the inorganic frame. It was previously shown that, depending on the synthesis conditions, amino alcohols can be incorporated with or without the formation of a covalent bond [37]. In the case of the monoethanolamine derivative, HLT3 × MEA, the observed vibrations of the C–O–H fragment (1340 cm−1) indicate the partial or complete presence of the interlayer monoethanolamine in a nongrafted form.
The Infrared (IR) absorption spectra of the obtained hybrids can be found in Supplementary Materials Figure S6. They are in fair agreement with the Raman data and, also, demonstrate the latitudinal vibrations of water (1630 cm−1) and stretching of its O–H fragments (wide band at 2800–3500 cm−1), suggesting the presence of intercalated water in the samples.

2.3. Thermal Analysis

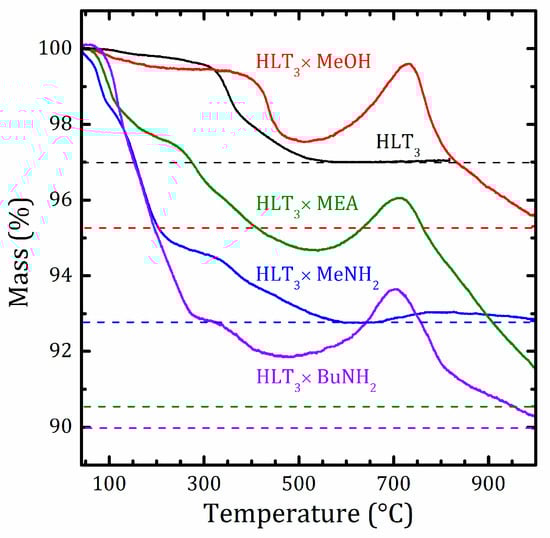

The degree of hydration and the temperatures corresponding to the loss of water and organic molecules were determined by thermogravimetric analysis with simultaneous mass spectrometric identification of the released gases (STA-MS). The thermal gravimetric (TG) curves are shown in Figure 3. The more detailed information on the STA-MS analysis can be found in Supplementary Materials Figures S7–S10. The thermal degradation of the methylamine hybrid HLT3 × MeNH2 in the oxidizing atmosphere proceeds as deintercalation. The evacuation of the intercalated water takes place at temperatures above 50 °C, followed by methylamine evacuation above 100 °C, giving the deintercalated protonated form, which decomposes at 300–500 °C. HLT3 × BuNH2 undergoes thermal degradation mainly in the same way as HLT3 × MeNH2. The only difference is observed at temperatures above 500 °C; in HLT3 × BuNH2, there is a noticeable mass gain stage, obviously associated with oxidation, which is replaced by the further mass loss stage related to the carbon dioxide release; see Supplementary Materials Figures S7 and S8. This suggests the existence of some remaining carbon-containing substances in the sample after the first stage of the decomposition. The same mass gain stages are also observed for the HLT3 × MeOH and HLT3 × MEA compounds.
According to the STA-MS data (see Supplementary Materials Figure S9), the organic part of HLT3 × MeOH does not decompose up to relatively high temperatures (approximately 300 °C), and the deintercalation of molecular methanol does not take place. This confirms the covalent nature of methanol binding. The HLT3 × MEA hybrid, on the one hand, is a much more thermally stable substance as compared to HLT3 × MeNH2 and HLT3 ×BuNH2. On the other hand, the decomposition of its organic part starts at approximately 250 °C, which is lower than the temperature of the HLT3 × MeOH decomposition. This inexplicitly indicates a possible noncovalent nature of the obtained HLT3 × MEA compound.
The resulting compositions assigned to the obtained hybrids, as well as the temperature of their decomposition, as determined from the thermal analysis, are listed in Table 2.

2.4. Scanning Electron Microscopy

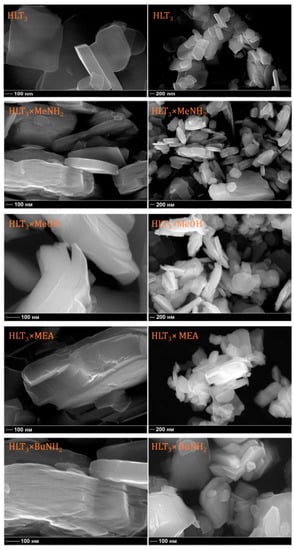

According to the scanning electron microscopy (SEM) data (Figure 4), during the intercalation and grafting reactions, both sizes and the lamellar forms of the particles are predominantly retained. Although the SEM images of the HLT3 × MeNH2 and HLT3 × BuNH2 organic-inorganic derivatives clearly confirm their incipient lamination, no other significant morphological changes are observed. Thus, all the reactions of the hybrid formation follow the topochemical mechanism: the structure of the inorganic part of the hybrids stays almost native and, consequently, saves all the useful properties of the initial perovskite-like compound, which may be combined with those of an organic part, giving new materials.

2.5. NMR Studies

To establish whether the hybrids are intercalation compounds or grafted derivatives, 1H-, 13C-, and 15N-NMR studies were performed. 1H-NMR has been used to characterize the distribution of mobile protons between different fractions in confined geometry. Different hydrogen bond environments exhibit different chemical shifts when the proton exchange between the fractions is slow within a time scale of ms [57]. 1H-NMR chemical shift of a mobile proton can be as large as 21.7 ppm [58]. 1H-NMR chemical shift of bulk water is 4.8 ppm. The chemical shift of an average H+/H2O signal depends on the concentration of H+ and, in a binary mixture, is larger than 5 ppm. Isolated surface hydroxyl groups resonate below 2 ppm [59]. The chemical shift of an average HO/H2O signal depends on the amount of water and, in a binary mixture, is smaller than 5 ppm. 13C-NMR has been used to characterize the rotational mobility of organic moieties. Chemical shift is a tensor quantity. The anisotropy of this tensor decreases if a moiety reorients fast within a time scale of ms [60]. 15N-NMR has been used to characterize the protonation state of amino moieties [61].

2.5.1. NMR Studies of the HLT3 × MeOH Derivative

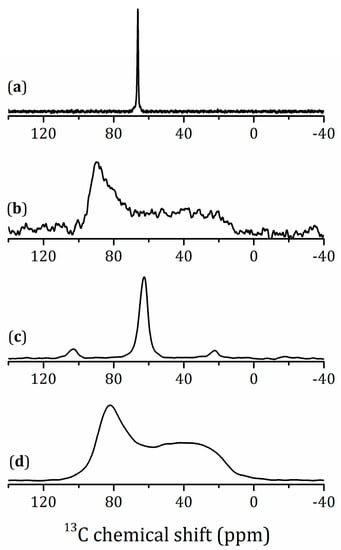

Figure 5a,b represents 13C{1H} cross-polarization (CP) NMR spectra of the methanol derivative recorded under magic angle spinning (MAS) and static conditions, respectively. The 13C{1H} CP/MAS spectrum shows a line at 66.2 ppm. The 13C chemical shift tensor of this O-CH3 moiety is axially symmetric; its span is about 100 ppm. Therefore, this moiety cannot change its spatial orientation within the time scale of ms. The value of its isotropic chemical shift is low-field-shifted as compared to that of methanol (49 ppm). In contrast, the isotropic chemical shift, the symmetry, and the span of the tensor under discussion are similar to that of the O-CH3 moiety of Ti(CH3O)4 (Figure 5c,d). Therefore, the O-CH3 moieties of the methanol derivative are covalently bonded to the inorganic matrix, Ti-O-CH3.

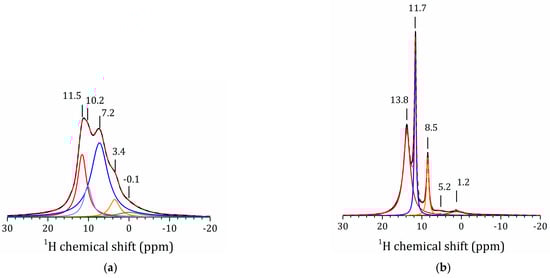

Figure 6a shows the 1H MAS NMR spectrum of the methanol derivative. The spectral lines are very broad, even at 14 kHz of spinning frequency. Consequently, both the rotational diffusion of the CH3 moieties and proton exchange are slow in this sample. The spectrum can be deconvoluted into three main peaks. The line at 3.4 ppm can be attributed to the CH3 moieties. The lines at 11 and 7 ppm can be attributed to the interlayer H+ in regular sites in water-poor and water-rich environments, respectively [50,62]. These results can be compared to the 1H MAS NMR spectrum of H2La2Ti3O10(H2O)0.07 (Figure 6b). In this sample, the lines corresponding to the water-poor (11.7 ppm) and water-rich (8.5 ppm) environments are narrow, which means that proton mobility in this environment is high. The line at 13.8 ppm can be attributed to the interlayer H+ in a water-free site. The mobility of these species is restricted, and the line is broad. Note that the modification of the inorganic matrix strongly affects the mobility and the distribution of the interlayer H+. The high-field signals in these spectra can belong to residual TiOH groups and surface-bound water [63,64,65].

2.5.2. NMR Studies of the HLT3 × MeNH2 and HLT3 × BuNH2 Derivatives

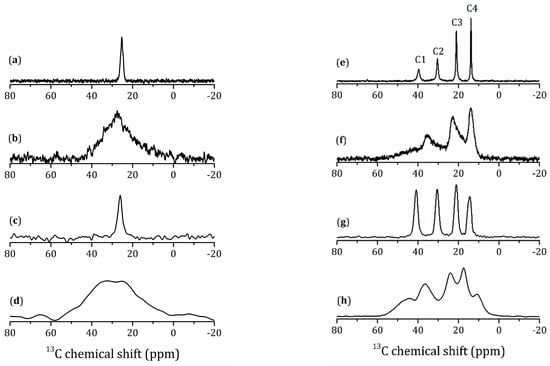

13C-NMR spectra of the methylamine and n-butylamine derivatives are shown in Figure 7. For HLT3 × MeNH2 in the 13C{1H} CP/MAS spectrum, only one line at 25.3 ppm is observed (see Figure 7a), which is in fair agreement with the position of the methyl carbon for the methylammonium cation.
The static spectrum, Figure 7b, represents the characteristic powder pattern on an anisotropic magnetic shielding tensor with a nonaxial symmetry. Therefore, the reorientational diffusion of these methylamine molecules is slow on the NMR time scale of ms. This gives evidence for the intercalation of methylamine. Note that this peak represents averaging over a variety of slightly different tensors, because the local environment of each individual methylammonium cation is different. Therefore, the principal values of these magnetic shielding tensors cannot be evaluated from this spectrum. This situation is typical for amorphous solids [66], surface functional groups [67], and molecules in confined geometry [68].
The spectra for powder CH3NH2HCl are given for a comparison in Figure 7c,d. The line position is almost unchanged. However, the powder pattern shows different anisotropy that can be related to the amorphous nature of this CH3NH2HCl sample. We are not aware about any data on the existence of crystalline CH3NH2HCl.
The 13C{1H} CP/MAS NMR spectrum of the n-butylamine derivative exhibits four lines at 39.7, 30.4, 21.1, and 13.8 ppm (Figure 7e). This figure shows the attribution of the lines to the four chemically different carbons of n-butylamine. The numeration starts from the amino group. It is obvious that the line width of these peaks decreases with the distance from the amino group. This trend remains valid for the anisotropy of the corresponding tensors (Figure 7f). In contrast, both the line width of the isotropic peaks and the anisotropy of the tensors are similar for all four carbons in a polycrystalline BuNH2HCl (Figure 7g,h). Therefore, the reorientational mobility of the n-butyl moieties in HLT3 × BuNH2 is not sterically hindered.
The 15N{1H} CP/MAS NMR spectra of HLT3 × MeNH2 and HLT3 × BuNH2 show single lines at 32.52 ppm and 44.01 ppm, respectively. The 15N chemical shift δ(15N) of neat MeNH2 and (MeNH3)+ in water is ~3 and 35 ppm, respectively [69,70]. The δ(15N) of neat BuNH2 and (BuNH3)+Cl− in methanol is ~22 and 34 ppm, respectively [71,72].
Altogether, it points out that, in the both methylamine and n-butylamine derivatives, the organic species are intercalated in the form of methyl- or butylammonium cations. Their (–NH3)+ moieties are immobilized due to electrostatic interactions with negatively charged perovskite layers, while the aliphatic residues remain flexible.

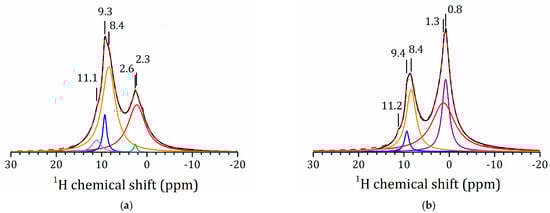

The 1H MAS NMR spectra of these amine derivatives are shown in Figure 8. The lines of the aliphatic residues are broad and overlap. Consequently, the libration of these residues is sterically hindered. The chemical shifts of the interlayer H+ and the –(NH3)+ moieties are in the range 11–8 ppm. The presence of several spectral lines indicates that the distribution of the organic species in the samples is not homogeneous.

2.5.3. NMR Studies the HLT3 × MEA Derivative

The decomposition temperature of the monoethanolamine derivative is similar to that of the methanol derivative and is much higher as compared to that of the methylamine and n-butylamine derivatives (Table 2). This suggests that the methylene carbons of the monoethanolamine residues are covalently bound to the lattice oxygens. Figure 9a shows the 13C{1H} CP/MAS NMR spectrum of HLT3 × MEA.

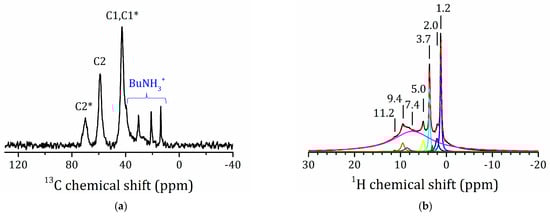

Besides the peaks of the residual BuNH3+, there are three new peaks at 42.6, 58.9, and 69.9 ppm. The first of these peaks obviously belongs to the –CH2-NH3+ carbon atom (C1 carbon) [73]. The corresponding peak of BuNH3+ has a similar chemical shift. The two other lines should be attributed to the –O-CH2- carbon atom. Therefore, in this sample, two different substituents at the oxygen atom are possible. The 13C chemical shifts of isopropanol ((CH3)2CHOH) and titanium isopropoxide (Ti(OCH(CH3)2)4) are 25.3/63.7 and 26.6/76.2 ppm, respectively [74]. Consequently, the conversion of a HOC- moiety into a –TiOC- one has a small effect on the chemical shift of remote carbon nuclei. The signal of the –OC- moiety will be shifted to lower field by about 10 ppm. We conclude that the peak at 58.9 ppm in the spectrum of the monoethanolamine derivative belongs to the C2 carbon of intercalated protonated MEA, HOCH2CH2NH3+ [73]. In contrast, the peak at 69.9 ppm belongs to TiOCH2CH2NH3+ residues covalently bound to the inorganic matrix; we denote it as C2*. Obviously, the peak of C1* of the grafted TiOCH2CH2NH3+ coincides with that of C1 of the intercalate.
The 1H spectrum of HLT3 × MEA is not very informative (Figure 9b). The broad line centered at 7.4 ppm includes all types of mobile protons in different environments and is very broadened, and it is impossible to select contributions from the interlayer H+, the –(NH3)+, and –NH2 moieties. The narrow lines at 3.7 and 1.2 ppm are more likely from mobile moieties of intercalated molecules.

2.5.4. VCT Experiment to Study the Dynamics of Organic Molecules

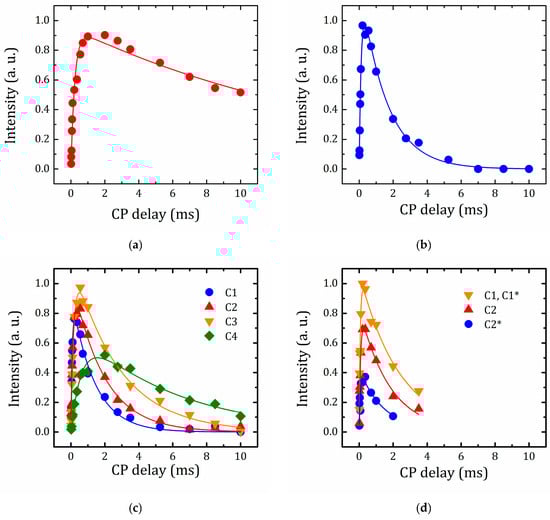

To study the dynamics of the organic molecules within the interlayer space, a 13C{1H} CP/MAS experiment with variable contact time (VCT) was carried out. Figure 10 represents the intensity of the carbon peaks of the organic molecules introduced in HLT3 as a function of contact time 1H-13C. The dependence of the signal intensity on the contact period during VCT can be described by the following Equation (1) [75]:
I   =   I 0 ( 1   −   T CH T 1 ρ ( H ) ) − 1 · [ exp ( − τ cp T 1 ρ ( H ) ) − exp ( − τ cp T CH ) ]
where TCH is the cross-polarization time of a chemical group generating the corresponding NMR signal. It determines the growing part of the signal intensity and reflects the efficiency of the cross-polarization transfer from the 1H to 13C nuclei. This parameter is normally different for carbons belonging to different functional groups. Its value, on the one hand, is determined by the number of protons near the carbon nucleus and, on the other hand, by the rigidity of the carbon bonding with the “lattice”. The signal decay is governed by T1ρ(H), which is the proton longitudinal relaxation time (in the rotating frame) associated to the corresponding functional group.
The TCH and T1ρ(H) parameters for all the carbon sites of the studied organic molecules, as determined from the dependencies shown in Figure 10 applying Equation (1), are listed in Table 3.
For the carbons of BuNH3+, as, when moving away from the nitrogen atom, both TCH and T1ρ(H) values grow up reflecting the increasing mobility. This is in-line with gradually decreasing the 13C MAS NMR line width from 0.64 ppm for C1 to 0.20 ppm for C4 (Figure 7e). The carbon atom of the methyl group in the methanol derivative, which is covalently bounded to the lattice oxygen, exhibits the highest T1ρ(H) value and the intermediate TCH one, as compared to the methyl groups very mobile in BuNH3+ and rather slow in MeNH3+. It means that the rotational motion of the CH3 group is relatively fast.
For the HLT3 × MEA derivative, in which both intercalated cations and grated species coexist, TCH and T1ρ(H) values for both types of carbons are close, within the experiment error, to those for C1 of BuNH3+.

3. Materials and Methods

The layered perovskite H2La2Ti3O10·xH2O (HLT3), where x is an amount of intercalated water, was synthesized using K2La2Ti3O10 as a precursor. K2La2Ti3O10 was prepared by solid-phase synthesis, as described in Reference [50]. The protonation of K2Ln2Ti3O10 was carried out by the three-step procedure. Initially, the oxide was kept in moist air for 12 h. Then, it was treated with an excess of water (200 mL per 1 g of the oxide) for 1 h and, hereafter, with an excess of 0.1-M HNO3 (200 mL per 1 g of the oxide) for 12 h. After centrifugation, the product was dried under ambient pressure. The tetragonal lattice parameters of the protonated form obtained were found to be a = 3.809 and c = 27.55 Å, which is consistent with the values in earlier reports [4,76]. The elimination of K+ was confirmed by thermogravimetric analysis (TG) and, additionally, by energy-dispersive X-ray (EDX), which showed the lack of a potassium line. Calculations performed by the reported technique [7,77] showed that no less than 95% of the alkali cations were replaced by protons.
Single-phase inorganic-organic hybrids were synthesized under optimal conditions found in the preliminary experiments (see Supplementary Materials). The methylamine derivative, H2La2Ti3O10 × MeNH2 (HLT3 × MeNH2), was obtained by the reacting of H2La2Ti3O10 with an excess of 34% aqueous methylamine solution at 60 °C for 7 days under continuous stirring. Taking into account that large amine or alcohol molecules are difficult to introduce into H2La2Ti3O10, the hybrid structures containing n-butylamine and methanol were synthesized using the methylamine derivative as a precursor. To synthesize the n-butylamine derivative, H2La2Ti3O10 × BuNH2 (HLT3 × BuNH2), a mixture of the HLT3 × MeNH2 powder and an excess of 90% n-butylamine aqueous solution was stirred at room temperature for 7 days. The adduct with methanol, H2La2Ti3O10 × MeOH (HLT3 × MeOH), was obtained by a solvothermal reaction between the HLT3 × BuNH2 derivative and methanol at 100 °C for 10 days. The products were separated via centrifugation, washed with acetone, and dried in a desiccator. The monoethanolamine hybrid, H2La2Ti3O10 × MEA (HLT3 × MEA), was prepared based on the n-butylamine derivative HLT3 × BuNH2 at 25 °C in 1 d using 90% monoethanolamine in water.
XRD patterns were obtained on the Rigaku Miniflex II diffractometer (Tokyo, Japan) (CuKα radiation, angle range 2θ = 3–60°, scanning rate 10°/min, step 0.01°). The lattice parameters were calculated based on all the reflections observed using DiffracPlus Topas software (version 4.2). Raman spectra were obtained on the Bruker Senterra spectrometer (Karlsruhe, Germany) (spectral range 100–4000 cm−1, incident laser 488 nm 20 mW, and spectrum accumulation time 10 s). Fourier-transform infrared (IR) absorption spectra were recorded on the Shimadzu IRAffinity-1 spectrometer (Kyoto, Japan) (spectral range 400–4000 cm−1, tableting in KBr). The amounts of carbon, hydrogen, and nitrogen in the hybrids were determined by the elemental C,H,N analysis on the Euro EA3028-HT analyzer (Redavalle, Italy). Simultaneous thermal analysis coupled with the mass spectrometric detection of gases evolved (STA-MS) was carried out on the Netzsch STA 409 CD-QMS 403/5 Skimmer system (Netzsch-Gruppe, Selb, Germany) using an air-containing (oxidative) atmosphere. Calculation of quantitative compositions of the inorganic-organic hybrids from STA-MS data was based on the direct proportionality of ion currents to the quantities of gases evolved and matching integrated ion currents with corresponding mass losses. The final compositions were established using results of the C,H,N analysis and STA-MS in total. The morphology of the samples was investigated by SEM on the Zeiss Merlin scanning electron microscope.
The solid-state 1H-, 13C-, and 15N-NMR spectra were recorded on the Bruker Avance III 400WB spectrometer (Bruker Corporation, Billerica, MA, USA) using the MAS technique with a double-resonance 4-mm probe. 1H-NMR spectra were recorded at νrot = 14 kHz and the relaxation delay of 120 s. To increase the intensity of 13C and 15N signals, a cross-polarization (CP) was applied. Static 13C{1H} CP and 13C{1H} CP/MAS spectra (νrot = 14 kHz) were recorded at a relaxation delay of 5 s and a contact period τcp = 2 ms (for HLT3 × MEA, τcp = 0.7 ms was used). 13C{1H} CP/MAS variable contact time (VCT) experiments were performed with τcp varied between 10 and 10,000 µs. 15N{1H} CP/MAS spectra were obtained at νrot = 12.5 kHz. Tetramethylsilane was used as an internal standard for 1H and 13C, and ammonium chloride was used as an external standard for 15N (δ(15NH4Clcryst) = 39.3 ppm relative to the liquid ammonia and can be converted into the nitromethane scale using the relations δ(CH315NO2) = δ(15NH4Cl) − 338.1 ppm [61]. 13C NMR spectra of crystalline MeNH2HCl, BuNH2HCl, and Ti(CH3O)4 were recorded at 7 T on the Infinityplus spectrometer system (Agilent, Santa Clara, CA, USA) using a Chemagnetics-Varian 6-mm CP/MAS probe. These 13C{1H} CP/MAS data were acquired using a relaxation delay of 5 s and νrot = 5 kHz.

4. Conclusions

This study shows that the interlayer spaces of protonated perovskite-like titanates H2Ln2Ti3O10 (Ln = La and Nd) can be modified with the simplest representatives of amines (methylamine and n-butylamine), alcohols (methanol), and amino alcohols (monoethanolamine), giving inorganic-organic hybrids. The synthetic pathways of these hybrids were studied in a wide range of conditions using both standard laboratory techniques and solvothermal/solvothermal microwave methods. The optimal pathways of their preparation are summarized. Specifically, the methylamine hybrid, which was obtained by a one-step direct reaction, is a convenient precursor for the preparation of other types of hybrids. Thus, pure n-butylamine, methanolic, and monoethanolamine hybrids can be easily obtained using the methylamine hybrid as the precursor.
The 1H, 13C, and 15N solid-state NMR spectroscopy and 13C{1H} VCT experiment, applied to study the bonding type of the obtained organic-inorganic hybrids and mobility of the organic components, unambiguously indicate that, in the methanolic hybrid, the organic residues are covalently bound to the inorganic matrix. In contrast, in the methylamine and n-butylamine hybrids, the organic molecules are intercalated into the inorganic matrix in a cationic form. The interlayer space of the monoethanolamine hybrid contains both the covalently bound and intercalated organic species.
These conclusions are supported by the vibrational spectroscopy data and thermal analysis. The thermal stability of the studied hybrids increases in a sequence: methylamine/n-butylamine → monoethanolamine → methanol. The methanolic and monoethanolamine hybrids, due to their high thermal stability, can apparently be obtained in a hydrous form by thermal dehydration at 125–150 °C.

Supplementary Materials

The following are available online: Figure S1: XRD patterns of (a) HLT3 and products of low-temperature reactions between HLT3 and methylamine under various conditions: (b) 1 d at 25 °C, (c) 1 d at 60 °C, (d) 7 d at 25 °C, (e) 7 d at 60 °C, (f) 14 d at 25 °C, and (g) 14 d at 60 °C. Figure S2: XRD patterns of (a) HLT3 and products of solvothermal and solvothermal microwave reactions between HLT3 and methylamine of various durations at 100 °C: (b) ST 1 d, (c) ST 7 d, (d) STMW 1 h, (e) STMW 1 d, and (f) STMW 3 d. Figure S3: XRD patterns of (a) HLT3 and products of low-temperature reactions between HLT3 and n-butylamine under various conditions: (b) 1 d at 25 °C, (c) 1 d at 60 °C, (d) 7 d at 25 °C, and (e) 7 d at 60 °C. Figure S4: XRD patterns of (a) HLT3 and products of solvothermal (ST) and solvothermal microwave (STMW) reactions between HLT3 and n-butylamine under various conditions: (b) ST 7 d 100 °C, (c) STMW 1 h 100 °C, (d) STMW 1 h 150 °C, and (e) STMW 1 d 100 °C. Figure S5: XRD patterns of (a) HLT3 × MeNH2 and products of reactions between HLT3 × MeNH2 and methanol: (b) 7 d at 60 °C, (c) 5 d under solvothermal conditions at 100 °C, and (d) 1 d under solvothermal microwave conditions at 100 °C. Figure S6: IR spectra of (a) HLT3, (b) HLT3 × MeNH2, (c) HLT3 × BuNH2, (d) HLT3 × MeOH, and (e) HLT3 × MEA. Figure S7: STA-MS data for methylamine hybrid HLT3 × MeNH2. Figure S8: STA-MS data for n-butylamine hybrid HLT3 × BuNH2. Figure S9: STA-MS data for methanolic hybrid HLT3 × MeOH. Figure S10: STA-MS data for monoethanolamine hybrid HLT3 × MEA. Table S1: Conditions of experiments on the optimization of the hybrid synthesis.

Author Contributions

Conceptualization, M.G.S. and O.I.S.; methodology, O.I.S., M.G.S., and I.G.S.; validation, M.G.S. and I.G.S.; investigation, O.I.S., I.P.L., S.A.K. and A.S.M.; writing—original draft preparation, M.G.S., S.A.K. and I.P.L.; writing—review and editing, M.G.S., O.I.S. and I.G.S.; supervision, O.I.S., M.G.S. and. I.A.Z.; project administration, I.A.Z.; and funding acquisition, I.A.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This study was performed under financial support by the Russian Science Foundation (project no. 19-13-00 184).

Acknowledgments

This study was performed using the facilities of the Magnetic Resonance Research Center, Center for X-ray Diffraction Studies, Center for Optical and Laser Research, Center for Thermogravimetric and Calorimetric Research, and Interdisciplinary Resource Center for Nanotechnology of the St. Petersburg State University.

Conflicts of Interest

No conflicts of interest were declared by the authors.

References

  1. Yao, K.; Wang, X.; Xu, Y.X.; Li, F.; Zhou, L. Multilayered Perovskite Materials Based on Polymeric-Ammonium Cations for Stable Large-Area Solar Cell. Chem. Mater. 2016, 28, 3131–3138. [Google Scholar] [CrossRef]
  2. Morell, J.; Chatterjee, S.; Klar, P.J.; Mauder, D.; Shenderovich, I.; Hoffmann, F.; Fröba, M. Synthesis and characterization of chiral benzylic ether-bridged periodic mesoporous organosilicas. Chem. Eur. J. 2008, 14, 5935–5940. [Google Scholar] [CrossRef] [PubMed]
  3. Lerf, A. Storylines in intercalation chemistry. Dalt. Trans. 2014, 43, 10276–10291. [Google Scholar] [CrossRef] [PubMed]
  4. Takata, T.; Furumi, Y.; Shinohara, K.; Tanaka, A.; Hara, M.; Kondo, J.N.; Domen, K. Photocatalytic decomposition of water on spontaneously hydrated layered perovskites. Chem. Mater. 1997, 9, 1063–1064. [Google Scholar] [CrossRef]
  5. Rodionov, I.A.; Zvereva, I.A. Photocatalytic activity of layered perovskite-like oxides in practically valuable chemical reactions. Russ. Chem. Rev. 2016, 85, 248–279. [Google Scholar] [CrossRef]
  6. Schaak, R.E.; Mallouk, T.E. Perovskites by design: A toolbox of solid-state reactions. Chem. Mater. 2002, 14, 1455–1471. [Google Scholar] [CrossRef]
  7. Zvereva, I.A.; Silyukov, O.I.; Chislov, M.V. Ion-exchange reactions in the structure of perovskite-like layered oxides: I. Protonation of NaNdTiO4 complex oxide. Russ. J. Gen. Chem. 2011, 81, 1434–1441. [Google Scholar] [CrossRef]
  8. Kurnosenko, S.A.; Silyukov, O.I.; Zvereva, I.A. Preparation of Porous Particles of Layered Perovskite-Like Titanate HLaTiO4. Glas. Phys. Chem. 2020, 46, 272–276. [Google Scholar] [CrossRef]
  9. Silyukov, O.I.; Kurnosenko, S.A.; Zvereva, I.A. Intercalation of Methylamine into the Protonated Forms of Layered Perovskite-Like Oxides HLnTiO4 (Ln = La and Nd). Glas. Phys. Chem. 2018, 44, 428–432. [Google Scholar] [CrossRef]
  10. Shelyapina, M.G.; Lushpinskaya, I.P.; Kurnosenko, S.A.; Silyukov, O.I.; Zvereva, I.A. Identification of intercalates and grafted organic derivatives of H2La2Ti3O10 by multinuclear NMR. Russ. J. Gen. Chem. 2020, 90, 760–761. [Google Scholar] [CrossRef]
  11. Lee, W.-J.; Yeo, H.J.; Kim, D.-Y.; Paek, S.-M.; Kim, Y.-I. Exfoliation of Dion-Jacobson Layered Perovskite into Macromolecular Nanoplatelet. Bull. Korean Chem. Soc. 2013, 34, 2041–2043. [Google Scholar] [CrossRef] [Green Version]
  12. Wang, T.H.; Henderson, C.N.; Draskovic, T.I.; Mallouk, T.E. Synthesis, exfoliation, and electronic/protonic conductivity of the dion-jacobson phase layer perovskite HLa2TiTa2O10. Chem. Mater. 2014, 26, 898–906. [Google Scholar] [CrossRef]
  13. Han, Y.-S.; Park, I.; Choy, J.-H. Exfoliation of layered perovskite, KCa2Nb3O10, into colloidal nanosheets by a novel chemical process. J. Mater. Chem. 2001, 11, 1277–1282. [Google Scholar] [CrossRef]
  14. Hojamberdiev, M.; Bekheet, M.F.; Zahedi, E.; Wagata, H.; Kamei, Y.; Yubuta, K.; Gurlo, A.; Matsushita, N.; Domen, K.; Teshima, K. New Dion-Jacobson Phase Three-Layer Perovskite CsBa2Ta3O10 and Its Conversion to Nitrided Ba2Ta3O10 Nanosheets via a Nitridation-Protonation-Intercalation-Exfoliation Route for Water Splitting. Cryst. Growth Des. 2016, 16, 2302–2308. [Google Scholar] [CrossRef]
  15. Machida, M.; Miyazaki, K.; Matsushima, S.; Arai, M. Photocatalytic properties of layered perovskite tantalates, MLnTa2O7 (M = Cs, Rb, Na, and H; Ln = La, Pr, Nd, and Sm). J. Mater. Chem. 2003, 13, 1433. [Google Scholar] [CrossRef]
  16. Choi, J.; Zhang, X.; Wiley, J.B. Building alkali-metal-halide layers within a perovskite host by sequential intercalation: (A2Cl)LaNb2O7 (A = Rb, Cs). Inorg. Chem. 2009, 48, 4811–4816. [Google Scholar] [CrossRef]
  17. Kawashima, K.; Hojamberdiev, M.; Wagata, H.; Yubuta, K.; Domen, K.; Teshima, K. Protonated Oxide, Nitrided, and Reoxidized K2La2Ti3O10 Crystals: Visible-Light-Induced Photocatalytic Water Oxidation and Fabrication of Their Nanosheets. ACS Sustain. Chem. Eng. 2017, 5, 232–240. [Google Scholar] [CrossRef]
  18. Rodionov, I.A.; Silyukov, O.I.; Utkina, T.D.; Chislov, M.V.; Sokolova, Y.P.; Zvereva, I.A. Photocatalytic properties and hydration of perovskite-type layered titanates A2Ln2Ti3O10 (A = Li, Na, K; Ln = La, Nd). Russ. J. Gen. Chem. 2012, 82, 1191–1196. [Google Scholar] [CrossRef]
  19. Silyukov, O.I.; Abdulaeva, L.D.; Burovikhina, A.A.; Rodionov, I.A.; Zvereva, I.A. Phase transformations during HLnTiO4 (Ln=La, Nd) thermolysis and photocatalytic activity of obtained compounds. J. Solid State Chem. 2015, 226, 101–106. [Google Scholar] [CrossRef]
  20. Rodionov, I.A.; Silyukov, O.I.; Zvereva, I.A. Study of photocatalytic activity of layered oxides: NaNdTiO4, LiNdTiO4, and HNdTiO4 titanates. Russ. J. Gen. Chem. 2012, 82, 635–638. [Google Scholar] [CrossRef]
  21. Rodionov, I.A.; Maksimova, E.A.; Pozhidaev, A.Y.; Kurnosenko, S.A.; Silyukov, O.I.; Zvereva, I.A. Layered Titanate H2Nd2Ti3O10 Intercalated with n-Butylamine: A New Highly Efficient Hybrid Photocatalyst for Hydrogen Production from Aqueous Solutions of Alcohols. Front. Chem. 2019, 7, 1–13. [Google Scholar] [CrossRef] [PubMed]
  22. Voytovich, V.V.; Kurnosenko, S.A.; Silyukov, O.I.; Rodionov, I.A.; Minich, I.A.; Zvereva, I.A. Study of n-alkylamine Intercalated Layered Perovskite-Like Niobates HCa2Nb3O10 as Photocatalysts for Hydrogen Production From an Aqueous Solution of Methanol. Front. Chem. 2020, 8, 300. [Google Scholar] [CrossRef] [PubMed]
  23. Fang, M.; Kim, C.H.; Mallouk, T.E. Dielectric Properties of the Lamellar Niobates and Titanoniobates AM2Nb3O10 and ATiNbO5 (A = H, K, M = Ca, Pb), and Their Condensation Products Ca4Nb6O19 and Ti2Nb2O9. Chem. Mater. 1999, 11, 1519–1525. [Google Scholar] [CrossRef]
  24. Takayanagi, S.; Ogawa, S. Superconducting properties of Layered Perovskite KCa2Nb3O10 and KLaNb2O7. Solid State Ion. 1997, 103, 215–217. [Google Scholar]
  25. Toda, K.; Honma, T.; Sato, M. Unusual concentration quenching of europium luminescence in new layered perovskite compound, RbLa1−xEuxTa2O7. J. Lumin. 1997, 71, 71–75. [Google Scholar] [CrossRef]
  26. Sugahara, Y. Chemical processes employing inorganic layered compounds for inorganic and inorganic-organic hybrid materials. J. Ceram. Soc. Jpn. 2014, 122, 523–529. [Google Scholar] [CrossRef] [Green Version]
  27. Ranmohotti, K.G.S.; Josepha, E.; Choi, J.; Zhang, J.; Wiley, J.B. Topochemical manipulation of perovskites: Low-temperature reaction strategies for directing structure and properties. Adv. Mater. 2011, 23, 442–460. [Google Scholar] [CrossRef]
  28. Tahara, S.; Ichikawa, T.; Kajiwara, G.; Sugahara, Y. Reactivity of the Ruddlesden-Popper Phase H2La2Ti3O10 with Organic Compounds: Intercalation and Grafting Reactions. Chem. Mater. 2007, 19, 2352–2358. [Google Scholar] [CrossRef]
  29. Tahara, S.; Sugahara, Y. Interlayer Surface Modification of the Protonated Triple-Layered Perovskite HCa2Nb3O10·xH2O with n-Alcohols. Langmuir 2003, 19, 9473–9478. [Google Scholar] [CrossRef]
  30. Tahara, S.; Takeda, Y.; Sugahara, Y. Preparation of Organic-Inorganic Hybrids Possessing Nanosheets with Perovskite-Related Structures via Exfoliation during a Sol-Gel Process. Chem. Mater. 2005, 17, 6198–6204. [Google Scholar] [CrossRef]
  31. Wang, C.; Tang, K.; Wang, D.; Liu, Z.; Wang, L.; Zhu, Y.; Qian, Y. A new carbon intercalated compound of Dion–Jacobson phase HLaNb2O7. J. Mater. Chem. 2012, 22, 11086. [Google Scholar] [CrossRef]
  32. Kimura, N.; Kato, Y.; Suzuki, R.; Shimada, A.; Tahara, S.; Nakato, T.; Matsukawa, K.; Mutin, P.H.; Sugahara, Y. Single- and Double-Layered Organically Modified Nanosheets by Selective Interlayer Grafting and Exfoliation of Layered Potassium Hexaniobate. Langmuir 2014, 30, 1169–1175. [Google Scholar] [CrossRef] [PubMed]
  33. Corriu, R.J.P.; Leclercq, D. Recent Developments of Molecular Chemistry for Sol-Gel Processes. Angew. Chem. 1996, 35, 1420–1436. [Google Scholar] [CrossRef]
  34. Sanchez, C.; Soler-Illia, G.J.D.A.A.; Ribot, F.; Lalot, T.; Mayer, C.R.; Cabuil, V. Designed hybrid organic-inorganic nanocomposites from functional nanobuilding blocks. Chem. Mater. 2001, 13, 3061–3083. [Google Scholar] [CrossRef]
  35. Faustini, M.; Nicole, L.; Ruiz-Hitzky, E.; Sanchez, C. History of organic–inorganic hybrid materials: Prehistory, art, science, and advanced applications. Adv. Funct. Mater. 2018, 28, 1–30. [Google Scholar] [CrossRef]
  36. Bin, D.; Huo, W.; Yuan, Y.; Huang, J.; Liu, Y.; Zhang, Y.; Dong, F.; Wang, Y.; Xia, Y. Organic-inorganic-induced polymer intercalation into layered composites for aqueous zinc-ion battery. Chem 2020, 6, 968–984. [Google Scholar] [CrossRef]
  37. Wang, Y.; Nikolopoulou, M.; Delahaye, E.; Leuvrey, C.; Leroux, F.; Rabu, P.; Rogez, G. Microwave-assisted functionalization of the Aurivillius phase Bi2SrTa2O9: Diol grafting and amine insertion vs. alcohol grafting. Chem. Sci. 2018, 9, 7104–7114. [Google Scholar] [CrossRef] [Green Version]
  38. Wang, Y.; Delahaye, E.; Leuvrey, C.; Leroux, F.; Rabu, P.; Rogez, G. Post-synthesis modification of the aurivillius phase Bi2SrTa2O9 via in situ microwave-assisted “click reaction”. Inorg. Chem. 2016, 55, 9790–9797. [Google Scholar] [CrossRef]
  39. Idota, N.; Fukuda, S.; Tsukahara, T.; Sugahara, Y. Preparation of thermoresponsive nanosheets exhibiting phase transitions in water via surface modification of layered perovskite nanosheets with poly(N-isopropylacrylamide) (PNIPAAm). Chem. Lett. 2015, 44, 203–205. [Google Scholar] [CrossRef]
  40. Sato, S.; Shintani, K.; Idota, N.; Nishino, T.; Sugahara, Y. Effect of the graft density of cellulose diacetate-modified layered perovskite nanosheets on mechanical properties of the transparent organic-inorganic hybrids bearing covalent bonds at the interface. Cellulose 2017, 24, 5463–5473. [Google Scholar] [CrossRef] [Green Version]
  41. Asai, Y.; Ariake, Y.; Saito, H.; Idota, N.; Matsukawa, K.; Nishino, T.; Sugahara, Y. Layered perovskite nanosheets bearing fluoroalkoxy groups: Their preparation and application in epoxy-based hybrids. RSC Adv. 2014, 4, 26932–26939. [Google Scholar] [CrossRef]
  42. Byeon, S.; Kileung, P.; Park, K. Structure and Ionic Conductivity of NaLnTiO4, Comparison with Those of Na2Ln2Ti3O10 (Ln = La, Nd, Sm, and Gd). J. Solid State Chem. 1996, 121, 430–436. [Google Scholar] [CrossRef]
  43. Richard, M.; Brohan, L.; Tournoux, M. Synthesis, Characterization, and Acid Exchange of the Layered Perovskites A2Nd2Ti3O10 (A—Na, K). J. Solid State Chem. 1994, 112, 345–354. [Google Scholar] [CrossRef]
  44. Rodionov, I.A.; Sokolova, I.P.; Silyukov, O.I.; Burovikhina, A.A.; Fateev, S.A.; Zvereva, I.A. Protonation and Photocatalytic Activity of the Rb2La2Ti3O10 Layered Oxide in the Reaction of Hydrogen Production. Int. J. Photoenergy 2017, 2017, 1–8. [Google Scholar] [CrossRef] [Green Version]
  45. Tong, Z.; Zhang, G.; Takagi, S.; Shimada, T.; Tachibana, H.; Inoue, H. Preparation and Characterization of a Transparent Thin Film of the Layered Perovskite, K2La2Ti3O10, Intercalated with an Ionic Porphyrin. Chem. Lett. 2005, 34, 632–633. [Google Scholar] [CrossRef]
  46. Akbarian-Tefaghi, S.; Wiley, J.B. Microwave-assisted routes for rapid and efficient modification of layered perovskites. Dalt. Trans. 2018, 47, 2917–2924. [Google Scholar] [CrossRef]
  47. Chizhik, V.I.; Chernyshev, Y.S.; Donets, A.V.; Frolov, V.V.; Komolkin, A.V.; Shelyapina, M.G. Magnetic Resonance and Its Applications; Springer International Publishing: Cham, Switzerland, 2014; ISBN 9783319052984. [Google Scholar]
  48. Kharkov, B.B.; Corkery, R.W.; Dvinskikh, S.V. Phase transitions and chain dynamics of surfactants intercalated into the galleries of naturally occurring clay mineral magadiite. Langmuir 2014, 30, 7859–7866. [Google Scholar] [CrossRef]
  49. Krylova, E.A.; Shelyapina, M.G.; Nowak, P.; Harańczyk, H.; Chislov, M.; Zvereva, I.A.; Privalov, A.F.; Becker, M.; Vogel, M.; Petranovskii, V. Mobility of water molecules in sodium- and copper-exchanged mordenites: Thermal analysis and 1H NMR. Microporous Mesoporous Mater. 2018, 265, 132–142. [Google Scholar] [CrossRef]
  50. Shelyapina, M.G.; Nefedov, D.Y.; Kostromin, A.V.; Silyukov, O.I.; Zvereva, I.A. Proton mobility in Ruddlesden–Popper phase H2La2Ti3O10 studied by 1H-NMR. Ceram. Int. 2019, 45, 5788–5795. [Google Scholar] [CrossRef]
  51. Kharkov, B.B.; Dvinskikh, S. Chain dynamics of surfactants in mesoporous silica. Phys. Chem. Chem. Phys. 2013, 42, 18620–18626. [Google Scholar] [CrossRef]
  52. Khimyak, Y.Z.; Klinowski, J. Solid-state NMR studies of the organic template in mesostructured aluminophosphates. Phys. Chem. Chem. Phys. 2001, 3, 616–626. [Google Scholar] [CrossRef]
  53. Shelyapina, M.G.; Yocupicio-Gaxiola, R.I.; Zhelezniak, I.V.; Chislov, M.V.; Antúnez-García, J.; Murrieta-Rico, F.N.; Galván, D.H.; Petranovskii, V.; Fuentes-Moyado, S. Local structures of two-dimensional zeolites—Mordenite and ZSM-5—Probed by multinuclear NMR. Molecules 2020, 25, 4678. [Google Scholar] [CrossRef] [PubMed]
  54. Kurnosenko, S.A.; Silyukov, O.I.; Mazur, A.S.; Zvereva, I.A. Synthesis and thermal stability of new inorganic-organic perovskite-like hybrids based on layered titanates HLnTiO4 (Ln = La, Nd). Ceram. Int. 2019, 46, 5058–5068. [Google Scholar] [CrossRef]
  55. Byeon, S.; Nam, H. Neutron Diffraction and FT-Raman Study of Ion-Exchangeable Layered Titanates and Niobates. Chem. Mater. 2000, 12, 1771–1778. [Google Scholar] [CrossRef]
  56. Nozaki, R.; Kondo, J.N.; Hirose, C.; Domen, K.; Wada, A. Vibrational Study of Layered Perovskites M2La2Ti3O10 (M = Li, Na, K, Rb): Raman Spectra and Normal Mode Analysis. J. Phys. Chem. B 2001, 105, 7950–7953. [Google Scholar] [CrossRef]
  57. Torres-Barthelemy, V.; Pérez-Hernández, N.; Shenderovich, I.G.; Tolstoy, P.M.; Denisov, G.S.; Limbach, H.-H. NMR-detected host-guest proton exchange as a tool to explore surface/volume ratios and fluid filling of internal and external spaces of porous solids containing surface OH groups. J. Phys. Chem. C 2020, 124, 22082–22095. [Google Scholar] [CrossRef]
  58. Kong, S.; Borissova, A.O.; Lesnichin, S.B.; Hartl, M.; Daemen, L.L.; Eckert, J.; Antipin, M.Y.; Shenderovich, I.G. Geometry and spectral properties of the protonated homodimer of pyridine in the liquid and solid states. A combined NMR, X-ray diffraction and inelastic neutron scattering study. J. Phys. Chem. A 2011, 115, 8041–8048. [Google Scholar] [CrossRef]
  59. Grünberg, B.; Emmler, T.; Gedat, E.; Shenderovich, I.; Findenegg, G.H.; Limbach, H.; Buntkowsky, G. Hydrogen bonding of water confined in mesoporous silica MCM-41 and SBA-15 studied by 1H solid-state NMR. Chem. Eur. J. 2004, 10, 5689–5696. [Google Scholar] [CrossRef]
  60. Shenderovich, I.G. For whom a puddle is the sea? Adsorption of organic guests on hydrated MCM-41 silica. Langmuir 2020, 36, 11383–11392. [Google Scholar] [CrossRef]
  61. Lorente, P.; Shenderovich, I.G.; Golubev, N.S.; Denisov, G.S.; Buntkowsky, G.; Limbach, H.H. 1H/15N NMR chemical shielding, dipolar 15N,2H coupling and hydrogen bond geometry correlations in a novel series of hydrogen-bonded acid-base complexes of collidine with carboxylic acids. Magn. Reson. Chem. 2001, 39, 18–29. [Google Scholar] [CrossRef]
  62. Cattaneo, A.S.A.S.; Ferrara, C.; Marculescu, A.M.A.M.; Giannici, F.; Martorana, A.; Mustarelli, P.; Tealdi, C. Solid-state NMR characterization of the structure and thermal stability of hybrid organic-inorganic compounds based on a HLaNb2O7 Dion-Jacobson layered perovskite. Phys. Chem. Chem. Phys. 2016, 18, 21903–21912. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Crocker, M.; Herold, R.H.M.; Wilson, A.E.; Mackay, M.; Emeis, C.A.; Hoogendoorn, A.M. 1H NMR spectroscopy of titania: Chemical shift assignments for hydroxy groups in crystalline and amorphous forms of TiO2. J. Chem. Soc. Faraday Trans. 1996, 92, 2791–2798. [Google Scholar] [CrossRef]
  64. Yang, L.; Feng, N.; Wang, Q.; Chu, Y.; Xu, J.; Deng, F. Surface water loading on titanium dioxide modulates photocatalytic water splitting. Cell Rep. Phys. Sci. 2020, 1, 100013. [Google Scholar] [CrossRef]
  65. Jeantelot, G.; Ould-Chikh, S.; Sofack-Kreutzer, J.; Abou-Hamad, E.; Anjum, D.H.; Lopatin, S.; Harb, M.; Cavallo, L.; Basset, J.M. Morphology control of anatase TiO2 for well-defined surface chemistry. Phys. Chem. Chem. Phys. 2018, 20, 14362–14373. [Google Scholar] [CrossRef] [Green Version]
  66. Tupikina, E.Y.; Bodensteiner, M.; Tolstoy, P.M.; Denisov, G.S.; Shenderovich, I.G. P=O Moiety as an ambidextrous hydrogen bond acceptor. J. Phys. Chem. C 2018, 122, 1711–1720. [Google Scholar] [CrossRef]
  67. Gutiérrez-Ortega, J.A.; Gómez-Salazar, S.; Shenderovich, I.G.; Manríquez-González, R. Efficiency and lead uptake mechanism of a phosphonate functionalized mesoporous silica through P/Pb association ratio. Mater. Chem. Phys. 2020, 239, 122037. [Google Scholar] [CrossRef]
  68. Gurinov, A.A.; Rozhkova, Y.A.; Zukal, A.; Čejka, J.; Shenderovich, I.G. Mutable Lewis and Brønsted acidity of aluminated SBA-15 as revealed by NMR of adsorbed pyridine-15N. Langmuir 2011, 27, 12115–12123. [Google Scholar] [CrossRef]
  69. Witanowski, M.; Stefaniak, L.; Szymański, S.; Januszewski, H. External neat nitromethane scale for nitrogen chemical shifts. J. Magn. Reson. 1977, 28, 217–226. [Google Scholar] [CrossRef]
  70. Bishop, G.R.; Valente, E.J.; Whitehead, T.L.; Brown, K.L.; Hicks, R.P.; Davidson, V.L. Direct detection by 15N NMR of the tryptophan tryptophylquinone aminoquinol reaction intermediate of methylamine dehydrogenase. J. Am. Chem. Soc. 1996, 118, 12868–12869. [Google Scholar] [CrossRef]
  71. Banert, K.; Lehmann, J.; Quast, H.; Meichsner, G.; Regnat, D.; Seiferling, B. 15N-NMR spectra, tautomerism and diastereomerism of 4,5-dihydro-1H-1,2,3-triazoles. J. Chem. Soc. Perkin Trans. 2002, 2, 126–134. [Google Scholar] [CrossRef]
  72. Duthaler, R.O.; Roberts, J.D. Steric and electronic effects on 15N chemical shifts of saturated aliphatic amines and their hydrochlorides. J. Am. Chem. Soc. 1978, 100, 3889–3895. [Google Scholar] [CrossRef]
  73. Liu, H.; Li, M.; Luo, X.; Liang, Z.; Idem, R.; Tontiwachwuthikul, P. Investigation mechanism of DEA as an activator on aqueous MEA solution for postcombustion CO2 capture. AIChE J. 2018, 64, 2515–2525. [Google Scholar] [CrossRef]
  74. Birnie, D.P.; Bendzko, N.J. 1H- and 13C-NMR observation of the reaction of acetic acid with titanium isopropoxide. Mater. Chem. Phys. 1999, 59, 26–35. [Google Scholar] [CrossRef]
  75. Voelkel, R. High-resolution solid-state 13C-NMR spectroscopy of polymers. Angew. Chem. Int. Ed. Engl. 1988, 27, 1468–1483. [Google Scholar] [CrossRef]
  76. Rodionov, I.A.; Fateev, S.A.; Zvereva, I.A. Synthesis of a New Layered Rb2Nd2Ti3O10 Oxide, Its Hydration and Protonation. Glas. Phys. Chem. 2017, 43, 593–596. [Google Scholar] [CrossRef]
  77. Silyukov, O.; Chislov, M.; Burovikhina, A.; Utkina, T.; Zvereva, I. Thermogravimetry study of ion exchange and hydration in layered oxide materials. J. Therm. Anal. Calorim. 2012, 110, 187–192. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds are available from the authors upon request.
Molecules 25 05229 g001 550

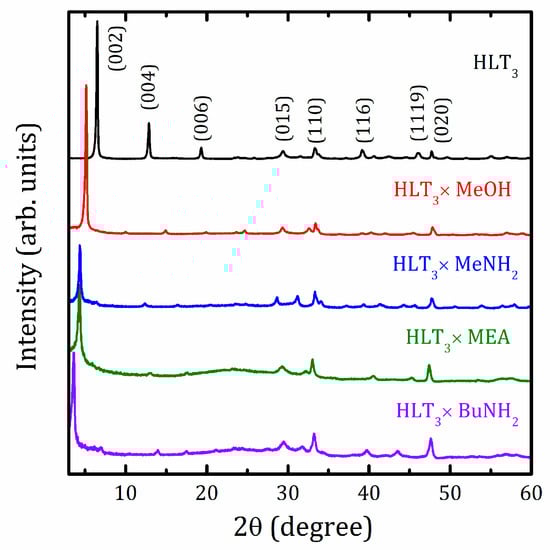

Figure 1. X-ray-diffraction (XRD) patterns of the initial H2La2Ti3O10·xH2O (HLT3), and organic-inorganic HLT3 × MeOH, HLT3 × MeNH2, HLT3 × MEA, and HLT3 × BuNH2 compounds.
Figure 1. X-ray-diffraction (XRD) patterns of the initial H2La2Ti3O10·xH2O (HLT3), and organic-inorganic HLT3 × MeOH, HLT3 × MeNH2, HLT3 × MEA, and HLT3 × BuNH2 compounds.
Molecules 25 05229 g001
Molecules 25 05229 g002 550

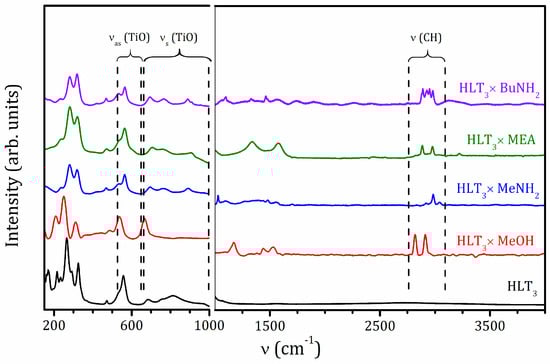

Figure 2. Raman spectra of the initial HLT3 and organic-inorganic HLT3 × MeOH, HLT3 × MeNH2, HLT3 × MEA, and HLT3 × BuNH2 compounds.
Figure 2. Raman spectra of the initial HLT3 and organic-inorganic HLT3 × MeOH, HLT3 × MeNH2, HLT3 × MEA, and HLT3 × BuNH2 compounds.
Molecules 25 05229 g002
Molecules 25 05229 g003 550
Figure 3. Thermal gravimetric (TG) curves for the initial HLT3 and organic-inorganic HLT3 × MeOH, HLT3 × MeNH2, HLT3 × MEA, and HLT3 × BuNH2 compounds. Masses after the final isothermal step are shown by dashed lines.
Figure 3. Thermal gravimetric (TG) curves for the initial HLT3 and organic-inorganic HLT3 × MeOH, HLT3 × MeNH2, HLT3 × MEA, and HLT3 × BuNH2 compounds. Masses after the final isothermal step are shown by dashed lines.
Molecules 25 05229 g003
Molecules 25 05229 g004 550
Figure 4. SEM images of the initial HLT3 and organic-inorganic HLT3 × MeOH, HLT3 × MeNH2, HLT3 × MEA, and HLT3 × BuNH2 compounds.
Figure 4. SEM images of the initial HLT3 and organic-inorganic HLT3 × MeOH, HLT3 × MeNH2, HLT3 × MEA, and HLT3 × BuNH2 compounds.
Molecules 25 05229 g004
Molecules 25 05229 g005 550
Figure 5. 13C{1H} cross-polarization (CP) NMR spectra of HTL3 × MeOH under magic angle spinning (MAS) at νrot = 14 kHz (a) and static (b) conditions in magnetic field 9.4 T and 13C-NMR spectra of Ti(CH3O)4 under MAS at νrot = 5 kHz (c) and static (d) conditions in magnetic field 7 T.
Figure 5. 13C{1H} cross-polarization (CP) NMR spectra of HTL3 × MeOH under magic angle spinning (MAS) at νrot = 14 kHz (a) and static (b) conditions in magnetic field 9.4 T and 13C-NMR spectra of Ti(CH3O)4 under MAS at νrot = 5 kHz (c) and static (d) conditions in magnetic field 7 T.
Molecules 25 05229 g005
Molecules 25 05229 g006 550
Figure 6. 1H MAS NMR spectra of HLT3 × MeOH (a) and HLT3 (b) and their decomposition. Dashed lines show the total fit.
Figure 6. 1H MAS NMR spectra of HLT3 × MeOH (a) and HLT3 (b) and their decomposition. Dashed lines show the total fit.
Molecules 25 05229 g006
Molecules 25 05229 g007 550
Figure 7. 13C{1H} CP NMR spectra of HLT3 × MeNH2 under MAS at νrot = 14 kHz (a) and static (b) conditions in magnetic field 9.4 T. 13C-NMR spectra of MeNH2HCl under MAS at νrot = 5 kHz (c) and static (d) conditions in magnetic field 7 T. 13C{1H} CP NMR spectra of HLT3 × BuNH2 under MAS at νrot = 14 kHz (e) and static (f) conditions in magnetic field 9.4 T. 13C-NMR spectra of BuNH2HCl under MAS at νrot = 5 kHz (g) and static (h) conditions in magnetic field 7 T.
Figure 7. 13C{1H} CP NMR spectra of HLT3 × MeNH2 under MAS at νrot = 14 kHz (a) and static (b) conditions in magnetic field 9.4 T. 13C-NMR spectra of MeNH2HCl under MAS at νrot = 5 kHz (c) and static (d) conditions in magnetic field 7 T. 13C{1H} CP NMR spectra of HLT3 × BuNH2 under MAS at νrot = 14 kHz (e) and static (f) conditions in magnetic field 9.4 T. 13C-NMR spectra of BuNH2HCl under MAS at νrot = 5 kHz (g) and static (h) conditions in magnetic field 7 T.
Molecules 25 05229 g007
Molecules 25 05229 g008 550
Figure 8. 1H MAS NMR spectra of HLT3 × MeNH2 (a) and HLT3 (b) and their decomposition. Dashed lines show the total fit.
Figure 8. 1H MAS NMR spectra of HLT3 × MeNH2 (a) and HLT3 (b) and their decomposition. Dashed lines show the total fit.
Molecules 25 05229 g008
Molecules 25 05229 g009 550
Figure 9. 13C{1H} CP/MAS (a) and 1H MAS NMR (b) spectra of HLT3 × MEA.
Figure 9. 13C{1H} CP/MAS (a) and 1H MAS NMR (b) spectra of HLT3 × MEA.
Molecules 25 05229 g009
Molecules 25 05229 g010 550
Figure 10. Integral peak intensity for carbon atoms in HLT3 × MeOH (a), HLT3 × MeNH2 (b), HLT3 × BuNH2 (c), and HLT3 × MEA (d).
Figure 10. Integral peak intensity for carbon atoms in HLT3 × MeOH (a), HLT3 × MeNH2 (b), HLT3 × BuNH2 (c), and HLT3 × MEA (d).
Molecules 25 05229 g010
Table
Table 1. Lattice parameters (a and c indexed in the tetragonal system) and interlayer distances d of the initial protonated titanate and its inorganic derivatives. HLT3: H2La2Ti3O10·xH2O.
Table 1. Lattice parameters (a and c indexed in the tetragonal system) and interlayer distances d of the initial protonated titanate and its inorganic derivatives. HLT3: H2La2Ti3O10·xH2O.
Samplea (Å)c (Å)d (Å)
HLT33.80927.5513.78
HLT3 × MeNH23.83039.9418.97
HLT3 × BuNH23.82824.2324.23
HLT3 × MeOH3.80035.4017.70
HLT3 × MEA3.83238.9719.49
Table
Table 2. The composition and decomposition temperature (Td) for the studied compounds. TG: thermal gravimetric.
Table 2. The composition and decomposition temperature (Td) for the studied compounds. TG: thermal gravimetric.
SampleCompositionTotal Mass Loss in TG (%)Td (°C)
HLT3H2La2Ti3O10(H2O)0.053.01280
HLT3 × MeNH2H2La2Ti3O10(MeNH2)0.75(H2O)0.207.2975
HLT3 × BuNH2H2La2Ti3O10(BuNH2)0.60(H2O)0.2010.375
HLT3 × MeOHH1.3La2Ti3O9.3(MeO)0.75(H2O)0.054.75300
HLT3 × MEAH2La2Ti3O10(MEA)0.65(H2O)0.109.47250
Table
Table 3. Values of TCH and T1ρ(H) for the specific 13C nuclei with an isotropic chemical shift δiso in the studied hybrids, as derived from 1H-13C cross-polarization/magic angle spinning (CP/MAS) NMR measurements.
Table 3. Values of TCH and T1ρ(H) for the specific 13C nuclei with an isotropic chemical shift δiso in the studied hybrids, as derived from 1H-13C cross-polarization/magic angle spinning (CP/MAS) NMR measurements.
CompoundCarbon Siteδiso (ppm)TCH (μs)T1ρ(H) (ms)
HLT3 × MeOHC66.2 ± 0.1233 ± 2917.1 ± 2.8
HLT3 × MeNH2C25.2 ± 0.1131 ± 101.5 ± 0.1
HLT3 × BuNH2C139.7 ± 0.179 ± 61.3 ± 0.1
C230.4 ± 0.1129 ± 91.8 ± 0.1
C321.1 ± 0.1182 ± 132.3 ± 0.2
C413.8 ± 0.1700 ± 935.8 ± 0.6
HLT3 × MEAC1,C1*42.4 ± 0.164 ± 92.3 ± 0.4
C258.7 ± 0.187 ± 111.8 ± 0.3
C2*69.4 ± 0.167 ± 141.5 ± 0.6
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Shelyapina, M.G.; Silyukov, O.I.; Lushpinskaia, I.P.; Kurnosenko, S.A.; Mazur, A.S.; Shenderovich, I.G.; Zvereva, I.A. NMR Study of Intercalates and Grafted Organic Derivatives of H2La2Ti3O10. Molecules 2020, 25, 5229. https://doi.org/10.3390/molecules25225229

AMA Style

Shelyapina MG, Silyukov OI, Lushpinskaia IP, Kurnosenko SA, Mazur AS, Shenderovich IG, Zvereva IA. NMR Study of Intercalates and Grafted Organic Derivatives of H2La2Ti3O10. Molecules. 2020; 25(22):5229. https://doi.org/10.3390/molecules25225229

Chicago/Turabian Style

Shelyapina, Marina G., Oleg I. Silyukov, Irina P. Lushpinskaia, Sergey A. Kurnosenko, Anton S. Mazur, Ilya G. Shenderovich, and Irina A. Zvereva. 2020. "NMR Study of Intercalates and Grafted Organic Derivatives of H2La2Ti3O10" Molecules 25, no. 22: 5229. https://doi.org/10.3390/molecules25225229

Article Metrics

Back to TopTop
