Pentaborate(1-) Salts and a Tetraborate(2-) Salt Derived from C2- or C3-Linked Bis(alkylammonium) Dications: Synthesis, Characterization, and Structural (XRD) Studies

by
Michael A. Beckett
1,*,
Bashdar I. Meena
1,†,
Thomas A. Rixon
1,
Simon J. Coles
2 and
Peter N. Horton
2
1
School of Natural Sciences, Bangor University, Bangor LL57 2UW, UK
2
Chemistry Department, University of Southampton, Southampton SO17 1BJ, UK
*
Author to whom correspondence should be addressed.
†
Current address: Department of Chemistry, Faculty of Science and Health, Koya University, Koya KOY45, Iraq.
Molecules 2020, 25(1), 53; https://doi.org/10.3390/molecules25010053
Submission received: 6 December 2019 / Revised: 18 December 2019 / Accepted: 21 December 2019 / Published: 23 December 2019
(This article belongs to the Special Issue Polyborates: Applications, Synthesis, and Structural and Physical Properties)
Browse Figures
Versions Notes

Abstract

:
The synthesis of a number of pentaborate(1-) salts from cations arising from N-substituted α,α-, α,β-, and α,γ-diaminoalkanes has been attempted in aqueous solution from B(OH)3 and the appropriate diammine in a 10:1 ratio. Despite relatively mild work-up conditions the pentaborate(1-) salts prepared were not always as anticipated and the following compounds were isolated in good yield: [Me2NH(CH2)2NHMe2][B5O6(OH)4]2 (1), [Et2NH(CH2)2NHEt2][B5O6(OH)4]2 (2), [Et2NH2][B5O6(OH)4] (3), [Me2NH2][B5O6(OH)4] (4), [Me2NH(CH2)3NHMe2][B5O6(OH)4]2 (5), [Et2NH(CH2)3NHEt2][B5O6(OH)4]2 (6), [Me3NCH2CH=CH2][B5O6(OH)4] (7), and [Me3N(CH2)3NMe3] [B5O6(OH)4]2.0.5H2O (8). The tetraborate(2-) salt, [Me3N(CH2)2NMe3][B4O5(OH)4].2B(OH)3.2H2O (9) was obtained in moderate yield (41%) from a 3:1 reaction of B(OH)3 with [Me3N(CH2)2NMe3](OH)2. All compounds were characterized by spectroscopy (1H, 11B, 13C NMR and IR) and thermal gravimetric analysis (TGA). BET analysis on materials derived thermally from selected samples (1, 2, 6, 7) all had porosities of < 1 m2/g, demonstrating that they were non-porous. Single-crystal XRD structures were obtained for 2, 3, 7, 8 and 9 and all contain extensive H-bonded polyborate lattices.

Graphical Abstract

1. Introduction

Salts and neutral species containing polyoxidoborate (polyborate) anions occur as minerals and many synthetic derivatives have now also been prepared [1,2,3,4,5]. These compounds are structurally diverse, with the polyborate anions generally comprised of trigonal planar 3-coordinate and tetrahedral 4-coordinate boron centres, linked via oxygen bridges with as many terminal OH or O− groups as is necessary to complete the required geometry at boron [6,7,8,9,10,11]. Some polyborate salts are sold as bulk chemicals for use in the glass/vitreous, fire retardant, and agricultural industries [12,13,14], whilst other synthetic polyborates have interesting and specialized physical e.g., semiconducting, luminescent, non-linear optical (NLO) properties [5,15]. We are interested in synthetic polyborate chemistry and recently have started to investigate non-metal cation stabilized silicate/borate solutions as potential bio-stimulants for agricultural use [12,16,17]. Since choline-like cations and tetraalkylammonium cations are known to structure-direct silicate species towards cubic octasilicate [Si8O12+n(OH)8-n]n- anions [18,19] our attention has been directed towards N-substituted aminoalkane and N-substituted α,ω-diaminoalkane cations. This has led us to investigate, as part of a broader parallel study on synthetic polyborate chemistry, the interaction in aqueous solution between B(OH)3 and cations derived from N-substituted α,ω-diaminoalkanes and the results of this investigation are presented in this manuscript. In particular we report herein the synthesis and characterization of seven new polyborate salts together with single-crystal XRD studies on five of these compounds. Schematic drawings of the pentaborate(1-) and tetraborate(2-) anions present in these salts are given in Figure 1. Aspects of solid-state H-bond interactions, important in stabilizing the solid-state structures, are also discussed.

2. Results and Discussion

2.1. Synthesis

Synthetic strategies to prepare pentaborate(1-) salts partnered with organic cations include the reaction of a free base amine with B(OH)3 in aqueous solution or use of OH- activated ion-exchange resins with quaternary ammonium halide salts [5]. Schubert and co-workers [19] have successfully applied the former method to α,ω-diaminoalkanes and have isolated a number of pentaborate(1-) salts containing a +2 diammonium cations of composition [H3N(CH2)xNH3][B5O6(OH)4]2 (x = 5, 6, 8-12). In this study, the pentaborate(1-) salts [Me2NH(CH2)2NHMe2][B5O6(OH)4]2 (1), [Et2NH(CH2)2NHEt2][B5O6(OH)4]2 (2), [Et2NH2][B5O6(OH)4] (3), [Me2NH2][B5O6(OH)4] (4), [Me2NH(CH2)3NHMe2][B5O6(OH)4]2 (5), and [Et2NH(CH2)3NHEt2][B5O6(OH)4]2 (6) were readily prepared as crystalline solids from aqueous solution in yields of 87–99% by the reaction of 10 equivalents of B(OH)3 with the diaminoalkane in aqueous solution at room temperature. Compounds 2, 3, 5 and 6 are previously unreported. Compound 1 has recently been prepared serendipitously in low yield (~10%) as a by-product from the reaction of a fluorinated borane CF3(CF2)5CH2(OLi)CH2PPh2.BH3 with [PtCl2(COD)] in the presence of Me2N(CH2)2NMe2 [20]. Likewise, 4 has been previously obtained in very low yield (a few crystals) as a by-product of a reaction of B(OH)3 with B2(NMe2)4 followed by crystallization from water [21]. N,N,N’N’-Tetraakyldiaminomethane cations are less stable than the tetrasubstituted diaminoethane or diaminopropane cations in aqueous solution and the formation of the corresponding dialkylammonium pentaborate(1-) salts 3 and 4 in high yields is not unexpected and further demonstrates the ready cleavage of the C-N aminal bonds [22,23,24,25]. Further characterization data for 1 and 4 are reported within this manuscript. Scheme 1 contains all the reactions studied in this work.
The pentaborate(1-) salt [Me3NCH2CH=CH2][B5O6(OH)4] (7) was obtained as the isolated product from crystallization of the crude solid sample obtained from the reaction of [Me3NCH2CH2CH2NMe3](OH)2 (from by exchange from [Me3N(CH2)3NMe3]I2) with 10B(OH)3 followed by removal of the aqueous solvent on a hot water bath and oven drying (65 °C). This product rather than the expected product, [Me3N(CH2)3NMe3][B5O6(OH)4]2 was obtained since the [Me3N(CH2)3NMe3]2+ cation initially present rapidly undergoes a Hofmann elimination [26,27], with elimination of NMe3, under the workup conditions. Repeating the reaction but maintaining the reaction mixture at room temperature during the workup resulted in the high yield (96%) synthesis of expected product [Me3N(CH2)3NMe3][B5O6(OH)4]2 which after recrystallization at room temperature from aqueous solution by slow evaporation gave the compound as its hemihydrate, [Me3N(CH2)3NMe3][B5O6(OH)4]2.0.5H2O (8), as crystals suitable for single-crystal XRD studies.
The pentaborate(1-) salt, [Me3N(CH2)2NMe3][B5O6(OH)4]2, has been previously reported by us from the ion exchange method from [Me3N(CH2)2NMe3]I2 and B(OH)3 in good (80%) yield [28]. We now report that the related salt, [Me3N(CH2)2NMe3][B4O5(OH)4].2B(OH)3.2H2O (9), could be obtained in moderate yield (41%) by crystallization of an aqueous solution containing a [Me3N(CH2)2NMe3](OH)2/B(OH)3 in a ratio of 1:3. Reactions of the other amines or [Me3N(CH2)3NMe3](OH)2 with B(OH)3 at this 1:3 ratio were not explored within this study. Compound 9 contains a tetraborate(2-) rather than a pentaborate(1-) anion, observed for 1–8, and this anion is drawn schematically in Figure 1(b). Spectroscopic (IR and NMR) and thermal analysis data, including porosity measurements on materials obtained thermally, for these compounds 1–9 are described in Section 2.2 and XRD studies on 2, 3, 7, 8 and 9 are described in Section 2.3.

2.2. Thermal Analysis, Porosity Measurements and Spectroscopic Data

Compounds 1–9 gave satisfactory C, H, N (combustion) elemental analysis data and thermal gravimetric analysis (TGA) data consistent with their formulations. Non-metal cation polyborates have been previously reported to decompose thermally (in air) to afford glassy B2O3 residues [5,19,29]. This thermal decomposition is usually a two-step processes with the lower temperature step associated with dehydration and cross-linking of hydroxyl groups of the polyborate anions to give condensed polyborate salts. The higher temperature step involves oxidation of the cations to afford the glassy residue. Thus for example, 1, dehydrates to a condensed polyborate, [Me2NH(CH2)2NHMe2][B10O16] in the temperature range 150–300 °C with loss of 4H2O then with oxidation of organic cation to leave residual 5B2O3 at 300–650 °C. Compound 9, which is formulated as a tetraborate(2-) salt with 2 interstitial B(OH)3 and 2 interstitial H2O molecules afforded 3B2O3 by a similar two-step process. Selected samples of 1–6 were either heated to 250 °C for 1h (1, 2, 5, 6) or 600 °C for 1 h (1–3, 6) to generate samples approximating to the ′condensed′ borate salt or the ′pyrolysed′ glassy solid that could be used for porosity measurements by use of the Brunauer-Emmett-Teller (BET) method [30]. Measured porosities of the thermally treated samples were in the range 0.06–0.94 m2/g indicating that they were all essentially non-porous and in accord with previous work [31,32].
1H-, 13C- and 11B-NMR spectra were recorded on compounds 1–9 (D2O solvent) and 1H- and 13C- spectra were in accord with the cations present. Exchangeable NH and B-OH protons were absent as specific signals and it is assumed were observed in the HOD signal present at +4.79 ppm as has been observed previously in related non-metal cation systems [31,32,33]. The pentaborate(1-) anion, although very stable in the solid-state and is readily templated by many organic cations [34], ′decomposes′ in aqueous solution as various equilibrium determined borate species are rapidly obtained and influenced by the boron concentration, the temperature and the pH of the aqueous solution [35,36]. However, 11B spectra of 1–8 were obtained and these samples all showed three peaks centred at 1 (~5) 13 (~35%) and 18 (~60%) ppm in a pattern typical of solutions arising from pentaborate(1-) salts [31,32,33,34,37]. The 11B spectra of 9, originating from a tetraborate(2-) salt, was significantly different with three peaks now at 1.3 (5%), 7.4 (43%) and 11.7 (52%).The upfield shift of the ‘average’ 11B chemical shift on going from a pentaborate (1-) anion (1–8) to a tetraborate(2-) anion (9) is in accord with the average B/charge ratio changing from 5:1 to 2:1 [34].
IR spectra were obtained on all compounds and strong B-O stretches in the fingerprint region 1450–650 cm−1 are readily observed [38]. A band assigned to an asymmetric B-O stretch associated with the tetrahedral boron centre at ~925 cm−1 and usually diagnostic of a pentaborate(1-) anion [30,39] was clearly evident in samples 1–8. There are many fewer reports of IR spectra of tetraborate(2-) species and some have been tabulated [38] but diagnostic bands have not been reported. It should be noted that the tetraborate(2-) salt 9 also displayed a stretch at 927 cm−1 in the region considered diagnostic for a pentaborate(1-) salt.

2.3. Single-Crystal XRD Studies

Compounds 2, 3, 7, 8 and 9 have been investigated by single-crystal X-ray diffraction studies and pertinent crystallographic data are given in the experimental section, with full details available in the Supplementary Material. These studies confirm their formulation based on spectroscopic, thermal and analytical data described in Section 2.2. All structures were ionic and comprised of the expected organic cations for 2, 3, 8 and 9, or the cation for 7 arising through the Hofmann elimination, with associated polyborate anions.
Compounds 2, 3, 7, and 8 all contain the insular pentaborate(1-) anion, [B5O6(OH)4]−. Compound 8 is co-crystallized with 0.5 molecules of H2O. There is some disorder present in the cation and/or co-crystallized molecules all pentaborate(1-) anion structures except 3. Bond lengths and bond angles found for C, N atoms within the organic cations [19,28,37,40,41] are as expected as are the B-O bond lengths, OBO and BOB angles observed for the [B5O6(OH)4]− anion [19,21,28,29,31,32,33,34,35]; for full details see the Supplementary Information. H-bonding interactions within polyborate salts are extremely common and anion-anion interactions between pentaborate(1-) units, forming giant lattices, are well documented and are signaled as a strong driving force [5,29,34] in templating the crystallization of these anions from the Dynamic Combinatorial Library [42,43,44,45] arising from B(OH)3 under basic conditions [35,36]. The pentaborate (1-) anions in 2, 3, 7, and 8 all form multiple anion-anion interactions and 2 and 3 have additional cation-anion NH…O H-bond interactions. The acceptor sites for the four anion-anion H-bond interactions from each independent pentaborate(1-) anion can be codified [19,37] as α,β,α,α and α,α,α,β (two independent anions) for 2, α,α,α,γ for 3, α,β,α,α for 7, and α,β,α,α and α,α,β,α (two independent anions) for 8. Using Etter nomenclature [46] the H-bond interactions per pentaborate are 3 R22(8) and 1 R22(12) for 2, and 3 R22(8) and 1 C(8) for 3, 7, and 8. Compound 7 adopts the familiar ′herringbone′ structure [29,31] whereas 2, 3 and 8 are unique. The structure of 3 (Figure 2) is similar to the ′stepped brickwall′ structure observed in [4-MepyH, 4-Mepy][B5O6(OH)4] [37]; however the structures are different since 3 has a C(8) interaction involving γ acceptor sites rather than β sites. Views of the anion giant structures in 2 and 8 are given in Figure 3 and Figure 4 respectively.
The structural characterization of 9 is considered in more detail in this manuscript since it contains a tetraborate(2-) anion and there are far fewer crystallographic reports in the literature featuring this anion; the anion is found partnered with 2Na+ in the well-known borax [47,48] but is less commonly found with non-metal cation [40,49,50,51,52] or transition metal cation salts [53,54,55,56].
The tetraborate(2-) anion in 9 is found co-crystallized with 2B(OH)3 and 2H2O and the dication [Me3N(CH2)2NMe3]2+. The structure is disordered with the cation occupying three closely related positions with site occupancies of 47.4%, 28.7% and 23.9% and one of the two co-crystallized B(OH)3 units occupying 2 positions with site occupancies of 76% and 24%. A drawing of the atomic labelling for the components of highest site occupancy is given in Figure 5. Bond lengths and bond angles found for C, N atoms within the [Me3N(CH2)2NMe3]2+ cations are as expected and similar to those reported for the related pentaborate(1-) salt, [Me3N(CH2)2NMe3][B5O6(OH)4]2. [28]. The B-O bond lengths, OBO and BOB angles observed for the [B4O5(OH)4]2− and B(OH)3 motifs are in accord with previous tetraborate(2-) [47,48,49,50,51,52,53,54,55,56] and polyborates with co-crystallized B(OH)3 [32,33,39,55,57,58]; for full details see the Supplementary Information.
The tetraborate(2-) anion has four H-bond donor sites and nine potential H bond acceptor sites, and the B(OH)3 molecules each have three donor and three potential acceptor sites. Again, there are numerous H-bond interactions within the structure and a giant supramolecular anionic H-bonded lattice is formed, with cations situated within the cavities. However, there are no direct anion-anion interactions within the lattice and the B(OH)3 units serve to bridge tetraborate(2-) anions by acting as ′spacers′ to expand the lattice so that it can accommodate the relatively large cation, [Me3N(CH2)2NMe3]. This spacer role for B(OH)3 has been observed before [32,33,39,55,56,57,58]. With reference to Figure 6 it can be seen that the H-bond structure can be envisaged as ′horizontal′ chains of alternating [B4O5(OH)4]2-/B(OH)3 units held together by R22(8) interaction, crosslinked by ′vertical′ C22(8) chains (involving O8,H8…O12,H12…O5,B1,O2,B3) in a regular 2D arrangement. These planes are further linked by additional R22(8) interactions into a 3D lattice. Further details of the interactions around the tetraborate(2-) anion is shown in Figure 7 and full details are available in the Supplementary Information. The O1 site is a double H-bond acceptor in two R22(8) interactions: O21H21…O1 and O13H13…O1. The H2O of crystallization further help to H-bond the structure together. The cation is unable to get involved with H-bonding.

3. Materials and Methods

3.1. General

All chemicals were obtained commercially. TGA/DSC analysis (in air) were undertaken on an SDT Q600 V4.1 Build 59 instrument (TA Instruments, New Castle, DE, USA) using Al2O3 crucibles, between 10–800 °C (ramp temperature rate of 10 °C min−1). FTIR spectra were obtained (KBr pellets) on a Perkin-Elmer 100 FTIR spectrometer (Perkin-Elmer, Seer Green, UK). NMR spectra were obtained on a Bruker Avance 400 spectrometer (Bruker, Coventry, UK) and reported in ppm with positive chemical shifts (δ) to high frequency (downfield) of TMS (1H, 13C) and BF3.OEt2 (11B). BET analysis were performed ion a Gemini 2375 analyser (Micromeritics Instrument Corporation, Norcross, GA, USA) with N2 gas as the adsorbent. CHN analysis were obtained from OEA Laboratories Ltd. (Callington, UK). See Section 3.11 for single-crystal XRD methods.

3.2. Synthesis, Spectroscopic, and Analytical Data for 1

B(OH)3 (6.2 g; 100.2 mmol) was dissolved in H2O (100 mL). To this solution was added Me2N(CH2)2NMe2 (1.18 g; 10.0 mmol) and the reaction mixture was stirred for 1 h. The solvent was partially removed by rotary evaporation to give white crystals. The crude product of 1 (5.5 g; 99%) was obtained after oven drying at 60 °C for 24 h. C6H26B10N2O20. Anal. Calc.: C = 13.0%, H = 4.7%, N = 5.1%. Found: C = 13.1%, H = 4.7%, N = 5.0%. TGA: 150–300 °C, condensation of pentaborate units with loss of 4H2O -14.0% (-13.0% calc.); 300–650 °C, oxidation of organic cation to leave residual 5B2O3 62.5% (62.8% calc.). BET /m2g-1: condensed 0.94, pyrolysed 0.61. NMR. 1H/ppm: 2.47 (12H, s), 2.90 (4H, s). 11B: 1.1 (14%), 12.9 (29%), 19.2 (57%). 13C: 43.4 (CH3) 53.15 (CH2). IR (KBr/cm−1): 3412 s, 1424 s, 1300 s, 968 m, 928 m, 792 s, 706 m.

3.3. Synthesis, Spectroscopic, Analytical, and Crystallographic Data for 2

Following the method as described for 1, B(OH)3 (6.2 g; 100.2 mmol) and Et2N(CH2)2NEt2 (1.74 g; 10.1 mmol) gave crude product of 2 (5.6 g; 91%). C10H34B10N2O20. Anal. Calc.: C = 19.6%, H = 5.6%, N = 4.6%. Found: C = 19.7%, H = 5.6%, N = 4.3%. Crystals suitable for single-crystal XRD studies were obtained by recrystallization of the crude product from H2O. TGA: 100–230 °C, condensation of pentaborate units with loss of 4H2O 12.0% (11.8% calc.); 230–650 °C, oxidation of organic cation to leave residual 5B2O3 54.6% (55.3% calc.). BET/m2g−1: condensed 0.43, pyrolysed 0.36. NMR. 1H/ppm: 1.06 (12H, t), 2.90 (8H, q), 3.08 (4H, s). 11B: 1.1 (20%), 13.4 (30%), 18.6 (50%). 13C: 8.76 (CH3), 46.50 (4CH2), 47.28 (2CH2). IR (KBr/cm−1): 3445 s, 3143 s, 1316 m, 1230 s, 1101 s, 926 s, 783 m, 779 m. XRD crystallographic data: C10H34B10N2O20, Mr = 610.49, Triclinic, P−1, a = 8.3998(5) Å, b = 9.1406(7) Å, c = 18.2066(13) Å, α = 78.439(6)°, β = 86.810(5)°, γ = 88.118(6)°, V = 1367.07(17) Å3, T = 100(2) K, Z = 2, μ(MoKα) = 0.130 mm−1, 11455 reflections measured, 6146 unique (Rint = 0.0461) which were used in all calculations. The final wR2 was 0.1850 (all data) and R1 was 0.0748 (I > 2σ(I)).

3.4. Synthesis, Spectroscopic, Analytical, and Crystallographic Data for 3

Following the method as described for 1, B(OH)3 (1.0 g; 16.2 mmol) and Et2NCH2NEt2 (0.26 g; 1.62 mmol) gave crude product of 3 (0.9 g; 99%). C4H16B5NO10. Anal. Calc.: C = 16.4%, H = 5.5%, N = 4.8%. Found: C = 16.7%, H = 5.6%, N = 4.7%. Crystals suitable for single-crystal XRD studies were obtained by recrystallization of the crude product from H2O. TGA: 100–230 °C, condensation of pentaborate units with loss of 2H2O 12.3% (14.3% calc.); 230–600 °C, oxidation of organic cation to leave residual 2.5B2O3 58.3% (59.6% calc.). BET/m2g-1: pyrolysed 0.06. NMR. 1H/ppm: 1.16 (6H, t), 2.95 (4H, q). 11B: 1.2 (20%), 12.9 (25%), 18.3 (55%). 13C: 10.45 (CH3) 42.18 (CH2). IR (KBr/cm−1): 3436 s, 3377 s, 3228 m, 2977 m, 1435 s, 1361 s, 1251 s, 1103 s, 1026 s, 925 s, 882 m, 697 m. XRD crystallographic data: C4H16B5NO10, Mr = 292.23, Triclinic, P−1, a = 8.3793(3) Å, b = 8.8187(4) Å, c = 10.0877(4) Å, α = 80.961(3)°, β = 76.057(3)°, γ = 68.269(4)°, V = 670.14(5) Å3, T = 100(2) K, Z = 2, μ(MoKα) = 0.129 mm−1, 5980 reflections measured, 3032 unique (Rint = 0.0144) which were used in all calculations. The final wR2 was 0.1024 (all data) and R1 was 0.0363 (I > 2σ(I)).

3.5. Synthesis, Spectroscopic and Analytical Data for 4

Following the method as described for 1, B(OH)3 (1.0 g; 16.2 mmol) and Me2NCH2NMe2 (0.17 g; 1.62 mmol) gave crude product of 4 (0.78 g; 92%). C2H12B5NO10. Anal. Calc.: C = 9.1%, H = 4.6%, N = 5.3%. Found: C = 9.4%, H = 4.6%, N = 5.3%. TGA: 100–230 °C, condensation of pentaborate units with loss of 2H2O 14.0% (13.6% calc.); 230–600 °C, oxidation of organic cation to leave residual 2.5B2O3 65.6% (65.8% calc.). NMR. 1H/ppm: 2.59 (6H). 11B: 1.1 (15%), 13.2 (30%), 18.8 (55%). 13C: 34.42 (CH3). IR (KBr/cm−1): 3437 s, 3380 s, 3053 m, 1441 s, 1460 s, 1252 m, 1103 s, 1024 s, 925 s, 783 m, 765 m.

3.6. Synthesis, Spectroscopic and Analytical Data for 5

Following the method as described for 1, B(OH)3 (6.2 g; 100.2 mmol) and Me2N(CH2)3NMe2 (1.30 g; 10.0 mmol) gave crude product of 5 (5.0 g; 88%). C7H28B10N2O20. Anal. Calc.: C = 14.8%, H = 5.0%, N = 4.9%. Found: C = 14.7%, H = 5.1%, N = 4.8%. TGA: 100–230 °C, condensation of pentaborate units with loss of 4H2O 13.2% (12.6% calc.); 230–630 °C, oxidation of organic cation to leave residual 5B2O3 60.2% (61.2% calc.). BET/m2g−1: condensed 0.62. NMR. 1H/ppm: 3.03 (4H, t), 2.70 (12H, s), 2.05 (2H, m). 11B: 1.1 (20%), 13.2 (25%), 18.8 (55%). 13C: 42.8 (4CH3) 54.14 (2CH2), 19.9 (CH2). IR (KBr/cm−1): 3307 s, 2859 s, 1440 s, 1399 s, 1253 m, 1180 m, 1025 s, 924 s, 779 m.

3.7. Synthesis, Spectroscopic and Analytical Data for 6

Following the method as described for 1, B(OH)3 (6.2 g; 100.2 mmol) and Et2N(CH2)3NEt2 (1.86 g; 10.0 mmol) gave crude product of 6 (5.4 g; 87%). C11H36B10N2O20. Anal. Calc.: C = 21.2%, H = 5.8%, N = 4.5%. Found: C = 21.4%, H = 5.9%, N = 4.4%. TGA: 100–230 °C, condensation of pentaborate units with loss of 4H2O 12.1% (11.5% calc.); 230–630 °C, oxidation of organic cation to leave residual 5B2O3 55.3% (55.7% calc.). BET/m2g−1: condensed 0.43, pyrolysed 0.71. NMR. 1H/ppm: 1.13 (12H, t), 1.97 (2H, m), 3.05 (12H, m). 11B: 1.1 (25%), 12.7 (30%), 18.2 (45%). 13C: 43.4 (CH3) 53.15 (CH2). IR (KBr/cm−1): 3412 s, 1424 s, 1300 s, 968 m, 928 m, 792 s, 706 m.

3.8. Synthesis, Spectroscopic, Analytical, and Crystallographic Data for 7

Me2N(CH2)3NMe2 (2.6g, 20 mmol) dissolved in CH3CN (50 mL) was refluxed with MeI (11.4 g, 80 mmol) for 4 h. The white solid formed, [Me3N(CH2)3NMe3]I2 (8.28 g, 100%) was isolated by filtration, washed with Et2O and used without further purification. [NMR. 1H/ppm: 2.31 (2H, quin.), 3.13 (18H, s), 3.37 (4H, t). 13C: 17.41 (CH2), 53.25 (CH3), 62.39 (CH2). IR (KBr/cm−1): 3447s, 3011s, 2957m, 1624m, 1486s, 1475s, 1408m, 1244m, 1054m, 973s, 944s, 901s, 762m, 545m.] [Me3N(CH2)3NMe3]I2 (0.67 g, 1.62 mmol) was dissolved in H2O (20 mL) and stirred with excess (13.5 g) of DOWEX 550A ion-exchange resin (OH- form) for 24 h. The slurry was filtered and B(OH)3 (1.0 g, 16.2 mmol) was added to the filtrate. The solution was left for 4 h before removal of solvent under reduced pressure at 85 °C to yield a ‘damp’ solid which was dried in an oven at 75 °C for 3 h to yield a white solid (0.93 g). 1H NMR analysis showed this to be a ~ 2:1 mixture of 7 and 8. Recrystallization of 0.2 g of this solid resulted in 0.1g of 7 with crystals suitable for sc-XRD analysis. C6H18B5NO10. Anal. Calc.: C = 22.6%, H = 5.7%, N = 4.4%. Found: C = 23.0%, H = 5.7%, N = 4.4%. TGA: 100–285 °C, condensation of pentaborate units with loss of 2H2O 11.7% (11.3% calc.); 285–700 °C, oxidation of organic cation to leave residual 2.5B2O3 55.2% (54.7% calc.). NMR. 1H/ppm: 3.00 (9H, s), 3.85 (2H, d), 5.63 (2H, dd), 5.96 (1H, m). 11B: 1.1 (1%), 13.4 (17%), 17.1 (82%). 13C: 52.30 (CH3), 68.39 (CH2), 124.43 (CH), 129.14 (CH2). IR (KBr/cm−1): 3437 s, 3262 m, 1471 m, 1427 s, 1414 s, 1389 s, 1311 s, 1168 m, 1105 s, 1012 s, 921 s, 777 s, 724 m, 708 s. XRD crystallographic data: C6H18B5NO10, Mr = 318.26, monoclinic, P21/c, a = 9.54050(10) Å, b = 16.1031(2) Å, c = 9.43280(10) Å, α = γ = 90o, β = 90.1710(10)o, V = 1449.17(3) Å3, T = 100(2) K, Z = 4, Z’ = 1, μ(CuKα) = 1.096 mm−1, 13531 reflections measured, 2661 unique (Rint = 0.0236) which were used in calculations. The final wR2 was 0.0845 (all data) and R1 was 0.0314 (I > 2σ(I)).

3.9. Synthesis, Spectroscopic, Analytical, and Crystallographic Data for 8

[Me3N(CH2)3NMe3]I2 (0.40 g, 0.97 mmol), prepared as described for 7, was dissolved in H2O (20 mL) and stirred with excess (8.0 g) of DOWEX 550A ion-exchange resin (OH- form) for 24 h. The slurry was filtered and B(OH)3 (0.6 g, 9.7 mmol) was added to the filtrate. Partial evaporation of the solution afforded a white crystalline solid (0.57 g, 96%), separated by filtration. These crystals were suitable for sc-XRD studies. C9H33B10N2O20.5. Anal. Calc.: C = 17.9%, H = 5.5%, N = 4.6%. Found: C = 18.2%, H = 5.4%, N = 4.6%. TGA: 250–300 °C, condensation of pentaborate units with loss of 4.5 H2O 13.0% (13.4% calc.); 300–700 °C, oxidation of organic cation to leave residual 5B2O3 57.3% (57.5% calc.). NMR. 1H/ppm: 2.29 (2H, quint.), 3.11 (18H, s), 3.33 (4H, t). 11B: 1.1 (3%), 13.1 (35%), 18.0 (62%). 13C: 17.28 (CH2), 53.15 (CH3), 62.37 (CH2). IR (KBr/cm−1): 3437 s, 3082 s, 1638 m, 1438 m, 1359 s, 1251 m, 1102 s, 1026 m, 926 s, 782 m, 696 m. XRD crystallographic data: C9H33B10N2O20.5. Mr = 605.47, monoclinic, C2/c, a = 26.8754(5) Å, b = 11.5269(2) Å, c = 17.9383(4) Å, α = γ = 90o, β =103.154(2)o, V = 5411.30(19) Å3, T = 100(2) K, Z = 8, Z’ = 1, μ(MoKα) = 0.132 mm−1, 31515 reflections measured, 6191 unique (Rint = 0.0294) which were used in calculations. The final wR2 was 0.0919 (all data) and R1 was 0.0351 (I > 2σ(I)).

3.10. Synthesis, Spectroscopic, Analytical, and Crystallographic Data for 9

[Me3N(CH2)2NMe3]I2 (1.078 g, 2.7 mmol) [28] was dissolved in H2O (20 mL) and stirred with excess (15.0 g) of DOWEX 550A ion-exchange resin (OH− form) for 24 h. The slurry was filtered and B(OH)3 (0.5 g, 8.1 mmol) was added to the filtrate. The solution was left stand for 4 h and concentrated to ca. 7 mL under reduced pressure. The solution was left to stand in a small sample vial for 7 days to yield a crystalline product (0.277 g). These crystals were suitable for sc-XRD studies. C8H36B6N2O17. Anal. Calc.: C = 19.3%, H = 7.3%, N = 5.6%. Found: C = 20.6%, H = 7.3%, N = 5.7%. TGA: 100–200 °C, condensation of tetraborate/B(OH)3 units and loss of 2 interstitial H2O (total 7H2O) 25.7% (25.3% calc.); 200–800 °C, oxidation of organic cation to leave residual 3B2O3 32.3% (29.0% calc.). NMR. 1H/ppm: 3.00 (18H, s), 3.85 (H, m). 11B: 1.3 (5%), 7.4 (43%), 11.7 (52%). 13C: 53.82 (CH3) 57.77 (CH2). IR (KBr/cm−1): 3435 s, 1638 m, 1481 s, 1418 s, 1385 m, 1352 m, 1070 m, 958 s, 927 m. XRD crystallographic data: C8H36B6N2O17, Mr = 497.25, monoclinic, P21, a = 9.0242(2) Å, b = 12.0350(3) Å, c = 11.1688(4) Å, α = γ = 90o, β = 109.811(3)o, V = 1141.21(6) Å3, T = 100(2) K, Z = 2, Z’ = 1, μ(MoKα) = 0.131 mm−1, 24237 reflections measured, 5229 unique (Rint = 0.0265) which were used in calculations. The final wR2 was 0.0802 (all data) and R1 was 0.0303 (I > 2σ(I)).

3.11. X-Ray Crystallography

Single-crystal X-ray crystallography (sc-XRD) was undertaken at the EPSRC National Crystallography Service at the University of Southampton. Selected crystals were mounted on a MITIGEN holder in perfluoroether oil. Suitable crystals of 2, 3 and 8 were placed on a FRE+ instrument Rigaku (Wilmington, MA, USA) equipped with HF Varimax confocal mirrors and an AFC12 goniometer and HG Saturn 724+ detector diffractometer. Suitable crystals of 7 were placed on a Rigaku 007HF equipped with HF Varimax confocal mirrors and an AFC11 goniometer and HyPix 6000 detector diffractometer. Suitable crystals of 9 were placed on a Rigaku FRE+ equipped with VHF Varimax confocal mirrors and an AFC12 goniometer and HyPix 6000 diffractometer. The crystals were kept at T = 100(2) K during data collection. The structures were solved with ShelXT [59] using Olex2 [60]. The models were refined with ShelXL [61] (using Least Squares minimisation). CCDC: 1968475 (2), 1968476 (3), 1968477 (7), 1968478 (8) and 1968479 (9) contains the supplementary crystallographic data for this paper. These data can be obtained free of charge via http://www.ccdc.cam.ac.uk/conts/retrieving.html (or from the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK; Fax: +44 1223 336033; E-mail: [email protected])

4. Conclusions

Six new pentaborate(1-) and one new tetraborate(2-) salts were synthesized by templated crystallization reactions from aqueous solutions containing B(OH)3 and the appropriate C2-linked or C3-linked bis(alkylammonium)(2+) cations. [Me3NCH2CH=CH2][B5O6(OH)4] was obtained in addition to [Me3N(CH2)3NMe3][B5O6(OH)4]2.0.5H2O, as a result of a Hofmann elimination during work up, from the reaction of B(OH)3 with [Me3N(CH2)3NMe3](OH)2 (10:1). All solid-state structures contain supramolecular H-bonded giant structures with cations situated within the cavities. The R22(8) H-bonding motif is found to dominate H-bonding interactions within all structures and the role of B(OH)3 in [Me3N(CH2)2NMe3][B4O5(OH)4].2B(OH)3.2H2O appears to be to expand the lattice in order to accommodate the large cationic counterion.

Supplementary Materials

The following are available online at https://www.mdpi.com/1420-3049/25/1/53/s1, Single crystal XRD data, including Figures of the structures with numerous H-bond interactions.

Author Contributions

M.A.B. conceived the experiments. B.I.M. and T.A.R. synthesized and characterized the samples and grew single-crystals for X-ray diffraction studies. P.N.H. and S.J.C. solved the crystal structures and M.A.B. wrote the paper with contributions from all authors. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

We thank the EPSRC for the use of the X-ray crystallography service (NCS, Southampton, UK).

Conflicts of Interest

The authors declare no conflicts of interests.

References

  1. Farmer, J.B. Metal borates. Adv. Inorg. Chem. Radiochem. 1982, 25, 187–237. [Google Scholar]
  2. Heller, G. A survey of structural types of borates and polyborates. Top. Curr. Chem. 1986, 131, 39–98. [Google Scholar]
  3. Schubert, D.M.; Smith, R.A.; Vis, M.Z. Studies of crystalline non-metal borates. Glass Technol. 2003, 44, 63–70. [Google Scholar]
  4. Schubert, D.M.; Knobler, C.B. Recent studies of polyborate anions. Phys. Chem. Glasses Eur. J. Glass Sci. Technol. B 2009, 50, 71–78. [Google Scholar]
  5. Beckett, M.A. Recent Advances in crystalline hydrated borates with non-metal or transition-metal complex cations. Coord. Chem. Rev. 2016, 323, 2–14. [Google Scholar] [CrossRef] [Green Version]
  6. Christ, C.L.; Clark, J.R. A crystal-chemical classification of borate structures with emphasis on hydrated borates. Phys. Chem. Miner. 1977, 2, 59–87. [Google Scholar] [CrossRef]
  7. Burns, P.C.; Grice, J.D.; Hawthorne, F.C. Borate minerals I. Polyhedral clusters and fundamental building blocks. Can. Mineral. 1995, 33, 1131–1151. [Google Scholar]
  8. Grice, J.D.; Burns, P.C.; Hawthorne, F.C. Borate minerals II. A hierarchy of structures based upon the borate fundamental building block. Can. Mineral. 1999, 37, 731–762. [Google Scholar]
  9. Becker, P. A contribution to borate crystal chemistry: Rules for the occurrence of polyborate anion types. Z. Kristallogr. 2001, 216, 523–533. [Google Scholar] [CrossRef]
  10. Belokoneva, E.L. Borate crystal chemistry in terms of the extended OD theory: Topology and symmetry analysis. Crystallogr. Rev. 2005, 11, 151–198. [Google Scholar] [CrossRef]
  11. Topnikova, A.P.; Belokoneva, E.L. The structure and classification of complex borates. Russ. Chem. Rev. 2019, 88, 204–228. [Google Scholar] [CrossRef]
  12. Schubert, D.M. Borates in industrial use. Struct. Bond. 2003, 105, 1–40. [Google Scholar]
  13. Schubert, D.M. Boron oxide, boric acid, and borates. In Kirk-Othmer Encyclopedia of Chemical Technology, 5th ed.; J. Wiley Sons: Hoboken, NY, USA, 2011; pp. 1–68. [Google Scholar]
  14. Schubert, D.M. hydrated zinc borates and their industrial use. Molecules 2019, 24, 2419. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Becker, P. Borate materials in nonlinear optics. Adv. Mater. 1998, 10, 979–992. [Google Scholar] [CrossRef]
  16. Flores, H.R.; Mattenella, L.E.; Kwok, L.H. Slow release boron micronutients from pelletized borates of the northwest of Argentinia. Miner. Eng. 2006, 19, 364–367. [Google Scholar] [CrossRef]
  17. Laane, H.-M. The effects of foliar sprays with different silicon compounds. Plants 2018, 7, 45. [Google Scholar] [CrossRef] [Green Version]
  18. Hoebbel, D.; Garzo, G.; Englehardt, G.; Vargha, A. On the Constitution and Distribution of Silicate Anions in Aqueous Tetramethylammonium Silicate Solutions. Z. Anorg. Allg. Chem. 1992, 494, 31–42. [Google Scholar] [CrossRef]
  19. Visi, M.Z.; Knobler, C.B.; Owen, J.J.; Khan, M.I.; Schubert, D.M. Structures of self-assembled nonmetal borates derived from α,ω-diaminoalkanes. Cryst. Growth Des. 2006, 6, 538–545. [Google Scholar] [CrossRef]
  20. Bergum, F.; Twamley, B.; Baker, R.J. The solid state structure of [TMEDAH]2[B5O6(OH)4]2. J. Chem. Cryststallgr. 2019. [Google Scholar] [CrossRef]
  21. Baber, R.A.; Charmont, P.H.; Norman, N.C.; Orpen, A.G.; Rossi, J. Dimethylammonium tetrahydropentaborate. Acta Cryst. 2004, E60, o1086–o1088. [Google Scholar] [CrossRef]
  22. Abel, E.W.; Goldsworthy, D.H.; Heard, P.J.; Kite, K. Formation of dimethylamine complexes of trimethylplatinum(IV) from reactions with N,N,N’,N’-trtramethyldiaminomethane. Polyhedron 1995, 14, 515–519. [Google Scholar] [CrossRef]
  23. Sawatsky, E.; Drakopoulos, A.; Rolz, M.; Sotriffer, C.; Engels, B.; Decker, M. Experimental and theoretical investigations into stability of cyclic aminals. Bielstein J. Org. Chem. 2016, 12, 2280–2292. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Sharma, H.K.; Gonzalez, P.E.; Craig, A.L.; Chakrabarty, S.; Metta-Magana, A.; Pannell, K.H. Siloxymethylamines as aminomethylation reagents for amines leading to labile diaminomethanes that can be trapped as their [Mo(CO)4] complexes. Chem. Eur. J. 2016, 22, 7363–7366. [Google Scholar] [CrossRef] [PubMed]
  25. Godin, G.; Levrand, B.; Trachsel, A.; Lehn, J.-M.; Herrmann, A. Reversible formation of aminals: A new strategy to control the release of bioactive volatiles from dynamic mixtures. Chem. Commun. 2010, 46, 3125–3127. [Google Scholar] [CrossRef]
  26. Hofmann, A.W. Beiträge zur Kenntniss der flüchtigen organischen Basen. Ann. Chem. Pharm. (Eur. J. Org. Chem.) 1851, 78, 253–286. [Google Scholar] [CrossRef] [Green Version]
  27. Cope, A.C.; LeBel, N.A.; Moore, P.T.; Moore, W.R. Mechanism of the Hofmann elimination reaction: Evidence that an ylide intermediate is not involved in simple compounds. J. Am. Chem. Soc. 1961, 83, 3861–3865. [Google Scholar] [CrossRef]
  28. Beckett, M.A.; Coles, S.J.; Horton, P.N.; Rixon, T.A. Synthesis and XRD study of a C2-linked bis(quaternary ammonium) pentaborate: [Me3NCH2CH2NMe3][B5O6(OH)4]2. Phosphorus Sulfur Silicon Relat. Elem. 2019, 194. [Google Scholar] [CrossRef]
  29. Wiebcke, M.; Freyhardt, C.C.; Felsche, J.; Engelhardt, G. Clathrates with three-dimensional host structures of hydrogen bonded pentaborate [B5O6(OH)4]− ions: Pentaborates with the cations NMe4+, NEt4+, NPhMe3+ and pipH+ (pipH+ = piperidinium). Z. Naturforsch. 1993, 48b, 978–985. [Google Scholar] [CrossRef] [Green Version]
  30. Brauner, S.; Emmett, P.H.; Teller, E. Adsorption of gases in multimolecular layers. J. Am. Chem. Soc. 1938, 60, 309–319. [Google Scholar] [CrossRef]
  31. Beckett, M.A.; Horton, P.N.; Hursthouse, M.B.; Knox, D.A.; Timmis, J.L. Structural (XRD) and thermal (DSC, TGA) and BET analysis of materials derived from non-metal cation pentaborate salts. Dalton Trans. 2010, 39, 3944–3951. [Google Scholar] [CrossRef]
  32. Beckett, M.A.; Horton, P.N.; Hursthouse, M.B.; Timmis, J.L.; Varma, K.S. Templated heptaborate and pentaborate salts of cyclo-alkylammonium cations: Structural and thermal properties. Dalton Trans. 2012, 41, 4396–4403. [Google Scholar] [CrossRef] [PubMed]
  33. Beckett, M.A.; Coles, S.J.; Horton, P.N.; Jones, C.L. Polyborate anions partnered with large non-metal cations: Triborate(1-), pentaborate(1-) and heptaborate(2-) salts. Eur. J. Inorg. Chem. 2017, 4510–4518. [Google Scholar] [CrossRef] [Green Version]
  34. Beckett, M.A.; Coles, S.J.; Davies, R.A.; Horton, P.N.; Jones, C.L. Pentaborate(1−) salts templated by substituted pyrrolidinium cations: Synthesis, structural characterization, and modelling of solid-state H-bond interactions by DFT calculations. Dalton Trans. 2015, 44, 7032–7040. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Salentine, G. High-field 11B NMR of alkali borate. Aqueous polyborate equilibria. Inorg. Chem. 1983, 22, 3920–3924. [Google Scholar] [CrossRef]
  36. Anderson, J.L.; Eyring, E.M.; Whittaker, M.P. Temperature jump rate studies of polyborate formation in aqueous boric acid. J. Phys. Chem. 1964, 68, 1128–1132. [Google Scholar] [CrossRef]
  37. Beckett, M.A.; Bland, C.C.; Horton, P.N.; Hursthouse, M.B.; Varma, K.S. Supramolecular structures containing “isolated” pentaborate anions and non-metal cations: Crystal structures of [Me3NCH2CH2OH][B5O6(OH)4] and [4-Mepy,4-MepyH][B5O6(OH)4]. J. Organomet. Chem. 2007, 692, 2832–2838. [Google Scholar] [CrossRef]
  38. Li, J.; Xia, S.; Gao, S. FT-IR and Raman spectroscopic study of hydrated borates. Spectrochim. Acta 1995, 51A, 519–532. [Google Scholar]
  39. Beckett, M.A.; Horton, P.N.; Coles, S.J.; Kose, D.A.; Kreuziger, A.-M. Structurral and thermal studies of non-metal cation pentaborate salts with cations derived from 1,5-diazobicyclo[4.3.0]non-5-ene, 1,8-diazobicyclo[5.4.0]undec-7-ene and 1,8-bis(dimethylamino)naphthalene. Polyhedron 2012, 38, 157–161. [Google Scholar] [CrossRef]
  40. Beckett, M.A.; Horton, P.N.; Colers, S.J.; Martin, D.W. Syntheis and structural chatertization of an unprecedented non-metal cation polyborate salt containing two different ‘isolated’ polyborate anions: [H2en][B4O6(OH)4[B7O9(OH)5].2H2O (en = NH2CH2CH2NH2). Inorg. Chem. 2011, 50, 12215–12218. [Google Scholar] [CrossRef]
  41. Beckett, M.A.; Coles, S.J.; Light, M.E.L.; Fischer, B.M.; Stiefvater-Thomas, K.S. Varma, Synthesis and X-ray characterization of the orgaonotriboroxinate salts [Me3NCH2CH2OH][Ph4B3O3] and [NEt3H][Ph3B3O3(OH)], and the X-ray structure of the triarylboroxine, (4-MeOC6H4)3B3O3. Polyhedron 2006, 25, 1011–1016. [Google Scholar] [CrossRef]
  42. Sola, J.; Lafuente, M.; Atcher, J.; Alfonso, I. Constitutional self-selection from dynamic combinatorial libraries in aqueous solution through supramolecular interactions. Chem. Commun. 2014, 50, 4564–4566. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Corbett, P.T.; Leclaire, J.; Vial, L.; West, K.R.; Wietor, J.-L.; Sanders, J.K.M.; Otto, S. Dynamic combinatorial chemistry. Chem. Rev. 2006, 106, 3652–3711. [Google Scholar] [CrossRef] [PubMed]
  44. Dunitz, J.D.; Gavezzotti, A. Supramolecular synthons: Validation and ranking of intermolecular interaction energies. Cryst. Growth Des. 2012, 12, 5873–5877. [Google Scholar] [CrossRef]
  45. Desiraju, G.R. Supramolecular synthons in crystal engineering—A new organic synthesis. Angew. Chem. Int. Ed. Engl. 1995, 34, 2311–2327. [Google Scholar] [CrossRef]
  46. Etter, M.C. Encoding and decoding hydrogen-bond patterns of organic chemistry. Acc. Chem. Res. 1990, 23, 120–126. [Google Scholar] [CrossRef]
  47. Levy, H.A.; Lisensky, G.C. Crystal Structures of sodium sulfate decahydrate (Glauber’s salt) and sodium tetraborate decahydrate (borax). Redetermination by neutron diffraction. Acta Crystallogr. Sect. B 1978, 34, 3502–3510. [Google Scholar] [CrossRef]
  48. Gainsford, G.J.; Kemmitt, T.; Higham, C. Redetermination of the borax structure from laboratory X-ray data at 145 K. Acta Cryst. 2008, E64, i24–i25. [Google Scholar] [CrossRef]
  49. Pan, C.Y.; Wang, G.-M.; Zheng, S.-T.; Yang, G.Y. Cyclohexane-1,4-diammonium tetrahydroxotetraborate 2.5 hydrate. Acta Crystallogr. 2007, E63, o1207–o1209. [Google Scholar] [CrossRef]
  50. Janda, R.; Heller, G. Die kristallstruktur von synthetischem ammoniumtetraboratdihydrat, (NH4)2 [B4O5(OH)4]·2H2O. Z. Kristallogr. 1981, 154, 1–9. [Google Scholar]
  51. Weakley, T.J.R. Guanidinium tetraborate(2-) dihydrate, (CH6N3)2[B4O5(OH)4].2H2O. Acta Crystallogr. Sect. C 1985, 41, 377–379. [Google Scholar] [CrossRef] [Green Version]
  52. Wang, G.M.; Sun, Y.Q.; Yang, G.Y. Synthesis and crystal structures of two new organically templated borates. J. Solid State Chem. 2004, 177, 4648–4654. [Google Scholar] [CrossRef]
  53. Zheng, J.; Zhang, J.; Liu, Z. Synthesis, Crystal Structure and Thermal Behavior of Co(en)3[B4O5(OH)4]Cl·3H2O and [Ni(en)3][B5O6(OH)4]2·2H2O. Chin. J. Chem. 2009, 27, 494–500. [Google Scholar] [CrossRef]
  54. Lin, D.; You, X.; Zhu, L. Synthesis, crystal structure and vibrational spectroscopy of NH4[Co(NH3)5(H2O)][B4O5(OH)4].6H2O. Chin. J. Chem. 2011, 29, 468–472. [Google Scholar] [CrossRef]
  55. Lin, D.; You, X.; Zhu, L. A new organic-inorganic hybrid copper pentaborate with free boric acid. Chin. J. Chem. 2011, 29, 463–467. [Google Scholar] [CrossRef]
  56. Altahan, M.A.; Beckett, M.A.; Coles, S.J.; Horton, P.N. Synthesis and characterization of polyborates templated by cationic copper(II) complexes: Structural (XRD), spectroscopic, thermal (TGA/DSC) and magnetic properties. Polyhedron 2017, 135, 247–257. [Google Scholar] [CrossRef] [Green Version]
  57. Freyhardt, C.C.; Wiebcke, M.; Felsche, J.; Englehardt, G. N(nPr4)[B5O6(OH)4][B(OH)3]2 and N(nBu4)[B5O6(OH)4][B(OH)3]2: Clathrates with a diamondoid arrangement of hydrogen bonded pentaborate anions. J. Inclusion Phenom. Mol. Recogn. Chem. 1994, 18, 161–175. [Google Scholar] [CrossRef]
  58. Yang, Y.; Fu, D.S.; Li, G.F.; Zhang, Y. Synthesis, crystal structure and variable temperature luminescent property of the organically template pentaborate [C10N2H9][B5O6(OH)4]·H3BO3·H2O. Z. Anorg. Allg. Chem. 2013, 639, 722–727. [Google Scholar] [CrossRef]
  59. Sheldrick, G.M. ShelXT-intergrated space-group and crystal structure determination. Acta Cryst. 2015, A71, 3–8. [Google Scholar] [CrossRef] [Green Version]
  60. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. Olex2: A complete structure solution, refinement and analysis program. J. Appl. Cryst. 2009, 42, 339–341. [Google Scholar] [CrossRef]
  61. Sheldrick, G.M. Crystal structure refinement with ShelXL. Acta Cryst. 2015, C27, 3–8. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds are not available from the authors.
Molecules 25 00053 g001 550

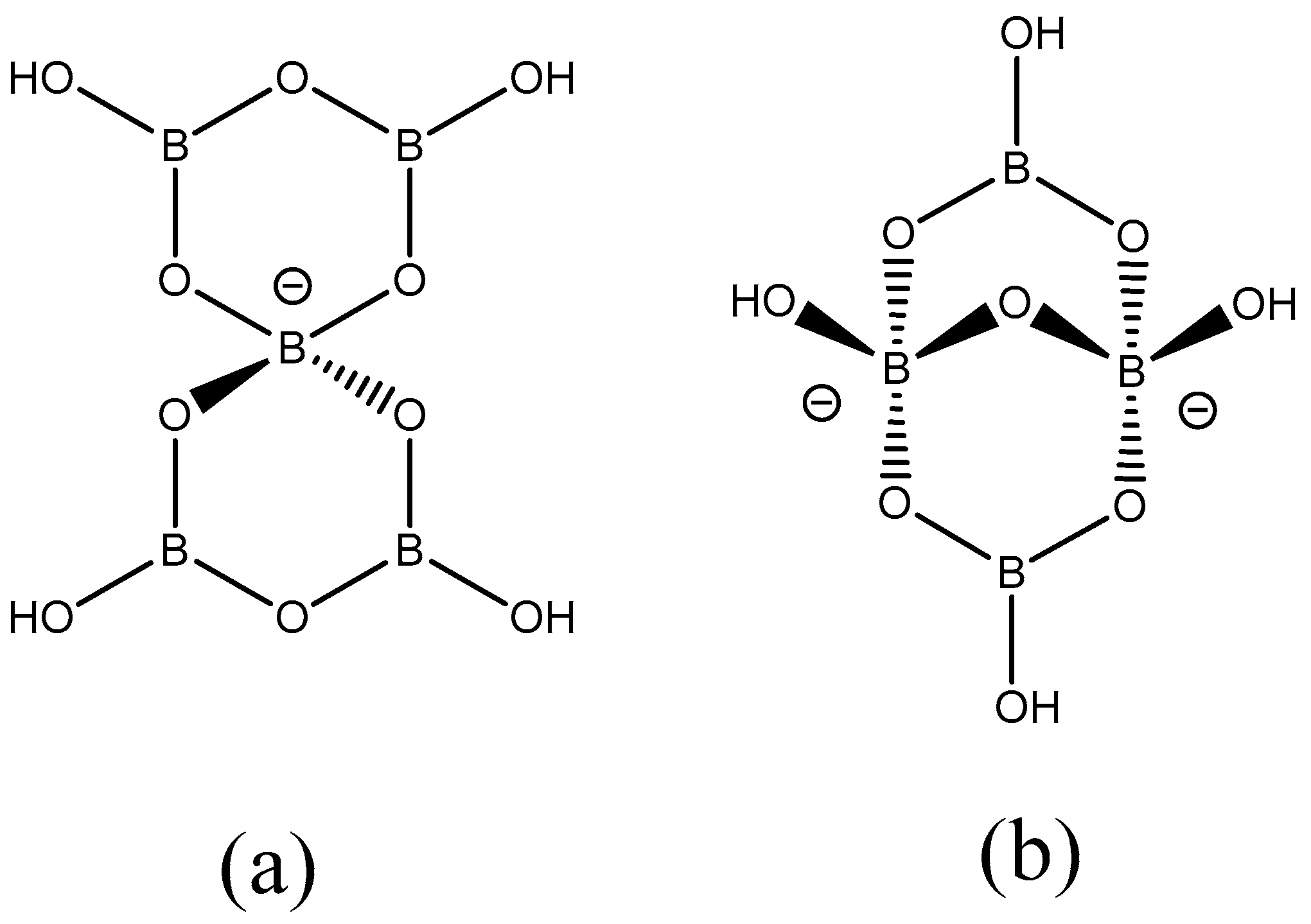

Figure 1. Schematic drawings of (a) pentaborate(1-) anion observed in 1–8, and (b) tetraborate(2-) anion observed in 9.
Figure 1. Schematic drawings of (a) pentaborate(1-) anion observed in 1–8, and (b) tetraborate(2-) anion observed in 9.
Molecules 25 00053 g001
Molecules 25 00053 sch001 550

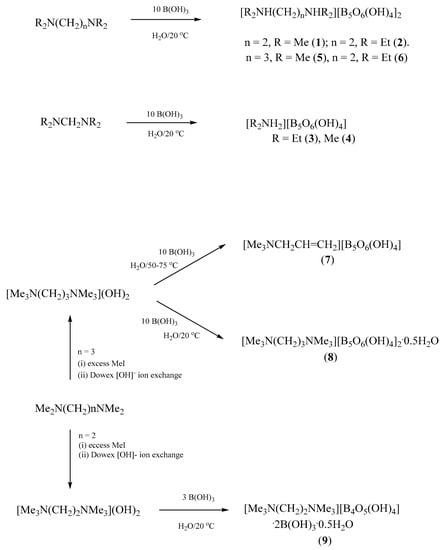

Scheme 1. Reactions detailing the synthesis of 1–9.
Scheme 1. Reactions detailing the synthesis of 1–9.
Molecules 25 00053 sch001
Molecules 25 00053 g002 550

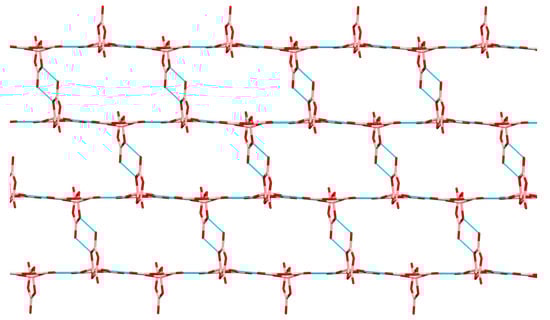

Figure 2. Giant lattice arising from pentaborate(1-)-pentaborate(1-) interactions in 3, viewed along the b axis. Cations have been omitted for clarity, but are situated within ′cavities′. Within this ′plane′ each pentaborate(1-) in shown H-bonding to 3 other pentaborate(1-) anions by R22(8) interactions. A fourth C(8) interaction (not shown) links these planes.
Figure 2. Giant lattice arising from pentaborate(1-)-pentaborate(1-) interactions in 3, viewed along the b axis. Cations have been omitted for clarity, but are situated within ′cavities′. Within this ′plane′ each pentaborate(1-) in shown H-bonding to 3 other pentaborate(1-) anions by R22(8) interactions. A fourth C(8) interaction (not shown) links these planes.
Molecules 25 00053 g002
Molecules 25 00053 g003 550

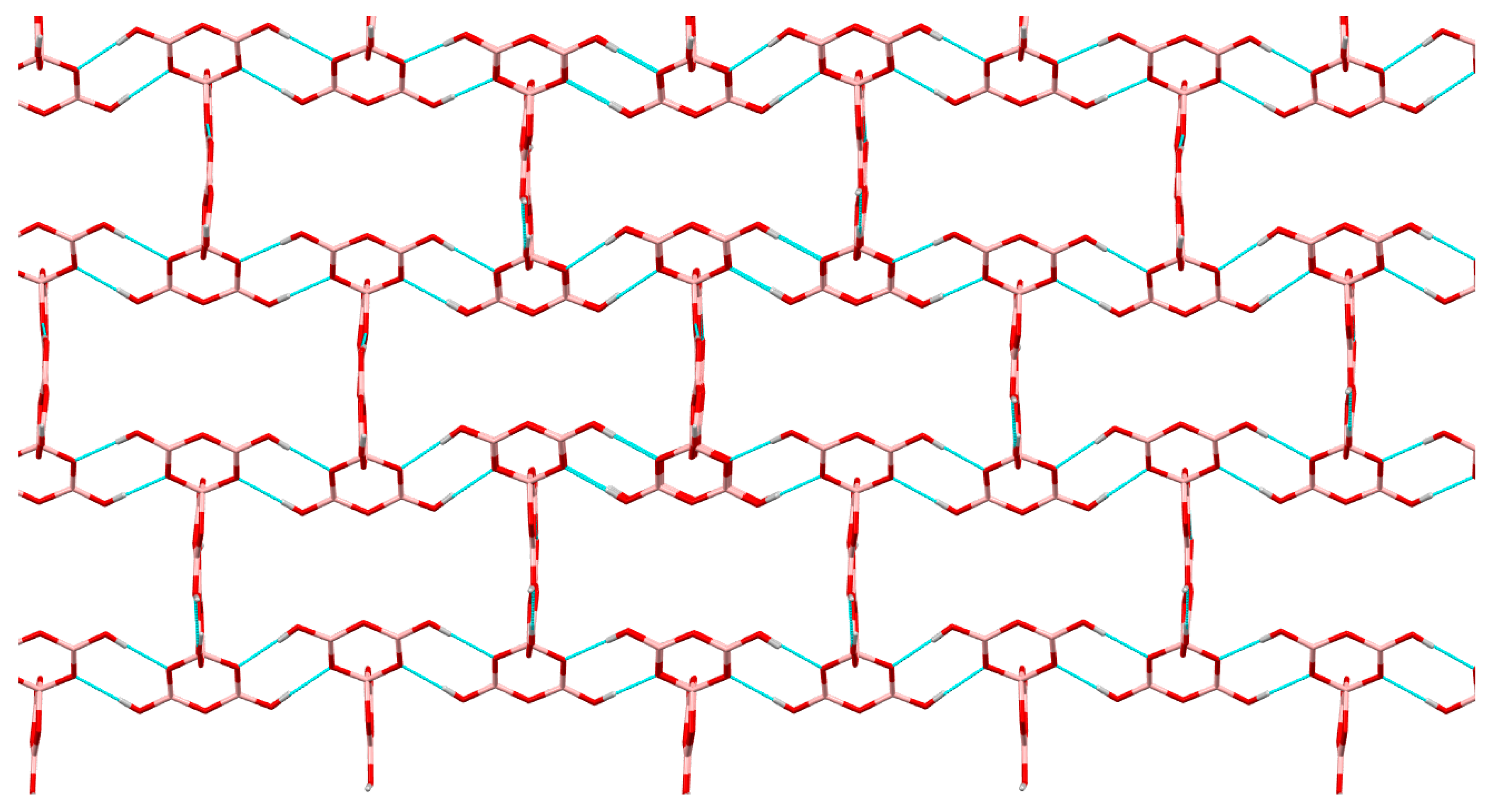

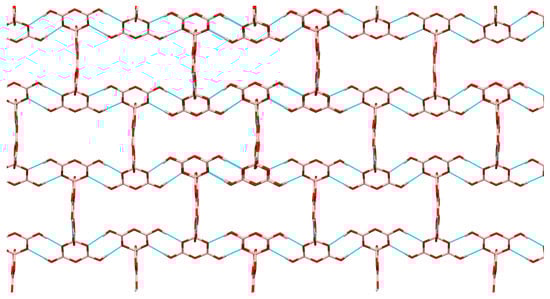

Figure 3. Giant lattice arising from pentaborate(1-)-pentaborate(1-) interactions in 2, viewed along the a axis. Cations have been omitted for clarity, but are situated within ′cavities′. Within this ′plane′ each pentaborate(1-) in shown H-bonding to 3 other pentaborate(1-) anions by R22(8) interactions. The fourth R22(12) interaction is not visible from this view.
Figure 3. Giant lattice arising from pentaborate(1-)-pentaborate(1-) interactions in 2, viewed along the a axis. Cations have been omitted for clarity, but are situated within ′cavities′. Within this ′plane′ each pentaborate(1-) in shown H-bonding to 3 other pentaborate(1-) anions by R22(8) interactions. The fourth R22(12) interaction is not visible from this view.
Molecules 25 00053 g003
Molecules 25 00053 g004 550

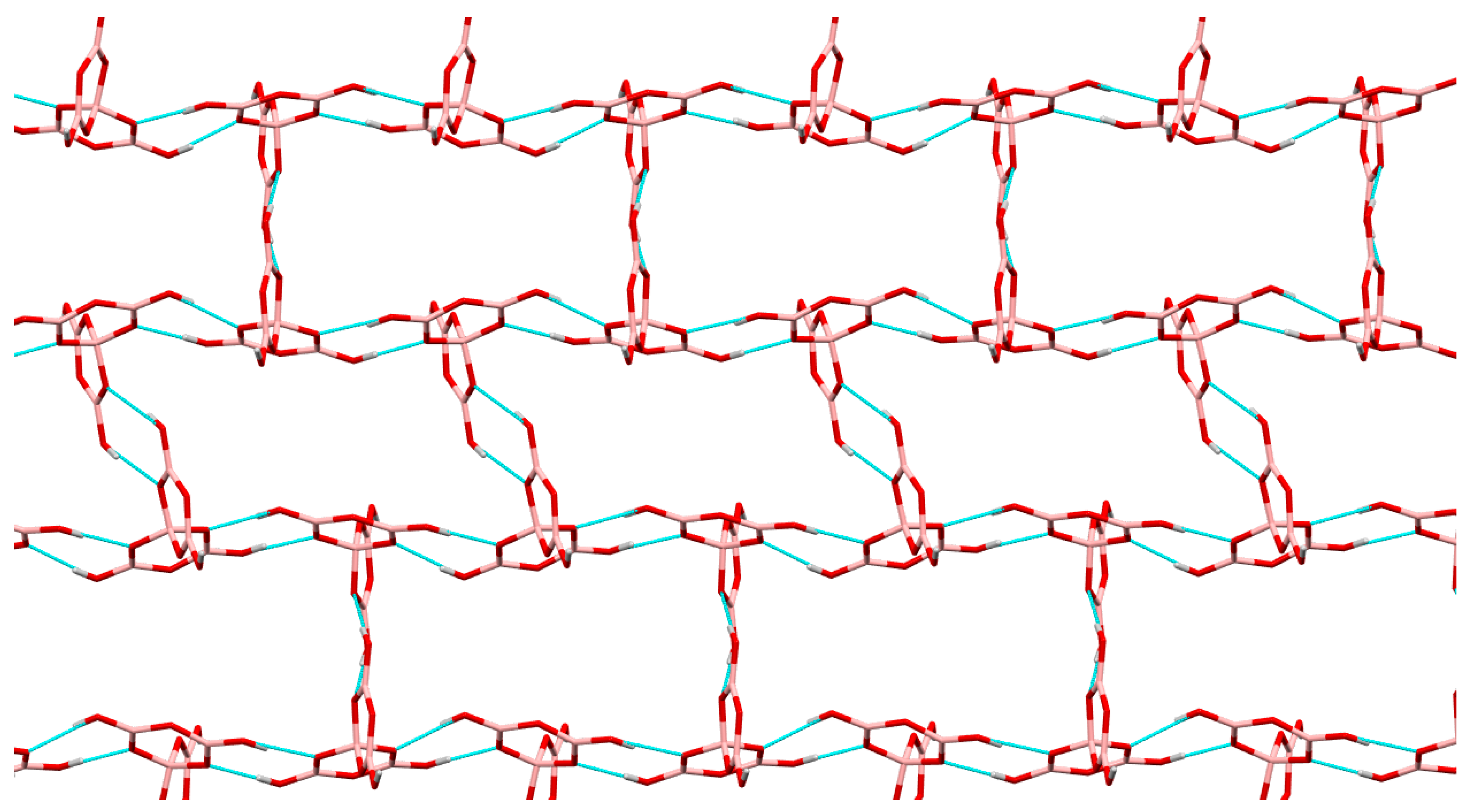

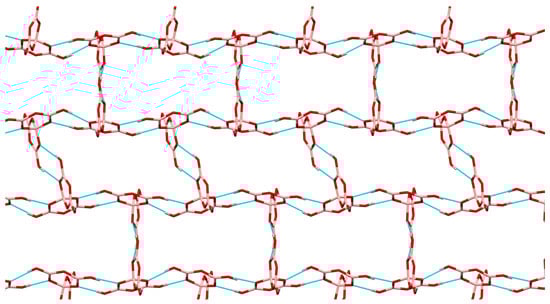

Figure 4. Giant lattice arising from pentaborate(1-)-pentaborate(1-) interactions in 8, viewed along the c axis. Cations have been omitted for clarity, but are situated within rectangular ′cavities′. Within this ′plane′ each pentaborate(1-) in shown H-bonding to 3 other pentaborate(1-) anions by R22(8) interactions. The C(8) Interaction (not shown) links these planes.
Figure 4. Giant lattice arising from pentaborate(1-)-pentaborate(1-) interactions in 8, viewed along the c axis. Cations have been omitted for clarity, but are situated within rectangular ′cavities′. Within this ′plane′ each pentaborate(1-) in shown H-bonding to 3 other pentaborate(1-) anions by R22(8) interactions. The C(8) Interaction (not shown) links these planes.
Molecules 25 00053 g004
Molecules 25 00053 g005 550

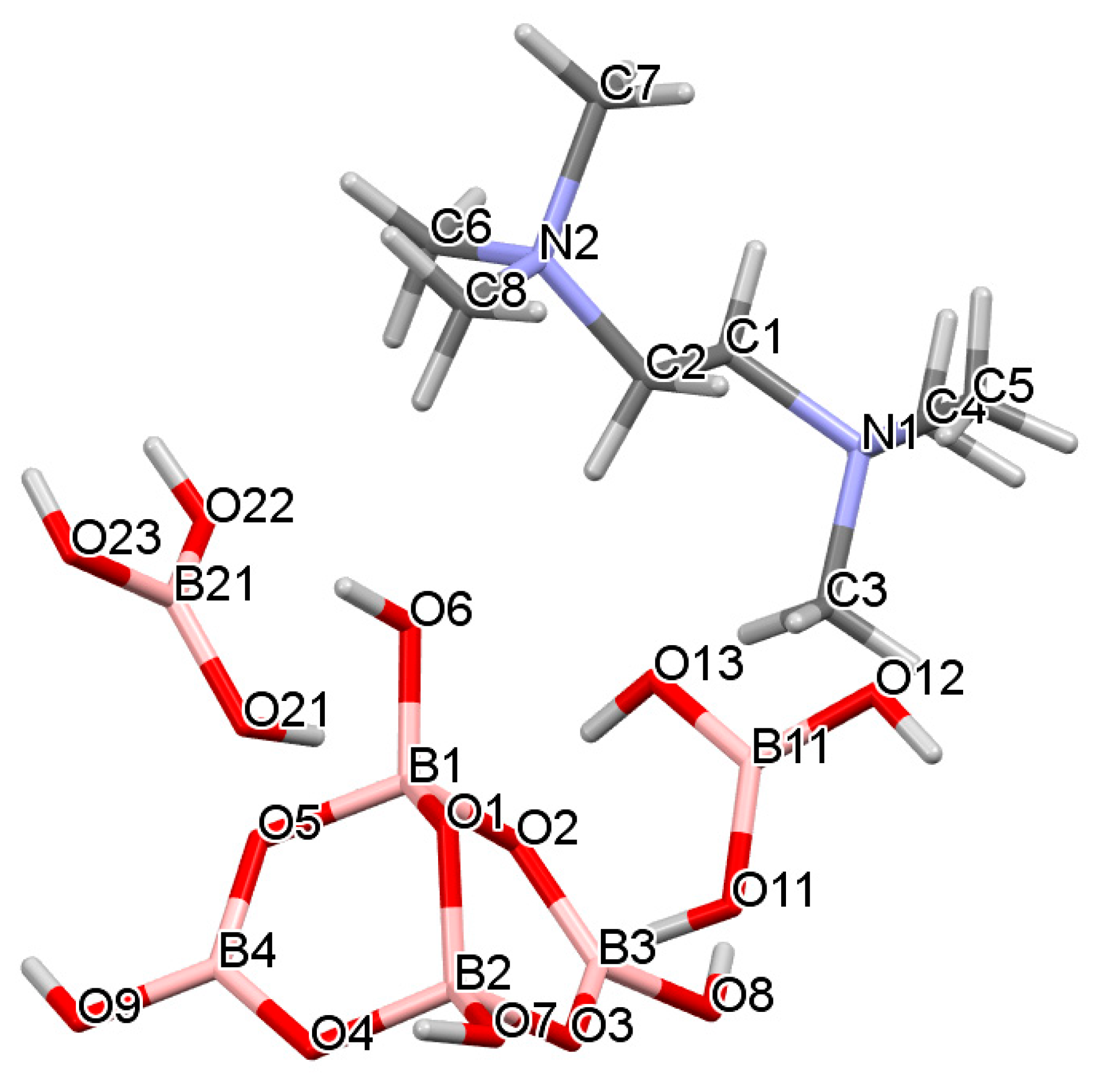

Figure 5. Drawing of the structure of 9 showing atomic labelling. Two water molecules (containing O31 and O32) are omitted for clarity. Compound 9 is disordered and only components with highest s.o.f are shown.
Figure 5. Drawing of the structure of 9 showing atomic labelling. Two water molecules (containing O31 and O32) are omitted for clarity. Compound 9 is disordered and only components with highest s.o.f are shown.
Molecules 25 00053 g005
Molecules 25 00053 g006 550

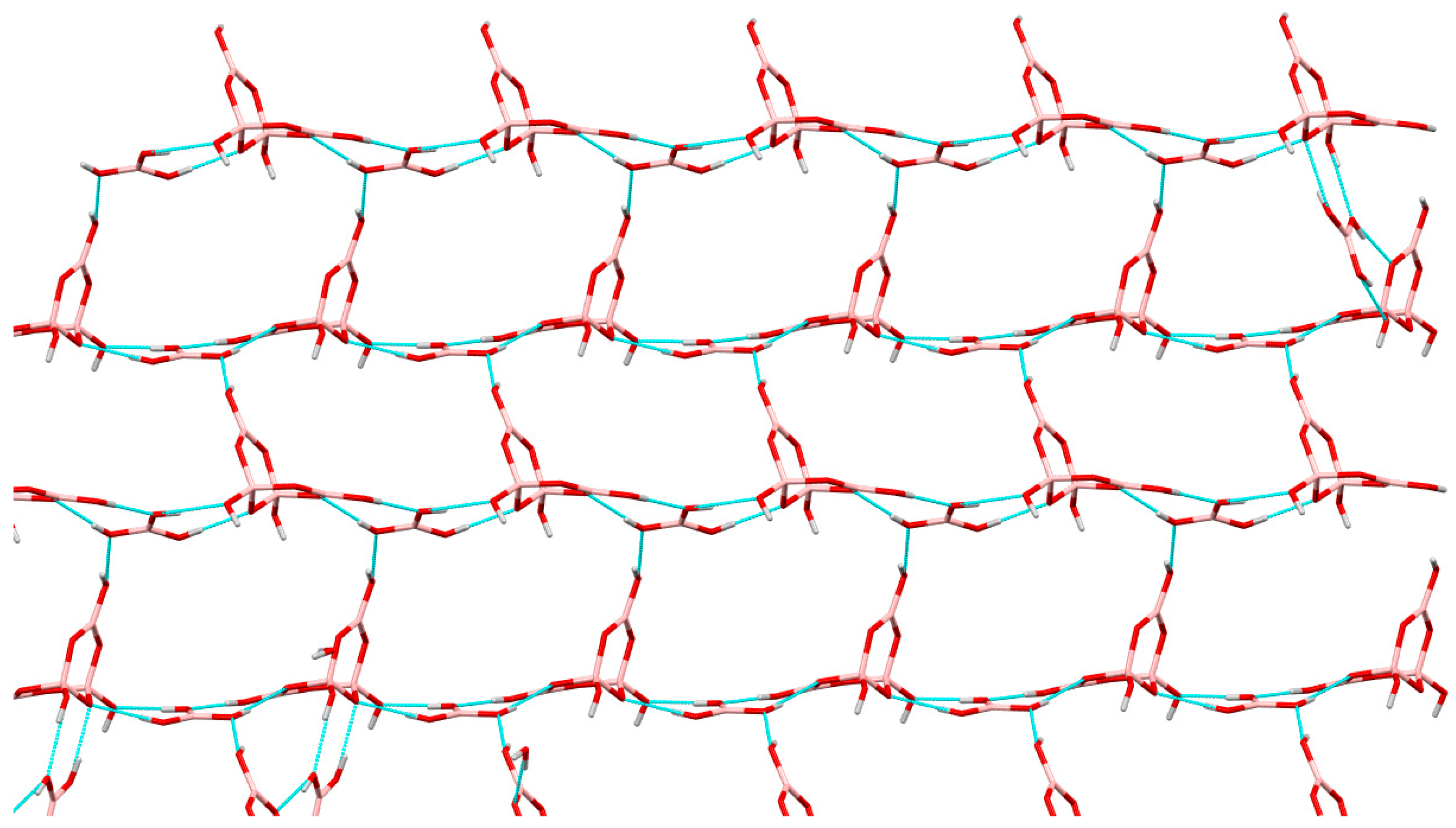

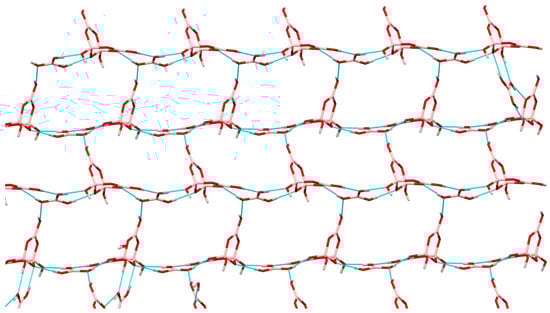

Figure 6. A 2D plane in 9 comprised of alternating B(OH)3/[B4O5(OH)4]2− ′horizontal′ chains and ′vertical′ C22(8) crosslinking.
Figure 6. A 2D plane in 9 comprised of alternating B(OH)3/[B4O5(OH)4]2− ′horizontal′ chains and ′vertical′ C22(8) crosslinking.
Molecules 25 00053 g006
Molecules 25 00053 g007 550

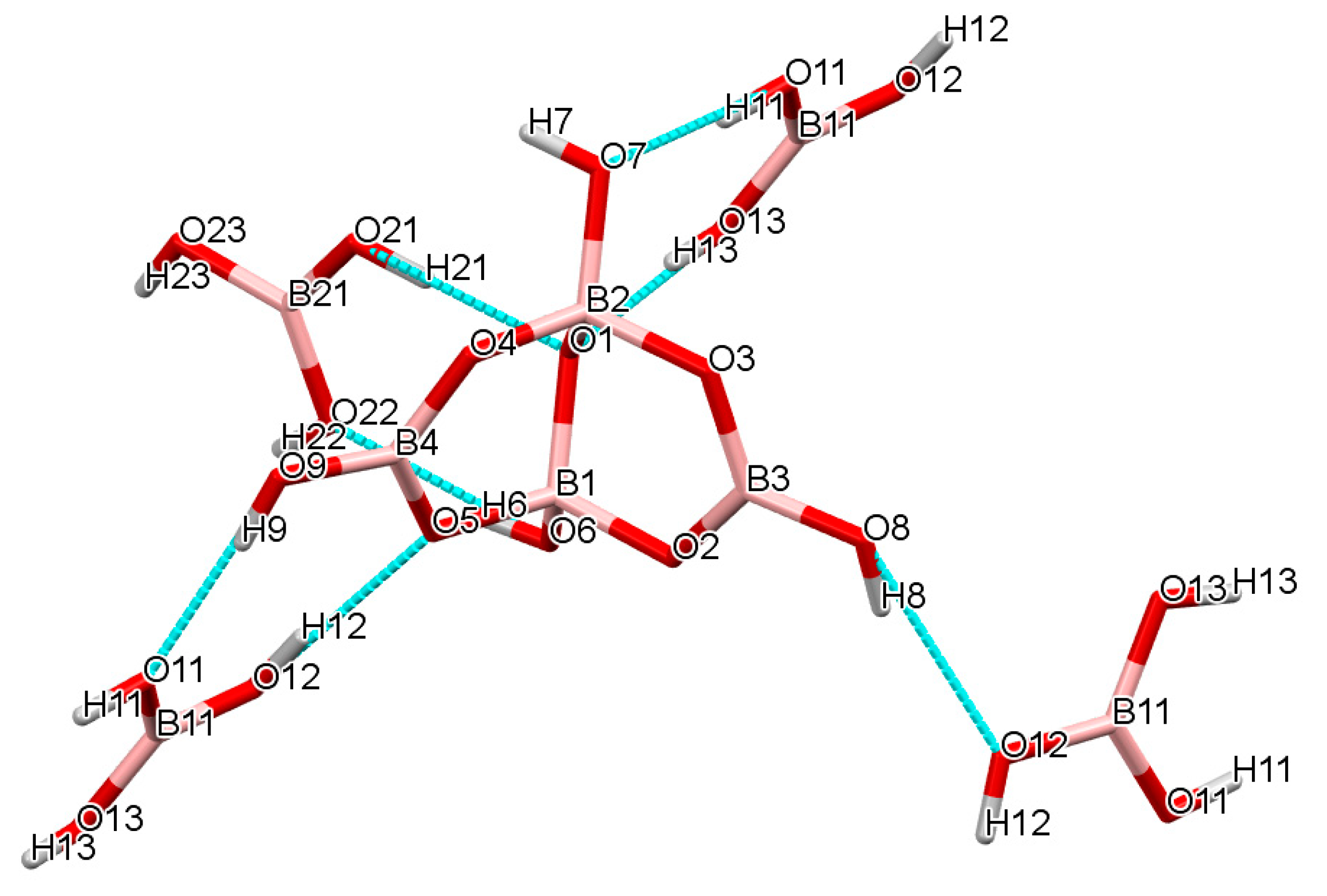

Figure 7. Drawing of the H-bond interactions around the tetraborate(2-) anion in 9, showing three R22(8) interactions and parts of the C22(8) chain.
