New α-Methylene-γ-Butyrolactone Derivatives as Potential Fungicidal Agents: Design, Synthesis and Antifungal Activities

Wu, Yongling; Wang, Delong; Gao, Yanqing; Feng, Juntao; Zhang, Xing

doi:10.3390/molecules21020130

Open AccessArticle

New α-Methylene-γ-Butyrolactone Derivatives as Potential Fungicidal Agents: Design, Synthesis and Antifungal Activities

by

Yongling Wu

,

Delong Wang

,

Yanqing Gao

,

Juntao Feng

^* and

Xing Zhang

Research & Development Center of Biorational Pesticide, Key Laboratory of Plant Protection Resources and Pest Management of Ministry of Education, Northwest A & F University, Xinong Road 22, Yangling 712100, Shaanxi, China

^*

Author to whom correspondence should be addressed.

Molecules 2016, 21(2), 130; https://doi.org/10.3390/molecules21020130

Submission received: 10 December 2015 / Revised: 18 January 2016 / Accepted: 19 January 2016 / Published: 22 January 2016

(This article belongs to the Section Medicinal Chemistry)

Download

Browse Figures

Versions Notes

Abstract

:

In consideration of the fact that the α-methylene-γ-butyrolactone moiety is a major bio-functional group in the structure of carabrone and possesses some agricultural biological activity, forty-six new ester and six new ether derivatives containing α-methylene-γ-butyrolactone moieties were synthesized, and their fungicidal activities against Colletotrichum lagenarium and Botrytis cinerea were investigated. Most of the synthesized compounds showed moderate to significant fungicidal activity. Among them, halogen atom-containing derivatives showed better activity than others, especially compounds 6a,d which exhibited excellent fungicidal activity against C. lagenarium, with IC₅₀ values of 7.68 and 8.17 μM. The structure-activity relationship (SAR) analysis indicated that ester derivatives with electron-withdrawing groups on the benzene ring showed better fungicidal activity than those with electron-donating groups. A quantitative structure-activity relationship (QSAR) model (R² = 0.9824, F = 203.01, S² = 0.0083) was obtained through the heuristic method. The built model revealed a strong correlation of fungicidal activity against C. lagenarium with the molecular structures of these compounds. These results are expected to prove helpful in the design and exploration of low toxicity and high efficiency α-methylene-γ-butyrolactone-based fungicides.

Keywords:

α-methylene-γ-butyrolactone; ester and ether derivatives; antifungal activity; quantitative structure-activity relationships (QSAR); heuristic method

1. Introduction

Plant pathogenic fungi remain a main cause of plant diseases, which can infect any tissue of a plant and cause severe yield agricultural product losses [1,2,3]. Moreover, the presence of some phyto-fungal mycotoxins can be harmful to animal and human health [4]. Colletotrichum lagenarium and Botrytis cinerea are the most common plant pathogenic fungi, and can cause cross-infections between diseased and healthy plants [5,6,7]. In addition, they cause significant reductions of crop yield and quality [8]. Traditional chemical fungicides play an important role in killing or controlling target fungi directly, but sometimes cause adverse effects to the environment and food, and often create fungicide resistance [9]. Therefore, it is urgent to develop novel and effective fungicidal agents to protect plants.

The α-methylene-γ-butyrolactone ring can be found as a key substructural unit in many sesquiterpenoids (Figure 1). It exhibits multiple biological properties, including antibacterial, cytotoxic, antiinflammatory, antioxidant, allergenic and antimicrobial activity [10,11,12,13,14,15,16]. In our previous research, we found that carabrone (which is isolated from fruits of Carpesium macrocephalum) and its derivatives exhibited potent antifungal activity against C. lagenarium, and the structure-activity relationship (SAR) analysis of these compounds indicated that the α-methylene-γ-butyrolactone ring was a major biofunctional group in the carabrone structure [17,18,19,20]. Besides, γ-monosubstituted compounds of the α-methylene-γ-lactone ring have also been synthesized, and we concluded that aromatic substituents directly fused to the γ-position improved the potency more effectively than alkyl groups. Meanwhile, the cytotoxicity was tested to ensure the selectivity of the fungicidal effects [21].

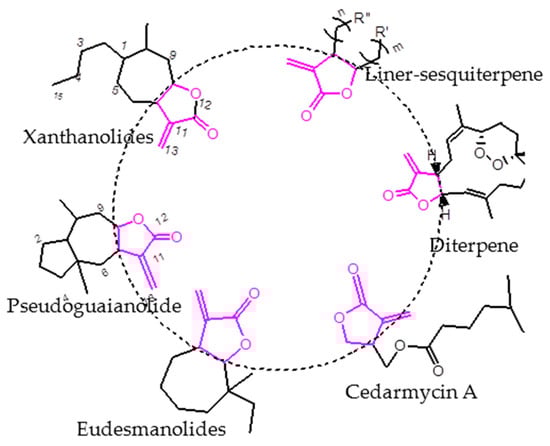

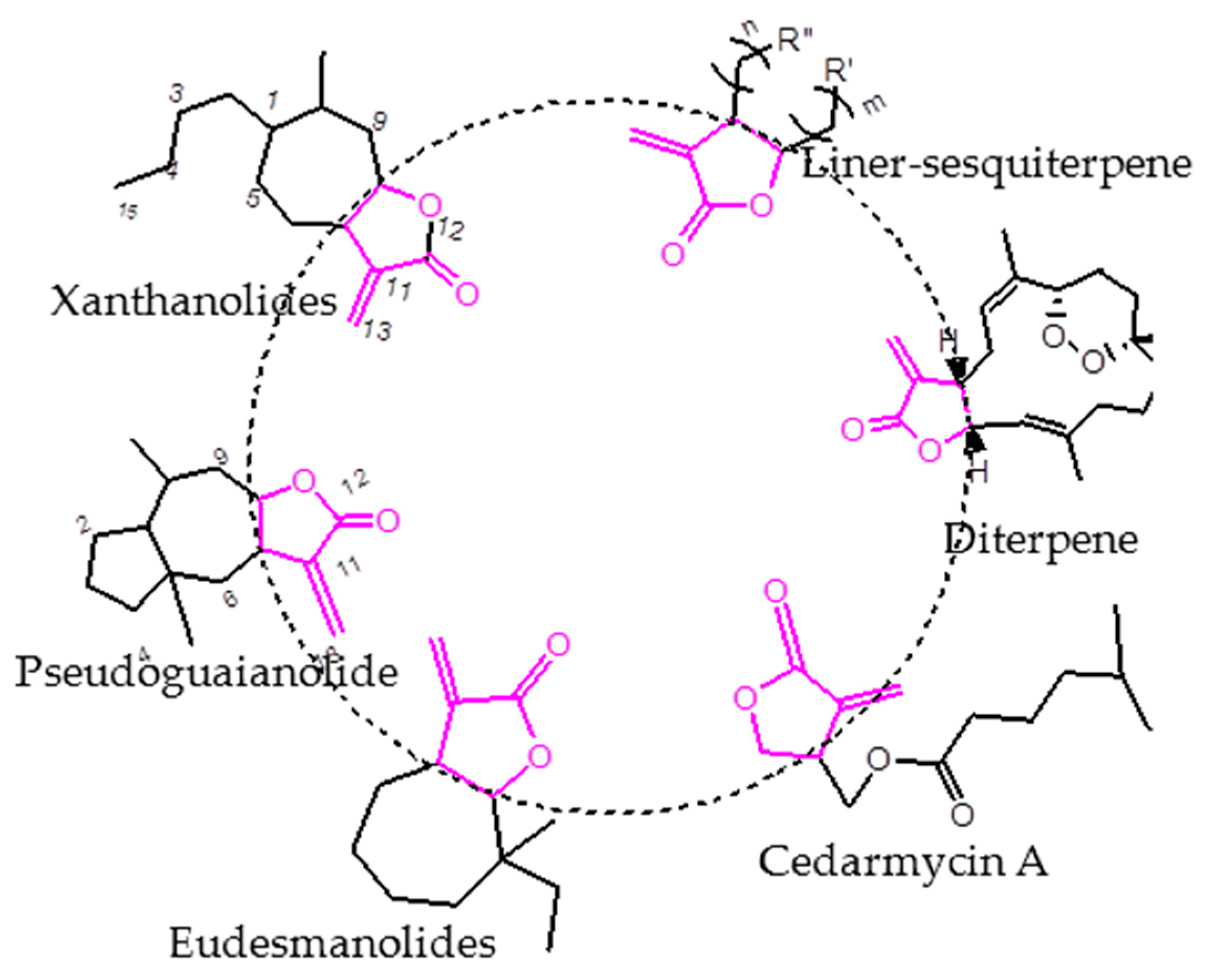

Figure 1. Some representative sesquiterpenoid structures.

It is virtually and economically impossible to develop and screen candidates with fungicidal activity from among numberless compounds. The development of new quantitative structure-activity relationship (QSAR) methods, with simple molecular indexes, is a promising shortcut to resolve the cost and time issues [22]. The QSAR method enables the calculation of numerous quantitative descriptors on the basis of molecular structural information and is very useful to optimize important aspects such as fungicidal activity or toxicity. Meanwhile, QSAR is useful in provide further guidance for the design and development of potential new fungicides [23,24].

In order to obtain novel natural product-based fungicides, two series of derivatives based on γ-monosubstituted α-methylene-γ-butyrolactone rings were synthesized on the basis of their molecular similarity. The fungicidal activities of these compounds against C. lagenarium and B. cinerea were investigated and their structures were characterized by ¹H-NMR, ¹³C-NMR, and HRMS spectrometric analysis. Meanwhile, the cytotoxicity was tested to ensure selectivity of the antifungal effects. Moreover, a QSAR study was also performed on all of the derivatives using the Gaussian and CODESSA software packages, which can correlate their structural features with their fungicidal activity.

2. Results and Discussion

2.1. Synthesis

Three kinds of intermediate compounds 4–6 were prepared by the cyclization of γ-hydroxy-α-methylene esters, which were obtained under mild aqueous reaction conditions through indium-mediated Barbier allyl addition to aldehydes [25]. In order to investigate the structure-activity relationships, different acids were reacted with the three kinds of intermediate compounds to obtain the corresponding ester compounds. Then, six new ether compounds were obtained by reacting with them with brominated alkanes. The structures of all the derivatives were characterized by ¹H-NMR, ¹³C-NMR and high-resolution electrospray ionization mass spectrometry (HR-ESI-MS). The synthetic routes are shown in Scheme 1.

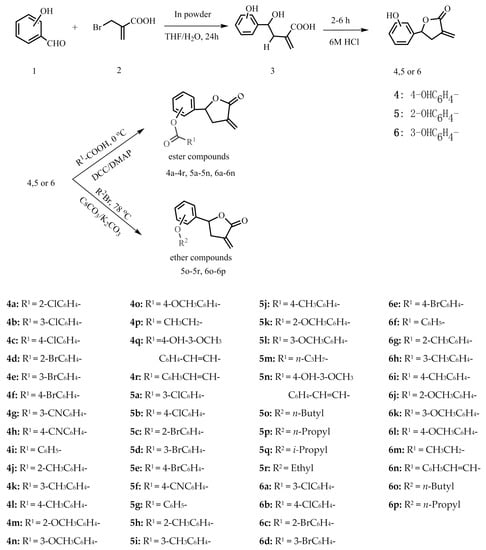

Scheme 1. Synthetic route of the title compounds.

2.2. Fungicidal Activity and Structure-Activity Relationships (SAR)

2.2.1. Fungicidal Activity of the Title Compounds against C. lagenarium

The results of the fungicidal activity against C. lagenarium are summarized in Table 1, from which it can be seen that the halogen atom-containing derivatives exhibited significant fungicidal activity against this species. The following three main SARs were obtained: first, the introduction of the electron-withdrawing groups Cl, Br, and CN onto the benzene ring dramatically increased the potency. Compounds 4a–f, 5a–e, and 6a–e (IC₅₀ < 18 μM) exhibited fungicidal activity approximately ten to twenty fold higher than the intermediate compounds 4–6, respectively. It was notable that the IC₅₀ values of 6a,d were approximately two fold lower than those of chlorothalonil, a commercial fungicide. Meanwhile, the electron-donating groups CH₃ and CH₃O introduced onto the benzene ring to give 4j–o, 5h–l and 6g–l (IC₅₀ > 126 μM) greatly weakened the potency, which was similar to that of the fatty acid derivatives 4p, 5m and 6m. It can be concluded that the electronic effect of the substituent on the benzene ring is important for the fungicidal activity of α-methylene-γ-butyrolactone groups. Second, intermediate compound 6 was found to have higher activity than the corresponding intermediate compounds 4 and 5. Meanwhile, meta-substitution on the benzene ring (compounds 6a–p) was found to improve the potency significantly compared with the corresponding ortho- and para-substitution patterns (compounds 4a–r and 5a–r). This result suggests that the steric effect should be considered and substitution patterns on the benzene ring have an important influence on the fungicidal activity. Third, all of the synthesized ether compounds exhibited lower fungicidal activity against C. lagenarium than the corresponding ester compounds. It was notable that the cinnamic acid and fumalic acid derivatives 4q–r, 5n and 6n containing an unsaturated bond showed higher fungicidal activity against C. lagenarium.

Table 1. In vitro fungicidal activity of compounds against C. lagenarium and B. cinerea.

**Table 1.** In vitro fungicidal activity of compounds against C. lagenarium and B. cinerea.
Compd.	C. lagenarium		B. cinerea	Compd.	C. lagenarium		B. cinerea
Compd.	IC₅₀ ^a, μM	pIC₅₀	IC₅₀ ^a, μM	Compd.	IC₅₀ ^a, μM	pIC₅₀	IC₅₀ ^a, μM
4a	13.96	−1.145	29.81	5k	291.95	−2.465	306.85
4b	8.99	−0.954	22.13	5l	283.99	−2.453	303.36
4c	12.74	−1.105	27.31	5m	173.74	−2.240	205.50
4d	15.62	−1.194	24.09	5n	10.27	−1.012	20.57
4e	8.76	−0.943	30.24	5o	413.72	−2.617	456.91
4f	14.38	−1.158	23.01	5p	499.33	−2.698	524.54
4g	52.87	−1.723	60.61	5q	428.93	−2.632	446.08
4h	65.63	−1.817	77.00	5r	519.42	−2.716	548.63
4i	95.38	−1.979	111.77	6a	7.68	−0.885	23.32
4j	192.44	−2.284	198.67	6b	9.24	−0.966	29.08
4k	177.96	−2.250	193.28	6c	10.27	−1.012	27.45
4l	188.93	−2.276	209.12	6d	8.17	−0.912	25.99
4m	238.97	−2.378	243.35	6e	9.70	−0.987	27.15
4n	212.50	−2.327	224.16	6f	73.14	−1.864	101.94
4o	219.44	−2.341	230.85	6g	159.33	−2.202	179.62
4p	206.51	−2.315	236.62	6h	125.71	−2.099	147.84
4q	8.93	−0.951	21.50	6i	136.55	−2.135	163.84
4r	44.51	−1.648	56.32	6j	162.30	−2.210	196.45
5a	16.77	−1.225	30.57	6k	135.95	−2.133	161.43
5b	17.74	−1.249	34.51	6l	154.27	−2.188	179.33
5c	15.94	−1.202	34.60	6m	173.23	−2.239	202.97
5d	13.41	−1.127	22.93	6n	24.25	−1.385	40.26
5e	15.35	−1.186	36.10	6o	242.03	−2.384	280.01
5f	79.07	−1.898	95.02	6p	266.25	−2.425	298.26
5g	170.80	−2.232	193.75	4	160.63	−2.206	207.99
5h	215.94	−2.334	229.37	5	238.61	−2.378	279.96
5i	181.69	−2.259	193.87	6	117.12	−2.069	139.85
5j	207.63	−2.317	259.27	Chlorothalonil ^b	4.21	−0.624	8.31

Note: ^a All 50% inhibition concentration (IC₅₀) values are presented as the means ± SD (n = 3), μM; ^b Commercial fungicide, chlorothalonil was used as the positive control.

2.2.2. Fungicidal Activity of the Title Compounds against B. cinerea

The results of the fungicidal activity against B. cinerea are summarized in Table 1, from which we can see that compounds 4a–f, 4q, 5a–e,n and 6a–e exhibited moderate fungicidal activity against B. cinerea. All of the test compounds were less effective than against C. lagenarium.

2.3. QSAR Study on the Fungicidal Activity against C. lagenarium

In general, descriptors used in QSAR can be categorized as constitutional, topological, geometrical, electrostatic, quantum chemical, and thermodynamic. There are many regression approaches available for the CODESSA 2.7.15 software, such as the best multi-linear, multi-linear regression, principal component analysis, partial least square regression, and heuristic regression [26]. In view of the number of samples and descriptors used in this study, the heuristic regression was selected for developing the QSAR model.

Determining the number of descriptors is an important step. The “breaking point” rule was used in the improvement of the statistical quality of the model, as described in Figure 2, the R² value of the heuristic regression had a dramatic increase before the number of the descriptors reached 5, descriptors with high t values were accepted and those with low t values were rejected. After the number of the descriptors reached a certain value, the improvement of the regression model became less insignificant (ΔR² < 0.02–0.04) [27]. In addition, the number of the descriptors complies to the linear regressions given by Equation (1):

N ≥ 3 (K + 1)

(1)

where N is the number of sample compounds and K is the number of descriptors. Thus, the final model with five descriptors was selected as the best model. The values of the five descriptors of compounds can be found in Table 2.

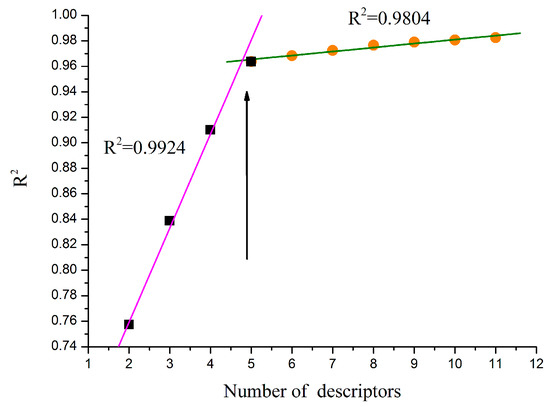

Figure 2. The “breaking point” rule results.

Table 2. Fungicidal activity and structural descriptors of the title compounds.

**Table 2.** Fungicidal activity and structural descriptors of the title compounds.
No.	Compd.	pIC₅₀	Structural Descriptors
No.	Compd.	pIC₅₀	N_o	q^C_max	MAOEP	q^H_max	q^H_min
1	4a	−1.1450	1.6111	0.3570	1.9821	0.1606	0.1084
2	4b	−0.9540	1.6111	0.3568	1.9820	0.1716	0.1084
3	4c	−1.1050	1.6111	0.3571	1.9820	0.1628	0.1084
4	4d	−1.1940	1.6111	0.3532	1.9751	0.1613	0.1078
5	4e	−0.9430	1.6111	0.3571	1.9851	0.1712	0.1084
6	4f	−1.1580	1.6111	0.3555	1.9669	0.1631	0.1085
7	4g	−1.7230	1.5946	0.3558	1.9135	0.1708	0.1088
8	4h	−1.8170	1.5946	0.3533	1.9134	0.1655	0.1088
9	4i	−1.9790	1.5278	0.3575	1.9133	0.1603	0.1082
10	4j	−2.2840	1.4872	0.3595	1.9132	0.1601	0.0821
11	4k	−2.2500	1.4872	0.3577	1.9133	0.1602	0.0872
12	4l	−2.2760	1.4872	0.3588	1.9133	0.1601	0.0885
13	4m	−2.3780	1.5250	0.3658	1.9138	0.1598	0.0751
14	4n	−2.3270	1.5250	0.3558	1.9133	0.1721	0.0735
15	4o	−2.3410	1.5250	0.3616	1.9135	0.1608	0.0771
16	4p	−2.3150	1.4688	0.3342	1.9125	0.1610	0.0843
17	4q	−0.9210	1.5333	0.3441	1.9135	0.2228	0.0668
18	4r	−1.6480	1.5000	0.3435	1.9135	0.1607	0.1074
19	5a	−1.2250	1.6111	0.3597	1.9820	0.1635	0.1077
20	5b	−1.2490	1.6111	0.3598	1.9820	0.1647	0.1078
21	5c	−1.2020	1.6111	0.3514	1.9838	0.1594	0.1080
22	5d	−1.1270	1.6111	0.3596	1.9667	0.1736	0.1079
23	5e	−1.1860	1.6111	0.3581	1.9788	0.1649	0.1081
24	5f	−1.8980	1.5946	0.3563	1.9132	0.1670	0.1092
25	5g	−2.2320	1.5278	0.3602	1.9131	0.1590	0.1068
26	5h	−2.3340	1.4872	0.3643	1.9126	0.1546	0.0871
27	5i	−2.2590	1.4872	0.3603	1.9131	0.1587	0.0848
28	5j	−2.3170	1.4872	0.3614	1.9131	0.1585	0.0859
29	5k	−2.4650	1.5250	0.3741	1.9121	0.1568	0.0710
30	5l	−2.4530	1.5250	0.3593	1.9131	0.1752	0.0718
31	5m	−2.2400	1.4286	0.3432	1.9123	0.1578	0.0713
32	5n	−1.0120	1.5333	0.3472	1.9131	0.2218	0.0659
33	5o	−2.6170	1.3333	0.3407	1.9117	0.1409	0.0717
34	5p	−2.6980	1.3636	0.3408	1.9117	0.1409	0.0687
35	5q	−2.6320	1.3636	0.3346	1.9118	0.1471	0.0822
36	5r	−2.7160	1.4000	0.3412	1.9117	0.1406	0.0712
37	6a	−0.8850	1.6111	0.3569	1.9820	0.1729	0.1084
38	6b	−0.9660	1.6111	0.3574	1.9820	0.1703	0.1085
39	6c	−1.0120	1.6111	0.3547	1.9817	0.1736	0.1085
40	6d	−0.9120	1.6111	0.3571	1.9667	0.1726	0.1085
41	6e	−0.9870	1.6111	0.3558	1.9669	0.1705	0.1085
42	6f	−1.8640	1.5278	0.3577	1.9133	0.1700	0.1082
43	6g	−2.2020	1.4872	0.3573	1.9138	0.1690	0.0823
44	6h	−2.0990	1.4872	0.3579	1.9133	0.1698	0.0868
45	6i	−2.1350	1.4872	0.3590	1.9133	0.1699	0.0884
46	6j	−2.2100	1.5250	0.3665	1.9126	0.1701	0.0746
47	6k	−2.1330	1.5250	0.3569	1.9133	0.1742	0.0727
48	6l	−2.1880	1.5250	0.3632	1.9134	0.1692	0.0769
49	6m	−2.2390	1.4688	0.3344	1.9126	0.1702	0.0841
50	6n	−1.3850	1.5000	0.3468	1.9133	0.1689	0.1081
51	6o	−2.3840	1.3333	0.3340	1.9117	0.1719	0.0700
52	6p	−2.4250	1.3636	0.3340	1.9117	0.1720	0.0694

The best statistical model for the pIC₅₀ data had the following statistical characteristics: R² = 0.9824, F = 203.01, S² = 0.0083. This model included five descriptors in descending order according to their statistical significance (t values), which is shown in Table 3, and the regression coefficients X and their standard errors ΔX are also listed. The comparison between the experimental and predicted pIC₅₀ is listed in Table 4, and the plot of the comparison between the predicted and experimental values is shown in Figure 3. The five descriptor QSAR model equation is described in the following Equation (2) (Figure 4):

pIC₅₀ = −24.230 − 0.6261 × N_o − 10.225 × q^C_max + 12.075 × MAOEP + 12.464 × q^H_max + 16.086 × q^H_min

(2)

N = 52, R² = 0.9824, F = 203.01, S² = 0.0083.

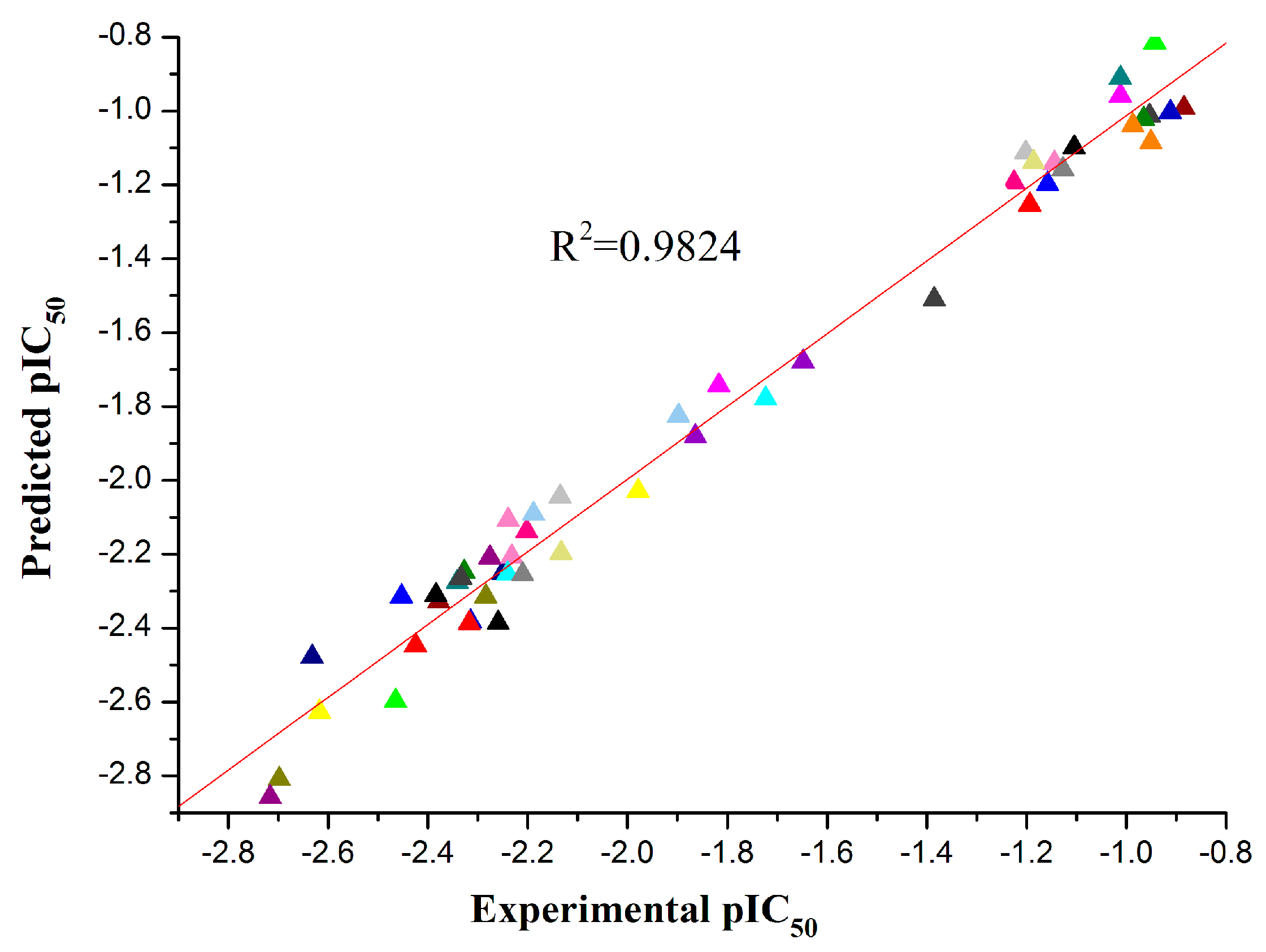

Figure 3. Experimental pIC₅₀ vs. predicted pIC₅₀.

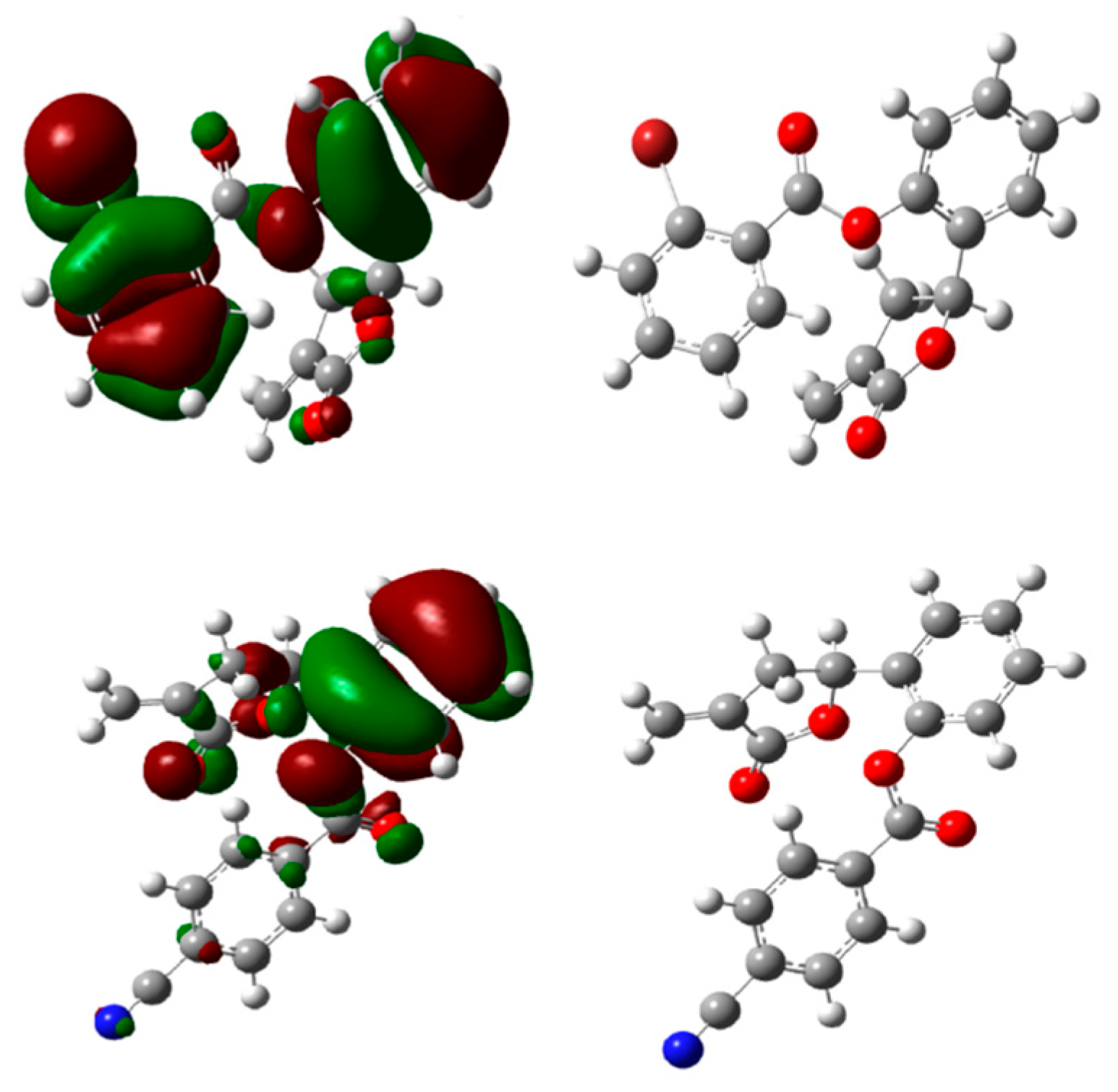

Figure 4. Optimized structures and HOMO energy maps for compounds 5c,f from the DFT calculations of Gaussian 03W. The green parts represent positive molecular orbitals, and the red parts represent negative molecular orbitals.

Table 3. The best five-descriptor model.

**Table 3.** The best five-descriptor model.
Descriptor No.	X	±ΔX	t-Text	Descriptor
0	−2.4230 × 10	4.1535	−3.0433	Intercept
1	−6.2613 × 10⁻¹	5.2603 × 10⁻¹	−1.1903	N_o ^a
2	−1.0225 × 10	2.9561	−3.4591	q^C_max ^b
3	1.2075 × 10	8.0165 × 10⁻¹	15.0631	MAOEP ^c
4	1.2464 × 10	2.0587	6.0544	q^H_max ^d
5	1.6086 × 10	1.8059	8.9076	q^H_min ^e

Note: ^a Number of occupied electronic levels of atoms; ^b Max. net atomic charge for a C atom; ^c Max. atomic orbital electronic population; ^d Max. net atomic charge for a H atom; ^e Min. net atomic charge for a C atom.

Table 4. The difference between the experimental pIC₅₀ and predicted pIC₅₀.

**Table 4.** The difference between the experimental pIC₅₀ and predicted pIC₅₀.
No.	Compd.	Calc. pIC₅₀	Exp. pIC₅₀	Difference	No.	Compd.	Calc. pIC₅₀	Exp. pIC₅₀	Difference
1	4a	−1.1403	−1.1450	0.0047	27	5i	−2.3856	−2.2590	−0.1266
2	4b	−1.0128	−0.9540	−0.0588	28	5j	−2.3869	−2.3170	−0.0699
3	4c	−1.0988	−1.1050	0.0062	29	5k	−2.5972	−2.4650	−0.1322
4	4d	−1.2533	−1.1940	−0.0593	30	5l	−2.3140	−2.4530	0.1390
5	4e	−0.8153	−0.9430	0.1277	31	5m	−2.2529	−2.2400	−0.0129
6	4f	−1.1974	−1.1580	−0.0394	32	5n	−0.9584	−1.0120	0.0536
7	4g	−1.7783	−1.7230	−0.0553	33	5o	−2.6263	−2.6170	−0.0093
8	4h	−1.7431	−1.8170	0.0739	34	5p	−2.8078	−2.6980	−0.1098
9	4i	−2.0285	−1.9790	−0.0495	35	5q	−2.4778	−2.6320	0.1542
10	4j	−2.3147	−2.2840	−0.0307	36	5r	−2.8579	−2.7160	−0.1419
11	4k	−2.2508	−2.2500	−0.0008	37	6a	−0.9917	−0.8850	−0.1067
12	4l	−2.2089	−2.2760	0.0671	38	6b	−1.0220	−0.9660	−0.0560
13	4m	−2.3273	−2.3780	0.0507	39	6c	−0.9105	−1.0120	0.1015
14	4n	−2.2477	−2.3270	0.0793	40	6d	−1.0028	−0.9120	−0.0908
15	4o	−2.2751	−2.3410	0.0659	41	6e	−1.0382	−0.9870	−0.0512
16	4p	−2.3821	−2.3150	−0.0671	42	6f	−1.8806	−1.8640	−0.0166
17	4q	−1.0839	−0.9510	−0.1329	43	6g	−2.1368	−2.2020	0.0652
18	4r	−1.6793	−1.6480	−0.0313	44	6h	−2.0781	−2.0990	0.0209
19	5a	−1.1940	−1.2250	0.0310	45	6i	−2.0438	−2.1350	0.0912
20	5b	−1.2255	−1.2490	0.0235	46	6j	−2.2545	−2.2100	−0.0445
21	5c	−1.1129	−1.2020	0.0891	47	6k	−2.1958	−2.1330	−0.0628
22	5d	−1.1579	−1.1270	−0.0309	48	6l	−2.0901	−2.1880	0.0979
23	5e	−1.1386	−1.1860	0.0474	49	6m	−2.1068	−2.2390	0.1322
24	5f	−1.8257	−1.8980	0.0723	50	6n	−1.5095	−1.3850	−0.1245
25	5g	−2.2060	−2.2320	0.0260	51	6o	−2.3109	−2.3840	0.0731
26	5h	−2.2643	−2.3340	0.0697	52	6p	−2.4467	−2.4250	−0.0217

The internal validation and the “leave-one-out” cross-validation methods were used to validate the developed QSAR model [28]. The internal validation was carried out by dividing the compound data into three subsets A–C, with 17, 17 and 18 compounds respectively. The compounds 1, 4, 7, 10, etc., went into the first subset (A); 2, 5, 8, 11, etc., went into the second subset (B); and 3, 6, 9, 12, etc., went into the third subset (C). Two of the three subsets, (A and B), (A and C), and (B and C), consist the training set while the remaining subset was treated as a test set. The correlation equations were derived from each of the training sets using the same descriptors and then used to predict values for the corresponding test set [29]. Internal validation results are presented in Table 5. The R_Training² and R_Test² are within 5% for all three sets, and the average values of R_Training² = 0.9833 and R_Test² = 0.9855 were close to the overall R² value. Thus, the obtained QSAR model obtained demonstrated the predictive power of 3-fold cross-validation. Meanwhile, the “leave-one-out” method was completed in a similar manner to the internal validation. Every fourth compound (1, 5, 9, 13, etc.) was put into an external test set, and the remaining compounds were left in the training set. The QSAR model containing the same five descriptors was obtained with R² = 0.9862 from the training set. When the same QSAR model was applied on the test set, R² = 0.9789 was observed. Therefore, the “leave-one out” cross-validation results were also satisfactory.

Table 5. Internal validation of the QSAR model ^a.

**Table 5.** Internal validation of the QSAR model ^a.
Training Set	N	R²	F	S²	Test Set	N	R²	F	S²
A + B	34	0.9862	211.53	0.0095	C	18	0.9896	214.65	0.0086
B + C	35	0.9797	201.69	0.0112	A	17	0.9807	204.11	0.0104
A + C	35	0.9841	207.43	0.0090	B	17	0.9862	209.81	0.0092
Average		0.9833	206.83	0.0099	Average		0.9855	209.52	0.0094

Note: ^a Compounds A: 1, 4, 7, 10, 13, 16, 19, 22, 25, 28, 31, 34, 37, 40, 43, 46, 49; Compounds B: 2, 5, 8, 11, 14, 17, 20, 23, 26, 29, 32, 35, 38, 41, 44, 47, 50; Compounds C: 3, 6, 9, 12, 15, 18, 21, 24, 27, 30, 33, 36, 39, 42, 45, 48, 51, 52.

Descriptors involved in this model revealed the relationship between the compounds and the fungicidal activity. The 1st and 3rd most important descriptors obtained in the model were the number of occupied electronic levels of atoms and maximum atomic orbital electronic population, which belong to quantum-chemically descriptors and have a significant effect on the fungicidal activity. The number of occupied electronic levels of atoms depends directly on the quantum-chemically calculated charge distribution in the molecules, and therefore describes the polar interactions between molecules [30,31]. This study found that the derivatives with electron-withdrawing groups on the benzene ring showed higher N_o values than those with electron-donating groups. Maximum atomic orbital electronic population for a given atomic species in the molecule is an important index to describe the nucleophilicity of the molecule, which is directly related to molecular nucleophilic capacity and characterizes the susceptibility of the molecule to electrophilic attack [32]. In Equation (2), the maximum atomic orbital electronic population and pIC₅₀ are positively correlated, which suggested that the electron withdrawing substitution groups of the derivatives are beneficial for the fungicidal activity against C. lagenarium. In fact, the α,β-unsaturated carbonyl system (Michael acceptor), which had higher electron deficiency induced by electron-withdrawing groups, can be easily attacked by bionucleophiles [33,34]. Therefore, the obtained QSAR study result partially met the above SAR study conclusion.

The 2nd, 4th and 5th descriptors obtained in the model were the maximum net atomic charge for a C atom, maximum net atomic charge for an H atom, and minimum net atomic charge for an H atom. These three descriptors belong to electrostatic descriptors, and they reflect characteristics of the charge distribution of the molecules [35,36]. Thus, the electrostatic descriptors play an important role in influencing the fungicidal activity of compounds. In Equation (2), appearance with a positive sign in the model indicated that a molecule with a higher descriptor value had a higher pIC₅₀. On the contrary, a negative sign in the model indicated that a molecule with a lower descriptor value had a higher pIC₅₀.

2.4. Cytotoxic Activity of the Representative Compounds against Human Tumor Cells Line (HepG2)

As a fact, compounds containing the α-methylene-γ-butyrolactone structure often exhibit a high toxicity potential against mammalian cells [37,38]. In order to ensure the selectivity of the fungicidal effects, the cytotoxicity of 24 representative derivatives was tested in a human tumor cells line (HepG2). The result is listed in Table 6, which indicated that the QSAR underlying the fungicidal and cytotoxic effects of these representative compounds are different. For instance, compound 6a has the highest fungicidal activity with IC₅₀ = 7.68 μM (against C. lagenarium) but moderate cytotoxic activity with IC₅₀ = 30.2 μM (against HepG2 cell line), while, compound 4i has low fungicidal activity with IC₅₀ = 95.38 μM (against C. lagenarium) but high cytotoxic activity with IC₅₀ = 5.3 μM (against HepG2 cell line). Through QSAR studies on fungicidal and antitumor activity of α-methylene-γ-butyrolactone derivatives, these are important points that need further investigation to seek high activity derivatives with weak cytotoxicity.

Table 6. In vitro fungicidal activity of compounds against C. lagenarium and cytotoxic activity against a human tumor cells line (HepG2).

**Table 6.** In vitro fungicidal activity of compounds against C. lagenarium and cytotoxic activity against a human tumor cells line (HepG2).
No.	Compd.	IC₅₀ (μM) (against C. lagenarium)	IC₅₀ (μM) (against HepG2 Cell Line)
1	4b	8.99	22.4
2	4e	8.76	21.7
3	4g	52.87	18.3
4	4i	95.38	5.3
5	4k	177.96	28.5
6	4o	219.44	25.0
7	4p	206.51	19.5
8	4q	8.93	27.3
9	5a	16.77	28.4
10	5d	13.41	35.6
11	5i	181.69	85.2
12	5l	283.99	29.0
13	5m	173.74	23.8
14	5p	499.33	>131.7
15	5r	519.42	38.4
16	6a	7.68	30.2
17	6d	8.17	20.9
18	6f	73.14	18.5
19	6g	159.33	22.0
20	6l	154.27	58.6
21	6n	24.25	15.7
22	6o	242.03	>108.2
23	4	160.63	23.3
24	6	117.12	17.9

3. Materials and Methods

3.1. General Information

Chlorothalonil was purchased from Xiangtan Huayuan Fine-Chem Co. Ltd. (Xiangtan, China). 4-Dimethylaminopyridine (DMAP), N,N-dicyclohexylcarbodiimide (DCC) and carboxylic acids were purchased from J & K Chemical Ltd. (Beijing, China). Other reagents and solvents were obtained locally. All solvents were dried, and redistilled before use. The water used was redistilled and ion-free. Analytical thin-layer chromatography (TLC) was performed on silica gel GF₂₅₄. Column chromatographic (CC) purification was carried out using silica gel (200–300 mesh). Above silica gel was obtained from Qingdao Haiyang Chemical Co., Ltd. (Qingdao, China). The melting points of the synthetic derivatives were determined on an X-6 apparatus (Beijing Tech., Beijing, China) and are uncorrected. Nuclear magnetic resonance (NMR) experiments were performed on an Avance 400/500 MHz instrument (Bruker, Bremerhaven, Germany). HR-MS (ESI) were obtained using a Bruker Apex-Ultra 7.0 T spectrometer. Reaction progress was monitored by thin-layer chromatography on silica gel GF-254 with detection by UV light.

3.2. Synthetic Procedures

3.2.1. General Synthetic Procedure for the Intermediate Compounds

α-(Bromomethyl)acrylic acid was synthesized according to our previous report [21]. Hydroxybenzaldehyde (122.1 mg, 1.0 mmol), α-(bromomethyl) acrylic acid (198.0 mg, 1.2 mmol), and indium powder (136.0 mg, 1.2 mmol) were added to THF (10.0 mL) at room temperature. 6.0 M HCl was added to the above mixture when the starting aldehyde disappeared according to TLC analysis and stirring was continued for 6 hours. Then, the mixture was extracted with ethyl acetate (3 × 10 mL) and the organic phase dried over anhydrous Na₂SO₄ and evaporated under reduced pressure. The resulting residue was purified using preparative chromatography on silica gel eluting with 0%–40% ethyl acetate in petroleum ether. These intermediate compounds were used to prepare the target compounds.

4-(4-Hydroxyphenyl)-2-methylenebutyrolactone (4). White crystals; mp: 79–81 °C; 87% yield; ¹H-NMR (400 MHz, CDCl₃): δ 2.88 (ddt, 1H, J = 17.2, 6.5, 2.6 Hz, CHHC=CH₂), 3.30 (ddt, 1H, J = 17.2, 8.0, 2.0 Hz, CHHC=CH₂), 5.43 (t, 1H, J = 7.1 Hz, OCH), 5.70 (t, 1H, J = 2.1 Hz, C=CHH), 6.28 (t, 1H, J = 2.6 Hz, C=CHH), 6.84–7.11 (m, 4H, ArH); ¹³C-NMR (100 MHz, CDCl₃): δ 35.85, 79.14, 115.86, 123.05, 127.44, 130.59, 134.54, 156.76, 171.59; HR-MS (ESI): m/z calcd for C₁₁H₁₁O₃ ([M + H]⁺) 191.0703, found 191.0703.

4-(2-Hydroxyphenyl)-2-methylenebutyrolactone (5). Colourless oil; 81% yield; ¹H-NMR (400 MHz, CDCl₃): δ 2.95 (ddt, 1H, J = 17.4, 5.9, 2.7 Hz, CHHC=CH₂), 3.42 (ddt, 1H, J = 17.4, 8.4, 2.4 Hz, CHHC=CH₂), 5.66 (t, 1H, J = 2.4 Hz, C=CHH), 5.79 (dd, 1H, J = 8.3 6.1 Hz, OCH), 6.29 (t, 1H, J = 2.8 Hz, C=CHH), 6.86–7.23 (m, 4H, ArH); ¹³C-NMR (100 MHz, CDCl₃): δ 34.67, 76.23, 115.93, 120.13, 122.77, 126.04, 126.28, 129.65, 134.82, 153.67, 172.26; HR-MS (ESI): m/z calcd for C₁₁H₁₁O₃ ([M + H]⁺) 191.0703, found 191.0703.

4-(3-Hydroxyphenyl)-2-methylenebutyrolactone (6). White crystal ; mp: 78–79 °C; 81% yield; ¹H-NMR (400 MHz, CDCl₃): δ 2.82 (ddt, 1H, J = 17.2, 6.3, 2.8 Hz, CHHC=CH₂), 3.30 (ddt, 1H, J = 17.2, 8.1, 2.3 Hz, CHHC=CH₂), 5.41 (t, 1H, J = 7.4 Hz, OCH), 5.66 (t, 1H, J = 2.3 Hz, C=CHH), 6.25 (t, 1H, J = 2.7 Hz, C=CHH), 6.76–7.19 (m, 4H, ArH); ¹³C-NMR (100 MHz, CDCl₃): δ 35.91, 78.62, 112.44, 115.87, 117.09, 123.31, 130.16, 134.04, 141.10, 156.71, 171.55; HR-MS (ESI): m/z calcd for C₁₁H₁₁O₃ ([M + H]⁺) 191.0703, found 191.0703.

3.2.2. General Synthetic Procedure for Ester Compounds

4-Dimethylaminopyridine (DMAP, 30.0 mg, 0.2 mmol) and the appropriate intermediate compounds 4, 5 or 6 (196.0 mg, 1.1 mmol) were added to anhydrous CH₂Cl₂ (15.0 mL) containing the respective carboxylic acid (1.1 mmol). Then the mixture was cooled to 0 °C. N,N-dicyclohexyl-carbodiimide (DCC, 226.0 mg, 1.1 mmol) dissolved in anhydrous CH₂Cl₂ (10.0 mL) was added dropwise into the mixture over a period of 10 min at 0 °C and the mixture was then stirred at room temperature until the reaction was complete according to the TLC analysis. Then, the mixture was filtered. Finally, the residual organic layers were extracted by ethyl acetate (3 × 30 mL) and dried over anhydrous Na₂SO₄. After filtering, the solution was evaporated under vacuum. The target compounds were purified by column chromatography on silica gel eluting with 0%–40% ethyl acetate in petroleum ether. The structures of all ester derivatives were characterized by ¹H-NMR, ¹³C-NMR, and HR-ESI-MS, and the data are listed below.

4-[4-(2-Chlorobenzoyloxy)phenyl]-2-methylenebutyrolactone (4a) White solid; mp: 187.2–187.9 °C; 40% yield; ¹H-NMR (400 MHz, CDCl₃): δ 8.05 (dd, J =7.8, 1.1 Hz, 1H, ArH), 7.56–7.47 (m, 3H, ArH), 7.44–7.37 (m, 4H, ArH), 6.33 (t, J = 2.8 Hz, 1H, C=CHH), 5.61–5.52 (m, 1H, OCH), 5.56 (d, J = 7.7 Hz, 1H, C=CHH), 3.50–3.37 (m, 1H, CHHC=CH₂), 3.04–2.82 (m, 1H, CHHC=CH₂); ¹³C-NMR (125 MHz, CDCl₃): δ 170.06, 163.97, 150.70, 137.72, 134.50, 133.94, 133.41, 131.97, 131.44, 128.99, 126.77, 122.83, 122.16, 77.62, 77.05, 76.73, 36.36, 1.05; HR-MS (ESI): m/z calcd for C₁₈H₁₃ClNaO₄ ([M + Na]⁺) 351.0394, found 351.0395.

4-[4-(3-Chlorobenzoyloxy)phenyl]-2-methylenebutyrolactone (4b) White solid; mp: 168.8–169.2 °C; 54% yield; ¹H-NMR (500 MHz, CDCl₃): δ 8.24 (m, 1H, ArH), 7.69–7.56 (m, 1H, ArH), 7.54–7.34 (m, 3H, ArH), 7.31–7.19 (m, 3H, ArH), 6.37 (dd, J = 14.9, 12.1 Hz, 1H, C=CHH), 5.76 (dd, J = 14.6, 12.2 Hz, 1H, OCH), 5.60 (dd, J = 20.0, 12.6 Hz, 1H, C=CHH), 3.54–3.37 (m, 1H, CHHC=CH₂), 3.02–2.88 (m, 1H, CHHC=CH₂); ¹³C-NMR (125 MHz, CDCl₃): δ 150.76, 137.71, 134.84, 133.86, 131.05, 130.22, 129.95, 128.31, 126.75, 122.74, 122.02, 77.31, 77.01, 76.75, 36.30, 29.70; HR-MS (ESI): m/z calcd for C₁₈H₁₃ClNaO₄ ([M + Na]⁺) 351.0394, found 351.0395.

4-[4-(4-Chlorobenzoyloxy)phenyl]-2-methylenebutyrolactone (4c) White solid; mp: 171.3–171.6 °C; 65% yield; ¹H-NMR (400 MHz, CDCl₃): δ 8.30–8.02 (m, 2H, ArH), 7.68–7.14 (m, 6H, ArH), 6.33 (t, J = 2.8 Hz, 1H, C=CHH), 5.72 (t, J = 2.5 Hz, 1H, OCH), 5.60–5.47 (m, 1H, C=CHH), 3.43 (ddt, J = 17.1, 8.0, 2.4 Hz, 1H, CHHC=CH₂), 2.94 (ddt, J = 17.1, 6.1, 2.9 Hz, 1H, CHHC=CH₂); ¹³C-NMR (125 MHz, CDCl₃): δ 170.01, 150.82, 140.37, 137.63, 133.95, 131.59, 129.04, 126.73, 122.80, 122.16, 77.39, 77.04, 76.72, 36.31. HR-MS (ESI): m/z calcd for C₁₈H₁₃ClNaO₄ ([M + Na]⁺) 351.0394, found 351.0395.

4-[4-(2-Bromobenzoyloxy)phenyl]-2-methylenebutyrolactone (4d) White crystal; mp: 174.5–174.9 °C; 62% yield; ¹H-NMR (500 MHz, CDCl₃): δ 8.04 (dd, J = 7.5, 1.7 Hz, 1H, ArH), 7.91–7.68 (m, 1H, ArH), 7.56–7.08 (m, 6H, ArH), 6.36 (t, J = 2.8 Hz, 1H, C=CHH), 5.74 (t, J = 2.4 Hz, 1H, OCH), 5.61–5.50 (m, 1H, C=CHH), 3.56–3.08 (m, 1H, CHHC=CH₂), 3.05–2.67 (m, 1H, CHHC=CH₂). ¹³C-NMR (125 MHz, CDCl₃): δ 134.69, 133.30, 131.85, 127.36, 126.70, 122.73, 122.03, 77.32, 77.01, 76.75, 36.35, 29.70, 14.99.HR-MS (ESI): m/z calcd for C₁₈H₁₃BrNaO₄ ([M + Na]⁺) 394.9890, found 394.9889.

4-[4-(3-Bromobenzoyloxy)phenyl]-2-methylenebutyrolactone (4e) White crystal; mp: 176.5–176.8 °C; 45% yield; ¹H-NMR (500 MHz, CDCl₃): δ 8.37 (s, 1H, ArH), 8.16 (d, J = 7.7 Hz, 1H, ArH), 7.80 (d, J = 7.9 Hz, 1H, ArH), 7.56–7.19 (m, 4H, ArH), 6.36 (t, J = 2.8 Hz, 1H, C=CHH), 5.75 (t, J = 2.4 Hz, 1H, OCH), 5.66–5.52 (m, 1H, C=CHH), 5.42 (dd, J = 10.6, 5.3 Hz, 1H, ArH), 3.57–3.37 (m, 1H, CHHC=CH₂), 2.95 (s, 1H, CHHC=CH₂); ¹³C-NMR (125 MHz, CDCl₃): δ 136.73, 133.16, 132.05, 131.69, 130.22, 128.79, 126.91, 126.53, 122.77, 122.20, 78.63, 77.34, 77.03, 76.78, 40.03, 36.36, 29.72, 15.00. HR-MS (ESI): m/z calcd for C₁₈H₁₃BrNaO₄ ([M + Na]⁺) 394.9890, found 394.9889.

4-[4-(4-Bromobenzoyloxy)phenyl]-2-methylenebutyrolactone (4f) White crystal; mp: 175.1–175.6 °C; 52% yield; ¹H-NMR (500 MHz, CDCl₃): δ 8.10 (d, J = 8.5 Hz, 2H, ArH), 7.72 (t, J = 12.5 Hz, 4H, ArH), 6.38 (t, J = 2.8 Hz, 1H, C=CHH), 5.76 (t, J = 2.4 Hz, 1H, OCH), 5.65–5.54 (m, 1H, C=CHH), 5.43 (dd, J = 10.7, 5.2 Hz, 2H, ArH), 3.55–3.36 (m, 1H, CHHC=CH₂), 3.04–2.93 (m, 1H, CHHC=CH₂); ¹³C-NMR (125 MHz, CDCl₃): δ 150.78, 136.95, 132.05, 131.69, 129.05, 128.28, 126.76, 122.75, 122.08, 78.62, 77.28, 77.03, 76.78, 40.03, 36.36, 15.00. HR-MS (ESI): m/z calcd for C₁₈H₁₃BrNaO₄ ([M + Na]⁺) 394.9890, found 394.9889.

4-[4-(3-Benzonitrile)phenyl]-2-methylenebutyrolactone (4g) Yellow oil; 54% yield; ¹H-NMR (500 MHz, CDCl₃): δ 8.52 (s, 1H, ArH), 8.45 (d, J = 8.0 Hz, 1H, ArH), 7.95 (d, J = 7.8 Hz, 1H, ArH), 7.70 (t, J = 7.9 Hz, 1H, ArH), 7.29 (t, J = 4.3 Hz, 4H, ArH), 6.36 (t, J = 2.8 Hz, 1H, 1H, C=CHH), 5.75 (t, J = 2.4 Hz, 1H, OCH), 5.65–5.56 (m, 1H, C=CHH), 3.46 (ddd, J = 10.5, 5.7, 2.4 Hz, 1H, CHHC=CH₂), 2.96 (ddt, J = 17.0, 6.1, 2.9 Hz, 1H, CHHC=CH₂), ¹³C-NMR (125 MHz, CDCl₃): δ 163.13, 150.51, 138.01, 136.69, 134.16, 133.82, 130.69, 129.73, 126.83, 122.82, 121.90, 113.36, 77.26, 77.01, 76.76, 49.17, 36.29, 33.95, 25.62. HR-MS (ESI): m/z calcd for C₁₉H₁₃NNaO₄ ([M + Na]⁺) 342.0736, found 342.0740.

4-[4-(4-Benzonitrile)phenyl]-2-methylenebutyrolactone (4h) Yellow oil; 57% yield; ¹H-NMR (500 MHz, CDCl₃): δ 8.51–8.39 (m, 1H, ArH), 8.34 (t, J = 7.3 Hz, 2H, ArH), 7.98 (d, J = 7.8 Hz, 1H, ArH), 7.85 (s, 2H, ArH), 7.73 (t, J = 7.9 Hz, 1H, ArH), 6.37 (t, J = 2.8 Hz, 1H, C=CHH), 6.25 (t, J = 2.9 Hz, 1H, ArH), 5.75 (t, J = 2.4 Hz, 1H, OCH), 5.71–5.64 (m, 2H, ArH), 5.61–5.55 (m, 1H, C=CHH), 3.49–3.41 (m, 1H, CHHC=CH₂), 3.38–3.28 (m, 1H, CHHC=CH₂). ¹³C-NMR (125 MHz, CDCl₃): δ 137.00, 133.71, 132.43, 130.67, 129.88, 127.05, 126.80, 123.06, 122.84, 121.89, 77.26, 77.01, 76.75, 73.73, 49.17, 36.28, 33.95, 29.69, 25.64. HR-MS (ESI): m/z calcd for C₁₉H₁₃NNaO₄ ([M + Na]⁺) 342.0736, found 342.0740.

4-(4-Benzoyloxyphenyl)-2-methylenebutyrolactone 4-(4-Benzoyloxyphenyl)-2-methylenebutyrolactone (4i) White solid; mp: 223.3–223.7 °C; 55% yield; ¹H-NMR (500 MHz, CDCl₃): δ 8.25 (d, J = 8.3 Hz, 5H, ArH), 7.70 (t, J = 7.4 Hz, 4H, ArH), 6.38 (s, 1H, C=CHH), 5.76 (d, J = 2.4 Hz, 1H, OCH), 5.63–5.55 (m, 1H, C=CHH), 4.11 (dd, J = 15.3, 7.9 Hz, 1H, CHHC=CH₂), 3.47 (dd, J = 17.1, 8.1 Hz, 1H, CHHC=CH₂); ¹³C-NMR (125 MHz, CDCl₃): δ 133.76, 130.21, 128.64, 126.72, 122.12, 78.70, 77.28, 77.03, 76.77, 40.04, 36.41, 29.72, 15.00. HR-MS (ESI): m/z calcd for C₁₈H₁₄NaO₄ ([M + Na]⁺) 317.0784, found 317.0788.

4-[4-(2-Methylbenzoyloxy)phenyl]-2-methylenebutyrolactone (4j) White crystals; mp: 189.6–190.1 °C; 53% yield; ¹H-NMR (500 MHz, CDCl₃): δ 8.18 (d, J = 7.8 Hz, 1H, ArH), 7.58–7.46 (m, 1H, ArH), 7.40 (t, J = 14.7 Hz, 2H, ArH), 7.35 (t, J = 7.7 Hz, 2H, ArH), 7.28 (t, J = 6.3 Hz, 2H, ArH), 6.35 (t, J = 2.8 Hz, 1H, C=CHH), 5.73 (t, J = 2.4 Hz, 1H, C=CHH), 5.64–5.40 (m, 1H, OCH), 3.45 (ddt, J = 17.1, 8.0, 2.4 Hz, 1H, CHHC=CH₂), 3.05–2.85 (m, 1H, CHHC=CH₂), 2.70 (s, 3H, ArCH₃); ¹³C-NMR (125 MHz, CDCl₃): δ 170.00, 165.67, 151.00, 141.44, 137.39, 134.02, 132.91, 126.65, 125.97, 125.11, 122.96, 122.66, 122.35, 77.47, 77.30, 77.05, 76.79, 36.27, 21.95; HR-MS (ESI): m/z calcd for C₁₉H₁₆NaO₄ ([M + Na]⁺) 331.0940, found 331.0937.

4-[4-(3-Methylbenzoyloxy)phenyl]-2-methylenebutyrolactone (4k) White crystals; mp: 186.2–186.6 °C; 52% yield; ¹H-NMR (500 MHz, CDCl₃): δ 8.00 (d, J = 8.9 Hz, 2H, ArH), 7.57–7.14 (m, 6H, ArH), 6.33 (t, J = 2.8 Hz, 1H, C=CHH), 5.72 (t, J = 2.5 Hz, 1H, C=CHH), 5.58–5.50 (m, 1H, OCH), 3.43 (ddt, J = 17.1, 8.0, 2.4 Hz, 1H, CHHC=CH₂), 3.05–2.82 (m, 1H, CHHC=CH₂), 2.45 (s, 3H, ArCH₃); ¹³C-NMR (125 MHz, CDCl₃): δ 170.03, 165.28, 151.07, 138.51, 137.37, 134.55, 134.01, 130.71, 129.19, 128.53, 127.37, 126.67, 122.26, 77.48, 77.28, 77.02, 76.77, 36.32, 21.30. HR-MS (ESI): m/z calcd for C₁₉H₁₆NaO₄ ([M + Na]⁺) 331.0940, found 331.0937.

4-[4-(4-Methylbenzoyloxy)phenyl]-2-methylenebutyrolactone (4l) White crystals; mp: 184.5–185.1 °C; 60% yield; ¹H-NMR (500 MHz, CDCl₃): δ 8.11 (d, J = 8.2 Hz, 2H, ArH), 7.56–7.19 (m, 6H, ArH), 6.35 (t, J = 2.8 Hz, 1H, C=CHH), 5.74 (t, J = 2.5 Hz, 1H, C=CHH), 5.64–5.40 (m, 1H, OCH), 3.45 (ddt, J = 17.1, 8.0, 2.4 Hz, 1H, CHHC=CH₂), 3.08–2.82 (m, 1H, CHHC=CH₂), 2.48 (s, 3H, ArCH₃); ¹³C-NMR (125 MHz, CDCl₃): δ 169.99, 165.13, 151.11, 144.63, 138.51, 137.30, 134.03, 130.24, 129.34, 127.37, 126.58, 122.65, 122.27, 77.48, 77.27, 77.02, 76.76, 36.32, 21.77. HR-MS (ESI): m/z calcd for C₁₉H₁₆NaO₄ ([M + Na]⁺) 331.0940, found 331.0937.

4-[4-(2-Methoxylbenzoyloxy)phenyl]-2-methylenebutyrolactone (4m) White crystals; mp: 179.8–180.4 °C; 60% yield; ¹H-NMR (500 MHz, CDCl₃): δ 8.02 (dd, J = 8.0, 1.7 Hz, 1H, ArH), 7.56 (td, J = 8.2, 1.8 Hz, 1H, ArH), 7.40–6.97 (m, 6H, ArH), 6.32 (t, J = 2.8 Hz, 1H, C=CHH), 5.71 (t, J = 2.5 Hz, 1H, C=CHH), 5.59–5.48 (m, 1H, OCH), 3.94 (s, 3H, ArOCH₃), 3.42 (ddt, J = 17.1, 8.0, 2.4 Hz, 1H, CHHC=CH₂), 2.93 (ddt, J = 9.3, 6.0, 2.9 Hz, 1H, CHHC=CH₂); ¹³C-NMR (125 MHz, CDCl₃): δ 170.08, 164.25, 159.97, 151.08, 137.20, 134.54, 134.06, 132.25, 126.56, 122.67, 122.37, 120.25, 112.25, 77.55, 77.30, 77.04, 76.79, 56.07, 36.34; HR-MS (ESI): m/z calcd for C₁₉H₁₆NaO₅ ([M + Na]⁺) 347.0889, found 347.0891.

4-[4-(3-Methoxylbenzoyloxy)phenyl]-2-methylenebutyrolactone (4n) White crystals; mp: 185.7–186.2 °C; 44% yield; ¹H-NMR (500 MHz, CDCl₃): δ 7.85 (d, J = 7.7 Hz, 1H, ArH), 7.74 (s, 4H, ArH), 6.38 (s, 1H, C=CHH), 5.76 (s, 1H, C=CHH), 5.66–5.56 (m, 1H, OCH), 5.44 (dd, J = 10.7, 5.2 Hz, 3H, ArH), 4.35 (s, 3H, ArOCH₃), 4.11 (dd, J = 17.0, 9.5 Hz, 1H, CHHC=CH₂), 3.47 (dd, J = 17.1, 8.1 Hz, 1H, CHHC=CH₂); ¹³C-NMR (125 MHz, CDCl₃): δ 170.03, 164.28, 159.77, 129.67, 126.76, 122.64, 122.10, 120.32, 114.60, 78.69, 77.28, 77.03, 76.78, 55.56, 40.04, 36.41, 29.72, 15.00. HR-MS (ESI): m/z calcd for C₁₉H₁₆NaO₅ ([M + Na]⁺) 347.0889, found 347.0891.

4-[4-(4-Methoxylbenzoyloxy)phenyl]-2-methylenebutyrolactone (4o) White crystals; mp: 184.5–185.2 °C; 51% yield; ¹H-NMR (500 MHz, CDCl₃): δ 8.28–8.00 (m, 2H, ArH), 7.53–7.30 (m, 2H, ArH), 7.28–7.14 (m, 2H, ArH), 7.02–6.95 (m, 2H, ArH), 6.32 (t, J = 2.8 Hz, 1H, C=CHH), 5.71 (t, J = 2.5 Hz, 1H, C=CHH), 5.58–5.41 (m, 1H, OCH), 3.90 (s, 3H, ArOCH₃), 3.49–3.33 (m, 1H, CHHC=CH₂), 2.94 (ddd, J = 14.2, 6.3, 3.1 Hz, 1H, CHHC=CH₂);¹³C-NMR (125 MHz, CDCl₃): δ 170.08, 164.83, 164.05, 159.97, 151.16, 137.23, 134.05, 132.36, 126.64, 122.70, 122.33, 121.55, 113.92, 77.46, 77.06, 76.74, 55.56, 36.32. HR-MS (ESI): m/z calcd for C₁₉H₁₆NaO₅ ([M + Na]⁺) 347.0889, found 347.0891.

4-[4-(Propionyloxy)phenyl]-2-methylenebutyrolactone (4p) Colourless oil; 68% yield; ¹H-NMR (500 MHz, CDCl₃): δ 6.35 (t, J = 2.8 Hz, 1H, C=CHH), 5.74 (t, J = 2.4 Hz, 1H, C=CHH), 5.63–5.46 (m, 1H, OCH), 5.39 (dd, J = 10.7, 5.2 Hz, 3H,CH₃CH₂), 3.44 (dd, J = 17.1, 8.1 Hz, 1H, CHHC=CH₂), 3.03–2.90 (m, 1H, CHHC=CH₂), 1.67 (s, 2H,CH₃CH₂); ¹³C-NMR (125 MHz, CDCl₃): δ 178.99, 172.87, 150.84, 136.53, 126.63, 122.64, 78.68, 77.39, 77.06, 76.81, 39.98, 36.33, 27.75, 14.97. HR-MS (ESI): m/z calcd for C₁₄H₁₄NaO₄ ([M + Na]⁺) 269.0784, found 269.0786.

[4-(4-Hydroxy-3-methoxycinnamoyloxy)phenyl]-2-methylenebutyrolactone (4q) Yellow oil; 45% yield; ¹H-NMR (400 MHz, CDCl₃): δ 7.80 (d, J = 15.9 Hz, 1H, ArOH), 7.36 (d, J = 8.6 Hz, 2H, ArH), 7.21 (dd, J = 21.2, 12.6 Hz, 2H, ArH), 7.16–7.05 (m, 2H, CH=CH), 6.95 (d, J = 8.2 Hz, 1H, ArH), 6.47 (d, J = 15.9 Hz, 1H, ArH), 6.32 (t, J = 2.8 Hz, 1H, C=CHH), 6.10 (s, 1H, ArH), 5.71 (t, J = 2.5 Hz, 1H, C=CHH), 5.58–5.44 (m, 1H, OCH),4.02–3.82 (m, 3H, ArOCH₃), 3.49–3.29 (m, 1H, CHHC=CH₂), 2.93 (ddt, J = 12.2, 6.0, 2.9 Hz, 1H, CHHC=CH₂); ¹³C-NMR (125 MHz, CDCl₃): δ 170.02, 165.56, 151.01, 148.60, 147.01, 137.172, 134.06, 126.63, 123.51, 122.18, 114.92, 114.22, 109.66, 76.72, 56.01, 49.16, 36.28, 33.94, 30.90, 29.69, 25.62. HR-MS (ESI): m/z calcd for C₂₁H₁₈NaO₆ ([M + Na]⁺) 389.0997, found 389.0995.

4-[4-(Cinnamoyloxy)phenyl]-2-methylenebutyrolactone (4r) Yellow oil; 43% yield; ¹H-NMR (400 MHz, CDCl₃): δ 7.88 (d, J = 16.0 Hz, 1H, ArH), 7.64–7.53 (m, 2H, ArH), 7.47–7.40 (m, 2H, ArH), 7.39–7.32 (m, 2H, ArH), 7.28–7.16 (m, 2H, CH=CH), 6.63 (d, J = 16.0 Hz, 1H, ArH), 6.32 (t, J = 2.8 Hz, 1H, C=CHH), 5.71 (t, J = 2.5 Hz, 1H, C=CHH), 5.63–5.46 (m, 1H, OCH), 3.41 (ddt, J = 17.1, 8.0, 2.4 Hz, 1H, CHHC=CH₂), 2.93 (ddt, J = 9.4, 6.0, 2.9 Hz, 1H, CHHC=CH₂); ¹³C-NMR (100 MHz, CDCl₃): δ 170.06, 165.31, 150.88, 146.99, 137.31, 134.05, 130.86, 129.05, 128.37, 126.65, 122.72, 122.16, 116.99, 77.44, 77.06, 76.74, 36.30, 33.94, 30.91, 29.63. HR-MS (ESI): m/z calcd for C₂₀H₁₆NaO₄ ([M + Na]⁺) 343.0940, found 343.0941.

4-[2-(3-Chlorobenzoyloxy)phenyl]-2-methylenebutyrolactone (5a) White solid; mp: 201.3–201.8 °C; 54% yield; ¹H-NMR (500 MHz, CDCl₃): δ 8.16 (t, J = 1.8 Hz, 1H, ArH), 8.08 (d, J = 7.8 Hz, 1H, ArH), 7.71–7.59 (m, 1H, ArH), 7.53–7.45 (m, 2H, ArH), 7.43 (dt, J = 7.8, 3.9 Hz, 1H, ArH), 7.34 (dd, J = 9.4, 4.9 Hz, 1H, ArH), 7.21 (dd, J = 8.0, 0.7 Hz, 1H, ArH), 6.24 (t, J = 2.9 Hz, 1H, C=CHH), 5.68 (dd, J = 8.4, 6.2 Hz, 1H, C=CHH), 5.63 (t, J = 2.5 Hz, 1H, OCH), 3.32 (ddt, J = 17.4, 8.4, 2.6 Hz, 1H, CHHC=CH₂), 2.90 (ddt, J = 17.4, 5.9, 2.9 Hz, 1H, CHHC=CH₂); ¹³C-NMR (125 MHz, CDCl₃): δ 169.96, 163.75, 147.46, 135.04, 134.19, 133.51, 132.32, 130.46, 129.67, 128.34, 126.85, 126.40, 123.09, 122.85, 77.31, 77.06, 76.80, 35.20; HR-MS (ESI): m/z calcd for C₁₈H₁₄ClO₄ ([M + Na]⁺) 325.0574, found 325.0575.

4-[2-(4-Chlorobenzoyloxy)phenyl]-2-methylenebutyrolactone (5b) White solid; mp: 208.7–209.3 °C; 48% yield; ¹H-NMR (400 MHz, CDCl₃): δ 8.17–8.07 (m, 2H, ArH), 7.59–7.45 (m, 4H, ArH), 7.26 (s, 2H, ArH), 6.22 (s, 1H, C=CHH), 5.67 (dd, J = 8.4, 6.1 Hz, 1H, OCH), 5.61 (s, 1H, C=CHH), 3.30 (ddt, J = 17.4, 8.4, 2.6 Hz, 1H, CHHC=CH₂), 2.90 (ddt, J = 17.4, 5.9, 2.9 Hz, 1H, CHHC=CH₂); ¹³C-NMR (125 MHz, CDCl₃): δ 168.96, 165.75, 146.45, 137.04, 134.29, 131.58, 129.66, 129.25, 128.81, 128.26, 126.76, 126.40, 123.09, 122.97, 77.35, 77.03, 76.72, 30.87. HR-MS (ESI): m/z calcd for C₁₈H₁₄ClO₄ ([M + Na]⁺) 325.0572, found 325.0575.

4-[2-(2-Bromobenzoyloxy)phenyl]-2-methylenebutyrolactone (5c) White crystal; mp: 204.6–205.1 °C; 43% yield; ¹H-NMR (500 MHz, CDCl₃): δ 8.05 (dd, J = 7.5, 1.9 Hz, 1H, ArH), 7.79 (dd, J = 7.7, 1.2 Hz, 1H, ArH), 7.56–7.16 (m, 6H, ArH), 6.25 (t, J = 2.8 Hz, 1H, C=CHH), 5.76 (dd, J = 8.3, 6.2 Hz, 1H, OCH), 5.66 (t, J = 2.5 Hz, 1H, C=CHH), 3.60–3.22 (m, 1H, CHHC=CH₂), 2.93 (ddt, J = 17.4, 5.9, 2.8 Hz, 1H, CHHC=CH₂); ¹³C-NMR (125 MHz, CDCl₃): δ 164.19, 147.43, 134.88, 132.39, 131.97, 130.59, 129.59, 127.57, 126.81, 126.29, 122.88, 122.69, 122.42, 77.28, 77.03, 76.78, 73.60, 35.33.HR-MS (ESI): m/z calcd for C₁₈H₁₄BrO₄ ([M + H]⁺) 373.0070, found 373.0072.

4-[2-(3-Bromobenzoyloxy)phenyl]-2-methylenebutyrolactone (5d) White crystals; mp: 189.7–190.4 °C; 45% yield; ¹H-NMR (500 MHz, CDCl₃): δ 8.34 (t, J = 1.6 Hz, 1H, ArH), 8.14 (d, J = 7.8 Hz, 1H, ArH), 7.91–7.76 (m, 1H, ArH), 7.54–7.40 (m, 3H, ArH), 7.36 (td, J = 7.6, 0.7 Hz, 1H, ArH), 7.23 (dd, J = 8.0, 0.6 Hz, 1H, ArH), 6.25 (t, J = 2.9 Hz, 1H, C=CHH), 5.69 (dd, J = 8.3, 6.2 Hz, 1H, OCH), 5.65 (t, J = 2.5 Hz, 1H, C=CHH), 3.33 (ddt, J = 17.4, 8.4, 2.5 Hz, 1H, CHHC=CH₂), 2.92 (ddt, J = 17.4, 5.9, 2.8 Hz, 1H, CHHC=CH₂); ¹³C-NMR (125 MHz, CDCl₃): δ 169.89, 163.60, 147.50, 137.07, 133.54, 133.12, 130.69, 130.42, 129.65, 128.77, 126.83, 126.42, 123.15, 77.32, 77.06, 76.81, 73.61, 35.20. HR-MS (ESI): m/z calcd for C₁₈H₁₄BrO₄ ([M + H]⁺) 373.0070, found 373.0069.

4-[2-(4-Bromobenzoyloxy)phenyl]-2-methylenebutyrolactone (5e) White crystals; mp: 184.7–185.2 °C; 53% yield; ¹H-NMR (500 MHz, CDCl₃): δ 8.05 (dd, J = 23.8, 8.5 Hz, 2H, ArH), 7.70 (t, J = 11.9 Hz, 2H, ArH), 7.56–7.20 (m, 4H, ArH), 6.25 (t, J = 2.8 Hz, 1H, C=CHH), 5.69 (dd, J = 8.3, 6.2 Hz, 1H, OCH), 5.63 (t, J = 2.4 Hz, 1H, C=CHH), 3.32 (ddt, J = 17.4, 8.4, 2.5 Hz, 1H, CHHC=CH₂), 2.92 (ddt, J = 17.4, 5.9, 2.8 Hz, 1H, CHHC=CH₂); ¹³C-NMR (125 MHz, CDCl₃): δ 169.90, 164.22, 147.58, 133.55, 132.27, 131.65, 130.89, 130.62, 129.58, 127.66, 126.75, 126.44, 122.93, 77.27, 77.02, 76.76, 73.69, 35.16. HR-MS (ESI): m/z calcd for C₁₈H₁₄BrO₄ ([M + H]⁺) 373.0070, found 373.0069.

4-[2-(4-Benzonitrile)phenyl]-2-methylenebutyrolactone (5f) Yellow oil; 65% yield; ¹H-NMR (500 MHz, CDCl₃): δ 8.31 (d, J = 8.5 Hz, 2H, ArH), 7.86 (d, J = 8.5 Hz, 2H, ArH), 7.55–7.43 (m, 2H, ArH), 7.41–7.35 (m, 1H, ArH), 7.30–7.24 (m, 1H, ArH), 6.23 (t, J = 2.9 Hz, 1H, C=CHH), 5.68 (t, J = 7.3 Hz, 1H, OCH), 5.64 (t, J = 2.5 Hz, 1H, C=CHH), 3.33 (ddt, J = 17.4, 8.5, 2.5 Hz, 1H, CHHC=CH₂), 3.02–2.93 (m, 1H, CHHC=CH₂); ¹³C-NMR (125 MHz, CDCl₃): δ 163.38, 147.52, 133.47, 132.59, 130.68, 129.48, 127.05, 126.81, 23.12, 122.85, 120.68, 117.59, 115.82, 77.30, 77.04, 76.79, 75.28, 73.86, 35.02. HR-MS (ESI): m/z calcd for C₁₉H₁₃NNaO₄ ([M + Na]⁺) 342.0736, found 342.0741.

4-(2-Benzoyloxyphenyl)-2-methylenebutyrolactone (5g) White solid; mp: 166.3–167.0 °C; 57% yield; ¹H-NMR (500 MHz, CDCl₃): δ 8.22 (d, J = 7.3 Hz, 2H, ArH), 7.71 (t, J = 7.5 Hz, 1H, ArH), 7.57 (t, J = 7.8 Hz, 2H, ArH), 7.49 (t, J = 7.4 Hz, 1H, ArH), 7.47–7.42 (m, 1H, ArH), 7.35 (dd, J = 11.1, 4.0 Hz, 1H, ArH), 7.25 (d, J = 8.1 Hz, 1H, ArH), 6.24 (t, J = 2.8 Hz, 1H, C=CHH), 5.73 (dd, J = 8.2, 6.3 Hz, 1H, OCH), 5.63 (t, J = 2.4 Hz, 1H, C=CHH), 3.34 (ddt, J = 17.4, 8.4, 2.5 Hz, 1H, CHHC=CH₂), 2.92 (ddt, J = 17.4, 5.9, 2.8 Hz, 1H, CHHC=CH₂); ¹³C-NMR (125 MHz, CDCl₃): δ 133.76, 130.21, 128.64, 126.72, 122.12, 78.70, 77.28, 77.03, 76.77, 40.04, 36.41, 29.72, 15.00. HR-MS (ESI): m/z calcd for C₁₈H₁₅O₄ ([M + H]⁺) 295.0964, found 295.0964.

4-[2-(2-Methylbenzoyloxy)phenyl]-2-methylenebutyrolactone (5h) White crystals; mp: 172.8–173.4 °C; 47% yield; ¹H-NMR (400 MHz, CDCl₃): δ 8.21–8.12 (m, 1H, ArH), 7.55–7.49 (m, 1H, ArH), 7.49–7.39 (m, 2H, ArH), 7.38–7.28 (m, 3H, ArH), 7.26–7.19 (m, 1H, ArH), 6.22 (t, J = 2.9 Hz, 1H, C=CHH), 5.70 (dd, J = 8.3, 6.1 Hz, 1H, OCH), 5.61 (t, J = 2.5 Hz, 1H, C=CHH), 3.32 (ddt, J = 17.4, 8.4, 2.6 Hz, 1H, CHHC=CH₂), 2.90 (ddt, J = 17.4, 5.9, 2.9 Hz, 1H, CHHC=CH₂), 2.68 (s, 3H, ArCH₃); ¹³C-NMR (125 MHz, CDCl₃): δ 170.05, 165.29, 147.67, 141.92, 133.66, 133.33, 132.55, 131.16, 129.52, 127.60, 126.52, 126.17, 122.96, 77.40, 77.08, 76.77, 73.66, 35.30, 22.08.HR-MS (ESI): m/z calcd for C₁₉H₁₆NaO₄ ([M + Na]⁺) 331.0940, found 337.0940.

4-[2-(3-Methylbenzoyloxy)phenyl]-2-methylenebutyrolactone (5i) White crystals; mp: 179.3–179.9 °C; 45% yield; ¹H-NMR (500 MHz, CDCl₃): δ 7.99 (d, J = 8.7 Hz, 2H, ArH), 7.48 (t, J = 8.0 Hz, 2H, ArH), 7.45–7.39 (m, 2H, ArH), 7.32 (t, J = 7.6 Hz, 1H, ArH), 7.21 (d, J = 8.0 Hz, 1H, ArH), 6.22 (t, J = 2.9 Hz, 1H, C=CHH), 5.70 (dd, J = 8.3, 6.2 Hz, 1H, OCH), 5.60 (t, J = 2.5 Hz, 1H, C=CHH), 3.31 (ddt, J = 17.4, 8.4, 2.5 Hz, 1H, CHHC=CH₂), 2.89 (ddt, J = 17.4, 5.9, 2.8 Hz, 1H, CHHC=CH₂), 2.46 (s, 3H, ArCH₃); ¹³C-NMR (125 MHz, CDCl₃): δ 170.06, 165.06, 147.69, 138.77, 134.93, 133.65, 132.48, 130.76, 129.52, 128.69, 127.36, 126.56, 126.16, 122.93, 77.30, 77.05, 76.79, 73.66, 35.28, 21.32. HR-MS (ESI): m/z calcd for C₁₉H₁₆NaO₄ ([M + Na]⁺) 337.0940, found 337.0941.

4-[2-(4-Methylbenzoyloxy)phenyl]-2-methylenebutyrolactone (5j) White crystals; mp: 181.2–181.6 °C; 46% yield; ¹H-NMR (400 MHz, CDCl₃): δ 8.08 (d, J = 8.2 Hz, 2H, ArH), 7.49–7.38 (m, 2H, ArH), 7.36–7.28 (m, 3H, ArH), 7.24–7.19 (m, 1H, ArH), 6.22 (t, J = 2.9 Hz, 1H, C=CHH), 5.70 (dd, J = 8.3, 6.1 Hz, 1H, OCH), 5.60 (t, J = 2.5 Hz, 1H, C=CHH), 3.31 (ddt, J = 17.4, 8.4, 2.6 Hz, 1H, CHHC=CH₂), 2.89 (ddt, J = 17.4, 5.9, 2.9 Hz, 1H, CHHC=CH₂), 2.47 (s, 3H, ArCH₃); ¹³C-NMR (125 MHz, CDCl₃): δ 170.26, 163.06, 149.69,145.15, 138.77, 133.65, 132.49, 130.29, 129.53, 128.49, 126.51, 126.05, 122.95, 77.35, 77.03, 76.72, 73.71, 35.28, 21.83. HR-MS (ESI): m/z calcd for C₁₉H₁₆NaO₄ ([M + Na]⁺) 331.0940, found 331.0937.

4-[2-(2-Methoxylbenzoyloxy)phenyl]-2-methylenebutyrolactone (5k) White crystals; mp: 177.8–178.6 °C; 51% yield; ¹H-NMR (500 MHz, CDCl₃): δ 8.00 (dd, J = 7.7, 1.6 Hz, 1H, ArH), 7.59 (td, J = 8.5, 1.7 Hz, 1H, ArH), 7.41 (ddd, J = 15.7, 9.2, 4.6 Hz, 2H, ArH), 7.33–7.19 (m, 2H, ArH), 7.07 (dd, J = 12.2, 5.2 Hz, 2H, ArH), 6.24 (t, J = 2.9 Hz, 1H, C=CHH), 5.79 (dd, J = 8.2, 6.2 Hz, 1H, OCH), 5.61 (t, J = 2.5 Hz, 1H, C=CHH), 3.95 (s, 3H, ArOCH₃), 3.36 (ddt, J = 17.4, 8.3, 2.5 Hz, 1H, CHHC=CH₂), 2.87 (ddt, J = 17.4, 5.9, 2.9 Hz, 1H, CHHC=CH₂); ¹³C-NMR (125 MHz, CDCl₃): δ 170.21, 164.40, 159.83, 147.61, 134.84, 133.89, 132.54, 129.32, 126.40, 125.81, 122.97, 122.72, 120.46, 118.38, 112.25, 77.31, 77.06, 76.80, 73.71, 56.01, 35.45. HR-MS (ESI): m/z calcd for C₁₉H₁₆NaO₅ ([M + Na]⁺) 347.0889, found 347.0889.

4-[2-(3-Methoxylbenzoyloxy)phenyl]-2-methylenebutyrolactone (5l) White crystals; mp: 180.3–180.8 °C; 50% yield; ¹H-NMR (500 MHz, CDCl₃): δ 7.81 (d, J = 7.7 Hz, 1H, ArH), 7.76–7.65 (m, 1H, ArH), 7.55–7.40 (m, 3H, ArH), 7.35 (t, J = 7.2 Hz, 1H, ArH), 7.30–7.22 (m, 2H, ArH), 6.25 (t, J = 2.9 Hz, 1H, C=CHH), 5.72 (dd, J = 8.3, 6.2 Hz, 1H, OCH), 5.63 (t, J = 2.5 Hz, 1H, C=CHH), 3.92 (s, 3H, ArOCH₃), 3.42–3.22 (m, 1H, CHHC=CH₂), 3.02–2.76 (m, 1H, CHHC=CH₂); ¹³C-NMR (125 MHz, CDCl₃): δ 169.99, 164.76, 159.88, 147.70, 133.63, 132.44, 129.86, 129.54, 126.60, 126.24, 122.92, 122.56, 120.63, 114.65, 77.28, 77.02, 76.77, 73.69, 55.57, 35.24. HR-MS (ESI): m/z calcd for C₁₉H₁₆NaO₅ ([M + Na]⁺) 347.0889, found 347.0889.

4-[2-(Butyryloxy)phenyl]-2-methylenebutyrolactone (5m) Colourless oil; 78% yield; ¹H-NMR (500 MHz, CDCl₃): δ 7.41–7.33 (m, 2H, ArH), 7.30–7.21 (m, 1H, ArH), 7.16–7.05 (m, 1H, ArH), 6.31 (t, J = 2.8 Hz, 1H, C=CHH), 5.68 (t, J = 2.4 Hz, 1H, C=CHH), 5.61 (dd, J = 8.3, 6.3 Hz, 1H, OCH), 3.34 (ddt, J = 17.4, 8.4, 2.5 Hz, 1H, CHHC=CH₂), 2.86 (ddt, J = 17.4, 5.9, 2.8 Hz, 1H, CHHC=CH₂), 2.61–2.50 (m, 2H, CH₃CH₂CH₂), 1.78 (dt, J = 14.8, 7.4 Hz, 2H, CH₃CH₂CH₂), 1.05 (dd, J = 9.0, 5.9 Hz, 3H, CH₃CH₂CH₂); ¹³C-NMR (125 MHz, CDCl₃): δ 171.75, 147.64, 133.87, 131.95, 129.47, 126.31, 77.34, 77.08, 76.83, 73.94, 36.12, 35.23, 18.41, 13.68. HR-MS (ESI): m/z calcd for C₁₅H₁₆NaO₄ ([M + Na]⁺) 283.0840, found 283.0841.

4-[2-(Cinnamoyloxy)phenyl]-2-methylenebutyrolactone (5n) Yellow oil; 48% yield; ¹H-NMR (500 MHz, CDCl₃): δ 7.84 (d, J = 15.9 Hz, 1H, ArH), 7.49–7.39 (m, 2H, ArH), 7.32 (t, J = 7.5 Hz, 1H, ArH), 7.29 (s, 1H, ArH), 7.24–7.17 (m, 2H, ArH), 7.01–6.97 (m, 1H, ArH), 6.48 (d, J = 15.9 Hz, 1H, ArH), 6.30 (t, J = 2.7 Hz, 1H, C=CHH), 5.71 (dd, J = 8.2, 6.4 Hz, 1H, OCH), 5.66 (d, J = 7.3 Hz, 1H, C=CHH), 4.00 (s, 2H, CH=CH), 3.39 (dd, J = 17.5, 8.5 Hz, 1H, CHHC=CH₂), 2.99–2.84 (m, 1H, CHHC=CH₂); ¹³C-NMR (125 MHz, CDCl₃): δ 148.74, 147.72, 129.49, 127.04, 126.21, 123.67, 122.95, 122.72, 114.93, 113.54, 109.70, 77.27, 77.01, 76.76, 74.01, 56.04, 35.16, 26.33. HR-MS (ESI): m/z calcd for C₂₁H₁₉O₆ ([M + H]⁺) 367.1173, found 317.1176.

4-[3-(3-Chlorobenzoyloxy)phenyl]-2-methylenebutyrolactone (6a) White solid; mp: 205.7–206.4 °C; 52% yield; ¹H-NMR (500 MHz, CDCl₃): δ 8.20 (s, 1H, ArH), 8.10 (d, J = 7.7 Hz, 1H, ArH), 7.65 (dd, J = 8.0, 1.0 Hz, 1H, ArH), 7.55–7.45 (m, 2H, ArH), 7.30–7.19 (m, 3H, ArH), 6.35 (t, J = 2.8 Hz, 1H, C=CHH), 5.74 (t, J = 2.4 Hz, 1H, C=CHH), 5.62–5.54 (m, 1H, OCH), 3.52–3.41 (m, 1H, CHHC=CH₂), 2.97 (ddt, J = 12.2, 6.0, 2.9 Hz, 1H, CHHC=CH₂); ¹³C-NMR (125 MHz, CDCl₃): δ 163.87, 151.10, 141.83, 134.86, 133.76, 131.04, 130.35, 129.90, 128.31, 122.93, 121.78, 118.66, 77.41, 76.88, 76.76, 36.21, 29.70. HR-MS (ESI): m/z calcd for C₁₈H₁₃ClNaO₄ ([M + Na]⁺) 351.0394, found 351.0395.

4-[3-(4-Chlorobenzoyloxy)phenyl]-2-methylenebutyrolactone (6b) White solid; mp: 209.8–210.5 °C; 64% yield; ¹H-NMR (400 MHz, CDCl₃): δ 8.22–8.03 (m, 2H, ArH), 7.61–7.36 (m, 3H, ArH), 7.33–7.14 (m, 3H, ArH), 6.32 (t, J = 2.8 Hz, 1H, C=CHH), 5.71 (t, J = 2.5 Hz, 1H, C=CHH), 5.56 (dd, J = 7.8, 6.7 Hz, 1H, OCH), 3.44 (ddt, J = 17.1, 8.1, 2.5 Hz, 1H, CHHC=CH₂), 2.94 (ddt, J = 17.1, 6.2, 2.9 Hz, 1H, CHHC=CH₂); ¹³C-NMR (125 MHz, CDCl₃): δ 164.24, 151.14, 141.80, 140.37, 133.73, 131.58, 130.12, 129.05, 127.72, 122.93, 121.85, 118.72, 77.52 ,76.91, 76.74, 36.21. HR-MS (ESI): m/z calcd for C₁₈H₁₃ClNaO₄ ([M + Na]⁺) 351.0394, found 351.0394.

4-[3-(2-Bromobenzoyloxy)phenyl]-2-methylenebutyrolactone (6c) White crystals; mp: 175.3–175.8 °C; 56% yield; ¹H-NMR (500 MHz, CDCl₃): δ 8.06 (dd, J = 7.6, 1.7 Hz, 1H, ArH), 7.83–7.72 (m, 1H, ArH), 7.61–7.42 (m, 2H, ArH), 7.30 (d, J = 10.2 Hz, 4H, ArH), 6.38 (t, J = 2.8 Hz, 1H, C=CHH), 5.76 (dd, J = 6.3, 3.9 Hz, 1H, C=CHH), 5.67–5.40 (m, 1H, OCH), 3.62–3.30 (m, 1H, CHHC=CH₂), 3.05–2.88 (m, 1H, CHHC=CH₂); ¹³C-NMR (125 MHz, CDCl₃): δ 134.74, 133.35, 130.12, 127.40, 126.70, 122.91, 118.69, 77.28, 77.02, 76.77, 36.35, 29.71, 19.20. HR-MS (ESI): m/z calcd for C₁₈H₁₃BrNaO₄ ([M + Na]⁺) 394.9889, found 394.9892.

4-[3-(3-Bromobenzoyloxy)phenyl]-2-methylenebutyrolactone (6d) White crystals; mp: 178.6–178.9 °C; 63% yield; ¹H-NMR (500 MHz, CDCl₃): δ 8.31 (d, J = 52.5 Hz, 1H, ArH), 8.10 (dd, J = 52.3, 7.5 Hz, 1H, ArH), 7.84–7.72 (m, 1H, ArH), 7.54–7.34 (m, 2H, ArH), 7.33–7.17 (m, 3H, ArH), 6.36 (t, J = 2.8 Hz, 1H, C=CHH), 5.74 (t, J = 2.5 Hz, 1H, C=CHH), 5.66–5.46 (m, 1H, OCH), 3.60–3.36 (m, 1H, CHHC=CH₂), 2.97 (ddt, J = 17.1, 6.1, 2.9 Hz, 1H, CHHC=CH₂); ¹³C-NMR (125 MHz, CDCl₃): δ 136.72, 133.14, 132.05, 131.69, 130.17, 128.76, 126.91, 126.53, 122.94, 121.78, 118.66, 77.37, 76.87, 76.76, 36.21, 29.72, 15.00. HR-MS (ESI): m/z calcd for C₁₈H₁₃BrNaO₄ ([M + Na]⁺) 394.9894, found 394.9890.

4-[3-(4-Bromobenzoyloxy)phenyl]-2-methylenebutyrolactone (6e) White crystals; mp: 168.6–169.4 °C; 41% yield; ¹H-NMR (500 MHz, CDCl₃): δ 8.10 (d, J = 8.5 Hz, 2H, ArH), 8.00 (d, J = 8.4 Hz, 2H, ArH), 7.69 (dd, J = 24.8, 8.4 Hz, 4H, ArH), 6.37 (t, J = 2.8 Hz, 1H, C=CHH), 5.76 (t, J = 2.4 Hz, 1H, C=CHH), 5.61 (s, 1H, OCH), 4.35 (t, J = 6.8 Hz, 1H, CHHC=CH₂), 3.48 (dd, J = 17.0, 8.1 Hz, 1H, CHHC=CH₂). ¹³C-NMR (125 MHz, CDCl₃): δ 150.78, 137.95, 133.05, 131.69, 129.05, 127.28, 126.76, 122.75, 122.08, 78.62, 77.28, 77.03, 76.78, 40.03, 36.36, 15.00. HR-MS (ESI): m/z calcd for C₁₈H₁₃BrNaO₄ ([M + Na]⁺) 394.9890, found 394.9889.

4-(3-Benzoyloxyphenyl)-2-methylenebutyrolactone (6f) White solid; mp: 204.5–204.8 °C; 52% yield; ¹H-NMR (500 MHz, CDCl₃): δ 8.22 (d, J = 7.3 Hz, 2H, ArH), 7.68 (t, J = 7.5 Hz, 1H, ArH), 7.49 (t, J = 7.8 Hz, 1H, ArH), 7.32–7.20 (m, 5H, ArH), 6.35 (t, J = 2.8 Hz, 1H, C=CHH), 5.73 (t, J = 2.4 Hz, 1H, C=CHH), 5.62–5.52 (m, 1H, OCH), 3.46 (ddt, J = 17.1, 8.1, 2.4 Hz, 1H, CHHC=CH₂), 2.98 (ddt, J = 9.2, 6.0, 2.8 Hz, 1H, CHHC=CH₂); ¹³C-NMR (125 MHz, CDCl₃): δ 135.76, 131.21, 128.69, 126.77, 122.62, 78.70, 77.28, 77.03, 76.77, 42.04, 36.51, 29.79, 15.20. HR-MS (ESI): m/z calcd for C₁₈H₁₄NaO₄ ([M + Na]⁺) 317.0785, found 317.0784.

4-[3-(2-Methylbenzoyloxy)phenyl]-2-methylenebutyrolactone (6g) White crystals; mp: 178.3–178.9 °C; 57% yield; ¹H-NMR (500 MHz, CDCl₃): δ 8.18 (d, J = 7.8 Hz, 1H, ArH), 7.54–7.46 (m, 2H, ArH), 7.36 (t, J = 7.7 Hz, 2H, ArH), 7.24 (dd, J = 13.8, 7.7 Hz, 3H, ArH), 6.35 (t, J = 2.8 Hz, 1H, C=CHH), 5.73 (t, J = 2.4 Hz, 1H, C=CHH), 5.64–5.51 (m, 1H, OCH), 3.46 (ddt, J = 17.1, 8.1, 2.4 Hz, 1H, CHHC=CH₂), 2.98 (ddt, J = 17.1, 6.1, 2.9 Hz, 1H, CHHC=CH₂), 2.70 (s, 3H, ArCH₃); ¹³C-NMR (125 MHz, CDCl₃): δ 165.62, 151.30, 141.68, 141.44, 133.81, 132.91, 132.02, 131.21, 130.02, 128.21, 125.98, 122.71, 122.06, 118.92, 77.26, 77.01, 76.76, 36.23, 21.96. HR-MS (ESI): m/z calcd for C₁₉H₁₆NaO₄ ([M + Na]⁺) 331.0940, found 331.0940.

4-[3-(3-Methylbenzoyloxy)phenyl]-2-methylenebutyrolactone (6h) White crystals; mp: 177.6–178.2 °C; 68% yield; ¹H-NMR (500 MHz, CDCl₃): δ 8.03 (s, 1H, ArH), 7.46 (ddd, J = 15.1, 9.9, 5.9 Hz, 3H, ArH), 7.28 (d, J = 9.6 Hz, 4H, ArH), 6.35 (t, J = 2.8 Hz, 1H, C=CHH), 5.73 (t, J = 2.4 Hz, 1H, C=CHH), 5.66–5.52 (m, 1H, OCH), 3.50–3.39 (m, 1H, CHHC=CH₂), 3.03–2.93 (m, 1H, CHHC=CH₂), 2.48 (s, 3H, ArCH₃); ¹³C-NMR (125 MHz, CDCl₃): δ 170.05, 165.28, 152.07, 136.51, 137.36, 134.45, 134.61, 130.71, 129.69, 128.53, 127.37, 126.67, 122.26, 77.48, 77.28, 77.02, 76.77, 36.32, 21.30. HR-MS (ESI): m/z calcd for C₁₉H₁₆NaO₄ ([M + Na]⁺) 331.0942, found 331.0940.

4-[3-(4-Methylbenzoyloxy)phenyl]-2-methylenebutyrolactone (6i) White crystals; mp: 168.5–168.9 °C; 57% yield; ¹H-NMR (500 MHz, CDCl₃): δ 8.10 (d, J = 8.1 Hz, 2H, ArH), 7.48 (t, J = 7.8 Hz, 1H, ArH), 7.34 (d, J = 8.0 Hz, 1H, ArH), 7.30–7.20 (m, 4H, ArH), 6.35 (t, J = 2.8 Hz, 1H, C=CHH), 5.73 (t, J = 2.5 Hz, 1H, C=CHH), 5.70–5.40 (m, 1H, OCH), 3.56–3.36 (m, 1H, CHHC=CH₂), 2.98 (ddt, J = 17.1, 6.0, 2.9 Hz, 1H, CHHC=CH₂), 2.34 (d, J = 144.3 Hz, 3H, ArCH₃). ¹³C-NMR (125 MHz, CDCl₃): δ 169.99, 165.13, 151.11, 144.66, 141.64, 130.24, 130.01, 129.36, 127.37, 126.58, 122.79, 122.63, 122.00, 118.87, 77.27, 77.01, 76.76, 36.22, 21.77. HR-MS (ESI): m/z calcd for C₁₉H₁₆NaO₄ ([M + Na]⁺) 331.0940, found 331.0941.

4-[3-(2-Methoxylbenzoyloxy)phenyl]-2-methylenebutyrolactone (6j) White crystals; mp: 172.3–172.8 °C; 45% yield; ¹H-NMR (500 MHz, CDCl₃): δ 8.07–7.99 (m, 1H, ArH), 7.61–7.56 (m, 1H, ArH), 7.32–7.20 (m, 4H, ArH), 7.08 (t, J = 7.6 Hz, 2H, ArH), 6.34 (t, J = 2.8 Hz, 1H, C=CHH), 5.73 (t, J = 2.4 Hz, 1H, C=CHH), 5.62–5.43 (m, 1H, OCH), 3.97 (s, 3H, ArOCH₃), 3.47–3.38 (m, 1H, CHHC=CH₂), 2.97 (ddt, J = 17.1, 6.1, 2.9 Hz, 1H, CHHC=CH₂). ¹³C-NMR (125 MHz, CDCl₃): δ 151.37, 141.52, 134.54, 133.87, 132.27, 129.92, 122.76, 122.54, 122.09, 120.27, 118.98, 112.26, 77.30, 77.02, 76.76, 56.07, 49.16, 36.23, 33.95, 25.63, 24.94. HR-MS (ESI): m/z calcd for C₁₉H₁₆NaO₅ ([M + Na]⁺) 347.0889, found 347.0890.

4-[3-(3-Methoxybenzoyloxy)phenyl]-2-methylenebutyrolactone (6k) White crystals; mp: 183.7–184.2 °C; 57% yield; ¹H-NMR (500 MHz, CDCl₃): δ 7.82 (d, J = 7.7 Hz, 1H, ArH), 7.73 (d, J = 7.7 Hz, 1H, ArH), 7.47 (dt, J = 18.6, 7.8 Hz, 2H, ArH), 7.31–7.19 (m, 4H, ArH), 6.35 (t, J = 2.8 Hz, 1H, C=CHH), 5.73 (t, J = 2.4 Hz, 1H, C=CHH), 5.62–5.55 (m, 1H, OCH), 3.92 (s, 3H, ArOCH₃), 3.46 (ddt, J = 17.0, 8.1, 2.4 Hz, 1H, CHHC=CH₂), 3.01–2.91 (m, 1H, CHHC=CH₂). ¹³C-NMR (125 MHz, CDCl₃): δ 159.75, 151.34, 141.70, 133.78, 130.05, 129.67, 129.49, 122.95–122.49, 121.94, 120.39, 118.80, 114.51, 77.27, 77.01, 76.76, 55.49, 36.21, 29.70.HR-MS (ESI): m/z calcd for C₁₉H₁₆NaO₅ ([M + Na]⁺) 347.0889, found 347.0889.

4-[3-(4-Methoxybenzoyloxy)phenyl]-2-methylenebutyrolactone (6l) White crystals; mp: 182.6–183.3 °C; 56% yield; ¹H-NMR (500 MHz, CDCl₃): δ 8.23–8.07 (m, 2H, ArH), 7.45 (t, J = 8.0 Hz, 1H, ArH), 7.29–7.14 (m, 3H, ArH), 7.02–6.92 (m, 2H, ArH), 6.32 (t, J = 2.8 Hz, 1H, C=CHH), 5.70 (t, J = 2.5 Hz, 1H, C=CHH), 5.55 (dd, J = 7.8, 6.8 Hz, 1H, OCH), 3.90 (s, 3H, ArOCH₃), 3.43 (ddt, J = 17.1, 8.1, 2.5 Hz, 1H, CHHC=CH₂), 3.00–2.87 (m, 1H, CHHC=CH₂); ¹³C-NMR (125 MHz, CDCl₃): δ 169.99, 164.80, 164.06, 151.44, 141.61, 133.83, 132.35, 130.00, 122.84, 122.60, 122.06, 121.52, 118.92, 113.93, 77.35, 77.06, 76.74, 55.56, 36.21.HR-MS (ESI): m/z calcd for C₁₉H₁₆NaO₅ ([M + Na]⁺) 347.0889, found 347.0892.

4-(3-Propionyloxyphenyl)-2-methylenebutyrolactone (6m) Colourless oil; 56% yield; ¹H-NMR (500 MHz, CDCl₃): δ 7.42 (t, J = 8.3 Hz, 1H, ArH), 7.29 (s, 1H, ArH), 7.20 (d, J = 7.8 Hz, 1H, ArH), 7.09 (s, 1H, ArH), 6.34 (t, J = 2.8 Hz, 1H, C=CHH), 5.72 (t, J = 2.4 Hz, 1H, C=CHH), 5.64–5.43 (m, 1H, OCH), 3.44 (ddt, J = 17.1, 8.1, 2.4 Hz, 1H, CHHC=CH₂), 2.94 (ddt, J = 17.1, 6.0, 2.8 Hz, 1H, CHHC=CH₂), 2.62 (q, J = 7.5 Hz, 2H, CH₃CH₂), 1.29 (t, J = 7.5 Hz, 3H, CH₃CH₂); ¹³C-NMR (125 MHz, CDCl₃): δ 172.81, 151.14, 141.57, 133.78, 129.92, 122.78, 122.53, 121.75, 118.63, 77.23, 77.01, 76.75, 36.20, 27.73, 9.02. HR-MS (ESI): m/z calcd for C₁₄H₁₄NaO₄ ([M + Na]⁺) 269.0784, found 269.0784.

4-(3-Cinnamoyloxyphenyl)-2-methylenebutyrolactone (6n) Yellow oil; 34% yield; ¹H-NMR (400 MHz, CDCl₃): δ 7.87 (d, J = 16.0 Hz, 1H, ArH), 7.64–7.55 (m, 2H, CH=CH), 7.47–7.38 (m, 4H, ArH), 7.25–7.10 (m, 3H, ArH), 6.62 (d, J = 16.0 Hz, 1H, ArH), 6.31 (t, J = 2.8 Hz, 1H, C=CHH), 5.70 (t, J = 2.5 Hz, 1H, C=CHH), 5.60–5.45 (m, 1H, OCH), 3.42 (ddt, J = 17.1, 8.1, 2.5 Hz, 1H, CHHC=CH₂), 2.93 (ddt, J = 17.1, 6.0, 2.9 Hz, 1H, CHHC=CH₂); ¹³C-NMR (100 MHz, CDCl₃): δ 169.99, 165.26, 151.17, 147.00, 141.64, 134.07, 133.83, 130.88, 130.01, 129.06, 128.38, 122.76, 121.88, 118.76, 116.98, 77.56,76.95, 76.78, 36.19. HR-MS (ESI): m/z calcd for C₂₀H₁₆NaO₄ ([M + Na]⁺) 343.0940, found 343.0941.

3.2.3. General Synthetic Procedure for Ether Compounds

K₂CO₃ (13.8 mg, 10.0 mmol) and Cs₂CO₃ (3.2 mg, 1.0 mmol) as catalyst, intermediate compounds 5 or 6 (196.0 mg, 1.1 mmol), and acetonitrile (35.0 mL) were added into a round bottomed flask and refluxed at 78 °C. Then, the appropriate brominated alkane (1.2 mmol) was slowly added into the mixture and stirred for 12 h at 78 °C. The progress of the reaction was monitored by TLC. After complete conversion, the suspension was filtered and washed with acetonitrile. Finally, the solution was dried with anhydrous Na₂SO₄, filtered, and evaporated under vacuum. The obtained crude products were also purified by column chromatography. The ¹H-NMR, ¹³C-NMR, and HR-ESI-MS data are listed below.

4-(2-Butoxyphenyl)-2-methylenebutyrolactone (5o) Yellow oil; 42% yield; ¹H-NMR (500 MHz, CDCl₃): δ 7.38–7.30 (m, 2H, ArH), 7.04–6.89 (m, 2H, ArH), 6.33 (t, J = 2.8 Hz, 1H, C=CHH), 5.77 (dd, J = 8.4, 6.0 Hz, 1H, OCH), 5.67 (t, J = 2.4 Hz, 1H, C=CHH), 4.13–3.95 (m, 2H, CH₃CH₂CH₂CH₂O), 3.45 (ddt, J = 17.4, 8.5, 2.6 Hz, 1H, CHHC=CH₂), 2.92 (ddt, J = 17.4, 5.7, 2.8 Hz, 1H, CHHC=CH₂), 1.86–1.76 (m, 2H, CH₃CH₂CH₂CH₂O), 1.57–1.47 (m, 2H, CH₃CH₂CH₂CH₂O), 1.05–0.98 (m, 3H, CH₃CH₂CH₂CH₂O); ¹³C-NMR (100 MHz, CDCl₃): δ 155.78, 134.92, 129.42, 126.12, 121.82, 120.40, 111.27, 77.29, 76.78, 75.21, 67.79, 35.04, 31.28, 30.92, 19.41, 13.83. HR-MS (ESI): m/z calcd for C₁₅H₁₈NaO₃ ([M + Na]⁺) 269.1148, found 269.1147.

4-(2-Propoxylphenyl)-2-methylenebutyrolactone (5p) Yellow oil; 38% yield; ¹H-NMR (500 MHz, CDCl₃): δ 7.30 (dd, J = 13.1, 5.4 Hz, 1H, ArH), 6.90 (dd, J = 12.5, 10.8 Hz, 3H, ArH), 6.33 (t, J = 2.8 Hz, 1H, C=CHH), 5.71 (t, J = 2.4 Hz, 1H, C=CHH), 5.58–5.41 (m, 1H, OCH), 3.94 (t, J = 6.5 Hz, 2H, CH₃CH₂CH₂O), 3.41 (ddt, J = 17.1, 8.1, 2.4 Hz, 1H, CHHC=CH₂), 2.93 (ddt, J = 17.1, 6.1, 2.9 Hz, 1H, CHHC=CH₂), 1.90–1.78 (m, 2H, CH₃CH₂CH₂O), 1.12–0.97 (m, 3H, CH₃CH₂CH₂O); ¹³C-NMR (125 MHz, CDCl₃): δ 170.14, 159.58, 141.41, 134.20, 129.93, 122.43, 117.30, 114.49, 111.51, 77.82, 77.28, 77.03, 76.77, 69.61, 22.57, 10.51. HR-MS (ESI): m/z calcd for C₁₄H₁₆NaO₃ ([M + Na]⁺) 255.0991, found 255.0992.

4-(2-Isopropoxylphenyl)-2-methylenebutyrolactone (5q) Yellow oil; 47% yield; ¹H-NMR (500 MHz, CDCl₃): δ 7.33 (dd, J = 12.7, 6.6 Hz, 2H, ArH), 6.96 (dt, J = 12.8, 5.9 Hz, 2H, ArH), 6.32 (t, J = 2.9 Hz, 1H, C=CHH), 5.73 (dd, J = 8.4, 5.9 Hz, 1H, OCH), 5.67 (t, J = 2.4 Hz, 1H, C=CHH), 4.67 (dt, J = 12.1, 6.0 Hz, 1H, (CH₃)₂CHO), 3.45 (ddt, J = 17.4, 8.5, 2.6 Hz, 1H, CHHC=CH₂), 2.91 (ddt, J = 17.5, 5.7, 2.8 Hz, 1H, CHHC=CH₂), 1.38 (dd, J = 8.8, 6.1 Hz, 6H, (CH₃)₂CHO); ¹³C-NMR (125 MHz, CDCl₃): δ 170.74, 154.58, 135.17, 129.35, 129.06, 126.55, 121.63, 120.19, 112.42, 77.29, 77.04, 76.78, 75.52, 69.95, 34.95, 29.72, 22.01. HR-MS (ESI): m/z calcd for C₁₄H₁₆NaO₃ ([M + Na]⁺) 255.0991, found 255.0990.

4-(2-Ethoxyphenyl)-2-methylenebutyrolactone (5r) Yellow oil; 46% yield; ¹H-NMR (400 MHz, CDCl₃): δ 7.31–7.25 (m, 3H, ArH), 6.95 (td, J = 7.5, 0.8 Hz, 1H, ArH), 6.28 (t, J = 2.9 Hz, 1H, C=CHH), 5.71 (dd, J = 8.5, 5.8 Hz, 1H, OCH), 5.63 (t, J = 2.5 Hz, 1H, C=CHH), 4.06 (qd, J = 7.0, 2.6 Hz, 2H, CH₃CH₂O), 3.42 (dd, J = 17.4, 8.5 Hz, 1H, CHHC=CH₂), 2.95–2.77 (m, 1H, CHHC=CH₂), 1.40 (t, J = 7.0 Hz, 3H, CH₃CH₂O).¹³C-NMR (125 MHz, CDCl₃): δ 129.48, 126.34, 121.70, 120.42, 111.34, 77.29, 77.03, 76.71, 75.44, 63.64, 34.90, 14.73. HR-MS (ESI): m/z calcd for C₁₃H₁₄NaO₃ ([M + Na]⁺) 241.0835, found 241.0834.

4-(3-Butoxyphenyl)-2-methylenebutyrolactone (6o) Yellow oil; 47% yield; ¹H-NMR (500 MHz, CDCl₃): δ 7.32 (dd, J = 13.2, 5.4 Hz, 2H, ArH), 6.91 (d, J = 9.0 Hz, 2H, ArH), 6.35 (t, J = 2.8 Hz, 1H, C=CHH), 5.73 (t, J = 2.4 Hz, 1H, C=CHH), 5.63–5.40 (m, 1H, OCH), 4.01 (t, J = 6.5 Hz, 2H, CH₃CH₂ CH₂CH₂O), 3.43 (ddt, J = 17.0, 8.0, 2.4 Hz, 1H, CHHC=CH₂), 2.95 (ddt, J = 17.1, 6.1, 2.9 Hz, 1H, CHHC=CH₂), 1.86–1.74 (m, 2H, CH₃CH₂CH₂CH₂O), 1.58–1.47 (m, 2H, CH₃CH₂CH₂CH₂O), 1.09–0.96 (m, 3H, CH₃CH₂CH₂CH₂O); ¹³C-NMR (100 MHz, CDCl₃): δ 155.78, 134.92, 129.42, 126.12, 121.82, 120.40, 111.27, 77.29, 76.78, 75.21, 67.79, 35.04, 31.28, 30.92, 19.41, 13.83. HR-MS (ESI): m/z calcd for C₁₅H₁₈NaO₃ ([M + Na]⁺) 269.1148, found 269.1147.

4-(3-Propoxylphenyl)-2-methylenebutyrolactone (6p) Yellow oil; 54% yield; ¹H-NMR (500 MHz, CDCl₃): δ 7.30 (dd, J = 13.1, 5.4 Hz, 1H, ArH), 6.90 (dd, J = 12.5, 10.8 Hz, 3H, ArH), 6.33 (t, J = 2.8 Hz, 1H, C=CHH), 5.71 (t, J = 2.4 Hz, 1H, C=CHH), 5.58–5.41 (m, 1H, OCH), 3.94 (t, J = 6.5 Hz, 2H, CH₃CH₂CH₂O), 3.41 (ddt, J = 17.1, 8.1, 2.4 Hz, 1H, CHHC=CH₂), 2.93 (ddt, J = 17.1, 6.1, 2.9 Hz, 1H, CHHC=CH₂), 1.90–1.78 (m, 2H, CH₃CH₂CH₂O), 1.12–0.97 (m, 3H, CH₃CH₂CH₂O); ¹³C-NMR (125 MHz, CDCl₃): δ 170.14, 159.58, 141.41, 134.20, 129.93, 122.43, 117.30, 114.49, 111.51, 77.82, 77.28, 77.03, 76.77, 69.61, 22.57, 10.51. HR-MS (ESI): m/z calcd for C₁₄H₁₆NaO₃ ([M + Na]⁺) 255.0991, found 255.0992.

3.3. Fungicidal Activity Bioassay

3.3.1. Preparation of Spore Suspension

The fungal pathogens C. lagenarium and B. cinerea was provided by the Agricultural Culture Collection of China (Yangling, Shaanxi, China). C. lagenarium was cultured for 2 weeks at 25 ± 1 °C on potato dextrose agar (PDA) while B. cinerea was cultured at 20 °C on the same medium after being retrieved from the storage tube. Plates were flooded with sterile distilled water, and then conidia were scraped with a glass rod. Mycelial debris was removed by filtration. The spores were harvested and suspended in sterile distilled water containing 0.1% (v/v) Tween 20. The concentration of the spore suspension was adjusted to 1.0 × 10⁶ spores/mL with sterilized distilled water following [21,39].

3.3.2. Spore Germination Assay

The tested samples (10.0 mg) dissolved in acetone (0.1 mL) were diluted with sterile distilled water to prepare 10.0 mL stock solution, which was further diluted to prepare test solutions in which the final concentration of acetone was <1% (v/v). A series of concentrations of tested samples and one control (1% acetone with sterile distilled water) were separately tested for spore germination of C. lagenarium or B. cinerea. The samples were inoculated with spore suspension of C. lagenarium or B. cinerea containing 1.0 × 10⁶ spores/mL. Aliquots of 10 μL of prepared spore suspension were placed on separate glass slides in triplicate. Slides containing the spores were incubated in a moisture chamber at 25 °C for 6~8 h. Each slide was then observed under the microscope for spore germination. Spores were considered to have germinated if the length of the germ tube was at least half the length of the spore. Afterward, spore germination was stopped by applying a drop of lactophenol-cotton blue to the inoculation sites on plates. The numbers of generated spores were counted under a microscope (Olympus BX61, Tokyo, Japan), and the percentage of germinated spores was calculated. Chlorothalonil was used as the positive control [21,39].

3.4. Building and Validation of the QSAR Model

Firstly, the optimal conformers of the title compounds with the lowest energy were computed at the DFT/6-31G (d) level using the Gaussian 03W package of programs [40]. Then, the calculated results were changed into a form compatible with CODESSA 2.7.15 using Ampac 9.1.3 [41,42]. Finally, all of the molecular descriptors involved in these compounds were calculated by CODESSA 2.7.15. In order to find out which structural features play an important role in the fungicidal activity against C. lagenarium, the heuristic method analysis was selected to generate the QSAR model. In this model, the statistical criteria were indicated by the squared correction coefficient (R²), the squared standard error of the estimates (S²), and the Fisher significance ratio (F). The tested IC₅₀ values were converted into the corresponding log IC₅₀ values and used as dependent variables in the QSAR studies. The quality of the final model was determined using both an internal validation and the “leave-one-out” cross-validation methods [43].

4. Conclusions

In summary, forty-six ester and six ether derivatives containing α-methylene-γ-butyrolactone moieties were synthesized, and their fungicidal activities against C. lagenarium and B. cinerea was investigated. Halogen atom-containing derivatives showed better activity than others, especially compounds 6a,d which exhibited excellent fungicidal activity against C. lagenarium. Both SAR and QSAR studies indicated that the structural characteristics had an important influence on the fungicidal activity, and electron withdrawing substituents on the α-methylene-γ-butyrolactone derivatives had a positive effect on the fungicidal activity. It was notable that the present set of compounds consisted of racemic mixtures; it will be an interesting task for further studies to test the most active compounds in optically pure form. The level of fungicidal activity and cytotoxic activity observed with α-methylene-γ-butyrolactone derivatives provide great impetus for further work on the design of high-activity and non-toxic crop-protection agents.

Acknowledgments

We greatly appreciate the funding support for this research provided by the National Natural Science Foundation of China (Grant No. 31471800, 31272074). We also thank Du-qiang Luo for the HR-MS spectral data and The Fourth Military Medical University (Xi’an, China) for the cytotoxicity testing results.

Author Contributions

Yongling Wu designed and carried out the experimental and wrote the paper; Delong Wang and Yanqing Gao assisted in prepared the manuscript; Juntao Feng and Xing Zhang supervised the whole experiment and provided technical guidance. All authors have read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

Shimizu, M.; Yazawa, S.; Ushijima, Y. A promising strain of endophytic Streptomyces sp. for biological control of cucumber anthracnose. J. Gen. Plant Pathol. 2009, 75, 27–36. [Google Scholar] [CrossRef]
Haverkort, A.; Boonekamp, P.; Hutten, R.; Jacobsen, E.; Lotz, L.; Kessel, G.; Visser, R.; van der Vossen, E. Societal costs of late blight in potato and prospects of durable resistance through cisgenic modification. Potato Res. 2008, 51, 47–57. [Google Scholar] [CrossRef]
Brase, S.; Encinas, A.; Keck, J.; Nising, C.F. Chemistry and biology of mycotoxins and relatedfungal metabolites. Chem. Rev. 2009, 109, 3903–3990. [Google Scholar] [CrossRef] [PubMed]
Wilson, R.A.; Talbot, N.J. Fungal physiology—A future perspective. Microbiology 2009, 155, 3810–3815. [Google Scholar] [CrossRef] [PubMed]
Kuan, C.P.; Wu, M.T.; Huang, H.C.; Chang, H. Rapid detection of Colletotrichum lagenarium, causal agent of anthracnose of cucurbitaceous crops, by PCR and real-time PCR. J. Phytopathol. 2011, 159, 276–282. [Google Scholar] [CrossRef]
Williamson, B.; Tudzynski, B.; Tudzynski, P.; van Kan, J.A.L. Botrytis cinerea: The cause of grey mould disease. Mol. Plant Pathol. 2007, 8, 561–580. [Google Scholar] [CrossRef] [PubMed]
Fisher, M.C.; Henk, D.A.; Briggs, C.J.; Brownstein, J.S.; Madoff, L.C.; McCraw, S.L.; Gurr, S.J. Emerging fungal threats to animal, plant and ecosystem health. Nature 2012, 484, 186–194. [Google Scholar] [CrossRef] [PubMed]
Chen, Y.; Dai, G. Antifungal activity of plant extracts against Colletotrichum lagenarium, the causal agent of anthracnose in cucumber. J. Sci. Food Agric. 2012, 92, 1937–1943. [Google Scholar] [CrossRef] [PubMed]
Dodds, P.N.; Rathjen, J.P. Towards an integrated view of plant pathogen interactions. Nat. Rev. Genet. 2010, 11, 539–548. [Google Scholar] [CrossRef] [PubMed]
Han, C.; Barrios, F.J.; Mark, V.R.; David, A.C. Semisynthetic Derivatives of Sesquiterpene Lactones by Palladium-Catalyzed Arylation of the α-Methylene-γ-lactone Substructure. J. Org. Chem. 2009, 74, 7176–7179. [Google Scholar] [CrossRef] [PubMed]
Ravinder, R.; Laura, J.A.; Le, T.; Christopher, D.T.; Amy, R.H. Cross Metathesis of α-Methylene Lactones II: γ- and δ-Lactones. Org. Lett. 2007, 9, 1699–1701. [Google Scholar]
Yusuke, M.; Masaki, T. Construction of spiro-Fused 2-oxindole/α-methylene-γ-Butyrolactone Systems with extremely high enantioselectivity via Indium-Catalyzed amide allylation of N methyl isatin. Org. Lett. 2013, 15, 6182–6185. [Google Scholar]
Irakusne, L.; Santiago, R.; Javier, I.; Florenci, V. Highly Stereoselective Epoxidation of α-Methyl-γ-hydroxy-α,β-unsaturated Esters: Rationalization and Synthetic Applications. J. Org. Chem. 2007, 72, 6614–6617. [Google Scholar]
Antonio, G.G.; Margarita, H.S.; Juan, I.P. Synthesis and Antiproliferative Activityof a New Compound Containing an α-Methylene-γ-Lactone Group. J. Med. Chem. 2002, 45, 2358–2361. [Google Scholar]
Romeo, R.; Pier, G.B.; Mojgan, A.T.; Jaime, Bermejo; Francisco, E.; Monica, B.; Roberto, G. Design, Synthesis, and Biological Evaluation of Hybrid Molecules Containing α-Methylene-γ-Butyrolactones and α-Bromoacryloyl Moieties. J. Med. Chem. 2005, 48, 7906–7910. [Google Scholar]
Miyazawa, M.; Shimabayashi, H.; Hayashi, S.; Hashimoto, S.; Nakamura, S.; Kosaka, H.; Kameoka, H. Synthesis and Biological Activity of α-Methylene-γ-lactones as New Aroma Chemicals. J. Agric. Food Chem. 2000, 48, 5406–5410. [Google Scholar] [CrossRef] [PubMed]
Feng, J.T.; Zhang, Y.M.; Wang, J.R.; Zhang, X. Synthesis and antifungal activities of carabrone derivatives. Chin. J. Pestic. Sci. 2007, 9, 185–188. [Google Scholar] [CrossRef] [PubMed]
Feng, J.T.; Ma, Z.Q.; Wang, J.R.; Wang, Z.H.; Su, Z.S.; Li, G.Z.; Zhang, X. Carabrane Type Sesquiterpene Lactone Compound with Sterilization Activity Separated from Carpesium macrocephalum Franch.et Sav and Its Application. China Patent ZL 200,610,104,867, 25 June 2009. [Google Scholar]
Feng, J.T.; Ma, Z.Q.; Li, J.; He, J.; Xu, H.; Zhang, X. Synthesis and antifungal activity of carabrone derivatives. Molecules 2010, 15, 6485–6492. [Google Scholar] [CrossRef] [PubMed]
Feng, J.T.; Wang, H.; Ren, S.X.; He, J.; Liu, Y.; Zhang, X. Synthesis and Antifungal Activities of Carabrol Ester Derivatives. J. Agric. Food Chem. 2012, 60, 3817–3823. [Google Scholar] [CrossRef] [PubMed]
Feng, J.T.; Wang, D.L.; Wu, Y.L.; Yan, H.; Zhang, X. New antifungal scaffold derived from a natural pharmacophore: Synthesis of α-methylene-γ-butyrolactone derivatives and their antifungal activity against Colletotrichum lagenarium. Bioorg. Med. Chem. Lett. 2013, 23, 4393–4397. [Google Scholar]
Gao, Y.; Li, J.; Song, Z.; Song, J.; Shang, S.; Xiao, G.; Wan, Z.; Rao, X. Turning renewable resources into value-added products: Development of rosin-based insecticide candidates. Ind. Crop. Prod. 2015, 76, 660–671. [Google Scholar] [CrossRef]
García, I.; Fall, Y.; Gómez, G.; González-Díaz, H. First computational chemistry multi-target model for anti-Alzheimer, anti-parasitic, anti-fungi, and anti-bacterial activity of GSK-3 inhibitors in vitro, in vivo, and in different cellular lines. Mol. Divers. 2011, 15, 561–567. [Google Scholar] [CrossRef] [PubMed]
Prado-Prado, F.J.; Borges, F.; Perez-Montoto, L.G.; González-Díaz, H. Multi-target spectral moment: QSAR for antifungal drugs vs. different fungi species. Eur. J. Med. Chem. 2009, 44, 4051–4056. [Google Scholar] [CrossRef] [PubMed]
Choudhury, P.K.; Foubelo, F.; Yus, M. Direct indium-promoted preparation of α-methylene-γ-lactones from 2-(bromomethyl) acrylic acid and carbonyl compounds. Tetrahedron 1999, 55, 10779–10788. [Google Scholar] [CrossRef]
Song, J.; Wang, Z.; Findlater, A.; Han, Z.; Jiang, Z.; Chen, J.; Zheng, W.; Hyde, S. Terpenoid mosquito repellents: A combined DFT and QSAR study. Bioorg. Med. Chem. Lett. 2013, 23, 1245–1248. [Google Scholar] [CrossRef] [PubMed]
Wang, Z.; Song, J.; Chen, J.; Song, Z.; Shang, S.; Jiang, Z.; Han, Z. QSAR study of mosquito repellents from terpenoid with a six-member-ring. Bioorg. Med. Chem. Lett. 2008, 18, 2854–2859. [Google Scholar] [CrossRef] [PubMed]
Liao, S.; Song, J.; Wang, Z.; Chen, J.; Fan, G.; Song, Z.; Shang, S.; Chen, S.; Wang, P. Molecular interactions between terpenoid mosquito repellents and human-secreted attractants. Bioorg. Med. Chem. Lett. 2014, 24, 773–779. [Google Scholar] [CrossRef] [PubMed]
Li, J.; Gao, Y.; Shang, S.; Rao, X.J.; Wang, Z. Synthesis and quantitative structure–activity relationship (QSAR) studies of novel rosin-based diamide insecticides. RSC Adv. 2014, 4, 58190–58199. [Google Scholar] [CrossRef]
Li, J.; Xiao, G.; Shang, S.; Rao, X. A QSAR Study of the Acrylpimaric Acid Derivatives as the Inhibitors of NCI-H460. Lett. Drug Des. Discov. 2014, 11, 59–66. [Google Scholar] [CrossRef]
Karelson, M.; Lobanov, V.S.; Katritzky, A.R. Quantum-Chemical Descriptors in QSAR/QSPR Studies. Chem. Rev. 1996, 96, 1027–1043. [Google Scholar] [CrossRef] [PubMed]
Thanikaivelan, P.; Subramanian, V.; Rao, J.R.; Nair, B.U. Application of quantum chemical descriptor in quantitative structure activity and structure property relationship. Chem. Phys. Lett. 2000, 323, 59–70. [Google Scholar] [CrossRef]
Ellis, G.W.L.; Tavares, D.F.; Rauk, A. The mechanism of an intramolecular Michael addition: A MNDO study. Can. J. Chem. 1985, 63, 3510–3515. [Google Scholar] [CrossRef]
Lavallee, J.F.; Berthiaume, G.; Deslongchamps, P. Intramolecular Michael addition of cyclic β-ketoester on conjugated acetylenic ketone. Tetrahedron Lett. 1986, 27, 5455–5458. [Google Scholar] [CrossRef]
Kalani, K.; Yadav, D.; Khan, F.; Srivastava, S.; Suri, N. Pharmacophore, QSAR, and ADME based semisynthesis and in vitro evaluation of ursolic acid analogs for anticancer activity. J. Mol. Model. 2012, 18, 3389–3413. [Google Scholar] [CrossRef] [PubMed]
Roy, P.P.; Kovarich, S.; Gramatica, P. QSAR Model Reproducibility and Applicability: A Case Study of Rate Constants of Hydroxyl Radical Reaction Models Applied to Polybrominated Diphenyl Ethers and (Benzo-)Triazoles. J. Comput. Chem. 2011, 32, 2386–2396. [Google Scholar] [CrossRef] [PubMed]
Schmidt, T.J.; Nour, A.M.M.; Khalid, S.A.; Kaiser, M.; Brun, R. Quantitative Structure-Antiprotozoal Activity Relationships of Sesquiterpene Lactones. Molecules 2009, 14, 2062–2076. [Google Scholar] [CrossRef] [PubMed]
Heilmann, J.; Waseschaa, M.R.; Schmidt, T.J. The Influence of Glutathione and Cysteine Levels on the Cytotoxicity of Helenanolide Type Sesquiterpene Lactones Against KB Cells. Bioorg. Med. Chem. 2001, 9, 2189–2194. [Google Scholar] [CrossRef]
Li, S.K.; Ji, Z.Q.; Zhang, J.W.; Guo, Z.Y.; Wu, W.J. Synthesis of 1-Acyl-3-isopropenylbenzimidazolone Derivatives and Their Activity against Botrytis cinerea. J. Agric. Food Chem. 2010, 58, 2668–2672. [Google Scholar] [CrossRef] [PubMed]
Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Montgomery, J.A.; Vreven, T.; Kudin, K.N.; Burant, J.C.; et al. Gaussian 03; Gaussian, Inc.: Wallingford, CT, USA, 2004. [Google Scholar]
Katritsky, A.; Karelson, M.; Lobanov, V.S.; Dennington, R.; Keith, T.A.; Keith, R.D.A.T. Codessa 2.7.15; Semichem, Inc.: Shawnee, KS, USA, 2004. [Google Scholar]
Dewar, M.J.S.; Holder, A.J.; Roy, I.; Dennington, D.; Liotard, D.A.; Truhlar, D.G.; Keith, T.A.; Millam, J.M.; Harris, C.D. AMPAC 9.3.1; Semichem, Inc.: Shawnee, KS, USA, 2004. [Google Scholar]
Li, J.; Tian, X.; Gao, Y.; Shang, S.; Feng, J.; Zhang, X. A value-added use of volatile turpentine: Antifungal activity and QSAR study of β-pinene derivatives against three agricultural fungi. RSC Adv. 2015, 5, 66947–66955. [Google Scholar] [CrossRef]

Sample Availability: Samples of the compounds 4a–r, 5a–r and 6a–p are available from the authors.

© 2016 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons by Attribution (CC-BY) license ( http://creativecommons.org/licenses/by/4.0/).

Share and Cite

MDPI and ACS Style

Wu, Y.; Wang, D.; Gao, Y.; Feng, J.; Zhang, X. New α-Methylene-γ-Butyrolactone Derivatives as Potential Fungicidal Agents: Design, Synthesis and Antifungal Activities. Molecules 2016, 21, 130. https://doi.org/10.3390/molecules21020130

AMA Style

Wu Y, Wang D, Gao Y, Feng J, Zhang X. New α-Methylene-γ-Butyrolactone Derivatives as Potential Fungicidal Agents: Design, Synthesis and Antifungal Activities. Molecules. 2016; 21(2):130. https://doi.org/10.3390/molecules21020130

Chicago/Turabian Style

Wu, Yongling, Delong Wang, Yanqing Gao, Juntao Feng, and Xing Zhang. 2016. "New α-Methylene-γ-Butyrolactone Derivatives as Potential Fungicidal Agents: Design, Synthesis and Antifungal Activities" Molecules 21, no. 2: 130. https://doi.org/10.3390/molecules21020130

APA Style

Wu, Y., Wang, D., Gao, Y., Feng, J., & Zhang, X. (2016). New α-Methylene-γ-Butyrolactone Derivatives as Potential Fungicidal Agents: Design, Synthesis and Antifungal Activities. Molecules, 21(2), 130. https://doi.org/10.3390/molecules21020130

Article Menu

New α-Methylene-γ-Butyrolactone Derivatives as Potential Fungicidal Agents: Design, Synthesis and Antifungal Activities

Abstract

1. Introduction

2. Results and Discussion

2.1. Synthesis

2.2. Fungicidal Activity and Structure-Activity Relationships (SAR)

2.2.1. Fungicidal Activity of the Title Compounds against C. lagenarium

2.2.2. Fungicidal Activity of the Title Compounds against B. cinerea

2.3. QSAR Study on the Fungicidal Activity against C. lagenarium

2.4. Cytotoxic Activity of the Representative Compounds against Human Tumor Cells Line (HepG2)

3. Materials and Methods

3.1. General Information

3.2. Synthetic Procedures

3.2.1. General Synthetic Procedure for the Intermediate Compounds

3.2.2. General Synthetic Procedure for Ester Compounds

3.2.3. General Synthetic Procedure for Ether Compounds

3.3. Fungicidal Activity Bioassay

3.3.1. Preparation of Spore Suspension

3.3.2. Spore Germination Assay

3.4. Building and Validation of the QSAR Model

4. Conclusions

Acknowledgments

Author Contributions

Conflicts of Interest

References

Share and Cite

Article Metrics

Article Access Statistics

Further Information

Guidelines

MDPI Initiatives

Follow MDPI
