The Kabachnik–Fields Reaction: Mechanism and Synthetic Use

György Keglevich; Erika Bálint

doi:10.3390/molecules171112821

Abstract

The Kabachnik–Fields (phospha-Mannich) reaction involving the condensation of primary or secondary amines, oxo compounds (aldehydes and ketones) and >P(O)H species, especially dialkyl phosphites, represents a good choice for the synthesis of α-aminophosphonates that are of significant importance due to their biological activity. In general, these three-component reactions may take place via an imine or an α-hydroxy-phosphonate intermediate. The monitoring of a few Kabachnik–Fields reactions by in situ Fourier transform IR spectroscopy has indicated the involvement of the imine intermediate that was also justified by theoretical calculations. The Kabachnik–Fields reaction was extended to >P(O)H species, comprising cyclic phosphites, acyclic and cyclic H-phosphinates, as well as secondary phosphine oxides. On the other hand, heterocyclic amines were also used to prepare new α-amino phosphonic, phosphinic and phosphine oxide derivatives. In most cases, the synthesis under solvent-free microwave (MW) conditions is the method of choice. It was proved that, in the cases studied by us, there was no need for the use of any catalyst. Moreover, it can be said that sophisticated and environmentally unfriendly catalysts suggested are completely unnecessary under MW conditions. Finally, the double Kabachnik–Fields reaction has made available bis(phosphonomethyl)amines, bis(phosphinoxidomethyl)amines and related species. The bis(phosphinoxidomethyl)amines serve as precursors for bisphosphines that furnish ring platinum complexes on reaction with dichlorodibenzonitriloplatinum.

Keywords:

Kabachnik–Fields reaction; α-aminophosphonates; reaction pathway; environmentally friendly; microwave; solventless

1. Introduction

The basic method for the preparation of α-aminophosphonates, valuable synthetic equivalents and biologically active substrates, involves the condensation of a primary or secondary amine, a carbonyl compound (aldehyde or ketone) and dialkyl phosphite (Scheme 1) [1,2].

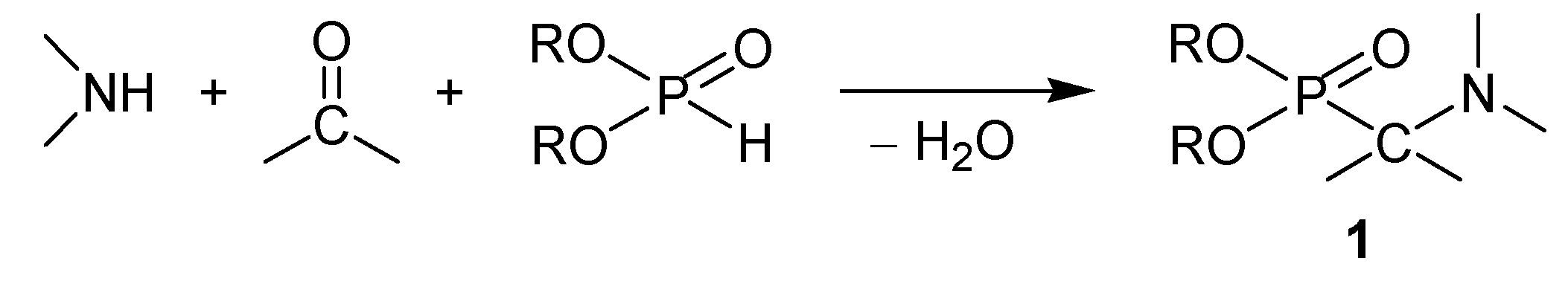

Scheme 1. General scheme for the Kabachnik–Fields reaction.

α-Aminophosphonic acids, considered as phosphorus analogues of α-amino acids, have attracted much attention in drug research due to their low mammalian toxicity. They are important targets in the development of antibiotics, antiviral species, antihypertensives, and antitumour agents based on their effect as inhibitors of GABA-receptors, enzyme inhibitors and anti-metabolites [3,4,5,6,7,8,9]. Diaryl α-amino-phosphonate derivatives are selective and highly potent inhibitors of serine proteases, and thus can mediate the patho-physical processes of cancer growth, metastasis, osteoarthritis or heart failure [10]. Dialkylglycine decarboxylase [9] and leucine aminopeptidase [11] are also inhibited by α-amino-phosphonates. Cyanoacrylate [12] and amide derivatives [13] of α-aminophosphonates are active antiviral compounds and inactivators of the tobacco mosaic virus. Certain α-aminophosphonates were proved to be suitable for the design of continuous drug release devices due to their ability to increase the membrane permeability of a hydrophilic probe molecule [14].

2. Possible Pathways for the Kabachnik–Fields Reaction

Cherkasov et al. studied the mechanism of the Kabachnik–Fields reaction in detail. One possibility is that an imine (a Schiff base) is formed from the carbonyl compound and the (primary) amine, and then the dialkyl phosphite is added on the C=N unit of the intermediate. The other route assumes the formation of an α-hydroxyphosphonate by the addition of the dialkylphosphite to the carbonyl group of the oxo component, then the hydroxyphosphonate undergoes substitution by the amine to furnish the α-aminophosphonate. On the basis of kinetic studies, it was concluded that the mechanism is dependent on the nature of the reactants. For example, the condensation of aniline, benzaldehyde and a dialkyl phosphite was assumed to follow the “imine” mechanism. Interestingly it was found that before the condensation of the aniline and the benzaldehyde, an H-bond is formed between the P=O function of the phosphite and the HN unit of the amine (Scheme 2) [15,16].

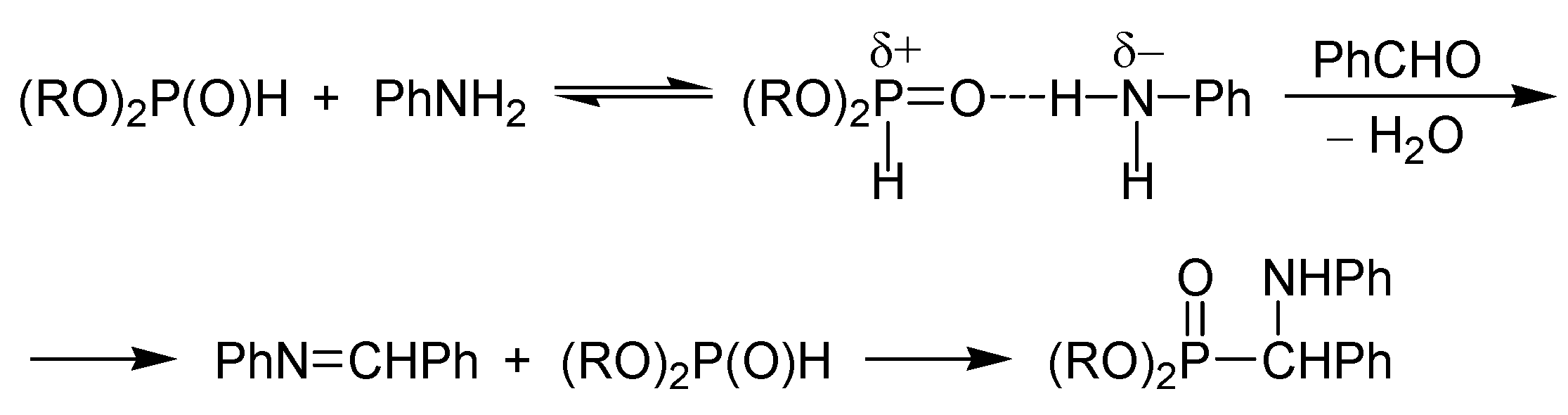

Scheme 2. The “imine” mechanism proposed for a Kabachnik–Fields reaction [15,16].

In another case, Cherkasov et al. suggested that the reaction of the more nucleophilic cyclohexyl-amine, benzaldehyde and a dialkyl phosphite takes place via the “hydroxyphosphonate” route. Here again an interaction was substantiated to precede the addition of the dialkylphosphite on the C=O unit of the oxo-compound. According to this, an H-bond is formed between the P(O)H moiety of the phosphite and the nitrogen atom of the amine (Scheme 3) [15,17].

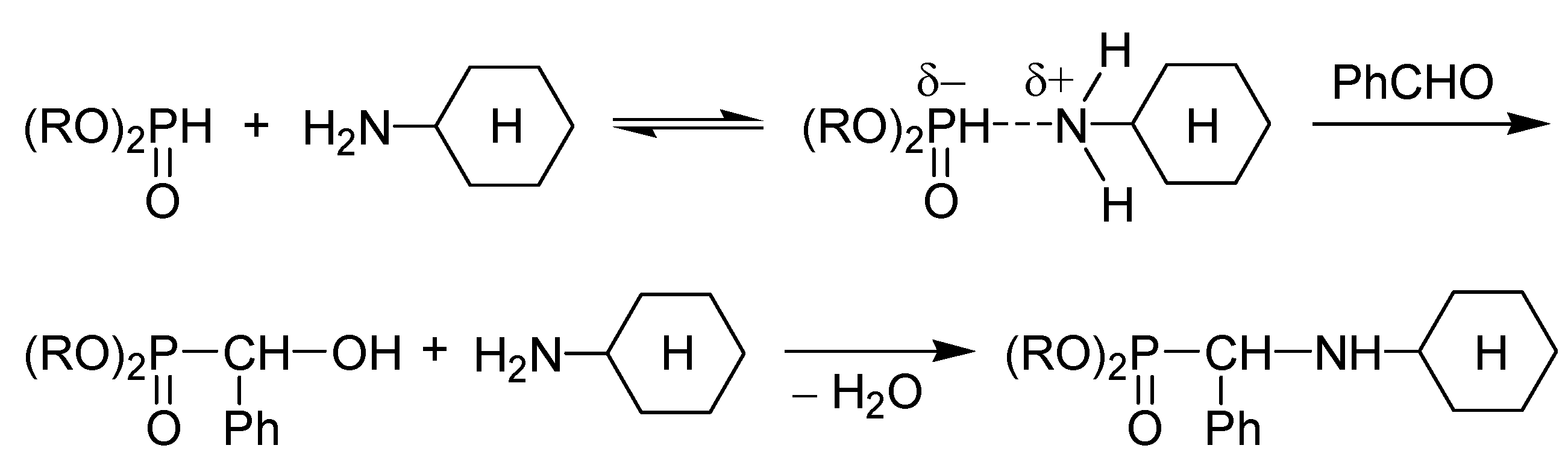

Scheme 3. The “α-hydroxyphosphonate” mechanism proposed for a Kabachnik–Fields reaction [15,17].

Later, however, Zefirov and Matveeva proved that the condensation of cyclohexylamine, benzaldehyde and dialkyl phosphite follows the “imine route”, and concluded that there is no real experimental evidence for the hydroxyphosphonate route [18]. It is also worth mentioning that the reaction of cyclohexylamine, benzaldehyde and dibutylphosphine oxide, that may be regarded as an extended Kabachnik–Fields condensation, was shown to proceed according to the “imine” mechanism [15,19]. It seems probable that the actual mechanism is dependent on the components of the reaction, although the “imine” route seems to be more general than the route involving an “α-hydroxy-phosphonate” intermediate [3]. R. Gancarz and I. Gancarz substantiated that a reversible formation of the α-hydroxyphosphonate may also occur, and if it is rearranged to the corresponding phosphate, this becomes a “dead-end” route [20]. It can be said that in the Kabachnik–Fields reaction, a soft nucleophile (the dialkyl phosphite) and a hard nucleophile (the amine) compete for the electrophilic carbonyl compound. The softer the carbonyl compound is, the faster it reacts with the softer P-nucleophile and the slower it reacts with the harder amine nucleophile [21].

We wished to investigate the phospha-Mannich condensation of n-propylamine, benzaldehyde and diethyl phosphite (Scheme 4) by following the reaction utilizing in situ Fourier transform (FT) Infra Red (IR) spectroscopy [22].

Scheme 4. The Kabachnik–Fields reaction studied by us.

The possible reaction paths are shown in Scheme 5. The question was whether the imine 3 or the α-hydroxyphosphonate 4 is the intermediate during the formation of the corresponding α-aminophosphonate 2.

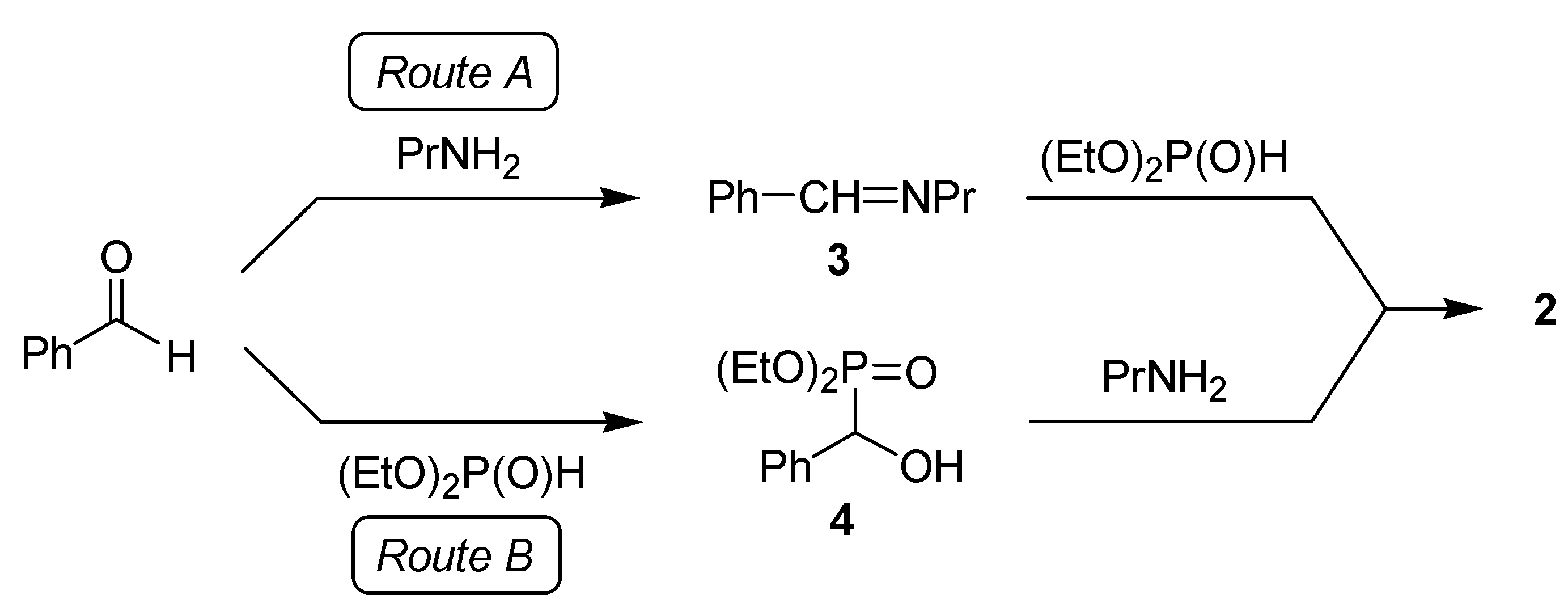

Scheme 5. Possible routes for the Kabachnik–Fields reaction studied by us.

The reaction carried out at 80 °C in acetonitrile was monitored by registering a 3D IR diagram. On the basis of the characteristic ν_C=N stretching vibration at 1,648 cm^–1, the imine 3 could be observed as a transient species. It was possible to obtain a relative concentration—time diagram for the components (Figure 1) by deconvolution of the 3D IR diagram. It can be seen that the imine intermediate 3 reaches its maximum concentration after a 10 min reaction time [22].

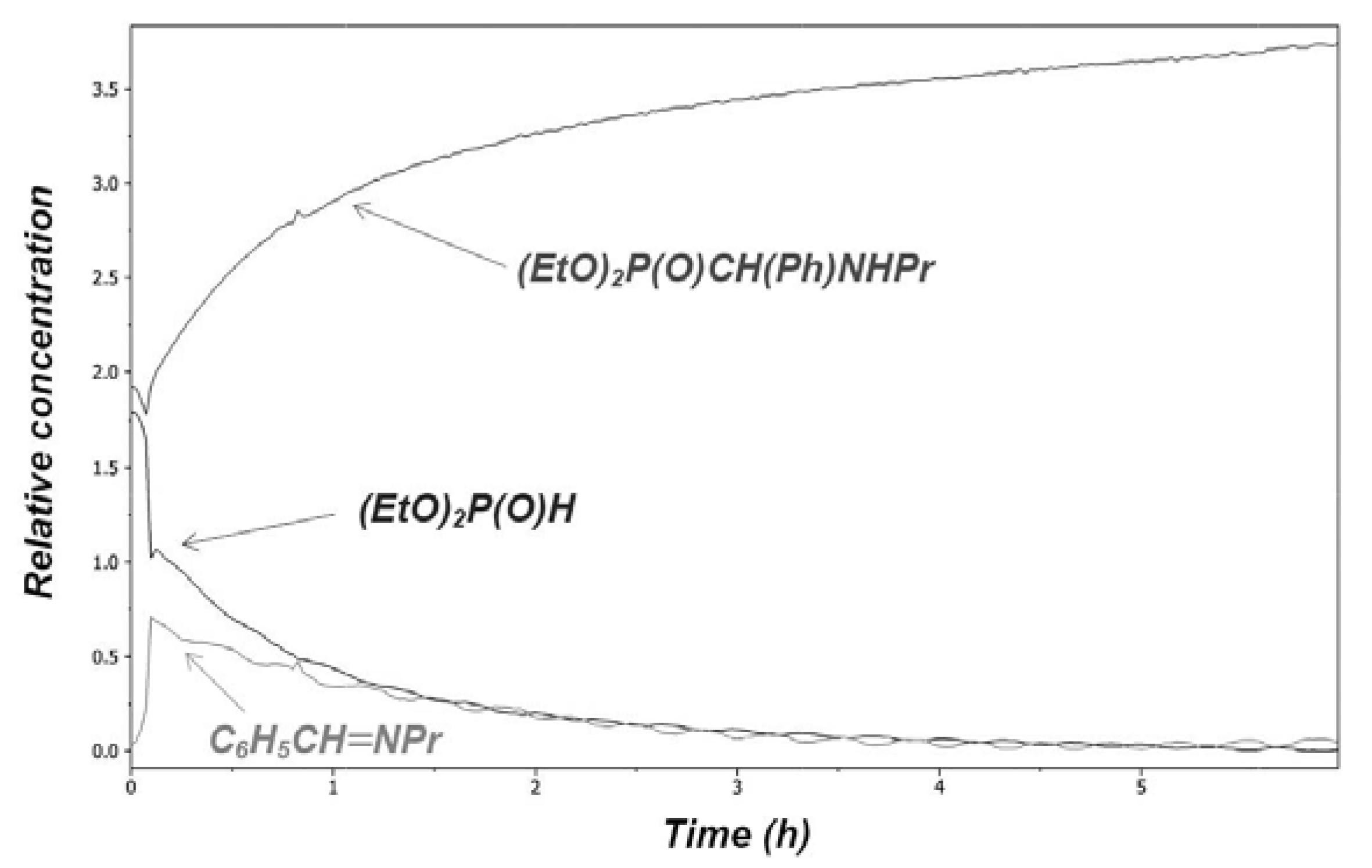

Figure 1. Concentration profile for the Kabachnik–Fields reaction studied at 80 °C in acetonitrile.

It was shown above that there was also controversy over the mechanism of the Kabachnik–Fields condensation of cyclohexylamine, benzaldehyde and dialkyl phosphites (Scheme 6) [15,17,18]. We sought to clarify the situation by in situ FT IR spectroscopy [23].

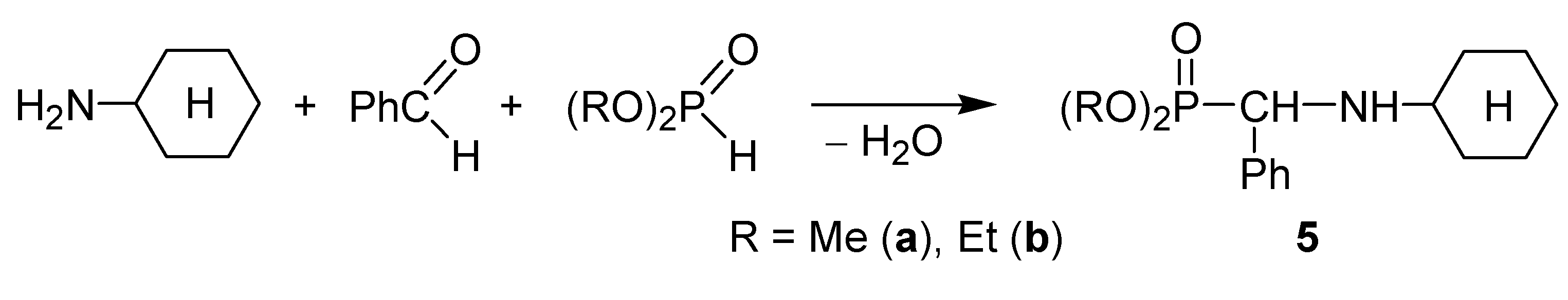

Scheme 6. Another Kabachnik–Fields reaction investigated by us.

From among the two possible intermediates 6 and 7, again the imine 6a could be detected on the basis of the ν_C=N = 1,644 cm^–1 absorption as the transient species for α-aminophosphonate 5a (Scheme 7). The intermediacy of imine 6 can be seen in Figure 2.

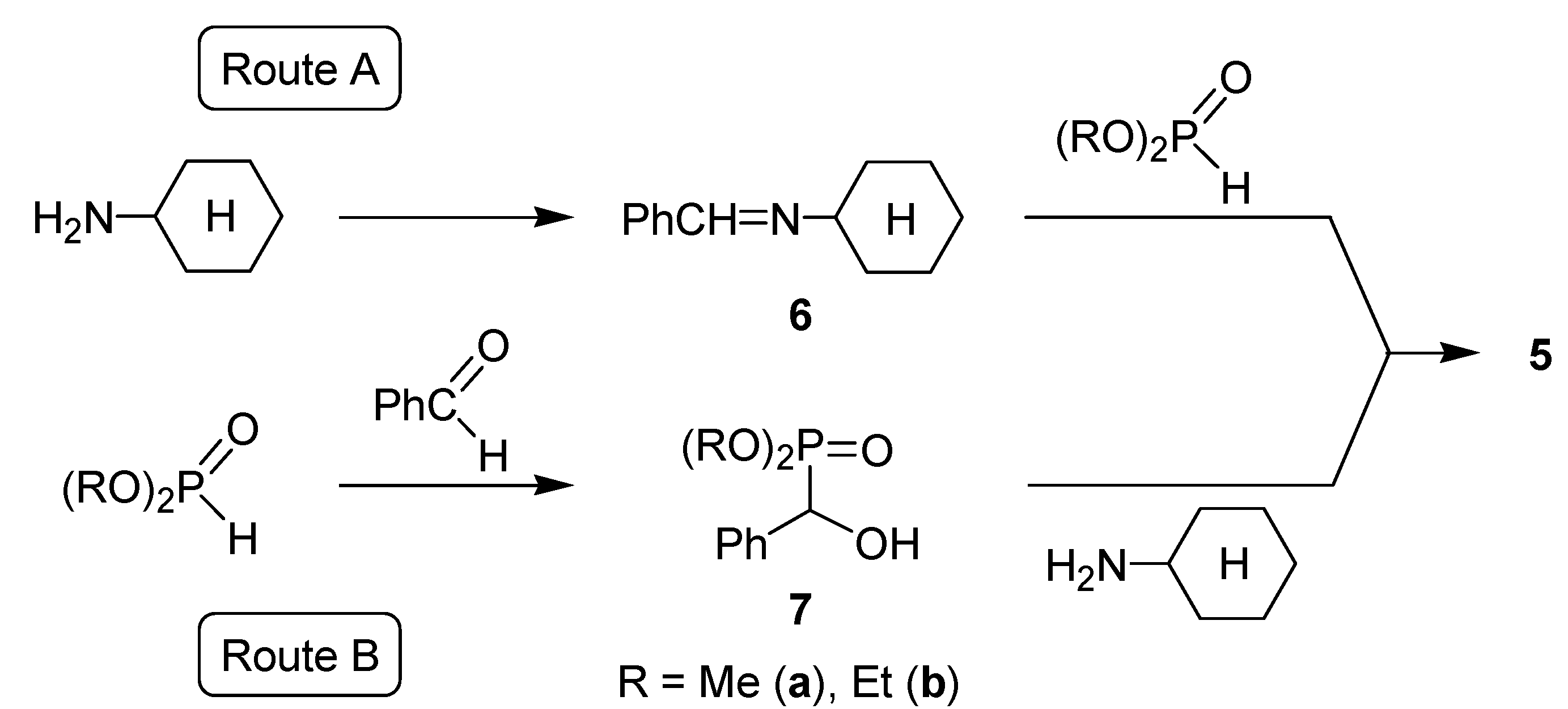

Scheme 7. Possible pathways for the second model investigated.

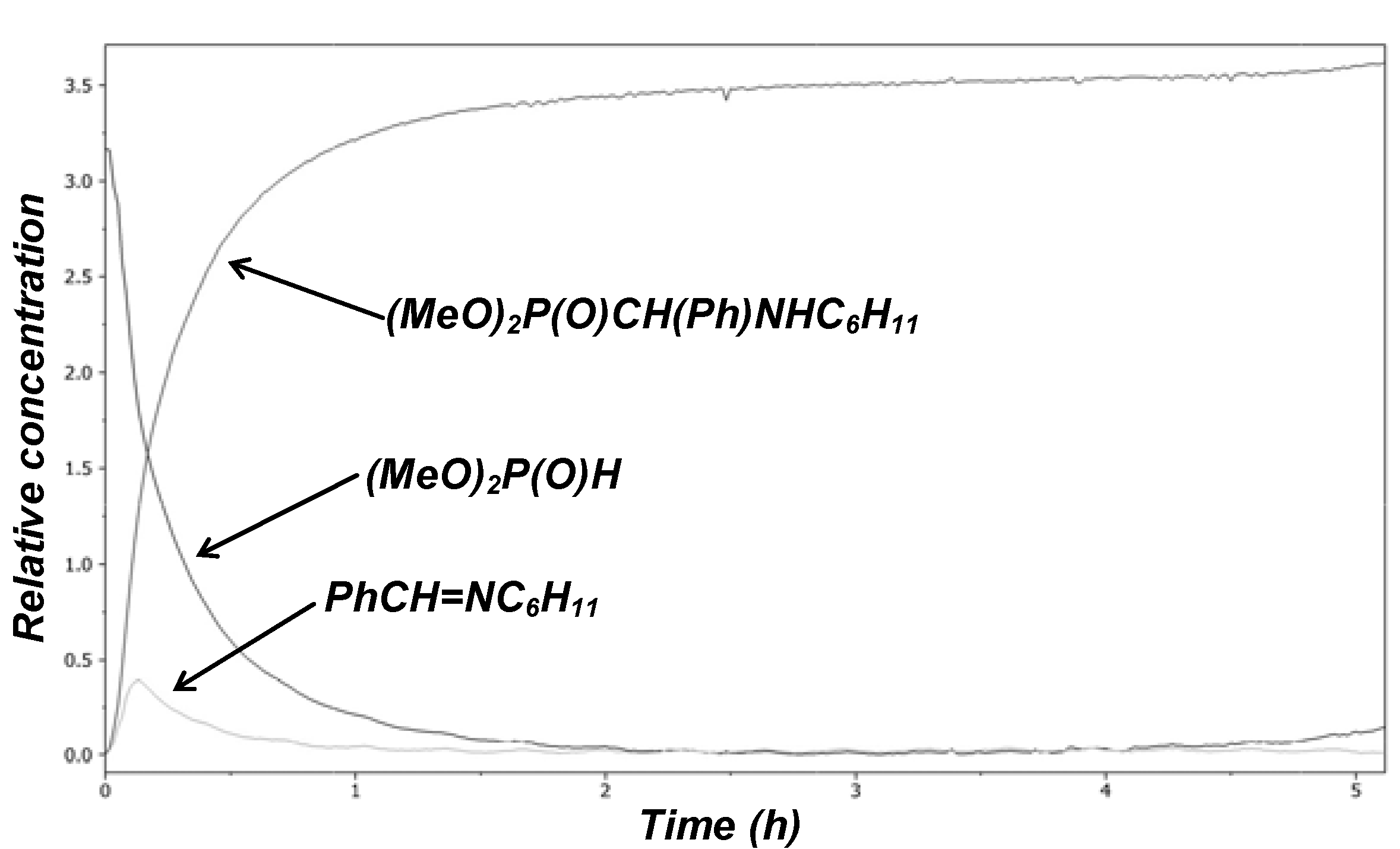

Figure 2. Concentration profile for the Kabachnik–Fields reaction studied at 80 °C in acetonitrile.

Relative energies for the possible intermediates 6 and 7 and for α-aminophosphonate 5 were calculated by the B3LYP/6-31G** method and then refined by the the B3LYP/6-311G**⁺⁺method provided that dimethyl phosphite is the reactant. It can be seen from Table 1 that the formation of the imine 6 goes with significantly lower energy gain than that of the α-hydroxyphosphonate 7. On the one hand, the imine 6 would like to be stabilized further by reaction with the dimethyl phosphite on way to the α-aminophosphonate 5. On the other hand, the hydroxyphosphonate 7 is too stable to react further to the aminophosphonate 5. The conversion of 7 to 5 represents only a slight energy gain of 2.4 kJ/mol. In other words, there is no significant driving force for the substitution [23].

Table 1. Relative energies for the four states calculated.

**Table 1.** Relative energies for the four states calculated.
Species	Relative energy (kJ/mol)
Reactants (benzaldehyde, cyclohexylamine and dimethyl phosphite)	0.0
Imine intermediate 6	–18.6
α-Hydroxyphosphonate intermediate 7	–40.5
Product 5	–42.9

3. Microwave-Assisted Solvent- and Catalyst-Free Approach for the Synthesis of α-Amino-phosphonates and Related Derivatives

Although a lot of catalytic variations to carry out three-component Kabachnik–Fields condensations have been described, we found that the most straightforward synthesis is when the reactants are irradiated with microwave (MW) in the absence of any catalyst or solvent. The solventless and MW-assisted approach was useful in the synthesis of a few α-aminomethylphosphonates [24]. We used aniline or benzylamine as the amine, formaldehyde, benzaldehyde, acetophenone and cyclohexanone as the oxo-component and dialkyl phosphites and diphenylphosphine oxide as the >P(O)H reactant. The α-aminophosphonates and α-aminophosphine oxide products are represented by structure 8 in general Scheme 8 [25]. The detailed results are listed in Table 2. The comparative results of the catalytic versions were also included. A detailed account on the conditions of the catalytic reactions is provided in Table 3. In a part of the cases, such as in the example covered by reference [26], the catalytic versions could already be carried out at room temperature.

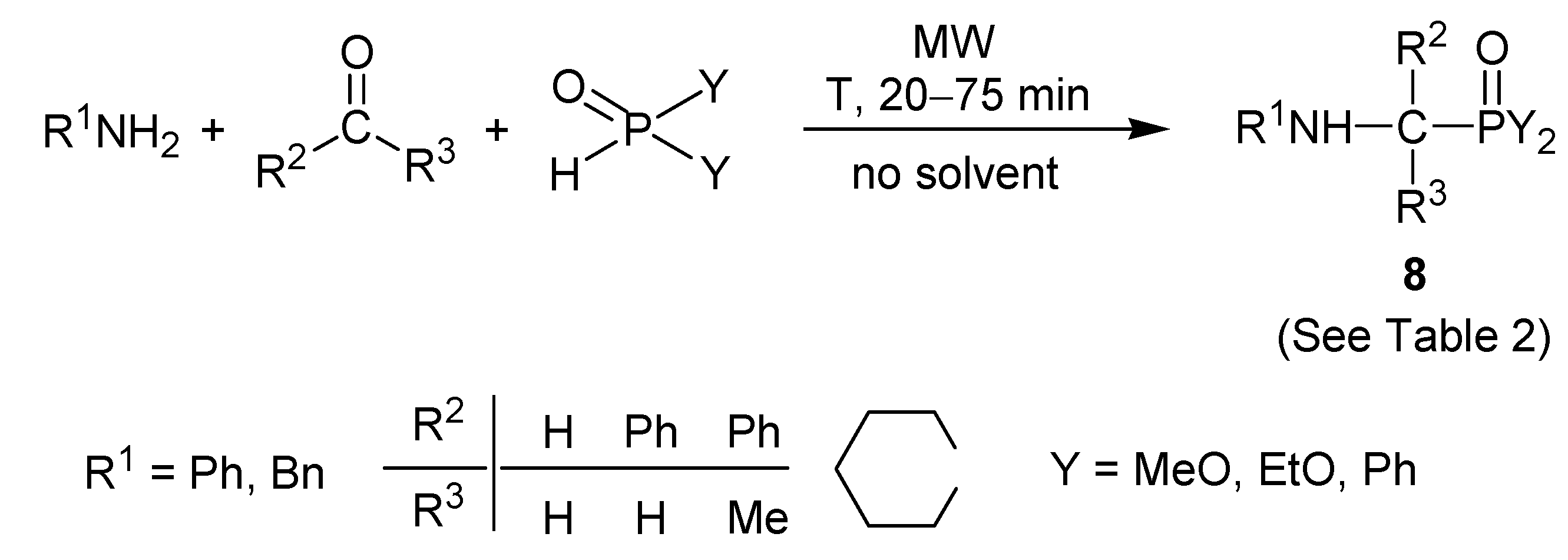

Scheme 8. General scheme for the solventless, catalyst-free MW-assisted Kabachnik–Fields reactions studied.

Table 2. Kabachnik–Fields reactions carried out without the use of a solvent and a catalyst under MW irradiation [25].

**Table 2.** Kabachnik–Fields reactions carried out without the use of a solvent and a catalyst under MW irradiation [25].
Entry	R¹	R²	R³	Y	Product	T (°C)	Yield (%)	Yield (%) of catalytic methods [ref.] ^†
1	Ph	H	H	EtO	8a	80 ^a	91
						100 ^b
2	Ph	H	H	MeO	8b	80 ^a	80
						80 ^b
3	Ph	H	H	Ph	8c	80	94
4	Bn	H	H	EtO	8d	100	81
5	Bn	H	H	Ph	8e	80	88
6	Ph	H	Ph	EtO	8f	100	93	98 [27], 85 [28], ~95 [29], 88 [30], 79 [31], 93 [32], 92 [33], ~90 [34], 96 [35], 60 [36], 86 [37], 92 [38]
7	Ph	H	Ph	MeO	8g	100	86	98 [24], 98 [27], 92 [33]
8	Ph	H	Ph	Ph	8h	80	87
9	Bn	H	Ph	EtO	8i	100	83	99 [28], 84 [29], 92 [30], 85 [31], 91 [32], 91 [33], 92 [35], 92 [36], 93 [38]
10	Bn	H	Ph	MeO	8j	100	87	95 [27], 82 [33]
11	Ph	Me	Ph	EtO	8k	120	80	75 [27], 74 [30], 63 [35], 18 [36]
12	Bn	Me	Ph	EtO	8l	120	84	92 [26], 80 [27], 81 [38]
13	Bn	Me	Ph	Ph	8m	100 ^a	80
						120 ^b	80
14	Ph			EtO	8n	120	81	92 [27], ~72 [29], 86 [30], 47 [31], 87 [37]
15	Bn			EtO	8o	120	91	85 [26], 90 [27], 83 [31], 80 [33], 85 [38]
16	Bn			MeO	8p	120	85	92 [27]
17	Bn			Ph	8q	100 ^a	80
						120 ^b

^† for details see Table 3; ^a condensation of the oxo-component and the amine; ^b addition of the >P(O)H species to the Schiff-base.

Table 3. Kabachnik–Fields reactions carried out in the presence of catalysts.

**Table 3.** Kabachnik–Fields reactions carried out in the presence of catalysts.
Catalyst	Solvent	MW/Δ	T [°C]	t	Yield (Product) [%]	Ref.
Phthalocyanine-AlCl	CH₂Cl₂	–	26 ^a	12 h	92 (8b), 85 (8p)	[26]
Mg(ClO₄)₂	–	–	26	2 min/8 h	90–98 ( 8f, 8g, 8j, 8n-p)	[27]
Mg(ClO₄)₂	–	Δ	50-80	45 min–12 h	80–99 (8f, 8i, 8l,8n-p)	[27,28]
Mg(ClO₄)₂	EtOH	Δ	50	5 h/12 h	85 (8f), 99 (8i)	[28]
M(OTf)_n M = Li, Mg, Al, Cu, Ce	–	Δ	80	20 min–3.5 h	72–95 (8f, 8i, 8n)	[29]
GaI₃	CH₂Cl₂	–	26	3–6 h	74–92 (8f, 8i, 8k, 8n)	[30]
In(OTf)₃	THF	Δ	66	21–35 h	47–85 (8f, 8i, 8n, 8o)	[31]
BiNO₃	–	– ^b	26	10 h	93 (8f), 91 (8i)	[32]
BiCl₃	MeCN	Δ	80	6–15 h	80–92 (8f, 8g, 8i, 8j, 8o)	[33]
FeCl₃	EtOH (or solvent free)	–	26		~90 (8f)	[34]
YbCl₃	MeCN	–	26	24 h	63–96 (8f, 8i, 8k)	[35]
SmI₂ (+ 4 Å mol sieves)	MeCN	Δ	80	24 h	18–92 (8f, 8i, 8k)	[36]
ceric ammonium nitrate	MeCN	–	26	3 h	86 (8f), 87 (8n)	[37]
InCl₃	THF	Δ	66	9–12 h	81–93 (8f, 8i, 8l, 8o)	[38]
InCl₃	DMF	MW	no data	2 min	82 (8f) ^c	[39]
InCl₃	[bmim][PF₆]	MW	no data	2 min	91 (8f) ^c	[39]
Ln(OTf)₃ Ln = Yb, Sc, Dy, Sm	DMF	MW	no data	2 min	72 ( 8f) ^c	[39]
Ln(OTf)₃ Ln = Yb, Sc, Dy, Sm	[bmim][PF₆]	–	26	27 h	92 (8f) ^c	[40]
Ln(OTf)₃ Ln = Yb, Sc, Dy, Gd	[bmim][PF₆]	MW	no data	2 min	89 (8f) ^c	[39]
the solvent acts as catalyst	[bmim][BF₄]	–	26	5 h/8 h	90 (8f), 84 (8f)	[41]

^a Diethyl phosphite was added to preformed imines; ^b Was also performed under MW; ^c The product was extracted with benzene.

On the basis of our experimental data, there is no need to use exotic (expensive and environmentally unfriendly) catalysts. In most cases, the solvent- and catalyst-free MW-assisted reactions give excellent results. Further exploration of catalysts does not seem to be justified in this field. Next, our method was extended to phospha-Mannich condensations involving heterocyclic amines (Scheme 9) [42]. Diphenylphosphine oxide was also used as the P-component.

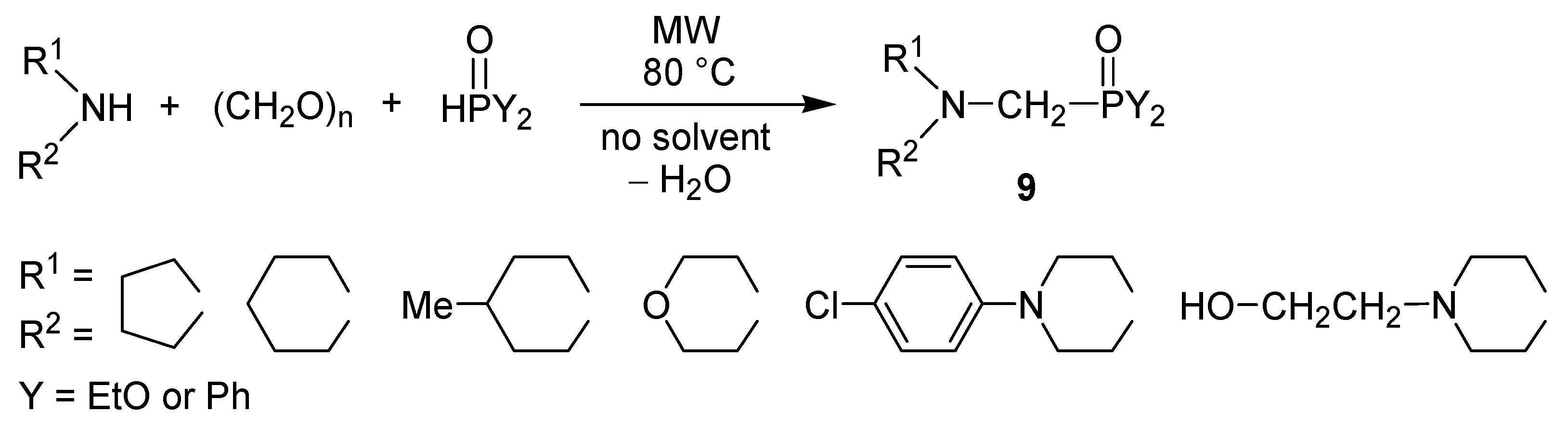

Scheme 9. Kabachnik–Fields reactions applying N-heterocycles as the amine component.

In another series of reactions, 1,3,2-dioxaphosphorine oxide (10) was used as the phosphite (Scheme 10) [43]. In this way “double” heterocyclic derivatives were prepared. These reactions were more efficient in the presence of a solvent.

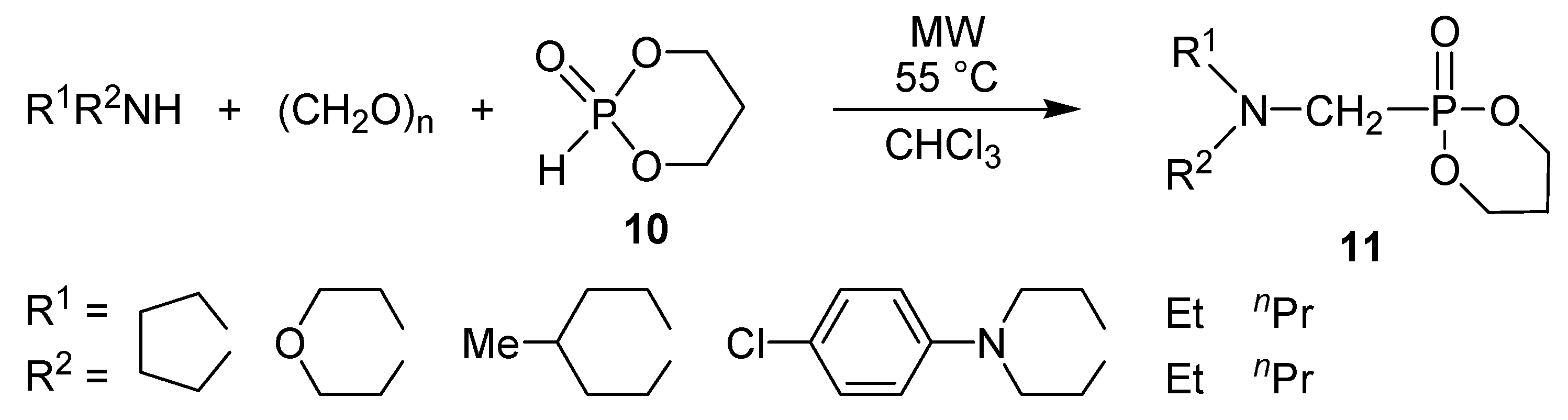

Scheme 10. Kabachnik-Fields reactions applying 1,3,2-dioxaphosphorine oxide as the P-reactant.

Applying 1,3,2-dioxaphosphorine oxide (10) together with benzaldehyde, the steric hindrance prevented the efficient condensation. It was better to prepare the imine 12 first and to react it separately with the cyclic phosphite 10 (Scheme 11) [43].

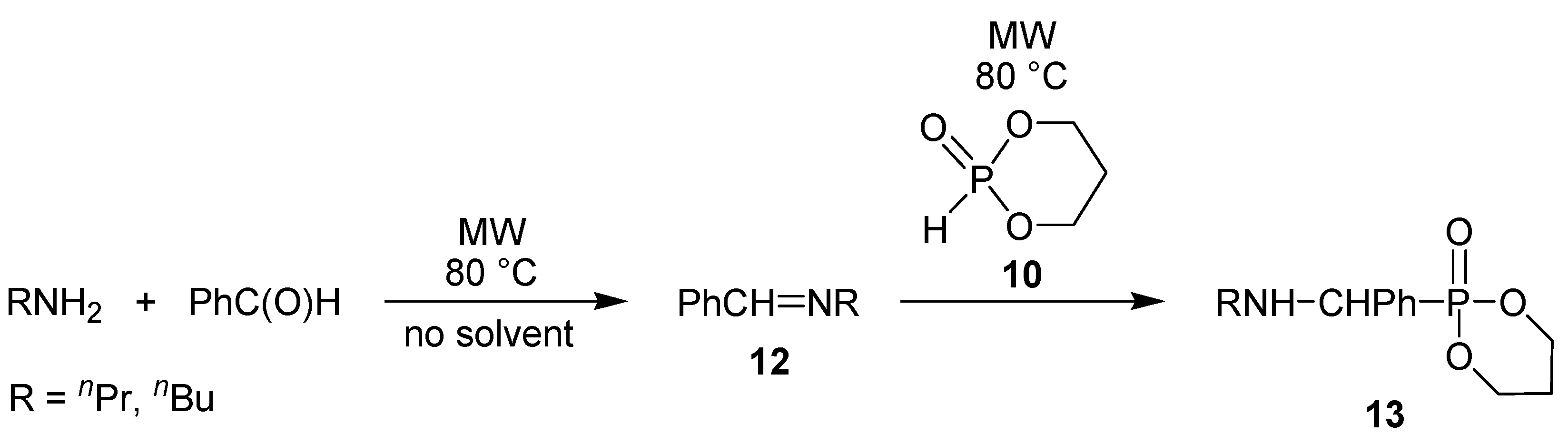

Scheme 11. Synthesis of α-aminophosphonates via the imine intermediate.

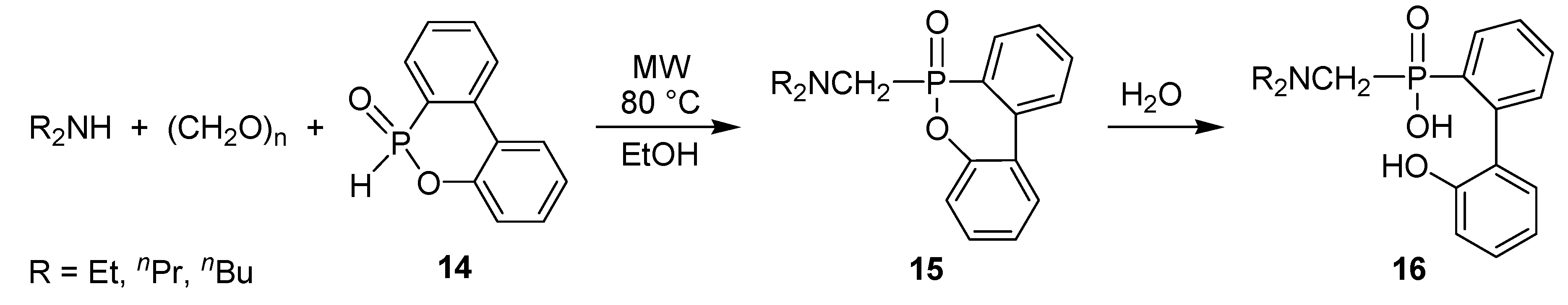

Dibenzo[c.e][1,2]oxaphosphorine (14) was also utilized in the synthesis of P-heterocyclic derivatives. In this case, the primarily formed product 15 underwent opening of the hetero ring by reaction with the water formed (Scheme 12) [43].

Scheme 12. Kabachnik–Fields reaction applying a dibenzooxaphosphorine oxide as the P-reactant.

For the preparation of diethyl α-diethylaminophenylmethylphosphonate (17), the two-step approach led to better results. The aldehyde–amine adduct formed primarily was reacted with diethyl phosphite to afford product 17 (Scheme 13) [43].

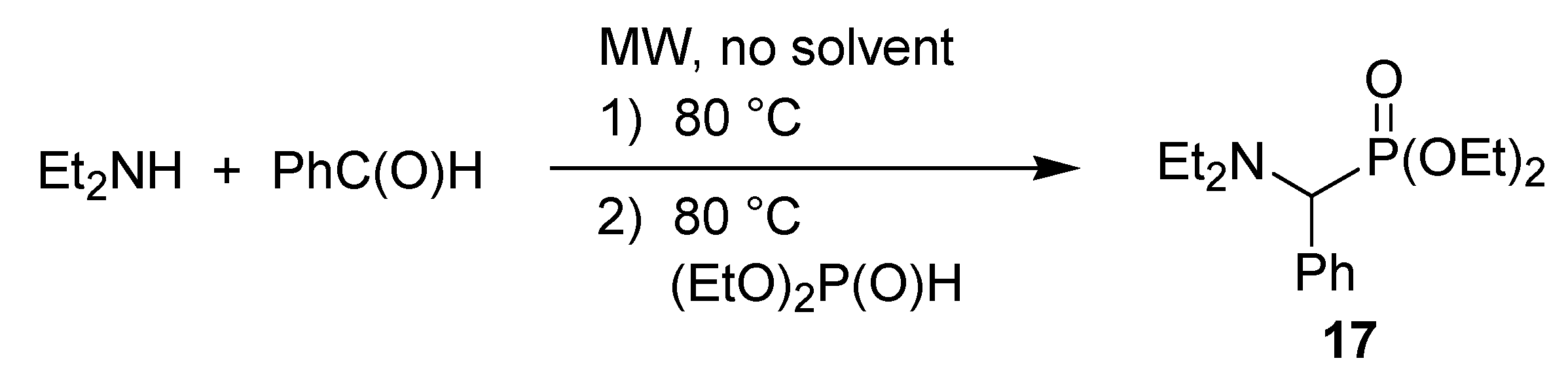

Scheme 13. Synthesis of an α-aminophosphonates in two steps.

The MW-assisted solventless procedure was useful in the synthesis of a series of bis(phosphonomethyl)amines and related derivatives marked as 18 (Scheme 14) [44,45,46]. Product 18 could be obtained in yields, mostly above 80%. The double Kabachnik-Fields reaction was then extended to the synthesis of bis(phosphinoxidomethyl)amines 19. In these cases, heterogenity of the reaction mixture requested the use of a solvent that was acetonitrile (Scheme 15) [44,45,46]. The use of aniline as the amine component led to by-product 20 besides the expected product 19 (Y = Ph) [46].

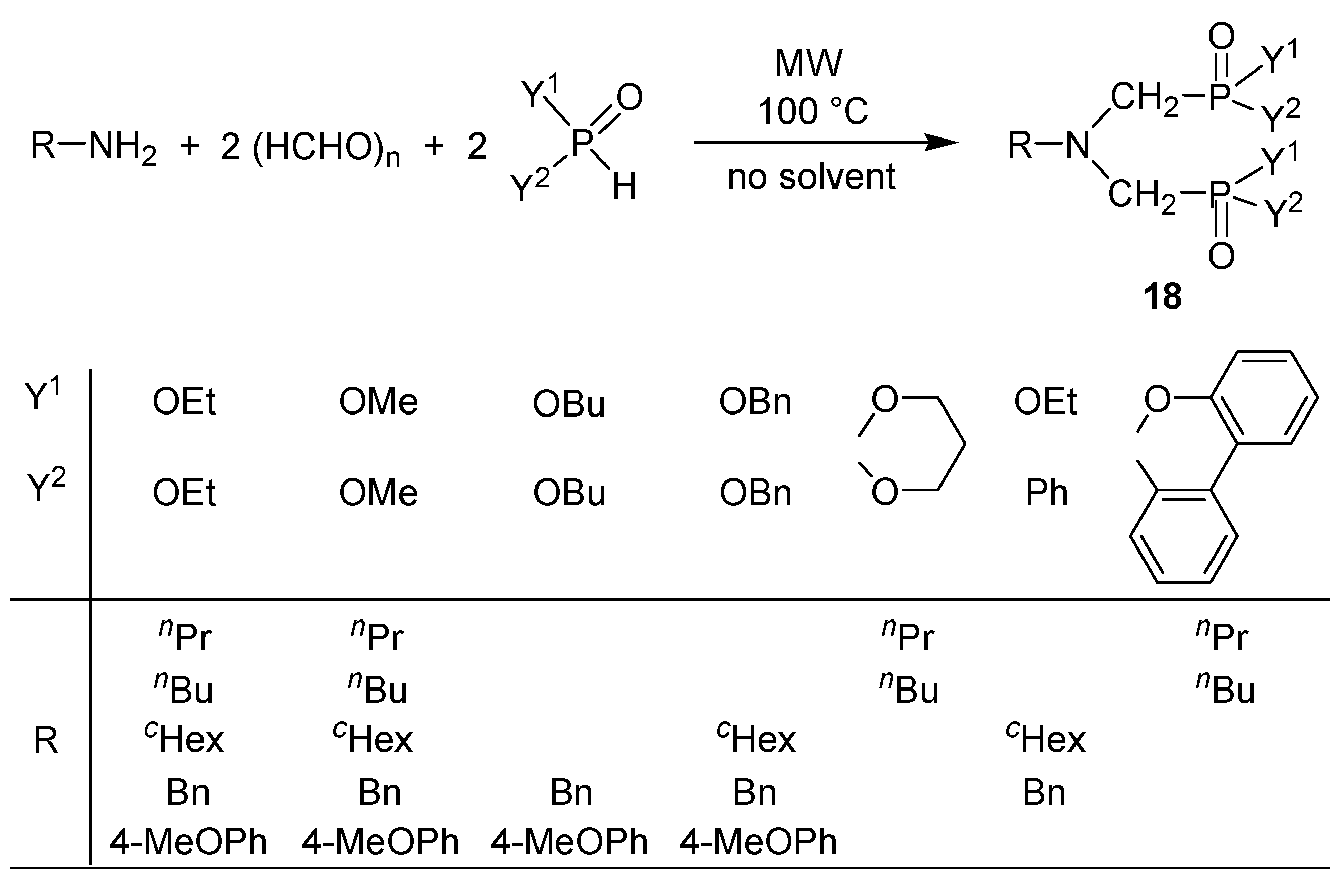

Scheme 14. Synthesis of bis(phosphonomethyl)amines and related derivatives by the double Kabachnik–Fields reaction.

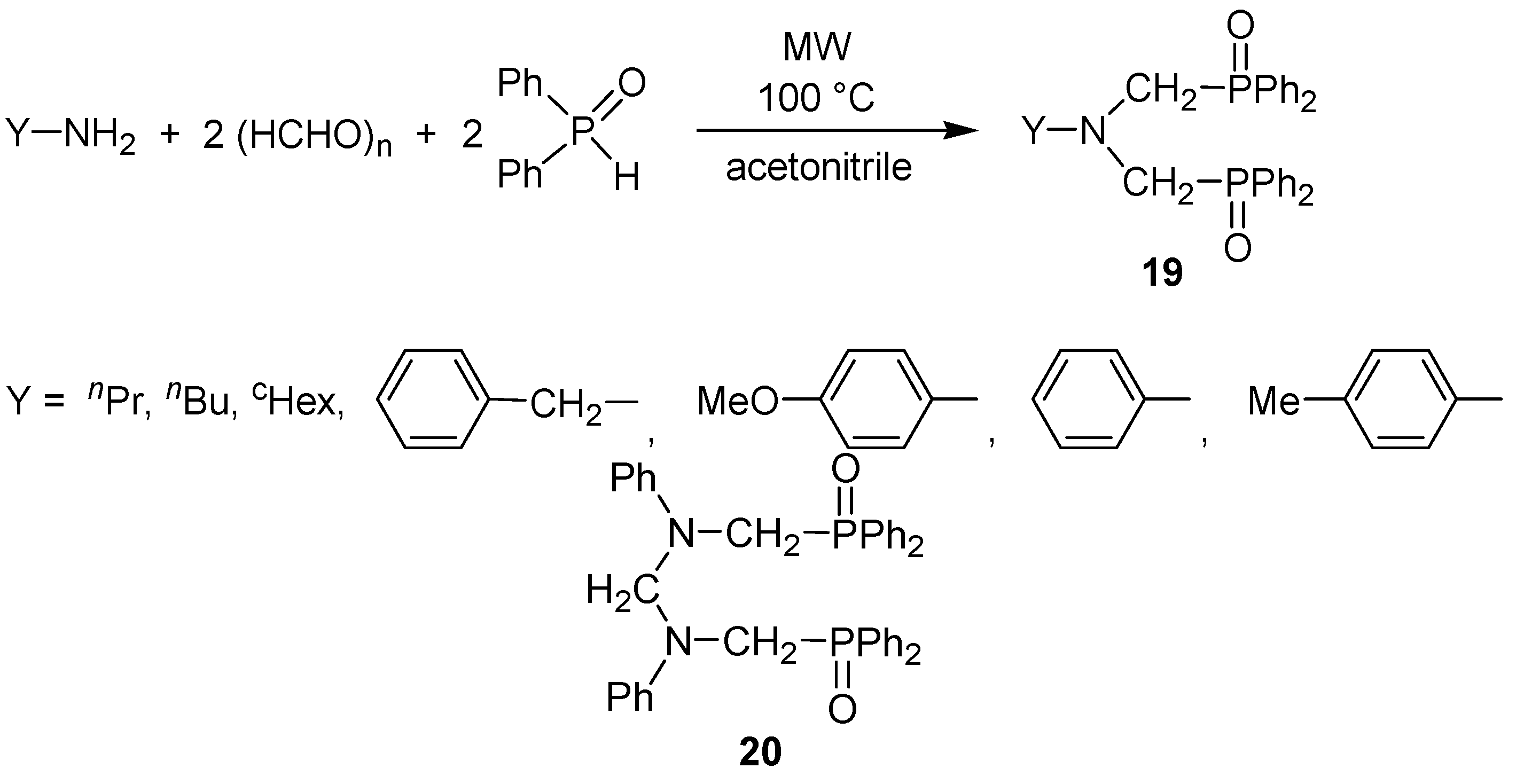

Scheme 15. Bis(phosphinoxidomethyl)amines by the double phospha-Mannich reaction.

The bis(phosphinoxidomethyl)amines 19 served as precursors for bis(phosphinomethyl)amine bidentate P-ligands 21 by double deoxygenation. The bisphosphines 21 so formed were reacted with half an equivalent of dichlorodibenzonitriloplatinum to furnish ring platinum complexes 22 (Scheme 16) [45,46].

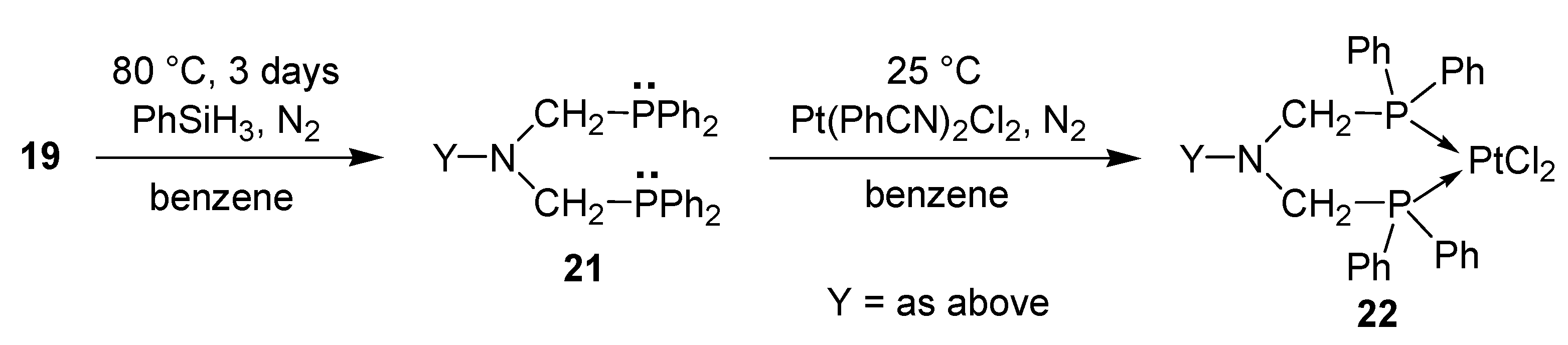

Scheme 16. Synthesis of ring platinum complexes from bis(phosphinoxidomethyl)amines.

The bidentate P-ligands may be stored as their phosphine-borane complexes. This is shown in the example of the 23 → 24 conversion (Scheme 17). In general, the phosphine can be regenerated from the phosphine-borane by heating with a secondary amine, such as diethylamine, in an aromatic solvent [47].

Scheme 17. Stabilization of a bis(phosphinomethyl)amine as a bis(borane complex).

The MW-assisted catalytic addition of dialkyl phosphites on the carbonyl group of a series of benzaldehyde derivatives was also elaborated (Scheme 18) [48]. The α-hydroxyphosphonates (25, Y = RO) are potential intermediates of the Kabachnik–Fields reaction. The use of diphenylphosphine oxide in the addition led to the formation of α-hydroxyphosphine oxides (25, Y = Ph).

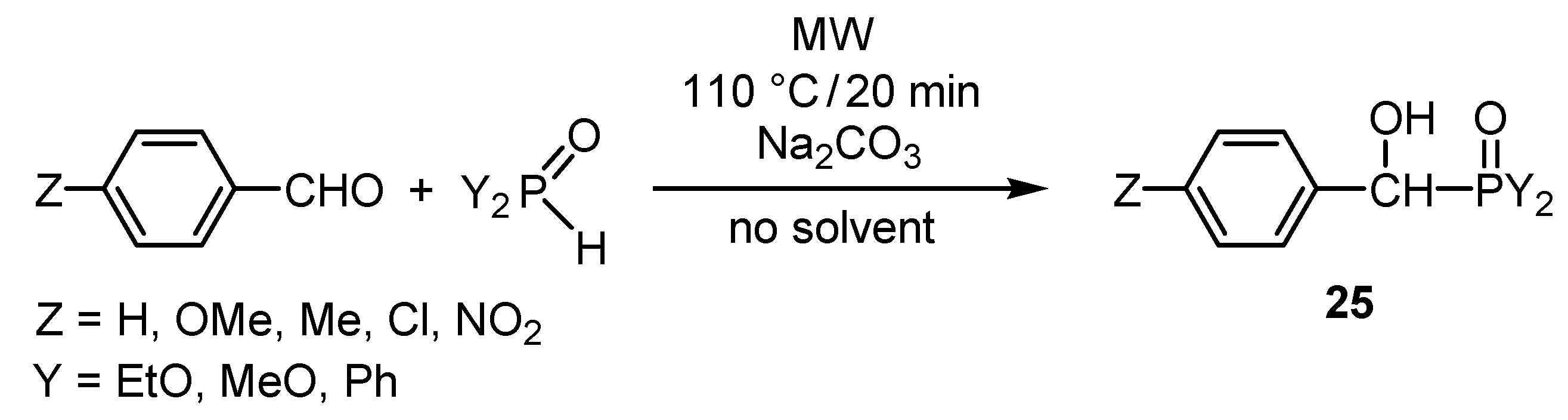

Scheme 18. MW-assisted synthesis of α-hydroxyphosphonates and α-hydroxyphosphine oxides.

The addition of dialkyl phosphites to α-ketophosphonates led to 1-hydroxymethylene-bisphosphonates [49,50]. It was interesting to find that, as a consequence of the neighboring group effect of the P=O moiety, α-hydroxyphosphonate 25 (Y = EtO) could be readily converted to the corresponding α-aminophosphonates (26) (Scheme 19) [51]. Quantum chemical calculations justified the beneficial neighboring group effect of the P=O moiety [51].

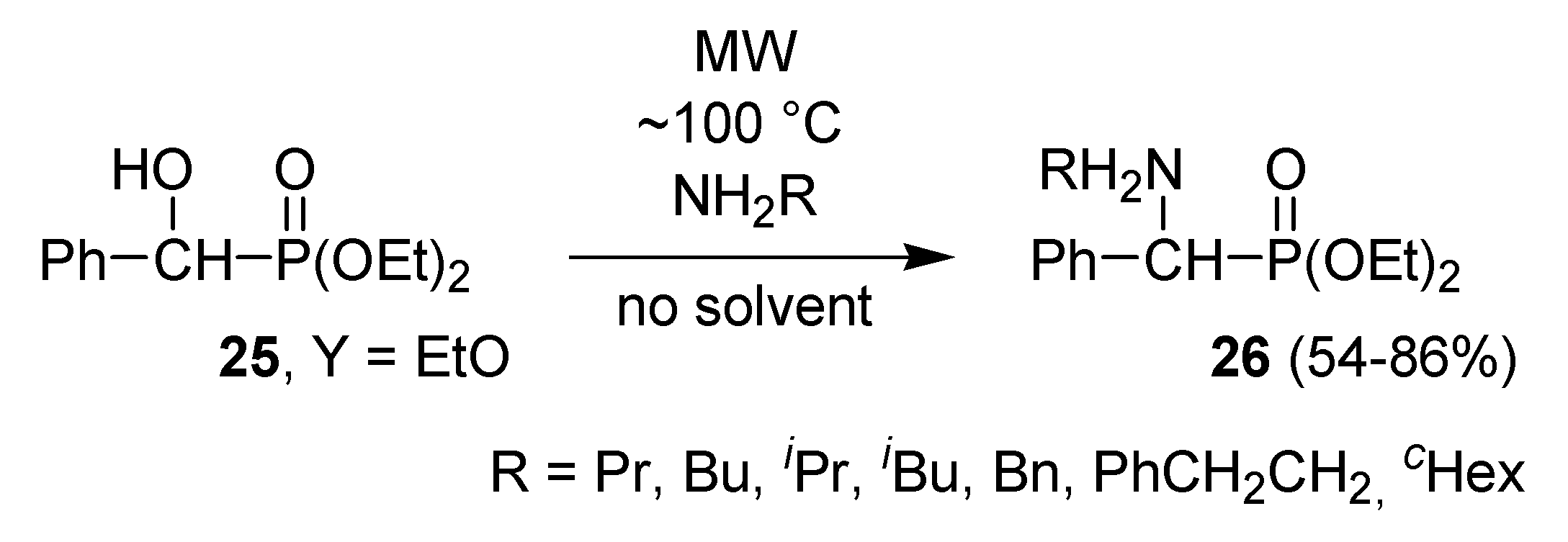

Scheme 19. Preparation of α-aminophosphonates by substitution of α-hydroxyphosphonates.

4. Conclusions

In conclusion, recent results obtained in the study of the Kabachnik–Fields reaction have been summarized. This mini-review sheds light on the new developments regarding mechanistic and synthetic aspects showing that the phospha-Mannich reaction remains an evergreen topic for organic chemists. On the one hand, the mechanism of the Kabachnik–Fields reaction still reserves some surprises, on the other hand, the 3-component condensation is an ideal subject for green chemical reactions. In addition, the α-aminophosphonate and α-aminophosphine oxide products are biologically active substrates.

Acknowledgments

The authors are grateful for Hungarian Scientific Research Fund (No: OTKA K 83118).

References

Kabachnik, M.I.; Medved, T.Y. New synthesis of aminophosphonic acids. Dokl. Akad. Nauk SSSR 1952, 83, 689–692. [Google Scholar]
Fields, E.K. The synthesis of esters of substituted amino phosphonic acids. J. Am. Chem. Soc. 1952, 74, 1528–1531. [Google Scholar] [CrossRef]
Zefirov, N.S.; Matveeva, E.D. Catalytic Kabachnik-Fields reaction: New horizons for old reaction. ARKIVOC 2008, 1–17. [Google Scholar]
Aminophosphonic and Aminophosphinic Acids: Chemistry and Biological Activity; Kukhar, V.P.; Hudson, H.R. (Eds.) Wiley: Chichester, UK, 2000.
Fields, S.C. Synthesis of natural products containing a C-P bond. Tetrahedron 1999, 55, 12237–12272. [Google Scholar] [CrossRef]
Kafarski, P.; Lejczak, B. Aminophosphonic acids of potential medical importance. Curr. Med. Chem. Anticancer Agents 2001, 1, 301–312. [Google Scholar] [CrossRef]
Bird, J.; De Mello, R.C.; Harper, G.P.; Hunter, D.J.; Karran, E.H.; Markwell, R.E.; Miles-Williams, A.J.; Rahman, S.S.; Ward, R.W. Synthesis of novel N-phosphonoalkyl dipeptide inhibitors of human collagenase. J. Med. Chem. 1994, 37, 158–169. [Google Scholar] [CrossRef]
Liu, W.S.; Rogers, C.J.; Fisher, A.J.; Toney, M.D. Aminophosphonate inhibitors of dialkylglycine decarboxylase: Structural basis for slow binding inhibition. Biochemistry 2002, 41, 12320–12328. [Google Scholar] [CrossRef]
Mucha, A.; Kafarski, P.; Berlicki, L. Remarkable potential of the α-aminophosphonate/phosphinate structural motif in medicinal chemistry. J. Med. Chem. 2011, 54, 5955–5980. [Google Scholar] [CrossRef]
Sienczyk, M.; Oleksyszyn, J. Irreversible inhibition of serine proteases-Design and in vivo activity of diaryl alpha-aminophosphonate derivatives. Curr. Med. Chem. 2009, 16, 1673–1687. [Google Scholar] [CrossRef]
Grembecka, J.; Mucha, A.; Cierpicki, T.; Kafarski, P. The most potent organophosphorus inhibitors of leucine aminopeptidase. Structure-based design, chemistry, and activity. J. Med. Chem. 2003, 46, 2641–2655. [Google Scholar]
Long, N.; Cai, X.J.; Song, B.A.; Yang, S.; Chen, Z.; Bhadury, P.S.; Hu, D.Y.; Jin, L.H.; Xue, W. Synthesis and antiviral activities of cyanoacrylate derivatives containing an alpha-aminophosphonate moiety. J. Agric. Food Chem. 2008, 56, 5242–5246. [Google Scholar]
Hu, D.Y.; Wan, Q.Q.; Yang, S.; Song, B.A.; Bhadury, P.S.; Jin, L.H.; Yan, K.; Liu, F.; Chen, Z.; Xue, W. Synthesis and antiviral activities of amide derivatives containing the alpha-aminophosphonate moiety. J. Agric. Food Chem. 2008, 56, 998–1001. [Google Scholar]
Danila, D.C.; Wang, X.Y.; Hubble, H.; Antipin, I.S.; Pinkhassik, E. Increasing permeability of phospholipid bilayer membranes to alanine with synthetic alpha-aminophosphonate carriers. Bioorg. Med. Chem. Lett. 2008, 18, 2320–2323. [Google Scholar] [CrossRef]
Cherkasov, R.A.; Galkin, V.I. The Kabachnik-Fields reaction: synthetic potential and the problem of the mechanism. Russ. Chem. Rev. 1998, 67, 857–882. [Google Scholar] [CrossRef]
Galkin, V.I.; Zvereva, E.R.; Sobanov, A.A.; Galkina, I.V.; Cherkasov, R.A. Kinetics and mechanism of Kabachnik-Fields reaction in dialkylphosphite-benzaldehyde-aniline system. Zhur. Obsch. Khim. 1993, 63, 2224–2227. [Google Scholar]
Galkina, I.V.; Sobanov, A.A.; Galkin, V.I.; Cherkasov, R.A. Kinetics and mechanism of the Kabachnik-Fields reaction: IV. Salicyaldehyde in the Kabachnik-Fields reaction. Russ. J. Gen. Chem. 1998, 68, 1398–1401. [Google Scholar]
Matveeva, E.D.; Zefirov, N.S. On the mechanism of the Kabachnik-Fields reaction: Does a mechanism of nucleophilic amination of alpha-hydroxyphosphonates exist? Doklady Chem. 2008, 420, 137–140. [Google Scholar] [CrossRef]
Galkina, I.V.; Galkin, V.I.; Cherkasov, R.A. Kinetics and the mechanism of Kabachnik-Fields reaction-V. Effect of the nature of hydrophosphoryl compound on the mechanism of Kabachnik-Fields reaction. Zhur. Obsch. Khim. 1998, 68, 1469–1475. [Google Scholar]
Gancarz, R.; Gancarz, I. Failure of aminophosphonate synthesis due to facile hydroxyphosphonate-phosphate rearrangement. Tetrahedron Lett. 1993, 34, 145–148. [Google Scholar] [CrossRef]
Gancarz, R. Nucleophilic addition to carbonyl compounds. competition between hard (amine) and soft (phosphite) nucleophile. Tetrahedron 1995, 51, 10627–10632. [Google Scholar]
Keglevich, G.; Fehérvári, A.; Csontos, I. A study on the Kabachnik-Fields reaction of benzaldehyde, propylamine and diethyl phosphite by in situ Fourier transform (FT) IR spectroscopy. Heteroatom Chem. 2011, 22, 599–604. [Google Scholar] [CrossRef]
Keglevich, G.; Kiss, N.Z.; Menyhárd, D.; Fehérvári, A.; Csontos, I. A study on the Kabachnik-Fields reaction of benzaldehyde, cyclohexylamine and dialkyl phosphites. Heteroatom Chem. 2012, 23, 171–178. [Google Scholar] [CrossRef]
Mu, X.-J.; Lei, M.-Y.; Zou, J.-P.; Zhang, W. Microwave-assisted solvent-free and catalyst-free Kabachnik-Fields reactions for α-amino phosphonates. Tetrahedron Lett. 2006, 47, 1125–1127. [Google Scholar] [CrossRef]
Keglevich, G.; Szekrényi, A. Eco-friendly accomplishment of the extended Kabachnik-Fields reaction; a solvent- and catalyst-free microwave-assisted synthesis of a-aminophosphonates and a-aminophosphine oxides. Lett. Org. Chem. 2008, 5, 616–622. [Google Scholar] [CrossRef]
Matveeva, E.D.; Podrugina, T.A.; Tishkovskaya, E.V.; Tomilova, L.G.; Zefirov, N.S. A novel catalytic three-component synthesis (Kabachnick-Fields reaction) of α-aminophosphonates from ketones. Synlett 2003, 2321–2324. [Google Scholar]
Bhagat, S.; Chakraborti, A.K. An extremely efficient three-component reaction of aldehydes/ketones, amines, and phosphites (Kabachnik-Fields reaction) for the synthesis of a-aminophosphonates catalyzed by magnesium perchlorate. J. Org. Chem. 2007, 72, 1263–1270. [Google Scholar] [CrossRef]
Wu, J.; Sun, W.; Xia, H.-G.; Sun, X. A facile and highly efficient route to α-amino phosphonates via three-component reactions catalyzed by Mg(ClO₄)₂ or molecular iodine. Org. Biomol. Chem. 2006, 4, 1663–1666. [Google Scholar] [CrossRef]
Firouzabadi, H.; Iranpoor, N.; Sobhani, S. Metal triflate-catalyzed one-pot synthesis of α-aminophosphonates from carbonyl compounds in the absence of solvent. Synthesis 2004, 2692–2696. [Google Scholar]
Sun, P.; Hu, Z.; Huang, Z. Gallium triiodide catalyzed organic reaction: a convenient synthesis of α-amino phosphonates. Synth. Commun. 2004, 34, 4293–4299. [Google Scholar] [CrossRef]
Ghosh, R.; Maiti, S.; Chakraborty, A.; Maiti, D.K. In(OTf)(3) catalysed simple one-pot synthesis of α-amino phosphonates. J. Mol. Catal. A 2004, 210, 53–57. [Google Scholar] [CrossRef]
Bhattacharya, A.K.; Kaur, T. An efficient one-pot synthesis of alpha-amino phosphonates catalyzed by bismuth nitrate pentahydrate. Synlett 2007, 745–748. [Google Scholar] [CrossRef]
Zhan, Z.-P.; Li, J.-P. Bismuth(III) chloride-catalyzed three-component coupling: Synthesis of alpha-amino phosphonates. Synth. Commun. 2005, 35, 2501–2508. [Google Scholar] [CrossRef]
Wu, J.; Sun, W.; Wang, W.-Z.; Xiu, H.-G. A highly efficient catalyst FeCl₃ in the synthesis of α-amino phosphonates via three-component reactions. Chin. J. Chem. 2006, 24, 1054–1057. [Google Scholar] [CrossRef]
Xu, F.; Luo, Y.; Wu, J.; Shen, Q.; Chen, H. Facile one-pot synthesis of α-amino phosphonates using lanthanide chloride as catalyst. Heteroatom Chem. 2006, 17, 389–392. [Google Scholar] [CrossRef]
Xu, F.; Luo, Y.; Deng, M.; Shen, Q. One-pot synthesis of α-amino phosphonates using samarium diiodide as a catalyst precursor. Eur. J. Org. Chem. 2003, 4728–4730. [Google Scholar]
Ravinder, K.; Vijender Reddy, A.; Krishnaiah, P.; Venkataramana, G.; Niranjan Reddy, V.L.; Venkateswarlu, Y. CAN catalyzed one-pot synthesis of α-amino phosphonates from carbonyl compounds. Synth. Commun. 2004, 34, 1677–1683. [Google Scholar] [CrossRef]
Ranu, B.C.; Hajra, A.; Jana, U. General procedure for the synthesis of α-amino phosphonates from aldehydes and ketones using indium(III) chloride as a catalyst. Org. Lett. 1999, 1, 1141–1143. [Google Scholar] [CrossRef]
Lee, S.; Lee, J.K.; Song, C.E.; Kim, D.-C. Microwave-assisted Kabachnik–Fields reaction in ionic liquid. Bull. Korean Chem. Soc. 2002, 23, 667–668. [Google Scholar] [CrossRef]
Lee, S.; Park, J.H.; Kang, J.; Lee, J.K. Lanthanide triflate-catalyzed three component synthesis of a-amino phosphonates in ionic liquids. A catalyst reactivity and reusability study. Chem. Commun. 2001, 1698–1699. [Google Scholar]
Yadav, J.S.; Reddy, B.V.S.; Sreedhar, P. An eco-friendly approach for the synthesis of α-aminophosphonates using ionic liquids. Green Chem. 2002, 4, 436–438. [Google Scholar] [CrossRef]
Prauda, I.; Greiner, I.; Ludányi, K.; Keglevich, G. Efficient synthesis of phosphono- and phosphinoxidomethylated N-heterocycles under solvent-free microwave conditions. Synth. Commun. 2007, 37, 317–322. [Google Scholar] [CrossRef]
Keglevich, G.; Szekrényi, A.; Sipos, M.; Ludányi, K.; Greiner, I. Synthesis of cyclic aminomethylphosphonates and aminomethyl-arylphosphinic acids by an efficient microwave-mediated phospha-Mannich approach. Heteroatom Chem. 2008, 19, 207–210. [Google Scholar] [CrossRef]
Keglevich, G.; Szekrényi, A.; Szöllősy, Á.; Drahos, L. Synthesis of bisp(hosphonatomethyl)-, bis(phosphinatomethyl)-, and bis(phosphinoxidomethyl)amines, as well as related ring bis(phosphine) platinum complexes. Synth. Commun. 2011, 41, 2265–2272. [Google Scholar]
Bálint, E.; Fazekas, E.; Pintér, G.; Szöllősy, Á.; Holczbauer, T.; Czugler, M.; Drahos, L.; Körtvélyesi, T.; Keglevich, G. Synthesis and utilization of the bis(>P(O)CH₂)amine derivatives obtained by the double Kabachnik–Fields reaction with cyclohexylamine; Quantum chemical and X-ray study of the related bidentate chelate platinum complexes. Curr. Org. Chem. 2012, 16, 547–554. [Google Scholar]
Bálint, E.; Fazekas, E.; Pongrácz, P.; Kollár, L.; Drahos, L.; Holczbauer, T.; Czugler, M.; Keglevich, G. N-benzyl and N-aryl bis(phospha-Mannich adducts): Synthesis and catalytic activity of the related bidentate chelate platinum complexes in hydroformylation. J. Organomet. Chem. 2012, 717, 75–82. [Google Scholar]
Gourdel, Y.; Pelon, P.; Toupet, L.; Le Corre, M. Stereoselective synthesis of new functionalized bisphosphines. Tetrahedron Lett. 1994, 35, 1197–1200. [Google Scholar] [CrossRef]
Keglevich, G.; Tóth, V. R.; Drahos, L. Microwave-assisted synthesis of α-hydroxy-benzylphosphonates and -benzylphosphine oxides. Heteroatom Chem. 2011, 22, 15–17. [Google Scholar] [CrossRef]
Grün, A.; Molnár, I.G.; Bertók, B.; Greiner, I.; Keglevich, G. Synthesis of α-hydroxy-methylenebisphosphonates by the microwave-assisted reaction of α-oxophosphonates and dialkyl phosphites under solventless conditions. Heteroatom Chem. 2009, 20, 350–354. [Google Scholar] [CrossRef]
Keglevich, G.; Grün, A.; Molnár, I.G.; Greiner, I. Phenyl-, benzyl- and unsymmetrical hydroxy-methylenebisphosphonates as dronic acid ester analogues from α-oxophosphonates by microwave-assisted synthesis. Heteroatom Chem. 2011, 22, 640–648. [Google Scholar] [CrossRef]
Kiss, N.Z.; Kaszás, A.; Drahos, L.; Mucsi, Z.; Keglevich, G. A neighbouring group effect leading to enhanced nucleophilic substitution of amines at the hindered α-carbon atom of an α-hydroxyphosphonate. Tetrahedron Lett. 2012, 53, 207–209. [Google Scholar]
