Synthesis, Reactions and Biological Evaluation of Some New Naphtho[2,1-b]furan Derivatives Bearing a Pyrazole Nucleus
by
Ashraf H. F. Abd El-Wahab
1,*,
Zarrag Isa A. Al-Fifi
2,
Ahmed H. Bedair
3,
Fawzy M. Ali
3,
Ahmed H. A. Halawa
3 and
Ahemed M. El-Agrody
3 1
Department of Chemistry, Faculty of Science, Jazan University, Jazan 2097, Saudi Arabia
2
Department of Biology, Faculty of Science, Jazan University, Jazan 2097, Saudi Arabia
3
Department of Chemistry, Faculty of Science, Al-Azhar University, Nasr City 11884, Cairo, Egypt
*
Author to whom correspondence should be addressed.
Molecules 2011, 16(1), 307-318; https://doi.org/10.3390/molecules16010307
Submission received: 14 November 2010
/
Revised: 14 December 2010
/
Accepted: 15 December 2010
/
Published: 5 January 2011
Abstract
:Vilsmeier formylation of 2-(1-phenylhydrazonoethyl)naphtho[2,1-b]furan (2) gave 3-naphtho[2,1-b]furan-2-yl-1-phenyl-1H-pyrazole-4-carbaldehyde (3), which was reacted with C- and N-nucleophiles to afford naphthofuranpyrazol derivatives 4-8. Treatment of 2-[(3-(naphtho[2,1-b]furan-2-yl)-1-phenyl-1H-pyrazol-4-yl)methylene]-malononitrile (4a) with reactants having active hydrogen and Et3N gave the corresponding pyrazoline, pyran and chromene addition product derivatives 10, 12 and 13, consisting of three different connected heterocyclic moieties. Reaction of 1-((3-(naphtho[2,1-b]furan-2-yl)-1-phenyl-1H-pyrazol-4-yl) methylene)-2-phenylhydrazone (6b) with AcONa and ethyl bromoacetate or chloroacetone afforded the thiazolidinone and methylthiazole derivatives 14 and 15, respectively. In addition, intramolecular cyclization of 6d with Ac2O afford the corresponding 1,3,4-thiadiazol-2-yl acetamide derivative 16. The structures of the synthesized compounds were confirmed by IR, 1H-NMR/13C-NMR and mass spectral studies. Compound 14 showed promising effects against the tested Gram positive and negative bacteria and fungi.
Introduction
Naphthofuran derivatives exhibit very potent antibacterial [1,2,3], genotoxic [4,5,6] and anticancer activity [7,8,9], but some were shown to be mutagenic in bacteria [10,11,12,13,14,15]. The present investigation deals with the synthesis of some new naphtho[2,1-b]furan derivatives bearing pyrazole nuclei attached to different heterocyclic moieties and their biological activities.
Results and Discussion
Condensation of 2-acetylnaphtho[2,1-b]furan (1) [16] with phenylhydrazine afforded 2-(1-phenylhydrazonoethyl)naphtho[2,1-b]furan (2). Vilsmeier formylation [17] of the latter afforded 3-(naphtho-[2,1-b]furan-2-yl)-1-phenyl-1H-pyrazole-4-carboxaldehyde (3). Condensation of 3 with a variety of C-nucleophiles, namely malononitrile, cyanoacetamide, cyanothioacetamide, barbituric acid and 2-acetylnaphtho[2,1-b]furan (1) give the condensation products 4, 5 and 8, while reactions with N-nucleophiles, namely hydrazine derivatives or amines, afforded the condensation products 6 and 7 (Scheme 1).
Compounds 4a and 6d were used as key intermediates in the synthesis of novel pyran, pyrazole and thiazole derivatives via their interaction with different reagents. Thus, the reaction of 4a with 3-methyl-1-phenyl-2-pyrazolin-5-one in the presence of triethylamine did not give the expected pyrazolopyran 9 and instead, only one compound was isolated, identified as 4-[3-(naphtho[2,1-b]furan-2-yl)-1-phenyl-1H-pyrazol-4-yl]methylene-3-methyl-1-phenyl-2-pyrazoline-5-one (10), while with hydrazine hydrate in refluxing ethanol it furnished 6a (as verified by m.p. and mixed m.p.) instead of the pyrazole derivative 11. The formation of 6a and 10 were assumed to proceed via elimination of malononitrile [18] and their structures were further confirmed by independent synthesis via direct condensation of 3 with hydrazine hydrate (Scheme 1) or with 3-methyl-1-phenyl-2-pyrazolin-5-one (Scheme 2), respectively The reaction of 4a with ethyl acetoacetate in dry methylene chloride containing triethylamine gave the pyrazolopyran derivative 12, while with 4-hydroxycoumarin under Michael reaction conditions it afforded the 4H-pyran derivative 13 (Scheme 2). The structure of 13 was further verified by m.p. and mixed m.p after independent synthesis via direct condensation of 3 with 4-hydroxycoumarin in the presence of malononitrile and a few drops of piperidine as a base (a one pot reaction).
When thiosemicarbazone derivative 6d was allowed to react with ethyl bromoacetate or chloroacetone in the presence of fused sodium acetate, it gave the corresponding thiazolidinone and thiazoline derivatives 14 and 15, respectively, while with refluxing acetic anhydride it afforded the thiadiazole derivative 16 (Scheme 2). These reactions were assumed to proceed via S-alkylation followed by intramolecular cyclization with concomitant loss of an alcohol molecule and/or dehydration.
Structures 2, 3, 4, 5, 6, 7 and 8 were established by spectral and physical data (Table I and Table II). The mass spectra of 3, 4b,c, 5, 6a-d, 7a,b and 8 showed the corresponding molecular ion peaks at m/z 338 (M+, 100%), m/z 420 (M+, 35 %), m/z 404 (M+, 100 %), m/z 448 (M+, 100%), m/z 352 (M+, 100 %), m/z 404 (M+, 100 %), m/z 394 (M+, 100%), m/z 411 (M+, 2 %), m/z 413 (M+, 100 %), m/z 447(M+, 100%) and m/z 530 (M+, 65 %), respectively. The fragmentation patterns of compounds 3, 4b,c, 5, 6a-d, 7a,b and 8 are illustrated in Scheme 3.
Structures 10, 11, 12, 13, and 16 were established by spectral data (Table I and Table II). The mass spectra of 10, 12, 13 and 15 showed molecular ion peaks at m/z; 494 (M+, 100), m/z; 516 (M+, 2), m/z; 548 (M+, 2), and m/z; 495 (M+, 45), respectively. The fragmentation pattern of compounds 10, 12, 13 and 15 are illustrated in Scheme 3.
Biological activities
Compound 14 which contains the thiazolidin-4-one nucleus showed highest antibacterial activity (+++ ve inhibition zone was between 12–15 mm) against Bacillus subtilis, Staphylococcus aureus, Escherichia coli, Pseudomonas aeuroginosa, Candida albicans and Aspergillus niger. Compound 2 showed moderate inhibition (++ ve inhibition zone up to 8 mm) against Bacillus subtilis, Staphylococcus aureus, Escherichia coli and Pseudomonas aeuroginosa , the remaining tested compounds 4a-c, 5, 6, 7a,b, 8a-c, 10, 12, 13 showed no activities against any of the test microorganisms.
Experimental
General
Melting points were measured on a Stuart Scientific Co (UK) melting point apparatus and are uncorrected. The IR spectra were recorded on a Shimadzu IR 440, spectrophotometer (Shimadzu, Japan) in KBr. The 1H-NMR/13C-NMR spectra were measured on a Varian Mercury (300 MHz) spectrometer (Varian, UK), using TMS as an internal standard and DMSO-d6 as solvent. Mass spectra were run on a Shimadzu GC-Ms QP 1000 EX mass spectrometer. Microanalytical data were obtained from the Microanalytical Unit Center, Faculty of Science, Cairo University (Egypt). Spectral and microanalytical data are given in Table I, Table II and Table III. The paper discs were manufactured by Bristol-Myers Squibb, Giza, Egypt.
Synthesis of 2-acetylnaphtho[2,1-b]furan (1): A mixture of 2-hydroxy-1-naphthaldehyde (0.01 mol), chloroacetone (0.01 mol) and anhydrous potassium carbonate (0.02 mol) in anhydrous acetone (50 mL) was refluxed for 8 hours. The mixture was allowed to cool and poured onto crushed ice (50 gm) and water (100 mL) then acidified with conc. HCl and the solid product was formed was filtered off, washed with water and recrystallized from ethanol to give 1 (90% yield); IR: 1,666 (CO): 1H-NMR: 8.59–7.70 (m, 6H, Ar-H), 7.89 (s, 1H, H-3), 2.62 (s, 3H, Me): 13C-NMR: 187.19 (CO), 153.36 (C-9a), 151.90 (C-2), 130.11 (C-3a), 129.90 (C-8), 128.98 (C-7), 127.85 (C-7a), 127.52 (C-6), 125.60 (C-5), 123.64 (C-4), 122.61 (C-3b), 113.69 (C-3), 112.74 (C-9), 26.33 (Me).
Synthesis of 2-(1-phenylhydrazonoethyl)naphtho[2,1-b]furan (2): A mixture of 1 (1.72 g, 0.01 mol) and phenylhydrazine (1.08 g, 0.01 mol) in ethanol (50 mL) was refluxed for 2 h, the solid that separated on heating was filtered off and recrystallized from EtOH to give 2 (80% yield); IR : 3,459, 3,346 (NH),1,601 (C=N); 1H-NMR: 8.17–6.92 (m, 12H, Ar-H+NH), 7.70 (s, 1H, H-3), 2.35 (s, 3H, Me); 13C-NMR: 154.81 (C-9a), 151.72 (C=N), 145.45 (C-2), 132.94 (C-1`), 130.01 (C-3a), 128.94 (C-8), 128.66 (C-3`,5`), 127.06 (C-7a), 126.44 (C-7), 125.28 (C-6), 124.75 (C-5), 123.97 (C-3b), 123.65 (C-4), 119.39 (C-4`), 113.04 (C-3), 112.22 (C-9), 102.89 (C-2`,6`), 12.80 (Me).
Synthesis of 3-naphtho[2,1-b]furan-2-yl-1-phenyl-1H-pyrazole-4-carbaldehyde (3): To ice cold dimethylformamide (0.01 mol) was added dropwise with stirring phosphorus oxychloride (0.01 mol) over a period of 30 min. stirring was continued for further 45 min keeping the reaction mixture at 0 °C. The hydrazone 2 (3 g, 0.01 mol) was then added and the reaction mixture was allowed to attain room temperature. The mixture was heated at 90 °C for 2 h, allowed to cool and poured onto crushed ice (50 gm) and water (100 mL), the solid product that was formed was filtered off and washed with water and recrystallized from EtOH to give 3 (70% yield); IR: 1,670 (CO): 1H-NMR: 10.33 (s, 1H, CHO), 9.37 (s, 1H, H-5), 8.43–7.47 (m, 11H, Ar-H), 7.92 (s, 1H, H-3`).
Synthesis of 2-((3-(naphtho[2,1-b]furan-2-yl)-1-phenyl-1H-pyrazol-4-yl)methylene) malononitrile (4a), 2-cyano-3-(3-(naphtho[2,1-b]furan-2-yl)-1-phenyl-1H-pyrazol-4-yl) acrylamide (4b) and 2-cyano-3-(3-(naphtho[2,1-b]furan-2-yl)-1-phenyl-1H-pyrazol-4-yl) prop-2-enethioamide (4c): A mixture of aldehyde 3 (3.38 g, 0.01 mol) and malononitrile, cyanoacetamide or cyanothioacetamide (0.01 mol) in ethanol (30 mL) and few drops of piperidine was refluxed for 3 h, The resulting solid after cooling was collected and recrystallized from the proper solvent to give 4a-c (70–80% yield);. 4a: IR: 2,208, 2,200 (2 CN): 1H-NMR: 10.15 (s, 1H, CH=C), 8.65 (s, 1H, H-5), 8.55–7.52 (m, 12H, Ar-H). 4b: IR: 3,464, 3,368 (NH2), 2,210 (CN), 1,698 (CO): 1H-NMR: 9.19 (s, 1H, CH=C), 8.60 (s, 1H, H-5), 8.55–7.52 (m, 14H, Ar-H +NH2). 4c: IR: 3,344, 3,286 (NH2), 2,212 (CN), 1,340 (C=S): 1H-NMR: 10.12 (br, 2H, NH2), 9.67 (s, 1H, CH=C), 9.19 (s, 1H, H-5), 8.59–7.48 (m, 12H, Ar-H).
Synthesis of 5-((3-(naphtho[2,1-b]furan-2-yl)-1-phenyl-1H-pyrazol-4-yl) methylene) pyrimidine-2,4,6(1H,3H,5H)trione (5): A mixture of aldehyde 3 (3.38 g, 0.01 mol) and barbituric acid (0.01 mol) in ethanol (30 mL) containing triethylamine (0.01 mL) was heated under reflux for 1h. The solid separated on heating was filtered off and recrystallized from ethanol to give 5 (80% yield). IR: 3,200 (NH), 1,700 (CO), 1,670 (CO): 1H-NMR: 11.38, 11.30 (2s, 2H, 2NH), 9.67 (s, 1H, CH=C), 8.77 (s, 1H, H-5), 8.27–7.36 (m, 12H, Ar-H).
Synthesis of 1-((3-(naphtho[2,1-b]furan-2-yl)-1-phenyl-1H-pyrazol-4-yl)methylene) hydrazone (6a), 1-((3-(naphtho[2,1-b]furan-2-yl)-1-phenyl-1H-pyrazol-4-yl) methylene)-2-phenylhydrazone (6b), N’-((3-(naphtho[2,1-b]furan-2-yl)-1-phenyl-1H-pyrazol-4-yl)methylene) acetohydrazone (6c), 1-((3-(naphtha[2,1-b]furan-2-yl)-1-phenyl-1H-pyrazol-4-yl)methylene) thiosemicarbazone (6d) and 2-cyano-N’-((3-(naphtho[2,1-b]furan-2-yl)-1-phenyl-1H-pyrazol-4-yl)methylene)acetohydrazone (6e): A mixture of aldehyde 3 (3.38 g, 0.01 mol) and hydrazine hydrate, phenyl hydrazine, acetylhydrazine, thiosemicarbazide or cyanoacetic acid hydrazide (0.01 mol) in ethanol (30 mL) was refluxed for 3 h, the solid separated on heating was filtered off and recrystallized from a suitable solvent to give 6a-e (75–80 %). 6a: IR: 3,400, 3,364 (NH2), 1,598 (C=N),1H-NMR: 8.78 (s, 1H, CH=N), 8.41 (s, 1H, H-5), 8.37–7.33 (m, 12H, Ar-H), 6.86 (brs, 2H, NH2). 6b: IR: 3,320 (NH), 1,602 (C=N); 1H-NMR: 10.39 (brs, 1H, NH), 9.01 (s, 1H, CH=N), 8.40 (s, 1H, H-5), 8.36-7.17 (m, 12H,Ar-H). 6c: IR: 3,156 (NH), 1,686 (CO); 1H-NMR: 11.60 (brs, 1H, NH), 11.26 (s, 1H, CH=N), 9.17 (s, 1H, H-5), 9.06-7.34 (m, 12H, Ar-H), 2.26 (s, 3H, Me). 6d: IR: 3,420, 3,374, 3,262, 3,178 (NH, NH2), 1,334 (C=S); 1H-NMR: 11.40 (s, 1H, NH), 9.27 (s, 1H, CH=N), 8.72 (s, 1H, H-5), 8.32 (brs, 2H, NH2), 8.41–7.41 (m, 12H, Ar-H). 6e: IR: 3,310, 3,210, (NH), 2,256 (CN), 1,666 (CO); 1H-NMR: 12.02 (brs, 1H, NH), 9.10 (s, 1H, CH=N), 8.9 (s, 1H, CH-pyrazole), 8.93-7.41 (m, 12H, Ar-H), 4.28 (s, 2H, CH2).
Synthesis of N-((3-(naphtho[2,1-b]furan-2-yl)-1-phenyl-1H-pyrazol-4-yl)methylene) aniline/4-chloro-aniline (7a,b): A mixture of aldehyde 3 (3.38 g, 0.01 mol) and the appropriate aromatic amine, namely aniline or p-chloroaniline (0.01 mol) in ethanol (40 mL) was refluxed for 1 h. The obtained product was collected and recrystallized from the proper solvent to give 7a,b. (80–85% yield)) 7a: IR: 1,614 (C=N); 1H-NMR: 9.40 (s, 1H, CH=N), 8.96 (s, 1H, H-5), 8.33–7.36 (m, 17H, Ar-H). 7b: IR: 1,620 (C=N); 1H-NMR: 9.25 (s, 1H, CH=N), 8.95 (s, 1H, H-5), 8.36–7.35 (m, 16H, Ar-H).
Synthesis of 1-(naphtho[2,1-b]furan-2-yl)-3-(3-(naphtho[2,1-b]furan-2-yl)-1-phenyl-1H-pyrazol-4-yl)prop-2-en-1-one (8): A mixture of 2-acetyl naphtho[2,1-b]furan (1, 0.01 mol) with aldehyde 3 (0.01 mol) in ethanol (30 mL) and few drops of piperidine was heated under reflux for 1 h. The solid separated on heating was filtered off and recrystallized from dioxane to give 8 (80 % yield): IR: 1,662 (CO), 1H-NMR: 8.96 (s, 1H, H-5), 8.30–7.20 (m, 19H, Ar-H), 5.93–5.69(dd, 2H, CH=CH, J = 11.4 Hz).
Synthesis of 4-[3-(naphtho[2,1-b]furan-2-yl)-1-phenyl-1H-pyrazol-4-yl]methylene-3-methyl-1-phenyl-2-pyrazoline-5-one (10): To a mixture of 4a (0.01mol) and 3-methyl-1-phenyl-2-pyrazolin-5-one (0.01 mol) in ethanol (30 mL), triethylamine (0.01 mL) was added. The resulting mixture was heated under reflux for 30 min and left to cool. The precipitated product was collected and recrystallized from acetic acid to give 10 (85 %). IR: 1,678 (CO), 1,610 (C=N); 1H-NMR: 10.09 (s, 1H, CH=C), 8.41 (s, 1H, H-5), 8.14–7.18 (m, 17H, Ar-H), 2.3 (s, 3H, CH3).
Synthesis of ethyl 6-amino-5-cyano-2-methyl-4-(3-(naphtho[2,1-b]furan-2-yl)-1-phenyl-1H-pyrazol-4-yl)-4H-pyran-3-carboxylate (12): To a solution of 4a (0.01 mol) and ethyl acetoacetate (0.01 mol) in methylene chloride (50 mL), triethylamine (0.01 mL) was added. The mixture was heated under reflux for 4 h, concentrated and allowed to cool. The precipitated product was collected and recrystallized from ethanol to give 12 (70 % yield). IR: 3,402, 3,328, 3,206 (NH2), 2,194 (CN), 1,690 (CO); 1H-NMR: 8.58 (s, 1H, H-5), 8.43–7.34 (m, 12H, Ar-H), 6.94 (brs, 2H, NH2, exchangeable by D2O), 5.05 (s, 1H, 4H-pyran), 3.89 (q, 2H, CH2; J = 7.0 Hz), 2.27 (s, 3H, Me), 0.84 (t, 3H CH3; J = 7.0 Hz).
Synthesis of 3-amino-1,5-dihydro-1-(3-(naphtho[2,1-b]furan-2-yl)-1-phenyl-1H-pyrazol-4-yl)-5-oxo-pyrano[2,3-c]chromene-2-carbonitrile (13): To a solution of 4a (0.01 mol) and 4-hydroxycoumarin (0.01mol) in ethanol (50 mL) a few drops of piperidine (0.01 mL) were added. The mixture was heated under reflux for 4h and allowed to cool. The precipitated product was collected and recrystallized from dioxane to give 13 (70% yield). IR: 3,406, 3,324, 3,294 (NH2), 2,196 (CN), 1,708 (CO); 1H-NMR: 8.74 (s, 1H, H-5), 8.38–7.41 (m, 18H, Ar-H + NH2), 5.06 (s, 1H, 4H-pyran).
Synthesis of 2-[(3-naphtho[2,1-b]furan-2-yl)-1-phenyl-1H-pyrazol-4-yl]methylene-hydrazono-thiazolidin-4-one (14) and 2-[(3-Naphtho[2,1-b]furan-2-yl)-1-phenyl-1H-pyrazol-4-yl]methylene-hydrazono-4-methylthizole (15). A mixture of 6d (0.01 mol), ethyl bromoacetate (0.01 mol) or chloroacetone (0.01 mol) and fused sodium acetate (0.02 mol) in ethanol (40 mL) was refluxed for 2 h. The product obtained was collected by filtration, washed with water and recrystallized from acetic acid to give 14, 15. Compound 14: 80% yield; IR: 3,400, 3,300 (NH), 1,706 (CO); 1H-NMR: 11.51 (brs, 1H, NH), 9.28 (s, 1H, CH=N), 8.78(s, 1H, H-5), 8.71–7.42 (m, 12H, Ar-H), 4.00 (s, 2H, CH2). Compound 15, 80% yield; IR: 3,152 (NH), 1,614 (C=N); 1H-NMR: 11.81 (brs, 1H, NH; exchanged by D2O), 9.00 (s, 1H, CH=N), 8.51 (s, 1H, H-5), 8.41–7.39 (m, 12H, Ar-H), 6.40 (s, 1H, CH-thiazoline), 2.19 (s, 3H, Me).
Synthesis of N-(4-acetyl-4,5-dihydro-5-(3-(naphtho[2,1-b]furan-2-yl)-1-phenyl-1H-pyrazol-4-yl)-1,3,4-thiadiazol-2-yl)acetamide (16): A solution of 6d (0.01 mol), and acetic anhydride (5 mL) was heated under refluxed for 3 h. After the reaction mixture had attained room temperature, excess acetic anhydride was decomposed by water (10 mL) and the mixture was stirred for 30 min. The separated product was filtered and recrystallized from acetic acid to give 16 (60 % yield); IR: 3,248 (NH), 1,664, 1,634 (2CO); 1H-NMR: 11.78 (brs, 1H, NH), 8.47 (s, 1H, H-5), 8.30–7.35 (m, 12H, Ar-H), 6.44 (s, 1H, CH-thiapyrazole) 2.31 (s, 3H, Me), 2.01 (s, 3H, Me).
Antibacterial activity
The newly synthesized compounds were screened for their antimicrobial activities in vitro against two species of Gram-positive bacteria Bacillus subtilis (NCTC- 10400)(BS), Staphylococcus aureus (NCTC 7447)(SA), and three Gram-negative bacteria, Escherichia coli (NCTC 10410)(EC), Pseudomonas aeruginosa (ATCC 10415)(PA), Candida albicans (IMRU 3669)(CA), and one fungus, Aspergillus niger (ATCC 6275)(AN). The activities of these compounds were tested using the disc diffusion method [19,20]. The area of zone of inhibition was measured using neomycin (30 µg mL-1) as standard antibiotic (Table III). The tested compounds were dissolved in N,N-dimethylformamide (DMF) to give a solution of 1 mg mL−1. The inhibition zones were measured in millimeters at the end of an incubation period of 48 h at 28 °C. N,N-dimethylformamide (DMF) showed no inhibition zone.
Conclusions
A series of novel naphtho[2,1-b]furan pyrazole derivatives were prepared. The antimicrobial activity of these compounds was evaluated against various Gram-positive, Gram-negative bacteria and fungi. 2-[(3-Naphtho[2,1-b]furan-2-yl)-1-phenyl-1H-pyrazol-4-yl]methylenehydrazonothiazolidin-4-one (14) showed the highest antibacterial activity, while compound 2 showed moderate activity, and the remaining tested compounds 4a-c, 5, 6, 7a,b, 8a-c, 10, 12, 13 showed no activities against any of the test microorganisms.
References
- Abd El-Wahab, F.H.A.; Ali, M.F.; El-Agrody, M.A.; Bedear, H.A.; Halawa, A.A.; El-Sherbiny, G.M. Binary Heterocyclic Systems Containing Ethylidine amino Likage:-Synthesis Of Some New Heterocyclic Compounds Bearing Naphtho[2,1,b] furan Moiety. J. Serb. Chem. Soc. 2006, 71, 459–469. [Google Scholar]
- Cavier, R.; Buisson, J.P.; Lemoine, J.; Royer, R. Comparaison des activités antibactériennes et protozoocides de dérivés méthoxylés ou halogénés des nitrobenzofurannes et des nitronaphthofurannes. Eur. J. Med. Chem. 1981, 16, 73–76. [Google Scholar]
- Royer, R.; Buisson, J.P. Recherche sur les dérivés nitrés d’intérêt biologique: XX. Modalités de synthèse des dérivés méthoxylés ou halogénés des nitro-2 naphthofurannes. Eur. J. Med. Chem. 1980, 18, 79–84. [Google Scholar]
- Arnaise, S.; Boeuf, H.; Buisson, J.P.; Cantat, N.; Demerseman, P.; Einhorn, J.; Lamotte, G.; Lemelin, M.; Brimer, P.A.; Perdue, S.W.; Hsie, A.W.; Royer, R.; Kelly, F.; Hofnung, M. Genotoxic activity of 2-nitronaphthofurans and related molecules. Mutagenesis 1986, 3, 217–229. [Google Scholar] [CrossRef]
- Quillardet, P.; Touati, E.; Hofnung, M. Influence of the uvr-dependent nucleotide excision repair on DNA adducts formation and mutagenic spectrum of a potent genotoxic agent: 7-Methoxy-2-nitronaphtho[2,1-b]furan (R7000). Mutat. Res. 1996, 358, 113–122. [Google Scholar] [CrossRef]
- Weill-Thévenet, N.; Buisson, J.P.; Royer, R.; Hofnung, M. Genetic toxicology studies with 2-nitrobenzofurans and 2-nitronaphthofurans. Mutat. Res. 1982, 104, 1–8. [Google Scholar] [CrossRef]
- Touati, E.; Krin, E.; Quillardet, P.; Hofnung, M. 7-Methoxy-2-nitronaphtho[2,1-b]furan (R7000)-induced mutation spectrum in the lacI gene of Escherichia coli: Influence of SOS mutagenesis. Carcinogenesis 1996, 17, 2543–2550. [Google Scholar] [CrossRef] [PubMed]
- Salmon, R.J.; Buisson, J.P.; Aussepe, L.; Royer, R. Induction of sarcomas in rats by subcutaneous injection of 7-methoxy-2-nitro-naphtho[2,1-b]furan (R7000). Carcinogenesis 1985, 6, 109–111. [Google Scholar] [CrossRef] [PubMed]
- Salmon, R.J.; Buisson, J.P.; Vielh, P.; Aussepe, L.; Royer, R. Cancer épidermoïde du rumen induit chez la souris C3H par le méthoxy-7-nitro-2 naphtho [2,1-b] furanne (R7000). C. R. Soc. Biol. 1986, 180, 622–624. [Google Scholar]
- Quillardet, P.; Michel, V.; Arrault, X.; Hofnung, M.; Touati, E. Mutagenic properties of a nitrofuran, 7-methoxy-2-nitro-naphtho[2,1-b]furan (R7000), in lacI transgenic mice. Mutat. Res. 2000, 470, 177–188. [Google Scholar] [CrossRef]
- Touati, E.; Phillips, D.H.; Buisson, J.P.; Quillardet, P.; Royer, R.; Hofnung, M. DNA adduct formation by 7-methoxy-2-nitro-naphtho[2,1-b]furan (R7000), an extremely potent mutagen. Mutagenesis 1989, 4, 254–258. [Google Scholar] [CrossRef] [PubMed]
- Touati, E.; Phillips, D.H.; Quillardet, P.; Hofnung, M. Determination of target nucleotides involved in 7-methoxy-2-nitro-naphtho[2,1-b]furan (R7000)–DNA adduct formation. Mutagenesis 1993, 8, 149–154. [Google Scholar] [CrossRef] [PubMed]
- Weill-Thévenet, N.; Buisson, J.P.; Royer, R.; Hofnung, M. Mutagenic activity of benzofurans and naphthofurans in the Salmonella/microsome assay: 2-Nitro-7-methoxy-naphtho[2,1-b]furan (R7000), a new highly potent mutagenic agent. Mutat. Res. 1981, 88, 355–362. [Google Scholar] [CrossRef]
- Maurizis, J.C.; Madelmont, J.C.; Parry, D.; Meyniel, G. Disposition in rats and mice of 7-methoxy-2-nitronaphtho[2,1-b]furan. Xenobiotica 1985, 15, 141–148. [Google Scholar] [CrossRef] [PubMed]
- Maurizis, J.C.; Madelmont, J.C.; Parry, D.; Dauzonne, D.; Royer, R.; Chabard, J.L. Main excretion metabolites of 7-methoxy-2-nitronaphtho[2,1-b]furan. Xenobiotica 1986, 16, 635–643. [Google Scholar] [CrossRef] [PubMed]
- Latha, K.P.; Vaidya, V.P.; Keshvayya, J.; Vijay Kumar, M.L.; Shreedhara, C. Synthesis of 2-acetylnaphtho[2,1-b]furan. Nat. Acad. Sci. Lett. 2002, 25, 153. [Google Scholar]
- Attaryan, O.; Antanosyan, S.; Panosyan, G.; Asratyan, G.; Matsoyan, S. Vilsmeier formyatiom of 3,5-dimethylpyrazoles. Rus. J. Chem. 2006, 76, 1817–1819. [Google Scholar] [CrossRef]
- El-Agrody, A.M. Activated nitriles in hetorcyclic synthesis: Synthesis of several new naphtho [2, 1-b] pyran-3-one derivatives. J. Chem. Res. 1994, 50–51. [Google Scholar]
- Carrod, L.P.; Grady, F.D. Antibiotic and Chemotherapy, 3rd ed.; Churchill Livingstone: Edinburgh, UK, 1972; p. 47. [Google Scholar]
- Hewitt, W.; Vincent, S. Theory and Application of Microbiological Assay; Academic Press: New York, NY, USA, 1989. [Google Scholar]
Sample Availability: Samples are available from the authors. |

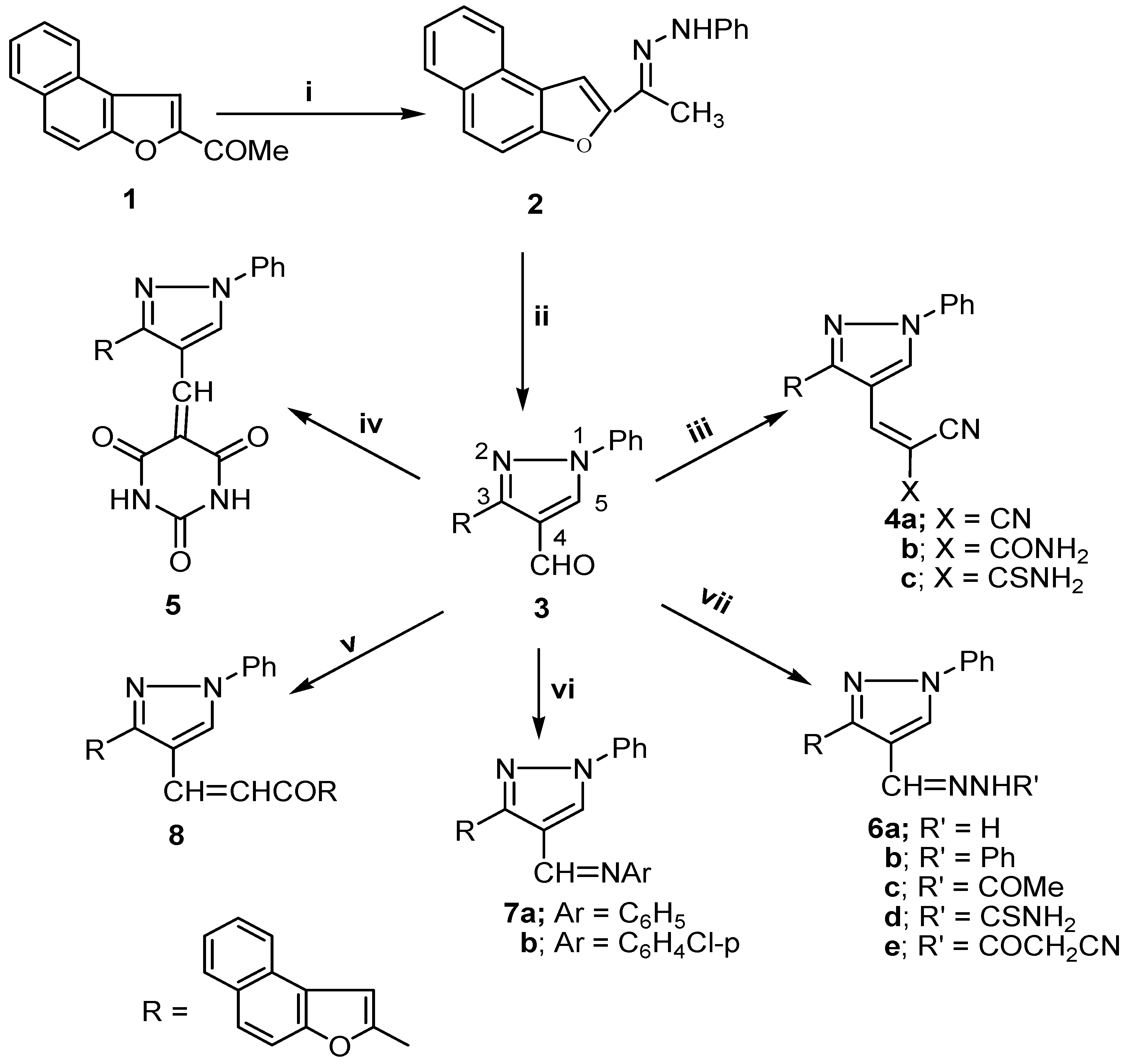

Scheme 1.
Synthesis of naphtho[2,1-b]furan pyrazole derivatives.
Reagents and Conditions: i) PhNHNH2, EtOH, reflux; ii) POCl3, DMF, reflux; iii) XCH2CN, EtOH, piperidine, reflux; iv) barbaturic acid, EtOH, triethylamine, reflux; v) 2-acetylnaphtho[2,1-b]furan (1); vi) aniline or p-chloroaniline, EtOH, reflux; vii) hydrazine derivatives, EtOH, reflux.

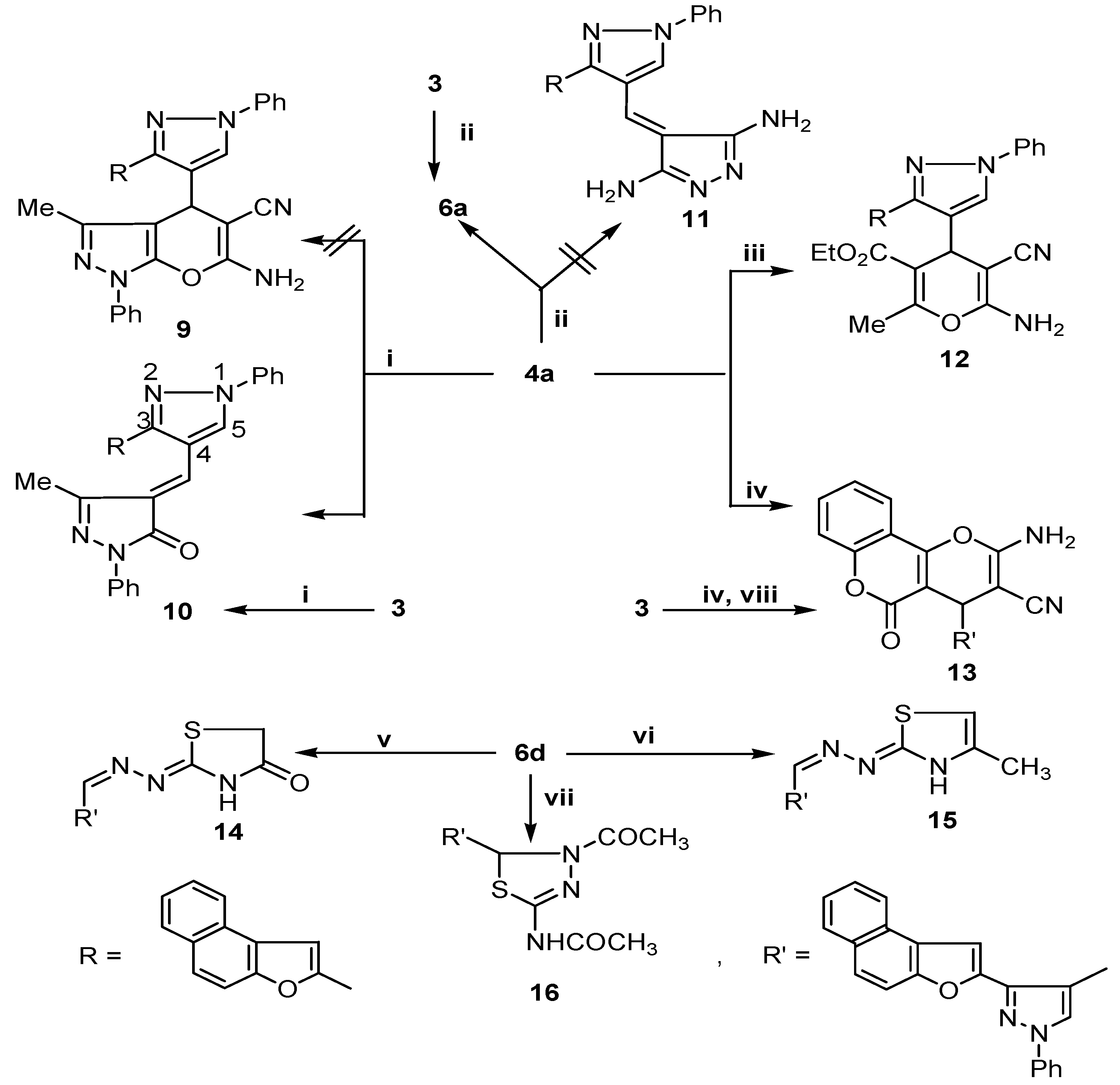

Scheme 2.
Synthesis of pyran, pyrazole and thiazole derivatives.
Reagents and Conditions: i) 3-methyl-1-phenyl-2-pyrazolin-5-one, EtOH, triethylamine, reflux; ii) NH2NH2·H2O, EtOH, reflux; iii) AcCH2CO2Et, CH2Cl2, triethylamine, reflux; iv) 4-hydroxy-coumarin, EtOH, piperidine, reflux; v) BrCH2CO2Et, CH3CO2Na, EtOH, reflux; vi) ClCH2COCH3, CH3CO2Na, EtOH, reflux; vii) Ac2O, reflux, viii) CH2(CN)2.

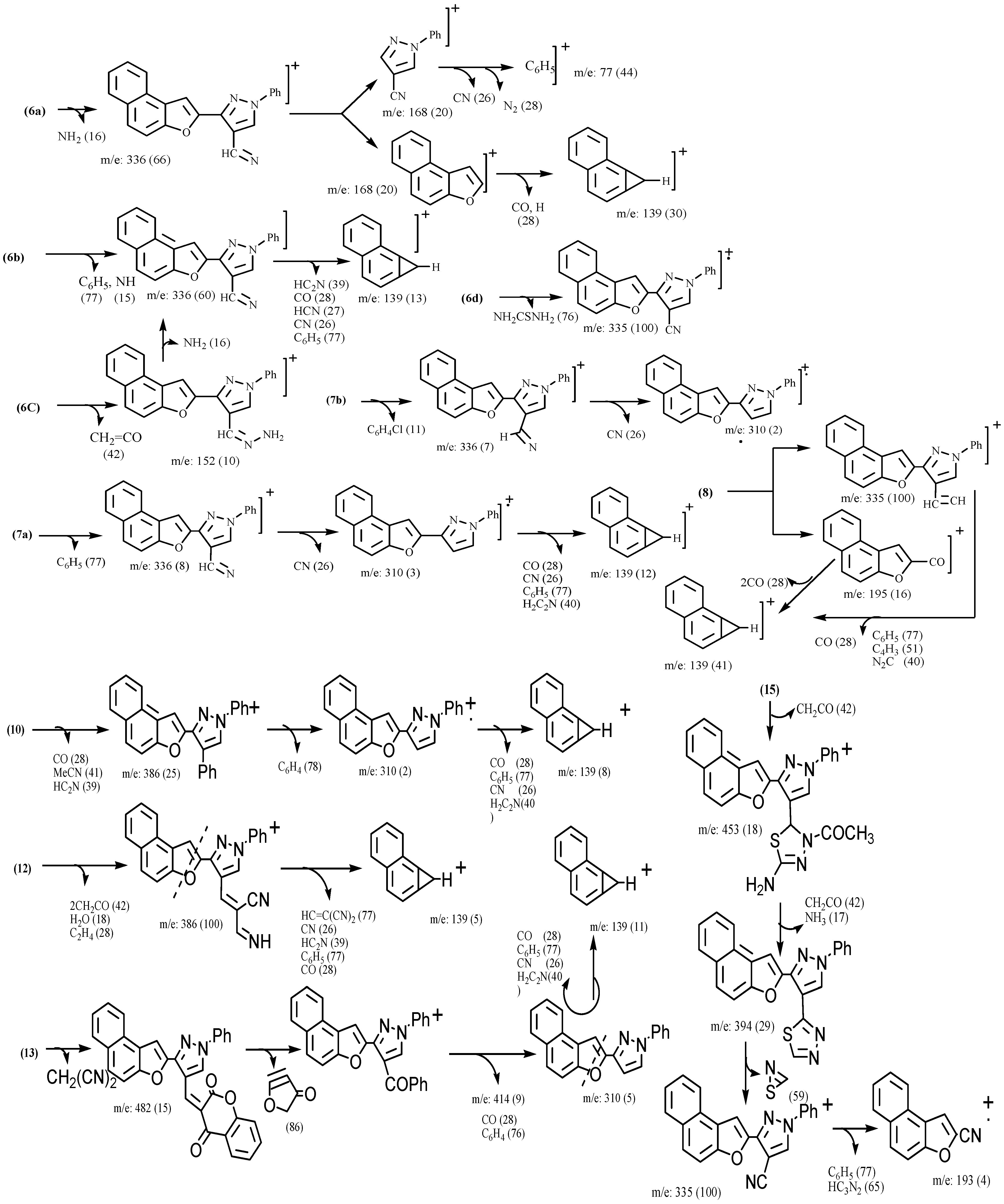

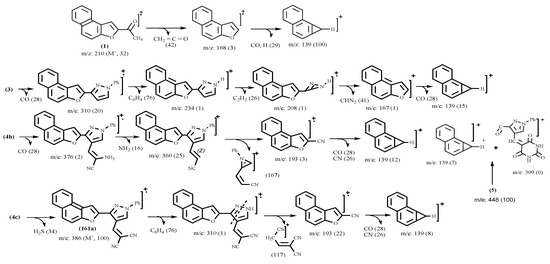

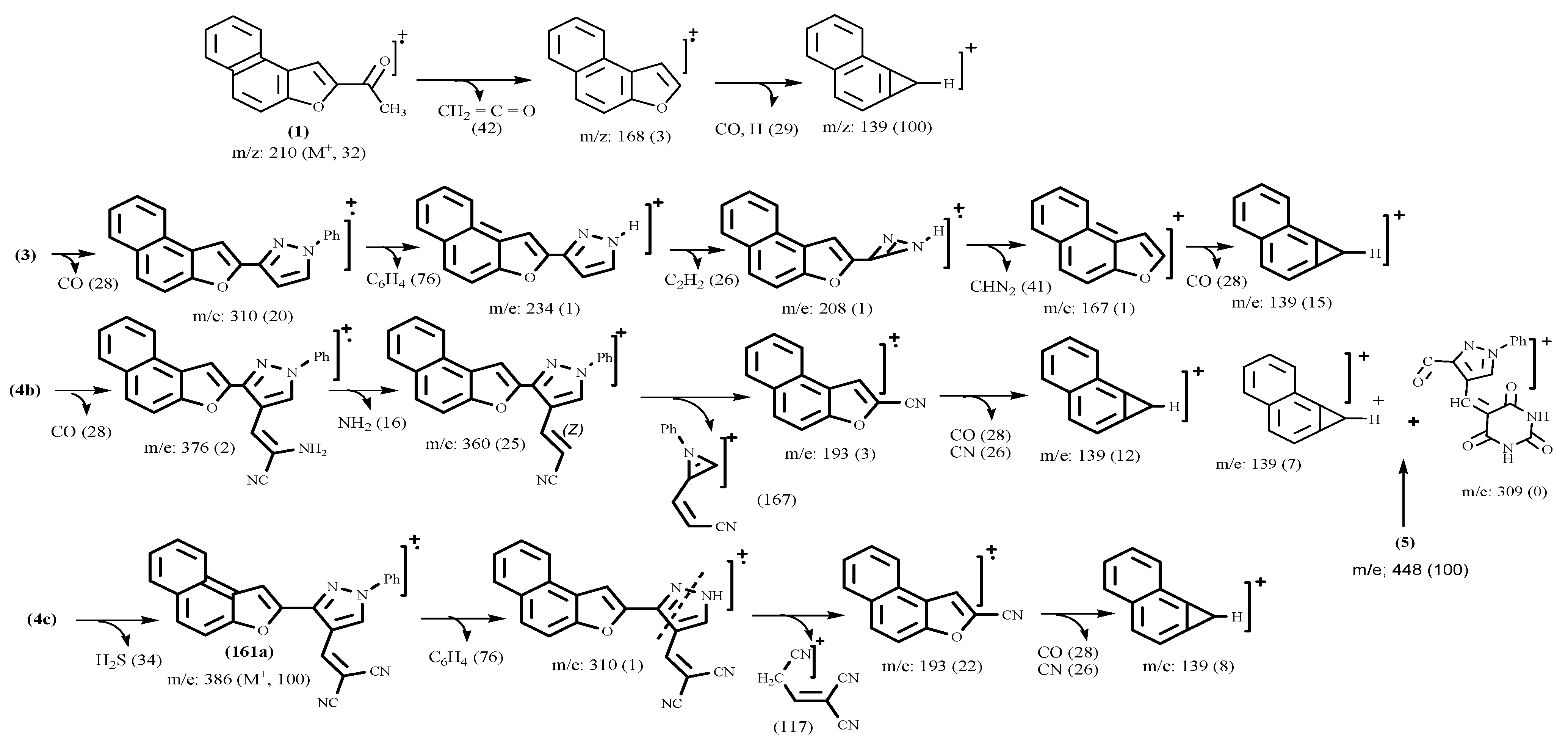

Scheme 3.
Proposed fragmentation pathways for the EI spectra of the substituted naphtho[2,1-b]furans 3-16.
Scheme 3.
Proposed fragmentation pathways for the EI spectra of the substituted naphtho[2,1-b]furans 3-16.
Table I.
Physical and analytical data of new synthesized compounds 1-16.
| Comp. No. | M.P. (T/oC)a | Molecular Formula (MW) | Analysis (%) Found/calculated | ||
|---|---|---|---|---|---|
| C | H | N | |||
| 1 | 108-110a | C14H10O2 (210.23) | 79.95 (79.98) | 4.78 (4.79) | - |
| 2 | 172-174a | C20H16N2O (300.35) | 79.96 (79.98) | 5.35 (5.37) | 9.30 (9.33) |
| 3 | 180-182a | C22H14N2O2 (338.36) | 78.00 (78.09) | 4.12 (4.17) | 8.20 (8.28) |
| 4a | 185-187a | C25H14N4O (386.40) | 77.65 (77.71) | 3.60 (3.65) | 14.47 (14.50) |
| 4b | 292-294b | C25H16N4O2 (404.42) | 74.20 (74.25) | 3.95 (3.99) | 13.78 (13.85) |
| 4c | 265-267a | C25H16N4OS (420.49) | 71.35 (71.41) | 3.80 (3.84) | 13.25 (13.32) |
| 5 | 350-352a | C26H16N4O4 (448.43) | 69.60 (69.64) | 3.55 (3.60) | 12.35 (12.49) |
| 6a | 280-282c | C22H16N4O (352.39) | 74.90 (74.98) | 4.50 (4.58) | 15.85 (15.90) |
| 6b | 190-192d | C29H24N4O (444.53) | 78.29 (78.36) | 5.35 (5.44) | 12.55 (12.60) |
| 6c | 220-222d | C25H22N4O2 (410.47) | 73.10 (73.15) | 5.32 (5.40) | 13.60 (13.65) |
| 6d | 228-230b | C23H17N5OS (411.48) | 67.09 (67.13) | 4.12 (4.16) | 16.95 (17.02) |
| 6e | 345-347e | C25H17N5O2 (419.43) | 71.50 (71.59) | 4.05 (4.09) | 16.67 (16.70) |
| 7a | 174-176d | C29H23N3O (429.51) | 81.00 (81.09) | 5.32 (5.40) | 9.70 (9.78) |
| 7b | 170-172d | C29H22ClN3O (463.96) | 75.00 (75.07) | 4.70 (4.78) | 9.00 (9.06) |
| 8 | 260-262b | C36H22N2O3 (530.57) | 81.40 (81. 49) | 4.12 (4.18) | 5.25 (5.28) |
| 10 | 218-220c | C32H22N4O2 (494.54) | 77.70 (77.72) | 4.35 (4.48) | 11.30 (11.33) |
| 12 | 208-210a | C31H24N4O4 (516.55) | 72.00 (72.08) | 4.60 (4.68) | 10.80 (10.85) |
| 13 | 260-262b | C34H20N44O4 (548.55) | 74.40 (74.44) | 3.60 (3.67) | 10.18 (10.21) |
| 14 | 271-273c | C25H17N5O2S (451.50) | 66.45 (66.50) | 3.72 (3.80) | 15.45 (15.51) |
| 15 | 220-222c | C26H19N5OS (449.53) | 69.42 (69.47) | 4.23 (4.26) | 15.54 (15.85) |
| 16 | 255-257c | C27H21N5O3S (495.55) | 65.38 (65.44) | 4.23 (4.27) | 14.00 (14.13) |
a From EtOH; b from dioxane; c from acetic acid; d from benzene; e from DMF
Table II.
Significant peaks in the EI (70 ev) spectra of compounds 1, 3, 4b,c, 5, 6a-d,7b, 8, 10, 12, 13, 16.
Table II.
Significant peaks in the EI (70 ev) spectra of compounds 1, 3, 4b,c, 5, 6a-d,7b, 8, 10, 12, 13, 16.
| Comp. No. | m/z (intensity/%) | |||||||
|---|---|---|---|---|---|---|---|---|
| M+ | 336 | 310 | 232 | 193 | 139 | 77 | Other peaks | |
| 1 | 210 (32) | 139(100) | 168(3), 113(11), 89(15), 63(38). | |||||
| 3 | 338 (100) | 310 (20) | 139 (15) | 77 (62) | 234 (1), 208 (1), 167 (1) | |||
| 4b | 404 (100) | 232 (1) | 193 (3) | 139 (12) | 77 (67) | 360 (25), 283 (4), 257 (3), | ||
| 4c | 420 (35) | 310 (1) | 193 (8) | 139 (15) | 77 (58) | 386(100), 281(2) | ||
| 5 | 448 (100) | 139 (7) | 77 (34) | 338 (14), 290 (11), 22 4(5), 181 (3) | ||||
| 6a | 352 (100) | 336 (66) | 139 (30) | 77 (44) | 168 (20) | |||
| 6b | 428 (100) | 336 (60) | 139 (13) | 77 (64) | 351 (1), 284 (15), 176 (11) | |||
| 6c | 394 (100) | 336 (29) | 139 (5) | 77 (20) | 352 (10), 309 (2), 232 (3), 180 (1) | |||
| 6d | 411 (1) | 336 (100) | 77 (32) | 308 (2), 233 (2), 20 (1), 181 (1) | ||||
| 7b | 530 (65) | 336 (100) | 232 (5) | 139 (41) | 77 (28) | 258 (4), 195 (16) | ||
| 8 | 447 (100) | 336 (7) | 310 (2) | 233 (3), 207 (5), 141 (15), 76 (64) | ||||
| 10 | 494 (100) | 310 (2) | 193 (5) | 139 (8) | 77 (31) | 466 (2), 386 (25), 233 (4) | ||
| 12 | 516 (2) | 193 (13) | 139 (5) | 77 (16) | 386 (100), 323 (12), 254 (4), | |||
| 13 | 548 (2) | 310 (5) | 139 (11) | 482 (15), 414 (9), 268 (12), 215 (25), 162 (23), 71 (60) | ||||
| 16 | 495 (45) | 336(100) | 232 (3) | 193(4) | 77 (40) | 453 (18), 394 (29), 306 (4) | ||
Table III.
Antibacterial and antifugal activities of select synthesized compounds.
| Comp. No. | Inhibition zone diameter (mm per 200 mcg sample) | |||||
|---|---|---|---|---|---|---|
| (BS) ACTC 10400 | (SA) NCTC 7447 | (EC) NCTC 10410 | (PA) ATCC 10415 | (CA) IMRU 3669 | (AN) ATCC 6275 | |
| 2 | ++ ve | ++ ve | ++ ve | ++ ve | - ve | - ve |
| 14 | +++ ve | +++ ve | +++ ve | +++ ve | +++ ve | +++ ve |
| Neomycin (30 µg mL–1) | +++ ve | +++ ve | +++ ve | +++ ve | +++ ve | +++ ve |
a c = 1 mg mL–1 of new compounds in DMF; - ve (no inhibition zone); + ve (inhibition zone up to 8 mm); ++ ve (inhibition between 8-12 mm); +++ ve (inhibition between 12-15 mm)
© 2011 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution license (http://creativecommons.org/licenses/by/3.0/).
