# Cooling Ability/Capacity and Exergy Penalty Analysis of Each Heat Sink of Modern Supersonic Aircraft

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

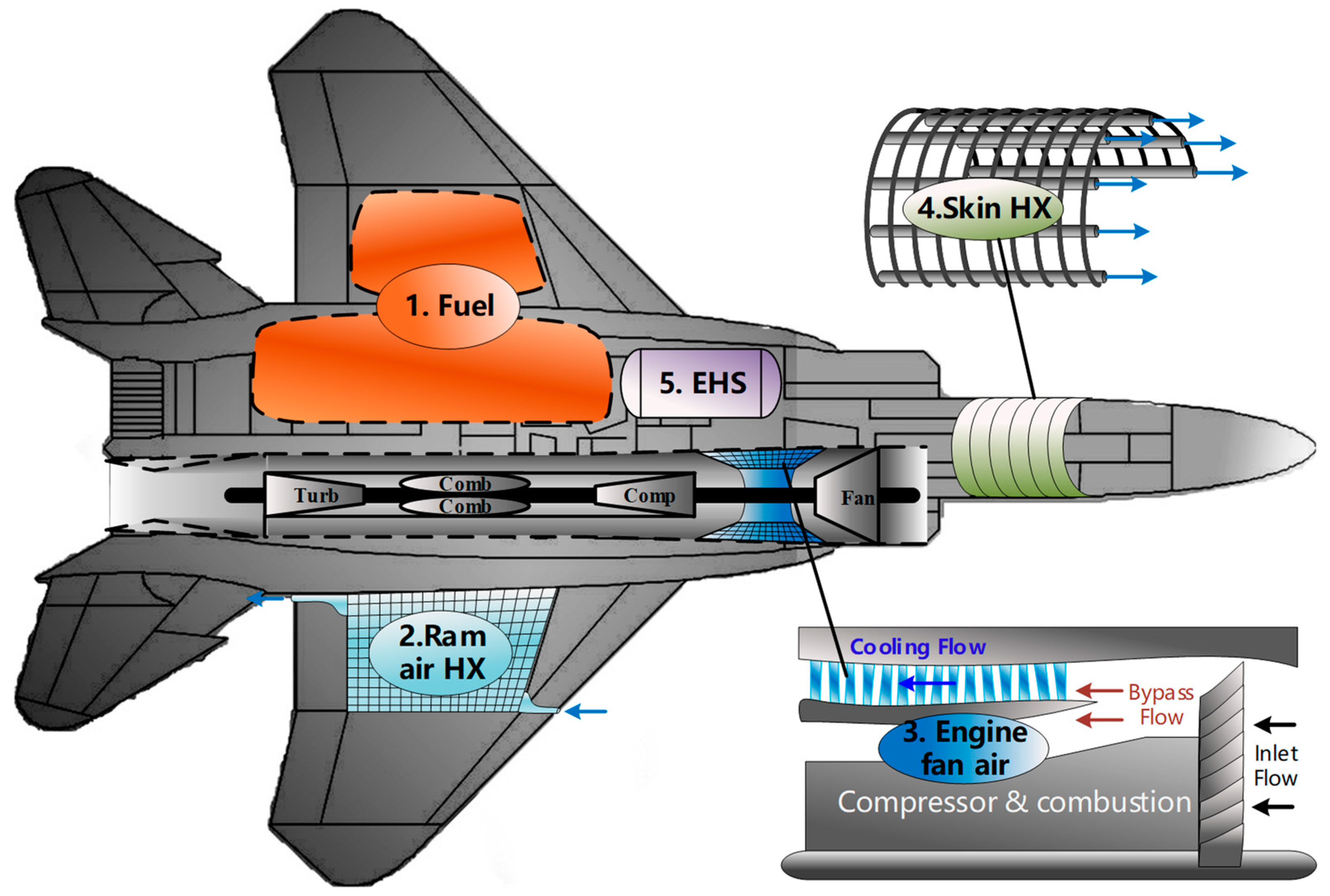

## 2. Heat Sinks of Modern Aircraft

## 3. Estimation Models

#### 3.1. Assumptions

- (1)
- Ignoring the heat leakage, all of the HS can be fully utilized.
- (2)
- The efficiency of engine and lift-drag ratio of aircraft do not change during the whole flight period—this assumption is used to roughly estimate the fuel consumption and output power of engine.
- (3)
- There is always enough heat load to be cooled by various heat sinks, and all the thermal loads are kept at the maximum allowable temperature T
_{loax,}_{max}—this assumption provides an extreme condition for assessing the maximum cooling ability/capacity of various heat sinks, and it also provides the same work condition for different heat sinks for comparing their cooling ability/capacity. - (4)
- The heat transfer efficiency of each HX can be higher than a designed minimum value η
_{HX,}_{min}during the whole flight period—this assumption is used to determine the heat transfer efficiency of HXs under arbitrary conditions, as well as the additional weight caused by these HXs.

#### 3.2. Fuel’s Cooling Ability and Residual Cooling Capacity

#### 3.2.1. Cooling Ability of the Fuel

_{c}, η

_{m}and η

_{t}refer to the combustion efficiency, mechanical efficiency and propulsive efficiency of the engine, respectively. P

_{m,engine}is the total mechanical power the engine supplies, while P

_{t,engine}is engine’s propulsive power, ${\dot{E}}_{k}$ indicates the kinetic energy change rate, ${\dot{E}}_{p}$ is potential energy change rate and ${\dot{E}}_{d}$ is the energy loss resulting from drag. According to the basic flight theory, ${\dot{E}}_{k}$, ${\dot{E}}_{p}$ and ${\dot{E}}_{d}$ all can be determined by the weight, flight velocity and altitude of the aircraft, shown as Equations (3)–(5) respectively. The weight of aircraft m

_{a}will decrease with the consumption of fuel, shown as Equation (6):

#### 3.2.2. Residual Cooling Capacity of Fuel

#### 3.2.3. Exergy Penalty of Fuel

#### 3.3. RA’s Cooling Ability and Exergy Penalty Rate

#### 3.3.1. Cooling Ability of RA

_{RAHX}:

#### 3.3.2. Exergy Penalty Rate of Ra

#### 3.4. EFA’s Cooling Ability and Exergy Penalty Rate

#### 3.4.1. Cooling Ability of EFA

_{ex,EFA}and the heat transfer efficient of FDHX ${\eta}_{FDHX}$:

_{EFA}will be bigger than that of RA, resulting in higher total temperature. Two important performance indexes of turbofan engine are bypass ratio B and power partition coefficient X who will directly influence the Mach number of EFA. The bypass ratio is the ratio between the mass flow rate of the bypass stream and the mass flow rate when entering the core. And the power partition coefficient is the proportion between available work that engine offers ducted fan and all mechanical work produced by engine. The power provided by the engine to per kilogram bypass stream ${w}_{b}$ can be determined by Equation (27) where ${\eta}_{f}$ is the efficiency of the duct fan which indicates the ratio of converting mechanical power into the kinetic energy of bypass stream. The ${P}_{m,engine}$ and ${\dot{m}}_{fuel}$ in these two equations have been obtained by Equation (2) above:

#### 3.4.2. Exergy Penalty Rate of EFA

#### 3.5. SHX’s Cooling Ability and Exergy Penalty Rate

#### 3.5.1. Cooling Ability of SHX

#### 3.5.2. Exergy Penalty Rate of SHX

#### 3.6. EHS’s Cooling Capacity and Exergy Penalty Rate

#### 3.6.1. Cooling Capacity of EHS

#### 3.6.2. Exergy Penalty Rate of EHS

#### 3.7. Cooling Capacity and Exergy Penalty of Heat Sinks

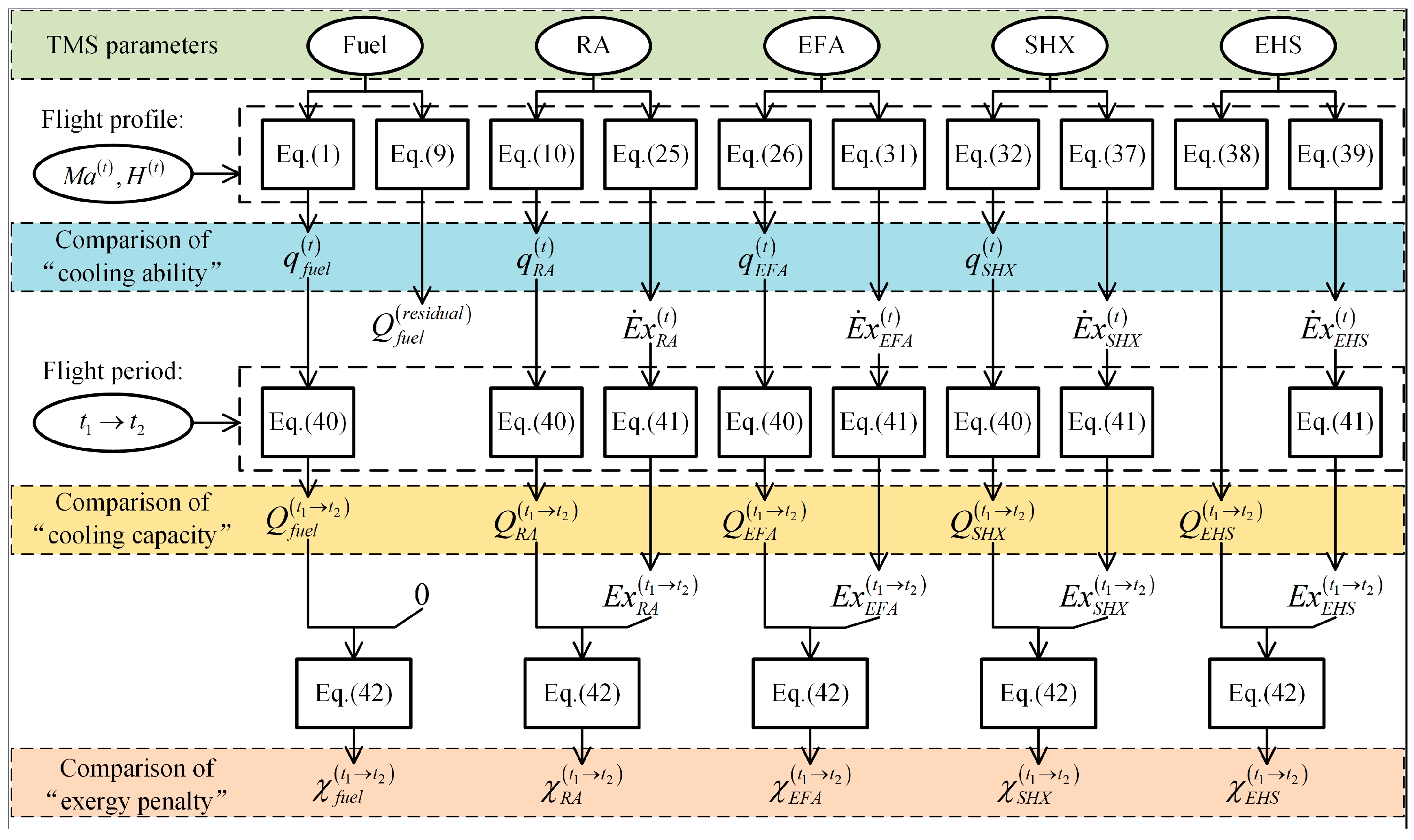

#### 3.8. Calculation Procedure

## 4. Results and Discussion

#### 4.1. Case Design

#### 4.1.1. The Standard “Case 0” for Estimating Study

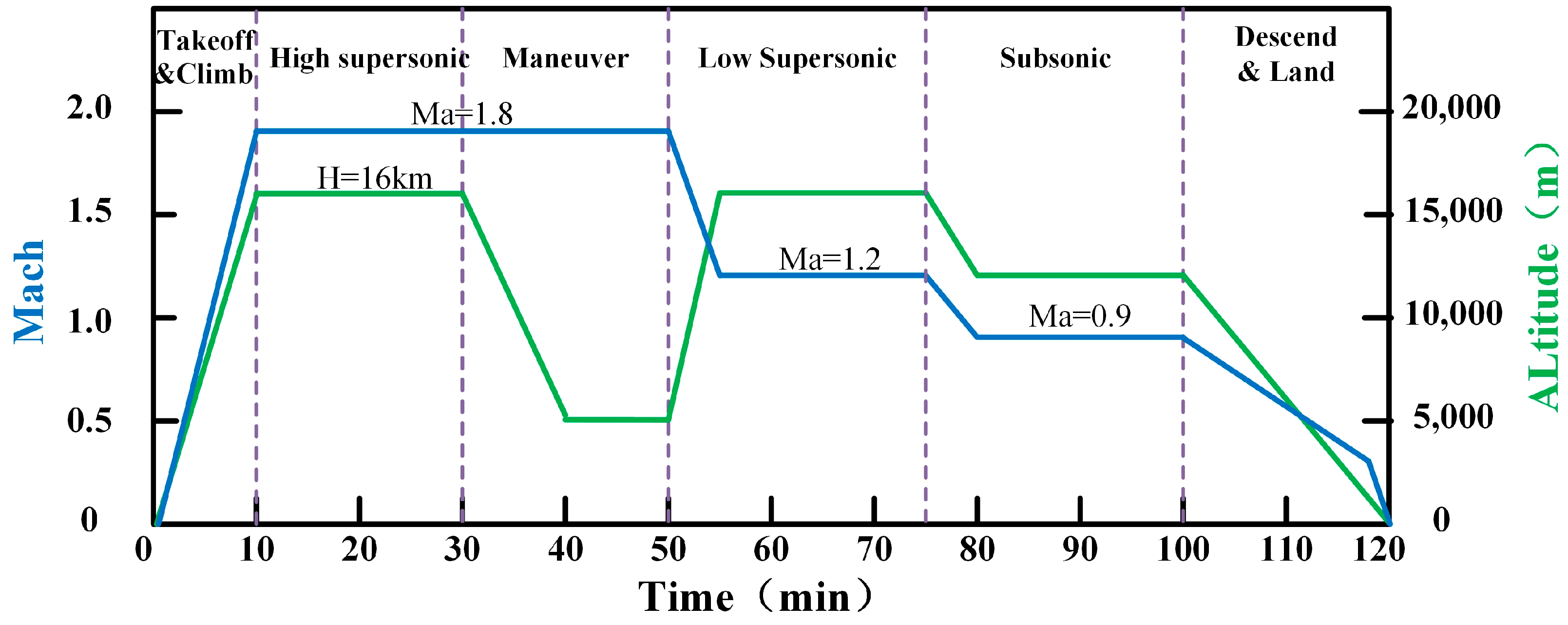

#### 4.1.2. Flight Profile

#### 4.2. Influence of TMS Parameters on Heat Sinks

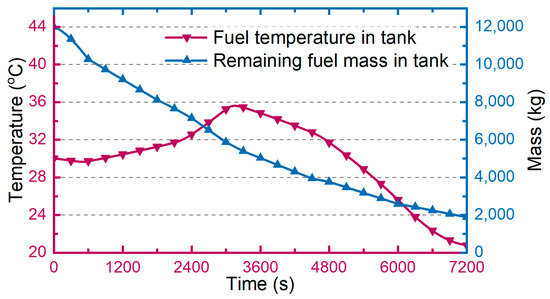

#### 4.2.1. Fuel

#### 4.2.2. Ram Air

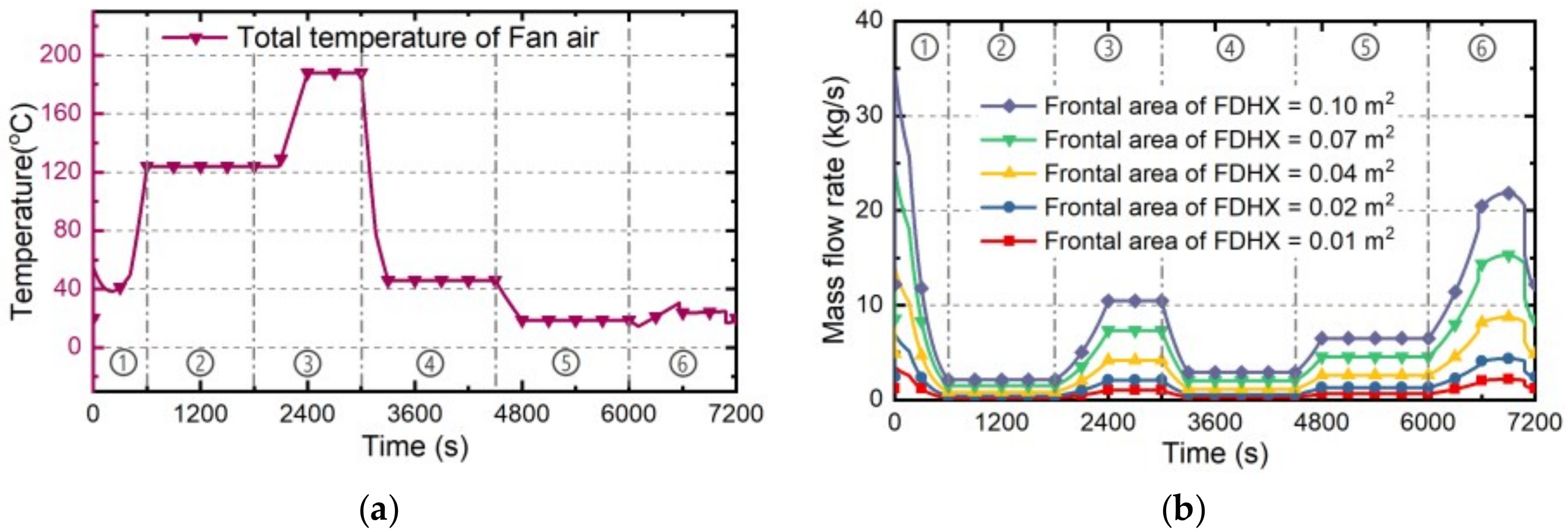

#### 4.2.3. Engine Fan Air

#### 4.2.4. Skin HXs

#### 4.2.5. Expendable Heat Sinks

#### 4.3. Comparison of Different Heat Sinks

#### 4.3.1. Cooling Ability Comparison of Each Heat Sink

#### 4.3.2. Cooling Capacity and Exergy Penalty Comparison of Each Heat Sink

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## Nomenclature

Symbol | Subscript | ||

q | Cooling ability (W) | a | Aircraft |

Q | Cooling capacity (J) | c | Combustion |

$m$ | Mass (kg) | m | Mechanical |

$\dot{m}$ | Mass flow rate (kg/s) | t | Thrust & Propulsive |

$T$ | Temperature (K) | f | Engine duct fan |

E | Energy (J) | k | Kinetic energy |

$\dot{E}$ | Energy change rate (W) | p | Potential energy |

Ex | Exergy penalty (J) | max | Maximum |

$\dot{E}x$ | Exergy penalty rate (W) | min | Minimum |

P | Power (W) | d | Drag |

$\eta $ | efficiency | w | Weight |

$v$ | Velocity (m/s) | $\infty $ | Ambient |

Ma | Mach number of aircraft | 0 | Ambient with sea level |

H | Altitude of aircraft (m) | ex | Total temperature/pressure |

D | Drag force | in | Air inlet |

A | Area (m^{2}) | core | Core of engine |

p | Pressure (Pa) | st | Storage |

t | Time (s) | ||

k | Heat trans coefficient (W/m^{2}K) | Abbreviations | |

$\rho $ | Density (kg/m^{3}) | TMS | Thermal management system |

$\alpha $ | Area density (m^{2}/m^{3}) | HX | Heat exchanger |

$\varphi $ | Combustion value (J/kg) | RA | Ram air |

${c}_{p}$ | Specific heat capacity (J/kg K) | RAHX | Ram air heat exchanger |

$\lambda $ | Thermal conductivity (W/m K) | EFA | Engine fan air |

$\mu $ | Kinetic viscosity (s/m^{2}) | FDHX | Fan duct heat exchanger |

h | Specific enthalpy (J/kg) | SHX | Skin heat exchanger |

$\xi $ | Velocity loss coefficient | EHS | Expendable heat sink |

K | Lift-drag ratio of the aircraft | LA | Liquid ammonia |

B | Bypass ratio of engine | LNG | Liquid nature gas |

X | Power partition coefficient | ECS | Environment control system |

${w}_{b}$ | Power to per kg bypass stream | HTR | Heat transfer rate |

$\theta $ | Air-fuel ratio of engine | PAO | Poly Alpha Olefin |

$\epsilon $ | Surface emissivity | ||

$\chi $ | Cooling-penalty ratio | ||

Constant | |||

R | Gas constant | 8.314 J/mol K | |

g | Acceleration of gravity | 9.807 m/s^{2} | |

$\mathsf{\sigma}$ | Stefan-Boltzmann constant | $5.67\times {10}^{-8}{\mathrm{W}/\mathrm{m}}^{2}{\mathrm{K}}^{4}$ | |

$\mathsf{\gamma}$ | Ambient temperature lapse rate | 0.0065 K/m |

## References

- Mahefkey, T.; Yerkes, K.; Donovan, B.; Ramalingam, M.L. Thermal Management Challenges for Future Military Aircraft Power Systems; SAE Technical Paper; SAE MOBILUS: Warrendale, PA, USA, 2004. [Google Scholar]
- Freeman, J.; Osterkamp, P.; Green, M.; Gibson, A.; Schiltgen, B. Challenges and opportunities for electric aircraft thermal management. Aircr. Eng. Aerosp. Technol.
**2014**, 86, 519–524. [Google Scholar] [CrossRef] - Letlow, J.T.; Jenkins, L.C. Development of an Integrated Environmental Control System; SAE Technical Paper; SAE MOBILUS: Warrendale, PA, USA, 1998. [Google Scholar]
- Kim, Y.j.; Kim, C.N. A numerical prediction and flight test of the transient fuel temperatures in an aircraft. J. Mech. Sci. Technol.
**2007**, 21, 2250. [Google Scholar] [CrossRef] - Bodie, M.; Russell, G.; McCarthy, K.; Lucas, E.; Zumberge, J.; Wolff, M. Thermal Analysis of an Integrated Aircraft Model. In Proceedings of the 48th AIAA Aerospace Sciences Meeting Including the New Horizons Forum and Aerospace Exposition, Orlando, FL, USA, 4–7 January 2010. [Google Scholar]
- Wang, J.X.; Li, Y.Z.; Li, J.X.; Li, C.; Zhang, Y.; Ning, X.W. A gas-atomized spray cooling system integrated with an ejector loop: Ejector modeling and thermal performance analysis. Energy Convers. Manag.
**2019**, 180, 106–118. [Google Scholar] [CrossRef] - Dooley, M.; Lui, C.; Newman, R.W. Efficient Propulsion, Power, and Thermal Management Integration. In Proceedings of the 49th AIAA/ASME/SAE/ASEE Joint Propulsion Conference, San Jose, CA, USA, 14–17 July 2013. [Google Scholar]
- Behbahani, A.R.; Roberts, R.A.; Chandoke, A.K. Intelligent Nodal-Based Controls Technologies for Integrated Propulsion Energy Power Thermal Management Systems. In Proceedings of the 52nd AIAA/SAE/ASEE Joint Propulsion Conference, Salt Lake City, UT, USA, 25–27 July 2016. [Google Scholar]
- Petley, D.H.; Jones, S.C. Thermal Management for a Mach 5 Cruise Aircraft Using Endothermic Fuel. J. Aircr.
**1992**, 29, 384–389. [Google Scholar] [CrossRef] - Li, F.Y.; Yang, C.X.; Zhang, X.J.; Wang, C. Analysis on thermal control approach for a bare shaft of rudder in a hypersonic vehicle. Appl. Therm. Eng.
**2018**, 137, 487–493. [Google Scholar] [CrossRef] - Zhong, M.L.; Li, Y.Z.; Guo, W.; Wang, S.N.; Mao, Y.F. Dynamic in-loop performance investigation and efficiency-cost analysis of dual heat sink thermal control system (DHS-TCS) with a sublimator for aerospace vehicles. Appl. Therm. Eng.
**2017**, 121, 562–575. [Google Scholar] [CrossRef] - Shanmugasundaram, V.; Ramalingam, M.L.; Donovan, B. Thermal Management System with Energy Storage for An Airborne Laser Power System Application. In Proceedings of the 5th International Energy Conversion Engineering Conference and Exhibit, St. Louis, MO, USA, 25–27 June 2007. [Google Scholar]
- Wang, J.X.; Li, Y.Z.; Li, G.C.; Xiong, K.; Ning, X.W. Investigation of a Gravity-immune Chip-level Spray Cooling for Thermal Protection of Laser-based Wireless Power Transmission System. Int. J. Heat Mass Transf.
**2017**, 114, 715–726. [Google Scholar] [CrossRef] - Wang, J.X.; Li, Y.Z.; Zhang, Y.; Li, J.X.; Mao, Y.F.; Ning, X.W. A hybrid cooling system combining self-adaptive single-phase mechanically pumped fluid loop and gravity-immune two-phase spray module. Energy Convers. Manag.
**2018**, 176, 194–208. [Google Scholar] [CrossRef] - Shanmugasundaram, V.; Ramalingam, M.; Donovan, B.; Mahefkey, T. Aircraft Based Pulsed Power System Thermal Management Options with Energy Storage. In Proceedings of the 4th International Energy Conversion Engineering Conference and Exhibit, San Diego, CA, USA, 26–29 June 2006. [Google Scholar]
- Ashford, R.; Brown, S. F-22 Environmental Control System Thermal Management System (ECS_TMS) Flight Test Program—Downloadable Constants, an Innovative Approach; SAE Technical Paper; SAE MOBILUS: Warrendale, PA, USA, 2000. [Google Scholar]
- Reeve, H.; Finney, A. Probabilistic Analysis for Aircraft Thermal Management System Design and Evaluation. In Proceedings of the 46th AIAA Aerospace Sciences Meeting and Exhibit, Reno, NV, USA, 7–10 January 2008. [Google Scholar]
- Roberts, R.A.; Decker, D.D. Control Architecture Study Focused on Energy Savings of an Aircraft Thermal Management System. J. Dyn. Syst. Meas. Control
**2014**, 136, 041003. [Google Scholar] [CrossRef] - 2SAE AC-9 Aircraft Environmental Systems Committee. Heat Sinks for Airborne Vehicles; SAE Technical Report, AIR1957; SAE MOBILUS: Warrendale, PA, USA, 2002. [Google Scholar]
- Lui, C.; Arce, E.C.; Banks, C.; Ho, B.; Walia, P.; Lee, C.; Canto, G. Potential Technology to Unclog Hot Day Operational Limit; SAE Technical Paper; SAE MOBILUS: Warrendale, PA, USA, 2010. [Google Scholar]
- Fan, X.J.; Zhong, F.Q.; Yu, G.; Li, J.G.; Sung, C.J. Catalytic Cracking and Heat Sink Capacity of Aviation Kerosene Under Supercritical Conditions. J. Propuls. Power
**2009**, 25, 1226–1232. [Google Scholar] [CrossRef] - EDWARDS, T.I.M. Cracking and deposition behavior of supercritical hydrocarbon aviation fuels. Combust. Sci. Technol.
**2006**, 178, 307–334. [Google Scholar] [CrossRef] - Hou, L.Y.; Dong, N.; Sun, D.P. Heat transfer and thermal cracking behavior of hydrocarbon fuel. Fuel
**2013**, 103, 1132–1137. [Google Scholar] [CrossRef] - Wickham, D.T.; Engel, J.R.; Rooney, S.; Hitch, B.D. Additives to Improve Fuel Heat Sink Capacity in Air/Fuel Heat Exchangers. J. Propuls. Power
**2008**, 24, 55–63. [Google Scholar] [CrossRef] - Aviationweek. USAF Details Sixth-Gen Combat Engine Research Plan [EB/OL]; Aviationweek: Washington, DC, USA, 2016. [Google Scholar]
- Aviationweek. Three-Stream Engine Moves To New Phase [EB/OL]; Aviationweek: Washington, DC, USA, 2016. [Google Scholar]
- Patel, H.R.; Wilson, D. Parametric Cycle Analysis of Adaptive Cycle Engine. In Proceedings of the 2018 Joint Propulsion Conference, Cincinnati, OH, USA, 9–11 July 2018. [Google Scholar]
- Johnson, D.J.; Niedbalski, N.P.; Ervin, J.S.; Patnaik, S.S. Ammonium carbamate-based heat exchanger reactor as an endothermic heat sink for thermal management. Int. J. Heat Mass Transf.
**2015**, 91, 766–776. [Google Scholar] [CrossRef] - Johnson, D.J.; Niedbalski, N.P.; Ervin, J.S.; Patnaik, S.S. A thermal management system using ammonium carbamate as an endothermic heat sink. Appl. Therm. Eng.
**2017**, 121, 897–907. [Google Scholar] [CrossRef] - Nuzum, S.R.; Donovan, A.; Roberts, R.A.; Wolff, M. Dynamic Modeling at a Vehicle Level of a Cryogenic Based Thermal System for a High Powered System. In Proceedings of the AIAA Science and Technology Forum and Exposition, San Diego, CA, USA, 4–8 January 2016. [Google Scholar]
- Nuzum, S.R.; Roberts, R.A.; Wolff, M. Various Integrated Aerospace Systems utilizing a Cryogenic Fluid. In Proceedings of the 13th International Energy Conversion Engineering Conference, Orlando, FL, USA, 27–29 July 2015. [Google Scholar]
- Saltzman, D.; Bichnevicius, M.; Lynch, S.; Simpson, T.W.; Reutzelb, E.W.; Dickmanb, C.; Martukanitzb, R. Design and evaluation of an additively manufactured aircraft heat exchanger. Appl. Therm. Eng.
**2018**, 138, 254–263. [Google Scholar] [CrossRef] - Klett, J.; Conway, B. Thermal management solutions utilizing high thermal conductivity graphite foams, Society for the Advancement of Material and Process Engineering. Bridg. Centuries wSAMPE’s Mater. Process. Technol.
**2000**, 45, 1933–1943. [Google Scholar] - Oba, D.; Gonda, Y. Fuel System with Variable Speed Pump to Improve Thermal Management Ability for Aircraft Engines. In Proceedings of the ASME Turbo Expo 2014: Turbine Technical Conference and Exposition, Düsseldorf, Germany, 16–20 June 2014; American Society of Mechanical Engineers: New York, NY, USA, 2014. [Google Scholar]
- Wang, J.X.; Li, Y.Z.; Yu, X.K.; Li, G.C.; Ji, X.Y. Investigation of heat transfer mechanism of low environmental pressure large-space spray cooling for near-space flight systems. Int. J. Heat Mass Transf.
**2018**, 119, 496–507. [Google Scholar] [CrossRef] - Wang, J.X.; Li, Y.Z.; Zhang, H.S.; Wang, S.N.; Mao, Y.F.; Zhang, Y.N.; Liang, Y.H. Investigation of a spray cooling system with two nozzles for space application. Appl. Therm. Eng.
**2015**, 89, 115–124. [Google Scholar] [CrossRef] - Wang, J.X.; Li, Y.Z.; Mao, Y.F.; Li, E.H.; Ning, X.W.; Ji, X.Y. Comparative study of the heating surface impact on porous-material-involved spray system for electronic cooling–an experimental approach. Appl. Therm. Eng.
**2018**, 135, 537–548. [Google Scholar] [CrossRef] - Deng, D.X.; Pi, G.; Zhang, W.X.; Wang, P.; Fu, T. Numerical Study of Double-Layered Microchannel Heat Sinks with Different Cross-Sectional Shapes. Entropy
**2019**, 21, 16. [Google Scholar] [CrossRef] - Ma, L.; Zhao, X.; Sun, H.; Wu, Q.; Liu, W. Experimental study of single phase flow in a closed-loop cooling system with integrated mini-channel heat sink. Entropy
**2016**, 18, 128. [Google Scholar] [CrossRef] - Wang, J.X.; Li, Y.Z.; Zhang, H.S.; Wang, S.N.; Zhang, H.S.; Ning, X.W.; Guo, W. Experimental investigation of the thermal control effects of phase change material based packaging strategy for on-board permanent magnet synchronous motors. Energy Convers. Manag.
**2016**, 123, 232–242. [Google Scholar] [CrossRef] - Wang, S.N.; Li, Y.H.; Li, Y.Z.; Wang, J.X.; Xiao, X.; Guo, W. Transient cooling effect analyses for a permanent-magnet synchronous motor with phase-change-material packaging. Appl. Therm. Eng.
**2016**, 109, 251–260. [Google Scholar] [CrossRef] - Jain, N.; Hencey, B.M. Increasing Fuel Thermal Management System Capability via Objective Function Design. In Proceedings of the IEEE 2016 American Control Conference, Boston, MA, USA, 6–8 July 2016. [Google Scholar]
- Bodie, M.; Wolff, M. Robust Optimization of an Aircraft Power Thermal Management System. In Proceedings of the 46th AIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit, Nashville, TN, USA, 25–28 July 2010. [Google Scholar]
- Deppen, T.O.; Hey, J.E.; Alleyne, A.G.; Fisher, T.S. A model predictive framework for thermal management of aircraft. In Proceedings of the ASME 2015 Dynamic Systems and Control Conference, American Society of Mechanical Engineers, Columbus, OH, USA, 28–30 October 2015. [Google Scholar]
- Dooley, M.; Lui, N.; Newman, R.; Lui, C. Aircraft Thermal Management-Heat Sink Challenge; SAE Technical Paper; SAE MOBILUS: Warrendale, PA, USA, 2014. [Google Scholar]
- Pangborn, H.C.; Hey, J.E.; Deppen, T.O.; Alleyne, A.G.; Fisher, T.S. Hardware-in-the-Loop Validation of Advanced Fuel Thermal Management Control. J. Thermophys. Heat Transf.
**2017**, 31, 901–909. [Google Scholar] [CrossRef] - German, B.J. Tank Heating Model for Aircraft Fuel Thermal Systems with Recirculation. J. Propuls. Power
**2012**, 28, 204–210. [Google Scholar] [CrossRef] - Grabow, R.; Kazan, T. Design of a ram air driven air cycle cooling system for fighter aircraft pods. In Proceedings of the 31st Thermophysics Conference, New Orleans, LA, USA, 17–20 June 1996. [Google Scholar]
- Pang, L.P.; Dang, X.M.; Cheng, J. Study on Heat Transfer Performance of Skin Heat Exchanger. Exp. Heat Transf.
**2015**, 28, 317–327. [Google Scholar] [CrossRef] - Le Claire, R. Evaluation of the overall fuel mass penalty of an aircraft system. Aeronaut. J.
**1975**, 79, 225–228. [Google Scholar] - Le Claire, R. Surface Heat Exchangers. Aeronaut. Q.
**1976**, 27, 40–54. [Google Scholar] [CrossRef]

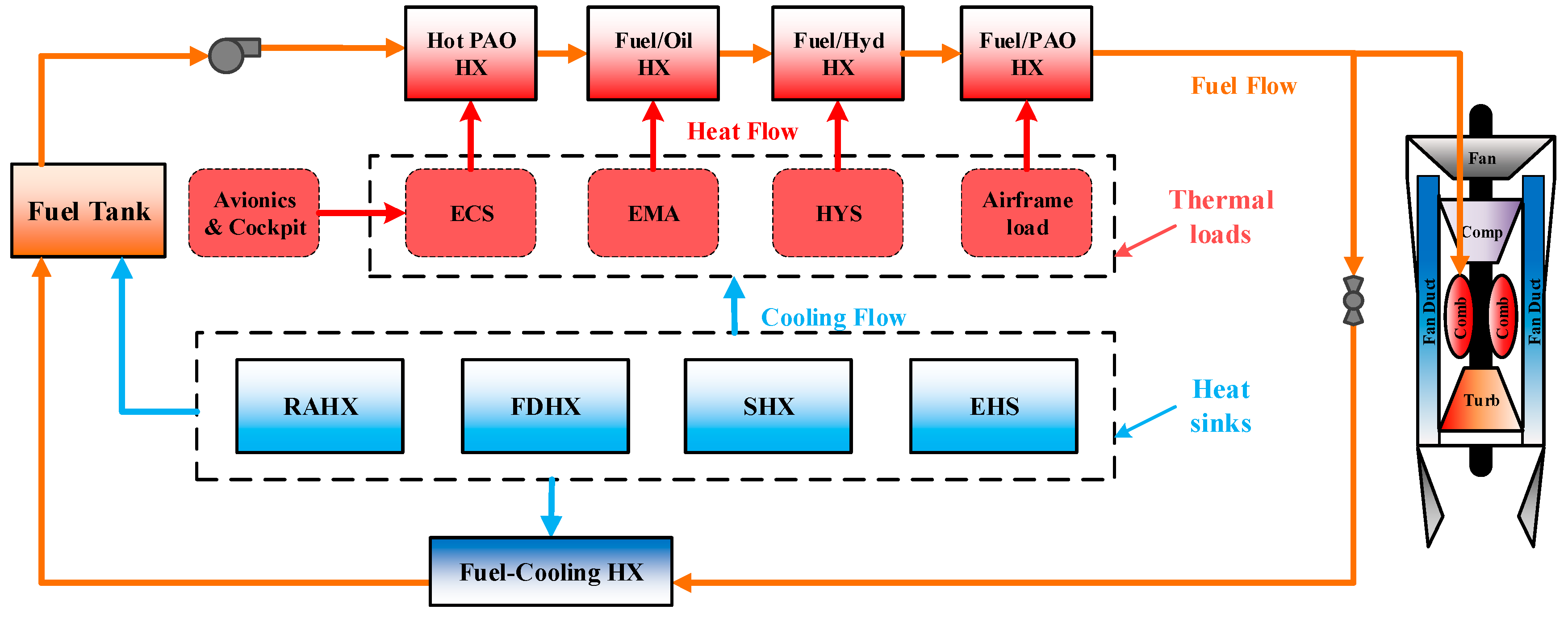

**Figure 2.**Typical thermal management system (TMS) of modern advantage aircraft. ECS, environment control system; EMA, electro-mechanical actuation; HYS, hydraulic system; RAHX, ram air heat exchanger; FDHX, fan duct heat exchanger; SHX, skin heat exchanger; PAO, Poly Alpha Olefin.

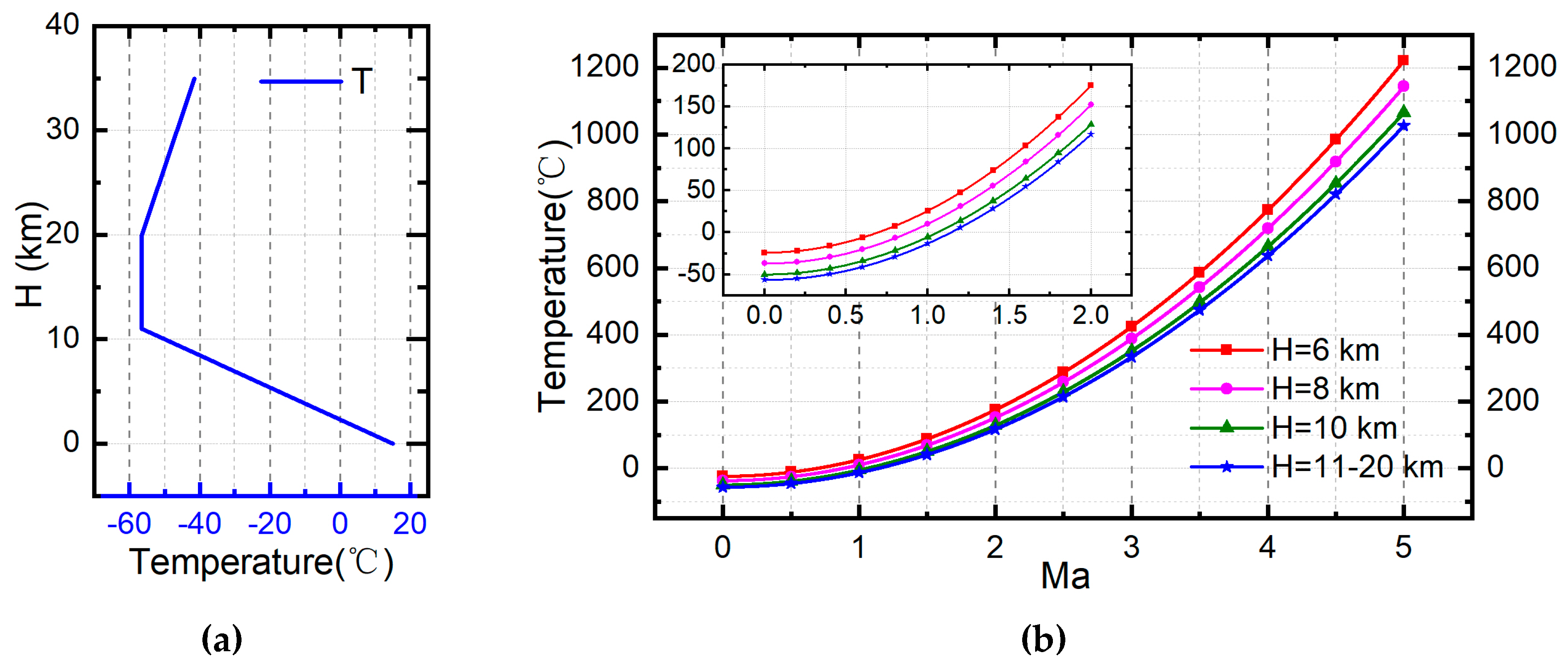

**Figure 3.**(

**a**) Atmosphere temperature with altitude; (

**b**) Total temperature of RA with flight Mach number.

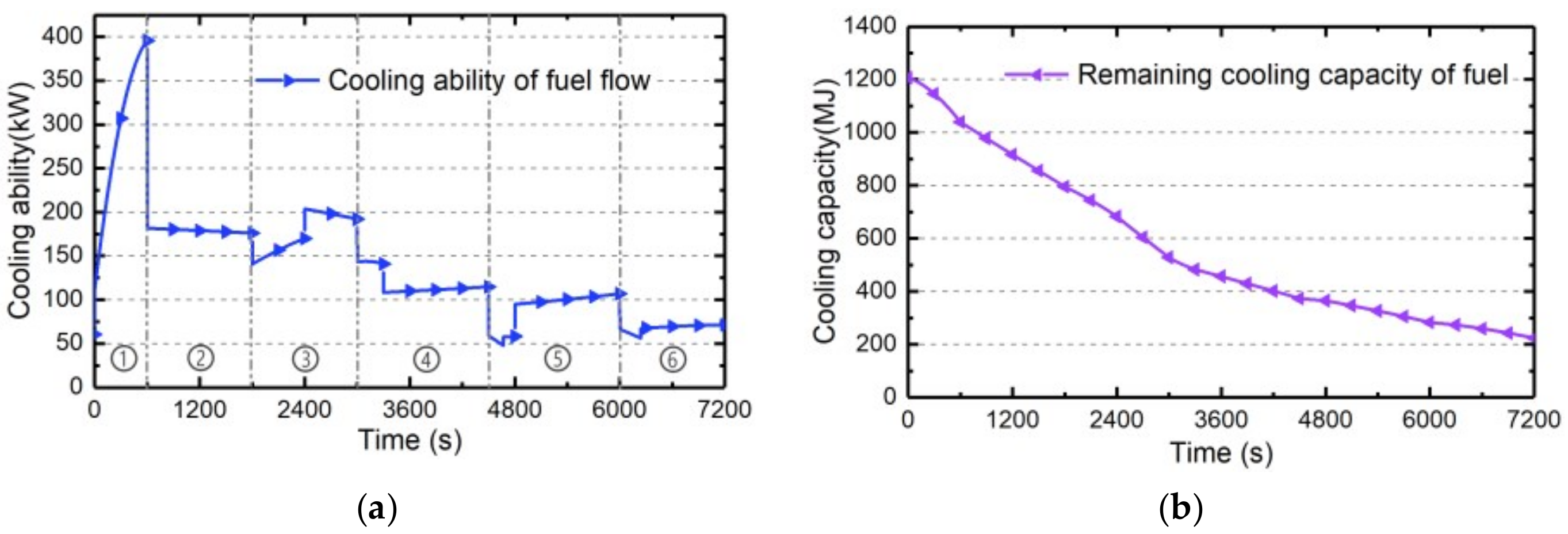

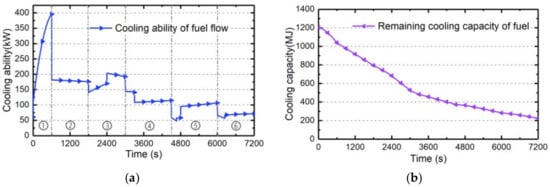

**Figure 7.**The estimation results of fuel in Case 0. (

**a**) cooling ability of consumption fuel flow; (

**b**) cooling capacity of remaining fuel mass in tank.

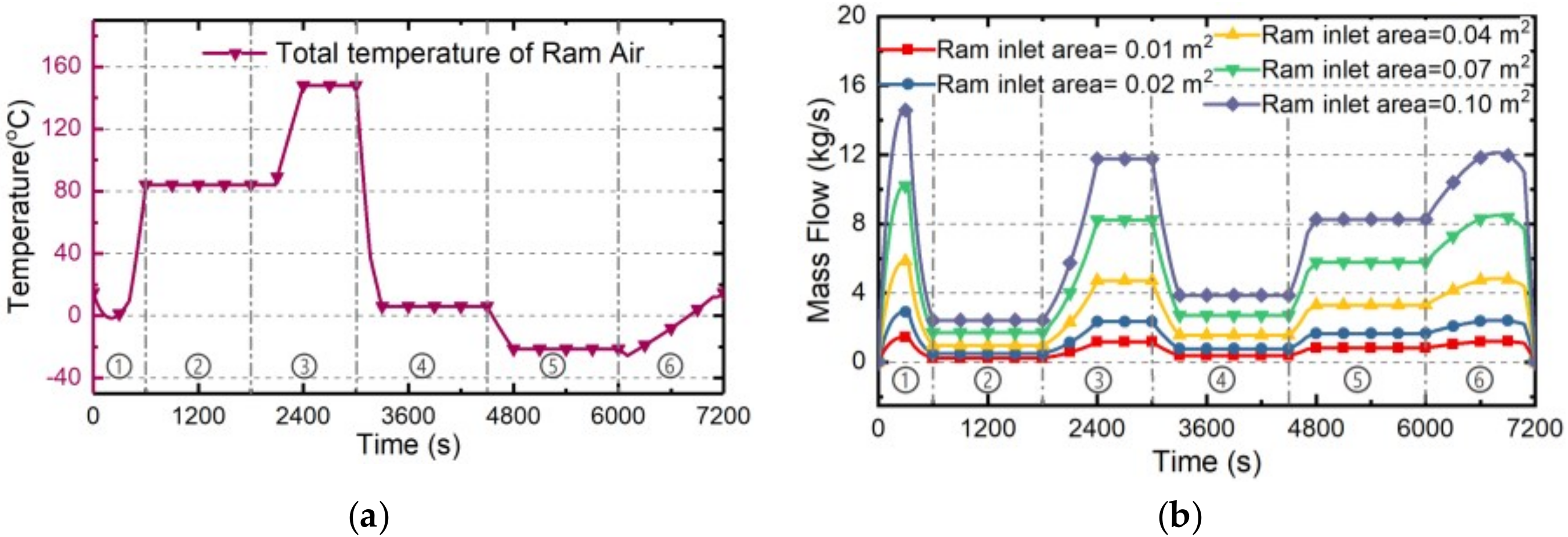

**Figure 8.**The estimating results of RA in Cases 1~5: (

**a**) The total temperature and (

**b**) The mass flow rate.

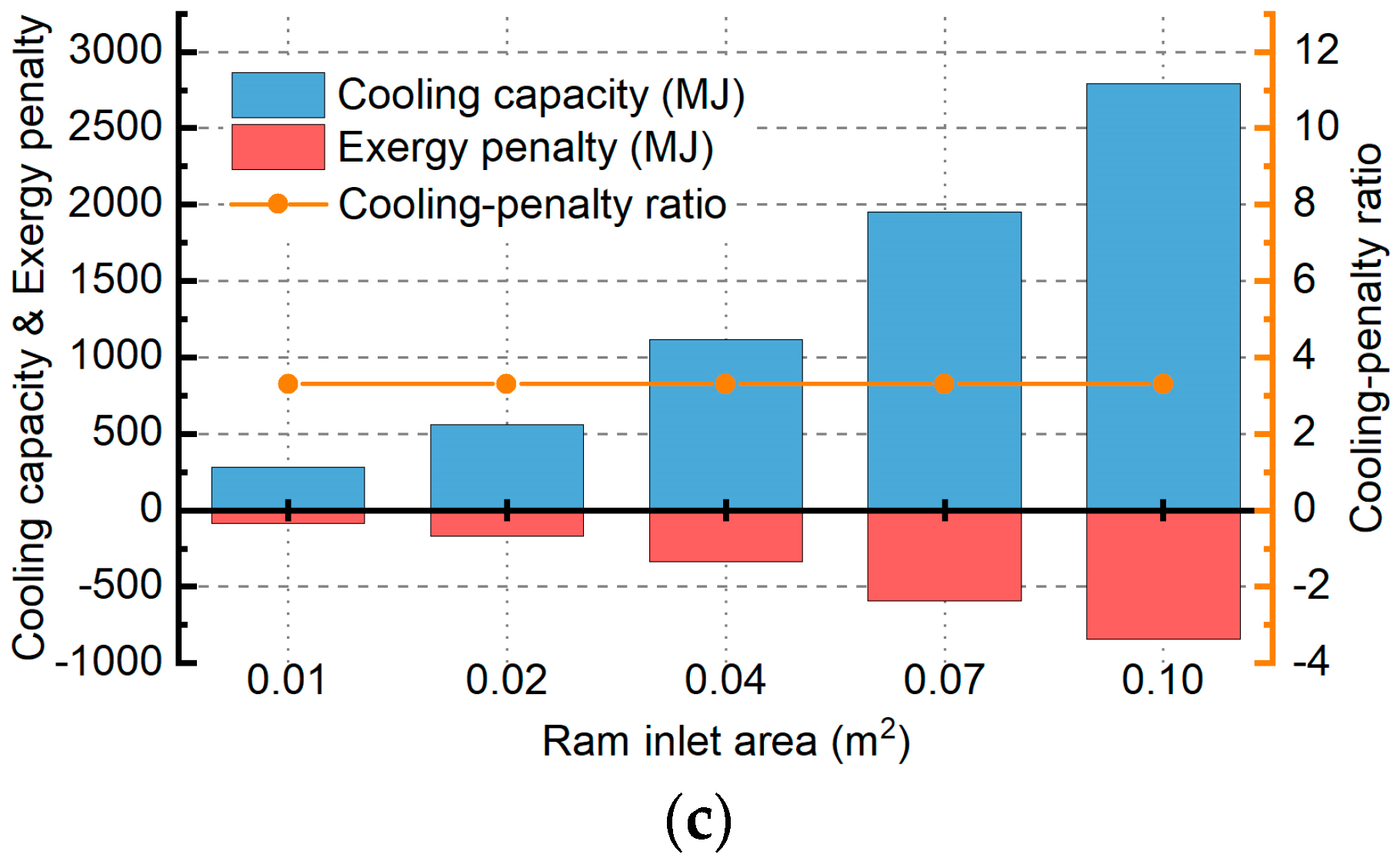

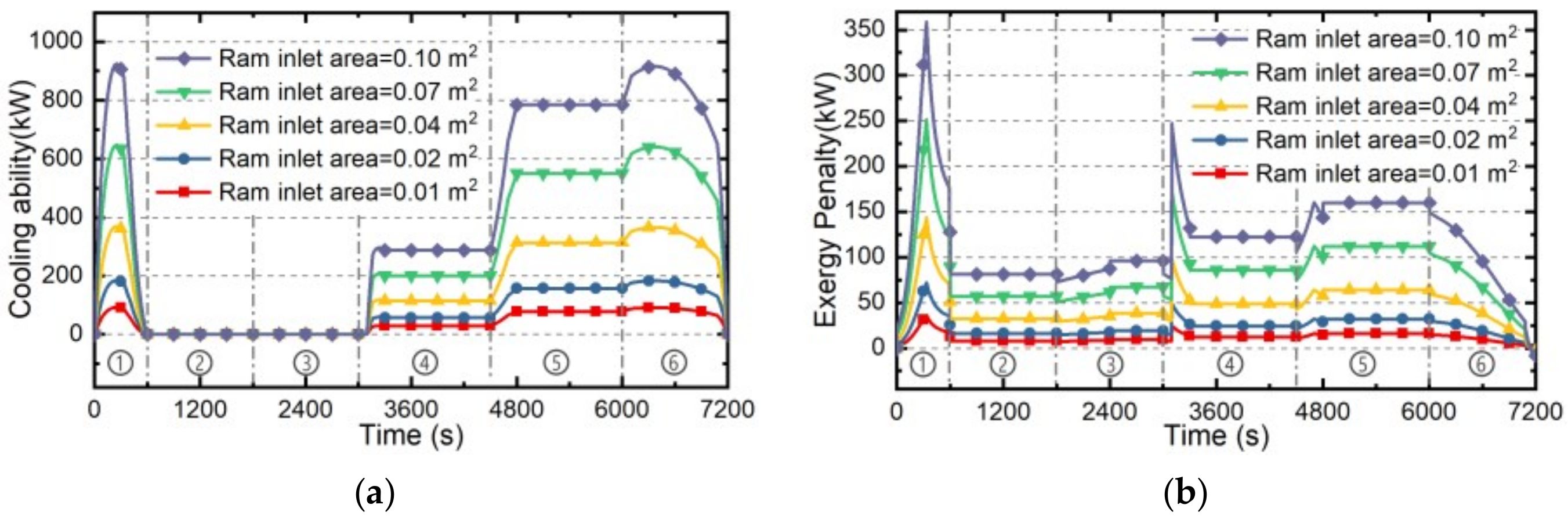

**Figure 9.**The estimation results of RA under Cases 1~5. (

**a**) cooling ability; (

**b**) exergy penalty rate; (

**c**) cooling capacity and exergy penalty.

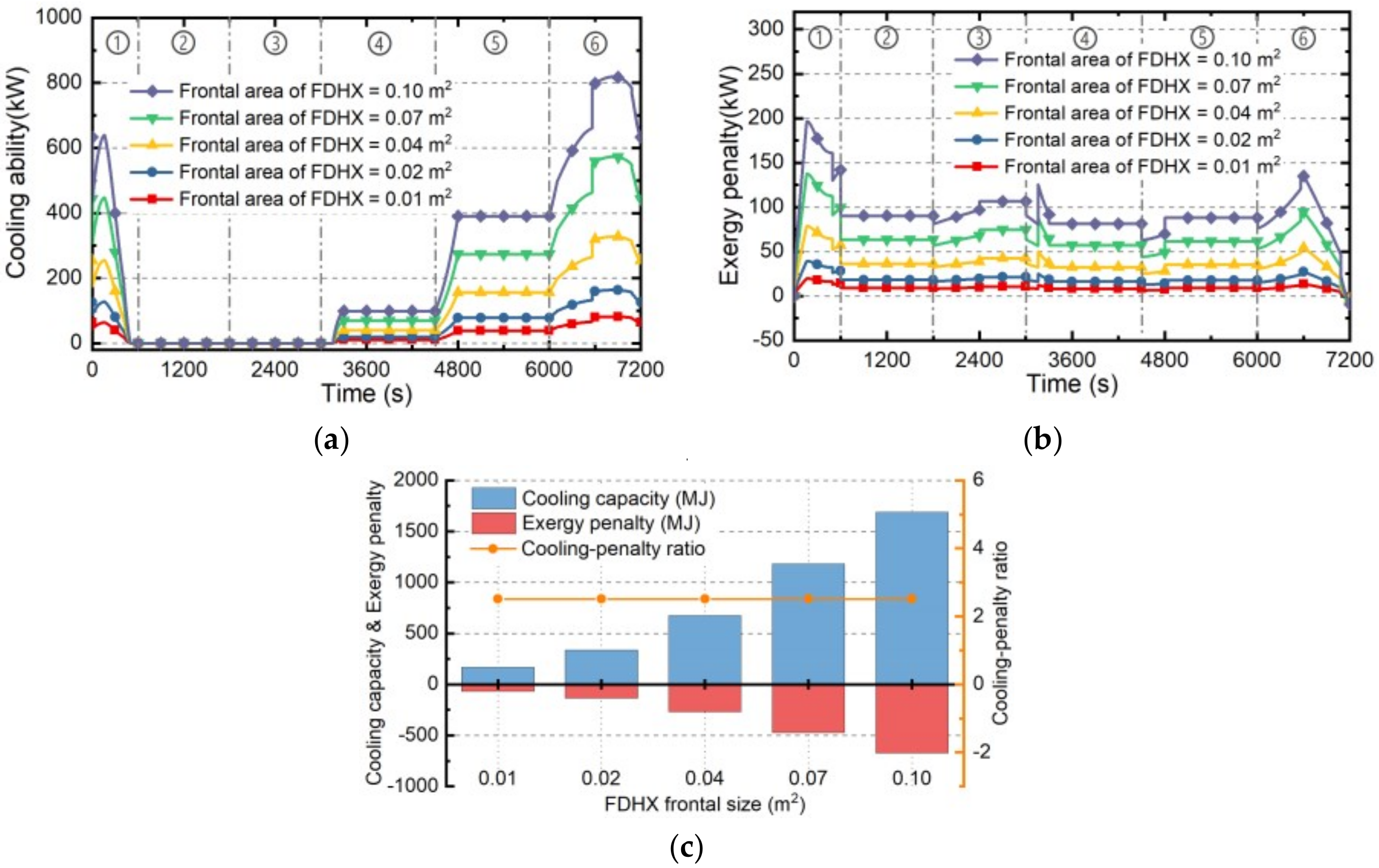

**Figure 11.**The estimation results of EFA under Cases 6~10: (

**a**) cooling ability; (

**b**) exergy penalty rate; (

**c**) cooling capacity and exergy penalty.

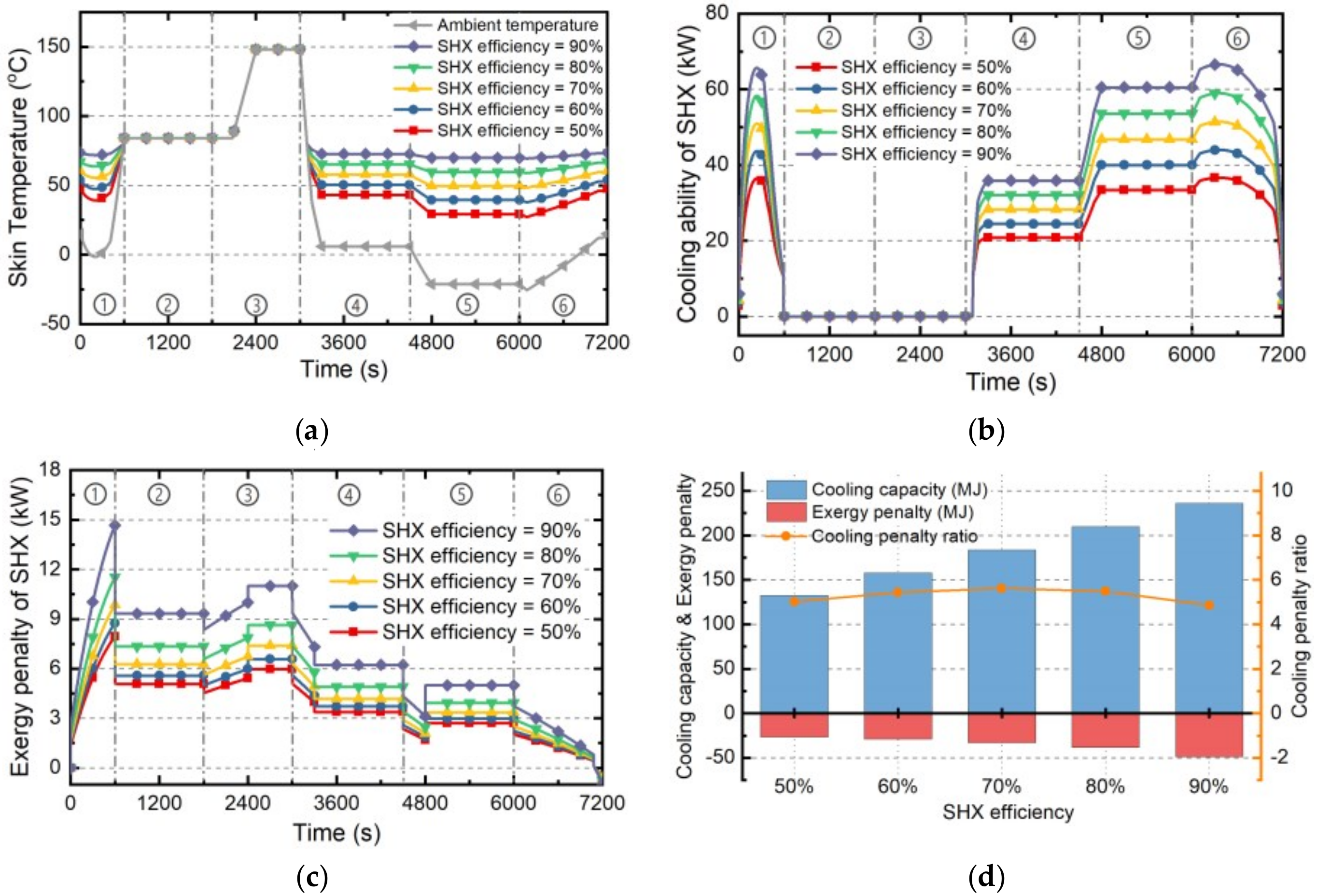

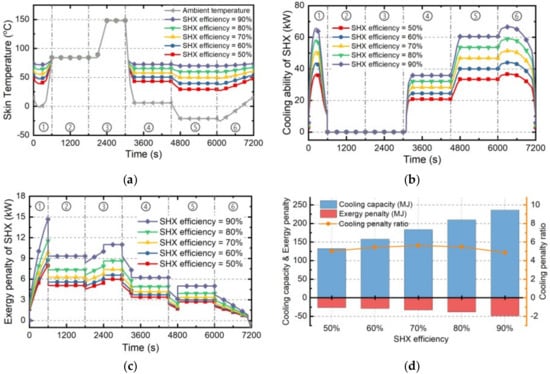

**Figure 12.**The estimation results of SHX under Cases 11~15. (

**a**) average skin temperature; (

**b**) cooling ability; (

**c**) exergy penalty rate; (

**d**) cooling capacity and exergy penalty.

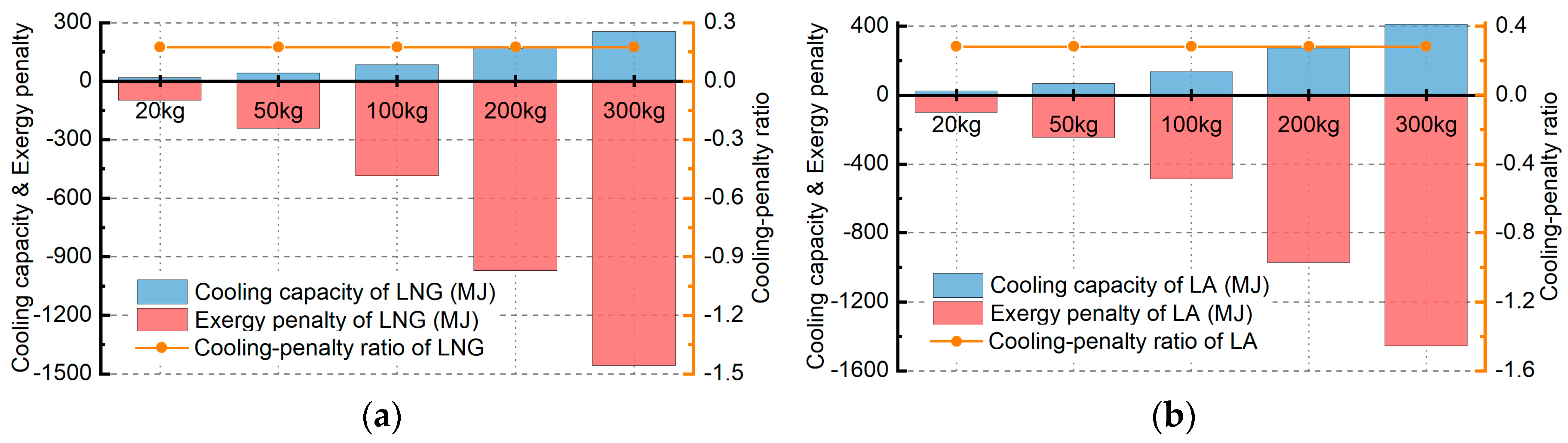

**Figure 13.**The cooling capacity and exergy penalty of EHS: (

**a**) liquid natural gas; (

**b**) liquid ammonia.

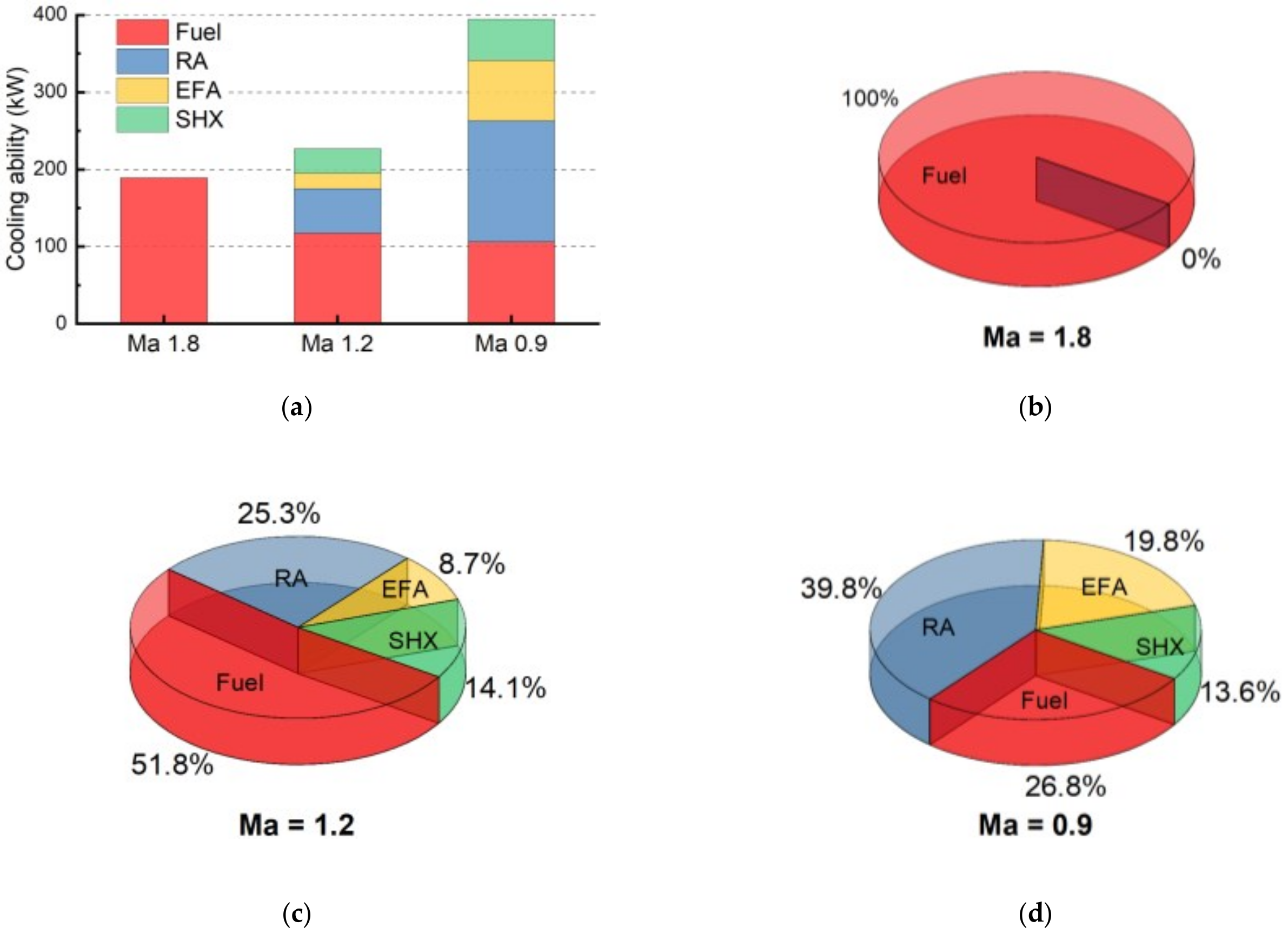

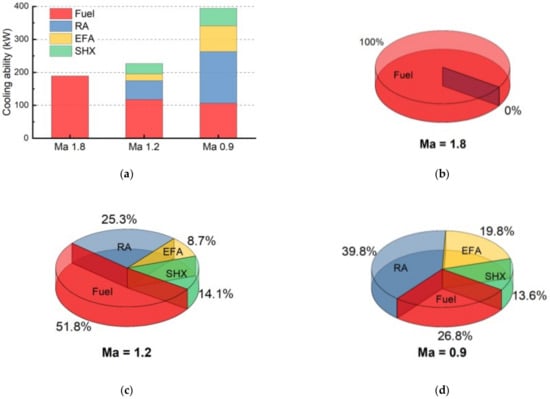

**Figure 14.**The comparison of cooling ability of various heat sinks at different flight stages. (

**a**) overview; (

**b**) supersonic at Ma 1.8; (

**c**) low supersonic at Ma 1.2; (

**d**) subsonic at Ma 0.9.

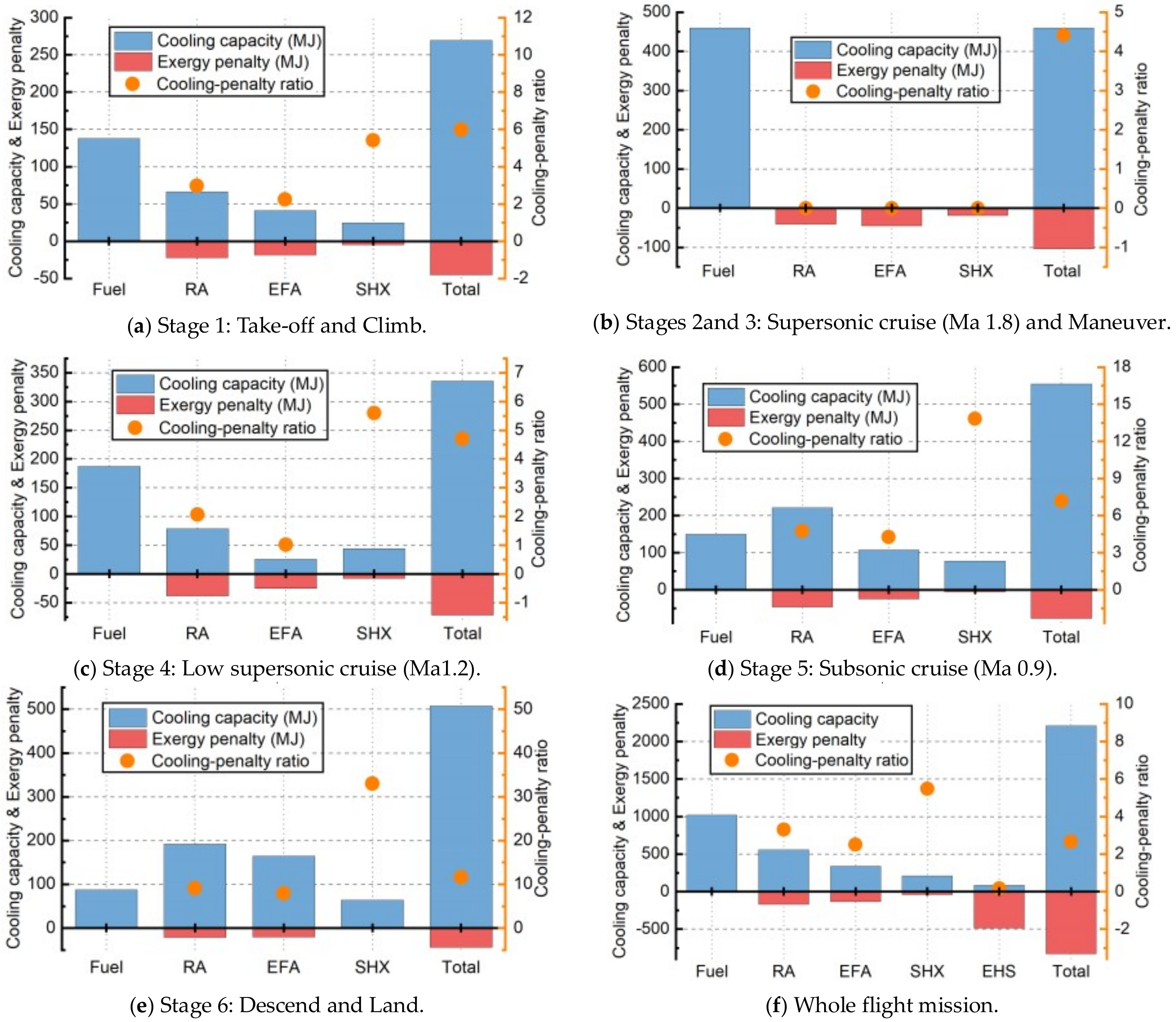

**Figure 15.**The comparison of cooling capacity of various heat sinks in different flight stages. (

**a**) stage 1: take-off and climb; (

**b**) stages 2 and 3: supersonic cruise (Ma 1.8) and maneuver; (

**c**) stage 4: low supersonic cruise (Ma1.2); (

**d**) stage 5: subsonic cruise (Ma 0.9); (

**e**) stage 6: descend and land; (

**f**) whole flight mission.

Parameters | Symbol & Value |
---|---|

Temperature | ${T}_{0}=288\text{}\mathrm{K}$ |

Pressure | ${p}_{0}=\mathrm{101,325}\text{\hspace{0.17em}}\mathrm{Pa}$ |

Density | ${\rho}_{0}=1.225\text{\hspace{0.17em}}{\mathrm{kg}/\mathrm{m}}^{3}$ |

**Table 2.**Parameters for the estimating model of “Case 0”. EHS, expendable heat sink; LNG, liquefied natural gas.

Parameters of Heat Sinks | Symbol | Value |
---|---|---|

Take-off weight | ${m}_{a}^{(t=0)}$ | 30,000 |

Engine combustion efficiency | ${\eta}_{c}$ | 0.90 |

Engine mechanical efficiency | ${\eta}_{m}$ | 0.35 |

Engine propulsion efficiency | ${\eta}_{t}$ | 0.80 |

Engine duct fan efficiency | ${\eta}_{f}$ | 0.64 |

Lift-drag ratio of engine | K | 5.00 |

Bypass ratio of engine | B | 0.20 |

Power partition coefficient of engine | X | 0.10 |

Air-fuel ratio of engine | $\theta $ | 18 |

Initial Fuel Mass | ${m}_{fuel}^{(t=0)}$ | 15,000 |

Initial Fuel temperature | ${T}_{fuel}^{(t=0)}$ | 30 °C |

Threshold temperature of Fuel | ${T}_{fuel,threshold}$ | 80 °C |

Special heat of fuel | ${c}_{p,fuel}$ | 2010 |

Combustion value of fuel | ${\varphi}_{fuel}$ | $4.3\times {10}^{7}$ |

Tank Surface Area | ${A}_{tank}$ | 10 |

Heat trans coefficient from tank to skin | ${k}_{tank}$ | 20 |

Emissivity of the skin | ${\epsilon}_{skin}$ | 0.7 |

Initial EHS Mass | ${m}_{EHS}^{(t=0)}$ | 100 |

Substance of EHS | LNG |

**Table 3.**Parameters of RAHX, FDHX, SHX in “Case 0”. HX, heat exchanger; RAHX, ram air heat exchanger; FDHX, fan duct heat exchanger; SHX, skin heat exchanger.

HX Type | Inlet Area/Skin Area | HX Mass Density | Heat Transfer Area Density | Heat Transfer Coefficient | Heat Transfer Efficiency | Velocity Loss Coefficient |
---|---|---|---|---|---|---|

RAHX | ${A}_{in,RA}=0.02$ | ${\rho}_{RAHX}=600$ | ${\alpha}_{RAHX}=1000$ | ${k}_{RAHX}=200$ | ${\eta}_{RAHX}=80\%$ | ${\xi}_{RA}=0.2$ |

FDHX | ${A}_{in,EFA}=0.02$ | ${\rho}_{FDHX}=500$ | ${\alpha}_{FDHX}=800$ | ${k}_{FDHX}=200$ | ${\eta}_{FDHX}=60\%$ | ${\xi}_{EFA}=0.1$ |

SHX | ${A}_{skin}=20$ | ${\rho}_{SHX}=300$ | ${\alpha}_{SHX}=600$ | ${k}_{SHX}=120$ | ${\eta}_{SHX}=80\%$ | --- |

Case 1 | Case 2 | Case 3 | Case 4 | Case 5 |
---|---|---|---|---|

${A}_{in,RA}=0.01$ | ${A}_{in,RA}=0.02$ | ${A}_{in,RA}=0.04$ | ${A}_{in,RA}=0.07$ | ${A}_{in,RA}=0.10$ |

Case 6 | Case 7 | Case 8 | Case 9 | Case 10 |
---|---|---|---|---|

${A}_{in,EFA}=0.01$ | ${A}_{in,EFA}=0.02$ | ${A}_{in,EFA}=0.04$ | ${A}_{in,EFA}=0.07$ | ${A}_{in,EFA}=0.10$ |

Case 11 | Case 12 | Case 13 | Case 14 | Case 15 |
---|---|---|---|---|

${\eta}_{SHX}=50\%$ | ${\eta}_{SHX}=60\%$ | ${\eta}_{SHX}=70\%$ | ${\eta}_{SHX}=80\%$ | ${\eta}_{SHX}=90\%$ |

Case | Case 16 | Case 17 | Case 18 | Case 19 | Case 20 | Case 21 | Case 22 | Case 23 | Case 24 | Case 25 |
---|---|---|---|---|---|---|---|---|---|---|

Substance | LNG | LNG | LNG | LNG | LNG | LA | LA | LA | LA | LA |

Initial mass | 20 | 50 | 100 | 200 | 300 | 20 | 50 | 100 | 200 | 300 |

Fuel | RA | EFA | SHX | Total | |
---|---|---|---|---|---|

Cruise in Ma 1.8 | 189.1 kW | 0 | 0 | 0 | 189.1 kW |

Cruise in Ma 1.2 | 117.5 kW | 57.4 kW | 19.8 kW | 32.0 kW | 226.7 kW |

Cruise in Ma 0.9 | 105.9 kW | 157.0 kW | 78.1 kW | 53.6 kW | 394.6 kW |

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Mao, Y.-F.; Li, Y.-Z.; Wang, J.-X.; Xiong, K.; Li, J.-X.
Cooling Ability/Capacity and Exergy Penalty Analysis of Each Heat Sink of Modern Supersonic Aircraft. *Entropy* **2019**, *21*, 223.
https://doi.org/10.3390/e21030223

**AMA Style**

Mao Y-F, Li Y-Z, Wang J-X, Xiong K, Li J-X.
Cooling Ability/Capacity and Exergy Penalty Analysis of Each Heat Sink of Modern Supersonic Aircraft. *Entropy*. 2019; 21(3):223.
https://doi.org/10.3390/e21030223

**Chicago/Turabian Style**

Mao, Yu-Feng, Yun-Ze Li, Ji-Xiang Wang, Kai Xiong, and Jia-Xin Li.
2019. "Cooling Ability/Capacity and Exergy Penalty Analysis of Each Heat Sink of Modern Supersonic Aircraft" *Entropy* 21, no. 3: 223.
https://doi.org/10.3390/e21030223
