The Criterion for the Crystallization Ability Assessment as Applied to Borate Glass Powders and Monoliths
Irina G. Polyakova Institute of Silicate Chemistry, Russian Academy of Sciences, nab. Makarova 2, St. Petersburg 199034, Russia
Entropy 2019, 21(10), 994; https://doi.org/10.3390/e21100994
Received: 31 August 2019 / Revised: 4 October 2019 / Accepted: 9 October 2019 / Published: 12 October 2019
(This article belongs to the Special Issue Crystallization Thermodynamics)

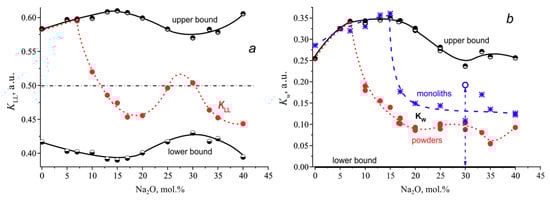

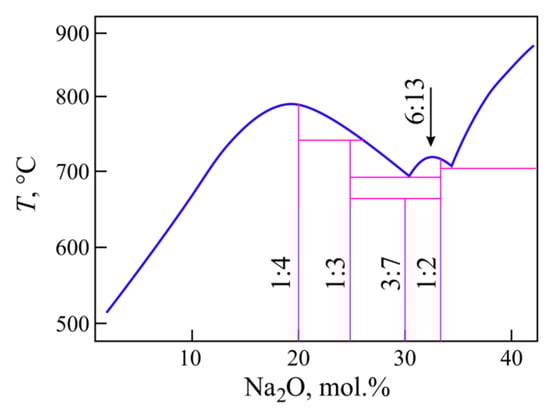

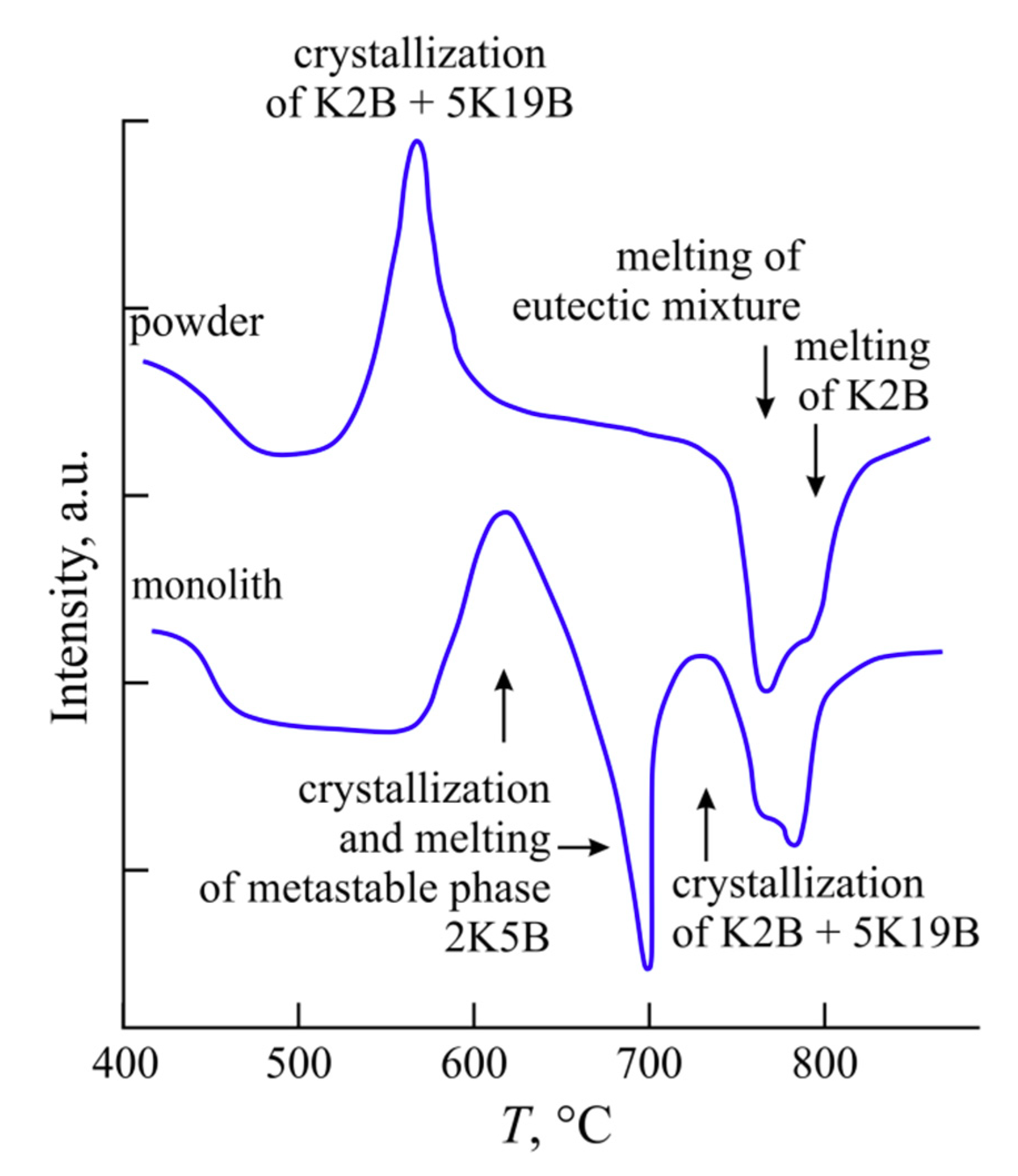

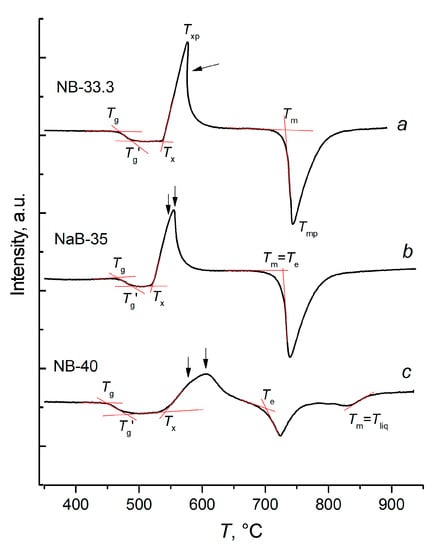

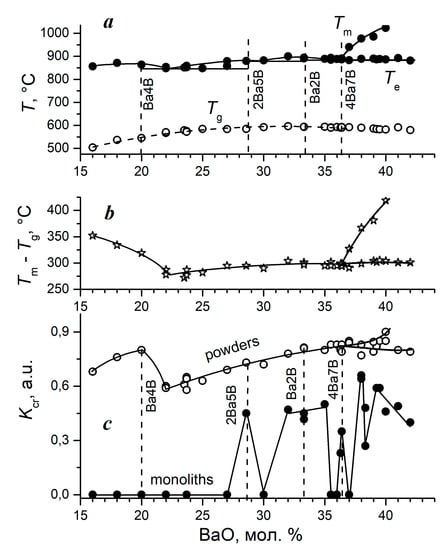

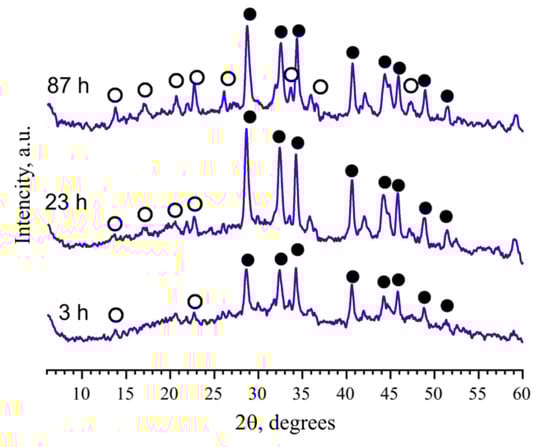

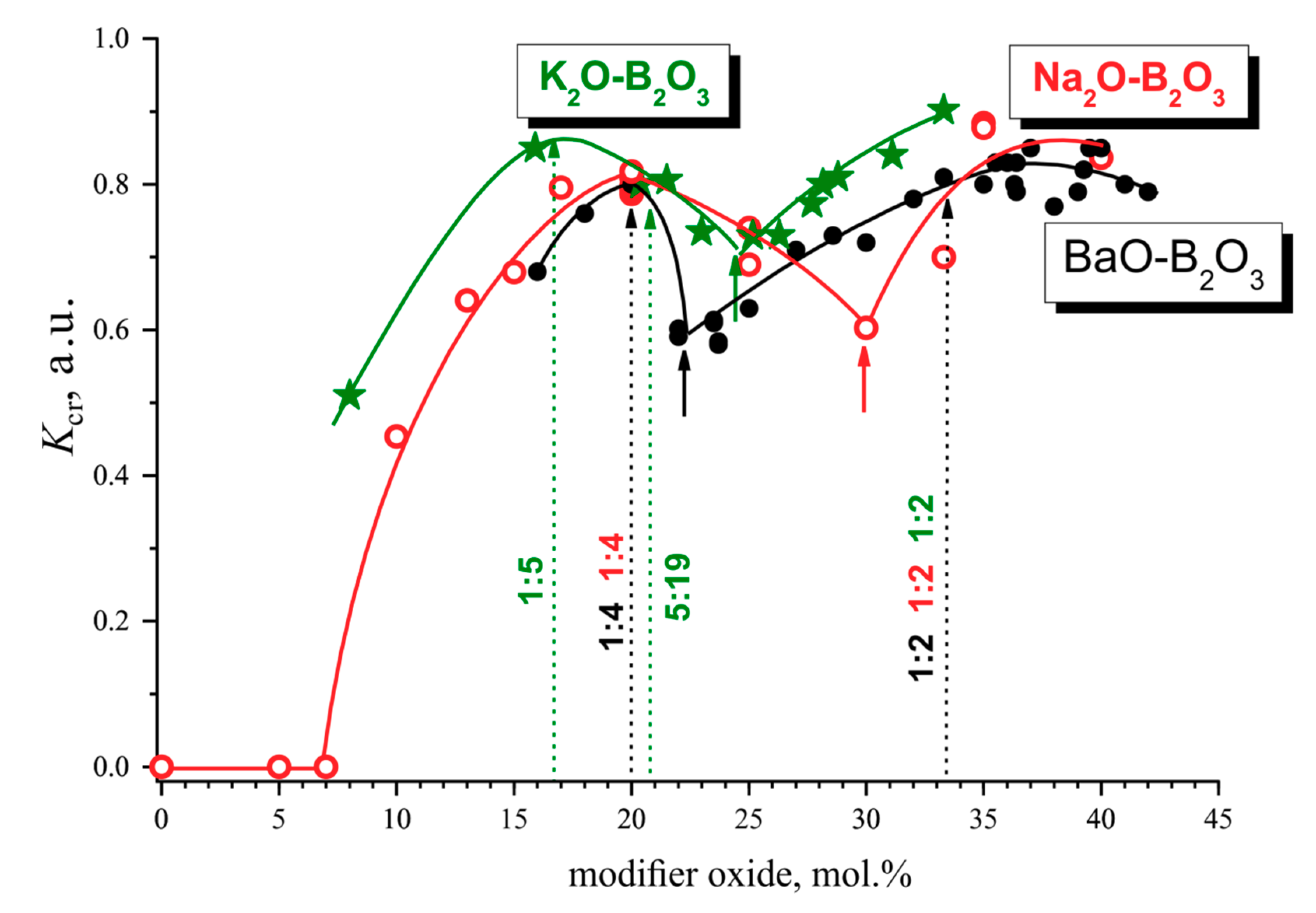

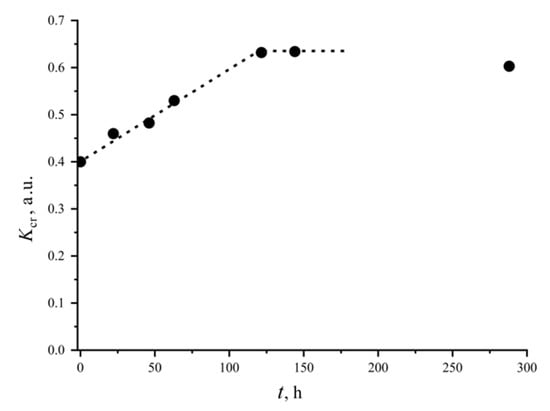

The glasses of three borate systems, Na2O-B2O3, K2O-B2O3 and BaO-B2O3, were studied over a wide range of the compositions by differential thermal analysis (DTA) and X-ray powder diffractometry (XRPD). The thermal parameters obtained by DTA method (the glass transition temperature, Tg, the crystallization onset temperature, Tx, and the melting temperature, Tm) were used to calculate the criteria (coefficients) characterizing glass stability against crystallization. The Lu–Liu, Weinberg and Hrubý coefficients were tested for verification of their consistency with several simple requirements. Since each of the criteria has its drawbacks, the coefficient of glass crystallization ability, Kcr, which meets all of the requirements, was also used. The advantage of this coefficient is demonstrated on the example of the glass powders and the monolithic glasses of the mentioned above borate systems.
View Full-Text
Keywords:
glass stability; crystallization ability coefficient; DTA; glass formation criterion; borates
▼
Show Figures

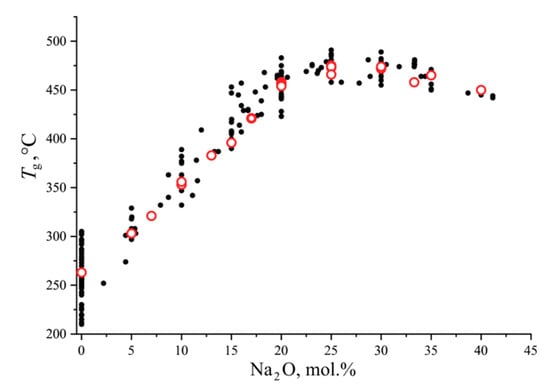

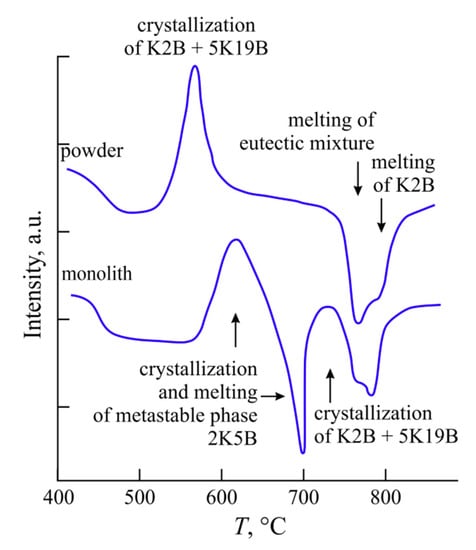

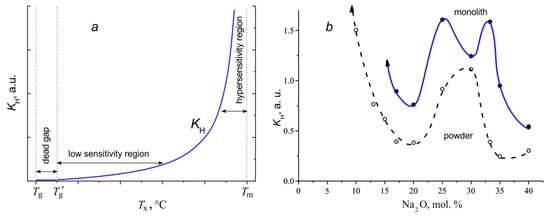

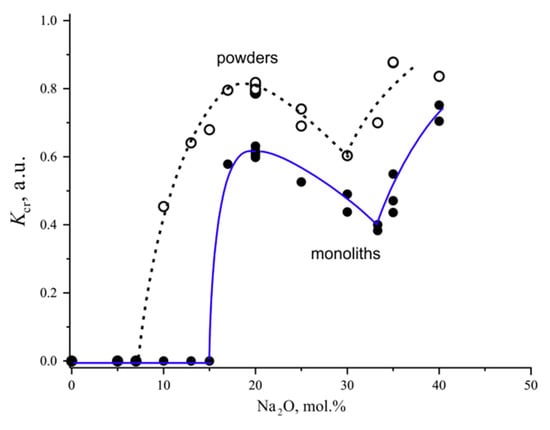

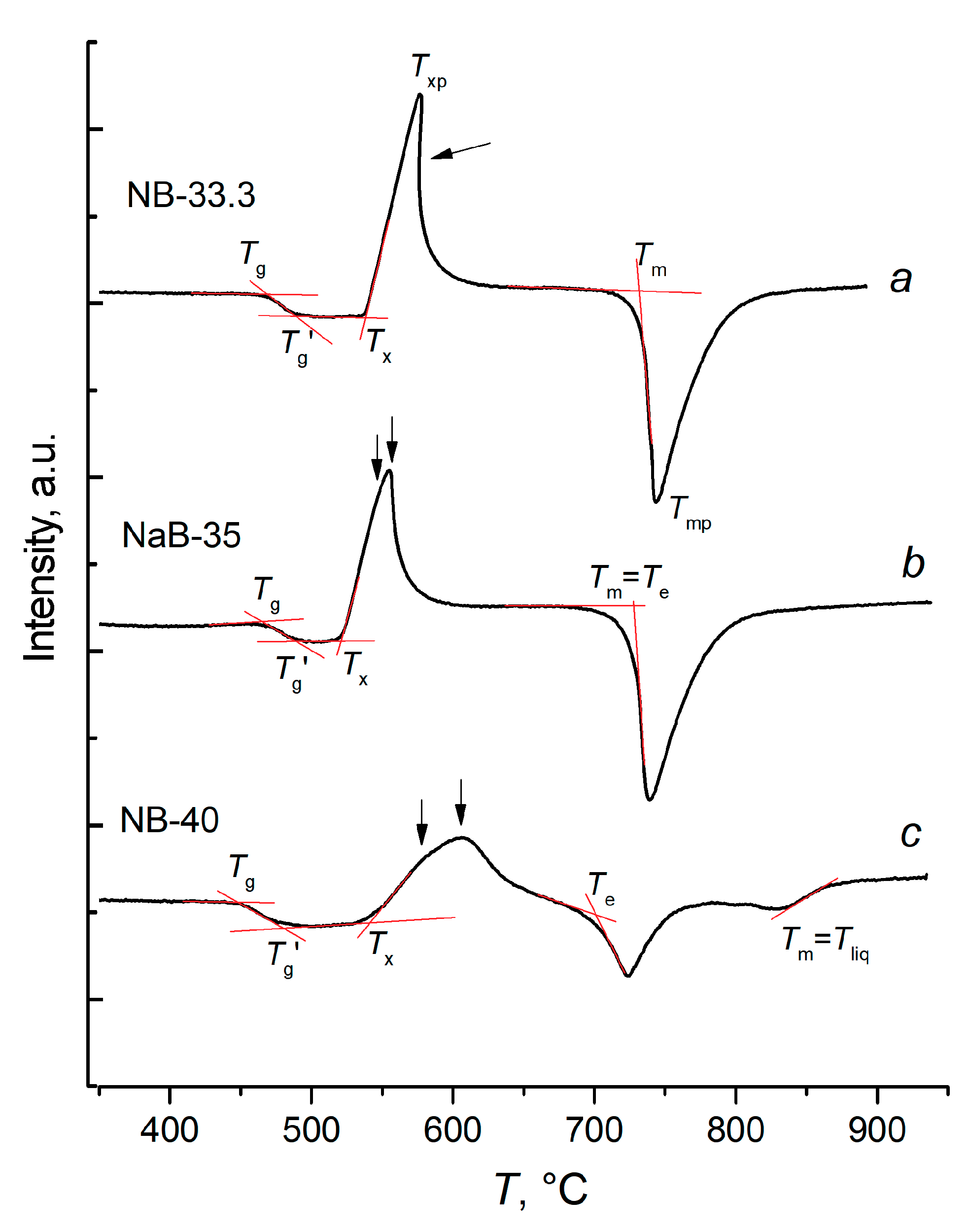

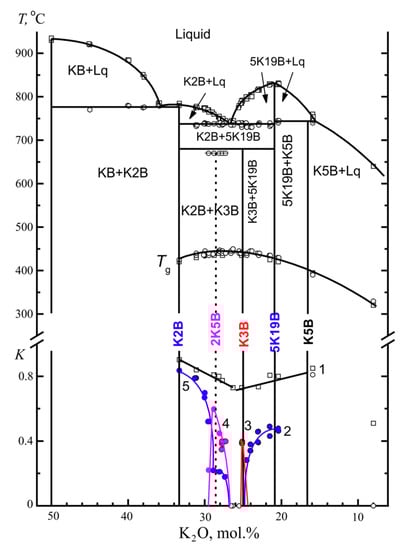

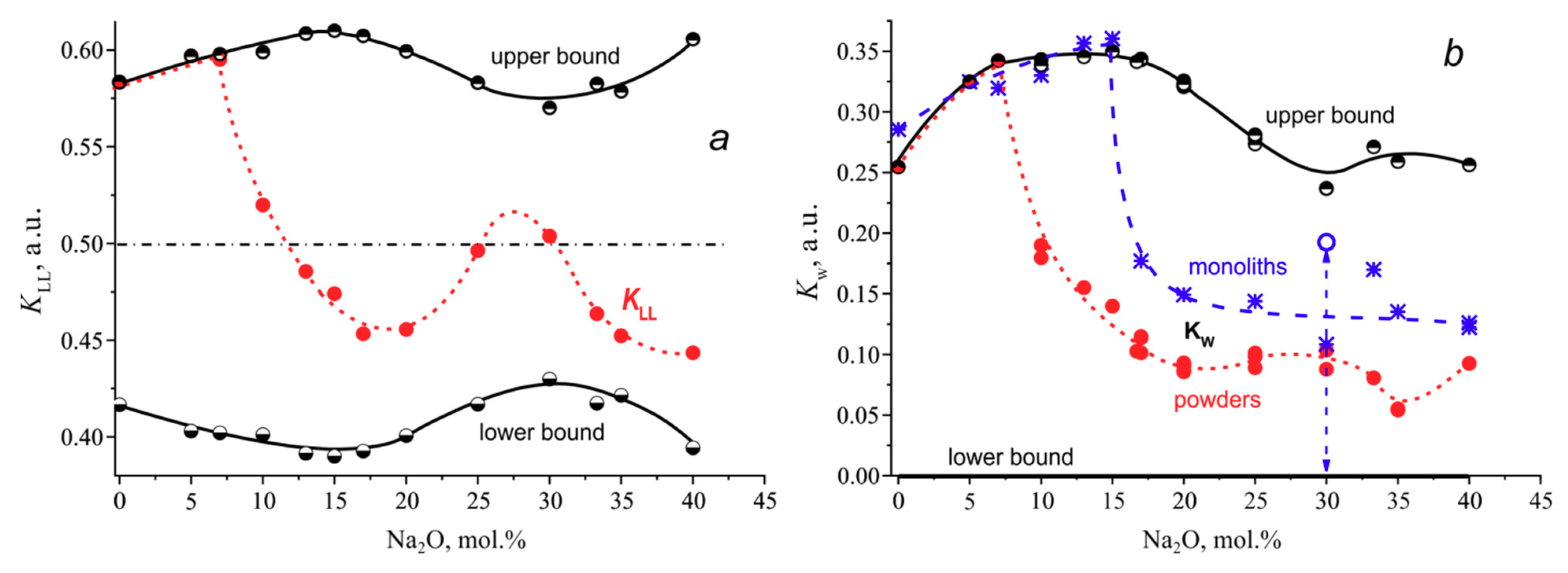

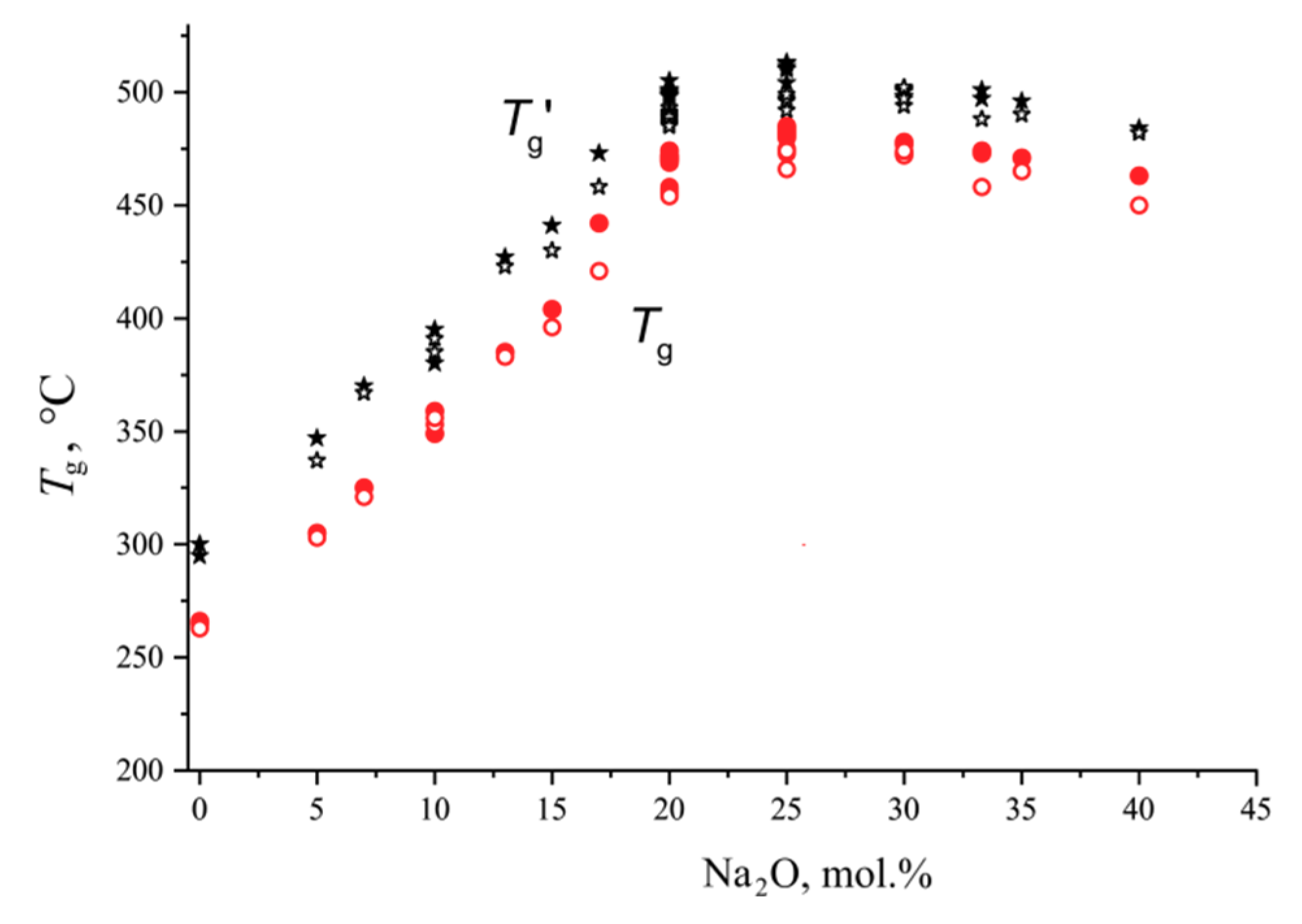

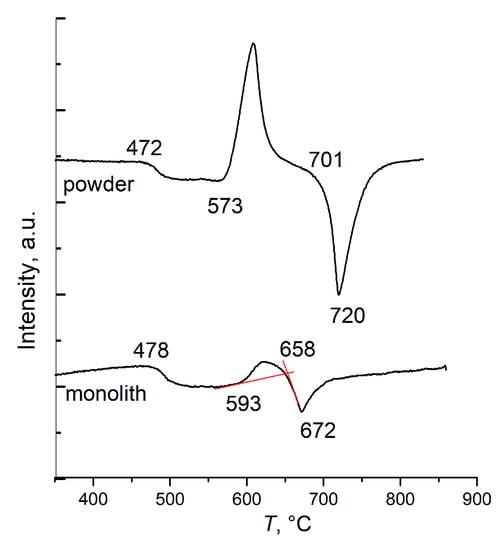

Figure 1
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
MDPI and ACS Style
Polyakova, I.G. The Criterion for the Crystallization Ability Assessment as Applied to Borate Glass Powders and Monoliths. Entropy 2019, 21, 994.
Show more citation formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
