Open AccessArticle
Entropy 2018, 20(9), 666; https://doi.org/10.3390/e20090666

Chart for Thermoelectric Systems Operation Based on a Ternary Diagram for Bithermal Systems

1
Laboratoire Optimisation de la Conception et Ingénierie de l’Environnement (LOCIE), Université Savoie Mont Blanc, UMR 5271 Le Bourget du Lac, France
2
Laboratoire Interdisciplinaire des Energies de Demain (LIED), Université Paris Diderot, UMR 8236 Paris, France
*
Author to whom correspondence should be addressed.
Received: 27 July 2018 / Revised: 27 August 2018 / Accepted: 29 August 2018 / Published: 3 September 2018
(This article belongs to the Special Issue Entropy: From Physics to Information Sciences and Geometry)
Full-Text   |   PDF [4393 KB, uploaded 5 September 2018]   |

Abstract

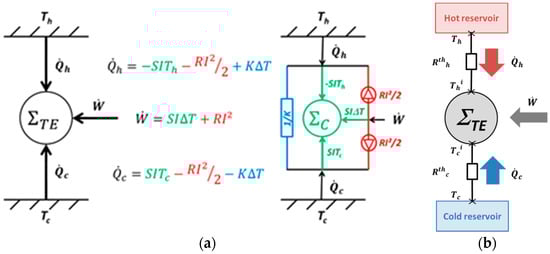

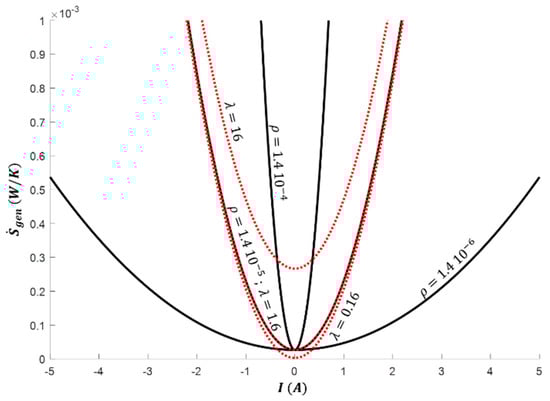

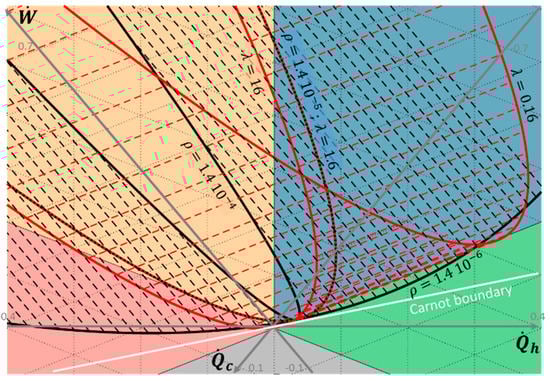

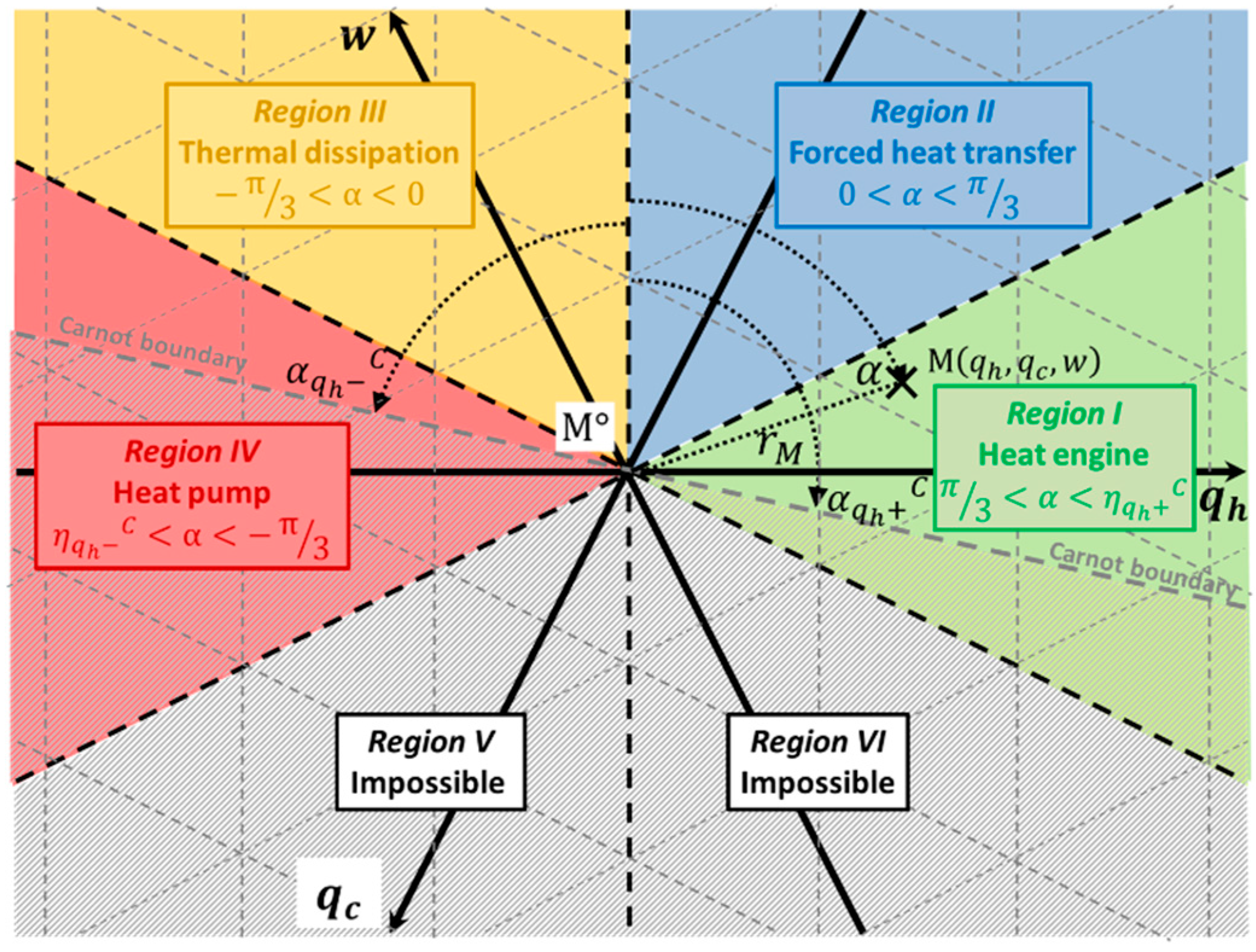

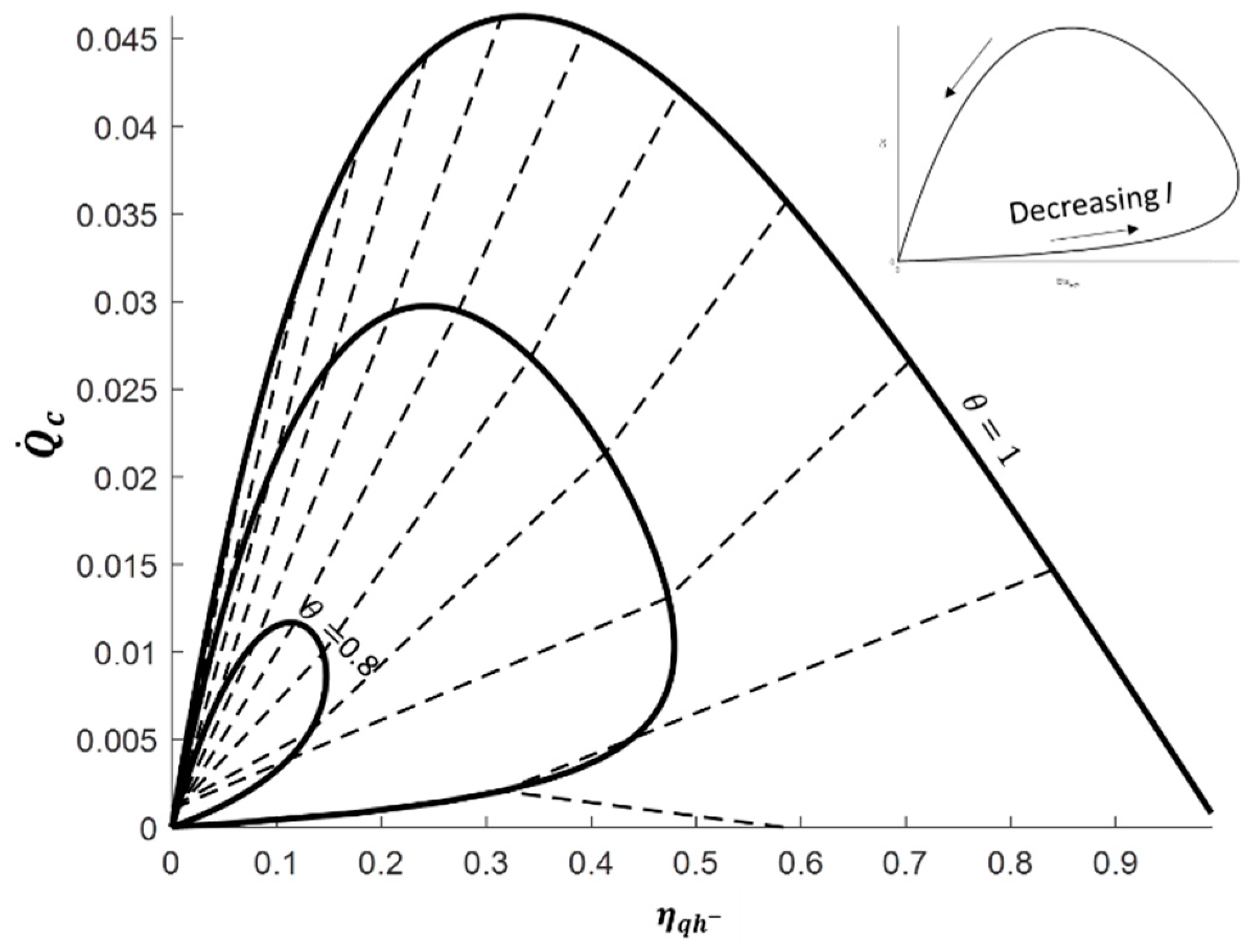

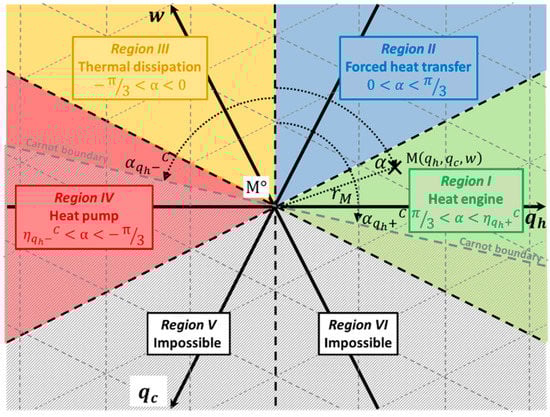

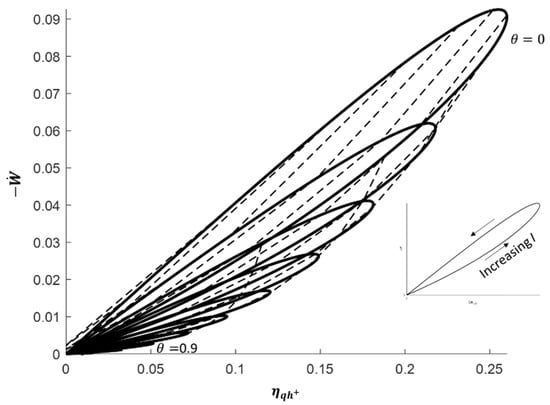

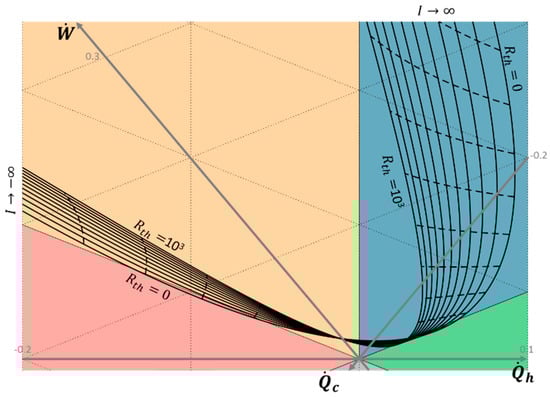

Thermoelectric system’s operation needs careful attention to ensure optimal power conversion depending on the application aims. As a ternary diagram of bithermal systems allows a synthetic graphical analysis of the performance attainable by any work-heat conversion system, thermoelectric systems operation is plotted as a parametric curve function of the operating conditions (electric current and reservoirs’ temperature), based on the standard model of Ioffe. The threshold of each operating mode (heat engine, heat pump, thermal dissipation, and forced thermal transfer), along with the optimal efficiencies and powers of the heat pump and heat engine modes, are characterized graphically and analytically as a function of the material properties and the operating conditions. The sensibility of the performance aims (maximum efficiency vs. maximum power) with the operating conditions is, thus, highlighted. In addition, the specific contributions of each phenomenon involved in the semiconductor (reversible Seebeck effect, irreversible heat leakage by conduction and irreversible thermal dissipation by Joule effect) are discussed in terms of entropy generation. Finally, the impact of the exo-irreversibilities on the performance is analyzed by taking the external thermal resistances into account. View Full-Text
Keywords: finite time thermodynamics; ternary diagram for bithermal systems; operating modes; thermoelectric system optimal performance; figure of merit finite time thermodynamics; ternary diagram for bithermal systems; operating modes; thermoelectric system optimal performance; figure of merit
Figures

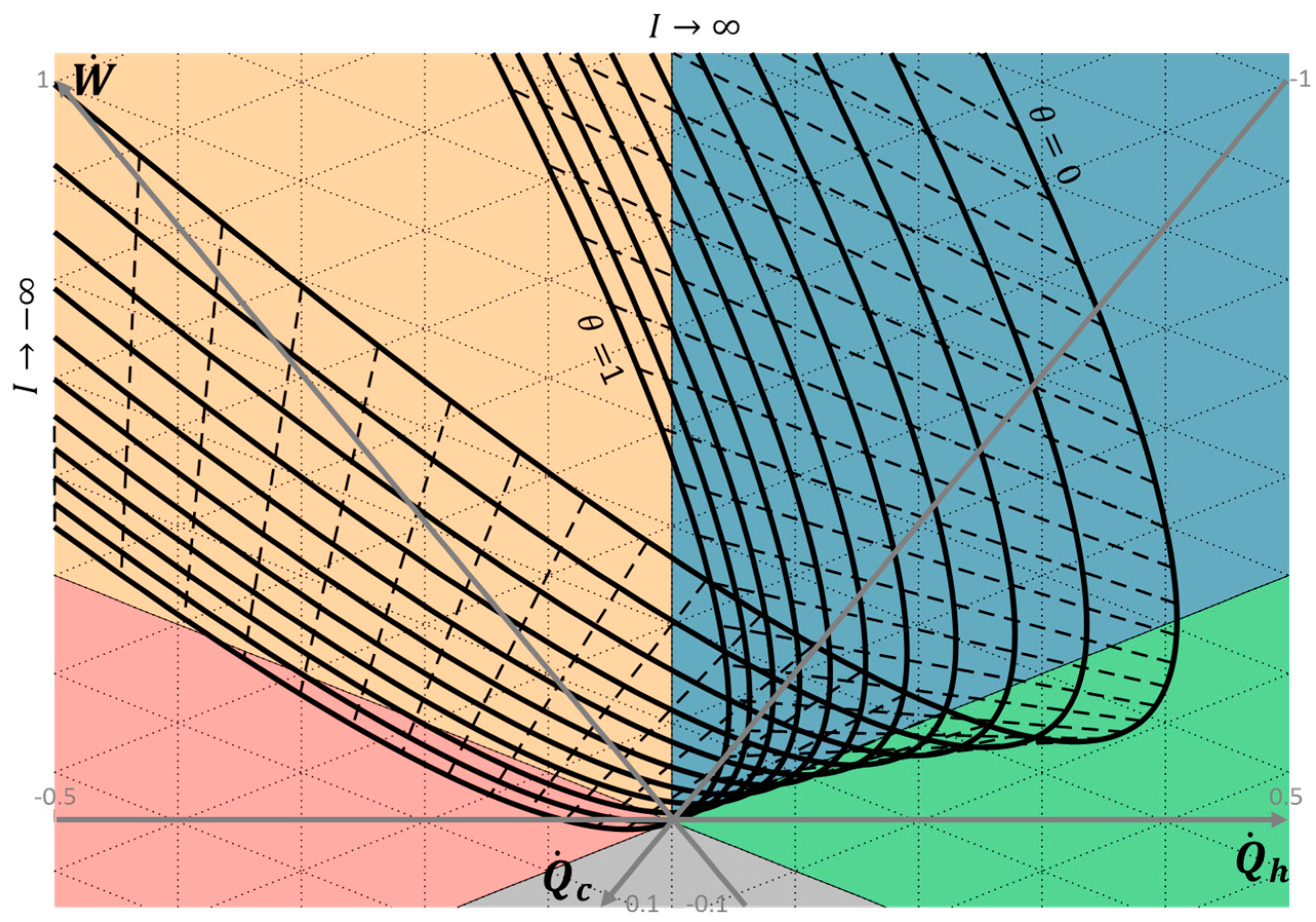

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
