# Assessing Time Series Reversibility through Permutation Patterns

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Assessing Time Series Reversibility

#### 2.1. Permutation Patterns

#### 2.2. Time Reversibility of Permutation Patterns

#### 2.3. Directed Horizontal Visibility Graphs

#### 2.4. Markov Chain Approach

## 3. Validation with Synthetic Time Series

- Two reversible stochastic processes, namely a time series of values drawn from a Gaussian distribution $\mathcal{N}(0,1)$, and an Ornstein–Uhlenbeck process, a mean-reverting linear Gaussian process T [41].
- Two dissipative chaotic maps, respectively, a logistic map (defined as ${x}_{n+1}=a{x}_{n}(1-{x}_{n})$, with $a=4.0$) and a Henon map (${x}_{n+1}=1+{y}_{n}-a{x}_{t}^{2}$, ${y}_{n+1}=b{x}_{t}$, with $a=1.4$ and $b=0.3$). Dissipative systems are by definition irreversible [42].
- The Arnold Cat map, and example of a conservative chaotic map (${x}_{n+1}={x}_{n}+{y}_{n}\phantom{\rule{3.33333pt}{0ex}}\mathrm{mod}\phantom{\rule{0.277778em}{0ex}}\left(1\right),\phantom{\rule{0.166667em}{0ex}}{y}_{n+1}={x}_{n}+2{y}_{n}\phantom{\rule{3.33333pt}{0ex}}\mathrm{mod}\phantom{\rule{0.277778em}{0ex}}\left(1\right)$. The analysed time series corresponds to the evolution of the x variable.
- The Lorenz chaotic system, defined as $\dot{x}=\sigma (y-x)$, $\dot{y}=x(\rho -z)-y$, and $\dot{z}=xy-\beta z$ (with $\rho =28$, $\sigma =10$ and $\beta =8/3$, integration step of $dt=0.01$). Unless otherwise stated, the analysed time series corresponds to the evolution of the x variable.
- Time series generated through an Autoregressive Conditional Heteroskedasticity (ARCH) model [43] defined as ${x}_{t}={\sigma}_{t}{z}_{t}$, with ${\sigma}_{t}^{2}={\alpha}^{*}(1+{\sum}_{i=1}^{3}{2}^{-i}{x}_{t-i}^{2})$ and ${z}_{t}$ being independent random numbers drawn from an uniform distribution $\mathcal{U}(0,1)$. Note that ${\alpha}^{*}$ is a parameter controlling the strength of the time dependence between present and past values of x, and hence its irreversibility.
- Time series generated through a Generalised Autoregressive Conditional Heteroskedasticity (GARCH) model [44] defined as ${x}_{t}={\sigma}_{t}{z}_{t}$, with ${\sigma}_{t}^{2}={\alpha}^{*}(1+{\sum}_{i=1}^{3}{2}^{-i}{x}_{t-i}^{2}+{\sum}_{i=1}^{3}{2}^{-i}{\sigma}_{t-i}^{2})$ and ${z}_{t}$ being independent random numbers drawn from an uniform distribution $\mathcal{U}(0,1)$. Note that the difference with respect to the ARCH model resides in the fact that here $\sigma $ depends directly on its past. As in the previous case, ${\alpha}^{*}$ is controlling the time irreversibility of the model.

## 4. Application to Financial Time Series

## 5. Discussion and Conclusions

## Author Contributions

## Acknowledgments

## Conflicts of Interest

## References

- Puglisi, A.; Villamaina, D. Irreversible effects of memory. Europhys. Lett.
**2009**, 88, 30004. [Google Scholar] [CrossRef][Green Version] - Xia, J.; Shang, P.; Wang, J.; Shi, W. Classifying of financial time series based on multiscale entropy and multiscale time irreversibility. Phys. A Stat. Mech. Appl.
**2014**, 400, 151–158. [Google Scholar] [CrossRef] - Lawrance, A. Directionality and reversibility in time series. Int. Stat. Rev.
**1991**, 59, 67–79. [Google Scholar] [CrossRef] - Stone, L.; Landan, G.; May, R.M. Detecting time’s arrow: A method for identifying nonlinearity and deterministic chaos in time-series data. Proc. R. Soc. Lond. B
**1996**, 263, 1509–1513. [Google Scholar] [CrossRef] - Cox, D.R.; Hand, D.; Herzberg, A. Foundations of Statistical Inference, Theoretical Statistics, Time Series and Stochastic Processes; Cambridge University Press: London, UK, 2005. [Google Scholar]
- Roldán, É.; Parrondo, J.M. Estimating dissipation from single stationary trajectories. Phys. Rev. Lett.
**2010**, 105, 150607. [Google Scholar] [CrossRef] [PubMed] - Daw, C.; Finney, C.; Kennel, M. Symbolic approach for measuring temporal “irreversibility”. Phys. Rev. E
**2000**, 62, 1912–1921. [Google Scholar] [CrossRef] - Kennel, M.B. Testing time symmetry in time series using data compression dictionaries. Phys. Rev. E
**2004**, 69, 056208. [Google Scholar] [CrossRef] [PubMed] - Lacasa, L.; Nunez, A.; Roldán, É.; Parrondo, J.M.; Luque, B. Time series irreversibility: A visibility graph approach. Eur. Phys. J. B
**2012**, 85, 217. [Google Scholar] [CrossRef] - Donges, J.F.; Donner, R.V.; Kurths, J. Testing time series irreversibility using complex network methods. Europhys. Lett.
**2013**, 102, 10004. [Google Scholar] [CrossRef][Green Version] - Flanagan, R.; Lacasa, L. Irreversibility of financial time series: A graph-theoretical approach. Phys. Lett. A
**2016**, 380, 1689–1697. [Google Scholar] [CrossRef][Green Version] - Costa, M.; Goldberger, A.L.; Peng, C.K. Broken asymmetry of the human heartbeat: loss of time irreversibility in aging and disease. Phys. Rev. Lett.
**2005**, 95, 198102. [Google Scholar] [CrossRef] [PubMed] - Squartini, F.; Arndt, P.F. Quantifying the stationarity and time reversibility of the nucleotide substitution process. Mol. Biol. Evol.
**2008**, 25, 2525–2535. [Google Scholar] [CrossRef] [PubMed] - Ramsey, J.B.; Rothman, P. Time irreversibility and business cycle asymmetry. J. Money Credit Bank.
**1996**, 28, 1–21. [Google Scholar] [CrossRef] - Chen, Y.T.; Chou, R.Y.; Kuan, C.M. Testing time reversibility without moment restrictions. J. Econometrics
**2000**, 95, 199–218. [Google Scholar] [CrossRef] - Belaire-Franch, J.; Contreras, D. Tests for time reversibility: A complementarity analysis. Econ. Lett.
**2003**, 81, 187–195. [Google Scholar] [CrossRef] - Chen, Y.T. Testing serial independence against time irreversibility. Stud. Nonlinear Dyn. Econ.
**2003**, 7, 1–30. [Google Scholar] [CrossRef] - Racine, J.S.; Maasoumi, E. A versatile and robust metric entropy test of time-reversibility, and other hypotheses. J. Econom.
**2007**, 138, 547–567. [Google Scholar] [CrossRef] - Sharifdoost, M.; Mahmoodi, S.; Pasha, E. A statistical test for time reversibility of stationary finite state Markov chains. Appl. Math. Sci.
**2009**, 52, 2563–2574. [Google Scholar] - Zumbach, G. Time reversal invariance in finance. Quant. Financ.
**2009**, 9, 505–515. [Google Scholar] [CrossRef][Green Version] - De Sousa, A.M.Y.R.; Takayasu, H.; Takayasu, M. Detection of statistical asymmetries in non-stationary sign time series: Analysis of foreign exchange data. PLoS ONE
**2017**, 12, e0177652. [Google Scholar] - Bandt, C.; Pompe, B. Permutation entropy: A natural complexity measure for time series. Phys. Rev. Lett.
**2002**, 88, 174102. [Google Scholar] [CrossRef] [PubMed] - Zanin, M.; Zunino, L.; Rosso, O.A.; Papo, D. Permutation entropy and its main biomedical and econophysics applications: A review. Entropy
**2012**, 14, 1553–1577. [Google Scholar] [CrossRef] - Fama, E.F. Efficient capital markets: A review of theory and empirical work. J. Financ.
**1970**, 25, 383–417. [Google Scholar] [CrossRef] - Eom, C.; Oh, G.; Jung, W.S. Relationship between efficiency and predictability in stock price change. Phys. A Stat. Mech. Appl.
**2008**, 387, 5511–5517. [Google Scholar] [CrossRef][Green Version] - Campbell, J.Y.; Lo, A.W.C.; MacKinlay, A.C. The Econometrics of Financial Markets, 2nd ed.; Princeton University press: Princeton, NJ, USA, 1997. [Google Scholar]
- Lim, K.P. Ranking market efficiency for stock markets: A nonlinear perspective. Phys. A Stat. Mech. Appl.
**2007**, 376, 445–454. [Google Scholar] [CrossRef] - Cajueiro, D.O.; Tabak, B.M. The Hurst exponent over time: Testing the assertion that emerging markets are becoming more efficient. Phys. A Stat. Mech. Appl.
**2004**, 336, 521–537. [Google Scholar] [CrossRef] - Barunik, J.; Kristoufek, L. On Hurst exponent estimation under heavy-tailed distributions. Phys. A Stat. Mech. Appl.
**2010**, 389, 3844–3855. [Google Scholar] [CrossRef][Green Version] - Wang, Y.; Liu, L.; Gu, R.; Cao, J.; Wang, H. Analysis of market efficiency for the Shanghai stock market over time. Phys. A: Stat. Mech. Appl.
**2010**, 389, 1635–1642. [Google Scholar] [CrossRef] - Fong, W.M. Time reversibility tests of volume–volatility dynamics for stock returns. Econ. Lett.
**2003**, 81, 39–45. [Google Scholar] [CrossRef] - Jiang, C.; Shang, P.; Shi, W. Multiscale multifractal time irreversibility analysis of stock markets. Phys. A Stat. Mech. Appl.
**2016**, 462, 492–507. [Google Scholar] [CrossRef] - Kullback, S.; Leibler, R.A. On information and sufficiency. Ann. Math. Stat.
**1951**, 22, 79–86. [Google Scholar] [CrossRef] - Fuglede, B.; Topsoe, F. Jensen-Shannon divergence and Hilbert space embedding. In Proceedings of the 2004 IEEE International Symposium on Information Theory, Chicago, IL, USA, 27 June–2 July 2004; p. 31. [Google Scholar]
- Lacasa, L.; Flanagan, R. Time reversibility from visibility graphs of nonstationary processes. Phys. Rev. E
**2015**, 92, 022817. [Google Scholar] [CrossRef] [PubMed] - Lacasa, L.; Luque, B.; Ballesteros, F.; Luque, J.; Nuno, J.C. From time series to complex networks: The visibility graph. Proc. Nat. Acad. Sci. USA
**2008**, 105, 4972–4975. [Google Scholar] [CrossRef] [PubMed][Green Version] - Luque, B.; Lacasa, L.; Ballesteros, F.; Luque, J. Horizontal visibility graphs: Exact results for random time series. Phys. Rev. E
**2009**, 80, 046103. [Google Scholar] [CrossRef] [PubMed] - Strogatz, S.H. Exploring complex networks. Nature
**2001**, 410, 268–276. [Google Scholar] [CrossRef] [PubMed] - Costa, L.d.F.; Rodrigues, F.A.; Travieso, G.; Villas Boas, P.R. Characterization of complex networks: A survey of measurements. Adv. Phys.
**2007**, 56, 167–242. [Google Scholar] [CrossRef][Green Version] - Norris, J.R. Markov Chains, 2nd ed.; Cambridge University Press: London, UK, 1998. [Google Scholar]
- Weiss, G. Time-reversibility of linear stochastic processes. J. Appl. Probab.
**1975**, 12, 831–836. [Google Scholar] [CrossRef] - Mori, H.; Kuramoto, Y. Dissipative Structures and Chaos; Springer: Berlin, Germany, 2013. [Google Scholar]
- Hamilton, J.D.; Susmel, R. Autoregressive conditional heteroskedasticity and changes in regime. J. Econom.
**1994**, 64, 307–333. [Google Scholar] [CrossRef] - Bollerslev, T. Generalized autoregressive conditional heteroskedasticity. J. Econom.
**1986**, 31, 307–327. [Google Scholar] [CrossRef][Green Version] - Wolf, A.; Swift, J.B.; Swinney, H.L.; Vastano, J.A. Determining Lyapunov exponents from a time series. Phys. D Nonlinear Phenom.
**1985**, 16, 285–317. [Google Scholar] [CrossRef][Green Version] - MacKinnon, J.G. Approximate asymptotic distribution functions for unit-root and cointegration tests. J. Bus. Econ. Stat.
**1994**, 12, 167–176. [Google Scholar] - Bian, C.; Qin, C.; Ma, Q.D.; Shen, Q. Modified permutation-entropy analysis of heartbeat dynamics. Phys. Rev. E
**2012**, 85, 021906. [Google Scholar] [CrossRef] [PubMed] - Amigó, J.M.; Zambrano, S.; Sanjuán, M.A. True and false forbidden patterns in deterministic and random dynamics. Europhys. Lett.
**2007**, 79, 50001. [Google Scholar] [CrossRef]

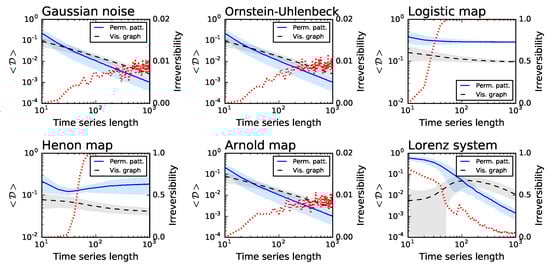

**Figure 1.**Irreversibility analysis of several synthetic dynamical models, as a function of the time series length. From left to right, top to bottom, the six panels represent Gaussian noise, an Ornstein–Uhlenbeck process, logistic, Henon and Arnold maps, and a Lorenz oscillator—see main text for details and parameters. In the left Y axis, the blue solid and black dashed lines, respectively, represent the average Kullback–Leibler divergence obtained by the permutation patterns and the visibility graph approach—note the blue and grey bands, depicting one standard deviation. On the right Y axis, the dotted red line indicates the fraction of simulations in which the time series is irreversible in a statistical significant way, with $\alpha =0.01$.

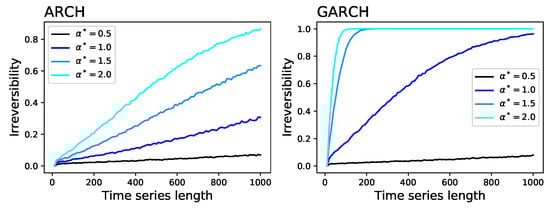

**Figure 2.**Irreversibility of time series generated by: ARCH model (

**Left**); and GARCH model (

**Right**). Each line indicates the fraction of simulations in which the time series is irreversible in a statistical significant way, with $\alpha =0.01$, as a function of the time series length and of the value of ${\alpha}^{*}$ (see main text for definitions).

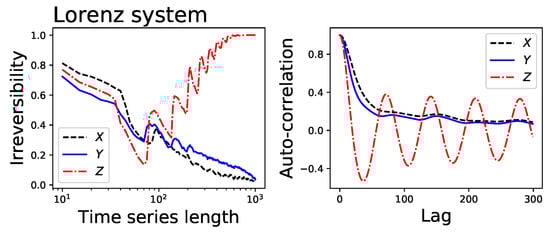

**Figure 3.**(

**Left**) Fraction of irreversible time series yielded by a Lorenz chaotic system, as a function of the time series length, where black (dashed), blue (solid) and red (dash-dot) lines correspond respectively to the X, Y and Z channels of the system; and (

**Right**) autocorrelation of the same three time series.

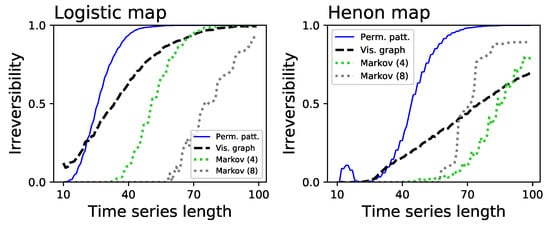

**Figure 4.**Analysis of the time series length required to reach a consistent irreversibility assessment. Both panels depict the fraction of times the permutation patterns (blue solid lines), the visibility graph algorithms (black dashed lines) and the Markov chain method (dotted lines) detect a statistically significant irreversibility, as a function of the time series length: (

**Left**) logistic map; and (

**Right**) Henon map.

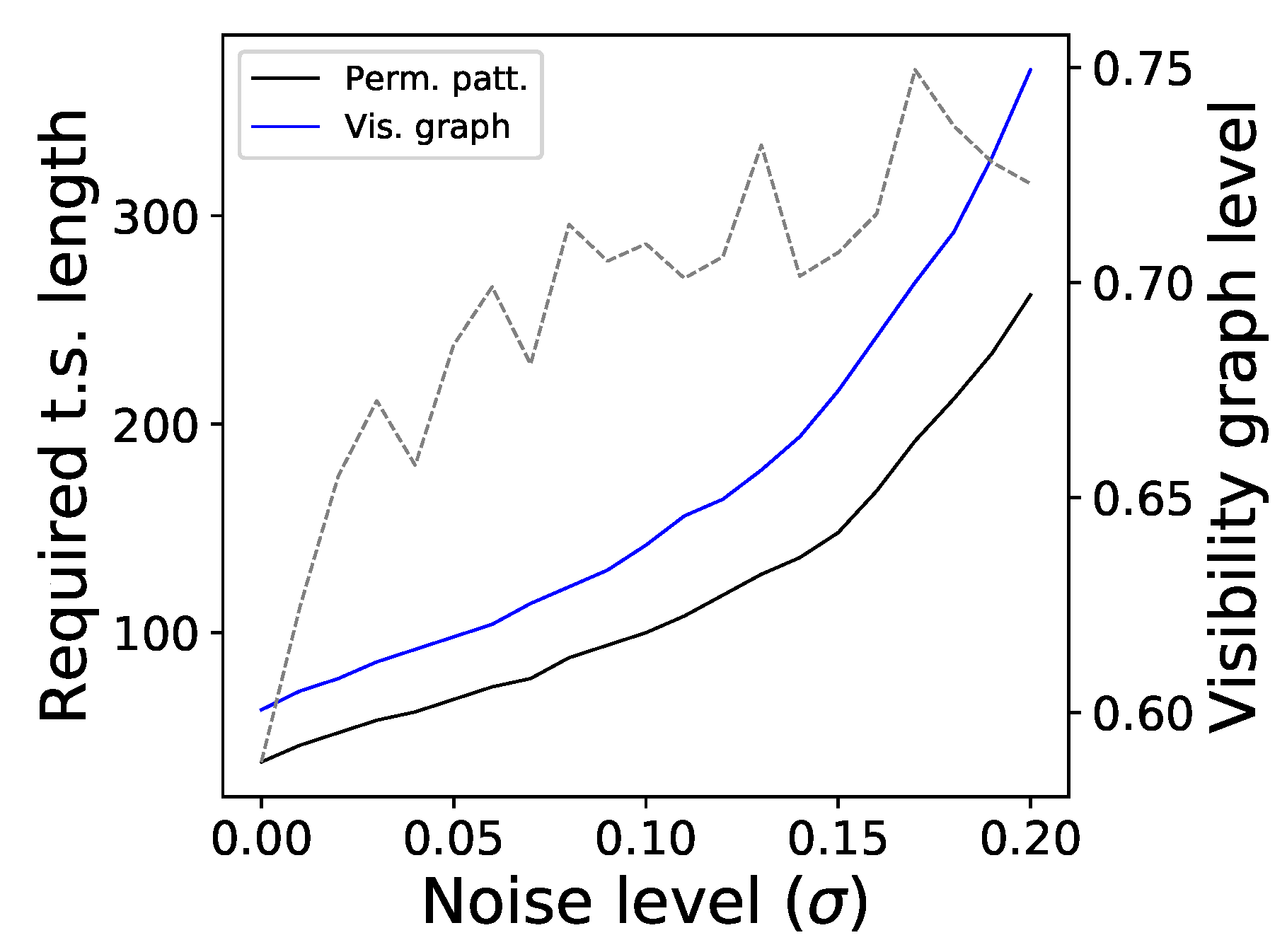

**Figure 5.**Resilience to noise. The two solid lines (left Y axis) depict the evolution of the time series length required to reach a $90\%$ detection of irreversibility for the logistic map, according to the permutation patterns approach (black) and the visibility graph one (blue), as a function of the level noise. The dashed line (right Y axis) indicates the fraction of times the visibility graph method is detecting an irreversibility, when the permutation patterns method has reached a $90\%$.

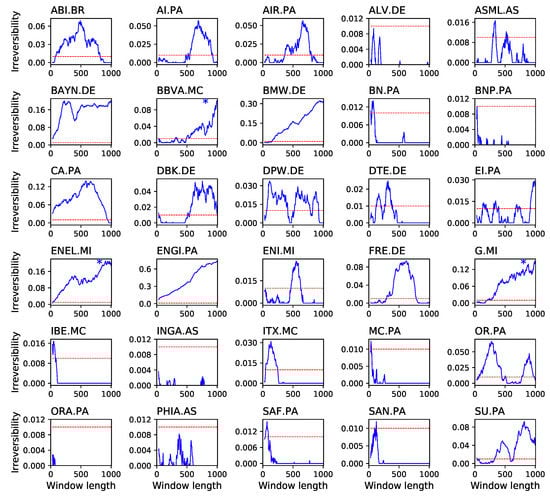

**Figure 6.**Reversibility of the 30 biggest European stocks by capitalization. The solid line of each panel depicts the fraction of windows in which the absence of reversibility was statistically significant ($\alpha =0.01$, Y axes), as a function of the window size in days (X axes). The horizontal dashed line represents the significance level of $0.01$. An asterisk in the top right corner of a panel indicates that the stock is reversible when considering the whole time series.

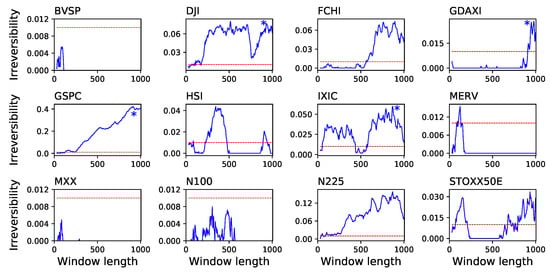

**Figure 7.**Reversibility of 12 market indices. The solid line of each panel depicts the fraction of windows in which the absence of reversibility was statistically significant ($\alpha =0.01$, Y axes), as a function of the window size in days (X axes). The meaning of the horizontal dashed lines and of the asterisks is the same as in Figure 6.

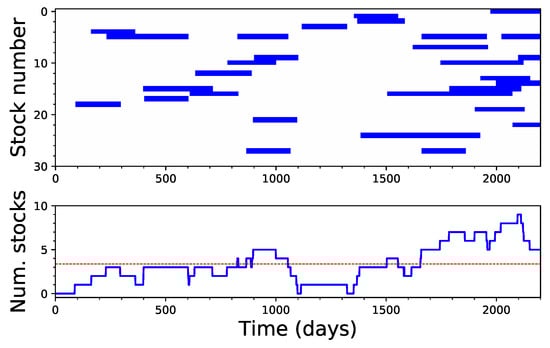

**Figure 8.**Analysis of the synchronicity between irreversible windows: (

**Top**) the time intervals when each stock time series is detected as irreversible, using windows of 200 data points; and (

**Bottom**) the evolution of the number of stocks that were irreversible at the same time. The dashed red line represents the expected number of irreversible stocks under the assumption of independence.

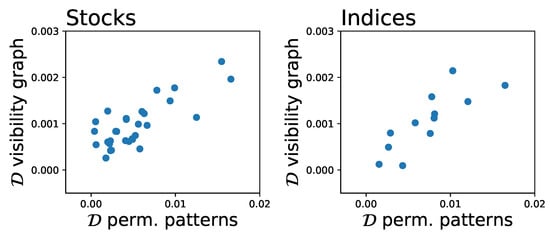

**Figure 9.**Analysis of the similarity of the irreversibility, as yielded by the proposed method and by the visibility graph approach: (
