Teager Energy Entropy Ratio of Wavelet Packet Transform and Its Application in Bearing Fault Diagnosis

Department of Mechanical Engineering, North China Electric Power University, Baoding 071003, China
Author to whom correspondence should be addressed.
Entropy 2018, 20(5), 388;
Received: 27 April 2018 / Revised: 15 May 2018 / Accepted: 18 May 2018 / Published: 21 May 2018
PDF [9842 KB, uploaded 21 May 2018]


Kurtogram can adaptively select the resonant frequency band, and then the characteristic fault frequency can be obtained by analyzing the selected band. However, the kurtogram is easily affected by random impulses and noise. In recent years, improvements to kurtogram have been concentrated on two aspects: (a) the decomposition method of the frequency band; and (b) the selection index of the optimal frequency band. In this article, a new method called Teager Energy Entropy Ratio Gram (TEERgram) is proposed. The TEER algorithm takes the wavelet packet transform (WPT) as the signal frequency band decomposition method, which can adaptively segment the frequency band and control the noise. At the same time, Teager Energy Entropy Ratio (TEER) is proposed as a computing index for wavelet packet subbands. WPT has better decomposition properties than traditional finite impulse response (FIR) filtering and Fourier decomposition in the kurtogram algorithm. At the same time, TEER has better performance than the envelope spectrum or even the square envelope spectrum. Therefore, the TEERgram method can accurately identify the resonant frequency band under strong background noise. The effectiveness of the proposed method is verified by simulation and experimental analysis. View Full-Text
Keywords: bearing diagnosis; kurtogram; WPT; TEER bearing diagnosis; kurtogram; WPT; TEER

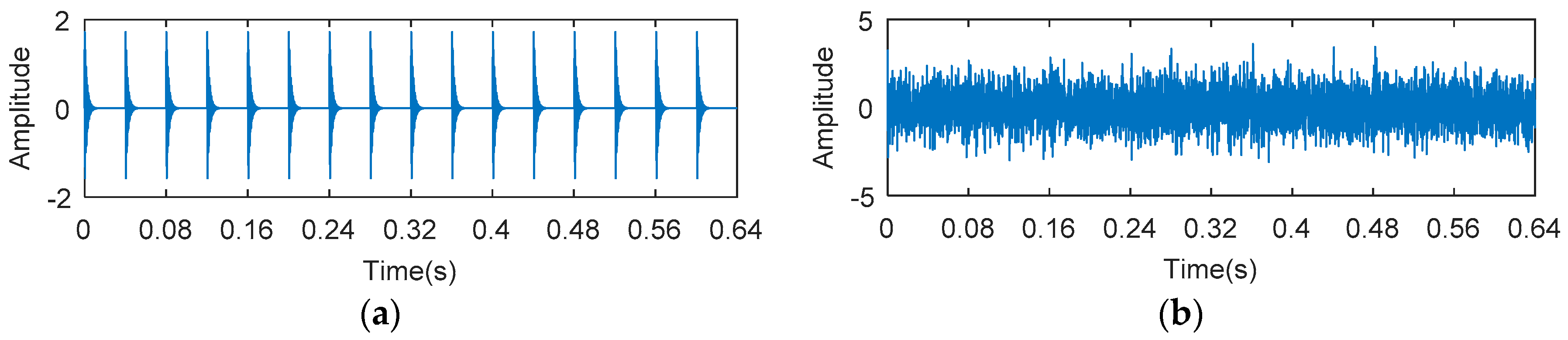

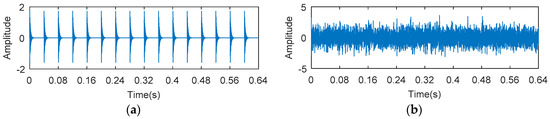

Figure 1
