# Exergy Analysis of a Pilot Parabolic Solar Dish-Stirling System

^{*}

## Abstract

**:**

## 1. Introduction

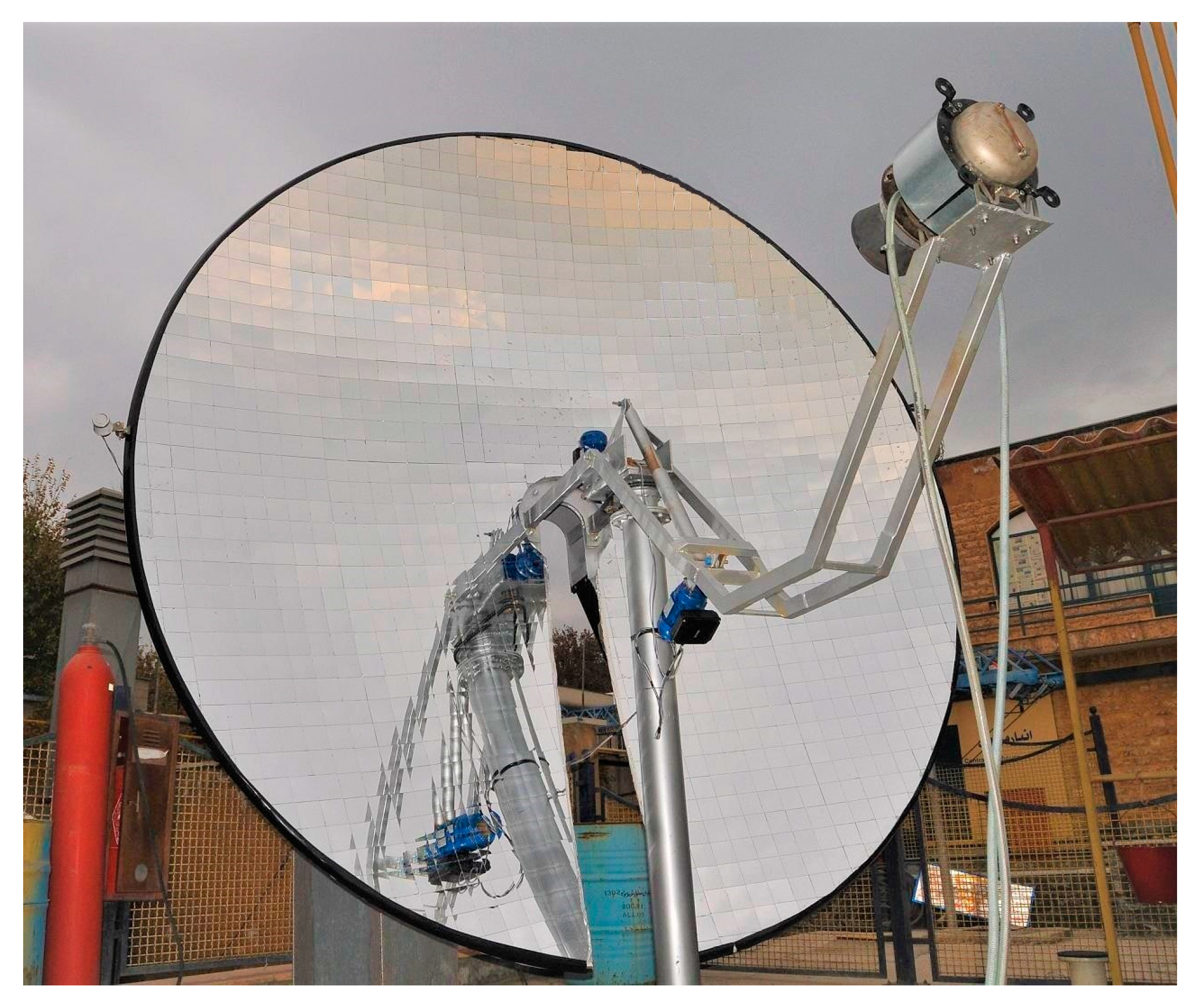

^{2}year, with about 2800 solar hours in a year [2]. The Kerman pilot system is shown in Figure 1.

^{2}concentrator area. A new solar dish configuration was developed by Ahmed [10], in which, compared to a usual dish, the focal point was located much closer to the dish, which enabled the rim angle value to reach up to 90°. A mathematical model was presented to assess the thermal efficiency of the solar dish-Stirling engine [11].

## 2. Methodology

#### 2.1. Solar Radiation Calculation

#### 2.2. The Collector Model

#### 2.3. The Stirling Engine Model

#### 2.4. The Energy and Exergy Efficiency and Performance

## 3. Results and Discussion

^{2}in the middle of May [26]. The analytical model was validated by comparing the predicted power output with the experimental data of the two projects, and the relative errors between measured data and results obtained from the model were calculated (Table 2). Results revealed that the predicted power outputs were in close agreement with the measured data.

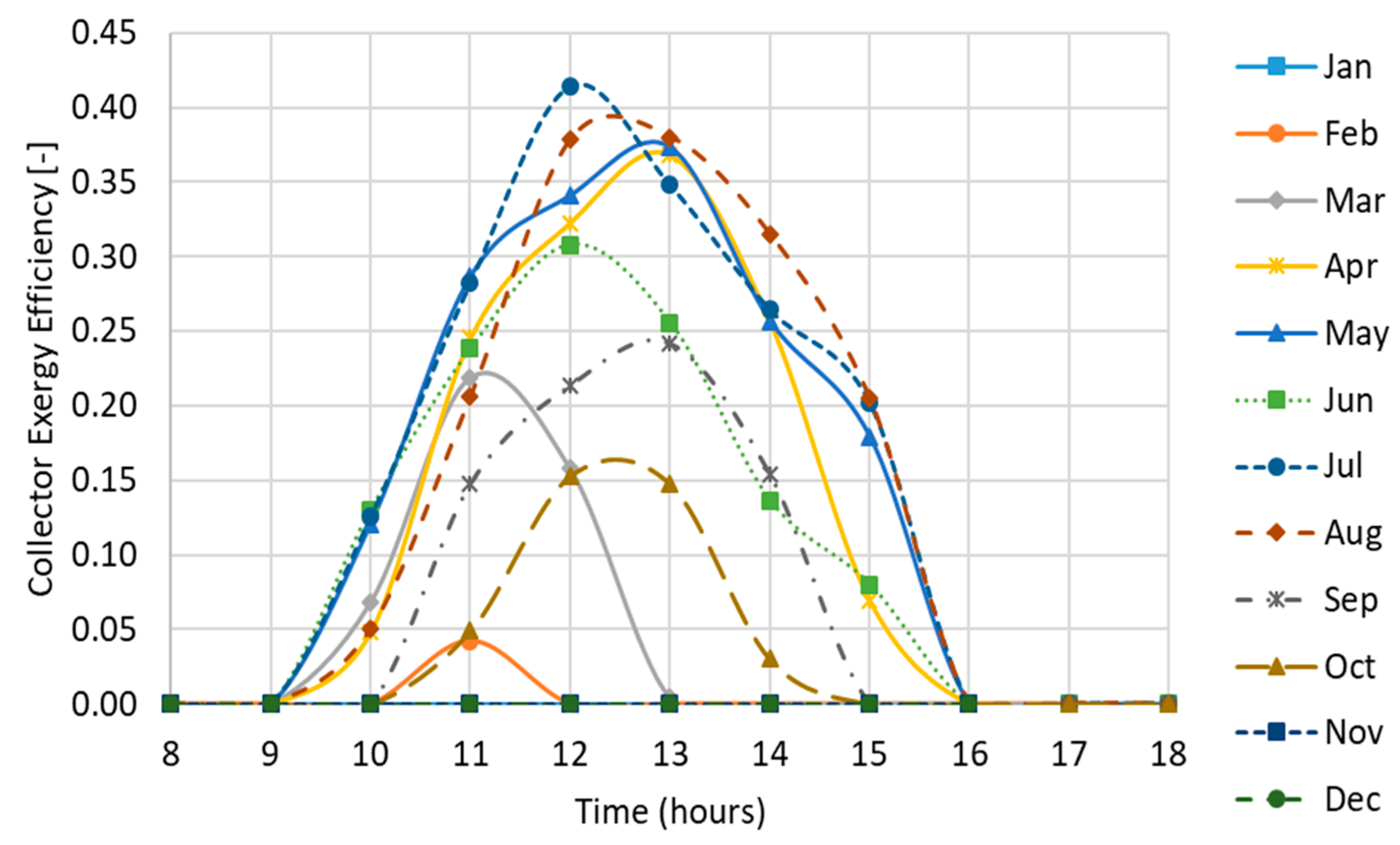

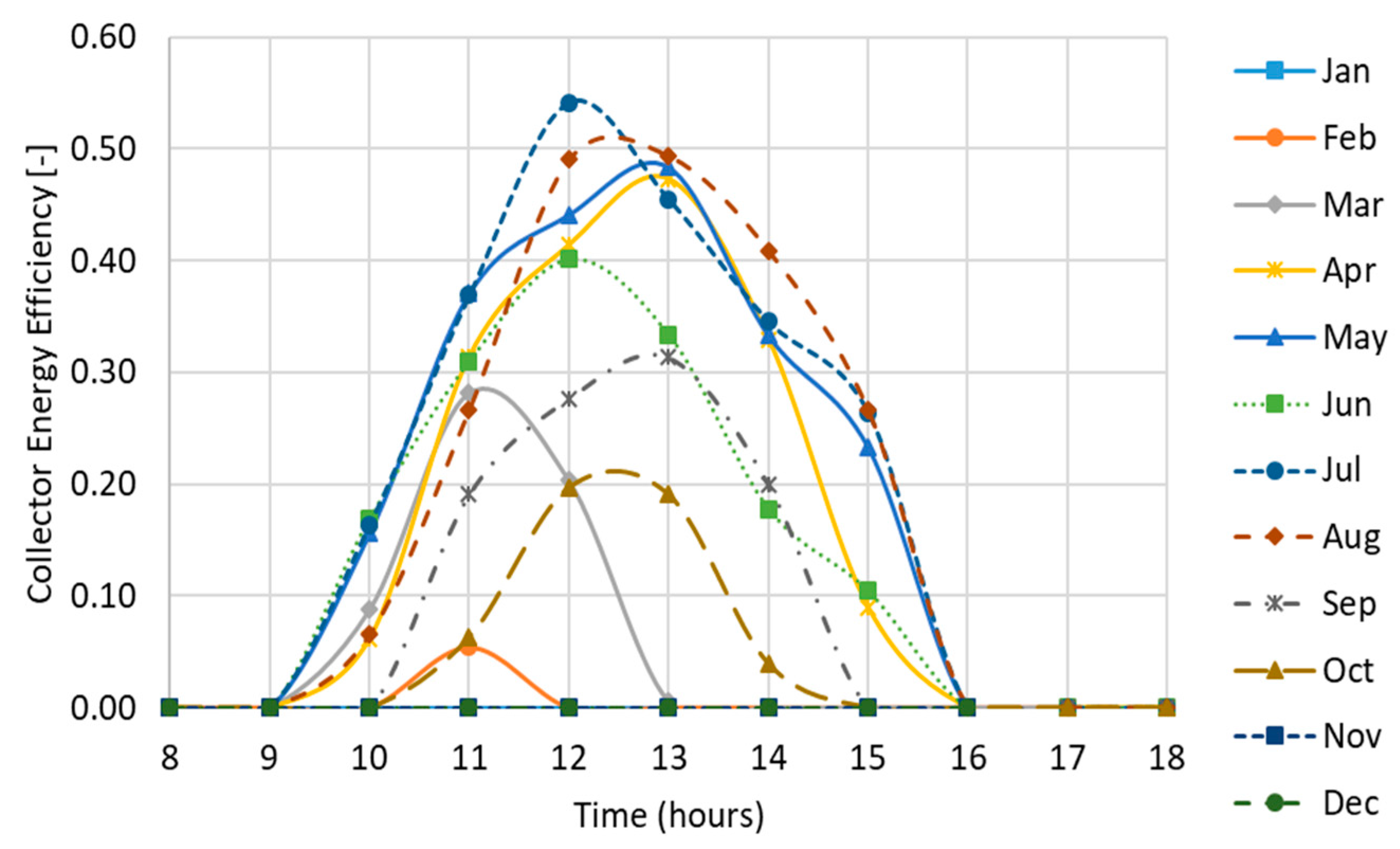

#### 3.1. Energy Efficiency and Exergy Efficiency of the Collector

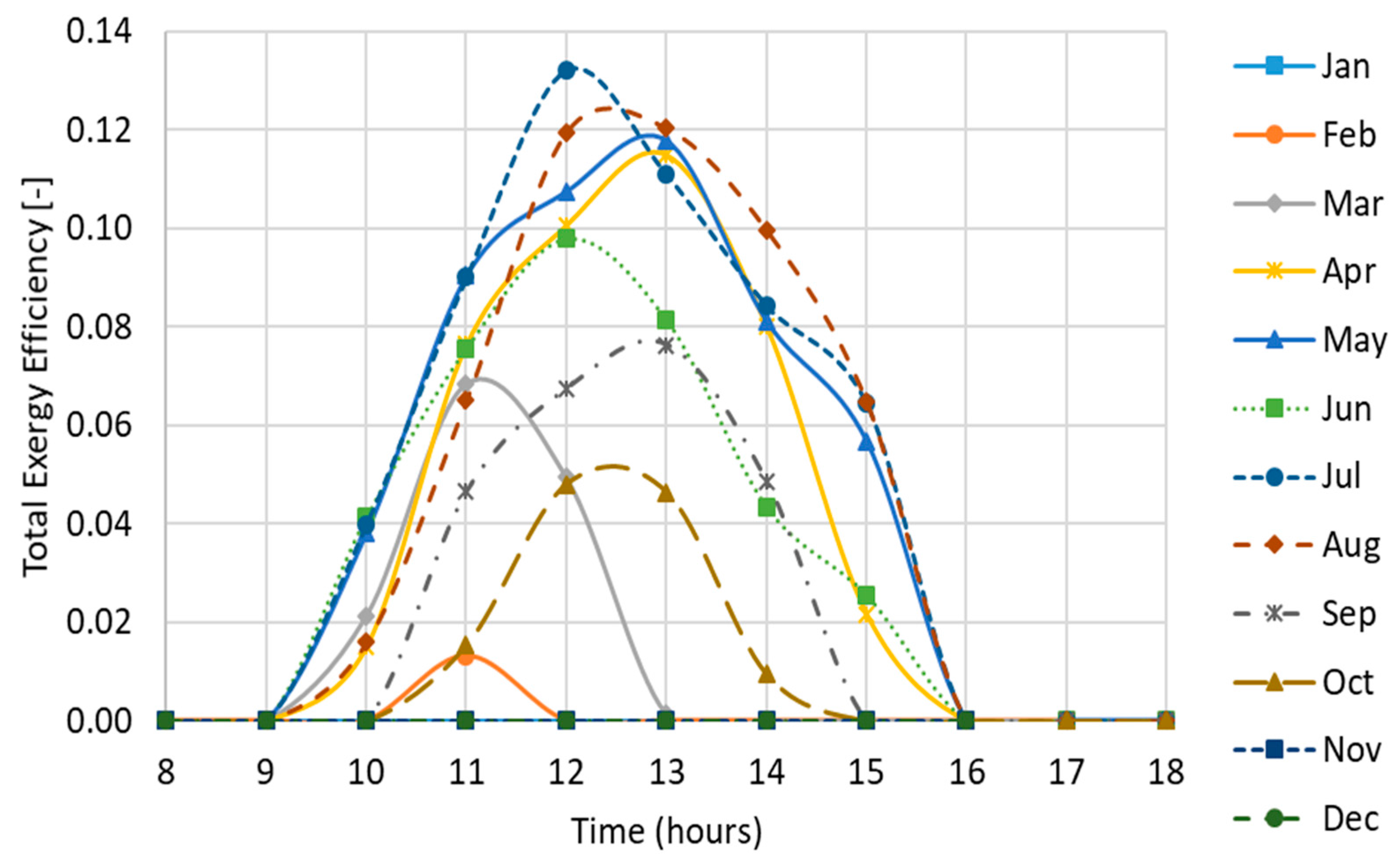

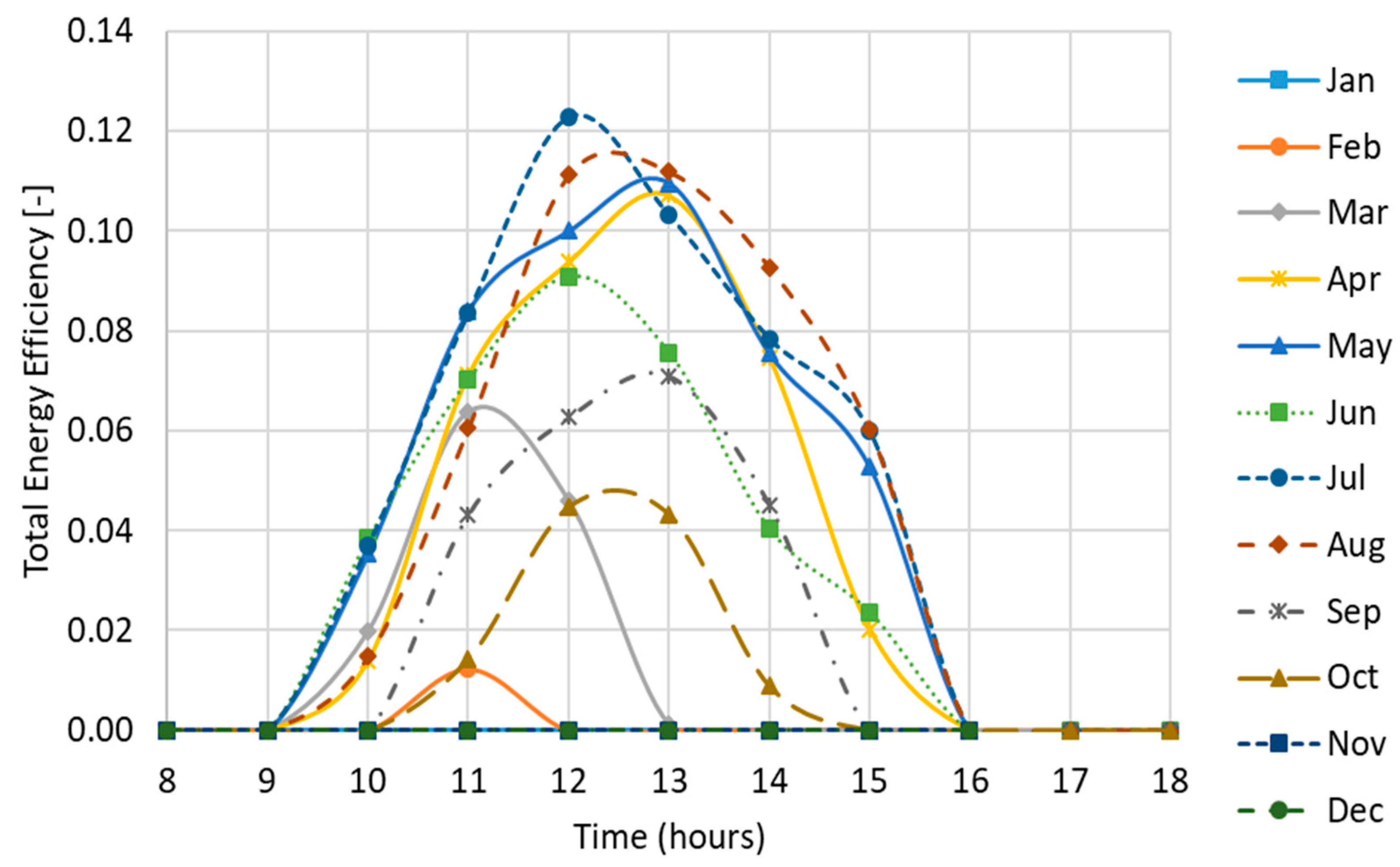

#### 3.2. Total Energy Efficiency and Exergy Efficiency of the System

## 4. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## Nomenclature

A | area (m^{2}) |

a_{0},a_{1} | constants of atmospheric transmittance equation for beam radiation |

C | concentration ratio |

c_{p} | specific heat at constant pressure (J/(kg·K)) |

c_{v} | specific heat at constant volume (J/(kg·K)) |

d | diameter (m) |

Ex | Exergy |

f | focal distance (m) |

G | beam solar irradiance (W/m^{2}) |

G_{on} | extraterrestrial radiation incident on the plane normal to the radiation on the nth day of the year (W/m^{2}) |

G_{sc} | solar constant; =1367 (W/m^{2}) |

Gr | Grashof number |

h | convective heat transfer coefficient (W/(m^{2}·K)) |

k | thermal conductivity (W/(m·K)); constant of atmospheric transmittance equation for beam radiation |

L | Length (m) |

N_{s} | number of screens in regenerator |

Nu | Nusselt number |

n | day number of the year |

P | power output (W) |

p | pressure (Pa) |

Pr | Prandtl number |

$\dot{\mathrm{Q}}$ | heat transfer rate (W) |

R | gas constant (J/(kg·K)) |

Δr | beam spread (m) |

v | wind speed (m/s) |

w | piston speed (m/s) |

w_{s} | sound speed (m/s) |

X | regenerative losses coefficient |

x | direction |

y | adjusting coefficient |

Greek symbols | |

α | absorptivity |

γ | specific heat ratio |

δ | declination, thickness (m) |

ε | emissivity |

ε_{v} | engine volume ratio |

η | efficiency |

η_{I} | energy efficiency |

η_{II} | exergy efficiency |

θ | incident angle |

θ_{z} | zenith angle |

σ | Stefan–Boltzmann constant (W/(m^{2}·K^{4})) |

τ | ratio of the gas extreme temperatures (T_{H}/T_{L}) |

τ_{b} | atmospheric transmittance |

υ | viscosity of the working gas (m^{2}/s) |

φ | latitude |

ψ_{rim} | rim angle |

ω | hour angle |

Subscripts | |

amb | ambient |

ap | aperture |

CC | Carnot Cycle |

cav | receiver cavity |

coll | collector |

conc | concentrator |

d | dish |

eff | effective |

g | gas |

gen | generator |

H | gas at the source |

in | input |

insul | insulation |

L | gas at the sink |

m | mean |

Δp | refers to pressure losses |

rec | receiver |

S | sun |

SE | Stirling Engine |

u | useful |

X | refers to regenerative losses |

## References

- Kalogirou, S.A. Chapter 2: Environmental Characteristics. In Solar Energy Engineering, 2nd ed.; Academic Press: Boston, MA, USA, 2014. [Google Scholar]
- Gholamalizadeh, E.; Mansouri, S.H. A comprehensive approach to design and improve a solar chimney power plant: A special case—Kerman project. Appl. Energy
**2013**, 102, 975–982. [Google Scholar] [CrossRef] - Mancini, T.; Heller, P.; Butler, B.; Osborn, B.; Schiel, W.; Goldberg, V.; Buck, R.; Diver, R.; Andraka, C.; Moreno, J. Dish-Stirling Systems: An Overview of Development and Status. J. Sol. Energy Eng.
**2003**, 125, 135–151. [Google Scholar] [CrossRef] - Kongtragool, B.; Wongwises, S. A review of solar-powered Stirling engines and low temperature differential Stirling engines. Renew. Sustain. Energy Rev.
**2003**, 7, 131–154. [Google Scholar] [CrossRef] - Nuwayhid, R.Y.; Mrad, F.; Abu-Said, R. The realization of a simple solar tracking concentrator for university research applications. Renew. Energy
**2001**, 24, 207–222. [Google Scholar] [CrossRef] - Wu, S.Y.; Xiao, L.; Cao, Y.; Li, Y.R. A parabolic dish/AMTEC solar thermal power system and its performance evaluation. Appl. Energy
**2010**, 87, 452–462. [Google Scholar] [CrossRef] - Nepveu, F.; Ferriere, A.; Bataille, F. Thermal model of a dish/Stirling systems. Sol. Energy
**2009**, 83, 81–89. [Google Scholar] [CrossRef] - Li, L.; Dubowsky, S. A new design approach for solar concentrating parabolic dish based on optimized flexible petals. Mech. Mach. Theory
**2011**, 46, 1536–1548. [Google Scholar] [CrossRef] - Lovegrove, K.; Burgess, G.; Pye, J. A new 500 m
^{2}paraboloidal dish solar concentrator. Sol. Energy**2011**, 85, 620–626. [Google Scholar] [CrossRef] - Cameron, M.; Ahmed, N.A. A novel solar concentrating dish for reduced manufacturing cost. Appl. Mech. Mater.
**2014**, 607, 368–375. [Google Scholar] [CrossRef] - Yaqi, L.; Yaling, H.; Weiwei, W. Optimization of solar-powered Stirling heat engine with finite-time thermodynamics. Renew. Energy
**2011**, 36, 421–427. [Google Scholar] [CrossRef] - Sripakagorn, A.; Srikam, C. Design and performance of a moderate temperature difference Stirling engine. Renew. Energy
**2011**, 36, 1728–1733. [Google Scholar] [CrossRef] - Abbas, M.; Boumeddane, B.; Said, N.; Chikouche, A. Dish Stirling technology: A 100 MW solar power plant using hydrogen for Algeria. Int. J. Hydrog. Energy
**2011**, 36, 4305–4314. [Google Scholar] [CrossRef] - Ahmadi, M.H.; Ahmadi, M.A.; Mellit, A.; Pourfayaz, F.; Feidt, M. Thermodynamic analysis and multi objective optimization of performance of solar dish Stirling engine by the centrality of entransy and entropy generation. Int. J. Electr. Power Energy Syst.
**2016**, 78, 88–95. [Google Scholar] [CrossRef] - Sup, B.A.; Zainudin, M.F.; Zanariah ShamsirAli, T.; Bakar, R.A.; Ming, G.L. Effect of rim angle to the flux distribution diameter in solar parabolic dish collector. Energy Procedia
**2015**, 68, 45–52. [Google Scholar] [CrossRef] - Reinalter, W.; Ulmer, S.; Heller, P.; Rauch, T.; Gineste, J.M.; Fernere, A.; Nepveu, F. Detailed performance analysis of a 10 kW dish/stirling system. J. Sol. Energy Eng. Trans. ASME
**2008**, 130, 11013. [Google Scholar] [CrossRef] - Mao, Q.; Shuai, Y.; Yuan, Y. Study on radiation flux of the receiver with a parabolic solar concentrator system. Energy Convers. Manag.
**2014**, 84. [Google Scholar] [CrossRef] - Ruelas, J.; Velázquez, N.; Cerezo, J. A mathematical model to develop a Scheffler-type solar concentrator coupled with a Stirling engine. Appl. Energy
**2013**, 101, 253–260. [Google Scholar] [CrossRef] - Duffie, J.A.; Beckman, W.A. Solar Engineering of Thermal Processes; Wiley: Hoboken, NJ, USA, 2013. [Google Scholar]
- Stine, W.; Diver, R. A Compendium of Solar Dish/Stirling Technology; Report No. SAND93-7026; Sandia National Labs: Albuquerque, NM, USA, 1994. [Google Scholar]
- Stine, W.B.; McDonald, C. Cavity Receiver Convective Heat Loss. In Proceedings of the International Solar Energy Society, Solar World Congress, Kobe, Japan, 4–8 September 1989. [Google Scholar]
- Ma, R.Y. Wind Effects on Convective Heat Loss from a Cavity Receiver for a Parabolic Concentrating Solar Collector; Sandia National Laboratories: Albuquerque, NM, USA, 1993. [Google Scholar]
- Bejan, A. Advanced Engineering Thermodynamics, 3rd ed.; Wiley: Hoboken, NJ, USA, 2006. [Google Scholar]
- Petrescu, S.; Costea, M.; Harman, C.; Florea, T. Application of the Direct Method to irreversible Stirling cycles with finite speed. Int. J. Energy Res.
**2002**, 26, 589–609. [Google Scholar] [CrossRef] - Petela, R. Exergy of Heat Radiation. J. Heat Transf.
**1964**, 86, 187–192. [Google Scholar] [CrossRef] - García Granados, F.J.; Silva Pérez, M.A.; Ruiz-Hernández, V. Thermal Model of the EuroDish Solar Stirling Engine. J. Sol. Energy Eng.
**2007**, 130, 11014. [Google Scholar] [CrossRef]

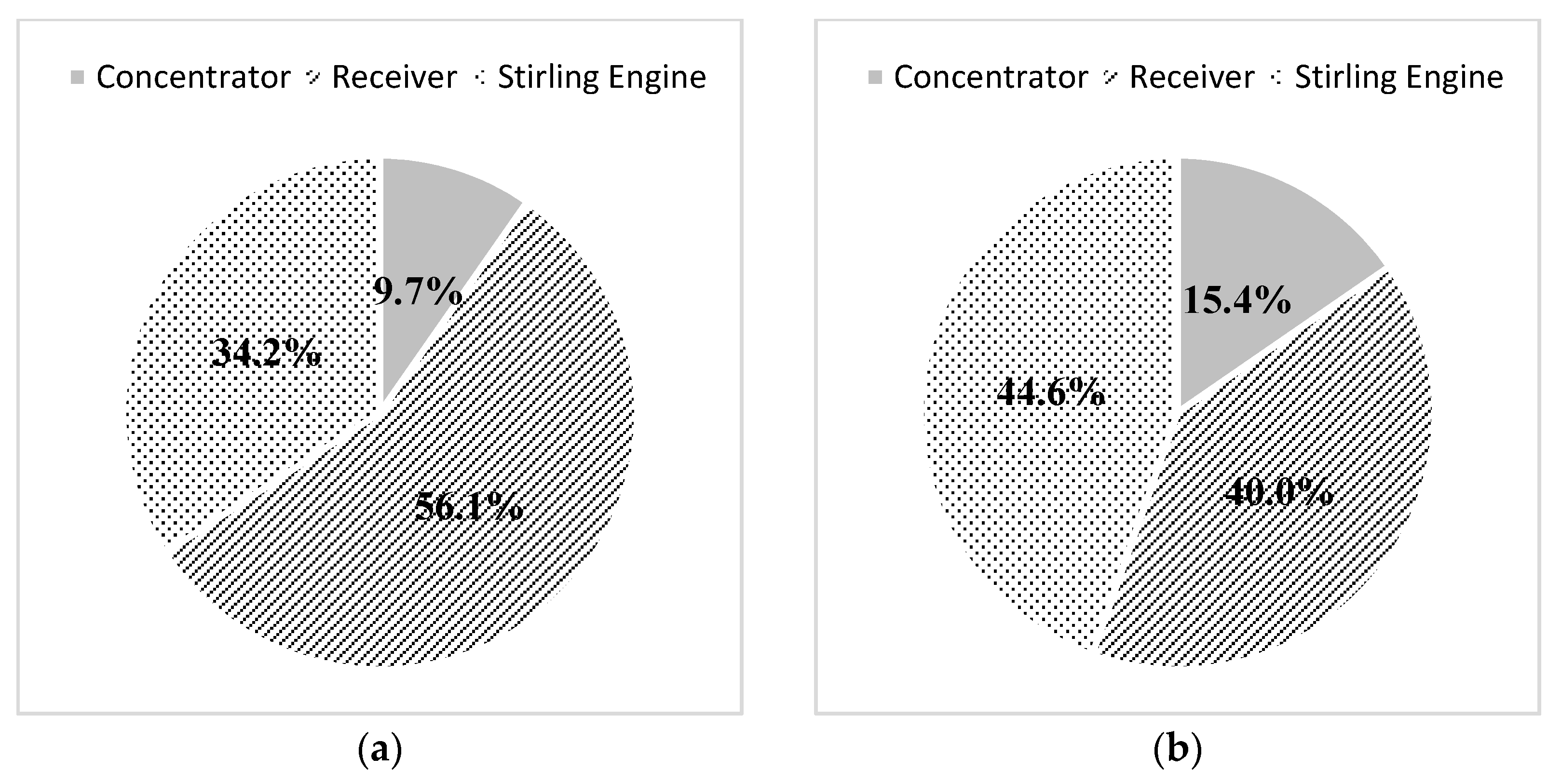

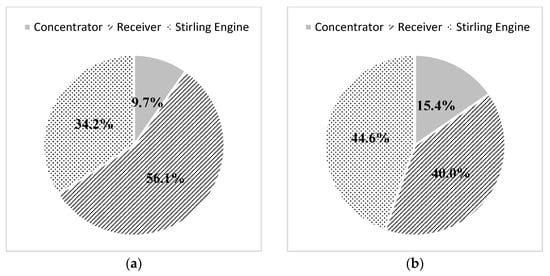

**Figure 6.**Energy losses of main parts of (

**a**) the Kerman pilot; (

**b**) EuroDish project as a percentage of total energy losses.

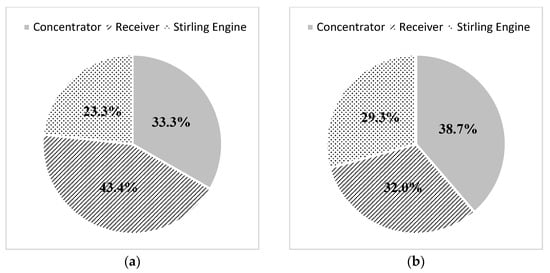

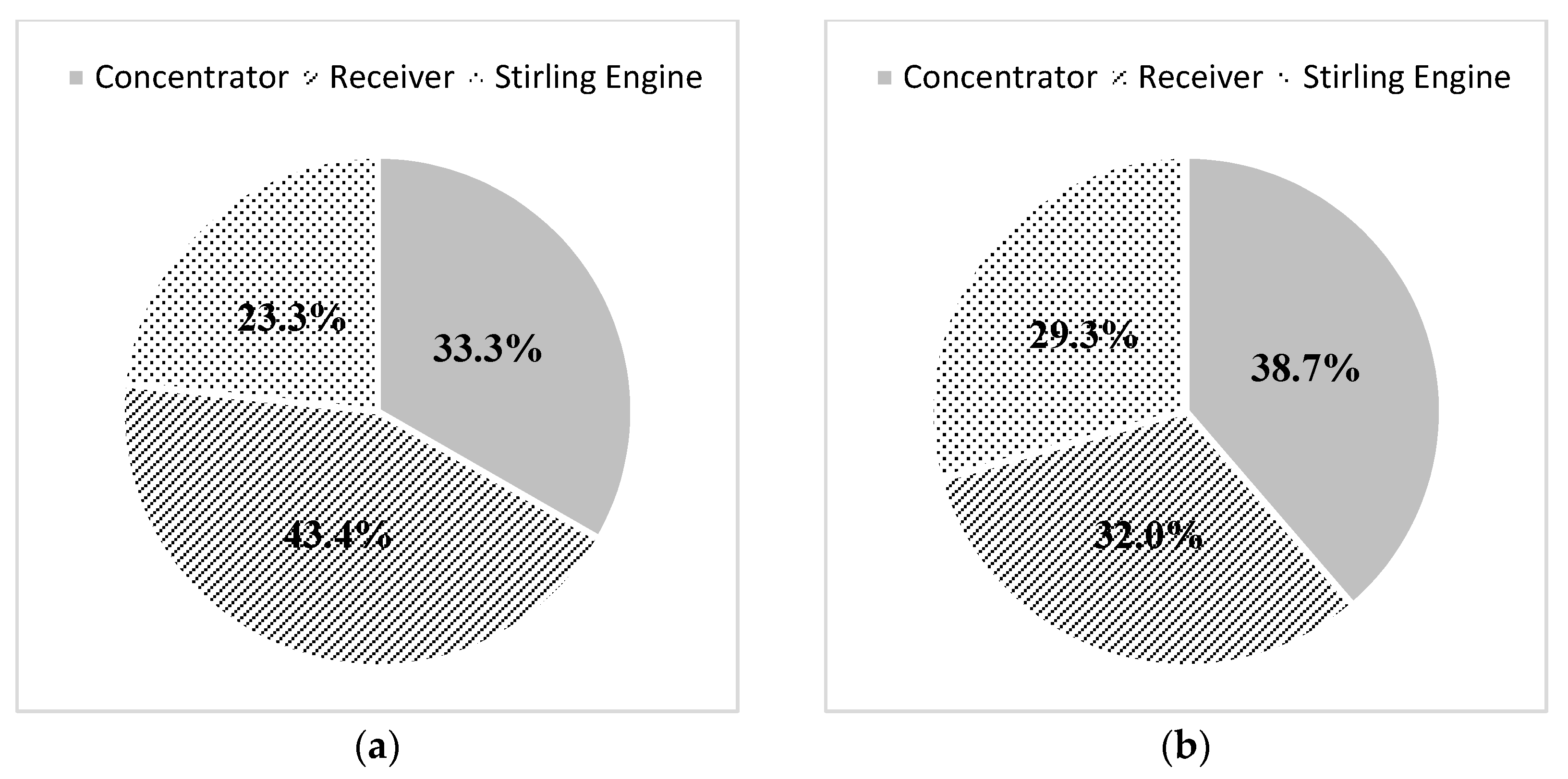

**Figure 7.**Exergy loss of the main parts of (

**a**) the Kerman pilot; (

**b**) EuroDish project as a percentage of total energy loss.

**Table 1.**Wind speed (m/s), ambient temperature (°C), and horizontal beam solar irradiance (W/m

^{2}) at the Kerman site recorded on 15 June.

Time (h) | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|

8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | |

Wind Speed | 6.4 | 4.4 | 4.1 | 6.1 | 6.4 | 8 | 9.5 | 7.8 | 7.6 | 6.3 | 6.9 |

Ambient Temperature | 31 | 31.8 | 33.1 | 34.2 | 35.1 | 36 | 35.5 | 35.7 | 35.8 | 35.7 | 34.5 |

Beam Solar Irradiance | 374.9 | 579.8 | 755.2 | 885.1 | 959.1 | 971.3 | 921 | 811.9 | 652.7 | 456.9 | 245.7 |

**Table 2.**Comparison between numerical results and measured power output of the Kerman project and EuroDish project.

Project | Power Output (kW) | Relative Error (%) | |
---|---|---|---|

Measured | Analytic | ||

EuroDish | 7.55 | 7.66 | 1.44 % |

Kerman Pilot | 0.60 | 0.629 | 4.61 % |

Energy Input (kW) | Energy Output (kW) | Energy Loss (kW) | Exergy Input (kW) | Exergy Output (kW) | Exergy Loss (kW) | Energy Efficiency | Exergy Efficiency | |
---|---|---|---|---|---|---|---|---|

Concentrator | 6.92 | 6.31 | 0.61 | 6.43 | 4.50 | 1.93 | 0.91 | 0.70 |

Receiver | 6.31 | 2.78 | 3.53 | 4.50 | 1.98 | 2.52 | 0.44 | 0.44 |

Stirling Engine | 2.78 | 0.63 | 2.15 | 1.98 | 0.63 | 1.35 | 0.23 | 0.32 |

Collector | 6.92 | 2.78 | 4.14 | 6.43 | 1.98 | 4.45 | 0.40 | 0.31 |

Overall | 6.92 | 0.63 | 6.29 | 6.43 | 0.63 | 5.80 | 0.091 | 0.098 |

Energy Input (kW) | Energy Output (kW) | Energy Loss (kW) | Exergy Input (kW) | Exergy Output (kW) | Exergy Loss (kW) | Energy Efficiency | Exergy Efficiency | |
---|---|---|---|---|---|---|---|---|

Concentrator | 46.39 | 40.50 | 5.89 | 43.14 | 29.57 | 13.57 | 0.87 | 0.69 |

Receiver | 40.50 | 25.16 | 15.34 | 29.57 | 18.37 | 11.20 | 0.62 | 0.62 |

Stirling Engine | 25.16 | 8.11 | 17.05 | 18.37 | 8.11 | 10.26 | 0.32 | 0.44 |

Collector | 46.39 | 25.16 | 21.23 | 43.14 | 18.37 | 24.77 | 0.54 | 0.43 |

Overall | 46.39 | 8.11 | 38.28 | 43.14 | 8.11 | 35.03 | 0.17 | 0.19 |
