# How to Determine Losses in a Flow Field: A Paradigm Shift towards the Second Law Analysis

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Losses and the Second Law of Thermodynamics

- (1)
- The higher accuracy of the final results;
- (2)
- Detailed information about the location of losses within the flow field;
- (3)
- A direct physical interpretation of the losses in terms of exergy losses; this information is not available from drag and friction results, since it also depends on the temperature level;
- (4)
- A unique assessment quantity for losses in the flow and in the temperature field when heat transfer is also involved.

#### 2.1. The Alternative Approach in General

#### 2.2. The Alternative Approach for External Flows

#### 2.3. The Alternative Approach for Internal Flows

#### 2.4. Advantage of the Alternative Approach

conventional approach | alternative approach | |

external flow | $\text{c}}_{\text{D}}=\frac{{F}_{\text{D}}}{\frac{\varrho}{2}{u}_{\infty}^{2}A$ | $\text{c}}_{\text{D}}=\frac{T}{\frac{\varrho}{2}{u}_{\infty}^{3}A}{\dot{S}}_{\text{irr,D}$ |

internal flow | $\text{K}=\frac{\mathsf{\Delta}p}{\frac{\varrho}{2}{u}_{\text{m}}^{2}}$ | $\text{K}=\frac{T}{\frac{\varrho}{2}{u}_{\text{m}}^{3}A}{\dot{S}}_{\text{irr,D}}$ |

## 3. The Second Law Analysis (SLA) of a Flow Field

#### 3.1. Literature about Entropy and the SLA Approach

#### 3.2. Local Entropy Generation Rates and Turbulence Modeling

#### 3.3. Overall Entropy Generation Rates

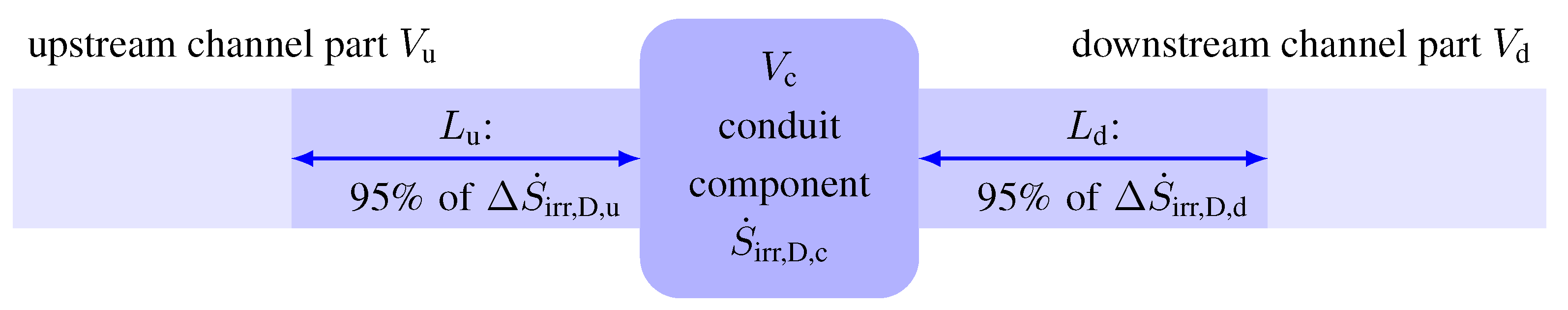

**Figure 1.**Determination of the overall entropy generation rate due to a conduit component. $\mathsf{\Delta}{\dot{S}}_{\text{irr,D,u}}$ is the additional entropy generation upstream of the component, ${\dot{S}}_{\text{irr,D,c}}$ the entropy generation inside the component and $\mathsf{\Delta}{\dot{S}}_{\text{irr,D,d}}$ the additional entropy generation downstream of the component.

- for external flows:$${\dot{S}}_{\text{irr,D}}=\underset{V}{\int}\left({\dot{S}}_{\text{irr,D}}^{\u2034}-{\dot{S}}_{\text{irr,D0}}^{\u2034}\right)\text{d}V$$
- for internal flows:$$\underset{\phi \dot{m}/{T}_{\text{m}}}{\underbrace{{\dot{S}}_{\text{irr,D}}\phantom{\rule{-12.75pt}{0ex}}\phantom{{\int}_{{V}_{\text{c}}}}}}=\underset{\mathsf{\Delta}{\dot{S}}_{\text{irr,D,u}}=\mathsf{\Delta}{\phi}_{u}\dot{m}/{T}_{\text{m}}}{\underbrace{\underset{{V}_{\text{u}}}{\int}({\dot{S}}_{\text{irr,D}}^{\prime \prime \prime}-{\dot{S}}_{\text{irr,D}0}^{\prime \prime \prime})\text{d}V}}+\underset{{\dot{S}}_{\text{irr,D,c}}={\phi}_{c}\dot{m}/{T}_{\text{m}}}{\underbrace{\underset{{V}_{\text{c}}}{\int}{\dot{S}}_{\text{irr,D}}^{\prime \prime \prime}\text{d}V}}+\underset{\mathsf{\Delta}{\dot{S}}_{\text{irr,D,d}}=\mathsf{\Delta}{\phi}_{d}\dot{m}/{T}_{\text{m}}}{\underbrace{\underset{{V}_{\text{d}}}{\int}({\dot{S}}_{\text{irr,D}}^{\prime \prime \prime}-{\dot{S}}_{\text{irr,D}0}^{\prime \prime \prime})\text{d}V}}$$

#### 3.4. Entropy Generation versus Dissipation in a Flow Field

- from a thermodynamics point of view, dissipation is quantified by the entropy generation involved in this process and not vice versa;
- entropy generation is immediately linked to the loss of exergy (see Equation (4)), but dissipation is not; how much exergy is lost in a dissipative process is determined by the entropy generated;
- when further mechanisms, which are irreversible in character, are involved (like heat transfer), their irreversibility can be characterized by a further entropy generation in the flow field and added to that due to dissipation; the overall loss (of exergy) in a flow field is then uniquely accounted for by the overall entropy generation.

## 4. Examples for External Flows

#### 4.1. Drag of a Flat Plate for Laminar Boundary Layer Flow

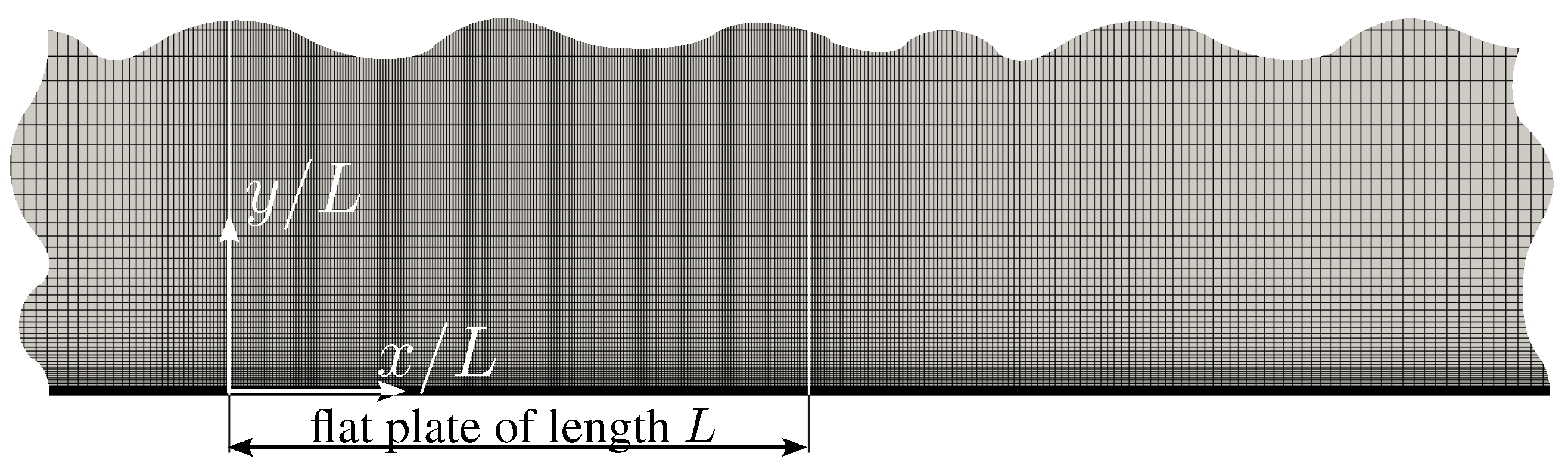

**Figure 2.**Discretization of the near-flow field around the flat plate; the plate is located between $x/L=0$ and 1.

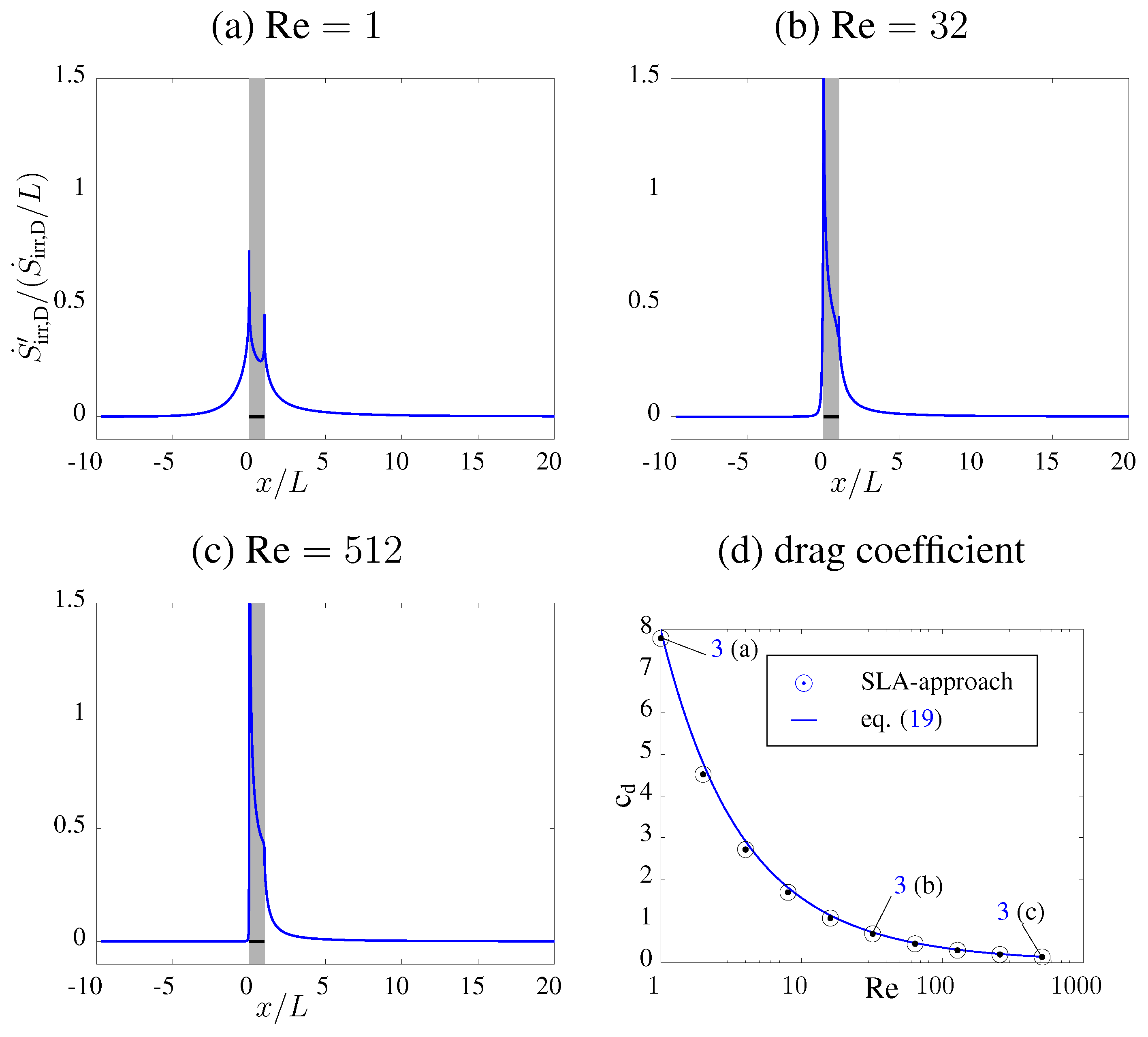

**Figure 3.**(

**a–c**): Distribution of ${\dot{S}}_{\text{irr,D}}^{\prime}$ along the x-axis, non-dimensionalized with the overall entropy generation rate, ${\dot{S}}_{\text{irr,D}}$, and the length of the plate, L. The location of the flat plate is between $x/L=0$ and 1. (

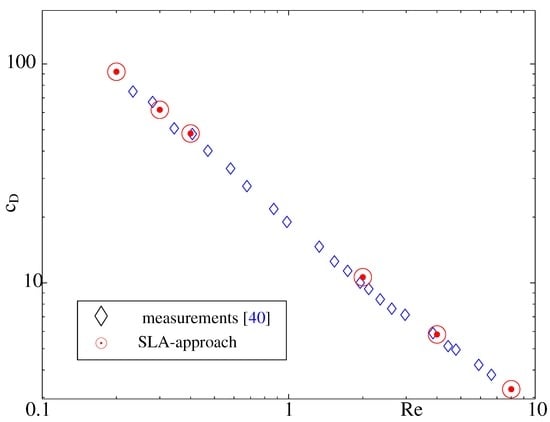

**d**) Drag coefficient ${\text{c}}_{\text{D}}\left(\text{Re}\right)$.

#### 4.2. Drag of a Rising Bubble

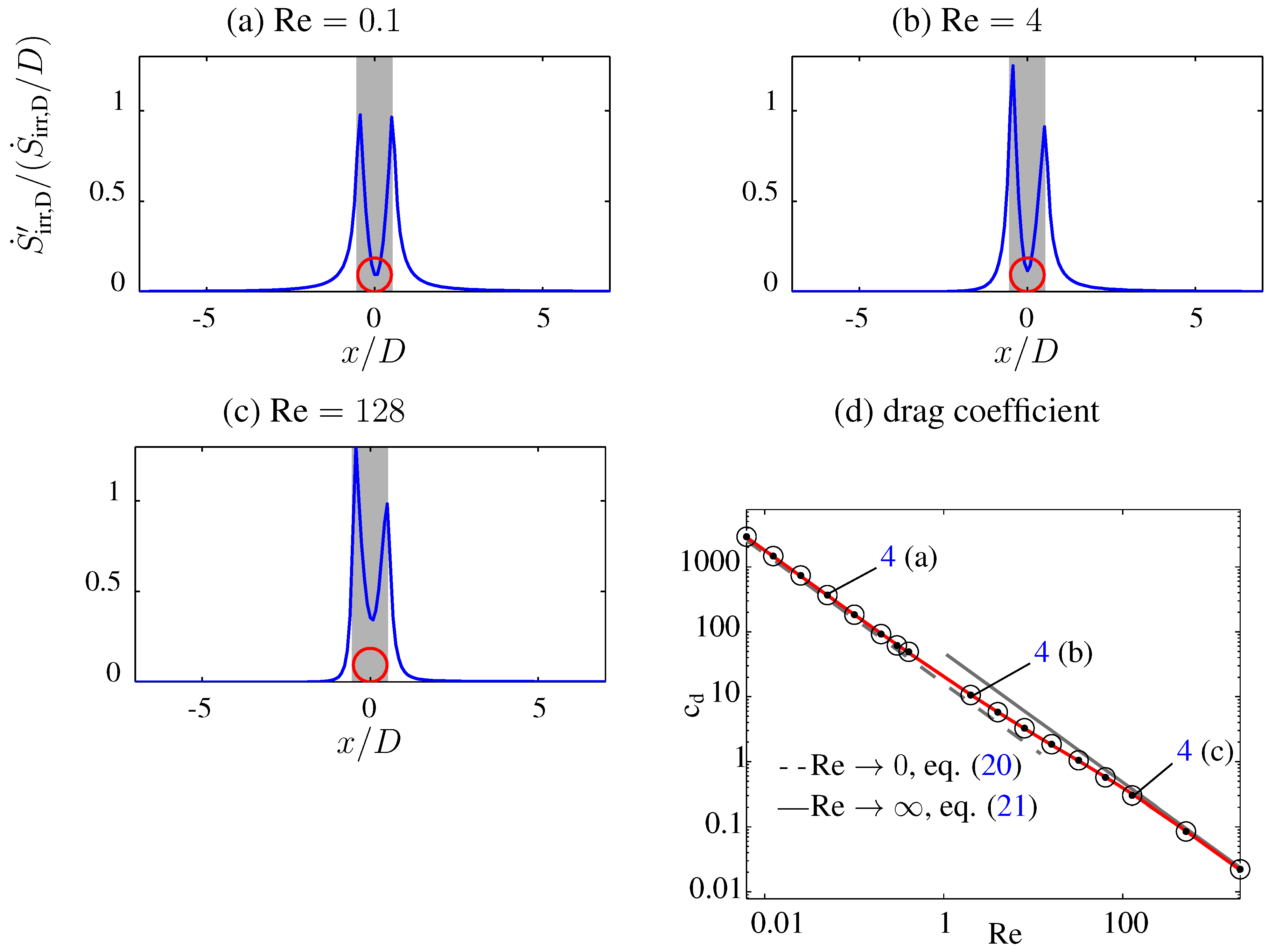

**Figure 4.**(

**a**–

**c**): Distribution of ${\dot{S}}_{\text{irr,D}}^{\prime}$ along the x-axis, non-dimensionalized with the overall entropy generation rate, ${\dot{S}}_{\text{irr,D}}$, and the diameter, D, of the bubble. (

**d**): drag coefficient.

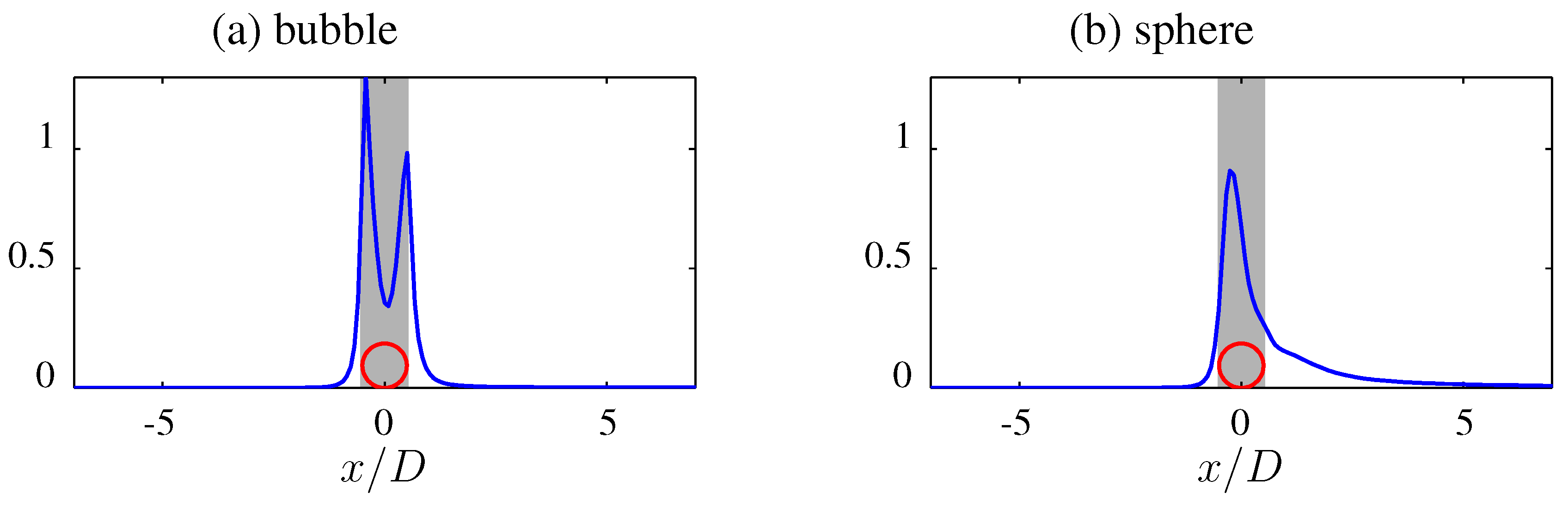

**Figure 6.**Entropy generation ${\dot{S}}_{\text{irr,D}}^{\prime}/({\dot{S}}_{\text{irr,D}}/D)$ for $\text{Re}=128$. (

**a**) Bubble: slip at the boundary; (

**b**) sphere: non-slip at the boundary. More details can be found in [39].

## 5. Examples for Internal Flows in Conduit Components

#### 5.1. Straight Pipes and Channels

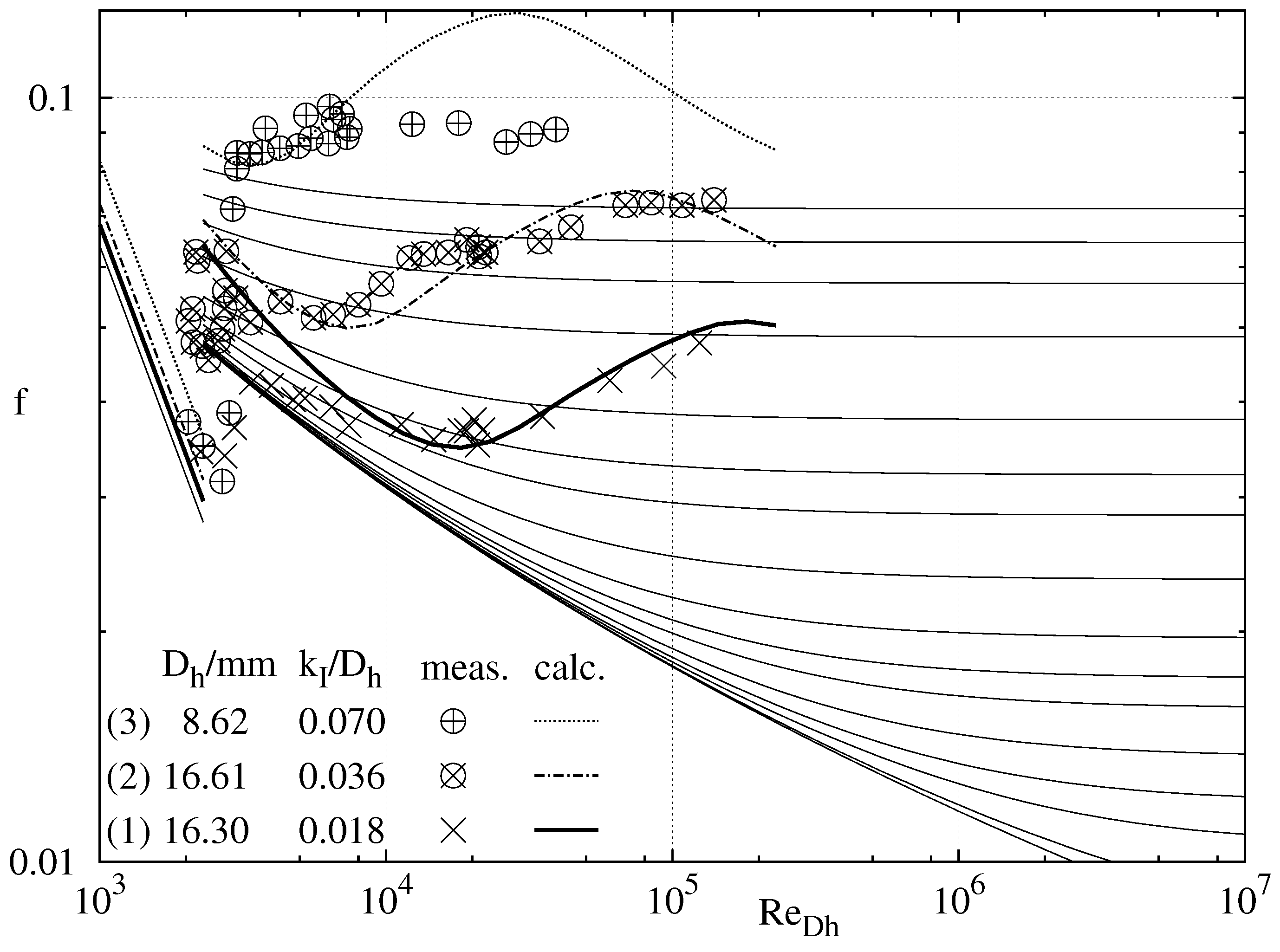

**Figure 7.**Experimental data and SLA results for three different pipes with rough walls and turbulent flow; experimental data are from [46].

#### 5.2. Ninety-Degree Bend and Bend Combinations

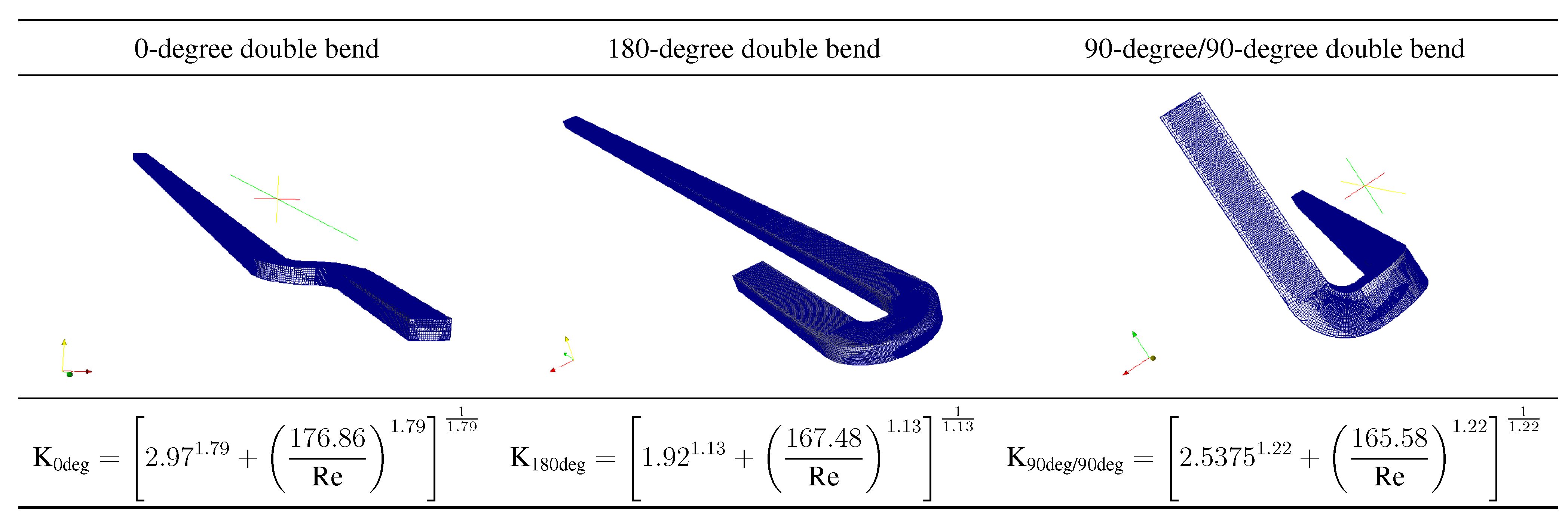

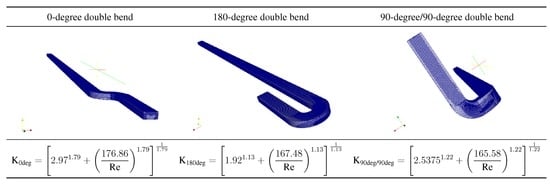

**Figure 9.**Geometry and K-value of double bend combinations; laminar flow; more details in [50].

**Table 2.**Comparison of K-values for three different 90-degree bend combinations with twice the K-value of a single 90-degree bend; more details in [50]; laminar flow.

Re | 2 × 90-degree bend | 0-degree double bend | 180-degree double bend | 90-degree/90-degree double bend |

4 | 44.38 | 43.76 | 43.76 | 43.51 |

8 | 22.50 | 22.20 | 22.14 | 22.05 |

16 | 11.82 | 11.67 | 11.57 | 11.59 |

32 | 6.93 | 6.71 | 6.63 | 6.76 |

64 | 4.51 | 4.35 | 4.31 | 4.60 |

128 | 4.53 | 3.15 | 3.06 | 3.53 |

256 | 4.34 | 3.06 | 2.31 | 2.90 |

512 | 4.54 | 3.18 | 2.20 | 2.68 |

#### 5.3. Branching Conduit Components

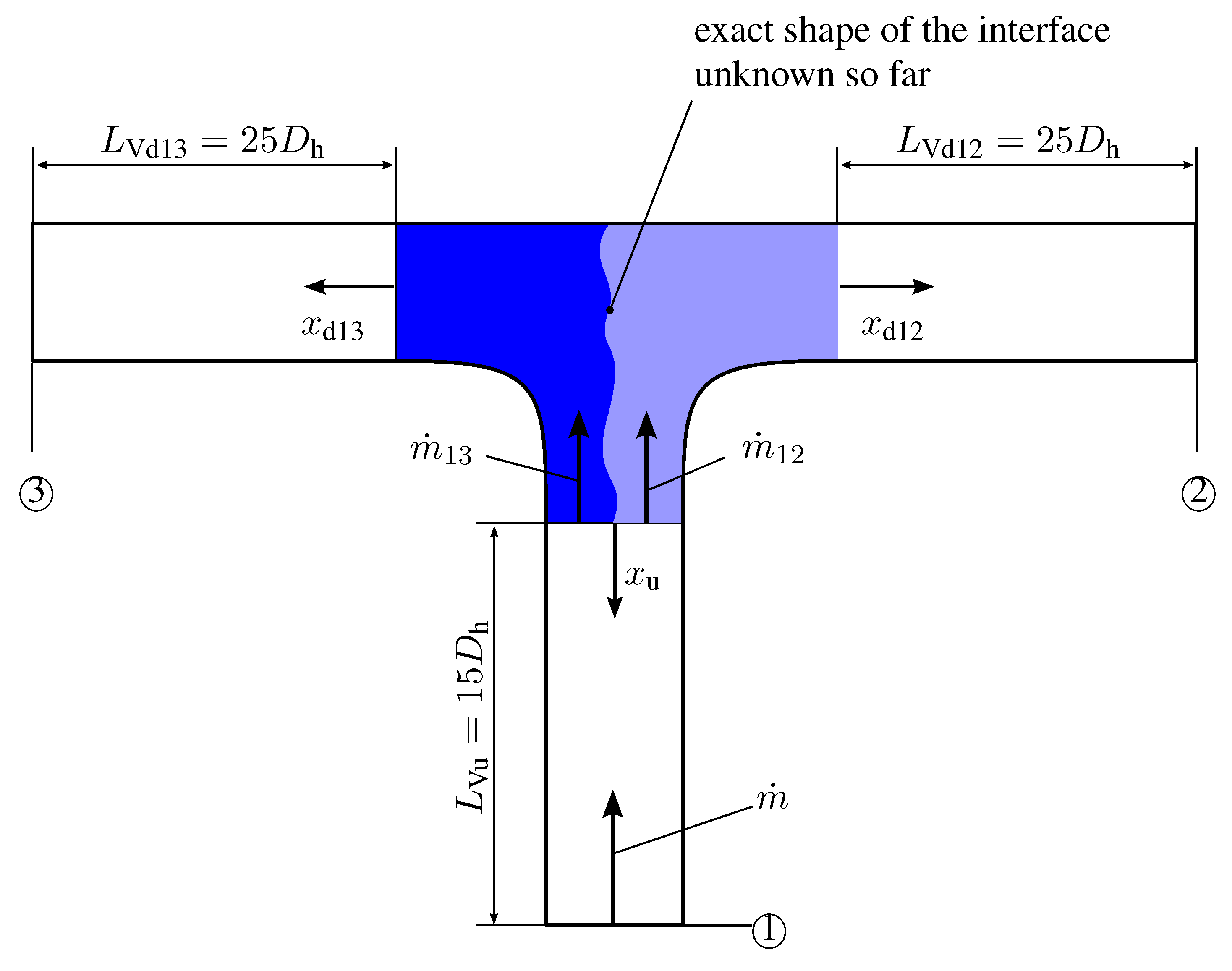

**Figure 10.**Dividing of the mean flow rate, $\dot{m}$, into ${\dot{m}}_{12}$ and ${\dot{m}}_{13}$ for the symmetric T-junction with a square cross-section $A={D}_{\text{h}}^{2}$. Corners are described by circular arcs of radius $R={D}_{\text{h}}$. ${L}_{\text{Vu}}$, ${L}_{\text{Vd12}}$, ${L}_{\text{Vd13}}$: lengths over which effects are accounted for numerically upstream and downstream.

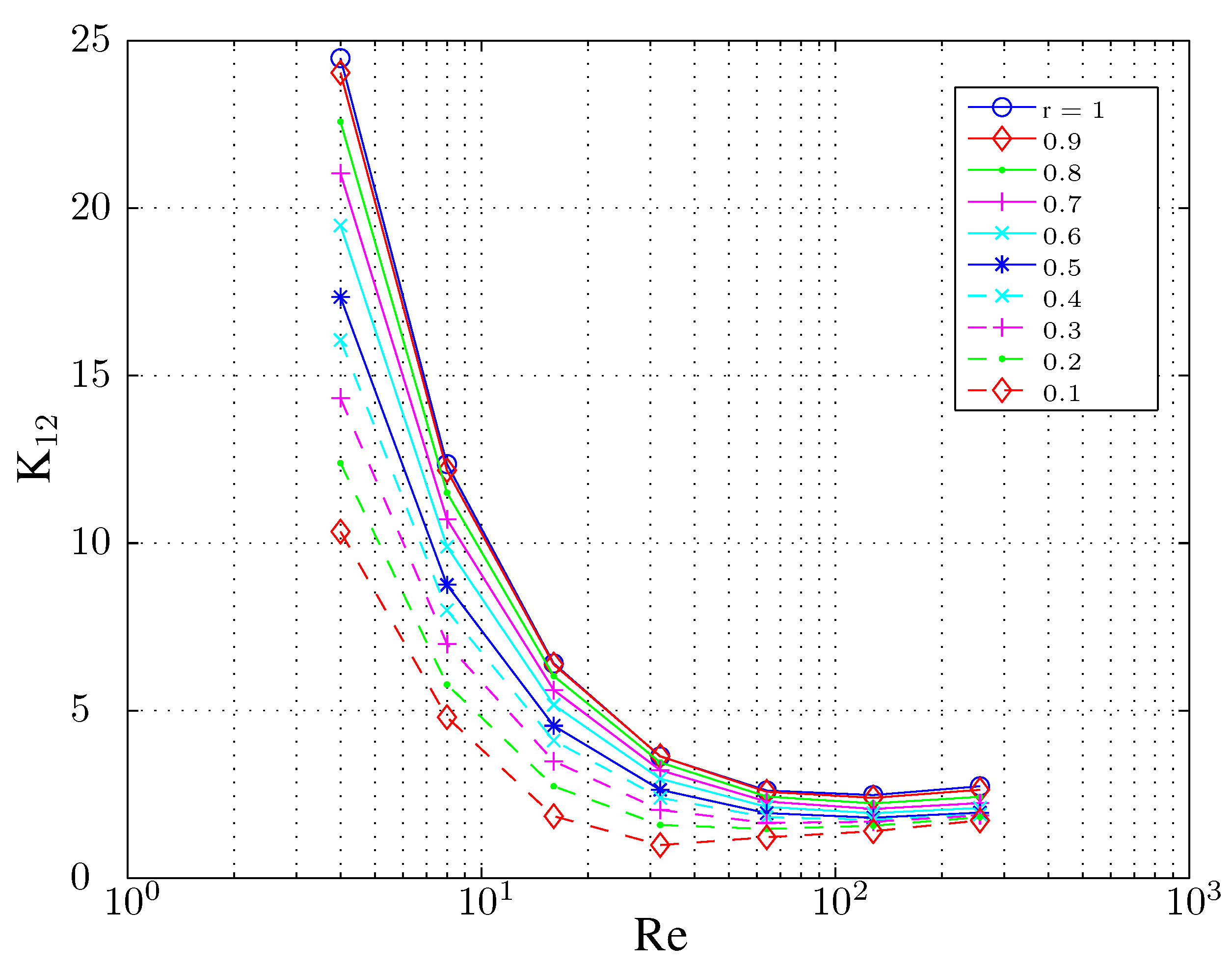

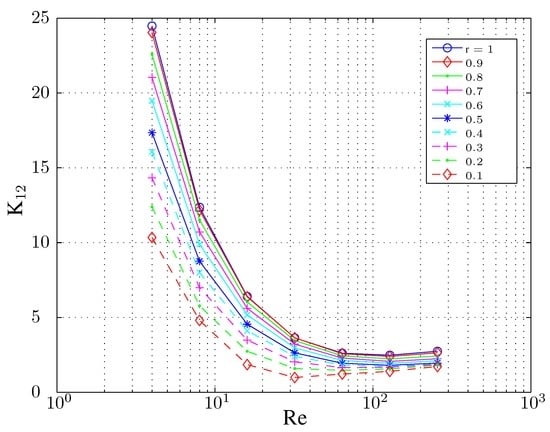

**Figure 11.**Head change coefficient ${K}_{12}$ for the partial flow with ${\dot{m}}_{12}$; more details in [51].

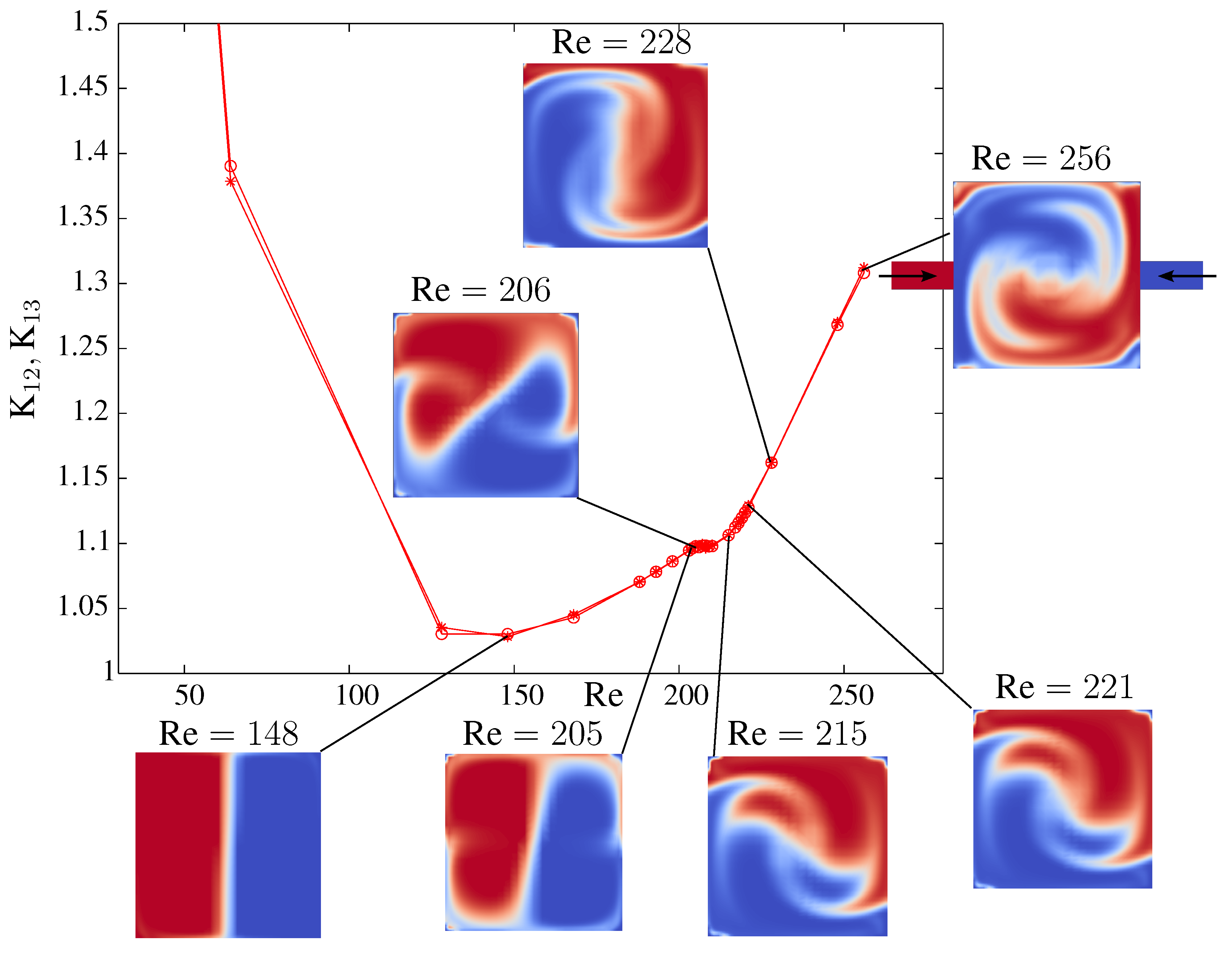

**Figure 12.**Head change coefficients for engulfed and symmetric flows. Onset of engulfment at $\text{Re}>205$. Small pictures show indicator field a at the end of the combining duct.

#### 5.4. Loss Coefficients for Compressible Flows

- (1)
- Density changes due to variations in pressure and temperature, and thus, there is no longer a fully developed flow far upstream and downstream of a conduit component.
- (2)
- The impact of a component in terms of an additional entropy generation due to the component again can be cast into the three parts: $\mathsf{\Delta}{\dot{S}}_{\text{irr,u}}$, ${\dot{S}}_{\text{irr,c}}$ and $\mathsf{\Delta}{\dot{S}}_{\text{irr,d}}$; see Figure 1. While $\mathsf{\Delta}{\dot{S}}_{\text{irr,u}}$ is a finite value, due to the gradual deviation of ${\dot{S}}_{\text{irr}}^{\u2034}$ from the undisturbed value, $\mathsf{\Delta}{\dot{S}}_{\text{irr,d}}$ is no longer finite, since ${\dot{S}}_{\text{irr}}^{\u2034}$ in the downstream part does not return to its undisturbed value. There is, however, a certain fixed shift, $\mathsf{\Delta}x$, in the streamwise coordinate by which $\mathsf{\Delta}{\dot{S}}_{\text{irr,d}}$ becomes finite again, and ${\dot{S}}_{\text{irr}}$, due to the component, is recovered.
- (3)
- For incompressible, flow K according to Equation (10) could be called the “head loss coefficient”, and it could be immediately attributed to the specific dissipation in the flow field due to the validity of Equation (9). For compressible flow, still, K according to Equation (10) can be used as a “loss coefficient”. It should be named the “exergy loss coefficient”, however, since exergy and not total head is the quantity that gets lost, and the (exergy) loss cannot be fully attributed to the specific dissipation; for details see [54].Since, however, exergy is related to the ambient temperature, a “reference exergy loss coefficient”:$${\text{K}}_{\text{RE}}=\frac{{T}_{\text{R}}}{\frac{{u}_{\text{m}}^{2}}{2}\dot{m}}{\dot{S}}_{\text{irr}}$$$${\text{K}}_{\text{E}}=\frac{{T}_{\infty}}{{T}_{\text{R}}}{\text{K}}_{\text{RE}}$$

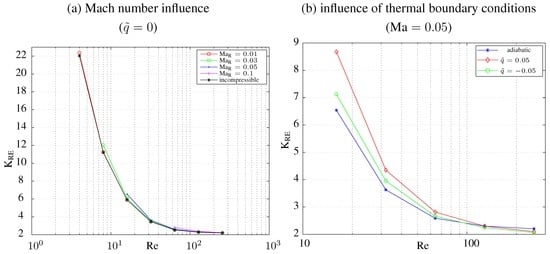

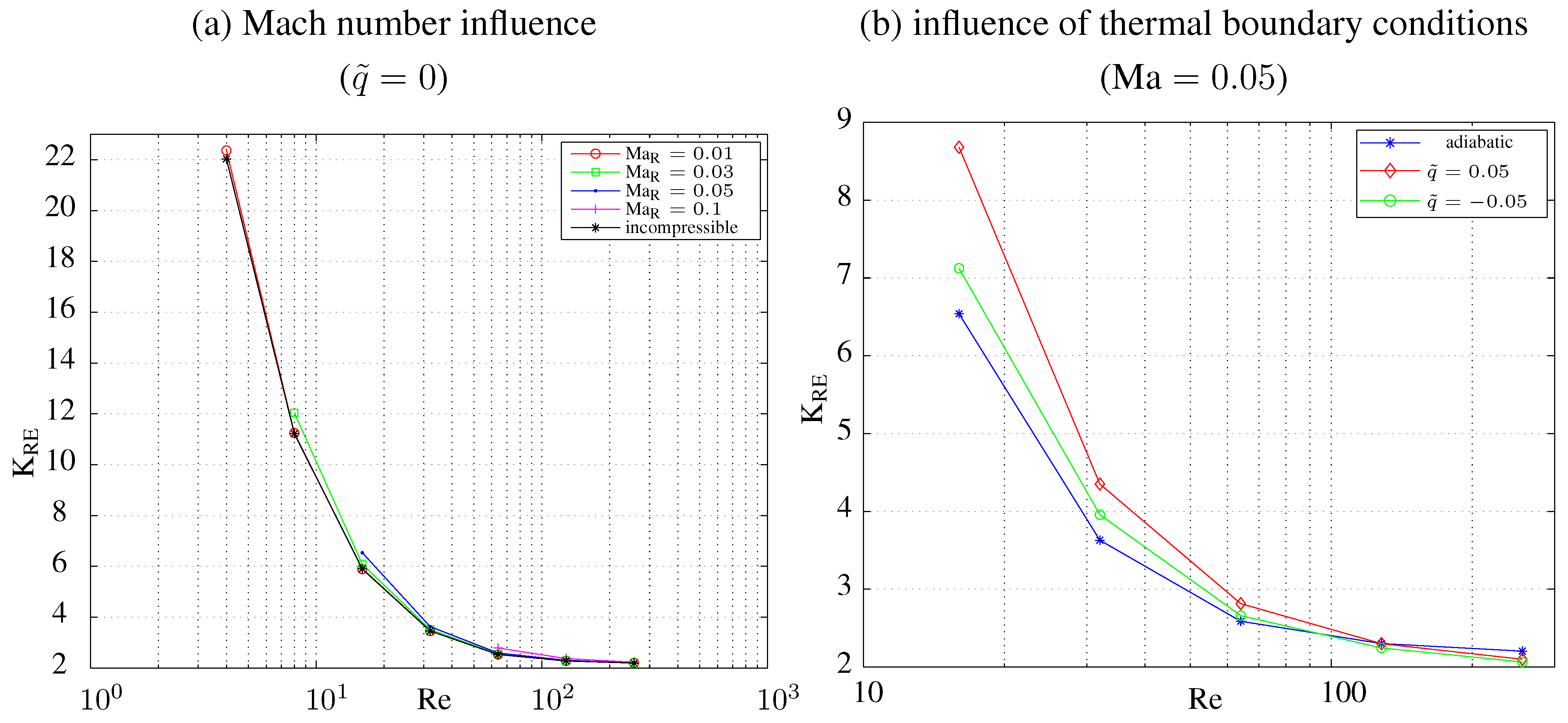

**Figure 13.**Reference exergy loss coefficients for compressible flow; more details in [54].

#### 5.5. Loss Coefficients for Unsteady Flows

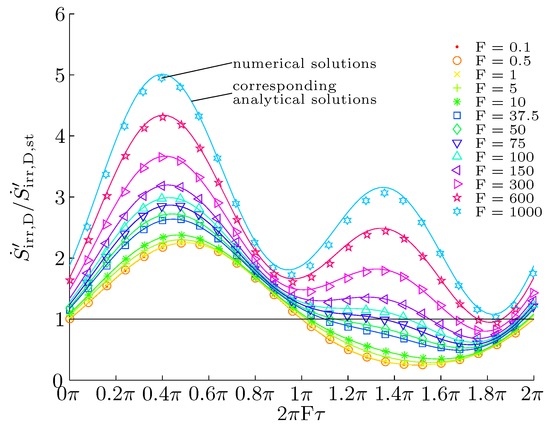

**Figure 14.**Cross-section entropy generation in a circular duct along one period.$\dot{M}$, according to Equation (37) with ${\dot{\text{M}}}_{\text{A}}=0.5$F: nondimensional frequency data taken from [55].

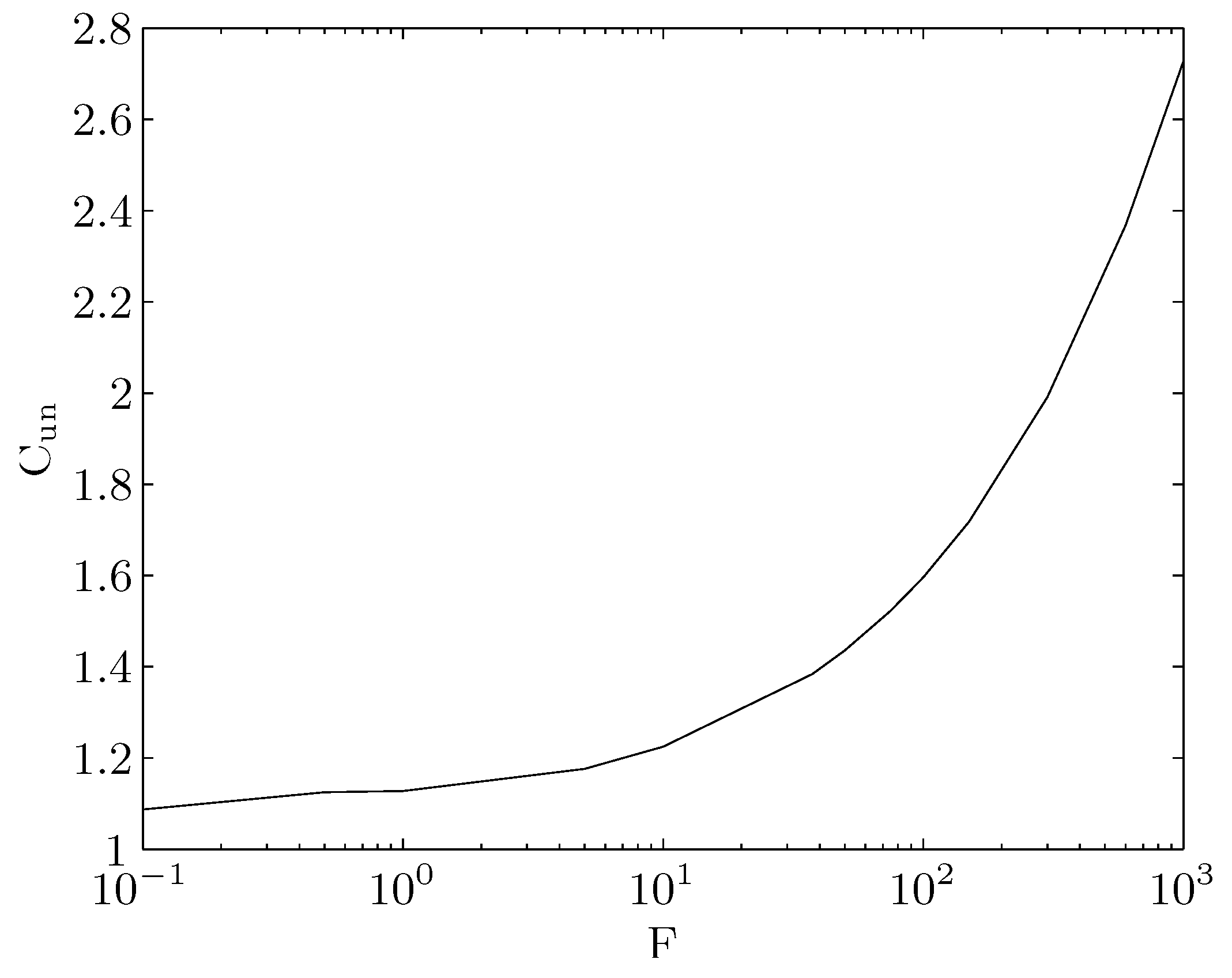

**Figure 15.**Unsteadiness coefficient for the mass flow rate of Figure 14.

## 6. Flow with Heat Transfer

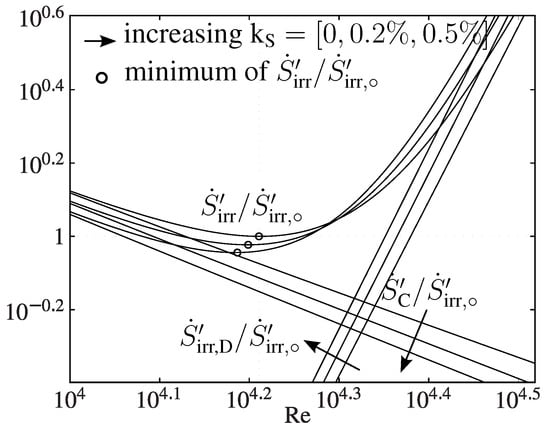

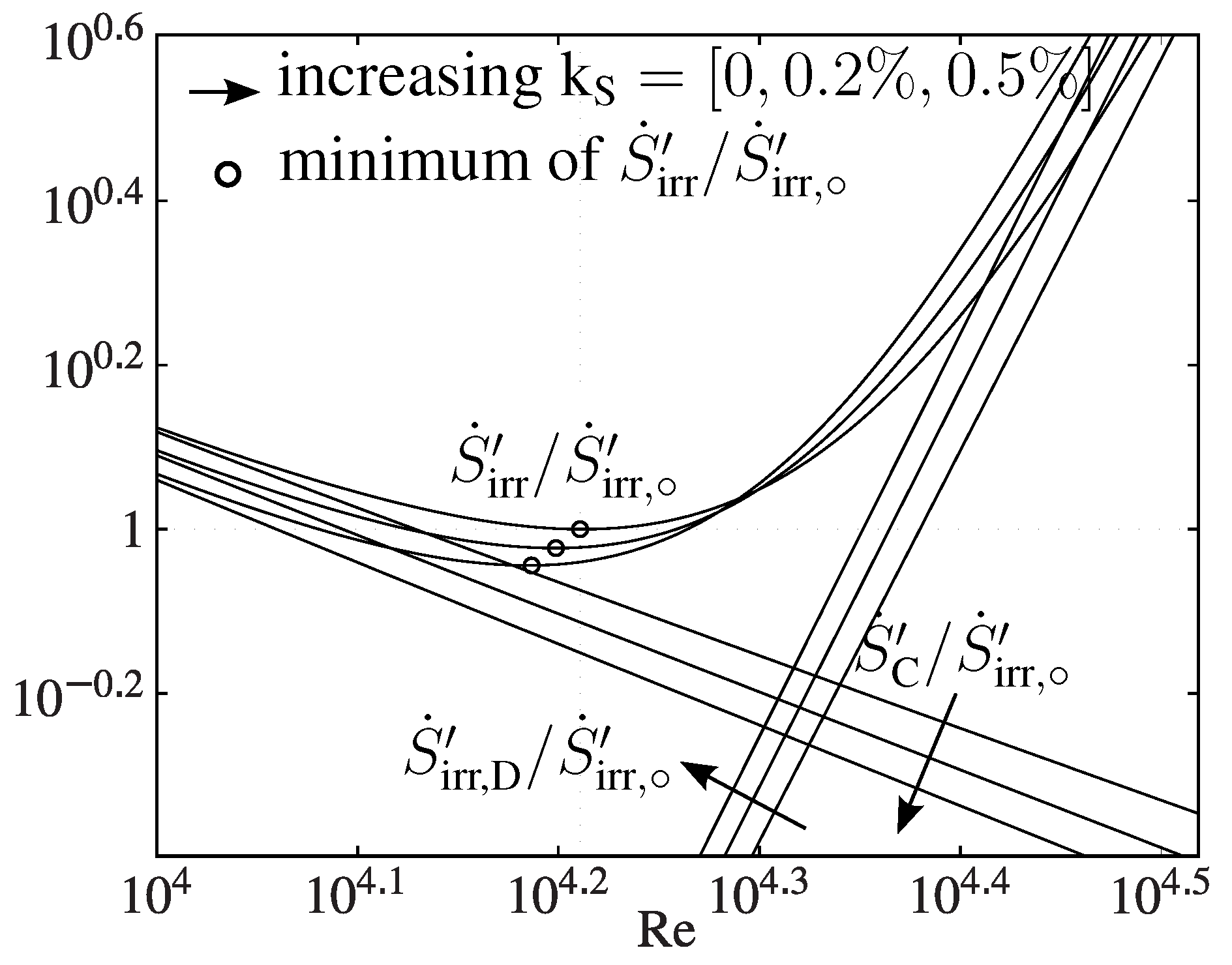

**Figure 16.**Influence of wall roughness ${\text{k}}_{\text{S}}\le 0.5$ on the entropy generation rates; all values refer to ${\dot{S}}_{\text{irr},\circ}^{\prime}$ (at ${\text{Re}}_{\text{opt,s}}$).

## 7. Conduit Components As Part of a System

- ${\text{N}}_{i}=0$: reversible energy transfer operation;
- ${\text{N}}_{i}=1$: energy transfer operation that completely devaluates the energy (rate).

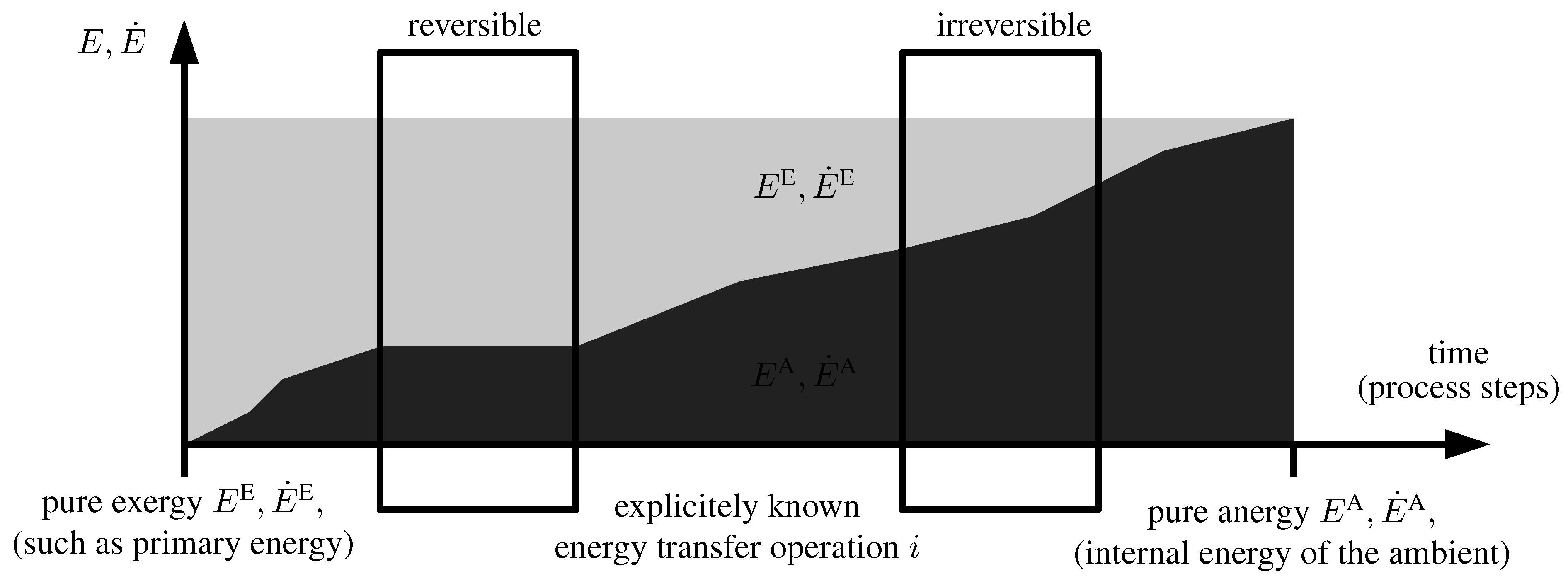

**Figure 17.**Energy devaluation by consecutive energy transfer operations illustrated by the decrease of exergy during the energy transfer operations. Progress in time for finite energies (progress in process steps for finite energy rates).

## 8. The Second Law Analysis Based on DNS Results for Turbulent Flows

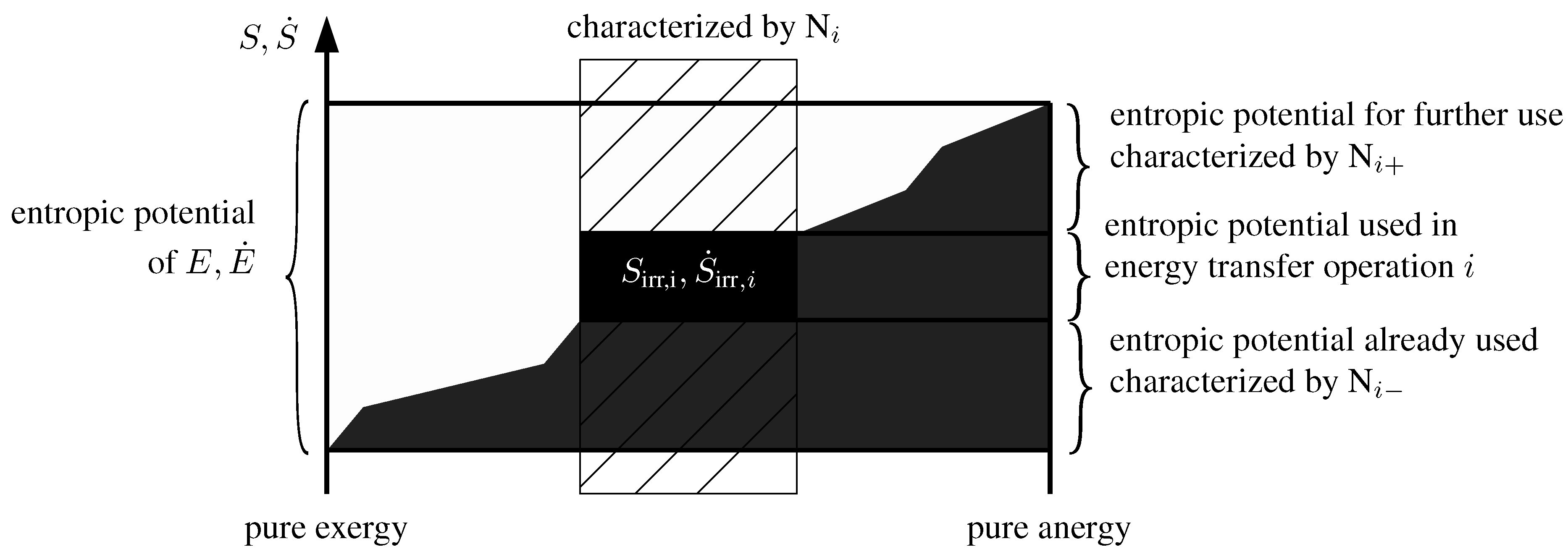

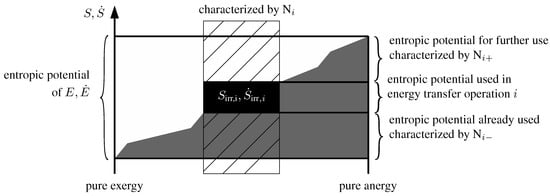

**Figure 18.**The entropic potential and its use on the way the energy becomes part of the internal energy of the environment; here, the contribution of an energy transfer operation, i.

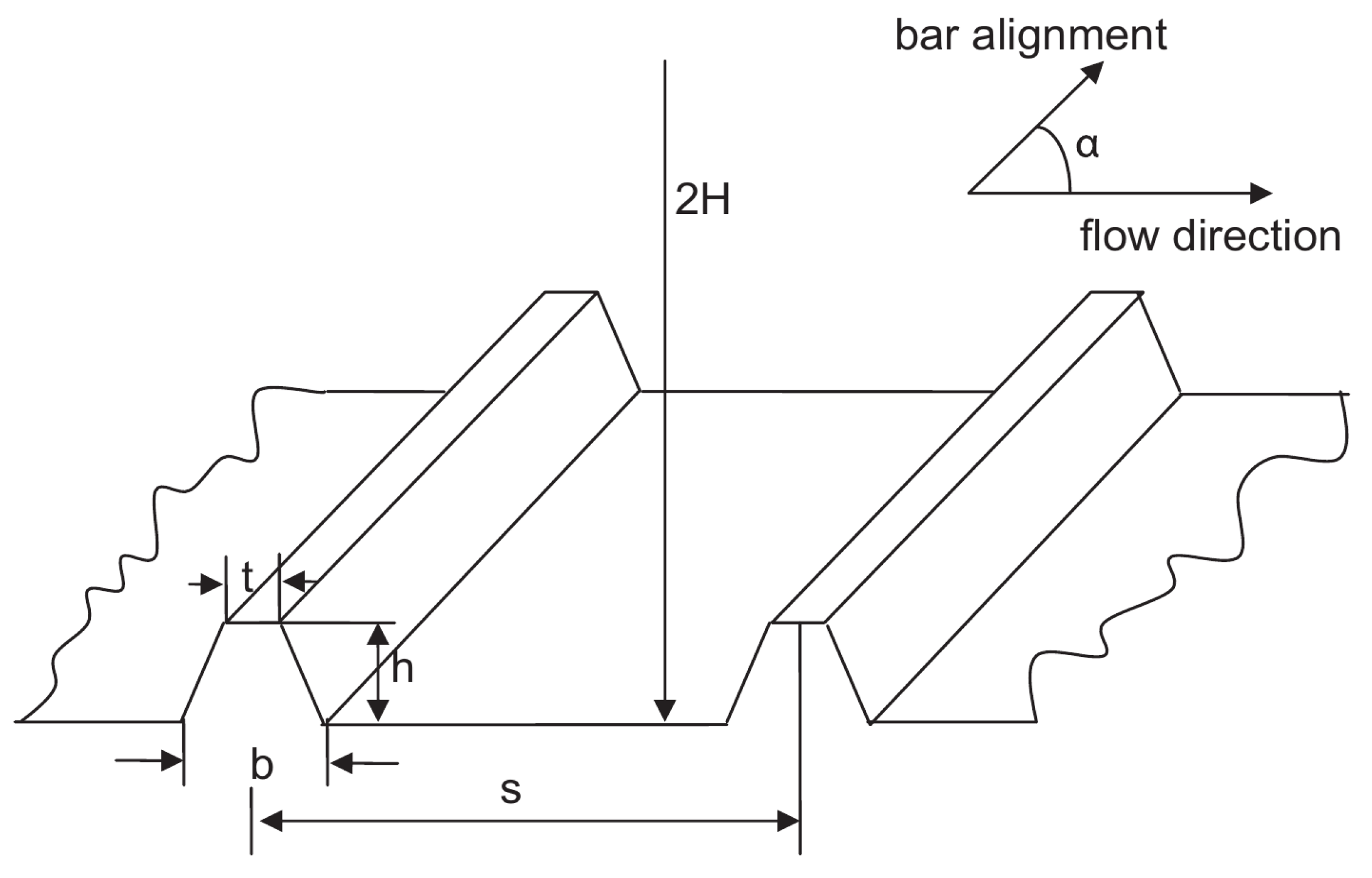

**Figure 19.**Geometrical arrangement of general regular wall roughness. H: Half channel height; h: Height of the roughness elements; b: Bottom width of the roughness elements; t: Top width of the roughness elements; s: Spacing of the roughness elements; α: Inclination angel with respect to the flow direction.

Test Case | $h/H$ | $h/s$ | $h/b$ | $t/b$ | α | Ref. | |
---|---|---|---|---|---|---|---|

SW | - | - | - | - | - | smooth wall | [66] |

R | $0.034$ | $0.14$ | 1 | 1 | 90 degrees | ||

obstacles | |||||||

B1 | $0.01$ | $0.2$ | 10 | 1 | 0 degrees | [67] | |

B2 | 0.02 | $0.4$ | 20 | 1 | 0 degrees | ||

B3 | 0.03 | $0.6$ | 30 | 1 | 0 degrees | ||

B4 | 0.04 | $0.8$ | 40 | 1 | 0 degrees | ||

B5 | 0.05 | $0.4$ | 20 | 1 | 0 degrees | ||

blades | |||||||

W1 | $0.02$ | $0.4$ | $0.866$ | 0 | 0 degrees | ||

W2 | 0.02 | $0.4$ | $1.866$ | 0 | 0 degrees | ||

wedges |

**Figure 20.**Conventionally rough wall: local change of entropy generation rate minus this quantity for a smooth wall (Re = 5,600); further details in [66].

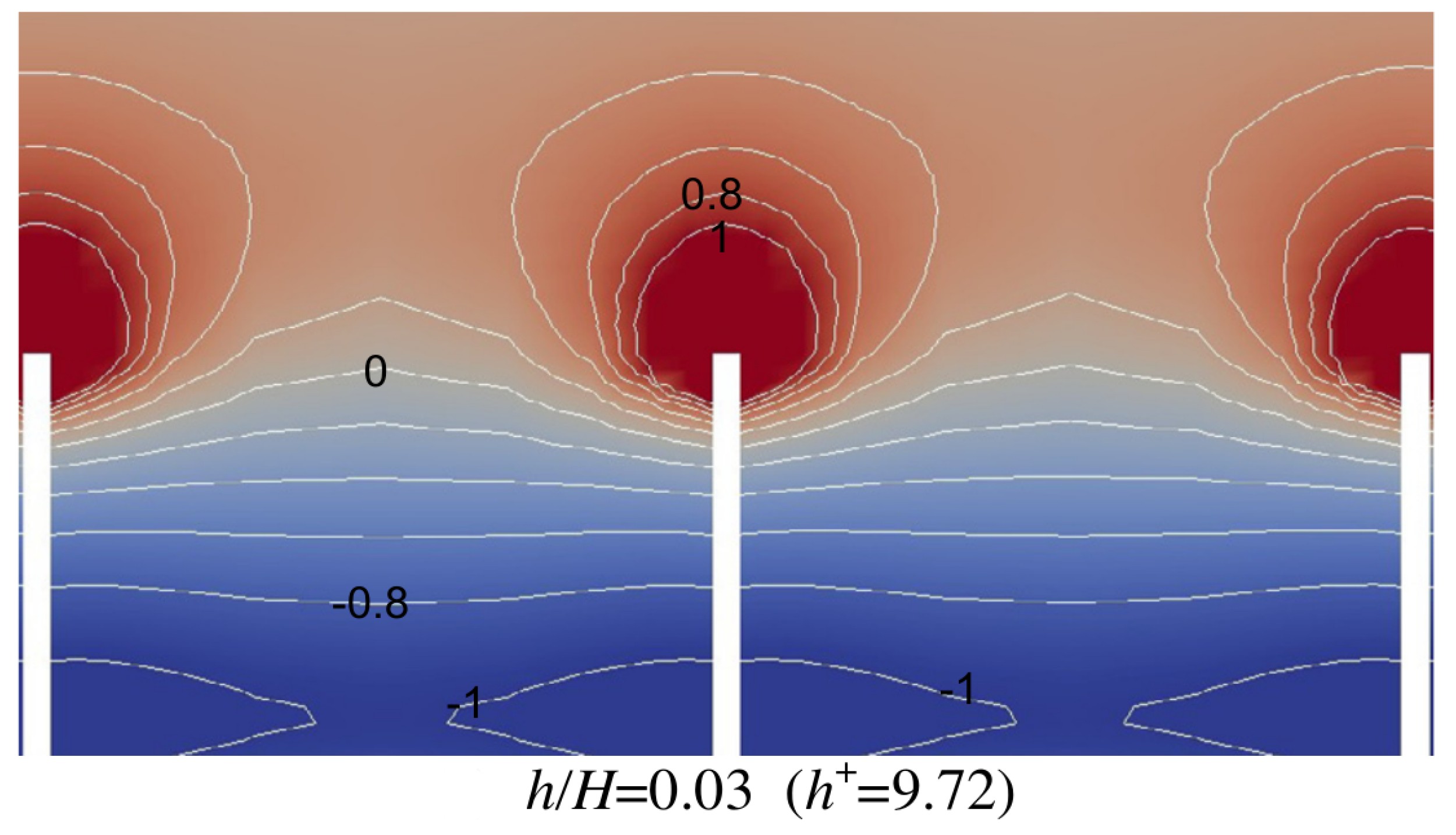

**Figure 21.**Shark skin-textured walls: Local change of entropy generation rates minus this quantity for a smooth wall (Re = 5,600); further details in [67].

## 9. Conclusions
